XL1
MULTI-LINE LASER
INSTRUCTION MANUAL
2
Read the following safety instructions before
attempting to operate this product.
Keep these instructions in a safe place or store
in the carry case for future reference.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE.
WARNING: Read and understand all
instructions.
▪ Use the laser only with the specically
designated batteries.
▪ Store the laser out of reach of children and
other untrained persons. Lasers are dangerous
in the hands of untrained users.
▪ Use only accessories that are recommended
for your model.
▪ Tool service must be performed only by
qualied repair personnel. Repairs, service
or maintenance performed by unqualied
personnel will void the warranty. Only
approved and authorised service technicians
can carry out warranty repairs.
▪ Do not use optical tools such as a telescope
or transit to view the laser beam. Serious eye
injury could result.
▪ Do not place the laser in a position which
may cause anyone to intentionally or
unintentionally stare into the laser beam.
Serious eye injury could result.
▪ Do not position the laser near a reective
surface which may reect the laser beam
toward anyone’s eyes. Serious eye injury
could result.
▪ Do not use optical tools to view the laser
beam.
!
SAFETY
3
▪ Do not set up the tool at a position where
the laser beam can cross any person at head
height.
▪ Do not let children come in contact with the
laser.
▪ Turn the laser o when it is not in use. Leaving
the laser on increases the risk of staring into
the laser beam.
▪ Do not operate the laser around children or
allow children to operate the laser. Serious eye
injury may result.
▪ Do not remove or deface warning labels.
▪ Position the laser securely on a level surface.
Damage to the laser or serious injury could
result if the laser falls.
WARNING: DO NOT DISASSEMBLE
THE LASER. There are no user serviceable
parts inside. Disassembling the laser will
void all warranties on the product. Do not
modify the product in any way. Modifying
the tool may result in hazardous laser
radiation exposure.
CAUTION: Class 2 Laser Product
▪ Never look into the laser beam directly and
intentionally.
▪ Do not use optical tools to view the laser
beam.
▪ Do not set up the tool at a position where
the laser beam can cross any person at
head height.
▪ Do not let children come in contact with
the laser.
!
!
4
Carry case
Alkaline batteries
Tripod spacer
General XL1
ITEM CHECKLIST
Please ensure the following items are included with your laser level.
If anything is missing please contact your retailer.
Laser glasses
Laser target
INCHES
CM
1
1
2
3
4
5
6
7
2
3
5

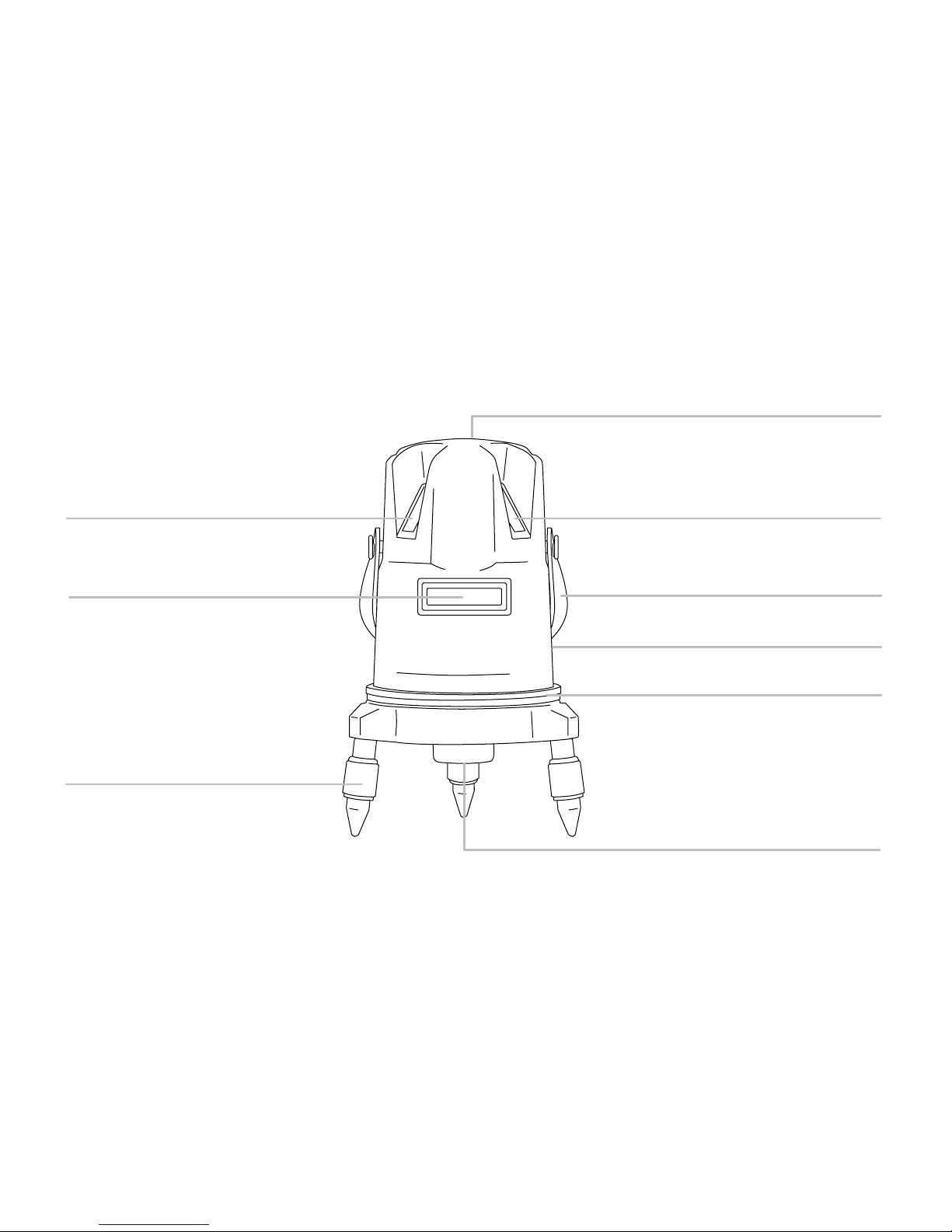

LASER OVERVIEW
Horizontal laser port
Vertical laser port Vertical laser port
5/8” x 11 tripod thread
Adjustable support legs
360° protractor base
Carry strap
Control panel and bubble vial
Power switch
6
LASER CONTROL PANEL
LED power indicator
Horizontal line
Vertical lines
LED pulse mode indicator
Pulse mode
7
DETECTOR OVERVIEW
NOTE: The detector is an optional accessory which can be purchased from your retailer.
Speaker
Sound on / off
LED speaker indicator
Laser sensor
Power
Bubble vial
LED power indicator
LED direction indicator
LED direction indicator
LED centre indicator
Bubble vial
8
SET UP
OPERATION
▪ Select a place as close as practical
to the work site. Ensure the location is
clear of traffic.
▪ Place the laser on a level surface such
as a bench or mount.
▪ To turn the instrument on, turn the power
switch to the “on” position. Self levelling
will commence and the horizontal beam
will activate.
▪ If the instrument is outside the self
levelling range the instrument will not level
causing the laser beam to flash on and off
repeatedly. If this occurs, reposition the
instrument onto a level surface until the
instrument can level off.
▪ Press the V (vertical lines) and H
(horizontal line) buttons on the control
panel to cycle through the active beams.
USING YOUR LASER
POWER SUPPLY
BATTERY REPLACEMENT
▪ The instrument is powered by three AA
alkaline batteries.
▪ Unscrew and remove the battery cover
door and the batteries.
▪ Insert the batteries according to polarity
and replace and screw in the battery
door.
9
▪ Press the pulse mode button on the top of
the instrument to enter into pulse mode.
▪ Switch the detector on by pressing the
power button. The speaker will beep
indicating the instrument is operating.
▪ Move the detector into the path of the laser
beam.
▪ Hold the detector upright for horizontal
beams. Rotate the detector 90° for vertical
beams.
▪ The LED direction indicators will indicate
the position of the laser beam. The centre
LED will indicate alignment with the beam.
USING YOUR DETECTOR
10
MOUNTING TO A CONSTRUCTION TRIPOD
▪ Stand the tripod on a level surface
with legs spaced for stability.
▪ Screw the tripod spacer into the base
of the instrument until firm.
▪ Thread the flat disc onto the tripod
yoke.
▪ Push the tripod yoke through the hole
of the tripod spacer and screw into
place.
NOTE: Instructions are for a domed or
flat construction tripod only.
NOTE: attaching the instrument to a
tripod without the correct tripod spacer
may cause damage.
NOTE: The construction tripod is
an optional accessory which can be
purchased from your retailer.
11
TROUBLE SHOOTING
Error Cause & Solution
Laser does not turn on
▪ Check the batteries. They may be in the wrong way or need
replacing.
▪ Check the battery compartment for signs of damage.
Ensure they are clean and not bent.
Laser does not remain on
for long periods of use.
▪ Check the batteries.
▪ Check the battery compartment for signs of damage.
Ensure they are clean and not bent.
Laser does not level off
▪ Instrument may be outside its self levelling range.
Adjust the instrument or tripod so it is level.
▪ Instrument may have low power.
▪ Instrument may have impact damage.
12
CARE AND MAINTENANCE
▪ This is a precision measuring instrument
and should always be handled with care and
transported within the carry case provided.
▪ Always turn the unit off before transporting
the instrument or moving around the job
site.
▪ Reflective surfaces such as glass may
reflect the laser beam, causing two beams
to strike the detector at the same time. This
may result in inaccurate reference points.
▪ Whenever possible, store the instrument
in a dry, shady location.
▪ Calibration of the instrument is
recommended: every six months, if ongoing
accurate levelling is required, or an impact
has occurred.
▪ The operator should check the accuracy
of the instrument before precision levelling
is attempted. Failure to do so may result
in inaccurate measurements.
▪ Clean the instrument with a dry, soft
cloth after use in dusty, damp or wet
conditions before storing.
▪ Smudges and fingerprints may be
removed with a damp tissue or a soft, lint-
free cloth.
13
WARRANTY
AUSTRALIA
“Our goods come with guarantees that
cannot be excluded under the Australian
Consumer Law. You are entitled to a
replacement or refund for a major failure
and for compensation for any other
reasonably foreseeable loss or damage.
You are also entitled to have the goods
repaired or replaced if the goods fail to be
of acceptable quality and the failure does
not amount to a major failure.”
For more information please visit
consumerlaw.gov.au
The General XL1 comes with a 3 (three) year manufacturers warranty.
NEW ZEALAND
For more information please visit
consumerprotection.govt.nz
14
To assist you with any queries or technical
questions please contact customer support
Australia: 1300 658 338
New Zealand: 0800 367 527
CUSTOMER SUPPORT
15
SPECIFICATIONS
Specications General XL1
Product code 70019
Warranty 3 Years
Accuracy ±2mm at 10m
Operating range 50m (with optional detector)
Levelling range ±5°
Laser class 2 Red
Battery life 10 hours
Battery type 3x 1.5v AA
Vertical lines 2
Horizontal lines 1
IP rating 65
Weight (kg) 0.90
Dimensions (mm) 190 x 115 x 115
www.spoton.com.au
