Foxconn G31MV-K User Manual

G31MV Series

Motherboard

User’s Manual

Statement:

This manual is the intellectual property of Foxconn, Inc. Although the information in this manual may be changed or modified at any time, Foxconn does not obligate itself to inform the user of these changes.

Trademark:

All trademarks are the property of their respective owners.

Version:

User’s Manual V1.0 for G31MV Series motherboard.

P/N: 3A220SY00-000-G

Symbol description:

			T	I O	N	! Caution : refers to important information that can help you to use motherboard
		U
	A
C

better, and tells you how to avoid problems.

		NI
	R		N
A				G!
W

Warning : indicating a potential risk of hardware damage or physical injury may exist.

WEEE:

The use of this symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased this product.

More information:

If you want more information about our products, please visit Foxconn’s website: http://www.foxconnchannel.com

© All rights reserved.

All trade names are registered trademarks of respective manufacturers listed.

All images are for reference only, please refer to the physical motherboard for specific features.

Declaration of conformity

HON HAI PRECISION INDUSTRY COMPANY LTD

66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,

TAIPEI HSIEN, TAIWAN, R.O.C.

declares that the product

Motherboard G31MV/G31MV-K

is in conformity with

(reference to the specification under which conformity is declared in accordance with 89/336 EEC-EMC Directive)

■ EN 55022:1998/A2: 2003 Limits and methods of measurements of radio disturbance characteristics of information technology equipment

■ EN 61000-3-2/:2000 Electromagnetic compatibility (EMC)

Part 3: Limits

Section 2: Limits for harmonic current emissions (equipment input current <= 16A per phase)

■ EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)

Part 3: Limits

Section 2: Limits of voltage fluctuations and flicker in low voltage supply systems for equipment with rated current <= 16A

■ EN 55024/A2:2003 Information technology equipment-Immunity characteristics limits and methods of measurement

Signature :

Place / Date : TAIPEI/2008

Printed Name : James Liang

Declaration of conformity

Trade Name:	FOXCONN
Model Name:	G31MV/G31MV-K
Responsible Party:	PCE Industry Inc.
Address:	458 E. Lambert Rd.
	Fullerton, CA 92835
Telephone:	714-738-8868
Facsimile:	714-738-8838
Equipment Classification:	FCC Class B Subassembly
Type of Product:	Motherboard
Manufacturer:	HON HAI PRECISION INDUSTRY
	COMPANY LTD
Address:	66 , CHUNG SHAN RD., TU-CHENG
	INDUSTRIAL DISTRICT, TAIPEI HSIEN,
	TAIWAN, R.O.C.
Supplementary Information:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Tested to comply with FCC standards.

Signature :

Date : 2008

Installation Precautions

		NI
	R		N
A				G!
W

■Electrostatic discharge (ESD) is the sudden and momentary electric current that flows between two objects at different electrical potentials. Normally it comes out as a spark which will quickly damage your electronic equipment. Please wear an electrostatic discharge (ESD) wrist strap when handling components such as a motherboard, CPU or memory.

■Ensure that the DC power supply is turned off before installing or removing CPU, memory, expansion cards or other peripherals. It is recommended to unplug the AC power cord from the power supply outlet. Failure to unplug the power supply cord may result in serious damage to your system.

			T	I	O	N
		U
	A
C

!

Please carefully read the following procedures to install your computer :

■It is suggested to select high-quality, certified fans in order to avoid damage to the motherboard and CPU due to high temperature. Never turn on the computer if the CPU fan is not properly installed.

■We cannot guarantee that your system can operate normally when your CPU/Memory is overclocked. Normal operation depends on the overclocking capacity of your device.

■If there is any, when connecting USB, audio, 1394a, RS232 COM, IrDA or

S/PDIF cables to the internal connectors on the motherboard, make sure their pinouts are matching with the connectors on the motherboard. Incorrect connections might damage the motherboard.

■When handling the motherboard, avoid touching any metal leads or connectors.

■If there is a PCI Express x16 graphics card installed in your system, we recommend using a 24-pin ATX power supply to get the best performance.

■Before turning on the power, please make sure the power supply AC input voltage setting has been configured to the local standard.

■To prevent damage to the motherboard, do not allow screws to come in contact with the motherboard circuit or its components. Also, make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.

■If you are uncertain about any installation steps or have a problem related to

the use of the product, please consult a certified computer technician.

Table of Contents
Chapter 1 Product Introduction
Product Specifications..................................................................	2
Layout...........................................................................................	4
Back Panel Connectors................................................................	5
Chapter 2 Hardware Install
Install the CPU and CPU Cooler...................................................	8
Install the Memory.......................................................................	11
Install an Expansion Card...........................................................	13
Install other Internal Connectors.................................................	14
Jumpers......................................................................................	17
Chapter 3 BIOS Setup
Enter BIOS Setup.......................................................................	20
Main Menu..................................................................................	20
System Information.....................................................................	22
Fox Central Control Unit.............................................................	24
Advanced BIOS Features...........................................................	31
Advanced Chipset Features........................................................	33
Integrated Peripherals.................................................................	35
Power Management Setup.........................................................	40
PC Health Status........................................................................	43
Load Optimized Defaults.............................................................	45
Set Supervisor Password............................................................	45
Set User Password.....................................................................	45
Save & Exit Setup.......................................................................	45
Exit Without Saving.....................................................................	45
Chapter 4 CD Instruction
Utility CD content........................................................................	47
Install driver and utility................................................................	48
FOX ONE
Main Page.............................................................................	50

CPU Control..........................................................................	54
Frequency Control.................................................................	56
Limit Setting...........................................................................	57
Voltage Control......................................................................	59

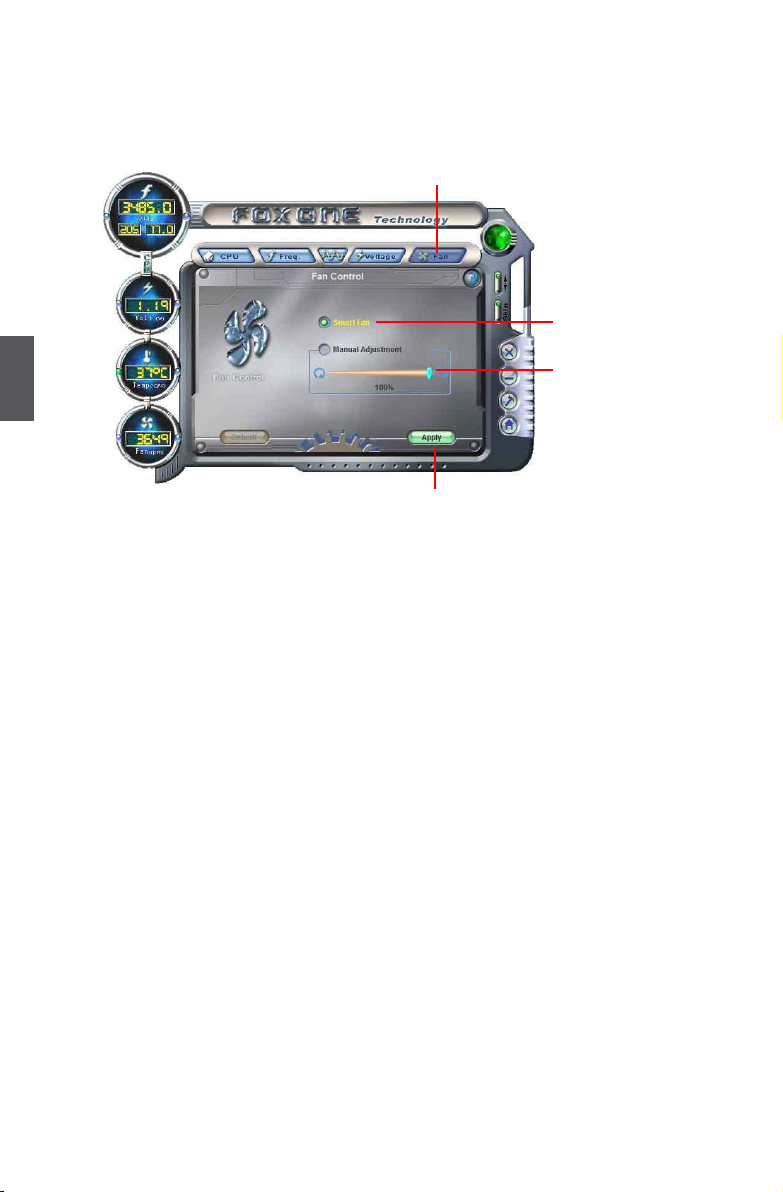

Fan Control............................................................................	60
FOX LiveUpdate
Local Update.........................................................................	61
Online Update........................................................................	63
Configure ..............................................................................	66
About & Help.........................................................................	68
FOX LOGO.................................................................................	69
FOX DMI.....................................................................................	70

Technical Support :

Support

Website :

http://www.foxconnchannel.com

Support Website :

http://www.foxconnchannel.com/support/online.aspx or

http://www.foxconnsupport.com

Worldwide E-mail Support : [e-mail]

CPU, Memory, VGA Compatibility Supporting Website : http://www.foxconnchannel.com/product/Motherboards/compatibility.aspx

Thank you for buying Foxconn G31MV Series motherboard. Foxconn products are engineered to maximize computing power, providing only what you need for break-through performance.

With advanced overclocking capability and a range of connectivity features for today multi-media computing requirements, G31MV/ G31MV-K enables you to unleash more power from your computer.

This chapter includes the following information:

■Product Specifications

■Layout

■Back Panel Connectors

1

1-1 Product Specifications

CPU			Support LGA775 socket Intel® CPU:
			CoreTM 2 Duo / Pentium® Dual-Core / Celeron® processors
			Future-proof supporting for 45nm processors
	Front Side Bus		1333/1066/800MHz FSB
Chipset			North Bridge : Intel® G31 Chipset
			South Bridge : Intel® ICH7
Memory			2 x 240-pin DDR2 DIMM sockets
			Support up to 4GB of system memory
			Dual channel DDR2 800/667MHz architecture
		Audio	Realtek 6-channel audio chip
			High Definition Audio
			2/4/5.1-channel
			Support Jack-Sensing function
LAN			Realtek 10/100Mb/s LAN chip (G31MV)
			Realtek Gigabit LAN chip (G31MV-K)
Expansion Slots			1 x PCI Express x16 slot
			1 x PCI slot
		Onboard Serial ATA	2 x SATA connectors
			300MB/s data transfer rate
			Support hot plug and NCQ (Native Command Queuing )
USB			Support hot plug
			Support up to 8 x USB 2.0 ports (4 rear panel ports, 2 onboard USB
			headers supporting 4 extra ports)
			Support USB 2.0 protocol up to 480Mb/s
Internal Connectors			1 x 24-pin ATX main power connector
			1 x 4-pin ATX 12V power connector
			1 x Floppy disk drive connector
			1 x IDE connector
			2 x SATA connectors
			2 x USB 2.0 connectors (supporting 4 x USB devices)
			1 x CPU fan header (4-pin)
			1 x System fan connector (4-pin)
			1 x Front Panel connector
			1 x CD_IN connector
			1 x Speaker connector
			1 x Front Audio connector
			1 x IrDA connector
			1 x Chassis Intrusion alarm header (INTR)
Back Panel			1 x PS/2 keyboard port
Connectors			1 x PS/2 mouse port
			1 x Serial Port
			4 x USB 2.0 ports
			1 x RJ-45 LAN port

			1 x VGA port
			6-channel Audio ports
		Hardware Monitor	System voltage detection
			CPU/System temperature detection
			CPU/System fan speed detection
			CPU/System overheating warning
			CPU/System fan speed control
	PCI Express x16		Support 4GB/s (8GB/s concurrent) bandwidth
			Low power consumption and power management features
	Green Function		Support ACPI (Advanced Configuration and Power Interface)
			Support S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
			(suspend to disk), and S5 (soft - off)
	Bundled Software		FOX ONE
			FOX LiveUpdate
			FOX LOGO
			FOX DMI
Operating System			Support for Microsoft® Windows® Vista/XP/2000
Form Factor			Micro ATX Form Factor, 9.6 inches x 7.2 inches (24.4cm x 18.3cm)

1

1

1-2 Layout

8

7

6

5

4

3

2

1

9

10

					23
11
					22
					21
12					20
13
14	15	16	17	18	19

1.	4-pin ATX 12V Power Connector	13.	Speaker Connector
2. USBPWR2 Jumper		14.	Front Panel Connector
3. SYS_FAN Header		15.	SATA Connectors
4.	CD_IN Connector	16. Clear CMOS Jumper
5.	IrDA Connector	17.	Chassis Intrusion Alarm Header
6.	PCI Express x16 Slot	18.	IDE Connector
7.	Front USB Connectors	19.	24-pin ATX Power Connector
8. USBPWR1 Jumper		20. DDR2 DIMM Slots
9.	PCI Slot	21.	CPU_FAN Header
10.Front Audio Connector		22.	North Bridge: Intel® G31 chipset
11. Floppy Connector		23. LGA 775 CPU Socket
12. South Bridge: Intel® ICH7

Note : The above motherboard layout is for reference only, please refer to the physical motherboard for detail.

1-3 Back Panel Connectors

PS/2 Mouse Port			LAN Port
1			7
				Line In
				Line Out
				Microphone
2	3	4	5	6
PS/2 Keyboard Port	Serial Port	VGA Port	USB Ports	Audio Ports

1

1.PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse.

2.PS/2 Keyboard Port

Use the lower port (purple) to connect a PS/2 keyboard.

3.Serial Port

This is output of RS232 COM1 port.

4.VGA Port

To connect with external display devices, such as monitor or LCD display.

5.USB Ports

The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as an USB keyboard/mouse, USB printer, USB flash drive and etc.

6.Audio Ports

For the definition of each audio port, please refer to the table below :

Port	2-channel	4-channel	5.1-channel
Blue	Line In	Rear Speaker Out*	Rear Speaker Out*
Green	Line Out	Front Speaker Out	Front Speaker Out
Pink	Microphone In	Microphone In	Center/Subwoofer Out*

*: Please refer to Chapter 4, and run the Realtek audio driver (in CD) to assign the audio output ports for different applications of 2/4/5.1 channels. The fundamental audio outputs are depicted in the table above.

1

7. RJ-45 LAN Port

The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.

	LAN Type	Left: Active			Right: Link
		Status	Description	Status	Description
		Off	No Link	Off	No Link
	100M	Green	Data Activity	Orange	10/100Mb/s Connection
		Blinking
		Off	No Link	Off	No Link
	1000M	Green		Off	10Mb/s Connection
			Data Activity	Green	100Mb/s Connection
		Blinking
				Orange	1000Mb/s Connection

			T	I	O	N
		U
	A
C

!G31MV supports 10/100Mb/s Ethernet. G31MV-K supports 1Gb/s Ethernet.

Active	Link
LED	LED

This chapter introduces the hardware installation process, including the installation of the CPU, memory, power supply, slots, pin headers and the mounting of jumpers. Caution should be exercised during the installation of these modules. Please refer to the motherboard layout prior to any installation and read the contents in this chapter carefully.

This chapter includes the following information :

■Install the CPU and CPU Cooler

■Install the Memory

■Install an Expansion Card

■Install other Internal Connectors

■Jumpers

This motherboard supports low power energy-saving CPUs (drawing less than

65W under normal operation).

This currently includes most Intel® CoreTM 2 Duo processors, and all Pentium® Dual-Core and Celeron® models.

CPUs with a power rating higher than 65W are not supported, and will result in automatic shut-down of the system.

Please visit this website for more supporting information about CPU, Memory and VGA for your motherboard : http://www.foxconnchannel.com/product/Motherboards/compatibility.aspx

2-1 Install the CPU and CPU Cooler

			T	I	O	N
		U
	A
C

!

Read the following guidelines before you begin to install the CPU :

	■	Make sure that the motherboard supports the CPU.
2	■	Always turn off the computer and unplug the power cord from the power supply before
		installing the CPU to prevent hardware damage.
	■	Locate the Pin-1 of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or
		you may locate the notches on both sides of the CPU and alignment keys on the CPU
		socket.)
	■	Apply an even and thin layer of thermal grease on the surface of the CPU.
	■	Do not turn on the computer if the CPU cooler is not installed, otherwise overheating
		and damage of the CPU may occur.
	■	Set the CPU host frequency in accordance with the CPU specifications. It is not
		recommended that the system bus frequency be set beyond hardware specifications
		since it does not meet the standard requirements for the peripherals. If you wish to
		set the frequency beyond the standard specifications, please do so according to your
		hardware specifications including the CPU, graphics card, memory, hard drive, etc.
		Hyper-Threading Technology System Requirements:
		(Go to Intel's website for more information about the Hyper-Threading Technology)
	■	An Intel® CPU that supports HT Technology
	■	A chipset that supports HT Technology
	■	An operating system that is optimized for HT Technology
	■	A BIOS that supports HT Technology and has it enabled

Install the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

LGA775 CPU Socket

Alignment Key

Pin-1 corner of the CPU

Socket

LGA775 CPU

Notch

Pin-1 triangle marking of CPU

Follow the steps to install the CPU onto the CPU socket :

			T	I O	N	!
		U
	A
C							Before installing the CPU, make sure to turn off the computer and unplug the power
							cord from the power outlet to prevent damage to the CPU.

2

1. Remove protective socket cover.

2. Release the CPU socket lever.

3. Lift the metal cover on the CPU socket.

4. Check pin one marking (triangle) with the pin one corner of the CPU socket, align the CPU notches with the socket alignment keys and gently put the CPU onto the socket.

5. When CPU is properly seated, replace the metal cover and push the

CPU socket lever back to its locked position.

Install the CPU Cooler

Follow the steps below to correctly install the CPU cooler on the motherboard. (The following procedures use Foxconn cooler as the example.)

2

1. Apply and spread an even thermal grease on the surface of CPU.

3. Check the solder side of the motherboard, the push pin should be fixed as depicted in the picture.

3

2

1

2. Place the four bolts of the CPU cooler to the holes of the motherboard, push them straight down from the top, and the bolts will be fastened on the motherboard. That's it.

4. Attach the 4-wire CPU cooler connector to the CPU FAN header on the motherboard .

Release bolts of CPU cooler from motherboard :

1.Turning the push pin (bolt) along with the direction of arrow (counterclockwise).

2.Pull the push pin straight up.

3.Turning push pin clockwise to its default position.

			T	I O	N	!
		U
	A
C
							Use extreme care when removing the CPU cooler because the thermal grease may
							adhere to the CPU. Inadequately removing the CPU cooler may damage the CPU.

10

2-2 Install the Memory

			T	I	O	N
		U
	A
C

!Read the following guidelines before you begin to install the memory :

	■	Make sure that the motherboard supports the memory. It is recommended that memory
		of the same capacity, brand, speed, and chips be used.	2
	■	Always turn off the computer and unplug the power cord from the power outlet before
		installing the memory to prevent hardware damage.
	■	Memory modules have a foolproof design. A memory module can be installed in only
		one direction. If you are unable to insert the memory, switch the direction.

Dual Channel Memory Configuration

This motherboard provides two DDR2 memory sockets and supports Dual Channel Technology. When memory is installed, the BIOS will automatically check the memory in your system.

Two DDR2 memory sockets are divided into two channels :

Channel 0 : DIMM1

Channel 1 : DIMM2

The combinations of DIMM modules are :

	DIMM1	DIMM2
Single Channel	DS/SS	-
Single Channel	-	DS/SS
Dual Channel	DS/SS	DS/SS

(DS : Double Side, SS : Single Side, - : No Memory)

			T	I	O	N
		U
	A
C

!

It is recommended that memory of the same capacity, brand, speed, and chips be used and please select dual channel first to achieve optimum performance.

11

Installing a Memory

			T	I	O	N
		U
	A
C

2

!

Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. Be sure to install DDR2 DIMMs on this motherboard.

Pin-112

Notch

Pin-128

If you take a look at front side of memory module, it has asymmetric pin counts on both sides separated by a notch in the middle, so it can only fit in one direction. Follow the steps below to correctly install your memory modules into the sockets.

Step 1:

Spread the clips at both ends of the memory socket. Place the memory module onto the socket, then put your fingers on top edge of the module, and push it down firmly and seat it vertically into the memory socket.

Step 2:

The clips at both ends of the socket will snap into place when the memory module is securely inserted.

12

2-3 Install an Expansion Card

			TI	O	N
		U
	A
C

!

■	Make sure the motherboard supports the expansion card. Carefully read the manual that
	came with your expansion card.
■	Always turn off the computer and unplug the power cord from the power outlet before	2
	installing an expansion card to prevent hardware damage.

PCI Express x16

PCI

Follow the steps below to correctly install your expansion card in the expansion slot.

1.Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.

2.Align the card with the slot, and press down on the card until it is fully seated in the slot.

3.Make sure the metal contacts on the card are completely inserted into the slot.

4.Secure the card's metal bracket to the chassis back panel with a screw.

5.After installing all expansion cards, replace the chassis cover.

6.Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for your expansion card(s).

7.Install the driver provided with the expansion card in your operating system.

Installing and Removing a PCI Express x16 Graphics Card :

• Installing a Graphics Card:

Gently insert the graphics card into the PCI Express x16 slot. Make sure the graphics card is locked by the latch at the end of the PCI Express x16 slot.

• Removing the Card:

Push the latch at the end of the PCI Express x16 slot to release the card and then pull the card straight up from the slot.

13

2

2-4 Install other Internal Connectors

Power Connectors

This motherboard uses an ATX power supply. In order not to damage any device, make sure all the devices have been installed properly before applying the power supply.

24-pin ATX power connector : PWR1

PWR1 is the ATX power supply connector. Make sure that the power supply cable and pins are properly aligned with the connector on the motherboard. Firmly plug the power supply cable into the connector and make sure it is secure.

									Pin #	Definition	Pin #	Definition
									1	3.3V	13	3.3V
									2	3.3V	14	-12V
									3	GND	15	GND
									4	+5V	16	PS_ON(Soft On/Off)
									5	GND	17	GND
									6	+5V	18	GND
									7	GND	19	GND
									8	Power Good	20	NC
						24		13	9	+5V SB(Stand by +5V)	21	+5V
									10	+12V	22	+5V
									11	+12V	23	+5V
						12	PWR1	1	12	3.3V	24	GND
												Pin No. 24
			T	I O	N	!
		U
	A
C
							We recommend you using a 24-pin power supply.

If you are using a 20-pin power supply, you need to align the ATX power connector according to the picture.

20-Pin Power

4-pin ATX 12 V Power Connector : PWR2

Connect the 4-pin ATX 12V power supply to PWR2 and provides power to the CPU.

3		1
				Pin #	Definition
+12V			GND	1	GND
				2	GND
				3	+12V
4		2
				4	+12V
	PWR2

14

Audio Connector : CD_IN

CD_IN is a Sony standard audio connector, it can be connected to a CD/DVD-ROM drive through a CD/DVD audio cable.

Audio Connector : F_AUDIO

The audio connector supports HD Audio standard. It provides the Front Audio output choice.

USB Connectors : F_USB1/2

In addition to the four USB ports on the rear panel, this product also provides two 10-pin USB headers on its motherboard. By connecting through USB cables with them, user can quickly expand another four USB ports on the front panel.

1					2
VCC							VCC
D-							D-
D+							D+
GND							GND
EMPTY					10		NC
9

F_USB 1/2

Floppy Disk Drive Connectors : FLOPPY

This motherboard includes a standard floppy disk drive(FDD) connector, supporting 360KB, 720KB, 1.2MB,

1.44MB, and 2.88MB FDDs.

Speaker Connector : SPEAKER

The speaker connector is used to connect speaker of the chassis.

IDE Connectors : PIDE

With the provided Ultra DMA 100/66 IDE ribbon cable, you can connect to any IDE type of hard disk and CD/DVD ROM/RW drive.

IrDA Connector : IR

This connector supports infrared wireless transmitting and receiving device.

CD_L GND CD_R 1

CD_IN

1					2
PORT1_L							AUD_GND
PORT1_R							PRESENCEJ
PORT2_R							SENSE1_RETURN
SENSE_SEND							EMPTY
PORT2_L							SENSE2_RETURN
9					10

F_AUDIO

SPKJ 1

EMPTY 2

NC 3

SPKJ 4

SPEAKER

1+5V

2 EMPTY

3 IRRX

4	GND
5	IRTX

IR

2

15

Front Panel Connector : FP1

This motherboard includes one connector for connecting the front panel switch and LED Indicators.

		Hard Disk LED Connector (HDD-LED)
		Connect to the chassis front panel IDE indicator LED. It
	2	indicates the active status of the hard disks. This 2-pin
		connector is directional with +/- sign.

Reset Switch (RESET-SW)

Attach the connector to the Reset switch on the front panel of the case; the system will restart when the switch is pressed.

Power LED Connector (PWR-LED)

Connect to the power LED indicator on the front panel of the chassis. The Power LED indicates the system’s status. When the system is in operation (S0 status), the LED is on. When the system gets into sleep mode (S1) , the LED is blinking; When the system is in S3/S4 sleep state or power off mode (S5), the LED is off. This 2-pin connector is directional with +/- sign.

Power Switch Connector (PWR-SW)

Connect to the power button on the front panel of the chassis. Push this switch allows the system to be turned on and off rather than using the power supply button.

Serial ATA Connectors : SATA_1/2

The Serial ATA connector is used to connect with SATA Hard Disk or CD devices which supporting this feature. The current Serial ATA II interface allows up to 300MB/s data transfer rate.

Fan Headers : CPU_FAN, SYS_FAN,

There are two main fan headers on this motherboard. The fan speed can be controlled and monitored in “PC Health Status” section of the BIOS Setup. These fans can be automatically turned off after the system enters S3, S4 and S5 sleeping states.

1 2 + +

HDD-LED - - PWR-LED

RESET-SW PWR-SW

NC EMPTY 9 10

FP1

1

GND

TX+ TX-

GND

RX-

RX+

GND

SATA _1/2

GND POWER SENSE CONTROL

CPU_FAN/SYS_FAN

Chassis Intrusion Alarm Header : INTR

The connector can be connected to a security switch on the
chassis. The system can detect the chassis intrusion through	INTRUDERJ	1			GND
the function of this connector. If eventually the chassis was
		INTR
closed, the system will send a message out.

16

2-5 Jumpers

For some features needed, users can change the jumper settings on this motherboard to modify them. This section explains how to use the various functions of this motherboard by changing the jumper settings. Users should read the following content carefully prior to modifying any jumper setting.

Description of Jumpers

1.For any jumper on this motherboard, Pin 1 can be identified by the bold silkscreen next to it.

However, in this manual, Pin 1 is simply labeled as “1”.

2.The following table explains different types of the jumper settings. "Closed" means placing a jumper cap on the two pins to temporarily short them. The shorting can also be done by touching two pins by a screwdriver for a few seconds, but using jumper cap is recommended. It can prevent hazardous ESD (Electrical Static Discharge) problem.

Jumper	Diagram	Definition	Description
	1	1-2	Set Pin 1 and Pin 2 closed
1		2-3	Set Pin 2 and Pin 3 closed
	1
	1	Closed	Set two pins closed
1		Opened	Set two pins opened
	1

Clear CMOS Jumper: CLR_CMOS

The motherboard uses CMOS RAM to store the basic hardware information (such as BIOS data, date, time information, hardware password...etc.). Clear CMOS data is the fast way to go back to factory default when the BIOS settings were mistakenly modified.

The steps to clear CMOS data are :

1.Turn off the computer, unplug the power cord from the power outlet.

2.Remove jumper cap from pins 2-3, put it onto pins 1-2 to short them. This will clear CMOS data.

3.Return the setting to its original with pins 2-3 closed.

4.Plug in the power cord to your computer and turn it on.

5.Go to BIOS Setup to configure new system as described in next chapter.

2

1

Clear 2 3

	Normal	1
		2
	(Default)
		3
	CLR_CMOS

17
