Statement:
This manual is the intellectual property of Foxconn Inc. Although the information in this manual may be changed or modified at any time, Foxconn does not obligate itself to inform the user of these changes.
Trademark:
All trademarks are the property of their respective owners.
Version:
User’s Manual V1.0 for 6150K8MD series motherboard.
Symbol description:
Note: refers to important information that can help you to use motherboard better.
Attention: indicates that it may damage hardware or cause data loss, and tells you how to avoid such problems.
Warning: means that a potential risk of property damage or physical injury exists.
More information:
If you want more information about our products, please visit the following
website: http://www.foxconnchannel.com
Declaration of conformity
HON HAI PRECISION INDUSTRY COMPANY LTD
66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,
TAIPEI HSIEN, TAIWAN, R.O.C.
declares that the product
Motherboard 6150K8MD
is in conformity with
(reference to the specification under which conformity is declared in accordance with 89/336 EEC-EMC Directive)
þ EN |
55022: 1998/A2: 2003 |
Limits and methods of measurements of radio disturbance |
þ EN |
|
characteristics of information technology equipment |
61000-3-2: 2000 |
Electromagnetic compatibility (EMC) |
|
|
|
Part 3: Limits |
|
|
Section 2: Limits for harmonic current emissions |
þ EN |
|
(equipment input current <= 16A per phase) |
61000-3-3/A1:2001 |
Electromagnetic compatibility (EMC) |
|
|
|
Part 3: Limits |
|
|
Section 2: Limits of voltage fluctuations and flicker in low-voltage |
þ EN |
|
supply systems for equipment with rated current <= 16A |
55024: 1998/A2:2003 |
Information technology equipment-Immunity characteristics limits |
|
|
|
and methods of measurement |
Signature : |
Place / Date : TAIPEI/2005 |
Printed Name : James Liang |
Position/ Title : Assistant President |
|
|
|
|
Declaration of conformity
Trade Name: |
WinFast |
Model Name: |
6150K8MD |
Responsible Party: |
PCE Industry Inc. |
Address: |
458 E. Lambert Rd. |
|
Fullerton, CA 92835 |
Telephone: |
714-738-8868 |
Facsimile: |
714-738-8838 |
Equipment Classification: |
FCC Class B Subassembly |
Type of Product: |
Motherboard |
Manufacturer: |
HON HAI PRECISION INDUSTRY |
|
COMPANY LTD |
Address: |
66 , CHUNG SHAN RD., TU-CHENG |
|
INDUSTRIAL DISTRICT, TAIPEI HSIEN, |
|
TAIWAN, R.O.C. |
SupplementaryInformation:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Tested to comply with FCC standards.
Signature : |
Date : |
2005 |
Table of Contents
Chapter |
1 |
Product Introduction |
|
Main Features............................................................................................. |
|
2 |
|
Motherboard Layout ................................................................................... |
|
5 |
|
Rear Panel Connectors |
............................................................................... |
6 |
|
Chapter |
2 |
Installation Instructions |
|
CPU ............................................................................................................ |
|
|
9 |
Memory .................................................................................................... |
|
|
12 |
Power Supply........................................................................................... |
|
14 |
|
Other Connectors ..................................................................................... |
|
15 |
|
Expansion Slots ........................................................................................ |
|
20 |
|
Jumpers ................................................................................................... |
|
|
22 |
Chapter |
3 |
BIOS Description |
|
Enter BIOS Setup ...................................................................................... |
|
26 |
|
Main Menu ................................................................................................ |
|
|
26 |
Standard CMOS Features ......................................................................... |
28 |
||
BIOS Features .......................................................................................... |
|
31 |
|
Advanced BIOS Features ......................................................................... |
33 |
||
Advanced Chipset Features ..................................................................... |
36 |
||
Integrated Peripherals ............................................................................... |
|
40 |
|
Power Management Setup ........................................................................ |
45 |
||
PnP/PCIConfigurations |
............................................................................. |
48 |
|
PC Health Status ....................................................................................... |
|
49 |
|
Load Fail-Safe/Optimized Defaults ............................................................ |
50 |
||
Set Supervisor/User Password.................................................................... |
50 |
||
Save & Exit Setup..................................................................................... |
|
51 |
|
Exit Without Saving ................................................................................... |
|
51 |
|
|
Table of Contents |
|
Chapter |
4 |
Driver CD Introduction |
|
Utility CD content ...................................................................................... |
|
53 |
|
Start to install drivers ................................................................................ |
|
54 |
|
Chapter |
5 |
Directions for Bundled Software |
|
SuperStep ................................................................................................ |
|
|
56 |
SuperUpdate |
............................................................................................ |
|
59 |
SuperLogo ............................................................................................... |
|
|
64 |
Chapter |
6 |
Special BIOS Functions |
|
SuperBoot ................................................................................................ |
|
|
67 |
SuperBIOS-Protect ................................................................................... |
|
68 |
|
SuperSpeed ............................................................................................. |
|
|
69 |

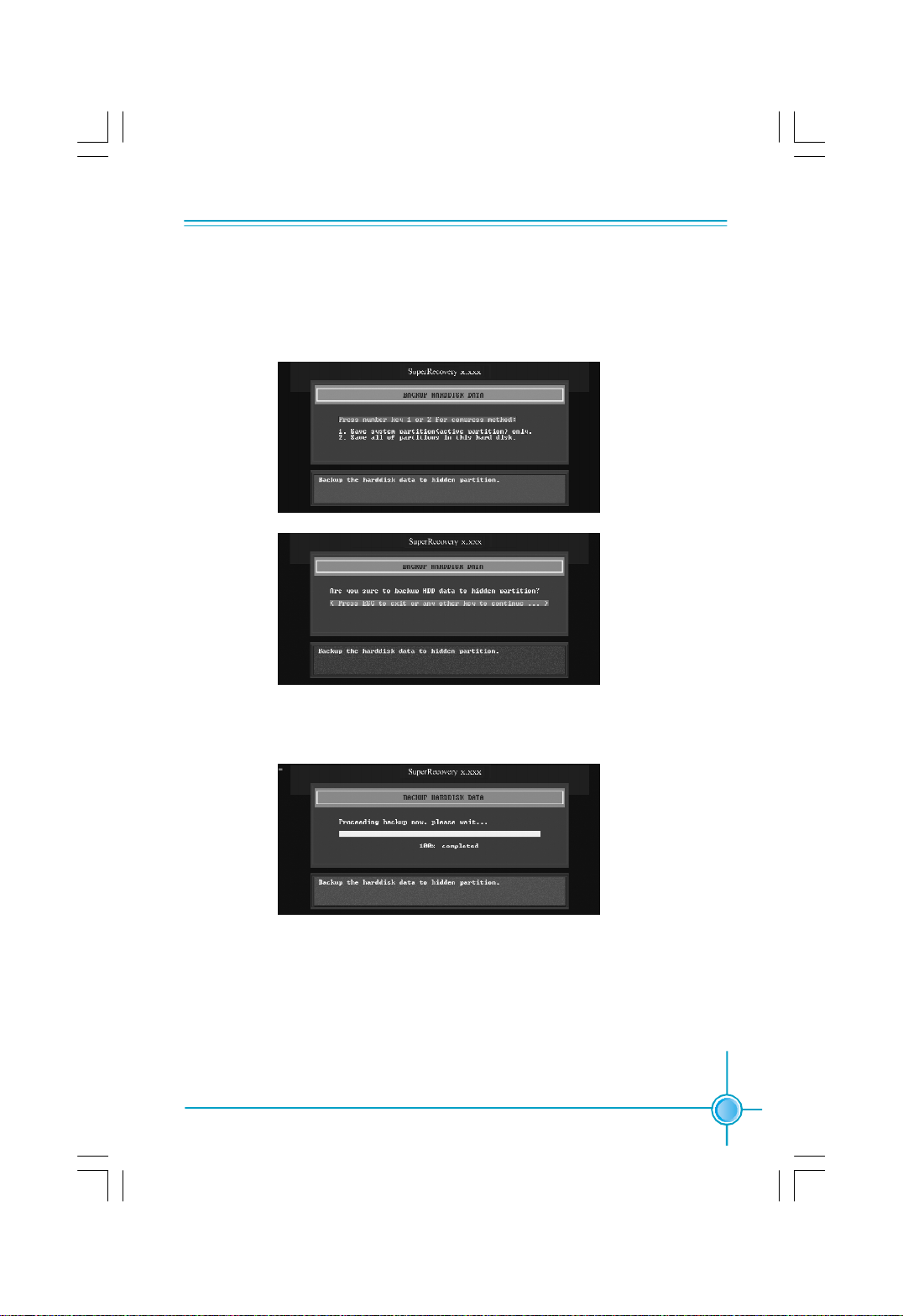

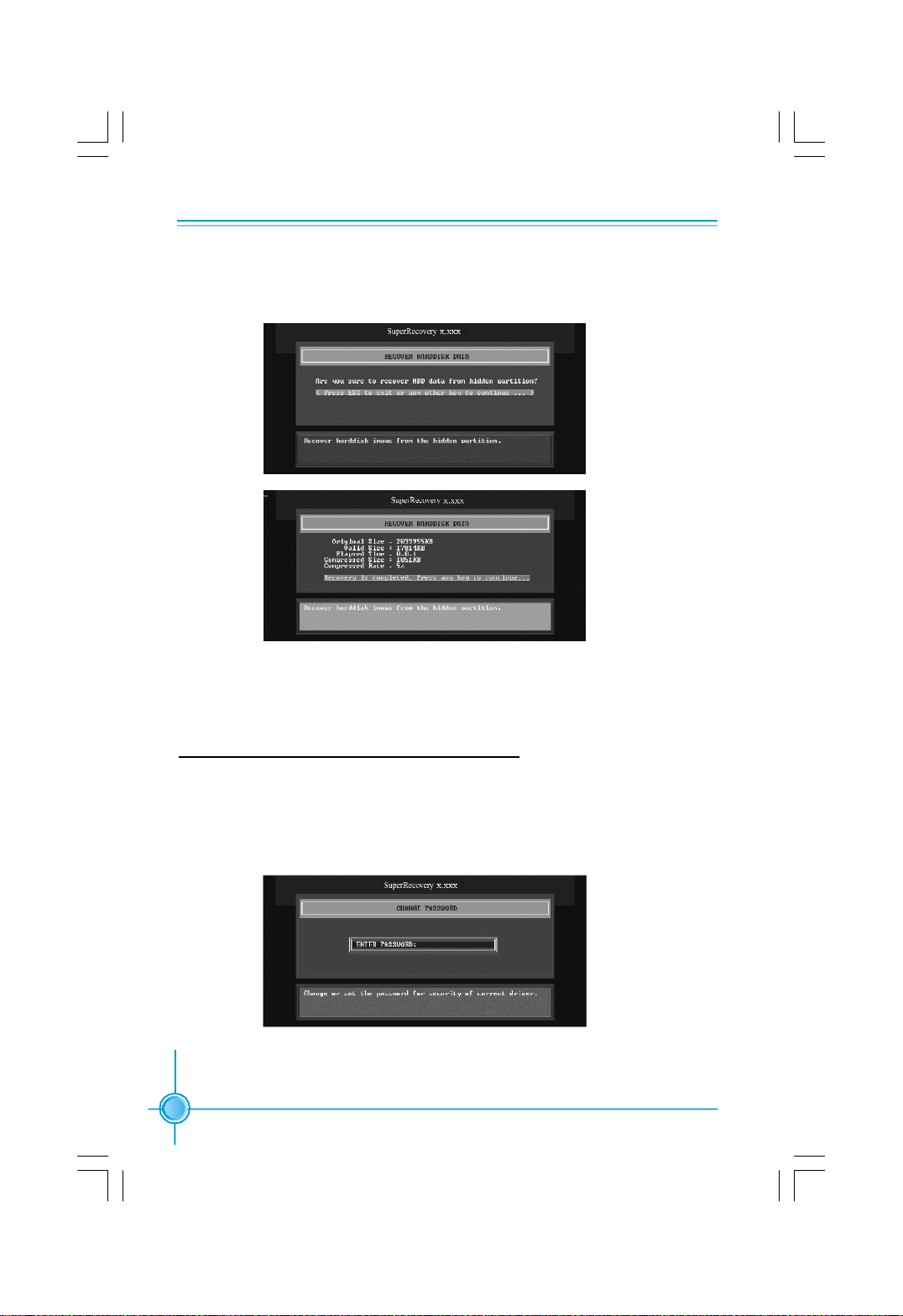

SuperRecovery ........................................................................................ |
|
70 |
|
|
|
Appendix |
|
Using 8-channel Audio (optional) .............................................................. |
79 |
Attention:
1.Attach the CPU and heatsink using silica gel to ensure full contact.
2.It is suggested to select high-quality, certified fans in order to avoid damage to the motherboard and CPU due to high temperature.
3.Never turn on the machine if the CPU fan is not properly installed.
4.Ensure that the DC power supply is turned off before inserting or re moving expansion cards or other peripherals, especially when you insert or remove a memory module. Failure to switch off the DC power supply may result in serious damage to your system or memory module.
Attention:
We cannot guarantee that your system will operate normally while overclocked. Normal operation depends on the overclock capacity of your device.
Attention:
Since BIOS programs are upgraded from time to time, the BIOS description in this manual is just for reference. We do not guarantee that the content of this manual will remain consistent with the actual BIOS version at any given time in the future.
Attention:
The pictures of objects used in this manual are just for your reference. Please refer to the physical motherboard.
This manual is suitable for motherboard of 6150K8MD series. Each motherboard is carefully designed for the PC user who wants diverse features.
-L with onboard 10/100M LAN(Defaultis elliptical) -K with onboard Gigabit LAN
-6 with 6-channel audio(Defaultis elliptical) -8 with 8-channel audio
-E with 1394 -S with SATA -R with RAID -2 with DDR2
You can find PPID label on the motherboard. It indicates the functions that the motherboard has.
For example:
On the black mark of the PPID label, it means the motherboard supports 6-channel Audio (-6), 1394 port (-E), onboard 10/100M LAN (-L), SATA function (-S).
Chapter1
Thank you for buying W inFast 6150K8MD series motherboard. This series of motherboard is one of our new products, and offers superior performance, reliability and quality, at a reasonable price. This motherboard adopts the advanced NVIDIA® GeForce6150 +nForce430 chipset, providing users a computer platform with a high integration- compatibility-performance price ratio.
This chapter includes the following information:
vMain Features
vMotherboard Layout
vRear Panel Connectors
Chapter 1 Product Introduction
Main Features
Size:
• mATX form factor of 9.6” x 9.6”
Microprocessor:
• Supports Socket 939 for AMD AthlonTM64 x2 Dual core/AthlonTM 64FX/AthlonTM 64/Sempron processors
HyperTransport Technology:
•16 x 16 link running at 1GHz for extremely high throughput (8.0GB/sec)
•Differential lines with low voltage swings
Chipset:
• Chipset: NVIDIA® Geforce6150+nForce430
System Memory
•Four 184-pin dual channel DDR DIMM slots
•Supports DDR 266/333/400 memory
•Supports 128/256/512/1024Mb technology up to 4GB
USB 2.0 Port
•Supports hot-plug
•Eight USB 2.0 ports (four rear panel ports, two onboard USB connectors providing four extra ports)
•Supports USB 2.0 protocol up to 480Mbps transmission rate
Onboard Serial ATA II
•Supports four Serial ATA II connectors.
•Up to 300Mps transfer rates
•Supports RAID 0, RAID 1, RAID 0+1, RAID 5
2
Chapter 1 Product Introduction
Onboard 1394 (optional)
•Supports hot-plug
•With rate of transmission at 400Mbps
•Self-configured addressing
Onboard LAN (-K)
•Supports10/100/1000 (-K) Mbps Ethernet
•LAN interface built-in on board
Note: The shielded LAN Cables are recommended.
Onboard Audio (-8)
•Supports 8-channel audio
•Supports SPDIF output
•Supports Intel High Definition Audio
•Support High quality differential CD input
Onboard Graphics
• Supports integrated VGA display functions
BIOS
•Licensed advanced AWARD (Phoenix) BIOS, supports flash ROM, Plug-and- Play
•Supports IDE HDD, CD-ROM, SCSI HDD or USB device boot up
Green Function
•Supports ACPI (Advanced Configuration and Power Interface)
•Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4 (suspend to disk-depends on OS), and S5 (soft-off) ACPI state
PCI Express x16 support
•Supports 4 GB/sec (8GB/sec concurrent) bandwidth
•Low power consumption and power management features
3
Chapter 1 Product Introduction
Expansion Slots
•Two PCI slots
•One PCI Express x16 Graphics slot
•One PCI Express x1slot
Onboard TV OUT (optional)
•Full NVIDIA nViewTM multi-display technology capability,with independent display controllers for the CRT/TV output
Advanced Features
•PCI 2.3 Specification Compliant
•Supports PC Health function (capable of monitoring system voltage, CPU/ system temperature, and fan speed)
4
Chapter 1 Product Introduction
Motherboard Layout
28 27 26 25
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
24 |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
23 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
22 |
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
21 |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20 |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
19 |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
18 |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17 |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
16 |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13 |
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
9 |
10 11 |
12 |
|
|
|
|
14 |
15 |
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
1. |
CD_IN Connector |
|
|
|
|
|
|
|
15. |
IrDA Connector |
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
2. Front Audio Connector |
|
|
|
16. |
System Fan Connector |
||||||||||||||||||||||||||||||||
3. |
SPDIF_OUT Connector |
|
|
|
17. |
24-pin Power Connector |
|||||||||||||||||||||||||||||||
4. |
TPM Connector(optional) |
|
|
|
18. |
DDR DIMM Slots |
|||||||||||||||||||||||||||||||
5. |
Front 1394 Connectors (optional) |
19. |
CPU_FAN Connector |
||||||||||||||||||||||||||||||||||
6. |
Front USB Connectors |
|
|
|
20. |
CPU Socket |
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
7. |
Front Panel Connector |
|
|
|
21. |
North Bridge: NVIDIA GeForce6150B |
|||||||||||||||||||||||||||||||
8. |
BIOS protection Jumper |
|
|
|
22. TV OUT Connector(optional) |
||||||||||||||||||||||||||||||||
9.Clear CMOS Jumper |
|
|
|
23.4-pin 12V Power Connector |
|||||||||||||||||||||||||||||||||
10. Chassis Intruder Connector |
|
|
|
24. |
COM1 Connector |
||||||||||||||||||||||||||||||||
11. SATA II Connectors |
|
|
|
25. |
PCI Express x16 Slot |
||||||||||||||||||||||||||||||||
12. South Bridge: NVIDIA nForce430 |
26. |
PCI Express x1 Slot |
|||||||||||||||||||||||||||||||||||
13. IDE Connectors |
|
|
|
|
|
|
|
27. |
Speaker Connector |
||||||||||||||||||||||||||||
14. Floppy Drive Connector |
|
|
|
28. |
PCI Slots |
|
|
|
|
|
|
|
|
|
|
|
Note: The above motherboard layout is provided for reference only; please
refer to the physical motherboard.
5
Chapter 1 Product Introduction
Rear Panel Connectors
This motherboard provides the ports as below:
-8 models
|
|
|
4 Parallel Port (Printer Port) |
|
6 LAN Port |
Line-out |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Line-in |
1 |
PS/2Mouse |
|
|
|
|
|
|
|
|
|
|
|
|
Rear |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Connector |
|
|
|
|
|
|
|
LFE/CEN 8 |
|||||
2 |
PS/2 Keyboard |
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
Side |
|||||||
|
Connector |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Microphone |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 VGA |
|
Port |
|
|
|
|
|
|
|
|
|
|
|
|
|
5 DVI -I Port |
7 USB2.0 Ports |
|
5 DVI -I Port
You can connect a display device to DVI-I port for outputing Digital or Analog signals.
8 Line in, Line out, Microphone, Rear, LEF/CEN, Side Jacks (for -8 models)
When using an 8-channel sound source, connect the front speaker to the green audio output; connect the rear sound speaker to the black audio output; connect the center speaker/subwoofer(LFE/CEN) to the orange audio output; connect the side sound speaker to the blue audio output.
6
Chapter 1 Product Introduction
Chapter2
This chapter introduces the hardware installation process, including the installation of the CPU and memory. It also addresses the connection of your power supply, connection of hard drive and floppy drive data cables, and setting up various other feature of the motherboard. Caution should be exercised during the installation process. Please refer to the motherboard layout prior to any installation and read the contents in this chapter carefully.
This chapter includes the following information:
vCPU
vMemory
vPower Supply
vOther Connectors
vExpansion Slots
vJumpers
7
Chapter 2 Installation Instructions
Notes:
Take note of the following precautions before you install components or change settings.
1.Use a grounded wrist strap or touch a safely grounded object, such as an attached power supply, before handling components to avoid damaging them due to static electricity.
2.Unplug the power cord before opening your chassis or touching any components.
3.Hold components by their edges to avoid touching any exposed integrated circuits (ICs).
4.Whenever you uninstall a component, place it on a grounded antistatic pad or into the antistatic bag that it came in.
8
Chapter 2 Installation Instructions
CPU
This motherboard supports Socket 939 for AthlonTM 64 x2 Dual core/ AthlonTM 64FX/AthlonTM 64/Sempron processors and Hyper Transport TM Technology.
Attention:
The CPU pins must be properly aligned with the holes in the socket, otherwise the CPU may be damaged.
For the detailed CPU vendor list qualified on this motherboard, please visit the website: http://www.foxconnchannel.com
Installation of CPU
Follow these steps to install the CPU. |
90o |
|
|
1. Unlock the socket by pressing the le- |
|
ver sideways, then lift it up to a 90o |
|
angle. |
Gap in the base |
|
2.Align the cut edge to the gap in the base of the socket. Carefully insert the CPU into the socket until it fits in place.
Cut edge
3.When the CPU is in place, press it firmly on the socket while you push down the socket lever to secure the CPU. The lever clicks on the side tab to indicate that it is locked.
Push down the socket lever to secure the CPU.
9
Chapter 2 Installation Instructions
Installation of CPU Fan
New technology allows processors to run at higher and higher frequencies. To avoid problems arising from high-speed operation, for example, overheating, you need to install the proper fan. The following procedure is provided for reference only, please refer to your CPU fan user guide for the actual procedure.
CPU Fan
CPU Heatsink
CPU Retention Mechanism
CPU Retention Bracket
CPU Retention Lock
1. Locate the CPU retention mechanism base (surrounds the CPU socket).
2.If required, apply a light coating of silica gel to the top of the CPU.
NOTE: The CPU heatsink may have a pre-applied thermal compound. In that case, the silica gel is not required.
10
Chapter 2 Installation Instructions
3. Place the cooling set onto the retention mechanism. Attach one end of the retention bracket to retention mechanism.
4.Align the other end of the retention bracket to fasten the cooling set on the top of the retention mechanism.
5.Push down the retention bracket lock on the retention mechanism to secure the heatsink and fan to module base.
6.Connect the fan’s power cable to the appropriate 3-pin terminal on the motherboard.
11
Chapter 2 Installation Instructions
Memory
This motherboard includes four 184-pin slots with 266/333/400 MHz Dual Channel DDR DRAM interface, You must install at least one memory module to ensure normal operation. If you install more than two modules, they must be the same speed. Mixing memory modules from different manufactures are not recommended.
DIMM1
DIMM2
DIMM3
DIMM4
For the latest memory modules support list, please visit the website:
http://www.foxconnchannel.com
Installation of DDR Memory
1.There is only one gap in the center of the DIMM slot, and the memory module can be fixed in one direction only.
2.Align the memory module to the DIMM slot, and insert the module vertically into the DIMM slot.
104 Pins |
80 Pins |
3. The plastic clips at both sides of the DIMM slot will lock automatically.
Note:
Be sure to unplug the AC power supply before adding or removing expansion cards or other system peripherals, especially the memory devices, otherwise your motherboard or the system memory might be seriously damaged.
12
Chapter 2 Installation Instructions
Recommended Memory Configurations
The following table list is the recommended memory configurations. Please install the memory according to the list.
Mode |
DIMM1 |
DIMM2 |
DIMM3 |
DIMM4 |
|
Populated |
|
|
|
Signal-channel |
|
|
Populated |
|
|
Populated |
|
Populated |
|
|
Populated |
Populated |
|
|
Dual-channel |
|
|
Populated |
Populated |
|
Populated |
Populated |
Populated |
Populated |
Note:
Installing DDR DIMMs other than the recommended configurations may cause memory sizing error or system boot failure.
13
Chapter 2 Installation Instructions
Power Supply
This motherboard uses an ATX power supply. In order to avoid damaging any devices, make sure that they have been installed properly prior to connecting the power supply.
ATX Power Connector: PWR1
PWR1 is the ATX power supply connector. Make sure that the power supply cable and pins are properly aligned with the connector on the motherboard. Firmly plug the power supply cable into the connector and make sure it is secure.
24-pin ATX power connector
|
+5V |
|
+5V_AUX |
+3.3V |
|||
+3.3V |
GND |
GND |
|
+12V |
|||
|
+12V |
||||||
+ 3. 3 V |
GND |
+5V PWROK |
|||||
|
|
||||||
1 |
|
|
|
|
|
12 |
|
13 |
|
|
|
|
|
24 |
|
+3.3V |
GND |
GND |
NC |
+5V |
|||
-12V |
|
GND |
GND |
|
+5V |
GND |
|
|
PSON |
|
+5V |
|
ATX 12V Power Connector: PWR2
The 4 pin ATX 12V power supply connects to PWR2 and provides power to the CPU.
4-pin ATX_12V power connector
3 1
12VGND
12VGND
4 2
Attention:
We strongly recommend you use 24-pin power supply. If you want to use 20-pin power supply, you need to align the ATX power connector according to the right picture.
14
Chapter 2 Installation Instructions
Other Connectors
This motherboard includes connectors for FDD devices, IDE HDD devices, SATA devices, USB devices, 1394 devices, IR module, CPU fan, system fan, and others.
FLOPPY
This motherboard includes a standard FLOPPY interface, supporting 360 K, 720 K, 1.2 M, 1.44 M, and 2.88 M FDDs.
IDE Connectors: PIDE & SIDE
These connectors support the Ultra DMA133/100/66 IDE hard disk ribbon cable. Connect the cable’s blue connector to the primary (recommended) or secondary IDE connector, then connect the gray connector to the slave device (hard disk drive) and the black connector to the master device. If you install two hard disks, you must configure the second drive as a slave device by setting its jumper accordingly. Refer to the hard disk documentation for the jumper settings.
Attention:
Ribbon cables are directional, therefore, make sure to always connect with the cable on the same side as pin 1 of the PIDE/SIDE or FDD connector on the motherboard.
15
Chapter 2 Installation Instructions
Front Panel Connector: FP1
This motherboard includes one connector for connecting the front panel switch and LED indicator.
|
1 |
2 |
|
||
HDD_LED |
+- |
|
|
|
-+ PLED |
|
|
|
|||
|
|||||
RESET |
|
|
|
|
PWRBTN# |
|
|
|
|
||
|
|
|
|
|
|
NC |
|
Empty |
|
9 |
10 |
Hard Disk LED Connector (HDD_LED) |
FP1 |
Attach the connector to the HDD_LED on the front panel of the case; the LED will flash while the HDD is in operation.
Reset Switch (RESET)
Attach the connector to the Reset switch on the front panel of the case; the system will restart when the switch is pressed.
Power LED Connector (PLED)
Attach the connector to the Power LED on the front panel of the case. The Power LED indicates the power supply status. When the system is in S0 status, the green LED is on. When the system is in S1 status, the green LED is blink. When the system is in S3, the yellow LED is blink. When the system is in S4, S5 status, the LED is off.
Power Switch Connector (PWRBTN#)
Attach the connector to the power button of the case. Pushing this switch allows the system to be turned on and off rather than using the power supply button.
USB Connectors: F_USB 1, F_USB 2
Besides four USB ports on the rear panel, the series of motherboards also have two 10-pin connectors on board which may connect to the front panel USB cable to provide additional four USB ports.
10 |
9 |
10 |
9 |
NC |
Empty |
NC |
Empty |
GND |
GND |
GND |
GND |
D5+ |
D4+ |
D7+ |
D6+ |
D5- |
D4- |
D7- |
D6- |
VCC |
VCC |
VCC |
VCC |
2 |
1 |
2 |
1 |
F_USB1 |
F_USB2 |
IrDA Connector: IR
The IrDA infrared transmission allows your computer to send and receive data via an infrared ray. The relevant parameters for the BIOS Integrated Peripherals should be set prior to using this function.
16
IRTX
GND
IRRX Empty
1 +5V
IR
Chapter 2 Installation Instructions
Fan Connectors: CPU_FAN, SYS Fan
There are two fan connectors on this motherboard.
|
SENSE |
1 |
GND |
|
+12V |
|
+12V |
1 |
GND |
|
SENSE |
CPU_FAN |
|
SYS FAN |
Audio Connector: CD_IN
CD_IN are Sony standard CD audio connectors, to receive audio input from the CD-ROM, attach the audio connector to the CD_IN audio connectors on the
motherboard.
CD_R GND
CD_L
1
CD_IN
SerailATAII Connectors: SATA_1, SATA_2, SATA_3,SATA_4
The Serial ATA II connectors are used to connect the S-ATA II devices to the motherboard. These connectors support the thin Serial ATA II cables for primary internal storage devices. The current Serial ATA II interface allows up to 300MB/ s data transfer rate.
1394 Connector: F_1394 (optional)
The 1394 expansion cable can be connected to either the front (provided that the front panel of your chassis is equipped with the appropriate interface) or the rear panel of the chassis.
TX+GND
TX-
RX- GND
RX+
GND 1
SATA_1/SATA_2/
SATA_3/SATA_4
1 |
2 |
TPA+ |
TPA- |
GND |
GND |
TPB+ |
TPB- |
+12V |
+12V |
Empty |
GND |
9 |
10 |
F_1394
17
Chapter 2 Installation Instructions
SPDIF Out Connector: SPDIF_OUT
The SPDIF out connector is capable of provid- |
1 |
5V |
||
|
EMPTY |
|||
ing digital audio to external speakers or com- |
|
SPDIF-OUT |
||
pressed AC3 data to an external Dolby digital |
|
GND |
||
decoder. |
SPDIF_OUT |
|||
Note:The empty pin of SPDIF cable should be |
||||
|
|
|
||
aligned to empty pin of SPDIF out connector. |
|
|
|
|
Chassis Intruder Connector: INTR |
|
|
|
|
The connector connects to the chassis security |
|
INTRUDERJ |
||
switch on the case. The system can detect the |
|
|||
|
GND |
|
||
chassis intrusion through the status of this |
|
|
||
|
|
|
||
connector. If the connector has been closed |
|
|
|
|
once, the system will send a message. To uti- |
|
2 |
1 |
|
lize this function, set “Intruder Detection” to “En- |
|
|||
|
INTR |
|||
abled” in the “Power Management Setup” sec- |
|
|||
tion of the CMOS Setup. Save and exit, then boot |
|
|
|
|
the operating system once to make sure this |
|
|
|
|
function takes effect. |
|
|
|
|
Front Audio Connector: F_Audio (for 8- |
|
1 |
2 |
|
channel) |
PORT1_L |
|
AUD_GND |
|
PORT1_R |
|
PRESENSEJ |
||
The audio connector provides two kinds of au- |
|
|||
PORT2_R |
|
SENSE1_RETURN |
||
dio output choices: the Front Audio, the Rear SENSE_SEND |
|
EMPTY |
||
Audio. Front Audio supports re-tasking |
PORT2_L |
|
SSENSE2_RETURN |
|
|
9 |
10 |
||
|
|
function. Their priority is the same. |
F_AUDIO |
|
|
Additional COM Connector: COM1 |
|
This motherboard provides an additional serial COM connector for your machine. Connect one side of a switching cable to the connector, then attach the serial COM device to the other side of the cable.
1 |
2 |
RLSD |
SIN |
SOUT |
DTR# |
GND |
DSR# |
RTS# |
CTS# |
RI# |
Empty |
9 |
10 |
COM1
18
Chapter 2 Installation Instructions
Speaker Connector: SPEAKER
The speaker connector is used to connect speaker of the chassis.
TV OUT Connector: TV_OUT (optional)
This 1x4pin connector allows you to connect a television to your system. Connect one end of the TV_OUT bracket to this connector, and the other end to your television. To make the required connections, you will need a cable or adapter that is compatible with both the TV_OUT bracket and your television.
1 SPK(Pullhigh)
EMPTY
NC SPKJ
SPEAKER
|
S_VIDIO_Y |
S_VIDIO_C |
GND S_VIDIO_A |
1
TV _OUT
19
Chapter 2 Installation Instructions
Expansion Slots
This motherboard includes two32-bit Master PCI bus slots, one PCI Expressx1 and one PCI Express x16 slot.
PCI Slots
The expansion card can be installed in the PCI slot. When you install or take out such card, you must make sure that the power plug has been pulled out. Please read carefully the instructions provided for such card, and install and set the necessary hardware and software for such card, such as the jumper or BIOS setup.
PCI Express Slots
PCI Express will offer the following design advantages over the PCI and AGP interface:
-Compatible with existing PCI drivers and software and Operating Systems. -High Bandwidth per Pin. Low overhead. Low latency.
-PCI Express supports a raw bit-rate of 2.5 Gb/s on the data pins. This results in a real bandwidth per pair of 250 MB/s.
-A point to point connection, allows each device to have a dedicated connection without sharing bandwidth.
-Ability to comprehend different data structure.
-Low power consumption and power management features.
PCI Express will take two forms, x16 and x1 PCI Express slots. Whereas the x16 slot is reserved for graphic/video cards, the x1 slots are designed to accommodate less bandwidth-intensive cards, such as a modem or LAN card.
The difference in bandwidth between the x16 and x1 slots are not able to be sure, with the x16 slot pushing 4GB/sec (8GB/sec concurrent) of bandwidth, and the x1 PCI Express slot offering 250MB/sec.
Warning:
If a performance graphics card was installed into x16 PCI Express slot, 2X12 pin power supply was strongly recommended.
20
