Junction Box
Type KAEX-4
T
EECCHHNNIICCAALL
T
M
AANNUUAAL
M
L
Flintec GmbH
Bemannsbruch 9
74909 Meckesheim
GERMANY
www.flintec.com
RIGHTS AND LIABILITIES
All rights reserved.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means,
mechanical, photocopying, recording, or otherwise, without the prior written permission of Flintec GmbH
No patent liability is assumed with respect to the use of the information contained herein. While every precaution has been
taken in the preparation of this book, FLINTEC assumes no responsibility for errors or omissions. Neither is any liability
assumed for damages resulting from the use of the information contained herein.
The information herein is believed to be both accurate and reliable. FLINTEC, however, would be obliged to be informed if
any errors occur. FLINTEC cannot accept any liability for direct or indirect damages resulting from the use of this manual.
FLINTEC reserves the right to revise this manual and alter its content without notification at any time.
Neither FLINTEC nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs,
or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or
unauthorized modifications, repairs, or alterations to this product, or failure to strictly comply with FLINTEC operating and
maintenance instructions.
FLINTEC shall not be liable against any damages or problems arising from the use of any options or any consumable
products other than those designated as Original FLINTEC Products.
NOTICE: The contents of this manual are subject to change without notice.
Copyright © 2007 by Flintec GmbH, 74909 Meckesheim, Bemannsbruch 9, Germany
SAFETY INSTRUCTIONS
CAUTION READ this manual BEFORE operating or servicing this equipment. FOLLOW these
instructions carefully. SAVE this manual for future reference. DO NOT allow untrained personnel to
operate, clean, inspect, maintain, service, or tamper with this equipment. ALWAYS DISCONNECT this
equipment from the power source before cleaning or performing maintenance. CALL FLINTEC
ENGINEERING for parts, information, and service.
WARNING ONLY PERMIT QUALIFIED PERSONNEL TO SERVICE THIS EQUIPMENT.
EXERCISE CARE WHEN MAKING CHECKS, TESTS AND ADJUSTMENTS THAT MUST BE MADE
WITH POWER ON. FAILING TO OBSERVE THESE PRECAUTIONS CAN RESULT IN BODILY HARM.
WARNING FOR CONTINUED PROTECTION AGAINST SHOCK HAZARD CONNECT TO
PROPERLY GROUNDED OUTLET ONLY. DO NOT REMOVE THE GROUND PRONG.
WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE REMOVING THE FUSE OR
SERVICING.
WARNING BEFORE CONNECTING/DISCONNECTING ANY INTERNAL ELECTRONIC
COMPONENTS OR INTERCONNECTING WIRING BETWEEN ELECTRONIC EQUIPMENT ALWAYS
REMOVE POWER AND WAIT AT LEAST THIRTY (30) SECONDS BEFORE ANY CONNECTIONS OR
DISCONNECTIONS ARE MADE. FAILURE TO OBSERVE THESE PRECAUTIONS COULD RESULT
IN DAMAGE TO OR DESTRUCTION OF THE EQUIPMENT OR BODILY HARM.
CAUTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE
DEVICES.
INTRODUCTION AND TECHNICAL DATA

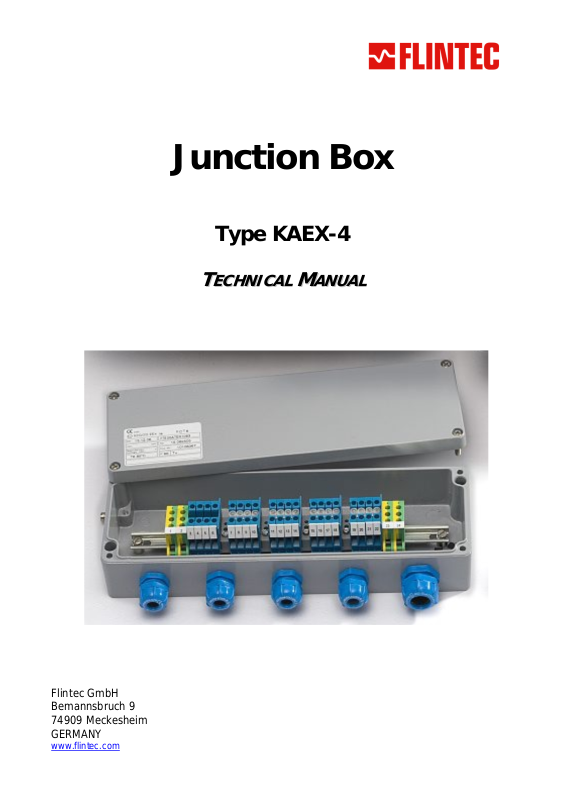

The painted Aluminium junction box is designed for the parallel connection of 4 load cells. 2 versions are
available.
Type No. of load cells Housing size Inputs Output Version Designation
KAEX-4 up to 4 80 x 250 x 52 mm 4x M16 1x M20
1 EEx ia IIC T6
2 EEx e IIC T6
The junction box type KAEX can be connected to the instrumentation with a shielded 6-wire signal cable.
The corner correction is done with resistors.
Housing material: Aluminium
Protection class: IP66
Cable connection: With screw terminals
Corner correction: By exchangeable resistors
MECHANICAL INSTALLATION
Look for a mounting location which is more or less dry and protected from environmental stress.
Junction Box Type KAEX – Technical Manual, Rev. 1.01 September 2007
Page 2 of 4
ELECTRICAL CONNECTIONS
Figure 1: Dimensions in [mm]
The connection sequence of the load cells should correspond to the corners of the scale, i.e
Corner 1 = Load cell 1, Corner 2 = Load cell 2, etc.
LOAD CELL CABLE CONNECTION
First the cable gland must be loosened. Then you have to feed the load cell cable through the cable gland
unless the shrink tube is fully disappeared in the box. Afterwards you can connect the cables to the scre w
terminals as indicated below:
Cable coulour Description
yellow = Cable shield 1 2 23 24
red = Signal – (Output –) 15 16 17 18
white = Signal + (Output +) 11 12 13 14
black = Excitation – (Input –)
(if applicable, brown)* = Sense –
green = Excitation + (Input +)
(if applicable, blue)* = Sense +
* if load cell is equiped with 6-wire conductor cable
After all conductors have been screwd to the terminals, the cable glands must be tightened. Please verify that
all cable glands are tight and the cable is fully stress relieved.
LC1 LC2 LC3 LC4
19 20 21 22
Terminal no.
7 8 9 10
OUTPUT CABLE CONNECTION
The signal cable (connection between junction box and the following electronics) should be a 6 – wire
shielded cable and has to be kept as short as possible. Depending on type and manufacturer signal cables
may have different colours. Therefore make your own choice.
Cable colour, example Description Terminal no.
outer cable screen = Shield 1
pink = Signal – (Output –) 15
white = Signal + (Output +) 11
grey = Sense – 20
brown = Excitation – (Input –) 19
yellow = Sense + 9
green = Excitation + (Input +) 10
Junction Box Type KAEX – Technical Manual, Rev. 1.01 September 2007
Page 3 of 4
Figure 2: Wiring
CORNER CORRECTION A T SCALES WITH FLINTEC LOAD CELLS
Flintec load cells are manufactured with rather tight tolerances, so in most cases an additional corner
correction is not required. The best conditions are achieved if you use load cells of the same class
(Designation is done with capital letters A to I on the load cell package besides the type label).
Hint: Corner errors can have a mechanical background, e.g. sloped mounting surface of the load cell.
Procedure:
1. Get the display value for each corner. Use the highest possible display resolution (e.g. factor 10 or higher)
or, if this is not possible, measure the the digital weight increment using corresponding weights.
2. The corner with the lowest display value is the starting point for the corner correction. The differences of
the other corners are calculated with reference to this “basic corner”.
3. Calculate the correction resistance as follows:
Correction resistance [Ω] =
* 1100 Ω input resistance for:
400 Ω input resistance for:
Example 1: 1100 Ω load cell
0.1 kg corner error with 500 kg test load
Example 2: 400 Ω load cell
10 kg corner error with 5000 kg test load
4. Install the correction resistor into the junction box for the corresponding load cell excitation, e.g. for load
cell no. 1 the +excitation wire has to be changed from terminal no. 7 to terminal no. 3 and afterwards the
correction resistor has to be inserted between terminal no. 3 and terminal no. 7.
5. Check the corners again. If required repeat the procedure.
Hint: 50 ppm resistors for corner correction are available as a set of 14 values from 0.22 Ω to 4.7 Ω (10 pcs.
for each value; article no. 5200-030).
Check the cover sealing and install the cover of the box.
Deviation in [kg]
Test load in [kg]
X Input resistance of the load cell [Ω] *
BK2, SB4, SB5, SB6, SB14, SLB, ZLB, UB1, UB5, UB6, PB, RC3
RC1, SB2
0.1 kg
500 kg
10 kg
5000 kg
x
x
1100 Ω
400 Ω
=
0.22 Ω
=
0.8 Ω
Junction Box Type KAEX – Technical Manual, Rev. 1.01 September 2007
Page 4 of 4
