INTRODUCTION AND TECHNICAL DATA
The painted aluminium junction box KAL-4 is designed to connect up to 4 load cells in parallel. A socket on
the printed circuit board is prepared for accommodating one type LDU xx.x Load Cell Digitizing Unit.
Type No. of load cells Housing size Inputs Outputs
KAL-4 up to 4 80 x 250 x 52 mm 4x M16 3x M16
Housing material: Aluminium
Protection class: IP66
Cable connection: With clamping terminals
Corner correction: By exchangeable resistors
MECHANICAL INSTALLATION
Look for a mounting location which is more or less dry and protected from environmental stress.
ELECTRICAL CONNECTIONS

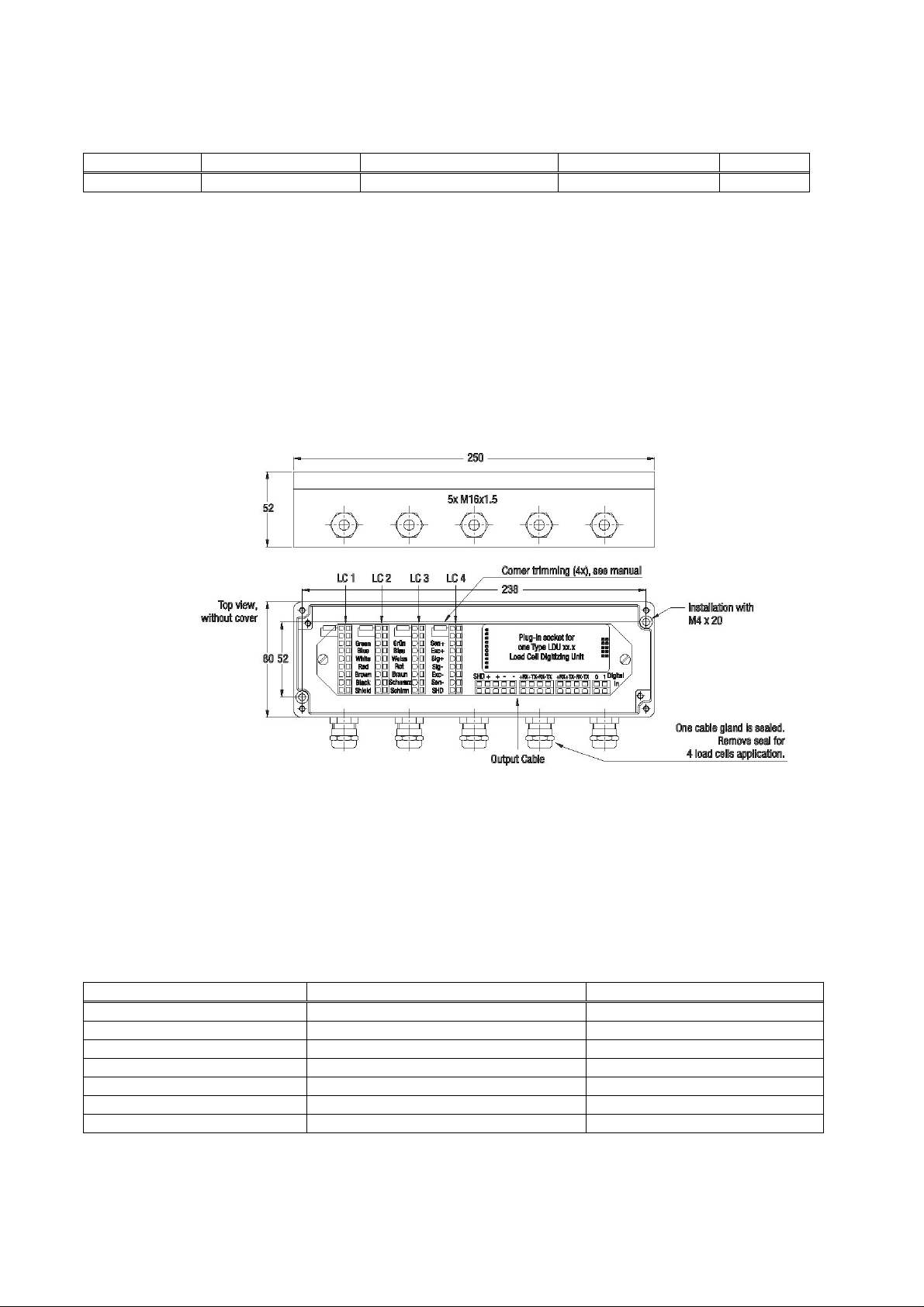

Figure 1: Dimensions in [mm]
The connection sequence of the load cells should correspond to the corners of the scale, i.e
Corner 1 = Load cell 1, Corner 2 = Load cell 2, etc.
LOAD CELL CABLE CONNECTION
First the cable gland (see in fig.1) must be loosened. Then you have to feed the load cell cable through the
cable gland unless the shrink tube is fully disappeared in the box. The wires have to run below the printed
circuit board and will be pulled back to the top at the upper end of the printed circuit board. Afterwards you can
connect the cables to the clamping terminals as indicated below:
Cable coulour Description Terminal designation
yellow = Cable shield Shield / Schirm
red = Signal – (Output –) red / rot
white = Signal + (Output +) white /weiss
black = Excitation – (Input –) black / schwarz
(if applicable, brown)* = Sense – black / schwarz
green = Excitation + (Input +) green / grün
(if applicable, blue)* = Sense + green / grün
* if load cell is equiped with 6-wire conductor cable
After all conductors have been clamped to the terminals, the cable glands must be tightened. Please verify
that all cable glands are tight and the cable is fully stress relieved.
Digital Junction Box Type KAL-4 – Technical Manual, Rev. 1.00 Dezember 2010
Page 3 of 4
Page 4
OUTPUT CABLE CONNECTION
(
)
(
)
12 V
Connector for LDU power supply
LDU requires 12...24 V DC at 60 mA max. current
0 V Shield
RS422/RS485 connector
full-duplex or half-duplex

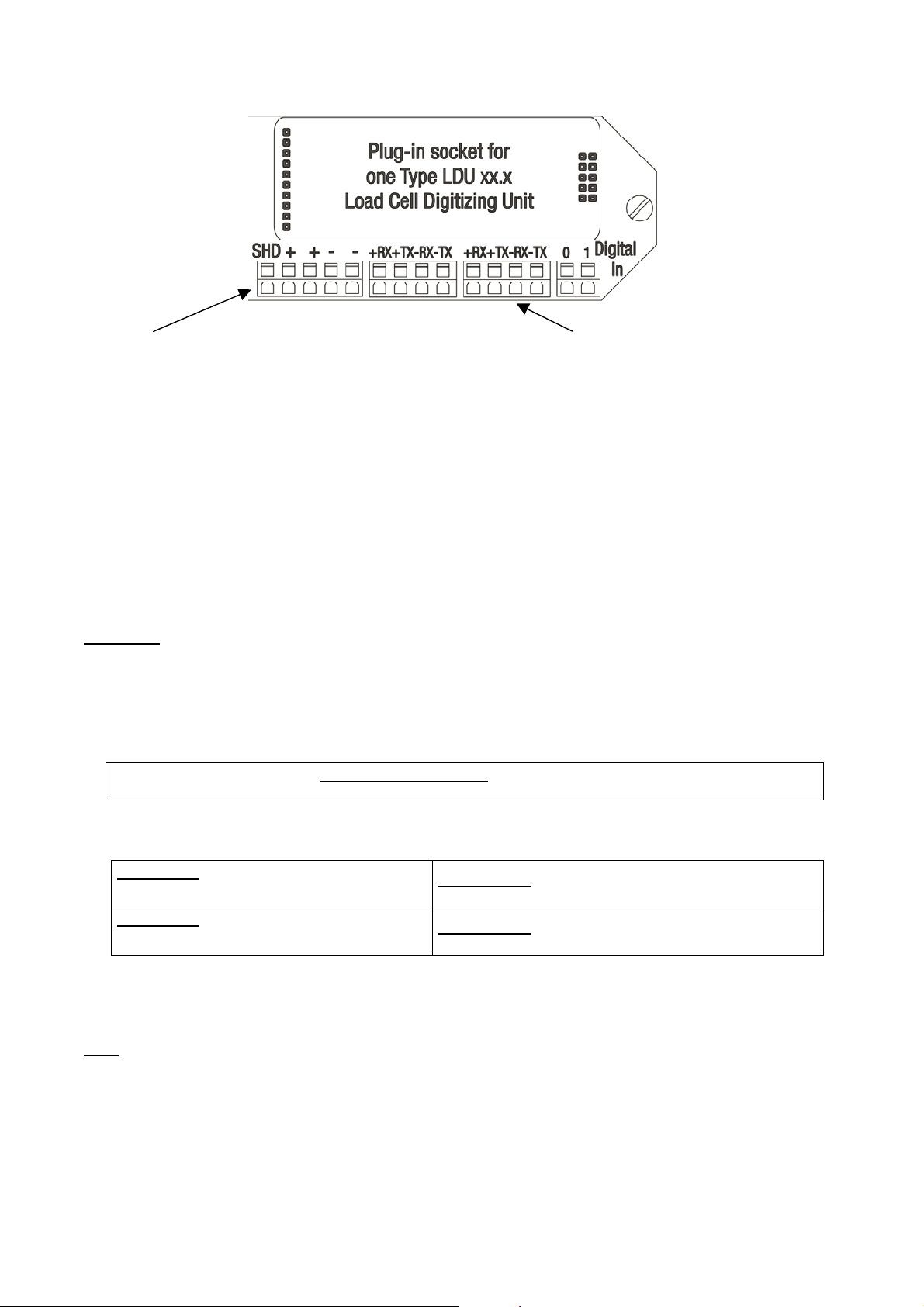

Figure 2: Power supply and connection to external electronics
Depending on cable routing and the LDU’s communication settings the connection cable between junction box
and external electronics will be executed as shielded 4 wires, shielded 6 wires or separate cables for power
supply and bus communication (see also technical manual of corresponding LDU amplifier).
CORNER CORRECTION A T SCALES WITH FLINTEC LOAD CELLS
Flintec load cells are manufactured with rather tight tolerances, so in most cases an additional corner
correction is not required. The best conditions are achieved if you use load cells of the same class
(Designation is done with capital letters A to I on the load cell package besides the type label).
Hint: Corner errors can have a mechanical background, e.g. sloped mounting surface of the load cell.
Procedure:
1. The 0 Ohm jumpers instead of the correction resistors must be in place (shipment status).
2. Get the display value for each corner. Use the highest possible display resolution (e.g. factor 10 or higher)
or, if this is not possible, measure the the digital weight increment using corresponding weights.
3. The corner with the lowest display value is the starting point for the corner correction. The differences of
the other corners are calculated with reference to this “basic corner”.
4. Calculate the correction resistance as follows:
Correction resistance [] =
* 1100 input resistance for:
400 input resistance for:
Example 1: 1100 load cell
0.1 kg corner error with 500 kg test load
Example 2: 400 load cell
10 kg corner error with 5000 kg test load
5. Install the correction resistor into the junction box instead of the 0 Ohm jumper for the corresponding load
cell excitation.
6. Check the corners again. If required repeat the procedure.
Hint:
50 ppm resistors for corner correction are available as a set of 14 values from 0.22 to 4.7 (10 pcs.
for each value; article no. 5200-030).
In the junction box you can also find a dry tablet in a plastic bag. Open the bag and leave the tablet in the
junction box. This will absorb moisture up to a certain degree. Check the cover sealing and install the cover of
the box.
Deviation in [kg]
Test load in [kg]
X Input resistance of the load cell [] *
BK2, SB4, SB5, SB6, SB14, SLB, ZLB, UB1, UB5, UB6, PB, RC3
RC1, SB2
0.1 kg
500 kg
10 kg
5000 kg
x
x
1100
400
=
0.22
=
0.8
