Junction Box
Type KA-1
T
EECCHHNNIICCAALL
T
M
AANNUUAAL
M
L
Flintec GmbH
Bemannsbruch 9
74909 Meckesheim
GERMANY
www.flintec.com
Page 2
RIGHTS AND LIABILITIES
All rights reserved.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by
any means, mechanical, photocopying, recording, or otherwise, without the prior written permission of Flintec
GmbH
No patent liability is assumed with respect to the use of the information contained herein. While every
precaution has been taken in the preparation of this book, FLINTEC assumes no responsibility for errors or
omissions. Neither is any liability assumed for damages resulting from the use of the information contained
herein.
The information herein is believed to be both accurate and reliable. FLINTEC, however, would be obliged to
be informed if any errors occur. FLINTEC cannot accept any liability for direct or indirect damages resulting
from the use of this manual.
FLINTEC reserves the right to revise this manual and alter its content without notification at any time.
Neither FLINTEC nor its affiliates shall be liable to the purchaser of this product or third parties for damages,
losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of
this product or unauthorized modifications, repairs, or alterations to this product, or failure to strictly comply
with FLINTEC operating and maintenance instructions.
FLINTEC shall not be liable against any damages or problems arising from the use of any options or any
consumable products other than those designated as Original FLINTEC Products.
NOTICE: The contents of this manual are subject to change without notice.
Copyright © 2007 by Flintec GmbH, 74909 Meckesheim, Bemannsbruch 9, Germany
S
AFETY INSTRUCTIONS
CAUTION READ this manual BEFORE operating or servicing this equipment. FOLLOW
these instructions carefully. SAVE this manual for future reference. DO NOT allow untrained
personnel to operate, clean, inspect, maintain, service, or tamper with this equipment.
ALWAYS DISCONNECT this equipment from the power source before cleaning or performing
maintenance. CALL FLINTEC ENGINEERING for parts, information, and service.
WARNING ONLY PERMIT QUALIFIED PERSONNEL TO SERVICE THIS EQUIPMENT.
EXERCISE CARE WHEN MAKING CHECKS, TESTS AND ADJUSTMENTS THAT MUST BE
MADE WITH POWER ON. FAILING TO OBSERVE THESE PRECAUTIONS CAN RESULT
IN BODILY HARM.
WARNING FOR CONTINUED PROTECTION AGAINST SHOCK HAZARD CONNECT
TO PROPERLY GROUNDED OUTLET ONLY. DO NOT REMOVE THE GROUND PRONG.
WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE REMOVING THE
FUSE OR SERVICING.
WARNING BEFORE CONNECTING/DISCONNECTING ANY INTERNAL ELECTRONIC
COMPONENTS OR INTERCONNECTING WIRING BETWEEN ELECTRONIC EQUIPMENT
ALWAYS REMOVE POWER AND WAIT AT LEAST THIRTY (30) SECONDS BEFORE ANY
CONNECTIONS OR DISCONNECTIONS ARE MADE. FAILURE TO OBSERVE THESE
PRECAUTIONS COULD RESULT IN DAMAGE TO OR DESTRUCTION OF THE
EQUIPMENT OR BODILY HARM.
CAUTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE
DEVICES.
Junction Box Type KA – Technical Manual, Rev. 1.00 August 2007
Page 2 of 4
Page 3
I
NTRODUCTION AND TECHNICAL DATA
The Aluminium junction box is designed for the connection of 1 load cells.
Type No. of load cells Housing size Input Output
KA-1 1 64 x 98 x 34 mm 1x M16 1x M16
The junction box type KA-1 can be connected to the instrumentation with a shielded 6-wire signal cable.
Housing material: Aluminium
Protection class: IP66
Cable connection: By screw terminals
Corner correction: Not required
M
ECHANICAL INSTALLATION
Look for a mounting location which is more or less dry and protected from environmental stress.
E
LECTRICAL CONNECTIONS

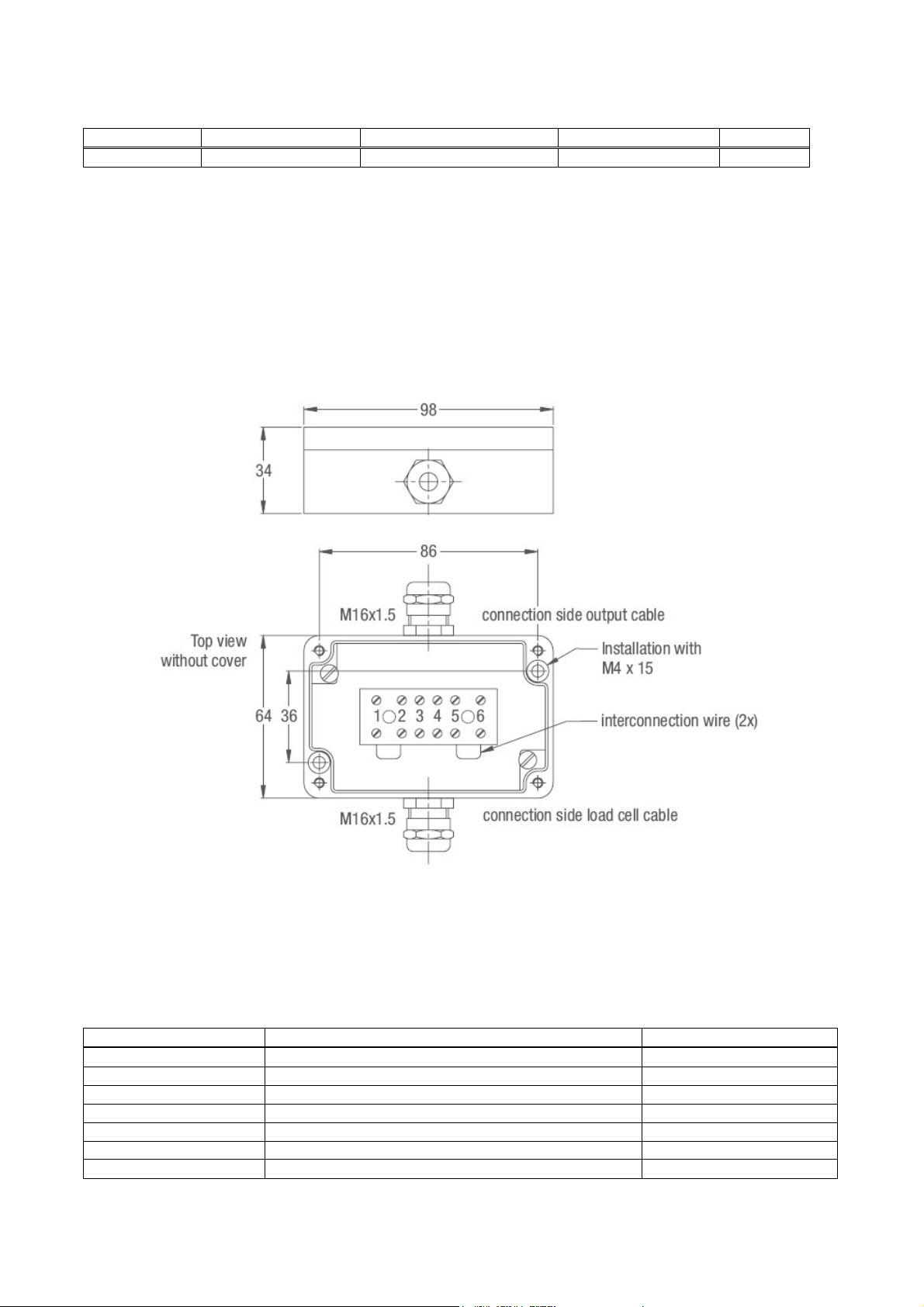

Figure 1: Dimensions in [mm]
L
OAD CELL CABLE CONNECTION
First the cable gland must be loosened. Then you have to feed the load cell cable through the cable gland
unless the shrink tube is fully disappeared in the box.
Afterwards the wires can get connected as follows (see also fig.2)
Cable coulour Description Terminal no., example
yellow = Cable shield First ground screw
(if applicable, blue)* = Sense + 1*
green = Excitation + (Input +) 2*
white = Signal + (Output +) 3
red = Signal – (Output –) 4
black = Excitation – (Input –) 5**
(if applicable, brown)* = Sense – 6**
* at load cells with 4-wire technology terminal no.1 and no.2 must get connected
** at load cells with 4-wire technology terminal no.5 and no.6 must get connected
Junction Box Type KA – Technical Manual, Rev. 1.00 August 2007
Page 3 of 4
Page 4
After all conductors have been connected, the cable glands must be tightened. Please verify that all cable
glands are tight and the cable is fully stress relieved.
O
UTPUT CABLE CONNECTION
The signal cable (connection between junction box and the following electronics) should be a 6 – wire
shielded cable and has to be kept as short as possible. Depending on type and manufacturer signal cables
may have different colours. Therefore make your own choice.
Cable colour, example Beschreibung / Lötpunktbezeichnung Terminal no., example
outer cable screen = Shield Second ground screw
yellow = Sense + 1
green = Excitation + (Input +) 2
white = Signal + (Output +) 3
pink = Signal – (Output –) 4
brown = Excitation – (Input –) 5
grey = Sense – 6

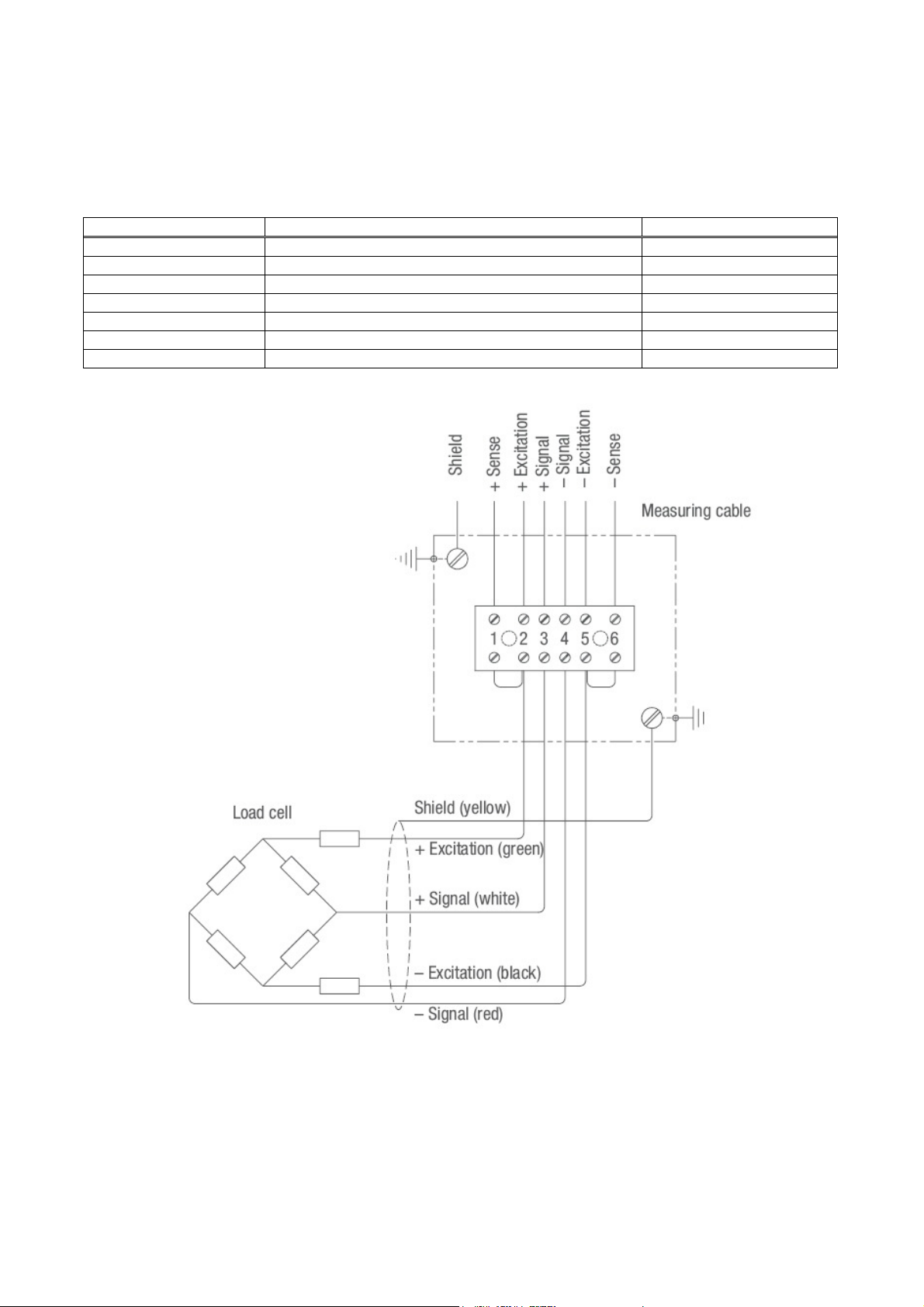

Figure 2: Wiring
Finally check the cover sealing and install the cover of the box.
Junction Box Type KA – Technical Manual, Rev. 1.00 August 2007
Page 4 of 4
