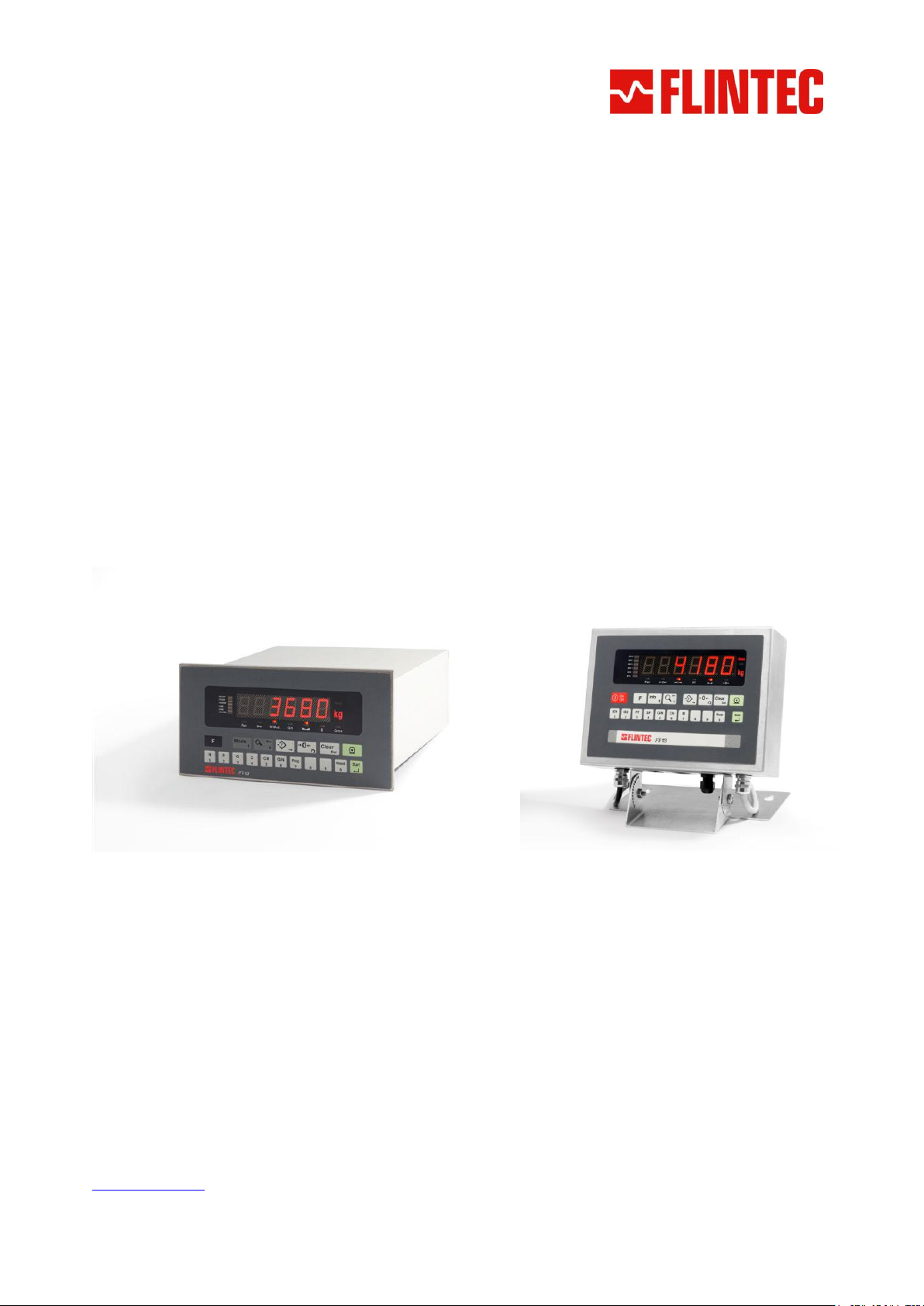

Flintec FT-13 User Manual

Download

EECCHHNNIICCAALL

AANNUUAAL

WEIGHING CONTROLLER

FT-13

For Firmware Version 2.13 and higher

Flintec GmbH Bemannsbruch 9 74909 Meckesheim GERMANY

www.flintec.com

Page 2 of 56

Table of Contents:

1. Safety Instructions .................................................................................................................................. 4

2. Declaration of Conformity ...................................................................................................................... 5

3. Overview ................................................................................................................................................... 6

3.1 Key Features .......................................................................................................................................... 6

3.2 Available Options .................................................................................................................................... 6

3.3 Technical Specifications ......................................................................................................................... 7

3.4 Housing Dimensions ............................................................................................................................... 8

3.4.1 Stainless Steel Housing ..................................................................................................................................... 8

3.4.2 Panel Type Housing ........................................................................................................................................... 8

4. Installation and Commissioning ............................................................................................................ 9

4.1 Mechanical Installation ........................................................................................................................... 9

4.1.1 Jumpers ............................................................................................................................................................. 9

4.2 Electrical Connections ............................................................................................................................ 9

4.2.1 Power Supply and Grounding ............................................................................................................................ 9

4.2.2 Standard Load Cell Connection ....................................................................................................................... 10

4.2.3 Digital I/O Connections ..................................................................................................................................... 10

4.3 Commissioning ..................................................................................................................................... 11

5. Front Panel and Keypad ....................................................................................................................... 12

5.1 Weight Display and Status LEDs .......................................................................................................... 12

5.2 Keypad .................................................................................................................................................. 13

5.3 Key lock ................................................................................................................................................ 13

6. Setup and Calibration ........................................................................................................................... 14

6.1 Basics ................................................................................................................................................... 14

6.1.1 Basic Setup Keys on the Frontplate ................................................................................................................. 14

6.1.2 Entering the Setup and Calibration Menu ......................................................................................................... 14

6.1.3 Exiting the Setup and Calibration Menu ........................................................................................................... 14

6.2 Metrological Counter ............................................................................................................................. 14

6.3 Configuration Parameters ..................................................................................................................... 15

6.4 Scale Parameters ................................................................................................................................. 15

6.5 Scale Calibration ................................................................................................................................... 16

7. Filling with FT-13 ................................................................................................................................... 17

7.1 Overview ............................................................................................................................................... 17

7.2 Commissioning ..................................................................................................................................... 17

7.3 Filling Programmes ............................................................................................................................... 18

7.3.1 Programme 0: Open Container Filling .............................................................................................................. 18

7.3.2 Programme 1: Bunghole Container Filling ........................................................................................................ 19

7.3.3 Programme 2: Below Surface Filling ................................................................................................................ 20

7.3.4 Programme 3: Filling and Emptying Type 1 ..................................................................................................... 21

7.3.5 Programme 4: Filling and Discharging ............................................................................................................. 23

7.3.6 Programme 5: Charging and Discharging ........................................................................................................ 24

7.3.7 Programme 6: Filling and Emptying Type 2 ..................................................................................................... 25

7.3.8 Programme 7: Filling the bag ........................................................................................................................... 26

7.3.9 Programme 8: Bag filling from hopper scale .................................................................................................... 27

7.4 Target and Preset Entry........................................................................................................................ 29

7.5 Recipe Memory ..................................................................................................................................... 30

7.6 Setup..................................................................................................................................................... 31

7.7 Error Messages .................................................................................................................................... 33

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 3 of 56

8. Communication...................................................................................................................................... 34

8.1 Overview about Communication ........................................................................................................... 34

8.2 Serial Interface and Printer ................................................................................................................... 34

8.2.1 Standard Serial Interface Connector (RS232C) ............................................................................................... 34

8.2.2 Optional Serial Interface Connector (RS232C, RS485, 20 mA TTY) ............................................................... 34

8.2.3 Continuous Output Mode ................................................................................................................................. 35

8.2.4 Host Mode ........................................................................................................................................................ 35

8.2.5 Print Mode ........................................................................................................................................................ 35

8.2.6 Setup ................................................................................................................................................................ 36

8.3 Ethernet Option ..................................................................................................................................... 37

8.3.1 Electrical Connections ...................................................................................................................................... 37

8.3.2 Setup ................................................................................................................................................................ 38

8.3.3 Data Structure .................................................................................................................................................. 39

8.4 Profibus Option ..................................................................................................................................... 40

8.4.1 Electrical Connections ...................................................................................................................................... 40

8.5.2 Setup ................................................................................................................................................................ 40

8.5.3 Data Structure .................................................................................................................................................. 40

8.6 ProfiNet Option ..................................................................................................................................... 41

8.6.1 Electrical Connections ................................................................ ........................................................................... 41

8.6.2 Setup ................................................................................................................................................................ 41

8.6.3 Data Structure .................................................................................................................................................. 41

8.7 CANopen Option ................................................................................................................................... 42

8.7.1 Electrical Connections ................................................................ ........................................................................... 42

8.7.2 Setup ................................................................................................................................................................ 42

8.7.3 Data Structure .................................................................................................................................................. 42

9. Diagnostics ............................................................................................................................................ 43

Appendix 1: Setup and Calibration Menu ....................................................................................................... 44

Appendix 2: Continues Output Mode Data Structure .................................................................................... 45

Appendix 3: Modbus RTU Data Structure ....................................................................................................... 46

Appendix 4: Profibus DP / ProfiNet Data Structure ....................................................................................... 49

Appendix 5: CANopen Data Structure ............................................................................................................. 51

Appendix 6: Error Table .................................................................................................................................... 53

Appendix 7: Parameter’s Default Table ........................................................................................................... 54

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 4 of 56

RIGHTS AND LIABILITIES

CAUTION READ this manual BEFORE operating or servicing this equipment. FOLLOW

these instructions carefully. SAVE this manual for future reference. DO NOT allow untrained personnel to operate, clean, inspect, maintain, service, or tamper with this equipment. ALWAYS DISCONNECT this equipment from the power source before cleaning or performing maintenance. CALL FLINTEC ENGINEERING for parts, information, and service.

WARNING ONLY PERMIT QUALIFIED PERSONNEL TO SERVICE THIS EQUIPMENT. EXERCISE CARE WHEN MAKING CHECKS, TESTS AND ADJUSTMENTS THAT MUST BE MADE WITH POWER ON. FAILING TO OBSERVE THESE PRECAUTIONS CAN RESULT IN BODILY HARM.

WARNING FOR CONTINUED PROTECTION AGAINST SHOCK HAZARD CONNECT TO PROPERLY GROUNDED OUTLET ONLY. DO NOT REMOVE THE GROUND PRONG.

WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE REMOVING THE FUSE OR SERVICING.

WARNING BEFORE CONNECTING/DISCONNECTING ANY INTERNAL ELECTRONIC COMPONENTS OR INTERCONNECTING WIRING BETWEEN ELECTRONIC EQUIPMENT ALWAYS REMOVE POWER AND WAIT AT LEAST THIRTY (30) SECONDS BEFORE ANY CONNECTIONS OR DISCONNECTIONS ARE MADE. FAILURE TO OBSERVE THESE PRECAUTIONS COULD RESULT IN DAMAGE TO OR DESTRUCTION OF THE EQUIPMENT OR BODILY HARM.

CAUTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE DEVICES.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, mechanical, photocopying, recording, or otherwise, without the prior written permission of Flintec GmbH

No patent liability is assumed with respect to the use of the information contained herein. While every precaution has been taken in the preparation of this book, FLINTEC assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein.

The information herein is believed to be both accurate and reliable. FLINTEC, however, would be obliged to be informed if any errors occur. FLINTEC cannot accept any liability for direct or indirect damages resulting from the use of this manual.

FLINTEC reserves the right to revise this manual and alter its content without notification at any time. Neither FLINTEC nor its affiliates shall be liable to the purchaser of this product or third parties for damages,

losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or failure to strictly comply with FLINTEC operating and maintenance instructions.

FLINTEC shall not be liable against any damages or problems arising from the use of any options or any consumable products other than those designated as Original FLINTEC Products.

NOTICE: The contents of this manual are subject to change without notice.

1. SAFETY INSTRUCTIONS

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 5 of 56

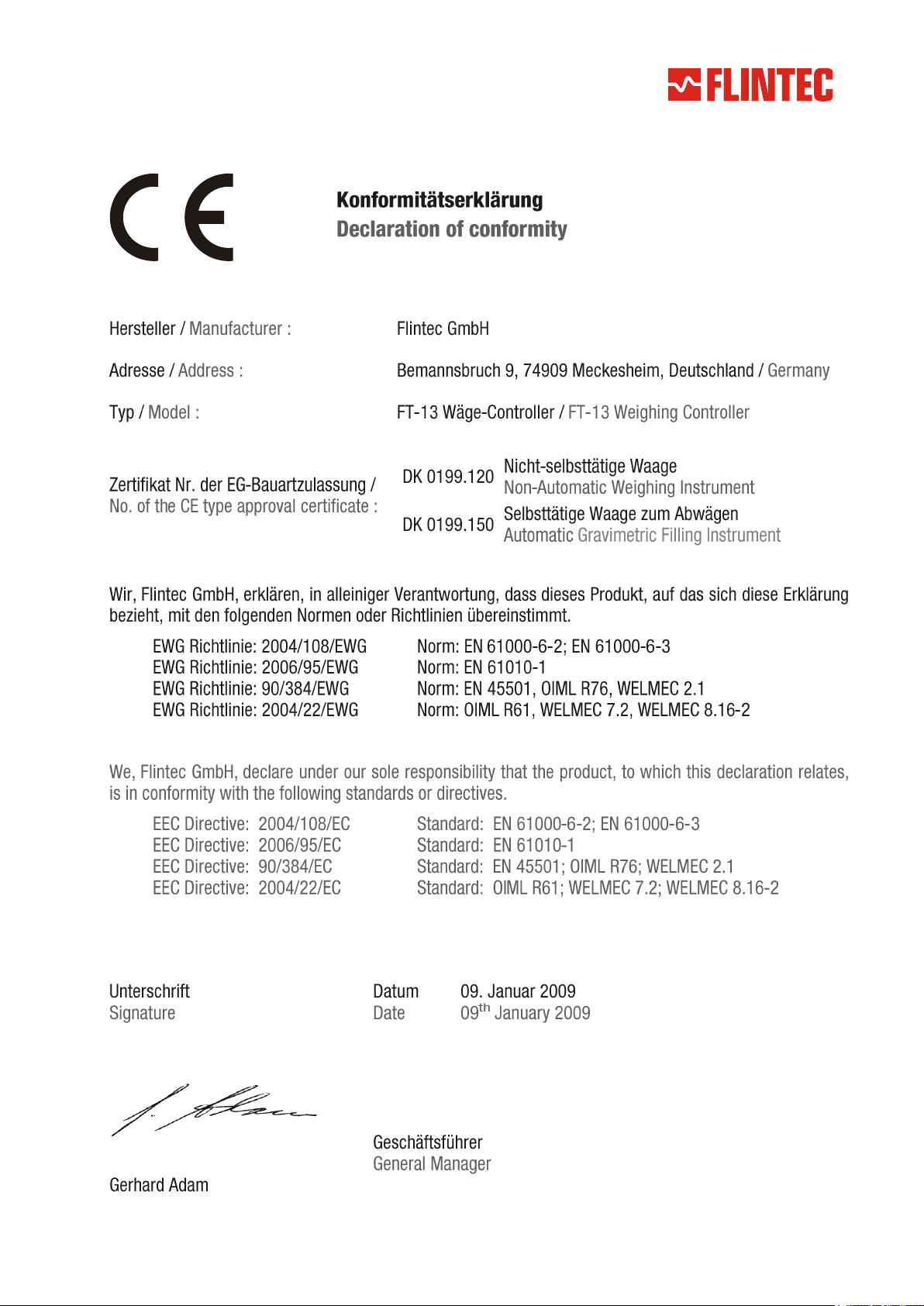

2. DECLARATION OF CONFORMITY

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 6 of 56

3. OVERVIEW

The FT-13 Weighing Controller is an economic and powerful state-of-the-art instrument. Its application covers standard filling tasks like filling above the open container, filling below the bunghole of the container, below surface filling in the container, accurate filling and emptying etc. The accurate and versatile instrument is available in different housings, meeting the industries demand for various environmental conditions. FT-13 has been designed according OIML R76 and OIML R61 recommendations and fulfills 90/384/EC directive, 2004/22/EC directive and EN 45501 standard. It has a large 6 digit LED weight display (red, 20 mm or 14 mm high) with weight status information. With a variety of interface options FT-13 is the perfect fit to weighing systems and process control systems.

3.1 Key Features

EU Type approved for 10 000 intervals in single range scales (90/384/EC directive) AND

for 6 000 intervals in single range scales (2004/22/EC directive)

Approved sensitivity of 0.4 V/e (according 90/384/EC directive) and

0.83 V/e (according 2004/22/EC directive); non-approved sensitivity of 0.1 V/d Internal resolution up to 8 000 000 counts Display resolution up to 60 000 counts Maximum conversion rate of 400 values/s (after serial no. 520001G7) Adaptive digital filter for fast and stable reading High resolution display mode Up to 6 load cells (350 ) or 18 load cells (1100 ) Realtime clock Standard Serial interface RS232C Integrated AC power supply Zeroing with one button & Taring with one button Auto zero tracking Motion detection 4x digital inputs / 8x digital outputs 9 standard filling programmes Key lock option to prevent unauthorized access

3.2 Available Options

Additional serial interface RS232C / 20 mA TTY CL / RS485

(20 mA TTY CL not for stainless steel housing) Modbus RTU Ethernet TCP/IP and Modbus RTU over Ethernet Profibus DP-V0 & DP-V1 ProfiNet CANopen 12 V DC (12…17 V DC) power inlet 24 V DC (20…27 V DC) power inlet

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 7 of 56

3.3 Technical Specifications

Accuracy

Accuracy class:

III

EU Type approved:

10 000 intervals (90/384/EC directive); 6 000 (2004/22/EC directive); single range

Display and Keyboard

Display:

6 digits, 7 segments, LED red, 20 mm high (Panel type 14 mm high)

Display update rate:

250 ms

Keyboard:

18-keys; membrane with tactile feedback

A/D Converter

A/D converter type:

24 bit Delta-Sigma ratiometric with integral analog and digital filters

Conversion rate:

Max. 400 measurement values per second

Input sensitivity:

0.4 μV/e (acc. 90/384/EC); 0.83 μV/e (acc. 2004/22/EC); 0.1 μV/d (non approved)

Analogue input range:

0 to 20 mV

Internal resolution:

Up to 8 000 000 counts

Display resolution:

Up to 60 000 counts

Scale Calibration and Functions

Calibration:

Calibration is performed by application weights

Corner adjustment:

Only externally

Digital filter:

10 step adjustable

Filling programmes

Open container filling, Below bunghole filling, Below surface filling, Filling and

emptying (2 types), Filling and discharging, Charging and discharging,

In the bag filling, Bag filling from hopper scale

Weighing functions:

Tare, zero, motion, auto zero tracking

Digital I/O:

4x in / 8x out

Linearity:

Within 0.0015% FS, 2 ppm/°C

Load cells

Excitation:

5 V DC at 58...1200 max. 100 mA

Number of load cells:

Up to 6 load cells (350 ) or 18 load cells (1 100 ) in parallel

Connection:

4- or 6-wire technique; cable length 274 m/mm² for 6-wire connection

Communication:

Standard serial interface RS232C; 1 200 to 57 600 baud; programmable

Continuous mode update rate:

100 ms

Option board update rate:

40 ms

Power supply:

AC Power supply

200…240 V AC, 50/60 Hz

DC Power supply

optionally 12…17 V DC, max. 12 VA or optionally 20…27 V DC, max. 12 VA

Environment and Enclosure

Operation temp.:

-10 °C to +40 °C legal for trade; max. 85% RH, non-condensing

Enclosure

Panel type (front panel IP65) or stainless steel (IP65)

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 8 of 56

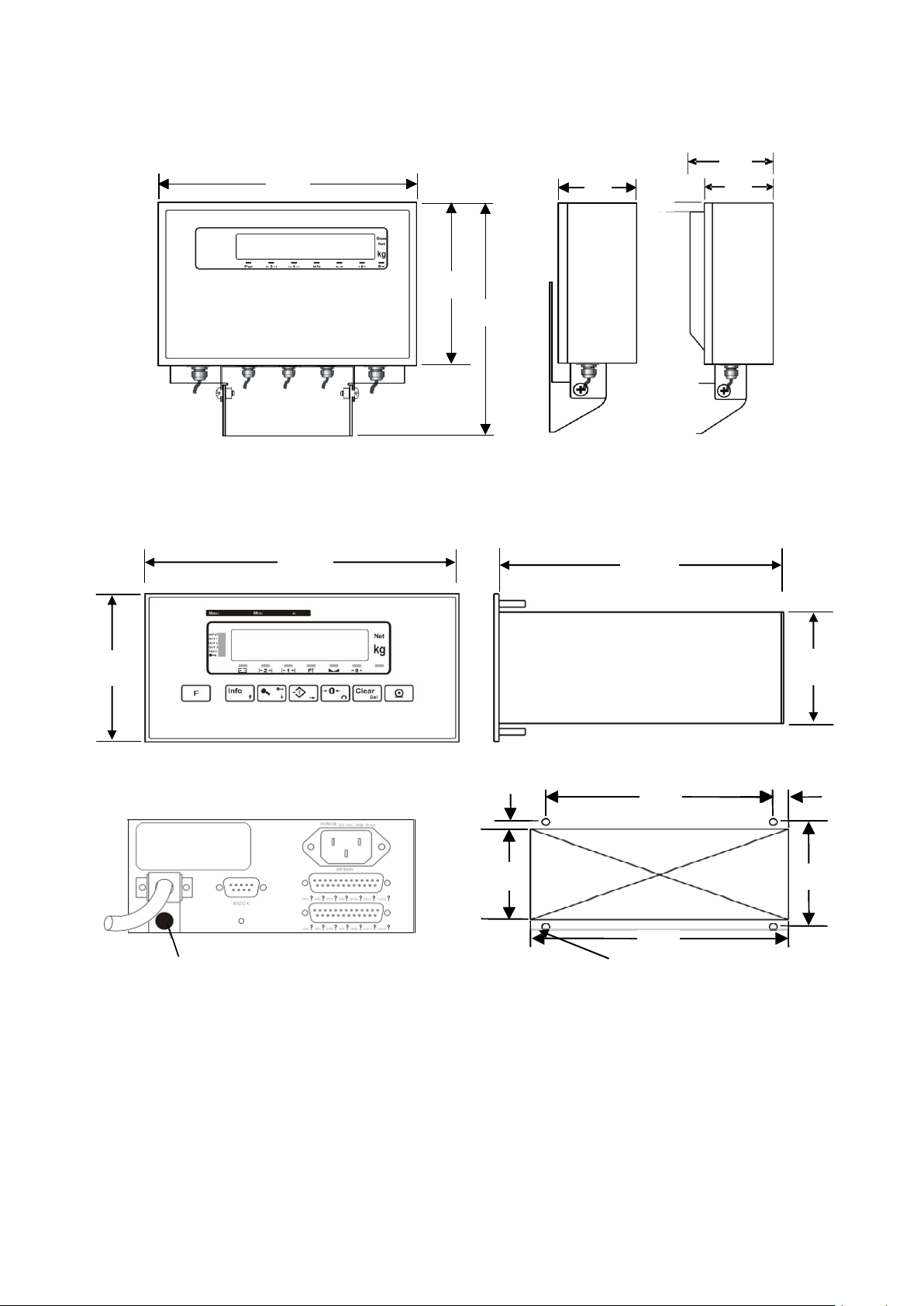

3.4 Housing Dimensions

220

160

230

100

220

160

230

220

160

230

100

Stainless steel housing front view

Stainless steel housing side view

100 mm deep with big backplane option

Panel type front view

Panel type side view

5,5

144

164

Sticker

5,5

144

164

5,5

144

164

Sticker

Panel type rear view

The hole dimensions for mounting on a panel

175

174

 5, mounting with 4x M4

3.4.1 Stainless Steel Housing

3.4.2 Panel Type Housing

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 9 of 56

4. INSTALLATION AND COMMISSIONING

Definition

Pin no.

for desk and panel type

Pin no.

for stainless steel housing

24 V / 12 V 1 3

0 V 2 2

Housing Gnd 3 1

Desk / Panel

J2 Calibration (short circuit for calibration)

J8 On/Off Switch (always short circuit at the Panel type)

J17 short circuit for on/off key function

PRECAUTION: Please read this manual carefully before energizing the indicator. Perform the commissioning operation according the procedure given here. Use trained personnel for cleaning, commissioning, checking and service of the indicator. The interference of untrained personnel may cause some unwanted damages or injures.

4.1 Mechanical Installation

First of all please determine the place where your indicator can operate safely. This place should be clean, not getting direct sun light if possible, with a temperature between -10 ºC and +40 ºC, humidity not exceeding 85% non-condensing. Take care to the housing dimensions and the suggested panel hole dimensions given in chapter 3.5. All the cables should be installed safely to avoid mechanical damages. To avoid electrical noise protect your indicator which has very low input signal level from the equipment that produces electrical noise, especially in panel mounting.

4.1.1 Jumpers

There are three jumpers on the instrument‟s main board/weighing board for calibration and for switching on/off. To change the position of this jumpers, open the housing and perform the necessary changes before energizing the indicator.

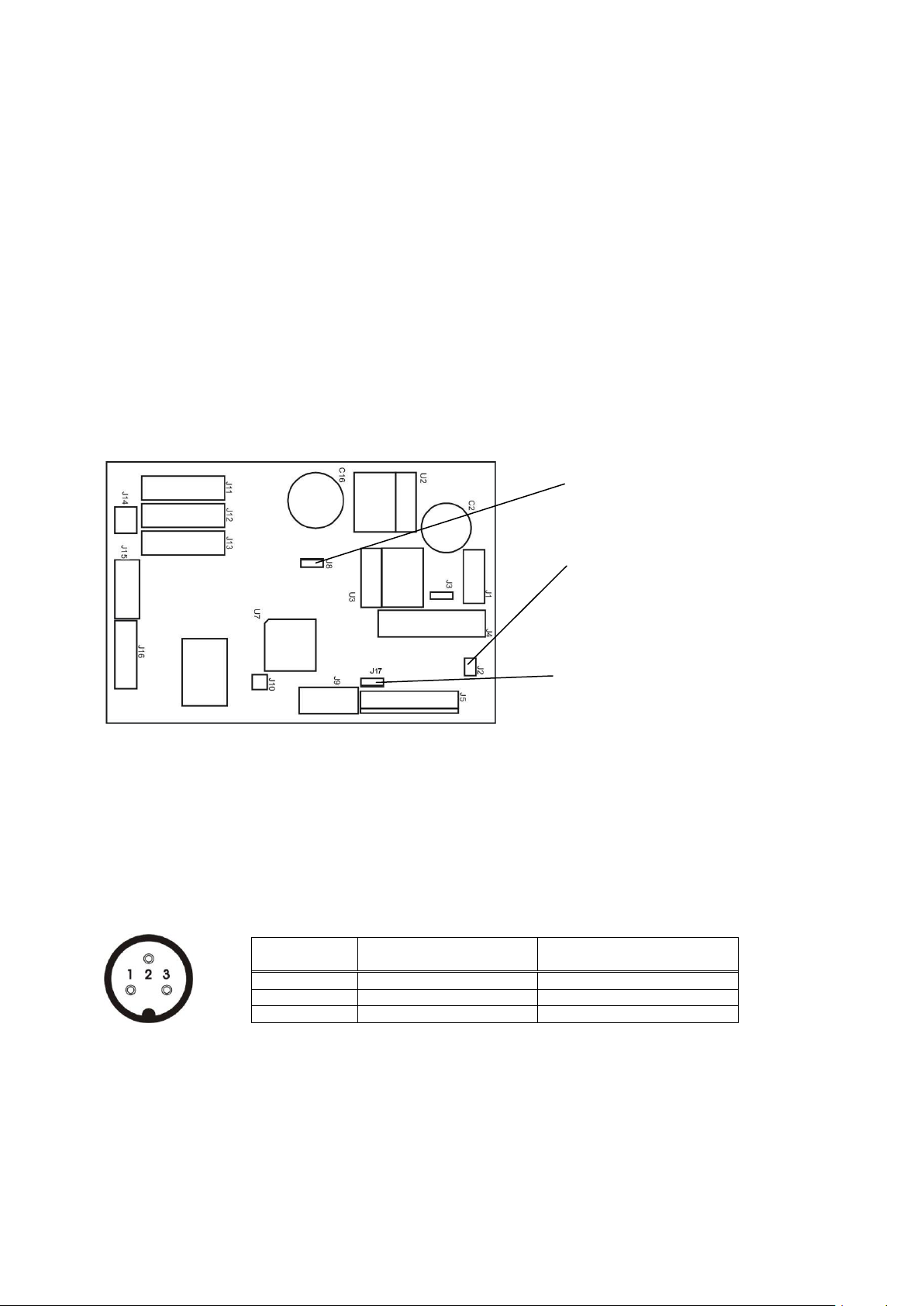

Figure 4.1 Main board

4.2 Electrical Connections

4.2.1 Power Supply and Grounding

FT-13 is available with 230 V AC power supply or 24 V DC or 12 V DC power inlet. The 230 V AC indicators are supplied with a power cable; the DC indicators are supplied with a special connector for the power inlet. Prepare your power voltage according to your instrument‟s power inlet. The DC connector pin configuration can be found in Figure 4.2 below.

The quality of the instrument‟s ground will determine the accuracy and the safety of your indicator. A poor ground can result in an unsafe condition if an electrical short cuircuit happens. A good ground connection is needed to minimize extraneous electrical noise pulses. It is important that the instrument does not share power lines with noise-generating equipment such as heavy load switching, motor control equipments, inductive loads, etc. If the condition of the power line in the plant is bad, prepare a special power line and grounding. If you have to service the indicator, turn off the power and wait at least for 30 seconds before interfering. All connectors are at the rear side of the housings of desk and panel types. The stainless steel housings must be opened to make the required connections. These connections must be done as described below.

Figure 4.2 The pin layout of the DC connector

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 10 of 56

4.2.2 Standard Load Cell Connection

6-wire Load Cell

Connection

4-wire Load Cell

Connection

Pin no. for desk type & panel

type (D-Sub, 9-pin, female)

Pin no. for Stainless steel

housing (J12 connector)

+ Excitation

+ Excitation 1 1

+ Sense

+ Excitation 2 2

Shield

- Sense

- Excitation 4 6

- Excitation

- Excitation 5 7

+ Signal

+ Signal 7 3

- Signal

Shield

Connector body

Definition

Pin no.

(P*)

Pin no. (SS**)

Programme

J10, J15

(Standard)

JR1 & JR2

(Option)

0 1 2

3 / 6

4 5 7

GND

GND (J15)

+24 V

24V

(J10)

Input 1

1 (J15)

Start of filling

Input 2

2 (J15)

Valve

down

Valve is

at middle

position

Start of discharge

Clamp is

closed

Input 3

3 (J15)

Valve is

down

Gate is closed

Clamp

closed

Gate is

closed

Input 4

4 (J15)

Reset

Output 1

1 (J10)

Coarse feeding

Output 2

2 (J10)

Fine feeding

Output 3

3 (J10)

Valve down

Valve

down

Emtying

Dis-

charge

Charge

feed

Open the

gate

Output 4

4 (J10)

End of filling/emptying

Output 5

5 (J10)

Valve is

End of discharge

Catch

the

clamp

End of

Emptying

Vibration

output

Output 6

6 (J10)

Error

Output 7

7 (J10)

Vibra-

tion

Release

the

clamp

Output 8

8 (J10)

Mid-feeding

Shield

Connector

body

Housing

Voltage

Current

Digital input

20 to 28 V DC

Max. 30 mA

Digital output

20 to 28 V DC

Max. 300 mA (sum of all 3 outputs)

The load cell wiring should be made carefully before energizing to avoid damages to the weight indicator and the load cells. The input resistance of the load cells that you want to connect should be more than 58 Ω. The sense pins of the instrument should be connected. In 4-wire installations the sense and excitation pins with the same polarity should be short circuited at the connector side.

4.2.3 Digital I/O Connections

FT-13 is equiped with a digital I/O board which provides 4 digital inputs and 8 digital outputs. The meanings of the various I/O depend on the selected standard filling programme (see chapter 7).

P*: for Panel type housing; SS*: stainless steel housing

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 11 of 56

Output

Input

GND

Output

Input

GND

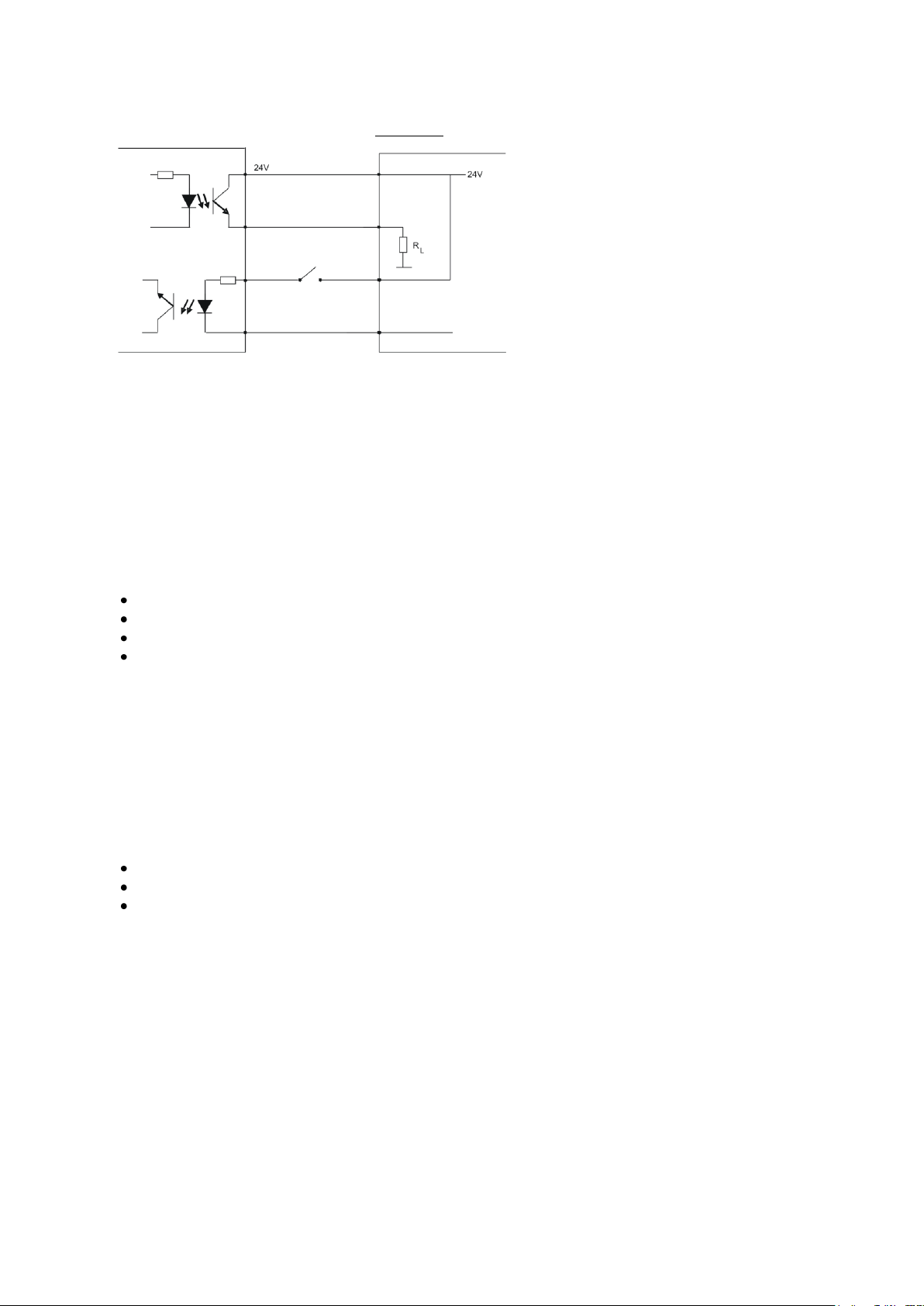

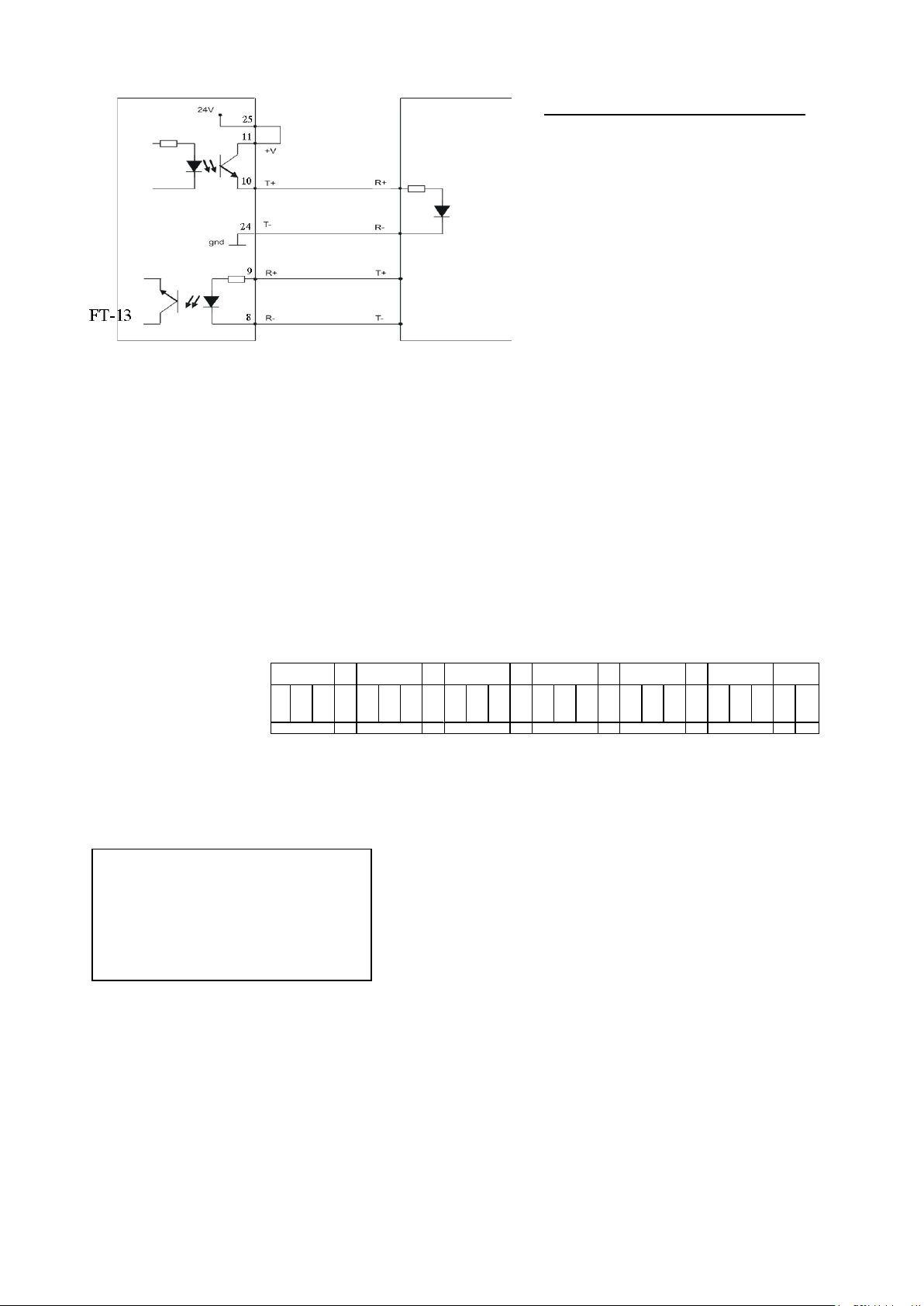

Figure 4.3 Digital I / O ports connection diagram

The electrical connection of the inputs and outputs should be made as shown in the Figure 4.3 The power for the digital I/O has to be supplied from an external power supply module. Ground (Pin no. 2) and +24 V (Pin no. 1) must both be wired accordingly.

Additional Digital I/O Board

Depending on the housing type an additional digital I/O board can be added to FT-13. The additional inputs and outputs are not used in the standard filling programmes, but can be used depending on the customized application programming (requires special development order from the customer and customized firmware programming in the factory). The pin numbers are the same as the first 4 input / 8 output connector located on the instrument, but the meanings depend on the application software downloaded to the instrument.

4.3 Commissioning

After making the required installations and connections to your indicator, turn the power on and perform following steps:

Get familiar with the instrument‟s setup mode (see chapter 6.1) Define the configuration parameters (see chapter 6.3)* Define the scale parameters (see chapter 6.4) Calibrate the scale (see chapter 6.5)

* Note: Most of the parameters can be skipped for later setup. Please take care for the parameters which may be locked by the J2 calibration jumper in legal for trade applications (see Appendix 1: Setup and Calibration Menu of the instrument).

After checking the performance of your weighing instrument you can begin to use the indicator. If there are peripheral connections, first you should turn the power off; make the peripheral connections,

perform the required safety checks and energize the indicator. Then set the related parameters and check if the peripheral devices are operating properly.

If required perform following additional steps:

Set up the filling programme (see chapter 7) Set up the serial interfaces (see chapter 8) Set up other communication interfaces (see chapter 8)

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 12 of 56

5. FRONT PANEL AND KEYPAD

Status LEDs related to the weighing process

LED

Meaning

Power: This LED will flash in case of supply voltage decrease. If the voltage decreases too much the

indicator will automatically shut off.

Key lock: is active

W Mod.

Weighing mode: is active

G/N

Gross/Net: LED is on when gross is displayed temporarely

Stable: The weight value on the display is stable

Center of zero: The weight is in the center of zero (see parameter [203] in chapter 6.5)

Status LEDs related to the filling process

LED

Meaning

READY

FT-13 is ready to start the filling process

START

LED is on if the start input is active

COARSE

Indicates coarse feeding process

FINE

Indicates fine feeding process

EOB

Indicates end of filling

DSCHRG

Indicates end of emptying / discharging (in Programme 3, 4, 5 and 6)

5.1 Weight Display and Status LEDs

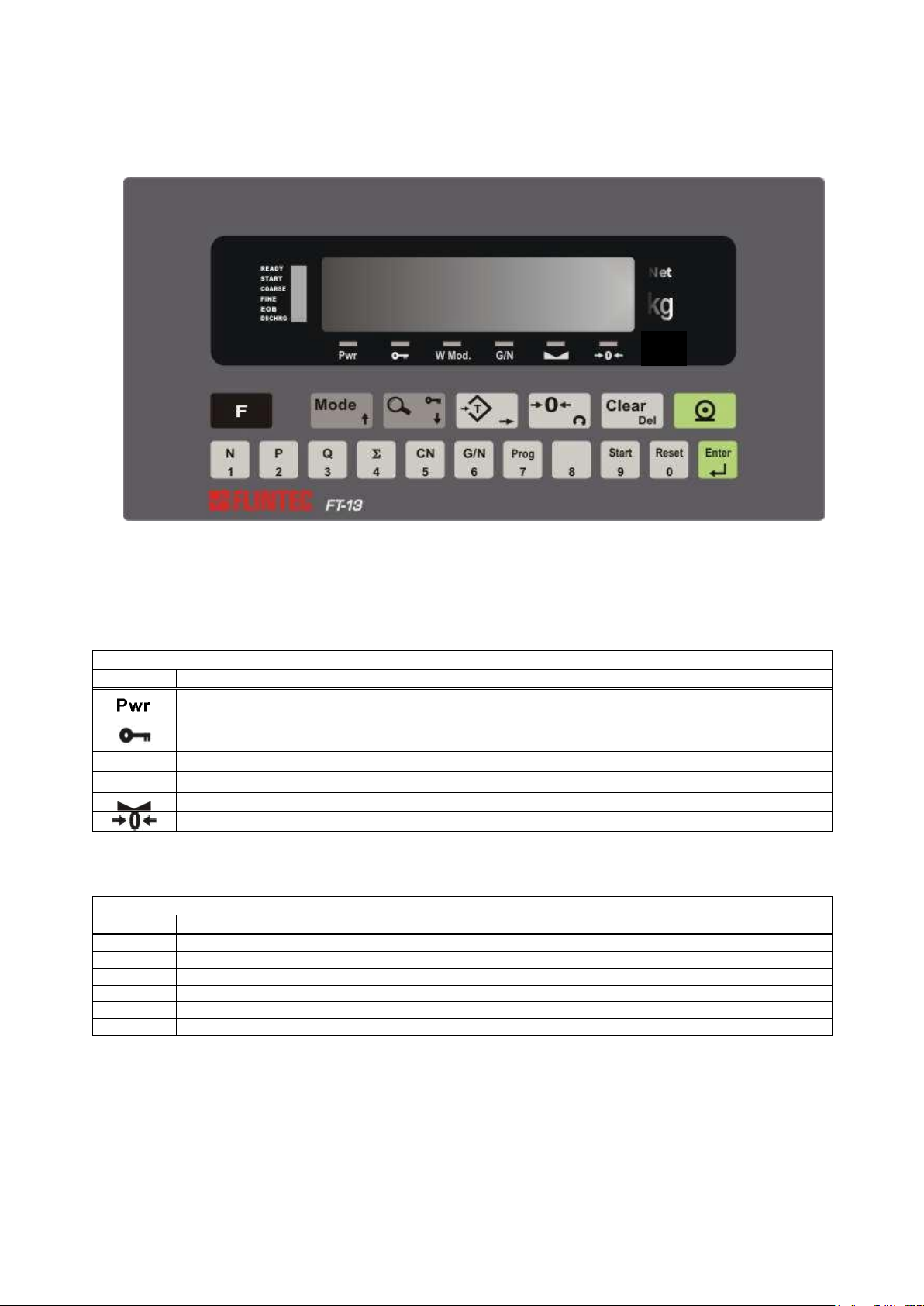

Figure 5.1 Front panel view of FT-13

The weight display of FT-13 is a 6 digit LED with 14 mm or 20 mm height. At the right side of the display there are three status LEDs for indicating “Gross”, “Net” and the standard unit “kg”.

Below the weight display there are 6 status LEDs related to the weighing process. The meanings of these are:

At the left side of the weight display there is a group of 6 status LEDs which give information about the current filling process. The meaning depends on the selected filling programm (see chapter 7).

The digital I/Os have different meanings according to selected the filling programme (see chapter 4.2.3).

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 13 of 56

5.2 Keypad

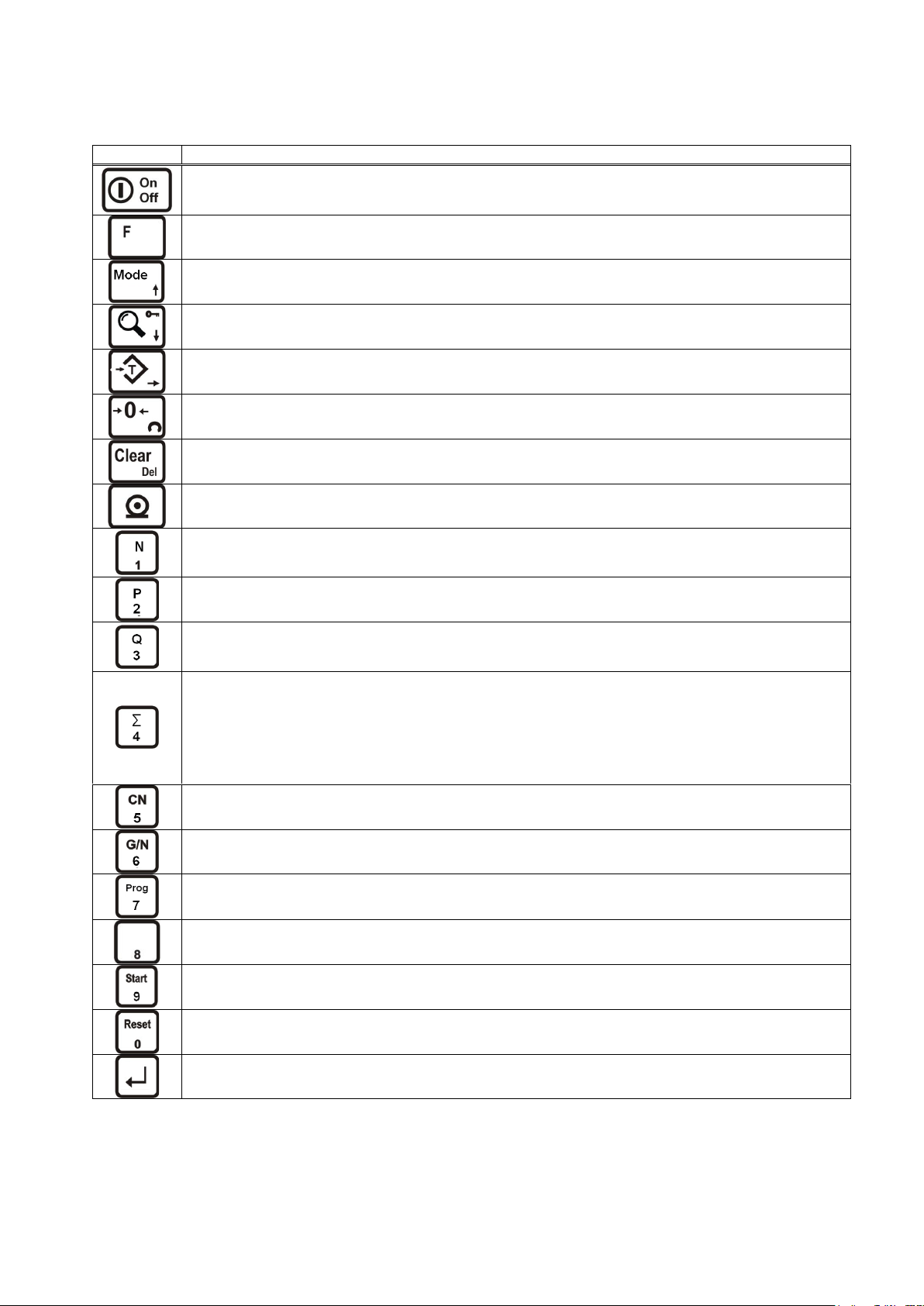

Key

Meaning

Power On/Off: This key is used for turning the instrument on or off. To switch off the key must be pressed

and hold at least for 2 seconds. This key can get inhibited in setup mode. There is no On/Off key on panel type housings.

Function : This key is used in combination with other keys to enter any function or to quit without saving.

Mode: This key is used for swiching between filling mode and weighing mode.

High Resolution: By pressing this key the weight value will be shown with a higher resolution for a short period (in weighing mode only). Pressing in ready status: displays last filling value

Manual Taring: Pressing this key tares the scale and gets into the Net mode (in weighing mode only).

Manual Zeroing: In Gross mode, if the scale doesn‟t show zero, you can zero the scale by pressing this key.

Clear: Pressing this key clears the tare and the scale and returns to Gross mode ( in weighing mode only).

Print: By pressing this key weight data and other information depending on the instrument setup are sent to a printer or a PC via serial port (in weighing mode only).

Target and Tolerance: This key is used for entering the target value (nominal filling value) and tolerance values (see chapter 7.4). Numerical Keypads: These keys are used for entering numerical values in setup mode.

Preact and Dribble: This key is used for entering coarse lead in and fine lead in values to define the

coarse and fine feedings (see chapter 7.4).

Quantity: This key is used to display the filling quantity or to define the quantity limit for filling. To enter the quantity limit for filling press <F> and <Q> keys sequentially. The message [ Qty ] is displayed. Enter the quantity you want to fill and press <Enter>.

Total: This key is used to display the total filled weight and the batch report. To view the total weight press the <F> and <Σ> keys sequentially (To print out the total weight press the <Print> key). Then press the <Enter> key to view the batch report. The message [StAtiS] is displayed. To print out the batch report press the <Print> key. To quit this function press the <F> key otherwise the instrument will quit automatically after 5 seconds. To clear the total and statistics press the <Clear> key and then press the <1> key after [ CLr 1 ] message is displayed.

CN: The total quantity CN can be viewed by pressing this key. To quit this function press the <F> key otherwise the instrument will quit automatically after 5 seconds.

Gross/Net: This key is being used to see the gross weight value without clearing the tare value while working in Net mode (in weighing mode only).

Programming: If you press the <F> and <Prog> keys sequentially, you will enter the filling mode related setup parameters. Please see chapter 7 for details.

Recipe : 16 different recipes (=set of target, preact, dribble, tolerance, etc.) can be saved into the recipe memory. Before the filling starts you may select the recipe from the memory (see chapter 7.5).

Manual Start: This key is used to start the next filling process.

Manual Reset: This key is used to reset the next filling process.

Enter: This key is used for confirming an entered value and to get to the next parameter in setup mode.

The meaning of the front panel keys and the key functions are:

5.3 Key lock

The instrument has the capability to lock the keys to avoid unauthorized person‟s interference. You can activate

or deactivate this function by pressing the <F> and <Key Lock> keys sequentially. The LED with the key sign (below the display) indicates the keys are locked. The key lock is automatically activated during the filling process except for the <Start> key and the <Reset> key.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 14 of 56

6. SETUP AND CALIBRATION

Exit

without

saving

Stepping

forwards to the

next parameter

Stepping

backwards to

the previous

parameter

Changing

the digit

Entering the

parameter

value

Changing the

value or

increasing the

flashing digit

Clear

(delete)

Enter

ModeMode

6.1 Basics

6.1.1 Basic Setup Keys on the Frontplate

The symbols located on the lower right corner of each key indicate the function of the keys in the setup menu. The basic meanings of these keys are given in the table below.

6.1.2 Entering the Setup and Calibration Menu

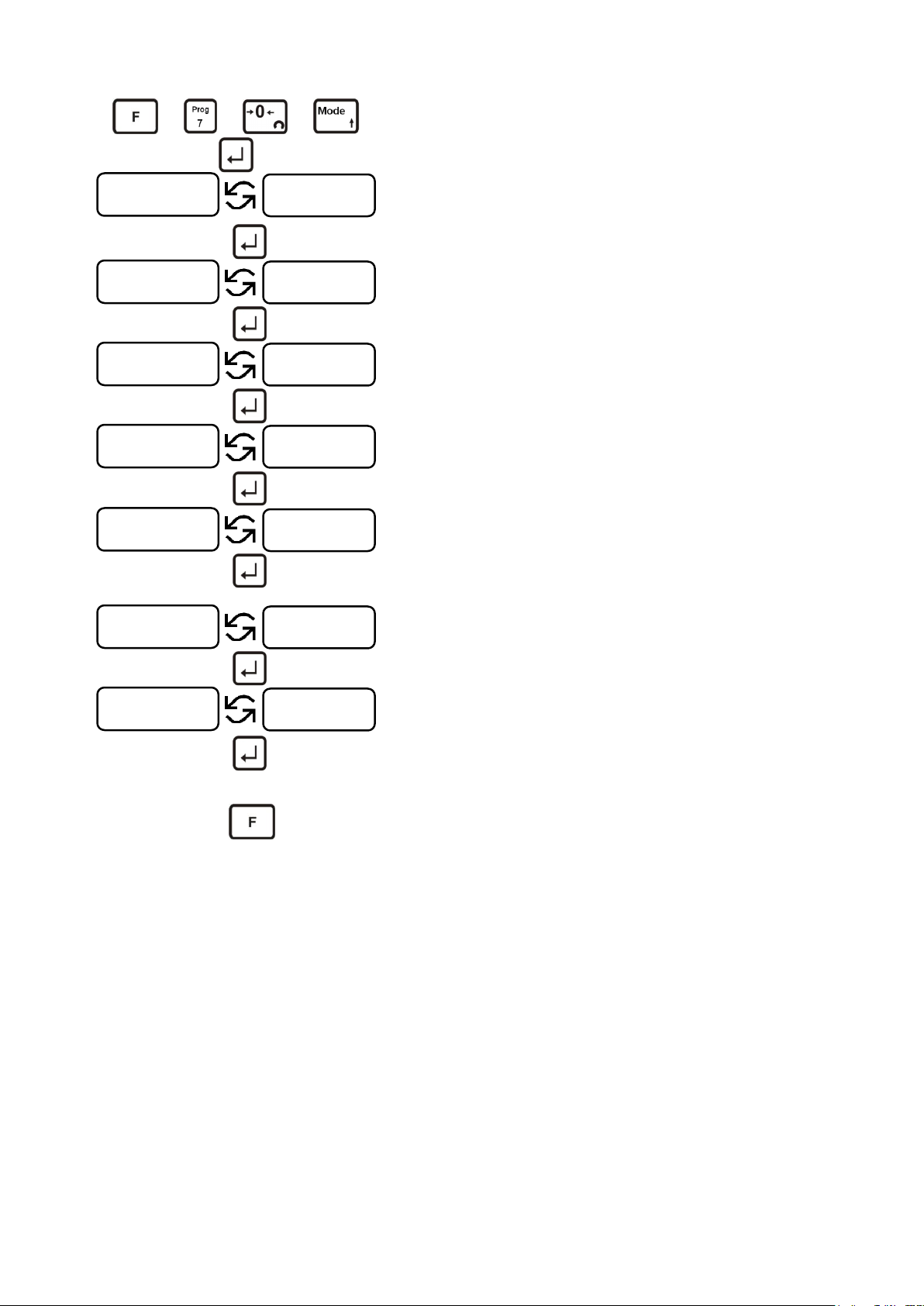

To enter the Setup and Calibration Menu: Press <F> and <Mode> keys sequentially

First [FunC ] and then [PASSWr ] prompts will be displayed sequentially.

Here you can enter the parameter block by using:

the service password: Press <Zero> and <Mode> and <Enter> or the operator password: Press <Tare> and <Enter>

The calibration jumper (see chapter 4.1) should be short circuit to change the legal metrological parameters in the service mode (there is black box on the top right corner of the grey coloured boxes in the calibration menu flowchart, see Appendix 1).

The Setup and Calibration menu consists of main blocks which are displayed as [X-- ] and sub-blocks. By using < > and < > keys you can reach previous or next main blocks. After reaching the desired main block you can get in by pressing the <Enter> key. As you enter the block you will reach the first sub-block in that main block. The sub-block address will be seen on the display as [X0- ]. You can also search between the sub-blocks by using < > and < > keys and reach the first parameter of the displayed sub-block by pressing the <Enter> key. The number of the parameter is displayed as [XY0 ]. Again you can search between parameters by < > and < > keys. Use the numerical keys for entering parameter values.

6.1.3 Exiting the Setup and Calibration Menu

Whatever parameter block you are in – if you press the <F> key, you will get out of the active sub-block and reach the next sub-block. If you press the <F> key again you will get out of the active block and reach the next main block. If you press the <F> key once again, the [SAvE ] message appears on the display. Here you can press

the <Enter> key to save the changes into the memory or you can press the <Tare> key to store the changes temporarily until the power goes off or you can press the <F> key to abort any changes.

The [Waıt] message will be displayed for a few seconds and afterwards the weighing mode will restart automatically. Especially for legal metrological usage, please don‟t forget to turn the power off and remove the

calibration jumper before you start the operation.

6.2 Metrological Counter

[8--] Metrological Data Block [80-] Legal Metrological Records

[800] Counter

This counter increases automatically by 1 after starting the setup mode with enabled calibration jumper and service password. This counter cannot be changed manually.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 15 of 56

6.3 Configuration Parameters

[DD.MM.YY]

First press a key for the date entry, then enter the new date via numerical keys and save by pressing <Enter>.

[ HH.MM]

First press a key for the time entry, then enter the new date via numerical keys and save by pressing <Enter>.

0 = No

1 = Yes

0 = by pressing key

1 = Always increased indication

0 = disable

1 = ± 2%

2 = ± 20%

0 = disable

1 = ± 0.1e

2 = ± 0.2e

3 = ± 0.3e

4 = ± 0.5e

5 = ± 1e

0 = Disable Tare pushbutton

1 = Enable Tare pushbutton (in weighing mode)

0 = ± 0.3e

1= ± 0.5e

2= ± 1e

3= ± 2e

4 = No motion detector

[CAP ]

The capacity of the scale will be entered here by the <Tare> key and the <Zero> key. The value will be confirmed by pressing the <Enter> key.

[ XXXXXX ]

[d ]

Display resolution of the scale will be selected by the <Zero> key. The selection will be confirmed by pressing the <Enter> key.

[ XXXXXX ]

[1--] Configuration Block [12-] Filter

In this block the proper filter values according to the operating conditions can be entered. One of the most important features of the indicator is viewing the filter characteristics on the display and with the help of this option, you can select the most suitable filter without leaving the setup mode.

[120 X ] Filter

The filter value can be set from 0 to 9 (The minimum value of the filter is at least 6 in normal weighing applications). When you enter this parameter and press the <Enter> key while [120 X] is shown on the display, the weight variation can be seen on the display. The value of the filter can be changed by using the < > and < > keys and the weight variation for each value is shown on the display. After finalising the filter selection you can go to the next step by pressing the <F> key.

[14-] Entries

[140 ] Date

[141 ] Time

6.4 Scale Parameters

[2--] Scale Block

The parameters related to the weighing operation are located here.

[20-] Basic Set Up

[200 X] Approved

[201 X] High Resolution Indication

[203 X] Zeroing Range

[204 X] Auto Zero Tracking

For compensating selected small deviations around the centre of zero this function automatically readjusts the scale to zero.

[205 X] Tare

[206 X] Motion Detector

This parameter defines the sensitivity level which will determine what is considered as stable.

[21-] Scale Build

The capacity and the resolution of the scale will be defined here.

[212 ] Capacity

Press the <Tare> key to reach this parameter.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 16 of 56

6.5 Scale Calibration

[3--] Calibration Block

The calibration of the scale will be performed here. First check that the load cell connection is established and your scale capacity respective scale resolution is correctly defined. If this is fulfiled you can proceed.

[30-] Calibration

[301 ] Calibration

1. Begin the calibration by pressing <Enter>.

2. Unload the scale when the displays shows [ZEro.CA] message and press <Enter>. The display will show the [WAıt ] message during the zero calibration. In this period the scale must be unloaded and stable.

3. Approximately 10 seconds later the display will show [LoAd ] and then [ XXXXXX ]. The value shown on the display is the weight that should be used for the span calibration. If the value of the test weight which will be used is different from the value shown on the display, type the new value by <Tare> and <Zero> keys, place the test weights on the scale and press <Enter>. Any test weight should be at least 10% of the scale capacity or higher. The display will show the [WAıt ] message during the span calibration.

4. Approximately 10 seconds later the display will show the [SAvE ] message. You can save the calibration by pressing <Enter> or quit without saving by pressing the <F> key.

[31-] Adjustment

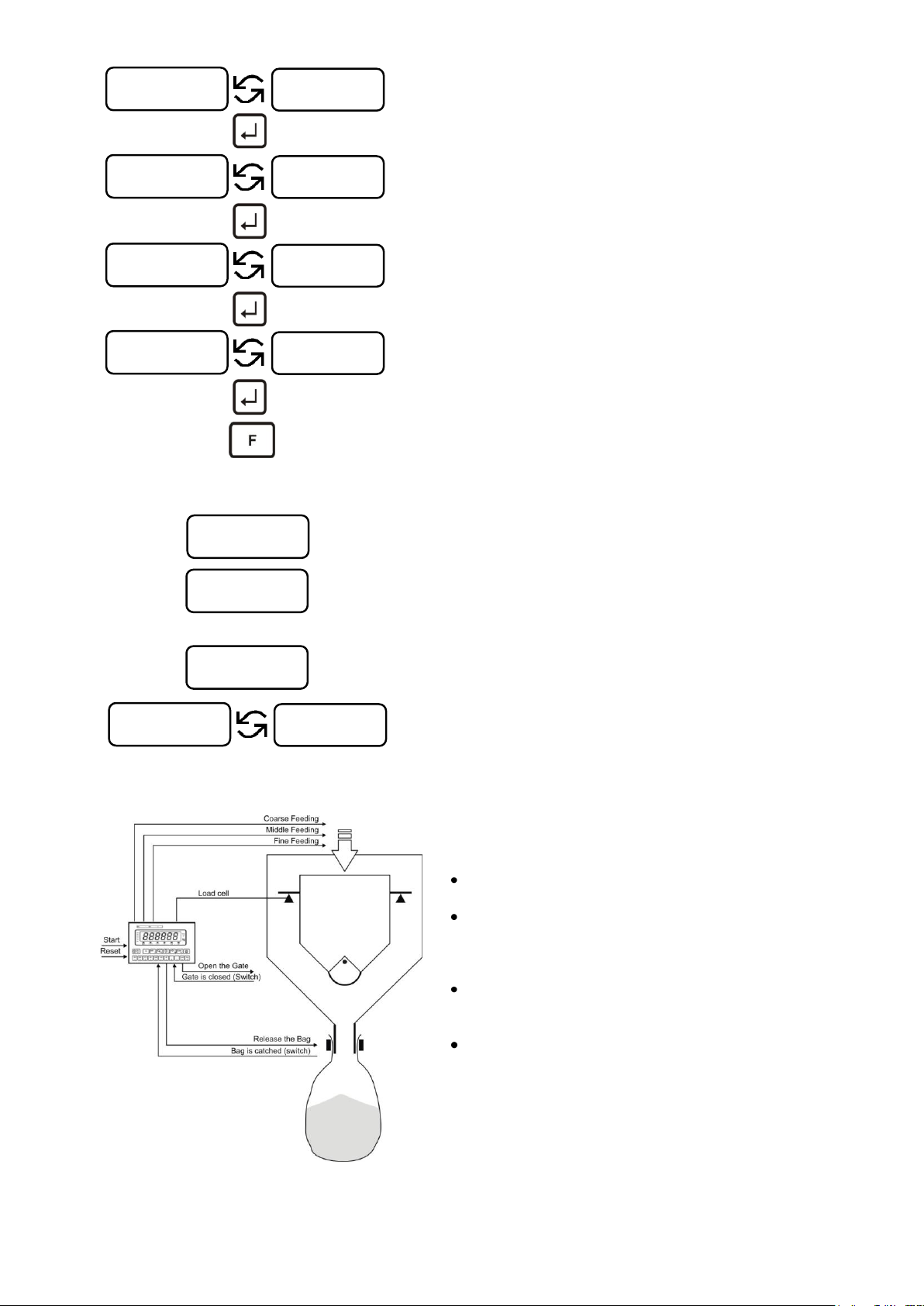

In this sub-block you can only perform zero adjustment or span adjustment without doing a full calibration.

[310 ] Zero Adjustment

This parameter is only used for refreshing the zero level of the scale to prevent wrong weighings due to zero drifts. Begin the zero adjustment by pressing <Enter>. Unload the scale when the displays shows the [ZEro.CA] message and press <Enter> again. The display will show the [WAıt ] message during the zero adjustment. In this period the scale must be unloaded and stable. Approximately 10 seconds later the display will show the [SAvE ] message. You can confirm the “Save zero adjustment” by pressing <Enter> or cancel it by pressing the <F> key.

[311 ] Span Adjustment

This parameter lets you perform the span adjustment. By pressing the <Enter> key [XXXXXX] appears on the display. The displayed value is the weight that should be used for the span adjustment. If the value of the test weight that will be used is different from the value shown on the display, then type the new value by <Tare> and <Zero> keys, place the test weights on the scale and press <Enter>. The display will show the [WAıt ] message during the span adjustment. Approximately 10 seconds later the display will show the [SAvE ] message. You can confirm the “Save span adjustment” by pressing <Enter> or cancel it by pressing the <F> key.

[312 ] Span Adjustment Under Load

This parameter is being used to perform span adjustment of a scale without lifting the load from it. This operation is especially used for span adjustment of filled tanks. You can make span adjustment without removing the load in the tank. When you press the <Enter> key the [P.ZEro ] message appears on the display. This means the scale will take the current load as a temporary zero. After getting ready for this level, which means temporary zero adjustment, the <Enter> key should be pressed. The display will show the [WAıt ] message during the temporary zero adjustment. After this step the display will show [LoAd ] for a certain period and then [ XXXXXX ]. The value shown on the display is the weight that should be used for the span adjustment. If the value of the test weight which will be used is different from the value shown on the display, type the new value by <Tare> and <Zero> keys, place the test weight on the scale and press <Enter>. The display will show the [WAıt ] message during the span adjustment under load. Approximately 10 seconds later the display will show the [SAvE ] message. You can confirm the “Save span adjustment under load” by pressing <Enter> or cancel it by pressing the <F> key.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 17 of 56

7. FILLING WITH FT-13

Programme

Description

Typical Application

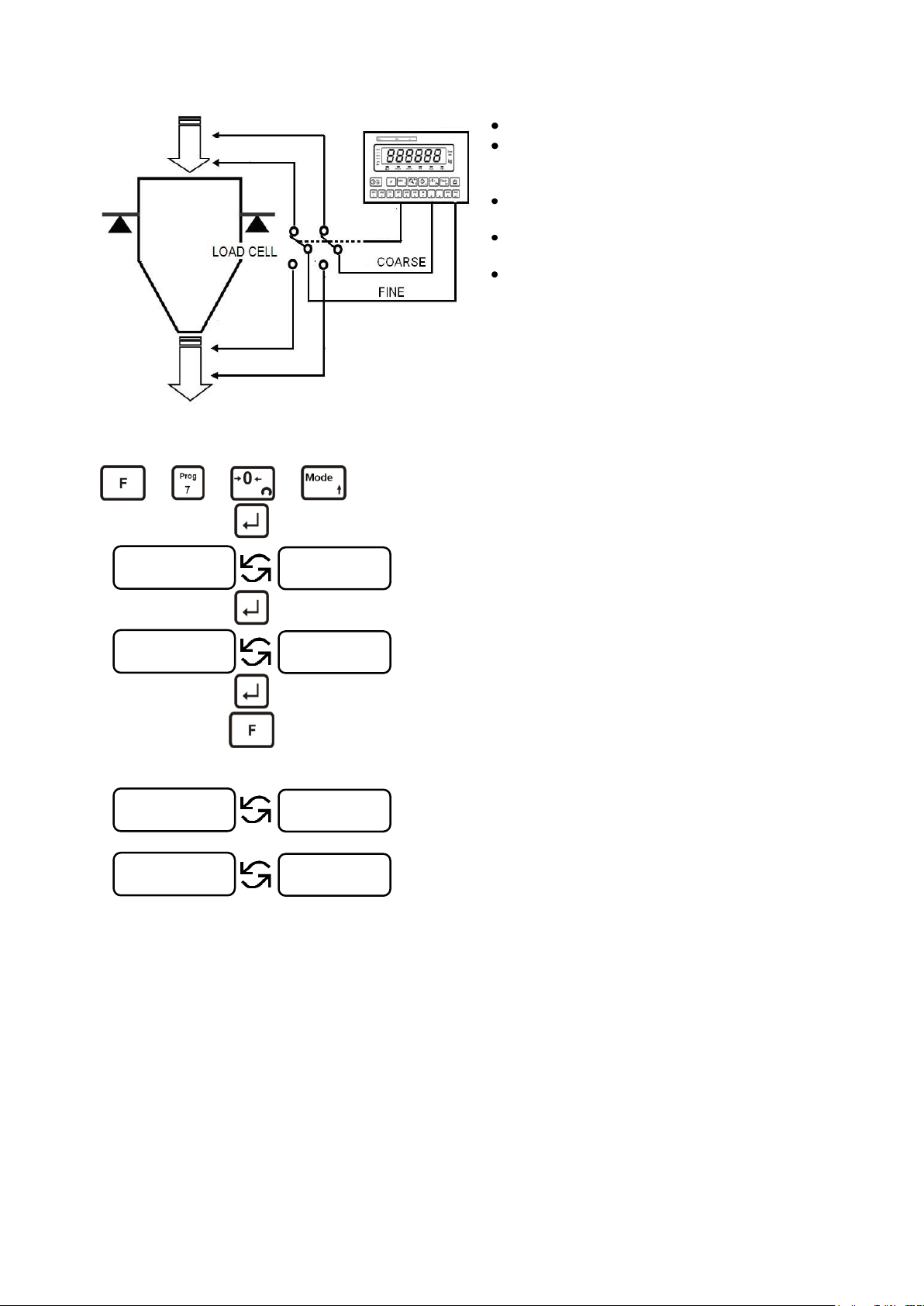

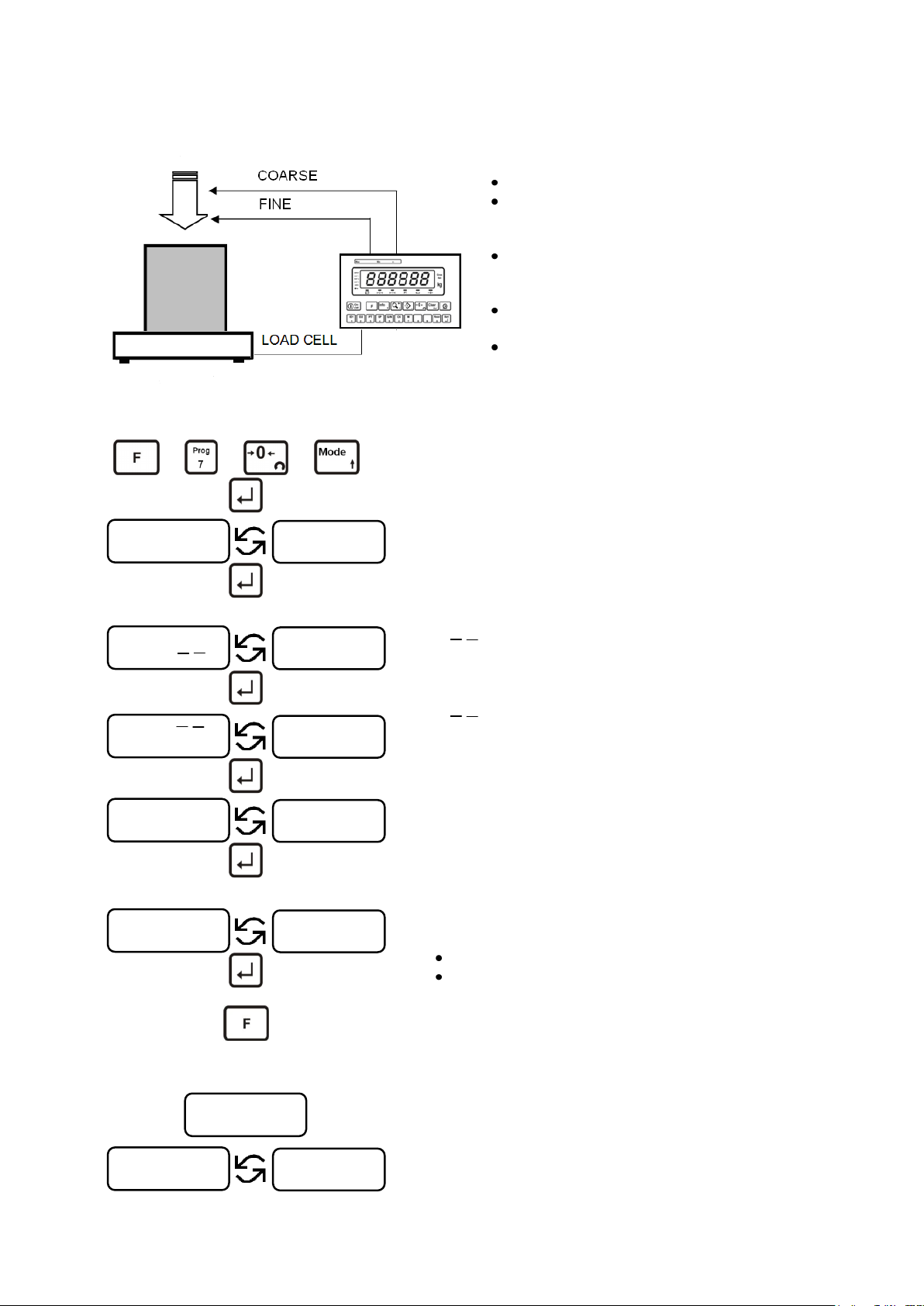

Filling above the open container

Liquid or bulk filling into container

Filling below the bunghole of the container

Above level liquid filling

Below surface filling in the container

Liquid filling for foaming products

Filling and emptying Type 1

Automatic bag filling machines

Accurate filling and accurate discharging

Filling in or discharging from tank/hopper

Charging and accurate discharging

Sticky/high viscosity materials filling

Filling and Emptying Type 2

Automatic bag filling machines with total check

Filling the bag

Filling by weighing the bag

Bag filling from hopper scale

Filling machines with hopper and bag catcher

7.1 Overview

FT-13 has 9 standard filling programmes for common filling applications as indicated below.

7.2 Commissioning

To start up the filling system, please follow these steps:

1. Select your filling programme

2. Prepare the digital I/O connections according to the selected filling programme (see chapter 4.2.3)

3. Set up and calibrate the scale (see chapter 6)

4. Enter the process parameters for the selected filling programme as explained in chapter 7.3 and 7.6

5. a. If you don‟t use recipes: Enter Target, tolerance and preset values as explained in chapter 7.4 b. If you use recipes: Enter the recipes as explained in chapter 7.5

6. Perform tests and optimise the filling process

You can find the meaning of the filling parameters in the filling cycle diagram shown below (Fig. 7.1). In this diagram the instrument does not follow the weight during coarse and fine feeding control delay periods. This increases the reliability of the system. The actual weight value is read out at the end of the settling time. This allows for better tolerance control and / or cut-off point adjustment.

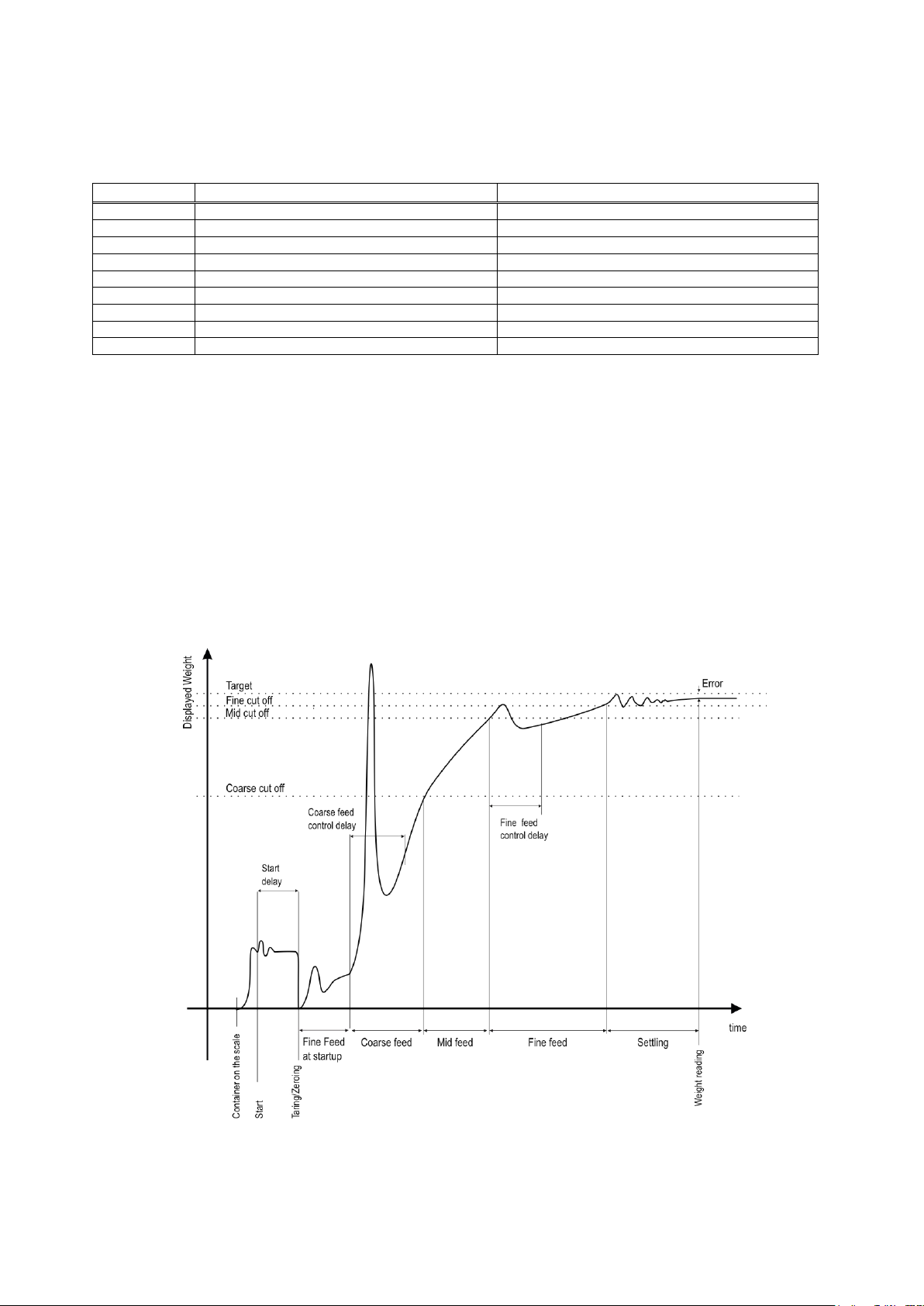

Figure 7.1 Typical filling cycle diagram (displayed weight vs time)

You can change the target and preset values very quickly via keys. If you use the recipe memory, you can select the recipe (set of target, preact, dribble, tolerance, coarse, middle, fine) to spare time for different filling applications.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 18 of 56

7.3 Filling Programmes

FT-13FT-13

Application:

Open container filling Big bag filling

Operation:

The filling starts with activating the start input

and is executed as 2-speed or 3-speed above surface container filling

The process ends when the filled container is

removed from the platfrom

Filling can be done as Gross or Net

Process Parameters

Description

+ + + +

When FT-13 is in the “Ready” status (the top LED in the LED

bar is “on” ) press the keys shown on the left sequentially.

“d_FıLL“ means a start delay.

When the start input is activated, the filling starts after the start delay. This period can be set by the keypad from 0.0 s to 9.9 s. The delay parameter may be helpful for some special processes.

“tArE ” is the minimum tare value. The filling can start if the weight of the container is higher than this value. It can be entered by numeric keys.

“tArE ” is the maximum tare value. Filling can start if the weight of the container is lower than this value. It can be entered by numeric keys.

“ZEro_r” is the zero range. At the end of the filling, when the container is removed from the platform, the weight has to be in the zero range for ending the filling process.

“Gr-NET” defines if the filling will be done as Gross or Net.

0 = Gross 1 = Net

Exit

Process Messages

Description

This message is shown on the display during the start delay.

This message is shown at the end of the filling. This message and the weight are shown alternately until the container is removed from the platform.

tArE

XXXXX

d_FıLL

X.X

StArt

FULL

XXXXX

tArE

XXXXX

Gr-NEt

ZEro_r

7.3.1 Programme 0: Open Container Filling

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 19 of 56

7.3.2 Programme 1: Bunghole Container Filling

FT-13FT-13

Application:

Container with bunghole filling Tin , drum filling machines

Operation:

After activating the start input the filling

valve moves through the hole of the container

Filling is executed as 2-speed or 3-speed

above surface filling directly into a container

At the end of the feeding, the valve

moves out of the container. The process ends when the filled container has been removed from the platform.

Filling can be done as Gross or Net

Process Parameters

Description

+ + + +

When FT-13 is in the “Ready” status (the top LED in the LED

bar is “on” ) press the keys shown on the left sequentially.

“d_FıLL “ means a start delay.

When the start input is activated, the filling starts after the start delay. This period can be entered by keypad from 0.0 s to 9.9 s. The delay parameter may be helpful for some special processes.

“tArE ” is the minimum tare value. The filling can start if the tare of the container is higher than this value. It can be entered by numeric keys.

“tArE ” is the maximum tare value. The filling can start if the tare of the container is smaller than this value. It can be entered by numeric keys.

Condition: Safety > tare max.

If the filling valve doesn‟t go through the hole of the container,

this parameter saves the system. While the filling valve is

moving down and if the weight is higher than the “SAFEty Weight”, then the valve moves up and the filling does not

start.

Zero range. At the end of the filling, when the container is removed from the platform, the weight has to be in the zero range for ending the filling process.

“Gr-NET” defines if the the filling will be done as Gross or Net:

0 = Gross

1 = Net

Exit

XXXXX

ZEro_r

SAFEty

XXXXX

d_FıLL

X.X

Gr-NEt

tArE

XXXXX

tArE

XXXXX

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 20 of 56

Process Messages

Description

This message is shown on the display during the start delay. It disappears at the end of the start delay.

Means the filling valve is moving down. It disappears when the filling valve is completely down.

Means the filling valve is moving up. It disappears when the filling valve is up.

This message is shown at the end of the filling. This message and the weight are shown alternately until the container is removed from the platform.

FT-13FT-13

Application:

Foaming materials filling Oxidizable chemicals filling

Operation:

After activating the start input the filling

valve moves to the bottom and the 2-speed or 3-speed filling starts

After the “d-Lift ” period the filling valve

moves up and stops at the middle position until the end of the feeding.

The filling valve moves up and the process

ends after removing the container from the scale.

Process Parameters

Description

+ + + +

When FT-13 is in “Ready” status (the top LED in the LED

bar is “on” ) press the keys shown on the left sequentially.

“d_FıLL “ means a start delay.

When the start input is activated, the filling starts after the start delay. This period can be entered by keypad from 0.0 s to 9.9 s. The delay parameter may be helpful for some special processes.

After the valve gets out of the container, the EOB output is activated at the end of this delay. It can be set up to 25.0 s.

“d_LıFt “ means a lift delay. In below surface filling the filling valve first goes to the bottom and then the filling starts. The filling valve moves up at the end of the “d_Lift “ period. The lift delay can be set up to 25.0 s.

“tArE ” is the minimum tare value. The filling can start if the tare of the container is higher than this value. It can be entered by numeric keys.

“tArE ” is the maximum tare value. The filling can start if the tare of the container is smaller than this value. It can be entered by numeric keys.

XX.X

d_End

− _ _ −

d_LıFt

StArt

FULL

XXXXX

d_FıLL

X.X

tArE

XXXXX

tArE

XXXXX

_ −− _

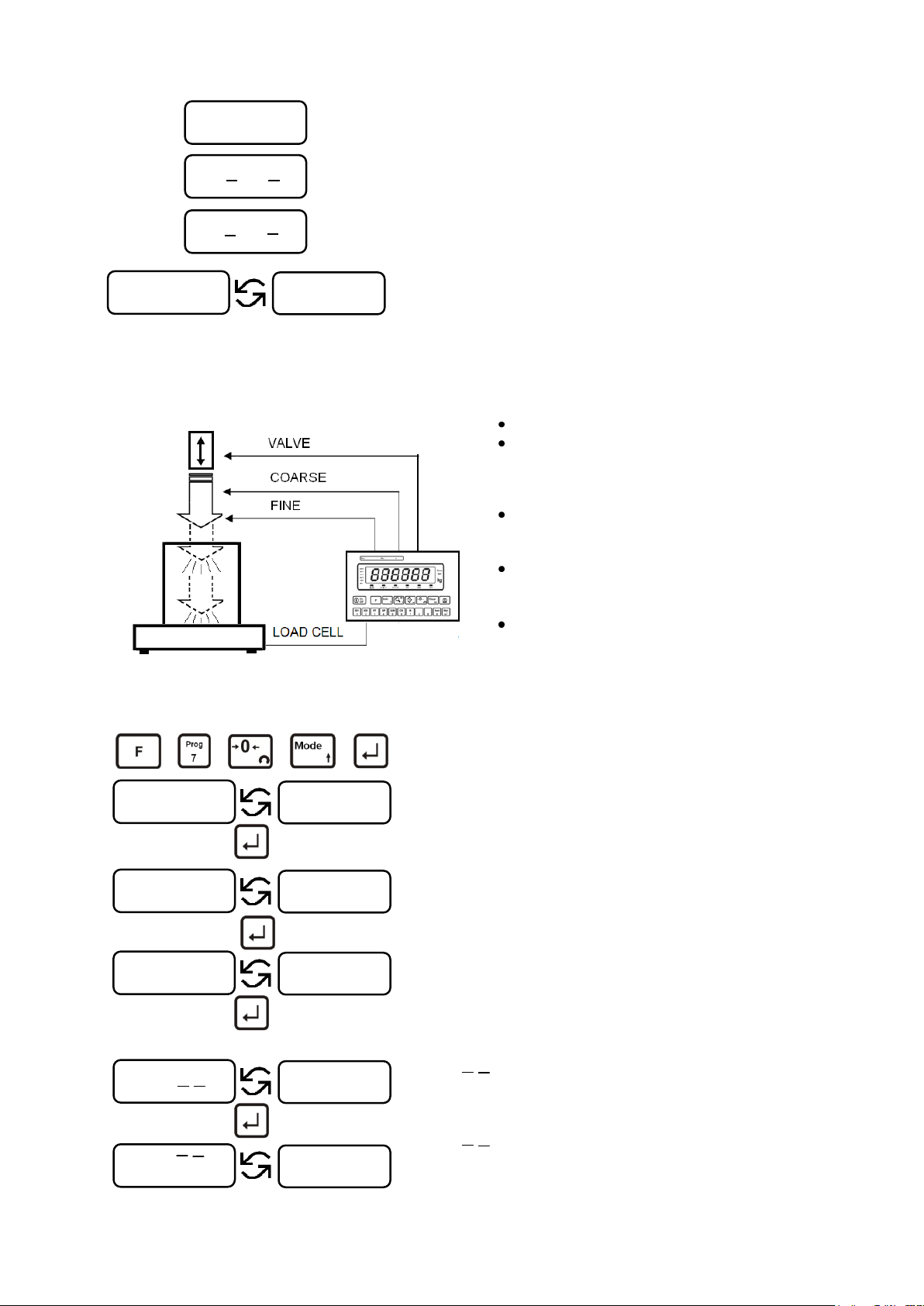

7.3.3 Programme 2: Below Surface Filling

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 21 of 56

Condition: Safety > tare max. If the filling valve doesn‟t go through the hole of the container, this parameter saves the system. While the filling valve is moving down and if the weight is higher than the

“SAFEty” weight, then the valve moves up and the filling

does not start.

Zero range. At the end of the filling, when the container is removed from the platform, the weight has to be in the zero range to

return into the “Ready” status.

“Gr-NET” defines if the the filling will be done as Gross or

Net:

0 = Gross

1 = Net

Exit

Process Messages

Description

This message is displayed during the start delay. It disappears at the end of the start delay.

Means the filling valve is going down. It disappears when the filling valve is completely down.

Means the filling valve is going up.

This message is shown at the end of the filling. This message and the weight are shown alternately until the container is removed from the platform.

FT-13FT-13

Application:

Bag filling machines Weighing of additives in tank or hopper

Operation:

The container is filled up to the target value

accurately by 2-speed or 3-speed filling

It is emptied totally by activating the

discharge input

The process ends when the weight goes into

zero range after emptying

XXXXX

Gr-NEt

ZEro_r

StArt

SAFEty

XXXXX

− _ _ −

FULL

XXXXX

_ −− _

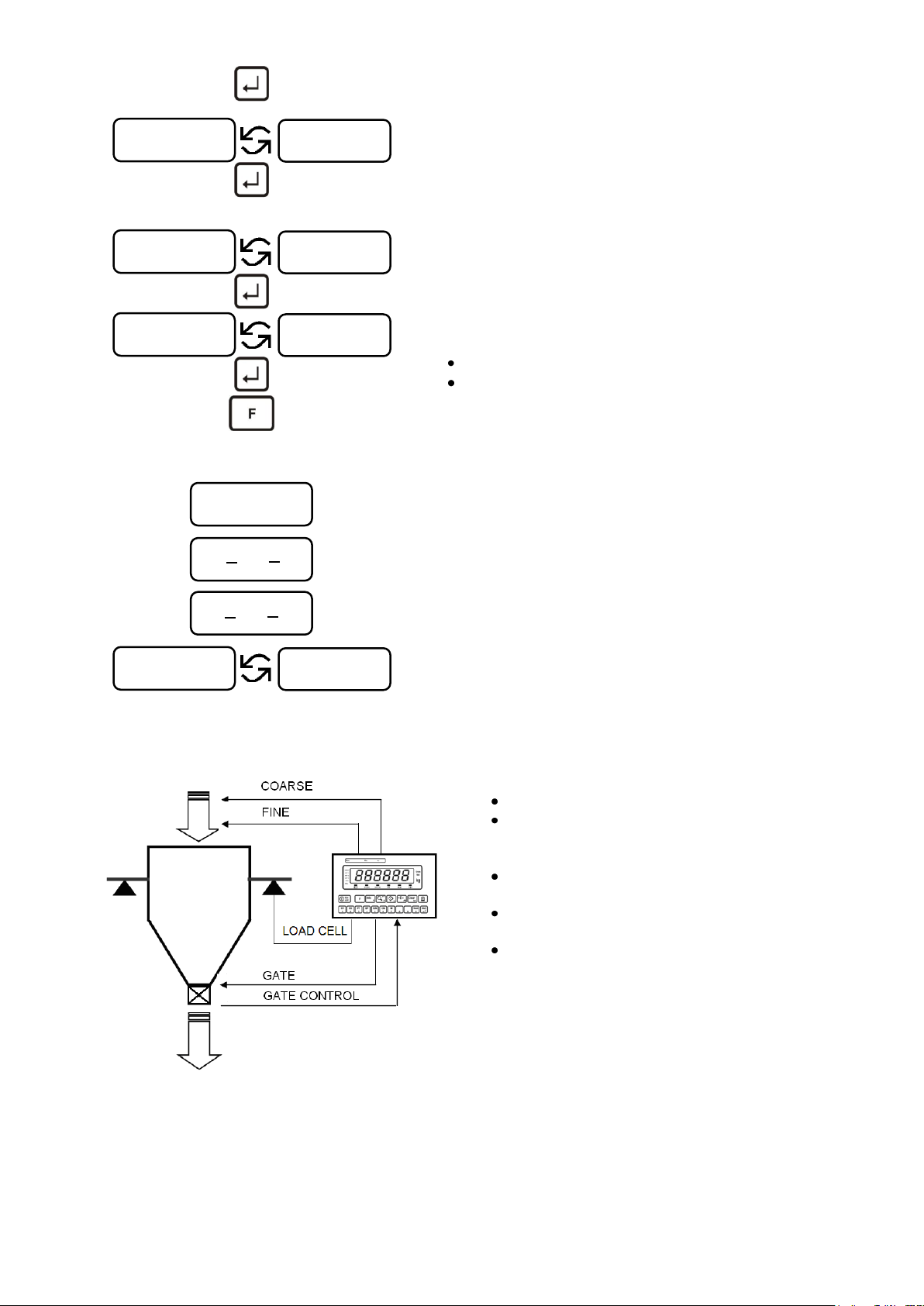

7.3.4 Programme 3: Filling and Emptying Type 1

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 22 of 56

Process Parameters

Description

+ + +

When FT-13 is in the “Ready” status (the top LED in the LED

bar is “on” ) press the keys shown on the left sequentially.

This is the delay time at the end of emptying. The bottom gate is opened and emtying starts. When the weight goes into zero range, “ d_dıSC “ delay starts and the gate is closed at the end of this period. The delay time can be entered by the keypad up to 9.9 s.

If the gate position control is enabled and after the start input is activated, the gate position will be checked at the end of this period. It can be entered by the keypad up to 25.0 s.

Emptying type.

If it is set to “1“, the weight is followed during emptying. When

the weight goes into the zero range, the “d_dıSC” delay starts and the gate is closed at the end of this delay. If it is set to “0“

only the “d-dıSC” delay is enabled and the gate is left open during the “d_dıSC” period.

Gate position check

0 = No

1 = Yes

Zero range. If the weight is in this range, it means the scale is empty. To start the filling the weight has to be in the zero range.

Exit

Process Messages

Description

It is displayed during the automatic zeroing.

It is displayed during “Gate position control”.

This is displayed at the end of the filling. It is shown alternately to the weight value. It disappears when emtying starts.

Discharge delay time enabled.

- ZEro -

FULL

XXXXX

d_dıSC

X.X

d_GAtE

X.X

E_tYPE

ZEro_r

XXXXX

GAtE

d dEL

GAT_Ch

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 23 of 56

7.3.5 Programme 4: Filling and Discharging

FT-13

DISCH ARG E

FT-13FT-13

Discharge

FT-13FT-13

DISCH ARG E

FT-13FT-13

Discharge

Application:

Tank / silo / hopper filling / charging Multi cycle discharging of tank / silo / hopper

Operation:

The start input starts the 2-speed or 3-speed

filling of the tank/hopper until the target value

The discharge input starts the 2-speed or 3-

speed discharging until the target value

Filling and discharging processes can be

choosen freely. For example, the tank can be filled up to 3000 kg and 180kg can be discharged sequentially.

Process Parameters

Description

+ + +

When type FT-13 is in the “Ready” status (the top LED in

the LED bar is “on” ) press the keys shown on the left

sequentially.

This is the period for displaying messages to be shown after filling and discharging. It can be enterred by keypad up to 25.0 s.

Zero range. If the weight is in this range, it means the scale is empty. To start the filling the weight has to be in the zero range.

Exit

Process Messages

Description

This message is shown at the end of the filling. This message and the weight are shown alternately until the container is removed from the platform.

This message is shown at the end of the discharging. It is shown alternately to the weight value.

d_∩SG

dSchrG

XXXXX

FULL

XXXXX

ZEro_r

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 24 of 56

7.3.6 Programme 5: Charging and Discharging

FT-13FT-13

Application:

Weigh-in / Weigh-out systems Weighing of sticky and viscose materials

Operation:

The tank/hopper is coarsly filled up to the filling

target. Afterwards it is discharged to the target value by the discharge input in a 2-speed discharging process.

Filling and discharging must be sequential.

Process Parameters

Description

+ + +

When type FT-13 is in the “Ready” status (the top LED in

the LED bar is “on” ) press the keys shown on the left

sequentially.

The period for the [dSChrG ] message is shown after the discharging. It can be set up to 25.0 s.

“Gate position check”

0 = No 1 = “Gate position control” is enabled

The filling target value. Exit

Process Messages

Description

It is displayed during charging.

It is shown at the end of the discharging alternately to the weight value.

This message is shown after discharging.

ChArGE

FULL

XXXXX

F_ trGt

XXXXX

d_∩SG

GAtE_Ch

dSChrG

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 25 of 56

7.3.7 Programme 6: Filling and Emptying Type 2

FT-13FT-13

Application:

Bagging machines

Material feeding systems The filling stops if the total weight is higher than

the entered total limit value

Operation:

The tank/hopper is filled up to the target value

accurately by 2-speed or 3-speed filling.

The discharge input starts the complete emtying

of the tank/hopper and the weight is totalized. Filling and emptying must be in sequence. If the actual total weight is higher than the total

target value, the filling does not start.

For non-legal for trade discontinuous totalizer applications, use the fine feed output for charging and the parameters should be entered as:

Target = Tolerance Coarse = Fine = 0

[501]=00

Process Parameters

Description

+ + +

When type FT-13 is in the “Ready” status (the top LED in

the LED bar is “on” ) press the keys shown on the left

sequentially.

This is the delay time at the end of emptying. The bottom gate is opened and emtying starts. When the weight goes into the zero range, “ d_dıSC “ delay starts and the gate is closed at the end of this period. The delay time can be entered by the keypad up to 9.9 s.

If the gate position control is enabled and after the start input> is activated, the gate position will be checked at the end of this period. It can be entered by the keypad up to 25.0 s.

Emptying type. If it is set to “1“, the weight is followed during emptying. When the weight goes into the zero range, the “d_dıSC” delay starts and the gate is closed at the end of this delay.

If it is set to “0“, only the “d-dıSC” delay is enabled and the gate is left open during the “d_dıSC” period.

Gate position check

0 = No 1 = “Gate position control” is enabled

This is the requested total weight. If the totalized weight is higher than the requested total weight, the filling does not

start and the process ends. The value is entered in “kg”

without floating point. Enter “0” to disable the total check.

Zero range. If the weigh is in this range, it means the scale is empty. To start filling the weight has to be in the zero range.

Exit

t_trGT

XXXXX

d_dıSC

X.X

d_GAtE

X.X

E_tYPE

ZEro_r

XXXXX

GAT_Ch

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 26 of 56

Process Messages

Description

It is displayed during automatic zeroing.

It is displayed during “Gate position control”.

It is displayed at the end of the filling. It is shown alternately to the weight value. It disappears when emtying starts.

Discharge delay message.

For emptying the tank/hopper manually, activate the emptying input. This message is shown on the display when the input is active.

Standing

Hanging

Operation:

This filling mode controls filling machines which are filling the bag by weighing the bag holding and/or catching the system as shown in the figures above.

The process cycle starts with the start input in the ready status. The “close the clamp” output will be set

and then the filling is start if the “clamp is closed” input is active. At the end of the filling FT-13 waits for the “d_End delay” time to release the clamp. The process cycle ends when the load is removed from the scale. The vibration output is used to concentrate the material in the bag.

Process Parameters

Description

+ + +

When type FT-13 is in the “Ready” status (the top LED in

the LED bar is “on” ) press the keys shown on the left

sequentially.

“d_hoLd” is the clamp close delay time. The “Close the clamp” output will be activated after this time period. The

delay time can be entered by the keypad from 0 to 25,0 seconds.

XX.X

d_hoLd

- ZEro -

FULL

XXXXX

GAtE

d dEL

dSChrG

7.3.8 Programme 7: Filling the bag

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 27 of 56

At the end of the filling cycle the filling machine waits for the d_End delay time to release the clamp.

“Gr-NET” defines whether the filling will be done: 0 = Gross Filling without zeroing 1 = Gross Filling with zeroing (related with par.[50E]) 2 = Net filling

Enter the value which will start the vibration.

Enter the value which stops the vibration which was started at [vibon].

Exit

Process Messages

Description

This message is displayed until the clamp is activated.

This message is displayed until the detecting clamp switch after the clamp output is activated. FT-13 waits for the clamp switch input for 5 seconds. If the input is not set within 5 s the “clamp position error“ will be set.

This message is displayed during the automatic zeroing cycle after the cycle start, if applicable.

This message is displayed at the end of the Filling for d_End delay time.

Operation:

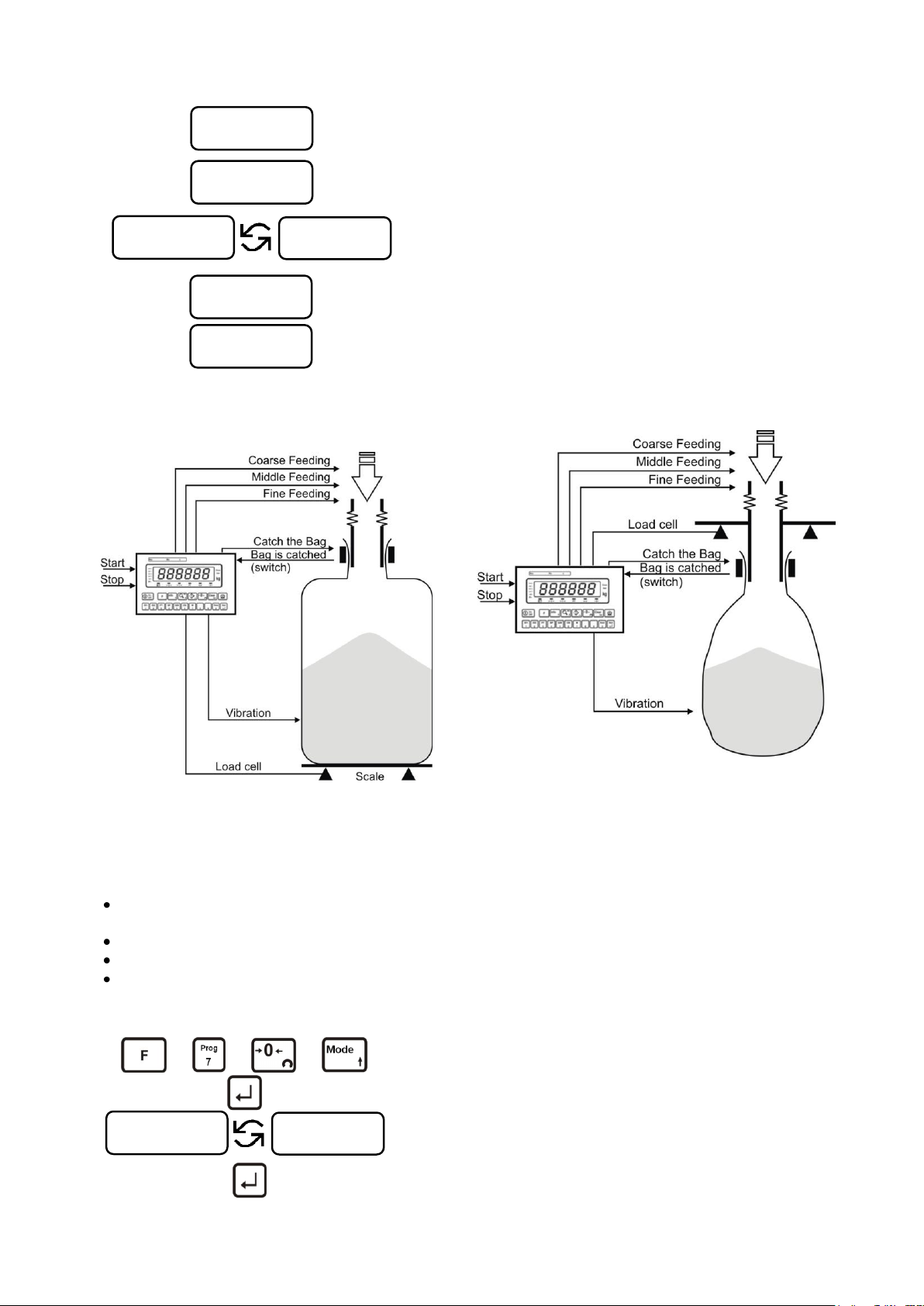

This filling mode controls filling machines which have one weighing hopper and a bag catcher.

The process starts with the start input and

continues automatically, if the start input is active.

After the start input is set, the system waits for

catching the bag to remove the residual material in the weighing hopper. After removing this material filling starts automatically.

The weighing hopper is filled to the target value

accurately and then it will be emptied to the bag when the following bag is clamped.

The machine operation stops after deactivating the

start input and filling the last bag. The weighing hopper will be emptied after stopping the automatic operation.

StArt

XXXXX

FULL

hoLd

- Zero -

XXXXXX

viboFF

XXXXXX

vibon

Gr-Net

XX.X

d_End

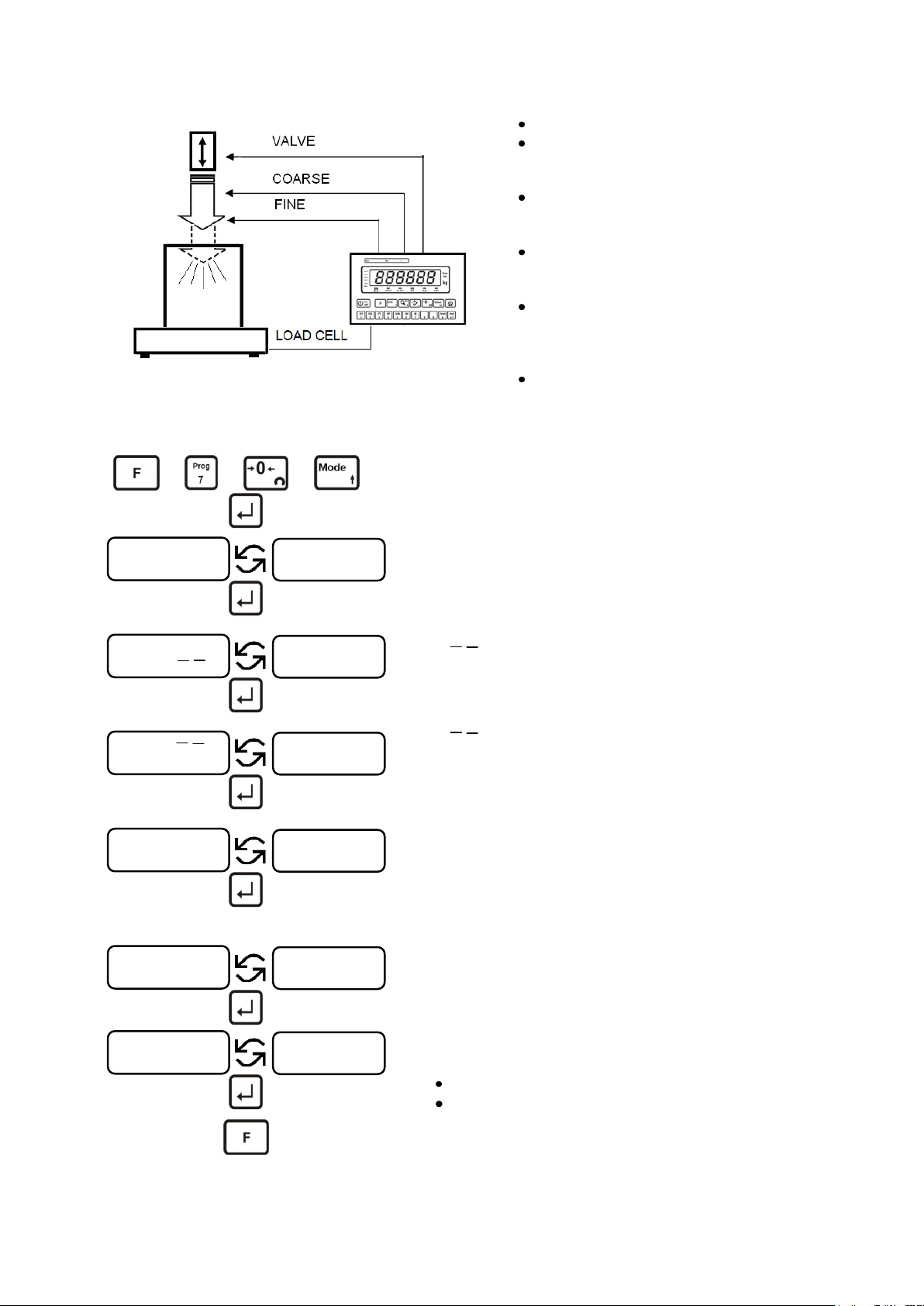

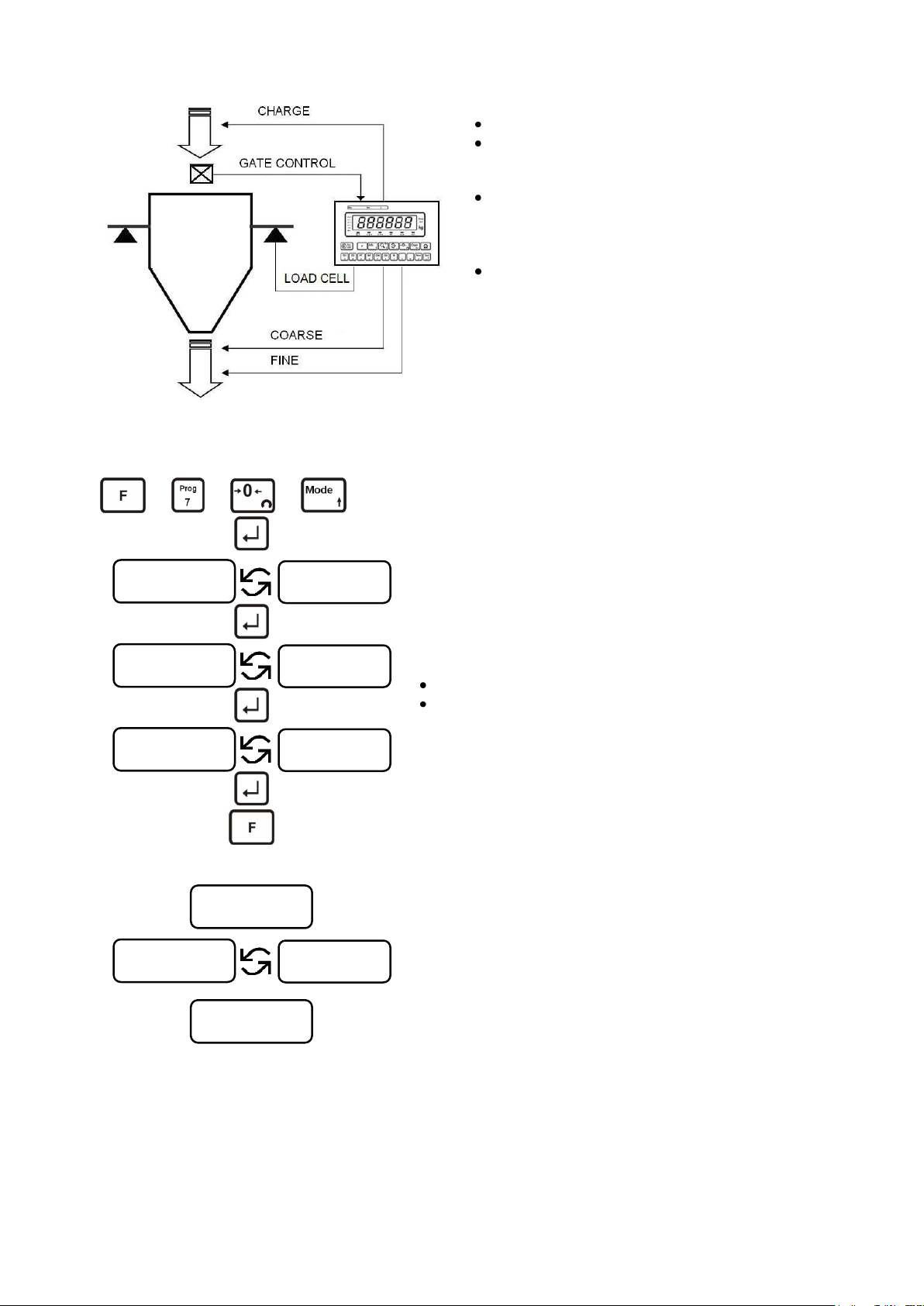

7.3.9 Programme 8: Bag filling from hopper scale

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 28 of 56

Process parameters

Description

+ + +

When type FT-13 is in the “Ready” status (the top LED in the

LED bar is “on” ) press the keys shown on the left

sequentially.

The emptying delay time is used to empty the weighing hopper. When the weight goes into the zero range the “d_diSc” delay time starts and the gate will be closed at the end of this period. It can be entered up to 9.9 seconds.

The gate closing delay time is used to check if the gate is opened or closed within this period. If the gate has not changed its position within this period, an error signal will be created. It can be entered up to 9.9 seconds.

The end of the emptying output is hold for this time period. It can be entered up to 25.0 seconds.

The clamp release delay time is used to open the clamp at the end of the vibration process. It can be entered up to 25.0 seconds.

Emptying type. If it is set to “1”, the weight value is monitored to assure the emptying. The zeroing range and the emptying delay time determine the end of emptying. In case of “0” the weight value will not be monitored. The emptying is finished after the emptying delay time “d_diSC”.

Gate position check. 0 = No. No need for a gate switch. 1 = Gate position control is enabled. A gate switch signal is

required.

Zero range. At emptying cycle: If E_tYPE=1 and the weight value is less than zero range value, emptying delay time starts to end emptying cycle. At filling cycle: Filling starts if the weight value is in Zero range.

Exit

X.X

d_vib

GAT_Ch

E_tYPE

X.X

d_CLMP

XXXXX

Zero_r

X.X

d_diSc

X.X

d_GAtE

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 29 of 56

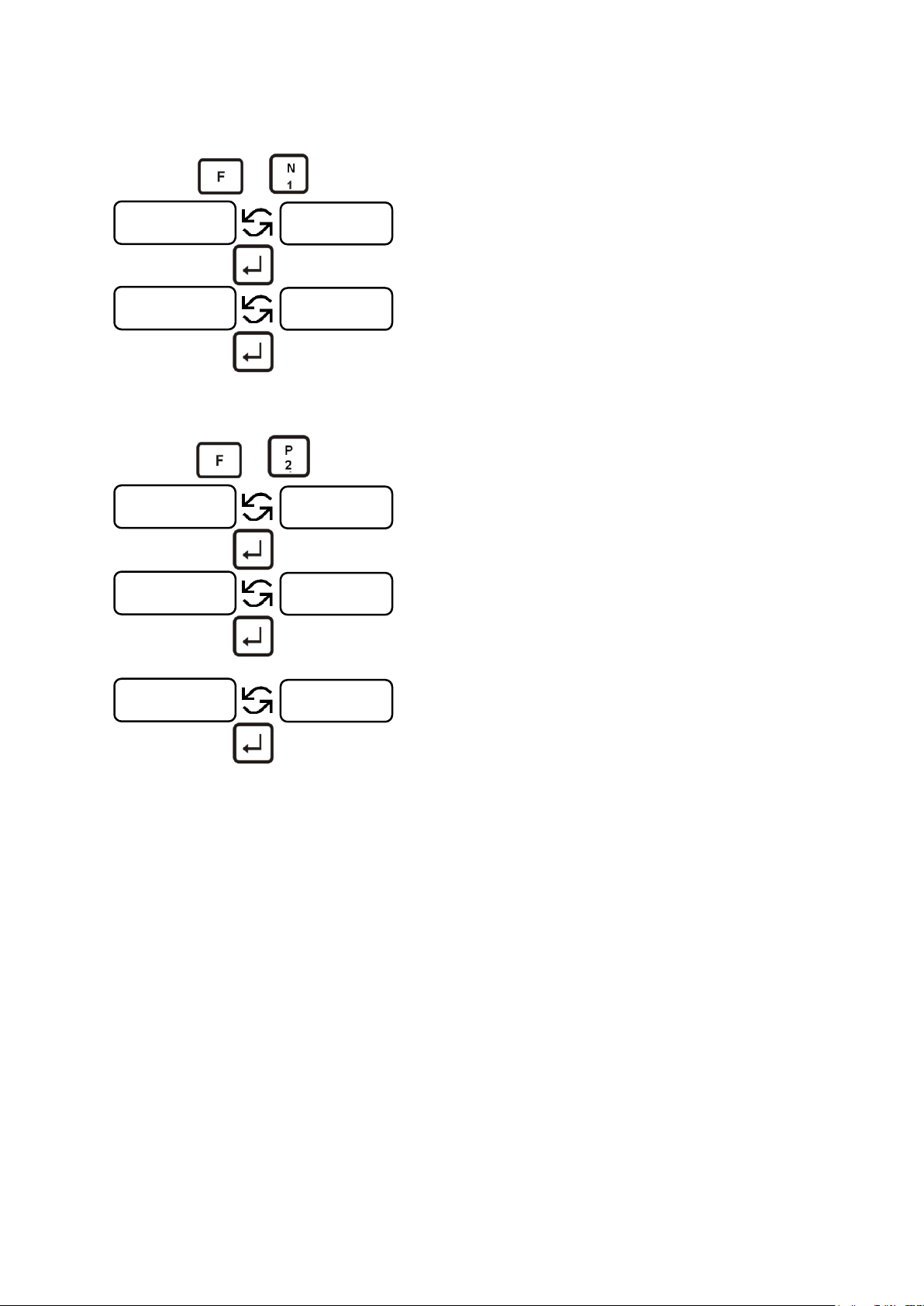

7.4 Target and Preset Entry

TARGET and TOLERANCE ENTRY

Press F and N keys sequentially.

Target message and it‟s value are shown alternately. To edit the value use the numeric keys and press <Enter>.

+ / - tolerances of filling or discharging are shown. The value entered here shall alarm the operator. To edit the value use the numeric keys and press <Enter> to return to the operation mode.

To disable the tolerance control, enter “0”.

PRESET VALUES ( CUT-OFF ) ENTRY

Press <F> and <P> keys sequentially to enter the coarse lead in value.

To edit the value use the numeric keys and press the <Enter> key.

Coarse lead-in = Target – Coarse cut off (see figure 7.1)

The mid-feed lead-in value is shown on the display if 3speed feeding is enabled. To edit the value use the numeric keys and press the <Enter> key.

Mid-feed lead-in = Target – Mid-feed cut off

The fine lead-in value is shown on the display. To edit the value use the numeric keys and press <Enter> to return to the operation mode.

Fine lead in = Target – Fine cut off (see figure 7.1)

MiddLE

XXXXX

tARGEt

XXXXX

toL

XXXXX

CoArSE

XXXXX

FınE

XXXXX

Attention: Changing the target value does not require a change of the coarse lead-in and fine lead-in values in general.

Warning: For accurate filling the coarse lead-in and fine lead-in values must be choosen carefully.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 30 of 56

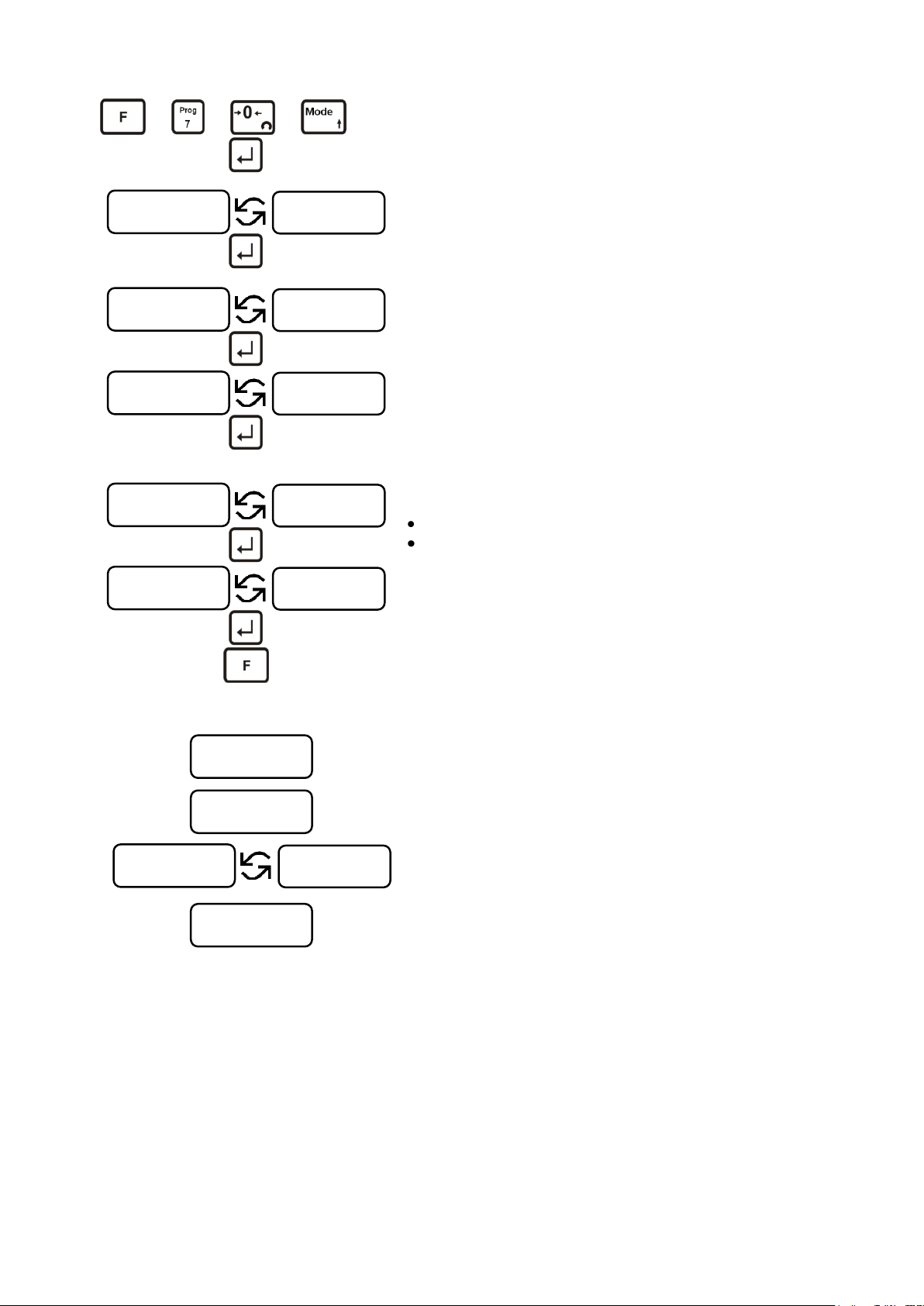

7.5 Recipe Memory

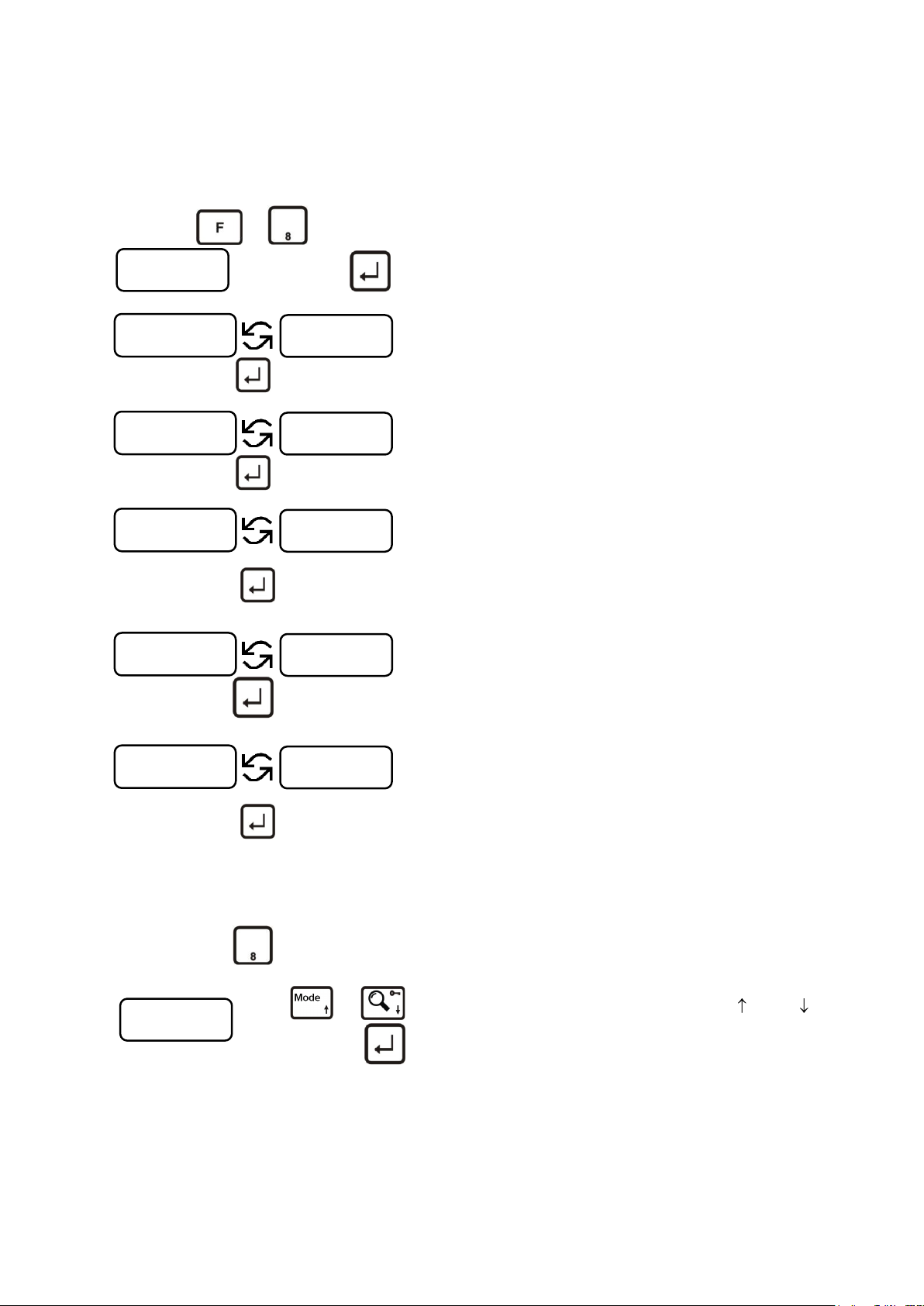

ENTER A RECIPE TO THE MEMORY

Press <F> and <8> keys sequentially. Enter the recipe number (1 to 16) to edit by using the

numeric keys and press <Enter>.

Target message and it‟s value are shown alternately. To edit the value use the numeric keys and press <Enter>. To hide a recipe enter “0”.

+ / - tolerance of filling or discharging are shown. To edit the value use the numeric keys and press <Enter>.

The coarse lead-in value is shown on the display. To edit the value use the numeric keys and press <Enter>.

The mid-feed lead-in value is shown on the display if 3speed feeding is enabled. To edit the value use the numeric keys and press <Enter>.

The fine lead-in value is shown on the display. To edit the value use the numeric keys and press <Enter> to return to the operation

Press <Enter> to save the recipe and then press the <F> key to exit.

RECALL A RECIPE FROM THE MEMORY

Press the <8> key. To reach the recipe you want, use the arrow < > and < >

keys. Press <Enter> to choose the recipe for the next filling process.

MiddLE

XXXXX

toL

XXXXX

rEC. XX

tArGRt

XXXXX

CoArSE

XXXXX

FınE

XXXXX

rEC. XX

A recipe is a set of parameters for different materials and/or different target weights. 16 different recipe components which are target, tolerance, coarse lead-in, mid-feed and fine values can be stored to the recipe memory. You can select the wished recipe from the memory by use of the keypads before the filling will start.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 31 of 56

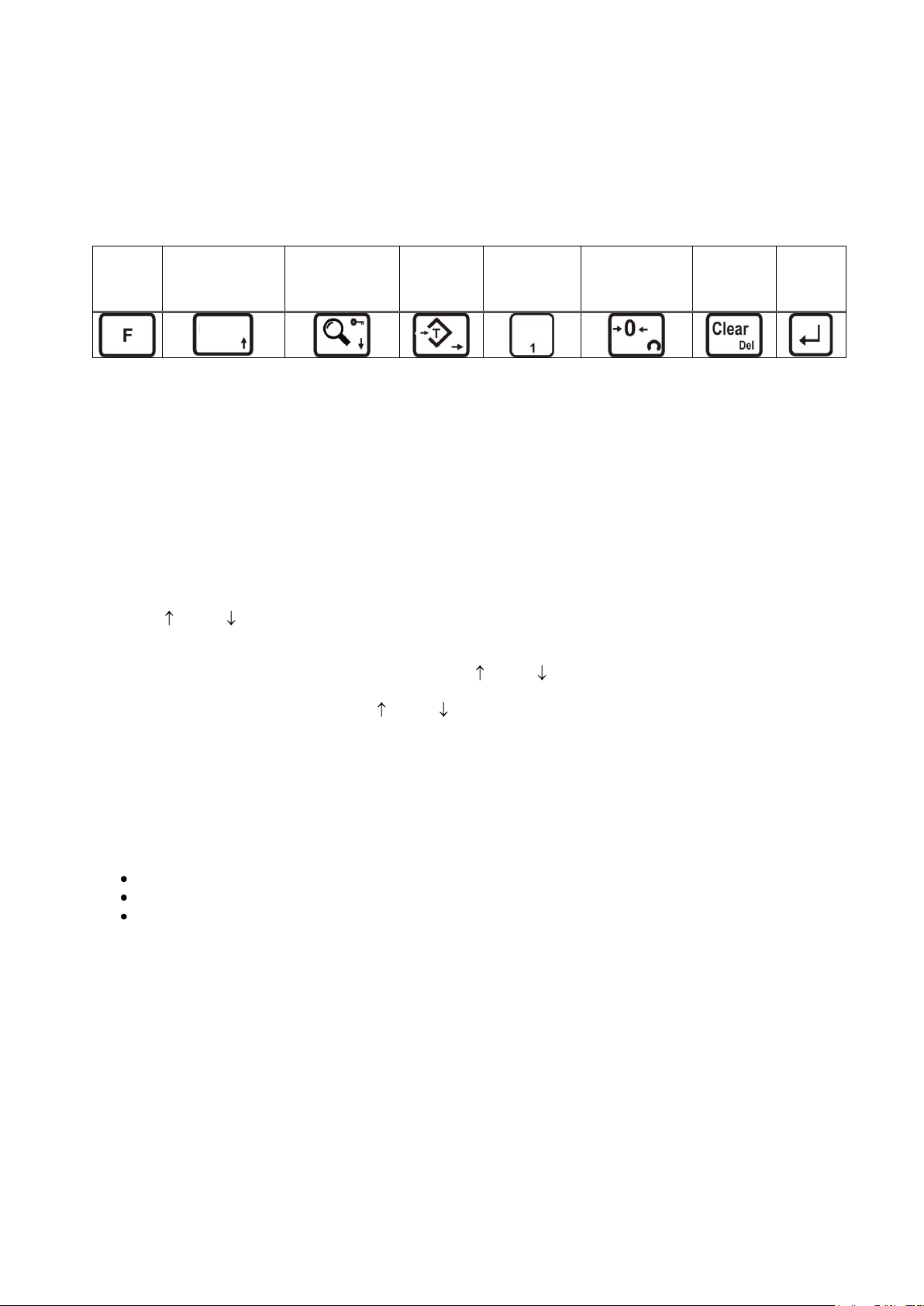

7.6 Setup

0 = Prog. 0

Filling into open container (factory default value)

1 = Prog. 1

Filling below bunghole of the container

2 = Prog. 2

Below surface filling in the container

3 = Prog. 3

Filling and emptying type 1

4 = Prog. 4

Accurate filling / Accurate discharging

5 = Prog. 5

Charging / Accurate discharging

6 = Prog. 6

Filling and emptying type 2

7 = Prog. 7

Filling the bag

8 = Prog. 8

Bag filling from hopper scale

9 = Prog. 9

Reserved

[ XXXXXX ]

This parameter defines a limit for preact correction. If the filling error is larger than this value , the preact correction is not applied. Factory default setting is 100%.

[cd X.X]

Time delay before maximum settling time starts; no operation; Factory default setting = 0.0 s

[SL X.X]

Maximum settling time; Factory default setting = 1.0 s; the maximum value range is 9.9 s

[5--] Filling Block [50-] + [51-] Filling Parameters

In this section the programme selection is done and the main filling parameters are defined.

[500 X] Programme selection

[501 XX] Preact correction factor

The material flow may change because of changes in temperature, viscosity, height of the material, etc. This causes filling errors and the fine value has to be changed accordingly. FT-13 follows the filling errors and adjusts the new preact value for the next filling cycle if the filling error is smaller than the value entered in parameter [503]. The adjustment rate is defined by this parameter in percentage, the factory default setting is 30%. The new preact value is calculated by the formula below:

New fine lead in = Fine lead in + (Actual – Target ) x Preact correction factor/100

[502 X] Preact correction frequency

Type FT-13 can adjust the fine value according to the filling error of the previous filling cycle. The preact adjustment is applied each time after a certain number of filling cycles which is defined here to decrease the filling time. The new fine value is calculated according to the entered rate in parameter [501]; e.g, if the value of this parameter is set to “3”, the preact correction is done after each 3 filling cycles. X = 0, 1, 2, 3…9; factory default setting is 1.

Attention: This parameter must be set to “1” if all cycles have to be controlled for tolerances. If you don‟t

want to make preact correction but data logging or tolerance check, then adjust parameter [502] to “1”

and parameter [501] to “0”.

[503 ] Preact correction limit

[504 X.X] Coarse feeding and middle feeding control delay

When the coarse feeding / middle feeding starts, the weight control is delayed for this time period. This is particularly helpful if an extreme weight increase happens due to material strikes on the scale at the beginning of the filling. The maximum value of this parameter is 9.9 s, factory default setting is 0.7 s.

[505 X.X] Fine feeding control delay

When the fine feeding starts the weight control is delayed for this time period for preventing coarse feed overshoot effects. The maximum value of this parameter is 9.9 s, factory default setting is 0.7 s.

[506 X.X] Maximum settling time

If the weight display is not stable within the maximum settling time after the filling, FT-13 activates the error output and gives a stability alarm. In this case the tolerance control cannot be performed.

Attention: Settling time is enabled when the preact correction function is enabled (parameter [502] ).

[507 X.X] Jogging time

If the filling weight is less than the target value, further material is added step by step with the time period

entered here. If it is set to “0”, no material addition is applied. It can be entered as a multiple of 100 ms. Factory default setting is “0”.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 32 of 56

[508 ] Maximum filling time

[ XXXXXX ]

This parameter controls the filling / discharging process time. If the filling / discharging

time exceeds this time period, an error message appears [FıLL t]. If it is set to “0”,

there will be no control. It can be entered as a multiple of 100 ms. Factory default setting is 0.

[ XXXXXX ]

This parameter defines the maximum allowed weight value in gross. If the displayed weight or the sum of the target weight and the tare weight is higher than the defined value the message [OVER] is shown on the display. Factory default setting is 3000 kg.

0 : Disabled (factory default setting)

1 : Enabled

0 :

The filling quantity entered by the <Q> key decreases automatically after each filling cycle and a warning message appears when it is zero (factory default setting).

1 :

The filling quantity is increased by one after each filling cycle and there will be no filling quantity control.

0 :

Coarse and fine feedings are enabled sequentially

1 :

Coarse & fine feedings and fine feeding are enabled sequentially

2 :

Coarse, middle and fine feedings are enabled sequentially

3 :

Coarse & fine feedings, middle & fine feedings and fine feeding are enabled sequentially

4 :

Coarse & middle & fine feedings, middle & fine feedings and fine feeding are enabled sequentially

[ XXXXXX ]

This parameter defines the automatic zeroing period in [s]. The zeroing is performed automatically at the next filling cycle after this time period. For legal for trade applications the value entered here shall be less than the value calculated at the OIML R-61 section A.5.3.5. If the zeroing will be done each cycle, this value shall be entered less than the minimum filling time. The allowed value range goes up to 5399 s (= 90 minutes).

0 : Increasing (factory default setting)

1 : Decreasing

[509 ] Maximum weight

[50A X ] Enable <Start> / <Reset> keys

[50b X ] Filling quantity control

[50C X ] Feeding type

For 2-speed feeding:

For 3-speed feeding:

[50d XX] Fine feeding time at cycle start

This parameter defines the fine feeding time before the coarse feeding. If this parameter is set to “0”, the

filling operation starts with the coarse feeding. It can be defined up to 99 s.

[50E ] Zeroing period

[50F X.X ] Zeroing delay

This parameter defines the zeroing delay time before zeroing. It can be defined up to 9.9 s. The factory default is 3.0 s.

[51-] Increasing or decreasing indication

[59-] Filling Performance Test

This test is very helpful to learn the material flow and to define coarse and fine feeding cut-off values.

[590 ] Coarse feeding test

Press the <Enter> key to go into this menu. The [StArt ] message appears on the display. The coarse feed starts by the <Start> key hold pressed for one second. After test feeding the display shows the quantity of the material coarse lead in as [ XXXXXX ].

[591 ] Fine feeding test

Press the <Enter> key to go into this menu. The [StArt ] message appears on the display. The fine feed starts by the <Start> key hold pressed for one second. After test feeding the display shows the quantity of material fine lead in as [ XXXXXX ].

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 33 of 56

7.7 Error Messages

Error Message

Description

The “Tare range” error message appears if the tare of the

container is not between the minimum and maximum tare values defined in the process parameters. If the error is not present anymore it can be acknowledged by a reset. Valid for programme 0, 1 and 2.

This message appears if tareing is not possible, e.g. if the weight is negative or the scale is not stable. It is shown alternately to the weight value. When the conditions become normal, the error is acknowledged by the start input in fillling or the discharge input in discharging.. Valid for programme 0, 1, 2, 4 and 5.

This means the weight is out of the zero range at the beginning of the filling cycle. It can be acknowledged by the start input. Valid for programme 3, 6 and 8.

This message appears if zeroing cannot be done at the beginning of the filling, e.g. the weight can be higher than the zeroing range or not stable. It is shown alternately to the weight value. This error is canceled by the reset input. Valid for programme 3, 4, 6, 7 and 8

At the end of filling, if the weight is out of the filling tolerances, this message appears. It is shown alternately to the weight value. The error is acknowledged by the start input. Valid for programme 0, 1, 2, 3, 4, 5, 6, 7 and 8

It shows the filling period is extended. The filling valves are closed. The error is acknowledged by the reset input. Valid for programme 0, 1, 2, 3, 4, 5, 6, 7 and 8

It shows the weight value is higher than the “Maximum

weight” limit (parameter [509]). The filling gate is closed. It

disappears when the weight becomes smaller than the “Maximum weight” limit. Valid for programme 0, 1, 2, 3, 4, 5, 6, 7 and 8

If the sum of the target value and the tare value is higher than the “Maximum weight” limit (parameter [509]), this message appears. It is acknowledged by the reset input. Valid for programme 0, 1, 2, 3, 4, 5, 6, 7 and 8

This message is shown if the “Valve down” input deactivates

during the filling process and the filling valves ares closed. The filling continues if the “Valve down” input activates again. Valid for programme 1 and 2

While the filling valve is going down, if the weight value is higher than “SAFEty” weight, this message is shown. It waits for reset. Valid for programme 1 and 2

Gate position error. Valid for programme 3, 4, 5, 6 and 8.

The total weight value is higher than [t_trGT]. Clear the total weigt for starting the process again. Valid for programme 6.

Clamp position error. Valid for programme 7.

E CLMP

E ZEro

XXXXX

t ovEr

E GAtE

E hoLE

E vALv

E trGt

E ovEr

FıLL t

E toL

XXXXX

E ZrnG

XXXXX

E tArE

XXXXX

E trnG

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 34 of 56

8. COMMUNICATION

Application

Hardware-Channel

Interface Operation mode

Data export to PC; Remote display; Remote control via ASCII input (Z, T, C)*

Standard Serial Interface (RS232C)

Option Serial Interface 2 (RS232C, RS485, 20mA TTY)

Option Ethernet (see Chap. 8.3)

Continuous output mode; see Chap. 8.2.3 and Appendix 2

IndFace-Software

Host mode; see Chap. 8.2.4

Data export to PC; Output to printer; Remote control via ASCII input (P, Z, T, C)*

Print mode; see Chap. 8.2.5

Process control (PLC, DCS, SCADA...)

Option Serial Interface 2 (RS485)

Option Ethernet (see Chap. 8.3)

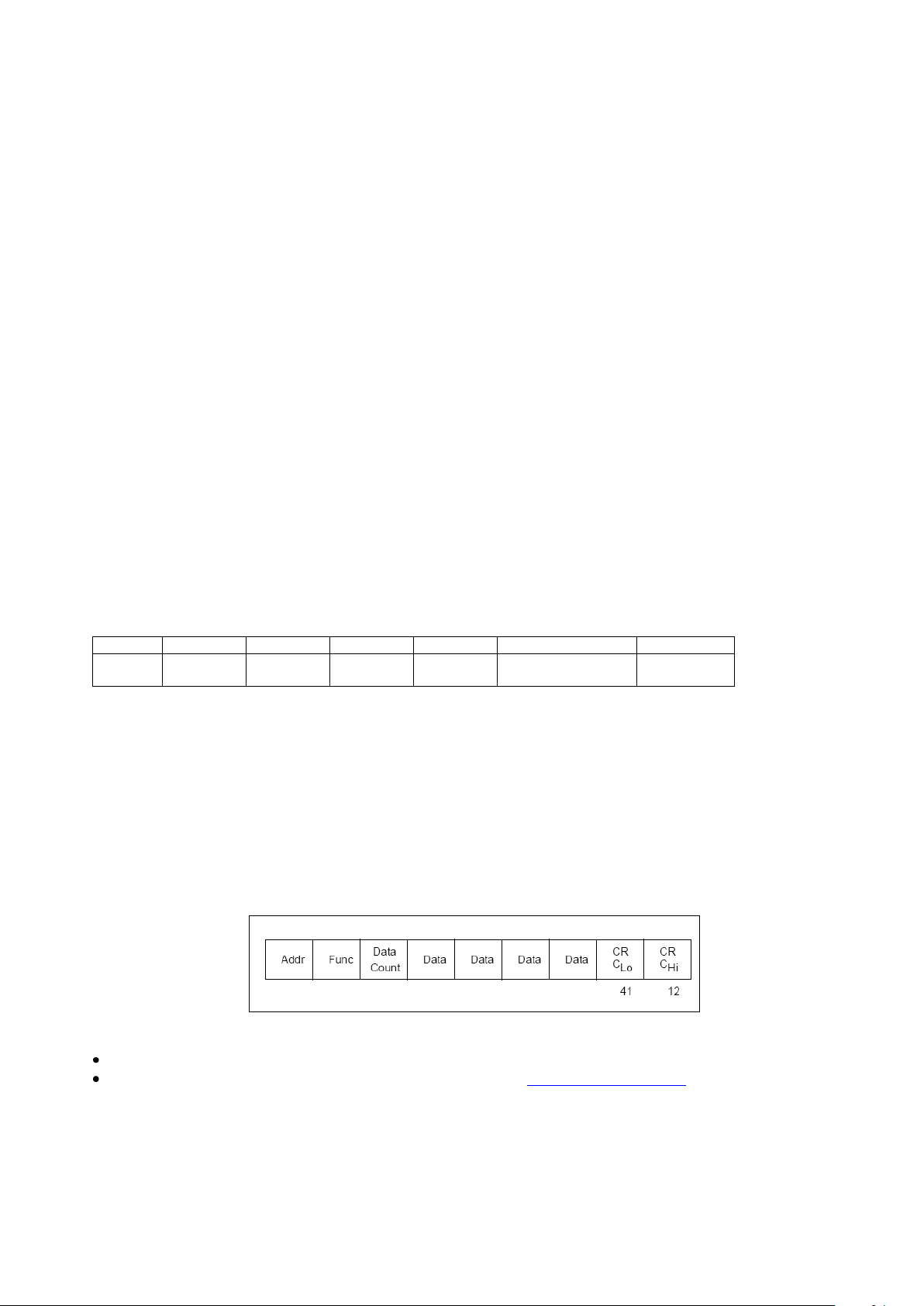

Modbus RTU; see Appendix 3

Option Profibus; see Chap. 8.4 + Appendix 4

Profibus DP

Option ProfiNet; see Chap. 8.5 + Appendix 4

ProfiNet

Option CANopen, see Chap. 8.6 + Appendix 5

CANopen

Standard 1st serial interface; Parameter group [00-]

Baudrate

1200, 2400, 4800, 9600, 19 200, 38 400 or 57 600 baud

Data format

8 bit no parity OR 7 bit even parity OR 7 bit odd parity

Start / Stop bit

1 start bit and 1stop bit

Definition

Panel type housing;

Pin no. (D-Sub, 9-pin, male)

Stainless steel housing Pin no. (J11 connector)

RS232C;

typical PC allocation

TXD

2 3 3

RXD

3 4 2

GND

7 2 5

Shield

Connector body

Optional 2nd serial interface; Parameter group [02-]

Baudrate; Data format; Start / Stop bit

As standard serial interface

Hardware

RS232C / RS485 / 20 mA TTY current loop (field changeable);

Parameter [012]

Pin no.

for desk and panel types

(D-Sub, 25-pin, female)

Pin no. for stainless steel housing

is set to

“0” or “1”

is set to “2”

J10 connector

(Option 1)

JR1 / JR2 connector

(Option 2 or 3)

TxD2; Par. [02-]

RTS1; Par. [01-]

RxD2; Par. [02-]

CTS1; Par. [01-]

2 9 GND (RS 232C)

R-; Par. [02-]

Not used

R+; Par. [02-]

Not used

T+; Par. [02-]

Not used

+V; Par. [02-]

Not used

Termination (RS 485)

Not used

Termination (RS 485)

Not used

A; Par. [02-]

B; Par. [02-]

T-; Par. [02-]

Not used

+24V; 20 mA CL

Not used

Shield

D25 body

8.1 Overview about Communication

* Z = Zeroing; T = Tara; C = Clear; P = Print

8.2 Serial Interface and Printer

8.2.1 Standard Serial Interface Connector (RS232C)

The connection of the standard RS232C of the instrument should be made as given in the table below.

You have to connect each TXD (output) with RXD (input) at the other end.

8.2.2 Optional Serial Interface Connector (RS232C, RS485, 20 mA TTY)

An additional serial interface can be added in addition to the standard RS232C port.

20 mA TTY current loop not available with stainless steel housing Up to 32 instruments can be connected with enabled RS485 port.

The pin configuration of the optional D-Sub 25-pin female connector is given below.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 35 of 56

The RS485 interface termination can be done by short circuiting pin no. 19 and 20 (panel type enclosure) or by jumper JP4

20 mA CL ASCII interface connection: The 20mA CL ASCII output is disabled by

default. For enabling this output the connections should be made as given in figure shown on the left. (Enabled output is not available for 12 V DC instruments and stainless steel housings).

Example:

10/01/2007 10:57 Cn= 169 G= 1999kg T= 0kg N= 1999kg

DAT E TIM E CN GROSS

TA R E NET

M S D

L S D

SP M S D

L S D

SP M S D

L S D

SP M S D

L S D

SP M S D

L S D

SP M S D

L S D

LF C R

10 1 5 7 7 2 11 4 11 2 11 1 1

Start : Start time of the first filling / discharging cycle End : End time of the last filling / discharging cycle N : Number of filling / discharging cycles Total : Total weight of filling / discharging

If the filling / discharging weight is controlled, the exact filling or

discharging weight is added to the “Total” value. If the filling /

discharging weight is not controlled, the target value is added to

the “Total” value.

TOTAL REPORT Start : dd.mm.yyyy mm:hh

End : dd.mm.yyyy mm:hh N = xxxxxx

on the interface board (stainless steel housing). These short circuits terminate the line with an internal 100 Ω resistor.

8.2.3 Continuous Output Mode

The continuous output mode allows for a fast and continuous data export to connected peripheral devices. The output data structure is described in Appendix 2.

8.2.4 Host Mode

The indicator can communicate with a PC in host mode. You can upload or download data to the indicator by adjusting the related interface parameters within the FLINTEC IndFace software.

8.2.5 Print Mode

The print mode is not available for more than one interface.

Data output after filling cycle

The data are transmitted automatically in filling mode or by pressing the <Print> key in weighing mode.

Total Report

Press the <F> key and the <Σ> key sequentially. While the total weight is shown on the display, press the

<Print> key to print out the total report in the format shown below. To clear the total and the statistics press the <1> key after the message [ CLr 1 ] is shown on the display.

Batch Report

Press the <F> key and the <Σ> key sequentially. While the total weight is shown on display, press the <Enter>

key. The message [StAtiS] will be shown on the display. Then press the <Print> key to print out the batch report in the format shown below. To clear the total and the statistics press the <1> key after the message [ CLr 1 ] is shown on the display.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 36 of 56

Start : Start time of the first filling / discharging cycle End : End time of the last filling / discharging cycle N : Number of filling / discharging cycles NC : Number of controlled filling / discharging cycles Control Conditions:

Preact correction is done (see parameter [502] in chapter 7.6) The filling / discharging weight must be within the preact

correction limit. (see parameter [503] in chapter 7.6) N<t : Number of filling / discharging cycles below tolerance N>t : Number of filling / discharging cycles above tolerance Nok : Number of filling / discharging cycles within tolerance Avg : Average value of the filling / discharging weight value S : Standard deviation. Only controlled filling / discharging

cycles are evaluated Min : Minimum filling / discharging weight value Max : Maximum filling / discharging weight value R : Maximum weight value – Minimum weight value Total : Total weight of filling / discharging

If the filling / discharging weight is controlled, the exact filling or

discharging weight is added to the “Total” value. If the filling /

discharging weight is not controlled, the target value is added to the

“Total” value.

0 : No data transfer

1 : Continuous data output

2 : Print mode

3 : Host mode

0 : 1 200 Baud

1 : 2 400 Baud

2 : 4 800 Baud

3 : 9 600 Baud

4 : 19 200 Baud

5 : 38 400 Baud

6 : 57 600 Baud

0 : No Handshake

1 : Xon/Xoff

0 : 8 bit, no parity

1 : 7 bit, odd parity

2 : 7 bit, even parity

0 : Checksum byte disabled

1 : Checksum byte enabled

0 : No output

1 : Continuous data output

2 : Print mode

3 : Host mode

4 : Modbus RTU High-Low*

5 : Modbus RTU Low-High**

0 : 1 200 Baud

1 : 2 400 Baud

2 : 4 800 Baud

0 : 1 200 Baud

4 : 19 200 Baud

5 : 38 400 Baud

6 : 57 600 Baud

0 : No Handshake

1 : Xon/Xoff

BATCH REPORT Start : dd.mm.yyyy hh:mm

End : dd.mm.yyyy hh:mm N = xxxxxx NC = xxxxxx N<t = xxxxxx N>t = xxxxxx Nok = xxxxxx Avg = xxxxxx kg S = xxxxxx kg Min = xxxxxx kg Max = xxxxxx kg R = xxxxxx kg Total = xxxxxx kg

8.2.6 Setup [0--] Interface Block

You can access the parameters of the instruments‟s serial interface(s) in parameter section [0--]. The data output modes (see chapter 8.3) can be used only once except for continuous data output.

[00-] Serial Interface 1 (Standard serial interface)

[000 X ] Data Format

[001 X] Baud Rate

[002 X] Handshake

[003 XX] Address

You can define a device address between 1 and 99 by this parameter. Entry 0  no address.

[004 X] Data Length and Parity

[005 X] Checksum

[02-] Serial Interface 2 (Optional serial interface)

[020 X ] Data Format

* Modbus RTU, high word before low word at address 40001 and 40002 ** Modbus RTU, low word before high word at address 40001 and 40002

[021 X] Baud Rate

[022 X] Handshake

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 37 of 56

[023 XX] Address

0 : Serial Interface-2 operates as RS232C

1 : Serial Interface-2 operates as RS485

2 : Serial Interface-2 operates as 20 mA TTY Current Loop (not for stainless steel housing)

0 : 8 bit, no parity

1 : 7 bit, odd parity

2 : 7 bit, even parity

0 : Checksum byte disabled

1 : Checksum byte enabled

0 : no

1 : yes

1 21 2

1: Link LED

2 Activity LED

Pin no.

Signal

Description

TX+

Differential Ethernet transmit data +

TX–

Differential Ethernet transmit data –

RX+

Differential Ethernet receive data +

Not used, terminated

RX–

Differential Ethernet receive data –

Not used, terminated

Shield

Chassis ground

State

Link LED

Activity LED

Off

No link

No Activity

Amber

10 Mbit/s

Half Duplex

Green

100 Mbit/s

Full Duplex

Connection to an Ethernet hub

Cabling is done using a standard RJ-45 patch cable.

Direct connection to a PC

Cabling is done using a RJ-45 cross over cable.

You can define a device address between 1 and 99 by this parameter. Entry 0  no address.

[024 X] Serial Mode

[025 X] Data Length and Parity

Note: The parameter [025] must be set to “0” for Modbus RTU output.

[026 X] Checksum

[04-] Printer

If one of the serial interfaces is selected as printer, the label settings will be made in this sub-block.

[041 X] Transfer of Date and Time via serial interface

8.3 Ethernet Option

FT-1x series indicators which are equipped with an Ethernet option can be connected to Ethernet TCP/IP or Modbus RTU over Ethernet networks as described below.

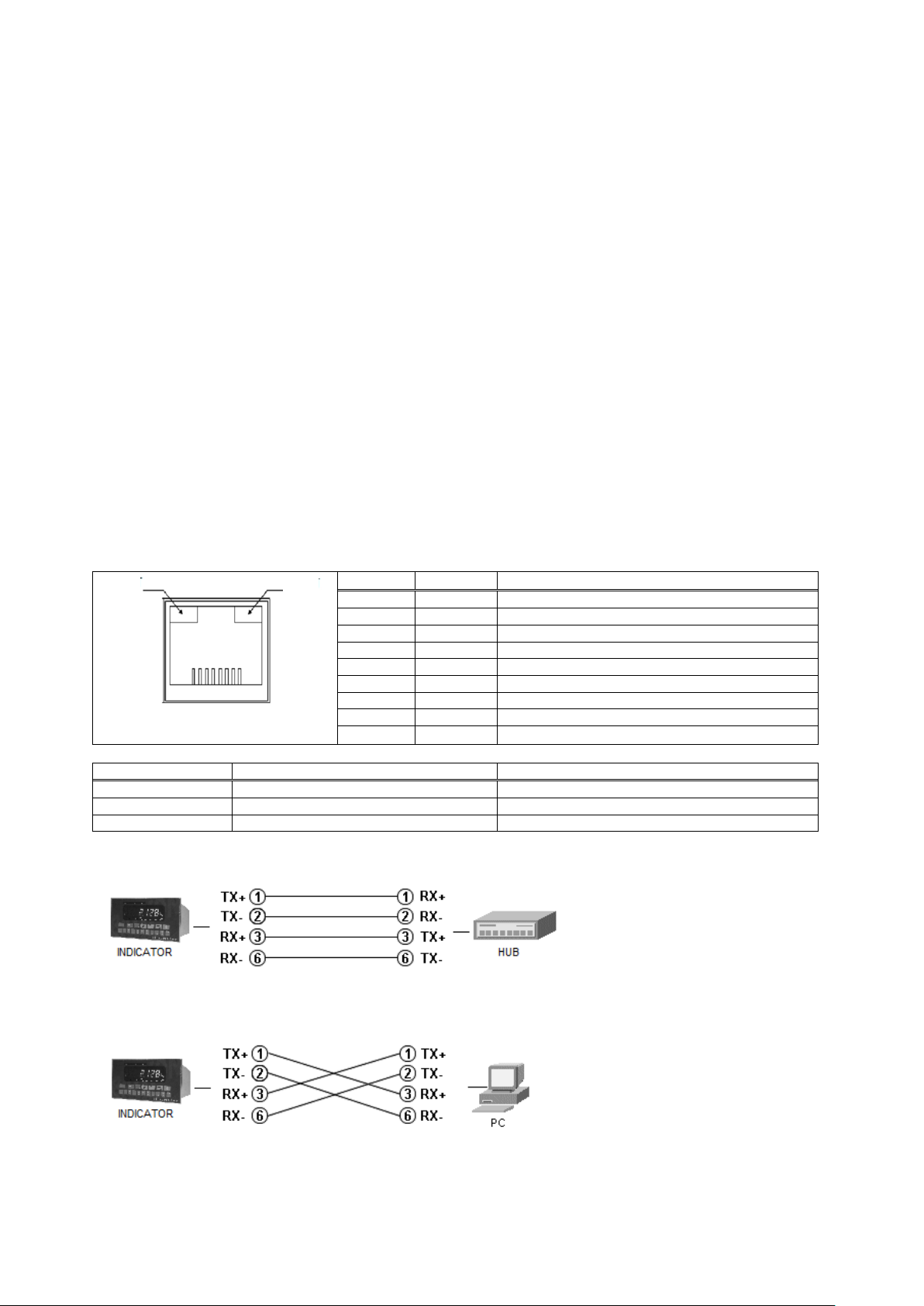

8.3.1 Electrical Connections

The pin configuration of the RJ45 Ethernet connector is described below:

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 38 of 56

8.3.2 Setup

Host Name

Device name on the network. Default is “ “

IP Address

The numeric code that identifies all computers that are connected to the internet. Default is “92.168.16.250”

Local Port

Ethernet connection point of the device. Default is “10001”

Gateway

Network point that acts as an entrance to other networks. Default is “192.168.16.254”

Subnet Mask

Defines a range of IP addresses in a network. Default is “255.255.255.0”

Primary DNS

Primary DNS server IP address

Secondary DNS

Secondary DNS server IP address

DHCP

The Dynamic Host Configuration Protocol provides dynamically allocated IP addresses to computers on a network, if it is enabled.

Remote Connect.

Automatic connection to any device on the network

Remote IP

IP address of the PC or device which should be connected automatically

Remote Port

Ethernet connection point of the device which should be connected automatically

Note:

For older instruments the configuration will be done by the Ethernet Device Installer PC software, see separate document on the Flintec Product-CD.

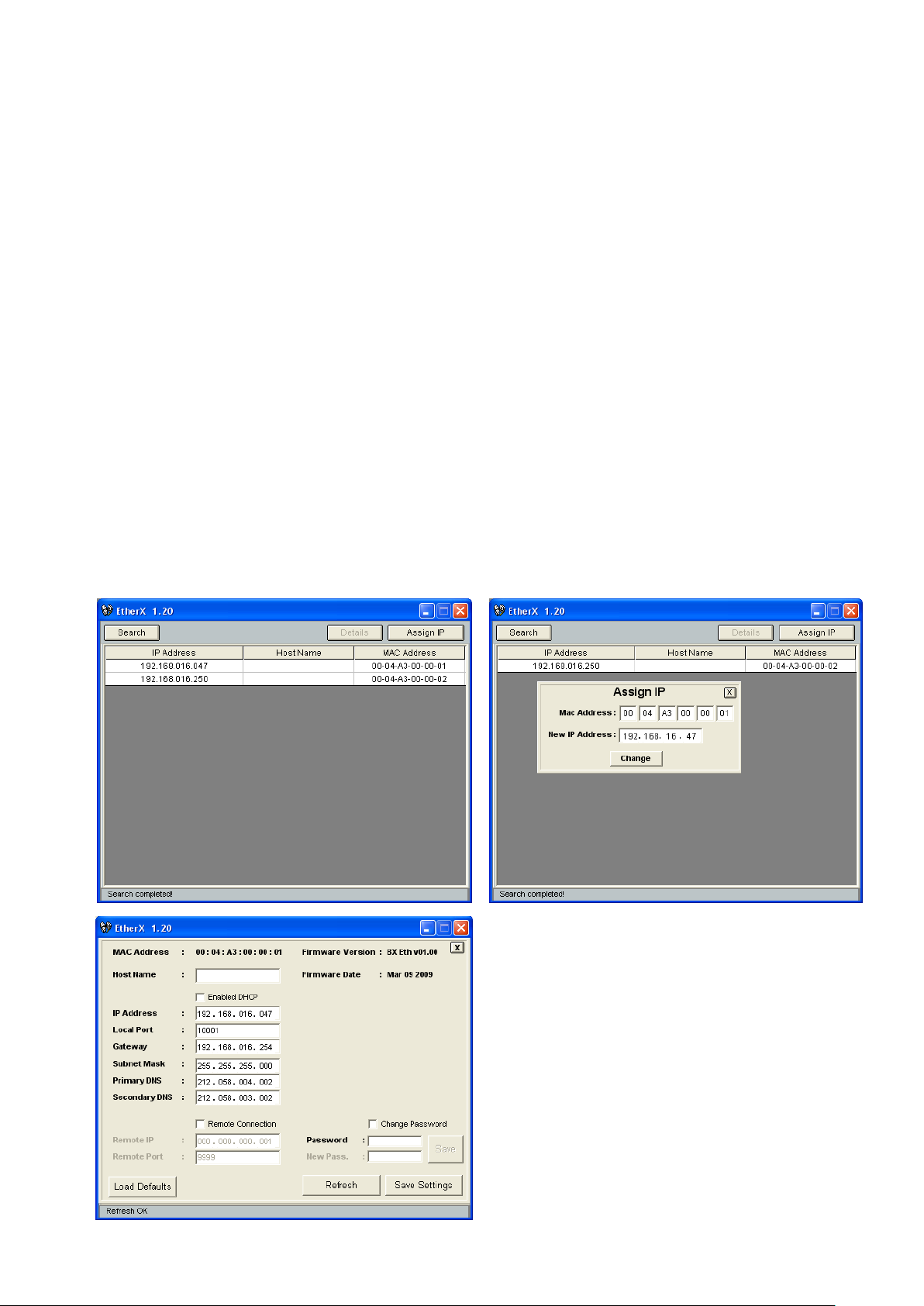

Step 1:

Install the Ether X software from the Flintec Product-CD to any PC on the network

Step 2:

Start the Ether X software

Step 3:

After pressing the “Search” button the software lists the FT-1x devices on the network as shown in the figure below

Step 4:

The IP address of any device may be changed after clicking the “Assign IP” button

Step 5:

Click the “Details“ button to open the parameter window as shown below.

The parameter window presents information like Firmware Version of Ethernet option board and it helps to edit resources like Host Name, Gateway, DNS server etc.

After changing any parameter, enter the password and click the “Save Settings” button. The default Password is “123456”.

The “Load Defaults” button resets the device to the

default settings.

There are several setup parameters for the Ethernet network as described below:

Important hint: During the setup the Ethernet output (weight value and status bits) will not be updated.

Setup by using the Ether X Software:

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 39 of 56

Frequently Asked Questions (FAQ)

Question:

The Ether X could not reach the FT-1x instrument.

Answer:

1. Check the local network connection

2. Check if the IP address of the indicator is convenient for your network

3. Check the PC Ethernet output with other network instruments

4. Check the existence of the Ethernet related parameters in the instrument setup (see chapter 8.3.3). If you cannot not see these parameters in the setup, please check the proper installation of the Ethernet board.

5. Change the Ethernet option board.

Question:

The Ether X software could reach the FT-1x instrument, but you can‟t communicate with the instrument.

Answer:

The port number of the indicator is not convenient for port numbers of your application software. Check the port number of the indicator by using the Ether X software.

Question:

How can I check the communication?

Answer:

You can use any communication program like HyperTerminal which is supplied with your Windows operating system (Microsoft).

1. Open the HyperTerminal and choose a name for the connection. Press OK.

2. Then enter the Ethernet address of the indicator and the port number as shown at the left. Also you need to set the connection type to “TCP/IP (WinSock)”.

3. To test the connection now, you can set the Ethernet output of the indicator to “continuous” (refer to chapter 8.3.3).

With an active HyperTerminal you should now be able to follow the data stream.

0 : No Ethernet output

1 : Continuous data

2 : Print mode (refer to parameter [040])

3 : Host mode

4 : Modbus RTU High-Low*

5 : Modbus RTU Low-High**

Data format

Data structure

Continuous output mode

See Appendix 2

Print mode

See Chapter 8.2.5 and 8.2.6 parameter [040]

Host mode

Modbus RTU

See Appendix 3

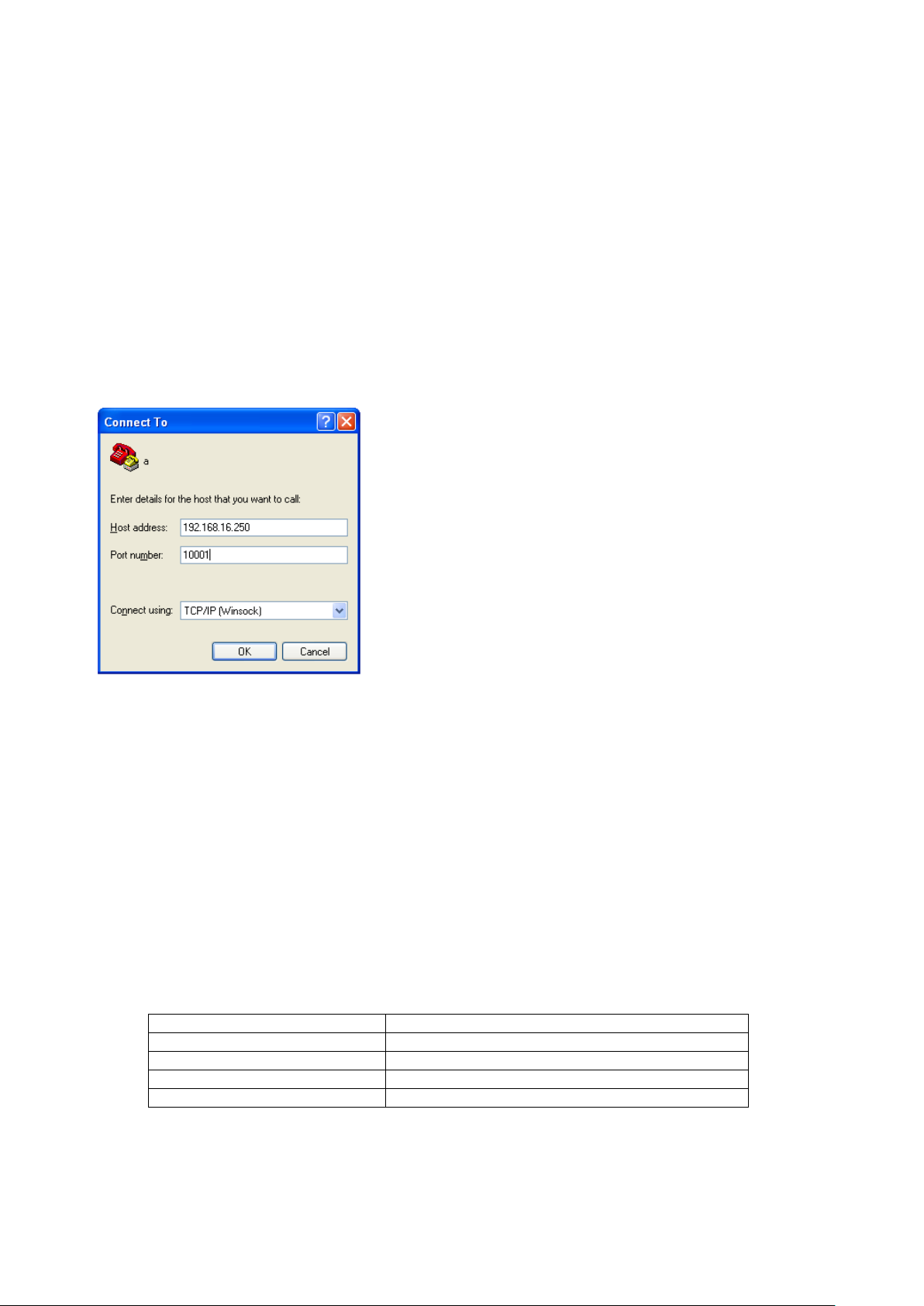

Example: HyperTerminal

8.3.3 Data Structure [0--] Interface Block [03-] Ethernet

This sub-block includes the parameters of the Ethernet port.

[030 X ] Data Format

* High word before low word at address 40001 and 40002 ** Low word before high word at address 40001 and 40002

Note: In continuous data format of the Ethernet interface, the checksum byte is disabled. The data structure depends on the selected data format (see parameter [030]):

[031 XX] Address

The address of the instrument will be entered via numerical keypad in the range 01 to 99.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 40 of 56

8.4 Profibus Option

Profibus DP V0 & V1

Automatic (96 kbit/s to 12 Mbit/s)

Update rate

Weight data will be updated each 40 ms

Response time on entries

5 ms to 25 ms

1 Operation mode LED 2 Status LED 3 Profibus Connector

Pin no.

Signal

Description

B-Line

Positive RxD / TxD, RS485 level

RTS

Request to send

GND

Isolated GND

+5 V DC

Isolated +5V output for bus termination

A-Line

Negative RxD / TxD, RS485 level

Housing

Shield

Bus cable shield, connected to Ground

Operation mode LED

State

Indication

Action / Comment

Off

Not on-line /No power

Check power and cable

Green

On-line, data exchange

Flashing Green

On-line, clear

Flashing Red (1 flash)

Setup error

Not supported

Flashing Red (2 flash)

PROFIBUS configuration error

Check GSD file

Status LED

State

Meaning

Off

No power or Profibus module is initialising

Green

Initialized

Flashing Green

Initialized and diagnostic event is present

Red

There is an exception error

0 : Signed 32 bit integer

1 : Signed 32 bit floating point

Indicators which are equipped with the Profibus option can be connected to a PLC bus as described below.

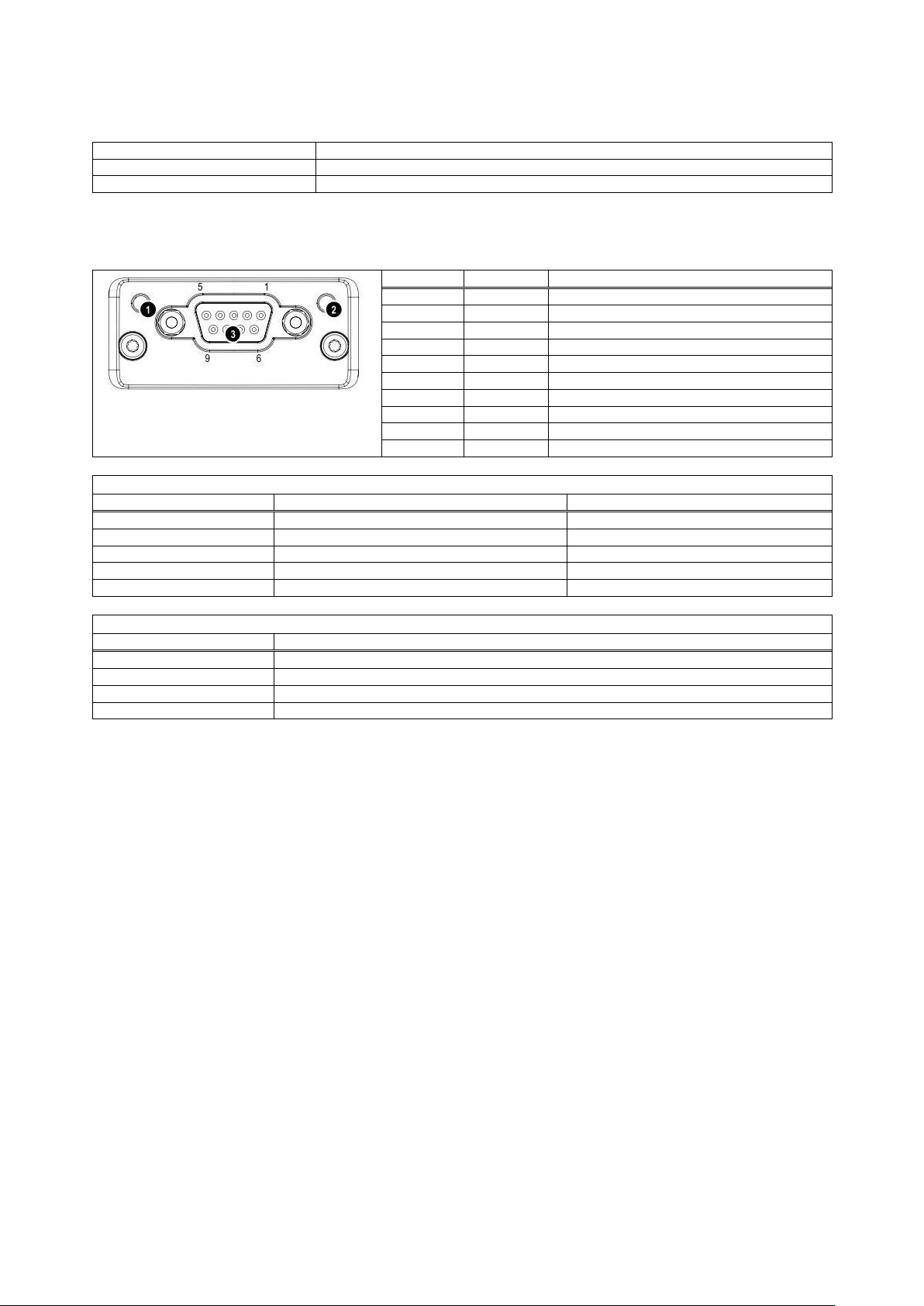

8.4.1 Electrical Connections

The pin configuration of the female 9-pol D-Sub Profibus connector (DB9F) is described in the table below:

8.5.2 Setup [0--] Interface Block [03-] Profibus

This sub-block includes the parameters of the Profibus port.

[032 X ] Data Format

[033 XX] Address

The address of the instrument will be entered via numerical keypad. Value range is 1 to 126. After editing

the address it is required to restart the instrument. The GDS file is available on a CD which is supplied together with the instrument. After the setup of these parameters and the hardware connection as described above, the data interface can

be used as described in Appendix 4.

Important hint: During the setup the Profibus output (weight value and status bits) will not be updated.

8.5.3 Data Structure

See Appendix 4.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 41 of 56

8.6 ProfiNet Option

Weight data update rate

40 ms

Response time on entries

5 ms to 25 ms

ProfiNet Interface:

1. Network Status LED

2. Module Status LED

3. Link/Activity LED

4. Ethernet Connector (100 Mbit/s, full-duplex)

MS Module Status LED

LED State

Description

Comment

Off

No power or not initialized

No power or ProfiNet module is in initialization state

Green

Initialized

Green, 1 flash

Initialized, diagnostic event(s) present

Diagnostic is active

Green, 2 flashes

Blink

Service tool to identify the node on the network

Red

Exception error

There is an exception error

Red, 1 flash

Configuration error

Check EDS configuration

Red, 2 flashes

IP address error

IP address not set

Red, 3 flashes

Station name error

Station name not set

Red, 4 flashes

Internal module error

Re-energize the instrument. If seen again, change module

LINK/Activity LED

LED State

Description

Comment

Off

No Link

No link, no communication present

Green

Link

Ethernet link established, no communication present

Green, flickering

Activity

Ethernet link established, communication present

NS Network Status LED

LED State

Description

Comment

Off

Not online /No power

Check power and cable

Green

On-line (RUN)

Green, flashing

On-line (STOP)

0 : Signed 32 bit integer

1 : Signed 32 bit floating point

DHCP

Enabled Dynamic Host Configuration Protocol automates network parameters. Default is „Disable‟.

IP Address

If DHCP is disabled, define IP address manually. Default is „192.168.16.250‟

Subnet Mask

If DHCP is disabled, define subnet mask manually. Default is „255.255.255.0‟.

Gateway

If DHCP is disabled, define default gateway manually. Default is „192.168.16.254‟.

Primary DNS

If DHCP is disabled, define primary DNS manually. Default is „208.67.222.222‟.

Secondary DNS

If DHCP is disabled, define secondary DNS manually. Default is „208.67.220.220‟.

Host Name

Enter a unique host name to the instrument. Default is „ ‟

Indicators which are equipped with the ProfiNet option can be connected to a PLC bus as described below.

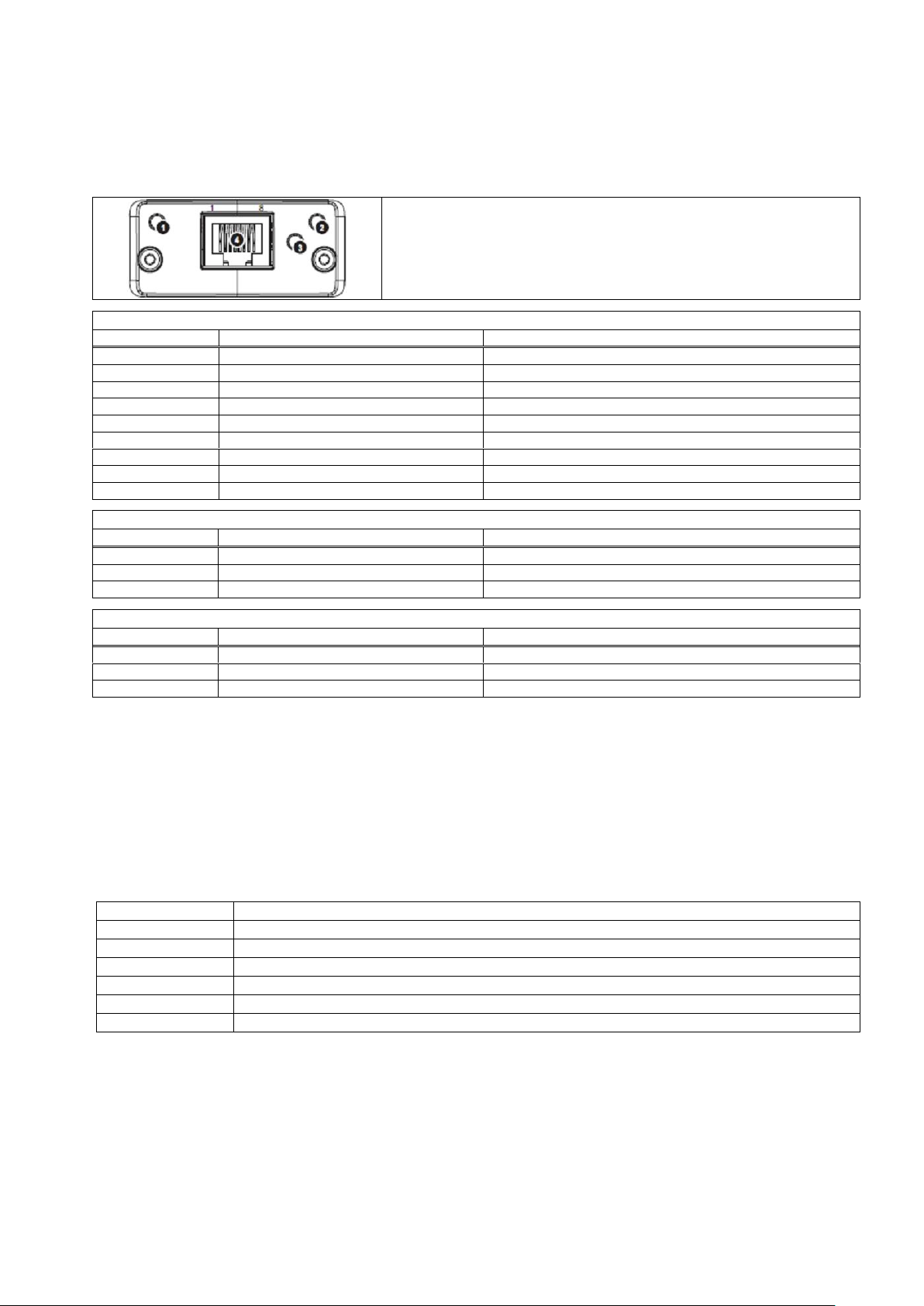

8.6.1 Electrical Connections

8.6.2 Setup [0--] Interface Block [03-] ProfiNet

[036 X ] Data Format

There are 7 setup parameters for ProfiNet network:

The ProfiNet communication will be configured by the EtherX PC software. EtherX can be installed from the Flintec Product CD-ROM. The EDS file is available on a CD which is supplied together with the instrument. After the setup of these parameters and the hardware connection as described above, the data interface can be used as described in Appendix 4.

Important hint: During the setup the ProfiNet output (weight value and status bits) will not be updated.

8.6.3 Data Structure

See Appendix 4.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 42 of 56

8.7 CANopen Option

Baud rate

Automatic (10 kbps to 12 Mbps)

Update rate

Weight data will be updated each 40 ms

Response time on entries

5 ms to 25 ms

1. Run LED

2. Error LED

3. CANopen Connector

Pin no.

Signal

Description

CAN_L

CAN_GROUND

CAN_SHIELD

CAN_H

Housing

Shield

Run LED

State

Indication

Action / Comment

Off

No power or not initialized

No power or cable broken

Green

On-line, data exchange

Green, flashing

On-line, initializing

Green, single flash

Stopped

Check for hardware damages

Green, flickering

Auto baud rate detection in progress

Red

Exception error

Check EDS file

Error LED

State

Indication

Action / Comment

Off

No error

No power or CANopen module is inizializing

Red, single flash

Warning limit reached

Bus error counter reached or exceeded its warning limit

Red, flickering

LSS

LSS services in progress

Red, double flash

Error count event

A guard (NMT slave or master) or heartbeat event has occured

Red

Bus off (fatal event)

Bus off

0 : Signed 32 bit integer

1 : Signed 32 bit floating point

Indicators which are equipped with the CANopen option can be connected to a PLC bus as described below.

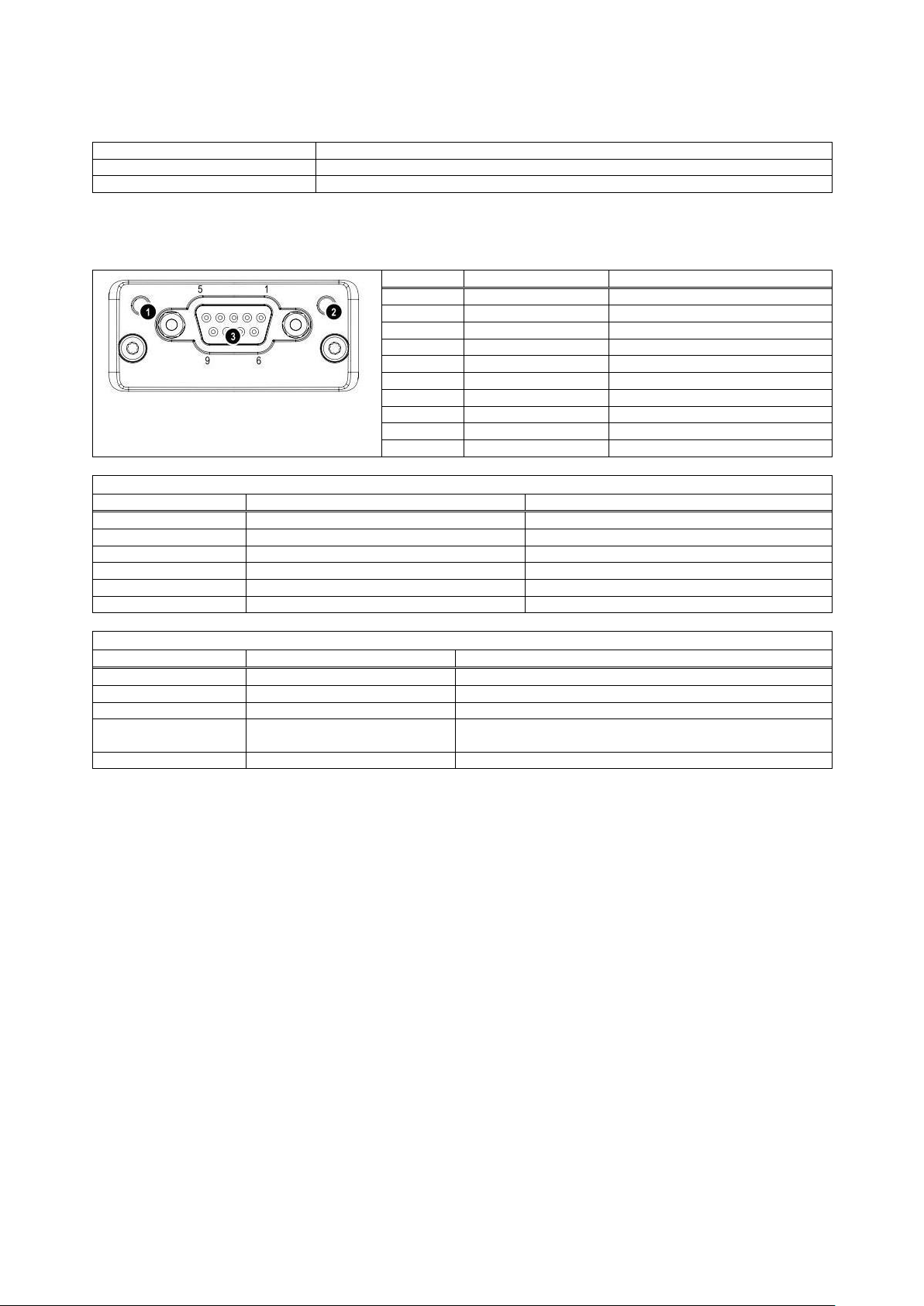

8.7.1 Electrical Connections

The pin configuration of the male 9-pol D-Sub ProfiNet connector (DB9M) is described in the table below:

8.7.2 Setup [0--] Interface Block [03-] CANopen

This sub-block includes the parameters of the CANopen.

[034 X ] Data Format

[035 XX] Address

The address of the instrument will be entered via numerical keypad. Value range is 1 to 127. After editing

the address it is required to restart the instrument. After the setup of these parameters and the hardware connection as described above, the data interface can

be used as described in Appendix 5.

Important hint: During the setup the CANopen output (weight value and status bits) will not be updated.

8.7.3 Data Structure

See Appendix 5.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 43 of 56

9. DIAGNOSTICS

The parameter block [9--] contains certain functions for checking and testing.

[9--] Diagnostics

The operations about checking and testing the instrument can be made here.

[90-] Tests

[900 ] Key Pad test

In this step each key‟s ASCII code will be shown on the display as you press the related key. By this way

you can test if all the keys are functioning or not. Pressing “ ” key will take you to the next parameter.

[901 ] Serial Interface-1 test

The characters in the alphabet will sequentially be transferred from serial interface-1 by pressing the

“Zero” key repeatedly. Received numerical data is shown on display.

[902 ] Digital Input test

[ı X YY]

To perform a digital input test, enter the number of the input to YY digits via “Tare” and “Zero” keys and

press the “Enter” key. “X” shows the logical condition of this input.

[903 ] Digital Output test

[o X YY]

To perform a digital output test, enter the number of the output to YY digits and press <Enter>. “X” shows

the logical condition of that output which can be changed by pressing the <Zero> key.

[904 ] mV Indication

When pressing the <Enter> key the output voltage of the load cell will be shown on the display. This

uncalibrated value is only for test- and service purposes.

[91-] Serial Numbers

[910] Instrument Serial No.

[911] Option 1 Serial No.

[912] Option 2 Serial No.

[913] Option 3 Serial No

When pressing the <Enter> key the serial number of the instrument or the option will be shown.

[914] Application Software Revision No. of legal for trade related part

When pressing the <Enter> key the MID revision no. of the application software will be shown.

[915] Application Software Revision No. of non-legal for trade related part

When pressing the <Enter> key the revision no. of the application software will be shown.

Note: The revision no. of the application software is also shown at the power up of the instrument

(Format: A XX.YY.)

[99-] Printing Parameter Values

[990] Print All Parameters

By pressing the <Print> key all parameters can be printed.

[991] Loading Default Parameters

When pressing the <Enter> key the [ Ld dEf ] message appears on the display. Press the <Tare> key for

loading the default values or press the <F> key to go to “9-“ sub block.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 44 of 56

APPENDIX 1: SETUP AND CALIBRATION MENU

FT-13 Setup and Calibration Menu

509

MAX WEIGHT

Editable with any password

Editable with service password

Editable with service password and calibration jumper

3_ _

CALIBRATION

1_ _

CONFIG

0_ _

INTERFACE

00 _

SERIAL 1

000

D.FORMAT

001

BAUD RATE

002

HANDSHAKE

003

ADDRESS

004

PARITY

02 _

SERIAL 2

020

D.FORMAT

021

BAUD RATE

022

HANDSHAKE

023

ADDRESS

024

MODE

025

PARITY

120 9

SLOWEST

120 5

12 _

FILTER

120

F.ADJ

120 0

NO FILTER

120 1

FASTEST

120 2 120 3

120 4

14 _

ADJUSTMENT

140

DATE

141

TIME

30 _

CALİB

301

CAL

31 _

CAL. ADJ

311

SPAN CAL

312

SPAN ADJ CAL

310

ZERO CAL

8_ _

M.LOGIC REC.

9_ _

DIAGNOSIS

80 _

RECORDS

800

CAL. COUNT

90 _

TESTS

900

KEY PAD

901

SERIAL 1

902

DIGITAL IN

903

DIGITAL OUT

904

91 _

S/N

910

FT-13

911

OPT 1

912

OPT 2

913

OPT 3

990

ALL PRMT

99 _

PRMT. PRT

991

DEFAULT

5_ _

FILLING

508

FILLING TIME

50 _

SETUP1

501

P.C. FACTOR

502

P.C. FREQ

503

P.C. LIMIT

504

C. FEED DEL.

507

JOGGING TIME

50A

S/R KEYS EN.

50b

FILLING QTY.

505

F. FEED DEL.

506

SETTLING TIME

59 _

TEST

590

COARSE

591

FINE

2_ _

SCALE PRMTR

20 _

SETUP

200

M.LOGIC

201

DISPLAY

203

ZERO

205

TARE

206

M.DETEC

21 _

WEIGHING

212

CAP / d

03 _ ETHERNET

PROFI, CANopen

030 ETHERNET

DATA FORMAT

031 ETHERNET

ADDRESS

032 PROFIBUS

DATA FORMAT

033 PROFIBUS

ADDRESS

005

CHECKSUM

204

AZT

500

MODE

50d

FINE FEED TIME

50C

FEEDING TYPE

50E

ZERO PERIOD

50F

ZERO DELAY

914

SOFTWARE 1

915

SOFTWARE 2

026

CHECKSUM

034 CANopen

DATA FORMAT

035 CANopen

ADDRESS

036 ProfiNet

DATA FORMAT

04 _

PRINTER

041

DATE+TIME

51 _

SETUP2

510

INDICATION

509

MAX WEIGHT

Editable with any password

Editable with service password

Editable with service password and calibration jumper

3_ _

CALIBRATION

1_ _

CONFIG

0_ _

INTERFACE

00 _

SERIAL 1

000

D.FORMAT

001

BAUD RATE

002

HANDSHAKE

003

ADDRESS

004

PARITY

02 _

SERIAL 2

020

D.FORMAT

021

BAUD RATE

022

HANDSHAKE

023

ADDRESS

024

MODE

025

PARITY

120 9

SLOWEST

120 5

12 _

FILTER

120

F.ADJ

120 0

NO FILTER

120 1

FASTEST

120 2 120 3

120 4

14 _

ADJUSTMENT

140

DATE

141

TIME

14 _

ADJUSTMENT

140

DATE

141

TIME

30 _

CALİB

301

CAL

30 _

CALİB

301

CAL

31 _

CAL. ADJ

311

SPAN CAL

312

SPAN ADJ CAL

310

ZERO CAL

8_ _

M.LOGIC REC.

9_ _

DIAGNOSIS

80 _

RECORDS

800

CAL. COUNT

90 _

TESTS

900

KEY PAD

901

SERIAL 1

902

DIGITAL IN

903

DIGITAL OUT

904

91 _

S/N

910

FT-13

911

OPT 1

912

OPT 2

913

OPT 3

990

ALL PRMT

99 _

PRMT. PRT

991

DEFAULT

990

ALL PRMT

99 _

PRMT. PRT

991

DEFAULT

5_ _

FILLING

508

FILLING TIME

50 _

SETUP1

501

P.C. FACTOR

502

P.C. FREQ

503

P.C. LIMIT

504

C. FEED DEL.

507

JOGGING TIME

50A

S/R KEYS EN.

50b

FILLING QTY.

505

F. FEED DEL.

506

SETTLING TIME

59 _

TEST

590

COARSE

591

FINE

2_ _

SCALE PRMTR

20 _

SETUP

200

M.LOGIC

201

DISPLAY

203

ZERO

205

TARE

206

M.DETEC

21 _

WEIGHING

212

CAP / d

21 _

WEIGHING

212

CAP / d

03 _ ETHERNET

PROFI, CANopen

030 ETHERNET

DATA FORMAT

031 ETHERNET

ADDRESS

032 PROFIBUS

DATA FORMAT

033 PROFIBUS

ADDRESS

005

CHECKSUM

204

AZT

500

MODE

50d

FINE FEED TIME

50C

FEEDING TYPE

50E

ZERO PERIOD

50F

ZERO DELAY

914

SOFTWARE 1

915

SOFTWARE 2

026

CHECKSUM

034 CANopen

DATA FORMAT

035 CANopen

ADDRESS

036 ProfiNet

DATA FORMAT

04 _

PRINTER

041

DATE+TIME

51 _

SETUP2

510

INDICATION

Chapter 8.2

Chapter 8.3...8.6

Chapter 8.2

Chapter 6.4

Chapter 6.5

Chapter 7.6

Chapter 6.2

Chapter 9

Chapter 6.3

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 45 of 56

APPENDIX 2: CONTINUES OUTPUT MODE DATA STRUCTURE

Status

Indicated

Tare

STX

STA

STB

STC

CSUM

Definition Table for Status Byte A

Bits 0, 1 and 2

Bits 3 and 4

Bit 5

Bit 6

Bit 7

0 1 2

Decimal point

3 4 Increment size

Always 1

0 0 0

XXXXOO

X 1

1 0 0

XXXXXO

X 2

0 1 0

XXXXXX

X 5

1 1 0

XXXXX.X

0 0 1

XXXX.XX

1 0 1

XXX.XXX

0 1 1

XX.XXXX

1 1 1

X.XXXXX

Definition Table for Status Byte B

Bit 0

Gross = 0

Net=1

Bit 1

Weight positive = 0

Weight negative=1

Bit 2

Overload = 1

Bit 3

Stable = 0

Unstable =1

Bit 4

Always = 1

Bit 5

Always = 1

Bit 6

Always = 0

Bit 7 x

Definition Table for Status Byte C

Bit 0

Always 0

Bit 1

Always 0

Bit 2

Always 0

Bit 3

Always 0

Bit 4

Always 1

Bit 5

Always 1

Bit 6

Always 0

Bit 7

The format and the definition of the continuous data output is given below.

The definition of the status bytes STA, STB and STC is given below.

STX = 0x02 CR = 0x0D CSUM = 0 – (STX + STATUS A + … + CR)

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 46 of 56

APPENDIX 3: MODBUS RTU DATA STRUCTURE

Read

command

Modbus

Function

code

No. of

registers

Definition

Display value

40 001

00,00

00,02

Current display value; Gross or Net

Status

40 003

00,02

00,01

Bit0

Busy

1 – System Busy

Bit1

Data ok

1 – Data ok // 0 – Error

Bit2

Motion

1 – Weight is not stable

Bit3

Net Mode

1 – Net mode

Bit4…12

Bit13…15

Transfer binary (Bit13 to Bit15) to decimal and compare to error code

No Errors

ADC out of range

ADC overrange

ADC underrange

System fault

FT not in weighing or filling mode

Tare weight

40 004

00,03

00,02

Current tare weight

Gross Weight

40 006

00,05

00,02

Current gross weight

Operation Mode

40 010

00,09

00,01

1 = Filling mode, 0 = Weighing mode

Target

40 011

00,0A

00,02

Current target weight

Tolerance

40 013

00,0C

00,02

Current tolerance weight

Coarse

40 015

00,0E

00,02

Current coarse value

Fine

40 017

00,10

00,02

Current fine value

40 019

00,12

00,01

Current consecutive Number

Last filling value

40 020

00,13

00,02

Last filling weight

Quantity

40 022

00,15

00,01

Current quantity

Total

40 023

00,16

00,02

Current total weight

Inputs

40 025

00,18

00,01

Current input status

Outputs

40 026

00,19

00,02

Current output status: Active output no. = Data bit no. set to “1” (e.g. only Bit 1 + Bit 8 = “1”  only output 1 + 8 active)

Middle

40 028

00,1A

00,02

Current middle value

Calibration

Status

40 033

00,1F

00,01

D0…D7 Calibration Process Status

Ready for calibration

Zero calibration in process

Span calibration in process

Error (Refer to D8 ... D15 )

D8…D15 Calibration Errors

Calibration Timeout – Restart calibration

ADC Error

– Re-energize the instrument – If seen again, change board.

Instrument cannot be calibrated – Check load cell cable – Re-energize the instrument

Instrument cannot be calibrated – Load cell signal is too low or too high

Calibration Error – Calibration test weight is too small, increase calibration weight value (40031-32) – Check load cell connections

Scale unstable

– Wait until scale becomes stable – Check grounding wiring

Calibration Jumper is not installedCheck Calibration jumper

If the instrument is programmed for Modbus, it can be used as a Modbus RTU slave on a RS485 communication line or on the Ethernet communication line. The Modbus slave adress is defined in the parameter [Address]. Function code “0x03” and function code “0x10” are supported.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 47 of 56

Write

command

Modbus register

Function

code

address

No. of

registers

Data byte

count

Data bytes

Definition

Control

40 009

00,08

00,01

Zero

00,02

Tare

00,03

Clear

00,04…00,07

N/A

00,08

Start

00,09

Reset

00,10

Hold enable

00,11

Hold disable

00,12

Pause enable

00,13

Pause disable

00,14

Start of discharging

Operation

mode

40 010

00,09

00,01

Filling mode

00,00

Weighing mode

Target

40 011

00,0A

00,02

Designated

value [hex]

Target for next cycle

Tolerance

40 013

00,0C

00,02

Tolerance for next cycle

Coarse

40 015

00,0E

00,02

Coarse for next cycle

Fine

40 017

00,10

00,02

Fine for next cycle

40 019

00,12

00,01

CN Number for next cycle

Quantity

40 022

00,15

00,01

Quantity for next cycle

Total

40 023

00,16

00,02

Total weight for next cycle

Outputs

40 026

00,19

00,02

XX,XX,XX,XX

[hex]

To set outputs manually: Active output no.= Data bit no.

set to “1” (e.g. only Bit 1 + 8 =

“1”  only output 1 + 8 active)

Middle

40 028

00,1A

00,02

Designated

value [hex]

Middle for next cycle

Calibration

40 030

10 00,01

None

188

Zero calibration

220

Span calibration (first define the calibration weight value in

40031)

40 031

10 00,02

04 Calibration weight value

Address

R/W

address

No of

registers

Process parameters

Prog0

Prog1

Prog2

Prog3

Prog4

Prog5

Prog6

40 040

R/W

00,26

00,02

D_FILL

D_DISC

D_MSG

D_DISC

40 042

R/W

00,28

00,02

TARE__

D_VALV

D_GATE

ZERO_R

GAT_CH

D_GATE

40 044

R/W

00,2A

00,02

TARE==

D_LIFT

E_TYPE

F_TRGT

E_TYPE

40 046

R/W

00,2C

00,02

ZERO_R

SAFETY

TARE__

GAT_CH

40 048

R/W

00,2E

00,02

GR-NET

ZERO_R

TARE==

ZERO_R

T_TRGT

40 050

R/W

00,30

00,02

GR-NET

SAFETY

ZERO_R

40 052

R/W

00,32

00,02

ZERO_R

40 054

R/W

00,34

00,02

GR-NET

40 056

40 058

40 060

40 062

40 064

40 066

40 068

40 070

40 072

40 074

40 076

40 078

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 48 of 56

Modbus exception codes

1 : Function code is not supported 2 : Address is out of range (start and end) 3 : Invalid value feed or wrong byte number 4 : Operation error

00,0A

00,02

00,00,13,88

7E,86

address

Write

function

address

No. of

registers

Data byte

count

Data bytes:

Value 5000 in hex

CRC

checksum

Terminal [hex] - Examples:

Performing direct read and write operations (Modbus RTU HiLo) with the instrument address set to “01”. Empty spaces in the example commands are only for a good pattern recognition; Use the commands without them.

Reading weight data : 01, 03, 00,00, 00,02, C4,0B Reading status data : 01, 03, 00,02, 00,01, 25,CA Reading tare data : 01, 03, 00,03, 00,02, 34,0B Reading last filling value : 01, 03, 00,13, 00,02, 04, 0F,D4 Reading total weight filled : 01, 03, 00,16, 00,02, 04, 0F,18 Reading inputs : 01, 03, 00,18, 00,01, 02, 8D,02 Activating Tare : 01, 10, 00,08, 00,01, 02, 00,02, 26,D9 Activating Start : 01, 10, 00,08, 00,01, 02, 00,08, A6,DE Activating Reset : 01, 10, 00,08, 00,01, 02, 00,09, A3,33 Loading value 5000 to Target : 01, 10, 00,0A, 00,02, 04, 00,00,13,88, 7E,86 Loading value 50 to Tolerance : 01, 10, 00,0C, 00,02, 04, 00,00,00,32, 72,2F Loading value 500 to Coarse : 01, 10, 00,0E, 00,02, 04, 00,00,01,F4, 72,34 Loading value 100 to Fine : 01, 10, 00,10, 00,02, 04, 00,00,00,64, F3,48 Activating all standard outputs : 01, 10, 00,19, 00,02, 04, 00,00,00,FF, 72,89 Activating outputs 1 and 6 : 01, 10, 00,19, 00,02, 04, 00,00,00,21, F2,D1

Loading Target, Tolerance, Coarse and Fine in one message (with above values): 01, 10, 00,0A, 00,08, 10, 00,00,13,88,00,00,00,32,00,00,01,F4,00,00,00,64, 8F,B2

- Details of an example: Loading value “5000” to Target

Calculate check sums:

1. Load a 16–bit register with FFFF hex (all 1‟s). Call this the CRC register.

2. Exclusive OR the first 8–bit byte of the message with the low–order byte of the 16–bit CRC register, putting the result in the CRC register.

3. Shift the CRC register one bit to the right (toward the LSB), fill a zero into the MSB. Extract and examine the LSB.

4. (If the LSB was 0): Repeat Step 3 (another shift). (If the LSB was 1): Exclusive OR the CRC register with the polynominal value A001 hex (1010 0000 0000 0001).

5. Repeat Steps 3 and 4 until 8 shifts have been performed. When this is done, a complete 8–bit byte will have been processed.

6. Repeat Steps 2 through 5 for the next 8–bit byte of the message. Continue doing this until all bytes have been processed.

7. The final contents of the CRC register is the CRC value.

8. When the CRC is placed into the message, its upper and lower bytes must be swapped as described below.

Attention:

For hardware connection details please refer to the related hardware descriptions within this manual For more Modbus information please refer to the web site http://www.modbus.org

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 49 of 56

APPENDIX 4: PROFIBUS DP / PROFINET DATA STRUCTURE

Bit no.

10 9 8 7 6 5 4 3 2 1 0

1st Word

W31 MSB

W30

W29

W28

W27

W26

W25

W24

W23

W22

W21

W20

W19

W18

W17

W16

2nd Word

W15

W14

W13

W12

W11

W10

LSB

3rd Word

0 0 0 0 In4

In3

In2

In1

Out8

Out7

Out6

Out5

Out4

Out3

Out2

Out1

4th Word

Error

0 0 0 0 0 0 0

Cmd

Acc.

Net

Data

Integrity

Bit no.

3rd Word

Description

15…12

Not used

Always 0

Digital Input 4

Input bit status (Active = 1)

Digital Input 3

Digital Input 2

Digital Input 1

Digital Output 8

Output bit status (Active = 1)

Digital Output 7

Digital Output 6

Digital Output 5

Digital Output 4

Digital Output 3

Digital Output 2

Digital Output 1

Bit no.

4th Word

Description in normal operation

Error

000

No error

001

ADC out

010

ADC over

011

ADC under

100

System error

101

FT not in weighing mode or filling mode

12…5

Not used

Always 0

Command accepted

This bit is toggled when a new command was accepted

Net

0: Gross Mode; 1: Net Mode

Motion

0: No Motion ; 1: Motion

Data Ok

0: Check the error bits; 1: Scale is operating properly

Update in progress (Data integrity)

0: PLC should not use the data; 1: use the data (if 0, the instrument was updating the PLC interface shared memory while data was read. The PLC interface should ignore this data and rescan.)

Bit no.

4th Word

Description during the calibration

15 … 8

Calibration error

0000 0001

Calibration Timeout – Restart calibration

0000 0010

ADC Error – Re-energize the instrument – If seen again, change board.

0000 0011

Instrument cannot be calibrated – Check load cell cable – Re-energize the instrument

0010 0010

Instrument cannot be calibrated – Load cell signal is too low or too high

0010 0011

Calibration Error

– Calibration test weight is too small, increase calibration weight – Check load cell connections

0010 0101

Scale unstable – Wait until scale becomes stable – Check grounding wiring

0010 0110

Calibration Jumper is not installed- Check Calibration jumper

7...0

Calibration status 0000 0001

Ready for calibration

0000 0011

Zero calibration in process

0000 0100

Span calibration in process

0000 1001

Calibration error (see bit 15...8)

The output from FT-13 on PLC requests is in four words and according to the table below.

FT-13 Output

Here the first and the second word provide the weight information (32-bit signed integer; WXX = Weight bit XX; W31 = MSD; W0 = LSD ) and the third and fourth word is the status as indicated below.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 50 of 56

Any input to FT-13 is in four words and according to the table below.

Bit no.

10 9 8 7 6 5 4 3 2 1 0

1st Word

W31

MSB

W30

W29

W28

W27

W26

W25

W24

W23

W22

W21

W20

W19

W18

W17

W16

2nd Word

W15

W14

W13

W12

W11

W10

LSB

3rd Word

Pause

Hold

Dschrg

Reset

Start

Clear

Tare

Zero

New Cmd

Command

CMD

R/W

4th Word

Not in use

Expanded Commands

Bit no.

Word

Description

Pause

A transition from 0 to 1 activates the Pause function in a filling process. A transition from 1 to 0 deactivates the Pause function.

Hold

A transition from 0 to 1 activates the Hold function which stops the weight control in a filling process and deactivates the feeding outputs. A transition from 1 to 0 deactivates the Hold function.

13…12

Not used

Always 0

Reset

A transition from 0 to 1 activates the reset command.

Start

A transition from 0 to 1 activates the start command.

Clear

A transition from 0 to 1 activates the clear command.

Tare

A transition from 0 to 1 activates the tare command.

Zero

A transition from 0 to 1 activates the zero command.

New command

A transition from 0 to 1 activates the command described in the table below.

Command

R / W

Definition

00000

Gross Weight, continuous

00001

Displayed Weight, continuous

00010

Net Weight, continuous

00011

Tare Weight, continuous

00100

R / W

Filling / Weighing Mode Write: Toggle operation mode between filling and weighing Read: 0: weighing ; 1: filling (only 1st word)

00101

R / W

Target

00110

R / W

Tolerance

00111

R / W

Coarse

01000

R / W

Fine

01001

R / W

CN (only 1st word)

01010

Last filling value

01011

R / W

Quantity (only 1st word)

01100

R / W

Total

01101

Inputs (only 1st word), continuous

01110

R / W

Outputs, continuous

01111

R / W

Middle

10000

Zero calibration and calibration status (see table above)

10001

Calibrate span and and calibration status (see table above) First write the calibration weight value in 1st and 2nd Word

10010

Only calibration status (see table above)

11111

Reserved

Command R / W

0: Read command; 1: Write command

Bit no.

Word

Description

15…6

Not used

Always 0

Expanded Commands

Cmd

R/W Definition

Prog. 0

Prog. 1

Prog. 2

Prog. 3

Prog. 4

Prog. 5

Prog. 6

00000

R/W

D_FILL

D_DISC

D_MSG

D_DISC

00001

R/W

TARE_

D_VALF

D_GATE

ZERO_r

GAT_CH

D_GATE

00010

R/W

TARE=

D_LIFT

E_TYPE

F_TRGT

E_TYPE

00011

R/W

ZERO_r

SAFETY

TARE_

GAT_CH

00100

R/W

GR-NET

ZERO_r

TARE=

ZERO_r

T_TRGT

00101

R/W

GR-NET

SAFETY

ZERO_r

00110

R/W

ZERO_r

00111

GR-NET

2 1 0

FT-13 Input

Here the first and the second word describe the value received from the PLC, the third and the fourth word the meaning as indicated below.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 51 of 56

APPENDIX 5: CANOPEN DATA STRUCTURE

Bit no.

MSB

10 9 8 7 6 5 4 3 2

LSB

TxPDO 1 (T_DW1)

W31 MSB

W30

W29

W28

W27

W26

W25

W24

W23

W22

W21

W20

W19

W18

W17

W16

W15

W14

W13

W12

W11

W10

W09

W08

W07

W06

W05

LSB

TxPDO 2 (T_DW2)

0 0 0 0 In4

In3

In2

In1

Out8

Out7

Out6

Out5

Out4

Out3

Out2

Out1

Error

0 0 0 0 0 0 0

Cmd

Acc

Net

Data

Integr.

Bit no.

T_DW2

Description in normal operation

31...28

Not used

Always 0

Digital input 4

Status input bit (1 = active)

Digital input 3

Digital input 2

Digital input 1

Digital output 8

Status output bit (1 = active)

Digital output 7

Digital output 6

Digital output 5

Digital output 4

Digital output 3

Digital output 2

Digital output 1

15...0

Not used

Always 0

15...13

Error

000

No error

001

ADC out

010

ADC over

011

ADC under

100

System error

101

FT-13 not in weighing mode or filling mode

12…5

Not used

Always 0

Command accepted

This bit toggles after a new command has been accepted.

Net

0: Gros mode; 1: Net mode

Motion

0: No motion; 1: Motion

Data Ok

0: Check the error bits; 1: Scale is operating properly

Data update in progress

0: PLC should not use the data; 1: use the data (if 0, the instrument was updating the PLC interface shared memory while data was read. The PLC interface should ignore this data and rescan.)

Bit no.

T_DW2

Description during the calibration

15 … 8

Calibration error

0000 0001

Calibration Timeout – Restart calibration

0000 0010

ADC Error – Re-energize the instrument – If seen again, change board.

0000 0011

Instrument cannot be calibrated – Check load cell cable – Re-energize the instrument

0010 0010

Instrument cannot be calibrated – Load cell signal is too low or too high

0010 0011

Calibration Error

– Calibration test weight is too small, increase calibration weight – Check load cell connections

0010 0101

Scale unstable – Wait until scale becomes stable – Check grounding wiring

0010 0110

Calibration Jumper is not installed- Check Calibration jumper

The output from FT-13 on PLC requests is in two double words and according to the table below.

FT-13 Output

Here T_DW1 provides the weight information (32-bit signed integer; WXX = Weight bit XX; W31 = MSD; W0 = LSD ) and T_DW2 provides the status as indicated below.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 52 of 56

7...0

Calibration status 0000 0001

Ready for calibration

0000 0011

Zero calibration in process

0000 0100

Span calibration in process

0000 1001

Calibration error (see bit 15...8)

Bit no.

MSB

10 9 8 7 6 5 4 3 2

LSB

RxPDO 1 (R_DW1)

W31 MSB

W30

W29

W28

W27

W26

W25

W24

W23

W22

W21

W20

W19

W18

W17

W16

W15

W14

W13

W12

W11

W10

W09

W08

W07

W06

W05

LSB

RxPDO 2 (R_DW2)

Pause

Hold 0 0

Reset

Start

Clear

Tare

Zero

New

Cmd

Command

CMD

R/W

Not in use

R_DW2

Description

Pause

A transition from 0 to 1 activates the Pause function in a filling process. A transition from 1 to 0 deactivates the Pause function.

Hold

A transition from 0 to 1 activates the Hold function which stops the weight control in a filling process and deactivates the feeding outputs. A transition from 1 to 0 deactivates the Hold function.

13…12

Not used

Always 0

Reset

A transition from 0 to 1 activates the reset command.

Start

A transition from 0 to 1 activates the start command.

Clear

A transition from 0 to 1 activates the clear command.

Tare

A transition from 0 to 1 activates the tare command.

Zero

A transition from 0 to 1 activates the zero command.

New command

A transition from 0 to 1 activates the command described in the table below.

Command

R / W

Definition

00000

Gross Weight, continuous

00001

Displayed Weight, continuous

00010

Net Weight, continuous

00011

Tare Weight, continuous

00100

R / W

Filling / Weighing Mode Write: Toggle operation mode between filling and weighing Read: 0: weighing ; 1: filling (W32...W16 of R_DW1)

00101

R / W

Target

00110

R / W

Tolerance

00111

R / W

Coarse

01000

R / W

Fine

01001

R / W

CN (W32...W16 of R_DW1)

01010

Last filling value

01011

R / W

Quantity (W32...W16 of R_DW1)

01100

R / W

Total

01101

Inputs (W32...W16 of R_DW1), continuous

01110

R / W

Outputs, continuous

01111

R / W

Middle

10000

Zero calibration and calibration status (see table above)

10001

Calibrate span and and calibration status (see table above) First write the calibration weight value in R_DW1

10010

Only calibration status (see table above)

11111

Reserved

Command R / W

0: Read command; 1: Write command

Any input to FT-13 is in two double words and according to the table below.

FT-13 Input

Here R_DW1 provides the value received from the PLC and R_DW2 describes the meaning of this value as indicated below.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 53 of 56

APPENDIX 6: ERROR TABLE

Error

Code

Description

Actions to take / Possible cause

Under

Weight is too low

Check the load; Load cell or instrument could be defective

Over

Over Load

Adc Out

Input signal outside the input range

Check the load; Check the calibration; Load cell or instrument could be defective

E StbL

Stability error

- The scale must be stable for zeroing, taring, tolerance control, etc.

- Increase the maximum settling time (parameter [506])

- Increase the zeroing delay (parameter [50F])

- Increase the range of the motion detector (parameter [206])

Err 1

ADC error

Re-energize indicator; Contact FLINTEC

Err 2

Err 3

Indicator cannot get calibrated

Check load cell and load; then repeat the calibration

Err 10

EEPROM error

Configure the instrument; EEPROM defective

Err 20

Calibration error

Calibrate the indicator

Err 21

Configuration error

Configure the indicator

Err 27

Indicator is not calibrated

Calibrate the indicator

Err 28

Date & Time Error

Adjust Date & Time; Replace the battery

Err 30

Processor Error

Contact FLINTEC

Err 34

Indicator cannot get calibrated

Load cell signal is negative , very low or too high

Err 35

Calibration Error

Calibration test weight is too small; Check load cell connections

Err 37

Scale unstable

Wait until scale becomes stable; Check ground connection

Err 51

Filling programme was changed (previous process parameters have been cleared)

Press the <Enter> key; then setup all parameters for the new programme

Err 61

U10 (eeprom) is not installed

Contact FLINTEC Err 62

U8 (eeprom) is not installed

E XXXX

Hardware error

The FT-13 Weighing Controller has been designed as very reliable and virtually error free instruments. However if an error occurs do not attempt to repair the equipment before you understand what caused the error. Note the problems you have with your instrument and the error messages shown on the display. Then try to solve the problem according to the error table given below.

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 54 of 56

APPENDIX 7: PARAMETER’S DEFAULT TABLE

Parameter

Factory defaults

0--

Interface

00-

Serial Interface 1

Data format

2 = Printer

Baud rate

3 = 9600

Handshake

0 = Disable

Address

0 4 Data length and parity

0 = 8 bit, no parity

Checksum

1 = Enable

02-

Serial Interface 2

Data format

0 = Disable

Baud rate

3 = 9600

Handshake

0 = Disable

Address

Mode

0 = RS232C

Data length and parity

0 = 8 bit, no parity

03-

Ethernet / Profibus

Ethernet data format

0 = Disable

Ethernet address

Profibus data format

0 = 32-bit integer

Profibus address

CANopen data format

0 = 32-bit integer

CANopen address

ProfiNet data format

0 = 32-bit integer

04-

Printer

Date + Time

0 = don‟t print

1--

Configuration

12-

Filter

120

Filter

14-

Entries

140

Date entry

dd.mm.yy

141

Time entry

hh.mm

2--

Scale Parameters

20-

Set up

200

Approved

0 = No

201

Increased indication

0 = With x10 key

203

Zero with key

1 = ± %2

204

Auto Zero Tracking

1 = ± 0.1e

205

Tare

1 = With Tare Key

206

Motion detector

1 = ± 0,5e

21-

Scale Build

212

Capacity (2) / d(2)

6 kg / 0.001 kg

3--

Calibration / Adjustment

30-

Calibration

301

Calibration

31-

Adjustment

310

Zero adjustment

311

Span adjustment

312

Span adjustment under load

Parameter

Factory defaults

5--

Filling

50-

Filling Parameters 51-

500

Filling programme

Programme 0

501

Preact correction factor

30%

502

Preact correction frequency

503

Preact correction limit

100%

504

Coarse feed. control delay

0.7 s

505

Fine feeding control delay

0.7 s

506

Maximum settling time

1.0 s (delay 0.0 s)

507

Jogging time

0.0 s

508

Filling time

0 = Disable

509

Maximum weight

3000

50A

Start / Reset keys

0 = Disable

50b

Filling Quantity control

50C

Filling type

50d

Fine feeding time at start

0 (=starts with coarse f.)

50E

Zeroing period

250 s

50F

Zeroing delay

3.0 s

510

Indication in filling process

0 (= increasing)

59-

Filling Performance Test

590

Coarse feed test

591

Fine feed test

8--

Metrological Data

80-

Legal Metrology

800

Calibration counter

9--

Diagnostics

90-

Tests

900

Key Pad test

901

Serial interface 1 test

902

Digital input test

903

Digital output test

904

mV indication

91-

Serial numbers

910

FT-13 serial no.

911

Option 1 serial no.

912

Option 2 serial no.

913

Option 3 serial no.

914

A XX.--

915

A --.YY

99-

Print Parameters

990

All parameters

991

Load default parameters

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 55 of 56

FT-13 Technical Manual, Rev. 1.40 March 2013

Page 56 of 56

www.flintec.com

FT-13 Technical Manual, Rev. 1.40 March 2013

Flintec FT-13 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
