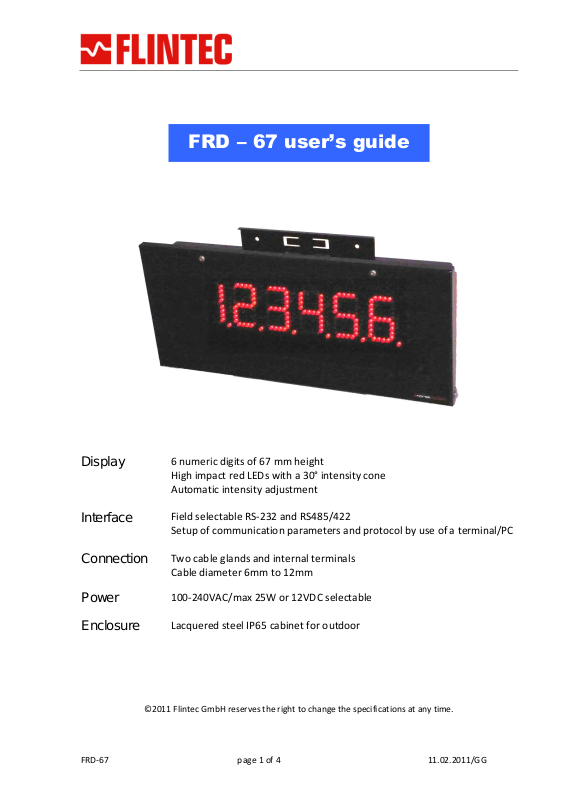

Flintec FRD – 67 User Manual

Display

FRD

–

67 user’s guide

6 numeric digits of 67 mm height
High impact red LEDs with a 30° intensity cone
Automatic intensity adjustment

Interface

Connection

Power
Enclosure

FRD-67 page 1 of 4 11.02.2011/GG

Field selectable RS-232 and RS485/422
Setup of communication parameters and protocol by use of a terminal/PC

Two cable glands and internal terminals
Cable diameter 6mm to 12mm

100-240VAC/max 25W or 12VDC selectable

Lacquered steel IP65 cabinet for outdoor

©2011 Flintec GmbH reserves the right to change the specifications at any time.

IMPORTANT INSTALLATION NOTES

The enclosure must be connected to Protective Earth. This is vital for safe
operation. Failure to observe correct grounding may cause serious injury or
death. Grounding is further vital for full CE-compliance and must be
provided for correct operation.

Disconnect power when servicing the display

DIMENSIONS in metric millimeters

MECHANICAL MOUNTING

Open the front lid using a Torx TX-20 screwdriver. Internal screws are Torx TX-15 and
Philips/flat for power supply terminals.
When mounting the display, use as large as possible bolts for fixing to a rigid flat surface. If
mounting to a pole, adjust the pole flaps for a best fit to the actual pole and then tighten the
band pipe clamps (option) thoroughly. If possible tilt the display downwards and direct
toward the reader to maximize legibility. Tilting the display decreases reflections and
improves contrast. Sun hood is normally not needed.

FRD-67 page 2 of 4 11.02.2011/GG
