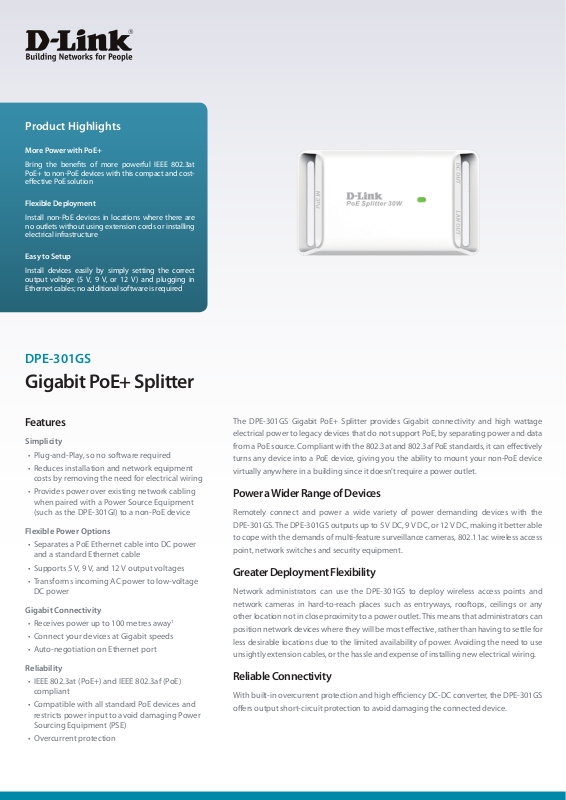

Product Highlights
More Power with PoE+
Bring the benets of more powerful IEEE 802.3at
PoE+ to non-PoE devices with this compact and costeective PoE solution
Flexible Deployment
Install non-PoE devices in locations where there are
no outlets without using extension cords or installing
electrical infrastructure
Easy to Setup
Install devices easily by simply setting the correct
output voltage (5 V, 9 V, or 12 V) and plugging in
Ethernet cables; no additional software is required
DPE-301GS
Gigabit PoE+ Splitter
Features
Simplicity
• Plug-and-Play, so no software required
• Reduces installation and network equipment
costs by removing the need for electrical wiring
• Provides power over existing network cabling
when paired with a Power Source Equipment
(such as the DPE-301GI) to a non-PoE device
Flexible Power Options
• Separates a PoE Ethernet cable into DC power
and a standard Ethernet cable
• Supports 5 V, 9 V, and 12 V output voltages
• Transforms incoming AC power to low-voltage
DC power
Gigabit Connectivity
• Receives power up to 100 metres away
• Connect your devices at Gigabit speeds
• Auto-negotiation on Ethernet port
Reliability
• IEEE 802.3at (PoE+) and IEEE 802.3af (PoE)
compliant
• Compatible with all standard PoE devices and
restricts power input to avoid damaging Power
Sourcing Equipment (PSE)
• Overcurrent protection
1
The DPE-301GS Gigabit PoE+ Splitter provides Gigabit connectivity and high wattage
electrical power to legacy devices that do not support PoE, by separating power and data
from a PoE source. Compliant with the 802.3at and 802.3af PoE standards, it can eectively
turns any device into a PoE device, giving you the ability to mount your non-PoE device
virtually anywhere in a building since it doesn’t require a power outlet.
Power a Wider Range of Devices
Remotely connect and power a wide variety of power demanding devices with the
DPE-301GS. The DPE-301GS outputs up to 5VDC, 9VDC, or 12VDC, making it better able
to cope with the demands of multi-feature surveillance cameras, 802.11ac wireless access
point, network switches and security equipment.
Greater Deployment Flexibility
Network administrators can use the DPE-301GS to deploy wireless access points and
network cameras in hard-to-reach places such as entryways, rooftops, ceilings or any
other location not in close proximity to a power outlet. This means that administrators can
position network devices where they will be most eective, rather than having to settle for
less desirable locations due to the limited availability of power. Avoiding the need to use
unsightly extension cables, or the hassle and expense of installing new electrical wiring.
Reliable Connectivity
With built-in overcurrent protection and high eciency DC-DC converter, the DPE-301GS
oers output short-circuit protection to avoid damaging the connected device.
DPE-301GS Gigabit PoE+ Splitter
Setup Example - Powered by PoE Switch
Workstation
Ethernet
Power
Power over Ethernet
Non-PoE Access Point
Power & Ethernet
using PoE
PoE Switch
DPE-301GS
Splitter
5V/9V/12V DC Power Out
Ethernet
Setup Example - Powered by PoE Injector
54 V DC Power
Adapter
Workstation
or
Non-PoE Camera
or
Other Non-PoE Network Device
2
Power & Ethernet
using PoE
DPE-301GI
PoE Injector
DPE-301GS
Splitter
Power In
Ethernet
Router
5V/9V/12V DC Power Out
Ethernet
Non-PoE Access Point
or
Non-PoE Camera
or
Other Non-PoE Network Device
