Denon DN-C200P User Manual

DN-C200P

5-Disc CD changer

Product Overview:

The latest in a long line of industry standard CD changers, the DN-C200P

is a five disc carousel model with CD and CDR, MP3 and WMA

compatibility, infra red control and random, program and repeat playback

modes. Offering improved reliability over cartridge systems, the DN-C100P

is ideal for long-term installation into retail and leisure environments.

Key Features:

- CD/ CDR playback

Playback MP3 and WMA (W

IR Control (see below)

- Optical & Coaxial Digital Outputs

ogram Playback

- Random Playback

- Repeat Playback (one track, one disc, all discs)

indows Media Audio) files fr

om CD-ROM

Applications:

- BGM (Background music)

- Education

- Corporate AV

- Fitness

- Retail & Leisure

DN-C200P

5-Disc CD changer

Specifications:

General

Power Supply AC 230 V, 50 Hz Power Consumption 15 W Dimensions excluding 19” rack kit Width 434 mm Height 120 mm Depth 400 mm 19” rack kit height 3U Weight 6.3 kg

Inputs/Outputs

Analog output Channels 2 channels Playable frequency range 2 Hz ~ 20 kHz S/N 108 dB Dynamic range 98 dB Harmonic distortion 0.003% (1 kHz) Separation 98 dB Wow & flutter Less than the measuring Output level Fix 2.0 V (10 kohms) Signal type 16-bit linear PCM Sampling frequency 44.1 kHz Usable discs Audio compact discs are used 12 cm and 8 cm Digital output Coaxial 0.5 Vp-p (75 ohms) Optical -15 ~ -21 dBm Light emission wavelength 660 nm Phones output 0.04 mW

Remote control unit (RC-1033)

ed pulse

Remote contr Power supply R03/AAA Type (2 batteries) External dimensions 49 (W) x 220 (H) x 21 (D) mm

eight 106g (including batteries)

ol type

Infrar

In the box: • User Manual • Rackmount • Phono cable (rca /cinch) • Remote control ( inc batteries)

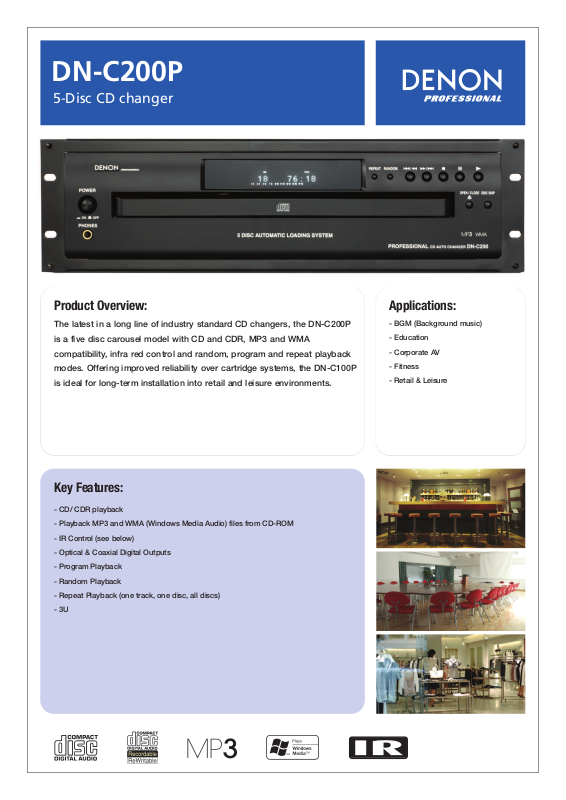

Product Image:

* For purposes of improvement, specifications and design are subject to change without notice.

www.dm-pro.eu/dnc200p
