User Guide (English)

Introduction

Please see this guide’s Setup chapter to learn how to integrate DN-500DC with your audio system, and then refer to the Operation chapter to start using DN-500DC.

Box Contents

DN-500DC Power Cable Rack Ears and Screws

Remote Control User Guide Safety & Warranty Manual

Support

For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit denonpro.com.

Safety Instructions

Before turning the power on:

Make sure all connections are secure and correct and that there are no problems with the connection cables.

Power is supplied to some of the circuitry even when the unit is powered off. When the unit will not be used for long periods of time, disconnect the power cable from the power outlet.

Proper ventilation:

If the unit is left in a room which is not properly ventilated or is full of smoke from cigarettes, dust, etc. for long periods of time, the surface of the optical pickup may get dirty, causing incorrect operation.

About condensation:

If there is a major difference in temperature between the inside of the unit and the surroundings, condensation may form inside the unit, causing the unit not to operate properly. If this happens, let the unit sit for an hour or two while powered off, and wait until there is little difference in temperature before using the unit.

Cautions on using mobile phones:

Using a mobile phone near this unit may cause noise. If this occurs, move the mobile phone away from this unit when it is in use.

Moving the unit:

Before moving the unit, turn off its power and disconnect the power cable from the power outlet. Next, disconnect its connection cables from other devices before moving it.

About care:

Wipe the cabinet and control panel clean with a soft cloth. Follow the instructions when using a chemical cleaner. Do not use benzene, paint thinner, insecticide, or other organic

solvents to clean the unit. These materials can cause material changes and discoloration.

Rackmount warnings:

(required rack specifications for mounting the unit in a rack)

EIA standard 19-inch (48.3cm) rac

1U-size installation compatible rack Rack that has a guide rail or shelf board that

can support this device

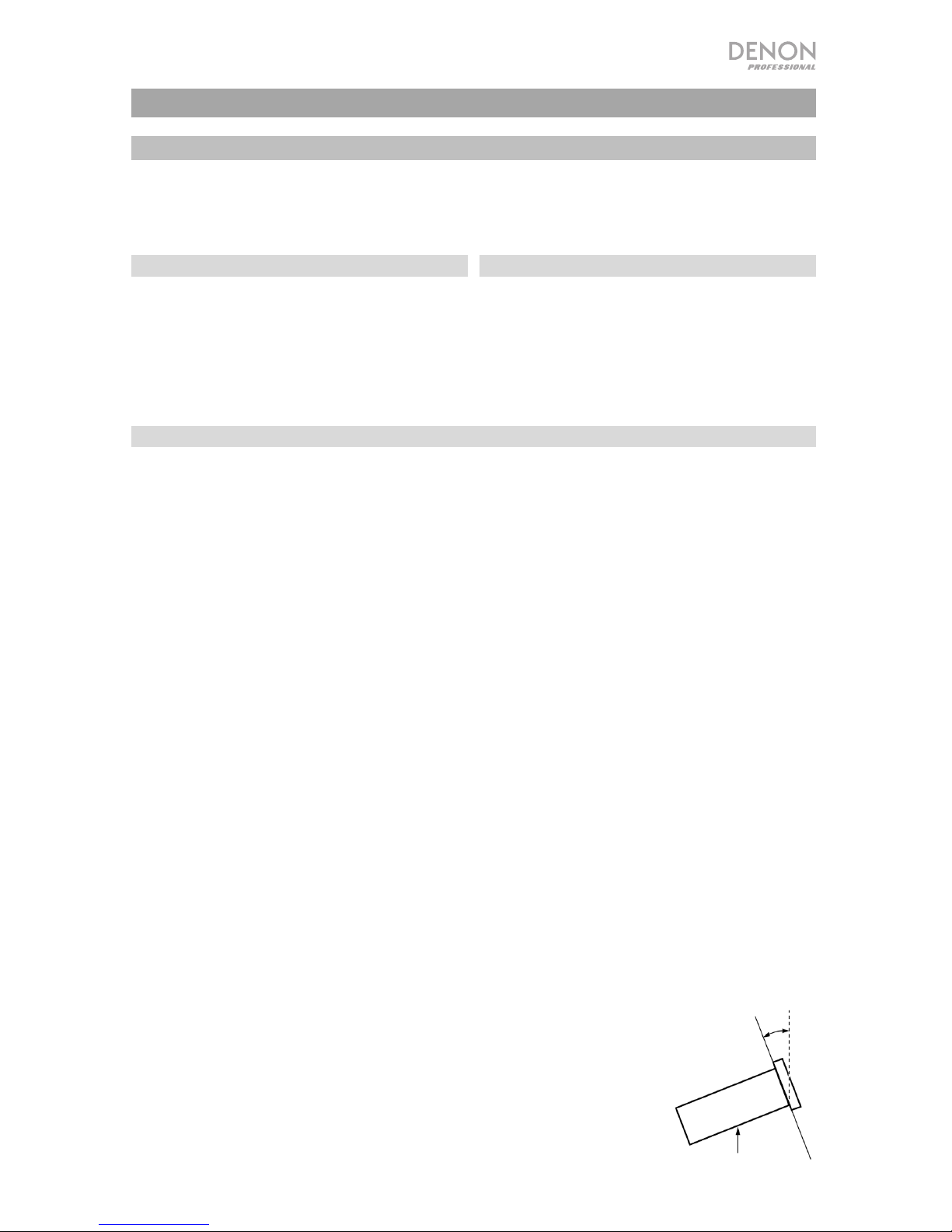

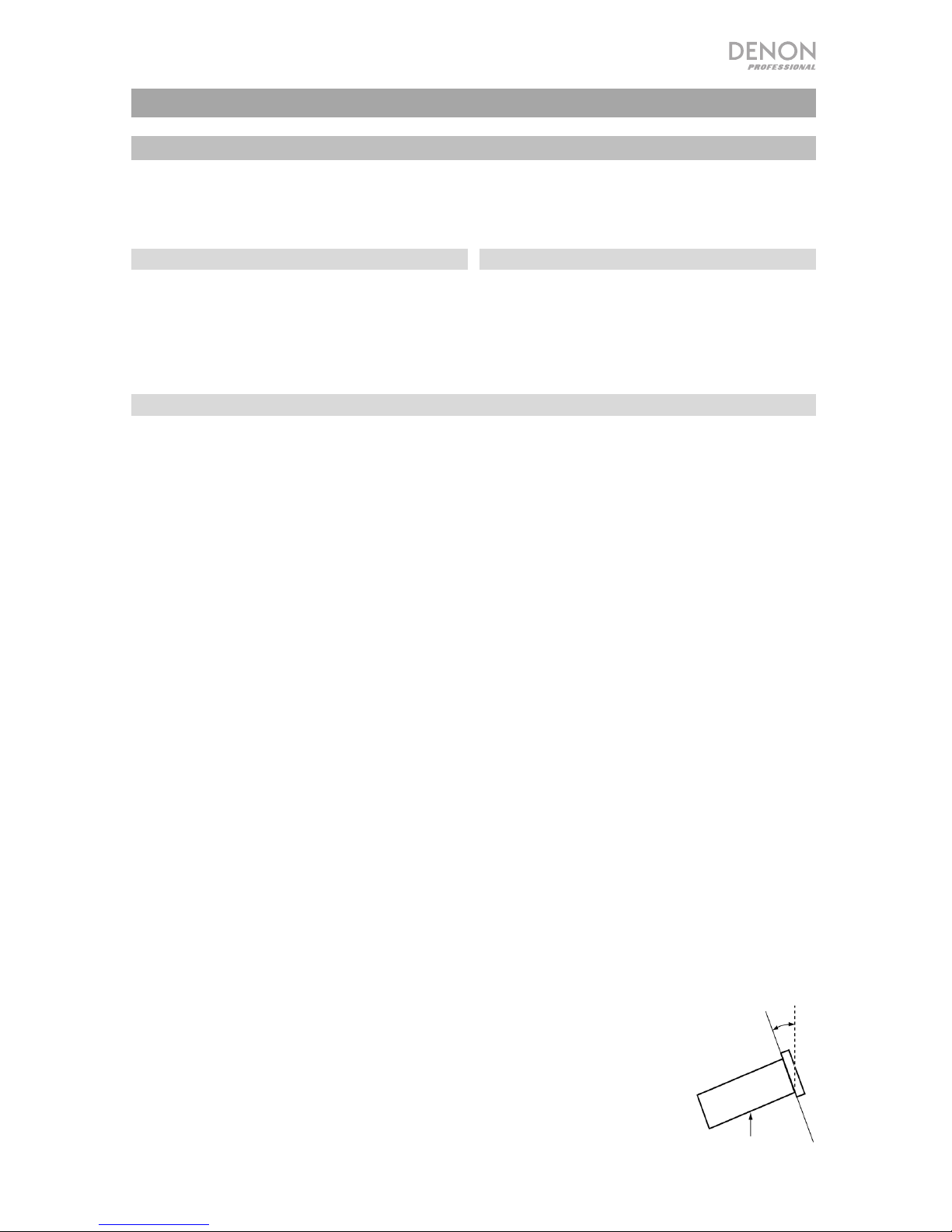

Rack installation:

This product will work normally when the player unit is mounted within 10° off the vertical plane at the front panel. If the unit is tilted excessively, the disc may not load or unload properly. (See image.)

Unit

Maximum

10°

Features

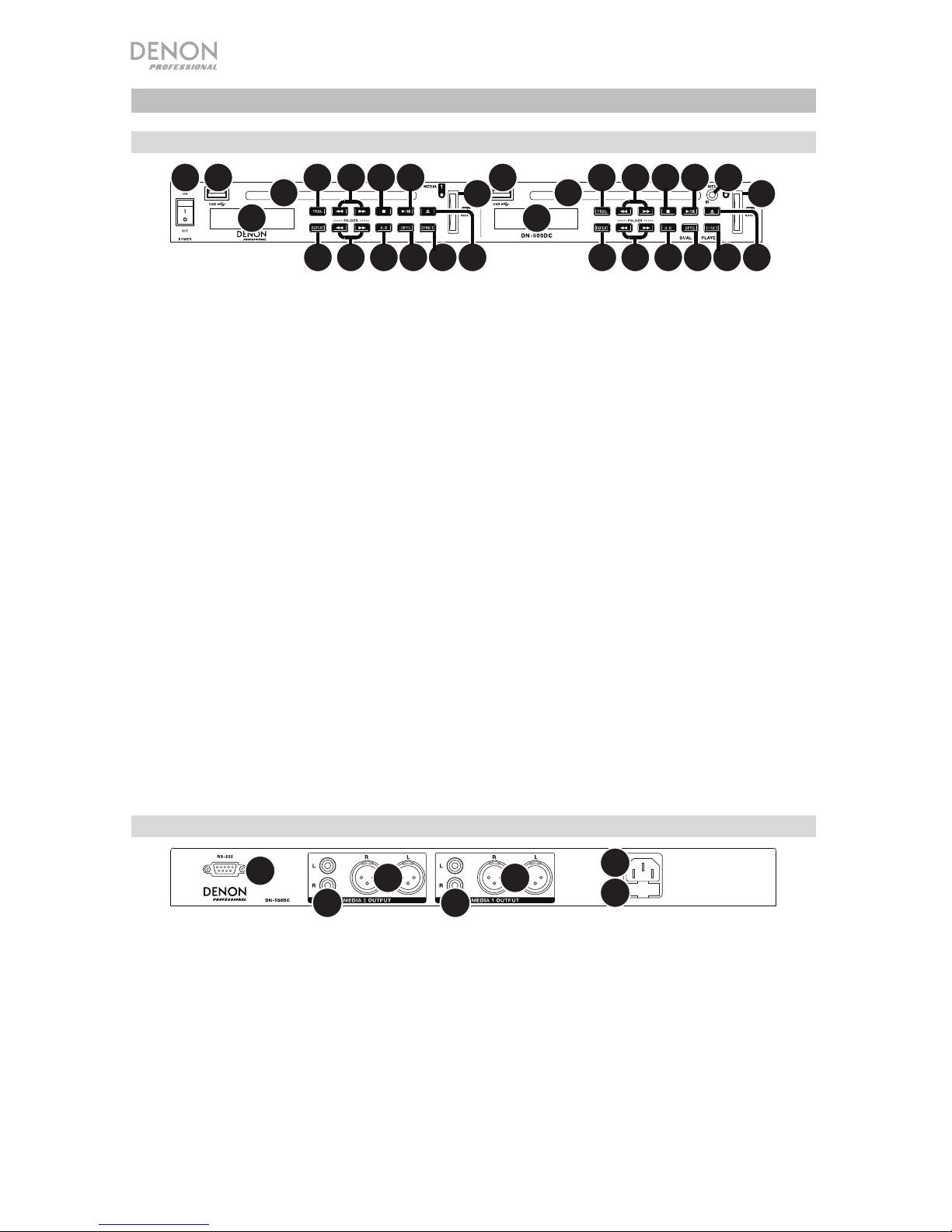

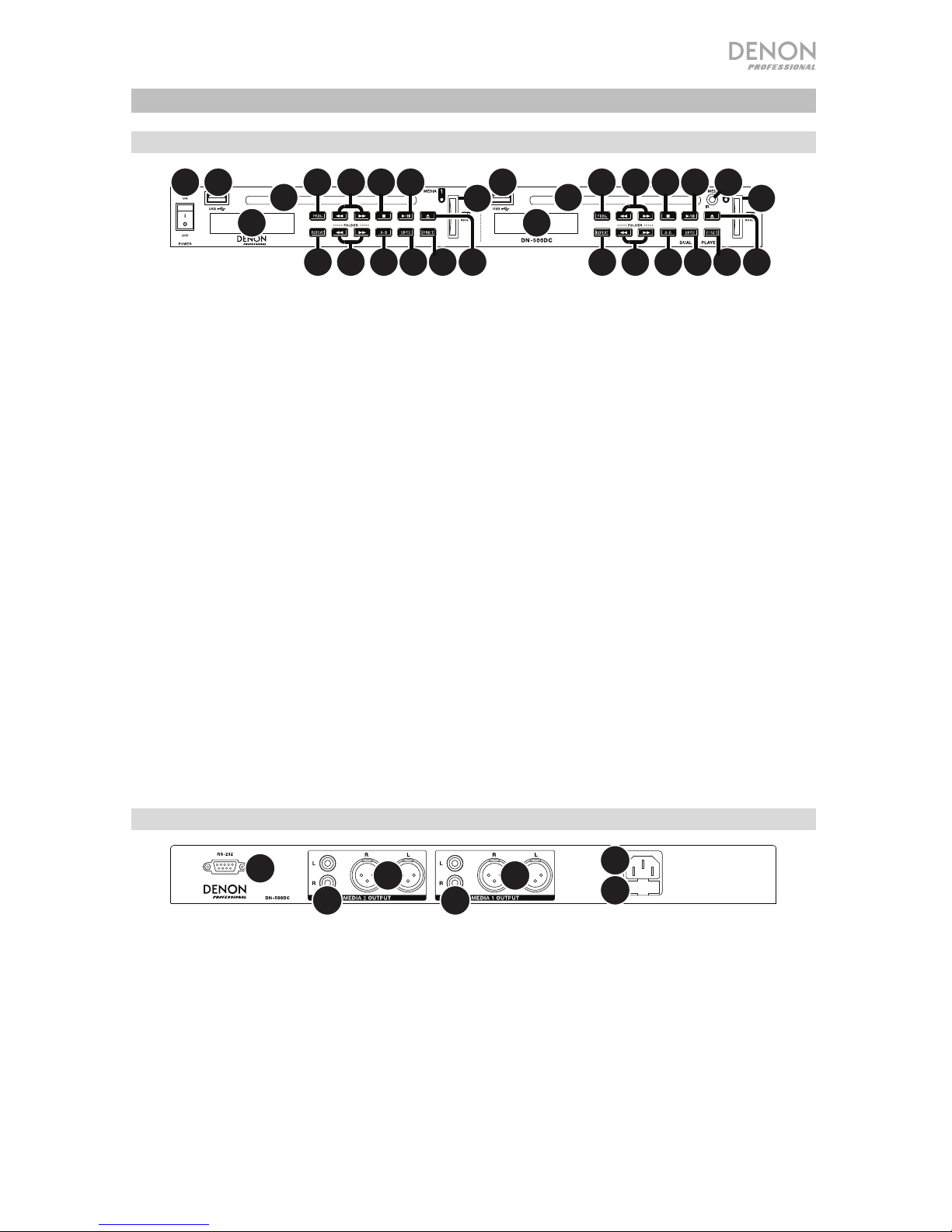

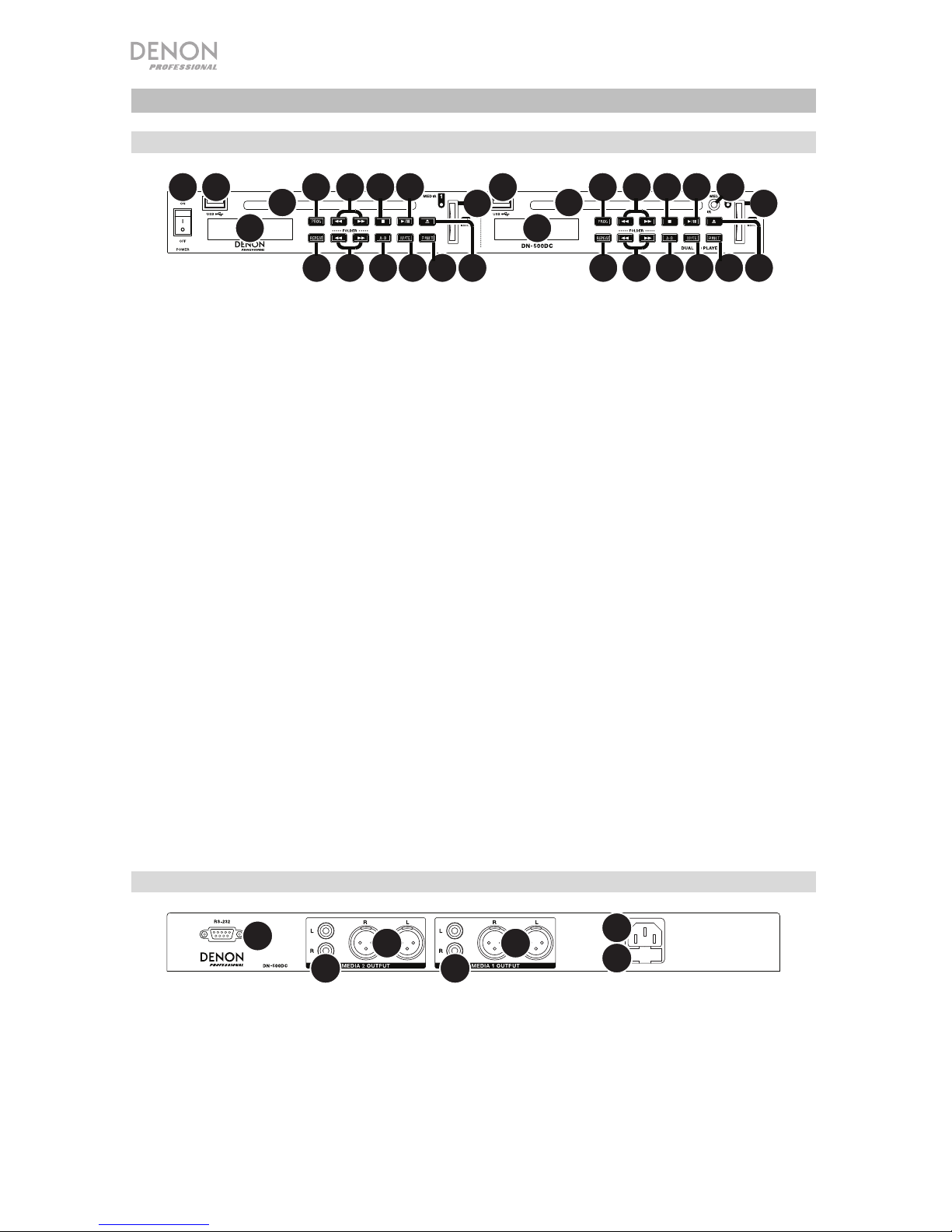

Front Panel

11 10 10

12 13 14 15 16

1. Power: Press this switch to turn DN-500DC on/off. Make sure the power input is properly

connected to a power outlet. Do not turn the unit off during media playback—doing so could damage your media.

2. USB Port: Connect a mass-storage-class USB device to this port.

3. SD Card Slot: Insert an SD or SDHC card to this slot.

4. CD Slot: Insert a CD into this slot.

5. Display: This screen indicates the unit’s current operation.

6. Remote Sensor: Point the remote control at this sensor when operating it.

7. Eject: Press this to eject the CD in the CD slot.

8. Play/Pause: Press this button to start/resume or to pause playback.

9. Stop: Press this button to stop playback.

10. Skip Back/Forward: Briefly press these buttons to skip to the previous or next track.

Press and hold these buttons to rewind or fast-forward through the current track.

11. Prog: Press this button to enter Program mode, which lets you select tracks that will play

in a specific order. See Operation > Additional Functions for more information.

12. Repeat: Press this button to cycle through the Repeat modes. See Operation >

Additional Functions for more information.

13. Folder Back/Forward: Use these buttons to navigate folders.

14. A-B: Use this button to loop a section of audio during playback. See Operation >

Additional Functions for more information.

15. Mute: Press this button to mute DN-500DC’s audio.

16. Funct: Press this button to cycle through CD, USB, and SD Card modes.

Rear Panel

1 2

1. Power Input: Use the included power cable to connect this input to a power outlet.

2. Fuse: If the fuse blows, replace it with a fuse of the same type. Using a fuse with an incorrect rating can damage the unit and/or fuse.

3. Audio Outputs (balanced, XLR): These outputs send the audio signal to your external speakers, receiver, etc. Use XLR cables to make these connections.

4. Audio Outputs (unbalanced, RCA): These outputs send the audio signal to your external speakers, receiver, etc. Use RCA cables to make these connections.

5. RS-232 Remote Input: This input lets you connect a computer to DN-500DC. Use a 9-pin D-Sub cable to make this connection. You can use the computer with a third-party utility to control DN-500DC via serial communication.

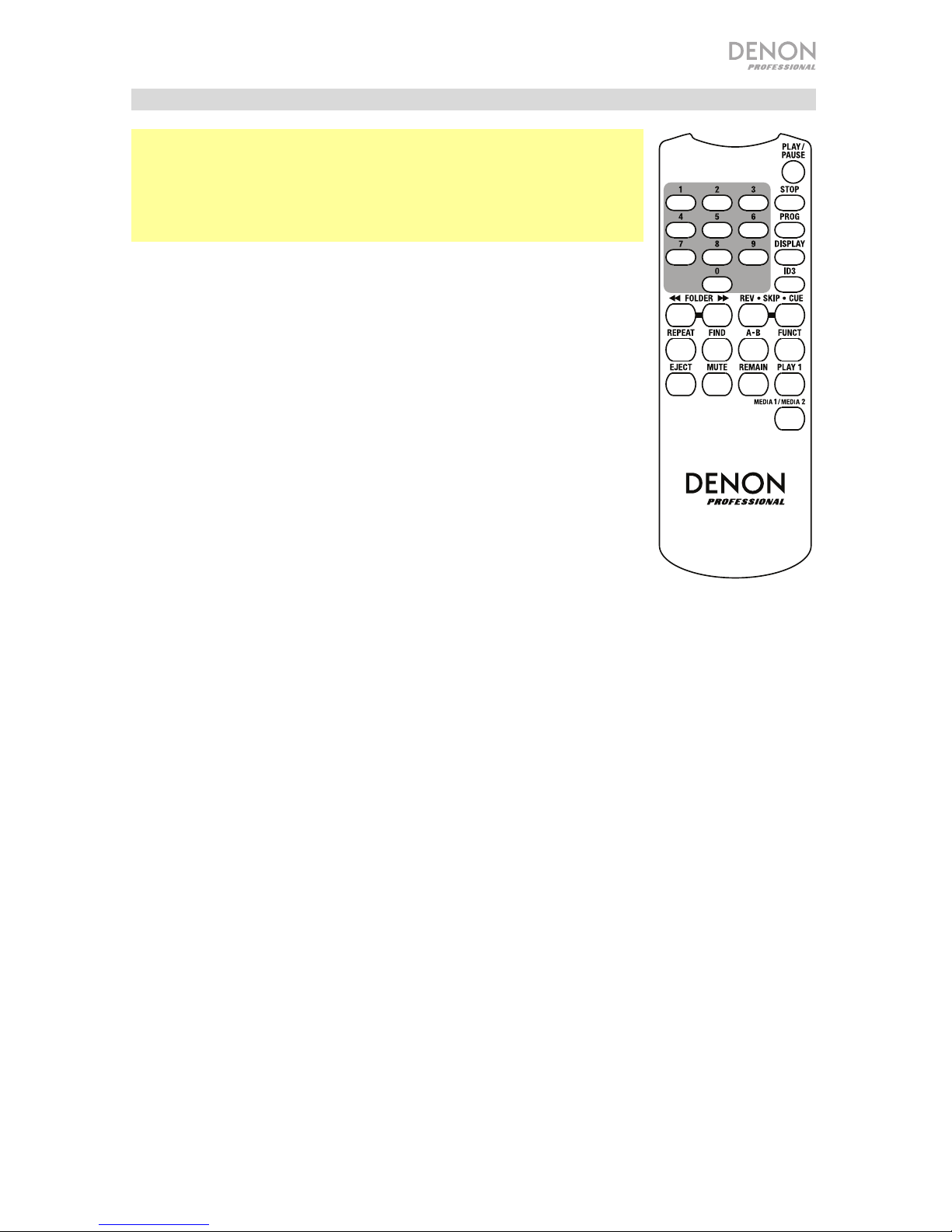

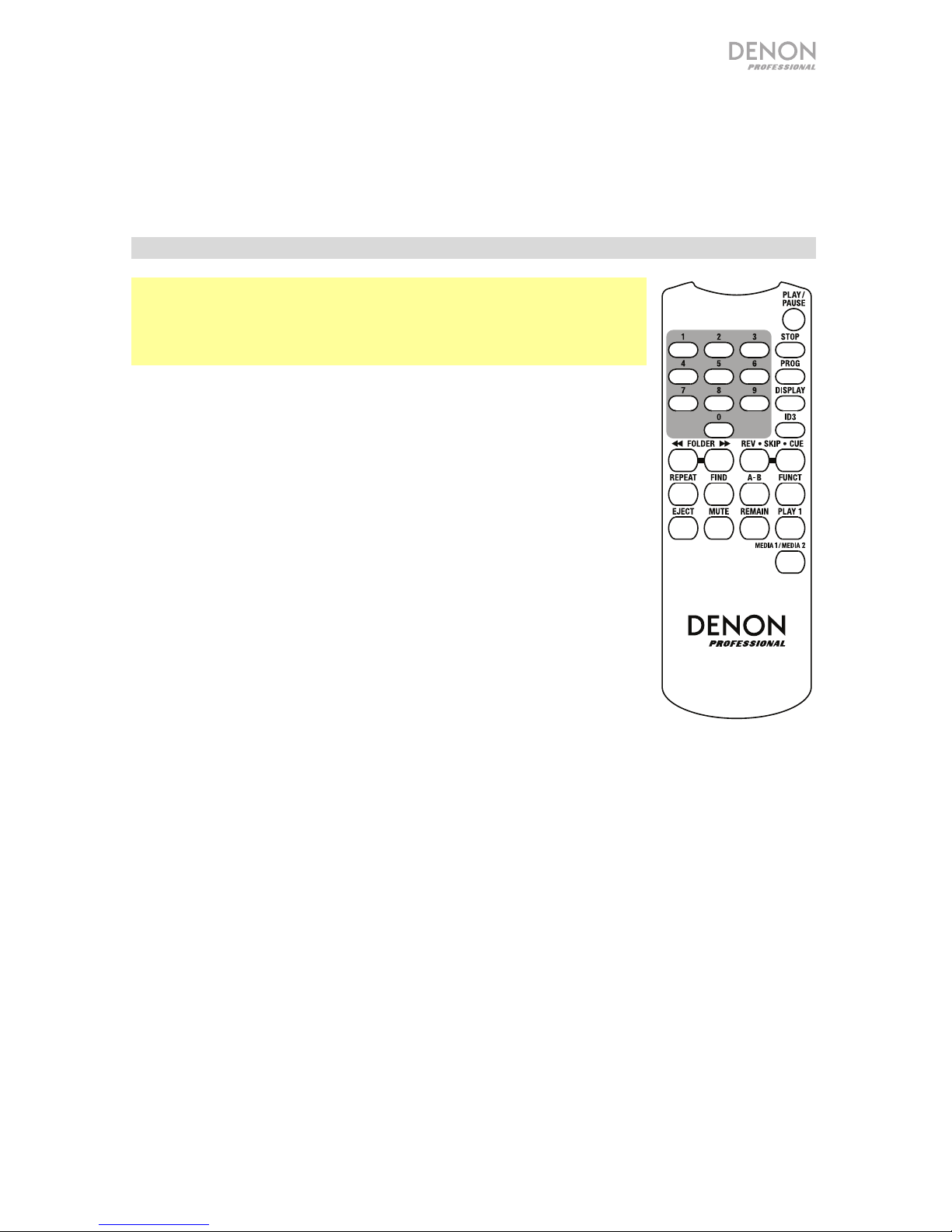

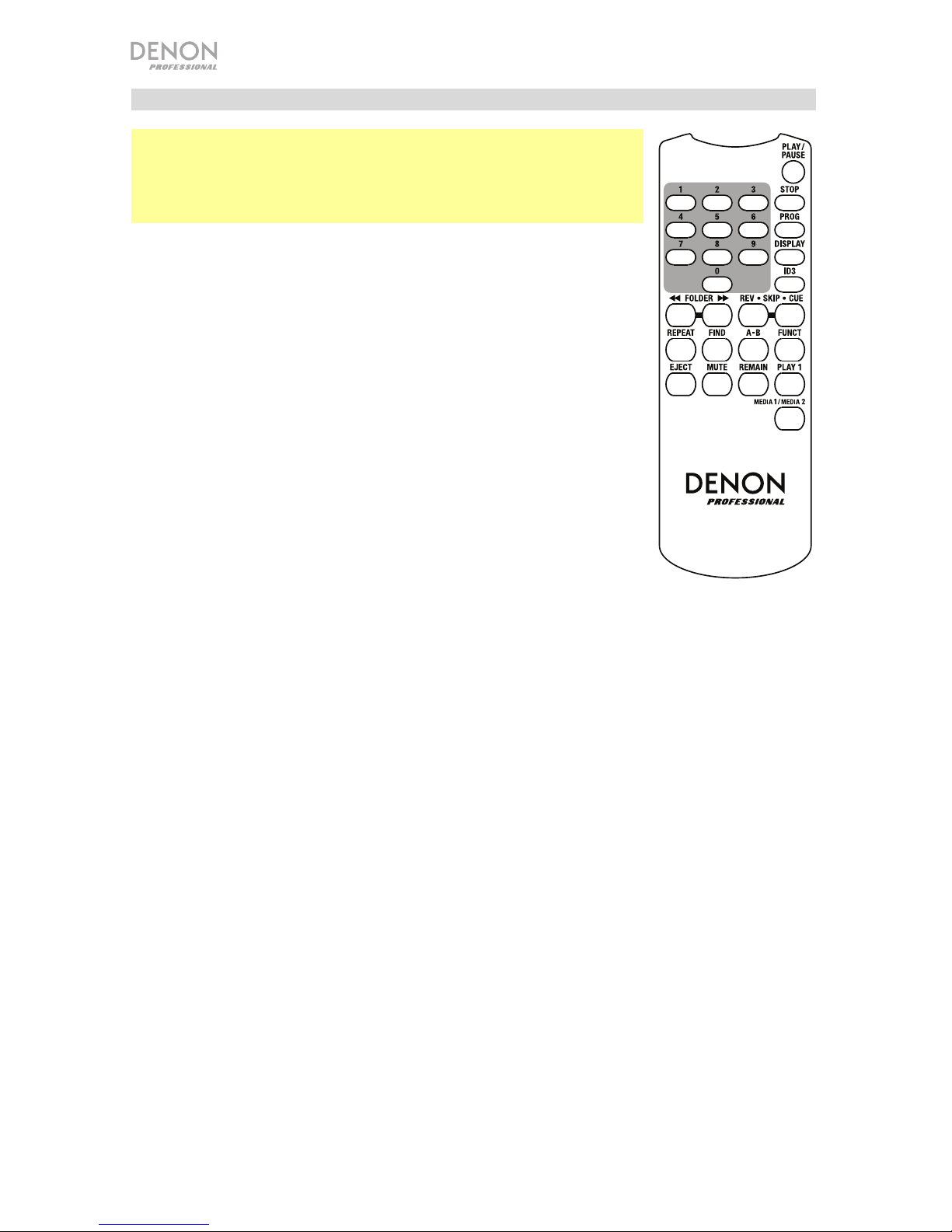

Remote Control

Important: Point the remote control at the remote sensor when

operating it. If the remote sensor is exposed to direct sunlight, strong artificial light (like from an interverter-type fluorescent lamp), or infrared light, the unit or remote control may not function properly.

• Play/Pause: Press this button to start/resume or to pause playback.

• Stop: Press this button to stop playback.

• Prog: Press this button to enter Programming mode, which lets

you select tracks that will play in a specific order. See Operation >

Additional Functions for more information.

• Display: Press this button to cycle through information shown on the display. You can view track name and time elapsed/remaining, folder name, or total number of folders and songs.

• ID3: Press this button to view ID3 tag information of the currently playing track on the display.

• Number Buttons (0–9): Press these buttons to enter their corresponding numbers. While playing media and not viewing an additional menu or screen, entering a number or numbers will select that audio track.

• Folder Back/Forward: Use these buttons to navigate folders.

• Rev/Skip/Cue: Briefly press these buttons to skip to the previous or next track. Press and

hold these buttons to rewind or fast-forward.

• Repeat: Press this button to cycle through the Repeat modes. See Operation >

Additional Functions for more information.

• Find: In USB and SD Card modes, press this button once to search by file name. Press a second time to search by album. Use the Skip buttons to change selections.

• A-B: Use this button to loop a section of audio during playback. See Operation >

Additional Functions for more information.

• Funct: Press this button to cycle through CD, USB, and SD Card modes.

• Eject: Press this to eject the CD in the

CD slot.

• Mute: Press this button to mute DN-500DC’s audio.

• Remain: Press this button to toggle between track time elapsed, track time remaining, and

total CD time remaining on the display. This function is only available when playing an audio CD.

• Play 1: Press this button to set the player to stop after playing a single track.

• Media 1/Media 2: Press this button to switch between controlling Media 1 and Media 2

using the Remote. The corresponding indicator on the unit will be lit green to show which side is being controlled.

Setup

Important: Connect all cables securely and properly (with stereo cables: left with left, right

with right), and do not bundle them with the power cable.

1. Use XLR cables or stereo RCA cables to connect the Audio Outputs (balanced or unbalanced) to the analog inputs of your external receiver, amp, powered monitors, etc.

2. To manage DN-500DC using serial communication, connect the RS-232 Remote Input to your computer using a 9-pin D-Sub cable. Use a third-party utility to manage DN500DC.

3. After completing all the connections, use the included power cable to connect the AC In to a power outlet.

4. Power on DN-500DC.

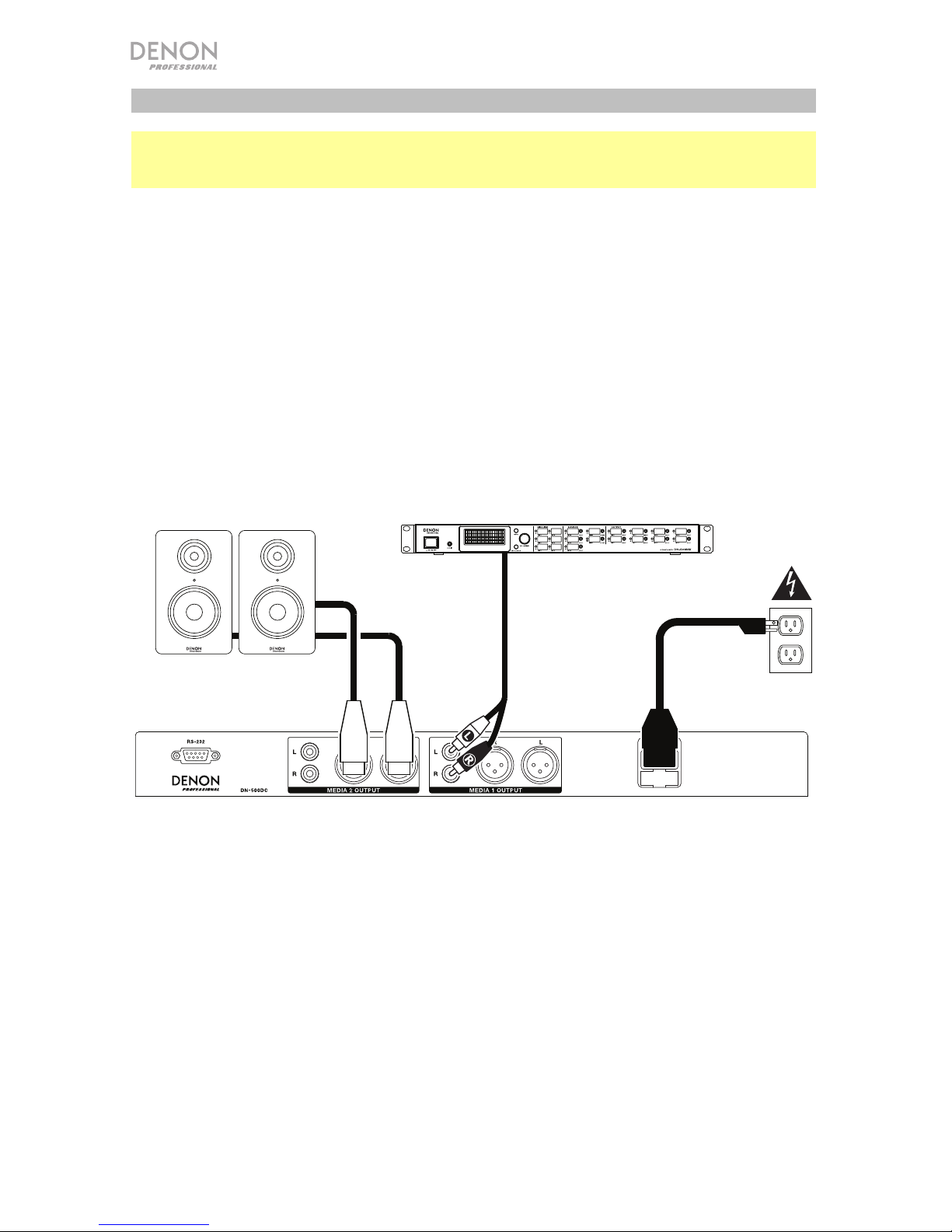

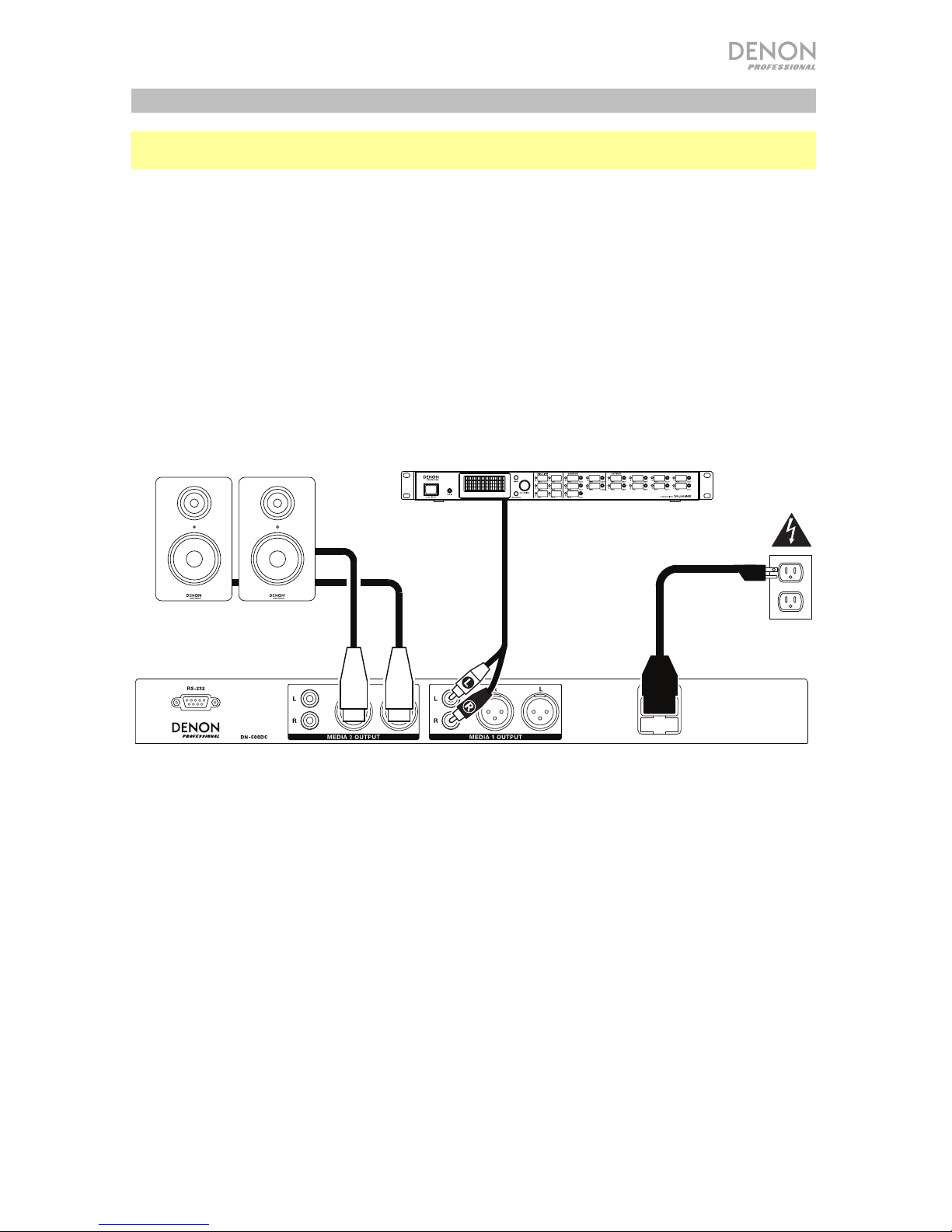

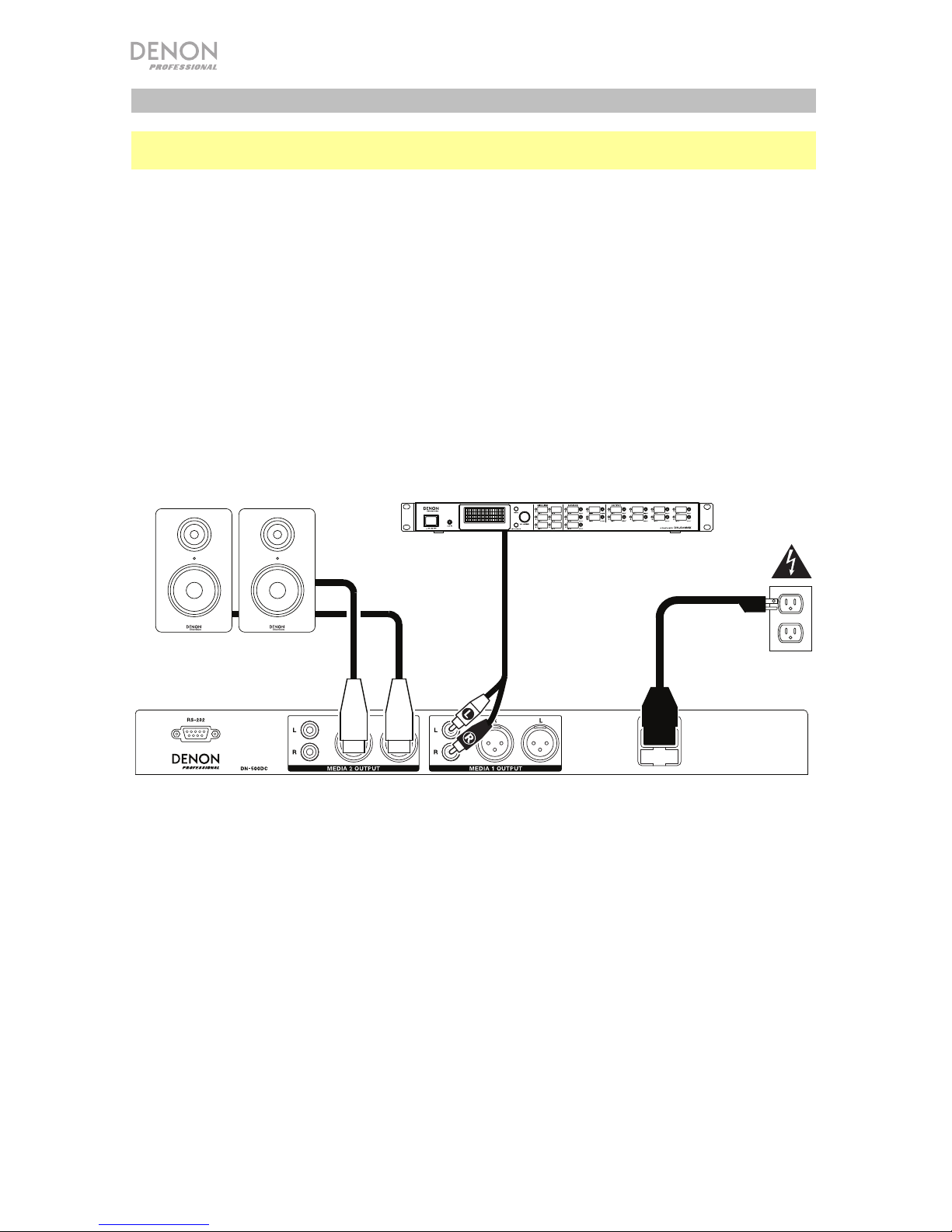

Example

Items not listed under Introduction > Box Contents are sold separately.

Powered Monitors

Zone Mixer

Power

Operation

Playing Audio CDs

To play audio CDs:

1. If the unit is off, press the Power Button to power it on. Important: Do not insert a CD when the power is off. Doing so may damage the unit.

2. Insert a CD into the CD Slot. (Hold the edges of the CD without touching the recorded surface. Be careful not to trap your fingers when the disc is drawn into the unit.)

Important: This unit can play finalized discs only. (Finalization is the process that makes recorded CD-R discs playable on compatible players.)

3. Select CD as the media type by pressing the Funct button on the unit or remote control.

4. To start playback, press the Play button on the unit or remote control.

In CD Mode, you can perform any of the following operations:

• To start, resume, or pause playback, press the Play/Pause button.

• To stop playback, press the Stop button.

• To rewind or fast-forward through the track, press and hold one of the Skip buttons. To

resume playback, release the button.

• To skip directly to a track, press one of the Number buttons (0–9) to enter the desired track number. If the track number is two digits, press the buttons in succession (e.g., 1 then 2 for Track 12). Alternatively, press the Skip buttons. Press the Play button after loading the track to have it begin playback.

• To select a Repeat Playback mode, press the Repeat button. See Additional Functions

> Repeat Modes for more information.

• To change the Time Mode in the display, press the Remain button on the remote control. It will cycle through track time elapsed, track time remaining, and total CD time remaining.

• To eject a CD, press the Eject button when the unit is stopped or paused. “Eject” will appear in the display while ejecting the CD. No Disc will appear when there is no disc in the CD slot.

Important: Please see Other Information > CDs to learn more about the types of CDs the DN-500DC supports and for more information about CD handling and care.

Playing Audio Files

To play audio files on a CD, USB device, or SD card:

1. If the unit is off, press the Power Button to power it on. Important: Do not insert a CD when the power is off. Doing so may damage the unit.

2. Do one of the following:

• Insert a CD into a CD Slot. (Hold the edges of the CD without touching the recorded

surface. Be careful not to trap your fingers when the disc is drawn into the unit.) Important: This unit can play finalized discs only. (Finalization is the process that

makes recorded CD-R discs playable on compatible players.)

• Connect your USB device (mass storage class) to a USB Port.

• Insert your SD/SDHC card into an SD Card Slot until you hear it “click.”

3. Select your desired media type by pressing the Funct button on the unit or remote control: CD, USB, or SD.

4. Select an audio file by pressing the Skip buttons. If your media contains folders, use the Folder Back/Forward buttons to select a folder.

5. To start playback, press the Play button on the unit or remote control.

When playing audio files, you can perform any of the following operations:

• To start, resume, or pause playback, press the Play/Pause button.

• To stop playback, press the Stop button.

• To rewind or fast-forward through the track, press and hold one of the Skip buttons. To

resume playback, release the button.

• To select another folder or audio file, follow the steps described in Step 4 above.

• To show different track information in the display, press the ID3 button. It will cycle

through a track’s ID3 tags (if any).

• To select a Repeat Playback mode, press the Repeat button. See Additional Functions

> Repeat Modes for more information.

• To eject a CD, press the Eject button when the unit is stopped or paused. “Eject” will appear in the display while ejecting the CD. No Disc will appear when there is no disc in the CD slot.

• To remove a USB device, gently remove it from the USB Port when it is not playing

(Removing a USB device while it is playing can damage it.)

• To remove an SD card, gently press it into the SD Card Slot when it is not playing. The SD card will spring out, after which you can remove it. (Removing an SD card while it is playing can damage it.)

Important: Please see Other Information to learn more about the types of CDs, USB devices, and SD

cards the DN-500DC supports.

Additional Functions

Program Mode

Program mode lets you select tracks that will play in a specific order.

1. While playback is stopped, press the Prog button to enter Program mode.

2. Use the Skip buttons to select the track you want to program. If your media has multiple folders, first select the folder you want to view, and then press the Prog button to select the track. Once the track is selected, press the Prog button to program it. The display will automatically move to the next programmable track.

3. Repeat step 2 to program the other tracks you want to play. You may program the same track more than once. You can press the Stop button to clear the program.

4. When you have finished programming, press the Prog button again. The display will return to the beginning of the program (P-01).

5. Press the Play button to begin program playback.

Repeat Modes

Press the Repeat button on the front panel or remote control to cycle through the available repeat playback options.

• Repeat Track: The currently selected track will repeat.

• Repeat Folder: All tracks in the currently selected folder will repeat.

Note: This option is only available when using USB or SD/SDHC playback.

• Repeat All: All tracks will repeat.

• Random Play: All tracks will play in random order.

• Intro Play: The first 10 seconds of all tracks will play.

• Play All: This is the standard mode, in which tracks will playback consecutively in the

order of their track number.

A-B Repeat Mode

A-B Repeat mode allows you to loop a section of a track to play continuously.

1. During playback, press the A-B button on the front panel or remote control at the point (A) where you want to start A-B repeat playback. The display will indicate “REPEAT A-” and the track will continue playing.

2. At the point where you want repeat playback to end (B), press the A-B button once again. The display will briefly show “REPEAT A-B” before returning to the previous screen. The region (A-B) has now been specified, and A-B repeat will begin. An AB indicator will appear in the top right of the display.

Note: Alternatively, you can pause the playback and then specify the start (A) and end (B) points by pressing and holding the Skip buttons to rewind or fast-forward.

3. To turn off the A-B repeat function, press the A-B button on the front panel or remote control. The AB indicator in the display will disappear, and A-B repeat playback will be cancelled. If you cancelled during playback, playback will continue even if the point specified as the end of A-B repeat play is passed.

Other Information

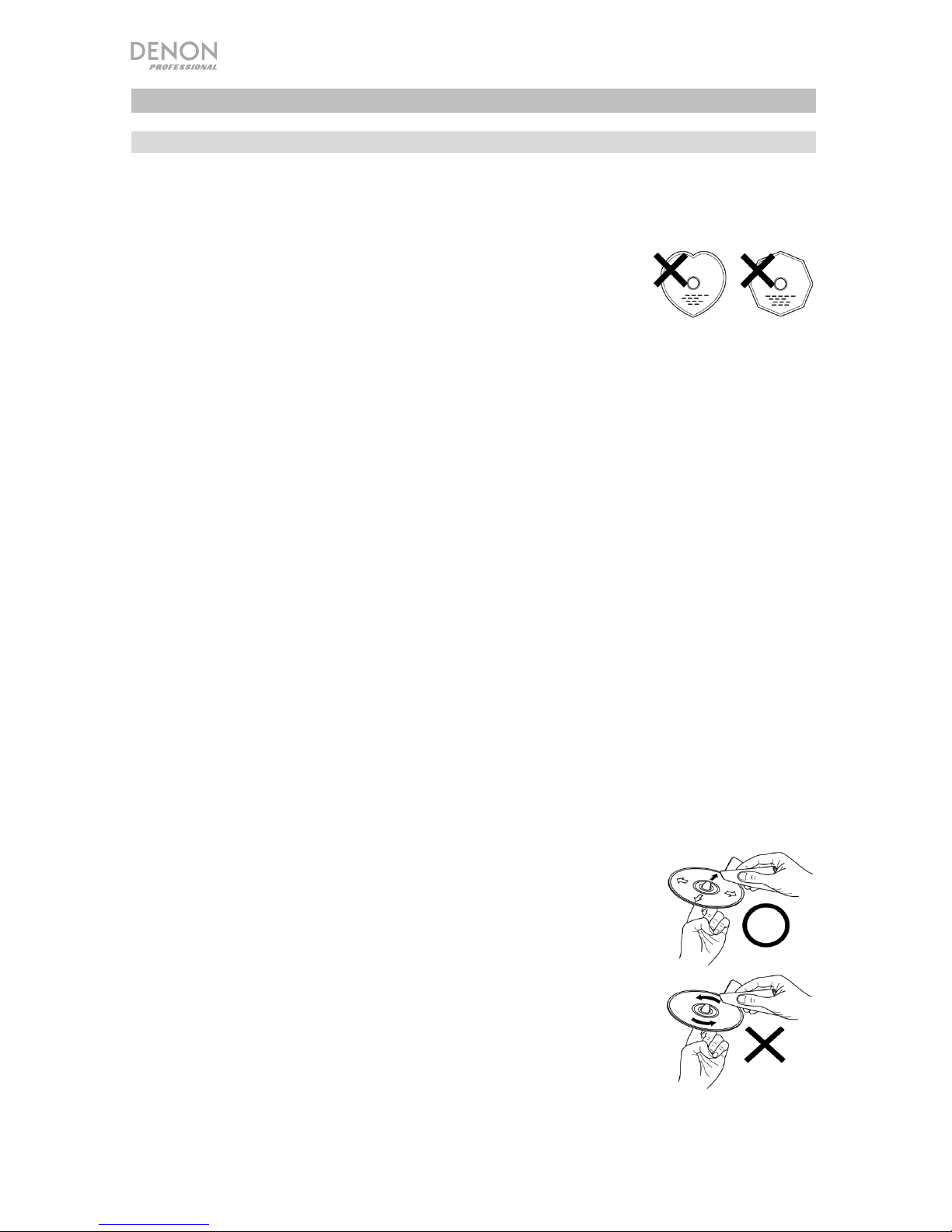

CDs

When playing audio CDs, note the following:

• DN-500DC can play Music CDs, CD-R, and CD-RW discs. The disc file system can be either CD-DA (CD-Text) or CD-ROM (ISO9660).

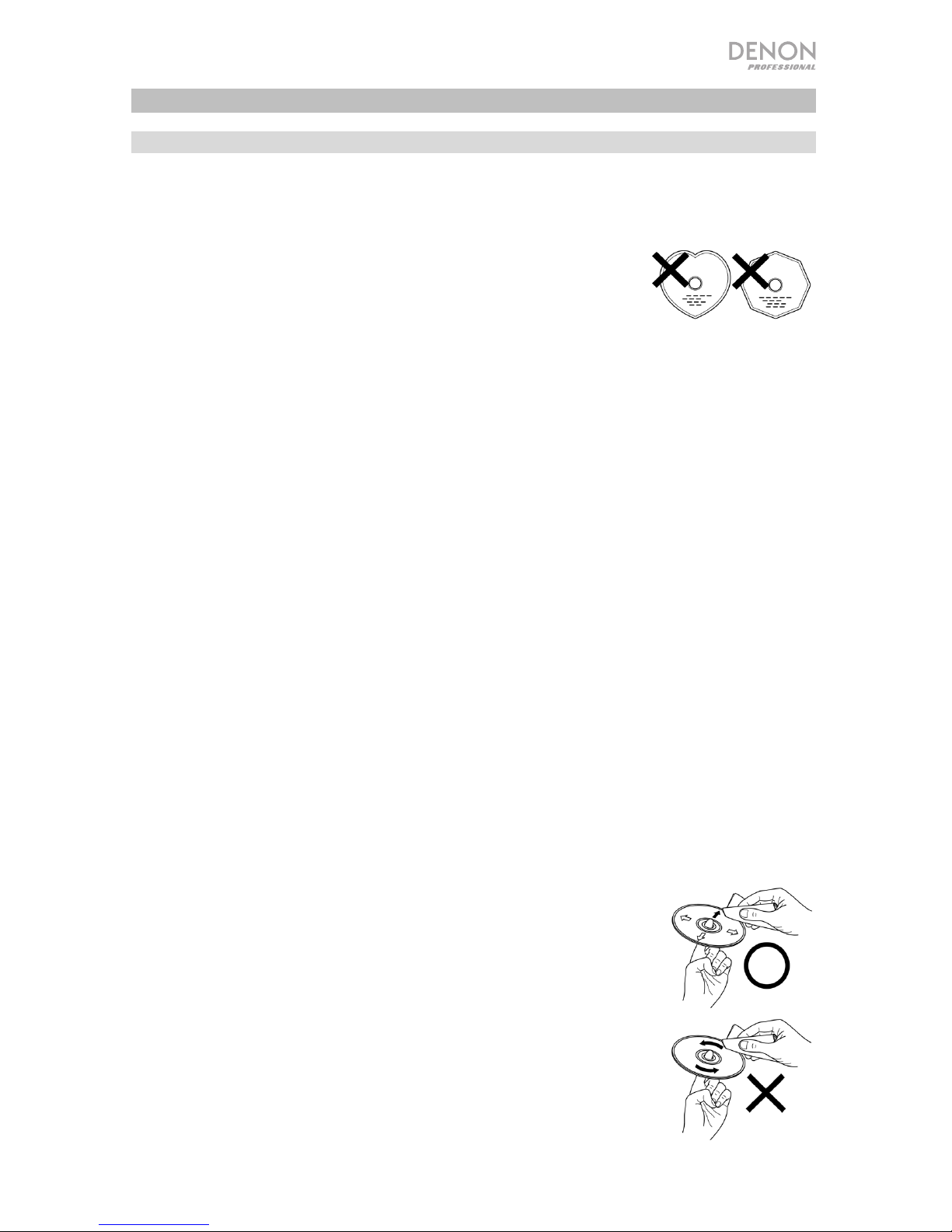

• Do not play discs in non-circular shapes (heart-shaped discs, octagonal discs, etc.; see image) or discs that have been repaired with adhesive or tape. These can damage the unit.

• DN-500DC can play finalized discs only. (Finalization is the process that makes recorded CD-R discs playable on compatible players.)

• Depending on the software used to burn a CD (or other conditions) some CDs may not play correctly.

When playing CDs with audio files, note the following:

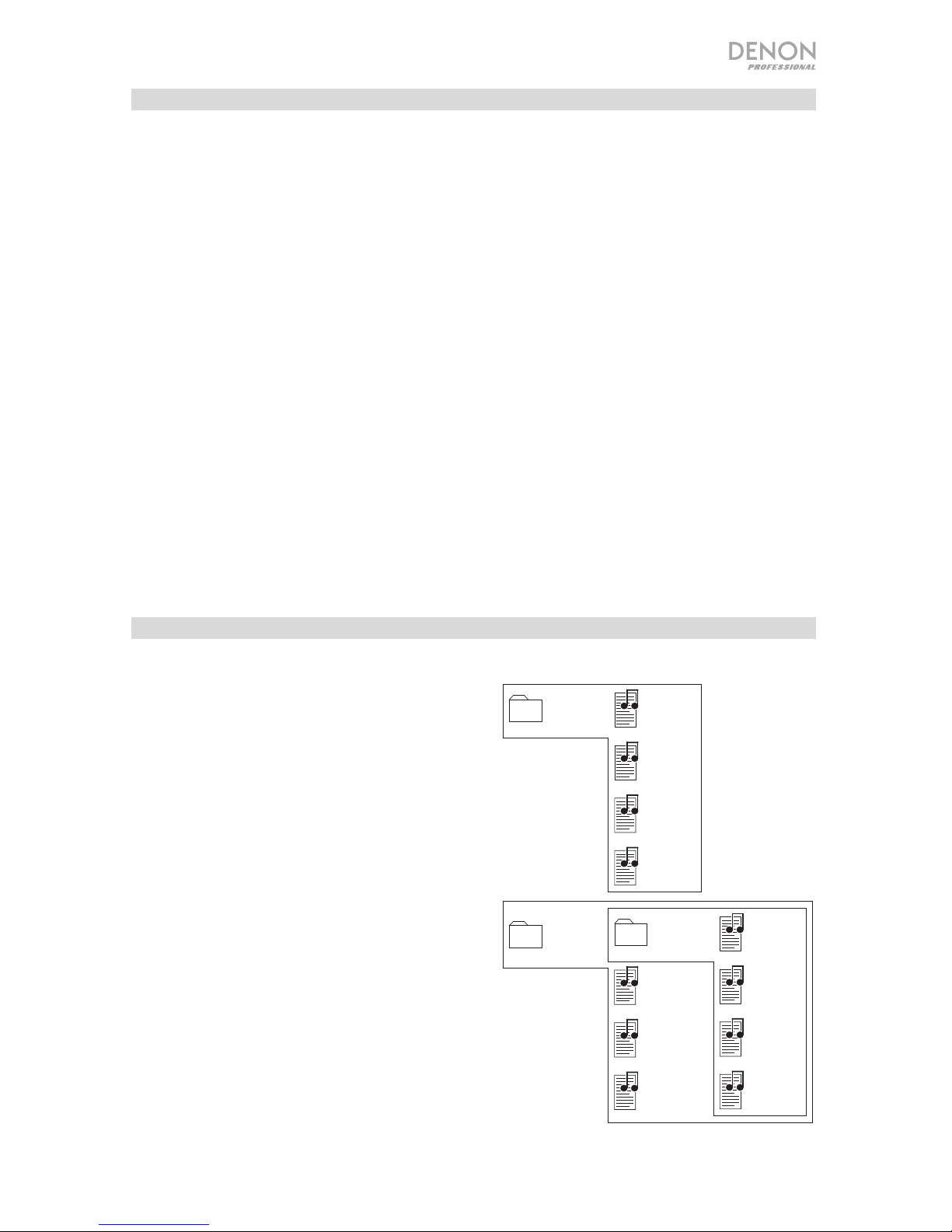

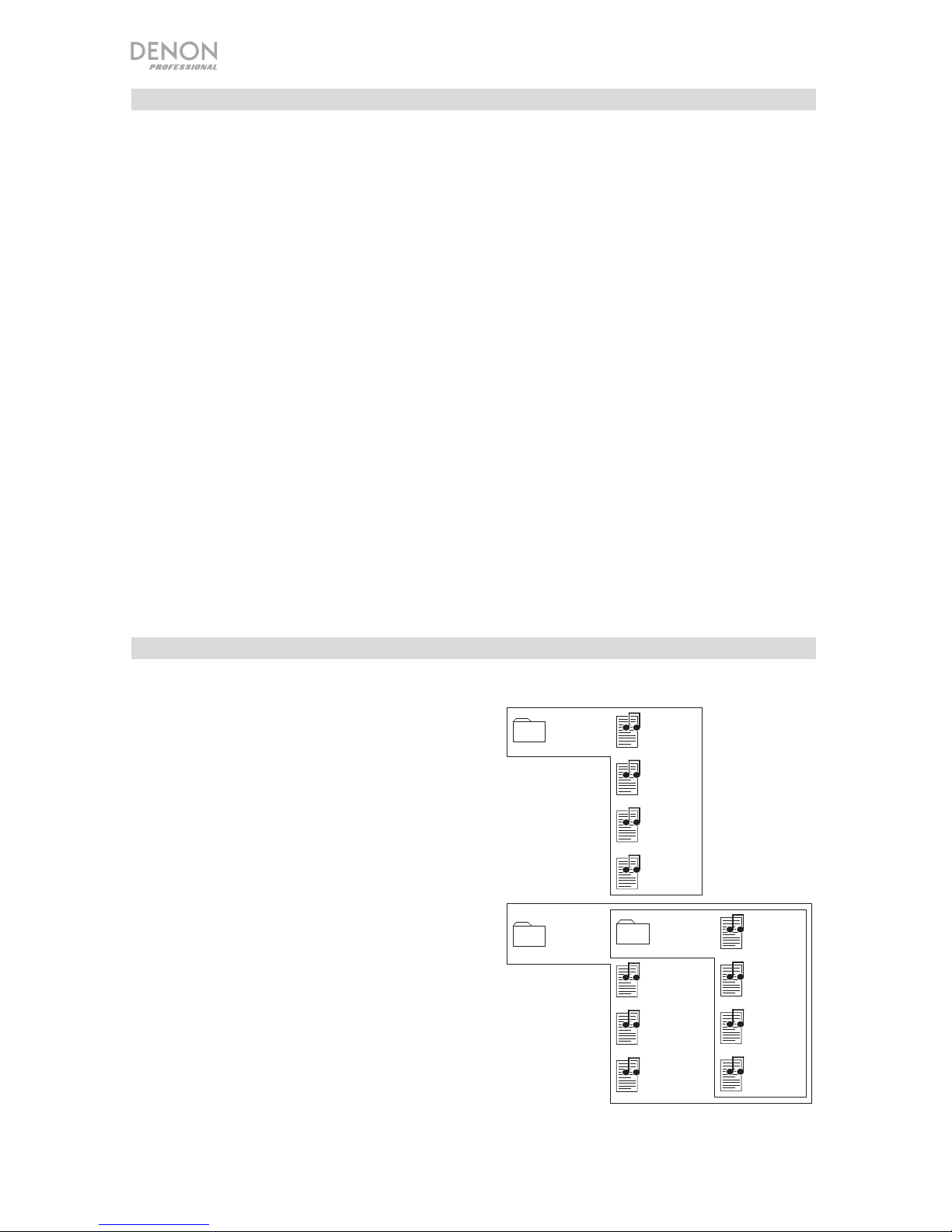

• The writing software format must be ISO9660 Level 1.

• You can have up to 300 folders and up to 8 folder levels, including the root directory.

• You can have up to 300 audio files. If the CD contains more than 300 files, some audio

files may not play or appear correctly.

• File names, folder names, and text characters can use up to 255 characters. Only uppercase letters, lowercase letters, numbers, and symbols can be displayed. Japanese file names will not be shown. File names that begin with a “.” will not be shown.

• Copyright-protected files might not play properly and/or may appear as Unknown File.

• Depending on the software used to burn a CD (or other conditions) some files may not play

or appear correctly.

• When playing audio files on a CD, DN-500DC supports the following tag data:

o ID3 tags: Version 1.x and 2.x o META-tags: compatible with title,

artist, and album names

o Sample rate: 44.1 kHz

o Bit rate: 32–320 kbps o Format: MPEG1 Audio Layer 3 o File extension: .mp3

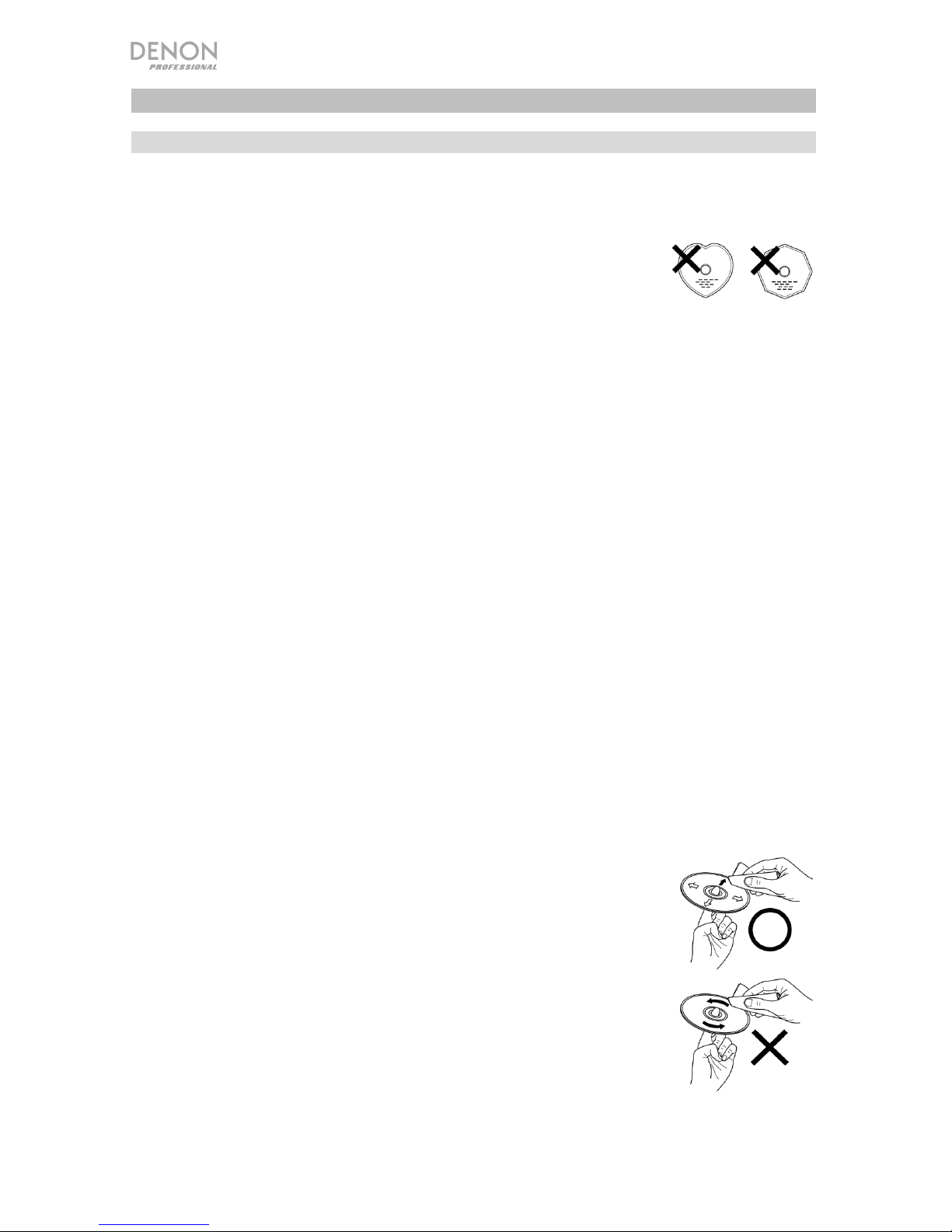

Be careful not to scratch discs when removing them from their cases. Do not bend or heat discs, and do not enlarge the hole in the center of the disc. Do not write on the labeled surface of the disc or attach new labels to discs.

If fingerprints, dirt, or condensation are on a disc, clean it with a commercially available disc cleaning set or a soft, dry cloth. Gently wipe it from the inside towards the outside, not in a circular motion. Do not use record spray, antistatic agents, benzene, thinner, or other solvents.

After using discs, remove them from the unit and store them in their cases to protect them from dust, scratches, warping, etc. Do not store discs in places exposed to long periods of direct sunlight or places exposed to heat, dust, humidity, etc.

USB Devices / SD Cards

When playing audio files on a USB device or SD card, note the following:

• DN-500DC does not charge any connected USB device and does not support USB hubs, USB extension cables, or SD card readers.

• DN-500DC supports USB devices that are mass storage class or compatible with MTP.

• DN-500DC supports USB devices and SD/SDHC cards with a maximum capacity of up to 32

GB.

• DN-500DC supports FAT16 or FAT32 file systems only.

• You can have up to 999 folders and up to 8 folder levels, including the root directory.

• You can have up to 999 audio files. If the USB device or SD card contains more than 1000 files,

some audio files may not play or appear correctly.

• Copyright-protected files might not play properly and/or may appear as Unknown File.

• When playing audio files on a USB device or SD card, DN-500DC supports the following tag

data:

o ID3 tags: Version 1.x and 2.x o Sample rate: 44.1 kHz o Bit rate: 32–320 kbps o Format: MPEG1 Audio Layer 3 o File extension: .mp3

Audio File Playback Order

When playing audio files stored within multiple folders, the playback order of each folder is automatically set when the unit reads the media. The files in each folder will play in the same order in which they were added to the media. (This order may appear differently on your computer and/or in your software than it does on the unit.)

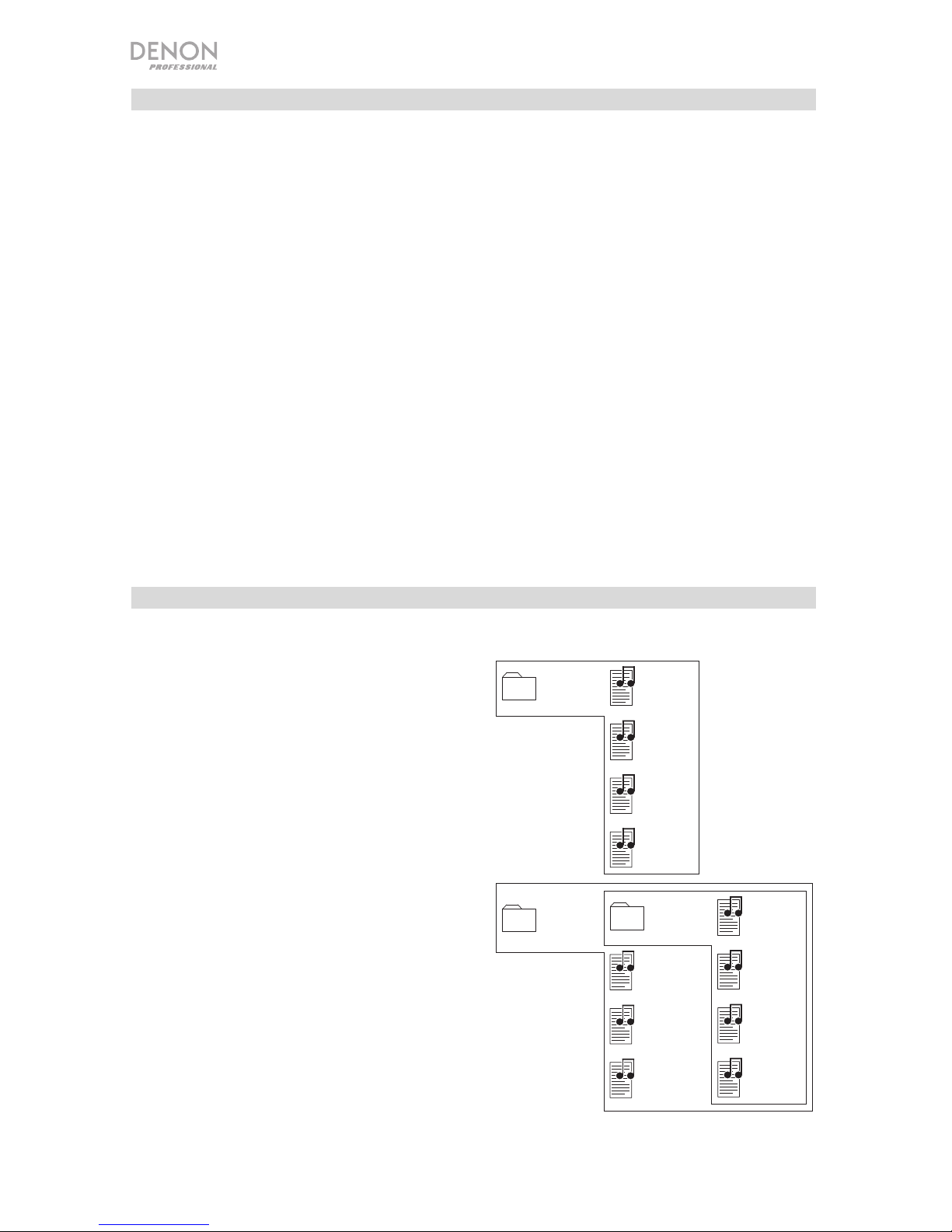

The image here illustrates how folders are structured into levels on your media.

The folder structure also determines the playback order:

• For audio files on a CD-R, files in all folders on the first level will play, then files in all folders on the second level, then on the third level, and so on.

• For audio files on a USB device or SD card, files in the first folder on the first level will play, then files on the second level in that same folder, then files on the third level in that same folder, and so on. After playing all files on all levels of that first folder, the same process will continue for files in the second folder on the first level.

Folder 1

Folder 2

Folder 3

File 1

File 2

File 3

File 4

File 5

File 6

File 7

File 8

File 9

File 10

File 11

Level 1 (root)Level 2 Level 3

Troubleshooting

If you encounter a problem, try doing these things first:

• Make sure all cables and other connected devices are properly and securely connected.

• Make sure you are using DN-500DC as described in this User Guide.

• Make sure your other devices or media are working properly.

• If you believe DN-500DC is not working properly, check the following table for your

problem and solution.

Problem: Solution: Please see:

Power does not turn on.

Make sure DN-500DC’s power input is properly connected to a power outlet using the included power cable.

Setup

DN-500DC does not produce any sound, or the sound is distorted.

Make sure all cable and device connections are secure and correct.

Make sure none of the cables are damaged.

Make sure the settings on your device are correct.

Setup

CD cannot be inserted into CD slot.

Make sure the unit is connected to a power outlet and that it is powered on.

Press the Eject button to make sure a CD is not already in the CD slot.

Setup

No Disc appears even when a CD is inserted.

Press the Eject button to eject the CD and insert it again.

A specific section of the CD does not play properly.

The unit cannot play a CD-R.

Make sure the CD-R has been finalized properly.

Make sure the CD-R is of good quality.

Clean the CD with a dry cloth or commercial CD cleaner.

Make sure the CD uses a folder structure that the unit supports: up to 300 folders (up to 8 folder levels, including the root) and up to 300 files.

Make sure the CD-R contains MP3 files. The unit cannot play other files on CD-R.

Other Information > CDs

Problem: Solution: Please see:

No Device appears

even when a USB device or SD card is inserted.

Disconnect and reconnect the USB device or SD card to make sure it is securely inserted.

Make sure the USB device is of a mass storage class or compatible with MTP.

Make sure the USB device or SD card is formatted using a FAT16 or FAT32 file system.

Do not use a USB hub, USB extention cable, or SD card reader.

The unit does not supply power to USB devices. If your USB device requires a power source, connect it to one.

Not all USB devices or SD cards are guaranteed to work; some may not be recognized.

Other Information > USB Devices / SD Cards

Files on a USB device or SD card do not appear.

Make sure the files are of a supported file format. Files that are not supported by this unit will not appear.

Make sure the USB device or SD card uses a folder structure that the unit supports: up to 999 folders (up to 8 folder levels, including the root) and up to 999 files.

If your USB device or SD card is partitioned, make sure the files are in the first partition. The unit will not show other partitions.

Other Information > USB Devices / SD Cards

Files on a USB device or SD card cannot play.

Make sure the files are of a supported file format. Files that are not supported by this unit will not appear.

Make sure the files are not copyrightprotected. The unit cannot play copyrightprotected files.

Other Information > USB Devices / SD Cards

File names do not appear properly.

Make sure the files are using only supported characters. Characters that are not supported will be replaced with a “.”

Other Information > USB Devices / SD Cards

Guía del usuario (Español)

Introducción

Consulte el capítulo Instalación de esta guía para aprender a integrar el DN-500DC con su sistema de audio y luego consulte el capítulo Operación para comenzar a utilizar el DN-500DC.

Contenido de la caja

DN-500DC Controlo remoto Cable de corriente Guía del usuario “Orejas” y tornillos

para racks

Manual sobre la seguridad y garantía

Soporte

Para obtener la información más completa acerca de este product (los requisitos del sistema, compatibilidad, etc) y registro del producto, visite denonpro.com.

Instrucciones de seguridad

Para más información, consulte también el Manual de seguridad y garantía incluido.

Antes de encender la unidad:

Asegúrese de que todas las conexiones estén aseguradas y correctas y que no haya problemas con los cables de conexión.

Algunos circuitos permanecen alimentados aun cuando la unidad está apagada. Cuando la unidad no se utilizará durante largos períodos de tiempo, desconecte el cable de corriente de la toma de corriente.

Ventilación apropiada:

Si la unidad se deja en una sala que no está ventilada apropiadamente o está llena de humo de cigarrillos, polvo, etc., durante largos períodos de tiempo, la superficie óptica puede ensuciarse, causando un funcionamiento incorrecto.

Acerca de la condensación:

Si existe una gran diferencia de temperatura entre el interior de la unidad y los alrededores, puede acumularse condensación en el interior, haciendo que la unidad no funcione correctamente. Si esto ocurriera, deje la unidad apagada durante una o dos horas y espere hasta que haya una menor diferencia de temperatura antes de utilizar la unidad.

Precauciones sobre el uso de teléfonos móviles:

Utilizar un teléfono móvil cerca de esta unidad puede ocasionar ruido. Si esto ocurriera, aleje el teléfono móvil de la unidad cuando lo esté utilizando.

Cómo mover la unidad:

Antes de mover la unidad, apáguela y desconecte el cable de corriente de la toma de corriente. A continuación, desconecte sus cables de conexión con otros dispositivos antes de moverlo.

Cómo cuidar la unidad:

Limpie el gabinete y el panel de control con un paño suave. Siga las instrucciones cuando utilice un limpiador químico. No utilice benceno, diluyente de pintura, insecticidas u otros solventes

orgánicos para limpiar la unidad. Estas sustancias pueden causar cambios y decoloración en los materiales.

Advertencias para el montaje en rack:

(especificaciones para rack requeridas para montar la unidad en un rack)

Rack EIA estándar de 19 pulg. (48,3 cm) Rack compatible con instalación de tamaño 1U Rack que posee un riel guía o estante capaz de

acomodar este dispositivo

Instalación del rack:

Este producto funcionará normalmente cuando la unidad de reproducción se monte a menos de 10° respecto del plano vertical del panel frontal. Si la unidad se inclina demasiado, puede que el disco no se inserte o expulse correctamente. (Consulte la imagen).

Unidad

Máximo

de 10°

Características

Panel frontal

1. Interruptor de encendido: Pulse este interruptor para encender o apagar la unidad. Asegúrese de que la entrada AC In esté conectada firmemente a la toma de corriente. No apague la unidad mientras esté reproduciendo medios—esto podría dañarlos.

2. Puerto USB: Conecte un dispositivo USB de almacenamiento masivo a este puerto.

3. Ranura para tarjeta SD: Inserte una tarjeta SD/SDHC en esta ranura.

4. Ranura para CD: Inserte un CD en esta ranura.

5. Pantalla: Esta pantalla indica el funcionamiento actual de la unidad.

6. Sensor remoto: Apunte el control remoto hacia este sensor al utilizarlo.

7. Botón de expulsión: Púlselo para expulsar el CD de la ranura de CD.

8. Botón reproducir/pausa: Pulse este botón para iniciar, reanudar o poner en pausa la reproducción.

9. Botón parar: Pulse este botón para detener la reproducción.

10. Saltar hacia adelante/atrás: Pulse estos botones brevemente para saltar a la pista anterior o siguiente. Mantenga pulsados estos botones para rebobinar o avanzar rápidamente por la pista actual.

11. Prog: Pulse este botón para entrar al modo de programación, el cual le permite seleccionar las pistas que se reproducirán en un orden específico. Consulte Operación > Funciones

adicionales para más información.

12. Botón de repetición: Pulse este botón para alternar entre los modos de repetición de reproducción. Consulte Operación > Funciones adicionales para más información.

13. Carpeta siguiente/anterior: Utilice estos botones para desplazarse por las carpetas.

14. A-B: Utilice este botón para hacer un loop (bucle) con una sección del audio durante la reproducción. Consulte Operación > Funciones adicionales para más información.

15. Mute: Pulse este botón para silenciar el audio del DN-500DC.

16. Funct: Pulse este botón para alternar entre los modos CD, USB y tarjeta SD.

Panel trasero

1. Entrada AC In (corriente alterna): Utilice el cable de corriente incluido para conectar esta entrada a una toma de corriente.

2. Fusible: Si el fusible de la unidad está roto, reemplazarla con una el fusible con especificación apropiada. Si utiliza un fusible de especificación incorrecta, puede dañarse la unidad y/o el fusible.

3. Salidas de audio (balanceadas, XLR): Estas salidas envían la señal de audio a sus altavoces externos, receptor, etc. Utilice cables XLR para realizar estas conexiones.

4. Salidas de audio (no balanceadas, RCA): Estas salidas envían la señal de audio a sus altavoces externos, receptor, etc. Utilice cables RCA para realizar estas conexiones.

5. Entrada remota RS-232: Este entrada le permite conectar un ordenador al DN-500DC. Utilice un cable D-Sub de 9 patillas para realizar esta conexión. Podrá entonces utilizar el ordenador con un programa de terceros para manejar el DN-500DC a través de comunicación en serie.

11 10 10

12 13 14 15 16

1 2

Controlo remoto

Importante: Apunte el control remoto hacia el sensor remoto al

utilizarlo. Si el sensor del control remoto se expone a luz solar directa, luz artificial intensa (como una lámpara fluorescente de tipo invertido) o luz infrarroja, puede que la unidad o el control remoto no funcionen correctamente.

• Play/Pause: Pulse este botón para iniciar, reanudar o poner en pausa la reproducción.

• Stop: Pulse este botón para detener la reproducción.

• Prog: Pulse este botón para entrar al modo de programación, el

cual le permite seleccionar las pistas que se reproducirán en un orden específico. Consulte Operación > Funciones adicionales para más información.

• Pantalla: Pulse este botón para recorrer la información que se muestra en la pantalla. Puede ver el nombre y el tiempo transcurrido/restante de la pista, el nombre de la carpeta o la cantidad total de carpetas y canciones.

• ID3: Pulse este botón para ver la información de la etiqueta ID3 de la pista que se está reproduciendo actualmente en la pantalla.

• Botones numéricos (0–9): Pulse estos botones para introducir sus correspondientes. Al reproducir medios sin que se visualice un menú o pantalla adicional, al introducirse uno o varios números, se seleccionará la correspondiente pista de audio.

• Rev/Skip/Cue (Anterior/Siguiente/Cue): Pulse estos botones brevemente para saltar a la pista anterior o siguiente. Mantenga pulsado estos botones para rebobinar o hacer un avance rápido.

• Repeat: Pulse este botón para alternar entre los modos de repetición de reproducción. Consulte Operación > Funciones adicionales para más información.

• Buscar: En los modos USB y tarjeta SD, pulse este botón una vez para buscar por nombre de archivo. Presione por segunda vez para buscar por álbum.

• A-B: Utilice este botón para hacer un loop (bucle) con una sección del audio durante la reproducción. Consulte Operación > Funciones adicionales para más información.

• Funct: Press this button to cycle through CD, USB, and SD Card modes.

• Eject: Púlselo para expulsar el CD de la ranura de CD.

• Mute: Pulse este botón para silenciar el audio del DN-500DC.

• Permanecer:

Pulse este botón para alternar entre el tiempo transcurrido de la pista, el

tiempo restante de la pista y el tiempo total restante del CD en la pantalla.

• Reproducir 1: Pulse este botón a fin de configurar el reproductor para detenerse después de reproducir una sola pista.

• Medios 1/Medios 2: Pulse este botón para alternar entre el control de los Medios 1 y los Medios 2 utilizando el control remoto. El indicador correspondiente en la unidad se encenderá de verde para mostrar el lado que se está controlando.

Instalación

Importante: Conecte todos los cables firme y correctamente (los cables estéreo: izquierdo

con izquierdo, derecho con derecho) y no los agrupe junto con el cable de corriente.

1. Utilice cables XLR o cables RCA estéreo para conectar las salidas de audio (balanceadas o desbalanceadas) a las entradas analógicas de su receptor externo, amplificador, monitores alimentados, etc.

2. Para administrar el DN-500DC a través de la comunicación en serie, conecte el entrada remota RS-232 a su ordenador utilizando un cable D-Sub de 9 patillas. Utilice una utilidad de terceros para administrar el DN-500DC.

3. Una vez completadas todas las conexiones, utilice el cable de corriente incluido para conectar la entrada AC In a una toma de corriente.

4. Encienda el DN-500DC.

Ejemplo

Los elementos que no se enumeran en Introducción > Contenido de la caja se venden por separado.

Monitores alimentados

Mezclador de zona

Corriente

Operación

Reproducción de CD de audio

Como reproducir un CD de audio:

1. Si la unidad está apagada, pulse el botón Power (Encendido) para encenderla. Importante: No inserte un CD cuando la unidad esté apagada. Esto podría dañar la

unidad.

2. Inserte un CD en la ranura de CD. (Sostenga el CD por los bordes sin tocar la superficie grabada. Tenga cuidado de que sus dedos no queden atrapados cuando el disco se inserta en la unidad).

Importante: Esta unidad solo puede reproducir discos finalizados. (La finalización es el proceso que hace que los discos CD-R grabados puedan reproducirse en reproductores compatibles).

3. Seleccione CD como tipo de medio pulsando el botón Funct de la unidad o el control remoto.

4. Para comenzar la reproducción, pulse el botón Play en la unidad o control remoto.

En modo CD, puede efectuar cualquiera de las siguientes operaciones:

• Para comenzar, reanudar o poner en pausa la reproducción, pulse el botón Play/Pause (Reproducir/poner en pausa).

• Para detener la reproducción, pulse el botón Stop (Detener).

• Para rebobinar o avanzar rápidamente por la pista, mantenga pulsado alguno de los

botones Skip (Saltar). Para reanudar la reproducción, suelte el botón.

• Para saltar directamente a una pista, pulse alguno de los botones numéricos (0-9) en la control remoto para introducir el número de pista deseado. Si el número de la pista es de dos dígitos, pulse los botones en sucesión (por ej., 1 y después 2 para la pista 12). Como alternativa, pulse los botones Skip (Saltear). Pulse el botón Play (Reproducir) después de cargar la pista para que comience su reproducción.

• Para seleccionar un modo de repetición de reproducción, pulse el botón Repeat. Consulte Funciones adicionales > Modos de repetición para más información.

• Para cambiar el modo de tiempo en la pantalla, pulse el botón Remain (Restante). Alternará entre el tiempo transcurrido de la pista, el tiempo restante de la pista y el tiempo total restante del CD.

• Para expulsar un CD, pulse el botón Eject (Expulsar). Aparecerá “Ejecting” (Expulsando) en la pantalla mientras se expulsa el CD. Aparecerá “No Disc” (Sin disco) cuando no haya discos en la ranura de CD.

Importante: Consulte Otra información > CD para aprender más sobre los tipos de CD que soporta el DN-500DC y para más información sobre la manipulación y cuidado de los CD.

+ 42 hidden pages

Denon dn-500dc User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
