PROFESSIONAL PRODUCTS

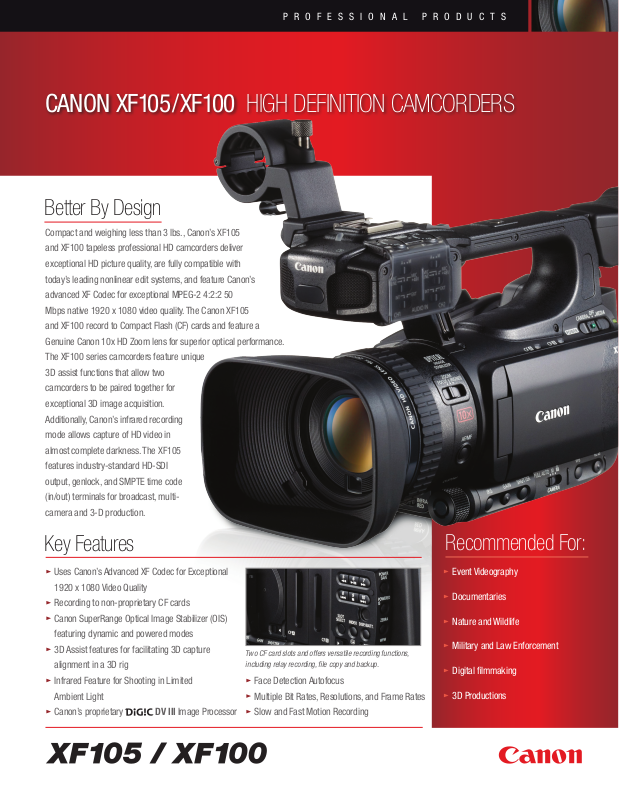

CANON XF105/XF100 HIGH DEFINITION CAMCORDERS
Better By Design
Compact and weighing less than 3 lbs., Canon’s XF105
and XF100 tapeless professional HD camcorders deliver
exceptional HD picture quality, are fully compatible with
today’s leading nonlinear edit systems, and feature Canon’s
advanced XF Codec for exceptional MPEG-2 4:2:2 50
Mbps native 1920 x 1080 video quality. The Canon XF105
and XF100 record to Compact Flash (CF) cards and feature a
Genuine Canon 10x HD Zoom lens for superior optical performance.
The XF100 series camcorders feature unique
3D assist functions that allow two
camcorders to be paired together for
exceptional 3D image acquisition.
Additionally, Canon’s infrared recording
mode allows capture of HD video in
almost complete darkness. The XF105
features industry-standard HD-SDI
output, genlock, and SMPTE time code
(in/out) terminals for broadcast, multi-
camera and 3-D production.
Key Features
•
Uses Canon’s Advanced XF Codec for Exceptional
1920 x 1080 Video Quality
•
Recording to non-proprietary CF cards
•
Canon SuperRange Optical Image Stabilizer (OIS)
featuring dynamic and powered modes
•
3D Assist features for facilitating 3D capture
alignment in a 3D rig
•
Infrared Feature for Shooting in Limited
Ambient Light
•
Canon’s proprietary DV III Image Processor
Two CF card slots and offers versatile recording functions,
including relay recording, file copy and backup.
•
Face Detection Autofocus
•
Multiple Bit Rates, Resolutions, and Frame Rates
•
Slow and Fast Motion Recording
Recommended For:
•
Event Videography
•
Documentaries
•
Nature and Wildlife
•
Military and Law Enforcement
•
Digital filmmaking
•
3D Productions
PROFESSIONAL PRODUCTS
XF105/XF100
PRODUCT NAME: XF105 / XF100 ITEM CODE: 4885B001(XF105), 4888B001(XF100) UPC CODE: 013803130195(XF105), 013803130201(XF100)
SPECIFICATIONS
SPECIFICATIONS XF105 XF100
STANDARD DEFINITION OR HIGH DEFINITION High Definition
POWER SUPPLY (RATED) 7.4V DC (battery pack)
COMPRESSION MPEG-2 Long GOP
COLOR SPACE 4:2:2 (at 50Mbps recording)
VIDEO RECORDING FILE FORMAT MXF
SYSTEM
RECORDING MODES 35Mbps (VBR) 4:2:0, 1920x1080 (60i / 30p / 24p), 1280x720 (60p / 30p / 24p)
AUDIO RECORDING SYSTEM 2-Channel, Linear PCM digital recording, 16-Bit; 48kHz
IMAGE SENSOR 1 - 1/3-inch CMOS
TOTAL PIXELS Approx. 2.37 megapixels (2044 x 1160 pixels)
EFFECTIVE PIXELS Approx. 2.07 megapixels (1920 x 1080 pixels)
MAXIMUM RECORDING TIME
LENS Canon 10x HD Zoom Lens, 4.25-42.5 mm (35 mm equivalent 30.4-304 mm), f / 1.8-2.8
FOCUSING SYSTEM
MAX SHUTTER SPEED 1/2000
MINIMUM FOCUSING DISTANCE 20 mm (wide macro), 60 cm (entire zoom range)
WHITE BALANCE Auto, Manual, Custom (2000K - 15000K in 100K increments), Daylight, Tungsten
FRAME RATE
GENLOCK TERMINAL BNC (input only) Same terminal as Time Code
HD / SD-SDI TERMINAL BNC (output only), with embedded audio and time code
TIMECODE TERMINALS BNC (input / output) Same terminal as Genlock
IMAGE STABILIZATION SuperRange Optical (Lens Shift) 4 modes: Standard, Powered, Dynamic, Off
FILTER DIAMETER 58 mm
VIEWFINDER 0.24-inch color widescreen, approx. 260,000 dots, approx. 100% field of view
LCD SCREEN 3.5-inch color widescreen LCD, approx. 920,000 dots, approx. 100% field of view
MICROPHONE Stereo electrect condenser microphone
RECORDING MEDIA
SD CARD Still images, Custom Picture Data, Clip Metadata, Custom Settings
USB TERMINAL Mini-B USB 2.0 Hi-Speed
VIDEO TERMINAL
COMPOSITE A / V terminal 3.5 mm mini-jack, output only
AUDIO TERMINALS
HDMI TERMINAL Yes (Type A)
AV MINI TERMINAL 3.5 mm stereo mini-jack
HEADPHONE TERMINAL 3.5 mm stereo mini-jack
REMOTE CONTROL TERMINAL Yes (compatible with LANC protocol)
OPERATING TEMPERATURE RANGE 32° - 104°F , 0° - 40°C, 85% relative humidity
DIMENSIONS
WEIGHT
CF CARD 2 Slots, Movie files only
COMPONENT Output only
2.4 lbs (1070 g) (includes grip strap but excluding lens hood,
mic holder unit, lens cap, BP and card)
50Mbps (CBR) 4:2:2, 1920x1080, (60i / 30p / 24p), 1280x720 (60p / 30p / 24p)
25Mbps (CBR) 4:2:0, 1440 x 1080 (60i / 30p / 24p)
64GB Compact Flash (CF) card, Greater capacity is possible when two cards are used.
25Mbps: 310 minutes, 35Mbps: 225 minutes, 50Mbps: 160 minutes
TVAF plus External Phase Difference Metering Sensor, Autofocus (Instant AF,
Medium AF, Normal AF, Face AF, Face Only AF), Manual, Full Manual
(50i and 25p optional upgrade available through Canon Factory Service Center)
60i, 60p, 30p, 24p
XLR 3-pin jack (2) with phantom power,
Switchable between MIC / LINE, 3.5 mm stereo mini-jack
Approx. 4.8 x 5.8 x 9.8 in. (121 x 148 x 250 mm)
(not including lens hood, mic holder unit, grip strap)
2.8 lbs (1290 g) (includes grip strap, lens hood, mic holder unit, BP-925,
CF card (x1) and SD card)
OPTIONAL ACCESSORIES
BATTERIES
ADAPTERS & CHARGERS
CABLES & CORDS
OTHER CAMCORDER ACCESSORIES
Item Code Description
0972B002 BP-970G Lithium Ion Battery Pack
4588B002 BP-975 Lithium Ion Battery Pack
4587B002 BP-955 Lithium Ion Battery Pack
3089A002 ZR-1000 Zoom Remote Control
0973B002 ZR-2000 Zoom Remote Control
8034A002 CB-920 Car Battery Adapter
9859A001 TA-100 Tripod Adapter
4590B001 DC-930 DC Cable
1719B001 CTC-100 Component Cable
3573B001 TL-H58 Tele Converter
4892B001 WD-H58W Wide Converter
1729B001 VL-10Li II Video Light
0975B001 SBR-1000 Shooting Brace
4592B001 TB-1 Tripod Adapter Base
MPEG-2 4:2:2 50Mbps
Codec (Canon XF Codec)
MPEG-2 compression is both highly reliable and versatile. Developed by
the Moving Pictures Expert Group (MPEG), it is one of the most widely
used compression schemes in the industry for camera acquisition,
over the air broadcast, cable and satellite TV. The XF100 Series records
using Canon’s XF Codec which features up to 50 Mbps 4:2:2 MPEG-2
compression and wide compatibility with existing industry infrastructure
and non-linear editing (NLE) systems. The MXF file wrapper, allows video
and audio to be wrapped in a single file along with important metadata.
By using 4:2:2 color sampling , the XF100 and XF105 cameras provides
twice the color resolution of HDV and other codecs that use 4:2:0 color
sampling. 4:2:2 provides ultra-fine transitions in tone and color and maintains the highest quality image for use in post production processes such
as chroma keying, color grading, advanced compositing and effects.
The codec’s 50Mbps constant bit rate provide the bandwidth needed
to capture the XF100 and XF105’s superior resolution and color in
spectacular detail.
©2011 Canon U.S.A., INC. Specications and availability are subject to change without notice.
Weight and dimensions are approximate. All images and effects are simulated. Canon and
DIGIC are registered trademarks of Canon Inc. in the United States and may also be registered
trademarks in other countries. IMAGEANYWARE is a trademark of Canon. Other names and
products not mentioned above may be registered trademarks or trademarks of their respective
companies. Warning: Unauthorized recording of copyrighted materials may infringe on the rights
of copyright owners and be contrary to copyright laws.
