Beko WMB 508311 D, WMB 508311 DS User manual

WMB 508311 D

WMB 508311 DS

Washing Machine

User’s Manual

2820522994_EN/100512.1941

Please read this user manual first!

Dear Customer,

We hope that you get the best results from the product which has been manufactured in state- of-the-art plants and passed through a strict quality control procedure.

Therefore, please read the entire user manual carefully before using the product and keep it as a reference for future use. In case of transferring the product to someone else, give the manual as well.

The user manual will help you use your machine in a fast and safe way.

•Read the user manual before installing and starting your product.

•Always follow the safety instructions.

•Keep this user manual within easy reach for future reference.

•Read also the other documents supplied with the product.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

C Important information or useful hints about usage.

AWarning for hazardous situations with regard to life and property. BWarning for electric shock.

This appliance’s packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose. Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home. We thank you doing your part to protect the environment.

2 EN

TABLE OF CONTENTS

1 Your washing machine

4

Overview . . . . . . . . . . . . . . . . . . . . . . . 4 Technical specifications . . . . . . . . . . . . 5

2 Important safety
instructions	6

General safety . . . . . . . . . . . . . . . . . . . 6 Intended use . . . . . . . . . . . . . . . . . . . . 6 Children's safety . . . . . . . . . . . . . . . . . . 6

3 Installation

7

Appropriate installation location . . . . . . 7 Removing the transportation locks . . . . 7 Removing packaging reinforcement . . . 7 Connecting water supply . . . . . . . . . . . 8 Connecting to the drain . . . . . . . . . . . . 8 Adjusting the feet . . . . . . . . . . . . . . . . . 9 Electrical connection. . . . . . . . . . . . . . . 9 First use . . . . . . . . . . . . . . . . . . . . . . . 10 Disposing of packaging material . . . . . 10 Transportation of the product . . . . . . . 10 Disposing of the old product. . . . . . . . 10

Additional programmes . . . . . . . . . . . 17 Special programmes. . . . . . . . . . . . . . 18 Temperature selection. . . . . . . . . . . . . 18 Spin speed selection . . . . . . . . . . . . . 18 Programme and consumption table . . 19

Auxiliary function selection . . . . . . . . . 20 Starting the programme . . . . . . . . . . . 21 Child Lock . . . . . . . . . . . . . . . . . . . . . 21 Progress of programme . . . . . . . . . . . 21 Loading door lock. . . . . . . . . . . . . . . . 21

Changing the selections after programme has started . . . . . . . . . . . . . . . . . . . . . 22

Canceling the programme . . . . . . . . . 22 End of programme . . . . . . . . . . . . . . . 22

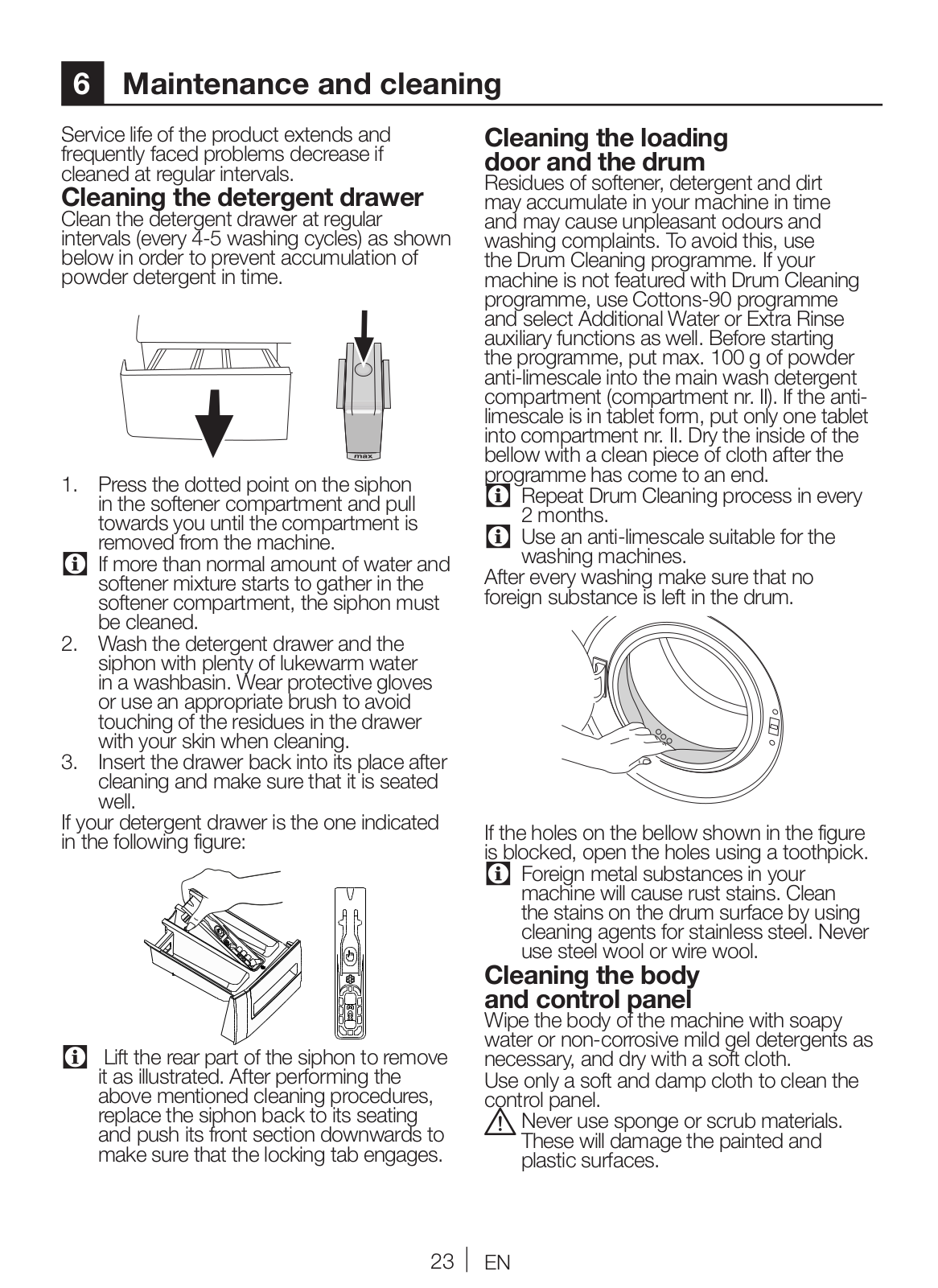

6 Maintenance and cleaning23

Cleaning the detergent drawer . . . . . . 23

Cleaning the loading door and the

drum . . . . . . . . . . . . . . . . . . . . . . . . . 23 Cleaning the body and control panel. . 23 Cleaning the water intake filters . . . . . 24

Draining remaining water and cleaning the pump filter . . . . . . . . . . . . . . . . . . . . . 24

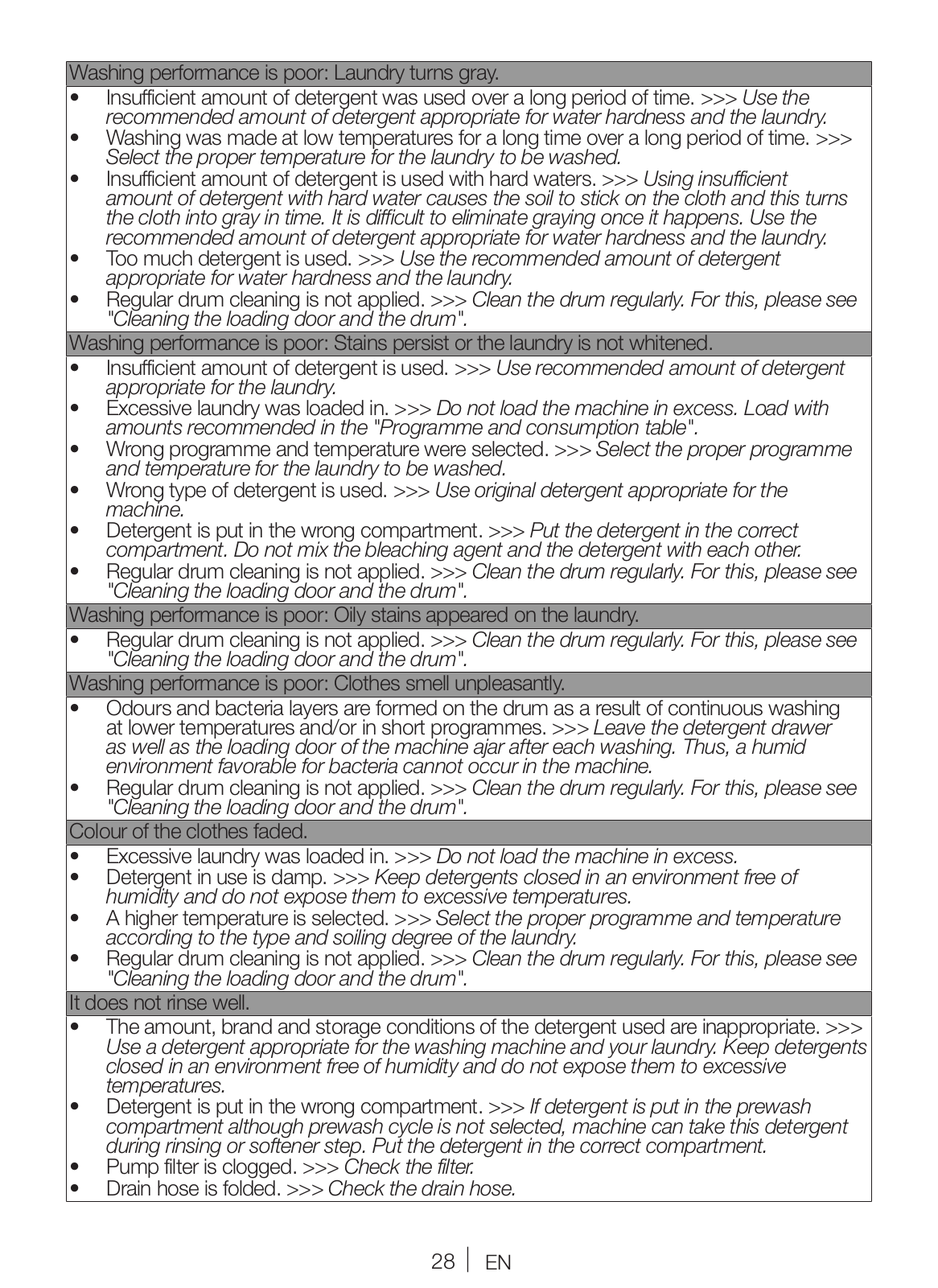

4 Preparation	11 7 Troubleshooting			26

Things to be done for energy saving . . 11

Sorting the laundry . . . . . . . . . . . . . . . 11

Preparing laundry for washing. . . . . . . 11

Correct load capacity . . . . . . . . . . . . . 12

Loading the laundry . . . . . . . . . . . . . . 12

Using detergent and softener . . . . . . . 12

Tips for efficient washing . . . . . . . . . . 15

5 Operating the product

16

Control panel . . . . . . . . . . . . . . . . . . . 16

Preparing the machine . . . . . . . . . . . . 17

Programme selection . . . . . . . . . . . . . 17

Main programmes . . . . . . . . . . . . . . . 17

3 EN

1 Your washing machine

Overview

8	1
	2

3 7

6

4

5

1- Power cable		5- Adjustable feet
2- Top panel		6- Loading door
3- Control panel		7- Detergent drawer
4- Filter cap		8- Drain hose

4 EN

Technical specifications

Models (EN)	<![if ! IE]> <![endif]>WMB 508311 DS		<![if ! IE]> <![endif]>WMB 508311 D
Maximum dry laundry capacity (kg)	5		5
Height (cm)	84		84
Width (cm)	60		60
Depth (cm)	45		45
Net weight (±4 kg.)	59		59
Electrical input (V/Hz)	220-240 V / 50Hz
Total current (A)	10		10
Total power (W)		2000-2350
Spin speed (rpm max.)	800		800
Stand-by mode power (W)	1.35		1.35
Off-mode power (W)	0.25		0.25

C Technicalproduct. specifications may be changed without prior notice to improve the quality of the C Figures in this manual are schematic and may not match the product exactly.

C Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with the relevant standards. Depending on operational and environmental conditions of the product, these values may vary.

5 EN

2 Important safety instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

General safety

• 8 years and older children and people with reduced physical, sensory, and mental abilities as well as unskilled

or inexperienced persons can use this appliance provided that they are supervised and instructed on safe use

of the appliance as well as to the related dangers. Children should not play or tamper with the appliance. Cleaning and user maintenance should never be performed by children unless supervised by a responsible adult.

• Never place the product on a carpetcovered floor; otherwise, lack of airflow beneath the machine will cause electrical parts to overheat. This will cause problems with your product.

• Do not operate the product if the power cable / plug is damaged. Call the

Authorized Service Agent.

• Have a qualified electrician connect a 16-Ampere fuse to the installation location of the product.

• If the product has a failure, it should not be operated unless it is repaired by the

Authorized Service Agent. There is the

risk of electric shock!

• This product is designed to resume operating in the event of powering on after a power interruption. If you wish to cancel the programme, see "Cancelling the programme" section.

• Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical specifications" table. Do not neglect to have the grounding installation made by a qualified electrician. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• The water supply and draining hoses must be securely fastened and remain undamaged. Otherwise, there is the risk of water leakage.

• Never open the loading door or remove the filter while there is still water in the drum. Otherwise, risk of flooding and injury from hot water will occur.

6

•Do not force open the locked loading door. The loading door will be ready to open just a few minutes after the

washing cycle comes to an end. In case of forcing the loading door to open, the door and the lock mechanism may get damaged.

•Unplug the product when not in use.

•Never wash the product by spreading or pouring water onto it! There is the risk of electric shock!

•Never touch the plug with wet hands!

Never unplug by pulling on the cable, always pull out by grabbing the plug.

•Use detergents, softeners and supplements suitable for washing machines only.

•Follow the instructions on the textile tags and on the detergent package.

•The product must be unplugged during installation, maintenance, cleaning and repairing procedures.

•Always have the installation and repairing procedures carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

Intended use

• This product has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.

• The product must only be used for washing and rinsing of laundry that are marked accordingly.

• The manufacturer waives any responsibility arisen from incorrect usage or transportation.

Children's safety

• Electrical products are dangerous for the children. Keep children away from the product when it is in use. Do not let them to tamper with the product. Use child lock to prevent children from intervening with the product.

• Do not forget to close the loading door when leaving the room where the product is located.

• Store all detergents and additives in a safe place away from the reach of the children.

EN

3 Installation

Refer to the nearest Authorised Service Agent for installation of the product. To make the product ready for use, review the information in the user manual and make sure that the electricity, tap water supply and water drainage systems are appropriate before calling the Authorized Service Agent.

If they are not, call a qualified technician and plumber to have any necessary arrangements carried out.

C Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility.

BInstallation and electrical connections of the product must be carried out by the

Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

APrior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety.

C Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures.

Appropriate installation location

• Place the machine on a rigid floor. Do not place it on a long pile rug or similar surfaces.

• Total weight of the washing machine and the dryer -with full loadwhen they are placed on top of each other reaches to approx. 180 kilograms. Place the product on a solid and flat floor that has sufficient load carrying capacity!

• Do not place the product on the power cable.

• Do not install the product at places where temperature may fall below 0ºC.

• Place the product at least 1 cm away from the edges of other furniture.

Removing the transportation locks

ARemove the transportation safety bolts before operating the washing machine, otherwise, the product will be damaged.

1.Loosen all the bolts with a spanner until they rotate freely (C).

2.Remove transportation safety bolts by turning them gently.

3.Attach the plastic covers supplied in the

User Manual bag into the holes on the rear panel. (P)

C Keep the transportation safety bolts in a safe place to reuse when the washing machine needs to be moved again in the future.

C Never move the product without the transportation safety bolts properly fixed in place!

Removing packaging reinforcement

Tilt the machine backwards to remove the packaging reinforcement. Remove the packaging reinforcement by pulling the ribbon.

7 EN

Connecting water supply

C The water supply pressure required to run the product is between 1 to 10 bars (0.1 – 1 MPa). It is necessary to have 10 – 80 liters of water flowing from the fully open tap in one minute to have your

machine run smoothly. Attach a pressure reducing valve if water pressure is higher.

C If you are going to use the double waterinlet product as a single (cold) waterinlet unit, you must install the supplied stopper to the hot water valve before operating the product. (Applies for the products supplied with a blind stopper group.)

C If you want to use both water inlets of the product, connect the hot water hose after removing the stopper and gasket group from the hot water valve. (Applies for the products supplied with a blind stopper group.)

AModels with a single water inlet should not be connected to the hot water tap. In such a case the laundry will get damaged or the product will switch to protection mode and will not operate.

ADo not use old or used water inlet hoses on the new product. It may cause stains on your laundry.

1.Connect the special hoses supplied with the product to the water inlets on the product. Red hose (left) (max. 90 ºC) is for hot water inlet, blue hose (right) (max. 25 ºC) is for cold water inlet.

AEnsure that the cold and hot water connections are made correctly when installing the product. Otherwise, your laundry will come out hot at the end of the washing process and wear out.

2.Tighten all hose nuts by hand. Never use a wrench when tightening the nuts.

3.Open the taps completely after making the hose connection to check for water leaks at the connection points. If any leaks occur, turn off the tap and remove the nut. Retighten the nut carefully after checking the seal. To prevent water leakages and damages caused by them, keep the taps closed when the machine is not in use.

Connecting to the drain

• The end of the drain hose must be directly connected to the wastewater drain or to the washbasin.

AYour house will be flooded if the hose comes out of its housing during water discharge. Moreover, there is risk of scalding due to high washing

temperatures! To prevent such situations and to ensure smooth water intake and discharge of the machine, fix the end

of the discharge hose tightly so that it cannot come out.

•The hose should be attached to a height of at least 40 cm, and 100 cm at most.

•In case the hose is elevated after laying it on the floor level or close to the ground (less than 40 cm above the

ground), water discharge becomes more difficult and the laundry may come out

8 EN

excessively wet. Therefore, follow the heights described in the figure.

•To prevent flowing of dirty water back into the machine and to allow for easy discharge, do not immerse the hose end into the dirty water or drive it in the drain more than 15 cm. If it is too long, cut it short.

•The end of the hose should not be bent, it should not be stepped on and the hose must not be pinched between the drain and the machine.

•If the length of the hose is too short, use it by adding an original extension hose. Length of the hose may not be longer than 3.2 m. To avoid water leak failures, the connection between the extension hose and the drain hose of the product must be fitted well with an appropriate clamp as not to come off and leak.

Adjusting the feet

AIn order to ensure that the product operates more silent and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and cause crushing and vibration problems.

9

1.Loosen the lock nuts on the feet by hand.

2.Adjust the feet until the product stands level and balanced.

3.Tighten all lock nuts again by hand.

ADo not use any tools to loosen the lock nuts. Otherwise, they will get damaged.

Electrical connection

Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical specifications" table. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

•Connection must comply with national regulations.

•Power cable plug must be within easy reach after installation.

•The voltage and allowed fuse or breaker protection are specified in the “Technical specifications” section. If the current value of the fuse or breaker in the house is less than 16 Amps, have a qualified electrician install a 16 Amp fuse.

•The specified voltage must be equal to your mains voltage.

EN

•Do not make connections via extension cables or multi-plugs.

BDamaged power cables must be replaced by the Authorized Service Agents.

First use

Before starting to use the product, make sure that all preparations are made in accordance with the instructions in sections "Important safety instructions" and "Installation".

To prepare the product for washing laundry, perform first operation in Drum Cleaning programme. If your machine is not featured with Drum Cleaning programme, use

Cottons-90 programme and select Additional Water or Extra Rinse auxiliary functions as well. Before starting the programme, put max. 100 g of powder anti-limescale into

the main wash detergent compartment (compartment nr. II). If the anti-limescale is in tablet form, put only one tablet into compartment nr. II. Dry the inside of the bellow with a clean piece of cloth after the programme has come to an end.

C Use an anti-limescale suitable for the washing machines.

C Some water might have remained in the product due to the quality control processes in the production. It is not harmful for the product.

Disposing of packaging material

Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of the children. Packaging materials of the product are manufactured from recyclable materials. Dispose of them properly and sort in accordance with recycled waste instructions. Do not dispose of them with normal domestic waste.

Transportation of the product

1. Unplug the product before transporting it.

2. Remove water drain and water supply connections.

3. Drain the remaining water in the product completely; see, "Draining remaining

10

water and cleaning the pump filter".

4.Install transportation safety bolts in the reverse order of removal procedure; see,

"Removing the transportation locks".

C Never move the product without the transportation safety bolts properly fixed in place!

Disposing of the old product

Dispose of the old product in an environmentally friendly manner.

Refer to your local dealer or solid waste collection centre in your area to learn how to dispose of your product.

For children's safety, cut the power cable and break the locking mechanism of the loading door so that it will be nonfunctional before disposing of the product.

EN

4 Preparation

Things to be done for energy saving

Following information will help you use the product in an ecological and energy-efficient manner.

•Operate the product in the highest capacity allowed by the programme you have selected, but do not overload; see, “Programme and consumption table”.

•Always follow the instructions on the detergent packaging.

•Wash slightly soiled laundry at low temperatures.

•Use faster programmes for small quantities of lightly soiled laundry.

•Do not use prewash and high temperatures for laundry that is not heavily soiled or stained.

•If you plan to dry your laundry in a dryer, select the highest spin speed recommended during washing process.

•Do not use detergent in excess of the amount recommended on the detergent package.

Sorting the laundry

• Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature.

• Always obey the instructions given on the garment tags.

Washing water	Wash with sensitive,
temperature	.short programmes
Bleach can be	Do not use bleach
used
Suitable for drier	Do not dry with drier

Hang without spinning

Non machine-washable

Dry-cleanable

Dry horizontally

Can be ironed

with warm iron

Can be ironed with

hot iron

Do not wash

Do not dry-clean

Dry on a hanger

Do not iron

Preparing laundry for washing

• Laundry items with metal attachments such as, underwired bras, belt buckles or metal buttons will damage the machine.

Remove the metal pieces or wash the clothes by putting them in a laundry bag or pillow case.

11 EN

•Take out all substances in the pockets such as coins, pens and paper clips, and turn pockets inside out and brush. Such objects may damage the product or cause noise problem.

•Put small size clothes such as infant’s socks and nylon stockings in a laundry bag or pillow case.

•Place curtains in without compressing them. Remove curtain attachment items.

•Fasten zippers, sew loose buttons and mend rips and tears.

•Wash “machine washable” or “hand washable” labeled products only with an appropriate programme.

•Do not wash colours and whites together. New, dark coloured cottons release a lot of dye. Wash them separately.

•Tough stains must be treated properly before washing. If unsure, check with a dry cleaner.

•Use only dyes/colour changers and limescale removers suitable for machine wash. Always follow the instructions on the package.

•Wash trousers and delicate laundry turned inside out.

•Keep laundry items made of Angora wool in the freezer for a few hours before washing. This will reduce pilling.

•Laundry that are subjected to materials such as flour, lime dust, milk powder, etc. intensely must be shaken off before placing into the machine. Such dusts and powders on the laundry may build up on the inner parts of the machine in time and can cause damage.

Correct load capacity

The maximum load capacity depends on the type of laundry, the degree of soiling and the washing programme desired.

The machine automatically adjusts the amount of water according to the weight of the loaded laundry.

AFollow the information in the “Programme and consumption table”.

12

When overloaded, machine’s washing performance will drop. Moreover, noise and vibration problems may occur.

Laundry types and their average weights in the following table are given as examples.

Laundry type	Weight (g)
Bathrobe	1200
Napkin	100
Duvet cover	700
Bed Sheet	500
Pillowcase	200
Tablecloth	250
Towel	200
Hand towel	100
Evening gown	200
Underclothing	100
Men’s overalls	600
Men’s shirt	200
Men’s pajamas	500
Blouses	100

Loading the laundry

• Open the loading door.

• Place laundry items loosely into the machine.

• Push the loading door to close until you hear a locking sound. Ensure that no items are caught in the door.

C The loading door is locked while a programme is running. The door can only be opened a while after the programme comes to an end.

AIn case of misplacing the laundry, noise and vibration problems may occur in the machine.

Using detergent and softener

Detergent Drawer

The detergent drawer is composed of three compartments:

-(1) for prewash

-(2) for main wash

– (3) for softener

– (*) in addition, there is siphon piece in the softener compartment.

2 3 1

EN

C The detergent dispenser may be in two different types according to the model of your machine as seen above.

Detergent, softener and other cleaning agents

•Add detergent and softener before starting the washing programme.

•Never open the detergent drawer while the washing programme is running!

•When using a programme without prewash, do not put any detergent into the prewash compartment (compartment nr. 1).

•In a programme with prewash, do not put liquid detergent into the prewash compartment (compartment nr. 1).

•Do not select a programme with prewash if you are using a detergent bag or dispensing ball. Place the detergent bag or the dispensing ball directly among the laundry in the machine.

•If you are using liquid detergent, do not forget to place the liquid detergent cup into the main wash compartment (compartment nr. 2).

Choosing the detergent type

The type of detergent to be used depends on the type and colour of the fabric.

•Use different detergents for coloured and white laundry.

•Wash your delicate clothes only with special detergents (liquid detergent, wool shampoo, etc.) used solely for delicate clothes.

•When washing dark coloured clothes and quilts, it is recommended to use liquid detergent.

•Wash woolens with special detergent made specifically for woolens.

AUse only detergents manufactured specifically for washing machines.

ADo not use soap powder.

Adjusting detergent amount

The amount of washing detergent to be used depends on the amount of laundry, the degree of soiling and water hardness.

Read the manufacturer’s instructions on the detergent package carefully and follow the dosage values.

•Do not use amounts exceeding the dosage quantities recommended on the detergent package to avoid problems of excessive foam, poor rinsing, financial savings and finally, environmental protection.

•Use lesser detergent for small amounts or lightly soiled clothes.

13

•Use concentrated detergents in the recommended dosage.

Using softeners

Pour the softener into the softener compartment of the detergent drawer.

•Use the dosages recommended on the package.

•Do not exceed the (>max<) level marking in the softener compartment.

•If the softener has lost its fluidity, dilute it with water before putting it in the detergent drawer.

Using liquid detergents

If the product contains a liquid detergent cup:

•Make sure that you have placed the liquid detergent cup in compartment nr. “2”.

•Use the detergent manufacturer’s measuring cup and follow the instructions on the package.

•Use the dosages recommended on the package.

•If the liquid detergent has lost its fluidity, dilute it with water before putting in the detergent cup.

If the product does not contain a liquid detergent cup:

•Do not use liquid detergent for the prewash in a programme with prewash.

•Use the detergent manufacturer’s measuring cup and follow the instructions on the package.

•Liquid detergent stains your clothes when used with Delayed Start function. If you are going to use the Delayed Start function, do not use liquid detergent.

Using gel and tablet detergent

When using tablet, gel, etc. detergents, read the manufacturer’s instructions on the detergent package carefully and follow the

EN

dosage values. If there is not any instruction on the package, apply the following.

•If the gel detergent thickness is fluidal and your machine does not contain a special liquid detergent cup, put the gel detergent into the main wash detergent compartment during first water intake. If your machine contains a liquid detergent cup, fill the detergent into this cup before starting the programme.

•If the gel detergent thickness is not fluidal or in the shape of capsule liquid tablet, put it directly into the drum before washing.

•Put tablet detergents into the main wash compartment (compartment nr. II) or directly into the drum before washing.

C Tablet detergents may leave residues in the detergent compartment. If you encounter such a case, place the tablet detergent between the laundry, close to the lower part of the drum in future washings.

C Use the tablet or gel detergent without selecting the prewash function.

Using starch

•Add liquid starch, powder starch or the dyestuff into the softener compartment as instructed on the package.

•Do not use softener and starch together in a washing cycle.

•Wipe the inside of the machine with a damp and clean cloth after using starch.

Using bleaches

•Select a programme with prewash and add the bleaching agent at the beginning of the prewash. Do not put detergent in the prewash compartment.

As an alternative application, select a programme with extra rinse and add the bleaching agent while the machine is taking water from the detergent compartment during first rinsing step.

•Do not use bleaching agent and detergent by mixing them.

•Use just a little amount (approx. 50 ml) of bleaching agent and rinse the clothes very well as it causes skin irritation. Do not pour the bleaching agent onto the clothes and do not use it for coloured clothes.

•When using oxygen based bleaches, follow the instructions on the package and select a programme that washes at a lower temperature.

•Oxygen based bleaches can be used together with detergents; however, if its thickness is not the same with the

detergent, put the detergent first into the compartment nr. “II” in the detergent drawer and wait until the detergent flows while the machine is taking in water.

Add the bleaching agent from the same compartment while the machine is still taking in water.

Using limescale remover

•When required, use limescale removers manufactured specifically for washing machines only.

•Always follow instructions on the package.

14 EN

Tips for efficient washing

<![if ! IE]>

<![endif]>Soiling Level

			Clothes
		Light colours and	Colors	Dark colors	Delicates/
		whites			Woolens/Silks
		(Recommended	(Recommended	(Recommended	(Recommended
				temperature	temperature
		temperature range	temperature range
				range based on	range based
		based on soiling	based on soiling level:
				soiling level: cold-	on soiling level:
		level: 40-90C)	cold-40C)
				40C)	cold-30C)
		It may be necessary
		to pre-treat the	Powder and
		stains of perform	liquid detergents
		prewash. Powder	recommended for
		and liquid detergents	colours can be	Liquid detergents	Prefer liquid
	Heavily Soiled	recommended	used at dosages		detergents
		for whites can be	recommended for	suitable for	produced for
				colours and dark
		used at dosages	heavily soiled clothes.		delicate clothes.
	(difficult stains	recommended for	It is recommended to	colours can be	Woollen and silk
	such as grass,	heavily soiled clothes.	use powder detergents	used at dosages	clothes must
	coffee, fruits and	It is recommended	to clean clay and soil	recommended	be washed with
	blood.)	to use powder	stains and the stains	for heavily soiled	special woollen
				clothes.
		detergents to clean	that are sensitive		detergents.
		clay and soil stains	to bleaches. Use
		and the stains that	detergents without
		are sensitive to	bleach.
		bleaches.
		Powder and	Powder and	Liquid detergents	Prefer liquid
	Normally Soiled		liquid detergents		detergents
		liquid detergents	recommended for	suitable for	produced for
		recommended		colours and dark
			colours can be		delicate clothes.
	(For example,	for whites can be	used at dosages	colours can be	Woollen and silk
	stains caused by	used at dosages	recommended for	used at dosages	clothes must
	body on collars	recommended	normally soiled clothes.	recommended	be washed with
	and cuffs)	for normally soiled		for normally soiled
		clothes.	Use detergents without	clothes.	special woollen
			bleach.		detergents.
			Powder and	Liquid detergents	Prefer liquid
		Powder and	liquid detergents		detergents
	Lightly Soiled	liquid detergents	recommended for	suitable for	produced for
				colours and dark
		recommended	colours can be		delicate clothes.
		for whites can be	used at dosages	colours can be	Woollen and silk
	(No visible stains			used at dosages
		used at dosages	recommended for		clothes must
	exist.)	recommended for	lightly soiled clothes.	recommended	be washed with
		lightly soiled clothes.	Use detergents without	for lightly soiled	special woollen
				clothes.
			bleach.		detergents.

15 EN

5 Operating the product

Control panel

1

2

3

4

5

8

7

6

1 - Programme Selection knob (Uppermost position On / Off) 2 - Display

3 - Delayed Start button

4 - Programme Follow-up indicator

5 - Start / Pause button

6 - Auxiliary Function buttons

7 - Spin Speed Adjustment button

8 - Temperature Adjustment button

Dark wash	Dark wash	Synthetics	Cottons	Pre-wash	Main	Rinse	Wash	Spin	Delicate	Pet hair Door Ready
(Darkcare)	(Darkcare)				wash					removal
Drain	Anti-	Duvet	Child-	Hand	BabyProtect	Cotton	Woollens expres 14		Daily	mini 30	On/Off
(Pump)	creasing	(Bedding) proof lock		Wash		Eco	Super short
							express
Daily	Rinse hold	Start/	No spin	Quick	Finished	Cold	Temperature	Self	Lingerie	Eco Clean
express		Pause		wash				Clean
Mixed 40	Super 40	Extra rinse	Freshen	Shirts	Jeans	Sport	Time delay Intensive		Fashioncare	Anti-	BabyProtect+
(Mix40)		(Rinse Plus) up								allergic

16 EN

Preparing the machine

1. Make sure that the hoses are connected tightly.

2. Plug in your machine.

3. Turn the tap on completely.

4. Place the laundry in the machine.

5. Add detergent and fabric softener.

Programme selection

1. Select the programme suitable for the type, quantity and soiling degree of the laundry in accordance with the "Programme and consumption table" and the temperature table below.

		Heavily soiled white cottons
	90˚C	and linens. (coffee table covers,
		tableclothes, towels, bed sheets,
		etc.)
		Normally soiled, coloured, fade
	60˚C	proof cottons or synthetic clothes
		(shirt, nightgown, pajamas, etc.)
		and lightly soiled white linens
		(underwear, etc.)
	40˚C-	Blended laundry including
	30˚C-	delicate textile (veil curtains, etc.),
	Cold	synthetics and woolens.

2.Select the desired programme with the Programme Selection button.

C Programmes are limited with the highest spin speed appropriate for that particular type of fabric.

C When selecting a programme, always consider the type of fabric, colour, degree of soiling and permissible water temperature.

C Always select the lowest required temperature. Higher temperature means higher power consumption.

C For further programme details, see "Programme and consumption table".

Main programmes

Depending on the type of fabric, use the following main programmes.

• Cottons

Use this programme for your cotton laundry (such as bed sheets, duvet and pillowcase sets, towels, bathrobes, underwear, etc.).

Your laundry will be washed with vigorous washing action for a longer washing cycle.

• Synthetics

Use this programme to wash your synthetic clothes (shirts, blouses, synthetic/cotton blends, etc.). It washes with a gentle action and has a shorter washing cycle compared to the Cottons programme.

17

For curtains and tulle, use the Synthetic 40˚C programme with prewash and anti-creasing functions selected. As their meshed texture causes excessive foaming, wash the veils/ tulle by putting little amount of detergent into the main wash compartment. Do not put detergent in the prewash compartment.

• Woollens

Use this programme to wash your woolen clothes. Select the appropriate temperature complying with the tags of your clothes. Use appropriate detergents for woolens.

Additional programmes

For special cases, additional programmes are available in the machine.

C Additional programmes may differ according to the model of the machine.

• Cotton Economic

You may wash your normally soiled durable cotton and linen laundry in this programme with the highest energy and water saving compared to all other wash programmes suitable for cottons. Actual water temperature may differ from the declared cycle temperature. Programme duration may automatically be shortened during later stages of the programme if you wash less amount (e.g. ½ capacity or less) of laundry. In this case energy and water consumption will be further decreased giving you the opportunity for a more economical wash. This feature is available for certain models having remaining time display.

• BabyProtect

Use this programme to wash baby laundry, and the laundry that belongs to allergic persons. Longer heating time and an additional rinsing step provide a higher level of hygiene.

• Hand wash

Use this programme to wash your woolen/ delicate clothes that bear “not machinewashable” tags and for which hand wash is recommended. It washes laundry with a

very gentle washing action to not to damage clothes.

• Daily express

Use this programme to wash your lightly soiled cotton clothes in a short time.

• Darkwash

Use this programme to wash your dark coloured laundry or the laundry that you do not want it get faded. Washing is performed with little mechanic action and at low temperatures. It is recommended to use liquid detergent or woolen shampoo for dark coloured laundry.

EN

• Mixed 40 (Mix 40)

Use this programme to wash your cotton and synthetic clothes together without sorting them.

Special programmes

For specific applications, select any of the following programmes.

• Rinse

Use this programme when you want to rinse or starch separately.

• Spin + Drain

Use this programme to apply an additional spin cycle for your laundry or to drain the water in the machine.

Before selecting this programme, select the desired spin speed and press Start / Pause button. First, the machine will drain the water inside of it. Then, it will spin the laundry

with the set spin speed and drain the water coming out of them.

If you wish to drain only the water without spinning your laundry, select the Pump+Spin programme and then select the No Spin function with the help of Spin Speed

Adjustment button. Press Start / Pause button.

C Use a lower spin speed for delicate laundries.

Temperature selection

Whenever a new programme is selected, the maximum temperature for the selected programme appears on the temperature indicator.

To decrease the temperature, press the

Temperature Adjustment button. Temperature will decrease gradually.

C If the programme has not reached the heating step, you can change the temperature without switching the machine to Pause mode.

Spin speed selection

Whenever a new programme is selected, the recommended spin speed of the selected programme is displayed on the spin speed indicator.

To decrease the spin speed, press the Spin

Speed Adjustment button. Spin speed decreases gradually. Then, depending on the model of the product, "Rinse Hold" and

"No Spin" options appear on the display.

See "Auxiliary function selection" section for explanations of these options.

C If the programme has not reached the spinning step, you can change the speed without switching the machine to Pause mode.

18 EN

Programme and consumption table

EN							Auxiliary functions
		<![if ! IE]> <![endif]>(kg)LoadMax.	<![if ! IE]> <![endif]>ConsumptionWater(l)	<![if ! IE]> <![endif]>ConsumptionEnergy(kWh)	<![if ! IE]> <![endif]>Speed***Max.	<![if ! IE]> <![endif]>Prewash	<![if ! IE]> <![endif]>WashQuick	<![if ! IE]> <![endif]>PlusRinse	<![if ! IE]> <![endif]>Creasing-Anti	<![if ! IE]> <![endif]>HoldRinse	<![if ! IE]> <![endif]>Soaking	<![if ! IE]> <![endif]>removalhairPet	Selectable
Programme													temperature range
													°C
Cottons	90	5	66	2.25	1600	•	•	•	•	•	•	•	Cold-90
Cottons	60	5	66	1.45	1600	•	•	•	•	•	•	•	Cold-90
Cottons	40	5	66	0.85	1600	•	•	•	•	•	•	•	Cold-90
Cotton Economic	60**	5	37	0.74	1600					•			40-60
Cotton Economic	60**	2.5	30	0.69	1600					•			40-60
Cotton Economic	40**	2.5	30	0.61	1600					•			40-60
Daily express	90	5	55	1.90	1400			•		•			Cold-90
Daily express	60	5	55	1.00	1400			•		•			Cold-90
Daily express	30	5	55	0.20	1400			•		•			Cold-90
Darkwash	40	2.5	58	0.45	800			*		•			Cold-40
Mix40	40	3	45	0.50	800	•	•	•	•	•	•	•	Cold-40
Hand wash	30	1	30	0.15	600								Cold-30
Woollens	40	1.5	40	0.30	600			•		•			Cold-40
BabyProtect	90	5	85	1.90	1600	•		*		•	•		30-90
Synthetics	60	2.5	45	0.90	800	•	•	•	•	•	•	•	Cold-60
Synthetics	40	2.5	45	0.42	800	•	•	•	•	•	•	•	Cold-60

** “Cotton Economic 40°C and Cotton Economic 60°C are the standard programmes.” These programmes are referred to as ‘standard 40°C cotton programme’ and ‘standard 60°C cotton programme’

• : Selectable

* : Automatically selected, no canceling.

**: Energy Label programme (EN 60456 Ed.3)

***: If maximum spin speed of the machine is lower then this value, you can only select up to the maximum spin speed.

- :

C

C

C

See the programme description for maximum load.

Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage.

You can see the washing time of the programme you have selected on the display of the machine. It is normal that small differences may occur between the time shown on the display and the real washing time.

The auxiliary functions in the table may vary according to the model of your machine.

19 EN

Auxiliary function selection

Select the desired auxiliary functions before starting the programme. Furthermore, you may also select or cancel auxiliary functions that are suitable to the running programme without pressing the Start / Pause button when the machine is operating. For this, the machine must be in a step before the auxiliary function you are going to select or cancel.

If the auxiliary function cannot be selected or canceled, light of the relevant auxiliary function will blink 3 times to warn the user. C Some functions cannot be selected

together. If a second auxiliary function conflicting with the first one is selected before starting the machine, the function selected first will be canceled and the second auxiliary function selection will remain active. For example, if you want to select Quick Wash after you have selected the Prewash, Prewash will be canceled and Quick Wash will remain active.

C An auxiliary function that is not compatible with the programme cannot be selected. (See "Programme and consumption table")

C Auxiliary Function buttons may vary according to the model of the machine.

• Prewash

A Prewash is only worthwhile for heavily soiled laundry. Not using the Prewash will save energy, water, detergent and time.

C Prewash without detergent is recommended for tulle and curtains.

• Quick Wash

This function can be used in Cottons and Synthetics programmes. It decreases the washing times and also the number of rinsing steps for lightly soiled laundry.

C When you select this function, load your machine with half of the maximum

laundry specified in the programme table.

• Rinse Plus

This function enables the machine to make another rinsing in addition to the one already made after the main wash. Thus, the risk for sensitive skins (babies, allergic skins, etc.) to be effected by the minimal detergent remnants on the laundry can be reduced.

• Anti-Creasing

This function creases the clothes lesser when they are being washed. Drum movement

is reduced and spinning speed is limited to prevent creasing. In addition, washing is done with a higher water level.

20

• Rinse Hold

If you are not going to unload your clothes immediately after the programme completes, you may use rinse hold function to keep your laundry in the final rinsing water in order to prevent them from getting wrinkled when there is no water in the machine. Press Start / Pause button after this process if you want to drain the water without spinning your laundry. Programme will resume and complete after draining the water.

If you want to spin the laundry held in water, adjust the Spin Speed and press Start /

Pause button.

The programme resumes. Water is drained, laundry is spun and the programme is completed.

• Pet hair removal

This function helps to remove pet hair that remain on your garments more effectively. When you select this function, Prewash and

Extra Rinse steps are added to the normal programme. Thus, washing is performed with more water (30%) and the pet hair is removed more effectively.

ANever wash your pets in the washing machine.

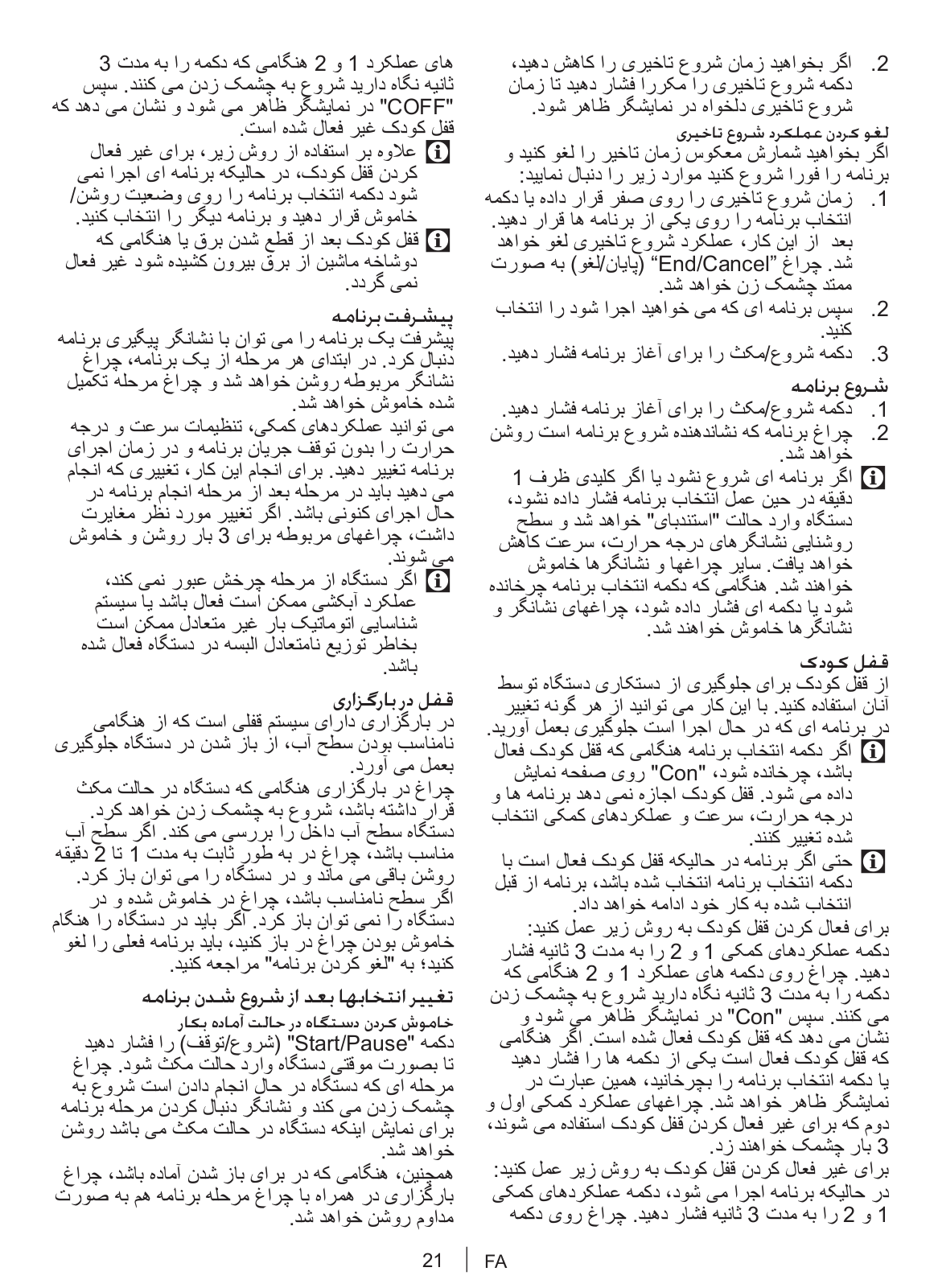

Delayed Start

With the Delayed Start function the startup of the programme may be delayed up to 19 hours. Delayed start time can be increased by increments of 1 hour.

C Do not use liquid detergents when you set Delayed Start! There is the risk of staining of the clothes.

1.Open the loading door, place the laundry and put detergent, etc.

2.Select the washing programme, temperature, spin speed and, if required, the auxiliary functions.

3.Set the desired time by pressing the Delayed Start button.

4.Press Start / Pause button. The delayed start time you have set is displayed. Delayed start countdown starts. “_” symbol next to the delayed start time moves up and down on the display.

C Additional laundry may be loaded during the delayed start period.

5.At the end of the countdown, duration of the selected programme will be displayed. “_” symbol will disappear and the selected programme will start.

Changing the Delayed Start period

If you want to change the time during countdown:

1.Press Delayed Start button. Time will increase by 1 hour each time you press

EN
