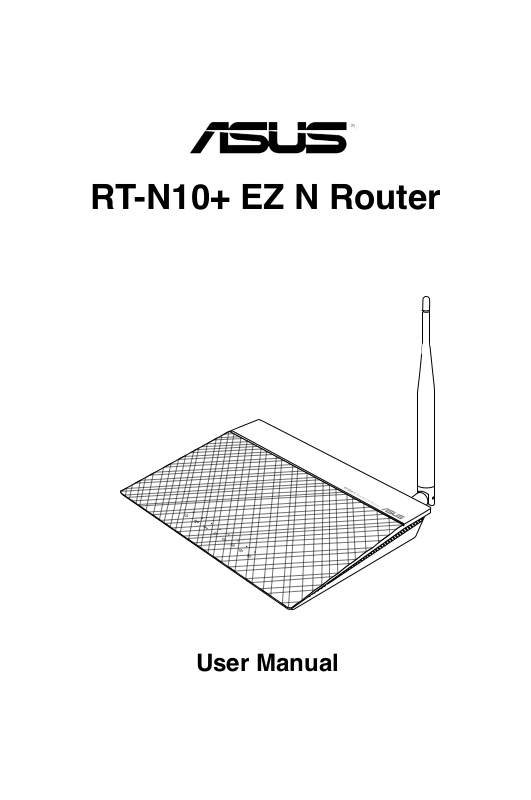

RT-N10+ EZ N Router
User Manual
E7936
Revised Edition
December 2012
Copyright © 2012 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product contains copyrighted software that is licensed under the General Public License (“GPL”), under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software Licenses. Such software in this product is distributed without any warranty to the extent permitted by the applicable law. Copies of these licenses are included in this product.
Where the applicable license entitles you to the source code of such software and/or other additional data, such data should have been shipped along with this product.
You may also download it for free from http://support.asus.com/download.
The source code is distributed WITHOUT ANY WARRANTY and licensed under the same license as the corresponding binary/object code.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you encounter any problems in obtaining the full corresponding source code we would be much obliged if you give us a notification to the email address gpl@asus.com, stating the product and describing the problem (please do NOT send large attachments such as source code archives etc to this email address).
Table of contents |
|
|
About this guide..................................................................................... |
4 |
|
How this guide is organized............................................................... |
4 |
|
Conventions used in this guide.......................................................... |
5 |
|
Chapter 1: |
Knowing your wireless router |
|
Package contents................................................................................... |
6 |
|
System requirements............................................................................. |
6 |
|
Before you proceed................................................................................ |
6 |
|
Hardware features.................................................................................. |
7 |
|
Top panel........................................................................................... |
|
7 |
Rear panel. |
........................................................................................ |
8 |
Bottom panel...................................................................................... |
9 |
|
Mounting options................................................................................. |
10 |
|
Chapter 2: |
Getting started |
|
Setting up the wireless router.............................................................. |
11 |
|
Using the Quick Internet Setup (QIS).................................................. |
11 |
|
Setting up the wireless router in Router mode................................. |
12 |
|
Setting up the wireless router in Repeater mode............................. |
15 |
|
Setting up the wireless router in AP mode....................................... |
16 |
|
Chapter 3: |
Configuring the network clients |
|
Accessing the wireless router............................................................ |
18 |
|
Setting an IP address for wired or wireless clients.......................... |
18 |
|
Chapter 4: |
Configuring via the web GUI |
|
Configuring via the web GUI............................................................... |
22 |
|
Using the Network Map........................................................................ |
24 |
|
Creating multiple SSID profiles........................................................ |
25 |
|
Managing bandwidth with EzQoS....................................................... |
26 |
|
Upgrading the firmware....................................................................... |
27 |
|
Restoring/Saving/Uploading settings................................................ |
28 |
|
Table of contents |
|
|
Chapter 5: |
Installing the utilities |
|
Installing the utilities............................................................................ |
29 |
|
Device Discovery.................................................................................. |
31 |
|
Firmware Restoration.......................................................................... |
32 |
|
WPS Wizard |
.......................................................................................... |
33 |
Using WPS ..........................................................................Wizard |
33 |
|
Chapter 6: |
Troubleshooting |
|
Troubleshooting................................................................................... |
39 |
|
ASUS DDNS ............................................................................Service |
42 |
|
Frequently ...............................................Asked Questions (FAQs) |
42 |
|
Appendices |
|
|
Notices.................................................................................................. |
|
44 |
ASUS Contact ..................................................................Information |
52 |
|
About this guide
This user guide contains information that you need to install and configure the
ASUS Wireless Router.
How this guide is organized
This guide contains the following parts:
•Chapter 1: Knowing your wireless router
This chapter provides information on the package contents, system requirements, hardware features, and LED indicators of the ASUS Wireless Router.
•Chapter 2: Getting started
This chapter provides instructions on setting up the Router and Access Point modes of the ASUS Wireless Router.
•Chapter 3: Configuring the network clients
This chapter provides instructions on setting up the clients in your network to work with your ASUS Wireless Router.
•Chapter 4: Configuring via the web GUI
This chapter provides instructions on configuring the ASUS Wireless Router using its web graphics user interface (web GUI).
•Chapter 5: Installing the utilities
This chapter provides information on the utilities that are available from http://support.asus.com.
•Chapter 6: Troubleshooting
This chapter provides you with a troubleshooting guide for solving common problems you may encounter when using the ASUS Wireless Router.
•Appendices
This chapter provides you with the regulatory Notices and Safety Statements.
Conventions used in this guide
WARNING: Information to prevent injury to yourself when trying to complete a task.
CAUTION: Information to prevent damage to the components when trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.
Knowing 1your wireless router
Package contents
Check the following items in your ASUS Wireless Router package.
RT-N10+ Wireless Router x1
Power adapter x1
RJ45 cable x1
Quick Start Guide x1
Note: If any of the items is damaged or missing, contact your retailer.
System requirements
Before installing the ASUS Wireless Router, ensure that your system/network meets the following requirements:
•An Ethernet RJ-45 port (10Base-T/100Base-TX)
•At least one IEEE 802.11b/g/n device with wireless capability
•An installed TCP/IP and Internet browser
Before you proceed
Take note of the following guidelines before installing the ASUS Wireless Router:
•The length of the Ethernet cable that connects the device to the network (hub, ADSL/cable modem, router, wall patch) must not exceed 100 meters.
•Place the device on a flat and stable surface as far from the ground as possible.
•Keep the device clear from metal obstructions and away from direct sunlight.
•Keep the device away from transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal loss.
•Install the device in a central area to provide ideal coverage for all wireless mobile devices.
•Install the device at least 20cm from a person to insure that the product is
RT-N10+ |
Chapter 1: Knowing your wireless router |
operated in accordance with the RF Guidelines for Human Exposure adopted by the Federal Communications Commission.
Hardware features
Top panel
Status indicators
LED |
Status |
Indication |
|
|
Off |
No power |
|
(Power) |
On |
System ready |
|
|
Flashing |
Rescue mode |
|
|
Off |
No power |
|
(WLAN) |
On |
Wireless system ready |
|
|
Flashing |
Transmitting or receiving data (wireless) |
|
WPS |
Flashing |
WPS processing |
|
|
Off |
No power or no physical connection |
|
(WAN [Wide Area |
On |
Has physical connection to an Ethernet |
|
|
network |
|
|
Network]) |
|
|
|
Flashing |
Transmitting or receiving data (through |
|
|
|
|
||
|
|
Ethernet cable) |
|
|
Off |
No power or no physical connection |
|
~ |
On |
Has physical connection to an Ethernet |
|
(LAN 1-4 [Local |
|
network |
|
Area Network]) |
Flashing |
Transmitting or receiving data (through |
|
|
|
Ethernet cable) |
|
|
|
|
|
Chapter 1: Knowing your wireless router |
RT-N10+ |
||
Rear panel
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
2 |
|
|
|
|
|
|
|
3 |
|
|
4 |
5 |
6 |
|
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Item |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Description |
|
|
|
|
|
|||||||||||||
1WPS button
Press this button to establish wireless connection.
LAN 1 ~ 4 ports
2Connect RJ-45 Ethernet cables to these ports to establish LAN connection.
WAN port
3Connect an RJ-45 Ethernet cable to this port to establish WAN connection.
Reset button
4Press this button for more than five seconds to reset the system to its factory default settings.
5Power button
Press this button to power on or off the stystem.
Power (DC-In) port
6Insert the AC adapter into this port to connect your router to a power source.
RT-N10+ |
Chapter 1: Knowing your wireless router |
Bottom panel
1
2 |
Item |
Description |
1Mounting hooks
Use the mounting hooks to mount your router on concrete or wooden surfaces using two round head screws.
2Air vents
These vents provide ventilation to your router.
Note: For details on mounting your router on a wall or ceiling, refer to the section Mounting options on the next page of this user manual.
Chapter 2: Setting up the hardware |
RT-N10+ |
Mounting options
Out of the box, the ASUS Wireless Router is designed to sit on a raised flat surface like a file cabinet or book shelf. The unit may also be converted for mounting to a wall or ceiling.
To mount the ASUS Wireless Router:
1.Look on the underside for the two mounting hooks.
2.Mark two upper holes in a flat surface.
3.Tighten two screws until only 1/4'' is showing.
4.Latch the hooks of the ASUS Wireless Router onto the screws.
Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the screws or if it is too loose.
10 |
RT-N10+ |
Chapter 2: Setting up the hardware |
Getting started2
Setting up the wireless router
The ASUS Wireless Router includes a web graphics user interface (web GUI) that allows you to configure the wireless router using your web browser on your computer.
Note: For details on configuring your wireless router using the web GUI, refer to Chapter 4:
Configuring via the web GUI.
You can set up the wireless router in any of these three operation modes: Router (IP Sharing), Repeater, and Access Point (AP). Set up these three operation modes via the Quick Internet Setup (QIS).
Using the Quick Internet Setup (QIS)
The Quick Internet Setup (QIS) function, which is integrated in the wireless router’s web GUI, detects the Internet connection type automatically and guides you in setting up your network quickly.
The QIS web page appears automatically after you connected all your devices and launched your web browser. You may also launch the QIS from the Network Map page in the web GUI. To do this, click Go in the QIS field under Internet status.
Chapter 2: Setting up the hardware |
RT-N10+ |
11 |
Setting up the wireless router in Router mode
In the Router mode, the wireless router connects to the Internet via PPPoE, Automatic IP, PPTP, L2TP, or Static IP, and provides you with wireless radio signals. The NAT, firewall, and IP sharing services for LAN clients are enabled.
To set up the wireless router in Router mode:
1. Connect your devices.
RT-N10+
Modem
Note: We recommend that you use an Ethernet cable (wired connection) to connect your computer to the wireless router for initial configuration to avoid possible setup problems due to wireless uncertainty.
2.Launch your web browser and the QIS web page appears automatically. Select
IP Sharing mode, then click Next.
Note: If the QIS web page does not appear after you launched your web browser, disable the proxy settings on your web browser.
12 |
RT-N10+ |
Chapter 2: Setting up the hardware |
Then the QIS starts to detect your Internet connection type.
3. Key in the user name and password. Click Apply all settings.
Note:
•The PPPoE Internet connection type is used in this setup case. The setup screen varies with different Internet connection types.
•Obtain the required information such as the user name and password from your Internet Service Provider (ISP).
Chapter 2: Setting up the hardware |
RT-N10+ |
13 |
4. The Internet connection setup is completed.
•Click Going to Internet to surf the Internet.
•Click Simply Wireless Security Setting to configure the basic security settings including the SSID, authentication, and encryption methods for the wireless router.
•Click Advanced Setting page to manually configure advanced settings for the wireless router.
•Click Add to Favorites to add this URL to your Favorites list for quick access to the web GUI.
14 |
RT-N10+ |
Chapter 2: Setting up the hardware |
Setting up the wireless router in Repeater mode
In the Repeater mode, the wireless router extends your wireless network coverage and provides you with higher quality wireless radio signals. The NAT, firewall, and
IP sharing services are disabled.
To set up the wireless router in Repeater mode:
1. Connect your devices.
RT-N10+
Modem
Client
Wireless Router
Note: We recommend that you use an Ethernet cable (wired connection) to connect your computer to the wireless router for initial configuration to avoid possible setup problems due to wireless uncertainty.
2.Launch your web browser and the QIS web page appears automatically. Select
Repeater mode, then click Next.
Note: If the QIS web page does not appear after you launched your web browser, disable the proxy settings on your web browser.
Chapter 2: Setting up the hardware |
RT-N10+ |
15 |
3. Select the AP whose wireless signal you want to extend, then click Connect.
Setting up the wireless router in AP mode
In the AP mode, the wireless router receives the WAN IP address from the router connected to the WAN port and provides you with wireless radio signals. The NAT, firewall, and IP sharing services are disabled.
To set up the wireless router in AP mode:
1. Connect your devices.
RT-N10+
Modem
Client
Router
Note: We recommend that you use an Ethernet cable (wired connection) to connect your computer to the wireless router for initial configuration to avoid possible setup problems due to wireless uncertainty.
16 |
RT-N10+ |
Chapter 2: Setting up the hardware |
