P5S-MX SE
Motherboard
E3214
First Edition
April 2007
Copyright © 2006 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
ii
Contents
Notices ......................................................................................................... vi
Safety information ..................................................................................... vii
P5S-MX SE specications summary .......................................................... x
Chapter 1: Product introduction
1.1 Welcome! ...................................................................................... 1-2
1.2 Package contents .........................................................................
1.3 Special features ............................................................................
1.3.1 Product highlights ...........................................................
1.3.2 ASUS Special features ...................................................
1.4 Before you proceed .....................................................................
1.5 Motherboard overview .................................................................
1.5.1 Placement direction ........................................................
1.5.2 Screw holes ....................................................................
1.5.3 Motherboard layout .........................................................
1.5.4 Layout contents ...............................................................
1.6 Central Processing Unit (CPU) ...................................................
1.6.1 Installing the CPU .........................................................
1.6.2 Installing the CPU heatsink and fan ..............................
1.6.3 Uninstalling the CPU heatsink and fan .........................
1.7 System memory .........................................................................
1.7.1 Overview .......................................................................
1.7.2 Memory congurations ..................................................
1.7.3 Installing a DIMM ..........................................................
1.7.4 Removing a DIMM ........................................................
1.8 Expansion slots ..........................................................................
1.8.1 Installing an expansion card .........................................
1.8.2 Conguring an expansion card .....................................
1.8.3 Interrupt assignments ...................................................
1.8.4 PCI slots ........................................................................
1.8.5 PCI Express x1 slot .......................................................
1.8.6 PCI Express x16 slot .....................................................
1.9 Jumpers ......................................................................................
1.10 Connectors .................................................................................
1.10.1 Rear panel connectors ..................................................
1.10.2 Internal connectors .......................................................
1-2
1-2
1-2
1-4
1-5
1-6
1-6
1-6
1-7
1-8
1-9
1-10
1-12
1-14
1-16
1-16
1-16
1-20
1-20
1-21
1-21
1-21
1-22
1-23
1-23
1-23
1-24
1-26
1-26
1-28
iii
Contents
Chapter 2: BIOS setup
2.1 Managing and updating your BIOS ............................................ 2-2
2.1.1 Creating a bootable oppy disk .......................................
2.1.2 ASUS EZ Flash utility ......................................................
2.1.3 AFUDOS utility ................................................................
2.1.4 ASUS CrashFree BIOS 2 utility ......................................
2.1.5 ASUS Update utility ........................................................
2.2 BIOS setup program ..................................................................
2.2.1 BIOS menu screen ........................................................
2.2.2 Menu bar .......................................................................
2.2.3 Navigation keys .............................................................
2.2.4 Menu items ...................................................................
2.2.5 Sub-menu items ............................................................
2.2.6 Conguration elds .......................................................
2.2.7 Pop-up window .............................................................
2.2.8 Scroll bar .......................................................................
2.2.9 General help .................................................................
2.3 Main menu ..................................................................................
2.3.1 System Time .................................................................
2.3.2 System Date .................................................................
2.3.3 Legacy Diskette A ........................................................
2.3.4 Primary and SATA IDE Master/Slave ..................................
2.3.5 IDE Conguration ..........................................................
2.3.6 System Information .......................................................
2.4 Advanced menu .........................................................................
2.4.1 USB Conguration ........................................................
2.4.2 CPU Conguration ........................................................
2.4.3 Chipset .........................................................................
2.4.4 Onboard Devices Conguration ....................................
2.4.5 PCI PnP ........................................................................
2.5 Power menu ................................................................................
2.5.1 Suspend Mode ..............................................................
2.5.2 Repost Video on S3 Resume ........................................
2.5.3 ACPI 2.0 Support ..........................................................
2.5.4 ACPI APIC Support .......................................................
2-2
2-3
2-4
2-6
2-8
2-11
2-12
2-12
2-12
2-13
2-13
2-13
2-13
2-13
2-13
2-14
2-14
2-14
2-14
2-15
2-16
2-17
2-18
2-18
2-19
2-21
2-23
2-24
2-25
2-25
2-25
2-25
2-25
iv
Contents
2.5.5 APM Conguration ....................................................... 2-26
2.5.6 Hardware Monitor .........................................................
2.6 Boot menu ..................................................................................
2.6.1 Boot Device Priority ......................................................
2.6.2 Boot Settings Conguration ..........................................
2.6.3 Security .........................................................................
2.7 Exit menu ....................................................................................
Chapter 3: Software support
3.1 Installing an operating system ................................................... 3-2
3.2 Support CD information ..............................................................
3.2.1 Running the support CD .................................................
3.2.2 Drivers menu ...................................................................
3.2.3 Utilities menu ..................................................................
3.2.4 Make Disk menu .............................................................
3.2.5 Manual menu ..................................................................
3.2.6 ASUS Contact information ..............................................
Appendix: CPU features
A.1 Intel® EM64T ..................................................................................A-2
®
A.2 Enhanced Intel SpeedStep
A.2.1 System requirements ......................................................
A.2.2 Using the EIST ................................................................
®
A.3 Intel
Hyper-Threading Technology ...........................................A-4
Using the Hyper-Threading Technology ........................................A-4
Technology (EIST) ........................A-2
2-27
2-28
2-28
2-29
2-30
2-32
3-2
3-2
3-3
3-4
3-5
3-5
3-6
A-2
A-3
v
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
•
This device may not cause harmful interference, and
•
This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with manufacturer’s
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is
required to assure compliance with FCC regulations. Changes or modications
to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
vi
Safety information
Electrical safety
•
To prevent electrical shock hazard, disconnect the power cable from the
electrical outlet before relocating the system.
•
When adding or removing devices to or from the system, ensure that the
power cables for the devices are unplugged before the signal cables are
connected. If possible, disconnect all power cables from the existing system
before you add a device.
•
Before connecting or removing signal cables from the motherboard, ensure
that all power cables are unplugged.
•
Seek professional assistance before using an adpater or extension cord.
These devices could interrupt the grounding circuit.
•
Make sure that your power supply is set to the correct voltage in your area.
If you are not sure about the voltage of the electrical outlet you are using,
contact your local power company.
•
If the power supply is broken, do not try to x it by yourself. Contact a
qualied service technician or your retailer.
Operation safety
•
Before installing the motherboard and adding devices on it, carefully read all
the manuals that came with the package.
•
Before using the product, make sure all cables are correctly connected and the
power cables are not damaged. If you detect any damage, contact your dealer
immediately.
•
To avoid short circuits, keep paper clips, screws, and staples away from
connectors, slots, sockets and circuitry.
•
Avoid dust, humidity, and temperature extremes. Do not place the product in
any area where it may become wet.
•
Place the product on a stable surface.
•
If you encounter technical problems with the product, contact a qualied
service technician or your retailer.
vii
About this guide
This user guide contains the information you need when installing and conguring
the motherboard.
How this guide is organized
This manual contains the following parts:
• Chapter 1: Product introduction
This chapter describes the features of the motherboard and the new
technology it supports. It also lists the hardware setup procedures that you
have to perform when installing system components. It includes description of
the jumpers and connectors on the motherboard.
• Chapter 2: BIOS setup
This chapter tells how to change system settings through the BIOS Setup
menus. Detailed descriptions of the BIOS parameters are also provided.
• Chapter 3: Software support
This chapter describes the contents of the support CD that comes with the
motherboard package.
Where to nd more information
Refer to the following sources for additional information and for product and
software updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and
software products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty
yers, that may have been added by your dealer. These documents are not
part of the standard package.
viii
Conventions used in this guide
To make sure that you perform certain tasks properly, take note of the following
symbols used throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself
when trying to complete a task.
CAUTION: Information to prevent damage to the components
when trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a
task.
NOTE: Tips and additional information to help you complete a
task.
Typography
Bold text Indicates a menu or an item to select.
Italics
Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign
means that you must press the enclosed key.
Example: <Enter> means that you must press the
Enter or Return key.
<Key1>+<Key2>+<Key3> If you must press two or more keys simultaneously, the
key names are linked with a plus sign (+).
Example: <Ctrl>+<Alt>+<D>
Command Means that you must type the command exactly
as shown, then supply the required item or value
enclosed in brackets.
Example: At the DOS prompt, type the command line:
afudos /i[lename]
afudos /iP5SMXWAP.ROM
ix
P5S-MX SE specications summary
CPU LGA775 socket for Intel® Core™2 Duo/ Pentium®
Chipset Northbridge: SIS 671FX
System Bus 1066 / 800 / 533 MHz
Memory 2 x 240-pin DIMM sockets supports unbuffered non-ECC
Expansion Slots 1 x PCI Express x 16 slot
VGA SIS Chrome9 HC Integrated Graphics, up to 256MB
Storage Southbridge SIS968 supports:
LAN SIS 968 built-in Gigabit MAC with external Attansic PHY
Audio Realtek® ALC 662 6-channel High Denition Audio
USB 8 x USB2.0 ports
ASUS Features ASUS CrashFree BIOS 2
D / Pentium® 4 / Celeron® Processors
Support Intel® 65nm and Dual Core CPU
Compatible with Intel® 05B/05A/04B/04A processors
Intel® EIST EM64T/Hyper-Threading Technology ready
(Refer to www.asus.com for Intel CPU support list)
Southbridge: SIS 968
4GB 667/533/400 MHz DDR2 memory modules
1 x PCI Express x 1 slot
2 x PCI slots
shared memory
- 1 x UltraDMA 133/100/66/33 hard disk drives
- 2 x SATA 3Gb/s with RAID 0, 1 function
CODEC
Support Jack-Sensing interface
ASUS EZ Flash
ASUS Q-Fan
ASUS MyLogo
(continued on the next page)
x
P5S-MX SE specications summary
Rear panel 1 x PS/2 keyboard port
Internal connectors 2 x USB 2.0 connectors support additional 4 USB 2.0 ports
Support CD contents Drivers
Other Accessories 1 x SATA cables
Form factor Micro-ATX form factor: 9.6’ in x 7.2’ in (24.4 cm x 18.3
1 x PS/2 mouse port
1 x Parallel port
1 x VGA port
1 x COM port
1 x LAN (RJ-45) port
4 x USB 2.0/1.1 ports
6-channel audio I/O port
1 x CPU / 1 x Chassis fan connectors
1 x S/PDIF Out connector
1 x Chassis intrusion connector
1 x Front panel audio connector
1 x CD audio in connector
1 x 24-pin ATX power connector
1 x 4-pin ATX 12 V power connector
System panel connector
ASUS PC Probe 2
ASUS LiveUpdate Utility
Anti-virus software (OEM version)
1 x SATA power cable
1 x UltraDMA 133/100/66 cable
1 x FDD cable
1 x I/O Shield
User manual
cm)
*Specications are subject to change without notice.
xi
xii
This chapter describes the motherboard
features and the new technologies
it supports.
Product
1
introduction
1.1 Welcome!
Thank you for buying an ASUS® P5S-MX SE motherboard!
The motherboard delivers a host of new features and latest technologies, making it
another standout in the long line of ASUS quality motherboards!
Before you start installing the motherboard, and hardware devices on it, check the
items in your package with the list below.
1.2 Package contents
Check your motherboard package for the following items.
Motherboard ASUS P5S-MX SE
Cables 1 x Ultra DMA 133/100/66 cable
1 x SATA cable
1 x SATA power cable
1 x Floppy disk drive cable
Accessories I/O shield
Application CD ASUS motherboard support CD
Documentation User guide
If any of the above items is damaged or missing, contact your retailer.
1.3 Special features
1.3.1 Product highlights
Intel® Core™2 Processor Ready
This motherboard supports the latest Intel® Core™2 processor in the LGA775
package. With the new Intel® Core™ microarchitecture technology and 1066 /
800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy
efcient CPU in the world.
Intel LGA775 CPU
This motherboar d supports the latest Pen tium 4 CPU from Intel in LGA775
package. With 1066/ 800/ 533MHz FSB, Hyper-Threading Technology and corespeeds up to 3.8GHz and beyond.
1-2 Chapter 1: Product introduction
Intel® 65nm Dual-Core CPU support
This motherboard suppor ts Intel® Pen tium® D/Pentium® 4/Celeron® dualcore processors built on the 65-nanometer (nm) process technology with copper
interconnect. Dual-core processors contain two physical CPU cores with dedicated
L2 caches to meet demands for more powerful processing. Intel®’s 65nm process
is the most advanced chip manufacturing technology, delivering breakthrough
performance, enhanced media experience, and low power consumption. Intel®
65nm dual-core processors utilize the latest package technologies for a thinner,
lighter design without compromising performance.
64-bit CPU support
64-bit comput ing, t he next generatio n technology to replace curren t 32-bit
architecture, delivers advanced system performance, faster memory access and
increased productivity. This motherboard provides excellent compatibility and
exibility by supporting either 64-bit or 32-bit architecture.
DDR2 memory support
The motherboard supports DDR2 memory that features data transfer rates of
667/533 MHz to meet the higher bandwidth requirements of the latest 3D graphics,
multimedia, and Internet applications.
Serial ATA 3.0 Gb/s technology
This motherboard supports the next-generation hard drives based on the Serial
ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and
doubling the bus bandwidth for high-speed data retrieval and saves. Easily backup
photos, videos and other entertainment contents to external devices. See page
1-30 for details.
S/PDIF digital sound ready
The motherboard supports the S/PDIF-out (SONY-PHILIPS Digtal Interface)
function through the S/PDIF interface at mid-board. It allows to transfer digital
audio without converting to analog format and keeps the best signal quality. See
page 1-28 for details.
ASUS P5S-MX SE 1-3
High Denition Audio
Enjoy high-end sound quality on your PC! The onboard 6-channel HD audio (High
Definition Audio, previously codenamed Azalia) CODEC enables high-quality
192KHz/24-bit audio output, jack-sensing feature.
1.3.2 ASUS Special features
ASUS Q-Fan technology
The ASUS Q- F a n technolo g y s m a r tly adju s t s the fan s p e e d s according
to th e sy s t e m lo a d ing to ens u r e qui e t , co o l , an d effic i e nt op e rat i o n .
See page 2-27 for details.
ASUS MyLogo™
This new feature present in the motherboard allows you to personalize and add
style to your system with customizable boot logos.
ASUS EZ Flash
With the ASUS EZ Flash, you can easily update the system BIOS even before
loading the operating system. No need to use a DOS-based utility or boot from a
oppy disk. See page 2-3 for details.
ASUS CrashFree BIOS 2
This feature allows you to restore the original BIOS data from the support CD in
case when the BIOS codes and data are corrupted. This protection eliminates the
need to buy a replacement ROM chip. See page 2-6 for details.
1-4 Chapter 1: Product introduction
1.4 Before you proceed
P5S-MX SE
P5S-MX SE
Onboard LED
SB_PWR
ON
Standby
Power
OFF
Powered
Off
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Unplug the power cord from the wall socket before touching any
component.
• Use a grounded wrist strap or touch a safely grounded object or
a metal object, such as the power supply case, before handling
components to avoid damaging them due to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded
antistatic pad or in the bag that came with the component.
• Before you install or remove any component, ensure
that the ATX power supply is switched off or the power cord is detached
from the power supply. Failure to do so may cause severe damage to the
motherboard, peripherals, and/or components.
Onboard LED
The motherboard comes with a standby power LED that lights up to indicate
that the system is ON, in sleep mode, or in soft-off mode. This is a reminder
that you should shut down the system and unplug the power cable before
removing or plugging in any motherboard component. The illustration below
shows the location of the onboard LED.
ASUS P5S-MX SE 1-5
P5S- MX SE
1.5 Motherboard overview
Before you install the motherboard, study the conguration of your chassis to
ensure that the motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so can cause you physical injury and damage
motherboard components.
1.5.1 Placement direction
When installing the motherboard, make sure that you place it into the chassis in the
correct orientation. The edge with external ports goes to the rear part of the chassis
as indicated in the image below.
1.5.2 Screw holes
Place six (6) screws into the holes indicated by circles to secure the motherboard
to the chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
Place this side towards
the rear of the chassis
1-6 Chapter 1: Product introduction
1.5.3 Motherboard layout
SIS
671FX
SIS
968
18.3cm(7.2in)
24.4cm(9.6in)
DDR2 DIMM1 (64 bit,240-pin module)
DDR2 DIMM
2
(64 bit,240-pin module)
PCIEX16
PCI1
PCI2
PCIEX1_1
CD
ALC662
AAFP
USB56
SATA1SATA2
CR2032 3V
Lithium Cell
CMOS Power
SPDIF_OUT
CHASSIS
F_PANEL
SUPER I/O
SB_PWR
FLOPPY
EATXPWR
CPU_FAN
PS2_USB_PWR
ATX12V
PRI_IDE
PS/2KBMS
T: Mouse
B: Keyboard
LAN1_USB34
COM1
PARALLEL PORT
VGA1
USB12
LGA775
P5S -MX SE
AMI
BIOS
Attansic
PHY
RTM876-660
PS2_USBPW
CHA_FAN
AUDIO
USB78
CLRTC
SPEAKER
Refer to section 1.10 Connectors for more information about rear panel
connectors and internal connectors.
ASUS P5S-MX SE 1-7
1.5.4 Layout contents
Slots Page
1. DDR2 DIMM slots 1-16
2. PCI slots 1-23
3. PCI Express x1 slots 1-23
4. PCI Express x16 slot 1-23
Jumper Page
1. Clear RTC RAM (3-pin CLRTC) 1-24
2. USB device wake-up (3-pin USBPW1-4, USBPW56, PS2-USBPW) 1-25
Rear panel connectors Page
1. PS/2 mouse port (green)
2. Parallel port
3.
LAN (RJ-45) port 1-26
4.
Line In port (light blue) 1-26
5.
Line Out port (lime) 1-26
6.
Microphone port (pink) 1-26
7.
USB 2.0 ports 1 and 2 1-27
8.
USB 2.0 ports 3 and 4 1-27
9.
VGA port 1-27
10. Serial port 1-27
11. PS/2 keyboard port (purple) 1-27
1-26
1-26
Internal connectors Pag
1. Floppy disk drive connector (34-1 pin FLOPPY) 1-28
2. Digital Audio connector (4-1 pin SPDIF_OUT) 1-28
3. IDE connector (40-1 pin PRI_IDE) 1-29
4. Serial ATA connectors (7-pin SATA1, SATA2) 1-30
5. USB connectors (10-1 pin USB56 78) 1-31
6. Optical drive audio connector (4-pin CD) 1-31
7. CPU
3-pin CHA_FAN)
8. Chassis intrusion connector (4-1 pin CHASSIS) 1-33
9. Front panel audio connector (10-1 pin AAFP) 1-33
10. ATX power connectors (24-pin EATXPWR, 4-pin ATX 12V) 1-34
11. System panel connector (10-1 pin PANEL) 1-35
1-8 Chapter 1: Product introduction
and chassis fan connectors (4-pin CPU_FAN, 1-32
e
1.6 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA775 socket designed for the
Intel® Core™2 Duo/Pentium® D/Pentium® 4 and Celeron
•
Make sure the AC power is off before you install the CPU.
• If installing a dual-core CPU, connect the chassis fan cable to the chassis
fan connector to ensure system stability.
•
Upon purchase of the motherboard, make sure that the PnP cap is on
the socket and the socket contacts are not bent. Contact your retailer
immediately if the PnP cap is missing, or if you see any damage to the PnP
cap/socket contacts/motherboard components. ASUS will shoulder the cost
of repair only if the damage is shipment/transit-related.
•
Keep the cap after installing the motherboard. ASUS will process Return
Merchandise Authorization (RMA) requests only if the motherboard comes
with the cap on the LGA775 socket.
• The product warranty does not cover damage to the socket contacts
resulting from incorrect CPU installation/removal, or misplacement/loss/
incorrect removal of the PnP cap.
®
processors.
ASUS P5S-MX SE 1-9
1.6.1 Installing the CPU
P5S-MX SE
P5S-MX SE CPU Socket 775
To install a CPU:
1. Locate the CPU socket on the motherboard.
Before installing the CPU, make sure that the cam box is facing towards you
and the load lever is on your left.
2. Press the load lever with your thumb (A), then move it to the left (B) until it is
released from the retention tab.
Retention tab
A
Load lever
B
This side of the socket box
should face you.
To prevent damage to the socket pins, do not remove the PnP cap unless you
are installing a CPU.
3. Lift the load lever in the direction of
the arrow to a 135º angle.
1-10 Chapter 1: Product introduction
PnP cap
4. Lift the load plate with your thumb
and forenger to a 100º angle (A),
then push the PnP cap from the load
plate window to remove (B).
Alignment key
5. Position the CPU over the
socket, making sure that
the gold triangle is on the
bottom-left corner of the
socket then t the socket
alignment key into the
CPU notch.
The CPU ts in only one correct orientation. DO NOT force the CPU into the
socket to prevent bending the connectors on the socket and damaging the CPU!
CPU notch
Gold triangle mark
B
A
Load plate
6. Close the load plate (A), then
A
push the load lever (B) until it
snaps into the retention tab.
7. If installing a dual-core CPU,
connect the chassis fan cable
B
to the chassis fan connector to
ensure system stability.
The motherboard supports Intel® LGA775 processors with Hyper-Threading
Technology. Refer to the Appendix for more information on these CPU features.
ASUS P5S-MX SE 1-11
1.6.2 Installing the CPU heatsink and fan
The Intel® LGA775 processor requires a specially designed heatsink and fan
assembly to ensure optimum thermal condition and performance.
•
When you buy a boxed Intel® processor, the package includes the CPU fan
and heatsink assembly. If you buy a CPU separately, make sure that you
use only Intel®-certied multi-directional heatsink and fan.
•
Your Intel® LGA775 heatsink and fan assembly comes in a push-pin design
and requires no tool to install.
•
If you purchased a separate CPU heatsink and fan assembly, make sure
that you have properly applied Thermal Interface Material to the CPU
heatsink or CPU before you install the heatsink and fan assembly.
Make sure that you have installed the motherboard to the chassis before you
install the CPU fan and heatsink assembly.
To install the CPU heatsink and fan:
1. Place the heatsink on top of the
installed CPU, making sure that
the four fasteners match the holes
on the motherboard.
Orient the heatsink and fan
assembly such that the CPU
fan cable is closest to the CPU
fan connector.
Motherboard hole
Narrow end
of the groove
Make sure to orient each fastener with the narrow end of the groove pointing
outward. (The photo shows the groove shaded for emphasis.)
1-12 Chapter 1: Product introduction
Fastener
2. Push down two fasteners at a time in
P5S-MX SE
P5S-MX SE
Fan Connectors
CPU_FAN
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PW
M
CHA_FAN
GND
Rotation
+12V
a diagonal sequence to secure the
heatsink and fan assembly in place.
B
A
A
A
B
B
A
B
3. Connect the CPU fan cable to the connector on the motherboard labeled
CPU_FAN.
Do not forget to connect the CPU fan connector! Hardware monitoring errors
can occur if you fail to plug this connector.
ASUS P5S-MX SE 1-13
1.6.3 Uninstalling the CPU heatsink and fan
To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable from
the connector on the motherboard.
2. Rotate each fastener
counterclockwise.
3. Pull up two fasteners at a time in
a diagonal sequence to disengage
the heatsink and fan assembly
from the motherboard.
A
B
A
A
B
B
A
B
4. Carefully remove the heatsink
and fan assembly from the
motherboard.
1-14 Chapter 1: Product introduction
5. Rotate each fastener clockwise to
ensure correct orientation when
reinstalling.
The narrow end of the
groove should point
outward after resetting.
(The photo shows the
groove shaded for
emphasis.)
Narrow end of the groove
Refer to the documentation in the boxed or stand-alone CPU fan package for
detailed information on CPU fan installation.
ASUS P5S-MX SE 1-15
1.7 System memory
P5S-MX SE
P5S-MX SE
240-pin DDR2 DIMM Sockets
128 Pins
112 Pins
DIMM2
DIMM1
1.7.1 Overview
The motherboard comes with two Double Data Rate 2 (DDR2) Dual Inline Memory
Modules (DIMM) sockets.
A DDR2 module has the same physical dimensions as a DDR DIMM but has a
240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are notched
differently to prevent installation on a DDR DIMM socket.
The gure illustrates the location of the DDR2 DIMM sockets:
1.7.2 Memory congurations
You may install 256 MB, 512 MB, 1 GB and 2 GB unbuffered non-ECC DDR2
DIMMs into the DIMM sockets.
• Always install DIMMs with the same CAS latency. For optimum compatibility,
it is recommended that you obtain memory modules from the same vendor.
• If you install two 1 or 2GB memory modules, the system may only recognize
less than 3GB because the address space is reserved for other critical
functions. This limitation appears on Windows® XP 32-bit operation system
which does not support Physical Address Extension (PAE).
®
• If you install Windows
than 3GB is recommended.
• This motherboard does not support memory modules made up of 128 Mb
chips or double sided x16 memory modules.
1-16 Chapter 1: Product introduction
XP 32-bit operation system, a total memory of less
Notes on memory limitations
• Due to chipset limitation, this motherboard can only support up to
4 GB on the operating systems listed below. You may install a maximum of
2 GB DIMMs on each slot, but only DDR2-533 and DDR2-667 2 GB density
modules are available for this conguration.
32-bit 64-bit
Windows
®
XP Windows® XP x64 Edition
Windows® 2003 server Windows® 2003 server x64 Edition
• Some old-version DDR2-667 DIMMs may not match Intel®’s
On-Die-Termination (ODT) requirement and will automatically downgrade
to run at DDR2-533. If this happens, contact your memory vendor to check
the ODT value.
• Due to chipset limitation, DDR2-667 with CL=3 will be downgraded to run
at DDR2-533 by default setting. If you want to operate with lower latency,
adjust the memory timing manually. There will be 4MB reduction in total
memory when enabling ASUS Thermostat function under Single Channel
mode, and 8MB reduction under Dual Channel Mode.
ASUS P5S-MX SE 1-17
Qualied Vendors Lists (QVL)
DDR2 667
Siz e Ve ndo r Mode l B rand Si de (s) P art No. DIMM1 DIM M2
256MB Kingston KVR667D2N5/256 Elpida SS E2508AB-6E-E • •
512MB Kingston KVR667D2N5/512 Kingston SS D6408TE8WL-27
1G Kingston KVR667D2N5/1G Kingston DS D6408TE8WL-3
512MB Samsung KR M378T6553CZ0-CE6 Samsung SS K4T51083QC
512MB Samsung KR M378T6453FZ0-CE6 Samsung DS K4T56083QF-ZCE6
512MB Samsung M378T6553CZ3-CE6 Samsung SS K4T51083QC-ZCE6
1G Samsung M378T2953CZ3-CE6 Samsung DS K4T51083QC-ZCE6
1G Samsung KR M378T2953CZ0-CE6 Samsung DS K4T51083QC-ZCE6
256MB Qimonda HYS64T32000HU-3S-A Qimonda SS HYB18T512160AF-3SSSS17310
512MB Qimonda HYS64T32000HU-3S-A Qimonda SS HYB18T5128000AF-3SSSS27416
512MB Qimonda HYS64T64000HU-3S-A Qimonda SS HYB18T512800AF3SFSS05346
1G Qimonda HYS64T128020HU-3S-A Qimonda DS HYB18T512800AF3SSSS28104
512MB Corsair CM2X512-5400C4 Corsair SS Heat-Sink Package
1G Corsair VS1GB667D2 Corsair DS MID095D62864M8CEC
512MB HY HYMP564U64AP8-Y4 AA Hynix SS HY5PS12821AFP-Y4
512MB HY HYMP564U64AP8-Y5 AA Hynix SS HY5PS12821AFP-Y5
1G HY HYMP512U64AP8-Y5 AB Hynix DS HY5PS12821AFP-Y5
512MB Kingmax KLCC28F-A8EB5 Elpida SS E5108AE-6E-E
512MB Kingmax KLCC28F-A8KB5 Kingmax SS KKEA88B4LAUG-29DX
1G Kingmax KLCD48F-A8KB5 Kingmax DS KKEA88B4LAUG-29DX
512MB Apacer 78.91092.420 Elpida SS E5108AE-6E-E
512MB Apacer AU512E667C5KBGC Apacer SS AM4B5708MIJS7E0627B
512MB Apacer AU512E667C5KBGC Apacer SS AM4B5708GQJS7E06332F
1G Apacer AU01GE667C5KBGC Apacer DS AM4B5708GQJS7E0636B
1G Apacer 78.01092.420 Elpida DS E5108AE-6E-E
1G Apacer AU01GE667C5KBGC Apacer DS AM4B5708MIJS7E0627B
512MB ADATA M20EL5G3H3160B1C0Z Elpida SS E5108AE-6E-E
512MB ADATA M20AD5G3H3166I1C52 ADATA SS AD29608A8A-3EG20648
1G ADATA M2OAD5G3I4176I1C52 ADATA DS AD29608A8A-3EG20645
512MB VDATA M2GVD5G3H31A4I1C52 VDATA SS VD29608A8A-3EC20615
512MB VDATA M2YVD5G3H31P4I1C52 VDATA SS VD29608A8A-3EG20627
512MB VDATA M2GVD5G3H166I1C52 VDATA SS VD29608A8A-3EG20637
1G VDATA M2GVD5G3I41P6I1C52 VDATA DS VD29608A8A-3EG20627
1G VDATA M2GVD5G3I41C4I1C52 VDATA DS VD29608A8A-3EC20620
1G VDATA M2GVD5G3I4176I1C52 VDATA DS VD29608A8A-3EG20641
DIMM support
DIMM support
• •
• •
• •
• •
• •
• •
• •
• •
• • •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
1-18 Chapter 1: Product introduction
DDR2 533
Siz e Vend or Mo del Brand Si de(s) P art No DI MM DIMM 2
256MB Kingston KVR533D2N4/256 Elpida SS E5116AB-5C-E • •
256MB Kingston KVR533D2N4/256 Elpida SS E5116AF-5C-E
512MB Kingston KVR533D2N4/512 Hynix DS HY5PS56821F-C4
512MB Kingston KVR533D2N4/512 nneon SS HYB18T512800AF3733336550
1G Kingston KVR533D2N4/1G Kingston DS D6408TE7BL-37
1G Kingston KVR533D2N4/1G Micron DS 5YD11D9GCT
256MB Samsung M378T3253FG0-CD5 Samsung SS K4T56083QF-GCD5
512MB Samsung M378T6553BG0-CD5 Samsung SS K4T51083QB-GCD5
256MB Qimonda HYS64T32000HU-3.7-A Qimonda SS HYB18T512160AF-3.7AFSS31270
512MB Qimonda HYS64T64000GU-3.7-A Qimonda SS HYB18T512800AC37SSS11511
512MB Qimonda HYS64T64000HU-3.7-A Qimonda SS HYB18T512800AF37SSS12079
512MB Qimonda HYS64T64000HU-3.7-A Qimonda SS HYB18T512800AF37FSS29334
512MB Micron MT 16HTF6464AG-53EB2 Micron DS D9BOM
512MB Micron MT 16HTF6464AG-53EB2 Micron DS Z9BQT
1G Micron MT 16HTF12864AY-53EA1 Micron DS D9CRZ
512MB Corsair VS512MB533D2 Corsair DS MIII0052532M8CEC
512MB Elpida EBE51UD8ABFA-5C-E Elpida SS E5108AB-5C-E
512MB Kingmax KLBC28F-A8KB4 Kingmax SS KKEA88B4IAK-37
256MB Kingmax KLBB68F-36EP4 Elpida SS E5116AB-5C-E
512MB Kingmax KLBC28F-A8EB4 Elpida SS E5108AE-5C-E
Visit the ASUS website (www.asus.com) for the latest QVL.
Side(s): SS - Single-sided DS - Double-sided
DIMM support
• •
• •
• •
• •
• •
• •
• •
DIMM support
• •
• •
DIMM support
• •
• •
• •
• •
• •
• •
• •
• •
• •
• •
DIMM support:
DIMM1 - Supports one module inserted into any slot as Single-channel memory
conguration.
DIMM2 - Supports one pair of modules inserted into the slots as Single-channel memory
conguration.
ASUS P5S-MX SE 1-19
1.7.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other
system components. Failure to do so can cause severe damage to both the
motherboard and the components.
To install a DIMM:
1. Unlock a DIMM socket by
pressing the retaining clips
outward.
2. Align a DIMM on the socket
such that the notch on the DIMM
matches the break on the socket.
3. Firmly insert the DIMM into the
socket until the retaining clips
snap back in place and the DIMM
is properly seated.
• A DDR2 DIMM is keyed with a notch so that it ts in only one direction. Do
not force a DIMM into a socket to avoid damaging the DIMM.
• The DDR2 DIMM sockets do not support DDR DIMMs. Do not install DDR
DIMMs to the DDR2 DIMM sockets.
1.7.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining
clips outward to unlock the DIMM.
2
3
1
DDR2 DIMM notch
1
Unlocked retaining clip
2
Support the DIMM lightly with
your ngers when pressing the
retaining clips. The DIMM might
get damaged when it ips out with
extra force.
2. Remove the DIMM from the socket
1-20 Chapter 1: Product introduction
1
.
DDR2 DIMM notch
1
1.8 Expansion slots
In the future, you may need to install expansion cards. The following sub-sections
describe the slots and the expansion cards that they support.
Make sure to unplug the power cord before adding or removing expansion
cards. Failure to do so may cause you physical injury and damage motherboard
components.
1.8.1 Installing an expansion card
To install an expansion card:
1. Before installing the expansion card, read the documentation that came with
it and make the necessary hardware settings for the card.
2. Remove the system unit cover (if your motherboard is already installed in a
chassis).
3. Remove the bracket opposite the slot that you intend to use. Keep the screw
for later use.
4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
5. Secure the card to the chassis with the screw you removed earlier.
6. Replace the system cover.
1.8.2 Conguring an expansion card
After installing the expansion card, congure it by adjusting the software settings.
1. Turn on the system and change the necessary BIOS settings, if any. See
Chapter 2 for information on BIOS setup.
2. Assign an IRQ to the card. Refer to the tables on the next page.
3. Install the software drivers for the expansion card.
When using PCI cards on shared slots, ensure that the drivers support “Share
IRQ” or that the cards do not need IRQ assignments. Otherwise, conicts will
arise between the two PCI groups, making the system unstable and the card
inoperable. Refer to the table on the next page for details.
ASUS P5S-MX SE 1-21
1.8.3 Interrupt assignments
Standard interrupt assignments
IRQ Priority Standard Function
0 1 System Timer
1 2 Keyboard Controller
2 — —
3 11 IRQ holder for PCI steering
4 12 Communications Port (COM1)
5 13 Standard IRQ holder for PCI steering
6 14 Floppy Disk Controller
7 15
8 3 System CMOS/Real Time Clock
9 4 Microsoft ACPI-Compliant System
10 5 IRQ holder for PCI steering*
11 6 IRQ holder for PCI steering*
12 7 PS/2 Compatible Mouse Port
13 8 Numeric Data Processor
14 9 Primary IDE Channel
* These IRQs are usually available for PCI devices.
IRQ assignments for this motherboard
A B C D E F G H
PCI1 — — — shared — — — —
PCI2 shared — — — — — — —
PCIEX16_1 shared — — — — — — —
PCIEX1_1 shared — — — — — — —
Onboard USB controller 1 — — — — — — — shared
Onboard USB controller 2 — — — shared — — — —
Onboard USB controller 3 — — shared — — — — —
Onboard USB controller 4 shared — — — — — — —
Onboard USB 2.0 controller — — — — — — — shared
Onboard HD audio shared — — — — — — —
Onboard LAN — Used — — — — — —
Printer Port (LPT1)
1-22 Chapter 1: Product introduction

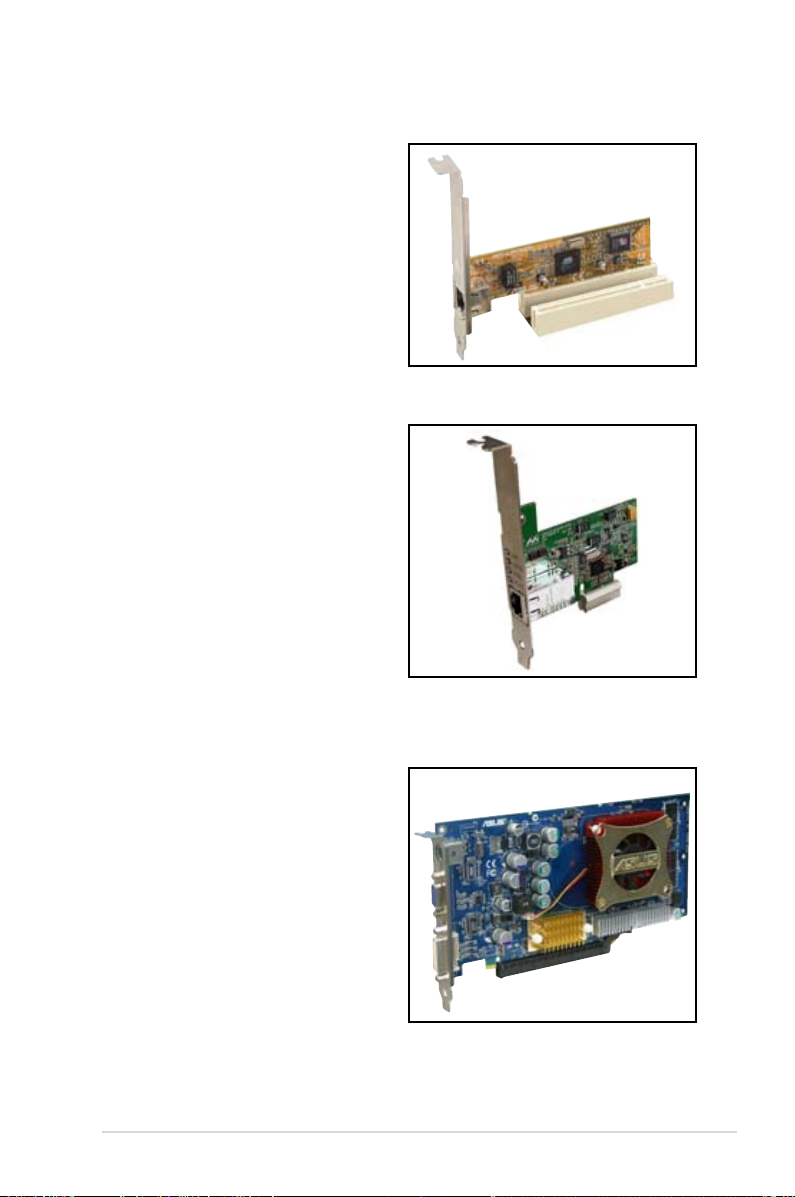

1.8.4 PCI slots
The PCI slots support cards such as
a LAN card, SCSI card, USB card,
and other cards that comply with PCI
specications. The gure shows a LAN
card installed on a PCI slot.
1.8.5 PCI Express x1 slot
This motherboard supports PCI Express
x1 network cards, SCSI cards and other
cards that comply with the PCI Express
specications. The following gure
shows a network card installed on the
PCI Express x1 slot.
1.8.6 PCI Express x16 slot
This motherboard supports PCI Express
x16 graphic cards that comply with the
PCI Express specications. The gure
shows a graphics card installed on the
PCI Express x16 slot.
ASUS P5S-MX SE 1-23
1.9 Jumpers
P5S-MX SE
P5S-MX SE
Clear RTC RAM
CLRTC
Normal
Clear RTC
(Default)
1 2
2 3
1. Clear RTC RAM (CLRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in
CMOS. You can clear the CMOS memory of date, time, and system setup
parameters by erasing the CMOS RTC RAM data. The onboard button
cell battery powers the RAM data in CMOS, which include system setup
information such as system •words.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Remove the onboard battery.
3. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on
pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2.
4. Reinstall the battery.
5. Plug the power cord and turn ON the computer.
6. Hold down the <Del> key during the boot process and enter BIOS setup
to re-enter data.
Except when clearing the RTC RAM, never remove the cap on CLRTC jumper
default position. Removing the cap will cause system boot failure!
1-24 Chapter 1: Product introduction
2. Keyboard/mouse/USB device wake-up (3-pin USBPW1-4, USBPW56,
P5S-MX SE
P5S-MX SE USB Device Wake Up
3
2
2
1
PS2_USBPWR
(Default)
+5V
+5VSB
PS2_USBPWR)
This jumper allows you to enable or disable the keyboard/mouse/USB device
wake-up feature. Set this jumper to +5V to wake up the computer from S1
sleep mode (CPU stopped, DRAM refreshed, system running in low power
mode) using the connected keyboard, mouse or USB devices. Set to +5VSB
to wake up from S3 and S4 sleep modes (no power to CPU, DRAM in slow
refresh, power supply in reduced power mode).
• The USB device wake-up feature requires a power supply that can
provide 500mA on the +5VSB lead for each USB port; otherwise,
the system would not power up.
• The total current consumed must NOT exceed the power supply
capability (+5VSB) whether under normal condition or in sleep mode.
ASUS P5S-MX SE 1-25
1.10 Connectors
1
12
4
5
6
7
2 3
8
11
9
1.10.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
2.
devices.
3. LAN (RJ-45) port.
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
LAN port LED indications
Activity/Link Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
YELLOW Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
This port allows Gigabit connection to a Local Area
ACT/LINK
LED
LAN port
SPEED
LED
4. Line In port (light blue).
This port connects the tape, CD, DVD player, or
other audio sources.
5. Line Out port (lime).
This port connects a headphone or a speaker. In
4-channel and 6-channel conguration, the function of this port becomes
Front Speaker Out.
6. Microphone port (pink).
Refer to the audio conguration table below for the function of the audio ports in
2, 4, or 6-channel conguration.
This port connects a microphone.
1-26 Chapter 1: Product introduction
Audio 2, 4, or 6-channel conguration
Port Headset 4-speaker 6-speaker
2-speaker
Light Blue Line In Surround Out Surround Out
Lime green Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic Center/Bass
7. USB 2.0 ports 1 and 2.
These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
8. USB 2.0 ports 3 and 4.
These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
This 15-pin port is for a VGA monitor or other
9. Video Graphics Adapter port.
VGA-compatible devices.
10. Serial port.
This 9-pin COM1 port is for pointing devices or other serial
devices.
13. PS/2 keyboard port (purple).
This port is for a PS/2 keyboard.
ASUS P5S-MX SE 1-27
1.10.2 Internal connectors
P5S-MX SE
P5S-MX SE
Floppy Disk Drive Connector
NOTE:
Orient the red markings on
the floppy ribbon cable to PIN 1.
PIN1
FLOPPY
P5S-MX SE
P5S-MX SE Digital Audio Connector
+5V
SPDIFOUT
GND
SPDIF_OUT
1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided oppy disk drive (FDD) signal cable. Insert
one end of the cable to this connector, then connect the other end to the
signal connector at the back of the oppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when
using a FDD cable with a covered Pin 5.
2. Digital Audio connector (4-1 pin SPDIF_OUT)
This connector is for the S/PDIF audio module to allow digital sound output.
Connect one end of the S/PDIF audio cable to this connector and the other
end to the S/PDIF module.
The S/PDIF out module is purchased separately.
1-28 Chapter 1: Product introduction
3. IDE connector (40-1 pin PRI_IDE)
P5S-MX SE
P5S-MX SE
IDE Connector
PRI_IDE
The onboard IDE connector is for the Ultra DMA 100/66/33 signal cable.
There are three connectors on each Ultra DMA 100/66/33 signal cable:
blue, black, and gray. Connect the blue connector to the motherboard’s IDE
connector, then select one of the following modes to congure your device.
Drive jumper setting Mode of
Cable connector
device(s)
Single device Cable-Select or Master - Black
Two devices Cable-Select Master
Black
Slave Gray
Master Master Black or gray
Slave Slave
• Pin 20 on the IDE connector is removed to match the covered hole on the
Ultra DMA cable connector. This prevents incorrect insertion when you
connect the IDE cable.
• Use the 80-conductor IDE cable for Ultra DMA 100/66/33 IDE devices.
If any device jumper is set as “Cable-Select,” make sure all other device
jumpers have the same setting.
ASUS P5S-MX SE 1-29
4. Serial ATA connectors (7-pin SATA1, SATA2)
P5S-MX SE
P5S-MX SE SATA Connectors
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
SATA2
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
SATA1
These connectors are for the Serial ATA signal cables for Serial ATA hard disk
drives.
1-30 Chapter 1: Product introduction
5. USB connectors (10-1 pin USB56 78)
P5S-MX SE
P5S-MX SE
Internal Audio Connecto
r
CD
(black)
Right Audio Channel
Left Audio Channel
Ground
Ground
P5S-MX SE
P5S-MX SE
USB 2.0 Connector
USB56
USB+5V
USB_P6-
USB_P6+
GND
NC
USB+5V
USB_P5-
USB_P5+
GND
1
USB78
USB+5V
USB_P8-
USB_P8+
GND
NC
USB+5V
USB_P7-
USB_P7+
GND
1
These connectors are for USB 2.0 ports. Connect the USB module cable
to any of these connectors, then install the module to a slot opening at the
back of the system chassis. These USB connectors comply with USB 2.0
specication that supports up to 480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB module is purchased separately.
6. Optical drive audio connector (4-pin CD)
These connectors allow you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
ASUS P5S-MX SE 1-31
7. CPU and chassis fan connectors
P5S-MX SE
P5S-MX SE
Fan Connectors
CPU_FAN
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PW
M
CHA_FAN
GND
Rotation
+12V
(4-pin CPU_FAN, 3-pin CHA_FAN)
The fan connectors support cooling fans of 350 mA ~ 2000 mA (24 W max.)
or a total of 1 A ~ 7 A (84 W max.) at +12V. Connect the fan cables to the
fan connectors on the motherboard, making sure that the black wire of each
cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufcient air
ow inside the system may damage the motherboard components. These are
not jumpers! Do not place jumper caps on the fan connectors!
Only the CPU-FAN connector supports the ASUS Advanced Q-Fan feature
1-32 Chapter 1: Product introduction
8. Chassis intrusion connector (4-1 pin CHASSIS)
P5S-MX SE
P5S-MX SE Intrusion Connector
CHASSIS
+5VSB_MB
Chassis Signal
GND
(Default)
P5S-MX SE
P5S-MX SE Front Panel Audio Connector
HP_HD
MIC2_L
HP_R
HP_L
MIC2_JD
Jack_Sense
MIC2_R
PRESENSE#
AGND
AAFP
Legacy AC’97-compliant
pin definition
NC
MIC2_L
Line out_R
Line out_L
NC
NC
MIC2_R
NC
AGND
Azalia-compliant
pin definition
This connector is for a chassis-mounted intrusion detection sensor or switch.
Connect one end of the chassis intrusion sensor or switch cable to this
connector. The chassis intrusion sensor or switch sends a high-level signal to
this connector when a chassis component is removed or replaced. The signal
is then generated as a chassis intrusion event.
By default , the pin labeled “Chassis Signal” and “ Ground” are shorted with
a jumper cap. Remove the jumper caps only when you intend to use the
chassis intrusion detection feature.
9. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that
supports either HD Audio or legacy AC`97 audio standard. Connect one end
of the front panel audio I/O module cable to this connector.
•
We recommend that you connect a high-denition front panel audio module
to this connector to avail of the motherboard’s high-denition audio capability.
•
By default, this connector is set to HD Audio.
ASUS P5S-MX SE 1-33
10. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
P5S-MX SE
P5S-MX SE
ATX Power Connector
EATXPWR
+3 Volts
+3 Volts
Ground
+5 Volts
+5 Volts
Ground
Ground
Power OK
+5V Standby
+12 Volts
-5 Volts
+5 Volts
+3 Volts
-12 Volts
Ground
Ground
Ground
PSON#
Ground
+5 Volts
+12 Volts
+3 Volts
+5 Volts
Ground
ATX12V
GND
+12V DC
GND
+12V DC
These connectors are for ATX power supply plugs. The power supply plugs
are designed to t these connectors in only one orientation. Find the proper
orientation and push down rmly until the connectors completely t.
•
For a fully congured system, we recommend that you use a power supply
unit (PSU) that complies with ATX 12 V Specication 2.0 (or later version)
and provides a minimum power of 400 W.
• Do not forget to connect the 4-pin ATX12V power plug; otherwise, the
system will not boot.
• Use of a PSU with a higher power output is recommended when
conguring a system with more power-consuming devices. The system
may become unstable or may not boot up if the power is inadequate.
• The ATX 12 V Specication 2.0-compliant (400W) PSU has been tested to
support the motherboard power requirements.
1-34 Chapter 1: Product introduction
11. System panel connector (10-1 pin PANEL)
P5S-MX SE
P5S-MX SE
System Panel Connector
F_PANEL
Ground
PLED-
PWR
PLED+
GND
Reset
IDELED+
IDELED-
HD LED
RESET
PWR LED
PWR BTN
This connector supports several chassis-mounted functions.
•
System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis
power LED cable to this connector. The system power LED lights up when
you turn on the system power, and blinks when the system is in sleep mode.
•
Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity
LED cable to this connector. The IDE LED lights up or ashes when data is
read from or written to the HDD.
•
System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The
speaker allows you to hear system beeps and warnings.
•
ATX power button/soft-off button (2-pin PWRSW)
This connector is for the system power button. Pressing the power button
turns the system on or puts the system in sleep or soft-off mode depending
on the BIOS settings. Pressing the power switch for more than four seconds
while the system is ON turns the system OFF.
•
Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system
reboot without turning off the system power.
ASUS P5S-MX SE 1-35
1-36 Chapter 1: Product introduction
This chapter tells how to change
the system settings through the BIOS
Setup menus. Detailed descriptions
of the BIOS parameters are also
provided.
BIOS setup
2
ASUS P5S-MX SE 2-1
2.1 Managing and updating your BIOS
The following utilities allow you to manage and update the motherboard Basic
Input/Output System (BIOS) setup.
1.
ASUS EZ Flash (Updates the BIOS in DOS mode using a oppy disk or the
motherboard support CD.)
2. ASUS AFUDOS (Updates the BIOS in DOS mode using a bootable oppy
disk.)
ASUS CrashFree BIOS 2 (Updates the BIOS using a bootable oppy disk, or
3.
the motherboard support CD when the BIOS le fails or gets corrupted.)

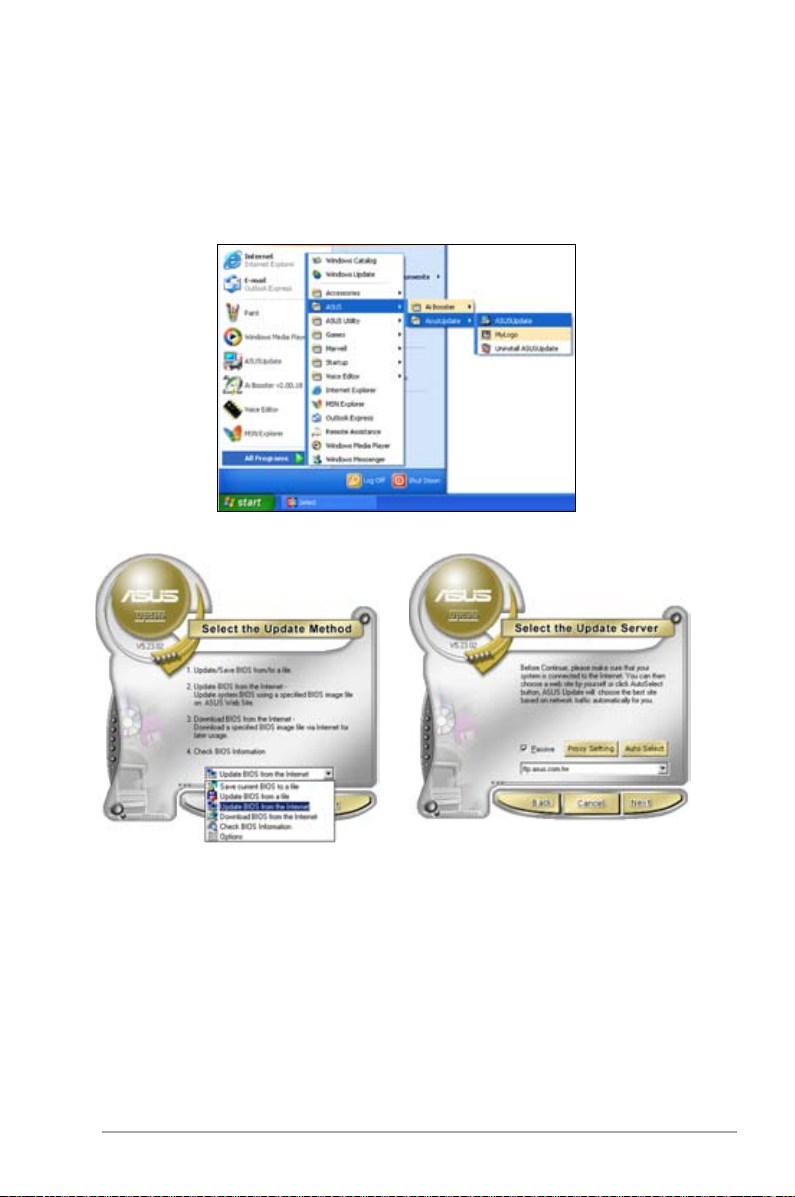

ASUS Update (Updates the BIOS in Windows® environment.)
4.
Refer to the corresponding sections for details on these utilities.
Save a copy of the original motherboard BIOS le to a bootable oppy disk or
a USB ash disk in case you need to restore the BIOS in the future. Copy the
original motherboard BIOS using the ASUS Update or AFUDOS utilities.
2.1.1 Creating a bootable oppy disk
1. Do either one of the following to create a bootable oppy disk.
DOS environment
a. Insert a 1.44MB oppy disk into the drive.
b. At the DOS prompt, type
Windows® XP environment
a. Insert a 1.44 MB oppy disk to the oppy disk drive.
b. Click
Start from the Windows® desktop, then select My Computer.
c. Select the 3 1/2 Floppy Drive icon.
d. Click
File from the menu, then select Format. A Format 3 1/2 Floppy
Disk window appears.
e. Select
Create an MS-DOS startup disk from the format options eld,
then click Start.
Windows® 2003 environment
To create a set of boot disks for Windows
a. Insert a formatted, high density 1.44 MB oppy disk into the drive.
b. Insert the Windows
c. Click
Start, then select Run.
d. From the Open eld, type
D:\bootdisk\makeboot a:
assuming that D: is your optical drive.
e. Press <Enter>, then follow screen instructions to continue.
format A:/S then press <Enter>.
®
2003:
®
2003 CD to the optical drive.
2. Copy the original or the latest motherboard BIOS le to the bootable oppy disk.
2-2 Chapter 2: BIOS setup
2.1.2 ASUS EZ Flash utility
The ASUS EZ Flash feature allows you to update the BIOS without having to go
through the long process of booting from a oppy disk and using a DOS-based
utility. The EZ Flash utility is built-in the BIOS chip so it is accessible by pressing
<Alt> + <F2> during the Power-On Self Tests (POST).
To update the BIOS using EZ Flash:
1. Visit the ASUS website (www.asus.com) to download the latest BIOS le for
the motherboard and rename the same to P5SSE.ROM.
2. Save the BIOS le to a oppy disk, then restart the system.
3. Press <Alt> + <F2> during POST to display the following.
EZFlash starting BIOS update
Checking for oppy...
4. Insert the oppy disk that contains the BIOS le to the oppy disk drive.
When the correct BIOS le is found, EZ Flash performs the BIOS update
process and automatically reboots the system when done.
EZFlash starting BIOS update
Checking for oppy...
Floppy found!
Reading le “P5SSE.rom”. Completed.
Start erasing.......|
Start programming...|
Flashed successfully. Rebooting.
• Do not shut down or reset the system while updating the BIOS to prevent
system boot failure!
• A “Floppy not found!” error message appears if there is no oppy disk in
the drive. A “P5SSE.ROM not found!” error message appears if the correct
BIOS le is not found in the oppy disk. Make sure that you rename the
BIOS le to P5SSE.ROM.
ASUS P5S-MX SE 2-3
2.1.3 AFUDOS utility
The AFUDOS utility allows you to update the BIOS le in DOS environment using
a bootable oppy disk with the updated BIOS le. This utility also allows you to
copy the current BIOS le that you can use as backup when the BIOS fails or gets
corrupted during the updating process.
Copying the current BIOS
To copy the current BIOS le using the AFUDOS utility:
• Make sure that the oppy disk is not write-protected and has at least
1024KB free space to save the le.
• The succeeding BIOS screens are for reference only. The actual BIOS
screen displays may not be same as shown.
1. Copy the AFUDOS utility (afudos.exe) from the motherboard support CD to
the bootable oppy disk you created earlier.
2. Boot the system in DOS mode, then at the prompt type:
afudos /o[lename]
where the [lename] is any user-assigned lename not more than eight
alphanumeric characters for the main lename and three alphanumeric
characters for the extension name.
A:\>afudos /oOLDBIOS1.rom
Main lename Extension name
3. Press <Enter>. The utility copies the current BIOS le to the oppy disk.
A:\>afudos /oOLDBIOS1.rom
AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB))
Copyright (C) 2002 American Megatrends, Inc. All rights reserved.
Reading ash ..... done
Write to le...... ok
A:\>
The utility returns to the DOS prompt after copying the current BIOS le.
2-4 Chapter 2: BIOS setup
Updating the BIOS le
To update the BIOS le using the AFUDOS utility:
1. Visit the ASUS website (www.asus.com) and download the latest BIOS le for
the motherboard. Save the BIOS le to a bootable oppy disk.
Write the BIOS lename on a piece of paper. You need to type the exact BIOS
lename at the DOS prompt.
2. Copy the AFUDOS utility (afudos.exe) from the motherboard support CD to
the bootable oppy disk you created earlier.
3. Boot the system in DOS mode, then at the prompt type:
afudos /i[lename]
where [lename] is the latest or the original BIOS le on the bootable oppy disk.
A:\>afudos /IP5SSE.ROM
4. The utility veries the le and starts updating the BIOS.
A:\>afudos /IP5SSE.ROM
AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB))
Copyright (C) 2002 American Megatrends, Inc. All rights reserved.
WARNING!! Do not turn off power during ash BIOS
Reading le ....... done
Reading ash ...... done
Advance Check ......
Erasing ash ...... done
Do not shut down or reset the system while updating the BIOS to prevent
system boot failure!
5. The utility returns to the DOS prompt after the BIOS update process is
completed. Reboot the system from the hard disk drive.
A:\>afudos /IP5SSE.ROM
AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB))
Copyright (C) 2002 American Megatrends, Inc. All rights reserved.
WARNING!! Do not turn off power during ash BIOS
Reading le ....... done
Reading ash ...... done
Advance Check ......
Erasing ash ...... done
Writing ash ...... done
Verifying ash .... done
Please restart your computer
A:\>
ASUS P5S-MX SE 2-5
2.1.4 ASUS CrashFree BIOS 2 utility
The ASUS CrashFree BIOS 2 is an auto recovery tool that allows you to restore
the BIOS le when it fails or gets corrupted during the updating process. You can
update a corrupted BIOS le using the motherboard support CD or the oppy disk
that contains the updated BIOS le.
• Prepare the motherboard support CD, or the oppy disk containing the
updated motherboard BIOS before using this utility.
• Make sure that you rename the original or updated BIOS le in the oppy
Recovering the BIOS from a oppy disk
To recover the BIOS from a oppy disk:
1. Turn on the system.
2. Insert the oppy disk with the original or updated BIOS le to the oppy disk
drive.
3. The utility displays the following message and automatically checks the
oppy disk for the original or updated BIOS le.
disk or the USB ash disk to P5SSE.ROM.
Bad BIOS checksum. Starting BIOS recovery...
Checking for oppy...
When found, the utility reads the BIOS le and starts ashing the corrupted
BIOS le.
Bad BIOS checksum. Starting BIOS recovery...
Checking for oppy...
Floppy found!
Reading le “P5SSE.ROM”. Completed.
Start ashing...
DO NOT shut down or reset the system while updating the BIOS! Doing so can
cause system boot failure!
2-6 Chapter 2: BIOS setup
4. Restart the system after the utility completes the updating process.
Install memory module in DIMM_A1 or DIMM_B1 slots.
Recovering the BIOS from the support CD
To recover the BIOS from the support CD:
1. Remove any oppy disk from the oppy disk drive, then turn on the system.
2. Insert the support CD to the optical drive.
3. The utility displays the following message and automatically checks the
oppy disk for the original or updated BIOS le.
Bad BIOS checksum. Starting BIOS recovery...
Checking for oppy...
When no oppy disk is found, the utility automatically checks the optical drive
for the original or updated BIOS le. The utility then updates the corrupted
BIOS le.
Bad BIOS checksum. Starting BIOS recovery...
Checking for oppy...
Floppy not found!
Checking for CD-ROM...
CD-ROM found!
Reading le “P5SSE.ROM”. Completed.
Start ashing...
4. Restart the system after the utility completes the updating process.
The recovered BIOS may not be the latest BIOS version for this motherboard.
Visit the ASUS website (www.asus.com) to download the latest BIOS le.
ASUS P5S-MX SE 2-7
2.1.5 ASUS Update utility
The ASUS Update is a utility that allows you to manage, save, and update the
motherboard BIOS in Windows® environment. The ASUS Update utility allows you
to:
• Save the current BIOS le
• Download the latest BIOS le from the Internet
• Update the BIOS from an updated BIOS le
• Update the BIOS directly from the Internet, and
• View the BIOS version information.
This utility is available in the support CD that comes with the motherboard
package.
ASUS Update requires an Internet connection either through a network or an
Internet Service Provider (ISP).
Installing ASUS Update
To install ASUS Update:
1. Place the support CD in the optical drive. The
2. Click the
Utilities tab, then click Install ASUS Update. See page 2-2 for the
Drivers menu appears.
Utilities screen menu.
3. The ASUS Update utility is copied to your system.
Quit all Windows® applications before you update the BIOS using this utility.
2-8 Chapter 2: BIOS setup
Updating the BIOS through the Internet
To update the BIOS through the Internet:
1. Launch the ASUS Update utility from the Windows
> Programs > ASUS > ASUSUpdate > ASUSUpdate. The ASUS Update
main window appears.
®
desktop by clicking Start
2. Select Update BIOS from
the Internet option from the
drop-down menu, then click Next.
ASUS P5S-MX SE 2-9
3. Select the ASUS FTP site nearest
you to avoid network trafc, or
click Auto Select. Click Next.
4. From the FTP site, select the BIOS
version that you wish to download.
Click Next.
5. Follow the screen instructions to
complete the update process.
The ASUS Update utility is
capable of updating itself
through the Internet. Always
update the utility to avail all its
features.
Updating the BIOS through a BIOS le
To update the BIOS through a BIOS le:
1. Launch the ASUS Update utility from the Windows
> Programs > ASUS > ASUSUpdate > ASUSUpdate. The ASUS Update main
window appears.
2. Select
Update BIOS from a le
option from the drop-down menu,
then click Next.
®
desktop by clicking Start
3. Locate the BIOS le from the Open
window, then click Open.
4. Follow the screen instructions to
complete the update process.
2-10 Chapter 2: BIOS setup
2.2 BIOS setup program
This motherboard supports a programmable rmware chip that you can update
using the provided utility described in section “2.1 Managing and updating your
BIOS.”
Use the BIOS Setup program when you are installing a motherboard, reconguring
your system, or prompted to“Run Setup.” This section explains how to congure
your system using this utility.
Even if you are not prompted to use the Setup program, you can change the
conguration of your computer in the future. For example, you can enable the
security password feature or change the power management settings. This
requires you to recongure your system using the BIOS Setup program so that the
computer can recognize these changes and record them in the CMOS RAM of the
SPI chip.
The rmware chip on the motherboard stores the Setup utility. When you start up
the computer, the system provides you with the opportunity to run this program.
Press <Del> during the Power-On Self-Test (POST) to enter the Setup utility;
otherwise, POST continues with its test routines.
If you wish to enter Setup after POST, reboot the system by doing any of the
following procedures:
• Restart using the OS standard shut-down procedure.
• Press <Ctrl>+<Alt>+<Del> simultaneously.
• Press the reset button on the system chassis.
• Press the power button to turn the system off then back on.
Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force
reset from a running operating system can cause damage to your data or
system. We recommend to always shut-down the system properly from the
operating system.
The Setup program is designed to make it as easy to use as possible. Being a
menu-driven program, it lets you scroll through the various sub-menus and make
your selections from the available options using the navigation keys.
• The default BIOS settings for this motherboard apply for most conditions
to ensure optimum performance. If the system becomes unstable after
changing any BIOS settings, load the default settings to ensure system
compatibility and stability. Select the Load Setup Defaults item under the
Exit Menu. See section “2.7 Exit Menu.”
• The BIOS setup screens shown in this section are for reference purposes only,
and may not exactly match what you see on your screen.
• Visit the ASUS website (www.asus.com) to download the latest BIOS le
for this motherboard.
ASUS P5S-MX SE 2-11
2.2.1 BIOS menu screen
Menu bar Conguration eldsMenu items
System Time [18:25:08]
System Date [Sun 01/06/2002]
Legacy Diskette A [1.44M, 3.5 in.]
Primary IDE Master :[Not Detected]
Primary IDE Slave :[Not Detected]
SATA 1 :[Not Detected]
SATA 2 :[Not Detected]
IDE Conguration
System Information
General help
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a eld.
Use [+] or [-] to
congure system time.
Navigation keysSub-menu items
2.2.2 Menu bar
The menu bar on top of the screen has the following main items:
Main For changing the basic system conguration
Advanced For changing the advanced system settings
Power For changing the advanced power management (APM)
conguration
Boot For changing the system boot conguration
Exit For selecting the exit options and loading default
settings
To select an item on the menu bar, press the right or left arrow key on the keyboard
until the desired item is highlighted.
2.2.3 Navigation keys
At the bottom right corner of a menu screen are the navigation keys for that
particular menu. Use the navigation keys to select items in the menu and change
the settings.
Some of the navigation keys differ from one screen to another.
2-12 Chapter 2: BIOS setup
2.2.4 Menu items
Select Screen
Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Advanced Chipset settings
WARNING: Setting wrong values in the sections below
may cause system to malfunction.
Configure DRAM Timing by SPD [Enabled]
Memory Acceleration Mode [Auto]
DRAM Idle Timer [Auto]
DRAm Refresh Rate [Auto]
Graphic Adapter Priority [AGP/PCI]
Graphics Aperture Size [ 64 MB]
Spread Spectrum [Enabled]
ICH Delayed Transaction [Enabled]
MPS Revision [1.4]
The highlighted item on the menu bar
displays the specic items for that menu.
For example, selecting Main shows the Main
menu items.
The other items (Advanced, Power, Boot,
Tool, and Exit) on the menu bar have their
respective menu items.
System Time [18:25:08]
System Date [Sun 01/06/2002]
Legacy Diskette A [1.44M, 3.5 in.]
Primary IDE Master :[Not Detected]
Primary IDE Slave :[Not Detected]
SATA 1 :[Not Detected]
SATA 2 :[Not Detected]
IDE Conguration
System Information
Main menu items
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a eld.
Use [+] or [-] to
congure system time.
2.2.5 Sub-menu items
A solid triangle before each item on any menu screen means that the item has a
sub-menu. To display the sub-menu, select the item and press <Enter>.
2.2.6 Conguration elds
These elds show the values for the menu items. If an item is user- congurable,
you can change the value of the eld opposite the item. You cannot select an item
that is not user-congurable.
A congurable eld is enclosed in brackets, and is highlighted when selected. To
change the value of a eld, select it then press <Enter> to display a list of options.
Refer to “2.2.7 Pop-up window.”
2.2.7 Pop-up window
Select a menu item then press <Enter> to display a pop-up window with the
conguration options for that item.
2.2.8 Scroll bar
A scroll bar appears on the right side of a
menu screen when there are items that do
not t on the screen. Press the
Up/Down arrow keys or <Page Up> /<Page
Down> keys to display the other items on the
screen.
2.2.9 General help
At the top right corner of the menu screen is
a brief description of the selected item.
ASUS P5S-MX SE 2-13
Pop-up window
Scroll bar
2.3 Main menu
When you enter the BIOS Setup program, the Main menu screen appears, giving
you an overview of the basic system information.
Refer to section “2.2.1 BIOS menu screen” for information on the menu screen
items and how to navigate through them.
System Time [18:31:08]
System Date [Sun 01/06/2002]
Legacy Diskette A [1.44M, 3.5 in]
Primary IDE Master :[Not Detected]
Primary IDE Slave :[Not Detected]
SATA 1 :[Not Detected]
SATA 2 :[Not Detected]
IDE Conguration
System Information
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a eld.
Use [+] or [-] to
congure system time.
2.3.1 System Time [xx:xx:xx]
Allows you to set the system time.
2.3.2 System Date [Day xx/xx/xxxx]
Allows you to set the system date.
2.3.3 Legacy Diskette A [1.44M, 3.5 in.]
Sets the type of oppy drive installed. Conguration options: [Disabled] [360K,
5.25 in.] [1.2M, 5.25 in.] [720K, 3.5 in.] [1.44M, 3.5 in.] [2.88M, 3.5 in.]
2-14 Chapter 2: BIOS setup
2.3.4 Primary and SATA IDE Master/Slave
While entering Setup, the BIOS automatically detects the presence of IDE devices.
There is a separate sub-menu for each IDE device. Select a device item then
press <Enter> to display the IDE device information.
Primary IDE Master
Device : Not Detected
Type [Auto]
LBA/Large Mode [Auto]
Block(Multi-Sector Transfer) M [Auto]
PIO Mode [Auto]
DMA Mode [Auto]
SMART Monitoring [Auto]
32Bit Data Transfer [Enabled]
The BIOS automatically detects the values opposite the dimmed items (Device,
Vendor, Size, LBA Mode, Block Mode, PIO Mode, Async DMA, Ultra DMA, and
SMART monitoring). These values are not user-congurable. These items show
N/A if no IDE device is installed in the system.
Type [Auto]
Selects the type of IDE drive. Setting to Auto allows automatic selection of the
appropriate IDE device type. Select CDROM if you are specically conguring a
CD-ROM drive. Select ARMD (ATAPI Removable Media Device) if your device
is either a ZIP, LS-120, or MO drive. Conguration options: [Not Installed] [Auto]
[CDROM] [ARMD]
LBA/Large Mode [Auto]
Enables or disables the LBA mode. Setting to Auto enables the LBA mode if the
device supports this mode, and if the device was not previously formatted with LBA
mode disabled. Conguration options: [Disabled] [Auto]
Block (Multi-sector Transfer) M [Auto]
Enables or disables data multi-sectors transfers. When set to Auto, the data
transfer from and to the device occurs multiple sectors at a time if the device
supports multi-sector transfer feature. When set to [Disabled], the data transfer
from and to the device occurs one sector at a time. Conguration options:
[Disabled] [Auto]
ASUS P5S-MX SE 2-15
PIO Mode [Auto]
Selects the PIO mode.
Conguration options: [Auto] [0] [1] [2] [3] [4]
DMA Mode [Auto]
Selects the DMA mode. Conguration options: [Auto]
SMART Monitoring [Auto]
Sets the Smart Monitoring, Analysis, and Reporting Technology.
Conguration options: [Auto] [Disabled] [Enabled]
32Bit Data Transfer [Enabled]
Enables or disables 32-bit data transfer.
Conguration options: [Disabled] [Enabled]
2.3.5 IDE Conguration
The items in this menu allow you to set or change the congurations for the IDE
devices installed in the system. Select an item then press <Enter> if you wish to
congure the item.
IDE Conguration
Onboard PCI IDE Controller [Enabled]
SATA Mode Selection [IDE]
Onboard PCI IDE Controller [Enabled]
Allows you to disable or enable the onboard PCI IDE controller.
Conguration options: [Disabled] [Enabled]
SATA Mode Selection [IDE]
Allows you to disable or set the onchip Serial ATA controller mode.
Conguration options: [Disabled] [IDE] [Raid] [AHCI]
2-16 Chapter 2: BIOS setup
2.3.6 System Information
This menu gives you an overview of the general system specications. The BIOS
automatically detects the items in this menu.
AMIBIOS
Version : 0133
Build Date : 02/28/07
Processor
Type : Genuine Intel(R) CPU 3.60GHz
Speed : 3600MHz
Count : 1
System Memory
Usable Size: 128MB
AMI BIOS
Displays the auto-detected BIOS information.
Processor
Displays the auto-detected CPU specication.
System Memory
Displays the auto-detected system memory.
ASUS P5S-MX SE 2-17

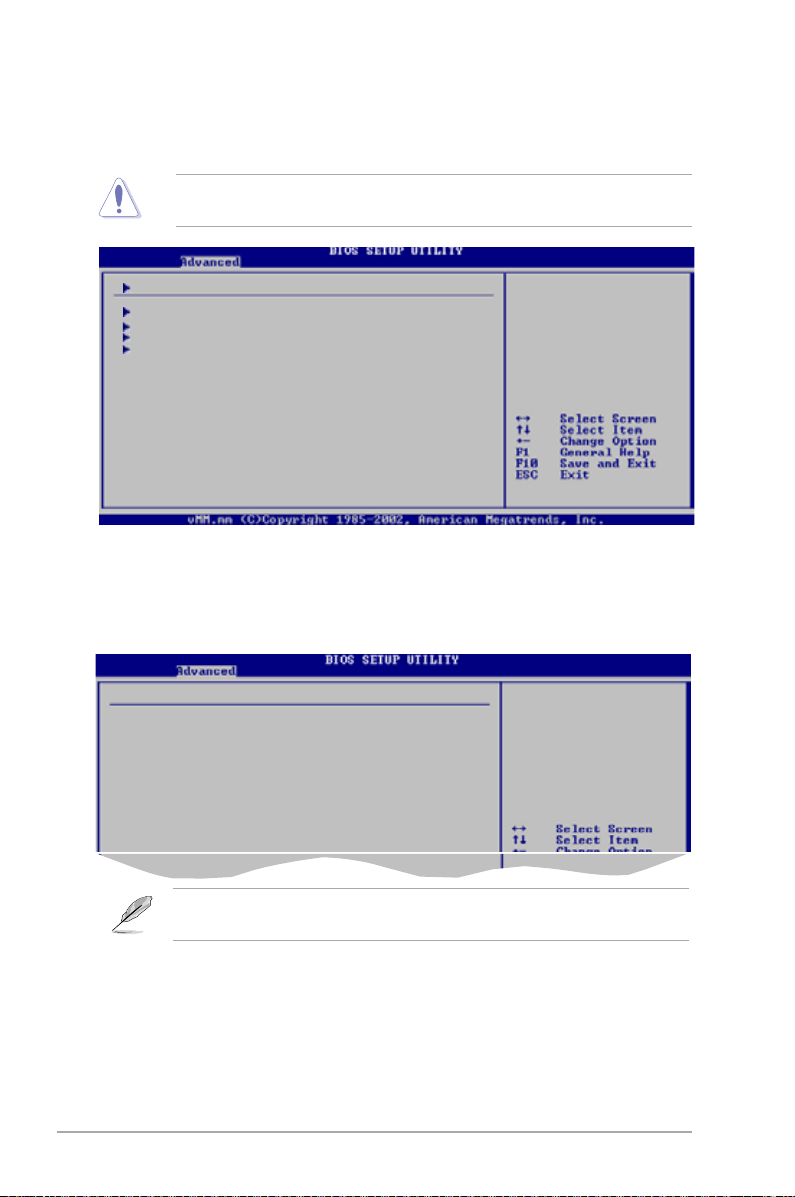

2.4 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other
system devices.
Take caution when changing the settings of the Advanced menu items. Incorrect
eld values can cause the system to malfunction.
USB Conguration
CPU Conguration
Chipset
Onboard Devices Conguration
PCIPnP
2.4.1 USB Conguration
The items in this menu allows you to change the USB-related features. Select an
item then press <Enter> to display the conguration options.
OnBoard SiS USB1.1 DEVICE [Enabled]
OnBoard SiS USB2.0 DEVICE [Enabled]
USB Conguration
Module Version - 2.24.0-12.4
USB Devices Enabled:
None
Legacy USB Support [Auto]
USB 2.0 Controller Mode [HiSpeed]
BIOS EHCI Hand-Off [Enabled]
The Module Version and USB Devices Enabled items show the
auto-detected values. If no USB device is detected, the item shows None.
2-18 Chapter 2: BIOS setup
OnBoard SiS USB 1.1/USB 2.0 Device [Enabled]
Allows you to enable or disable the USB 1.1/USB 2.0 device.
Conguration options: [Enabled] [Disabled]
Legacy USB Support [Enabled]
Allows you to enable or disable support for USB devices on legacy operating
systems (OS). Setting to Auto allows the system to detect the presence of USB
devices at startup. If detected, the USB controller legacy mode is enabled. If no
USB device is detected, the legacy USB support is disabled.
Conguration options: [Disabled] [Enabled] [Auto]
USB 2.0 Controller Mode [HiSpeed]
Allows you to congure the USB 2.0 controller in HiSpeed (480 Mbps) or Full
Speed (12 Mbps). Conguration options: [FullSpeed] [HiSpeed]
BIOS EHCI Hand-Off [Enabled]
Allows you to enable support for operating systems without an EHCI hand-off
feature. Conguration options: [Disabled] [Enabled]
2.4.2 CPU Conguration
The items in this menu show the CPU-related information that the BIOS
automatically detects.
Congure advanced CPU settings
Module Version: 3D.06
Manufacturer: Intel
Brand String: Genuine Intel(R) CPU 3.60GHz
Frequency : 3.60GHz
FSB Speed : 533MHz
Cache L1 : 16 KB
Cache L2 : 512 KB
Ratio Status: Unlocked (Max:27, Min:12)
Ratio Actual Value: 27
CPUID : F65
Hardware Prefetcher: [Enabled]
Adjacent Cache Line Prefetch: [Enabled]
Max CPUID Value Limit: [Disabled]
CPU TM function [Enabled]
Excute Disable Bit [Enabled]
Sets the ratio between
CPU Core Clock and the
FSB Frequency.
NOTE: If an invalid
ratio is set in CMOS
then actual and
setpoint values may
differ.
ASUS P5S-MX SE 2-19
Hardware Prefetcher [Enabled]
Enables or disables the Hardware Prefetcher feature.
Conguration options: [Disabled] [Enabled]
Adjacent Cache Line Prefetch [Enabled]
Enables or disables the Adjacent Cache Line Prefetch feature.
Conguration options: [Disabled] [Enabled]
Max CPUID Value Limit [Disabled]
Enable this item to boot legacy operating systems that cannot support CPUs with
extended CPUID functions.
Conguration options: [Disabled] [Enabled]
Execute Disable Bit [Enabled]
Allows you to Enable/disable Execute Disable Function.
Conguration options: [Disabled] [Enabled]
2-20 Chapter 2: BIOS setup

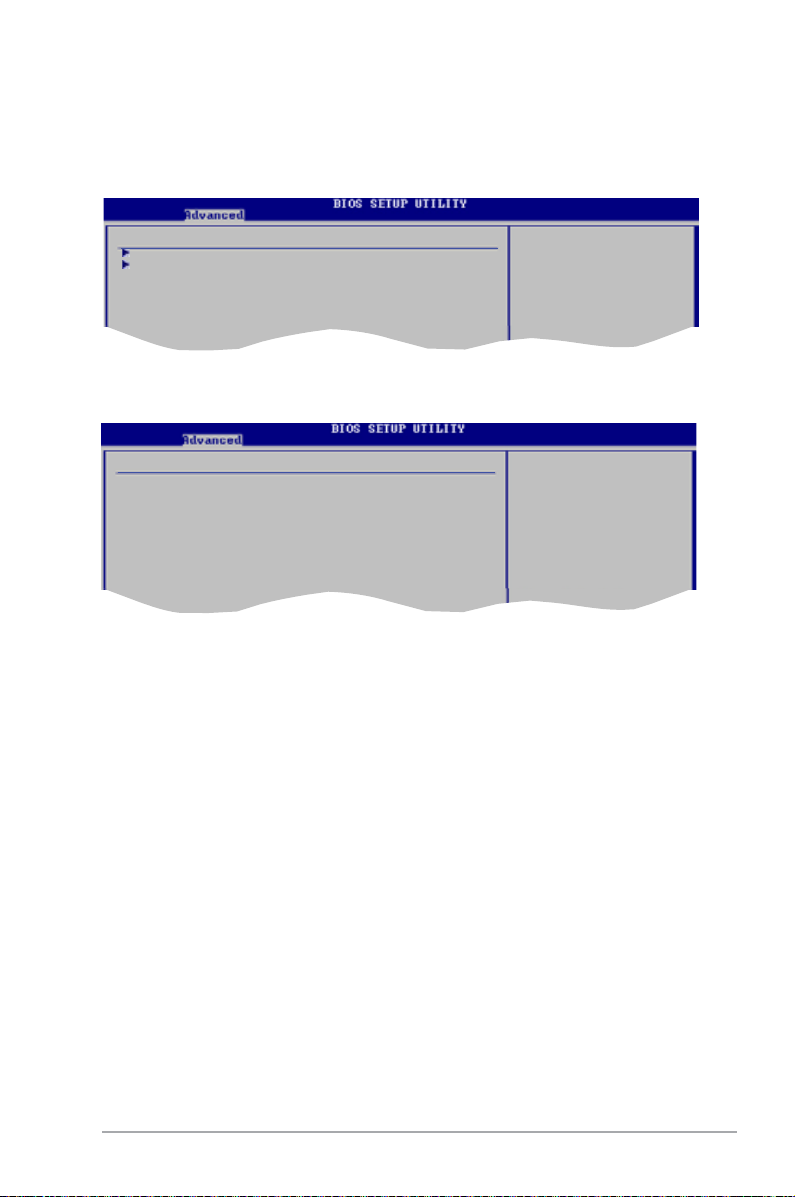

2.4.3 Chipset
The Chipset menu allows you to change the advanced chipset settings. Select an
item then press <Enter> to display the sub-menu.
North Bridge SIS671 Conguration
South Bridge SIS968 Conguration
No r th Bri dge Co n fi g ura tio n
Primary Graphics Adapter [PCI]
Internal VGA [Enable]
DRAM CAS# Latency [By SPD]
Share Memory Size [128MB]
Support PCIE Muti Adapter [Disabled]
Primary Graphics Adapter [PCI]
Allows selection of the graphics controller to use as primary boot device.
Conguration options: [PCI] [PCI Express]
Internal VGA [Enable]
Allows you to enable or disable internal VGA.
Conguration options: [Disable] [Enable]
DRAM CAS# Latency [By SPD]
Controls the latency between the SDRAM read command and the time the data
actually becomes available. Conguration options: [By SPD] [3T] [4T] [5T]
Share Memory Size [32MB]
Sets the share memory size. Conguration options: [32MB] [64MB] [128MB]
[256MB] [Disabled]
Support PCIE Muti Adapter [Disabled]
Allows you to enable or disable PCIE multi adapter support function.
Conguration options: [Disabled] [Enabled]
ASUS P5S-MX SE 2-21
South Bridge Conguration
OnBoard Audio DEVICE [Enabled]
Front Panel Support Type [HD Audio]
OnBoard SiS191 Lan Device [Enable]
OnBoard LAN Boot ROM [By SPD]
A11 PCI EXPRESS Controller [Enabled]
A11 PCI EXPRESS INTPIN [Disabled]
Onboard Audio Device [Enabled]
This item enables or disables the onboard audio device.
Conguration options: [Disabled] [Enabled]
Front Panel Support Type [HD Audio]
Allows you to select the front panel support type.
Conguration options: [HD Audio] [AC97]
OnBoard SiS191 Lan Device [Enabled]
Allows you to enable or disable the onboard LAN controller.
Conguration options: [Disabled] [Enabled]
OnBoard LAN Boot ROM [Enabled]
Allows you to enable or disable the option ROM in the onboard LAN controller.
This item appears only when the Onboard LAN item is set to Enabled.
Conguration options: [Disabled] [Enabled]
A11 PCI EXPRESS Controller [Enabled]
Allows you to enable or disable the A11 PCI Express Controller.
Conguration options: [Disabled] [Enabled]
A11 PCI EXPRESS INTPIN [Disabled]
Allows you to enable or disable the A11 PCI Express INTPIN.
Conguration options: [Disabled] [Enabled]
2-22 Chapter 2: BIOS setup
2.4.4 Onboard Devices Conguration
Congure Win627DHG Super IO Chipset
Serial Port1 Address [3F8/IRQ4]
Parallel Port Address [378]
Parallel Port Mode [ECP]
ECP Mode DMA Channel [DMA3]
Parallel Port IRQ [IRQ7]
Serial Port1 Address [3F8/IRQ4]
Allows you to select the Serial Port1 base addresses.
Conguration options: [Disabled] [3F8/IRQ4] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3]
Parallel Port Address [378]
Allows you to select the Parallel Port base addresses.
Conguration options: [Disabled] [378] [278] [3BC]
Parallel Port Mode [ECP]
Allows you to select the Parallel Port mode.
Conguration options: [Normal] [Bi-Directional] [EPP] [ECP]
ECP Mode DMA Channel [DMA3]
Appears only when the Parallel Port Mode is set to [ECP]. This item
allows you to set the Parallel Port ECP DMA.
Conguration options: [DMA0] [DMA1] [DMA3]
Parallel Port IRQ [IRQ7]
Conguration options: [IRQ5] [IRQ7]
ASUS P5S-MX SE 2-23
2.4.5 PCI PnP
The PCI PnP menu items allow you to change the advanced settings for PCI/PnP
devices. The menu includes setting IRQ and DMA channel resources for either
PCI/PnP or legacy ISA devices, and setting the memory size block for legacy ISA
devices.
Take caution when changing the settings of the PCI PnP menu items. Incorrect
eld values can cause the system to malfunction.
Advanced PCI/PnP Settings
WARNING: Setting wrong values in below sections
may cause system to malfunction.
Plug And Play O/S [No]
PCI Latency Timer [64]
Allocate IRQ to PCI VGA [Yes]
Palette Snooping [Disabled]
IRQ-3 assigned to [PCI Device]
IRQ-4 assigned to [PCI Device]
IRQ-5 assigned to [PCI Device]
IRQ-7 assigned to [PCI Device]
IRQ-9 assigned to [PCI Device]
IRQ-10 assigned to [PCI Device]
IRQ-11 assigned to [PCI Device]
IRQ-14 assigned to [PCI Device]
IRQ-15 assigned to [PCI Device]
Plug and Play O/S [No]
When set to [No], BIOS congures all the devices in the system. When set to
[Yes] and if you install a Plug and Play operating system, the operating system
congures the Plug and Play devices not required for boot.
Conguration options: [No] [Yes]
PCI Latency Timer [64]
Allows you to select the value in units of PCI clocks for the PCI device latency
timer register. Conguration options: [32] [64] [96] [128] [160] [192] [224] [248]
Allocate IRQ to PCI VGA [Yes]
When set to [Yes], BIOS assigns an IRQ to PCI VGA card if the card requests for
an IRQ. When set to [No], BIOS does not assign an IRQ to the PCI VGA card even
if requested. Conguration options: [Yes] [No]
Palette Snooping [Disabled]
When set to [Enabled], the pallete snooping feature informs the PCI devices that
an ISA graphics device is installed in the system so that the latter can function
correctly. Conguration options: [Disabled] [Enabled]
2-24 Chapter 2: BIOS setup
Configure CPU.
IRQ-xx assigned to [PCI Device]
When set to [PCI Device], the specic IRQ is free for use of PCI/PnP devices.
When set to [Reserved], the IRQ is reserved for legacy ISA devices.
Conguration options: [PCI Device] [Reserved]
2.5 Power menu
The Power menu items allow you to change the settings for the Advanced
Power Management (APM). Select an item then press <Enter> to display the
conguration options.
Suspend Mode [Auto]
Repost Video on S3 Resume [No]
ACPI 2.0 Support [ACPI v1.0]
ACPI APIC Support [Enabled]
APM Conguration
Hardware Monitor
2.5.1 Suspend Mode [Auto]
Allows you to select the Advanced Conguration and Power Interface (ACPI) state
to be used for system suspend.
Conguration options: [S1 (POS) Only] [S3 Only] [Auto]
2.5.2 Repost Video on S3 Resume [No]
Allows you to determine whether to invoke VGA BIOS post on S3/STR resume.
Conguration options: [Yes] [No]
2.5.3 ACPI 2.0 Support [Disabled]
Allows you to add more tables for Advanced Conguration and Power Interface
(ACPI) 2.0 specications.
Conguration options: [ACPI v1.0] [ACPI v2.0] [ACPI v3.0]
2.5.4 ACPI APIC Support [Enabled]
Allows you to enable or disable the Advanced Conguration and Power Interface
(ACPI) support in the Application-Specic Integrated Circuit (ASIC). When set
to Enabled, the ACPI APIC table pointer is included in the RSDT pointer list.
Conguration options: [Disabled] [Enabled]
ASUS P5S-MX SE 2-25
2.5.5 APM Conguration
APM Conguration
Power On By Ring [Disabled]
Power On By LAN [Disabled]
Power On By PME# [Disabled]
Power On By RTC [Disabled]
Restore on AC Power Loss [Power Off]
Power On By PS/2 Keyboard [Disabled]
Power On By PS/2 Mouse [Disabled]
Power On By Ring [Disabled]
Allows you to enable or disable RI to generate a wake event.
Conguration options: [Disabled] [Enabled]
Power On By LAN [Disabled]
Allows you to enable or disable LAN GPI to generate a wake event.
Conguration options: [Disabled] [Enabled]
Power On By PME# [Disabled]
Allows you to enable or disable PME to generate a wake event.
Conguration options: [Disabled] [Enabled]
Power On By RTC [Disabled]
Allows you to enable or disable RTC to generate a wake event. When this item is
set to Enabled, the items RTC Alarm Date, RTC Alarm Hour, RTC Alarm Minute,
and RTC Alarm Second appear with set values.
Conguration options: [Disabled] [Enabled]
Restore on AC Power Loss [Power Off]
When set to Power Off, the system goes into off state after an AC power loss.
When set to Power On, the system goes on after an AC power loss. When set to
Last State, the system goes into either off or on state, whatever the system state
was before the AC power loss.
Conguration options: [Power Off] [Power On] [Last State]
Power On By PS/2 Keyboard [Disabled]
Allows you to use specic keys on the keyboard to turn on the system. This
feature requires an ATX power supply that provides at least 1A on the +5VSB lead.
Conguration options: [Disabled] [Space Bar] [Ctrl-Esc] [Power Key] [Any Key]
2-26 Chapter 2: BIOS setup
Power On By PS/2 Mouse [Disabled]
When set to [Enabled], this parameter allows you to use the PS/2 mouse to turn on
the system. This feature requires an ATX power supply that provides at least 1A on
the +5VSB lead. Conguration options: [Disabled] [Enabled]
2.5.6 Hardware Monitor
Hardware Monitor
CPU Temperature [55.5ºC/131.5ºF]
CPU Fan Speed [4411RPM]
CPU Q-Fan Control [Disabled]
Chassis Fan Speed [N/A]
VCORE Voltage [ 1.344V]
3.3V Voltage [ 3.280V]
5V Voltage [ 5.145V]
12V Voltage [11.932V]
CPU Temperature [xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the motherboard
and CPU temperatures. Select Ignored if you do not wish to display the detected
temperatures.
CPU Fan Speed (RPM) [xxxxRPM] or [N/A] or [Ignored]
The onboard hardware monitor automatically detects and displays the CPU
fan speed in rotations per minute (RPM). If the fan is not connected to the
motherboard, the eld shows N/A. Select Ignored if you do not wish to display the
detected speed.
CPU Q-Fan Control [Disabled]
Allows you to enable or disable the Q-Fan control.
Conguration options: [Disabled] [Enabled]
ASUS P5S-MX SE 2-27
Select Screen
Select Item
Enter Go to Sub-screen
F1 General Help
F10 Save and Exit
ESC Exit
Chassis Fan Speed [xxxxRPM] or [N/A] or [Ignored]
The onboard hardware monitor automatically detects and displays the chassis fan speed
in rotations per minute (RPM). If the fan is not connected to the chassis, the specic eld
shows N/A. Select Ignored if you do not wish to display the detected speed.
VCORE Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage
The onboard hardware monitor automatically detects the voltage output through
the onboard voltage regulators.
2.6 Boot menu
The Boot menu items allow you to change the system boot options. Select an item
then press <Enter> to display the sub-menu.
Boot settings
Boot Device Priority
Boot Settings Conguration
Security
2.6.1 Boot Device Priority
Boot Device Priority
1st Boot Device [1st FLOPPY DRIVE]
2nd Boot Device [Hard Drive]
3rd Boot Device [ATAPI CD-ROM]
1st ~ xxth Boot Device [1st Floppy Drive]
These items specify the boot device priority sequence from the available devices.
The number of device items that appears on the screen depends on the number of
devices installed in the system.
Conguration options: [xxxxx Drive] [Disabled]
2-28 Chapter 2: BIOS setup
2.6.2 Boot Settings Conguration
Boot Settings Conguration
Quick Boot [Enabled]
Full Screen Logo [Enabled]
AddOn ROM Display Mode [Force BIOS]
Bootup Num-Lock [On]
PS/2 Mouse Support [Auto]
Wait For ‘F1’ If Error [Enabled]
Hit ‘DEL’ Message Display [Enabled]
Interrupt 19 Capture [Disabled]
Allows BIOS to skip
certain tests while
booting. This will
decrease the time
needed to boot the
system.
Quick Boot [Enabled]
Enabling this item allows the BIOS to skip some power on self tests (POST) while
booting to decrease the time needed to boot the system. When set to [Disabled],
BIOS performs all the POST items.
Conguration options: [Disabled] [Enabled]
Full Screen Logo [Enabled]
This allows you to enable or disable the full screen logo display feature.
Conguration options: [Disabled] [Enabled]
Set this item to [Enabled] to use the ASUS MyLogo2™ feature.
Add On ROM Display Mode [Force BIOS]
Sets the display mode for option ROM.
Conguration options: [Force BIOS] [Keep Current]
Bootup Num-Lock [On]
Allows you to select the power-on state for the NumLock.
Conguration options: [Off] [On]
PS/2 Mouse Support [Auto]
Allows you to enable or disable support for PS/2 mouse.
Conguration options: [Disabled] [Enabled] [Auto]
Wait for ‘F1’ If Error [Enabled]
When set to Enabled, the system waits for the F1 key to be pressed when error
occurs.
Conguration options: [Disabled] [Enabled]
ASUS P5S-MX SE 2-29
Hit ‘DEL’ Message Display [Enabled]
When set to Enabled, the system displays the message “Press DEL to run Setup”
during POST.
Conguration options: [Disabled] [Enabled]
Interrupt 19 Capture [Disabled]
When set to [Enabled], this function allows the option ROMs to trap Interrupt 19.
Conguration options: [Disabled] [Enabled]
2.6.3 Security
The Security menu items allow you to change the system security settings. Select
an item then press <Enter> to display the conguration options.
Security Settings
Supervisor Password : Not Installed
User Password : Not Installed
Change Supervisor Password
Change User Password
<Enter> to change
password.
<Enter> again to
disabled password.
Change Supervisor Password
Select this item to set or change the supervisor password. The Supervisor
Password item on top of the screen shows the default Not Installed. After you set a
password, this item shows Installed.
To set a Supervisor Password:
1. Select the Change Supervisor Password item and press <Enter>.
2. From the password box, type a password composed of at least six letters
and/or numbers, then press <Enter>.
3. Conrm the password when prompted.
The message “Password Installed” appears after you successfully set your
password.
To change the supervisor password, follow the same steps as in setting a user
password.
To clear the supervisor password, select the Change Supervisor Password then
press <Enter>. The message “Password Uninstalled” appears.
If you forget your BIOS password, you can clear it by erasing the CMOS Real
Time Clock (RTC) RAM. See section “1.9 Jumpers” for information on how to
erase the RTC RAM.
2-30 Chapter 2: BIOS setup
After you have set a supervisor password, the other items appear to allow you to
change other security settings.
Security Settings
Supervisor Password : Not Installed
User Password : Not Installed
Change Supervisor Password
User Access Level [Full Access]
Change User Password
Clear User Password
Password Check [Setup]
User Access Level [Full Access]
This item allows you to select the access restriction to the Setup items.
Conguration options: [No Access] [View Only] [Limited] [Full Access]
No Access prevents user access to the Setup utility.
View Only allows access but does not allow change to any eld.
Limited allows changes only to selected elds, such as Date and Time.
Full Access allows viewing and changing all the elds in the Setup utility.
Change User Password
Select this item to set or change the user password. The User Password item on
top of the screen shows the default Not Installed. After you set a password, this
item shows Installed.
To set a User Password:
1. Select the Change User Password item and press <Enter>.
2. On the password box that appears, type a password composed of at least six
letters and/or numbers, then press <Enter>.
3. Conrm the password when prompted.
The message “Password Installed” appears after you set your password
successfully.
To change the user password, follow the same steps as in setting a user password.
Clear User Password
Select this item to clear the user password.
Password Check [Setup]
When set to [Setup], BIOS checks for user password when accessing the Setup
utility. When set to [Always], BIOS checks for user password both when accessing
Setup and booting the system. Conguration options: [Setup] [Always]
ASUS P5S-MX SE 2-31
Exit system setup
after saving the
changes.
F10 key can be used
for this operation.

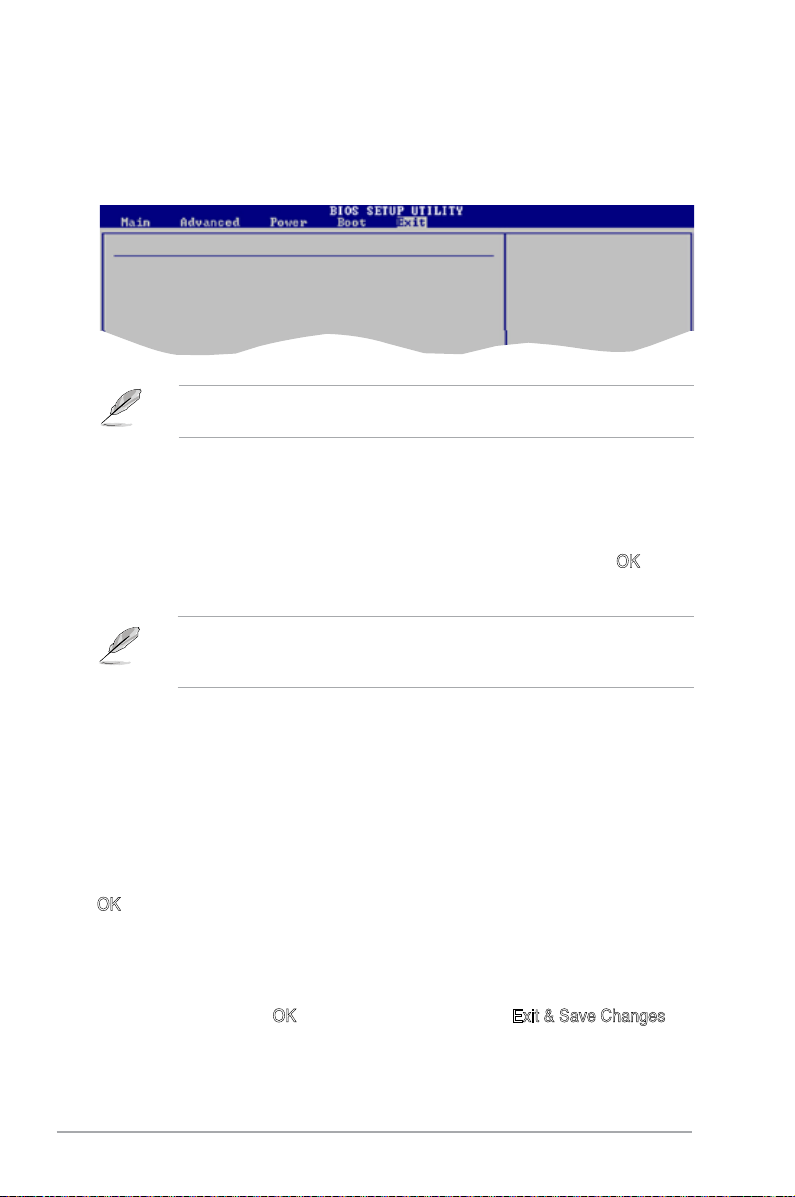

2.7 Exit menu
The Exit menu items allow you to load the optimal or failsafe default values for the
BIOS items, and save or discard your changes to the BIOS items.
Exit Options
Exit & Save Changes
Exit & Discard Changes
Discard Changes
Load Setup Defaults
Pressing <Esc> does not immediately exit this menu. Select one of the options
from this menu or <F10> from the legend bar to exit.
Exit & Save Changes
Once you are nished making your selections, choose this option from the Exit
menu to ensure the values you selected are saved to the CMOS RAM. An onboard
backup battery sustains the CMOS RAM so it stays on even when the PC is turned
off. When you select this option, a conrmation window appears. Select OK to save
changes and exit.
If you attempt to exit the Setup program without saving your changes, the
program prompts you with a message asking if you want to save your changes
before exiting. Press <Enter> to save the changes while exiting.
Exit & Discard Changes
Select this option only if you do not want to save the changes that you made to
the Setup program. If you made changes to elds other than System Date, System
Time, and Password, the BIOS asks for a conrmation before exiting.
Discard Changes
This option allows you to discard the selections you made and restore the
previously saved values. After selecting this option, a conrmation appears. Select
OK to discard any changes and load the previously saved values.
Load Setup Defaults
This option allows you to load the default values for each of the parameters on the
Setup menus. When you select this option or if you press <F5>, a conrmation
window appears. Select OK to load default values. Select Exit & Save Changes or
make other changes before saving the values to the non-volatile RAM.
2-32 Chapter 2: BIOS setup
This chapter describes the contents
of the support CD that comes with the
motherboard package.
Software
3
support
ASUS P5S-MX SE 3-1
3.1 Installing an operating system
This motherboard supports Windows®V Vista /2003/XP/64-bit 2003/64-bit XP
operating systems (OS). Always install the latest OS version and corresponding
updates to maximize the features of your hardware.
• Motherboard settings and hardware options vary. Use the setup
procedures presented in this chapter for reference only. Refer to your OS
documentation for detailed information.
®
• Make sure that you install Windows
XP Service Pack2 or later versions before installing the drivers for better
compatibility and system stability.
2003 Service Pack 4 or the Windows®
3.2 Support CD information
The support CD that came with the motherboard package contains the drivers,
software applications, and utilities that you can install to avail all motherboard
features.
The contents of the support CD are subject to change at any time without
notice. Visit the ASUS website(www.asus.com) for updates.
3.2.1 Running the support CD
Place the support CD to the optical drive. The CD automatically displays the
Drivers menu if Autorun is enabled in your computer.
Click an icon to display
support CD/motherboard
information
Click an item to install
If Autorun is NOT enabled in your computer, browse the contents of the support
CD to locate the le ASSETUP.EXE from the BIN folder. Double-click the
ASSETUP.EXE to run the CD.
3-2 Chapter 3: Software support
3.2.2 Drivers menu
The drivers menu shows the available device drivers if the system detects installed
devices. Install the necessary drivers to activate the devices.
ASUS InstAll - Drivers Installation Wizard
Installs the ASUS Install - Drivers installation wizard.
SiS Graphic Driver
Installs the SiS Graphic Driver.
Realtek Audio Driver
Installs the Realtek audio driver and application.
SiS191/SiS190 Ethernet Driver
Installs the SiS191/SiS190 Ethernet driver and application.
ASUS P5S-MX SE 3-3
3.2.3 Utilities menu
The Utilities menu shows the applications and other software that the motherboard
supports.
ASUS InstAll - Drivers Installation Wizard for Utilities
Installs ASUS InstAll - Drivers Installation Wizard
ASUS PC Probe II
This smart utility monitors the fan speed, CPU temperature, and system voltages,
and alerts you of any detected problems. This utility helps you keep your computer
in healthy operating condition.
ASUS Update
The ASUS Update utility allows you to update the motherboard BIOS in Windows®
environment. This utility requires an Internet connection either through a network
or an Internet Service Provider (ISP)
3-4 Chapter 3: Software support
3.2.4 Make Disk menu
The Make Disk menu allows you to make a RAID driver disk
Make SiS RAID Controller Driver disk
Allows you to create an SiS RAID Controller driver disk
3.2.5 Manual menu
The Manual menu contains a list of supplementary user manuals. Click an item to
open the folder of the user manual.
Most user manual les are in Portable Document Format (PDF). Install the
Adobe® Acrobat® Reader from the Utilities menu before opening a user manual
le.
ASUS P5S-MX SE 3-5
3.2.6 ASUS Contact information
Click the Contact tab to display the ASUS contact information. You can also nd
this information on the inside front cover of this user guide.
3-6 Chapter 3: Software support
The Appendix describes the CPU
features and technologies that the
motherboard supports.
CPU features
A
A.1 Intel® EM64T
• The motherboard is fully compatible with Intel® Pentium® 4 LGA775
processors running on 32-bit operating systems.
• The motherboard comes with a BIOS le that supports EM64T.
You can download the latest BIOS le from the ASUS website
(www.asus.com/support/download/) if you need to update the BIOS le.
See Chapter 2 for details.
• Visit www.intel.com for more information on the EM64T feature.
®
• Visit www.microsoft.com for more information on Windows
Using the Intel® EM64T feature
To use the Intel® EM64T feature:
1. Install an Intel
2. Install a 64-bit operating system (Windows
Windows® Server 2003 x64 Edition).
3. Install the 64-bit drivers for the motherboard components and devices from
the support CD.
4. Install the 64-bit drivers for expansion cards or add-on devices, if any.
®
Pentium® 4 CPU that supports the Intel® EM64T.
®
XP Professional x64 Edition or
Refer to the expansion card or add-on device(s) documentation, or visit the
related website, to verify if the card/device supports a 64-bit system.
64-bit OS.
A.2 Enhanced Intel SpeedStep®
Technology (EIST)
• The motherboard comes with a BIOS le that supports EIST.
You can download the latest BIOS le from the ASUS website
(www.asus.com/support/download/) if you need to update the BIOS. See
Chapter 2 for details.
• Visit www.intel.com for more information on the EIST feature.
A.2.1 System requirements
Before using EIST, check your system if it meets the following requirements:
• Intel
• BIOS le with EIST support
• Operating system with EIST support (Windows
A-2 Appendix: CPU features
®
Pentium® 4 processor with EIST support
2003 SP1/Linux 2.6 kernel or later versions)
®
XP SP2/Windows® Server
A.2.2 Using the EIST
To use the EIST feature:
1. Turn on the computer, then enter the BIOS Setup.
2. Go to the Advanced Menu, highlight CPU Conguration,
then press <Enter>.
3. Set the
Intel(R) SpeedStep Technology item to [Automatic],
then press <Enter>.
4. Press <F10> to save your changes and exit the BIOS setup.
5. After the computer restarts, right click on a blank space on the desktop, then
select Properties from the pop-up menu.
6. When the Display Properties window
appears, click the Screen Saver tab.
7. Click the Power button on the
Monitor power section to open the
Power Options Properties window.
8. On the Power schemes section, click
, then select any option except
Home/Ofce Desktop or Always
On.
9. Click Apply, then click OK.
10. Close the Display Properties window.
After you adjust the power scheme,
the CPU internal frequency slightly
decreases when the CPU loading is
low.
The screen displays and procedures may vary depending on the operating
system.
ASUS P5S-MX SE A-3
A.3 Intel® Hyper-Threading Technology
• The motherboard supports Intel® Pentium® 4 LGA775 processors with
Hyper-Threading Technology.
®
• Hyper-Threading Technology is supported under Windows
and Linux 2.4.x (kernel) and later versions only. Under Linux, use the
Hyper-Threading compiler to compile the code. If you are using any other
operating systems, disable the Hyper-Threading Technology item in the
BIOS to ensure system stability and performance.
®
• Installing Windows
• Make sure to enable the Hyper-Threading Technology item in BIOS before
installing a supported operating system.
• For more information on Hyper-Threading Technology, visit www.intel.
com/info/hyperthreading.
XP Service Pack 1 or later version is recommended.
Using the Hyper-Threading Technology
To use the Hyper-Threading Technology:
1. Install an Intel
2. Power up the system and enter the BIOS Setup. Under the Advanced Menu,
make sure that the item Hyper-Threading Technology is set to Enabled.
The BIOS item appears only if you installed a CPU that supports
Hyper-Threading Technology.
3. Restart the computer.
®
Pentium® 4 CPU that supports Hyper-Threading Technology.
XP/2003 Server
A-4 Appendix: CPU features
