Apple Ethernet CS Twisted-Pair Card
User’s Guide

FCC statement

This equipment has been tested and found to comply with the
limits for a Class A digital device pursuant to Part 15 of the
Federal Communications Commission (FCC) rules. These
limits are designed to provide reasonable protection against
such interference when the equipment is operated in a
commercial environment. This equipment generates, uses,
and can radiate radio-frequency energy and, if not installed
and used in accordance with the instructions in this manual,
may cause interference to radio communications. Operation
of this equipment in a residential area is likely to cause
interference, in which case the user, at the user’s own
expense, will be required to correct the interference.

IMPORTANT Changes or modifications to this product are
not authorized by Apple Computer, Inc., and could void the
FCC certification and negate your authority to operate the
product. This product was tested for FCC compliance under
conditions that included the use of shielded cables and
connectors between system components. It is important that
you use shielded cables and connectors to reduce the
possibility of causing interference to radios, television sets,
and other electronic devices. For Apple peripheral devices,
you can obtain the proper shielded cables through an Apple­authorized dealer. For non-Apple peripheral devices, contact
the manufacturer or dealer for assistance.

DOC statement

DOC Class A Compliance

This digital apparatus does not exceed the Class A limits for
radio noise emissions from digital apparatus set out in the radio
interference regulations of the Canadian Department of
Communications.

Observation des normes—Classe A

Le présent appareil numérique n’émet pas de bruits radio­électriques dépassant les limites applicables aux appareils
numériques de la Classe A prescrites dans les règlements sur
le brouillage radioélectrique édictés par le Ministère des
Communications du Canada.

VCCI statement

This manual is copyrighted by Apple or by Apple’s suppliers, with all
rights reserved. Under the copyright laws, this manual may not be
copied, in whole or in part, without the written consent of Apple
Computer, Inc. This exception does not allow copies to be made for
others, whether or not sold, but all of the material purchased may be
sold, given, or lent to another person. Under the law, copying includes
translating into another language.

The Apple logo is a registered trademark of Apple Computer, Inc. Use of
the “keyboard” Apple logo (Option-Shift-K) for commercial purposes
without the prior written consent of Apple may constitute trademark
infringement and unfair competition in violation of federal and state laws.

Every effort has been made to ensure that the information in this manual
is accurate. Apple is not responsible for printing or clerical errors.

© Apple Computer, Inc., 1994
20525 Mariani Avenue
Cupertino, CA 95014-6299
[phone]

Apple, the Apple logo, AppleTalk, EtherTalk, LocalTalk, and Macintosh
are trademarks of Apple Computer, Inc., registered in the United States
and other countries.

Simultaneously published in the United States and Canada.

Mention of third-party products is for informational purposes only and
constitutes neither an endorsement nor a recommendation. Apple
assumes no responsibility with regard to the performance or use of these
products.

Contents

About this communications card / 2

What’s in the box / 2

Installing and connecting your card / 3

Installing EtherTalk software / 5

Setting the Network control panel for EtherTalk / 7

Changing your AppleTalk zone / 8

Disconnecting and moving your computer / 8

Troubleshooting / 9

Specifications / 11

For more information / 11

About this communications card

The Apple Ethernet CS Twisted-Pair Card expands the
communications capabilities of models of Macintosh
computers that have a communications slot (CS). The card
is designed for an Ethernet network that uses IEEE
10BASE-T standard twisted-pair cable. To connect to an
Ethernet network, you must also install EtherTalk software,
which is included with the Twisted-Pair Card. After you’ve
added the card and installed EtherTalk software, you
connect to your network by attaching a network cable to

What’s in the box

■

One Apple Ethernet CS Twisted-Pair Card

Note:

the protective cardboard box until you’re ready
to install it.

■

One floppy disk containing EtherTalk software

■

Warranty card

■

User’s guide

Note:

cable separately.

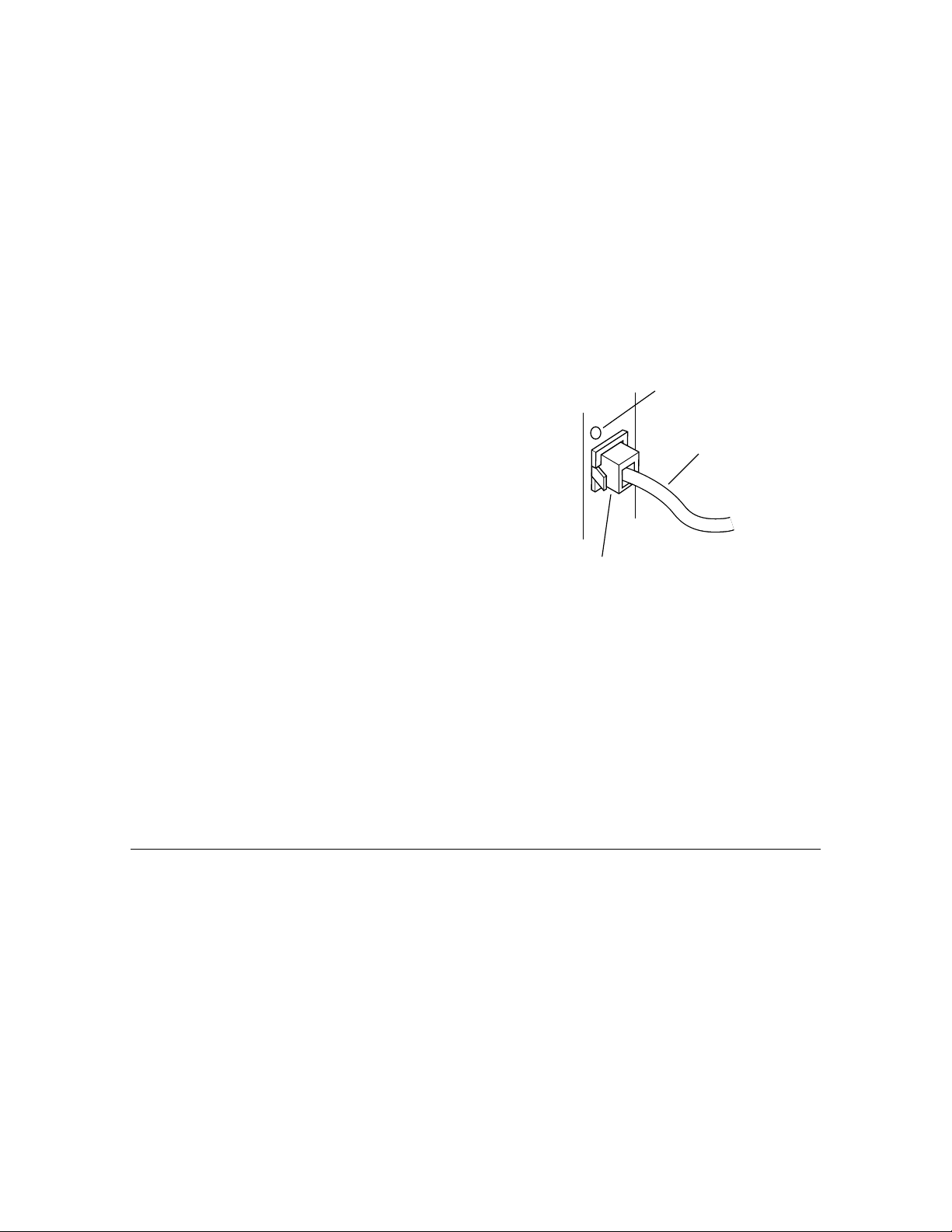

the card’s RJ-45 port and to a network controller unit (hub).

The Apple Ethernet CS Twisted-Pair Card works only
with Macintosh System 7 or later. For best performance
your system should have at least 4 megabytes (MB) of
random-access memory.

WARNING To avoid damage to the card and to
your other computer equipment, be sure that
you’ve turned off power to the computer before
beginning installation procedures.

Keep the card inside its antistatic bag in

You’ll need to obtain twisted-pair network

2

Installing and connecting your card

1. Follow the specific setup information that
came with your Macintosh to open the back
panel or lid, and locate the communications
slot inside the computer.

The material that comes with your Macintosh includes
instructions to help you avoid damage to your
computer’s components when installing the card. Be
sure you’ve shut down and turned off the power to
your computer before starting the installation.

Handle the card by its edge.

RJ-45 port

Push down evenly and firmly.

2. Remove the card from its antistatic bag.

Handle the card by its edges and avoid touching the
components and connector as much as possible.

3. Align the card over the communications slot
and press down firmly and evenly on both
ends until the card fits snugly into place.

You can test to see if the card is properly connected
by lifting the card slightly. If it resists and stays in
place, it’s connected.

To locate the
communications slot for
your computer, see the
setup instructions that
came with your Macintosh.

3
