IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact the “Customer Satisfaction Center” at 1-877-337-3639.
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas Réexpédier ce Produit au Magasin
Pour tout problème concernant ce produit, veuillez contacter le service des consommateurs ‘Customer Satisfaction Center’ au 1-877-337-3639.
UNE PREUVE D’ACHAT DATEE EST REQUISE POUR BENEFICIER DE LA GARANTIE.
IMPORTANTE
No regrese este producto a la tienda
Si tiene algún problema con este producto, por favor contacte el “Centro de Servicio al Consumidor” al 1-877-337-3639 (Válido solo en E.U.A).
NECESITA UNA PRUEBA DE COMPRA FECHADA PARA EL SERVICIO DE LA GARANTIA
115V, 60 Hz
Made in China
Fabriqué en Chine
Hecho en China
New York, NY 10018
Printed in China
HCR27 / ECR27
©2010 Haier America Trading, LLC. All Rights Reserved.
Compact Refrigerator
Réfrigerateur Compact
Refrigerador Compacto
User Manual
Manuel de l’utilisateur
Manual del Usuario
HCR27
User Manual
Manuel de l’utilisateur Manual del Usuario
ECR27
Quality ν Innovation ν Style
English
safety precautions
Read all of the instructions before using this appliance. When using this appliance, always exercise basic safety precautions, including the following:
NOTE: If the refrigerator has been placed in a horizontal or tilted position for any period of time wait 24 hours before plugging the unit in.
1)Use this appliance only for its intended purpose as described in this use and care guide.
2)This refrigerator must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.
3)Never unplug your refrigerator by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
4)Repair or replace immediately, all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length, the plug or the connector end.
5)Unplug your refrigerator before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly recommend that a certified technician performs the service.
6)Do not use any electrical device or any sharp instrument in defrosting your refrigerator.
7)If your old refrigerator is not being used, we recommend that you remove the doors and leave the shelves in place. This will reduce the possibility of danger to children.
8)After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces.
9)Do not refreeze foods that have been thawed completely. The United States Department of Agriculture in Home and Garden Bulletin No. 69 reads: “…You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold-below 40˚F.
“…Thawed ground meats, poultry, or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, discard it. The food may be dangerous to eat.
1
English
“…Even partial thawing and re-freezing reduce the eating quality of foods, particularly fruits, vegetables, and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as possible, to save as much of its eating quality as you can.”
10)This refrigerator should not be recessed or built-in in an enclosed cabinet. It is designed for freestanding installation only.
11)Do not operate your refrigerator in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors. Leave the shelves in place so that children may not easily climb inside.
product registration
Thank you for using our Haier product. This easy-to-use manual will guide you in getting the best use of your refrigerator.
Remember to record the model and serial number. They are on a label in the rear of the refrigerator.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain warranty service.
2
English |
|
Table of contents |
|
|
PAGE |
Safety Precautions................................................................. |
1 |
Parts And Features................................................................. |
4 |
Installing Your Refrigerator............................................. |
5 |
Unpacking Your Refrigerator.............................................................. |
5 |
Leveling Your Refrigerator.................................................................. |
5 |
Proper Air Circulation....................................................................... |
5 |
Door Alignment................................................................................ |
5 |
Electrical Requirements...................................................................... |
6 |
Use of Extension Cord....................................................................... |
6 |
Installation Limitations........................................................................ |
6 |
Refrigerator Features And Use........................................... |
7 |
General Features.............................................................................. |
7 |
Refrigerator Interior Shelves............................................................... |
7 |
Food Storage Information.................................................................. |
8 |
Normal Operating Sounds................................................................. |
8 |
Proper Refrigerator Care and Cleaning......................... |
9 |
Cleaning and Maintenance............................................................... |
9 |
Defrost............................................................................................ |
9 |
Power Interruptions......................................................................... |
10 |
Vacation and Moving Care............................................................. |
10 |
Energy Saving Tips......................................................................... |
10 |
Troubleshooting.................................................................. |
11 |
Warranty Information...................................................... |
12 |
3
English
parts and features
2 |
4 |
1 |
3
7
5
6
* Features may vary on some models.
1. |
Freezer Compartment |
5. |
Full Width Shelves (2) |
2. |
Ice Cube Tray |
6. |
Leveling Legs(2) |
3. |
Drip Tray |
7. |
Door Storage Shelf (2) |
4. |
Temperature Control |
|
|
4
English
installing your refrigerator
Unpacking Your Refrigerator
1.Remove all packaging material. This includes the foam base and all adhesive tape holding the refrigerator accessories inside and outside.
2.Inspect and remove any remains of packing, tape or printed materials before powering on the refrigerator.
Leveling Your Refrigerator
•Your refrigerator has two leveling legs which are located in the front bottom corners of your refrigerator. After properly placing your
refrigerator in its final position, you can level your refrigerator.
•Leveling legs can be adjusted by turning them clockwise to raise your refrigerator or by turning them counterclockwise to lower your refrigerator. The refrigerator door will close easier when the leveling legs are extended.
Proper Air Circulation
•To ensure your refrigerator works at the maximum efficiency it was designed for, you should install it in a location where there is proper air circulation, plumbing and electrical connections.
•The following are recommended clearances around the refrigerator:
Sides……………3/4" (19mm) Top....................2" (50mm) Back..................4" (100mm)
Door Alignment
1.Remove the top hinge cover by using a flathead screwdriver. Place the head under the front edge
of the cap and gently lift.
2. Loosen the top hinge screws using a Phillips head screw driver.
3. Adjust the door or put a spacer in between and tighten the screws.
4. Replace the top hinge cover by aligning the rear |
fig. 1 |
of the cover with the rear of the hinge. Press |
|
firmly on the front of the cover until it snaps in place.
5
English
Electrical Requirement
•Make sure there is a suitable power outlet (115 volts, 15 amps outlet) with proper grounding to power the refrigerator.
•Avoid the use of three prong adapters or cutting off the third grounding prong in order to accommodate a two prong outlet. This is a dangerous practice since it provides no effective grounding for the refrigerator and may result in shock hazard.
Use of Extension Cords
•Avoid the use of an extension cord because of potential safety hazards under certain conditions. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot outlet that will accept the plug. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance.
Installation Limitations
•Do not install your refrigerator in any location not properly insulated or heated, e.g. garage, etc. Your refrigerator was not designed to operate in temperature settings below 55˚ Fahrenheit.
•Select a suitable location for the refrigerator on a hard even surface away from direct sunlight or heat source, e.g. radiators, baseboard heaters, cooking appliances, etc. Any floor unevenness should be corrected with the leveling legs located on the front bottom corners of the refrigerator.
NOTE: As the door gets pressed in during shipping, after reversing the door, the gasket may have to be reset. This is done to prevent the cool refrigerated air from escaping. If there is a gap between the door gasket and the cabinet, set the gasket by gently pulling it out to seal the gap.
6
English
refrigerator features and use
General Features Adjustable temperature dial:
Your refrigerator will automatically maintain the temperature level you select. The temperature control dial has 5 settings plus "0". 1 is the warmest. 5 is the coldest. At first, set the dial to 3 and allow 24 hours to pass before adjusting the temperature to your needs.
(Note: If the refrigerator has been placed in a horizontal or tilted position for any period of time wait 24 hours before plugging the unit in.)
Freezer Compartment / Use of the Ice Cube Trays
This compartment is designed for making ice cubes and for short-term food storage (a few days at most).
WARNING: This compartment is not cold enough to freeze foods safely for more than 5 days.
•If ice cube tray freezes to the bottom of the compartment, pour a little warm water around it to loosen it. Do not use boiling water, which can damage plastic parts, or sharp metal objects such as a knife or screwdriver, which can damage the cooling system tubing. Wash the ice cube tray in lukewarm water only. Do not wash in the dishwasher.
Refrigerator Interior Shelves

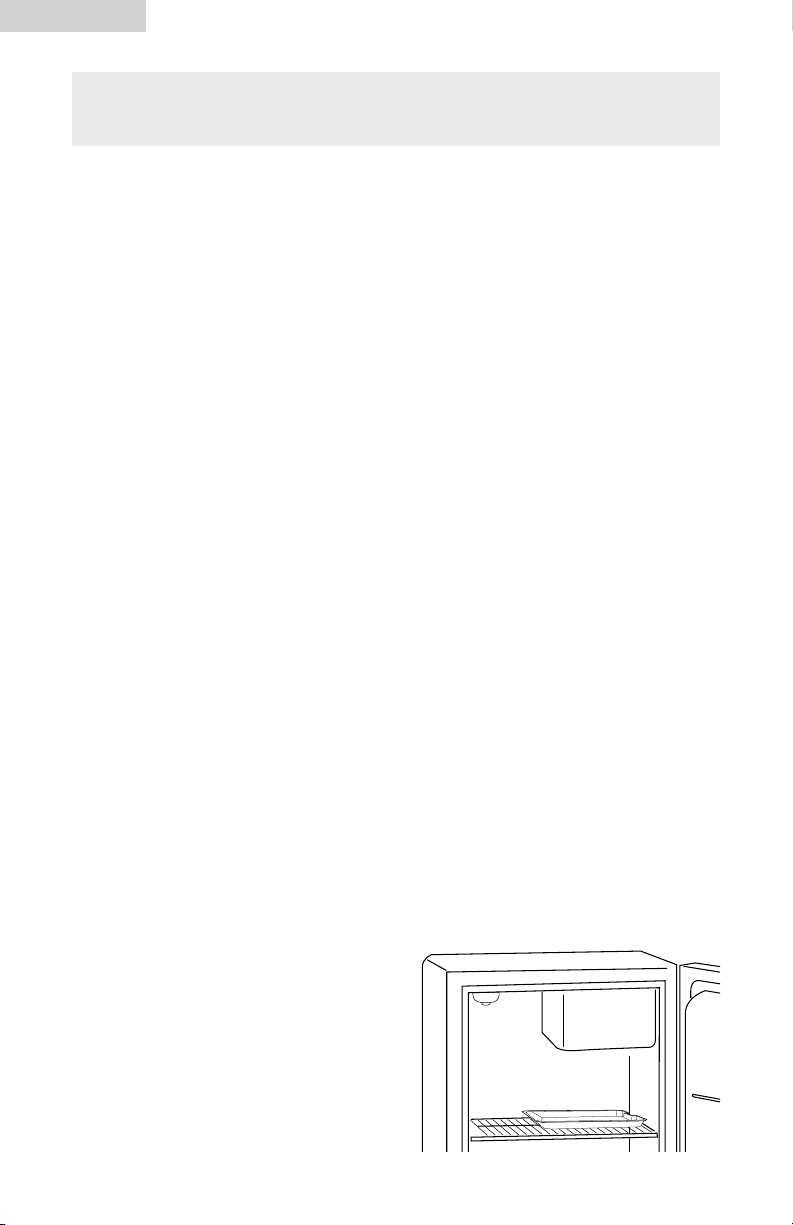

To remove or replace a full-width slide-out shelf:
(see fig. # 2)
1.Gently tilt the shelf up and slide forward until the shelf has been completely removed.
2.To replace the shelf, gently slide the shelf back.
fig. # 2
7
English
Food Storage Information
Fresh Food
•When storing fresh food that is not prepackaged, be sure to wrap or store food in airtight and moisture proof material unless otherwise noted. This will ensure proper shelf life and prevent the transfer of odors and tastes.
•Wipe containers before storing to avoid needless spills.
•Eggs should be stored in an upright position in their original carton to maximize shelf life.
•Fruit should be washed and dried, then stored in sealed plastic bags before storing in the refrigerator.
•Vegetables with skins should be stored in plastic bags or containers.
•Leafy vegetables should be washed and drained and then stored in plastic bags or containers.
•Hot food should be allowed to cool before storing in the refrigeration. This will prevent unnecessary energy use.
•Fresh seafood should be used the same day as purchased.
•When storing meats in the fresh food section, keep in the original packaging or rewrap as necessary. Follow the suggestions below for safe storage:
• Chicken |
1-2 Days |
• Ground Beef |
1-2 Days |
• Cold Cuts |
3-5 Days |
• Steaks/Roasts |
3-5 Days |
• Smoked/Cured Meats |
7-10 Days |
• All others |
1-2 Days |
Normal Operating Sounds You May Hear
•Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant circulating through the cooling coils.
•The thermostat control will click when it cycles on and off.
8
English
proper refrigerator care and cleaning
Cleaning and Maintenance
Warning: To avoid electric shock, always unplug your
refrigerator before cleaning. Ignoring this warning may result in death or injury.
Caution: Before using cleaning products, always read and follow manufacturer’s instructions and warnings to avoid personal injury or product damage.
General: Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your refrigerator.
•Rinse with clean warm water and dry with a soft cloth.
•Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or metal scouring pads. Some of these chemicals may dissolve, damage and/or discolor your refrigerator.
Door Gaskets: Clean door gaskets every three months according to general instructions. Gaskets must be kept clean and pliable to assure a proper seal.
•Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket pliable and ensure a good seal.
Defrost
Defrost whenever frost on the wall of the freezer compartment becomes 1/8" thick. Never us a sharp or metallic instrument to remove frost as it may damage the cooling coils. (A punctured cooling coil will cause serious damage to the product and will void the warranty). We recommend using a plastic scraper. To defrost, remove foods and ice cube tray from the freezer compartment. Make sure the drip tray is in place and unplug the unit. Defrosting usually takes a few hours. To defrost faster, keep the door open and place a bowl of warm water in the refrigerator. After defrosting, empty water from the drip tray and wash the drip tray in warm water.
9
English
Power Interruptions
•Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC outlet when a power outage occurs. When power has been restored, replug power cord
to AC outlet. If outage is for a prolonged period, inspect and discard spoiled or thawed food in freezer and refrigerator. Clean refrigerator before reusing.
Vacation and Moving Care
•For long vacations or absences, empty food from refrigerator and freezer, move the temperature dial to the "0" position and clean the refrigerator and door gaskets according to "General Cleaning" section. Prop doors open, so air can circulate inside.When moving,
always move the refrigerator vertically. Do not move with the unit lying down. Possible damage to the sealed system could occur.
Energy Saving Tips
•The refrigerater should be located in the coolest area of the room, away from heat-producing appliances or heating ducts, and out of direct sunlight.
•Let hot foods cool to room temperature before placing in the refrigerator. Overloading the refrigerator forces the compressor to run longer and thus increases energy consumption. Foods that refrigerate too slowly may lose quality or spoil.
•Be sure to wrap foods properly, and wipe containers dry before placing in the refrigerator.
•The wire shelves should not be lined with aluminum foil, wax paper, or paper towels. Liners interfere with cold air circulation, making the refrigerator less efficient.
•Organize food to reduce door openings and extended searches.
Remove as many items as needed at one time, and close the door as soon as possible.
10
