INTRODUCTION
Thanks for choosing Waves. To get the most out of your Abbey Road TG Mastering Chain plugin, please take a few minutes to read this user guide.
To register and activate your new products, check for upgrades, and manage your account, log in to your Waves account. If you don’t already have a Waves account, click Create Account in the top right corner of the Waves.com homepage.
Download and install your new Waves software with the Waves Central application, which you can also use to download the latest version of plugins, move licenses from your Waves Cloud to any computer, and make offline installers so you can install current software on computers not connected to the internet.
Finally, we suggest that you visit Waves Support, where you’ll find an extensive answer base, system and host requirements, troubleshooting guides, and much more.
About the Abbey Road TG Mastering Chain Plugin
Abbey Road TG Mastering Chain is a modular plugin for mastering and mixing, modeled after the original EMI TG12410 Transfer Console used in all Abbey Road Studios’ mastering suites from the early ‘70s to this day.
The plugin can be used for both mastering and mixing – on the master bus, on groups or on individual tracks – to lend them the distinct sound of the original console, as heard on albums from Pink Floyd’s Dark Side of the Moon to Radiohead’s OK Computer and beyond.
Like the original EMI TG12410 console, the Abbey Road TG Mastering Chain plugin consists of the following modules:
1.TG12411 Input Module – handles all input tasks (phase, L/R balance, etc.)
2.TG12412 Tone Module – a musical, versatile 4-band EQ with 5 filter types per band
3 |
Abbey Road TG Mastering Chain | User Guide |
3. TG12413 Limiter Module – includes three compressor/limiter types:
Original |
Aggressive and ‘dirty’, precision-modeled after the unit’s original Zener diode limiter |
Modern |
Pristine-sounding, with higher levels of perceived loudness; an original Waves and |
|
Abbey Road design |
Limit |
Based on the limiter mode of the console’s original Zener diode. The knee is much |
|
harder compared to the “Original” compressor [“Original”] |
4.TG12414 Filter Module – includes low-pass & high-pass filters and a presence bell
5.TG12416 Output Module – complete with a spreader (stereo spread enhancer)
The individual modules can be re-ordered (except for the Input and Output modules which remain at the start and end of the chain) and switched on/off, letting you create differently ordered chains and a modular, customizable processing flow.
The Abbey Road TG Mastering Chain plugin also comes with the Abbey Road TG Meter Bridge component (a separate plugin), which is based on the original set of PPM, VU and phase correlation meters used by Abbey Road’s engineers in conjunction with the EMI TG12410 Transfer Console.
4 |
Abbey Road TG Mastering Chain | User Guide |
QUICK START
This quick start guide suggests the basics of how to use the Abbey Road TG Mastering Chain plugin when mastering a track. To learn more about controlling the plugin and how to fine-tune its sound, in mixing as well as mastering sessions, read the “Interface and Controls” section later in this user guide.
1.Insert the plugin on the master channel. (If you are using the plugin to mix rather than master, you can of course insert it on any individual channel or group.)
2.Use the TG12411 Input module to adjust input gain or to handle phase and balance issues (for more on how to do this, see the TG12411 Input Module section later in this user guide). You may also want to use the module’s Tape Equalizer control for its unique sonic color.
3.Open the TG Meter Bridge on any channel.
4.Set the Meter bridge to read the instance you are working on.
5.Adjust the input level to get a good 0VU input reading on the meter bridge. This will assure enough headroom.
6.Experiment with the TG12412 Tone module to get a good frequency balance.
7.When mastering a track to meet modern mastering requirements, we recommend you use the Modern mode of the TG12413 Limiter module, which is best suited for today’s mastering requirements.
8.In the TG12413 Limiter module, experiment with the Recovery control to get the best time-constant results for the song you are working on. 3, 4 and 5 are the ones we’ve found most suitable for mastering: 3 for more upbeat songs, 5 for slower ones.
9.The key to getting a good compression sound is playing with the TG12413 Limiter module’s Ratio and Mix controls, in order to achieve the best compression balance. Try somewhere around Ratio = 30–40 and Mix = 40–50.
10.In the Limiter’s expanded view, turn on the high-pass filter and find a good-sounding point anywhere between 120– 200 Hz. This will make the compression better correlated to the music (as sub frequencies will tend to suffocate the compression).
5 |
Abbey Road TG Mastering Chain | User Guide |
11.Use the TG12414 Filter module to clean unwanted frequency ranges and add some presence if needed.
12.A/B between the unprocessed and processed signal, using the bypass control. Make sure you adjust the overall level of processed signal to match the unprocessed level, so the A/B comparison does not introduce gain changes which might easily throw you off.
COMPONENTS
The Abbey Road TG Mastering Chain plugin has four components:
>Mono
>Stereo
>Live Mono
>Live Stereo
The Live components are optimized for live use, where extremely low latency and minimal CPU usage are required. The non-Live components have up-sampling at lower sample rates; the Live components remove the up-sampling in order to reduce latency. The non-Live components use very sharp linear phase FIR sidechain filters that introduce latency; the Live components use non-linear phase IIR sidechain filters to minimize both latency and CPU usage.
THE WAVESYSTEM TOOLBAR
The WaveSystem toolbar, located at the top of the plugin, takes care of most of the administrative functions you will encounter while working with your Waves software, including Undo and Redo, loading and saving presets, and more. The features of the WaveSystem toolbar are the same on practically all Waves plugins. For more information on how to use it, see the WaveSystem User Guide.
6 |
Abbey Road TG Mastering Chain | User Guide |
INTERFACE

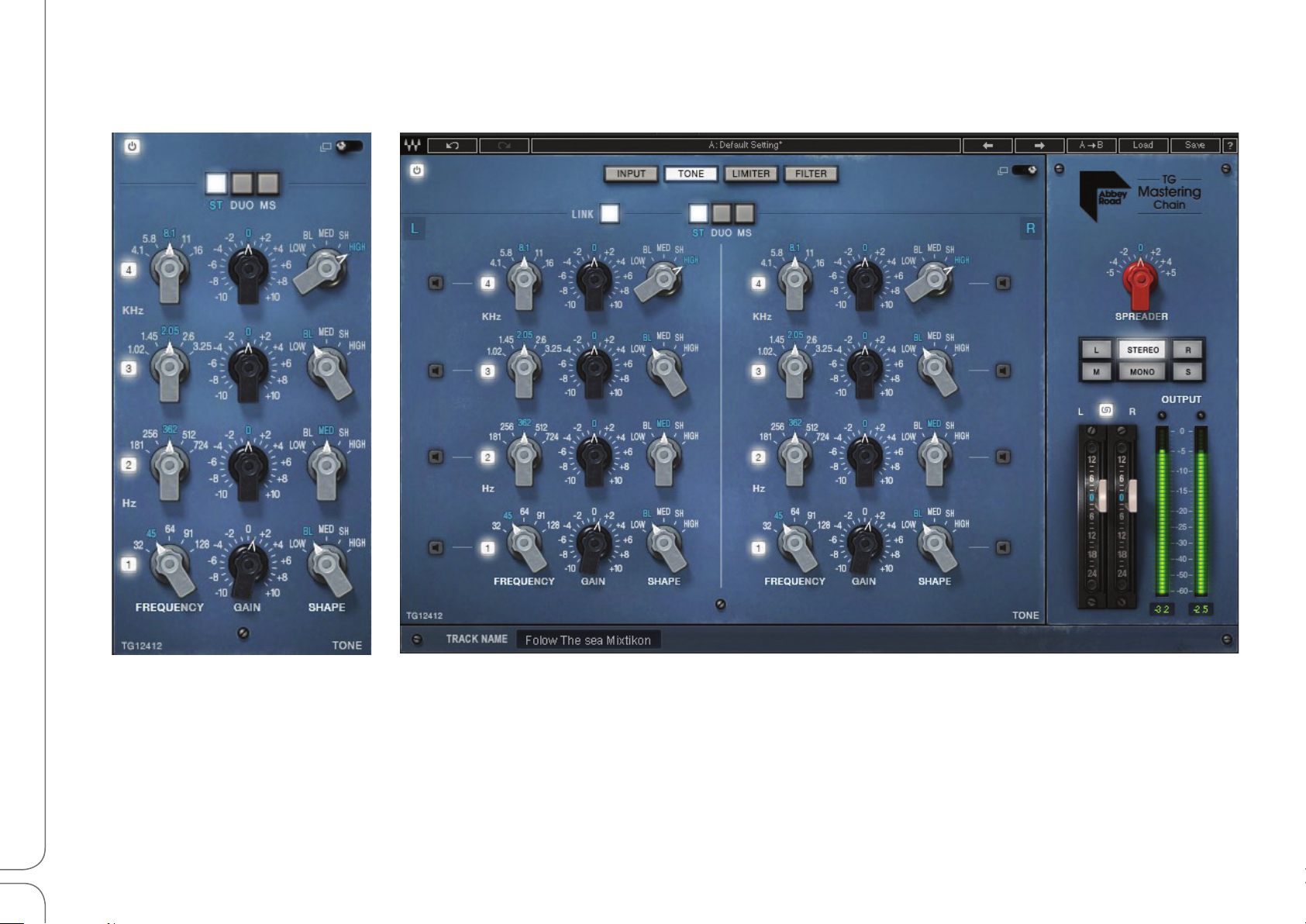

Please note: This is the default order of the plugin’s five modules, from left to right: Input, Tone, Limiter, Filter, Output. To create your own customized chain, you can easily change the order of the Tone, Limiter and Filter modules by dragging each to the desired location within the chain.
7 |
Abbey Road TG Mastering Chain | User Guide |
MODULES AND CONTROLS
Controls Available in All Modules
The following controls appear at the top of each module (except Output):
On/Off
Each of the plugin’s modules can be turned on or off by pressing this button. While off, the module does not consume any CPU power. All modules are first turned off by default. To turn each on, click on the individual module’s on/off control. (Please note that in the plugin’s Live components, turning a module off will not change CPU consumption.)
Expand/Collapse
Expands/collapses the module.
ST/DUO/MS (Stereo component only)
In the plugin’s stereo component, within each module, you can choose between three modes of processing a stereo signal: Stereo (ST), Duo, and Mid-Sides (MS).
Regardless of a module’s stereo mode – ST, DUO, or MS – its output is always stereo. If needed, it will be converted into MS at the input of the next module in the chain. This allows re-ordering of the modules on the fly with no impact on the stereo processing.
