T.sonicTM 610
User’s Manual
P/N TS512M/1G/2GMP610
P/N TS512M/1GMP610C
Table of Contents |
|
Introduction.......................................................................................................................................... |
1 |
Package Contents ......................................................................................................................... |
1 |
Features ........................................................................................................................................ |
1 |
System Requirements................................................................................................................... |
2 |
Reminders .................................................................................................................................... |
2 |
Caution: Risk of Deafness ........................................................................................................... |
2 |
Product Overview ................................................................................................................................ |
3 |
OLED Display ..................................................................................................................................... |
4 |
Charging the Battery ............................................................................................................................ |
5 |
Basic Operation.................................................................................................................................... |
6 |
Power On...................................................................................................................................... |
6 |
Power Off..................................................................................................................................... |
6 |
Play a Track ................................................................................................................................. |
6 |
Pause a Track ............................................................................................................................... |
6 |
Advance to the Next Track .......................................................................................................... |
6 |
Return to the Previous Track ....................................................................................................... |
6 |
Fast Forward ................................................................................................................................ |
6 |
Fast Rewind ................................................................................................................................. |
7 |
Increase Volume .......................................................................................................................... |
7 |
Decrease Volume ......................................................................................................................... |
7 |
Repeat a Track ............................................................................................................................. |
7 |
Repeat All Tracks......................................................................................................................... |
7 |
Repeat Random Tracks ................................................................................................................ |
7 |
Repeat in Folder........................................................................................................................... |
8 |
Repeat a Portion of a Track (AB Repeat) .................................................................................... |
8 |
Lock ............................................................................................................................................. |
8 |
Driver Installation ................................................................................................................................ |
9 |
Driver Installation for Windows 98SE......................................................................................... |
9 |
Driver Installation for Windows Me, 2000, and XP.................................................................. |
10 |
Driver Installation for Mac OS 10.2.8 or Later.......................................................................... |
10 |
Driver Installation for Linux Kernel 2.4 or Later ...................................................................... |
10 |
Warning...................................................................................................................................... |
10 |
MP3 Function..................................................................................................................................... |
12 |
Download or Upload MP3/WMA Files..................................................................................... |
12 |
Play MP3 Music......................................................................................................................... |
12 |
Using the Navigation Functions................................................................................................. |
13 |
Settings Mode ............................................................................................................................ |
13 |

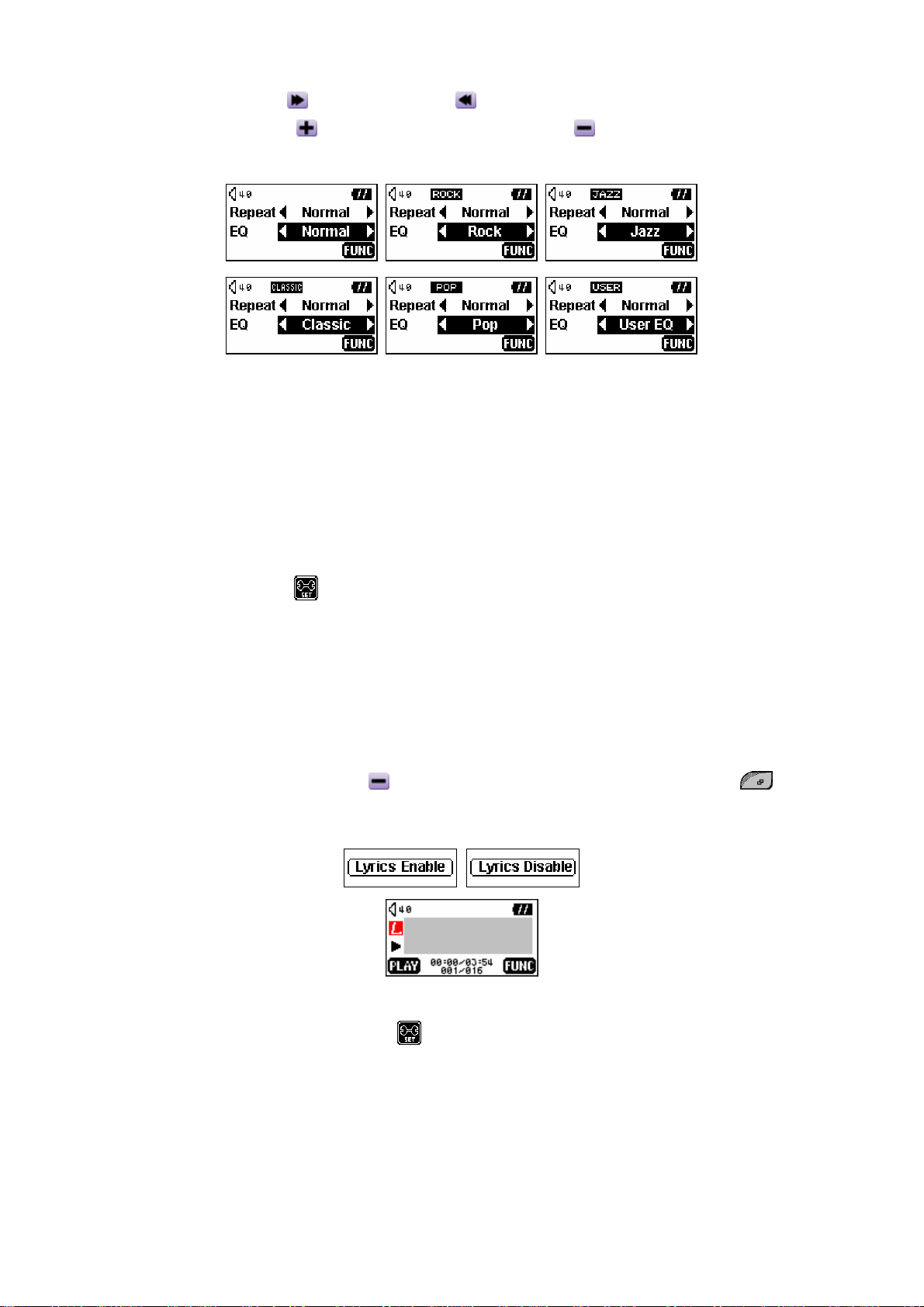

Sync Lyrics Function ......................................................................................................................... |
14 |
AB Repeat Function........................................................................................................................... |
14 |
FM Functions ..................................................................................................................................... |
15 |
Scan for a Channel ..................................................................................................................... |
15 |
Preset a Channel......................................................................................................................... |
15 |
Select a Preset Channel.............................................................................................................. |
16 |
Rescan favorite channel ............................................................................................................. |
16 |
Record an FM Channel .............................................................................................................. |
17 |
Voice Recording Function ................................................................................................................. |
17 |

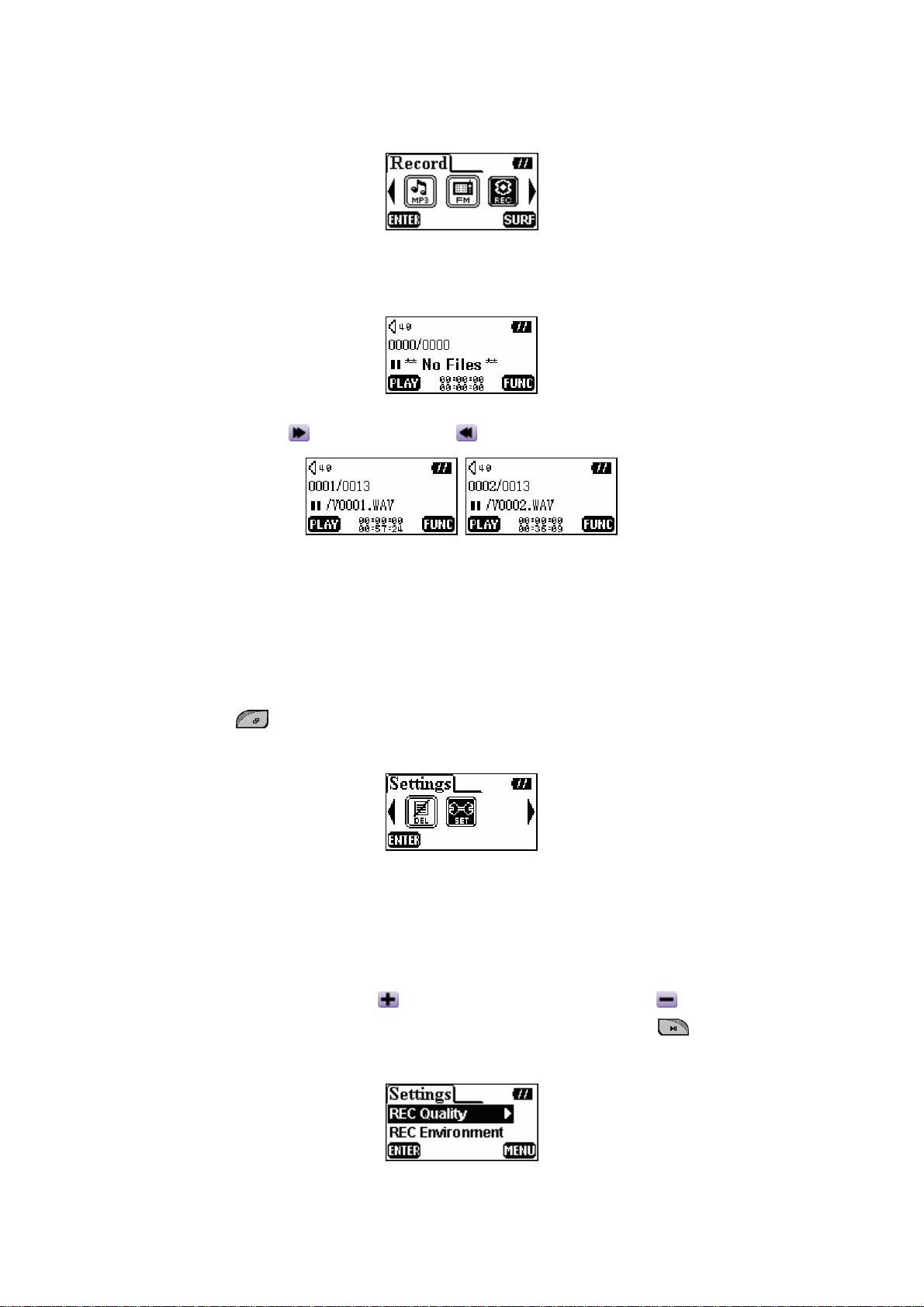

Record a Voice........................................................................................................................... |
17 |
Play the Recorded Files.............................................................................................................. |
18 |
Settings............................................................................................................................................... |
19 |

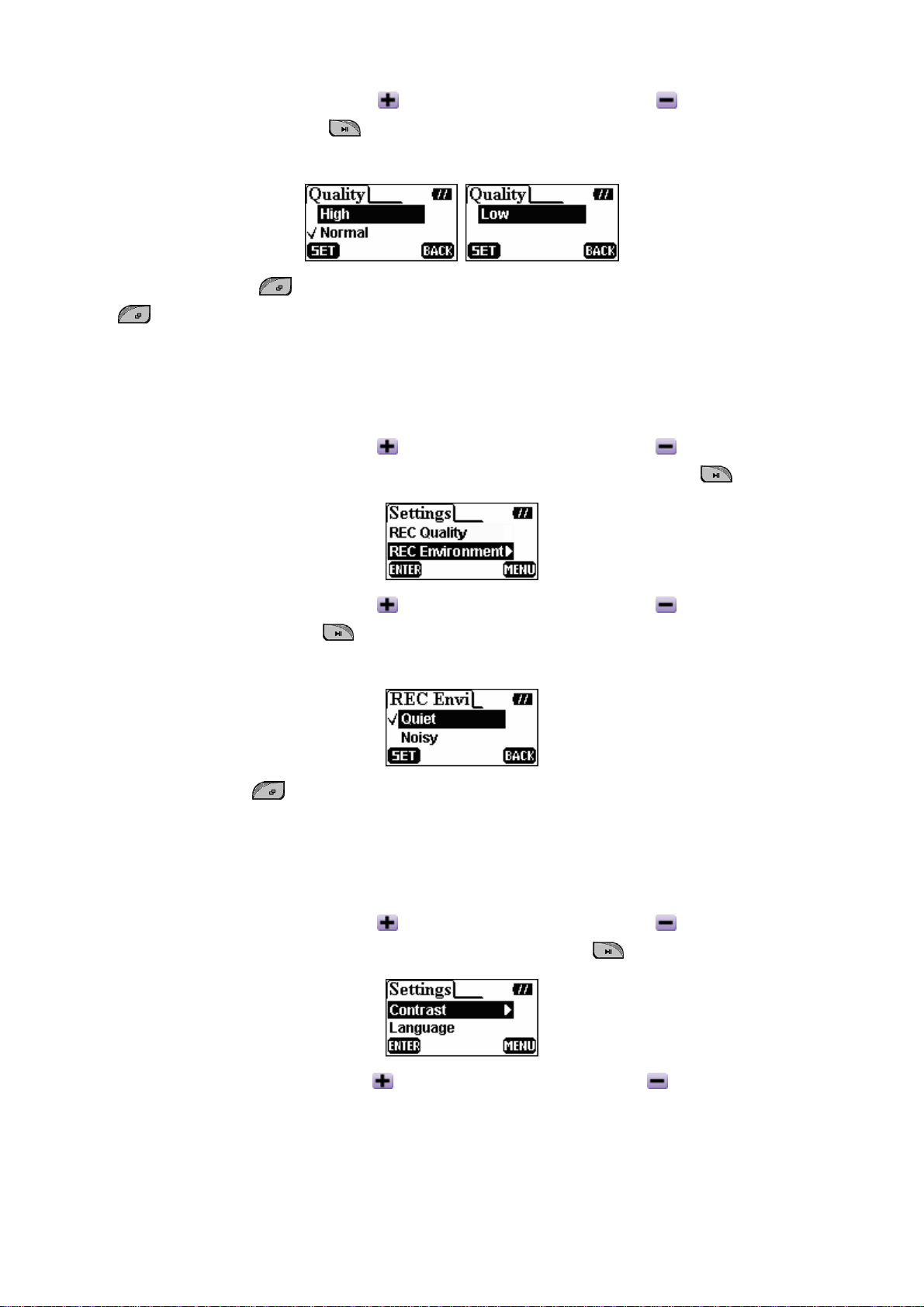

REC Quality............................................................................................................................... |
19 |
REC Environment...................................................................................................................... |
20 |
Contrast ...................................................................................................................................... |
20 |
Power Saving ............................................................................................................................. |
21 |
Screen Saver............................................................................................................................... |
22 |
EQ .............................................................................................................................................. |
22 |
User EQ...................................................................................................................................... |
23 |
Repeat Mode .............................................................................................................................. |
23 |
Sync Lyrics Function ................................................................................................................. |
24 |
About.......................................................................................................................................... |
24 |
Delete MP3/WMA/WAV Files.......................................................................................................... |
25 |
Safely Remove Your T.sonic............................................................................................................. |
26 |
Remove the T.sonic in Windows 98SE ..................................................................................... |
26 |
Remove the T.sonic in Windows Me, 2000, and XP................................................................. |
26 |
Remove the T.sonic in Mac OS ................................................................................................. |
26 |
Remove the T.sonic in Linux..................................................................................................... |
26 |

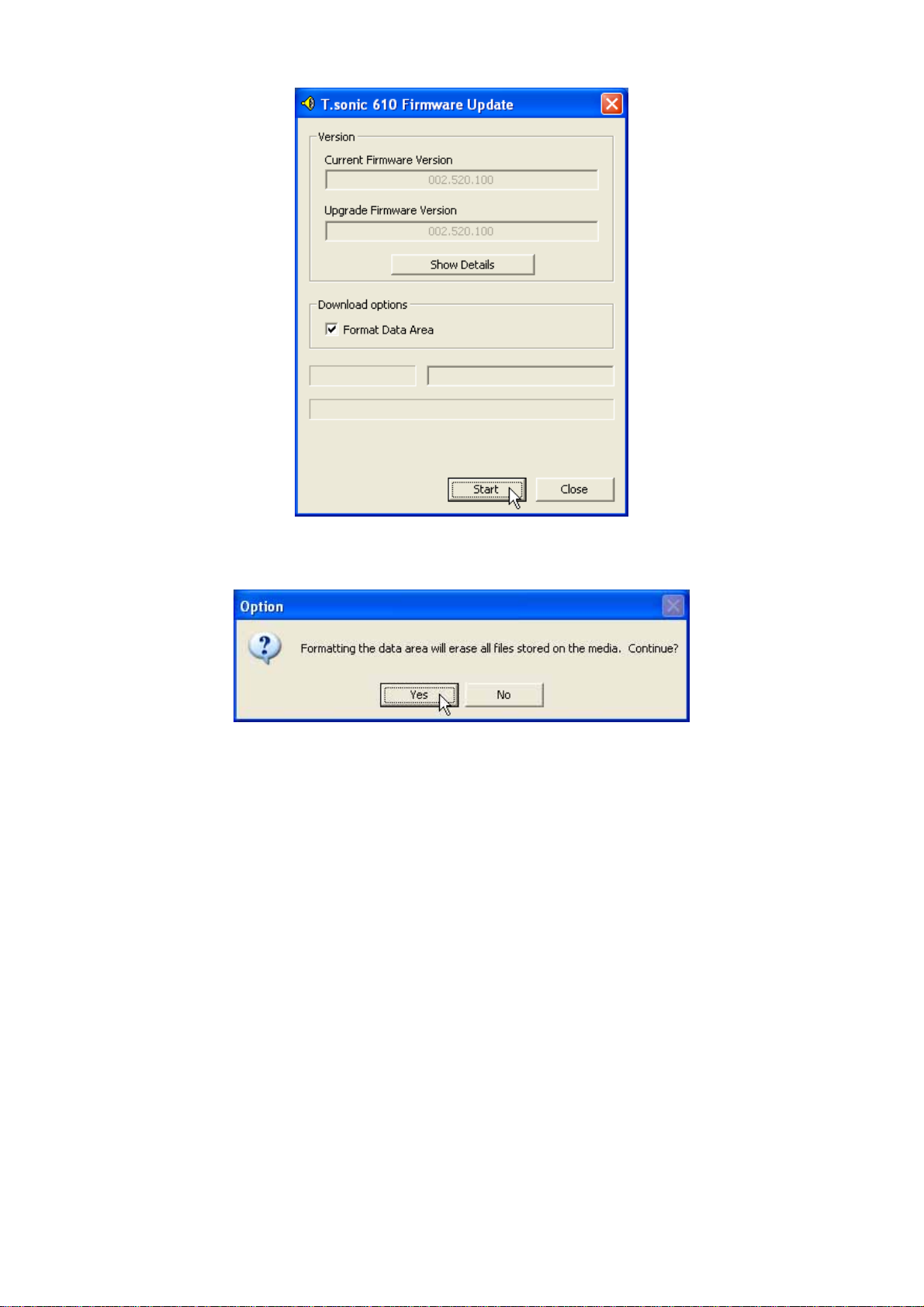

Recover Your T.sonic ........................................................................................................................ |
26 |
Recover the T.sonic in Windows 98SE ..................................................................................... |
27 |
Recover the T.sonic in Windows Me, 2000, and XP................................................................. |
28 |
MENU Table...................................................................................................................................... |
32 |
Troubleshooting ................................................................................................................................. |
33 |
Specifications..................................................................................................................................... |
36 |
Ordering Information ......................................................................................................................... |
36 |
T.sonic Limited Warranty.................................................................................................................. |
37 |
Introduction
Thank you for purchasing Transcend’s T.sonic™ 610. A totally new generation of Flash MP3 player. This small device is more than a USB Flash Drive. It combines a USB Flash Drive with an MP3 player, AB repeater, voice recorder and an FM radio. With the T.sonic™, you can upload and download music files to and from a computer and then play the tracks on the device. Using the AB repeat function, you can continuously replay a designated section of a track. Also, you can record memos to yourself or from others using the digital recorder. With an FM radio built-in, you can always listen to your favorite radio station. Transcend’s latest T.sonic™ 610 is a step above the usual MP3 player.
Package Contents
The T.sonic package includes the following items:
•T.sonic
•Earphones
•Driver CD
•USB extension cable
•Carry Case
•Quick Installation Guide
Features
•T.sonic powered directly via the USB port as used for data transfers, the unit is powered using an integrated Li-ion polymer rechargeable batter (A full charge can support up to 14 hours of operation)
•MP3 Player which supports MP3, WMA, and WAV formats
•Digital Voice Recorder
•AB repeater allows you to continuously replay a designated section of a track
•Preset 20 FM channels and record from the FM channel to a WAV file
•Auto-powers off after five or ten minutes without use
•Self-luminous OLED Display provides users with a vibrant clear display and vivid colors, that can easily be viewed at any angle
•Automatic screen saver function runs if the unit is idle for a few seconds this acts as a power saving measure
•Synchronized Lyrics Display
•Operating Systems Supported: Windows® 98SE, Windows® Me, Windows® 2000, Windows® XP, Mac™ OS 10.2.8 or later, and Linux™ kernel 2.4 or later. Only Windows® 98SE needs the enclosed driver.
1
System Requirements
Desktop or notebook computer with a working USB port
One of following operating systems:
•Windows 98SE
•Windows Me
•Windows 2000
•Windows XP
•Mac OS 10.2.8 or later
•Linux kernel 2.4 or later
Reminders
1.Keep your T.sonic away from heat, direct sunlight, and moisture. Do not bend, flex, or drop your T.sonic.
2.Before powering on make sure the LOCK switch is set to the “OFF” position.
3.Always plug or unplug your T.sonic by grasping the unit’s sides.
4.Never use the “Quick Format” or “Full Format” from Windows to format your T.sonic.
5.Follow the procedures in “How to Unplug T.sonic Safely” to remove your T.sonic from the system.
Caution: Risk of Deafness
1.Repeated or regular use of headphones or earphones at volume levels above 80 decibels can give a false impression that the audio level is not high enough. End users may try to progressively increase the volume control therefore risking a dangerous noise level for their ears.
2.To protect your health and your hearing, keep the volume for your MP3 player below 80 decibels and do not use for an extended period of time. Stop use if symptoms like headaches, nausea, or hearing disorders occur.
3.Your MP3 player is limited to a volume level of 100 decibels.
4.Both the MP3 player and the earphones are compliant with the French regulation concerning musical Walkmans (24th July 1998 Order).
5.Before using other headphones, confirm that their technical specifications are similar to the original set.
2
Product Overview
|
Joypad |
|
REC Button |
|
|
||
|
Next / Fast-Forward (Right) |
|
A-B Button |
|
|
||
|
Previous / Fast-Rewind (Left) |
|
|
|
|
Reset Button |
|
|
|
||
|
Volume Up (Up) |
|
|
|
|
Microphone |
|
|
|
||
|
Volume Down (Down) |
|
|
|
|
Earphone Jack |
|
|
|
||
|
|
|
|
|
PLAY Button |
|
Mini USB Connector |
|
|
||
|
|
||
|
MENU Button |
|
OLED Display |
|
|
||
|
|
||
|
LOCK Switch |
|
Neck Strap Hole |
|
|
||
|
|
3
OLED Display
|
Icons |
Indications |
|
Volume |
Displays the volume status. |
|
||
|
|
|
|
Repeat Mode |
Indicates the repeat mode that includes Normal, Repeat One, Repeat |
|
||
|
|
All, Random and Repeat in Folder. |
|
Equalizer (EQ) Mode |
Indicates the EQ mode settings that include Normal, Classical, POP, |
|
||
|
|
Rock, Jazz, and USER EQ. |
|
A-B Repeat |
Indicates when AB repeat function is enabled. |
|
||
|
Lock |
Indicates when the Lock function is enabled. |
|
||
|
Charge Status |
Indicates the Charge Status. |
|
||
|
Battery Status |
Indicates the Battery Status. |
|
||
|
File Information |
Indicates the File/Album and details. |
|
||
|
Operating Mode |
Displays the operational status, which includes Play, Pause, Fast |
|
||
|
|
Forward, and Fast Reverse. |
|
Button Indicator |
Indicates the Button Function. |
|
4
Charging the Battery
1.Open the rubber cap on top of the T.sonic, you can see a mini USB port inside.
2.Insert one end of the USB cable into the T.sonic‘s mini USB port, and plug the other end of the cable into a computer USB port.
Power on the unit and the display will show the ready status. While charging is on going, the lightning logo and battery icon will flicker. When the unit is charged, the lightning logo will disappear and the battery icon will indicate the battery charge level.
Before using the T.sonic for the first time, remember to charge the built-in battery.
If the battery power is low, the battery icon will flicker. Please use USB to charge the battery.
It takes about 3 hours to fully charge the battery.
The lifespan of the battery depends on how often it has been charged. Charging the battery too many times results in a shorter battery lifespan. Overtime the Li-ion polymer battery’s power retention wears out.
5
Basic Operation
Power On
Press and hold the PLAY button to turn the power on. An animated logo will appear on the OLED Display, and then you can start to use the T.sonic.
The waiting time of power on depends on how many files in T.sonic. More files in T.sonic will spend more waiting time powering on.
Power Off
Press and hold the PLAY button to turn the power off. In about three seconds the Power Off Status Bar will appear on the OLED display to show you the Power Off status. Release the PLAY button and the power will turn off.
Play a Track
Press the PLAY button to play a selected MP3/WMA or WAV track.
Pause a Track
Press the PLAY button to pause the track during playback.
Advance to the Next Track
Press the right (Next)
of Joypad to skip to the next track.
Return to the Previous Track
Press the left (Previous)
of Joypad to go back to the previous track.
Fast Forward
Press and hold the right (Fast-Forward)
of Joypad to fast-forward the track.
6
Fast Rewind
Press and hold the left (Fast-Rewind)
of Joypad to rewind the track.
Increase Volume
Press once or press and hold the upwards (Volume Up)
of Joypad until you reached the desired volume level.
Decrease Volume
Press once or press and hold the downwards (Volume Down)
of Joypad until you have reached the desired volume.
Repeat a Track
Please see “Settings Mode” in “MP3 Functions” for detailed instructions.
Repeat All Tracks
Please see “Settings Mode” in “MP3 Functions” for detailed instructions.
Repeat Random Tracks
Please see “Settings Mode” in “MP3 Functions” for detailed instructions.
7
Repeat in Folder
Please see “Settings Mode” in “MP3 Functions” for detailed instructions.
Repeat a Portion of a Track (AB Repeat)
Press the A-B button to mark the beginning of the portion you wish to repeat and then press the button again to mark the end of the portion you wish to repeat. The marked portion is played as a continuous loop when playing an MP3, WMA, or WAV track.
Lock
When the LOCK switch is set to the “HOLD” position, all of the buttons are disabled.
8
Driver Installation
Driver Installation for Windows 98SE
1. Put the Driver CD into the CD-ROM (Auto-Run supported). Select the Win98 Driver button.
2. Select Next to continue.
3.The InstallShield Wizard will guide you through the installation process.
4.After the drivers have been installed, plug your T.sonic into an available USB port. The New Hardware Found dialogue boxes will appear.
9
