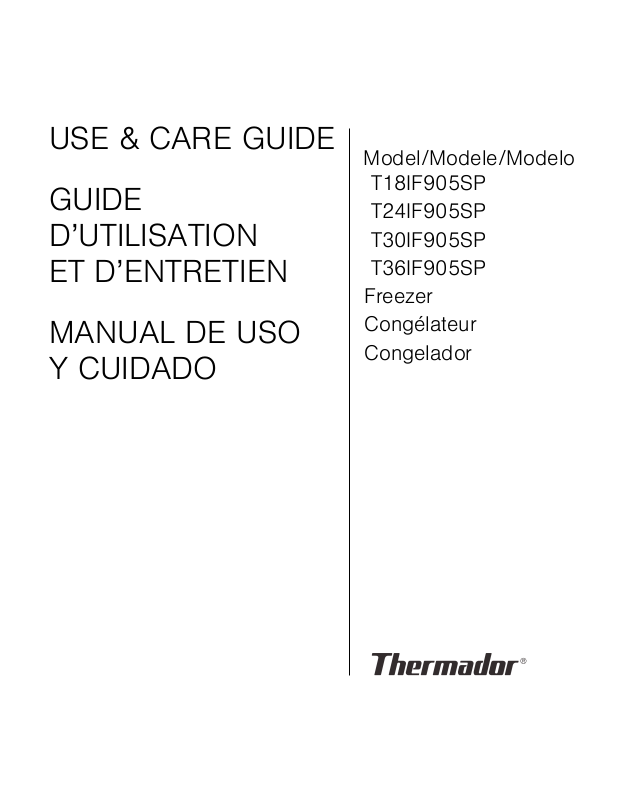

USE & CARE GUIDE
GUIDE D’UTILISATION ET D’ENTRETIEN
MANUAL DE USO Y CUIDADO
Model/Modele/Modelo
T18IF905SP
T24IF905SP
T30IF905SP
T36IF905SP
en-us
(Important safety instructions . . . . . . . . . . . . 4
Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 About these instructions . . . . . . . . . . . . . . . . . . . . . 4 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Restriction of user group. . . . . . . . . . . . . . . . . . . . . 4 Risk of explosion. . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Risk of electric shock . . . . . . . . . . . . . . . . . . . . . . . 5 Risk of cold burns . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Risk of injury . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Fire hazard/Danger due to refrigerants . . . . . . . . . . 5 Risk of fire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Risk of suffocation. . . . . . . . . . . . . . . . . . . . . . . . . . 6 Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 State of California Proposition 65 Warnings . . . . . . 6
8Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . 7
7Environmental protection . . . . . . . . . . . . . . . 7
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Old appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5Installation and connection . . . . . . . . . . . . . . 7
Contents of package . . . . . . . . . . . . . . . . . . . . . . . . 7 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Installing the appliance . . . . . . . . . . . . . . . . . . . . . . 7 Check built-in cut-out. . . . . . . . . . . . . . . . . . . . . . . . 7 Side-by-side installation . . . . . . . . . . . . . . . . . . . . . . 7 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Before using for the first time . . . . . . . . . . . . . . . . . 9 Water connection . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . 9
*Getting to know your appliance . . . . . . . . . 10
Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Operating controls. . . . . . . . . . . . . . . . . . . . . . . . . 11 Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1Operating the appliance . . . . . . . . . . . . . . . . 15
Switching the appliance on . . . . . . . . . . . . . . . . . . 15
Switching off and disconnecting the
appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Setting the language . . . . . . . . . . . . . . . . . . . . . . . 15 Setting the temperature unit . . . . . . . . . . . . . . . . . 15 Setting the temperature . . . . . . . . . . . . . . . . . . . . . 15 Super freezing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Clean lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Switching ice cube production on or off . . . . . . . . 16 Reset water filter counter. . . . . . . . . . . . . . . . . . . . 16 Eco mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Self-test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Setting the brightness of the control panel . . . . . . 16 Switching key press sound on or off . . . . . . . . . . . 17
Setting the key volume . . . . . . . . . . . . . . . . . . . . . 17 Setting the signal tone volume . . . . . . . . . . . . . . . 17 Automatic clean lock . . . . . . . . . . . . . . . . . . . . . . 17 Automatic door opening . . . . . . . . . . . . . . . . . . . . 17 Switching the water filter counter on and off. . . . . 18 Theater mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Resetting to the factory settings . . . . . . . . . . . . . . 18 Switching demo mode on or off . . . . . . . . . . . . . . 18 Sabbath mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Home network . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
MAlarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Door alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Temperature alarm . . . . . . . . . . . . . . . . . . . . . . . . 19
oHome Connect. . . . . . . . . . . . . . . . . . . . . . . . 20
Setting up a home network. . . . . . . . . . . . . . . . . . 20
Connecting the refrigerator to the
Home Connect app . . . . . . . . . . . . . . . . . . . . . . . 20
Installing updates for the Home
Connect software . . . . . . . . . . . . . . . . . . . . . . . . . 21 Customer Service access. . . . . . . . . . . . . . . . . . . 21 Deleting network settings . . . . . . . . . . . . . . . . . . . 21
Switch on or off the connection to the home
WLAN network (Wi-Fi). . . . . . . . . . . . . . . . . . . . . . 21 Information on data protection . . . . . . . . . . . . . . . 21
WFreezer compartment. . . . . . . . . . . . . . . . . . 22
Fully utilizing the freezer volume. . . . . . . . . . . . . . 22 Purchasing frozen food. . . . . . . . . . . . . . . . . . . . . 22 When loading products . . . . . . . . . . . . . . . . . . . . 22 Freezing fresh food. . . . . . . . . . . . . . . . . . . . . . . . 22 Thawing frozen food . . . . . . . . . . . . . . . . . . . . . . . 23
=Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Freezer compartment . . . . . . . . . . . . . . . . . . . . . . 23
DCleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleaning the display . . . . . . . . . . . . . . . . . . . . . . . 23 Cleaning the appliance interior . . . . . . . . . . . . . . . 23 Cleaning the equipment . . . . . . . . . . . . . . . . . . . . 23 Care instructions for stainless steel surfaces . . . . 23
>Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Normal noises . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Preventing noises . . . . . . . . . . . . . . . . . . . . . . . . . 24
9Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3Faults – what to do? . . . . . . . . . . . . . . . . . . 25
Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Ice maker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2
en-us
4Customer service . . . . . . . . . . . . . . . . . . . . . 27
Appliance self-test . . . . . . . . . . . . . . . . . . . . . . . . . 27 Repair order and advice on faults . . . . . . . . . . . . . 27
3
en-us Important safety instructions
Non-observance of this warning could result in death or serious injuries.
Non-observance of this warning could result in slight or moderately serious injuries.
NOTICE: Non-observance of this information could damage the appliance.
Note: This indicates important information and/or tips.
■Read and follow the operating and installation instructions. They contain important information on how to install, use and maintain the appliance.
■The manufacturer is not liable if you disregard the instructions and warnings in the operating and installation instructions.
■Retain all documents for subsequent use or for the next owner.
■This appliance complies with the relevant safety regulations for electrical appliances.
■The refrigeration circuit has been checked for leaks.
■Avoid placing children and vulnerable persons at risk.
■This appliance may be used by children and persons who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.
■Children should be supervised to ensure that they do not play with the appliance.
■If the appliance's ventilation openings are sealed, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.
Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
■Never use electric devices inside the appliance (e.g. heaters or electric ice makers).
■Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.
■Only store high-proof alcohol tightly closed and upright.
■Do not use additional means to accelerate the defrosting process other than those recommended by the manufacturer.
4
Important safety instructions en-us
9 Important safety instructions
READ INSTRUCTIONS - DO NOT DISCARD!
Improper installations or repairs may put the user at considerable risk.
■When installing the appliance, make sure that the power cord does not get jammed or damaged.
■In order to avoid danger, if the power cord is damaged, disconnect the appliance from the power source immediately. Have the power cord replaced by the manufacturer, customer service or a similarly qualified person.
■Do not use multiple outlets, extension cords, or adapters.
■Before servicing the appliance or carrying out installation work, disconnect the appliance from the power source or switch off the fuse.
Before cleaning the appliance, press the main On/Off switch to switch the appliance off.
Glass shelves and other fittings can be moved without any risk while the appliance is switched on.
■Never cut through or remove the power cord's third conductor (grounding conductor).
■Never defrost or clean the appliance using a steam cleaner. The steam may penetrate electrical parts and cause a short circuit.
■The appliance, cord and accessories should only be repaired or replaced by the manufacturer or an authorized service provider.
■Only use original parts supplied by the manufacturer.
These parts come with a warranty from the manufacturer that they satisfy the safety requirements.
■Never put frozen food straight from the freezer compartment into your mouth.
■Avoid prolonged skin contact with frozen food, ice or any other surface inside the freezer compartment.
■Containers with carbonated drinks may burst.
■Do not store containers which contain carbonated drinks in the freezer compartment.
The tubes of the refrigeration circuit contain a small quantity of an environmentally friendly but flammable refrigerant (R600a). It does not damage the ozone layer and does not add to the greenhouse effect. If the refrigerant escapes, it may injure your eyes or ignite.
■ Do not damage the tubes. If the tubes are damaged:
■Keep naked flames and ignition sources away from the appliance.
■Ventilate the room.
■Switch off the appliance and unplug the mains plug.
■Please contact customer service.
Portable multi-outlet power strips and portable power supplies may overheat, causing a fire.
■Never leave portable multi-outlet power strips or portable power supplies behind the appliance.
5
en-us Important safety instructions
9 Important safety instructions
READ INSTRUCTIONS - DO NOT DISCARD!
■If the appliance features a door lock: keep the key out of the reach of children.
■Keep children away from the packaging and its parts.
To avoid damage:
■Do not stand or lean on the base, runners or doors.
■Keep plastic parts and door seals free of oil and grease.
■Pull the power plug – not the power cord.
The appliance is very heavy. The appliance should always be transported and set up by at least 2 people.
~ "Installing the appliance" on page 7
This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:
6
8Intended use
Use this appliance
■only for freezing food and making ice.
■only in the home and in the home environment.
■only according to these operating instructions.
This appliance is intended for use at an elevation of no more than 2000 meters above sea level.
7Environmental protection
All materials are environmentally safe and recyclable:
■Dispose of packaging in an environmentally responsible manner.
■Please ask your dealer or inquire at your local authority about current means of disposal.
Valuable raw materials can be reclaimed by recycling old appliances.
Before disposing of your old appliance:
■Remove the door.
■Leave shelves and bins in the appliance to prevent children from climbing in.
■Keep children away from the discarded appliance.
Do not damage the tubes of the refrigeration circuit and insulation.
Intended use en-us
5 Installation and
connection
After unpacking all parts, check for any damage during transport.
If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.
~ "Customer service" on page 27
The delivery consists of the following parts:
■Built-in appliance
■Equipment (depending on model)
■Installation material
■Instruction manual
■Installation instructions
■Customer service booklet
■Warranty enclosure
■Information on the energy consumption and noises
Refrigerant, cubic capacity and further technical specifications can be found on the rating plate.
~ "Getting to know your appliance" on page 10
The weight of the appliance may be up to 460 kg depending on the model. The base must be sufficiently stable and should not give. If necessary, reinforce the floor.
The cut-out must fulfill these criteria:
■Anti-tilt bracket must be fitted
■Cut-out depth min. 24” (610 mm), for flush installation 25” (635 mm)
■rectangular
■stable – the side panels and the top must be min. 5/8" (16 mm) thick and securely attached to the floor or wall
■Depth of shortest side panels min. 4” (100 mm)
Observe the specifications in the installation instructions for a side-by-side installation.
If a partition wall is required between the appliances it must be at least 5/8" (16 mm) wide.
7
en-us Installation and connection
Note: The arrangement of the equipment does not affect the energy consumption of the appliance.
Installing the appliance |
|
|
Keep the appliance out of direct sunlight. |
The appliance needs to cool less frequently at low ambient tempera- |
|
Install the appliance as far away as possible from heating elements, |
tures and therefore consumes less power. |
|
|
||
cooker and other heat sources: |
|
|
At least 1¼” (3 cm) from electric or gas cookers. |
|
|
At least 11¾" (30 cm) from oil or solid-fuel cookers. |
|
|
Select an installation location at a room temperature of approx. 68 °F |
|
|
(20 °C). |
|
|
Do not cover or block the ventilation openings. |
The appliance needs to cool less frequently if the warm air can |
|
Ventilate the room daily. |
escape and therefore consumes less power. |
|
|
||
|
|
|
Using the appliance |
|
|
Open the appliance door only briefly. |
The air in the appliance does not warm up so intensely. The appliance |
|
Transport purchased food in a cool bag and place in the appliance |
needs to cool less frequently and therefore consumes less power. |
|
|
||
quickly. |
|
|
Allow warm food and drink to cool down before placing in the appli- |
|
|
ance. |
|
|
Thaw frozen food in the refrigerator compartment to utilize the low |
|
|
temperature of the frozen food. |
|
|
Always leave a space between the food and the back panel. |
The air can circulate and the humidity will remain constant.The appli- |
|
Pack food airtight. |
ance needs to cool less frequently and therefore consumes less |
|
power. |
||
|
||
Do not cover or block the ventilation openings. |
The appliance consumes less power if the warm air can escape. |
|
Vacuum the ventilation openings once a year. |
|
|
|
|
8
2.Clean the appliance.
~ "Cleaning" on page 23
■Installation and connection of the appliance must be carried out by authorized technicians according to the installation instructions supplied.
■To avoid damage to the appliance and to ensure its proper functioning, it should only be connected to a drinking water system.
■To avoid water damage, a shut-off valve must be installed.
To avoid damage to the appliance, a pressure relief valve must be installed between the drinking water connection and the tubing, should the water pressure exceed the maximum value.
Note: If the water pressure is too low, this will impair the relevant functions of the appliance.
■Min. 0.2 Mpa (2 bar / 29 psi)
■Max. 0.8 Mpa (8 bar / 116 psi)
Installation and connection en-us
Do not connect the appliance to electronic energy saver plugs.
Note: You can connect the appliance to mainscontrolled and sine-controlled inverters.
Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications. Isolated applications, e.g. on ships or in mountain lodges, are not directly connected to the national grid.
Requirements for outlets |
|
Outlet with |
110 V ... 120 V |
Protective conductor60 Hz |
|
Fuse |
10 A ... 16 A |
Maximum simultaneous load |
|
Appliance |
6 A |
The outlet must also be freely accessible following installation of the appliance.
If free access is impossible, an all-pole isolating switch must be integrated into the permanent electrical installation according to the installation regulations.
Never use multiple outlets, extension cords or adapters.
The appliance must be grounded correctly. Never cut through or remove the power cord's third conductor (grounding conductor).
If the power cord is too short, never use multiple outlets or extension cords. Instead, please contact customer service.
9
en-us Getting to know your appliance
(... H Operating controls P Main On/Off switch X Door damper
`Ice maker
h |
Rating plate |
)" |
Ice cube bin |
)* |
Frozen food container |
)2 |
Ventilation opening |
): |
Automatic door opening |
)J |
Water filter |
10
|
|
|
|
|
|
|
|
² |
|
|
|
6XSHU )UHH]H |
|
6H WWLQJV |
# |
C |
|
|
|
|
|
+ |
( Touch fields
There are sensors under the touch fields. Touching the symbol calls up the respective function.
0Freezer compartment temperature display Indicates the set temperature in °C/°F.
8A/@ buttons
Used to change the temperature.
@" button
Opens the Settings menu.
~ "Settings menu" on page 11
HSuper Freeze button
Switches Super Freeze on or off.
Press " button to open the menu.
In the Settings menu you will find:
■Appliance settings
■Clean lock
■Ice cube production
■Water filter counter
■Eco mode
■Self-test
■Sabbath mode (if activated)
~ "Operating the appliance" on page 15
Getting to know your appliance en-us
This is how to navigate to the Appliance settings menu:
In the Appliance settings menu you will find the following sub-menus and setting options:
■Brightness
■Key press sound
■Key volume
■Signal tone volume
■Automatic clean lock
■Automatic door opening
■Water filter counter
■Theater mode
■Temperature unit
■Language
■Home network
■Factory settings
■Demo mode
■Sabbath mode
~ "Operating the appliance" on page 15
11
en-us Getting to know your appliance
(not all models)
You can remove and adjust the height of the storage compartments:
2.When re-inserting, insert hooks on back of storage compartment at same height to make it level.
You can remove and adjust the shelf:
2.When re-inserting, insert hooks on back of shelf at same height to make it level.
You can remove the container:
■Press container to the rear,
■lift the container at the rear and remove.
You can insert the bin:
■Pull out the telescopic rails all the way.
■Place the bin on the telescopic rails and push into the appliance until it engages.
12
Note: To avoid damaging the ice cube container, always empty it if you switch the appliance off for a prolonged period or if there is a power failure.
This is how to remove the ice cube container:
~ "Container" on page 12
This is how to re-insert the ice cube container:
Getting to know your appliance en-us
In the event of a power failure or a fault:
■The ice pack delays the warming of stored frozen food.
You can take out the ice pack to temporarily keep food cool, e.g. in a cool bag.
Never store bottles or food in the ice cube container, even for short periods. This can block and damage the ice maker.
Ice cube production starts as soon as the appliance has reached the set temperature.
■ Ice cube production stops automatically when the ice cube container is full.
■ When using the appliance for the first time, discard ice cubes produced within the first 24 hours for hygiene reasons.
■ If you have stopped ice cube production for several days, discard the first 30-40 ice cubes produced for hygiene reasons.
Information about switching ice cube production on and off
~ "Switching ice cube production on or off" on page 16
13
en-us Getting to know your appliance
Change the water filter after 6 months at the latest.
If the ice tastes stale, discard the rest of the ice cubes and the ones produced over the next 24 hours. If the ice still tastes stale, change the water filter.
Note: If you use an external water filter system, you can also operate the appliance without a water filter.Replace the water filter with a bypass cartridge. Switch off the water filter counter. There is no need to change the bypass cartridge.
A new water filter or bypass cartridge can be obtained from customer service or a specialist dealer.
You can change the water filter, or replace it with a bypass cartridge. The bypass cartridge can remain in the appliance permanently: it does not need to be changed.
Note: After installing a water filter or a bypass cartridge, discard all ice cubes produced over the first 24 hours.
1.Turn the cap of the water filter counter-clockwise.
When installing a bypass cartridge: switch off water filter counter.
14
1Operating the appliance
The appliance starts cooling and the light is switched on when the door is open.
2.Set the required temperature.
~ "Setting the temperature" on page 15
■When the appliance has been switched on, it may take several hours until the set temperatures have been reached. Do not put in any food until the selected temperature has been reached.
■The fully automatic NoFrost system ensures that the freezer compartment remains frost-free. Defrosting is not required.
■The front sides of the housing are partly heated slightly. This prevents condensation in the area of the door seal.
■If the freezer compartment door cannot be immediately re-opened after it has been closed, wait until the resulting low pressure has equalized.
■Press the main On/Off switch. The appliance is no longer cooling.
Deterioration in water quality
The water supply must be turned off 3 hours before disconnecting. This prevents mold forming with any unused water.
If you do not use the appliance for a prolonged period:
4.Pull out the mains plug or switch off the fuse. The appliance is no longer cooling.
5.Empty the ice cube container and clean the appliance.
~ "Cleaning" on page 23
Operating the appliance en-us
4.Press ( button to move to the menu item
Language.
The display restarts, and the start screen is displayed.
You can choose between the unit °C and °F.
1 ° means 1 °F
1 °C means 1 °C
The unit will be changed.
Recommended temperature |
|
Freezer compartment: |
0 °F (-18 °C) |
■Keep pressing @/A button until the display indicates the required temperature.
Super freezing cools the freezer compartment as cold as possible.
Switch on super freezing, e.g.:
■to quickly freeze food right through to the center
■4 ... 6 hours before freezing food weighing 2 kg or more
Note: When super freezing is switched on, increased operating noise may occur.
After approx. 2 ^ days the appliance switches to normal operation.
■ Press ]/\ button.
15
en-us Operating the appliance
You can use this function to switch off the touch function of the controls for 10 seconds. During this time you can clean the display.
~ "Cleaning the display" on page 23
The cleaning display appears, and the countdown starts.
You can use this function to select whether the automatic clean lock is switched on automatically when the door is opened.
Damage to the appliance!
Never store bottles or food in the ice cube container, even for short periods. This can block and damage the ice maker.
Ice cube production starts as soon as the appliance has reached the set temperature.
Note: Ice cube production stops automatically when the ice cube container is full.
After replacing the water filter, you have to reset the water filter counter.
Note: If you cancel the query or take longer than 10 seconds to make an input, the water filter counter will not be reset.
If you have replaced the water filter with a particle filter, switch the water filter counter off. It is not needed in this case as the particle filter does not have to be replaced.
Eco mode switches the appliance to energy-saving operation.
■ Freezer compartment: +3 °F (-16 °C)
The temperature is changed and the display shows the new temperature. When Eco mode is switched off, the recommended temperature is set.
Note: You can also switch Eco mode on or off by adjusting the temperature with A/@ buttons.
This function can be used to start fault analysis on your appliance.
~ "Appliance self-test" on page 27
6.Press 8 button. The setting is saved.
16
You can switch the sounds generated when pressing keys off and back on again.
7.Press 8 button. The setting is saved.
You can adjust the volume level of the sounds generated when pressing keys.
7.Press 8 button. The setting is saved.
You can adjust the volume level of the signal tones generated e.g. with alarms.
7.Press 8 button. The setting is saved.
You can use this function to select whether the automatic clean lock is switched on automatically when the door is opened.
Operating the appliance en-us
The automatic door opening function supports you in opening the door.
As soon as you activate this function, automatic door opening moves out and supports you in opening the door.
Repeatedly closing the door too early will cause automatic door opening to fail or wear out.
Do not close the door as long as automatic door opening is still moved out.
If you have nevertheless closed the door, leave it closed for 5 minutes. Automatic door opening will re-adjust itself.
In an installation situation without handles you can select the Push-to-open system. Your appliance will then open a crack if you press lightly on the door.
Note: Please note that automatic door opening is disabled if Sabbath mode is activated.
2.Select menu item Push-to-open system.
In an installation situation with handles you can select the Pull-to-open system. Your appliance will support you in opening the door as soon as you pull on the handle.
2.Select menu item Pull-to-open system.
17
en-us Operating the appliance
If you have replaced the water filter with a particle filter, switch the water filter counter off. It is not needed in this case as the particle filter does not have to be replaced.
If Theater mode is switched on, the light will slowly become brighter when the appliance is opened, and then slowly darker when it is closed.
7.Press 8 button. The setting is saved.
A signal tone sounds, and a prompt to confirm reset appears.
All settings are reset to the factory settings.
The cooling function of the appliance is switched off. All other functions can be used.
Note: Do not store any food items in demo mode as the appliance remains at room temperature.
7.Press 8 button. The setting is saved.
All non-essential functions are switched off so you can also use the appliance on the Sabbath.
The appliance switches off the following:
■Ice maker
■Audible signals
■Interior light
■Messages on the display
■Background illumination of display is reduced
To use Sabbath mode, you first have to display the function in the Settings menu:
5.Use ( button to move to the menu
item Available.Confirm by pressing 8 button.
The function is added to the Settings menu.
The appliance switches all listed functions off.
■After the selected time elapses, the appliance switches over to normal operation.
■To end Sabbath mode before the selected time elapses, press = button.
You can use this function to establish a connection between the refrigerator and your mobile device.
~ "Home Connect" on page 20
18
MAlarm
If the appliance door is open for a long time, the door alarm switches on. A message appears on the control panel.
■ Close the door.
Note: To mute the door alarm, you only have to acknowledge the message on the control panel. If the door remains opens a few more minutes, the message will appear again.
If the freezer compartment becomes too warm, the temperature alarm is switched on. A message appears on the control panel. The message shows the warmest temperature reached in the freezer compartment.
Do not refreeze partly or completely thawed food.
Refreeze food only after cooking. No longer store the frozen items for the maximum storage period.
Note: The alarm may be actuated without risk to the food in the following cases:
■The appliance is put into service and does not yet contain any food.
■Large quantities of fresh food are placed in the appliance.
■The freezer compartment door has been open too long.
Alarm en-us
2.Press 8 button to acknowledge the message. The message disappears. The control panel again indicates the temperature selected.
From this time on the warmest temperature is recalculated and saved.
19
en-us Home Connect
oHome Connect
This appliance is Wi-Fi-capable and can be controlled remotely using a mobile device.
Note: Wi-Fi is a registered trade mark of the Wi-Fi Alliance.
In the following cases, the appliance functions like a refrigerator without a network connection and can still be operated manually via the controls:
■The appliance is not connected to a home network.
■The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on www.home-connect.com.
Note: Please observe the safety information in this instruction manual. Ensure that this is also observed if you operate the appliance via the Home Connect app and are not at home when doing so.
~ "Important safety instructions" on page 4
Follow the instructions in the Home Connect app as well.
■ Wait at least 2 minutes after switching on the appliance before setting up Home Connect. Only then is internal appliance initialization complete.
■ Take note of the Home Connect supplementary sheet, which is supplied with the appliance or is available for download at www.thermador.com together with the instructions. Enter the E-number of your appliance in the search field.
You can connect your appliance to the home WLAN network (Wi-Fi) in 3 basic steps.
2.Connect your refrigerator to the home WLAN network (Wi-Fi).
The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel. For further information, please also see the following chapters.
The following sub-menus can be found in the Home network menu:
■Connection
■Connect to app
■Software update
■Delete network settings
The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel.
Follow the instructions on the control panel.
The refrigerator temporarily generates its own network for connecting the mobile device.
As soon as the refrigerator is connected to the mobile device, a connection between the refrigerator and your home network is established.
Note: If the connection cannot be established, check whether there is sufficient reception.
~ "Verifying signal strength" on page 20
The signal strength is displayed in the start window of the Home network menu.The signal strength should be at least 50 %. If the signal strength is too weak, the connection may be interrupted.
■Place the router closer to the refrigerator.
■Check that screening walls do not interfere with the connection.
■Install a repeater to make the signal stronger.
Use this menu to connect your refrigerator to mobile terminal devices.
20
6.Open the app and wait until the refrigerator is displayed.
Press Add to confirm the connection between the app and the refrigerator.
If the refrigerator is not automatically displayed, click on Add appliance in the app and follow the instructions. As soon as your refrigerator is displayed, add it with +.
The refrigerator checks at regular intervals whether updates are available for the Home
Connect software.
The Info @ button is visible when an update is available.
Installing the update:
A note window with the necessary steps for installing the new software appears.
The software is installed.
If you contact Customer Service, they can access your appliance and view its status after you have given your consent. You need to have your appliance connected to your home network for this.
Further information about Customer Service access and its availability in your country is available under www.home-connect.com in the Help & Support area.
1.Contact Customer Service.
~ "Customer service" on page 27
During Customer Service access the symbol Ù appears on the control panel.
Home Connect en-us
If there is a problem when trying to establish a connection, or if you would like to register the appliance in a different home WLAN network (Wi-Fi), the Home Connect settings can be reset.
To then reconnect the appliance to the home WLAN network (Wi-Fi), perform initial setup again.
~ "Setting up the connection to the home network" on page 20
1.Open the WiFi menu on your refrigerator.
~ "Open Home network menu" on page 20
2.To open the menu item, press
Connection : button.
Note: If you switch off the Home Connect connection, you will no longer be able to operate the appliance with your mobile device.
The first time your Home Connect appliance is registered on a WLAN home network connected to the Internet (Wi-Fi), your appliance will transmit the following types of data to the Home Connect server (initial registration):
■Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
■Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
■The current software and hardware version of your domestic appliance.
■Status of any previous resetting to factory settings.
This initial registration prepares the
Home Connect functions for use and is only required when you want to use these
Home Connect functions for the first time.
Note: Please note that the Home Connect functions can be utilized only in conjunction with the
Home Connect app. Information on data protection can be called up in the Home Connect app.
21
en-us Freezer compartment
WFreezer compartment
The freezer compartment is suitable for:
■storing frozen food
■making ice cubes
■freezing food
The temperature can be set from -11 °F (- 24 °C)... +7 °F (-14 °C).
The freezer compartment can be used to store perishable foods long-term almost without any noticeable reduction in quality, as the low temperatures considerably slow down or stop deterioration. Appearance, flavor and all valuable ingredients are largely retained.
The time between putting fresh food in the freezer compartment and it freezing solid depends on the following factors:
■temperature set
■type of food
■amount of food in the freezer compartment
■quantity and type of storage
To place the maximum quantity of frozen food in the freezer compartment:
■Remove all fittings.
■Store food directly on the shelves and on the floor of the freezer compartment.
■Ensure the packaging is not damaged.
■Check there is a sell-by date.
■The temperature in the supermarket freezer must be 0 °F (-18 °C) or lower.
■Do not interrupt the freezing chain. If possible, transport frozen food in a cool bag and place in the freezer compartment quickly.
■Freeze large quantities of food in the top compartment.
This is where it will freeze especially quickly and gently.
■Distribute food in the compartments or frozen food containers.
■Do not bring food which is to be frozen into contact with frozen food.
If required, restack frozen food in the frozen food containers.
■Important for unrestricted air circulation in the appliance:
push in frozen food containers up to the limit stop.
Freeze only fresh and undamaged food.
Food which is boiled, fried or baked is more suitable for freezing than food which is eaten raw.
Before freezing food, make preparations appropriate to the food in order to retain the best possible nutritional value, flavor and color:
■Vegetables: wash, chop, blanch.
■Fruit: wash, pit and perhaps peel, possibly add sugar or ascorbic acid solution.
Information on how to do this can be found in relevant literature.
■Baked goods
■Fish and seafood
■Meat
■Poultry and game
■Vegetables, fruit and herbs
■Eggs without shells
■Dairy products, e.g. cheese, butter and quark
■Ready meals and leftovers, e.g. soups, stews, cooked meat and fish, potato dishes, soufflés and desserts
■Types of vegetables which are usually eaten raw, e.g. lettuce or radishes
■Unpeeled or hard-boiled eggs
■Grapes
■Whole apples, pears and peaches
■Yoghurt, soured milk, sour cream, creme fraiche and mayonnaise
The correct type of packaging and material selection are decisive factors in the retention of the product quality and prevent the development of freezer burn.
Suitable packaging:
■Plastic foil
■Tubular foil made of polyethylene (PE)
■Aluminum foil
■Freezer containers
Suitable closures:
■Rubber bands
■Plastic clips
■Cold-resistant adhesive tape
Unsuitable packaging:
■Wrapping paper
■Greaseproof paper
■Cellophane
22
■ Garbage bags and used grocery bags
Fish, sausage, ready meals, and cakes |
up to 6 months |
and pastries: |
|
Meat, poultry: |
up to 8 months |
Vegetables, fruit: |
up to 12 months |
|
|
The thawing method must be adjusted to the food and application in order to retain the best possible product quality.
Thawing methods:
■In the refrigerator compartment (especially suitable for animal-based foods such as fish, meat, cheese)
■At room temperature (bread)
■In the microwave (food for immediate consumption or immediate preparation)
■In the oven/cooker (food for immediate consumption or immediate preparation)
Do not refreeze partly or completely thawed food.You can only refreeze food once it has been cooked (boiled or fried).
The frozen food can no longer be stored for the maximum duration.
=Defrosting
The fully automatic NoFrost system ensures that the freezer compartment remains frost-free. Defrosting is no longer required.
Defrosting en-us
DCleaning
■Do not use abrasive, chloride-based or acidic cleaning agents or solvents.
■Do not use scouring or abrasive sponges. The metallic surfaces may corrode.
■Never clean the shelves or bins in the dishwasher.
The parts may become deformed.
The change in temperature and humidity can cause the controls to steam up.
Switch the clean lock on before cleaning.
~ "Clean lock" on page 16
Use a clean micro-fiber cloth for cleaning.
Proceed as follows:
2.Take out food and store in a cool location. Place ice pack (if available) on the food.
3.Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral washing-up liquid.
The rinsing water must not run into the light or through the drainage hole into the evaporation area.
To clean, take the removable parts out of the appliance.
~ "Equipment" on page 12
When taking care of and cleaning stainless steel surfaces, use only cleaning agents suitable for stainless steel and a stainless steel cleaning cloth.
You can purchase a suitable stainless steel cleaning cloth from customer service.
To prevent visible scratches, clean the stainless steel surface in the direction of the structure.
23
en-us Noises
>Noises
Droning: A motor is running, e.g. refrigerating unit, ventilator.
Bubbling, buzzing or gurgling: Refrigerant is flowing through the tubes.
Clicking: Motor, switches or solenoid valves are switching on or off.
Cracking: Automatic defrosting is running.
Appliance is not level: Align appliance using a water level. If required, place a little packing underneath.
Bins, shelves or storage compartments wobble or stick: Check the removable equipment and re-insert if required.
9Lighting
Your appliance features a maintenance-free LED light.
Only customer service or authorized technicians may repair the light.
24
Faults – what to do? en-us
3Faults – what to do?
|
Switch off appliance for 5 minutes. |
|
~ "Switching off and disconnecting the appliance" on page 15 |
|
If the temperature is too warm, check temperature again after a cou- |
|
ple of hours. |
|
If the temperature is too cold, check temperature again on the follow- |
|
ing day. |
|
|
Displays do not light up. |
|
The power plug has not been inserted properly. |
Connect the power plug. |
The fuse has tripped. |
Check the fuses. |
The power has failed. |
Check whether the power is on. |
|
|
The refrigeration unit is switching on more frequently and for longer. |
|
The appliance was opened frequently. |
Do not open the appliance unnecessarily. |
The ventilation openings are covered up. |
Remove obstacles. |
Large quantities of fresh food have been put in. |
Switch on super cooling promptly in advance. |
|
|
Appliance is not cooling, display and lighting are lit. |
|
Demo mode is switched on. |
Switch demo mode off. |
|
~ "Switching demo mode on or off" on page 18 |
|
|
The door does not open when pressed. |
|
A special mode has switched off automatic door opening. |
To open the door, reach from below underneath the bottom panel of |
|
the unit or switch off special mode. |
|
~ "Switching Sabbath mode on or off" on page 18 |
Pull-to-open is switched on. |
Switch the appliance to Push-to-open. |
|
~ "Automatic door opening" on page 17 |
The opening force is set too high. |
Select a lower setting for the opening force. |
|
~ "Automatic door opening" on page 17 |
The fuse has tripped. |
Check the fuses. |
The power has failed. |
Check whether the power is on. |
|
|
25
en-us Faults – what to do?
The ice maker is not functioning. |
|
Ice cube production is switched off. |
Switch on ice cube production. |
Freezer compartment is too warm. |
Set the temperature lower. |
|
~ "Operating the appliance" on page 15 |
Ice cube container is not properly inserted. |
Insert ice cube container fully. |
Ice maker without power. |
Call customer service. |
|
~ "Customer service" on page 27 |
No water supply. |
Check water connection and contact technician if necessary. |
Low water pressure. |
Only connect appliance to pipes with sufficient water pressure. |
Kink in water hose. |
Turn off water supply, straighten out kink. Replace water hose, if nec- |
|
essary. |
|
|
Too few or deformed ice cubes, water pressure lower than usual. |
|
After switching on or removing many ice cubes, there will be too few |
It takes around 24 hours for an empty ice cube container to fill up. |
in the ice cube container. |
|
Ice cube production stops even though the ice cube container is still |
Do not store the ice shovel on the ice in the ice cube container. Other- |
not full. |
wise, the sensor will not detect the actual fill level of the container. |
Low water pressure. |
Only connect appliance to pipes with sufficient water pressure. |
The water filter is blocked or needs to be replaced. |
Replace water filter. |
Freezer compartment is too warm. |
Set the temperature lower. |
|
~ "Operating the appliance" on page 15 |
|
|
Water is leaking out of the appliance. |
|
Water connection is not tight. |
Check if the connections are fastened firmly and the water hose is |
|
undamaged. |
|
If the water hose is damaged, contact customer service and have it |
|
replaced. Replacement must be performed by customer service or a |
|
similarly qualified person only.Use original parts supplied by the man- |
|
ufacturer only. |
|
|
26
