D01017520A

SS-CDR1

Solid State/CD Stereo Audio Recorder

OWNER'S MANUAL

IMPORTANT SAFETY PRECAUTIONS

2 TASCAM SS-CDR1

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Thi s appl ia nce ha s a ser ial nu mbe r located on the rear panel. Please record th e model num ber and ser ia l numbe r and retain them for your records. Model number

Serial number

SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

For U.S.A.

TO THE USER

Thi s e qui pme nt has be e n t ested and fo und to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are design ed to pr ov id e r easonab le protectio n against harmful interference when the equipment is op erate d in a commer cial environ me nt. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CAUTION

Changes or m odificati ons to this equipment not exp res s ly a p pro ve d by T E AC C ORP O RATIO N for complianc e could void the user's authority to operate this equipment.

WARNING: TO PREVENT FIRE OR

For the customers in Europe

WARNING

T h i s i s a C l as s A p r o duc t . In a d o m e sti c e nvir o n m e n t, thi s pr o d u c t m ay cau s e r a d i o interference in which case the user may be required to take adequate measures.

Pour les utilisateurs en Europe

AVERTISSEMENT

Il s'a g i t d'u n p r o d u it de Class e A. Dan s un env ir onn eme nt d ome sti que , cet a ppa rei l pe ut pr ovoquer des in terf érences radi o, d an s ce ca s l'utilisateur peut être amené à prendre des mesures appropriées.

Für Kunden in Europa

Warnung

Dies ist eine Einrichtung, welche die Funk-Entstörung nach Klasse A besitzt. Diese Einrichtung kann im Wo hnb ere ich Funk störu nge n versursa che n; in diesem Fall kann vom Betr ieber ver lang we rden, angemessene Maßnahmen durchzuführen und dafür aufzukommen.

CE Marking Information

a) Applicable electromagnetic environment: E4 b) Peak inrush current: 17 A

In North America use only on 120V supply.

IMPORTANT SAFETY INSTRUCTIONS

TASCAM SS-CDR1 3

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not bl ock any ventilation openings. In stall in

accordance with the manufacturer's instructions.

8 Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9 Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding ty pe plug has t wo blades and a third grounding prong. The wide blade or the third prong a re provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Do not expose this apparatus to drips or splashes.

•

Do not place any objects filled with liquids, such as

• vases, on the apparatus.

Do not install this apparatus in a confined space such

• as a book case or similar unit.

The apparatus should be located close enough to the

• AC outlet so that you can easily grasp the power cord

plug at any time.

An a pparatus with Cla ss I c onstruction shall be

• connected to an AC outlet with a protective grounding

connection.

Batteries (battery pack or batteries installed) should

• not be exposed to excessive heat such as sunshine,

fire or the like.

Excessive sound pressure from earphones and head-

• phones can cause hearing loss.

The apparatus draws nominal non-operating power

• from the AC outlet with its STANDBY/ON in the

Standby position.

10 Protect the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories speciﬁed by the

manufacturer.

12 Use only with the car t, s tand, trip od, bracket, or

table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when movin g the cart/apparatu s combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or

when unused for long periods of time.

14 Refer all se rvicing to qualified service per sonnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

IMPORTANT SAFETY PRECAUTIONS

For USA

Safety Information

This product has been designed and manufactured according to FDA regulations "title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health and Safety Act of 1968", and is classified as a class 1 laser product. There is no hazardous invisible laser radiation during operation because invisible laser radiation emitted inside of this product is completely confined in the protective housings. The label required in this regulation is shown at 1.

Rack-mounting the Unit

Use the supplied rack-mounting kit to mount the unit in a standard 19-inch rack, as shown below. Remove the feet of the unit before mounting.

NOTE

Leave 1U of space above the unit for ventilation.

•

Allow at least 10 cm (4 in) at the rear of the unit for

• ventilation.

CAUTION

•DONOTREMOVETHEPROTECTIVEHOUSING

USING A SCREWDRIVER.

•USEOFCONTROLSORADJUSTMENTSOR

PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

•IFTHISPRODUCTDEVELOPSTROUBLE,

CONTACT YOUR NEAREST QUALIFIED SERVICE PERSONNEL, AND DO NOT USE THE PRODUCT IN ITS DAMAGED STATE.

•CLASS1MINVISIBLELASERRADIATIONWHEN

OPEN AND INTERLOCKS DEFEATED. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

Optical pickup

Type : HOP-6201TC Manufacturer : Hitachi Media Electronics Co,Ltd. Laser output : Less than 75 mW on the objective lens

(record)

Wavelength : 777 to 787 nm

4 TASCAM SS-CDR1

1 − Introduction

Contents

1 − Introduction ............................... 7

Features of the SS-CDR1 ...........................7

Supplied accessories .................................. 7

Media considerations ................................ 7

About CD-R and CD-RW discs ................... 8

About finalizing ......................................... 8

Recordable discs .......................................................8

Handling of compact discs ........................ 8

Never use a stabilizer or printable discs ................9

Environmental considerations .................. 8

Beware of condensation ..........................................9

About this manual ..................................... 9

Connections ............................................. 10

Control connections ...............................................10

2 − Controls and connectors ......... 11

Front panel ............................................... 11

Rear panel ................................................ 13

Remote control unit (RC-SS1) .................. 13

The home screen ..................................... 15

Various indicators ...................................................16

3 − Menu screens ........................... 17

Menu structure ........................................ 17

Operations in the menu screens .............18

4 − Preparations ............................. 19

Connections ............................................................19

Turning the power on ............................................20

Setting the date and time .....................................20

Adjusting the display .............................................21

Adjusting the contrast ...........................................21

Adjusting the brightness .......................................21

Inserting a CompactFlash card ..............................22

About the door lock ...............................................22

Removing the card .................................................22

Inserting a CD .........................................................23

Removing a CD .......................................................23

Selecting the device ...............................................23

5 − Playback .................................... 24

Files that can be played .........................................24

Tracks and files .......................................................24

Play area ..................................................................24

Selecting the type of play area .............................24

Selecting the current folder or current playlist ...25

Basic playback operations .....................................25

Playback ..................................................................25

Selecting a track .....................................................25

Skipping to the previous or next track.................25

Specifying a track number.....................................26

Fast-forward/rewind search ..................................26

Time search .............................................................26

Time searching from an incomplete entry ...........27

Time skip .................................................................27

Playback modes ......................................................27

Specifying the playback mode ..............................27

Program playback ...................................................28

Switching the playback time display mode .........28

Power-on play ........................................................29

Repeat playback .....................................................29

Conventional repeat playback ..............................29

A-B Repeat playback ..............................................29

Pitch Control playback ...........................................30

Specifying the Pitch Step .......................................30

Key Control playback .............................................31

Using the remote’s dedicated key to turn

Key Control on/off ......................................31

Auto Cue function ..................................................32

Using the remote’s dedicated key to turn

Auto Cue on/off ..........................................32

Auto Ready function ..............................................33

Turning the Auto Ready function on/off

from the front panel ...................................33

Call function ...........................................................33

Incremental Playback .............................................34

Using the remote’s dedicated key ........................34

Using the menu to make settings .........................34

Playing back in monaural ......................................35

Resume Playback ....................................................35

Flash Start function ................................................36

End of disc/track message (EOM) .........................37

Specifying an EOM tally output trigger ...............37

Example of actual use ............................................37

6 − Recording .................................. 38

Selecting the input source .....................................38

Using the dedicated remote key to select

the source ....................................................38

Using the menu to select the source ....................38

Input source indicator ............................................39

Specifying the recording file format ....................39

Using the sampling rate converter .......................40

Monitoring the input signal ..................................40

Adjusting the input signal level and balance ......41

Basic recording operation ......................................41

Finalizing a CD ........................................................43

Finalizing operation ...............................................43

Switching the recording time display mode ....... 44

TASCAM SS-CDR1 5

Contents

Sync recording ....................................................... 44

Making settings ..................................................... 44

Sync Record operation ...........................................46

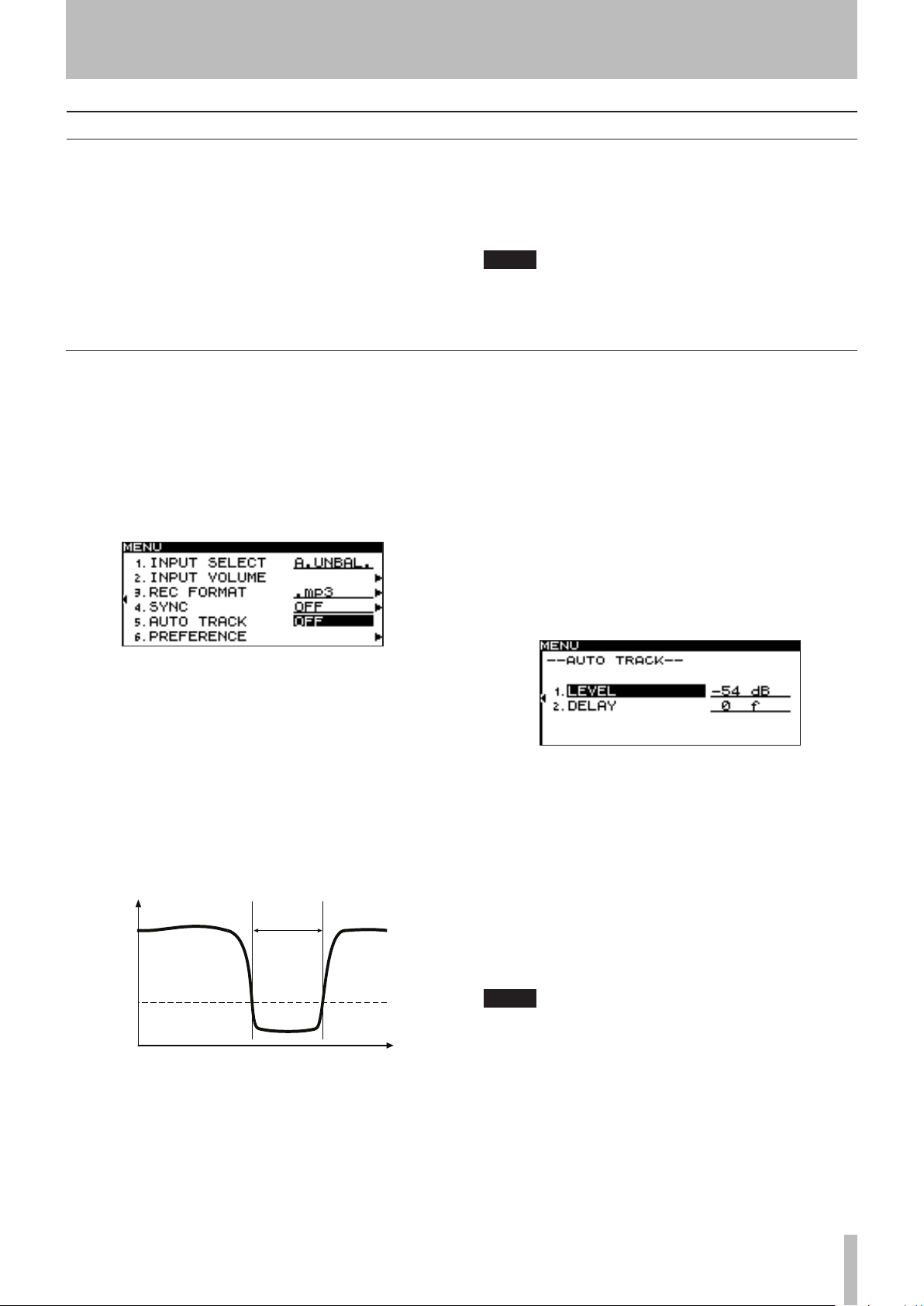

Auto Track function ................................................47

Using the menu ......................................................47

Using the remote’s dedicated key

to switch modes ..........................................48

Assigning a new track number manually.............48

Applying the compressor while recording ...........48

Specifying the name of the recording file

(WAV and MP3 only) ...................................49

7 − Using the folder finder ............ 50

Overview .................................................................50

Opening the folder finder screen .........................50

Navigating in the folder finder screen .................50

Operations when a folder is highlighted .............50

Operations when a file is highlighted ..................51

Operations in the folder menu screen .................52

Renaming a folder (CF card only) ..........................52

Deleting a folder (CF card only) ............................52

Undeleting a deleted folder (UNDO)

(CF card only) ...............................................53

Making a folder the current folder .......................53

Creating a new folder ............................................53

Adding an entire folder to a playlist

(CF card only) ...............................................54

Undoing a folder menu operation (UNDO) ..........54

Operations in the file menu screen

(CF card only) ...............................................54

Editing the file name..............................................55

Deleting a file .........................................................55

Adding files to a playlist ........................................56

Dividing a file (DIVIDE) ..........................................56

Combining files (COMBINE) ...................................57

Undoing a file menu operation (UNDO) ...............58

Moving or copying a file (CF card only) ................58

Moving a file within a folder ................................58

Moving or copying a file between folders ..........59

Adding a file/folder to a playlist ...........................63

Deleting a file/all files from a playlist ..................63

Moving a file ...........................................................64

10 − Copying files between

CD and CF card ........................ 65

Copying/converting and copying files

from CF card to CD ......................................65

Creating an audio CD .............................................65

Creating a data CD .................................................67

Copying/converting and copying files

from CD to CF card ......................................68

Converting and copying audio CD tracks .............68

Copying files from a data CD ................................70

11 − CD-RW management .............. 72

Unfinalizing a CD ....................................................72

Erasing a track ........................................................72

Erasing a disc ..........................................................73

Refreshing a disc (complete erasure) ....................73

12 − Other settings ........................ 74

Restoring the factory settings ..............................74

Formatting a CompactFlash card ..........................74

Viewing information about the media .................75

13 − Operation using a computer

keyboard ................................. 76

Specifying the keyboard type ...............................76

Using the keyboard to enter names .....................76

List of keyboard operations ..................................77

Keyboard operations .............................................77

14 − Using the RS-232C connector . . 79

15 − Messages ................................ 80

16 − Troubleshooting ..................... 82

17 − Specifications ......................... 83

Dimensional diagram .............................................84

8 − Using the CD-DA finder screen

(AudioCD only) ........................ 60

Opening the CD-DA finder screen ........................60

Selecting the track to play .....................................60

Editing CD text .......................................................60

9 − Editing a playlist (CF only) ...... 62

Overview .................................................................62

Opening the playlist finder screen .......................62

Navigating in the playlist finder screen ...............62

Operations in the playlist menu screen ...............63

6 TASCAM SS-CDR1

1 − Introduction

NOTE

1 − Introduction

Thank you for your purchase of the TASCAM SS-CDR1 Solid State Stereo Audio Recorder.

Before connecting and using the unit, please take time to read this manual thoroughly to ensure you understand how to properly set up and connect the SS-CDR1, as well as the operation of its many useful and convenient functions. After you have finished reading this manual, please keep it in a safe place for future reference.

This product is designed to help you record and reproduce sound works to which you own the copyright, or where you have obtained permission from the copyright holder or the rightful licensor. Unless you own the

Features of the SS-CDR1

Two-channel audio recorder using CF cards and CD

• media.

Can be mounted in a single rack space.

• Use CF cards to record/play 44.1 kHz or 48 kHz 16-bit

• linear PCM audio (WAV format) or MP3 audio. Use CD

discs to record/play CD-DA (audio CD) or MP3 audio, or to play WAV audio

Provides parallel and serial control ports to allow

• control from outside.

Flash Start function allows playback to begin instantly.

• Playback control functionality such as Pitch Control and

• Key Control.

copyright, or have obtained the appropriate permission from the copyright holder or the rightful licensor, your unauthorized recording, reproduction or distribution thereof may result in severe criminal penalties under copyright laws and international copyright treaties. If you are uncertain about your rights, contact your legal advisor. Under no circumstances will TEAC Corporation be responsible for the consequences of any illegal copying performed using the SS-CDR1.

Play lists and folders can be used to freely specify the

• range of playback.

Track editing is provided (only for linear PCM audio

• recorded on a CF card).

An internal clock is provided for time stamping.

• Balanced and unbalanced analog audio inputs and

• outputs as well as coaxial digital audio input and output

are provided. Wired remote control for reliable operation is provided.

• A PS/2 keyboard can be connected to control the unit or

• to enter text.

Supplied accessories

In addition to this manual, the SS-CDR1 has been packed with the following:

RC-SS1 remote control unit (with 5m cable) • .................1

AC power cable• ...............................................................1

A rack-mounting screw kit (screws and washers)• ..........1

Security Screw• ................................................................2

A warranty card• ..............................................................1

Media considerations

The capacities and performance of your SS-CDR1 will vary based on the speed and abilities of the Compact Flash (CF) media used. Older and some cheaper Compact Flash (CF) cards use slower memory components and little internal buffering which results in poor recording performance. Newer CF cards, not only perform reading and writing faster, but also come in larger storage size.

A card more than 512 MB should be used on the SS-CDR1.

The SS-CDR1 supports only Type I Compact Flash media. Type I cards are typically FLASH-ROM based and provide higher performance and durability than hard disk cards.

Contact your TASCAM supplier if any of these items are missing.

A current list of tested CF cards and their capacities is maintained and available for viewing on the TASCAM website at www.tascam.com

CompactFlash cards are precision devices. To prevent damage to the card or the slot, please observe the following cautions.

Do not leave a CF card in an extremely hot or cold loca-

• tion.

Do not leave a CF card in an extremely damp location.

• Do not allow a CF card to become wet.

• Do not place any object on top of a CF card, or twist or

• bend it.

Do not subject a CF card to strong impact.

•

TASCAM SS-CDR1 7

1 − Introduction

8 TASCAM SS-CDR1

High Speed

About CD-R and CD-RW discs

CD-R discs can be recorded once only. Once they have been used for recording, they cannot be erased or re-recorded. However, if space is available on the disc, additional material can be recorded. The packaging of CD-R discs will include one of the following logos:

By contrast, a CD-RW disc can be used in much the same way as a CD-R disc, but the last track or tracks recorded can be erased before the disc has been “finalized”, and the space on the disc can be re-used for other recordings. The packaging of CD-RW discs will include one of the following logos:

However, you should note that an audio CD created using a CD-RW disc may not play back satisfactorily on every audio CD player. It will, naturally, be playable on the SS-CDR1. This is in no way a limitation of the SS-CDR1 itself, but of the difference between the different types of media and the methods used to read them.

There are precautions that you should take when handling CD-R and CD-RW discs.

Avoid touching the recording (non-label) side of a disc on

• which you will be recording. Recording on a disc requires

a cleaner surface than playing back, and fingerprints, grease, etc. can cause errors in the recording process.

CD-R and CD-RW discs are sensitive to the effects of

• heat and ultraviolet rays. It is important that they are not

stored in a location where direct sunlight will fall on them, and which is away from sources of heat such as radiators or heat-generating electrical devices.

Always store CD-R and CD-RW discs in their cases to

• avoid dirt and dust accumulating on their surfaces.

When labeling CD-R and CD-RW discs, always use a

• soft oil-based felt-tipped pen to write the information.

Never use a ball-point or hard-tipped pen, as this may cause damage to the recorded side.

Always keep the recording sides of the discs away from

• grime and dust to avoid a reduction in sound quality.

To clean a disc, wipe gently with a soft dry cloth from the center towards the outside edge. Do not use thinner, gasoline, benzene or LP cleaning fluid, as these will damage the disc and cause the disc unplayable.

Do not put labels or protective sheets on the discs and do

• not use any protective coating spray.

If you are in any doubt as to the care and handling of a

• CD-R and CD-RW discs, read the precautions supplied

with the disc, or contact the disc manufacturer directly.

About finalizing

Although audio data may be written on a CD-R or CD-RW disc, a standard CD player will not be able to read the data (i.e. play back the audio) until a final *TOC has been written at the start of the disc.

*TOC:Table of contents

Information of recorded data, which contains titles, starting and ending addresses, and etc..

The process of writing this table of contents is known as “finalizing”. Once this has been done, no further data can

Recordable discs

In this manual, we use the term “recordable” disc to describe a CD-R or CD-RW disc that has not been finalized, i.e. further recording is possible on the disc.

Handling of compact discs

The SS-CDR1 has been designed for the playback of CD-DA (standard audio) format discs and MP3 files record ed on the discs using the ISO9660 format: In addition to ordinary 5-inch and 3-inch CDs, it can also play properly recorded CD-R and CD-RW discs.

be written to the disc. See “Finalizing” on page 43 for details. In the case of a CD-RW disc which has been finalized, the whole of the disc may be erased, or the disc may be “refreshed”, and the disc re-used.

In addition, a CD-RW disc that has been finalized may be “unfinalized”, i.e. only the TOC is removed. This allows further tracks to be recorded to the disc, provided that there is space on the disc.

To remove a disc from its case, press down on the center

•

of the disc holder, then lift the disc out, holding it care fully by the edges.

Always insert the compact discs into the unit with their

• label facing upward.

1 − Introduction

TASCAM SS-CDR1 9

NOTE

Avoid getting fingerprints on the signal side (the non-

• label side). Grime and dust may cause skipping, so keep

discs clean and store them in their cases when not being played. To clean the signal side of a disc, wipe gently with a soft dry cloth from the center towards the outside edge.

Do not use any record spray, anti-static solutions,

• benzene, paint thinner or other chemical agents to clean

CDs as they could damage the delicate playing surface. It may cause CDs to become unplayable.

Discs should be returned to their cases after use to avoid

• serious scratches that could cause the laser pickup to “skip.”

Keep discs away from direct sunlight, and places of

• high heat and humidity. If left in such places, warping

could result.

Never use a stabilizer or printable discs

Using commercially available CD stabilizers or printable recordable discs with this player will damage the mechanism and cause it to malfunction.

Do not affix any labels or stickers to the label side of the

• disc. Do not write on the disc with a ballpoint pen.

Do not insert discs that have adhesive remaining from

• tape or stickers that have been removed. If they are

inserted into the player, they could stick to the internal mechanism, requiring removal by a technician.

Do not use cracked discs.

• Only use circular compact discs. Avoid using non-circu-

• lar promotional, etc. discs.

Music discs with copy control, a copy-protection

• system, have been released from several record compa-

nies in an attempt to protect the copyright. Since some of these discs do not comply with the CD specifications, they may not be playable on the SS-CDR1.

Never use a disc that has had a stabilizer mounted to it. The residual adhesive may cause the disc to stick to the turntable of the SS-CDR1. If it sticks to the turntable, you will need a technician to get it out.

Environmental considerations

The SS-CDR1 may be used in most areas, but to maintain top performance, and prolong operating life, observe the following environmental conditions:

The nominal temperature should be between 5°C and

• 35°C (41°F and 95°F).

Relative humidity should be 30 to 90 percent.

• As the unit may become hot during operation, always

• leave sufficient space above the unit for ventilation. Do

not install this unit in a confined space such as a bookcase, and do not put anything on top of the unit.

Avoid installing this unit on top of any heat-generating

• electrical device such as a power amplifier.

Beware of condensation

If the unit is moved from a cold to a warm place, or used after a sudden temperature change, there is a danger of condensation; vapor in the air could condense on the internal mechanism, making correct operation impossible.

About this manual

Make sure that the unit is mounted in a level position for

• correct operation.

Do not use any benzene, paint thinner, ethyl alcohol

• or other chemical agents to clean the unit as it could

damage the surface. To clean the unit, wipe gently with a soft dry cloth.

The voltage supplied to the unit should match the voltage as printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.

To prevent this, or if this occurs, let the player sit for one or two hours at the new room temperature before using.

In this manual, we use the following conventions:

The names of keys and controls are given in the follow-

• ing typeface: MENU.

If a preset indicator in the display (i.e. one which cannot

• change, but is either on or off) is shown, this is shown as

follows: A_TRACK. When the alphanumeric portion of the display shows a

• message (inc. pop-up), selectable value (i.e. values of

DB), or ON/OFF selection (i.e. SRC ON), this is shown in the following typeface: MOVE

CompactFlash cards are referred to as “CF cards”.

• CD-DA format is sometimes referred to as “audio CD”

• format. An audio disc containing tracks recorded in audio

CD format is sometimes referred to as an “audio CD”. A CD containing MP3 or WAV files is sometimes

• referred to as a “data CD”.

1 − Introduction

START

STOP

Pin 1

FADER START

Pin 8

GND

PARALLEL

Connections

The following should be noted when you connect the unit to other equipment.

It is possible to connect the unit’s and balanced or unbalanced

DIGITAL COAXIAL IN

ANALOG INs (L, R)

to other equipment at the same time. However, the unit can receive signals from only one input at a time. Currently selected input jack is shown on the display.

Control connections

The pinouts of the CONTROL I/O (PARALLEL) terminal on the rear panel (see “Rear panel” on page 13) are:

Pin Function IN/OUT

1 GND —

2 Play/Flash 1 In

3 Stop/Flash 2 In

4 Record/Flash 3 In

7 Flash Load In

8 Fader Start In

9 Flash Tally Out

10 Ready Tally Out

11 Record Tally Out

12 Stop Tally Out

13 Play Tally Out

14 Remote Select*

15 Ready/Flash 6 In

16 Call/Flash 7 In

17 Auto Cue/Flash 8 In

18 Auto Ready/Flash 9 In

19 Pitch/Flash 10 In

20 Flash Page*

21 EOM Tally Out

22 CF Tally Out

23 — —

24 CD Tally Out

25 +5V*

(Next)/Flash 4

≤

(Previous)/Flash 5

—

Audio signals output from the unit are output from the balanced or unbalanced from the

DIGITAL COAXIAL OUT

ANALOG OUT

connector simultane-

jacks, as well as

ously (but not from the digital output in stop mode).

*1 Maximum supplied current is 50 mA.

*2 Pin 14 (Remote Select)

When this pin is high, the input pins for which the above table lists two commands separated by a “/” (pins 2–6 and 15–19) will perform the first-listed function, and can be used as conventional parallel controllers. When this pin is low, the above-listed input pins will function as flash start keys.

*3 Pin 20 (Flash Page)

When pin 14 (Remote Select) is low, the assigned tracks will be as follows according to the high/low state of pin

20.

#14 #20 Flash-start status

Low High 1–10

Low Low 11–2 0

Tall signals are open collector, with a maximum current of 50 mA. Input signals are active when low (ground)

for ≥ 30 ms.

A fader start/stop control should be wired according to the following schematic:

In: External command reception active flow (operates at 30 ms or longer of ground)

Out: transport status by open drain Indication signal (maximum voltage 50 V, maximum current 50 mA)

10 TASCAM SS-CDR1

Front panel

2 − Controls and connectors

1 POWER switch Tu rns the power on/off.

2 POWER ON PLAY switch Turns the Power-on Play

function (which causes playback to start when the unit is powered-on) on or off (see “Power-on Play” on page 29).

3 CD slot Insert the CD here (see “Inserting a CD” on

page 23).

4 CompactFlash card slot Insert a CompactFlash card

here (see “Inserting a CompactFlash card” on page 22).

5 EJECT (ø) key Press this key to eject the CD (see

“Inserting a CD” on page 23).

6 LCD display This shows the home screen, various

menu screens, the nder screen, and warning messages.

7 Device indicators (CD, CF) The indicator of the de-

vice (CF or CD) that is selected as the current device will light. The indicator will blink while a device is being selected or while media is being written.

8 SELECT key Use this key to select the current device

(CF or CD). Select the media that you want to use. The current device indicator (CF or CD indicator) will blink while the device is being selected, and will light steadily after it has been selected.

9 MULTI JOG dial You can use this dial both by turning

it as a wheel and by pressing it as a key.

[Wheel functions]

When the home screen is displayed, use the wheel to select tracks. When entering a program, use the wheel to select a track to register. When in menu mode, use the wheel to select a menu item or to select a value. When editing a name, use the wheel to select characters. By holding down the DISPLAY (INFO) key and turning the MULTI JOG dial, you can adjust the display contrast.

[Key functions]

Press to select or enter a setting (ENTER key function). While the finder screen is displayed, hold down this key to move/copy the highlighted file (see “Moving or copying a file (CF card only)” on page 58).

0 MENU key While the home screen is displayed, press-

ing this key will enter menu mode. The MENU screen will appear. By holding down this key while stopped or paused, you can access the finder screen for the current device and playback area setting (see “Opening the folder finder screen” on page 50, “Opening the play list finder screen” on page 62, and “Opening the CD-DA finder screen” on page 60).

q ∆ (˙) key While playing or paused, holding down

this key will rewind while outputting audio (Review function). While playing or paused, momentarily pressing this key will perform the Time Skip function (see “Time skip” on page 27). In menu mode, this key returns to the previous level. If the play area is FOLDER, you can select the current folder by pressing this key while stopped. If the play area is PLAYLIST, you can select the current playlist by pressing this key while stopped. When entering a name, this key moves the cursor toward the beginning. While editing a name, this key moves the cursor toward the left.

w ˚ (¥) key While playing or paused, holding down

this key will fast-forward while outputting audio (Cue function). While playing or paused, momentarily pressing this key will perform the Time Skip function (see “Time skip” on page 27). In menu mode, this key proceeds to the next level. If the play area is FOLDER, you can press this key while stopped to select the current folder. If the play area is PLAYLIST, you can press this key while stopped to select the current playlist. When editing a name, this key moves the cursor toward the end (see “Editing the file name” on page 55).

e TIME (ESC) key When a menu screen or nder screen

is displayed, you can press this key to return to the home screen. When in the home screen, pressing this key will switch the time display mode of the recorder (see “Switching the playback time display mode” on page 28, “Switching the recording time display mode” on page 44). When editing a file or folder name, pressing this key

TASCAM SS-CDR1 11

2 − Controls and connectors

12 TASCAM SS- CDR1

deletes a highlighted character. Also, pressing and holding this key deletes all characters following the highlighted position. Pressing this key while selecting a device will cancel the operation and return to the home screen.

r DISPLAY (INFO) key When in the home screen, press-

ing this key will cycle the indication in the lower left of

the screen between “le name ∑ folder/playlist name

le information”.

∑

When the finder menu is displayed, pressing this key will display property information for the selected folder or track. When a file or folder name is highlighted, pressing and holding this key scrolls the name on the screen to show the whole name. When a MP3 file that was not created by this unit is selected, and the file contains title information in a ID3 tag, pressing this key shows the title instead of the file name in the home screen. When editing a name, this key switches the type of character (uppercase/lowercase).

You can adjust the display contrast by holding down this key and turning the MULTI JOG dial.

t CALL key When you press this key, the SS-CDR1 will

search for the call point (the point at which playback was most recently started from the pause condition), and will enter pause mode (see “Call function” on page 33). When editing a name, this key inserts a space. When copying or exchange-copying between a CF card and a CD, use this key to select or de-select a file.

o RECORD (TRK INC) key While stopped, press this

key to enter record-ready mode. While recording, press this key to increment the track number. The key will light when in recording mode. If no media is inserted in the current device, pressing this key will select input monitoring, so that the selected input signal will be output. This key will blink while input monitoring is active.

p KEYBOARD connector You can connect a PS/2 key-

board here. Set the UTILITY menu KEYBOARD setting appropriately for the type of keyboard you’ve connected (see “Specifying the keyboard type” on page 76).

a PITCH knob Turn this knob to adjust the pitch (play-

back speed). (See “Pitch control playback” on page 30.)

You can press this knob to turn pitch control on/off. By holding down this knob you can access pitch step switch mode.

s PHONES knob, PHONES jack You can connect stereo

headphones to the PHONES jack. Use the PHONES knob to adjust the headphone volume.

y STOP key When you press this key while playing

back or recording, playback or recording will stop. Pressing this key while stopped or while selecting a track will cancel the track selection. Pressing this key while stopped in program mode will clear all programs. Pressing this key while editing will cancel the editing operation.

u PLAY key While stopped or paused, press this key to

start playback. While in the record-ready condition, press this key to start recording. The key will light during playback or recording.

i READY key While stopped or paused, press this key

to enter the pause condition. While recording, press this key to enter record-ready mode.

2 − Controls and connectors

TASCAM SS-CDR1 13

Rear panel

d ANALOG INPUTS L/R (BALANCED) jacks These are

analog input jacks (XLR balanced).

The nominal input level is +4 dBu. Pin wiring: pin 1 = ground, pin 2 = hot, pin 3 = cold.

f ANALOG INPUTS L/R (UNBALANCED) jacks These

are analog input jacks (RCA pin jacks).

The nominal input level is -10 dBV.

g ANALOG OUTPUTS L/R (UNBALANCED) jacks

These are analog output jacks (RCA pin jacks).

The nominal output level is -10 dBV.

h ANALOG OUTPUTS L/R (BALANCED) plugs These

are analog output plugs (XLR balanced).

The nominal output level is +4 dBu. Pin wiring: pin 1 = ground, pin 2 = hot, pin 3 = cold.

Remote control unit (RC-SS1)

j DIGITAL IN/OUT (COAXIAL) jacks These are digital in-

put/output jacks compatible with IEC-60958 (S/PDIF).

k CONTROL I/O (RS-232C) connector This is a D-sub

9-pin RS-232C connector for control I/O. You can connect it to an external computer or other device (see “Using the RS-232C connector” on page 79).

l CONTROL I/O (PARALLEL) connector This is a D-

sub 25-pin parallel connector for control I/O. You can connect it to an external controller. For the pin wiring, refer to “Control connection” on page 10.

; REMOTE IN connector Connect the RC-SS1 dedi-

cated remote here.

z AC IN connector Connect the included power cable

here.

1 FLASH LOAD key This loads the registered tracks in

preparation for Flash Start. When the tracks have been loaded, the display will indicate FLASH (see “Flash Start function” on page 36).

2 DEVICE SELECT key This key has the same function

as the front panel SELECT key.

3 DISPLAY key This has the same function as the front

panel DISPLAY (INFO) key.

4 TIME key If you press this key while in the home screen,

the time display mode of the recorder will change (see “Switching the playback time display mode” on page 28, “Switching the recording time display mode” on page

44).

5 P.MODE key This switches the playback mode be-

tween CONTINUE (normal consecutive playback), SINGLE (play one song), PROGRAM (program playback), and RANDOM (random playback) (see “Playback modes” on page 27).

6 A. CUE key This turns the Auto Cue function on/off

(see “Auto Cue function” on page 32).

2 − Controls and connectors

14 TASCAM SS-CDR1

A. READY key

off (see “Auto Ready function” on page 33).

8

INC PLAY key

tion on/off (see “Incremental Playback” on page 34).

9

KEY key

off (see “Key Control playback” on page 31).

0

SYNC key

“Sync recording” on page 44).

q

A. TRACK key

tween OFF, LEVEL, DD, and TIME (see “Auto Track function” on page 47).

w

FINDER key

the current device and play area setting (see “Opening the playlist finder screen” on page 62, “Opening the CD-DA finder screen” on page 60).

e

MENU key

panel

of accessing the finder screen when the key is held down.

r

SEARCH (∆ , ˚) keys

tion as the front panel will not operate in menu mode.

t

SKIP (µ , ≤) keys

as turning the front panel

y

STOP key

panel

STOP

LCD- , LCD+ keys

LCD display (see “Adjusting the contrast” on page 21).

This turns the Auto Ready function on/

This turns the Incremental Play func-

This turns the Key Control Play function on/

This turns Sync Recording on/off (see

This switches the Auto Track mode be-

This key accesses the nder screen for

This key has the same function as the front

key. However, it does not have the function

These have the same func-

∆ , ˚

keys. However, they

These have the same function

MULTI JOG

dial.

This has the same function as the front

key.

These adjust the contrast of the

s

Numeric keys (0–9)

“Specifying a track number” on page 26).

d

CLR/ESC key

number, the track number entry will return to the initial condition.

If you press this while entering a program or while registering a track number, the track number will be cancelled. Otherwise, the last-registered program will be deleted (see “Program playback” on page 28). By holding down this key while a menu screen or finder screen is displayed, you can return to the home screen.

f

§,¶,˙,¥(cursor) keys

erations. Use the § vertically. Use the ˙ key to return upward through a menu structure, and use the ¥ key to proceed into a menu structure.

g

ENTER key

front panel

h

RECORD key

panel

RECORD

j

CALL key

panel

CALL

k

READY key

panel

READY

l

PLAY key

panel

PL AY

Use these to select tracks (see

If you press this while entering a track

Use these keys for menu op-

, ¶

keys to select items or values

This has the same function as pressing the

MULTI JOG

dial.

This has the same function as the front

key.

This has the same function as the front

key (see “Call function” on page 33).

This has the same function as the front

key.

This has the same function as the front

key.

REPEAT key

This turns the Repeat Play function on/

off (see “Conventional repeat play” on page 29).

A-B key

Use this key for A-B Repeat playback opera-

tions (see “A-B Repeat play” on page 29).

p

PITCH key

front panel

This has the same function as pressing the

PITCH

knob (see “Pitch Control play” on

page 30).



+ , - keys

front panel

These have the same function as turning the

PITCH

knob (see “Pitch Control play” on

page 30).

a

INPUT SEL key

This selects the recording input source. You can choose ANALOG (RCA), ANALOG (XLR), or COAXIAL (see “Selecting the input source” on page 38).

2 − Controls and connectors

TASCAM SS-CDR1 15

The home screen

The basic screen shown in the display is called the “home screen”.

If any screen other than the home screen is shown, pressing the back to the home screen.

TIME (ESC)

key (or the remote

CLR/ESC

key) will take you

The home screen shows the following information.

1 Play area This shows the currently specified play

area.

2 Playback mode This shows the currently specified

playback mode.

3 Input source indicator This shows the currently se-

lected input.

4 Level meter During playback this shows the playback

level, and during recording or in record-ready mode it shows the recording level.

5 Current device This area indicates the current device

(CF or CD). However if the current device is a CD, and a CD-RW or CD-R disc is inserted, this will indicate

CDRW or CDR.

6Time display mode indicator This shows the selected

time display mode.

7 Counter This shows the track number and time.

The time is shown as the currently selected time mode.

8 Information This shows information such as the le

name.

9TOC The TOC indication will light when you have

inserted a nalized CD and the SS-CDR1 has nished

reading the TOC data.

2 − Controls and connectors

Various indicators

The content shown here will depend on whether the unit is in playback/stop, or recording/record-ready modes.

While playing or stopped

REPEAT

This will be lit in Repeat Mode.

A-B

This will be lit in A-B Repeat mode.

PITCH

This will be lit if the Pitch Control function is active.

KEY

This will be lit if the Key Control function is active.

A_CUE

This will be lit if the Auto Cue function is active.

A_READY

This will be lit if the Auto Ready function is active.

INC_PLAY

This will be lit if the Incremental Play function is active.

FLASH

This will be lit if Flash Load has been completed.

While recording or record-ready

FILE

This indicates the recording file format (WAV, MP3, or CD -DA).

This indicates the sampling rate of the recording file.

BIT

This indicates the bit rate of the file being recorded (only for an MP3 file).

A_TRACK

This will be lit if the Auto Track function is on.

SYNC

This will be lit if Sync Recording is on.

SRC

This will light if the Sampling Rate Converter function is on.

COMP

This will be lit if the compressor is on.

VOLUME

This indicates the recording volume.

16 TASCAM SS- CDR1

The SS-CDR1 has a menu system with various settings.

NOTE

When you press the MENU key, the main menu list screen will appear.

MENU when the CF device is selected.

Menu structure

There are four main menus, as follows.

PLAY menu: Contains playback-related menu items. REC menu: Contains recording-related menu items. UTILITY menu: Contains system settings for the SS-CDR1. CD menu: This menu contains CD-specific operations

3 − Menu screens

MENU when the CD device is selected.

The following table summarizes the items in each menu.

Menu option Sub-Menu option Function Reference page

PL AY PLAY AREA Play area setting Page 24

PLAY MODE Play mode setting Page 27

AUTO CUE Auto Cue on/off and setting Page 32

AUTO READY Auto Ready on/off Page 33

REPEAT Repeat Play on/off Page 29

KEY Key Control on/of and setting Page 31

PREFERENCE Various playback preferences Page 34

REC INPUT SELECT Input source selection Page 38

INPUT VOLUME Input volume setting Page 41

REC FORMAT Recording file format setting Page 39

SYNC Sync Recording setting Page 44

AUTO TRACK Auto Track Increment setting Page 47

PREFERENCE Various recording preferences Page 40

UTILTIY MEMORY FORMAT Format a CompactFlash card Page 74

LCD BRIGHTNESS Display brightness setting Page 21

KEYBOARD PS/2 keyboard type setting Page 76

CLOCK ADJUST Internal clock time setting Page 20

RS-232C RS-232C communication setting Page 79

INFORMATION View the media information Page 75

FACTORY PRESET Restore the factory settings Page 75

CD FINALIZE

ERASE Erase a CD-RW Page 72

BURN TO CD Write from CF to CD Page 65

RIP TO CF Write from CD to CF Page 68

Even if the CD device is selected, you will not be able to select the CD menu if no CD is inserted.

Finalize a CD-R/CD-RW

Page 43

TASCAM SS-CDR1 17

3 − Menu screens

NOTE

Operations in the menu screens

You can perform operations in the menu screens as follows.

To select an item (vertically in the screen):

•

Turn the MULTI JOG dial of the SS-CDR1. Use the cursor § , ¶ keys of the remote.

To confirm the highlighted item:

•

Press the MULTI JOG dial of the SS-CDR1. Press the ENTER key of the remote.

To move the cursor left/right:

•

Use the ∆ , ˚ keys of the SS-CDR1. Use the cursor ˙ , ¥ keys of the remote.

To select a sub-screen not currently shown in the

• screen (an arrow is shown at the right):

Press the ˚ key of the SS-CDR1. Press the cursor ¥ key of the remote.

To return to the previous menu level:

•

Press the ∆ key of the SS-CDR1. Press the cursor

˙ key of the remote.

To return directly to the home screen from menu

• mode:

Press the TIME (ESC) key of the SS-CDR1. Press the CLR/ESC key of the remote.

3 Select the AUTO CUE item.

From the SS-CDR1:

Turn the MULTI JOG dial to highlight AUTO CUE, and then press the MULTI JOG dial (or the ˚ key).

From the remote:

Use the cursor § , ¶ keys to highlight AUTO CUE, and then press the ENTER key (or the cursor ¥ key).

4 Turn the AUTO CUE item ON.

From the SS-CDR1:

Turn the MULTI JOG dial to highlight ON .

From the remote:

Use the cursor § , ¶ keys to highlight ON.

If there is an item above (or below) the currently • displayed list, a § or ¶ symbol will be shown at the top or bottom of the list.

As a speciﬁc example, we’ll explain how to turn the • PLAY menu item AUTO CUE “on”, and then change the auto cue level.

1 Press the MENU key to access the main menu list

screen.

2 Select the desired menu.

From the SS-CDR1:

Turn the MULTI JOG dial to highlight PLAY, and then press the MULTI JOG dial.

From the remote:

Use the cursor § , ¶ keys to highlight PLAY, and press the ENTER key.

5 Proceed to the AUTO CUE sub-screen.

From the SS-CDR1:

Press the ˚ key.

From the remote:

Press the cursor ¥ key.

6 Set AUTO CUE LEVEL to the desired level.

From the SS-CDR1:

Turn the MULTI JOG dial to select a value.

From the remote:

Use the cursor § , ¶ keys to select a value.

7 To return to the home screen.

From the SS-CDR1:

Press the TIME (ESC) key.

From the remote:

Press the CLR/ESC key.

18 TASCAM SS-CDR1

Connections

Keyboard

Computer

Mixer

External controller

Headphones

4 − Preparations

Connecting headphones

Connect your stereo headphones to the PHONES jack. Use the PHONES knob located above the PHONES jack to adjust the volume.

Connecting a PS/2 keyboard

You can use a keyboard to enter file (track) names and folder names, and also use it to control the SS-CDR1 (see “Operation using a computer keyboard” on page 76).

Connecting audio devices (inputs)

Connect an external audio source (e.g., CD player, mixer) to the SS-CDR1’s ANALOG INPUTS (BALANCED) jacks,

ANALOG INPUTS (UNBALANCED) jacks, or DIGITAL IN

jack. To select the input source, use the REC menu item INPUT SELECT. To adjust the input volume, use the REC menu item INPUT VOLUME.

Connecting audio devices (outputs)

Connect an external monitor system or mixer to the SS- CDR 1’s

ANALOG OUTPUTS (UNBALANCED) jacks, or DIGITAL OUT jack.

ANALOG OUTPUTS (BALANCED) plugs,

Computer

If you connect the SS-CDR1’s RS-232C connector to your computer’s RS-232C connector, you’ll be able to control the SS-CDR1 from your computer via a serial connection. After making connections, you’ll need to make the correct settings on your computer (see “Using the RS-232C connector” on page 79.

Control via a parallel connection

If you want to control the SS-CDR1 via a parallel connection from an external controller, use the PARALLEL connector (25-pin D-sub connector). For details on the pin configuration of the PARALLEL connector, refer to “Control connections” on page 10.

TASCAM SS-CDR1 19

4 − Preparations

20 TASCAM SS-CDR1

CAUTION

Turning the power on

Press the POWER switch to turn the power on.

The SS-CDR1 will start up, and the startup screen will appear.

If no media is inserted, the display will indicate NO MEDIA.

Setting the date and time

Here is how to set the date and time of the internal clock. When you record, the date and time are recorded in the audio file.

1 Press the MENU key to access the menu list

screen.

If a media is inserted, the display will indicate MEDIA

READING

completed, the home screen will appear.

, and the media will be read. When reading is

To turn the power off:

No special shutdown operation is required. Simply press

the POWER switch to turn the power off.

Do not turn off the power while the device indicator (CF or CD) is blinking (i.e., while writing is occurring).

4 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

07 will be highlighted.

5 Set the date and time as follows.

• Use the front panel ∆ , ˚ keys (or the remote’s cursor ˙ , ¥ keys) to move the highlighted area to edit.

2 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to highlight UTILITY, and press the MULTI JOG dial (or the remote’s ENTER key).

The UTILITY menu selection screen will appear.

3 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to highlight CLOCK ADJUST, and press the front panel ˚ key (or the remote’s cursor ¥ key).

The clock setting screen will appear.

• Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to change the value highlighted.

6 Whenyouhavenishedmakingsettings,press

the front panel MULTI JOG dial (or the remote’s

ENTERkey)tonalizethedateandtimesettings.

4 − Preparations

TASCAM SS-CDR1 21

Adjusting the display

MULTI JOG dial

DISPLAY (INFO) key

LCD (+/–) ke

If necessary, you can adjust the display contrast and brightness.

Adjusting the contrast

While holding down the DISPLAY (INFO) key, turn the

MULTI JOG dial (or use the remote’s LCD +/- keys) to

adjust the contrast of the SS-CDR1’s display.

Adjusting the brightness

You can use the UTILITY menu item LCD BRIGHTNESS to adjust the brightness of the backlight.

1 Press the MENU key to access the main menu list.

2 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to highlight UTILITY, and press the front panel MULTI JOG dial or ˚ key (or the remote’s ENTER key or cursor ¥ key).

3 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to highlight LCD BRIGHTNESS, and press the front panel MU LTI

JOG dial or ˚ key (or the remote’s ENTER key or

cursor ¥ key).

4 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to adjust the brightness.

4 − Preparations

22 TASCAM SS-CDR1

TIP

NOTE

Inserting a CompactFlash card

In order to record or play back on the SS-CDR1, a CompactFlash card must be inserted in the front panel CompactFlash card slot.

You can insert a card at any time, regardless of whether the power is on or off, and regardless of the current device selection.

1 Open the door of the CompactFlash card slot.

3 Close the door.

If the slot door will not close, remove the card, press the square button located at the right of the slot, and then insert the card once again.

2 Insert a CF card in the correct orientation.

Insert the card with its label facing up and its contacts facing in.

About the door lock

You can use the included Security Screw to lock the CompactFlash card slot door.

Use a screwdriver to install or remove the Security Screw.

Removing the card

Before you remove the card, turn the power off or stop the SS-CDR1’s operation. Never remove the card while recording is in progress (while the CF indicator is blinking).

If the current device is CF, and the card was inserted while the power was on, the display will indicate MEDIA

READING.

If you insert a card while the power is off, and then turn the power on, the startup screen will appear and then the display will indicate MEDIA READING .

1 If the door is locked, use a screwdriver to remove

the door lock screw.

2 Open the CompactFlash card slot door.

3 Press the square button located at the right of the

card slot; the button will protrude.

4 Push the protruding square button, and the card

will be partially ejected.

5 Grasp the card and pull it out.

4 − Preparations

TASCAM SS-CDR1 23

NOTE

Inserting a CD

SELECT key

TIME (ESC) key

DEVICE SELECT key

Regardless of the current device, you can insert a CD at any time that the power is on.

1. As shown in the illustration, hold the disc with its label surface facing upward, and insert it part of the way into the slot.

Removing a CD

Press the EJECT key.

2. As you continue pushing the disc, it will be automatically pulled inside just before it disappears into the slot.

If the disc does not go in

If the disc gets stuck or is difficult to insert, do not

attempt to force it in. Press the EJECT key and remove the disc, and then re-insert it (forcing the disc into the slot may damage the mechanism).

The disc will be ejected part of the way; use your fingers to pull it out the rest of the way.

Selecting the device

Before you perform operations using the SS-CDR1, you will need to select the device (CD or CF) corresponding to the media (CD or CF card) that you want to use. The selected device is called the “current device.”

To select a device, press the front panel SELECT key or the remote’s DEVICE SELECT key to make the indicator (CF or CD) of the desired device blink, and then press the front panel MULTI JOG dial or the remote’s ENTER key to confirm the selection (the device indicator will change from blinking to steadily lit).

To cancel the device select operation, press the front panel

TIME (ESC) key (or the remote’s CLR / ESC) key).

24 TASCAM SS-CD R1

TIP

NOTE

5 − Playback

This chapter explains the functions for playing audio files stored on a CD or CF card.

The following explanation assumes that a CD or CF card containing an audio file is inserted in the SS-CDR1, that

Files that can be played

The SS-CDR1 is able to play files in the following formats.

When using a CF card:

WAV format files

•

Stereo or monaural WAV files in sampling frequencies of 44.1 kHz or 48 kHz can be played.

MP3 format files

•

Stereo or monaural MP3 files in sampling frequencies of 44.1 kHz or 48 kHz and bit rates of 64 kbps to 320 kbps can be played.

When using a CD:

CD-DA (audio CD) format

•

Commercial audio CDs and CDs recorded in audio CD format can be played.

WAV format files

•

Stereo or monaural WAV files in sampling frequencies of 44.1 kHz or 48 kHz can be played.

MP3 format files

•

Stereo or monaural MP3 files in sampling frequencies

the SS-CDR1 is powered-on, and that the current device (CD or CF) is selected appropriately (see “Selecting the device” on page 23).

of 44.1 kHz or 48 kHz and bit rates of 64 kbps to 320 kbps can be played.

As long as they meet the above requirements, the SS-CDR1 can play ﬁles that were recorded on another device. For example, you can use your computer or other audio device to write ﬁles conforming to the above conditions to a CD or CF card, and then insert this media into the SS-CDR1 and play it. This allows you to work efﬁciently when preparing playback material for the SS-CDR1.

Because of the nature of their format, VBR (Variable Bit Rate) MP3 ﬁles do not allow a precise location to be found. Thus, when performing functions that require a point to be speciﬁed within the track, such as Time Skip, Call, or the point A setting for A-B Repeat, there may be a slight discrepancy between the point you speciﬁed and the point at which playback actually begins.

Tracks and files

Audio data is saved on the media as “audio files.” These files are handled by the SS-CDR1 as “tracks.”

This means that when explaining recording or playback in this manual, we will refer to audio files as “tracks” (or

Play area

The region of playback tracks that can be selected in the home screen is called the “play area.”

For an audio CD, the play area will normally be the entire disc. For a CF card or CD that contains WAV files or MP3 files, you can specify the play area.

Selecting the type of play area

You can use the menu to specify the desired type of play area (for details on how to perform menu operations, refer to “Operations in the menu screens” on page 18).

1 While stopped, or with no CompactFlash card

inserted, press the MENU key to access the main menu list screen.

2 Select the PLAY menu.

3 Select PLAY AREA.

“songs” in some cases), and will mainly use the term “files” when explaining media management. Please be aware that these two terms actually refer to the same thing.

If the media contains numerous files, limiting the play area will make it easier for you to select the desired track.

4 Specify the desired type of play area.

When using a CF card, you can choose ALL,

FOLDER, or PLAYLIST.

5 − Playback

TASCAM SS-CDR1 25

NOTE

When using a data CD, you can choose ALL or

FOLDER.

When using an audio CD, this will always be ALL.

5 When you’ve made your choice, press the front

panel TIME (ESC) key (or the remote’s CLR/ESC

The play area setting is preserved even when the power is turned off.

key) to return to the home screen.

Selecting the current folder or current playlist

If you’ve specified that the play area will be a folder or playlist (only when using a CF card), you can select the applicable folder or play list by using the front panel ∆ ,

˚ keys (or the remote’s SEARCH ∆ , ˚ keys) while

the home screen is displayed and the recorder is stopped. This folder or playlist will be called the “current folder” or “current playlist”.

You can also select the “current folder” or “current • playlist” from the folder ﬁnder screen or playlist

Basic playback operations

The play area type is shown in the upper left of the home screen.

ﬁnder screen (see “Using the folder ﬁnder” on page 50, “Editing a playlist (CF only)” on page 62).

For WAV format or MP3 format audio ﬁles, the • SS-CDR1 is able to play back a maximum of 999 tracks. If media containing more than 999 tracks is inserted into the SS-CDR1, the 999 tracks selected according to the rules of the SS-CDR1’s system will be playable. The remaining tracks cannot be played or edited.

For audio ﬁles in audio CD (CD-DA) format, a maxi-• mum of 99 tracks will be playable on the SS-CDR1.

This section explains basic operations such as play, pause, and stop.

The following explanation assume that you have completed the necessary connections, that the SS-CDR1 is powered-

Playback

Press the P LAY key to begin playback.

If the CompactFlash card does not contain any audio ﬁles that the SS-CDR1 is able to play, the counter display area (track number and time display) will show all zeros.

Selecting a track

Here’s how to select the track for playback if more than one track exists in the play area. You can select a track either by moving to the previous or next track (“skip”), or by specifying a track number directly.

on, that media containing audio files is specified as the current device, and that the display is showing the home screen.

To stop playback

•

Press the STOP key.

To pause playback

•

Press the READY key.

In this manual, we’ll assume that the play mode is set to CONTINUE (continuous playback mode) unless otherwise specified.

Skipping to the previous or next track

Turn the front panel MULTI JOG dial (or use the remote’s

SKIP keys) to skip to the previous or next track.

If using the

• skip to the next track, or to the left to skip to the pre-

vious track.

If using the

• the next track, or the µ key to skip to the previous

track.

MULTI JOG dial, turn it to the right to

SKIP keys, press the ≤ key to skip to

After selecting a track, press PL AY key on the front panel or the remote to begin playing the track.

Alternatively, you can press the READY key of the front panel or the remote to pause at the beginning of the selected track.

5 − Playback

26 TASCAM SS-CDR1

NOTE

Specifying a track number

You can use the remote’s numeric keys (0 ˗ 9) to directly specify the number of the track that you want to play.

For audio CD format, the track number will be a maximum of two digits. For WAV format or MP3 format, the track number will be a maximum of three digits.

1. Use the remote’s numeric keys (0˗9) to enter the track number. Enter the track number starting with the highest digit.

To specify track 1•

Press the 1 key once.

To specify track 12•

Press the 1 key ∑ 2 key.

To specify track 103•

Press the 1 key ∑ 0 key ∑ 3 key.

Fast-forward/rewind search

You can rapidly search forward or backward while listening to the audio of a track.

1 Play or pause the desired track.

2 Hold down the ˚ or ∆ key.

Fast-forward or rewind search will begin.

2 Press the PLAY key.

The selected track will begin playing.

Alternatively, you can use this procedure but press the remote’s READY key instead of the P LAY key to pause at the beginning of the selected track.

As an alternative to press the • PLAY key, you can press the MULTI JOG dial to playback the ﬁle select- ed (or the remote’s ENTER key).

You cannot use the numeric keys to specify the • track while in program or random mode.

3 To stop searching, release the key you were hold-

ing.

You will return to the state (either playing or paused) in which you were prior to searching.

Time search

While the unit is stopped, playing, or paused, you can locate to a specified time in the specified track.

You cannot use time search when the play mode is program mode or random mode.

1. Use the remote’s numeric keys (0 - 9) to enter the number as follows.

For WAV or MP3 format:

Track number: three digits

• Elapsed time from the beginning of the track

• (XX hours / XX minutes / XX seconds): two digits each

For audio CD format

Track number: two digits

•

Elapsed time from the beginning of the track (

• minutes / XX seconds): two digits each

For example if you want to specify a location that is 1 minute 30 seconds from the beginning of MP3 format track 2, you would press keys in the following order.

Similarly, if you want to specify a location that is 1 minute 30 seconds from the beginning of audio CD format track 2, you would press keys in the following order.

2 ∑ 0 ∑ 1 ∑ 3 ∑ 0

∑

When you finish entering the six digits, the SS-CDR1 will automatically locate to the specified position.

If the unit is stopped or playing back prior to the locate operation, playback will begin after the locate operation. If the unit is paused prior to the locate operation, it will pause after the locate operation.

If you specify a track number that does not exist in the current play area, or a time that does not exist in the track, the operation will be cancelled at that point.

0 ∑ 2 ∑ 0 ∑ 0 ∑ 0 ∑ 1 ∑ 3 ∑ 0

∑

When you finish entering the nine digits, the SS-CDR1 will automatically locate to the specified position.

5 − Playback

TASCAM SS-CDR1 27

NOTE

Time searching from an incomplete entry

NOTE

If you press the remote’s ENTER key (or the PL AY or

READY key) before you finish entering the last second’s

place of numeric input, you will locate to the position that was specified at that point. For example if you are using a CD that contains MP3 format tracks, and you enter “0 ∑ 0

2” and press the ENTER key, you will locate to a position

12 minutes after the beginning of track 2.

After the locate operation, the unit will either play or pause, depending on the status prior to pressing the ENTER key. If you press the P LAY key, playback will begin. If you press the READY key, the recorder will pause.

2 ∑ 0 ∑ 0 ∑ 1

∑

Time skip

This method allows you to omit the leading 0 of the • last place you enter (track, hour, minute, second), even the leading 00 of the track number. For example if you are using a CD that contains MP3 format tracks, and you want to locate to a position that is two minutes after the beginning of track 2, you would enter “0 ∑ 0 ∑ 2 ∑ 0 ∑ 0 ∑ 2” and press the ENTER key.

If you enter only the track number and press the •

ENTER key (or the PL AY key or READY key), the

result is the same as “Specifying a track number” on page 26.

While playing or paused, you can skip backward or forward in one-minute steps.

1 While playing or paused, press the ∆ or ˚

keys.

You will locate to a position one minute before or after the current location. Following the locate, the playback or pause condition will continue as it had been prior to the operation.

If you press the • ∆ key at a point less than one minute after the beginning of the track, you will locate to the beginning of the current track.

If you press the • ∆ key at a point less than one second after the beginning of the track, you will

Playback modes

The tracks in the play area can be played using one of the following four types (modes) of playback.

Continuous playback (default setting)

The tracks in the play area will play back in order of their track numbers.

Single playback

Only the currently selected track will play back, and then playback will stop.

locate to a point one minute before the end of the preceding track. However if the track is the ﬁrst track in the card or the program, you will pause at the beginning of the current track. (Even when using random play, pressing the ∆ key at a point less than one second from the beginning of the track will locate to the beginning of the track).

If you press the • ˚ key at a point that is less than one minute from the end of the track, you will locate to the beginning of the next track. However if the track is the last track in the card or the program, you will pause at the end of the current track.

Program playback

The tracks will be played back in the order you programmed (see “Program playback” on page 28).

Random playback

All tracks in the play area will play back in a random order without regard to their track number. When all tracks have been played back, playback will stop.

Specifying the playback mode

You can easily select the playback mode by using a dedicated key on the remote. To select the playback mode from the SS-CDR1 itself, use menu mode.

Using the dedicated key of the remote

1 If the SS-CDR1 is stopped or if no media is in-

serted, pressing the remote’s P.MODE key will alternate between the play modes. The home

screen shows the currently selected mode as follows.

Display Playback mode

CONTINUE Continuous playback

SINGLE Single playback

PROGRAM Program playback

RANDOM Random playback

5 − Playback

28 TASCAM SS-CDR1

NOTE

In this owner’s manual, we will assume that continuous playback is selected as the playback mode unless otherwise speciﬁed.

Using the menu

(For details on how to perform menu operations, refer to “Operations in the menu screens” on page 18).

1 While stopped, press the MENU key to enter menu

mode.

Program playback

2 Turn the MULTI JOG dial to highlight the PLAY

menu item, and then press the MULTI JOG dial.

3 Select the PLAY MODE item.

4 Turn the MULTI JOG dial to select the desired play

mode.

5 Press the TIME (ESC) key to return to the home

screen.

The play mode you select is remembered even when the power is turned off.

Here is how to play back tracks in the order of the program you specify. You can specify a program of up to 99 tracks.

1 While stopped, set the play mode to program play

mode (see “Specifying the playback mode” on page 27).

2 Use the remote’s numeric keys (0–9) to enter the

desired track number for the program, and press the ENTERkeytoconrmit.

The track will be registered in the program.

If you are operating from the SS-CDR1’s front panel, turn the front panel MULTI JOG dial to select the track, and then press the MULTI JOG dial.

3 Repeat step 2 to register each of the desired

tracks in the program.

The screen will show the program number and

the total time.

You can program the same track repeatedly.•

Pressing the remote’s • CLR/ESC key will delete the last-programmed track from the program.

If you attempt to program the 100th track, an error • message of PROGRAM FULL will appear. A maximum of 99 tracks can be programmed.

For WAV ﬁles or MP3 ﬁles, the display will indicate •

--H--M--S if the total time of the programmed

tracks exceeds 99 hours 59 minutes 59 seconds. For an audio CD, the display will indicate --M--S if the total time exceeds 99 minutes 59 seconds.

In the case of a CD that contains WAV ﬁles or MP3 • ﬁles recorded by a device other than the SS-CDR1, the total time will not be displayed. Instead, the time display area will show the --H--M--S indication.

4 Press the PLAY key to begin program playback.

In program play mode, you won’t be able to play • unless at least one track has been registered in the program.

If you press the • STOP key while stopped, all program data will be cleared.

The program data will be cleared when you switch • the play mode.

The program data will be cleared when you power-• off the SS-CDR1.

Switching the playback time display mode

You can select the way in which the playback time is shown in the home screen.

1 Press the front panel TIME (ESC) key (or the re-

mote’s TIME key).

Each time you press this key, you will cycle through four types of time display. The currently selected display mode is shown above the time display area.

No indicator

The elapsed time of the current track is shown.

REMAIN is lit

The remaining time of the current track is shown.

TOTAL is lit

The elapsed time from the beginning of the play area is shown.

TOTAL and REMAIN are lit

The remaining time in the play area is shown.

While stopped, the total playback time of the play • area is always shown, regardless of whether TOTAL and REMAIN are lit.

In the case of a CD containing WAV ﬁles or MP3 • ﬁles that were recorded using a device other than the SS-CDR1 (e.g., a computer), the total time while

5 − Playback

TASCAM SS-CDR1 29

NOTE

stopped and the total elapsed time and total remaining time while playing will not be displayed (only the number of tracks or the track number will be displayed, and the time display area will show

- -). However, the time will be displayed after all

tracks have been played on the SS-CDR1.

In Program mode, the display area shows the • elapsed time and remaining time of the entire program; not of the entire play area.

Power-on play

The Power-on Play function starts playback automatically when the SS-CDR1 is powered-on.

If you turn this function on, leave the POWER switch pressed inward, and use a commercially available timer to power-on the SS-CDR1, the media that was specified as the current device when the power was last turned off will play automatically.

1 Connect the SS-CDR1 to a timer so that its power

will be supplied from the timer.

The time display mode setting is remembered even • when the power is turned off.

For details on the time display during recording or • in the record-ready condition, refer to “Switching the recording time display mode” on page 44

2 Make preparations for playback.

Select the desired device, and insert media for the current device. It is not necessary to specify the play area or play mode.

3 Set the front panel POWER ON PLAY switch to the

PLAY position.

4 Set your timer to the desired time.

When the specified time arrives, the SS-CDR1 will be powered-on, and playback will begin automatically.

Repeat playback

You can repeatedly play back all tracks in the play area, or repeatedly play back a specified region within a track (A-B Repeat playback).

Conventional repeat playback

If you press the remote’s REPE AT key to turn Repeat playback on, all tracks in the play area will play repeatedly (to do this on the SS-CDR1 itself, use menu mode).

You can use the PLAY menu item REPEAT to turn on Repeat playback from the SS-CDR1 itself.

REPEAT will light in the display.

In this state, all tracks in the play area can be played back repeatedly.

If you turn on Repeat playback during playback, playback will continue, and when it reaches the end of the play area, it will return to the beginning and continue playing. If you turn on repeat playback while stopped, repeat playback will begin when you press the PL AY key.

To turn off repeat playback, press the remote’s REPE AT key once again (or turn the PLAY menu item REPEAT to the OFF setting).

The REPEAT indicator in the display will go dark.

By using repeat playback in conjunction with Single • playback, Program playback, or Random playback, you can repeat a single song, repeat a program, or repeat random playback.

The repeat function on/off setting is remembered • even when the power is off.

A-B Repeat playback

This lets you specify a desired region (A-B) within a track that will be played back repeatedly.

1 While playing or stopped, press the remote’s A-B

key at the starting point (A) of the region that you want to repeat.

In the home screen, the REPEAT and A- indicators will blink.

If you press the REPEAT key, the repeat play starting point (A) will be cancelled, and REPEAT and A- will go dark.

2 Once again, press the remote’s A-B key at the

ending point (B) of the region that you want to

5 − Playback

30 TASCAM SS-CDR1

TIP

NOTE

repeat. If you cancel during playback, playback willcontinuepastthepointspeciedastheending point of A-B repeat playback.

If you press the STOP key to stop playback, the • speciﬁed region (A-B) will be cleared.

You can’t specify A-B repeat playback across tracks.•

In the home screen, A-B will light (in addition to REPEAT).

The region (A-B) has now been specified, and A-B repeat playback will begin.

Pitch Control playback

The SS-CDR1 can modify the pitch (the pitch and playback speed) of the playback (Pitch Control playback).

Here is how to use Pitch Control playback.

1 Press the front panel PITCH knob (or the remote’s

PITCH key) to turn on Pitch Control playback.

When this is on, the PITCH indicator in the display will light in the home screen.

2 Turn the PITCH knob (or use the remote’s PITCH

+/- keys) to specify the pitch.

To turn off A-B Repeat playback:

Press the remote’s A-B key or the REPE AT key.

In the home screen, the REPEAT indicator and the A-B indicator will go dark, and A-B repeat playback will be cancelled.

The PITCH indicator in the display will go dark, and Pitch Control playback will turn off. Even if Pitch Control playback is off, the pitch you specified in step 2 above is remembered, and will be valid if you turn Pitch Control on once again.

By using the Key Control function in conjunction with the Pitch Control function, you can change only the speed without affecting the pitch (see “Key Control play” on page 31).

While you’re making this setting, the display’s pitch control value is shown as PITCH LVL XXX% .

You can specify the pitch in a range of -16.0–+16.0.

To turn off Pitch Control playback:

Press the front panel PITCH knob (or the remote’s PITCH key).

Specifying the Pitch Step

You can change the pitch step.

Pitch steps are the amount of pitch change produced by turning the PITCH knob one step or by pressing the remote’s PITCH +/- key once.

You must make the Pitch Step setting from the SS-CDR1 itself (this setting cannot be made from the remote).

1 Hold down the front panel PITCH knob.

The pitch step setting screen will appear.

When you turn Pitch Control playback on/off during playback, the playback sound may be momentarily interrupted.

3 Whenyou’venishedmakingthesetting,press

the front panel TIME (ESC) key (or the remote’s

CLR/ESC key) to return to the home screen.

The pitch control setting is remembered even when you turn off the power.

2 While this screen is displayed, you can turn the

MULTI JOG dial to specify the pitch step in a range

of 0.1%–1.0%.

5 − Playback

TASCAM SS-CDR1 31

Key Control playback

NOTE

TIP

KEY key

NOTE

You can use the Key Control function to change the key (pitch) of playback.

Here is how to use menu mode to turn Key Control on/off and adjust the key level setting (for details on menu operations, refer to “Operations in the menu screen” on page 18).

1 Press the MENU key to access the main menu list

screen.

2 Select the PLAY menu.

3 Select the KEY item.

In this state you can turn Key Control on/off.

4 Turn the KEY item ON

5 Press the front panel ˚ key (or the remote’s

cursor ¥ key) to proceed to the level setting screen.

6 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to select the desired key level.

You can select the key level from a range of 6– 1, 0 (no pitch change), #1–#6.

7 Whenyou’venishedmakingthesetting,press

the front panel TIME (ESC) key (or the remote’s

CLR/ESC key) to return to the home screen.

The Key Control function will be on, and the home screen will indicate KEY.

The Key Control setting is remembered even when • the power is turned off.

When using the Key Control function, the playback • sound may appear to quaver. This is due to the processing being applied to the playback, and is not a malfunction.

If you turn on both the Key Control function and the Pitch Control function, the key (pitch) will be speciﬁed by the Key Control function and the speed will be determined by the Pitch Control function. (In other words, using Pitch Control to change the speed will not affect the pitch of the sound). Thus, if you set KEY LEVEL to 0 and turn the Key Control function on, you can use Pitch Control to change the playback speed by itself without affecting the pitch.

Using the remote’s dedicated key to turn Key Control on/off

You can use the remote’s KEY key to turn Key Control on/off.

You can’t adjust the key level from the remote.

5 − Playback

32 TASCAM SS-CDR1

NOTE

.CUE key

NOTE

Auto Cue function

If the Auto Cue function is on, and you select a track to play and then enter pause mode, any “silent” portion at the beginning of the track will be skipped, and the SS-CDR1 will pause at the location where the actual “signal” of the track begins to rise. This means that sound will be heard immediately when you start playback.

You can specify the threshold level (= auto cue level) used to detect the audio signal when the Auto Cue function is active. In other words, any signal higher than the auto cue level will be treated by the SS-CDR1 as “signal”, and any signal lower than this level will be treated as “silence”.

The following procedure describes how you can use the menu to turn the Auto Cue function on/off and adjust the Auto Cue Level setting (for details on operations in the menu screen, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu list

screen.

2 Select the PLAY menu.

3 Select the AUTO CUE item.

5 Press the front panel ˚ key (or the remote’s

cursor ¥ key).

In this screen you can adjust the auto cue level.

6 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to select the desired Auto Cue Level.

You can select an auto cue level in the range of -24 dB –

-72 dB (6 dB steps).

7 Whenyou’venishedmakingthesetting,press

the front panel TIME (ESC) key (or the remote’s

CLR/ESC key) to return to the home screen.

If the Auto Cue function is on, A_CUE will be lit in the home screen.

The Auto Cue setting is remembered even if the power is off.

In this state, you can turn the Auto Cue function on/off.

4 Turn the AUTO CUE item ON

Using the remote’s dedicated key to turn Auto Cue on/off

You can turn the Auto Cue function on/off by pressing the remote’s A.CUE key.

You can’t adjust the auto cue level from the remote.

5 − Playback

TASCAM SS-CDR1 33

Auto Ready function

.READY key

NOTE

CALL ke

NOTE

If the Auto Ready function is on, playback will pause at the beginning of the next track when a track has finished playing.

You can switch the Auto Ready function on/off by pressing the remote’s A.READY key.

If the Auto Ready function is on, A_READY will be lit in the home screen.

Turning the Auto Ready function on/off from the front panel

You can also turn the Auto Ready function on/off from the front panel via the menu (for details on operations in the menu screen, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu

screen.

2 Select the PLAY menu.

4 Turn the MULTI JOG dial to turn the setting on/

off.

5 Whenyou’venishedmakingthesetting,press

the TIME (ESC) key to return to the home screen.

The Auto Ready setting is remembered even if the power is off.

3 Select the AUTO READY item.

Call function

The Call function returns to the point at which you most recently initiated playback from the pause condition (the “Call point”), and pauses there.

To execute the Call function, press the front panel or remote’s CALL key during playback or while stopped.

The Call point will be erased when you perform the following operations.

Turn off the power.

• Remove the media.

• Switch the current device.

• Switch the play mode.

• Switch the play area.

• Modify the contents of the media (by recording, edit-

• ing, or erasing).

If you press the • CALL key when a Call point has not been speciﬁed, the display will indicate NoCall-

Point

You can’t use the Call function in program play • mode or random play mode.

5 − Playback

34 TASCAM SS-CDR1

NOTE

INC PLAY key

NOTE

Incremental Playback

If the Incremental Playback mode is on, pressing the PLAY key during playback will begin playback from the beginning of the next track, and pressing the STOP key while playing will pause at the beginning of the next track.

When the Incremental Playback mode is on, press-• ing the PLAY key while paused will begin playback from that point. Pressing the STOP key while paused will cause playback to stop.

Using the remote’s dedicated key

You can switch the Incremental Playback mode on/off by pressing the remote’s INC PLAY key.

If you press the • PL AY key during the last track is played back, playback will begin from the ﬁrst track in the play area. Pressing the STOP key will pause at the beginning of the ﬁrst track in the play area.

When the Incremental Playback mode is on, INC_PLAY will light in the home screen.

Using the menu to make settings

(For details on menu operations, refer to “Operations in the menu screens” on page 18.)

1 Press the MENU key to access the main menu list

screen.

2 Select the PLAY menu.

3 Highlight the PREFERENCE item.

4 Press the front panel ˚ key (or the remote’s

cursor ¥ key) to proceed to the PLAY PREFERENCE screen.

5 Select INC.PLAY.

6 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to turn the setting ON /OFF .

7 Whenyou’venishedmakingsettings,pressthe

front panel TIME (ESC) key (or the remote’s

CLR/ESC key) to return to the home screen.

The Incremental Play setting is remembered even when the power is turned off.

5 − Playback

TASCAM SS-CDR1 35

Playing back in monaural

NOTE

You can play back a stereo audio file in monaural. In this case, the L/R channels of the track will be mixed and output from the L/R output channels.

Use the menu to make this setting (for details on menu operations, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu list

screen.

2 Select the PLAY menu.

3 Highlight the PREFERENCE item.

4 Press the front panel ˚ key (or the remote’s

cursor ¥ key) to proceed to the PLAY PREFERENCE screen.

Resume Playback

If the Resume Playback mode is on, playback will begin from the location at which playback was last stopped (the “resume point”).

5 Select MONO MIX

6 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to turn the setting ON /OFF.

7 Whenyou’venishedmakingsettings,pressthe

front panel TIME (ESC) key (or the remote’s CLR/

ESC key) to return to the home screen.

This setting is remembered even when the power is turned off.

5 Select RESUME.

The Resume point will be erased when you perform the following operations.

Remove the media.

• Switch the current device

• Switch the play area.

• Switch the play mode.

• Modify the contents of the media (by recording, edit-

• ing, or erasing).

Use the menu to turn the Resume function on/off (for details on menu operations, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu list

screen.

2 Select the PLAY menu.

3 Highlight the PREFERENCE item.

4 Press the front panel ˚ key (or the remote’s

cursor ¥ key) to proceed to the PLAY PREFERENCE screen.

6 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to turn the setting ON /OFF .

7 Whenyou’venishedmakingsettings,pressthe

front panel TIME (ESC) key (or the remote’s CLR/

ESC key) to return to the home screen.

This setting is remembered even when the power is • turned off.

If no playable track exists (e.g., if not even one • track has been registered in program mode), of cause, the resume point cannot be made. The counter display will state 000tr 00h 00m 00s.

If the resume point does not exist (i.e., if the time • registered as the resume point does not exist), the beginning of the ﬁrst track in the play area will be the resume point.

5 − Playback

36 TASCAM SS-CDR1

NOTE

TIP

Flash Start function

The Flash Start function lets you instantly start playback of a track you’ve registered.

The beginning of up to twenty tracks can be pre-loaded into memory, so that playback can be triggered instantly from a PS/2 keyboard connected to the front panel, or from an external device connected to the SS-CDR1’s parallel connector.

1 Specify the play area (see “Play area” on page 21).

Specify the play area as the play list or folder that contains the tracks you want to flash-start. Make sure that there are no more than twenty tracks.

2 Set the play mode to CONTINUE or PROGRAM

(see “Playback Modes” on page 27).

You cannot use Flash Load if the play mode is set to RANDOM.

3 While stopped, press the remote’s FLASH LOAD

key.

The SS-CDR1 will successively read the beginning of each track in the play area. The tracks will be read in the order of playback. In other words if the play mode is CONTINUE, the tracks will be read consecutively, starting with the first. If the play mode is PROGRAM, the tracks will be read in the order of the program.

When the data has been loaded, the lower right of the home screen will indicate FLASH.

4 When FLASHislit,youcantriggerash-startplay-

back from a PS/2 keyboard connected to the front panel or from an external device connected to the SS-CDR1’s parallel connector.

If you’re using a PS/2 keyboard, the CTRL+function keys (F1–F12) will flash-start tracks 1–12 (see “Keyboard operations” on page 61).

If you’re using the external parallel connector, you’ll be able to flash-start tracks 1–20 (see “Control connections” on page 10).

Tracks used with ﬂash start must have the same sampling frequency. If a track with a different sampling frequency is detected while loading the tracks, the display indicates FLASH LOAD , and the unit cancels the track loading (the tracks already loaded are also canceled). The FLASH indicator does not light up.

While the tracks are being read, the lower right of the home screen will indicate FLASH blinking.

If you press the • FLASH LOAD key when the play mode is RANDOM, the display will indicate CAN

SELECT

If you press the • FLASH LOAD key when the play mode is SINGLE, the tracks in the play area will be read successively in the same way as for the CONTINUE setting.

If twenty-one or more tracks are registered, data • for the ﬁrst twenty tracks from the beginning will be loaded.

, and the data will not be loaded.

When using a CF card, you can efﬁciently use the ﬂash start setting for the desired track by setting the play area to PLAYLIST and selecting a playlist that contains only the track you want to ﬂash-start as the current playlist (see “Editing a playlist (CF only)” on page 62, “Play area” on page 24).

5 − Playback

TASCAM SS-CDR1 37

End of disc/track message (EOM)

NOTE

If the EOM function is on, an EOM tally signal will be output from the CONTROL I/O (PARALLEL) connector when the time remaining in the track or the play area falls below the specified duration.

Specifying an EOM tally output trigger

Use menu mode to specify the remaining track time or playlist time that will trigger the output of an EOM tally signal (for details on menu operations, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu list

screen.

2 Select the PLAY menu.

3 Highlight PREFERENCE.

4 Press the front panel ˚ key (or the remote’s

cursor ¥) key to proceed to the PLAY PREFER- ENCE screen.

5 Select EOM TRACK if you want to use the track

remaining time as the trigger, or EOM MEDIA if you want to use the remaining time in the play area as the trigger.

6 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to specify the remaining time that will trigger the tally output.

You can choose from the range of OFF or 1–9 9 (seconds).

7 Whenyou’venishedmakingsettings,pressthe

TIME (ESC) key to return to the home screen.

This setting is remembered even when the power is off.

Example of actual use

1 To the CONTROL I/O (PARALLEL) connector, con-

nect the device that will receive the EOM tally signal.

2 Power-on the SS-CDR1 and the receiving device.

3 Begin playback on the SS-CDR1.

When the remaining time of the current track or the play area falls below the specified time duration, the

EOM indicator in the home screen will blink, and an

EOM tally signal will be output from the CONTROL I/O (PARALLEL) connector.

If the remaining time of both the track and the play area have been specified as triggers, an EOM tally signal will be transmitted when either condition is satisfied.

38 TASCAM SS-CDR1

NOTE

TIP

6 − Recording

INPUT SEL key

NOTE

You can use the SS-CDR1 to record an external audio source to a CF card or CD (CD-R / CD-RW) disc in the following formats.

CF card: MP3 or WAV format (Fs = 44.1 kHz or 48 kHz)

audio

CD disc: MP3 (Fs = 44.1 kHz or 48 kHz) or audio CD

(CD-DA) format audio

The following explanations will assume that you have completed the necessary connections, the SS-CDR1 is powered-on, and recordable media is inserted in the current device.

Selecting the input source

You can select the input source (recording source) from three types of input: analog balanced, analog unbalanced, and digital.

To select an input source you can use the menu or the remote’s INPUT SEL key.

If the current device is CD, an unﬁnalized CD-R or CD-RW disc must be inserted.

You can also copy or convert-copy audio ﬁles • between a CF card and a CD. For details, refer to “Copying ﬁles between CD and CF card” on page 65.

You cannot record in WAV format onto a CD. • However, you can copy WAV ﬁles from CF card to CD, or play back WAV ﬁles from a data CD (see “Creating a data CD” on page 67).

You cannot change the input source during recording.

Using the dedicated remote key to select the source

Each time you press the INPUT SEL key you will cycle through the three input source.

Using the menu to select the source

(For details on menu operations, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu list

screen.

3 Select the INPUT SELECT item.

4 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to select one of the following.

2 Select the REC menu.

A.UNBAL. (analog unbalanced input), A.B A L. (analog balanced input), D.COAX. (digital input)

5 When you have made your selection, press the

front panel TIME (ESC) key (or the remote’s CLR/

ESC key) to return to the home screen.

The input source selection is remembered even when the power is turned off.

6 − Recording

TASCAM SS-CDR1 39

Input source indicator

NOTE

The currently selected input source is shown in the upper right of the home screen.

If A.UNBAL. is lit

The input signals from the ANALOG INPUTS

(UNBALANCED) L/R jacks are selected.

If A.BAL. is lit

The input signals from the ANALOG INPUTS

(BALANCED) L/R jacks are selected.

If D.COAX. is lit

The input signal from the DIGITAL IN (COAXIAL) jack

is selected.

If the INPUT SELECT item is set to • D.COAX., you will not be able to initiate recording from the recordready state if the input source is in any of the following states.

When the SS-CDR1 is not digitally locked to the input • source (the display will indicate DIN UNLOCK ).

When the input source is not audio (the display will • indicate DIN N otAudio ).

When the sampling rate speciﬁed by the REC menu • item REC FORMAT differs from the input source. (The display will indicate FS UNMATCH ). However if you have enabled the sampling rate converter, recording can take place even if the sampling rate does not match (see “Using the sampling rate converter” on page 40).

Specifying the recording file format

If the current device is CF, you can record in MP3 or WAV format. If the current device is CD, you can record in MP3 or audio CD (CD-DA) format.

MP3 files and WAV files can coexist on a CF card, but MP3 files and audio CD files cannot coexist on an audio CD. This means that the first file to be recorded on a CD will determine the file format (MP3 or audio CD) that can be recorded on that disc.

Although you cannot record WAV ﬁles on a CD, you • can use the subsequently described function for copying ﬁles from CF card to CD to copy the WAV ﬁles (see “Copying ﬁles between CD and CF card” on page 65).

Recording of MP3 ﬁles to CD is possible only if a • blank CD is inserted. If you eject the CD or turn off the power, subsequent additional recording will not be possible (see “Finalizing a CD” on page 43).

The file format setting is made via the menu while stopped or while in the record-ready condition (for details on menu operations, refer to “Operations in the menu screens” on page 18).

For a CF card: “.mp3” or “.wav” For a blank CD: “.mp3” or “CDDA” (audio CD)

If the current device is CD and “CDDA” is

selected as the recording format, the setting screens in steps 5 and 6 will not appear. Proceed to step 7.

In the case of CF, or if “.mp3” is selected for a

CD, proceed with the following steps.

5 Press the front panel ˚ key (or the remote’s

cursor ¥ key) to proceed to the detailed settings.

1 Press the MENU key to access the main menu list

screen.

2 Select the REC menu.

3 Select the REC FORMAT item.

4 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to select the recording format.

6 Make settings for the following items.

STEREO/MONO

Specify whether a stereo file or a monaural file will be recorded.

SAMPLING

Specify whether the sampling rate will be 44.1 kHz or 48 kHz.

6 − Recording

40 TASCAM SS-CDR1

NOTE

READY key

RECORD key

STOP key

TIP

NOTE

BITRATE (selectable only if “mp3” is selected)

Specify the bit rate. You can choose from 64 kbps, 128 kbps, 192 kbps, 256 kbps, and 320 kbps.

7 Whenyouhavenishedmakingsettings,press

the front panel TIME (ESC) key (or the remote’s

CLR/ESC key) to return to the home screen.

Using the sampling rate converter

The recording format setting is remembered even when the power is turned off.

The SS-CDR1 contains a built-in sampling rate converter, allowing you to record at a sampling rate that is different than the sampling rate of the digital input source.

Use the menu to turn the sampling rate converter (SRC) on/ off (for details on menu operations, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu list

screen.

2 Select the REC menu.

3 Highlight the PREFERENCE item.

4 Press the front panel ˚ key (or the remote’s

cursor ¥ key) to proceed to the REC PREFER-

ENCE screen.

5 Select SRC.

6 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to turn the SRC setting ON /

OFF .

7 Whenyouhavenishedmakingthesetting,press

the front panel TIME (ESC) key (or the remote’s

CLR/ESC key) to return to the home screen.

If a digital signal whose sampling rate differs from • the sampling rate speciﬁed in the REC FORMAT item is being received at the DIGITAL IN jack, and you attempt to record with SRC off, an error message (FS UNMATCH ) will appear.

The sampling rate setting is remembered even • when the power is turned off.

Monitoring the input signal

When you press the RECORD key to enter the record-ready condition, the front panel RECORD key and READY key will light, and the input signal will be output from the SS-CDR1’s various output jacks (headphone, analog balanced, analog unbalanced, and digital). The meter in the home screen will indicate the input level.

To cancel the record-ready condition, press the STOP key.

If you simply want to monitor the input signal • without intending to record anything, press the

RECORD key without a CompactFlash card insert-

ed. The display will indicate MONITOR , and the

RECORD key will blink red.

To stop monitoring the input signal, press the • STOP key.

6 − Recording

TASCAM SS-CDR1 41

Adjusting the input signal level and balance

NOTE

READY key

RECORD key

PLAY key

NOTE

Use the menu to adjust the level and balance of the input signal.

As described above in “Monitoring the input signal”, put the SS-CDR1 in a condition where you can monitor the input signal, and then proceed with the following steps (for details on menu operations, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu list

screen.

2 Select the REC menu.

3 Highlight the INPUT VOLUME item.

4 Press the front panel ˚ key (or the remote’s

cursor ¥ key) to access the INPUT VOLUME

SETTING popup window.

LEVEL item, and then press the front panel ˚ key (or the remote’s cursor ¥ key) to highlight the level value.

6 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to adjust the volume.

You can adjust the volume in a range of -∞ to +18 dB.

The upper part of the display shows the level meter of the home screen, allowing you to watch the level while you make adjustments.

Set the level as high as possible without allowing the

OVER indicator at the right edge of the meter to light.

OVER will light at -0.2 dB or higher.

7 Press the front panel ∆ key (or the remote’s

cursor ˙ key) to highlight LEVEL.

8 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to highlight BALANCE, and

then press the front panel ˚ key (or the remote’s

cursor ¥ key) to highlight the balance value.

5 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to highlight the INPUT

Basic recording operation

When you have finished making the above settings (input source selection, recording file format setting, sampling rate converter on/off, input level adjustment), you can begin recording.

To enter the unit in record-ready condition when stopped:

Press the RECORD key to enter the record-ready condition (the front panel RECORD key and READY key will light).

9 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to adjust the balance.

You can adjust this in a range of L50–C (center)–R50.

10 Whenyouhavenishedmakingsettings,press

the front panel TIME (ESC) key (or the remote’s

CLR/ESC key) to return to the home screen.

To start recording from the record-ready (pause) condition: Press the PLAY key.

To pause recording: Press the READY key. To stop recording: Press the STOP key. When you

stop recording, the recorded data will be written, and an audio file will be created.

The following notes apply when you are recording in WAV or MP3 format.

You can use the PREFERENCE menu item WORD • CLIP to specify the audio ﬁle name that is automatically added to the created ﬁle (see “Specifying the name of the recording ﬁle (WAV and MP3 only)” on page 49).

6 − Recording

42 TASCAM SS-CDR1

NOTE

The maximum size of each track is 2 GB.• The recorded track will be created in the current • folder (see “Selecting the current folder or play list” on page 25).

While the recorded content is being stored to the recording media, the display will indicate

TION WRITING

. While this message is shown, do not move the SS-CDR1, turn off the power, or remove the media. The content will not be recorded correctly if you do so.

The following tables show the recording times for each recording format and media capacity.

INFORMA-

WAVE Stereo (CF card only)

Media / Capacity 44.1 kHz 48 kHz

CF card / 512 MB 48 minutes 44 minutes CF card / 1 GB 1 hour 36 minutes 1 hour 28 minutes CF card / 2 GB 3 hours 12 minutes 2 hours 56 minutes CF card / 4 GB 6 hours 24 minutes 5 hours 52 minutes CF card / 8 GB 12 hours 48 minutes 11 hours 44 minutes

WAVE Mono (CF card only)

Media / Capacity 44.1 kHz 48 kHz

CF card / 512 MB 1 hour 36 minutes 1 hour 28 minutes 1 GByte 3 hours 12 minutes 2 hours 56 minutes 2 GB 6 hours 24 minutes 5 hours 52 minutes 4 GB 12 hours 48 minutes 11 hours 44 minutes 8 GB 25 hours 36 minutes 23 hours 28 minutes

MP3 Stereo,44.1kHz/48kHz

Media / Capacity 64 kbps 128 kbps 192 kbps 256 kbps 320 kbps

CF card / 512 MB 17 hours 40 minutes 8 hours 50 minutes 5 hours 50 minutes 4 hours 25 minutes 3 hours 30 minutes CF card / 1 GB 35 hours 20 minutes 17 hours 40 minutes 11 hours 40 minutes 8 hours 50 minutes 7 hours 00 minutes CF card / 2 GB 70 hours 40 minutes 35 hours 20 minutes 23 hours 20 minutes 17 hours 40 minutes 14 hours 00 minutes CF card / 4 GB CF card / 8 GB CD / 650 MB 23 hours 00 CD / 700 MB 24 hours 50

141 282

hours

20 minutes

40 minutes

minutes minutes

70 hours 40 minutes 46 hours 40 minutes 35 hours 20 minutes 28 hours 00 minutes 141

hours

11 hours 30

20 minutes

12 hours 25

minutes minutes

93 hours 20 minutes 70 hours 40 minutes 56 hours 00 minutes 7 hours 40 8 hours 15

minutes minutes

5 hours 45 6 hours 10

minutes minutes

4 hours 35 4 hours 55

minutes minutes

MP3 Mono,44.1kHz/48kHz

Media / Capacity 64 kbps 128 kbps 192 kbps 256 kbps 320 kbps

CF card / 512 MB 35 hours 20 minutes 17 hours 40 minutes 11 hours 40 minutes 8 hours 50 minutes 7 hours 00 minutes CF card / 1 GB 70 hours 40 minutes 35 hours 20 minutes 23 hours 20 minutes 17 hours 40 minutes 14 hours 00 minutes CF card / 2 GB CF card / 4 GB CF card / 8 GB CD / 650 MB 46 hours 00 CD / 700 MB 49 hours 40

141 282 565

hours

20 minutes

40 minutes 20 minutes

minutes minutes

70 hours 40 minutes 46 hours 40 minutes 35 hours 20 minutes 28 hours 00 minutes 141

hours

20 minutes 40 minutes

282 23 hours 50 24 hours 50

minutes

93 hours 20 minutes 70 hours 40 minutes 56 hours 00 minutes 186 hours 40 minutes 141 hours 20 minutes 112 hours 00 minutes 15 hours 20 16 hours 30

minutes minutes

11 hours 30 16 hours 30

minutes minutes

9 hours 10 9 hours 55

minutes minutes

AudioCDStereo,44.1kHz,Uncompressed(CDonly)

Media / Capacity

CD / 650 MB CD / 700 MB

74 minutes 80 minutes

The listed capacity of media may not be identical to the actual capacity, so the above times are only approximations.

6 − Recording

TASCAM SS-CDR1 43

NOTE

Finalizing a CD

NOTE

After you have recorded a CD (CD-R or CD-RW disc), you will need to finalize the disc before the disc can be played back by a CD player or CD drive other than the SS-CDR1 itself. The operation on the SS-CDR1 will depend on whether the file format is MP3 or audio CD (CD-DA).

When recording in MP3 format:

The SS-CDR1 will automatically finalize the disc when you eject the CD. This means that once you remove a disc that was recorded in MP3 format, you will not be able to make additional recording on that disc. If you turn off the power without ejecting the CD, the SS-CDR1 will automatically finalize the disc the next time it is powered-on.

You can use the menu to ﬁnalize the disc without ejecting it (see “Finalizing operation” on page 43).

Finalizing operation

As explained above, in order for a CD recorded by the SS-CDR1 in audio CD format to be playable on another device, that CD must be finalized manually. In the case of a disc recorded in MP3 format, the disc will be finalized automatically when you eject the disc as described earlier. However, it is also possible to finalize the disc manually without ejecting it.

When recording in audio CD format:

If you have recorded in audio CD format, the SS-CDR1 will not automatically finalize the disc. You will be able to make additional recordings on that disc (as long as there is free space remaining on the disc) until you finalize the disc using the menu. However, the disc will not be playable on other devices until you finalize it.

For details on how to finalize, refer to the following section.

4. Press the MULTI JOG dial once again.

 Finalizationwillbegin.

In either case, proceed as follows to finalize the disc (for details on operations in the menu screen, refer to “Operations in the menu screen,” on page 18).

1. Press the MENU key to access the main menu list

screen.

2. Highlight the CD menu and press the MULTI JOG

dial.

3. Highlight the FINALIZE item and press the

MULTI JOGdial.Aconrmationpopupwill

appear.

During execution, the screen will indicate FINALIZE and a progress bar will be shown. When finalization is completed, you will return to the CD menu screen.

You can unﬁnalize a ﬁnalized CD-RW disc. (see “Unﬁnalizing a CD” on page 72).

6 − Recording

44 TASCAM SS-CDR1

NOTE

Switching the recording time display mode

During recording (or in the record-ready condition), you can use the front panel or remote’s TIME key to switch the time display mode between the following four types. The selected time display mode will be lit above the time display in the home screen.

Nothing lit

The recorded time of the current track is shown.

REMAIN is lit

The remaining recordable time of the current track at

the current recording format is shown. The remaining time is limited by the free space on the recording media or by the maximum track size (2 GB).

In the case of a CD, the media capacity is a maximum of 700 MB, so this will always show the free space on the media.

TOTAL is lit

The total recorded time of the entire recording media is

shown.

TOTAL and REMAIN are lit

The remaining recordable time of the entire recording

media at the current recording format is shown.

The remaining time will depend on the recording • format (the REC menu item REC FORMAT ).

During recording, if the recordable time of the card • is shorter than the recordable time for a single track, the time counter shows the same remaining time when only REMAIN is lit or TOTAL and REMAIN are lit.

The recording time display mode is remembered • even when the power is turned off.

For details on the time display during playback, • refer to “Switching the playback time display mode” on page 28.

The maximum number of recordable tracks is 999 • tracks for a CF card (total number of WAV tracks and MP3 tracks). In the case of a CD, a data CD disc containing MP3 or WAV ﬁles can have up to 999 tracks, and an audio CD disc can have up to 99 tracks.

Sync recording

If the Sync Record function is on, recording will begin automatically when the input signal exceeds the level you specify (the sync level). After recording has begun, record-

Making settings

Use the menu to turn the Sync Recording function on/off and to make detailed settings. However, you can also use the remote’s SYNC key to turn this function on/off (but not make settings).

If the Sync Record function is on, SYNC will light in the home screen.

Using the menu

(For details on menu operations, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu list

screen.

2 Select the REC menu.

3 Select the SYNC item.

ing will end automatically when the input signal stays below the sync level for a specified length of time (the stop time), and will switch to the record-ready state.

4 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to turn the setting on/off.

5 Press the front panel ˚ key (or the remote’s

cursor ¥ key) to proceed to the screen for

detailed settings.

6 − Recording

TASCAM SS-CDR1 45

NOTE

SYNC key

6 Set the following items.

LEVEL

Specify the sync level. You can set this in a range of -72 dB – -24 dB (6 dB steps). (The default setting is -54 dB).

DELAY

Specify the time (in steps of one frame) from when a signal exceeding the sync level is detected until recording will begin (one frame is 1/75th of a second). You can set this in a range of -75 frames – +75 frames (the default setting is 0). If you specify a negative value, the corresponding length of audio prior to triggering will also be captured.

When this range is converted to seconds, it is equivalent to -1.00 seconds – +1.00 seconds.

STOP TIME

When the signal has remained below the sync level for the length of time you specify here, recording will stop and the SS-CDR1 will enter record-pause mode.

You can specify this in a range of 5 ˗ 30 seconds (onesecond steps) or INF (∞). (The default setting is 5

seconds. Choose IN F if you do not want recording to stop automatically.)

Using the remote’s dedicated key to turn the function on/off

Each time you press the SYNC key, the Sync Record function will turn on/off.

7 Whenyouhavenishedmakingsettings,press

the front panel TIME (ESC) key (or the remote’s

CLR/ESC key) to return to the home screen.

This setting is remembered even when you turn off the power.

6 − Recording

46 TASCAM SS-CDR1

Start of recording

Level

Time

SYNC LEVEL

NOTE

SYNC LEVEL

STOP TIME

REC ready

Time

Level

NOTE

SYNC LEVEL

Level

This part of the track may not be recorded

Time

Recording starts

Level

SYNC LEVEL

Time

Noise is higher than threshold

Start of track is not registered

Sync Record operation

When you put the SS-CDR1 in record-ready condition with the Sync Record function on, recording will automatically start or stop according to the level of the input source.

When a signal higher than the sync level is input,

• recording will begin automatically.

However, recording will not begin even if input is

detected unless there has been at least one second in which the signal was below the sync level after entering the record-ready state.

The above explanation is for the case when the DELAY setting is “0” (the default setting). By changing the DELAY setting, you can change the “record start” point.

When the sync level is too high:

•

If the sync level setting is too high, you may have prob-

lems such as failing to capture the beginning of a song that begins with a low volume.

If the sync level is too low:

•

Sync recording will not begin if the source you’re

recording has a high noise level, so that the sync level is exceeded immediately when you enter the record-ready state.

While recording, if the input signal stays below the sync level for the duration specified by STOP TIME (default: 5 seconds), the SS-CDR1 will automatically switch to the record-ready condition.

If you set the STOP TIME to INF, the record-pause state will not be entered even though the input signal continuingly falls below the sync level.

To defeat Sync Record, press the remote’s SYNC REC key.

6 − Recording

TASCAM SS-CDR1 47

Auto Track function

NOTE

Level

Time

_TRACK

LEVEL

At least

2 sec

Track increment

NOTE

Auto Track recording is a function that automatically assigns a new track number when the specified condition is satisfied during recording. A new audio file is created each time a new track number is assigned.

You will use the menu to select Auto Track mode and make detailed settings. However, the Auto Track mode setting itself can be made using the A.TRACK key of the remote.

Using the menu

(For details on menu operations, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu list

screen.

2 Select the REC menu.

3 Select the AUTO TRACK item.

If the Auto Track function is on, A_TR ACK will light in the home screen.

Auto track settings can be made at any time, and you can change the settings after you start recording.

If you have recorded in WAV format on a CF card, you can use editing functions to divide or join tracks after recording (see “Dividing a ﬁle (DIVIDE)” on page 56, “Combining ﬁles (COMBINE)“ on page 57).

LEVEL mode, and a new track number will be assigned according to the input level.

TIME

A new track number will be assigned at a fixed interval of time (specified in the screen for detailed settings described below).

5 If you selected a choice other than OFF , press the

front panel ˚ key (or the remote’s cursor ¥ key) to proceed to the screen for detailed settings.

6 Make detailed settings for the function.

LEVEL is selected

•

4 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to select the Auto Track mode

from the following choices.

OFF

New track numbers will not be assigned automatically.

LEVEL

A new track number will be assigned when the signal exceeds the auto track level (specified in the screen for detailed settings described below) after having stayed below it for two seconds or longer.

When recording a digital source (CD, DAT, MD) via the

DIGITAL IN jack, a new track number will be assigned

when a track division is detected in the source.

Use the LEVEL item to specify the level at which Auto Track will operate. You can set this in a range of -72 dB – -24 dB (6 dB steps). (The default setting is -54 dB). Use the DELAY item to specify the time (in units of one frame) from when a signal exceeding the auto track level is detected until the new track number is assigned (one frame is 1/75th of a second). You can set this in a range of -75 frame – +75 frame (the default setting is 0). Negative values will cause a portion of the signal prior to the detection point to be captured.

If this range is converted into time, the adjustable range is equivalent from -1 second to +1 second.

However when recording an analog source or a digital source other than those listed above, this will operate as

6 − Recording

48 TASCAM SS-CDR1

NOTE

DD is selected

•

As when LEVEL is selected, use the DELAY item to

specify the time from when a signal exceeding the auto track level is detected until the new track number is assigned, in steps of one frame (one frame is 1/75 of a second).

Using the remote’s dedicated key to switch modes

•

Use the INTERVAL item to specify the time interval at

7 Whenyouhavenishedmakingsettings,press

This setting is remembered even when you turn off the power.

TIME is selected

which the track number is assigned, in a range of 1–10 minutes (one-minute steps).

the front panel TIME (ESC) key (or the remote’s

CLR/ESC key) to return to the home screen.

Each time you press the remote’s A.TRACK key, the Auto Track function mode will cycle in the order of

OFF ∑ LEVEL ∑ DD ∑ TIME

Assigning a new track number manually

You can assign a new track number manually by pressing the RECORD key during recording.

However, you cannot create a track that is shorter than four seconds.

If you have recorded in WAV format on a CF card, • you can use editing functions to divide or join tracks after recording (see “Dividing a ﬁle (DIVIDE)” on page 56, “Combining ﬁles (COMBINE)“ on page 57).

Depending on the CompactFlash (CF) card used on • the unit, when recording MP3 ﬁles, incrementing and creating many tracks in a short time period can cause over ﬂow (the unit shows the message OVER FLOW on the screen), and the unit will stop operating. To avoid such unexpected results, leave a

sufﬁcient time gap after the previous track before increment the track number.

Applying the compressor while recording

You can apply the SS-CDR1’s built-in compressor to the recording source while you record.

A compressor is an effect that holds down peaks in the audio, making the overall level more consistent and more listenable.

5 Select COMP.

You willl use the menu to turn the compressor on/off (for details on menu operations, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu list

screen.

2 Select the REC menu.

3 Highlight the PREFERENCE item.

4 Press the front panel ˚ key (or the remote’s cursor

¥ key) to proceed to the REC PREFERENCE

screen.

6 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to select one of the following

as the compressor mode.

OFF

: The compressor will not be used when recording.

SOFT

: Light compression will be applied. This setting

is suitable when recording music.

HARD

: Strong compression will be applied. This setting

is suitable when the audio source you’re recording has a

6 − Recording

TASCAM SS-CDR1 49

NOTE

low volume. Since the recording volume will be boosted, it is also suitable when recording a meeting or conference.

7 Whenyouhavenishedmakingsettings,press

the front panel TIME (ESC) key (or the remote’s

CLR/ESC key) to return to the home screen.

This setting is remembered even when you turn off the power.

Specifying the name of the recording file (WAV and MP3 only)

You can specify the file name that is automatically added when you record in WAV or MP3 format.

You will use the menu to make this setting (for details on menu operations, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu list

screen.

2 Select the REC menu.

3 Highlight the PREFERENCE item.

4 Press the front panel ˚ key (or the remote’s

cursor ¥ key) to proceed to the REC PREFER-

ENCE screen.

5 Select WORD CLIP.

6 Turn the MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to select one of the following

choices.

DATE

(default setting):

The date and time of the SS-CDR1’s clock will be the file name.

USER01–USER03

The user-specified text string (eight characters) will be the file name.

To edit and store a text string, proceed as follows:

1 With one of the choices USER01–USER03 selected,

press the ˚ key.

The editing screen will appear.

2 Edit the text string as follows.

To change the editing location (cursor position):

Use the front panel ∆ , ˚ keys (or the remote’s

cursor ˙ , ¥ keys).

To change the character at the cursor position:

Turn the front panel MULTI JOG dial (or use the remote’s cursor § , ¶ keys).

To delete a character:

Press the front panel TIME (ESC) key (or the remote’s

CLR/ESC key).

To delete all characters following the cursor position:

Press and hold down the front panel TIME (ESC) key (or the remote’s CLR/ESC key).

To switch between uppercase and lowercase:

Press the front panel DISPLAY (INFO) key (or the remote’s DISPL AY key).

To insert a space:

Press the CALL key.

To cancel your editing:

Press the STOP key.

3 When you have finished editing, press the

MULTI JOG dial.

The edited text string will be finalized, and you will return to the PREFERENCE menu.

50 TASCAM SS-CDR1

TIP

7 − Using the folder finder

Overview

For a CF card or data CD on which WAV/MP3 files are recorded, you can use the folder finder screen to view the tree structure of the folders and files.

From this screen, you can select a folder or file and then enter the folder menu screen or file menu screen.

For a CF card, you can perform various operations from this screen; you can create a folder, rename or delete a folder or file, register a file in a playlist, or edit a file (divide or join). You can also perform operations directly in the folder finder screen to move or copy files between folders.

In the case of an unfinalized data CD in which WAV or MP3 files are recorded, the only operations that can be performed from the folder finder screen are creating a fold-

Opening the folder finder screen

The following operations assume that a CF card, a data CD containing WAV/MP3 files, or a blank CD is inserted in the current device.

When the play area (“Play area” on page 24) is ALL or FOLDER, and the SS-CDR1 is stopped, playing, or paused, you can hold down the front panel MENU key (or press the remote’s FINDER key) to access the folder finder screen.

er and changing the current folder. You cannot perform editing or register a file in a playlist.

In the case of a CD that contains audio CD tracks, there will be no folder finder screen, but there will be a CD-DA finder screen (see “Using the CD-DA finder screen” on page 52).

If you use a card reader to load ﬁles from your computer into a CompactFlash card, you’ll be able to use your computer to modify the folder structure, edit the folder name or ﬁle name, or delete ﬁles or folders. If you perform this type of editing from your computer, please be aware that the playback order of the ﬁles on the SS-CDR1 may differ after editing on your computer.

If the play area is ALL and the SS-CDR1 was

• stopped, the finder screen for the root folder will

appear.

If the play area is FOLDER and the SS-CDR1 was

• stopped, the finder screen for the current folder will

appear.

While paused, the finder screen for the folder of the

• current file (regardless of the play area) will appear.

At this time, the current file will be highlighted.

Navigating in the folder finder screen

When the folder finder screen is displayed, you can use the front panel ∆ , ˚ keys and MULTI JOG dial (or the remote’s cursor keys) to select (highlight) the desired folder or file.

Operations when a folder is highlighted

To see the folder menu for the highlighted folder:

•

Press the MENU key ( “Operations in the folder menu

screen” on page 52).

To open a higher-level folder:

•

Press the front panel ∆ key (or the remote’s cursor ˙

key).

Operations when a folder is highlighted and when a file is highlighted are explained below.

To open the highlighted folder:

•

Press the front panel ˚ key (or the remote’s cursor ¥

key).

To return to the home screen:

•

Press the front panel TIME (ESC) key (or the remote’s

CLR/ESC key).

To start playback from the first file of the highlight-

• ed folder:

Press the PLAY key. Playback will start, and you will

return to the home screen.

If the play area is FOLDER, the highlighted folder will

be the current folder.

7 − Using the folder finder

TASCAM SS-CDR1 51

To pause at the first file of the highlighted folder:

•

Press the READY key. The SS-CDR1 will pause, and

you will return to the home screen.

If the play area is FOLDER, the currently selected folder

will be the current folder.

To view the properties of the currently selected folder:

•

Press the front panel DISPLAY (INFO) key (or the

remote’s DISPL AY key).

Operations when a file is highlighted

To see the file menu for the highlighted file (• CF card

only):

Press the MENU key (“Operations in the file menu

screen (CF card only)” on page 54).

Wen you once again press the front panel DISPLAY (INFO)

key (or the remote’s D ISPLAY key), the property display will disappear, and you will return to the folder finder screen.

To view the properties of the highlighted file:

•

Press the front panel DISPLAY (INFO) key (or the

remote’s DISPL AY key).

To open a higher-level folder:

•

Press the front panel ∆ key (or the remote’s cursor ˙

key).

To return to the home screen:

•

Press the front panel TIME (ESC) key (or the remote’s

CLR/ESC key).

To start playback from the beginning of the high-

• lighted file:

Press the PLAY key. Playback will start, and you will

return to the home screen.

If the play area is FOLDER, the folder that contains the

highlighted file will be the current folder.

To pause at the beginning of the highlighted file:

•

Press the READY key. The SS-CDR1 will pause, and

you will return to the home screen.

If the play area is FOLDER, the folder that contains the

highlighted file will be the current folder.

When you once again press the front panel

(INFO)

key (or the remote’s D ISPLAY key), the property display will disappear and you will return to the folder finder screen.

To move the highlighted file (CF card only):

•

Press and hold the front panel MULTI JOG dial (or the

remote’s ENTER key) to enter File Move mode. For details, refer to “Moving or copying a file” on page 58.

This operation is possible only when using a CF card.

DISPL AY

7 − Using the folder finder

52 TASCAM SS-CDR1

NOTE

Operations in the folder menu screen

If the current device is a CF card, you will be able to execute all of the folder menu screen functions. In the case of an unfinalized CD containing WAV/MP3 files, you will be able to execute some of the functions.

The following explanations assume that the folder menu screen for the applicable folder is displayed.

To access the folder menu screen, highlight the desired folder in the folder finder screen, and press the MENU key (“Navigating in the folder finder screen” on page 50).

Renaming a folder (CF card only)

The following operation is possible only when using a CF card

1 With the folder menu screen shown, turn the

front panel MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to highlight RENAME.

2 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The RENAME screen will appear.

3 Edit the name as follows.

To move the editing position (cursor position):

•

Use the front panel ∆ , ˚ keys (or the remote’s cur-

sor ˙ , ¥) keys.

To change the character at the cursor position:

•

Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys).

To delete a character:

•

Press the front panel TIME (ESC) key (or the remote’s

CLR/ESC key).

To delete all characters following the cursor position:

•

Press and hold the front panel TIME (ESC) key (or the

remote’s CLR/ESC key).

To switch the type of character (uppercase/lower-

• case):

Press the front panel DISPLAY (INFO) key (or the

remote’s DISPL AY key).

To insert a space:

•

Press the CALL key.

To cancel editing:

•

Press the STOP key.

4 Whenyou’venishedediting,pressthefront

panel MULTI JOG dial (or the remote’s ENTER key)

tonalizeyouredits.

The display will return to the folder finder screen.

Also, the following symbolic characters cannot be • used on the unit: \ / ; : * , ? “ < > |

Deleting a folder (CF card only)

The following operation is possible only when using a CF card. When you delete a folder, the files in that folder will also be deleted.

1 With the folder menu screen displayed, use the

front panel MULTI JOG dial (or the remote’s cur-

sor § , ¶ keys) to highlight DELETE.

2 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

A screen will ask you to confirm the deletion.

3 Once again press the front panel MULTI JOG dial

(or the remote’s ENTER key).

The folder will be deleted. The display will return to the folder finder screen. If you decide not to delete the folder, press the

TIME (ESC) key (or the remote’s CLR/ESC key).

7 − Using the folder finder

TASCAM SS-CDR1 53

NOTE

Immediately after deleting a folder, you will still be able to undo the deletion (“Undeleting a deleted folder (UNDO)(CD card only)” on page 53).

Undeleting a deleted folder (UNDO) (CF card only)

The following operation is possible only when using a CF card. Immediately after deleting a folder from a CF card, you can undo the operation and recover the folder.

This is possible only if the play mode is set to continuous playback (CONTINUE).

When performing the Undo operation, it does not matter which folder is selected in the folder ﬁnder screen when you open the folder menu screen.

1 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to highlight UNDO.

2 Press the front panel MULTI JOG dial (or the

remote’s ENTER key.)

A confirmation screen will appear.

Making a folder the current folder

Here’s how to make the folder in which you’re working the current folder. This operation is valid for a CF card or for an unfinalized CD that contains WAV/MP3 files.

1 With the folder menu screen displayed, turn the

front panel MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to highlight CURRENT.

2 Press the front panel MULTI JOG dial (or the

remote’s ENTER key.)

The following popup (CHANGE CURRENT FOLDER ) will appear.

3 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The folder will be recovered, and you will return to the folder finder screen. At this time the recovered folder will be highlighted.

If you decide not to perform this undelete opera-• tion (UNDO), press the front panel TIME (ESC) key (or the remote’s CLR/ESC key).

If there is no ﬁle deletion operation that can be • undone, the display will indicate CAN

The display will return to the folder finder screen.

Audio ﬁles created by recording will be created in the current folder. If you create a new folder in which to store recorded ﬁles, you can use the above procedure to make that new folder the current folder.

T UNDO

Creating a new folder

Here’s how to create a new folder inside the working folder.

This operation is valid for a CF card or for an unfinalized CD that contains WAV/MP3 files

1 With the folder menu displayed, turn the front

panel MULTI JOG dial (or use the remote’s cursor

§ , ¶ keys) to highlight NEW FOLDER.

2 Press the front panel MULTI JOG dial (or the

remote’s ENTER key.)

3 The RENAME screen will appear.

For details on editing a name, refer to “Renaming a folder” on page 52.

4 Whenyou’venishededitingthename,pressthe

front panel MULTI JOG dial (or the remote’s EN-

TERkey)tonalizethechanges.

A popup FOLDER will appear, and the new folder will be created. When the folder has been created, the display will return to the folder finder screen.

A maximum of 255 folders can be created on a CompactFlash card.

7 − Using the folder finder

54 TASCAM SS-CDR1

NOTE

Adding an entire folder to a playlist (CF card only)

This operation allows you to add all files from a folder on the CF card to the desired playlist.

However, files in a sub-folder will not be added.

1 With the folder menu screen displayed, turn the

front panel MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to highlight ADD PLAYLIST.

2 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The playlist select screen will appear.

3 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to highlight the

playlistinwhichyouwanttoregistertheles.

4 Press the front panel MULTI JOG dial or ˚ key

(or the remote’s ENTER key or cursor ¥ key).

The selected playlist will be displayed.

5 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to select the position within the playlist at which you want to add the

les.

The files will be added following the highlighted file.

6 Press and hold the front panel MULTI JOG dial (or

the remote’s ENTER key).

The folder will be added to the playlist.

Undoing a folder menu operation (UNDO)

Some of the operations in the folder menu (folder name editing, adding a new folder, deleting a folder) can be undone immediately after they are executed.

This is possible only if the play mode is set to continuous playback (CONTINUE).

When executing an Undo, it does not matter which folder in the folder ﬁnder screen was selected before opening the folder menu screen.

1 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to highlight UNDO.

A confirmation screen will appear.

Operations in the file menu screen

In the example screen shown above, the folder delete operation (DELETE) can be undone.

2 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The Undo operation will be executed, and you will return to the folder finder screen. At this time, the file to which Undo applied will be highlighted.

If you decide to cancel the Undo operation, press • the front panel TIME (ESC) key (or the remote’s

CLR/ESC key).

If there is no ﬁle to which the Undo operation can • be applied, the display will indicate CAN

(CF card only)

T UNDO

The file editing operations described below can be performed on a CF card. Files on a CD cannot be edited. The following explanations assume that the current device is CF, and that the file menu screen for the applicable file is displayed.

To access the file menu screen, highlight the desired file in the folder finder screen, and press the MENU key (“Navigating in the folder finder screen” on page 50).

7 − Using the folder finder

TASCAM SS-CDR1 55

NOTE

Editing the file name

NOTE

1 Withthelemenuscreendisplayed,turnthe

front panel MULTI JOG dial (or use the remote’s

cursor § , ¶ keys) to highlight RENAME.

2 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The RENAME screen will appear.

3 Edit the name as follows.

To change the editing location (cursor position):

Use the front panel ∆ , ˚ keys (or the remote’s cursor ˙ , ¥ keys).

To change the character at the cursor position:

Turn the front panel MULTI JOG dial (or use the remote’s cursor § , ¶ keys).

To delete a character:

Press the front panel TIME (ESC) key (or the remote’s

CLR/ESC key).

4 Whenyou’venishedediting,pressthefront

panel MULTI JOG dial (or the remote’s ENTER key)

tonalizethechanges.

The display will return to the folder finder screen. If you decide to cancel your editing, press the

TIME (ESC) key (or the remote’s CLR/ESC key).

You can also insert the CF card directly into your • computer and edit the ﬁle names from the computer. However if you edit the ﬁle names on your computer, please be aware that the order in which the ﬁles will play back on the SS-CDR1 may be changed by this editing.

You cannot edit names that include characters • other than alphabetic character, numeral, or symbol characters. (If even one such character is included, the registered name will not be displayed at all.) Also, the following symbolic characters cannot be used on the unit: \ / ; : * , ? “ < > |

To delete all characters following the cursor position:

Press and hold down the front panel TIME (ESC) key (or the remote’s CLR/ESC key).

To switch between uppercase and lowercase:

Press the front panel DISPLAY (INFO) key (or the remote’s DISPL AY key).

To insert a space:

Press the CALL key.

To cancel your editing:

Press the STOP key.

Deleting a file

You can delete a file from the CF card.

1 Withthelemenuscreendisplayed,turnthe

front panel MULTI JOG dial (or use the remote’s

CURSOR § , ¶ keys) to highlight DELETE.

2 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The delete confirmation screen will appear.

3 Once again, press the front panel MULTI JOG dial

(or the remote’s ENTER key).

The file will be deleted from the CF card.

The display will return to the folder finder screen. If you decide not to execute the Delete operation, press the TIME (ESC) key (or the remote’s CLR/ESC key) at the confirmation screen.

Files can be deleted only if the play mode is set to consecutive playback (CONTINUE).

7 − Using the folder finder

56 TASCAM SS-CDR1

NOTE

Adding files to a playlist

Here’s how to add files to the desired playlist.

Withthelemenuscreendisplayed,turnthe

front panel

cursor

MULTI JOG

§ , ¶ keys) to highlight ADD PLAYLIST.

dial (or use the remote’s

2 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The playlist select screen will appear.

Dividing a file (DIVIDE)

3 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to highlight the

playlistinwhichyouwanttoregisterthele.

4 Press the front panel MULTI JOG dial or ˚ key

(or the remote’s ENTER key or cursor ¥ key).

The selected playlist will appear.

5 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to select the position within the playlist at which you want to add the

le.Thelewillbeaddedafterthehighlighted le.

6 Press and hold the front panel MULTI JOG dial (or

the remote’s ENTER key).

The file will be added to the playlist.

Here’s how to divide a WAV file into two files.

This is possible only if the play mode is set to consecutive playback (CONTINUE).

You can undo the Divide operation after executing • it (“Undoing a ﬁle menu operation (UNDO)” on page 58).

You cannot divide an MP3 ﬁle.•

1 Use the PL AY key, ∆ , ˚ keys, time search

function, and time skip function etc. to locate to the point in the WAV at which you want to divide it, and pause at that point.

Since you can make fine adjustments later, the approximate location is sufficient.

2 Press and hold the front panel MENU key (or the

remote’s FINDERkey)toaccessthefoldernder screen.

The screen will show the folder finder screen for the current file you operated in step 1, and the current file will be highlighted.

3 Press the MENUkeytoaccessthelemenuscreen

forthecurrentle.

4 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to highlight DIVIDE.

5 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The home screen will appear. The SS-CDR1 will enter Scrub Play mode, and the

PL AY key and READY key will blink.

6 UsetheScrubPlayfunctiontondtheprecise

pointatwhichyouwanttodividethele.

Turn the front panel MULTI JOG dial (or use the remote’s SKIP keys) to move the point using scrub playback.

7 Whenyou’vespeciedthedividingpoint,press

the front panel MULTI JOG dial (or the remote’s

ENTER key).

The display will ask EXECUTE? .

If you want to change the dividing point, press the front panel TIME (ESC) key (or the remote’s CLR/ESC key). You will return to scrub play mode, and can repeat the procedure from step 6.

7 − Using the folder finder

TASCAM SS-CDR1 57

NOTE

If you’re ready to execute the Divide operation, proceed to step 8.

If the ﬁle has been registered in a playlist, the •

P.LIST ENTRY popup will appear.

If the ﬁle you’re editing was registered in a playlist, • it will no longer be possible to play that playlist. You will need to re-edit that playlist in the playlist ﬁnder.

Combining files (COMBINE)

Here is how to join two WAV files, combining them into a single file.

This is possible only if the play mode is set to consecutive playback (CONTINUE).

You cannot combine MP3 ﬁles.•

You cannot combine two WAV ﬁles that have • different sampling rates or a different number of channels.

You can undo the Combine operation after execut-• ing it (“Undoing a ﬁle menu operation (UNDO)” on page 58).

8 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The Divide operation will be executed, and you will return to the folder finder screen.

5 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The display will ask EXECUTE? , and the four seconds preceding and following the connection point will play repeatedly.

If the ﬁle has been registered in a playlist, the •

P.LIST ENTRY popup will appear.

If a ﬁle you are editing was registered in a playlist, • it will no longer be possible to play that playlist. You’ll need to re-edit that playlist in the playlist ﬁnder.

1 Openthelemenuscreenforoneofthelesyou

want to combine.

2 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to highlight COMBINE.

3 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The file list will appear.

The file you had selected before opening the file menu will have a check mark.

4 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶keys)tohighlightthele

thatyouwanttocombinewiththelethathasthe

check mark.

6 To execute the Combine operation, press the front

panel MULTI JOG dial (or the remote’s ENTER key).

The two files will be combined, and you will return to the folder finder screen. If you decide not to execute the Combine operation, press the front panel TIME (ESC) key (or the remote’s

CLR/ESC key). You will return to the file list, and can

repeat the procedure from step 1.

7 − Using the folder finder

58 TASCAM SS-CDR1

NOTE

Undoing a file menu operation (UNDO)

Of the file menu operations, Divide, Combine, and Delete operations can be undone immediately after you have executed the operation.

This is possible only if the play mode is set to continuos playback (CONTINUE).

When performing the Undo operation, it does not matter which ﬁle is selected in the folder ﬁnder screen when you open the ﬁle menu screen.

1 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to highlight UNDO.

A confirmation screen will appear.

2 Press the front panel MULTI JOG dial (or the

remote’s ENTER key.

3 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The Undo operation (UNDO) will be executed, and you will return to the folder finder screen. At this time, the folder/file to which the Undo operation applied will be highlighted.

If you decide not to perform the Undo operation • (UNDO), press the front panel TIME (ESC) key (or the remote’s CLR/ESC key).

If there is no ﬁle operation that can be undone, the • display will indicate CAN

T UNDO

Moving or copying a file (CF card only)

You can move a file on a CF card within a folder, or move or copy it to a different folder. These operations are performed in the folder finder screen. (You do not need to enter the file menu screen.)

Moving a file within a folder

1 Inthefoldernderscreen,usethefrontpanel∆

, ˚ keys and MULTI JOG dial (or the remote’s

cursorkeys)toaccessthenderscreenforthe folderthatcontainstheleyouwanttomove.

2 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶keys)tohighlightthele that you want to move.

3 Press and hold the front panel MULTI JOG dial (or

the remote’s ENTER key).

The file to be moved will blink.

The following explanations assume that the folder menu screen for the applicable folder is displayed

4 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶keys)tomovetheletothe desired location.

5 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The MOVE popup will appear, and the Move operation will be confirmed.

7 − Using the folder finder

TASCAM SS-CDR1 59

NOTE

Moving or copying a file between folders

1 Inthefoldernderscreen,usethefrontpanel∆

, ˚ keys (or the remote’s cursor ˙ , ¥ keys) to

accessthenderscreenforthefolderthatcontainstheleyouwanttomove.

2 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶keys)tohighlightthele that you want to move.

3 Press and hold the front panel MULTI JOG dial (or

the remote’s ENTER key).

The file to be moved will blink.

When you move the blinking file to where a folder name is shown, the blinking file name will disappear, and the folder name will be highlighted.

4 Use the front panel MULTI JOG dial and ∆ ,

˚keys (or the remote’s cursor § , ¶ , ˙ , ¥

keys)tonavigatewithinthefolderndertoopen

the move-destination folder.

When you move the cursor to where the file name is displayed, the blinking file to be moved will appear.

6 Highlight MOVE if you simply want to move the

lefromitsformerlocation,orhighlightCOPY if youwanttocopythele.Thenpressthefront

panel MULTI JOG dial (or the remote’s ENTER key).

The operation will be executed, and a popup will appear during execution.

If you choose COPY , the original ﬁle will remain where it was. If you choose MOVE , the original ﬁle will not remain.

5 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to move the blinking

letothedesiredlocation.

Press the MULTI JOG dial (or the remote’s ENTER key). The following popup will appear.

60 TASCAM SS-CDR1

8 − Using the CD-DA finder screen (AudioCD only)

In the case of a CD containing audio CD (CD-DA) tracks, there will be a CD-DA finder screen. You can use the CD-DA finder screen to select a track to play. In the case of an unfinalized CD that contains audio CD tracks, you will be able to edit CD text.

Opening the CD-DA finder screen

While stopped, paused, or playing, hold down the front panel MENU key (or press the remote’s FINDER key) to access the CD-DA finder screen.

This screen lists the tracks in order of their track number.

Selecting the track to play

From the CD-DA finder screen, here is how to select the track that you want to play.

The following explanation assumes that an audio CD is inserted and that the CD is selected as the current device.

If you access this screen while stopped, track 1 will be highlighted. If you access it while paused or playing, the current track will be highlighted.

To exit the CD-DA finder screen and return to the home screen:

Press the front panel TIME (ESC) key (or the remote’s CLR/

ESC key).

If you perform this action while stopped, the highlighted track will begin playing.

1.AccesstheCD-DAnderscreen,andhighlightthe

track that you want to play.

2. Press the front panel MULTI JOG dial (or the remote’s ENTER key).

Editing CD text

If an unfinalized CD containing audio CD tracks is inserted, you can edit CD text as follows.

1. AccesstheCD-DAnderscreen,andhighlight

the desired track.

If you perform this action while paused, you will pause at the beginning of the highlighted track.

2. Press the MENU key.

The CD text edit screen for the highlighted track

will appear.

8 − Using the CD-DA finder screen (AudioCD only)

TASCAM SS-CDR1 61

NOTE

3. Edit the name as follows.

To change the editing location (cursor position):

Use the front panel ∆ , ˚ keys (or the remote’s cursor ˙ , ¥ keys).

To change the character at the cursor position:

Turn the front panel MULTI JOG dial (or use the remote’s cursor § , ¶ keys).

To delete a character:

Press the front panel TIME (ESC) key (or the remote’s

CLR/ESC key).

To delete all characters following the cursor position:

Hold down the front panel TIME (ESC) key (or the remote’s CLR/ESC key).

To switch between uppercase and lowercase:

Press the front panel DISPLAY/INFO key (or the remote’s DISPL AY key).

To insert a space:

Press the CALL key.

To cancel editing:

Press the STOP key.

4. Whenyouhavenishededitingthetext,pressthe

front panel MULTI JOG dial (or the remote’s

ENTERkey)toconrmyouredits.

The display will return to the CD-DA finder screen.

The following symbolic characters cannot be used on the unit: \ / ; : * , ? “ < > |

62 TASCAM SS-CDR1

9 − Editing a playlist (CF only)

Overview

The SS-CDR1’s playlist playback functions are available if you are using a CF card. Playlist playback is not possible for a CD.

When you first insert a CompactFlash card into the SS-CDR1, three empty playlists (01–03) will automatically be created on the card. You can register audio files from the card into these playlists, and then select the desired playlist (the current playlist) so that its files will be played when you specify Playlist as the play area.

To perform playlist-related operations, start by opening the “playlist finder screen”.

Opening the playlist finder screen

From this screen, proceed to the “playlist menu screen” where you can add files to a playlist or delete the entire contents of a playlist.

From the playlist finder screen, you can also proceed to the “playlist screen” (which shows the files in the playlist).

Select a file for operations, and then move to the “playlist menu screen” where you can add a file to the playlist, delete a file from the playlist, or move a file within the playlist.

If the play area (“Play area” on page 24) is PLAYLIST, make sure that the SS-CDR1 is stopped, playing, or paused, and hold down the front panel MENU key (or the remote’s FINDER key) to access the playlist finder screen.

Navigating in the playlist finder screen

The playlist finder screen will show three playlists (PLAYLIST_01–PLAYLIST_03).

The number of files (tracks) registered in each playlist is shown at the right.

With the playlist finder screen displayed, turn the front panel

MULTI JOG dial (or use the remote’s cursor § , ¶ keys) to

select (highlight) the playlist that you want to operate.

In this state you can perform the following operations:

To start playback from the beginning of the playlist

•

Press the PL AY key. Playback will begin, and you

will return to the home screen.

The playlist you selected will be specified as the cur-

rent playlist.

•

Press the front panel MULTI JOG dial or ˚ key (or

•

Press the MENU key.

To open the playlist screen

the remote’s ENTER key or cursor ¥ key. The display goes as follow.

Opening the playlist menu screen

For details on each item in the playlist menu, refer to “Operations in the playlist menu screen” on page 54.

To pause at the beginning of the playlist

•

Press the READY key. The SS-CDR1 will pause, and

return to the home screen.

The playlist you selected will be specified as the cur-

rent playlist.

9 − Editing a playlist (CF only)

TASCAM SS-CDR1 63

NOTE

Viewing the properties of a playlist

•

The number of tracks in the playlist and the total

Press the front panel DISPLAY (INFO) key (or the

rem ote’s DISPLAY key).

Press the front panel DISPLAY (INFO) key (or the

Operations in the playlist menu screen

In the playlist menu you can delete files from the playlist or add files to the playlist.

The following explanations assume that the display is showing the playlist menu screen for the playlist you’re operating.

To access the playlist menu screen, highlight the desired playlist in the playlist finder screen, and press the MENU key (“Navigating in the playlist finder screen” on page 62).

Adding a file/folder to a playlist

playback time will be displayed.

rem ote’s DISPLAY key) once again; the property display will disappear, and you will return to the playlist finder screen.

Here is how to add a file/folder to the playlist. By adding a folder, you can add all the files of the folder in a single action.

Files in sub-folders will not be added.

1 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to highlight ADD PL AYLI ST.

2 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The folder finder screen will appear.

Deleting a file/all files from a playlist

Here is how to delete a file or all files in a playlist (01-03).

This operation does not delete the files in the card.

1 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶keys)toselectaleina

playlistoroneoftheplaylists(deletingalllesin

the playlist).

2 Press the MENU key to access the playlist menu

screen.

3 Select(highlight)theleorfolderthatyouwant

to add.

For details on navigation in the folder finder screen, refer to “Navigating in the folder finder screen” on page

50.

4 Press and hold the front panel MULTI JOG dial (or

the remote’s ENTER key).

The file (or all files in the folder) will be added to the playlist.

A maximum of 99 tracks can be registered in a play-• list.

If you attempt to register more than 99 tracks, an • indicator of P.LIST FULL will appear, and the track(s) will not be registered.

You cannot register the same track more than once • in a playlist.

4 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

A confirmation popup screen will appear.

5 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

If you decide not to delete, press the TIME (ESC) key (or the remote’s CLR/ESC key).

3 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to highlight DELETE.

9 − Editing a playlist (CF only)

Moving a file

Here’s how to move the position of a file within the playlist.

1 Highlightthelethatyouwanttomove.

2 Press and hold the front panel MULTI JOG dial (or

the remote’s ENTER key).

The playlist screen will appear. In the screen, the file to be moved will be blinking.

3 Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶keys)tomovetheleto the desired position in the playlist.

4 Press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The move will be finalized.

64 TASCAM SS-CDR1

10 − Copying files between CD and CF card

NOTE

10 − Copying files between CD and CF card

You can copy (or convert and copy) files from a CF card to a CD. Or you can copy (or convert and copy) files from a CD to a CF card. Set the current device to CD since these copies are made using the CD menu. Or, before doing the following procedure, insert an appropriate CD and CF card in the SS-CDR1.

Copying/converting and copying files from CF card to CD

When copying or converting and copying files (MP3 or WAV files) from a CF card to a blank CD (CD-R or CD-RW), you can choose whether to write the file in its current format as a data CD, or as an audio CD in CD-DA format. If you choose audio CD format, the MP3 or WAV files on the CF card whose sampling frequency is 44.1 kHz can be converted to audio CD (CD-DA) format and written to a CD. If you are using a CD disc to which tracks have

Creating an audio CD

Here is how to convert MP3 or WAV files on a CF card to audio CD (CD-DA) format and write them on a CD.

The following procedure assumes that the CD is selected as the current device and that the CF card which includes the copy-source files and the CD which is the target of the copy are inserted in the SS-CDR1.

1. Press the MENU key to access the main menu list screen.

2. Highlight the CD menu, and press the front panel

MULTI JOG dial (or the remote’s ENTER key).

already been written, but which has not yet been finalized, the disc format (audio CD or data CD) has already been determined, so the copy will occur in that format.

The SS-CDR1 cannot record WAV ﬁles to a CD, but is able to copy WAV ﬁles from a CF card to a CD. The SS-CDR1 can play back the WAV ﬁles copied on a CD.

The folder finder screen for the CF card will appear.

3. Highlight the BURN TO CD item, and press the front panel MULTI JOG dial (or the remote’s ENTER key).

The SS-CDR1 will automatically load the CF card.

While the data is being read, the display will indicate

MEDIA READ and a progress bar popup will appear.

If a CF card is not inserted, CF READ popup will appear after MEDIA READ indication.

4. If a blank CD is inserted in the CD drive, a popup window asking you to select the CD writing format will appear after the CF card has been read. Highlight “CD-DA,” and press the front panel MULTI

JOG dial (or the remote’s ENTER key).

If audio CD tracks have already been written to the CD, the above popup window will not appear; CD-DA format will be selected automatically.

5. Select the source that will be recorded to the CD.

As described in “Navigating in the folder finder screen” on page 50, navigate within the finder to select the desired file. You cannot select a folder.

If you want to select more than one file, repeat the steps of highlighting the desired file and pressing the CALL key. The selected files will be given a check mark. You can make multiple selections only for files that are in the same folder.

To de-select a selected file, press the CALL key once again.

The copy-source ﬁles must have a sampling frequen-• cy of 44.1 kHz. If you attempt to select a ﬁle whose sampling frequency is 48 kHz, a popup indicating

Can not burn 48kHz files will appear.

TASCAM SS-RCD1 65

10 − Copying files between CD and CF card

66 TASCAM SS-CDR1

You can select multiple ﬁles only within the same • folder, so once you use the CALL key to select the ﬁrst ﬁle, you will no longer be able to move to a different folder.

A warning message will appear if you attempt to • select an already-selected ﬁle.

If you attempt to select a copy-source ﬁle which is • less than 4 seconds, Cannot bur n under 4s will appear.

If you are only selecting one ﬁle, there is no need • to press the CALL key. Simply highlight the desired ﬁle and proceed to step 6.

6. Whenyouhaveselectedallofthelestobewritten

to the CD, press and hold down the front panel

MULTI JOG dial (or the remote’s ENTER key) to

conrmyourselection.

The CD track list will appear.

remote’s ENTER key). (You will return to step 5.) If

youarenishedselectingtracks,chooseBURN

EXECUTE and press the front panel MULTI JOG dial

(or the remote’s ENTER key).

A confirmation popup will appear.

10. Once again press the front panel MULTI JOG dial (or the remote’s ENTER key).

Writing to CD will begin.

While writing is being performed, the screen will indicate BURN and a progress bar will appear in a popup.

When writing is completed, you will return to the CD menu screen.

Moving files within the track list

While the track list is displayed (step 6 above), you can change the order of tracks as follows.

The time that will remain on the CD after the files have been written will be displayed in the upper right of the screen. If the allowable time is exceeded, this will indicate

OVER, and you will not be able to write the selected files to

the CD. In this case, you’ll need to delete some of the selected source files until the OVER indication disappears.

If there are files that have already been written, these files will also be shown in this list.

A tone mark will be applied to a current track.

A tone mark will not be applied to a file to be added.

7. If necessary, change the track order or delete any

unwantedles.

For details, refer to “Moving files within the track list” or “Deleting a file from the track list” below.

8. Whenyouarereadytowritetheles,pressthe

front panel MULTI JOG dial (or the remote’s ENTER key).

A popup will appear.

However, you cannot change the order of tracks that are already recorded.

1. Turn the MULTI JOG dial (or use the remote’s cursor

§ , ¶ keys) to highlight the track whose order you

want to change.

2. Hold down the front panel MULTI JOG dial (or the remote’s ENTER key) to select the track order change mode.

The highlighted track will blink.

3. Turn the front panel MULTI JOG dial (or use the remote’s cursor § , ¶ keys) to move the blinking track to the desired location.

4. Press the front panel MULTI JOG dial (or the remote’s ENTER key).

The move will be executed.

5. Repeat steps 1 to 4 as necessary.

Deleting files from the track list

While the track list is displayed (step 6 above), you can delete a file as follows. You cannot delete files that are already recorded.

9. If you want to add more tracks, choose ADD TRACK and press the front panel MULTI JOG dial (or the

1. Turn the MULTI JOG dial (or use the remote’s cursor

§ , ¶keys)tohighlightthelethatyouwantto

delete.

2. Hold down the ESC key.

Thelewillbedeleted.

10 − Copying files between CD and CF card

TASCAM SS-RCD1 67

NOTE

Creating a data CD

This section explains how files (MP3 or WAV files) from a CF card can be written in their current format to create a data CD.

You can copy WAV ﬁles on a CF card to a CD but you cannot record WAV ﬁles using a CD.

If MP3 or WAV ﬁles have already been written to the CD, the above popup screen will not appear; the data CD format will be selected automatically.

5. Select the source that you want to write to the CD.

As described in “Navigating in the folder finder screen” on page 50, navigate within the finder to select the desired folder or file. If you select a folder, all files in that folder will be the source.

1. Press the MENU key to access the main menu list screen.

2. Highlight the CD menu, and press the front panel

MULTI JOG dial (or the remote’s ENTER key).

3. Highlight the BURN TO CD item, and press the front panel MULTI JOG dial (or the remote’s ENTER key).

The SS-CDR1 will automatically read the CF card.

While the card is being read, the screen will indicate

MEDIA READ, and a popup will show a progress bar.

If a CF card is not inserted, CF READ popup will appear after MEDIA READ indication.

If you want to select multiple folders or files, repeat the steps of highlighting the desired folder or file and pressing the CALL key. A check mark will be added to the selected file or folder. You can make multiple selections only for folders and files that are in the same folder.

To de-select a selected file, press the CALL key once again.

You can select multiple ﬁles only within the same • folder, so once you use the CALL key to select the ﬁrst folder or ﬁle, you will no longer be able to move to a different folder.

If you are only selecting one folder or ﬁle, there is • no need to press the CALL key. Simply highlight the desired folder or ﬁle, and proceed to step 6.

6. Whenyouhaveselectedallofthelestobecopiedto

the CD, hold down the front panel MULTI JOG dial (or the remote’s ENTERkey)toconrmyourselection.

The target select screen will appear.

4. If a blank CD is inserted in the CD drive, a popup screen

(shown below) asking you to select the CD writing format will appear after the CF card has been read. Highlight

CD-Data and press the front panel MULTI JOG dial (or the

remote’s ENTER key).

The folder finder screen for the CF card will appear.

If you selected copy-source files that would exceed the free space on the disc or the allowable number of tracks, you will not be able to proceed to the target selection screen. In this case, delete some of the selected folders or files so that you are no longer exceeding the limit.

If the total size of the copy-source ﬁles exceeds the • free space on the copy-destination disc, a popup indicating CAPACITY OVER will appear after step 6.

If copying the copy-source ﬁles would exceed the • allowable number of tracks on the disc, a popup indicating TRACK OVER will appear after step 6.

10 − Copying files between CD and CF card

68 TASCAM SS-CDR1

NOTE

8. Press the front panel MULTI JOG dial (or the remote’s

ENTER key) to confirm your selection.

A confirmation screen will appear.

7. Select the copy-destination (target).

If the disc already has a folder structure, navigate through the folders as described in “Navigating in the folder finder screen” on page 50) to select a folder or file.

The folder or files will be copied following the folder or file you select.

Cursor

If there is a conﬂict of names, the following popup screen will appear.

Press the ESC key or STOP key to clear the popup screen and return to the menu screen.

Copy-source folders or files are added here.

The screen before copying.

Cursor

Added folders or files.

The screen after copying.

9. Once again press the front panel MULTI JOG dial (or the remote’s ENTER key).

Writing will begin.

While writing is in progress, the screen will indicate

BURN and a progress bar popup will be shown.

When writing is completed, you will return to the CD menu screen.

Copying/converting and copying files from CD to CF card

You can copy/convert and copy files from a CD to a CF card. When copying from an audio CD to the card, each track file will be converted into the format you specify

Converting and copying audio CD tracks

Here is how to convert audio CD (CD-DA) tracks to MP3 or WAV format when copying them to a CF card.

(MP3 or WAV file). When copying from a CD that contains MP3 or WAV files, the files will be copied in their existing format.

1. Press the MENU key to access the main menu list screen.

2. Highlight the CD menu, and press the front panel

MULTI JOG dial (or the remote’s ENTER key).

3. Highlight the RIP TO CF item, and press the front panel MULTI JOG dial (or the remote’s ENTER key).

10 − Copying files between CD and CF card

TASCAM SS-RCD1 69

NOTE

The SS-CDR1 will automatically read the CF card.

While the data is being read, the screen will indicate

MEDIA READ and a progress bar popup will appear.

When the data has been read, the following screen will appear.

If a CF card is not inserted, CF READ popup will appear after MEDIA READ indication.

4. Selecttheformatinwhichyouwantthelestobe

written to the CF card.

File type:

Choose “.mp3” or “.wav”

Bitrate:

Choose 64 kbps, 128 kbps, 192 kbps, 256 kbps, or 320 kbps.

The sampling rate is ﬁxed at 44.1 kHz for ﬁles stored on the CF card.

step 7 below. You will need to de-select one or more of your selections until the OVER indication disappears.

If you have selected only a single track, there is no need to press the CALL key. Simply highlight the desired track and then proceed to step 7.

7. When you have selected all of the desired tracks, hold down the front panel MULTI JOG dial (or the remote’s ENTERkey)toconrmyourselection.

The folder finder screen will appear, allowing you to select the target (writing destination).

8. Select the writing destination (target).

As described in “Navigating in the folder finder screen” on page 50, move within the finder to select the desired folder or file.

The folder or files will be written following the folder or file you select.

Cursor

5. Whenyouhavenishedmakingsettings,holddown

the front panel MULTI JOG dial (or the remote’s

ENTER key).

The source select screen will appear.

6. Select the track (source) that you want to copy.

Highlight the source track, and press the CALL key to apply a check mark. Repeat this process to select multiple tracks.

To de-select a selected file, press the CALL key once again.

The upper right of the screen shows the capacity that will remain on the CF card after the data has been written.

When you are selecting the source material, an indication of OVER will appear if the source material you are selecting exceeds the remaining capacity on the CF card or if the number of source tracks exceeds the allowable number of files on the CF card, and you will be unable to proceed to

Copy-source folders or files are added here.

The screen before copying.

Cursor

Added folders or files.

The screen after copying.

9. Press and hold the front panel MULTI JOG dial (or the remote’s ENTERkey)toconrmthecopy-desti- nation.

10 − Copying files between CD and CF card

70 TASCAM SS-CDR1

NOTE

10. Once again press the front panel MULTI JOG dial (or the remote’s ENTER key).

Writing will begin.

While the operation is executing, the screen will indicate RIP and a progress bar popup will appear.

When writing is completed, you will return to the CD menu screen.

Copying files from a data CD

Here is how to copy MP3 or WAV files from a data CD in their existing format to a CF card.

1. Press the MENU key to access the main menu list screen.

You can select multiple ﬁles only within the same • folder, so once you use the CALL key to select the ﬁrst folder or ﬁle, you will no longer be able to move to a different folder.

If you are only selecting one folder or ﬁle, there is • no need to press the CALL key. Simply highlight the desired folder or ﬁle, and proceed to step 5.

2. Highlight the CD menu, and press the front panel

MULTI JOG dial (or the remote’s ENTER key).

3. Highlight the RIP TO CF item, and press the front panel MULTI JOG dial (or the remote’s ENTER key).

The SS-CDR1 will automatically read the CF card.

While the data is being read, the screen will indicate

MEDIA READ and a progress bar popup will appear.

When reading is completed, a CD folder finder screen like the following will appear.

If a CF card is not inserted, CF READ popup will appear after MEDIA READ indication.

4. Selectthele(sourcele)thatyouwanttocopy.

As described in “Navigating in the folder finder” on page 50, move within the finder to select the desired folder or file. If you select a folder, all files in that folder will be the source.

5. Whenyouhaveselectedallofthelestobecopied,

hold down the front panel MULTI JOG dial (or the remote’s ENTERkey)toconrmyourselection.

When you confirm your selection, the folder finder screen for the CF card will appear. In this screen you can select the writing-destination.

If you have selected copy-source files that would exceed the free space on the CF card or if the number of source tracks exceeds the allowable number of files on the CF card, a popup indicating CAPACITY OVER or TRACK OVER will appear, and you will not be able to finish the source selection.

In this case, press the STOP key to close the popup, decrease the total size or number of the source files, and then once again hold down the front panel MULTI

JOG dial (or the remote’s ENTER key).

6. Select the copy-destination (target).

As described in “Navigating in the folder finder screen” on page 50, navigate within the finder to select the desired folder or file.

The folder or files will be written following the folder or file you select.

Cursor

If you want to select more than one folder or file, repeat the step of highlighting the desired folder or file and pressing the CALL key. A check mark will be added to the selected folder or file. You can make multiple selections only for folders or files in a single folder.

To de-select a selected folder or file, press the CALL key once again.

Copy-source folders or files are added here.

The screen before copying.

10 − Copying files between CD and CF card

TASCAM SS-RCD1 71

Cursor

Added folders or files.

The screen after copying.

7. Press and hold the front panel MULTI JOG dial (or the remote’s ENTERkey)toconrmthecopy-desti- nation.

If there is a conflict of names with a file that already exists in the copy-destination, the following popup screen will appear.

8. Once again, press the front panel MULTI JOG dial (or the remote’s ENTER key).

Writing will begin.

While the operation is in progress, the screen will indicate “RIP” and a progress bar will be shown.

When writing is completed, you will return to the CD menu screen.

72 TASCAM SS-CDR1

11 − CD-RW management

NOTE

You can use the CD MENU to perform various operations on a CD-RW; you can unfinalize the disc, erase tracks, erase the disc, or refresh the disc. This chapter explains these CD-RW management functions.

The following explanation assumes that the CD is selected as the current device and that a CD-RW is inserted.

In addition to these operations, you can use the CD •

MENU to ﬁnalize a CD, and to copy ﬁles between

CD and CF card.

Unfinalizing a CD

If an already-finalized CD-RW disc is inserted, you can use the ERASE item to unfinalize the disc.

1. Press the MENU key to access the main MENU list screen.

2. Highlight the CD MENU, and press the front panel MULTI JOG dial (or the remote’s ENTER key).

3. Highlight the ERASE item, and press the front panel MULTI JOG dial (or the remote’s ENTER key).

A popup window will appear, allowing you to select an item.

4. Turn the front panel MULTI JOG dial (or use the remote’s cursor § , ¶ keys) to choose Un finalize in the popup window, and then press the front panel

MULTI JOG dial (or the remote’s ENTER key).

Finalizing is explained in “Chapter 6. Recording” • (“Finalizing a CD” on page 43). For details on copying between a CD and a CF card, refer to “Chapter

10. Copying ﬁles between a CD and CF card” on page 65.

The following confirmation popup will appear.

5. Once again, press the front panel MULTI JOG dial (or the remote’s ENTER key).

Unfinalization will begin.

While this operation is being executed, the display will indicate “U NFINALIZE” and a progress bar will be shown.

When unfinalization is completed, you will return to the CD MENU screen.

Erasing a track

You can erase tracks that have been recorded in audio CD format on a CD-RW. The specified track and all subsequent tracks (until the last track on the disc) will be erased.

1. Press the MENU key to access the main MENU list

screen.

2. Highlight the CD MENU, and press the front

panel MULTI JOG dial (or the remote’s ENTER key).

3. Highlight the ERASE item, and press the front

panel MULTI JOG dial (or the remote’s ENTER key).

A popup window will appear, allowing you to select an item.

4. Turn the front panel MULTI JOG dial (or use the

remote’s cursor § , ¶ keys) to select the desired command in the popup window. When it displays the command shown below, press the front panel

MULTI JOG dial (or the remote’s ENTER key).

5. Turn the front panel MULTI JOG dial (or use the remote’s cursor § , ¶keys)toselecttherstof the tracks that will be erased. Track 12 is selected in the screen shot above.

The last track to be deleted (shown as 19 in the screen shot above) is fixed as the last track of the disc, and cannot be changed.

6. When you have made your selection, press the front panel MULTI JOG dial (or the remote’s

ENTER key).

A confirmation screen will appear.

11 − CD-RW management

TASCAM SS-RCD1 73

NOTE

7. Once again press the front panel MULTI JOG dial (or the remote’s ENTER key).

Track erasure will begin.

While the operation is being executed, the screen will indicate ERASE- and a progress bar will be displayed.

Erasing a disc

When track erasure is complete, you will return to the CD MENU screen.

When you execute the track erase operation on a • disc that has already been ﬁnalized, the SS-CDR1 will unﬁnalize the disc before erasing the speciﬁed track(s).

This operation can be executed only on a disc that • was recorded as CD-DA.

Here is how to erase an entire CD-RW disc.

1. Press the MENU key to access the main MENU list screen.

2. Highlight the CD MENU, and press the front panel MULTI JOG dial (or the remote’s ENTER key).

3. Highlight the ERASE item, and press the front panel MULTI JOG dial (or the remote’s ENTER key).

A popup window will appear, allowing you to select an item.

4. Turn the front panel MULTI JOG dial (or use the remote’s cursor § , ¶ keys) to make the popup window show Erase Media, and press the front panel MULTI JOG dial (or the remote’s ENTER key).

Refreshing a disc (complete erasure)

You can refresh (completely erase) a CD-RW disc.

In some cases, the SS-CDR1 will be unable to recognize a disc for which finalization was forcibly interrupted (such as if a power failure occurred during the operation) or a disc that has been used by a computer. In such cases, refreshing the disc as follows may make it recognizable by the SS-CDR1.

A confirmation screen will appear.

5. Once again press the front panel MULTI JOG dial (or the remote’s ENTER key).

Disc erasure will begin.

While the operation is being executed, the screen will indicate ERASE“ and a progress bar will be displayed.

When disc erasure is complete, you will return to the CD MENU screen.

4. Highlight the REFRESH item, and press the front panel MULTI JOG dial (or the remote’s

ENTER key).

A confirmation screen will appear.

1. Press the MENU key to access the main MENU list

screen.

2. Highlight the CD MENU, and press the front

panel MULTI JOG dial (or the remote’s ENTER key).

3. Highlight the ERASE item, and press the front

panel MULTI JOG dial (or the remote’s ENTER key).

A popup MENU will appear.

5. Once again, press the front panel MULTI JOG dial (or the remote’s ENTER key).

The disc refresh operation will begin.

While the operation is being executed, the screen will indicate REFRESH- and a progress bar will be displayed.

When the disc refresh operation has been completed, you will return to the CD MENU screen.

74 TASCAM SS-CDR1

NOTE

12 − Other settings

NOTE

Restoring the factory settings

You can restore the menus and other settings to their factory-set state. You cannot restore these settings if media is inserted in the current device.

Remove the media before you perform the following menu operation. (For details on operations in the menu screen, refer to “Operations in the menu screen” on page 18)

If you select the FACTORY PRESET item when a CompactFlash card is inserted, a popup of CAN

SELECT will appear, and your selection will not be

accepted. Remove the card and perform the operation once again.

1 Press the MENU key to access the main menu list

screen.

2 Select the UTILITY menu.

3 Select the FACTORY PRESET item.

A confirmation popup will appear.

Formatting a CompactFlash card

If CF is selected as the current device, and playback/ recording is stopped, you can format the entire CF card in FAT format.

Before you use a CF card used by another device with the SS-CDR1, you must format it.

When you format a card, all folders and ﬁles stored on that card will be deleted.

4 Once again press the front panel MULTI JOG dial

(or the remote’s ENTER key).

The settings will be reset.

5 Press the TIME (ESC) key (or the remote’s

CLR/ESC key) to return to the home screen.

4 Once again press the front panel MULTI JOG dial

(or the remote’s ENTER key).

The card will be formatted. During execution, the display will indicate Format .

5 Press the TIME (ESC) key (or the remote’s CLR/

ESC key) to return to the home screen.

Perform the following menu operations. (For details on menu operations, refer to “Operations in the menu screens” on page 18.)

1 Press the MENU key to access the main menu list

screen.

2 Select the UTILITY menu.

3 Select the MEMORY FORMAT item.

A confirmation popup will appear.

12 − Other settings

TASCAM SS-CDR1 75

Viewing information about the media

You can view information about the media that is inserted in the current device (CF or CD).

Perform the following menu operations. (For details on menu operations, refer to “Operations in the menu screens” on page 18.)

1 Press the MENU key to access the main menu list

screen.

2 Select the UTILITY menu.

3 Select the INFORMATION item.

Media information will be displayed, allowing you to check the overall capacity and the free space.

Display when the CF device is selected

Display when the CD device is selected

4 Press the TIME (ESC) key (or the remote’s

CLR/ESC key) to return to the home screen.

76 TASCAM SS- CDR1

13 − Operation using a computer keyboard

NOTE

If you connect an IBM PC compatible PS/2 interface keyboard to the SS-CDR1’s front panel, you’ll be able to use your keyboard to control the SS-CDR1. The keyboard can be used for various types of control, but is particularly convenient when entering names.

Specifying the keyboard type

Select the keyboard type as appropriate for the keyboard you’ve connected (for details on menu operations, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu list

screen.

2 Select the UTILITY menu.

3 Select the KEYBOARD item.

Using the keyboard to enter names

You can edit or enter a folder name or track name just as when typing text into a computer.

Also, the following symbolic characters cannot be • used on the unit: \ / ; : * , ? “ < > |

To access the name editing screen (RENAME screen), move from the folder finder menu to the folder menu or file menu, and then select the RENAME item. Alternatively, move from the playlist finder menu to the playlist menu or the file menu, and select the RENAME item.

4 According to the keyboard you’ve connected,

choose JPN (Japanese keyboard) or US (English keyboard).

5 Press the TIME (ESC) key (or the remote’s

CLR/ESC key) to return to the home screen.

To select the type of character to enter

CAPS key: Selects/de-selects uppercase alphabetical char-

acters.

When de-selected: Lowercase alphabetical characters will be entered.

To enter text

Use the numeric keys and alphabetical keys for direct entry.

To move the cursor

Use the ß/∑ keys.

To delete a character:

Delete key: Deletes the character at the cursor location.

Backspace key: Deletes the character preceding the cursor location.

To insert a character:

Press the Insert key at the desired location to switch between overwrite and insert mode.

To edit a character:

Move the cursor and overwrite the character.

13 − Operation using a computer keyboard

TASCAM SS-CDR1 77

List of keyboard operations

You can use the keyboard not only to enter names, but also for other operations such as controlling the transport and editing. The keyboard operations are listed below.

Keyboard operations

F1 key

The same function as turning the front panel MULTI JOG dial toward the left (same as the remote’s SKIP µ key)

F2 key

The same function as turning the front panel MULTI JOG dial toward the right (same as the remote’s SKIP ≤ key)

F3 key

The same as the remote’s KEY key

F4 key

The same as the STOP key

F5 key

The same as the PLAY key

F6 key

The same as the READY key

F7 key

The same as the remote’s AUTO CUE key

F8 key

The same as the RECORD key

F9 key

The same as the remote’s AUTO READY key

F10 key

The same as the remote’s RE PE AT key

SHIFT + F7 key

The same as the remote's FINDER key

SHIFT + F8 key

To edit mode RENAME (CF) / CD TEXT (CD)

SHIFT + F9 key

Same as the front panel SELECT KEY or remote DEVICE

SELECT key

SHIFT + F10 key

The same as the remote’s FLASH LOAD key

SHIFT + F11 key

To UNFINALIZE (CD)

SHIFT + F12 key

To FINALIZE (CD)

CTRL + F1

After FLASH LOAD is completed, flash-start track 1 playback

CTRL + F2

After FLASH LOAD is completed, flash-start track 2 playback

CTRL + F3

After FLASH LOAD is completed, flash-start track 3 playback

F11 key

The same as the remote’s P.MODE key

F12 key

The same as pressing the front panel PITCH dial (same as the remote’s PITCH key)

SHIFT + F1 key

To edit mode DELETE (CF) / ERASE TRK (CD)

SHIFT + F2 key

To ERASE MEDIA (CD)

SHIFT + F3 key

To edit mode FORMAT (CF) / REFRESH (CD)

SHIFT + F4 key

To edit mode MOVE (CF)

SHIFT + F5 key

To edit mode DIVIDE (CF)

SHIFT + F6 key

To edit mode COMBINE (CF)

CTRL + F4

After FLASH LOAD is completed, flash-start track 4 playback

CTRL + F5

After FLASH LOAD is completed, flash-start track 5 playback

CTRL + F6

After FLASH LOAD is completed, flash-start track 6 playback

CTRL + F7

After FLASH LOAD is completed, flash-start track 7 playback

CTRL + F8

After FLASH LOAD is completed, flash-start track 8 playback

CTRL + F9

After FLASH LOAD is completed, flash-start track 9 playback

(Cont inue)

13 − Operation using a computer keyboard

NOTE

CTRL + F10

After FLASH LOAD is completed, flash-start track 10 playback

CTRL + F11

After FLASH LOAD is completed, flash-start track 11 playback

CTRL + F12

After FLASH LOAD is completed, flash-start track 12 playback

CAPS key

Select/de-select uppercase alphabetical characters

Numeric keys

Enter numerals

ß/∑ keys

Move the cursor

Delete key

Delete the character at the cursor location

Backspace key

Delete the character preceding the cursor location

Insert key

Inserts a character at the cursor location

ESC key

Cancels editing or title editing, and exits menu mode

Enter key

The same as the ENTER key

When using the keyboard for editing, press the desired execution key when the ﬁnder screen is displayed.

Example: To execute DELETE

Press SHIFT + F7 (FINDER key) to access the ﬁnder screen. Use the cursor keys to highlight the ﬁle or folder that you want to delete. Press SHIFT + F1 key. The display will ask EXECUTE? , so press the ENTER key.

78 TASCAM SS-CDR1

14 − Using the RS-232C connector

NOTE

14 − Using the RS-232C connector

If you connect the SS-CDR1’s CONTROL I/O (RS-232C) connector to the RS-232C connector of your computer, you’ll be able to control the SS-CDR1 from your computer.

You’ll use the menu to make communication-related settings (for details on menu operations, refer to “Operations in the menu screens” on page 18).

1 Press the MENU key to access the main menu list

screen.

2 Select the UTILITY menu.

3 Highlight the RS-232C item, and press the front

panel ˚ key (or the remote’s cursor ¥ key).

The RS-232C setting screen will appear.

4 Make the appropriate setting for each item.

BAUD RATE

Specify the baud rate (communication speed). Choose from 4800 , 9600 , 19200 , and 38400 bps (default: 19200 ).

PARITY BIT

Specify the communication parity bit setting. Choose from NON , EVEN , and ODD (default: NON ).

STOP BIT

Specify the communication stop bit setting. Choose 1 or 2 (bit) (default: 1 ).

DATA LENGTH

Choose the communication data length. Choose 7 or 8 (bit) (default: 8 ).

5 Whenyou’venishedmakingsettings,pressthe

TIME (ESC) key (or the remote’s CLR/ESC key) to

return to the home screen.

RS-232C settings are saved even when the power is • turned off.

For details on the SS-CDR1’s RS-232C command • protocol, please contact TEAC Corporation’s Tascam customer support.

TASCAM SS-CDR1 79

80 TASCAM SS-CDR1

15 − Messages

Errors: Press the STOP key or ESCAPE key to close the popup.

1st line 2nd line Meaning

-- error -- DECODE

-- error -- REC STAND BY

-- error -- CAPACITY

-- error -- RECORD

-- error -- INF O WRITIN G

-- error -- OVER FLOW

-- error -- NotMatchDMA

-- error -- FLASH LOAD

-- error -- DIN UNLOCK

-- error -- DIN No tAu dio

-- error -- FS UNMATCH

-- error -- EJECT

-- error -- MIX DISC

-- error -- CF READ

-- error -- TRACK

Cautions: The popup will close automatically (after approximately two seconds)

Failed to play MP3/WAV file. Failed to prepare to begin recording. Recording stopped because of insufficient storage area on the media. Error occurred while recording. An error occurred while writing data. Recording buffer was insufficient while recording an MP3/WAV track. Cannot record because the media does not meet the system requirements. Error occurred while loading flash start data. Digital input is not locked. The incoming digital data is not audio. The digital signal being input differs from the currently selected sampling rate. Failed to eject the CD MP3/WAV tracks and audio tracks coexist on the media Burn/Rip cannot be executed because a CF card is not inserted. Playback is not possible because the track written to the CD is in an unplay-

able format.

1st line 2nd line Meaning

--caution-- CAN'T UNDO

--caution-- MEDIA FULL

--caution-- TRACK FULL

--caution-- No CallPoint

--caution-- CAN'T REC

--caution-- WriteProtect

--caution-- NOT EXECUTE

--caution-- CA N'T EDIT

--caution-- CAN'T SELECT

--caution-- TRK PROTECT

--caution-- NAME FULL

--caution--

--caution-- PGM EMPTY

--caution-- NoSearchTime

--caution-- UnmatchMedia

--caution-- Dif Playlist

--caution-- P.LIST FULL

--caution-- P.LIST EMPTY

--caution-- P.LIST ENTRY

--caution-- SURE TEXT

PROGRAM

FULL

Undo is not possible because no undoable edit exists. Recording cannot be started because there is insufficient space on the media. Recording is not possible because you have reached the maximum number of

tracks. A call request was made when no call point existed. Recording is not possible due to system limitations. The media is write-protected. Failed to execute the editing operation. Editing was not possible due to system limitations. Selection/execution was not possible due to system limitations. Editing was not possible because the track was protected. The name has reached the maximum number of characters. Registration is not possible because you have reached the maximum number

of tracks in a program.

Play or pause is not possible because no program has been registered. Search was not possible because the specified search time (search track) does

not exist. Recording is not possible because the media does not meet the system

requirements. There is a discrepancy between the specified playlist and the media information. Registration was not possible because the number of entries in the playlist has

exceeded the allowable number. Play or pause is not possible because no playlist has been registered. You attempted to edit a track that is registered in a playlist. CD Text has been registered, but you are attempting to eject the disc without

writing the TOC.

Operation messages: Displays in place of the counter

1st line Meaning

POWER ON

DEVICE ERROR

NO MEDIA

MONITOR

MEDIA READING

MEDIA ERROR

The system is starting up and initializing.

The device cannot be detected. Please contact service. Media is not inserted in the current device.

Now monitoring the input. Now reading from media. Failed to read media.

15 − Messages

TASCAM SS-CDR1 81

1st line Meaning

UNKNOWN

INITIALIZIN G ME DIA

RECORD STAND BY

INF ORM ATION WRITING

FLASH LOADING

Fs CHANGING

The CF card is formatted in other than FAT. You must format the CF card in order to use it on the SS-CDR1.

Creating data in order to use this media with the SS-CDR1. Now in record-ready condition.

Now writing the recorded data. Now loading flash-start data. The system’s sampling frequency is being changed because the track’s sampling

frequency differs from that of the current track.

16 − Troubleshooting

Power does not turn on ª

Make sure that the power plug is firmly inserted.

Media is not detected ª

Make sure that the CF card is firmly inserted.• Make sure that the CD is not scratched or dirty•

Can’t play back ª

In the case of a WAV file, make sure that the file is • of a sampling frequency (44.1 kHz or 48 kHz) and bit depth (16-bit) supported by the SS-CDR1. In the case of an MP3 file, make sure that the file is of a bit rate supported by the SS-CDR1.

Make sure that the CD is not scratched or dirty•

No sound ª

Check the SS-CDR1’s connections to your monitor system. Also check the volume of your amp.

Can’t record ª

Check the connections once again.• Adjust the recording level.•

A setting you changed is not remembered ª

The SS-CDR1 backs-up the settings when you change them. This backup may fail if you turn off the power at an inappropriate time, so do not turn off the power immediately after changing a setting.

Noise is heard ª

Check whether a connection cable might have a bad connection.

When editing a name, the display indicates ª Name Full

Due to limitations of the system, the number of characters in a file name and folder name is limited to 255 characters (single-byte). Since the full path within the folder finder is limited to 255 characters, the maximum name length for a file or folder that is inside a sub-folder will be reduced by the number of characters used by any folders above it and any separator characters.

82 TASCAM SS-CDR1

17 − Specifications

Storage disk CF card (CompactFlash card) CD-R, CD-R-DA, CD-RW, CD-RW-DA (high speed CD-RW is supported)

Recording/playback formats MP3 (when using CF card or CD): Sampling frequencies: 44.1 kHz, 48 kHz Bit depth: 16 bit Data rate: 64, 128, 192, 256, 320 kbps WAV (recording only when using CF card): Sampling frequencies: 44.1 kHz, 48 kHz Bit depth: 16 bit CD-DA (when using CD): Sampling frequency: 44.1 kHz Bit depth: 16 bit

Number of channels 2 channels (stereo) 1 channel (monaural)

Analog inputs Balanced XLR-3-31 equivalent Nominal input level: +4 dBu Maximum input level: +20 dBu Minimum input level: -6 dBu or greater Input impedance: 22 kØ

Unbalanced RCA pin jack Nominal input level: -10 dBV Maximum input level: +6 dBV Minimum input level: -20 dBV or greater Input impedance: 22 kØ

Analog Outputs Balanced XLR-3-32 equivalent Nominal output level: +4 dBu Maximum output level: +20 dBu (*1) Output impedance: 100Ø

Unbalanced RCA pin jack Nominal output level: -10 dBV Maximum output level +6 dBV Output impedance: 200Ø

Phones output Stereo phone jack (1/4") 45 mW + 45 mW or greater (THD+N: 0.1% or less, at 32Ø load)

Digital input (COAXIAL) Connector: RCA pin jack (IEC- 60958-3 Consumer (S/PDIF)) Input sampling frequencies supported: 32 kHz – 48 kHz Input impedance: 75Ø (unbalanced) Variable gain amount: -∞ – +10 dBFS

Digital output (COAXIAL) Connector: RCA pin jack Supported signal format: IEC- 60958-3 Consumer (S/PDIF) Output impedance: 75Ø (unbalanced)

CONTROL I/O (RS-232C) connector Communication protocol: Complies with RS-232C protocol specification 1.00 Connector: D-sub 9-pin connector

(PARALLEL) connector Parallel control input/output Connector: D-sub 25-pin connector Maximum input voltage: +5.5 V Minimum high level input voltage: +3.75 V Maximum low level input voltage: +1.25 V Output format: Open drain (maximum voltage 50 V, maximum current 50 mA) Maximum low level output voltage: 0.5 V

TASCAM SS-CDR1 83

17 − Specifications

84 TASCAM SS-CDR1

REMOTE IN connector For connecting dedicated RC-SS1 remote controller: Stereo mini jack

For connecting a PS/2 keyboard: Mini-DIN connector

Frequency response 20 Hz – 20 kHz, ±0.5 dB (for recording)

Distortion 0.005% or less (AES-17 20 kHz) (for recording)

S/N ratio 95 dB (AES-17 20 kHz, A-weighted, typical) (for recording)

Dynamic range 95 dB (AES-17 20 kHz, A-weighted, typical) (for recording)

Crosstalk between channels 95 dB

Power U.S.A./Canada 120 VAC, 60Hz U.K./Europe 230 VAC, 50Hz Australia 240 VAC, 50Hz

Power consumption 17 W (U.S.A./Canada) 17 W (U.K./Europe/Australia)

Dimensions (w x h x d) 482.6 x 44.5 x 301 (mm) / 19 x 1.8 x 11.9 (in)

Weight 3.5 kg (7.7 lb)

* If you would like to change the maximum balanced output level, please contact the service department.

* Specifications and appearance are subject to change without notice for improvement.

* Please be aware that due to improvements in this product, illustrations in this owner’s manual may differ from the product

in some respects.

* CompactFlash® is a registered trademark of SanDisk Corporation, USA.

* This product contains

PrFILE®2

FAT file system and PrFILE2 Unicode Interface of eSOL Co., Ltd.

Dimensional diagram

TASCAM SS-CDR1 85

For China

Notes

86 TASCAM SS-CDR1

Notes

TASCAM SS-CDR1 87

Notes

SS-CDR1

TEAC CORPORATION

Phone: +81-42-356-9143 www.tascam.com 1-47 Ochiai, Tama-shi, Tokyo 206-8530, Japan

TEAC AMERICA, INC.

Phone: +1-323-726-0303 www.tascam.com 7733 Telegraph Road, Montebello, California 90640

TEAC CANADA LTD.

Phone: +1905-890-8008 Facsimile: +1905-890-9888 www.tascam.com 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada

TEAC MEXICO, S.A. De C.V

Phone: +52-555-581-5500 www.tascam.com Campesinos No. 184, Colonia Granjes Esmeralda, Delegacion Iztapalapa CP 09810, Mexico DF
