7202-100600200
SR- 80iDAB
STEREO COMPACT RADIO
OWNER’S MANUAL
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
< Do not expose this apparatus to drips or splashes.
< Do not place any objects filled with liquids, such as
vases, on the apparatus.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
2
< Do not install this apparatus in a confined space such as
a book case or similar unit.
< The apparatus draws nominal non-operating power
from the AC outlet with its POWER or STANDBY/ON
switch not in the ON position.
< The apparatus should be located close enough to the
AC outlet so that you can easily grasp the power cord
plug at any time.
< The mains plug is used as the disconnect device, the
disconnect device shall remain readily operable.
< If the product uses batteries (including a battery pack
or installed batteries), they should not be exposed to
sunshine, fire or excessive heat.
< CAUTION for products that use replaceable lithium
batteries: there is danger of explosion if a battery is
replaced with an incorrect type of battery. Replace only
with the same or equivalent type.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
CAUTION
< DO NOT REMOVE THE EXTERNAL CASES OR CABINETS
TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE
PARTS ARE WITHIN!
< IF YOU ARE EXPERIENCING PROBLEMS WITH THIS
PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO
NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.
This product is protected by certain intellectual property
rights of Microsoft. Use or distribution of such technology
outside of this product is prohibited without a license from
Microsoft.
iP
hone, iPod, iPod classic, iPod nano, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other
countries.
“Made for iPod” and “Made for iPhone” mean that an
electronic accessory has been designed to connect
specifically to iPod or iPhone, respectively, and has been
certified by the developer to meet Apple performance
standards.
Apple is not responsible for the operation of this device or
its compliance with safety and regulatory standards. Please
note that the use of this accessory with iPod or iPhone may
affect wireless performance.
Other company names and product names in this
document are the trademarks or registered trademarks of
their respective owners.
3
Contents
Thank you for choosing TEAC. Read this manual
carefully to get the best performance from this unit.
Before Using the Unit ..................................5
Connections ..........................................6
Remote Control Unit ..................................8
Identifying the Parts (Main Unit) .......................9
Identifying the Parts (Remote Control Unit) ...........10
Setting the Clock .....................................12
Basic Operation ......................................13
iPod/iPhone ..........................................14
Listening to an iPod/iPhone ..........................15
USB Flash Memory ...................................17
MP3/WMA ...........................................17
Listening to a USB Flash Memory .....................18
USB Programmed Playback ..........................21
Listening to the DAB Radio ...........................24
Setting the DAB Display ..............................25
Using the DAB Menu .................................26
Listening to the FM Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
RDS (Radio Data System) .............................30
Preset Tuning .........................................31
Wake Up Timer .......................................32
Sleep Timer ..........................................34
Listening to an External Source .......................32
Troubleshooting ......................................34
Specifications ........................................36
4
Before Using the Unit
What’s in the box
Confirm the supplied standard accessories.
Remote control unit (RC-1274) x 1
Battery (CR2025) for the remote control unit x 1
AC adapter (PS-M1628) x 1
Power cord set for the AC adapter x 1
< The shape of the plug varies according to the region.
DAB/FM T-type antenna x 1
CAUTION
< The voltage supplied to the unit should match the
voltage as printed on the AC adapter. If you are in any
doubt regarding this matter, consult an electrician.
< Do not open the cabinet because this might result in
damage to the circuitry or electrical shock. If a foreign
object should get into the unit, contact your dealer or
service company.
< When removing the AC power plug from the wall
socket, always pull directly on the plug, never yank on
the cord.
Placement of the unit
< Choose the installation location of your unit carefully.
Avoid placing it in direct sunlight or close to a source of
heat. You should also avoid locations that are subject to
vibration, excessive dust, heat, cold or moisture.
< As the unit may become warm during operation, always
leave sufficient space around it for ventilation.
RCA pin-stereo mini plug cable x 1
RCA (pin) video cable x 1
iPhone dock adapter x 2
Dock cover x 1
Owner’s manual (this document) x 1
< Keep this manual in a safe place for future reference.
Warranty card x 1
< Do not place the unit on an amplifier, a receiver or any
other device that generates heat.
< When the unit is turned on, if a TV is turned on nearby
lines might appear on the TV screen depending on the
frequency of the TV broadcast. This is not a malfunction
of the unit or the TV. If you see such lines, move the unit
and the TV further apart.
Maintenance
If the surface of the unit gets dirty, wipe with a soft cloth or
use a diluted mild liquid soap. Allow the surface of the unit
to dry completely before using.
For safety, disconnect the AC power plug from the
outlet before cleaning.
< Never spray liquid directly on this unit.
< Do not use thinner or alcohol as they could damage the
surface of the unit.
5
Connections
After all connections are complete, connect the power cord’s plug to the AC wall socket.
< Read the instructions of each device that you intend to use with this unit.
< Be sure to connect each plug securely. To avoid hum and noise, do not bundle the connection cords.
Back
)# "(
A
B
B
!&
E
D
F
C
C
!#$" !%
VIDEO IN
"$% !("
$ "$
'# $
6
USB port
A
Connect an external USB flash memory to this port.
VIDEO OUT jack
B
This terminal outputs video signal from an iPod/
iPhone connected to the dock of the SR-80iDAB.
Connect the unit to the composite video connector
of a television or monitor using the supplied RCA (pin)
video cable.
< When you output video to a TV from your iPod/
iPhone, the video is not displayed on the iPod/
iPhone’s screen.
< If your iPod/iPhone has “TV OUT” menu, select “On” or
“Ask”. Or the iPod/iPhone will not output video signal.
When you have set “TV OUT” to “Ask”, each time
you play a video your iPod prompts you to specify
whether to output it to a TV.
DC IN
C
Connect the supplied AC adapter (PS-M1628) to this
jack. Then, connect the connector of the power cord
set to the AC adapter.
After all other connections are complete, connect
the power cord's plug to an AC wall socket.
Use the supplied AC adapter (PS-M1628). Do not
use any AC adapter other than the one included
with this unit.
Be sure to connect the power cord to an AC outlet
which supplies the correct voltage.
AUDIO jacks
D
Analog 2-channel audio signal is input from these
jacks. Connect a portable audio player using the
supplied RCA pin-stereo mini plug cable.
Make sure to connect:
White plug e White jack (L: left channel)
Red plug e Red jack (R: right channel)
< When using the headphones jack of the component,
if you do not adjust its volume, you might not hear
any sound from SR-80iDAB.
< Turning the volume of the connected component
up too high might cause the sound from SR-80iDAB
to be distorted. In this case, reduce the volume of
the component until the distortion stops and then
adjust the volume level of SR-80iDAB to a comfortable
listening level.
DAB/FM antenna
E
Extend the antenna into a “T” shape, find the best
position for reception and attach it to a window frame
or wall with thumbtacks or the like. This antenna may
need to be repositioned if you move your unit to a
new location.
< For DAB reception, you can check the antenna
adjustment or positioning for the best reception by
viewing the signal strength on the display (page 25).
< If you are not going to use the unit for some time,
disconnect the power cord from the wall socket.
7
Remote Control Unit
The provided remote control unit allows the unit to be
operated from a distance.
When operating the remote control unit, point it towards
the remote sensor on the front panel of the unit.
< Even if the remote control unit is operated within the
effective range (16ft / 5 m), remote control operation
may be impossible if there are any obstacles between
the unit and the remote control.
< If the remote control unit is operated near other
products which generate infrared rays, or if other
remote control devices using infrared rays are used
near the unit, it may operate incorrectly. Conversely, the
other products may operate incorrectly.
Battery installation
Battery Precautions
Misuse of batteries could cause them to rupture or leak
leading to fire, injury or the staining of nearby things. Please
read and observe the following precautions carefully.
< Be sure to insert the battery with the positive “+” and
negative “ - ” polarities correctly positioned.
< If the battery leaks, wipe away the leakage inside the
battery compartment and replace the battery with a
new one.
< If the remote control unit is not to be used for a long
time (more than a month), remove the battery from the
remote control unit to prevent it from being exhausted.
< Do not use any batteries other than those specified.
< Do not heat or disassemble batteries. Never throw them
in fire or water.
< Do not carry or store batteries with other metallic
objects. The batteries could short circuit, leak or
explode.
Remove the battery compartment cover.
1
Put the lithium-ion battery (CR2025, 3 V) in with the “+”
2
side up.
Close the cover.
3
Battery replacement
If the distance required between the remote control unit
and main unit decreases, the battery is exhausted. In this
case, replace the battery with a new one.
< For information about the collection of batteries, please
contact your local municipality, your waste disposal
service or the place where you purchased them.
8
Identifying the Parts (Main Unit)
A
Standby/On (
A
Press this button to turn the unit on and put it into
standby.
ECO POWER mode
To save energy, the unit turns to the ECO POWER
mode in the following cases:
< If no iPod or iPhone is inserted in the dock, and
three minutes have passed since power has
been set to standby
< If no iPod or iPhone is inserted in the dock
and no operation has been conducted for
18 minutes when the power is ON and the
source is set to “iPod” or “USB”
< If no iPod or iPhone is inserted in the dock,
pressing the Standby/On (¤) button for more
than 3 seconds when the power is in standby
When the unit is in ECO POWER mode, ECO POWER
indicator lights and nothing appears on the display.
In ECO POWER mode, press the Standby/On (¤)
button to turn the unit on.
Play/Pause (y/9)
B
When the source is “iPod” or “USB”, press this button to
start or pause playback.
Stop (8)
C
When the source is “USB”, press this button to stop
playback.
To p
¤
B
C
J J
)
D
F
G
H
I
FUNCTION
D
Press this button to select a source.
VOLUME (
E
Press these buttons to adjust the volume level.
iPod/iPhone dock
F
Insert an iPod/iPhone into this dock.
< Before connecting the iPod/iPhone to the dock set
the iPod/iPhone “power on”. If the iPod/iPhone is
connected to the dock with the “power off” the
playback may not start correctly.
To prevent dust from accumulating on the dock
connector, set the supplied dock cover when it is not
being used.
Display
G
Displays the clock, current source, DAB broadcast
information, etc.
Remote sensor
H
When operating the remote control unit, point it
towards here.
ECO POWER indicator
I
Lights when the unit is in ECO POWER mode.
Speakers (Stereo)
J
– / +
)
E
ENGLISH
9
b
d
e
g
h
k
m
Identifying the Parts (Remote Control Unit)
a
STANDBY/ON (
Press this button to turn the unit on and put it into
standby.
ECO POWER mode
To save energy, the unit turns to the ECO POWER
a
c
n
o
p
q
f
r
i
s
j
l
t
u
mode in the following cases:
< If no iPod or iPhone is inserted in the dock, and
three minutes have passed since power has
been set to standby
< If no iPod or iPhone is inserted in the dock
and no operation has been conducted for
18 minutes when the power is ON and the
source is set to “iPod” or “USB”
< If no iPod or iPhone is inserted in the dock,
pressing the Standby/On (¤) button for more
than 3 seconds when the power is in standby
When the unit is in ECO POWER mode, ECO POWER
indicator lights and nothing appears on the display.
In ECO POWER mode, press the Standby/On (¤)
button to turn the unit on.
b
FUNCTION
Press this button to select a source.
c
SNOOZE/DIMMER
Press this button to change the brightness of the
display.
After the wakeup timer on time is reached, press this
button to turn the unit to standby (off ) for 6 minutes.
¤
)
To simplify explanations, instructions in this manual
might refer to the main unit or remote control unit only.
In such cases, the same controls on the remote control
and main unit will operate similarly.
10
d
ALARM 1, 2
Hold down these buttons for more than 2 seconds to
enter the wakeup timer setting mode (page 32).
After setting the wake up timer, press these buttons
briefly to display the setting one by one.
These buttons are also used to turn the wake up timer
function on and off.
e
RDS/INFO/Shuffle (½)
When the source is “iPod” or “USB”, press this button to
to turn on and off the shuffle playback.
In DAB mode, use this button to choose the type of
information displayed.
In FM mode, use this button to select an RDS (Radio
Data System) mode.
f
AUTO SCAN/Repeat (¼)
When the source is “iPod” or “USB”, press this button to
change the repeat setting.
When the source is “DAB” press this button for more
than 2 seconds to preset stations automatically.
g
MENU/DISPLAY
When the source is “iPod”, press this button to go back
to the previous iPod/iPhone menu. This button has
the same functions as its iPod counterpart.
n
BAND
Press this button to select “DAB” or “FM”.
o
FM MODE
When the source is “FM”, press this button to select
stereo or mono.
p
SLEEP
Press this button to select the sleep timer setting
(page 34).
When the source is “DAB”, press this button to select
the desired menu.
When the source is “USB”, press this button to display
the file information.
h
Play/Pause (y/J)
When the source is “iPod” or “USB”, press this button to
start or pause playback.
i
Stop (8)
When the source is “USB”, press this button to stop
playback.
j
PRESET/SCROLL (j/k)
When the source is “iPod”, press these buttons to scroll
up and down in an iPod/iPhone menu. These buttons
have the same functions as the Click Wheel of iPod.
When the source is “USB”, press these buttons to
select a folder.
When the source is “DAB” or “FM”, press these buttons
to select a preset station.
k
BASS
Use this button and the VOLUME ( +/ – ) buttons to
adjust the level of low frequency sound (page 14).
l
TREBLE
Use this button and the VOLUME ( +/ – ) buttons to
adjust the level of high frequency sound (page 14).
m
CLOCK ADJ/TIME
When the unit is in standby, use this button to set the
clock (page 12).
q
MEMORY
When the source is “USB”, use this button to program
files (page 21).
When the source is “DAB” or “FM”, use this button to
preset stations manually (page 24).
r
TUNING/Skip (.//)
When the source is “iPod” or “USB”, press these buttons
to skip to the next or previous song/file. Hold down
these buttons to search for a specific part of a song/
file.
In DAB mode, use these buttons to select a station.
In FM mode, use this button to tune in a station.
When the source is “DAB” or “FM”, press these buttons
to tune in a station. Hold down these buttons for
more than 2 seconds to start the automatic tuning.
s
SELECT
When the source is “iPod”, press this button to confirm
selection in an iPod/iPhone menu.
This button is equivalent to the center button of iPod.
In DAB mode, use this button to confirm selection in
menus.
VOLUME (
t
Press these buttons to adjust the volume level.
u
MUTING
Press this button to mute the sound. Press this button
again to restore the sound.
– / +
)
When the source is “USB”, “DAB” or “FM”, press this
button to display the clock for 5 seconds.
11
Setting the Clock
Set the clock when you connect the power cord into the
wall socket and turn on the unit for the first time.
If the unit is on, press the STANDBY/ON (¤ )
1
button to turn it off.
Press and hold the CLOCK ADJ button for more
2
than 3 seconds.
Repeat step 4 to set “minute”, “year”, “month”
5
and “day”.
After “day” is set, the clock starts from 00 seconds.
Example:
Displaying the clock
When the source is “USB”, “DAB” or “FM”, press the
TIME button to display the clock for 5 seconds.
“12 H” or “24 H” blinks. If you want to change the hour
mode, press the Skip (.//) button.
o If no button is pressed for more than 10 seconds, the
clock setting will end automatically.
Press the CLOCK ADJ button again.
3
The hour value “00” blinks.
Press the Skip (.//) button repeatedly to
4
set the current hour, then press the CLOCK ADJ
button.
The minute value “00” blinks.
12
Basic Operation (1)
This chapter describes the basic operation which is
available in every sound source.
Press the Standby/On (¤ ) button to turn the
1
unit on.
< The unit turns on with the source that was last
selected.
If the BAND button is pressed the unit will turn on
and DAB or FM will be selected.
Press the FUNCTION button to select a source.
2
Play the source, and adjust the volume using
3
the VOLUME ( + / – ) buttons.
The volume can be adjusted from MIN (0) to MAX
(40).
Dimmer
Each time the FUNCTION button is pressed, the
sound source changes as follows:
iPod(or iPhone)
DAB
FM
USB
(External source)
AUX
o To listen to an external component connected to the
AUDIO jacks, select “AUX”.
o You can also use the BAND button to select directly
“DAB” or “FM”.
Press the DIMMER button to dim the display light.
Press the DIMMER button again to restore the display to
its normal brightness.
o This function will be cancelled when the STANDBY/ON
(¤) button is pressed.
Muting
You can mute the sound temporarily.
Press the MUTING button.
Press the MUTING button again to restore the sound.
o “Muting” lights on the display while muting is engaged.
o If you change the volume level or sound source when
the sound is muted, muting is cancelled.
13
Basic Operation (2)
iPod/iPhone
Tone Control
You can change the bass and treble sound between “–4”
to “+4”.
Press the BASS or TREBLE button.
1
To adjust the level of low frequency sound range,
press the BASS button.
To adjust the level of high frequency sound range,
press the TREBLE button.
Within 3 seconds, press the VOLUME ( + / – )
2
buttons to change the setting.
iPod/iPhone compatibility
The following iPod/iPhone models can be connected to
and used with this unit:
iPhone 4
iPhone 3GS
iPhone 3G
iPhone
iPod touch (1st, 2nd and 3rd generation)
iPod classic
iPod nano (2nd, 3rd, 4th and 5th generation)
Dock adapter
When you use an iPhone
e Set the supplied iPhone dock adapter into the dock.
iPhone 4
iPhone 3G/3GS
When you use other than iPhone
e Use the dock adapter that came with the iPod or a
dock adapter purchased from the Apple Store as an
optional accessory.
iPhone 4
iPhone 3GS
iPhone 3G
iPhone
The level can be adjusted from “–4” to “+4”
The higher the treble number, the more the high
frequencies are emphasized.
The higher the bass number, the more the low
frequencies are emphasized.
14
Setting the adapter into the dock
Fit the front edge of the adapter into the dock, and then
press the back edge of the adapter onto the dock until
a slight “click” is heard indicating the adapter is inserted
correctly.
1
2
o To remove the adapter, hold its left and right sides and
gently pull it up.
Compatible iPod/iPhone software
In case your iPod/iPhone will not work with the SR-80iDAB
or with the remote control unit, software update may solve
the problem.
Listening to an iPod/iPhone (1)
Press the FUNCTION button repeatedly to
1
select “iPod”.
Stopping playback temporarily
(Pause mode)
Connect an iPod/iPhone to the dock.
2
When the iPod/iPhone is detected, “AUTHENTICATE”
will be displayed.
And playback starts from the play list of iPod/iPhone.
If an iPod/iPhone is already connected, press the
FUNCTION button repeatedly to select “iPod”.
Playback starts automatically.
o Before connecting the iPod/iPhone to the dock set
the iPod/iPhone “power on”. If the iPod/iPhone is
connected to the dock with the “power off” the
playback may not start correctly.
o The battery of an iPod/iPhone is recharged to the
full whenever the iPod/iPhone is docked and the
SR-80iDAB is connected to the AC power supply.
o When you turn off the unit with an iPod/iPhone
connected to the dock, the clock and “CHARGING”
appears on the display and the iPod/iPhone battery is
charged.
o If headphones are plugged into the iPod/iPhone, no
sound comes out from the headphones.
o The video signal from a connected iPod/iPhone can
be output from the VIDEO OUT jack of the SR-80iDAB
(pages 6 - 7
B
).
Press the Play/Pause (y/9 ) button during playback.
Playback stops at the current position.
To resume playback, press the Play/Pause (y/9)
button again.
Skipping to the next or previous song
During playback, press the Skip (.//) button
repeatedly until you find the desired song.
The selected song will be played from the beginning.
< If the . button is pressed once during playback, the
current song will be played from the beginning.
Searching for a part of a song
Hold down
During playback, hold down the Skip (.//)
button to search a part of a song.
Release it when the part you want to listen to is found.
15
Listening to an iPod/iPhone (2)
Activating the repeat mode
Press the Repeat ( ) button to change the repeat
mode.
Each time the Repeat (
setting of iPod/iPhone is changed as follows:
< When the iPod/iPhone is set to repeat one song, the
icon appears on the display of iPod/iPhone.
< When the iPod/iPhone is set to repeat all songs, the
icon appears on the display of iPod/iPhone.
) button is pressed, the repeat
AllOne O
Returning to the previous iPod/iPhone
menu
Press the MENU button.
This button has the same functions as its iPod
counterpart.
Selecting an iPod/iPhone menu item
Activating the shuffle mode
Press the Shuffle ( ) button to change the shuffle
mode.
Each time the Shuffle (
setting of iPod/iPhone is changed as follows:
< When iPod/iPhone is set to shuffle songs or albums, the
icon appears on the display of iPod/iPhone.
) button is pressed, the shuffle
AlbumsSongs O
Press the SCROLL (j/k) buttons to select the
menu item you want, then press the SELECT button.
16
USB Flash Memory
MP3/WMA
CAUTION
Never turn the unit off or disconnect a USB flash
memory when it is being accessed.
Doing so could damage the SR-80iDAB and the
connected USB flash memory.
< Do not use a device that has a maximum current
consumption of 100 mA or more.
< Do not use a device that has security functions or other
special functions.
< Do not use a device that is divided into two or more
partitions.
< A USB hub cannot be used to connect USB devices to
this unit.
USB storage devices that can be played on this unit
o Only USB flash memory can be used. Do NOT use a
high-capacity USB hard disc with this unit.
< Some flash memory players that charge from a USB
terminal cannot be used for playback.
< Hard disk drives, CD/DVD drives, and other devices
connected via USB cannot be used.
< This unit cannot copy or move files.
< Play able for mat s: FAT12 FAT16, FAT32
< Depending on the conditions of a USB flash memory,
this unit might not be able to play the files on it or
skipping might occur.
< NTFS, HFS and HFS+ formats cannot be used.
< Max. number of playable folders: 200
< Max. number of playable files: 999
This unit can play MP3/WMA files recorded on a USB flash
memory. Refer the instruction manual of the software
when making an MP3 or a WMA file using a PC.
Playable file format
MP3 (extension “.mp3”)
Bit rate: 8 kbps to 320 kbps
Sampling ra
WMA (extension “.wma”)
Bit rate: 8 kbps to 320 kbps
Sampling rate:
< This unit cannot play back files that are 2 GB or larger.
< This unit cannot play copyright protected files such as
DRM (Digital Right Management).
< This unit cannot play back files made with VBR (variable
bit rate).
File information display
The display of this unit can only show single-byte letters
and numbers.
< If the file information contains Japanese, Chinese or
other double-byte characters, playback is possible but
the name will not be shown correctly.
Cautions when preparing MP3/WMA files using a
computer or other device
te: 16, 22.05, 24, 32, 44.1 or 48 kHz
16, 22.05, 24, 32, 44.1 or 48 kHz
< Always include the extension in the file name. This unit
recognizes MP3 files by their “.mp3”, and WMA files by
their “.wma” file extensions.
< Carefully read the manual for the software that you are
using when you create an MP3/WMA file.
Files that are unplayable or only partially playable
< Files without extensions cannot be played. Files that are
not in the MP3/WMA format cannot be played even if
they have extensions.
< Variable bit rate files might not play back correctly.
< If the disc/USB flash memory contains more than
999 files or 200 folders, this unit can not play it back
correctly.
17
Listening to a USB Flash Memory (1)
Do not use a high-capacity USB hard discs. Only
USB flash memory can be used.
Press the FUNCTION button repeatedly to
1
select “USB”.
< When no USB flash memory is connected, “No USB”
appears on the display.
Plug your USB flash memory into the USB port.
2
Back
Display during playback
Example:
File number
Folder number
Elapsed time of the current le
Display when playback is stopped
Example:
File type
Stopping playback temporarily
(Pause mode)
< It takes a few seconds for the unit to load the USB
flash memory.
< You can reverse steps
Press the Play/Pause (y/J) button to start
3
playback.
Playback starts from the first file on the USB flash
memory.
< MP3/WMA files that are not placed in folders are
automatically put in the “01 (root)” folder. Playback
starts from the first file in the “01 (root)” folder.
1
and 2 .
Press the Play/Pause (y/9 ) button during playback.
Playback stops at the current position.
To resume playback, press the Play/Pause (y/J) button
again.
Stopping playback
Press the Stop (8) button.
18
Skipping to the next or previous file
T
Displaying MP3 information
During playback, press the Skip (.//) button
repeatedly until you find the desired file.
The selected file will be played from the beginning.
< If the . button is pressed once during playback, the
current file will be played from the beginning.
< During programmed playback, the next or previous file
in the program is played.
Searching for a part of a file
Hold down
During playback, hold down the Skip (.//)
button to search a part of a file.
Release it when the part you want to listen to is found.
During playback of an MP3 file, press the DISPLAY
button. The information about the current file is
displayed as follows:
Folder name/File name (scrolling)
itle (scrolling)
Artist (scrolling)
Album (scrolling)
(normal display)
o The first 30 characters of TITLE/ARTIST/ALBUM can be
displayed.
< The display of this unit can only show single-byte letters
and numbers. If the file information contains Japanese,
Chinese or other double-byte characters, playback is
possible but the name will not be shown correctly.
o “NO INFO” appears when there is no information.
o If the file information contains less than 16 characters,
the display does not scroll.
Selecting a folder
Press the SCROLL (j/k) buttons to skip to the next
or previous folder.
19
Listening to a USB Flash Memory (2)
Activating the repeat mode
Press the Repeat ( ) button to change the repeat
mode.
Each time the Repeat (
setting is changed as follows:
RP-1 (Repeat one file)
“RP-1” lights on the display.
The file being played will be played repeatedly.
RP-FLD (Repeat folder)
“RP-FLD” lights on the display.
All the files in the folder will be played repeatedly.
RP-ALL (Repeat all)
“RP-ALL” lights on the display.
All the files will be played repeatedly.
) button is pressed, the repeat
Activating the random mode
Press the Shuffle ( ) button to turn the random
mode on and off.
When the random mode is on, “Random” lights on the
display and the files will be played randomly.
< If the / button is pressed during random playback,
the next file will be randomly selected and played.
If the . button is pressed during random playback,
the currently played file will be played from the
beginning.
If the . button is pressed twice or more, another file
will be randomly selected and played.
< Repeat playback is not available during random
playback.
< Random playback does not work during programmed
playback.
o If any of the following buttons are pressed, random
mode will be canceled:
STANDBY/ON (¤), Stop (8), FUNCTION, BAND
o If any of the following buttons are pressed, repeat mode
will be canceled:
STANDBY/ON (¤), Stop (8), FUNCTION, BAND
20

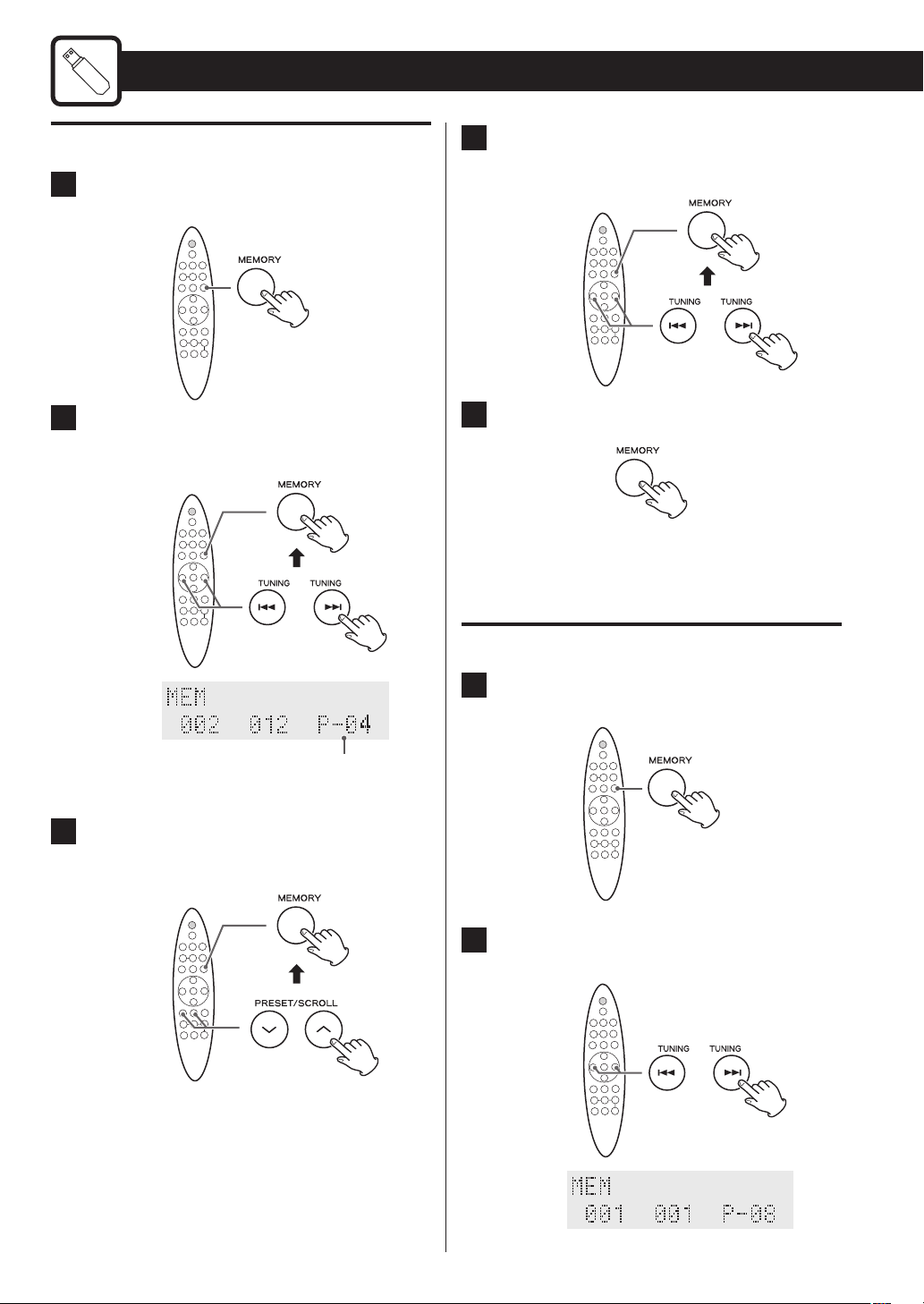

USB Programmed Playback (1)
Up to 32 files can be programmed in the desired order.
Press the FUNCTION button repeatedly to
1
select “USB”.
Press the MEMORY button when playback
2
stops.
Press the MEMORY button again.
5
The selected file is programmed.
< If the MEMORY button is not pressed for 2 seconds
after selecting file, the selected file will be
programmed automatically.
“MEM” (memory) indicator lights on the display.
Example:
Folder number Program number
< To cancel the program mode, press the Stop (H )
button.
Press the SCROLL (
3
folder, then press the MEMORY button.
< MP3/WMA files that are not placed in folders are put
in the “01” (root) folder.
Press the Skip (.//) buttons to select a
4
file, then press the MEMORY button.
File number
) buttons to select a
j/k
Example:
Folder number Program number
< Repeat steps 3 and 5 to program more files.
When the selection of files is completed, press
6
the Play/Pause (G/J) button to start program
playback.
< To stop program playback, press the Stop (H) button.
< When the playback of all the programmed files has
finished, or if you press the Stop (H) button, the
“MEM” indicator will go off and programmed playback
will be cancelled. Still the program is retained in
memory. You can return to the programmed playback
by pressing the MEMORY button and the Play/Pause
(G/J) button.
< You can use Skip (.// ) buttons during
program playback to select and play other files in the
program.
< Random playback does not work during programmed
playback.
File number
21
USB Programmed Playback (2)
Overwriting part of the program
When playback is stopped, press the MEMORY
1
button to enter programming mode.
Select the program number that you want to
2
change using the Skip (.//) buttons, and
then press the MEMORY button.
Select the file you want to add using the Skip
4
(
.//
MEMORY button.
Press the MEMORY button again.
5
The selected file is added to the program, replacing
the file that had been at that program number
before.
) buttons, and then press the
Example:
Program number
to be changed
Select the folder that contains the file you want
3
to add using the SCROLL (j/k) buttons, and
then press the MEMORY button.
Adding a file to the end of the program
When playback is stopped, press the MEMORY
1
button to enter programming mode.
Press the Skip (.//) buttons repeatedly
2
until “001 (folder/file number)” appears.
22
Example:
Select the folder that contains the file you want
3
to add using the SCROLL (j/k) buttons, and
then press the MEMORY button.
Select the file you want to add using the Skip
4
(.//) buttons, and then press the
MEMORY button.
Press the Skip (.//) buttons repeatedly to
2
display programme order.
The folder/file number and program number will be
shown one by one.
Clearing the program
Press the MEMORY button when playback
1
stops.
Press the MEMORY button again.
5
The selected file is added to the end of the program.
Checking the programme order
When playback is stopped, press the MEMORY
1
button.
Press and hold the Stop button for more than
2
2 seconds.
Hold down
more than 2 sec.
The contents of the program are cleared.
o If any of the following buttons are pressed, the
programmed contents will also be cleared:
STANDBY/ON (¤ ), FUNCTION, BAND
o If the unit is disconnected from the power supply, the
programmed contents will be cleared.
23
Listening to the DAB Radio
When the unit is switched to DAB mode for the first
time, the automatic tuning process will start and create a
channel list. (Autoscan)
< After the first time, when the unit is switched to DAB
mode, the last station listened to will be tuned in again.
Press the FUNCTION button repeatedly to
1
select “FM”.
< You can also select “DAB” by pressing the BAND
button once or twice.
< If no broadcast services are found, “NO STATION” is
displayed.
Select the station you want to listen to using
2
the TUNIING (.//) buttons.
Example:
Currently tuned station
When you find the channel, press the SELECT
3
button.
When the scanning process has finished, the DLS
(Dynamic Label Segment, page 25) appears on the
second line of the display.
< If you do not press the SELECT button within
10 seconds, the display will return to the currently
tuned station.
< If you move the unit to a new area or you want to
check to see if there are new channels available
in your area, you can scan to find new channels
automatically by using the automatic scanning
function.
Auto scan
You can scan DAB bands to find new channels.
Press and hold the AUTO SCAN button for longer than 2
seconds while DAB is selected as the source.
Hold down
more than 2 sec.
24
Setting the DAB Display (1)
You can choose the type of information displayed in the
second line of the display while listening to DAB.
Each time the INFO button is pressed the
1
information changes as follows.
1 DLS (Dynamic Label Segment)
2 Signal Strength
3 Programme type
4 Ensemble name
5 Date and time
6 Channel and frequency
7 Bitrate
8 Signal error rate
DLS
The Dynamic Label Segment (DLS) is a scrolling
text label supplied by the radio station. It may be
information about music titles or details regarding the
programme or station.
Signal strength
You can check the signal strength of the current station.
Programme type
This is a description of the type of music broadcast by
the radio station such as Pop, Rock or Classical music.
Ensemble name
This displays the name of the enesemble that is
broadcasting the programme.
Date and time
This displays the current date and time.
Channel and frequency
This displays the channel and frequency of the currently
playing broadcast.
Continue to the next page w
25
Setting the DAB Display (2) Using the DAB Menu (1)
Bitrate
The bitrate and sound mode of the broadcast currently
being received is displayed.
Signal error rate
This displays the digital bit error rate (0-100) of the
currently tuned channel. The lower the figure the better
the quality of the received broadcast.
DAB CT (Clock Time) mode
The CT data is supplied by the DAB station and should
always be accurate. When you set the DAB CT mode to
on, the clock setting of the SR-80iDAB will be adjusted
automatically according to this data. Therefore, if you
tune in a DAB station that is broadcasting incorrect CT
data, the clock might be innacurately adjusted, and that
could eventually affect timer operation.
In DAB mode, use the DAB menu to access various
functions.
In DAB mode, press the DISPLAY button.
1
Select the desired menu on the second line of
2
the display using the TUNING buttons
(.//).
< The DAB CT mode is set to on in the factory default
setting. When DAB CT is set to on, RDS CT is off.
Turning the DAB CT mode on or off
1. In DAB mode, press and hold the INFO button for
more than 2 seconds.
The DAB CT menu appears.
2. Press the TUNING (. or /) button to select
on or off.
The options change as follows.
1 Manual tune
2 Full scan(Auto scan)
3 DRC(Dynamic Range Control)
4 SW version
Manual tune
This option allows you to manually tune in a channel and
view a continuously updated indication of the strength
of the signal. This could be useful when adjusting or
positioning an antenna for better reception.
In DAB menu mode, select “Manual tune”
1
(page 27).
26
2
Press the SELECT button.
3
Select the station you want to listen to using
the TUNING buttons (.//).
Example:
6
Press the SELECT button to cancel manual tune
and resume normal reception.
Full scan(Auto scan)
The unit will scan the DAB bands between 5A to 13F and
add the channels found to the channel list.
In DAB menu mode, select “Full scan” (page 26).
1
Press the SELECT button.
2
Currently tuned station
4
When you find the channel, press the SELECT
button.
The signal strength indicator appears.
5
While viewing the indicator, adjust or
the antenna until the best reception is
indicated.
reposition
< You can also activate the “Auto scan” by using the
AUTO SCAN button (page 24).
Continue to the next page w
27
Using the DAB Menu (2)
DRC
Use this option to set the Dynamic Range Control (DRC)
value to be applied to received broadcasts. DRC is used to
reduce the range between high and low volumes of audio
and is sometimes applied at the broadcast source. Pop
music might have a high value of DRC applied, appropriate
for constantly high listening levels, while classical music
broadcasts might have no DRC applied to allow the listener
to hear the full dynamic range of the source volume.
3
Select the desired level of DRC using the
TUNING buttons (.//) and then press the
SELECT button.
In DAB menu mode, select “DRC” (page
1
2
Press the SELECT button.
Current value mark
The DRC value appears.
26).
You can apply one of three DRC values.
DRC off
DRC low
DRC high
SW version (Software version)
Press the SELECT button again.
28
Example:
The version number of the installed software is
displayed.
< This option shows the version number of the
installed software. This is for information only and no
adjustment is possible.

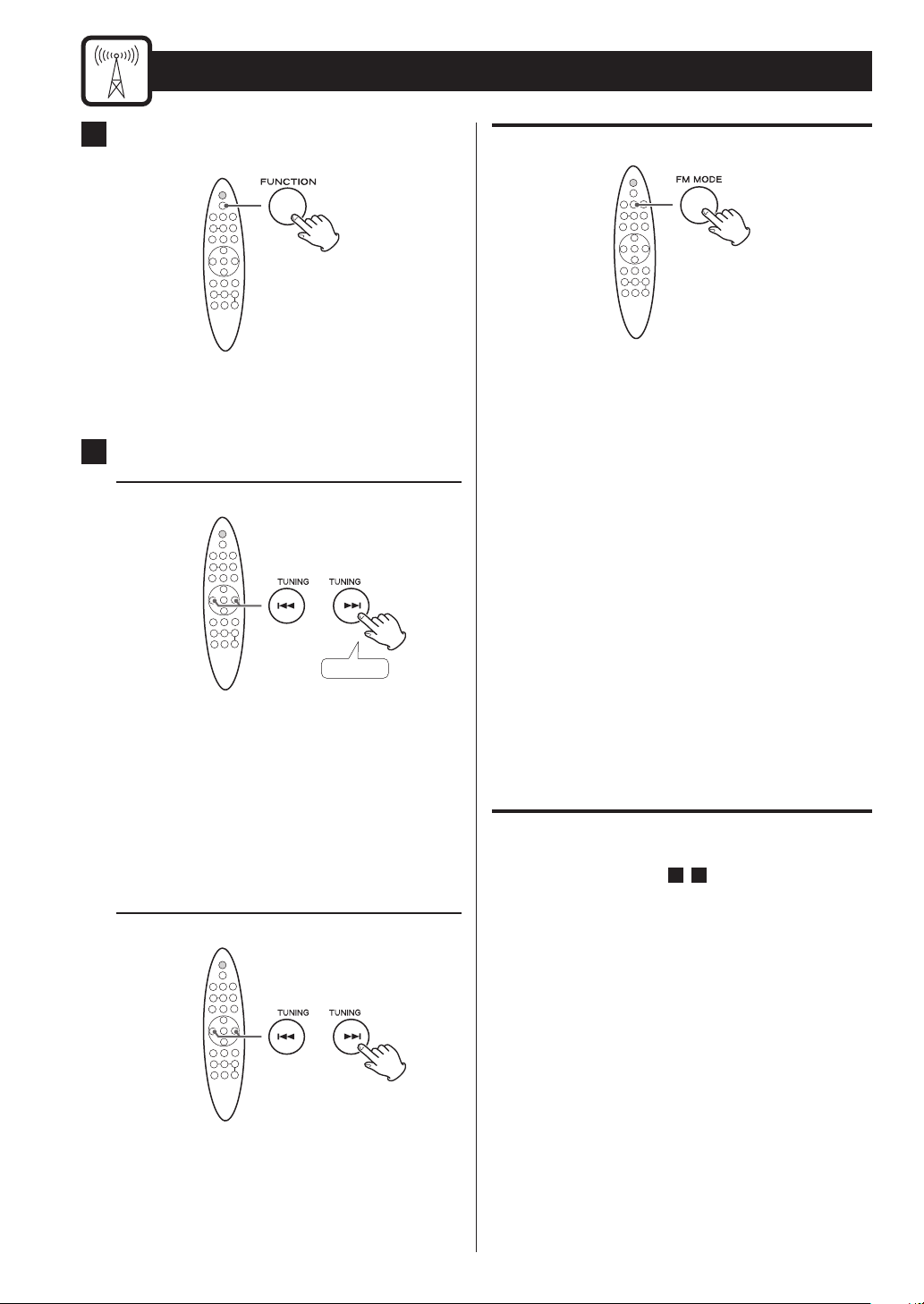

Listening to the FM Radio
Press the FUNCTION button repeatedly to
1
select “FM”.
FM Mode
< You can also select “FM” by pressing the BAND button
once or twice.
Select the station you want to listen to.
2
Automatic tuning
Hold down
Hold down the TUNING button and release it
when the automatic tuning process starts. When
a station is tuned in, the tuning process will stop
automatically.
Repeat this step until the station you want to listen to
is found.
< To stop the automatic tuning process, press the
TUNING button briefly.
When the source is “FM”, pressing the FM MODE
button alternates between stereo mode and mono
mode.
Stereo
“Stereo” appears on the display for a few seconds, and
then it will turn to “ST”.
When a program is broadcast in stereo, you hear stereo
sound. When in monaural, you hear monaural sound.
< If the sound is distorted, the signal is not strong
enough for good stereo reception. In this case,
change to mono mode.
Mono
“Mono” appears on the display for a few seconds, and
then it will turn off
To compensate for weak FM stereo reception, select
this mode. Reception will now be forced into monaural,
reducing unwanted noise.
If the reception is poor
For the best reception, rotate the FM antenna until you get
stations clearly (pages 6 - 7
E
).
, F
Manual tuning
Press the TUNING button repeatedly.
The frequency changes by a fixed step.
Press repeatedly until the station you want to listen
to is found.
29
RDS (Radio Data System)
The Radio Data System (RDS) is a broadcasting service that
allows stations to send additional information along with
the regular radio programme signal.
Tune in an FM RDS station (page 29).
1
Example:
PS (Programme Service name: FM station name)
appears on the first line of the display, and frequency
is displayed on the second line.
< When there is no PS data, frequency displayed on the
first line, and “NO PS” appears on the second line.
2
Press the RDS button.
PTY (Programme Type)
When you select PTY, the programme type will be
displayed.
If there is no PTY data, “NO PTY” will be displayed.
Example:
< When there is no PTY data, frequency displayed on the
first line, and “NO PTY” appears on the second line.
RT (Radio Text)
When you select RT, the news of stations composed of
up to 64 symbols will be displayed.
If there is no RT data, “NO RT” will be displayed.
Example:
< When there is no RT data, frequency displayed on the
first line, and “NO RT” appears on the second line.
CT (Clock Time)
This displays the current date and time.
Each press of the RDS button changes the second
line of the display:
1 Frequency
2 PTY (Programme Type)
3 RT (Radio Text)
4 CT (Clock Time)
Frequency
This displays the channel and frequency of the currently
receiving broadcast.
Example:
Example:
< When there is no CT data, frequency displayed on the
first line, and “NO CT” appears on the second line.
RDS CT (Clock Time) mode
The CT data is supplied by the RDS station and should
always be accurate. When you set the RDS CT mode
to on, the clock setting of the SR-80iDAB RDS will be
adjusted automatically according to this data. Therefore,
if you tune in a RDS station that is broadcasting incorrect
CT data, the clock might be innacurately adjusted, and
that could eventually affect timer operation.
< The RDS CT mode is set to off in the factory default
setting.
Turning the RDS CT mode on or off
1. In RDS mode, press and hold the INFO button for
more than 2 seconds.
The RDS CT menu appears.
2. Press the TUNING (. or /) button to select
on or off.
30
Preset Tuning
You can store up to 30 DAB and 30 FM stations.
Saving presets manually
Tune in to the station you want to store (see
1
previous page).
Press the MEMORY button.
2
The preset number blinks.
Example:
Preset number
Press the MEMORY button for longer than 2
4
seconds.
The tuned station is stored in the selected preset
number.
To store more stations, repeat steps 1 to 4 .
Selecting a preset station
Press the FUNCTION button repeatedly to
1
select “DAB” or “FM”.
< If no button is pressed for more than 6 seconds, the
preset setting will end automatically.
Select a preset channel to store the station by
3
pressing the PRESET/SCROLL (j/k) buttons.
< If no button is pressed for more than 6 seconds after
you select the preset number, the current station is
stored automatically.
Press the Scroll (j/k) buttons to select the
2
desired preset station.
31
Listening to an External Source
Wake Up Timer
See pages 6 - 7 “Connections”.
1
Connect a portable audio player to the AUDIO
jacks using the supplied RCA pin-stereo mini
plug cable
2
Press the FUNCTION button repeatedly to
select “AUX”.
3
Play the source, and adjust the volume using
the VOLUME buttons and the connected
portable audio player.
(page
s 6 - 7
D ).
The unit can be programmed to turn on and standby at a
specified time.
You can set the unit to play an iPod/iPhone, DAB/FM radio
or a USB flash memory.
You can also set two separate timers with ALARM 1 and
ALARM 2.
Setting the wake up timer
The procedures below are to set ALARM 1.
Follow similar steps to set ALARM 2.
o This operation is available in every sound source.
Press and hold the ALARM 1 button for more
1
than 2 seconds.
Hold down
more than 2 sec.
< When using the headphones jack of the component,
if you do not adjust its volume, you might not hear
any sound from SR-80iDAB.
< Turning the volume of the connected component up
too high might cause the sound from SR-80iDAB to
be distorted. In this case, reduce the volume of the
component until the distortion stops and then adjust
the volume level of SR-80iDAB to a comfortable
listening level.
Example:
“ON TIME” appears on the display.
The clock hour value and the wake up timer indicator
(
) blink.
o If no button is pressed for more than 10 seconds, the
wake up timer setting mode will be cancelled.
Press the Skip (.//) buttons to set the on
2
time (hour), and then press the ALARM 1
button.
32

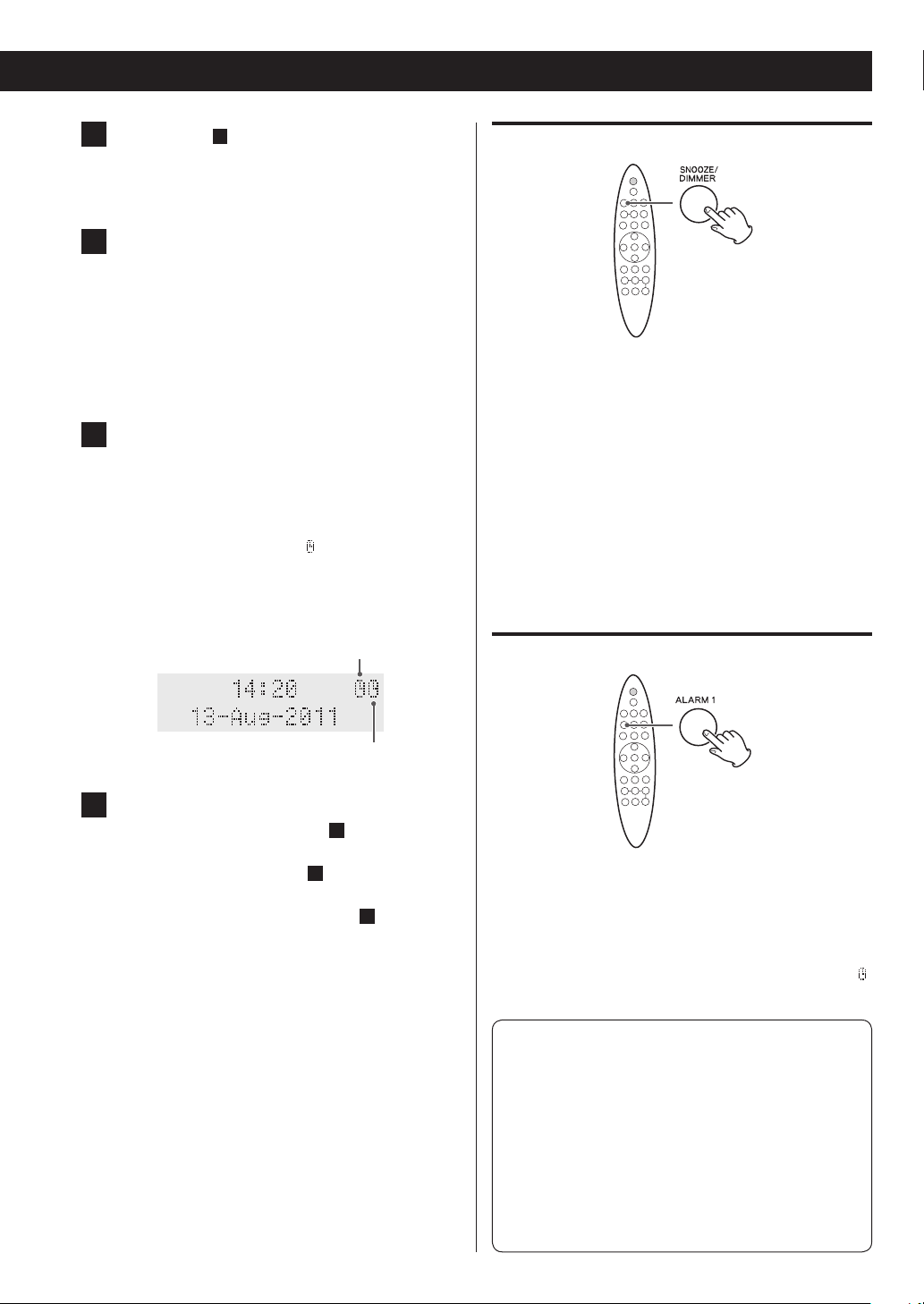

The minutes value blinks.
Repeat step 2 to set “on time (minute)”, “off
3
time (hour)”, and “off time (minute)”.
The sound source blinks.
Press the Skip (.//) buttons to select a
4
source (“iPod”, “DAB”, “FM” or “USB”), and then
press the ALARM 1 button.
The volume level value blinks.
Using the snooze function
< “AUX (External source)” cannot be selected as a
source.
Press the Skip (.//) buttons to set the
5
volume, and then press the ALARM 1 button.
< The volume cannot be set lower than 05.
The wake up timer indicator (
Setting the wake up timer is now completed and the
timer is turned on. The unit will turn on and standby
at the specified time every day.
Lights when ALARM 1 is activated
Lights when ALARM 2 is activated
Prepare the source.
6
If you selected “iPod” in step
iPhone to the dock.
If you selected “USB” in step
memory into the USB port
If you selected “DAB” or “FM” in step
station.
< If the source is set to “iPod” but no iPod/iPhone is set,
the FM radio will sound.
< If the source is set to “USB” but no USB flash memory
is set, the FM radio will sound.
< Playback volume will gradually increase up to your
set volume when the unit is turned on by the wake
up timer.
If both the ALARM 1 and the ALARM 2 are set to
the same “on time” and “off time”, “ERROR” will be
displayed.
If the “on time” of both ALARM 1 and ALARM 2 are set
to agree, ALARM 1 will be start at the “on time”.
) stops blinking.
4
, insert an iPod/
4
, plug your USB flash
4
, tune in to a
After the set time is reached, press the SNOOZE button
to turn the unit standby temporarily for 6 minutes.
o You can use this function repeatedly for up to 1 hour.
o When the snooze function is activated, “SNOOZE” lights
on the display.
o If either of the following buttons are pressed, snooze
mode will be canceled:
STANDBY/ON (¤), BAND, ALARM 1, ALARM 2
o When using the snooze function, the only buttons that
work are:
STANDBY/ON (¤), BAND, ALARM 1, ALARM 2
Turning on or off the wake up timer
Press the ALARM 1 or ALARM 2 button to turn the
wake up timer on/off.
o When the wake up timer is turned on, the timer settings
are displayed one by one.
o When the wake up timer is turned off, the indicator (
disappears from the display.
Note for use with an iPod touch
(When using SR-80iDAB wake up timer with an iPod
touch as the source)
< If you turn the power of the iPod touch off (“Slide to power
off”), you cannot use it with the wake up timer even if it
is docked in this unit. To use the wake up timer with an
iPod touch as the source, do not select “Slide to power off”
on the iPod touch. (The screen of the iPod touch can be
turned off without any problem.)
< If Video is displayed on the iPod touch’s screen, you cannot
use it with the wake up timer even if it is docked in this unit.
To use the wake up timer with an iPod touch as the source,
select any item other than Video on the iPod touch.
33
)

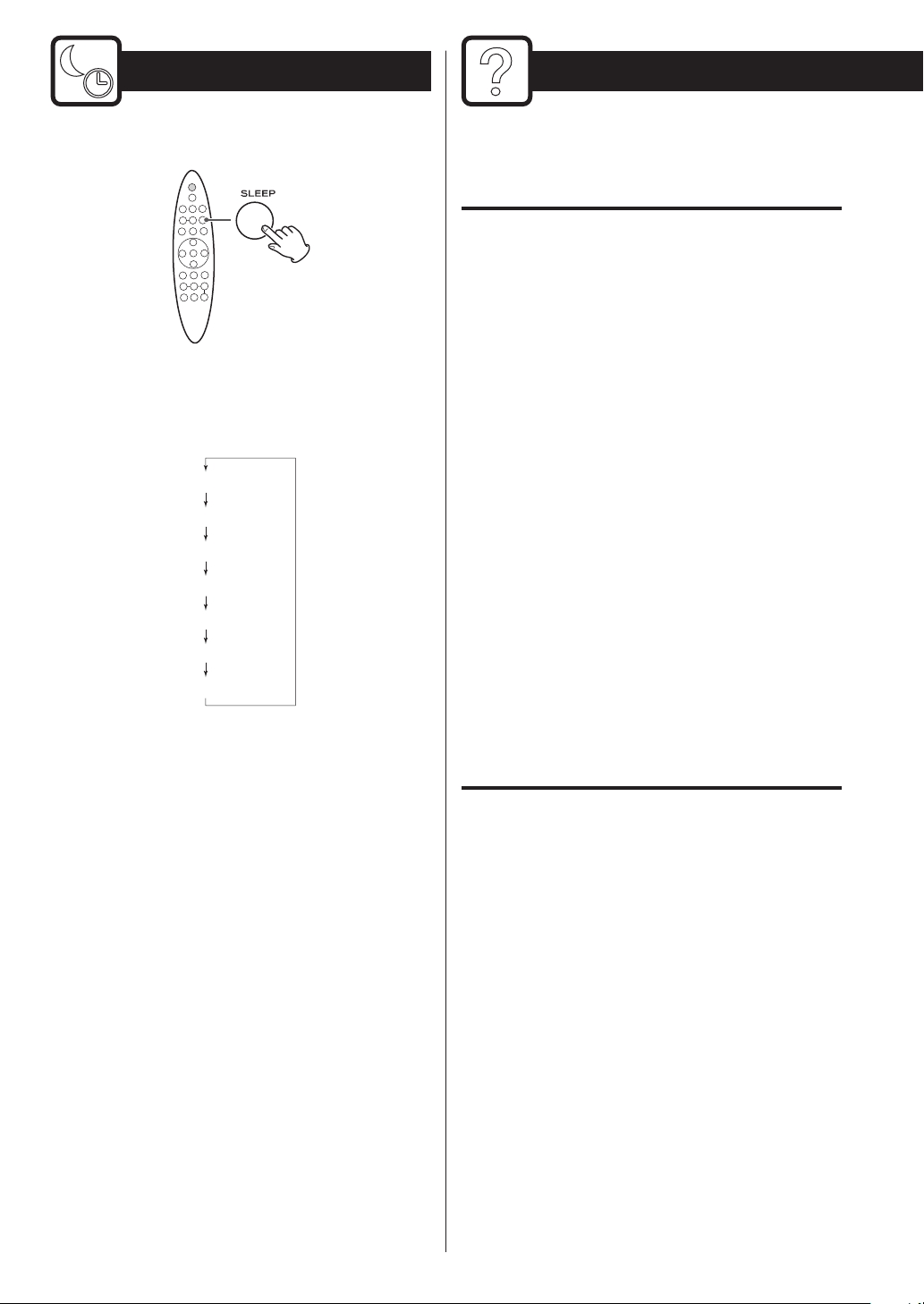

Sleep Timer
Troubleshooting
You can set the sleep timer so that the unit turns itself off
after a specified amount of time.
Each time the SLEEP button is pressed, the time is
changed at 15 minute intervals.
The unit will automatically will be turned off when the
time elapses.
90 min
75 min
60 min
45 min
30 min
15 min
OFF
o During the sleep timer is activated, the display is
dimmed and “S” lights.
< If you want to check the remaining time, press the
SLEEP button once. The remaining time is displayed for
a few seconds.
During the remaining time display, if you press the
SLEEP button again, the sleep timer will be canceled.
o This operation is available in every sound source.
If you a have problem with your system, read this page and
try to solve the problem yourself before calling your dealer
or a TEAC service Center.
General
No power
e Check the connection to the AC power supply. Check
whether or not the AC source is a switched socket. If it
is, confirm that the switch is turned on.
e Confirm that there is power to the AC wall socket by
plugging another item such as a lamp or fan into it.
No sound from the speakers.
e Select the source by pressing the FUNCTION button.
e Adjust the volume.
e If “Muting” lights, press the MUTING button.
The sound is noisy.
e The unit is too close to a TV or similar device. Relocate
it away from the interfering device or turn it off.
The remote control does not work.
e If the battery is exhausted, replace it with a new one.
e Use the remote control unit within the operation
range (13ft / 4 m) and point it at the remote sensor on
the front panel.
e Remove obstacles between the remote control unit
and the main unit.
e If a bright light is near the unit, turn it off.
iPod/iPhone Player
Cannot connect the iPod/iPhone.
e Remove dust or obstacles from the dock connector
of SR-80iDAB and the iPod/iPhone, then connect the
iPod/iPhone again.
34
Cannot operate the iPod/iPhone.
e Release the iPod/iPhone HOLD switch.
Cannot play.
e Remove the iPod/iPhone from the dock, wait a few
seconds, then connect it again.
e A software update might solve the problem. Visit the
Apple website and download the latest iPod/iPhone
software.
e Before connecting the iPod/iPhone to the dock set
the iPod/iPhone “power on”. If the iPod/iPhone is
connected to the dock with the “power off” the
playback may not start correctly.
USB Player
Will not play.
e Confirm that there are MP3/WMA files on the USB
flash memory.
FM Radio
Cannot listen to any station, or signal is too weak.
e Tune in the station properly.
e Reposition the DAB/FM antenna for the best reception
position.
MP3/WMA
Cannot play.
e Check the MP3/WMA file extension. This unit
recognizes MP3 files by their “.mp3”, and WMA files by
their “.wma” file extensions.
e MP3/WMA file data might have been corrupted.
e The file data format might not be an MP3/WMA
format.
e For more information about playable file formats, see
page 17.
Cannot display the file information correctly.
e ID3 tag information for the file is missing. Edit the title,
artist, and album information of the file on a PC using
a suitable application.
e If the file information contains double-byte characters,
playback is possible but the name will not be shown
correctly.
DAB tuner
No sound.
e Ensure that the unit has been able to locate a DAB
station.
When the source is “FM”, though the broadcast is
stereo, it sounds monaural.
e Press the FM MODE button.
If normal operation cannot be obtained, unplug
the power cord from the outlet and plug it again.
This resets the internal micro-computer which
can be disturbed during electrical storms, power
interruptions, etc.
“No Station” appears on the display.
e Confirm that a DAB broadcast is available in your area.
The procedure for automatic scanning on page 24.
Cannot listen to the selected station.
e Confirm that you have pressed the SELECT button
to listen to a selection. The station you are currently
listening to will be displayed on the first line of the
display, the second line will show other station options
as you scroll through the station order list. Press the
SELECT button to activate your selection.
A burbling sound is heard on some stations.
e A DAB system is able to produce quality audio from a
low level signal, but when the signal level is too low,
a “burbling” sound might be heard. To reduce this,
try repositioning your antenna to maximize signal
reception.
35
Specifications
Tuner Section
FM Frequency Range ...........87.5 MHz to 108.0 MHz
DAB Frequency Range ................Band III: 5A to 13F
(174.928 MHz to 239.200 MHz)
Amplifier Section
Output Power .................15 W + 15 W (THD 10 %)
Speaker System Section
Unit size .................................3” (76 mm) x 2
Impedance .....................................8 ohms
USB Section
USB bus-power output........................5 V, 0.5 A
Frequency response ............60 Hz to 20 KHz (±3 dB)
Signal-to-noise ratio ..............................70 dB
MP3/WMA
Playable MP3
Format.........................MPEG-1/2 Audio Layer-3
Extension........................................“.mp3”
Bit rate: .............................8 kbps to 320 kbps
Sampling rate: ...........16, 22.05, 24, 32, 44.1 or 48 kHz
Playable WMA
Format................ Windows Media Audio Standard
(DRM not compatible)
Extension....................................... “.wma”
Bit rate: .............................8 kbps to 320 kbps
Sampling rate: ...........16, 22.05, 24, 32, 44.1 or 48 kHz
Max. number of playable folders ...................... 200
Max. number of playable files .........................999
Standard Accessories
Remote control unit (RC-1274) x 1
Battery (CR2025) for the remote control unit x 1
AC adapter (PS-M1628) x 1
Power cord set for the AC adapter x 1
T-type DAB/FM antenna x 1
RCA pin-stereo mini plug cable x 1
RCA (pin) video cable x 1
iPhone dock adapter x 2
Dock cover x 1
Owner’s manual (this document) x 1
Warranty card x 1
< Design and specifications are subject to change without
notice.
< Weight and dimensions are approximate.
< Illustrations may differ slightly from production models.
General
Power Requirements.......................230 V, 50 Hz
Power Consumption (nominal)....................19 W
Dimension (W x H x D) ............392 x 180 x 210.5 mm
Weight (Net)..................................... 1.9 kg
36
37
38
39
Z
TEAC CORPORATION
TEAC AMERICA, INC. 7733 Telegraph Road, Montebello, California 90640 U.S.A. Phone: (323) 726-0303
TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: (905) 890-8008
TEAC MEXICO, S.A. DE C.V.
TEAC UK LTD. Suites 19 & 20, Building 6, Croxley Green Business Park, Hatters Lane, Watford, Hertfordshire, WD18 8TE, U.K.
Phone: (0845) 130-2511
TEAC EUROPE GMBH Bahnstraße 12, D-65205 Wiesbaden-Erbenheim, Deutschland Phone: 0611-71580
1-47 Ochiai, Tama-shi, Tokyo 206-8530 Japan Phone: (042) 356-9156
Río Churubusco 364, Colonia Del Carmen, Delegación Coyoacàn, CP 04100, México DF, México Phone: (5255)5010-6000
This appliance has a serial number located on the rear panel. Please record the
serial number and retain it for your records.
Model name: SR-80iDAB Serial number
1210.MA-1682A
Loading...
