Teac SR-L35CD User Manual

9A10020800

SR-L35

CD Receiver

OWNER’S MANUAL

MANUEL DU PROPRIÉTAIRE

FRANÇAIS

ENGLISH

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

< Do not expose this apparatus to dripps or splashes. < Do not place any objects filled with liquids, such as

vases, on the apparatus.

< Do not install this apparatus in a confined space such

as a book case or similar unit.

< The apparatus draws nominal non-operating power

from the AC outlet with its POWER switch in the off position.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

For U.S.A.

①

Optical pickup :

Type : CMS-M95BG6 Manufacturer : SAMSUNG Laser output : 0.5mW on the objective lens Wavelength : 760 - 800 nm

(rear panel of the unit)

CAUTION

< DO NOT REMOVE THE EXTERNAL CASES OR

CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE WITHIN!

< IF YOU ARE EXPERIENCING PROBLEMS WITH THIS

PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.

< USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the equipment and/or the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Changes or modifications to this equipments not expressly approved by TEAC CORPORATION for compliance will void the user’s warranty.

For U.S.A.

This product has been designed and manufactured according to FDA regulations “title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health and Safety Act of 1968“, and is classified as class 1 laser product. There is not hazardous invisible laser radiation during operation because invisible laser radiation emitted inside of this product is completely confined in the protective housings. The label required in this regulation is shown

①.

Contents

Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit.

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . 2

Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Compact Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Remote Control Unit . . . . . . . . . . . . . . . . . . . . . . . . 6

RESET Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Use of the Folding Supports . . . . . . . . . . . . . . . . . . . 7

Names of Each Control . . . . . . . . . . . . . . . . . . . . . . . 8

Playing a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Programmed Playback. . . . . . . . . . . . . . . . . . . . . . . 12

Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Shuffle Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

TUNER

Listening to the Radio . . . . . . . . . . . . . . . . . . . . . . 15

How to Preset Stations . . . . . . . . . . . . . . . . . . . . . . 16

How to select Preset Stations . . . . . . . . . . . . . . . . . 16

Listening the the Extenal Sources . . . . . . . . . . . . . . 17

Sleep Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Clock Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Before Use

Read this before operation

< As the unit may become warm during operation,

always leave sufficient space around the unit for ventilation.

< The voltage supplied to the unit should match the

voltage as printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.

< Choose the installation location of your unit

carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, heat, cold or moisture.

< Do not place the unit on any high heat-producing

units like your amplifier/receiver.

< Do not use the unit in the hot place (over

85°F/30°C).

< Do not open the cabinet as this might result in

damage to the circuitry or electrical shock. If a foreign object should get into the set, contact your dealer or service agency.

< When removing the power plug from the wall

outlet, always pull directly on the plug, never yank the cord.

< To keep the laser pickup clean, do not touch it, and

do not leave the CD compartment open.

< Do not attempt to clean the unit with chemical

solvents as this might damage the finish. Use a clean, dry cloth.

< Keep this manual in a safe place for future

reference.

DO NOT MOVE THE UNIT DURING CD PLAYBACK

During playback, the disc rotates at high speed. Do NOT lift or move the unit during playback. Doing so may damage the disc.

WHEN MOVING THIS UNIT

When changing places of installation or packing the unit for moving, be sure to remove the disc. Then, press the power switch to switch the unit back to standby, and disconnect the power cord. Moving this unit with the disc loaded may result in damage to this unit.

Beware of condensation

When the unit (or a disc) is moved from a cold to a warm place, or used after a sudden temperature change, there is a danger of condensation; vapor in the air could condense on the internal mechanism, making correct operation impossible. To prevent this, or if this occurs, leave the unit for one or two hours with the power turned on. The unit will stabilize at the temperature of its surroundings.

Maintenance

If the surface of the unit gets dirty, wipe with a soft cloth or use diluted neutral cleaning liquid. Be sure to remove any fluid completely. Do not use thinner, benzine or alcohol as they may damage the surface of the unit.

CAUTION

The product shall not be exposed to dripping or splashing and that no object filled with liquids, such as vases, shall be placed on the product.m

Do not install this equipment in a confined space such as a book case or similar unit.

Discs which can be played on this unit:

• Conventional audio CDs bearing the “Compact Disc Digital Audio” logo:

• Properly finalized CD-R and CD-RW discs

Note:

< Depending on the quality of the disc and/or the

condition of the recording, some CD-R and CD-RW discs may not be playable.

< Copy-protected discs and other discs which do not

conform to the CD standard may not play back correctly in this player. If you use such discs in this unit, TEAC Corporation and its subsidiaries cannot be responsible for any consequences or guarantee the quality of reproduction. If you experience problems with such non-standard discs, you should contact the producers of the disc.

ENGLISH

Compact Disc

< Never use such chemicals as record sprays,

antistatic sprays or fluid, benzine or thinner to clean the discs. Such chemicals will do irreparable damage to the disc’s plastic surface.

< Discs should be returned to their cases after use to

avoid dust and scratches that could cause the laser pickup to “skip.”

< Do not expose discs to direct sunlight or high

humidity and temperature for extended periods. Long exposure to high temperatures will warp the disc.

< CD-R/CD-RW discs are more sensitive to the effects

of heat and ultraviolet rays than ordinary CDs. It is important that they are not stored in a location where direct sunlight will fall on them, and which is away from sources of heat such as radiators or heat-generating electrical devices.

< Printable CD-R/CD-RW discs aren’t recommended,

as the label side might be sticky and damage the unit.

< Do not stick papers or protective sheets on the

discs and do not use any protective coating spray.

< Use a soft oil-based felt-tipped pen to write the

information on the label side. Never use a ball-point or hard-tipped pen, as this may cause damage to the recorded side.

< Never use a stabilizer. Using commercially available

CD stabilizers with this unit will damage the mechanisms and cause them to malfunction.

< Do not use irregular shape CDs (octagonal, heart-

shape, etc.). CDs of this sort can damage the unit.

< Always place the disc on the disc tray with the label

side uppermost. (Compact discs can be played or recorded only on one side.)

< To remove a disc from its storage case, press down

on the center of the case and lift the disc out, holding it carefully by the edges.

How to remove the disc

How to hold the disc

< Should the disc become dirty, wipe the surface

radially with a soft, dry cloth.

< If you are in any doubt as to the care and handling

of a CD-R/CD-RW disc, read the precautions supplied with the disc, or contact the disc manufacturer directly.

The provided Remote Control Unit allows the unit to be operated from a distance. When operating the remote control unit, point it towards the REMOTE SENSOR on the front panel of the unit.

< Even if the remote control unit is operated within

the effective range, remote control operation may be impossible if there are any obstacles between the unit and the remote control.

< If the remote control unit is operated near other

appliances which generate infrared rays, or if other remote control devices using infrared rays are used near the unit, it may operate incorrectly. Conversely, the other appliances may operate incorrectly.

Battery Installation

1. Remove the battery compartment cover.

2. Insert two “AAA” (R03, UM-4) dry batteries. Make sure that the batteries are inserted with their positive “+” and negative “_” poles positioned correctly.

3. Close the cover.

Battery Replacement

If the distance required between the remote control unit and main unit decreases, the batteries are exhausted. In this case replace the batteries with new ones.

Precautions concerning batteries

< Be sure to insert the batteries with correct positive

“+” and negative “_” polarities.

< Use batteries of the same type. Never use different

types of batteries together.

< Rechargeable and non-rechargeable batteries can

be used. Refer to the precautions on their labels.

< When the remote control unit is not to be used for

a long time (more than a month), remove the batteries from the remote control unit to prevent them from leaking. If they leak, wipe away the liquid inside the battery compartment and replace the batteries with new ones.

< Do not heat or disassemble batteries and never

dispose of old batteries by throwing them in a fire.

Remote Control Unit

RESET Switch

In the following cases, function buttons may not work properly.

• When the system is damaged by some electrical shock.

• When the power is irregular or has electrical noise.

In these cases, press the RESET switch once or twice lightly with a pencil or a ball-point pen when the unit is on.

ENGLISH

Wall Mounting

Use of the folding supports

If you want to, you can mount the unit on a wall.

You need to have hooks available that snugly fit into the hanging holes in the back of the unit.

Precaution:

< Be aware of the best possible direction for receiving

AM broadcasts (this unit has no AM anntena you can turn around).

1. Use the supplied guide sheet to mark the exact drilling points on the wall.

2. Drill holes in the wall at the marked points.

3. Screw your hooks into the wall.

4. Using the hanging holes in the back of the unit, carefully hang it onto the hooks.

Note:

< Ensure that the unit locks onto the hooks and that

the hooks are strong enough to support the weight before releasing the hands.

For better stability in using the unit on a table or other flat surface, you can pull out the pair of hinged supports, as shown.

Names of Each Control

TOP

FRONT

REAR

REMOTE CONTROL

C ED

F G H I J K

N OL L

A H

N M

ENGLISH

STANDBY/ON switch

Press this switch to switch the unit between power on and standby.

OPEN/CLOSE button

Press this button to open and close the CD compartment.

TIMER/SLEEP button

Use this button to set the timer or sleep timer.

Display button

Use this button to change the display mode.

CD compartment

Press the OPEN/CLOSE button on top of the unit to open the CD compartment.

Remote sensor

Display

REPEAT/PRESET button

Use this button to change the repeat mode or select a preset number and station.

MEMORY/CLOCK ADJ button

Use this button to program tracks or to adjust the clock.

BAND button

Use this button to select FM or AM.

FUNCTION button

Press this button to switch between CD, TUNER, and AUX.

Speakers (stereo)

MUTING button

Use this button to cut the sound temporarily.

TUNING button

Use this button to tune in a station.

SHUFFLE button

Use this button to select shuffle playback mode.

CD operation buttons

When TUNER is selected, these buttons won’t work.

STOP button (H)

Use this button to stop playback.

PLAY/PAUSE button (y/J)

Use this button to start or pause playback.

SKIP/SEARCH buttons

(.m/,/)

Press these buttons to skip tracks. Hold down these buttons to search for a part of a track.

VOLUME button

Use this button to adjust the volume.

AUX IN jacks

Connect external sources to these jacks.

FM antenna terminal

Connect lead-type FM antenna to this terminal. Tune in an FM station and extend the lead to find the best position for the reception. Then fix it to the wall with thumb tacks or the like.

PHONES

Insert the headphones plug into the PHONES jack, and adjust the volume.

AC adaptor

First plug the power cord running out the AC adaptor into the DC-IN jack on the left side of the unit, then plug the adaptor into an AC wall socket.

SLEEP button

Use this button to set the sleep timer.

The equipment draws nominal nonoperating power from the AC outlet with its STANDBY/ON switch in the STANDBY position.

Press the STANDBY/ON switch to turn the unit ON.

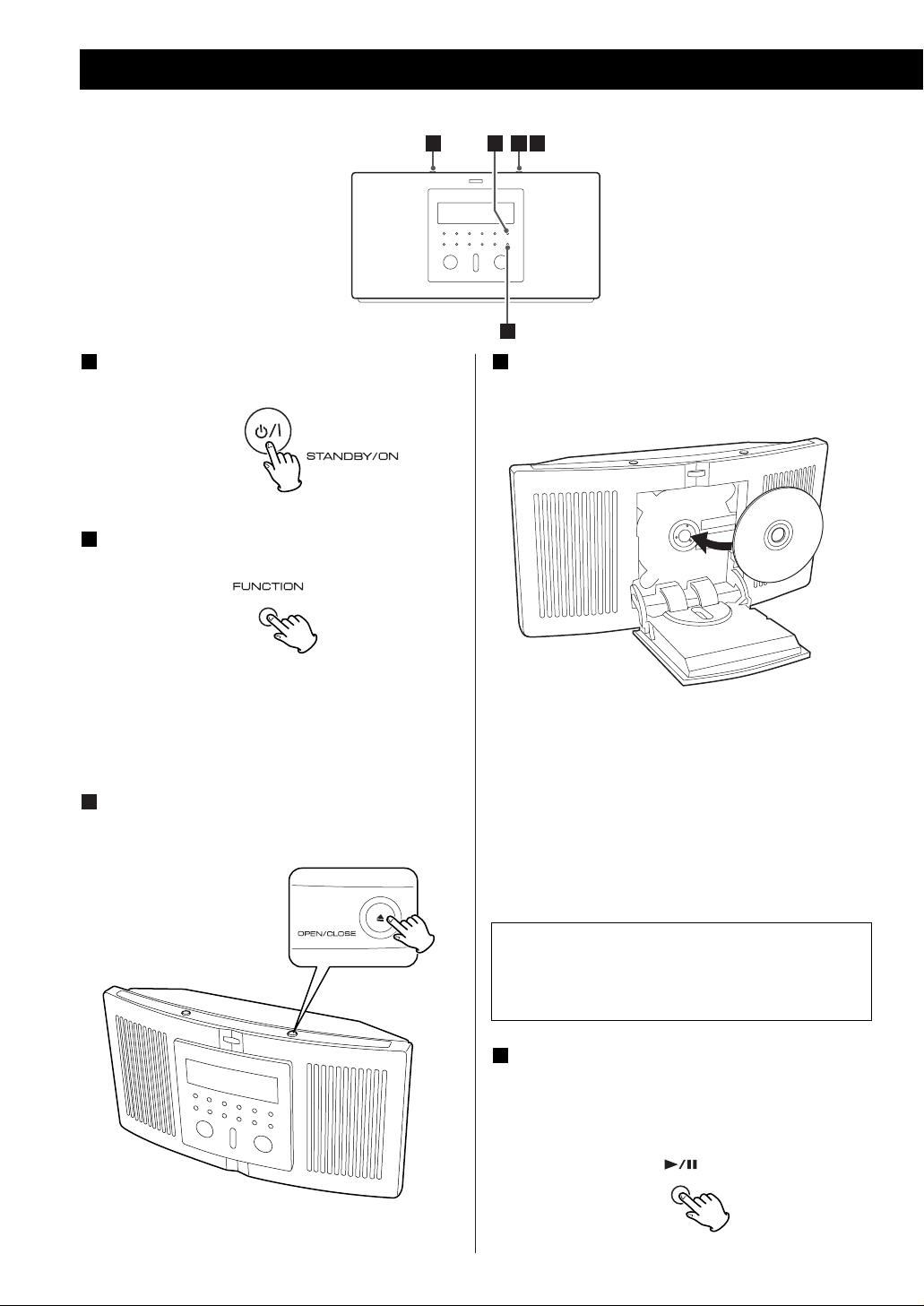

Press the FUNCTION button to select “CD”.

< When no disc is in the unit, “no dISC” will be

displayed.

Press the OPEN/CLOSE button (L) to open the CD compartment.

Playing a CD

Put a disc onto the center spindle in the CD compartment, with the label side facing you, and press the OPEN/CLOSE button to close the CD compartment.

< CD’s must be pressed securely onto the Spindle,

until a “CLICK” is heard.

< Never place more than one disc in the CD player. < It takes a few seconds for the unit to read the

contents of the disc. No button will work during reading. Wait until the total number of the tracks and total play time of the disc is displayed.

Press the PLAY/PAUSE button (y/J) to start playback.

Playback starts from the first track. When playback of all the tracks has finished, the unit stops automatically.

When opening and closing, press the OPEN/CLOSE button (L) on top of the unit. Do not force the door by hand during opening and closing operations.

1 3 42

ENGLISH

Search for a part of a track

During playback, hold down the SKIP/SEARCH button (.

or ,/) and release it when

the part you want to listen to is found.

DISPLAY button

During playback, press this button repeatedly to change the display mode as follows:

< Clock display and timer mode display appears for 4

seconds and returns to original display.

< Remaining time of the disc cannot be selected in

the Stop, Repeat, and Shuffle modes.

MUTING button

To cut the sound temporarily, press the MUTING button. Press the MUTING button again to restore the sound. If you change the volume during the muting, the muting will be canceled.

To stop playback

Press the STOP button (H) to stop playback.

To suspend playback temporarily (pause mode)

Press the PLAY/PAUSE button (y/J). Playback stops at the current position. To resume playback, press the PLAY/PAUSE button (y/J) again.

To skip to the next or a previous track

During playback, press the SKIP/SEARCH button (.mor,/) repeatedly until the desired track is found. The selected track will be played from the beginning.

In the stop mode, press the SKIP/SEARCH button (.mor,/) repeatedly until the desired track is found, and press the PLAY/PAUSE button (y/J) to start playback from the selected track.

< When the .

button is pressed once during playback, the track being played will be played from the beginning. To return to the beginning of the previous track, press the .

button

twice.

< During programmed playback, the next or previous

track in the program is played.

BDCF A

Playing time of the current track

Remaining time of the disc

Clock display

Timer mode display

Repeat step and to program more tracks.

< You can program up to 20 tracks. < To cancel the program mode, press the STOP

button (H).

When the selection of track numbers has been finished, press the PLAY/PAUSE button (y/J) to start program playback.

If the PLAY/PAUSE button isn’t pressed within 10 seconds, the MEMORY indicator will go off. In that case, press the MEMORY/CLOCK ADJ button and then press the PLAY/PAUSE button to start program playback.

The programmed contents are kept in memory even after switching from CD mode to TUNER or the unit switches from power on to standby.

Up to 20 tracks can be programmed in the desired order.

< Shuffle playback does not work during program

playback.

< Insert a disc and select “CD” before beginning

programming.

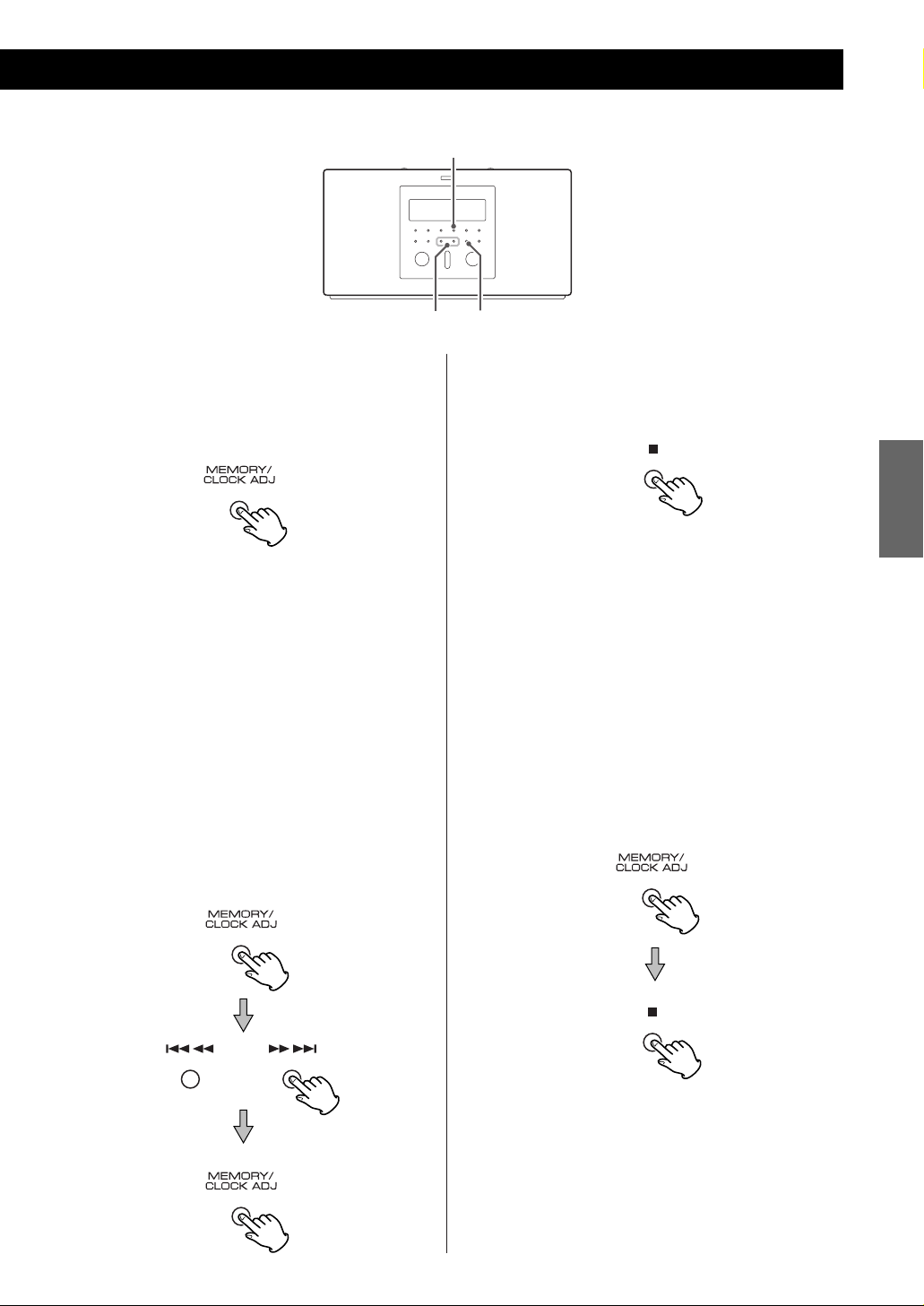

Press the MEMORY/CLOCK ADJ button in the stop mode.

“MEMORY” indicator blinks, and “P-01” appears on the display.

Within 10 seconds, press the SKIP/SEARCH button to select a track.

< If the SKIP/SEARCH button isn’t pressed within 10

seconds, program mode will be canceled.

While “MEMORY” is blinking on the display, press the MEMORY/CLOCK ADJUST button.

The track is programmed, and “P-02” is displayed.

Programmed Playback

1 3

+ 28 hidden pages
