ULTRASONIC CLEANER SUR 48 C4
ULTRASONIC CLEANER
Operating instructions
ULTRASCHALL-REINIGUNGSGERÄT
Bedienungsanleitung
ULTRALYD-RENGØRINGSAPPARAT
Betjeningsvejledning
IAN 277095

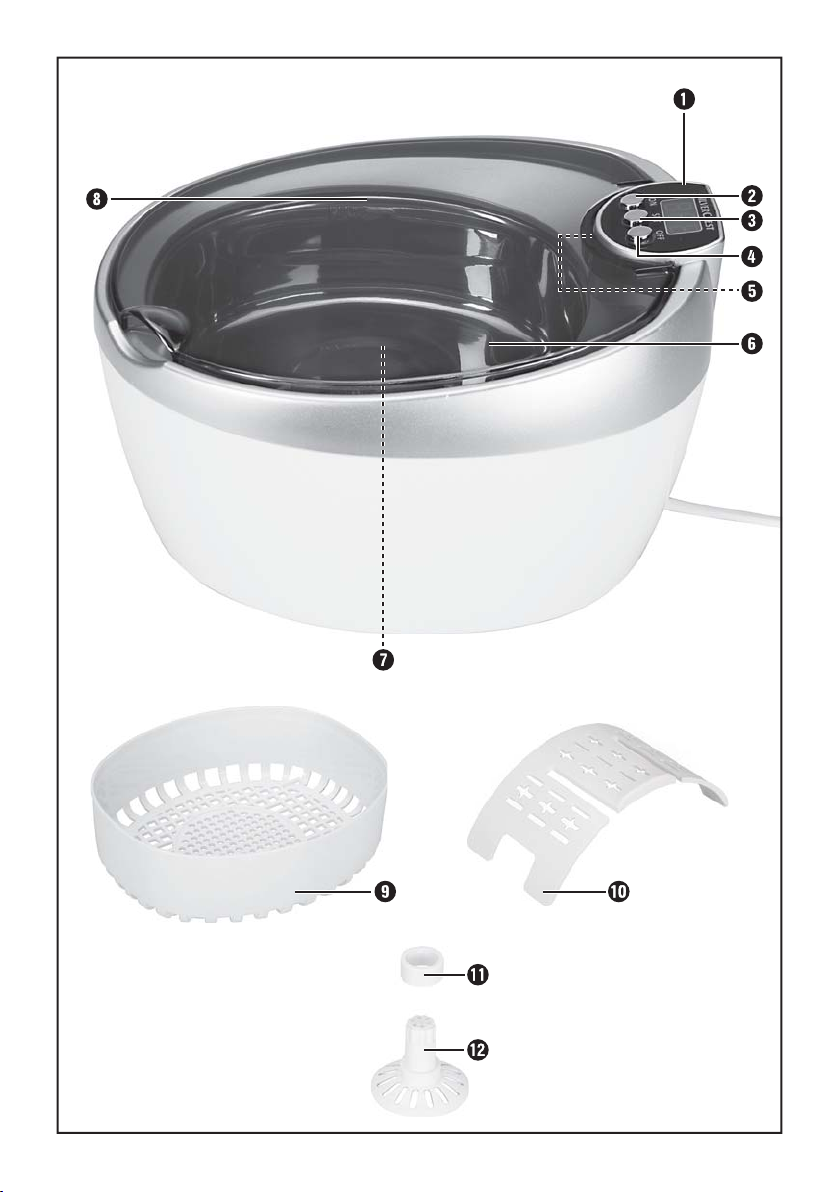

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of
the device.
Før du læser, vend siden med billeder frem og bliv bekendt med alle apparatets funktioner.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen
Funktionen des Gerätes vertraut.
GB / IE / NI Operating instructions Page 1
DK Betjeningsvejledning Side 19
DE / AT / CH Bedienungsanleitung Seite 37
Contents
Introduction ...................................................2
Information concerning these operating instructions .............................. 2
Copyright ............................................................... 2
Limitation of liability .......................................................2
Intended use ............................................................ 2
Warning notes ........................................................... 3
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Risk of electrocution ....................................................... 4
Basic safety guidelines ..................................................... 4
Appliance-specific safety instructions .......................................... 6
Unsuitable for ultrasonic cleaning ............................................ 7
Before use ....................................................7
Package contents and transport inspection ..................................... 7
Disposal of packaging materials .............................................8
Before initial use ......................................................... 8
Electrical connection ...................................................... 8
Operating components ..........................................9
Handling and operation .........................................9
How ultrasonic cleaning works .............................................. 9
Filling the appliance with cleaning fluid ....................................... 10
Examples of use ......................................................... 10
Fill the appliance with jewellery/metal items ................................... 12
Add spectacles ......................................................... 12
Add watch ............................................................. 12
Add CDs/DVDs .........................................................12
Switching the appliance on and off .......................................... 13
Cleaning .....................................................14
Storage .....................................................14
Troubleshooting ..............................................15
Fault causes and rectification ...............................................15
Disposal .....................................................15
Appendix ....................................................16
Technical data .......................................................... 16
Notes concerning the EC Declaration of Conformity ............................16
Kompernass Handels GmbH warranty ............................16
Service ................................................................ 18
Importer ............................................................... 18
SUR 48 C4
GB│IE│NI
│
1 ■
Introduction
Information concerning these operating instructions
Congratulations on the purchase of your new appliance.
You have selected a high-quality product. The operating instructions are part of
this product. They contain important information on safety, usage and disposal.
Before using the product, familiarise yourself with all handling and safety guidelines. Use the product only as described and for the range of applications specified.
Please also pass these operating instructions on to any future owner(s).
Copyright
This documentation is protected by copyright.
Any copying or reproduction, including in the form of extracts, or any reproduction
of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.
Limitation of liability
All the technical information, data and instructions regarding installation, connection and operation contained in these operating instructions corresponds to the
latest information available to us at the time of printing and takes our previous
experience and know-how into account.
No claims can be derived from the details, illustrations and descriptions in these
instructions.
The manufacturer assumes no responsibility for damage caused by failure to
observe these instructions, improper use, incompetent repairs, unauthorised
modifications or for the use of non-approved replacement parts.
Intended use
This appliance is intended only for the cleaning of jewellery, spectacles, false
teeth, CDs/DVDs, razor heads, watches and similar items.
Not all items may be cleaned with the appliance (see section Unsuitable for
ultrasonic cleaning). This appliance is intended for domestic use only, it may
not be used for commercial purposes. Do not use the appliance outdoors. This
appliance is not designed for use with an external time switch or any other separate remote control system. Do not clean any objects with scratched surfaces as
existing scratches may be made worse by an ultrasonic treatment. The appliance
is not intended for any other purposes, nor for use beyond the scope described.
No claims of any kind for damage arising as a result of incorrect use will be accepted. The risk shall be borne solely by the user.
■ 2 │ GB
│IE│
NI
SUR 48 C4
Warning notes
The following warning notice types are used in these operating instructions:
DANGER
A warning notice at this hazard level indicates an imminently
hazardous situation.
If the hazardous situation is not avoided, it could result in death or serious
physical injury.
► Follow the instructions in this warning notice to avoid the risk of death or
serious injury.
WARNING
A warning notice at this hazard level indicates a potentially
hazardous situation.
Failure to avoid this hazardous situation could result in injury.
► Follow the instructions in this warning notice to prevent injury.
CAUTION
A warning notice at this hazard level indicates a potential for
property damage.
Failure to avoid this situation could result in property damage.
► Follow the instructions in this warning notice to prevent property damage.
NOTE
► A note provides additional information that will assist you in using the
appliance.
SUR 48 C4
GB│IE│NI
│
3 ■
Safety
In this section, you will find important safety instructions for using the appliance.
This appliance complies with statutory safety regulations. Improper use may
result in personal injury and property damage.
Risk of electrocution
DANGER
Risk of fatal injury from electrocution!
Contact with live cables or components can result in fatal
injury!
Please observe the following safety guidelines to prevent electrical hazards:
► Do not use the appliance if the power cable or the plug are damaged.
► Before using the appliance again, have a new mains power cable fitted
by an authorised specialist.
► The appliance housing may not be opened under any circumstances. There
is a risk of electric shock if live connections are touched and the electrical
and mechanical structure is changed.
Basic safety guidelines
To ensure safe operation of the appliance, follow the
safety guidelines set out below:
■ Check the appliance for visible external damage before
use. Do not operate an appliance that has been damaged or dropped.
■ 4 │ GB
■ If the appliance's mains power cable is damaged, it
must be replaced by the manufacturer, the manufacturer's
customer service department or by a qualified technician
so that risks can be avoided.
■ This appliance may be used by children aged 8 years
and above and by persons with limited physical, sensory or mental capabilities or lack of experience and
knowledge, provided that they are under supervision
or have been told how to use the appliance safely and
are aware of the potential risks. Children must not play
with the appliance. Cleaning and user maintenance
tasks may not be carried out by children unless they are
supervised.
│IE│
NI
SUR 48 C4
This appliance is suitable for indoor use only.
■ Children must be supervised to ensure that they do not
play with the appliance.
■ Keep the appliance out of the reach of children.
■ All repairs must be carried out by authorised specialist
companies or by the Customer Service department.
Improper repairs can pose significant risks to the user.
It will also invalidate any warranty claims.
■ Defective components must always be replaced with
original replacement parts. Only by using original
replacement parts can it be assured that the safety
requirements are being complied with.
■ Protect the appliance from moisture, spray and dripping
water and penetration by liquids. Risk of electric shock!
■ Do not immerse the appliance, the cable or the mains
plug in water and do not use the appliance outdoors.
Risk of electric shock!
■ If any liquid enters the appliance, disconnect the mains
plug immediately. Arrange to have the appliance checked
before putting it into operation again after a period of
remission.
■ Do not touch the appliance and the plug with wet hands.
■ Connect the mains plug only to a properly installed, easily
accessible plug socket whose voltage corresponds to
the specifications on the rating plate. The plug socket
must remain easily accessible even following connection.
■ Ensure that the power cable cannot be damaged by
sharp edges or hot spots. Do not wind the power cable
around the appliance.
SUR 48 C4
GB│IE│NI
│
5 ■
■
When using the appliance, ensure that the power cable
is not squeezed or crushed.
■ Before cleaning, maintenance or periods of non-use, dis-
connect the mains adapter from the power socket.
■ Always disconnect the power cable from the mains
power socket by pulling on the plug; never pull on the
cable.
■ Do not touch the appliance and the plug with wet
hands.
Appliance-specific safety instructions
■ The appliance may only be used only on a level, non-
slip surface and never on a soft pad.
■ To prevent an overflow during the cleaning process, the
stainless steel bath should not be filled above the MAX
marking.
■ Always use the basket insert when cleaning small parts
to prevent scratches to the components themselves or the
stainless steel bath. If several items are being cleaned at
the same time, ensure that they do not come into contact with each other in order to prevent scratches.
■ Always use the basket insert when cleaning spectacles
or jewellery. When placing spectacles in the basket
insert, always make sure their lenses face upwards.
■ Rinse your spectacles and jewellery with clear water
after each cleaning.
■ During the cleaning process, do not touch the inner
surface of the stainless steel bath or the cleaning fluid.
Ultrasonic waves can damage your health.
■ Do not clean any objects with scratched surfaces as
existing scratches may be made worse by an ultrasonic
treatment.
■ 6 │ GB
│IE│
NI
SUR 48 C4
■ Never use the appliance without water as this may
damage the appliance.
■ After using the appliance five times in a row without
a break, complete the cleaning process and let it cool
down to room temperature.
■ Place the appliance on a firm, level surface.
■ Do not place the appliance and its accessories on or
in the vicinity of surfaces that are hot or could heat up,
e.g. electric hobs.
Unsuitable for ultrasonic cleaning
Objects unsuitable for ultrasonic cleaning include:
■ Porous or sensitive stones (jewellery) such as emeralds, coral, pearls, mother-of-
pearl, turquoise, opal, malachite, lapis lazuli, tiger’s eye, black onyx, etc.
■ Objects with scratched surfaces, as existing scratches may be made worse by
an ultrasonic treatment.
■ Items made of wood, leather, horn, tortoiseshell or fabrics.
■ Special types of fashion jewellery, such as silver plated costume jewellery.
■ Screws and fittings that are not firmly attached can come loose during the cleaning
process. Clean these items no more than once a month and for only for a short
period (maximum 90 seconds).
■ Do not clean mechanical watches in this appliance. Their accuracy may be
adversely affected.
If you are not sure if a piece of jewellery can be cleaned in this appliance or
whether it might be damaged, ask the retailer from whom you purchased the
item in question.
Before use
Package contents and transport inspection
The appliance is supplied with the following components as standard:
▯ 1 ultrasonic cleaner
▯ 1 basket insert
▯ 1 bracelet holder
▯ 1 spindle with spacer ring
▯ These operating instructions
SUR 48 C4
GB│IE│NI
│
7 ■
NOTE
► Check the package for completeness and for signs of visible damage.
► If any items are missing or damaged as a result of defective packaging or
insufficient care during transportation, contact the Service hotline (see the
section Service).
Disposal of packaging materials
The packaging protects the appliance from damage during transport. The packaging materials have been selected for their environmental friendliness and ease
of disposal, and are therefore recyclable.
Returning the packaging to the material cycle conserves raw materials and reduces
the amount of waste generated. Dispose of packaging materials that are no
longer needed in accordance with applicable local regulations.
WARNING
► Packaging materials should not be used as a plaything. Risk of suffocation.
NOTE
► If possible, keep the appliance's original packaging during the warranty
period so that the appliance can be packed properly for return shipment
in the event of a warranty claim.
Before initial use
■ Remove all packaging materials and all transport locks from the appliance.
Electrical connection
To ensure safe and trouble-free operation of the appliance after making the
electrical connection, please observe the following advice:
DANGER
Danger due to ultrasonic waves!
► During the cleaning process, do not touch the inner surface of the stainless
steel bath or the cleaning fluid: ultrasonic waves can cause serious health
damage.
■ 8 │ GB
│IE│
NI
SUR 48 C4
CAUTION
► Before connecting the appliance, compare the connection data (voltage
and frequency) on the rating plate with that of your mains power supply.
These data must agree so that no damage is sustained by the appliance.
► Ensure that the mains power cable is not damaged and is not running over
hot surfaces and/or sharp edges.
► Ensure that the mains power cable is not taut or knotted.
► Always remove the mains plug from the wall socket after each use.
Operating components
Display
2
ON button
3
SET button
4
OFF button
5
Operating LED
6
Lid
7
Stainless steel bath
8
MAX mark for maximum fill level
9
Basket insert for small items
10
Bracelet holder
11
Spacer ring
12
Spindle for a maximum of 2 CDs/DVDs
Handling and operation
This section provides you with important information on handling and using the
appliance.
How ultrasonic cleaning works
The ultrasonic field created in the cleaning fluid during operation generates rapidly
alternately waves with high and low pressure. These waves produce air bubbles
on the surface of the item being cleaned which quickly burst open again. This
process works mechanically on the surfaces of the item and thus loosens dirt and
other residues. It can, however, also deepen already existing scratches.
SUR 48 C4
GB│IE│NI
│
9 ■
Filling the appliance with cleaning fluid
♦ Open the lid 6.
♦ Fill the stainless steel bath
The parts to be cleaned must be covered with the cleaning fluid.
Do not exceed the MAX fill level
NOTE
► Cold, clean tap water is generally best suited as cleaning fluid. The cleaning
effect can be enhanced by the addition of approximately 3 drops of washing-
up liquid. Do not use caustic cleaners, ammonia, bleach or heavily per-
fumed detergents.
► The cleaning performance is dependent on the amount of water: the more
water, the lower the cleaning performance.
♦ Place the objects to be cleaned in the ultrasonic cleaner. The item to be
cleaned only needs to be covered in water. Use the
♦ Now close the lid
6
with the cleaning fluid.
7
8
.
even after placing the item in the fluid.
9
, 10, 11 or
Examples of use
Jewellery / metal items
CAUTION
WARNING of material damage!
► Do not clean any objects with scratched surfaces as existing scratches may
be made worse by an ultrasonic treatment.
► The appliance is not suitable for cleaning sensitive or porous stones such
as pearls, mother-of-pearl or coral, turquoise, opal, azurite, malachite, tiger’s
eye and similar semi-precious stones. Ask the jeweller who sold you the
jewellery if it is suitable for cleaning with ultrasound and, if applicable,
cleaning additives.
► Screws and fittings that are not firmly attached may come loose during the
cleaning process. Clean such items no more than once a month and for
only for a short period (maximum 90 seconds).
► Do not clean mechanical watches in this appliance.
The accuracy may be adversely affected.
■ The appliance is suitable for the cleaning of gold/silver jewellery and jewellery
made of other metals, such as necklaces, rings, bracelets, as well as metal cutlery,
coins, medals, metallic components, etc.
12
inserts.
■ 10 │ GB
│IE│
NI
SUR 48 C4
♦ Place small objects such as rings in the basket insert 9.
To avoid scratching, the objects should not touch each other. As the basket
9
insert
cleaning cycles may be required.
♦ To clean the metal straps of waterproof watches, place the watch on the
bracelet holder
absorbs ultrasonic waves, it reduces the effectiveness and several
so that the watch housing is at the top.
10
Spectacles / magnifying glasses
CAUTION
WARNING of material damage!
► Do not clean any objects with scratched surfaces as these scratches may
be made worse by an ultrasonic treatment.
► Optical lenses may not be cleaned in the ultrasonic bath for longer than
max. 90 seconds.
► Polycarbonate (plastic) lenses may not to be cleaned in an ultrasonic bath.
Ask your optician what material the lenses are made of.
► Screws and fittings that are not firmly attached may come loose during the
cleaning process. Clean items no more than once a month and for only for
a short period (maximum 90 seconds).
► The appliance is not suitable for cleaning spectacle frames made of delicate
materials such as horn or tortoiseshell.
♦ Place the spectacles in the basket insert
to prevent scratches.
9
with the lenses facing upwards
CDs / DVDs
SUR 48 C4
CAUTION
WARNING of material damage!
► Do not clean any objects with scratched surfaces as existing scratches may
be made worse by an ultrasonic treatment.
► Do not clean CDs/DVDs repeatedly and only clean them for a short period
(90 seconds).
► When cleaning CDs/DVDs, use only water without any detergent: washing-
up liquid can damage the label.
♦ Back up data from CDs/DVDs before cleaning.
12
♦ Place a CD/DVD on the spindle
clean 2 CDs/DVDs at the same time.
. Use the spacer ring 11 if you wish to
GB│IE│NI
│
11 ■
Sanitary products/writing materials
■ You can use the ultrasonic cleaner to clean dentures/braces, shaving heads of
electric shavers, razor blades and similar sanitary items. The appliance is also
suitable for cleaning the nibs of fountain pens, ballpoint pen casings and printer
nozzles.
Fill the appliance with jewellery/metal items
♦ Lay the objects to be cleaned in the basket insert 9. It is possible to clean
both an individual item as well as several items simultaneously.
9
♦ Place the basket insert
carefully into the stainless steel bath 7.
Add spectacles
♦ Always place the spectacles in the basket insert 9 with the lenses facing
upwards. Never clean more than one pair of spectacles at the same time.
9
♦ Place the basket insert
carefully into the stainless steel bath 7.
Add watch
♦ Place the wristwatch on the supplied bracelet holder 10.
♦ Place the bracelet holder
carefully into the stainless steel bath 7.
10
Add CDs/DVDs
♦ Place a CD on the shaft of the spindle 12. If you want to clean two CDs
at the same time, place the spacer ring
♦ Place the second CD on the spacer ring
12
♦ Place the spindle
carefully into the stainless steel bath 7.
on the CD and the shaft.
11
.
11
■ 12 │ GB
│IE│
NI
SUR 48 C4
Switching the appliance on and off
Start the cleaning process
♦ Insert the power plug into a mains wall socket.
♦ 180 (seconds) appears onto the display
♦ Press the SET button
180, 280, 380 or 480 seconds, depending on the degree of soiling)
appears on the display .
NOTE
► 090 seconds: Recommended for light soiling and items such as spectacles.
► 180 seconds: Standard time for normal soiling.
► 280 seconds: Recommended for the first cleaning with the ultrasonic
cleaner.
► 380 seconds: Recommended for the initial cleaning when several items
are being cleaned.
► 480 seconds: Recommended for heavy soiling.
♦ After selecting a suitable time for the level of soiling, start the cleaning
process by pressing the ON button
■ During the cleaning procedure, you will hear a chirping sound.
■ The operating LED
■ The time counts down to zero on the display
off automatically.
♦ To check the progress, even during the cleaning process, the cleaning
process can be paused by pressing the OFF button
♦ Press the ON button
♦ After the cleaning process finishes, disconnect the appliance from the
power, open the lid
stainless steel bath 7.
♦ Rinse the cleaned parts thoroughly with clean water before drying them
with a soft and dry cloth.
repeatedly until the desired cleaning time (090,
3
2
.
5
lights up during the cleaning process.
2
to resume the process.
6
and carefully remove the respective item from the
.
and then the appliance switches
.
4
SUR 48 C4
NOTE
► Most dirt particles detach or loosen after the first cleaning. If there is still
dirt residue after the cleaning, take a soft cloth and remove it by wiping
gently. If you have still not removed all of the dirt particles, repeat the
cleaning process once the appliance has cooled down.
GB│IE│NI
│
13 ■
Cleaning
Observe the following safety information to avoid hazards and property
damage:
CAUTION
Possible damage to the appliance.
Moisture can cause damage to the appliance.
■ Never immerse the appliance in water and protect it from splashing or sprayed
water.
■ Clean the housing only with a soft damp cloth and a mild detergent.
■ Clean the inserts
thoroughly afterwards.
DANGER
► Always disconnect the appliance from the socket after use and before
pouring out the cleaning fluid.
♦ To pour out the cleaning fluid, hold the appliance over a sink, flip up the lid
and tip out the water via the front opening.
WARNING
► Always pull out the plug before cleaning the appliance.
► Only clean the appliance when it is switched off and cooled down.
► To avoid irreparable damage to the appliance, ensure that no moisture
enters it during cleaning.
9
, 10 or 11 under warm, running water and dry all parts
6
Storage
■ Disconnect the mains power plug if you do not intend to use the appliance for
■ Store the appliance in a dry environment.
■ 14 │ GB
an extended period of time.
│IE│
NI
SUR 48 C4
Troubleshooting
This section contains important information about fault identification and rectification.
WARNING
Observe the following safety information to avoid hazards and property
damage:
► Repairs to electrical appliances should only be carried out by specialists
trained by the manufacturer. Improper repairs can cause considerable
risks to users and damage to the appliance.
Fault causes and rectification
The following table will help you to identify and rectify minor malfunctions:
Malfunction Possible cause Remedy
The appliance
does not function.
The display
lights up but
the appliance
does not
clean.
NOTE
Disposal
Never dispose of the appliance in normal domestic waste.
This product is subject to the provisions of the European WEEE
(Waste Electrical and Electronic Equipment) Directive 2012/19/EU.
Dispose of the appliance via an approved waste disposal company or your
municipal waste disposal facility. Please observe applicable regulations. Please
contact your waste disposal facility if you are in any doubt.
The plug is not connected to the
mains.
The appliance is not switched on.
► If the above-mentioned solutions do not resolve the problem, please contact
Customer Service (see chapter Service).
Insert the power plug into the socket.
Switch the appliance on by pressing
the ON
2
button.
SUR 48 C4
GB│IE│NI
│
15 ■
Loading...
