Wireless Optical MOuse sFM 4 a1
Wireless Optical MOuse
Operating instructions
Optische draadlOze Muis
Gebruiksaanwijzing
IAN 279402
Optisk Mus
Betjeningsvejledning
Optische FunkMaus
Bedienungsanleitung
Before reading, unfold the page containing the illustrations and
familiarise yourself with all functions of the device.
Før du læser, vend siden med billeder frem og bliv bekendt med
alle apparatets funktioner.
Vouw vóór het lezen de pagina met de afbeeldingen open en
maak u vertrouwd met alle functies van het apparaat.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus
und machen Sie sich anschließend mit allen Funktionen des
Gerätes vertraut.
GB / IE / NI Operating instructions Page 1
DK Betjeningsvejledning Side 25
NL / BE Gebruiksaanwijzing Pagina 49
DE / AT / CH Bedienungsanleitung Seite 73
SFM 4 A1 – Software CD
Wireless Optical MOuse sFM 4 a1
Optisk Mus
Wireless Optical MOuse
Betjeningsvejledning
Operating instructions
Optische FunkMaus
Optische draadlOze Muis
Bedienungsanleitung
Gebruiksaanwijzing
IAN 279402
Kompernass Handels GmbH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND / GERMANY
www.kompernass.com
Last Information Update · Tilstand af information
Stand van de informatie · Stand der Informationen:
06 / 2016 · Ident.-No.: SFM4A1-062016-2
IAN 279402
6
Contents
Introduction ..........2
Copyright .............2
Limitation on liability .....2
Intended use ...........3
Warnings used .........4
Notes on trademarks ....5
Safety ...............5
Basic safety guidelines ...5
Controls and package
contents .............9
Initial operation .......9
Check package contents .9
Disposal of packaging
materials .............10
Inserting/replacing the
batteries .............11
Connecting the nano-USB
receiver ..............11
Power-saving mode .....12
Changing operating
modes ...............12
Installing the software ...13
SFM 4 A1 GB│IE│NI
Configuration of the mouse
buttons ..............15
Troubleshooting .... 17
Cleaning ........... 18
Storage when not
in use ............. 18
Disposal ........... 19
Disposal of the device ...19
Disposal of batteries ....19
Appendix .......... 20
Technical data .........20
Notes on the EU Declara-
tion of Conformity ......21
Kompernass Handels
GmbH warranty .......21
Service ..............24
Importer .............24
│
1 ■
Introduction
Congratulations on the purchase of your new device.
You have selected a high-quality product. The operating
instructions are part of this product. They contain important information on safety, usage and disposal. Before
using the product, familiarise yourself with all handling
and safety guidelines. Use the product only as described
and for the range of applications specified. Keep these
operating instructions in a safe place. Please also pass
these operating instructions on to any future owner(s).
Copyright
This documentation is subject to copyright protection.
Any reproduction, or any reprint even in the form of
excerpts, as well as the rendition of figures even in modified form, is only permitted with the manufacturer’s written
consent.
Limitation on liability
All the technical information, data and instructions regarding installation, connection and operation contained in
these operating instructions corresponds to the latest information available to us at the time of printing and takes
our previous experience and know-how into account.
│
GB
│IE│
NI
SFM 4 A1■ 2
No claims may be derived from the specifications, figures
and descriptions in these operating instructions. The manufacturer assumes no responsibility for damage caused
by failure to observe these instructions, improper use,
incompetent repairs, making unauthorised modifications
or for using unapproved replacement parts.
Intended use
This wireless mouse is an information technology device
designed as an input device for a computer. The device
must not be used outside of closed rooms. This device
is not intended for use in companies or for other commercial uses (e.g. office productivity applications). Use
the device only in the home for private purposes. It is
not intended for any other use. Claims of any kind for
damage arising as a result of incorrect use will not be
accepted. The risk shall be borne solely by the user.
SFM 4 A1 GB│IE│NI
│
3 ■
Warnings used
The following warnings are used in these operating
instructions:
DANGER
A warning at this hazard level indicates
an imminently hazardous situation.
Failure to avoid this hazardous situation could
result in severe injuries or even death.
► Follow the instructions in this warning notice to
avoid the risk of serious injuries or death.
CAUTION
A warning at this hazard level indicates
potential material damage.
Failure to avoid this situation could result in material
damage.
► Follow the instructions in this warning to prevent
material damage.
NOTE
► A note indicates additional information that eases
device handling.
│
GB
│IE│
NI
SFM 4 A1■ 4
Notes on trademarks
- USB® is a registered trademark of USB Implementers
Forum, Inc.
- Microsoft
®
, Windows® and other Microsoft product
names are registered trademarks of the Microsoft
Corporation.
®
- Intel
and Pentium® are registered trademarks of the
Intel Corporation.
®
- AMD
and AMD® Athlon™ are registered trademarks
of Advanced Micro Devices, Inc.
All other names and products may be trademarks or
registered trademarks of their respective owners.
Safety
In this section, you will receive important safety advice
relating to device handling. Improper use may result in
personal injury and material damage.
Basic safety guidelines
To ensure safe handling of the device, follow the safety
guidelines set out below
DANGER! LED radiation!
■
Avoid damage to eyes. Do not stare into the LED
beam. Do not look directly at the LED beam using
optical instruments.
SFM 4 A1 GB│IE│NI
│
5 ■
■ This appliance may be used by children aged 8
over and by persons with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge, provided that they are under supervision
or have been told how to use of the appliance safely
and are aware of the potential risks. Children must
not play with the appliance. Cleaning and user maintenance tasks must not be carried out by children
unless they are supervised.
■ Prior to use, check the device for visible external
damage. Do not operate a device that has been
damaged or dropped.
■ Always place the device on a stable and level surface.
It can be damaged if dropped.
■ Do not expose the device to direct sunlight or high
temperatures. Otherwise it may overheat and be
irreparably damaged.
■ Do not place the product near heat sources such
as radiators or other heat-generating devices.
■ Never attempt to open the device.
■ Do not make any unauthorised modifications or
alterations to the device.
■ Do not expose the device to spray or dripping water
and do not place liquid-filled objects, such as vases
or open drink containers, on or near the device.
│
GB
│IE│
NI
SFM 4 A1■ 6
■ DANGER! Packaging materials such as plastic
film must not be used as playthings.
Risk of suffocation!
DANGER
Mishandling the batteries can cause fires,
explosions, leakages or other hazards!
► Do not throw the batteries into a fire and do not
subject them to high temperatures.
► Do not open, deform or short-circuit batteries,
since this can lead to chemical leakage.
► Do not attempt to recharge batteries. Do not
charge batteries unless they are explicitly labelled
as "rechargeable". There is a risk of explosion!
► Check the condition of the batteries at regular
intervals. Leaking chemicals can cause permanent
damage to the device. Take particular care when
handling damaged or leaking batteries. Risk of
chemical burns! Wear protective gloves.
► Chemicals which leak from a battery can cause
skin irritation. In event of contact with the skin, rinse
with copious amounts of water. If the chemicals come
into contact with your eyes, rinse thoroughly with
water, do not rub and consult a doctor immediately.
SFM 4 A1 GB│IE│NI
│
7 ■
DANGER
► Keep batteries out of the reach of children.
Children can put batteries into their mouth and
swallow them. If a battery has been swallowed,
seek medical assistance immediately as this can
lead to severe internal burns (or even death) within
two hours.
► Do not mix different types of batteries.
► Always insert the batteries the right way round
(observe correct polarity) otherwise there is a
danger that they could explode.
► If you do not intend to use the device for a long
time, remove the batteries.
│
GB
│IE│
NI
SFM 4 A1■ 8

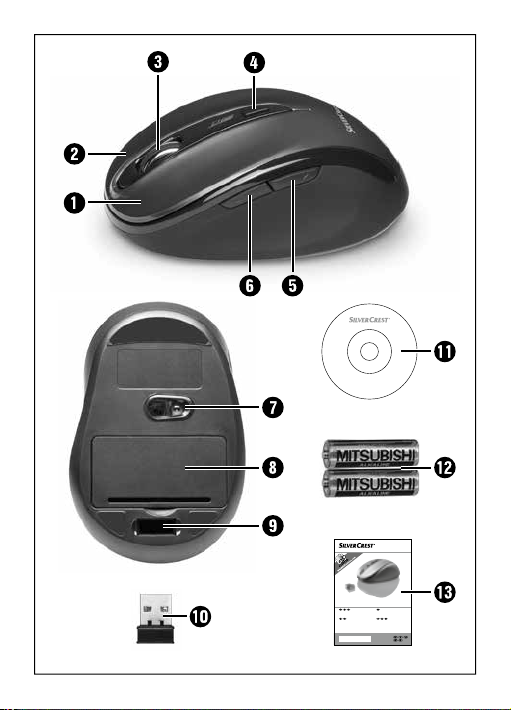

Controls and package contents
1 Left mouse button
2 Right mouse button
3 Scroll wheel
4 DPI button
5 Back button
6 Forward button
7 Optical sensor
8 Battery compartment
9 Storage compartment for the nano-USB receiver
0 Nano-USB receiver
q Software CD
w 2 x 1.5 V batteries
e Operating instructions
Initial operation
Check package contents
The following components are included in delivery:
● Wireless mouse SFM 4 A1
● Nano-USB receiver 0
● Software CD q
● 2 x 1.5 V batteries w
● These operating instructions e
SFM 4 A1 GB│IE│NI
│
9 ■
NOTE
► Check the consignment for completeness and for
signs of visible damage.
► If the consignment is incomplete or damaged due
to defective packaging or carriage, contact the
Service hotline (see the chapter Service).
Remove all parts of the device from the packaging and
remove all packaging materials.
Disposal of packaging materials
The packaging protects the device from damage during
shipment. The packaging materials have been selected
for their environmental friendliness and ease of disposal
and are therefore recyclable.
Returning the packaging to the materials
cycle conserves raw materials and reduces
the amount of waste that is generated.
Dispose of packaging materials which are no longer
needed in accordance with applicable local regulations.
│
GB
│IE│
NI
SFM 4 A1■ 10
Inserting/replacing the batteries
♦ Open the battery compartment 8 on the underside
of the wireless mouse.
♦ Insert 2 x 1.5 V AA batteries into the battery com-
partment 8 (observe correct polarity). First place
one battery in the lower compartment and then the
second battery in the higher compartment. Ensure
that the plastic strip is positioned under the batteries,
this will make future battery exchanges easier.
♦ Close the battery compartment 8.
CAUTION
► Always use batteries from the same manufacturer
and of the same type. Always replace both batteries
at the same time.
Connecting the nano-USB receiver
♦ Remove any other mouse that is connected to your
computer and then restart the computer.
♦ Remove the nano-USB receiver 0 from the storage
compartment 9 on the bottom of the wireless
mouse.
♦ Connect the nano-USB receiver 0 to a free USB-port
on your computer while it is running.
SFM 4 A1 GB│IE│NI
│
11 ■
The operating system recognises the new hardware
and automatically installs the necessary drivers. After
the installation of the driver, the wireless mouse is ready
for operation and can be used.
Power-saving mode
The wireless mouse is equipped with a power-saving mode.
■ If you switch the computer off, the wireless mouse
automatically switches off after around 8 minutes
in order to save power.
■ If you disconnect the nano-USB receiver 0 from the
computer, the wireless mouse automatically switches
off after around 8 minutes in order to save power.
■ If you do not click, scroll or move the wireless mouse,
it turns off after about 8 minutes. As soon as you
press any button on the wireless mouse or use the
scroll wheel, the wireless mouse switches back on.
Changing operating modes
You can use the DPI button 4 to switch the optical sampling between the resolutions 1000 dpi, 1500 dpi and
2000 dpi. The higher the resolution, the more accurate
the wireless mouse’s sampling.
│
GB
│IE│
NI
SFM 4 A1■ 12
Installing the software
To be able to use the full functionality of the mouse, you
must install the supplied software.
NOTE
► The following illustrations and descriptions relate
to the operating system Microsoft
The screen display may differ for other operating
systems.
♦ Insert the supplied software CD q in the CD-ROM
drive of your computer.
The installation process should start automatically.
♦ If this is not the case, start the “setup.exe” file on the
CD-ROM manually by double-clicking it.
The installation starts and the installation wizard is
displayed.
®
Windows® 7.
SFM 4 A1 GB│IE│NI
│
13 ■
The start window of the installation wizard will be displayed.
♦ Click on the “Next >” button.
♦ In the next step, you can choose the destination
folder for the installation by using the “Browse”
button or selecting the suggested destination.
♦ Move on to the next step by clicking on the
“Next >” button.
│
GB
│IE│
NI
SFM 4 A1■ 14
♦ To finish the installation, click the “Finish” button.
The computer will be restarted.
Configuration of the mouse buttons
You can use the software to customise the mouse
functions according to your personal preferences.
♦ Double-click on this icon
(bottom left of your screen, next to the clock) or click
on the icon with the right mouse button and select
“Mouse properties” from the context menu.
in the system tray
SFM 4 A1 GB│IE│NI
│
15 ■
The configuration menu for the mouse appears.
♦ Select the tab “Configuration of mouse button”.
Here you can set a function for each of the five
mouse buttons.
♦ Click on the drop-down menu for the corresponding
mouse button and select a function from the menu.
♦ To apply the changes, click on the “Apply” button
(the window remains open) or on “OK” (the window
closes).
│
GB
│IE│
NI
SFM 4 A1■ 16
♦ Select “Restore to default” to return the buttons to
their original functions.
The other tabs in this configuration menu contain settings
for the respective operating system.
Troubleshooting
If the wireless mouse is not recognised after installation
or does not respond to input, check the following:
♦ Check to ensure that the batteries have been inserted
the right way round.
♦ Check that the nano-USB receiver 0 is properly
connected to the computer.
♦ Try using a different USB port on your computer.
♦ Check the capacity of the batteries and if necessary
replace them.
♦ Note: you should use a mouse pad or similar if you
are using the wireless mouse on a glass surface or
any other reflective surface.
SFM 4 A1 GB│IE│NI
│
17 ■
NOTE
► If the above-mentioned solutions do not resolve
the problem, please contact Customer Service
(see chapter Service).
Cleaning
CAUTION
► Moisture penetrating the device can cause a short-
circuit and damage the equipment. To avoid irreparable damage, ensure that no moisture penetrates
the device during cleaning.
■ Clean the housing only with a soft damp cloth and
a mild detergent.
Storage when not in use
If you are not going to the use the device for a long period of time, remove the nano-USB receiver 0 from your
computer and store it in the storage compartment9 on
the underside of the wireless mouse.
Remove the batteries from the device and store it in
a clean, dry location away from direct sunlight.
│
GB
│IE│
NI
SFM 4 A1■ 18
Disposal
Disposal of the device
The adjacent symbol of a crossed-out wheelie
bin means that this device is subject to Directive
2012/19/EU. This directive states that this
device may not be disposed of in normal household
waste at the end of its usable life, but must be handed
over to specially set-up collection locations, recycling
depots or disposal companies.
This disposal is free of charge for the user. Protect
the environment and dispose of this device properly.
You can obtain further information from your local
disposal company or the city or local authority.
Disposal of batteries
Used batteries may not be disposed of in household
waste. All consumers are required by law to dispose of
batteries at a collection point provided by their local community or at a retail store. The purpose of this obligation is
to ensure that batteries are disposed of in a non-polluting
manner. Only dispose of batteries when they are fully discharged. Cover the poles of partially discharged batteries
with tape to prevent short circuits.
SFM 4 A1 GB│IE│NI
│
19 ■
Appendix
Technical data
Voltage supply 2 x 1.5 V AA batteries
Radio frequency 2.4 GHz
Sampling resolution
Range up to 5 m
Dimensions approx. 10.2 x 6.8 x 4.2 cm
1000 dpi, 1500 dpi,
2000 dpi
Weight (including
batteries)
approx. 110 g
Operating temperature 15°C - +40°C
Storage temperature 0°C - 50°C
Relative humidity
(no condensation)
10 % - 70 %
System requirements:
®
Pentium® III/AMD® Athlon™ or higher
● Intel
● 1 free USB port
● Microsoft
Windows
®
Windows® XP, Windows Vista®,
®
7 or Windows® 8
● CD-ROM drive or DVD drive for installing the
software
│
│IE│
GB
NI
SFM 4 A1■ 20
Notes on the EU Declaration of
Conformity
This appliance complies with the essential requirements
and other relevant provisions of the R&TTE Directive
1999/5/EC and the RoHS Directive 2011/65/EU.
The complete EU Declaration of Conformity is
available from the importer.
Kompernass Handels GmbH warranty
Dear Customer,
This appliance has a 3-year warranty valid from the
date of purchase. If this product has any faults, you, the
buyer, have certain statutory rights. Your statutory rights
are not restricted in any way by the warranty described
below.
Warranty conditions
The validity period of the warranty starts from the date
of purchase. Please keep your original receipt in a
safe place. This document will be required as proof
of purchase. If any material or production fault occurs
within three years of the date of purchase of the product, we will either repair or replace the product for you
at our discretion. This warranty service is dependent on
you presenting the defective appliance and the proof of
purchase (receipt) and a short written description of the
fault and its time of occurrence. If the defect is covered
SFM 4 A1 GB│IE│NI
│
21 ■
by the warranty, your product will either be repaired or
replaced by us. The repair or replacement of a product
does not signify the beginning of a new warranty
period.
Warranty period and statutory claims for
defects
The warranty period is not prolonged by repairs effected
under the warranty. This also applies to replaced and
repaired components. Any damage and defects present
at the time of purchase must be reported immediately
after unpacking. Repairs carried out after expiry of the
warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance
with strict quality guidelines and inspected meticulously
prior to delivery. The warranty covers material faults
or production faults. The warranty does not extend to
product parts subject to normal wear and tear or fragile
parts such as switches, batteries, baking moulds or parts
made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly
maintained. The directions in the operating instructions
for the product regarding proper use of the product are
to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned
against must be avoided. This product is intended solely
│
GB
│IE│
NI
SFM 4 A1■ 22
for private use and not for commercial purposes. The
warranty shall be deemed void in cases of misuse or
improper handling, use of force and modifications/
repairs which have not been carried out by one of our
authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe
the following instructions:
● Please have the till receipt and the item number
(e.g. IAN 12345) available as proof of purchase.
● You will find the item number on the type plate,
an engraving on the front page of the instructions
(bottom left), or as a sticker on the rear or bottom of
the appliance.
● If functional or other defects occur, please contact
the service department listed either by telephone
or by e-mail.
● You can return a defective product to us free of
charge to the service address that will be provided
to you. Ensure that you enclose the proof of purchase
(till receipt) and information about what the defect is
and when it occurred.
You can download these instructions along
with many other manuals, product videos and
software on www.lidl-service.com.
SFM 4 A1 GB│IE│NI
│
23 ■
Service
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 279402
Importer
Please note that the following address is not the service
address. Please use the service address provided in the
operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
│
GB
│IE│
NI
SFM 4 A1■ 24
Indholdsfortegnelse
Indledning ......... 26
Ophavsret ............26
Ansvarsbegrænsning ....26
Anvendelsesområde ....27
Anvendte advarsler .....28
Information om
varemærker ...........29
Sikkerhed .......... 29
Grundlæggende
sikkerhedsanvisninger ...29
Betjeningselementer og
pakkens indhold .... 33
Første brug ........ 33
Kontrol af de leverede
dele .................33
Bortskaffelse af
emballagen ...........34
Indsætning/udskiftning af
batterier ..............35
Tilslutning af nano-USB-
modtager ............35
Strømsparetilstand ......36
Skift af driftstilstand .....36
Installation af software ..37
Konfiguration af de enkelte
museknapper .........39
Afhjælpning af fejl .. 41
Rengøring ......... 42
Opbevaring ........ 42
Bortskaffelse ....... 43
Bortskaffelse af produktet 43
Bortskaffelse af batterier /
genopladelige batterier .43
Tillæg ............. 44
Tekniske data .........44
Info til EF-overensstemmel-
seserklæringen ........45
Garanti for Kompernass
Handels GmbH ........45
Service ..............48
Importør .............48
│
DK
25 ■SFM 4 A1
Indledning
Tillykke med købet af dit nye produkt.
Du har valgt et produkt af høj kvalitet. Betjeningsvejled-
ningen er en del af dette produkt. Den indeholder vigtige
informationer om sikkerhed, anvendelse og bortskaffelse.
Du bør sætte dig ind i alle produktets betjenings- og sikkerhedsanvisninger før brug. Brug kun produktet som
beskrevet og kun til de angivne anvendelsesområder.
Opbevar denne betjeningsvejledning, så du altid kan
finde den igen. Lad vejledningen følge med produktet,
hvis du giver det videre til andre.
Ophavsret
Denne dokumentation er ophavsretligt beskyttet.
Enhver kopiering eller eftertryk – også i uddrag – samt
videregivelse af billeder – også i ændret form – er kun
tilladt efter skriftligt samtykke fra producenten.
Ansvarsbegrænsning
Alle tekniske informationer, data og anvisninger for tilslutning og betjening i denne betjeningsvejledning svarer til
den nyeste viden på trykketidspunktet og gives efter bedste overbevisning i henhold til vores hidtidige erfaringer
og viden.
Der kan ikke stilles nogen form for krav baseret på informationerne, billederne og beskrivelserne i denne betjeningsvejledning.
■ 26│DK SFM 4 A1
Loading...
