V 1.42
SilverCrest SFA 30 A1 |
|
Contents |
|
Information about trademarks................................................................................................... |
4 |
Introduction................................................................................................................................ |
4 |
Intended use .............................................................................................................................. |
4 |
Supplied items ............................................................................................................................ |
5 |
Technical data ............................................................................................................................ |
7 |
SilverCrest SFA 30 A1 hands-free kit ................................................................................................................................. |
7 |
Car charger adapter SDC8311......................................................................................................................................... |
7 |
Rating plate .......................................................................................................................................................................... |
8 |
Safety instructions ...................................................................................................................... |
8 |
Copyright ................................................................................................................................. |
11 |
Prior to use ............................................................................................................................... |
12 |
First use .................................................................................................................................... |
12 |
Inserting the lithium-ion battery......................................................................................................................................... |
13 |
Charging the lithium-ion battery....................................................................................................................................... |
14 |
Switching on/off the hands-free kit.................................................................................................................................. |
14 |
2 - English |
|
SilverCrest SFA 30 A1 |
|
Dial-up with compatible mobile phones .......................................................................................................................... |
14 |
Answering calls ................................................................................................................................................................. |
16 |
Making calls ...................................................................................................................................................................... |
16 |
Calling via voice dialling .................................................................................................................................................. |
16 |
Volume setting ................................................................................................................................................................... |
17 |
Muting microphone........................................................................................................................................................... |
17 |
Ending call ......................................................................................................................................................................... |
17 |
Redialling ........................................................................................................................................................................... |
18 |
Mounting on the sun visor ................................................................................................................................................ |
18 |
LED indicator...................................................................................................................................................................... |
19 |
Cleaning / maintenance............................................................................................................ |
20 |
Maintenance ..................................................................................................................................................................... |
20 |
Cleaning ............................................................................................................................................................................ |
20 |
Troubleshooting ....................................................................................................................... |
21 |
Environmental and disposal information .................................................................................. |
22 |
Conformity information ............................................................................................................ |
23 |
Warranty and servicing advice................................................................................................. |
23 |
English |
- 3 |
SilverCrest SFA 30 A1
Information about trademarks
® and Bluetooth® are registered trademarks of Bluetooth SIG, Inc.
USB is a registered trademark.
Other names and products may be the trademarks or registered trademarks of their respective owners.
Introduction
Thank you for purchasing a SilverCrest product.
The SilverCrest Bluetooth® 3.0 SFA 30 A1 hands-free kit, hereinafter referred to as hands-free kit, enables you to conveniently use your mobile phone in hands-free mode. Power is supplied via a 12V/24V car power outlet.
Intended use
This hands-free kit is not designed for commercial use or operation in a company. Use the hands-free kit only for private use as any other use is not as intended. This hands-free kit meets all relevant norms and standards in conjunction with CE conformity. In the event of any modification to the hands-free kit that was not approved by the
4 - English
SilverCrest SFA 30 A1
manufacturer, compliance with these standards is no longer guaranteed. The manufacturer does not accept any liability for any resulting damage or faults in such cases.
Please observe the regulations and laws in the country of use.

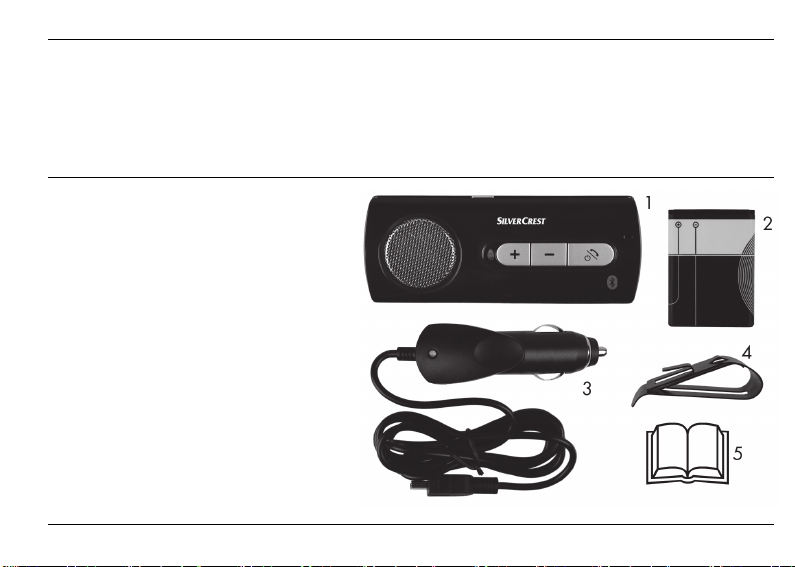

Supplied items
1.SilverCrest Bluetooth® 3.0 SFA 30 A1 hands-free kit
2.Lithium-ion battery BL-5B, 3.7V/700mAh
3.Car charger adapter SDC8311
4.Mounting clip
5.These instructions (symbolic representation)
English - 5
SilverCrest SFA 30 A1
These instructions have a fold-out cover. The hands-free kit is illustrated with numbers on the inside cover. The numbers indicate the following:
1 Mute button
2LED indicator
3 + button (increase volume, redial)
4- button (reduce volume)
5Multifunction button (on/off, answer/end call, dial-up)
6Microphone
7USB charging socket
8Loudspeaker
9 Battery compartment
10 Clip fixing
6 - English
SilverCrest SFA 30 A1
Technical data
SilverCrest SFA 30 A1 hands-free kit
Operating voltage: |
5V |
Battery: |
li-ion battery BL-5B; Shen Zhen Battery Technology CO.,Ltd |
|
3.7V/700mAh/2.59Wh |
Bluetooth® specification: |
V3.0 + EDR |
Profile support: |
BT headset, hands-free profile |
Frequency range: |
2.402 – 2.480GHz |
Charging time: |
max. 3 hours |
Talk time: |
up to 6 hours |
Standby time: |
up to 600 hours |
Dimensions (W x H x D): |
117.5 x 47 x 15 mm |
Weight: |
approx. 76 g |
Operating temperature: |
0°C to +45°C |
Storage temperature: |
-20°C to +60°C |
Car charger adapter SDC8311
Fuse: |
T2A L 250V |
Input voltage: |
12-24V |
Output voltage: |
5V |
Output current: |
500mA |
English - 7
SilverCrest SFA 30 A1
Rating plate
The rating plate can be found in the battery compartment of the hands-free kit.
The technical data and design may be changed without notification.
Safety instructions
Before using the hands-free kit for the first time, read the following instructions and pay attention to all warnings, even if you are familiar with handling electronic devices. Store these instructions in a safe place for future reference. If you sell the hands-free kit or pass it on, always include these instructions.
This symbol indicates important information for safe operation of the hands-free kit and the safety of the user.
This symbol indicates other important information on the topic.
8 - English
SilverCrest SFA 30 A1
This hands-free kit can be used by children aged 8 and older and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge if they are supervised or have been instructed on the safe use of the hands-free kit and understand the resulting risks. Children must not play with the hands-free kit. Cleaning and user maintenance must not be carried out by children without supervision. Always keep plastic packaging away from children as it poses a suffocation risk.
If smoke is produced, or there are any unusual sounds or smells, disconnect the hands-free kit from the power supply immediately. In such cases, the hands-free kit should not be used until it has been inspected by authorised service personnel. Never inhale smoke from a potential device fire. If you have inhaled smoke, however, consult a doctor. The inhalation of smoke can be harmful.
The hands-free kit and its accessories must not become damaged in order to prevent hazards.
Ensure that no fire sources (e.g. burning candles) are placed on or near the hands-free kit. It poses a fire hazard!
The hands-free kit must not be thrown into a fire because the integrated battery may explode.
The hands-free kit must never be exposed to any direct heat sources (for example, heaters) or direct sunlight or artificial light. Also avoid contact with dripping water and splashes and corrosive liquids. Do not use the handsfree kit near water. In particular, the hands-free kit should never be submerged in liquid (do not place any items filled with liquid, e.g. vases or drinks near the hands-free kit). Also ensure that the hands-free kit is never subjected to excessive shocks and vibrations. Furthermore, no foreign objects may penetrate the device. Otherwise, the
English - 9
SilverCrest SFA 30 A1
hands-free kit could be damaged.
In the event of improper use of the battery, there is a risk of explosion and leakage. Only replace the battery with an identical model or one recommended by the manufacturer. Never replace the battery in an environment where there is a risk of explosion. During the insertion or removal of the battery, there might be a spark that could cause an explosion. Areas where there is an explosion risk are usually labelled as such, although not always clearly. This includes tank areas such as e.g. below deck on boats, refuelling or fuel storage areas, areas in which the air contains chemicals or particles such as e.g. cereals, dust or metallic powder as well as in all areas in which you are normally instructed to switch off your engine.
The battery must not be thrown into fire. Risk of explosion!
The terminals of the battery must not be short-circuited. The battery must not be opened, damaged or deformed. Risk of explosion!
There is a risk of suffocation if you swallow the battery.
The hands-free kit may only be operated with a li-ion battery type BL-5B of the manufacturer Shen Zhen Battery Technology CO.,Ltd. There is a risk of fire and explosion otherwise.
10 - English
SilverCrest SFA 30 A1
Car charger adapter
Always handle the car charger adapter by the connector and do not pull on the connection cable itself.
Do not place furniture or other heavy objects on the connection cable and ensure that it is not kinked.
Never tie a knot in the connection cable and do not tie cables together. Ensure that the connection cable is placed so that no one can trip over it and it does not cause an obstruction.
Do not use adapter plugs or extension cables and do not make any alterations to the connection cable. If the connection cable is damaged, it must be replaced by the manufacturer or its customer service representative or a similarly qualified person to prevent any safety hazards.
Copyright
All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing. Subject to change without notice.
English - 11
SilverCrest SFA 30 A1
Prior to use
Remove the hands-free kit and the accessories from the packaging.
Check the hands-free kit and the accessories for signs of damage. The hands-free kit must not be used if it is damaged.
First use
Before you use the hands-free kit for the first time, please insert the enclosed lithium-ion battery and charge it fully. The hands-free kit may be charged only with the enclosed car charger adapter.
Please remove the car charger adapter when the engine is switched off to save the battery of your vehicle.
12 - English
SilverCrest SFA 30 A1

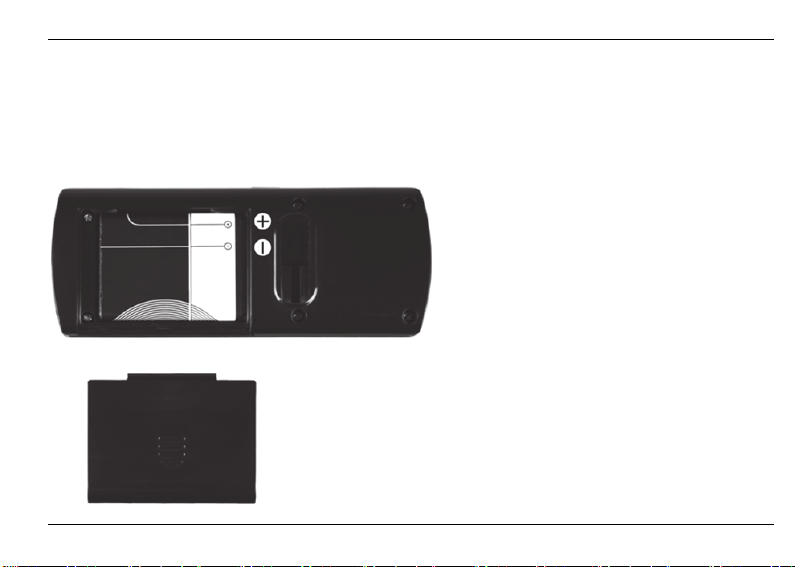

Inserting the lithium-ion battery
Open the battery compartment (9) by pressing the centre of the battery compartment cover and removing it in the direction of the imprinted arrow. Insert the lithium-ion battery in the battery compartment (9) as shown in the illustration. Make sure to insert the lithium-ion battery with the correct polarity (note + and –). The polarity is marked on the lithiumion battery and in the battery compartment (9).
English - 13
SilverCrest SFA 30 A1
Charging the lithium-ion battery
Charge the lithium-ion battery fully before its first use. To do so, connect the USB connector of the enclosed car charger adapter to the USB charging socket (7) of the hands-free kit. Then insert the car charger adapter into an appropriate power outlet of your vehicle. The LED indicator (2) lights up red while charging. A full charge cycle takes approximately 3 hours. If charging is complete, the LED indicator (2) goes out. Then disconnect the car charger adapter from the power outlet and the hands-free kit.
Charge the battery only when the engine is running to save the battery of your vehicle.
Switching on/off the hands-free kit
Press the multifunction button (5) for approx. 5 seconds until a beep sounds and the LED indicator (2) flashes blue. The hands-free kit is now ready to use.
To switch off the hands-free kit, press the multifunction button (5) again for approx. 4 seconds. A beep sounds, the LED indicator (2) flashes red briefly several times and then goes out completely.
Dial-up with compatible mobile phones
Pairing
With the hands-free kit switched off, keep the multifunction button (5) pressed for approx. 9 seconds until a beep sounds and the LED indicator (2) alternates between flashing red and blue. The hands-free kit is now in search mode. Activate the Bluetooth® function of your mobile phone and let it search for Bluetooth® devices nearby. For further
14 - English
SilverCrest SFA 30 A1
details, please read the instructions of your mobile phone. Select the device "SFA 30 A1" from the list of devices which are found.
The name of the hands-free kit "SFA 30 A1" now appears in the list of devices connected to your mobile phone. The hands-free kit is now in standby mode and the LED indicator (2) flashes blue once at regular intervals. Once the mobile phone is switched off, it flashes blue twice.
You can connect or pair additional devices to the hands-free kit in the same manner. The pairing begins for each device with the hands-free kit switched off as described above.
The hands-free kit then has several "known" devices. This status is a prerequisite for an active connection between the hands-free kit and other devices.
The number of devices that can be actively connected to the hands-free kit is limited to two. As soon as one or two of the known devices are in the vicinity of the hands-free kit, the connection to these devices is established automatically. You may need to confirm the connection on your mobile phone. If a third known device is now in the vicinity of the hands-free kit, the connection is blocked as long as 2 active connections exist. If one of the two active connected devices is no longer paired, pairing is possible for the third (waiting) device. Once the hands-free kit has established a telephone connection with one of the mobile phones which is paired at the same time, no telephone connection can be established with the second device via the hands-free kit. This blocking is cancelled once the first telephone connection has ended.
The pairing process can take up to 30 seconds depending on the mobile phone which is used.
English - 15
SilverCrest SFA 30 A1
Answering calls
The hands-free kit rings for an incoming call. The LED indicator (2) rapidly flashes blue during the dial-up. You can answer the call by briefly pressing the multifunction button (5). Once the telephone connection is established, the LED indicator (2) flashes blue at regular intervals.
To reject the call, press the multifunction button (5) for approx. 2 seconds until a beep sounds.
Making calls
If you want to make a call, dial the phone number as usual on your mobile phone. The LED indicator (2) rapidly flashes blue during the dial-up. Once the telephone connection is established, the LED indicator (2) flashes blue at regular intervals.
Calling via voice dialling
The hands-free kit provides the option of making calls via voice dialling if your mobile phone supports this function and it is enabled. To establish a connection via voice dialling, press the multifunction button (5) of the hands-free kit once in standby mode and then clearly say the name of the desired participant. For more detailed information on the voice dialling function of your mobile phone, please refer to the instructions of the mobile phone.
16 - English
SilverCrest SFA 30 A1
Volume setting
You can increase the volume according to your needs during a call with the + button (3). A beep sounds if the maximum volume is reached. You can also reduce the volume with the - button (4). A beep sounds if the minimum volume is reached.
Muting microphone
You can use the mute button (1) to temporarily switch off the microphone (6) during a call so that the other person can no longer hear you. In this case, press the mute button (1) for approx. 2 seconds until a confirmation tone sounds and the LED indicator (2) flashes red. The microphone is now muted. When muted, 2 beeps sound at regular intervals to remind you of the muting. If you want to end the muting, press the mute button (1) again for approx. 2 seconds. A beep sounds and you are back in normal talk mode in which the other person can hear you.
Ending call
To end a call, press the multifunction button (5) once.
English - 17
SilverCrest SFA 30 A1
Redialling
You can redial the last number that was called via the hands-free kit. In this case, press the + button (3) for approx. 2 seconds in standby mode until a confirmation tone sounds.

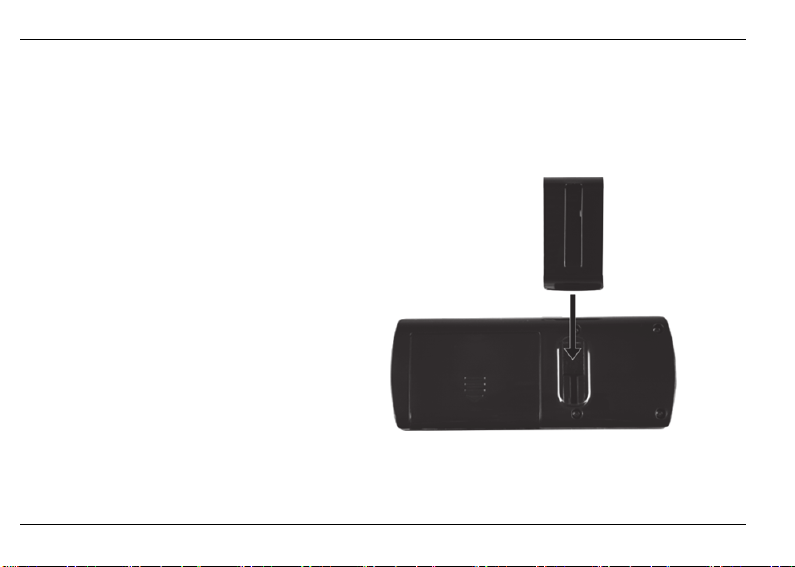

Mounting on the sun visor
You can mount the hands-free kit on the sun visor of your vehicle by means of the enclosed mounting clip. To do so, first attach the mounting clip to the clip fixing (10) on the back of your hands-free kit.
You can now easily attach the hands-free kit to the sun visor of your vehicle.
18 - English
SilverCrest SFA 30 A1
LED indicator
Refer to the table below for the different statuses of the LED indicator (2):
Status of LED indicator (2) |
Meaning |
|
|
flashes blue 5 times |
power-on procedure |
|
|
alternates between flashing red and blue |
dial-up |
|
|
flashes blue twice every 3 seconds |
standby mode (Bluetooth® connection not established) |
flashes blue once every 3 seconds |
standby mode (Bluetooth® connection established) and |
|
during an active call. |
|
|
rapidly flashes blue (a ringtone also sounds for an |
incoming or outgoing call |
incoming call) |
|
|
|
flashes red once (2 beeps sound at regular intervals) |
muting of the microphone is active |
|
|
lights up red continuously |
charging (after charging is complete, the LED goes out) |
|
|
flashes red once in conjunction with a beep |
the hands-free kit is not connected to the car power |
|
supply via the car charger adapter and the battery |
|
status is low |
|
|
flashes red 5 times |
power-off procedure |
|
|
English - 19
SilverCrest SFA 30 A1
Cleaning / maintenance
Maintenance
It is necessary to repair the hands-free kit if it has been damaged in any way, for example, if the housing is damaged, if liquid or objects have penetrated the hands-free kit or if it has been exposed to rain or moisture. Repairs are also required if the hands-free kit is not working properly or has been dropped. If smoke is produced, or there are any unusual sounds or smells, disconnect the hands-free kit from the mains power supply immediately. In such cases, the hands-free kit should not be used until it has been inspected by authorised service personnel. Only have the device repaired by qualified personnel. Never open the housing of the hands-free kit. Furthermore, the hands-free kit could be damaged upon opening and this would void your warranty.
Cleaning
Disconnect the hands-free kit from the power supply before cleaning in order to prevent hazards. Use a dry cloth for cleaning and never use any solvent or cleaner that would corrode the plastic materials. Ensure that no liquid enters the housing. Use a slightly damp cloth for more stubborn dirt.
20 - English
SilverCrest SFA 30 A1
Troubleshooting
The hands-free kit is not working.
Check whether the lithium-ion battery is charged. Charge it if necessary.
Check whether the hands-free kit is switched on and the connection to the mobile phone is established.
The lithium-ion battery is not charged.
Check whether the car charge adapter is inserted correctly in the power outlet.
Check whether the USB connector of the car charger adapter is inserted correctly in the USB charging socket (7) of the hands-free kit.
Turn on the ignition of your vehicle because some vehicles supply power to the power outlet only when the ignition is turned on.
Check whether the car charger adapter's fuse is faulty and change if needed. To do so remove the adapter's contact closure by turning anti-clockwise. Change the faulty fuse for a new one of the same type (see technical data) and then secure the contact closure by turning clockwise.
English - 21
SilverCrest SFA 30 A1
Environmental and disposal information
When this symbol appears on a product, this indicates that the product is subject to the European Directive 2002/96/EC. All old electrical and electronic devices must be separated from normal household waste and disposed of at designated state facilities. The correct disposal of old devices in this manner will prevent environmental pollution and human health hazards. For further information about proper disposal, contact your local authorities, waste disposal office or the shop where you bought the device.
Remember to protect the environment. Used batteries should not be disposed of in household waste. They must be taken to a collection point for old batteries. Please note that only discharged batteries may be deposited in battery recycling bins. Care must be taken to ensure that batteries that are not fully discharged do not short circuit.
Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.
22 - English
SilverCrest SFA 30 A1
Conformity information
This device meets the basic requirements and other relevant regulations of the R&TTE Directive 1999/5/EC, the EMC Directive 2004/108/EC as well as the RoHS Directive 2011/65/EU. The Declaration of Conformity can be found at the end of these instructions.
Warranty and servicing advice
Warranty of TARGA GmbH
This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation or online help. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.
Your statutory rights towards the seller are not affected or restricted by this warranty.
English - 23
SilverCrest SFA 30 A1
Service
Phone: |
0207 – 36 50 744 |
E-Mail: |
service.GB@targa-online.com |
Phone: |
01 – 242 15 83 |
E-Mail: |
service.IE@targa-online.com |
Phone: |
800 – 62 175 |
E-Mail: |
service.MT@targa-online.com |
Phone: |
800 – 92 496 |
E-Mail: |
service.CY@targa-online.com |
IAN: 88638
Manufacturer
TARGA GmbH
Coesterweg 45
59494 SOEST
GERMANY
24 - English
|
SilverCrest SFA 30 A1 |
Spis treści |
|
Informacje na temat znaków towarowych .............................................................................. |
27 |
Wstęp ....................................................................................................................................... |
27 |
Użytkowanie zgodne z przeznaczeniem .................................................................................. |
27 |
Zakres dostawy ....................................................................................................................... |
28 |
Dane techniczne ....................................................................................................................... |
30 |
Urządzenie głośnomówiące SilverCrest SFA 30 A1 ..................................................................................................... |
30 |
Ładowarka samochodowa SDC8311 ............................................................................................................................ |
30 |
Tabliczka znamionowa..................................................................................................................................................... |
31 |
Przepisy bezpieczeństwa ......................................................................................................... |
31 |
Prawo autorskie....................................................................................................................... |
34 |
Przed pierwszym uruchomieniem ............................................................................................ |
35 |
Uruchomienie ........................................................................................................................... |
35 |
Wkładanie akumulatora litowego ................................................................................................................................... |
36 |
Ładowanie akumulatora litowego ................................................................................................................................... |
37 |
Włączanie/wyłączanie urządzenia głośnomówiącego ............................................................................................... |
37 |
Polski – 25
SilverCrest SFA 30 A1
Nawiązywanie połączenia z kompatybilnymi telefonami komórkowymi.................................................................... |
37 |
Odbieranie połączeń ....................................................................................................................................................... |
39 |
Nawiązywanie połączeń................................................................................................................................................. |
39 |
Głosowe nawiązywanie połączeń.................................................................................................................................. |
39 |
Ustawienie głośności ........................................................................................................................................................ |
40 |
Wyciszanie mikrofonu ...................................................................................................................................................... |
40 |
Zakończenie połączenia .................................................................................................................................................. |
40 |
Powtórzenie połączenia ................................................................................................................................................... |
41 |
Mocowanie na osłonie przeciwsłonecznej .................................................................................................................... |
41 |
Wskaźnik LED.................................................................................................................................................................... |
42 |
Konserwacja / czyszczenie ...................................................................................................... |
43 |
Konserwacja...................................................................................................................................................................... |
43 |
Czyszczenie ...................................................................................................................................................................... |
43 |
Rozwiązywanie problemów .................................................................................................... |
44 |
Wskazówki dotyczące ochrony środowiska i prawidłowego usuwania.................................. |
45 |
Deklaracja zgodności ............................................................................................................... |
46 |
Informacje na temat gwarancji i serwisowania........................................................................ |
46 |
26– Polski
SilverCrest SFA 30 A1
Informacje na temat znaków towarowych
® i Bluetooth® są zarejestrowanymi znakami towarowymi Bluetooth SIG, Inc.
USB jest zarejestrowanym znakiem towarowym.
Inne nazwy i produkty mogą być znakami towarowymi lub zarejestrowanymi znakami towarowymi odnośnych właścicieli.
Wstęp
Dziękujemy za zakup produktu SilverCrest.
Urządzenie głośnomówiące SilverCrest Bluetooth® 3.0 SFA 30 A1, zwane dalej "urządzenie głośnomówiące", umożliwia wygodne korzystanie z posiadanego telefonu komórkowego w trybie głośnomówiącym. Zasilanie zapewnia gniazdo 12 V/24 V w pojeździe.
Użytkowanie zgodne z przeznaczeniem
Urządzenie głośnomówiące nie jest przewidziane do stosowania w przedsiębiorstwach ani do zastosowań komercyjnych. Urządzenie głośnomówiące jest przeznaczone wyłącznie do użytku prywatnego, a każde inne użytkowanie uznaje się za niezgodne z przeznaczeniem. Urządzenie głośnomówiące spełnia wymagania wszystkich odnośnych norm i dyrektyw, związanych ze zgodnością CE. W przypadku nieuzgodnionych z producentem
Polski – 27
SilverCrest SFA 30 A1
modyfikacji urządzenia głośnomówiącego nie można zagwarantować spełnienia wymagań tych norm. Producent nie ponosi żadnej odpowiedzialności za wynikłe z tego szkody lub zakłócenia.
Należy przestrzegać przepisów krajowych lub przepisów kraju użytkowania.
Zakres dostawy
1.Urządzenie głośnomówiące SilverCrest Bluetooth® 3.0 SFA 30 A1
2.Akumulator litowy BL-5B, 3,7 V/700 mAh
3.Ładowarka samochodowa SDC8311
4.Klips mocujący
5.Niniejsza instrukcja (ikona)
28– Polski
Loading...
