Ryobi RY15524 User Manual

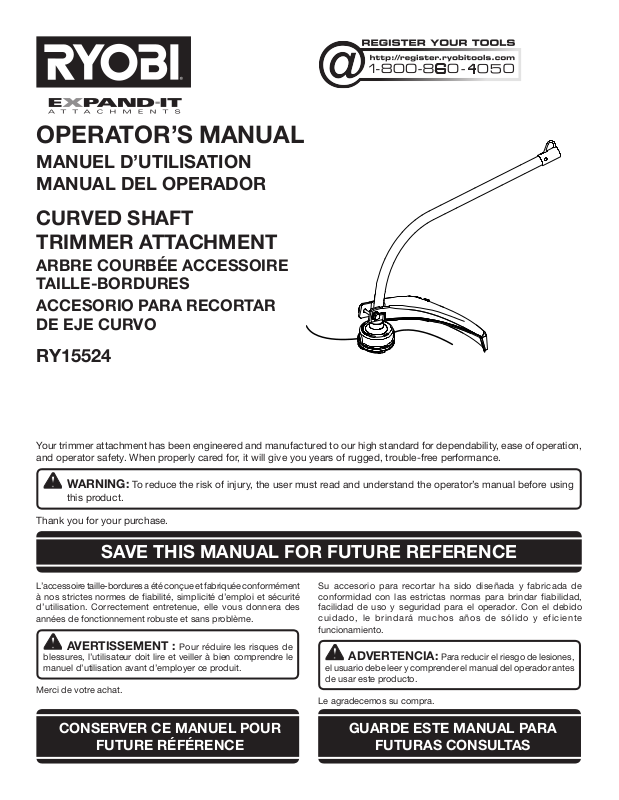

OPERATOR’S MANUAL
MANUEL D’UTILISATION MANUAL DEL OPERADOR
CURVED SHAFT TRIMMER ATTACHMENT
ARBRE COURBÉE ACCESSOIRE TAILLE-BORDURES
ACCESORIO PARA RECORTAR DE EJE CURVO
RY15524
Your trimmer attachment has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using
this product.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE
L’accessoire taille-bordures a été conçue et fabriquée conformément à nos strictes normes de fiabilité, simplicité d’emploi et sécurité d’utilisation. Correctement entretenue, elle vous donnera des
années de fonctionnement robuste et sans problème.
AVERTISSEMENT : Pour réduire les risques de
blessures, l’utilisateur doit lire et veiller à bien comprendre le manuel d’utilisation avant d’employer ce produit.
Merci de votre achat.
CONSERVER CE MANUEL POUR
FUTURE RÉFÉRENCE
funcionamiento.
ADVERTENCIA: Para reducir el riesgo de lesiones,
el usuario debe leer y comprender el manual del operador antes de usar este producto.
Le agradecemos su compra.
GUARDE ESTE MANUAL PARA
FUTURAS CONSULTAS
See this fold-out section for all of the figures referenced in the operator’s manual.
Consulter l’encart à volets afin d’examiner toutes les figures mentionnées dans le manuel d’utilisation.
Consulte esta sección desplegable para ver todas las figuras a las que se hace referencia en el manual del operador.
Fig. 1
A
B
D
C
A - Hanger cap (capuchon de suspension, tapa de suspensión) B - Trimmer shaft (arbre du taille-bordures, eje de la recortadora) C - String head (tête à ligne de coupe, cabezal del hilo) D - Grass deflector (déflecteur d’herbe, deflector de pasto)
Fig. 2
A
Fig. 3
Fig. 4
PROPER OPERATING POSITION
BONNE POSITION DE TRAVAIL
POSICIÓN CORRECTA PARA EL MANEJO
DE LA HERRAMIENTA
Fig. 5
B
A
C
A
B
B
E
C
A - Bolt (boulon, perno) B - Bracket (support, placa) C - Washer (rondelle, arandela) D - Wing nut (écrou à oreilles, tuerca de
mariposa)
E - Grass deflector (déflecteur d’herbe,
deflector de pasto)
D
C
D
E
A - Power head shaft (arbre moteur, cabezal
motor eje) B - Coupler (coupleur, acoplador) C - Guide recess (renfoncement du guide,
hueco guía) D - Button (bouton, botón) E - Trimmer attachment shaft (arbre de
l’accessoire, eje del accesorio) F - Positioning hole (trou de positionnement,
orificio de posicionamiento) G - Knob (bouton, perilla)
F
G
A - Dangerous cutting area (zone de coupe
dangereuse, área peligrosa de corte)
B - Curved shaft trimmer (taille-bordures à
arbre courbe, recortadora de eje curvo)
C - Direction of rotation (sens de rotation,
sentido de rotación)
D - Best cutting area (zone d’efficacité maximum,
mejor área de corte)
D
ii
Fig. 6
Fig. 9
Fig. 11
A
A - Line trimming cut-off blade (lame de
sectionnement de ligne, cuchilla de corte)
Fig. 7
A
A - Spool retainer (retenue de bobine, retén del
carrete)
Fig. 8
A
A
B
A - Eyelet (oeillet, ojillo) B - Arrow on spool (flèche sur la bobine, flecha
en el carrete)
Fig. 10
B B
A
A A
A - Pull lines (tirer vers l’extérieur, tira del hilo)
Fig. 12
D
A
B
C
A - Hole (trou, orificio) B - Secondary hole (trou secondaire, orificio
secundario) C - Button (bouton, botón) D - Hanger cap (capuchon de suspension, tapa
de suspensión)
B
A - Spool retainer (retenue de bobine, retén del
carrete)
B - Spool (bobine, carrete)
A - Spool (bobine, carrete) B - Eyelets (oeillets, ojillos)
iii
TABLE OF CONTENTS
TABLE DES MATIÈRES / ÍNDICE DE CONTENIDO
Introduction ......................................................................................................................................................................2
Introduction / Introducción
 General Safety Rules ........................................................................................................................................................ 3
Règles de sécurité générales / Reglas de seguridad generales
 Specific Safety Rules ........................................................................................................................................................ 3
Règles de sécurité particulières / Reglas de seguridad específicas
Symbols ............................................................................................................................................................................ 4
Symboles / Símbolos
 Features ............................................................................................................................................................................ 5
Caractéristiques / Características
 Assembly .......................................................................................................................................................................5-6
Assemblage / Armado
 Operation .......................................................................................................................................................................6-8
Utilisation / Funcionamiento
 Maintenance ..................................................................................................................................................................8-9
Entretien / Mantenimiento
Warranty .........................................................................................................................................................................10
Garantie / Garantía

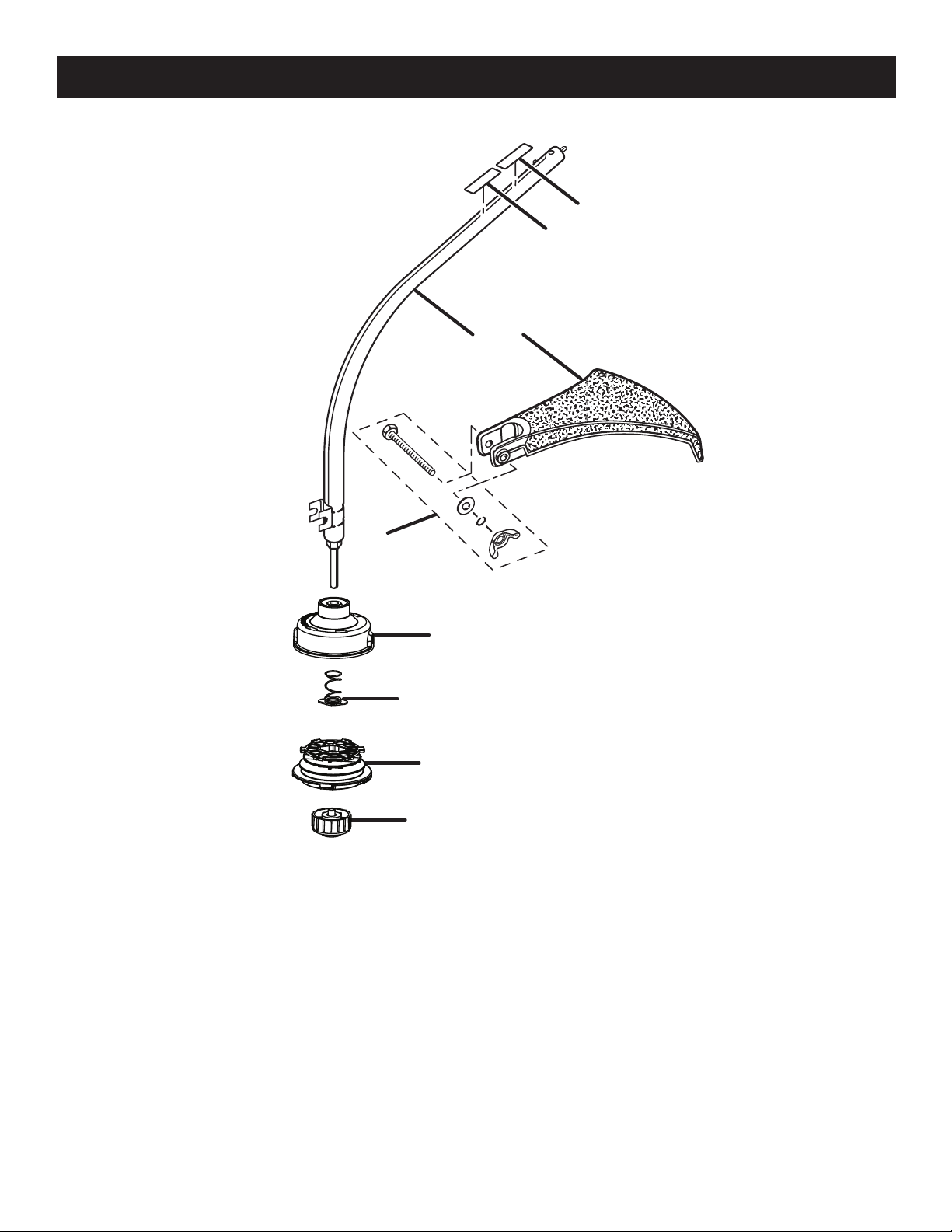

 Exploded View and Parts List ....................................................................................................................................11-12
Vue éclatée et liste des pièces / Vista desarrollada y lista de piezas
 Parts Ordering and Service ...............................................................................................................................Back Page
Commande de pièces et réparation / Pedidos de piezas y servicio ......................................................... Page arrière / Pág. posterior
INTRODUCTION
INTRODUCTION / INTRODUCCIÓN
This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.
* * *
Ce produit offre de nombreuses fonctions destinées à rendre son utilisation plus plaisante et satisfaisante. Lors de la conception de ce produit, l’accent a été mis sur la sécurité, les performances et la fiabilité, afin d’en faire un outil facile à utiliser et à entretenir.
* * *
Este producto ofrece numerosas características para hacer más agradable y placentero su uso. En el diseño de este producto se ha conferido prioridad a la seguridad, el desempeño y la fiabilidad, por lo cual se facilita su manejo y mantenimiento.
2
GENERAL SAFETY RULES
WARNING:
Read and understand all instructions. Failure to follow
all instructions listed below may result in electric shock, fire, and/or serious personal injury.
SAVE THESE INSTRUCTIONS
Read these instructions and the instructions for the power
head thoroughly before using the curved shaft trimmer attachment.
Know the tool. Read and understand the operator’s
manual and observe the warnings and instruction labels affixed to the tool.
Do not allow children or untrained individuals to use this unit. Always wear eye protection with side shields marked to
comply with ANSI Z87.1 and hearing protection when operating this unit.
Wear heavy long pants, long sleeves, boots, and gloves.
Do not wear loose fitting clothing, short pants, jewelry of any kind, sandals or go barefoot.
Secure long hair so it is above shoulder level to prevent
entanglement in any moving parts.
Keep all bystanders, children, and pets at least 50 ft.
away. Bystanders should be encouraged to wear eye protection.
Stay alert, watch what you are doing, and use common
sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medica-
tion. A moment of inattention while operating power tools may result in serious personal injury.
Do not operate in poor lighting. Do not overreach. Keep proper footing and balance at all
times. Proper footing and balance enables better control of the tool in unexpected situations.
Keep all parts of your body away from any moving part. Do not touch areas around the muffler or cylinder of the
power head. These parts get hot from operation. Contact with hot surfaces could result in possible serious personal injury.
Always stop the engine and remove the spark plug wire
before making any adjustments or repairs except for carburetor adjustments.
Inspect unit before each use for loose fasteners and dam-
aged or missing parts. Correct before using the trimmer attachment. Failure to do so can cause serious injury.
Use only original manufacturer’s replacement parts.
Failure to do so may cause poor performance, possible injury, and will void your warranty.
Do not, under any circumstance, use any attachment or
accessory on this product, which was not provided with the product, or identified as appropriate for use with this product in the operator’s manual.
Avoid dangerous environments. Do not use the attach-
ment in damp or wet locations. Do not use in rain.
Use the right attachment. Do not use attachment for any
job except that for which it is intended.
SPECIFIC SAFETY RULES
Replace string head if cracked, chipped, or damaged
in any way. Be sure the string head is properly installed and securely fastened. Failure to do so can cause serious injury.
Make sure all deflectors and handles are properly and
securely attached.
 Never use blades, flailing devices, wire, or rope. Use
only the manufacturer’s replacement string in the cutting head.
 Do not use any other cutting attachment. To install any
other brand of cutting head to this string trimmer attach­ment can result in serious personal injury.
 Never operate string trimmer without the grass deflector
in place and in good condition.
 Maintain a firm grip on both handles while trimming.
NOTE: ADDITIONAL SPECIFIC SAFETY RULES CAN BE FOUND IN THE APPLICABLE POWERHEAD’S OPERATOR’S MANUAL
Keep string head below waist level. Never cut with
the string head located over 30 in. or more above the ground.
Clear the work area before each use. Remove all objects
such as rocks, broken glass, nails, wire, or string which can be thrown or become entangled in the cutting line.
To prevent electrical shock or serious personal injury, do
not use this product with any electric power head.
This attachment is intended for use on gasoline powered
powerheads only.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you loan someone this tool, loan them these in­structions also to prevent misuse of the product and possible injury.
3 — English

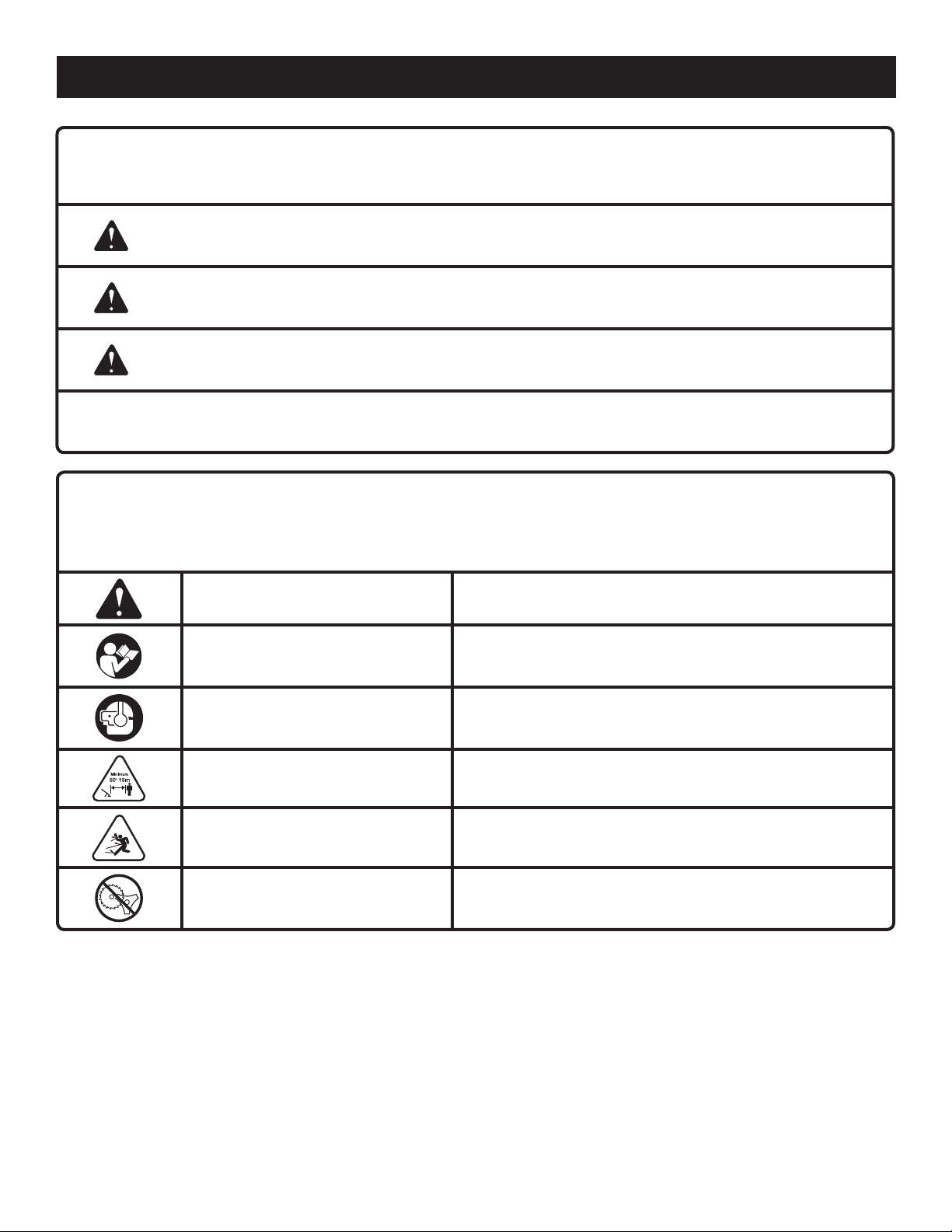

SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER:
WARNING:
CAUTION:
CAUTION:
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in property damage.
SYMBOL NAME EXPLANATION
Safety Alert Symbol Indicates a potential personal injury hazard.
Read Operator’s Manual
To reduce the risk of injury, user must read and understand operator’s manual before using this product.
Always wear eye protection with side shields marked to
Eye and Hearing Protection
Keep Bystanders Away Keep all bystanders at least 50 ft. away.
Ricochet
No Blade Do not install or use any type of blade on a product displaying
comply with ANSI Z87.1, along with hearing protection when operating this equipment.
Thrown objects can ricochet and result in personal injury or property damage.
4 — English
FEATURES
PRODUCT SPECIFICATIONS
String Cutting Width .......................................................................................................................................................17 in.
String Diameter .................................................................................................................................. .080 in. to .95 in. max.
KNOW YOUR STRING TRIMMER ATTACHMENT
See Figure 1.
The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all op­erating features and safety rules.
ASSEMBLY
UNPACKING
This product requires assembly. Carefully remove the items from the box. Make sure that
all items listed in the packing list are included.
WARNING:
Do not use this product if any parts on the Packing List are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.
Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the product.
If any parts are damaged or missing, please call
1-800-860-4050 for assistance.
PACKING LIST
Ryobi® Expand-it™ Curved Shaft Trimmer Attachment Curved Shaft Grass Deflector Operator’s Manual
WARNING:
If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.
CURVED SHAFT GRASS DEFLECTOR
The trimmer includes a grass deflector that helps protect you from flying debris.
REEL-EASY™ TAP ADVANCE SYSTEM
The Reel-Easy™ Tap Advance System allows easy line ad­vance during trimmer operation.
WARNING:
Do not attempt to modify this product or create acces­sories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.
WARNING:
To prevent accidental starting that could cause serious personal injury, always disconnect the engine spark plug wire from the spark plug when assembling parts.
ATTACHING THE GRASS DEFLECTOR
See Figure 2.
NOTE: Install the grass deflector before the attachment is connected to the power head.
Remove bolt, washer, and wing nut from grass
deflector.
Press the grass deflector onto the bottom of the curved
shaft as shown.
Insert the bolt through the grass deflector and the bracket
on the curved shaft.
Place the washer on the bolt. Place the wing nut on the bolt and tighten securely.
JOINING THE POW ER HEAD TO THE CURVED SHAFT TRIMMER ATTACHMENT
See Figure 3.
Never attach or adjust any attachment while power head is running. Failure to stop the engine may cause serious personal injury.
5 — English
WARNING:
ASSEMBLY
The curved shaft trimmer attachment connects to the power head by means of a coupler device.
Remove the hanger cap from the attachment shaft. Loosen the knob on the coupler of the power head
shaft.
Push in the button located on the curved shaft trimmer
attachment. Align the button with the guide recess on the power head coupler and slide the two shafts together. Rotate attachment shaft until button locks into the posi­tioning hole.
NOTE: If the buttons do not release completely in the positioning holes, the shafts are not locked into place. Slightly rotate from side to side until the button is locked into place.
Tighten the knob securely.
OPERATION
WARNING:
Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
WARNING:
WARNING:
Be certain the knob is fully tightened before operating equipment. Check it periodically for tightness during use to avoid serious injury.
REMOVING THE ATTACHMENT FROM THE POWER HEAD
For removing or changing the attachment:
Stop the engine. Loosen the knob. Push in the button and twist the shafts to remove and
separate ends.
APPLICATIONS
You may use this product for the purpose listed below: Trimming grass and weeds from around porches, fences,
and decks.
OPERATING THE TRIMMER
See Figure 4.
Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection when operating this equipment. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.
WARNING:
Never use blades, flailing devices, wire, or rope on this product. Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.
Before each use, inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced. Please call 1-800-860-4050 or contact an authorized service center for assistance.
WARNING:
Engine housing may become hot during trimmer opera­tion. Do not rest or place your arm, hand, or any body part against the engine housing during trimmer operation. Only hold the trimmer as shown in Figure 4 with all body parts clear of engine housing. Extended contact with the engine housing may result in burns or other injuries.
WARNING:
Always position the unit on the operator’s right side. The use of the unit on the operator’s left side will expose the operator to hot surfaces and can result in possible burn injury.
WARNING:
To avoid burns from hot surfaces, never operate unit with the bottom of the engine above waist level.
6 — English
OPERATION
Hold the trimmer with your right hand on the rear handle and your left hand on the front handle. Keep a firm grip with both hands while in operation. Trimmer should be held at a comfortable position with the rear handle about hip height.
Always operate trimmer at full throttle. Cut tall grass from the top down. This will prevent grass from wrapping around the shaft housing and string head which may cause damage from overheating. If grass becomes wrapped around the string head, STOP THE ENGINE, disconnect the spark plug wire, and remove the grass. Prolonged cutting at partial throttle will result in lubricant dripping from the muffler.
WARNING:
Always hold the string trimmer away from your body, keep­ing clearance between your body and the product. Any contact with the housing or string trimmer cutting head can result in burns and/or other serious personal injury.
CUTTING TIPS
See Figure 5.
Avoid hot surfaces by always keeping the tool away from
your body. (Proper operating position shown in figure 4.)
Keep the trimmer tilted toward the area being cut; this is
the best cutting area.
The curved shaft trimmer cuts when passing the unit from
right to left. This will avoid throwing debris at the operator. Avoid cutting in the dangerous area shown in figure 5.
Use the tip of line to do the cutting; do not force string
head into uncut grass.
Wire and picket fences cause extra line wear, even break-
age. Stone and brick walls, curbs, and wood may wear string rapidly.
Avoid trees and shrubs. Tree bark, wood moldings, siding,
and fence posts can easily be damaged by the string.
ADVANCING STRING USING THE REEL-EASY™ TAP ADVANCE SYSTEM
String advance is controlled by tapping the string head’s spool retainer on grass while running engine at full throttle.
Run engine at full throttle. Tap string head on ground to advance string. String
advances each time the head is tapped.
Several taps may be required until string strikes the cut
off blade.
Resume trimming. NOTE: If the string is worn too short you may not be able to
advance the string by tapping it on the ground. If so, STOP THE ENGINE, disconnect the spark plug wire, and manually advance the string.
ADVANCING THE STRING MANUALLY
With the engine off and the spark plug wire disconnected, push the spool retainer down while pulling on string(s) to manually advance the string.
CUT-OFF BLADE
See Figure 6.
This trimmer is equipped with a cut-off blade on the grass deflector. For best cutting, advance string by tapping the string head until the string is trimmed to length by the cut-off blade. Advance string whenever you hear the engine running faster than normal, or when trimming efficiency diminishes. This will maintain best performance and keep string long enough to advance properly.
MAINTENANCE
WARNING:
When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.
WARNING:
Always wear eye protection with side shiels marked to comply with ANSI Z87.1, along with hearing protection when operating this equipment. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.
7 — English
WARNING:
Before inspecting, cleaning, or servicing the machine, shut off engine, wait for all moving parts to stop, and disconnect spark plug wire and move it away from spark plug. Failure to follow these instructions can result in serious personal injury or property damage.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
Loading...
+ 21 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
