Rockwell Automation 20-COMM-P User Manual

PROFIBUS Adapter

20-COMM-P FRN 1.xxx

User Manual

Important User Information

Solid state equipment has operational characteristics differing from those of electromechanical equipment. “Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls” (Publication SGI-1.1) describes some important differences between solid state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the wide variety of uses for solid state equipment, all persons responsible for applying this equipment must satisfy themselves that each intended application of this equipment is acceptable.

In no event will the Allen-Bradley Company be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, the Allen-Bradley Company cannot assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Allen-Bradley Company with respect to use of information, circuits, equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of the Allen-Bradley Company is prohibited.

Throughout this manual we use notes to make you aware of safety considerations.

ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property

damage, or economic loss.

Attentions help you:

• identify a hazard

• avoid the hazard

• recognize the consequences

Important: Identifies information that is especially important for successful

application and understanding of the product.

Shock Hazard labels may be located on or inside the drive to alert people that dangerous voltage may be present.

Preface About This Manual

Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P-1

Conventions Used in this Manual . . . . . . . . . . . . . . . . . . . . . P-2

Rockwell Automation Support. . . . . . . . . . . . . . . . . . . . . . . . P-2

Chapter 1 Getting Started

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Compatible Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Required Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Chapter 2 Installing the Adapter

Preparing for an Installation. . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Commissioning the Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Connecting the Adapter to the Network . . . . . . . . . . . . . . . . 2-2

Connecting the Adapter to the Drive . . . . . . . . . . . . . . . . . . . 2-5

Applying Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Table of Contents

Chapter 3 Configuring the Adapter

Configuration Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Using the PowerFlex HIM . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Setting the Node Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Setting the I/O Configuration. . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Setting a Fault Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Resetting the Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Viewing the Adapter Configuration. . . . . . . . . . . . . . . . . . . . 3-7

Chapter 4 Configuring the Profibus Scanner

Example Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Installing the 20-COMM-P GSD Files . . . . . . . . . . . . . . . . . 4-3

Configuring the SST-PFB-SLC Profibus Scanner. . . . . . . . . 4-5

GSD Diagnostic Messages. . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

ii Table of Contents

Chapter 5 Using I/O Messaging

About I/O Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Understanding the I/O Image . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Using Logic Command/Status . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Using Reference/Feedback . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Using Datalinks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

SLC Example Ladder Logic Program . . . . . . . . . . . . . . . . . . 5-6

SLC Ladder Logic Example - Main Program . . . . . . . . . . . . 5-9

SLC Ladder Logic Example - Station 1 Program . . . . . . . . 5-13

SLC Ladder Logic Example - Station 2 Program . . . . . . . . 5-17

Chapter 6 Using Explicit Messaging

About Explicit Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Running Explicit Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Parameter Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

SLC Ladder Example - Station 1 Parameter Protocol . . . . . 6-11

SLC Ladder Example - Station 2 Parameter Protocol . . . . . 6-13

Chapter 7 Troubleshooting

Locating the Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . 7-1

PORT Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

MOD Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

NET A Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Adapter Diagnostic Items. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Viewing and Clearing Events. . . . . . . . . . . . . . . . . . . . . . . . . 7-5

Appendix A Specifications

Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Appendix B Adapter Parameters

About Parameter Numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Parameter List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Appendix C Logic Command/Status Words

PowerFlex 70 and PowerFlex 700 Drives . . . . . . . . . . . . . . . C-1

Glossary

Index

Preface

About This Manual

Topi c Pag e

Related Documentation Conventions Used in this

Manual Rockwell Automation

Support

Conventions Used in this Manual

The following conventions are used throughout this manual:

• Parameter names are shown in the following format Parameter xxx

- [*]. The xxx represents the parameter number. The * represents the parameter name. For example Parameter 01 - [DPI Port].

• Menu commands are shown in bold type face and follow the format

Menu > Command. For example, if you read “Select File > Open,” you should click the File menu and then click the Open command.

• The firmware release is displayed as FRN X.xxx. The “FRN” signifies Firmware Release Number. The “X” is the major release number. The “xxx” is the minor update number. This manual is for Firmware release 1.xxx.

• This manual provides information about the PROFIBUS adapter and using it with PowerFlex drives. The adapter can be used with other products that implement DPI. Refer to the documentation for your product for specific information about how it works with the adapter.

Rockwell Automation Support

Rockwell Automation offers support services worldwide, with over 75 sales/support offices, over 500 authorized distributors, and over 250 authorized systems integrators located through the United States alone. In addition, Rockwell Automation representatives are in every major country in the world.

Local Product Support

Contact your local Rockwell Automation representative for sales and order support, product technical training, warranty support, and support service agreements.

Technical Product Assistance

If you need to contact Rockwell Automation for technical assistance, please review the information in Chapter 7, Troubleshooting first. If you still have problems, then call your local Rockwell Automation representative.

About This Manual P-3

U.S. Allen-Bradley Drives Technical Support:

E-mail: support@drives.ra.rockwell.com Tel: (1) 262.512.8176 Fax: (1) 262.512.2222 Online: www.ab.com/support/abdrives

UK Customer Support Center:

E-mail: esupport2@ra.rockwell.com Tel: +44 (0) 870 2411802 Fax: +44 (0) 1908 838804

German Customer Service Center:

E-mail: ragermany-csc@ra.rockwell.com Tel: +49 (0) 2104 960-630 Fax: +49 (0) 2104 960-501

P-4 About This Manual

Chapter

Getting Started

The 20-COMM-P PROFIBUS adapter is an embedded communication option for any one drive in the PowerFlex family. It can also be used with other Allen-Bradley products implementing DPI™, a functional enhancement to SCANport™.

Topic Page Topic Page

Components Features 1-2 Quick Start 1-5 Compatible Products 1-2 Modes of Operation 1-6 Required Equipment 1-3

Components

Figure 1.1 Components of the Adapter

➊

➋

1-1 Safety Precautions 1-4

➌

# Part Description

➊ Status

Indicators

➋ DPI

Connector

➌ PROFIBUS

Connector

➍ Node

Address Switches

Three LEDs that indicate the status of the connected drive, adapter, and network. Refer to Chapter

A 20-pin, single-row shrouded male header. An Internal Interface cable is connected to this connector and a connector on the drive.

A 9-pin, female D-Sub connector.

Switches for setting the node address.

➍

7, Troubleshooting.

1-2 Getting Started

Features

The PROFIBUS adapter features the following:

• The adapter is mounted in the PowerFlex drive. It receives the required power from the drive.

• Switches let you set a node address before applying power to the PowerFlex drive. Alternatively, you can disable the switches and use parameters to configure this feature.

• Captive screws are used to secure the adapter to the drive.

• A number of configuration tools can be used to configure the adapter

and connected drive. The tools include the PowerFlex HIM on the drive, or drive-configuration software such as DriveExplorer (version 2.01 or higher) or DriveExecutive (version 1.01 or higher).

• Status indicators report the status of the drive, adapter, and network. They are visible both when the cover is opened and when it is closed.

• I/O, including Logic Command/Reference and up to four pairs of Datalinks, may be configured for your application using a parameter.

• Explicit messages are supported using the Parameter Protocol.

• User-defined fault actions determine how the adapter and PowerFlex

drive respond to communication disruptions on the network and controllers in idle mode.

Compatible Products

The PROFIBUS adapter is compatible with Allen-Bradley PowerFlex drives and other products that support DPI. DPI is a second generation peripheral communication interface and is a functional enhancement to SCANport. At the time of publication, compatible products include:

• PowerFlex 70 drives

• PowerFlex 700 drives

• PowerFlex 7000 drives

Getting Started 1-3

Required Equipment

Equipment Shipped with the Adapter

When you unpack the adapter, verify that the package includes:

❑ One PROFIBUS adapter ❑ A 2.54 cm (1 in.) and a 15.24 cm (6 in.) Internal Interface cable

(only one cable is needed to connect the adapter to the drive)

❑ One grounding wrist strap ❑ One floppy disc with GSD file ❑ This manual

User-Supplied Equipment

To install and configure the PROFIBUS adapter, you must supply:

❑ A small flathead screwdriver ❑ PROFIBUS cable ❑ One 9-pin, male D-Sub PROFIBUS connector.

[Note: PROFIBUS connectors are available from a variety of sources and in various sizes. As such, there may be mechanical limitations that prohibit the use of some connectors. Phoenix Subcon Plus M1 (Part # 2761826) or ERNI Profibus vertical (Node Part # 103658 and Termination Part # 103659), are recommended for use with PowerFlex 70/700 drives.]

❑ Configuration tool, such as:

–PowerFlex HIM – DriveExplorer (version 2.01 or higher)

- with 1203-SSS Serial Converter (version 3.001 or higher)

– DriveExecutive (version 1.01 or higher)

- with 1203-SSS Serial Converter (version 3.001 or higher)

❑ PROFIBUS configuration software ❑ Controller configuration software

1-4 Getting Started

Safety Precautions

Please read the following safety precautions carefully

ATTENTION: Risk of injury or equipment damage exists. Only personnel familiar with drive and power products and the associated

machinery should plan or implement the installation, start-up, configuration, and subsequent maintenance of the product using a PROFIBUS adapter. Failure to comply may result in injury and/or equipment damage.

ATTENTION: Risk of injury or death exists. The PowerFlex drive may contain high voltages that can cause injury or death. Remove all

power from the PowerFlex drive, and then verify power has been removed before installing or removing a PROFIBUS adapter.

ATTENTION: Risk of equipment damage exists. The PROFIBUS adapter contains ESD (Electrostatic Discharge) sensitive parts that can

be damaged if you do not follow ESD control procedures. Static control precautions are required when handling the adapter. If you are unfamiliar with static control procedures, refer to Guarding Against Electrostatic Damage, Publication 8000-4.5.2.

ATTENTION: Risk of injury or equipment damage exists. If the PROFIBUS adapter is transmitting control I/O to the drive, the drive

may fault when you reset the adapter. Determine how your drive will respond before resetting an adapter.

ATTENTION: Risk of injury or equipment damage exists. Parameters 9 - [Comm Flt Action] and 10 - [Idle Flt Action] let you

determine the action of the adapter and connected PowerFlex drive if communications are disrupted. By default, these parameters fault the PowerFlex drive. You can set these parameters so that the PowerFlex drive continues to run. Precautions should be taken to ensure that the settings of these parameters do not create a hazard of injury or equipment damage.

ATTENTION: Risk of injury or equipment damage exists. When a system is configured for the first time, there may be unintended or

incorrect machine motion. Disconnect the motor from the machine or process during initial system testing.

ATTENTION: Risk of injury or equipment damage exists. The examples in this publication are intended solely for purposes of

example. There are many variables and requirements with any application. Rockwell Automation does not assume responsibility or liability (to include intellectual property liability) for actual use of the examples shown in this publication.

Getting Started 1-5

Quick Start

This section is designed to help experienced users start using the PROFIBUS adapter. If you are unsure about how to complete a step, refer to the referenced chapter.

Step Refer to

1 Review the safety precautions for the adapter. Throughout

2 Verify that the PowerFlex drive is properly installed. Drive User

3 Commission the adapter.

Set a unique node address using the switches on the adapter. If desired, you can disable the switches and use parameter settings instead.

4 Install the adapter.

Verify that the PowerFlex drive is not powered. Then, connect the adapter to the network using a PROFIBUS cable and to the drive using the Internal Interface cable. Use the captive screws to secure and ground the adapter to the drive.

5 Apply power to the adapter.

The adapter receives power from the drive. Apply power to the drive. The status indicators should be green. If they flash red, there is a problem. Refer to Chapter

6 Configure the adapter for your application.

Set the parameters for the following features as required by your application:

• Node address.

• I/O configuration.

• Fault actions.

7 Apply power to the PROFIBUS master and other devices

on the network.

Verify that the master and network are installed and functioning in accordance with PROFIBUS standards, and then apply power to them.

8 Configure the scanner to communicate with the adapter.

Use a network tool for PROFIBUS to configure the master on the network.

9 Create a ladder logic program.

Use a programming tool to create a ladder logic program that enables you to do the following:

• Control the adapter and connected drive.

• Monitor or configure the drive using Explicit Messages.

7, Troubleshooting.

This Manual

Manual

Chapter Installing the Adapter

Chapter

2, Installing the Adapter

Chapter Configuring the Adapter

Chapter Configuring the Profibus Scanner

Chapter Using I/O Messaging

Chapter 6, Using Explicit Messaging (Parameter Protocol)

1-6 Getting Started

PWR

STS

PORT

MOD

NET A

NET B

Modes of Operation

The adapter uses three status indicators to report its operating status. They can be viewed on the adapter or through the drive cover. See

Figure 1.2

Figure 1.2 Status Indicators

➊

➋ ➌

➊

➋

➌ ➍

(1)

# Status

Status

Description

Indicator

➊ PORT Green Normal Operation. The adapter is properly connected

Flashing Green

and is communicating with the drive. The adapter is establishing a connection to the drive.

➋ MOD Green Normal Operation. The adapter is operational and is

transferring I/O data.

Flashing Green

➌ NET A Green Normal Operation. The adapter is properly connected

➍ NET B Off Not used for PROFIBUS adapter.

(1)

If all status indicators are off, the adapter is not receiving power. Refer to

2, Installing the Adapter, for instructions on installing the adapter.

Chapter

If any other conditions occur, refer to Chapter

Normal Operation. The adapter is operational but is not transferring I/O data.

and Bus is on-line.

7, Troubleshooting .

Chapter

Installing the Adapter

Chapter 2 provides instructions for installing the adapter on a PowerFlex drive.

Topic Page

Preparing for an Installation Commissioning the Adapter 2-1 Connecting the Adapter to the Network 2-2 Connecting the Adapter to the Drive 2-5 Applying Power 2-7

Preparing for an Installation

Before installing the PROFIBUS adapter:

2-1

• Verify that you have all required equipment. Refer to Chapter 1

Getting Started.

Commissioning the Adapter

To commission the adapter, you must set a unique node address. (Refer to the Glossary

Important: New settings are recognized only when power is applied to

ATTENTION: Risk of equipment damage exists. The PROFIBUS

adapter contains ESD (Electrostatic Discharge) sensitive parts that can

for details about node addresses.)

the adapter. If you change a setting, cycle power.

2-2 Installing the Adapter

1. Set the node address switches.

Figure 2.1 Setting the Node Address

Ten s Digit

Ones Digit

Setting Description

0-99 Node address used by the adapter if switches are enabled. The default

switch setting is 05.

Important: If the address switch is set to “00”, the adapter will use the setting of Parameter 03 - [P-DP Addr Cfg] for the node address. Refer to

3, Configuring the Adapter.

Chapter

Connecting the Adapter to the Network

ATTENTION: Risk of injury or death exists. The PowerFlex drive may contain high voltages that can cause injury or death. Remove

power from the drive, and then verify power has been discharged before installing or removing an adapter.

1. Remove power from the drive.

2. Use static control precautions.

3. Route the PROFIBUS cable through the bottom of the PowerFlex

drive. (See Figure 2.7

4. Connect a Profibus connector to the cable. (See Figure 2.2 and

Figure 2.3.)

[Note: PROFIBUS connectors are available from a variety of sources and in various sizes. As such, there may be mechanical limitations that prohibit the use of some connectors. Phoenix Subcon Plus M1 (Part # 2761826) or ERNI Profibus vertical (Node Part # 103658 and Termination Part # 103659 connectors), are recommended for use with PowerFlex 70/700 drives.]

Figure 2.2 ERNI and Phoenix Subcon connectors

Installing the Adapter 2-3

ERNI Connector

Phoenix Subcon Plus 1M Connector

Figure 2.3 Network Wiring Diagram

Only use cable that conforms to PROFIBUS cable standards. Belden #3079A PROFIBUS cable or equivalent is recommended.

2-4 Installing the Adapter

Figure 2.4 20-COMM-P DB-9 pin layout

Terminal Signal Function

Housing Shield 1 Not connected 2 Not connected 3 B-LINE Positive RxD/TxD, according

4 RTS Request to send 5 GND BUS Isolated GND from bus 6 +5V BUS Isolated +5V from bus 7 Not connected 8 A-LINE Negative RxD/TxD

9 Not connected

5. Connect the PROFIBUS cable to the adapter, and secure it with the

two screws on the connector. (See Figure 2.6 Note: The screws on some connectors tie the Profibus cable ground/ shield to the metal of the socket. In some cases, Profibus will not operate correctly without this connector.

Termination

to RS485 specification

according to RS485 specification

The first and last node on the PROFIBUS network needs to be terminated by using a PROFIBUS connector with terminating resistors. Some connector manufacturers offer standard terminating connectors, such as the yellow ERNI Profibus termination vertical connector (Part #

103659). Standard Profibus node connectors, such as the Phoenix Subcon Plus M1 (Part #2761826), can be configured as a terminating connector by adding resistors (See Figure 2.5

Figure 2.5 Phoenix Subcon Plus M1 connection for terminating resistors

390

220

390

Ω

Installing the Adapter 2-5

Connecting the Adapter to the Drive

1. Remove power from the drive.

2. Use static control precautions.

3. Connect the Internal Interface cable to the DPI port on the drive and

then to the DPI connector on the adapter.

Figure 2.6 DPI Ports and Internal Interface Cables

➊

➋

➌

PROFIBUS Adapter

PowerFlex 700 Drive 0 - 1 Frame

# Description # Description

➊

15.24 cm (6 in.) Internal Interface cable

➋

DPI Connector

➌

PROFIBUS Connector

➎

➍

PowerFlex 70 Drive

PowerFlex 700 Drive 2 Frame & Larger

➍

2.54 cm (1 in.) Internal Interface cable

➎

Retaining screws

2-6 Installing the Adapter

4. Fold the Internal Interface cable behind the adapter and mount the

adapter on the drive using the four captive screws to secure and ground it to the drive.

Important: On a PowerFlex 70 drive, the screw in the lower right hole

grounds the adapter. On a PowerFlex 700 drive, the screw in the lower left hole grounds the adapter.

Figure 2.7 Mounting the Adapter

PowerFlex 70 Drive Adapter mounts in drive.

Drive

Adapter

PowerFlex 700 Drive (0 - 1 Frames) Adapter mounts on door.

PowerFlex 700 Drive (2 Frame & Larger) Adapter mounts in drive.

Installing the Adapter 2-7

Applying Power

ATTENTION: Risk of equipment damage, injury, or death exists. Unpredictable operation may occur if parameter settings and switch

settings are not compatible with your application. Verify that settings are compatible with your application before applying power to the drive.

1. Verify that the adapter will have a unique address on the network. If a new address is needed, reset its switches (refer to Commissioning the

Adapter in this chapter).

2. Close the door or reinstall the cover on the drive. The status indicators can be viewed on the front of the drive after power has been applied.

3. Apply power to the PowerFlex drive. The adapter receives its power from the connected drive. When you apply power to the product the status indicators should be green after an initialization. If the status indicators go red, there is a problem. Refer to Chapter

Troubleshooting.

4. If the node address switches are set to “00,” use a configuration tool to set the node address parameters in the adapter (refer to Chapter

Configuring the Adapter).

5. Apply power to the master device and other devices on the network.

2-8 Installing the Adapter

Chapter

Configuring the Adapter

Chapter 3 provides instructions and information for setting the parameters in the adapter.

Topic Page Topic Page

Configuration Tools Using the PowerFlex HIM 3-2 Resetting the Adapter 3-6 Setting the Node Address 3-3 Viewing the Adapter Configuration 3-7 Setting the I/O Configuration 3-3

For a complete list of parameters, refer to Appendix B, Adapter

Parameters. For definitions of terms in this chapter, refer to the Glossary.

Configuration Tools

The PROFIBUS adapter stores parameters and other information in its own non-volatile memory. You must, therefore, access the adapter to view and edit its parameters. The following tools can be used to access the adapter parameters:

3-1 Setting a Fault Action 3-4

Tool Refer To:

DriveExplorer Software (version 2.01 or higher)

DriveExecutive Software (version 1.01 or higher)

PowerFlex HIM page 3-2

DriveExplorer Getting Results Manual

Publication 9306-5.3, or the online help

DriveExecutive Online Help

3-2 Configuring the Adapter

Using the PowerFlex HIM

If your drive has either an LED or LCD HIM (Human Interface Module), access parameters in the adapter as follows:

Using an LED HIM

Step Key(s) Example Screens

1. Press the ALT and then Sel (Device) to display the Device Screen.

2. Press the Up Arrow or Down Arrow to scroll to the PROFIBUS adapter. Letters represent files in the drive, and numbers represent ports. The adapter is usually connected to port 5.

3. Press the Enter key to enter your selection. A parameter database is constructed, and then the first parameter is displayed.

4. Edit the parameters using the same techniques that you use to edit drive parameters.

ALT

Device

Sel

Using an LCD HIM

Step Key(s) Example Screens

1. In the main menu, press the Up Arrow or Down Arrow to scroll to Device Select.

2. Press Enter to enter your selection.

3. Press the Up Arrow or Down Arrow to scroll to the PROFIBUS (20-COMM-P) adapter.

4. Press Enter to select the PROFIBUS adapter. A parameter database is constructed, and then the main menu for the adapter is displayed.

5. Edit the parameters using the same techniques that you use to edit drive parameters.

F-> Stopped Auto

0.00 Hz

Main Menu: Diagnostics Para met er

Device Select

Port 5 Device

20-COMM-P

Main Menu: Diagnostics

Parame ter

Device Select

Configuring the Adapter 3-3

Setting the Node Address

If the node address switches are set to “00”, the value of Parameter 03 [P-DP Addr Cfg] determines the node address.

1. Set the value of Parameter 03 - [P-DP Addr Cfg] to a unique node

address.

Figure 3.1 PROFIBUS Node Address Screen on an LCD HIM

Port 5 Device

20-COMM-P

Parameter #: 3 P-DP Addr Cfg

0 <> 126

Default = 01

2. Reset the adapter. Refer to the Resetting the Adapter

section in this

chapter.

Setting the I/O Configuration

The I/O configuration determines the type of data sent to the drive. Logic Command/Status, Reference/Feedback, and Datalinks may be enabled or disabled. A “1” enables the I/O. A “0” disables it.

1. Set the bits in Parameter 11 - [DPI I/O Config]:

Figure 3.2 I/O Configuration Screen on an LCD HIM

Port 5 Device

20-COMM-P

Parameter #: 11 DPI I/O Config xxxxxxxxxxx0000 Cmd/Ref b00

Bit 0 is the right-most bit. In Figure 3.2, it is highlighted and equals “1.”

Bit Description

0 Logic Command/Reference (Default) 1 Datalink A 2 Datalink B 3 Datalink C 4 Datalink D 5 - 16 Not Used

3-4 Configuring the Adapter

2. If Logic Command/Reference is enabled (default), configure the

parameters in the drive to accept the Logic Command and Reference from the adapter. For example, set Parameter 90 - [Speed Ref A Sel] in a PowerFlex 70 or 700 drive to “DPI Port 5” so that the drive uses the Reference from the adapter. Also, verify that the mask parameters (for example, Parameter 276 - [Logic Mask]) in the drive are configured to receive the desired logic from the adapter.

3. If you enabled one or more Datalinks (optional), configure

parameters in the drive to determine the source and destination of data in the Datalink(s). Also, ensure that the PROFIBUS adapter is the only adapter using the enabled Datalink(s).

4. Reset the adapter. Refer to the Resetting the Adapter

chapter.

The adapter is ready to receive I/O from the master (i.e., scanner). You must now configure the scanner to recognize and transmit I/O to the adapter. Refer to Chapter

4, Configuring the Profibus Scanner.

section in this

Setting a Fault Action

By default, when communications are disrupted (for example, a cable is disconnected) or the master is idle, the drive responds by faulting if it is using I/O from the network. You can configure a different response to communication disruptions using Parameter 9 - [Comm Flt Action] and a different response to an idle scanner using Parameter 10 - [Idle

Flt Action].

ATTENTION: Risk of injury or equipment damage exists. Parameters 9 - [Comm Flt Action] and 10 - [Idle Flt Action] let you

determine the action of the adapter and connected drive if communications are disrupted or the scanner is idle. By default, these parameters fault the drive. You can set these parameters so that the drive continues to run. Precautions should be taken to ensure that the settings of these parameters do not create a risk of injury or equipment damage.

Configuring the Adapter 3-5

To change the fault action

• Set the values of Parameters 9 - [Comm Flt Action] and 10 - [Idle Flt Action] to the desired responses:

Value Action Description

0 Fault (default) The drive is faulted and stopped. (Default) 1 Stop The drive is stopped, but not faulted. 2 Zero Data The drive is sent 0 for output data after a

3 Hold Last The drive continues in its present state after a

4 Send Flt Cfg The drive is sent the data that you set in the fault

Figure 3.3 Fault Action Screens on an LCD HIM

Port 5 Device

20-COMM-P

Parameter #: 9 Comm Flt Action

Fault

Changes to these parameters take effect immediately. A reset is not required.

communications disruption. This does not command a stop.

communications disruption.

configuration parameters (Parameters 13 - [Flt Cfg Logic] through 22 - [Flt Cfg D2 In]).

Port 5 Device

20-COMM-P

Parameter #: 10 Idle Flt Action

Fault

To set the fault configuration parameters

If you set Parameter 9 - [Comm Flt Action], or 10 - [Idle Flt Action] to the “Send Flt Cfg,” the values in the following parameters are sent to the drive after a communications fault and/or idle fault occurs. You must set these parameters to values required by your application.

Number Name Description

13 Flt Cfg Logic A 16-bit value sent to the drive for Logic Command. 14 Flt Cfg Ref A 32-bit value (0 – 4294967295) sent to the drive as a 15 – 22 Flt Cfg x1 In or

Flt Cfg x2 In

Changes to these parameters take effect immediately. A reset is not required.

Reference or datalink. Important: If the drive uses a 16-bit Reference or 16-bit Datalinks, the most significant word of the value must be set to zero (0) or a fault will occur.

3-6 Configuring the Adapter

Resetting the Adapter

Changes to switch settings or some adapter parameters require that you reset the adapter before the new settings take effect. You can reset the adapter by cycling power to the drive or by using the following parameter:

ATTENTION: Risk of injury or equipment damage exists. If the adapter is transmitting control I/O to the drive, the drive may fault when

you reset the adapter. Determine how your drive will respond before resetting a connected adapter.

• Set the Parameter 08 - [Reset Module] to Reset Module:

Figure 3.4 Reset Screen on an LCD HIM

Port 5 Device

20-COMM-P

Parameter #: 8 Reset Module

Reset Module

When you enter 1 = Reset Module, the adapter will be immediately reset. When you enter 2 = Set Defaults, the adapter will set all adapter parameters to their factory-default settings. The value of this parameter will be restored to 0 = Ready after the adapter is reset.

Value Description

0 Ready (Default) 1 Reset Module 2 Set Defaults

Configuring the Adapter 3-7

Viewing the Adapter Configuration

The following parameters provide information about how the adapter is configured. You can view these parameters at any time.

Number Name Description

01 DPI Port The port on the drive to which the adapter is connected. Usually, it is port

02 DPI Data Rate The data rate used by DPI in the drive. It will be either 125 kbps or 500

04 P-DP Addr

Actual

06 Ref/Fdbk Size The size of the Reference/Feedback. It will either be 16 bits or 32 bits. It is

07 Datalink Size The size of the Datalinks. It will either be 16 bits or 32 bits. It is set in the

12 DPI I/O Active The Reference/Feedback and Datalinks are used by the adapter. This

kbps. It is set in the drive, and the adapter detects it. The node address used by the adapter. This will be one of the following

values:

The address set by the rotary switches.

•

The value of Parameter 03 - [P-DP Addr Cfg] if the switches have

•

been disabled. An old address of the switches or parameter if they have been

•

changed and the adapter has not been reset.

set in the drive and the adapter automatically uses the correct size.

drive and the adapter automatically uses the correct size.

value is the same as Parameter 11 - [DPI I/O Config] unless the parameter was changed and the adapter was not reset.

Bit

Default

01234576

10000xxx

Bit Definitions 0 = Cmd/Ref 1 = Datalink A 2 = Datalink B 3 = Datalink C 4 = Datalink D 5 = Not Used 6 = Not Used 7 = Not Used

3-8 Configuring the Adapter

Chapter

Configuring the Profibus Scanner

Profibus scanners are available from several manufacturers, including SST. Chapter 4 provides instructions on how to utilize the SST Profibus configuration software tool to:

• Install the 20-COMM-P GSD file in the software tool library

• Configure the SST-PFB-SLC Profibus Scanner.

To pi c Pa ge

Example Network Installing the 20-COMM-P GSD file in the software tool library 4-3 Configuring the SST-PFB-SLC Profibus Scanner 4-5 GSD Diagnostic Messages 4-19

Example Network

In this example, we will be configuring two PowerFlex 70 drives, to be Station 1 and Station 2 on a Profibus network. This will be the configuration used throughout the manual, including the ladder examples. Apart from the node address and scanner mapping, they will have identical configurations. This chapter describes the steps to configure a simple network like the network in Figure 4.1

4-1

4-2 Configuring the Profibus Scanner

Figure 4.1 Example Profibus Network

COMM LED

Station 0

Powe rFlex 70

Station 1

SYS LED

Config Port Front Label

Profibus Por t

PowerFlex 70

SST Profibus Configuration Software Tool

SST Profibus scanners come with a software tool for configuring the scanner (See Figure 4.2.)

Station 2

Device Library

window

Online

Browse window

Figure 4.2 SST Profibus Configuration Software Tool

Network Configuration window

Configuring the Profibus Scanner 4-3

Installing the 20-COMM-P GSD file in the software tool library

GSD files are used by software tools to configure the network, i.e. to map and define the I/O in a Profibus scanner. A GSD file is required for each type of adapter on the network. For example: The 20-COMM-P GSD file is “A_B_0572.gsd” and a copy of the file is provided on a floppy disk with each 20-COMM-P. The file can also be downloaded from the Internet by going to: www.ab.com/drives/powerflex.

Follow the steps outlined below only when a new GSD file needs to be added to the SST PROFIBUS Configuration Software Tool. Typically, this is only done once, after the software tool is initially installed or if configuring a 20-COMM-P on the network for the very first time with this software tool.

1. The software tool comes with standard data files as shown in Figure

4.3. Additional data files, such as the 20-COMM-P GSD file, will

need to be added to configure the 20-COMM-P in the scanner.

Figure 4.3 Standard Data Files

2. Click on the “New Device” icon to add GSD files to the

software library tool.

3. An “Add PROFIBUS devices” Applet window will appear (Figure

4.4). Prompts for the location of the PROFIBUS data files to be

added to the library will follow.

4-4 Configuring the Profibus Scanner

Figure 4.4 Add Profibus devices Applet window.

4. Find the directory location of the data file(s) you wish to add

(typically, the source location is a floppy disk in drive A:). “A_B_0572.gsd” is the GSD file for the 20-COMM-P as shown in

Figure 4.5

Figure 4.5 Adding the GSD file for the 20-COMM-P

5. Select “A_B_0572.gsd” for the 20-COMM-P and click Open.

Configuring the Profibus Scanner 4-5

6. Click on the (+) sign of the Slaves folder as shown in Figure 4.6

Figure 4.6 Masters/Slaves Library window

The software tool will automatically create an Allen-Bradley sub-folder (in the Slaves folder) if it does not already exist. The 20-COMM-P is now shown in the library and the software tool is now ready to configure a 20-COMM-P on a PROFIBUS network.

Configuring the SST-PFB-SLC Profibus Scanner

The following steps are performed to configure the SST-PFB-SLC scanner using the SST PROFIBUS Configuration Software Tool. In our example, the PROFIBUS network will consist of a SLC master and two PowerFlex 70 drives. The ladder examples in the manual will utilize the following configuration:

• Logic Command / Status and Reference / Feedback enabled

• Datalink A enabled

• Datalink B enabled

• Datalink C enabled

• Datalink D enabled

• Parameter Access enabled (used to perform explicit messaging)

The SLC processor must be in Program mode to configure the scanner.

4-6 Configuring the Profibus Scanner

1. Click on the (+) sign of the Masters folder in the Library window to open the SST sub-folder. Available DP masters are displayed in this sub-folder.

2. Click on the (+) sign of the Slaves folder in the Library window and the Allen-Bradley sub-folder to display the available DP slaves or the 20-COMM-P slave. Refer to Figure 4.6

3. Double-click the SST-PFB-SLC MASTER in the Masters folder in the Library window to add the scanner to the network.

4. A user-defined N

ame and Description can be given to the scanner.

In our example, the scanner will be Station 0 on the network, as shown in Figure 4.7

Figure 4.7 SST-SST-PFB-SLC Master (General) Dialogue Box.

5. Click on the Parameters tab to view the Scan Cycle Times. In our example, use the default settings as shown in Figure 4.8

Figure 4.8 Scan Cycle Times Dialogue Box

Connection and Baud Rate settings configure how the software tool will communicate with the CONFIG RS232 port on the scanner.

Configuring the Profibus Scanner 4-7

6. Click on the COM Port tab.

7. Accept the settings in our example (COM1 on the PC @ 115200 bps

baud rate), as shown in Figure 4.9

Figure 4.9 COM Port Default Settings

8. The scanner will appear in the network window as shown in Figure

4.10. Double-click on the scanner in the network window.

Figure 4.10 Scanner Network window

9. Double-click on the 20_COMM_P listed in the Allen-Bradley library folder. A user-defined Name and Description can be given to this 20-COMM-P.

In our example, this device will be S

tation 1 on the network. Other

stations may be chosen by using the arrow to display a drop-down list in the Station window.

Figure 4.11 Allen-Bradley Library Dialogue window

4-8 Configuring the Profibus Scanner

Logic Command/ Status, Reference / Feedback, Datalinks and Parameter Access (explicit messaging) modules are added using the Modules tab.

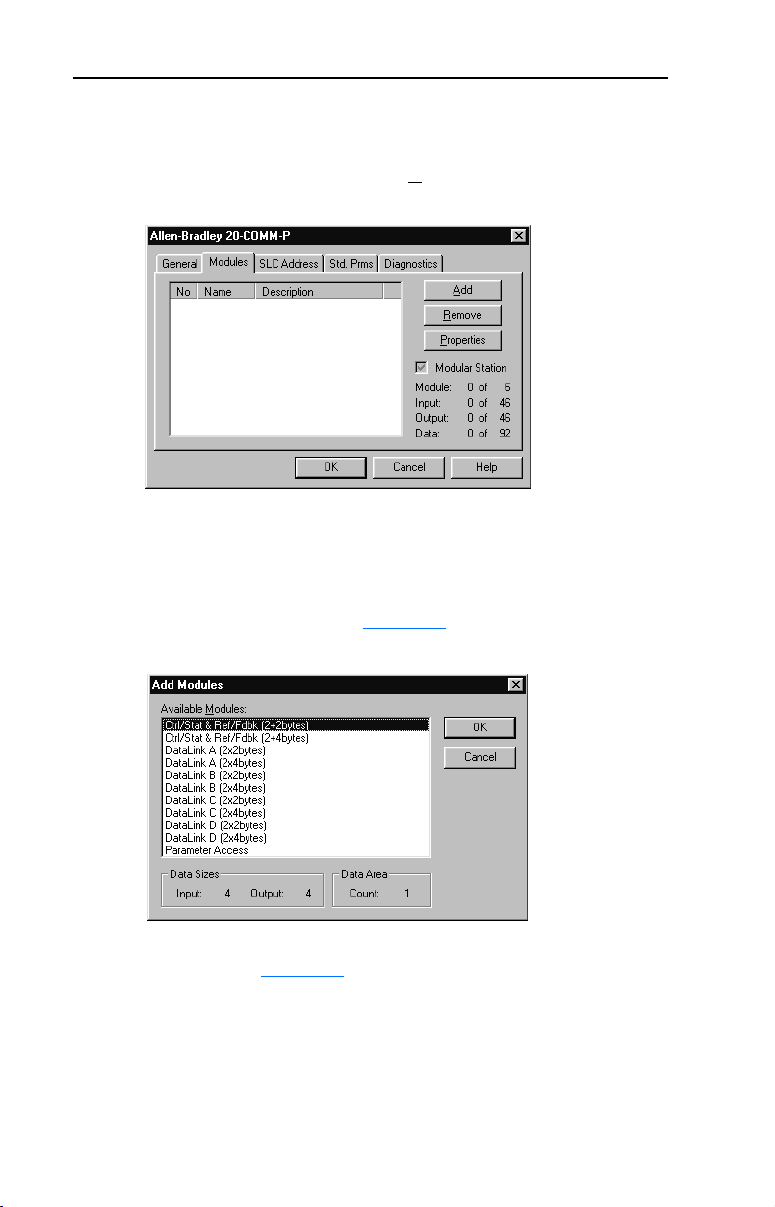

10. Click on the Modules tab. Click A

Figure 4.12 20-COMM-P Modules Tab

dd to view the choice of modules.

In our example, Station 1 will be controlled using Logic Command / Status and Reference / Feedback. The PowerFlex 70 utilizes 16-bit Reference / Feedback (2 bytes).

11. Select “Ctrl/Stat & Ref/Fdbk (2+2bytes)” from the “Available

Modules” list as shown in Figure 4.13

Figure 4.13 Available Modules: Ctrl/Stat & Ref/Fdbk (2x2 bytes) Window

. Click OK.

12. The “Ctrl/Stat & Ref/Fdbk” (2+2 bytes) module has now been added

as shown in Figure 4.14

Configuring the Profibus Scanner 4-9

Figure 4.14 Modules: Ctrl/Stat & Ref/Fdbk Viewing Window

Station 1 will be configured to use Datalinks A1 and A2. The PowerFlex 70 utilizes 16-bit Datalinks.

13. Click A

dd to continue adding modules. Select “Datalink A

(2x2bytes)” and click OK.

Figure 4.15 Add Modules: Datalink A Selection Window

14. The “Datalink A” module has now been added as shown in Figure

4.16.

4-10 Configuring the Profibus Scanner

Figure 4.16 Modules: Datalink A Viewing Window

Station 1 will also be configured to use Datalinks B1 and B2. The PowerFlex 70 utilizes 16-bit Datalinks.

15. Click A

dd to continue adding modules. Select “Datalink B (2x2

bytes)” and click OK.

Figure 4.17 Add Modules: Datalink B Selection Window

16. The “Datalink B” module has now been added as shown in Figure

4.18.

Configuring the Profibus Scanner 4-11

Figure 4.18 Modules: Datalink B Viewing Window

Station 1 will also be configured to use Datalinks C1 and C2. The PowerFlex 70 utilizes 16-bit Datalinks.

17. Click A

dd to continue adding modules. Select “Datalink C (2x2

bytes)” and click OK.

Figure 4.19 Add Modules: Datalink C Selection Window

18. The “Datalink C” module has now been added as shown in Figure

4.20.

4-12 Configuring the Profibus Scanner

Figure 4.20 Modules: Datalink C Viewing Window

Station 1 will also be configured to use Datalinks D1 and D2. The PowerFlex 70 utilizes 16-bit Datalinks.

19. Click A

dd to continue adding modules. Select “Datalink D (2x2

bytes)” and click OK.

Figure 4.21 Add Modules: Datalink D Selection Window

20. The “Datalink D” module has now been added.

Station 1 will also be configured to use Parameter Access for explicit messaging.

Configuring the Profibus Scanner 4-13

21. Click Add to continue adding modules. Select “Parameter Access” and click OK.

Figure 4.22 Add Modules: Parameter Access Selection Window

22. The “Parameter Access” module has now been added as shown in

Figure 4.23

Figure 4.23 Modules: Parameter Access Viewing Window

Settings can be chosen to map Station modules to SLC addresses. In our example M1/M0 files are used for Input / Output.

Note that the Reference/Feedback (Ctrl/Stat & Ref/Fdbk) start at word 0.

4-14 Configuring the Profibus Scanner

23. Click on the SLC Address tab as shown in Figure 4.24

Figure 4.24 SLC Address: M1/M0 (Ctrl/Stat & Ref/Fdbk)

24. Datalink A is at word 2 in the M1/M0 files as shown in Figure 4.25

Figure 4.25 SLC Address: M1/M0 (Datalink A)

Configuring the Profibus Scanner 4-15

25. Datalink B is at word 4 in the M1/M0 files as shown in Figure 4.26

Figure 4.26 SLC Address: M1/M0 (Datalink B)

26. Datalink C is at word 6 in the M1/M0 files as shown in Figure 4.27

Figure 4.27 SLC Address: M1/M0 (Datalink C)

4-16 Configuring the Profibus Scanner

27. Datalink D is at word 8 in the M1/M0 files as shown in Figure 4.28

Figure 4.28 SLC Address: M1/M0 (Datalink D)

28. Parameter Access starts at word 10 in the M1/M0 files.

Note that Parameter Access utilizes 4 words (10-13). Click OK when finished.

Figure 4.29 SLC Address: M1/M0 (Parameter Access)

29. Station 1 is now displayed in the network window.

Figure 4.30 Station 1 Network window

Configuring the Profibus Scanner 4-17

Station 1 is configured as follows:

Module M1/M0 Word

Ctrl/Stat & Ref Fdbk 0 Datalink A 2 Datalink B 4 Datalink C 6 Datalink D 8 Parameter Access 10

Note that Station 1 occupies 14 words (0-13).

30. The same steps for configuring Station 1 will be used for configuring Station 2. Refer to previous steps (starting at step #9, Page 4-7

) for Configuring the SST-PFB-SLC Profibus Scanner-Station 2. (See

Figure 4.31

Figure 4.31 Station 2 Network window

Station 2 is configured as follows:

Module M1/M0 Offset

Ctrl/Stat & Ref Fdbk 14 Datalink A 16 Datalink B 18 Datalink C 20 Datalink D 22 Parameter Access 24

Note that Station 2 occupies 14 words (14-27).

31. Use the null modem cable that came with the scanner to connect

COM1 on the PC and the CONFIG RS232 port on the scanner.

Note: The processor needs to be in program mode before proceeding.

32. Right-click on the scanner in the network window and select

“Connect”. Then right-click again on the scanner in the network window and select “Load Configuration”. If a minimum cycle time attention window pops up, click OK to continue. After the configuration has been loaded into the scanner, “Configured Program” will be displayed in the message window. (See Figure

4.32.)

4-18 Configuring the Profibus Scanner

Figure 4.32 Network window scanner selection

33. Click File and Save As from the tool bar, as a unique File Name. The

configuration of the scanner is now complete. Note that cycling power to the scanner is recommended. (See Figure 4.33

Figure 4.33 Save As Dialogue window

Summary of the example scanner configuration:

Module M0 / M1 Addressing

Logic Command / Status 0 14 Reference / Feedback 1 15 Datalink A1 2 16 Datalink A2 3 17 Datalink B1 4 18 Datalink B2 5 19 Datalink C1 6 20 Datalink C2 7 21 Datalink D1 8 22 Datalink D2 9 23 Parameter Access 10-13 24-27

Station 1 Station 2

Configuring the Profibus Scanner 4-19

GSD Diagnostic Messages

In the case of invalid GSD module configuration, the peripheral will

send one of the following messages:

Fault Description

No Ctrl/Stat & Ref/Fdbk The Ctrl/Stat & Ref/Fdbk module must

Module used more than once A GSD module has been used more

Not supported module An unrecognized module has been

always be used and placed first in the configuration.

than once.

used in the configuration.

4-20 Configuring the Profibus Scanner

Chapter

Using I/O Messaging

Chapter 5 provides information and examples that explain how to use I/O Messaging to control a PowerFlex drive.

Topic Page Topic Page

About I/O Messaging Understanding the I/O Image 5-2 SLC Ladder Logic Example - Main

Using Logic Command/Status 5-4 SLC Ladder Logic Example - Station

Using Reference/Feedback 5-4 SLC Ladder Logic Example - Station

Using Datalinks 5-4

ATTENTION: Risk of injury or equipment damage exists. The examples in this publication are intended solely for purposes of

5-1 SLC Example Ladder Logic Program 5-6

Program

1 Program

2 Program

5-9

5-13

5-17

About I/O Messaging

I/O messaging is used to transfer the data which controls the PowerFlex drive and sets its Reference. I/O can also be used to transfer data to and from Datalinks in PowerFlex drives.

The PROFIBUS adapter provides options for configuring and using I/O, including the following:

• The size of I/O can be configured by enabling or disabling the Logic Command/Reference and Datalinks.

Chapter Profibus Scanner discuss how to configure the adapter and scanner on

the network for these options. The Glossary defines the different options. This chapter discusses how to use I/O after you have configured the adapter and scanner.

3, Configuring the Adapter and Chapter 4, Configuring the

5-2 Using I/O Messaging

Understanding the I/O Image

The terms input and output are defined from scanner’s point of view. Therefore, Outputs are data that is output from the scanner and consumed by the PROFIBUS adapter. Inputs are status data that is produced by the adapter and consumed as input by the scanner. The I/O image table will vary based on the following:

• Size (either 16-bit or 32-bit) of the Reference/Feedback word and Datalink words used by the drive.

• Configuration of Parameter 11 - [DPI I/O Config] in the adapter. If not all I/O is enabled, the image table is truncated. The image table always uses consecutive words starting at word 0.

Figure 5.1

Figure 5.1 Example I/O Image with All I/O Enabled

Controller

illustrates an example of an I/O image with 16-bit words.

PROFIBUS

Scanner

Output Image (Write)

Input Image (Read)

10 Parameter Access Word 1 11 Parameter Access Word 2 12 Parameter Access Word 3 13 Parameter Access Word 4

Adapter PowerFlex Drive

Word and I/O

0 Logic Command

1 Reference 2 Datalink In A1 3 Datalink In A2 4 Datalink In B1 5 Datalink In B2 6 Datalink In C1 7 Datalink In C2 8 Datalink In D1 9 Datalink In D2

0 Logic Status 1 Feedback 2 Datalink Out A1 3 Datalink Out A2 4 Datalink Out B1 5 Datalink Out B2 6 Datalink Out C1 7 Datalink Out C2 8 Datalink Out D1 9 Datalink Out D2

DPI

Logic Command

Reference Data In A1 Data In A2 Data In B1 Data In B2 Data In C1 Data In C2 Data In D1 Data In D2

Message Handler

Logic Status Feedback Data Out A1 Data Out A2 Data Out B1 Data Out B2 Data Out C1 Data Out C2 Data Out D1 Data Out D2

Message Handler

Using I/O Messaging 5-3

An image that uses 32-bit words for Reference and Datalinks would change the I/O image in Figure 5.1 as follows:

Wor d I/O Word I/O

0 Logic Command/Status 7 - 10 Datalink B 1 - 2 Reference/Feedback 11 - 14 Datalink C 3 - 6 Datalink A 15 - 18 Datalink D

Figure 5.2

illustrates an example of an I/O image that does not use all of the I/O data. Only the Logic Command/Reference and Datalink B are enabled. In this example, the Reference is a 32-bit word, and Datalinks are 16-bit words.

Figure 5.2 Example I/O Image with Only Logic/Reference and Datalink B Enabled

PROFIBUS

Controller Scanner Adapter PowerFlex Drive

Word and I/O

Output Image (Write)

Input Image (Read)

0 Logic Command 1 Reference (LSW) 2 Reference (MSW)

3 Datalink In B1 4 Datalink In B2

0 Logic Status

1 Feedback (LSW) 2 Feedback (MSW)

3 Datalink Out B1 4 Datalink Out B2

DPI

Logic Command

Reference Data In A1 Data In A2 Data In B1 Data In B2 Data In C1 Data In C2 Data In D1 Data In D2

Logic Status Feedback Data Out A1 Data Out A2 Data Out B1 Data Out B2 Data Out C1 Data Out C2 Data Out D1 Data Out D2

LSW = Least Significant Word (Bits 15 - 0) MSW = Most Significant Word (Bits 31 - 16)

5-4 Using I/O Messaging

Using Logic Command/Status

When enabled, the Logic Command/Status word is always word 0 in the I/O image. The Logic Command is a 16-bit word of control produced by the scanner and consumed by the adapter. The Logic Status is a 16-bit word of status produced by the adapter and consumed by the scanner.

This manual contains the bit definitions for compatible products available at the time of publication in Appendix

Status Words. For other products, refer to their documentation.

Using Reference/Feedback

When enabled, Reference/Feedback always begins at word 1 in the I/O image. The Reference (16 bits or 32 bits) is produced by the controller and consumed by the adapter. The Feedback (16 bits or 32 bits) is produced by the adapter and consumed by the controller. The size of the Reference/Feedback is determined by the drive and displayed in Parameter 06 - [Ref/Fdbk Size] in the adapter.

Size Valid Values In I/O Image Example

16-bit -32768 to 32767 Word 1 Figure 5.1 32-bit -2147483648 to 2147483647 Word 1 and Word 2 Figure 5.2

C, Logic Command/

Using Datalinks

A Datalink is a mechanism used by PowerFlex drives to transfer data to and from the controller. Datalinks allow a parameter value to be changed without using an Explicit Message. When enabled (optional), each datalink consumes either two 16 or 32-bit words in both the input and output image depending on its size. The size of Datalinks (16-bit words or 32-bit words) is determined by the drive and displayed in Parameter 07 - [Datalink size] in the adapter.

Rules for Using Datalinks

• Each set of Datalink parameters in a PowerFlex drive can be used by only one adapter. If more than one adapter is connected to a single drive, multiple adapters must not try to use the same Datalink.

• Parameter settings in the drive determine the data passed through the Datalink mechanism. Refer to the documentation for your drive.

• When you use a Datalink to change a value, the value is not written to the Non-Volatile Storage (NVS). The value is stored in volatile memory and lost when the drive loses power.

Using I/O Messaging 5-5

32-Bit Parameters using 16-Bit Datalinks

To read (and/or write) a 32-bit parameter using 16-bit Datalinks, typically both Datalinks (A,B,C,D) are set to the 32-bit parameter. For example, to read Parameter 09 - [Elapsed MWh], both Datalink A1 and A2 are set to “9.” Datalink A1 will contain the least significant word (LSW) and Datalink A2 the most significant word (MSW). In this example, the parameter 9 value of 5.8MWh is read as a “58” in Datalink A1.

Datalink Most/Least Significant Word Parameter Data (decimal)

A1 LSW 9 58 A2 MSW 9 0

Regardless of the Datalink combination, x1 will always contain the LSW and x2 will always contain the MSW. In the following examples Parameter 242 - [Power Up Marker] contains a value of 88.4541 hours.

Datalink Most/Least Significant Word Parameter Data (decimal)

A1 LSW 242 32573 A2 - Not Used - 0 0

Datalink Most/Least Significant Word Parameter Data (decimal)

A1 - Not Used - 0 0 A2 MSW 242 13

Datalink Most/Least Significant Word Parameter Data (decimal)

A2 MSW 242 13 B1 LSW 242 32573

32-bit data is stored in binary as follows:

MSW 2

LSW 215 through 2

through 2

Example: Parameter 242 - [Power Up Marker] = 88.4541 hours

MSW = 13

decimal

= 1101

= 219 + 218 + 216 = 851968

binary

LSW = 32573 851968 + 32573 = 884541

5-6 Using I/O Messaging

SLC Example Ladder Logic Program

The Profibus example program uses a SLC processor with an SST Profibus scanner (SST-PFB-SLC) in the first slot of the rack and will work with PowerFlex 70 or PowerFlex 700 drives.

Function of the Example Program

The program is written for (2) drives on the network and demonstrates using:

• Logic Command / Reference

• Logic Status / Feedback

• Datalinks

• Parameter Access (covered in Chapter

Adapter Settings

The Node Address switch settings on the 20-COMM-P’s are set to:

• “1” for Station 1

• “2” for Station 2

Using I/O Messaging 5-7

Parameter Settings

Device Parameter Name Value Description

90 Speed Ref A Sel 22 ‘DPI Port 5’ (20-COMM-P)

300 Data In A1 140 Points to Pr. 140 [Accel Time 1]

301 Data In A2 142 Points to Pr. 142 [Decel Time 1]

302 Data In B1 100 Points to Pr. 100 [Jog Speed]

303 Data In B2 155 Points to Pr. 155 [Stop Mode A]

304 Data In C1 101 Points to Pr. 101 [Preset Speed 1]

305 Data In C2 102 Points to Pr. 102 [Preset Speed 2]

306 Data In D1 103 Points to Pr. 103 [Preset Speed 3]

PowerFlex 70

20-COMM-P 11 DPI I/O Config xxx1 1111 Enables Cmd/Ref, Datalinks A-D

307 Data In D2 104 Points to Pr. 104 [Preset Speed 4]

310 Data Out A1 140 Points to Pr. 140 [Accel Time 1]

311 Data Out A2 142 Points to Pr. 142 [Decel Time 1]

312 Data Out B1 100 Points to Pr. 100 [Jog Speed]

313 Data Out B2 155 Points to Pr. 155 [Stop Mode A]

314 Data Out C1 101 Points to Pr. 101 [Preset Speed 1]

315 Data Out C2 102 Points to Pr. 102 [Preset Speed 2]

316 Data Out D1 103 Points to Pr. 103 [Preset Speed 3]

317 Data Out D2 104 Points to Pr. 104 [Preset Speed 4]

Scanner Settings

An SST-PFB-SLC scanner is in slot 1 of the SLC rack and configured as Station 0. The Advanced I/O Configuration is setup per Figure 5.3.

Figure 5.3 Advanced I/O Configuration

5-8 Using I/O Messaging

The two PROFIBUS adapters are setup as Station 1 and Station 2, and are configured as 14 words input & output each (See Chapter 4.)

SLC Data Table

Read Data

File N10: contains the actual read data that can be used elsewhere in the ladder program.

Station 1 Address

N10:0 N10:14 Logic Status N10:1 N10:15 Feedback N10:2 N10:16 Datalink A1 N10:3 N10:17 Datalink A2 N10:4 N10:18 Datalink B1 N10:5 N10:19 Datalink B2 N10:6 N10:20 Datalink C1 N10:7 N10:21 Datalink C2 N10:8 N10:22 Datalink D1 N10:9 N10:23 Datalink D2 N10:10 N10:24 Parameter Access Word 1 N10:11 N10:25 Parameter Access Word 2 N10:12 N10:26 Parameter Access Word 3 N10:13 N10:27 Parameter Access Word 4

Station 2 Address

Function

Write Data

The Profibus scanner is configured for 28 bytes (14 words) of outputs for each drive. Two drives require 48 bytes (28 words).

Station 1 Address

N20:0 N20:14 Logic Command N20:1 N20:15 Reference N20:2 N20:16 Datalink A1 N20:3 N20:17 Datalink A2 N20:4 N20:18 Datalink B1 N20:5 N20:19 Datalink B2 N20:6 N20:20 Datalink C1 N20:7 N20:21 Datalink C2 N20:8 N20:22 Datalink D1 N20:9 N20:23 Datalink D2 N20:10 N20:24 Parameter Access Word 1 N20:11 N20:25 Parameter Access Word 2 N20:12 N20:26 Parameter Access Word 3 N20:13 N20:27 Parameter Access Word 4

Station 2 Address

Function

Using I/O Messaging 5-9

Logic Command/Status Words

These examples use the Logic Command word and Logic Status word for PowerFlex 70 and PowerFlex 700 drives. Refer to Appendix

Logic Command/Status Words

for more information. The definition of

the bits in these words may vary if you are using a different DPI Host product. Refer to the documentation for your Host product.

SLC Ladder Logic Example - Main Program

Figure 5.4 Example SLC Ladder Logic - Main Program

This example program is for a PROFIBUS demonstration using a SLC 5/05 processor with an SST Profibus scanner (SST-PFB-SLC) in the first slot of the rack. The program is written for (2) drives on the network:

Station 1 PowerFlex 70 Tabletop demo with 20-COMM-P Station 2 PowerFlex 70 Tabletop demo with 20-COMM-P

The example program demonstrates using Logic Command / Reference, Logic Status / Feedback, Datalinks, and Parameter Access using the Parameter Protocol.

On power-up, zero out the transmit buffer to the Scanner.

First Pass

0000

S:1

Automatically have the SST-PFB-SLC scanner's watchdog period track that of the SLC processor (recommended per SST user manual)

FLL

FLL Fill File Source 0 Dest #N20:0 Length 28

0001

The Scanner is configured for 28 bytes (14 words) of inputs for each drive. Two drives require 48 bytes (28 words).

Read the drives data from the Profibus scanner.

0002

SST Scanner Write Data Word 0

MOV

MOV Move Source S:3 2562< Dest M0:1.4011 ?<

SST Scanner Read Data Word #0

COP

COP Copy File Source #M1:1.0 Dest #N9:0 Length 28

5-10 Using I/O Messaging

Figure 5.4 Example SLC Ladder Logic - Main Program (Continued)

Profibus scanners vary from manufacturer to manufacturer in how the bytes are ordered in a word. For example, some Profibus scanners operate with high & low bytes swapped (the value "1234" is represented as "3412"). The READ data is copied into N10: and the bytes are reversed in the SWP instruction below so a value such as "3412" is viewed as "1234".

0003

File N10: contains the actual read data that can be used elsewhere in the ladder program.

Station 1 Station 2 Description M1:1.0 (N10:0) M1:1.14 (N10:14) Logic Status M1:1.1 (N10:1) M1:1.15 (N10:15) Speed Feedback M1:1.2 (N10:2) M1:1.16 (N10:16) Datalink A1 M1:1.3 (N10:3) M1:1.17 (N10:17) Datalink A2 M1:1.4 (N10:4) M1:1.18 (N10:18) Datalink B1 M1:1.5 (N10:5) M1:1.19 (N10:19) Datalink B2 M1:1.6 (N10:6) M1:1.20 (N10:20) Datalink C1 M1:1.7 (N10:7) M1:1.21 (N10:21) Datalink C2 M1:1.8 (N10:8) M1:1.22 (N10:22) Datalink D1 M1:1.9 (N10:9) M1:1.23 (N10:23) Datalink D2 M1:1.10 (N10:10) M1:1.24 (N10:24) Parameter Protocol Word #1 M1:1.11 (N10:11) M1:1.25 (N10:25) Parameter Protocol Word #2 M1:1.12 (N10:12) M1:1.26 (N10:26) Parameter Protocol Word #3 M1:1.13 (N10:13) M1:1.27 (N10:27) Parameter Protocol Word #4

Station 1 Logic Status

COP

COP Copy File Source #N9:0 Dest #N10:0 Length 28

Station 1 Logic Status

SWP

0004

Execute LAD 3 - Station 1 Drive Logic

0005

Swap Source #N10:0 Length 28

JSR

JSR Jump To Subroutine SBR File Number U:3

For Ladder 3 Station 1 Drive Logic, see Figure 5.4 Example SLC Ladder

- Station 1 Program.

For Ladder 4 Station 2 Drive Logic, see Figure 5.6

Example SLC Ladder

- Station 2 Program.

Using I/O Messaging 5-11

Figure 5.4 Example SLC Ladder Logic - Main Program (Continued)

Execute LAD 4 - Station 2 Drive Logic

JSR

0006

The Profibus scanner is configured for 28 bytes (14 words) of outputs for each drive. Two drives require 48 bytes (28 words).

Station 1 Station 2 Description M0:1.0 (N20:0) M0:1.14 (N20:14) Logic Command M0:1.1 (N20:1) M0:1.15 (N20:15) Speed Reference M0:1.2 (N20:2) M0:1.16 (N20:16) Datalink A1 M0:1.3 (N20:3) M0:1.17 (N20:17) Datalink A2 M0:1.4 (N20:4) M0:1.18 (N20:18) Datalink B1 M0:1.5 (N20:5) M0:1.19 (N20:19) Datalink B2 M0:1.6 (N20:6) M0:1.20 (N20:20) Datalink C1 M0:1.7 (N20:7) M0:1.21 (N20:21) Datalink C2 M0:1.8 (N20:8) M0:1.22 (N20:22) Datalink D1 M0:1.9 (N20:9) M0:1.23 (N20:23) Datalink D2 M0:1.10 (N20:10) M0:1.24 (N20:24) Parameter Protocol Word #1 M0:1.11 (N20:11) M0:1.25 (N20:25) Parameter Protocol Word #2 M0:1.12 (N20:12) M0:1.26 (N20:26) Parameter Protocol Word #3 M0:1.13 (N20:13) M0:1.27 (N20:27) Parameter Protocol Word #4

0007

Profibus scanners vary from manufacturer to manufacturer in how the bytes are ordered in a word. For example, some Profibus scanners operate with high & low bytes swapped (the value "1234" is represented as "3412"). The WRITE data is copied into N21: and the bytes are reversed in the SWP instruction below so a value such as "3412" is viewed as "1234".

N21: contains the actual write data that is being sent to the Profibus scanner.

Jump To Subroutine SBR File Number U:4

XMIT Data Word 0

Copy File Source #N20:0 Dest #N21:0 Length 28

COP

0008

XMIT Data Word 0

SWP

SWP Swap Source #N21:0 Length 28

5-12 Using I/O Messaging

Figure 5.5 SLC Ladder Logic Example - Main Program

Write the drives data to the Profibus scanner.

0009

0010

SST Scanner Write Data Word 0

COP

COP Copy File Source #N21:0 Dest #M0:1.0 Length 28

END

Using I/O Messaging 5-13

SLC Ladder Logic Example - Station 1 Program

Figure 5.6 Example SLC Ladder Logic - Station 1 Program

Controlling the Logic Command word in the drive. B3:20 /* bits are controlled elsewhere in the user program.

Station 1 Start Command

0000

0001

0002

0003

0004

0005

0006

B3:20

Station 1 Stop Command

B3:20

Station 1 Jog Command

B3:20

Station 1 Clear Faults Command

B3:20

Station 1 Reverse Command

B3:20

Station 1 Reverse Command

B3:20

Station 1 Speed Reference PowerFlex 70 Speed Ref A Sel (Pr.90) needs to be set to 'DPI Port 5'. N19:1 is controlled elsewhere in the user program.

Station 1 Logic Command START

Station 1 Logic Command STOP

Station 1 Logic Command JOG

Station 1 Logic Command CLEAR FAULTS

Station 1 Logic Command FORWARD

Station 1 Logic Command REVERSE

Station 1 Speed Reference

MOV

MOV Move Source N19:1 8192< Dest N20:1 8192<

N20:0

5-14 Using I/O Messaging

Figure 5.6 Example SLC Ladder Logic - Station 1 Program (Continued)

Station 1 Datalink A1 Datalink A1 (Pr. 300) set to Acceleration Time 1 (Pr. 140). N19:2 is controlled elsewhere in the user program.

0007

Station 1 Datalink A2 Datalink A2 (Pr. 301) set to Deceleration Time 1 (Pr. 142). N19:3 is controlled elsewhere in the user program.

0008

Station 1 Datalink B1 Datalink B1 (Pr. 302) set to Jog Speed (Pr. 100). N19:4 is controlled elsewhere in the user program.

Station 1 Datalink A1 Write

MOV

MOV Move Source N19:2 50< Dest N20:2 50<

Station 1 Datalink A2 Write

MOV

MOV Move Source N19:3 50< Dest N20:3 50<

0009

Station 1 Datalink B1 Write

MOV

MOV Move Source N19:4 100< Dest N20:4 100<

Using I/O Messaging 5-15

Figure 5.6 Example SLC Ladder Logic - Station 1 Program (Continued)

Station 1 Datalink B2 Datalink B2 (Pr. 303) set to Stop Mode A (Pr. 155). N19:5 is controlled elsewhere in the user program.

Station 1 Datalink B2 Write

MOV

0010

Station 1 Datalink C1 Datalink C1 (Pr. 304) set to Preset Speed 1 (Pr. 101). N19:6 is controlled elsewhere in the user program.

0011

Station 1 Datalink C2 Datalink C2 (Pr. 305) set to Preset Speed 2 (Pr. 102). N19:7 is controlled elsewhere in the user program.

Move Source N19:5 1< Dest N20:5 1<

Station 1 Datalink C1 Write

MOV

MOV Move Source N19:6 100< Dest N20:6 100<

0012

Station 1 Datalink C2 Write

MOV

MOV Move Source N19:7 200< Dest N20:7 200<

5-16 Using I/O Messaging

Figure 5.6 Example SLC Ladder Logic - Station 1 Program (Continued)

Station 1 Datalink D1 Datalink D1 (Pr. 306) set to Preset Speed 3 (Pr. 103). N19:8 is controlled elsewhere in the user program.

0013

Station 1 Datalink D2 Datalink D2 (Pr. 307) set to Preset Speed 4 (Pr. 104). N19:9 is controlled elsewhere in the user program.

0014

The Station 1 program can either end here or, if Explicit Messaging is needed, Parameter Protocol logic can be added. (See Figure 6.5.)

Station 1 Datalink D1 Write

MOV

MOV Move Source N19:8 300< Dest N20:8 300<

Station 1 Datalink D2 Write

MOV

MOV Move Source N19:9 400< Dest N20:9 400<

Using I/O Messaging 5-17

SLC Ladder Logic Example - Station 2 Program

Figure 5.7 Example SLC Ladder Logic - Station 2 Program

Controlling the Logic Command word in the drive. B3:21 /* bits are controlled elsewhere in the user program.

0000

0001

0002

0003

0004

0005

Station 2 Start Command

B3:21

Station 2 Stop Command

B3:21

Station 2 Jog Command

B3:21

Station 2 Clear Faults Command

B3:21

Station 2 Reverse Command

B3:21

Station 2 Reverse Command

B3:21

Station 2 Logic Command START

N20:14

Station 2 Logic Command STOP

N20:14

Station 2 Logic Command JOG

N20:14

Station 2 Logic Command CLEAR FAULTS

N20:14

Station 2 Logic Command FORWARD

N20:14

Station 2 Logic Command REVERSE

N20:14

5-18 Using I/O Messaging

Figure 5.7 Example SLC Ladder Logic - Station 2 Program (Continued)

Station 2 Speed Reference PowerFlex 70 Speed Ref A Sel (Pr.90) needs to be set to 'DPI Port 5'. N19:15 is controlled elsewhere in the user program.

0006

Station 2 Datalink A1 Datalink A1 (Pr. 300) set to Acceleration Time 1 (Pr. 140). N19:16 is controlled elsewhere in the user program.

0007

Station 2 Datalink A2 Datalink A2 (Pr. 301) set to Deceleration Time 1 (Pr. 142). N19:17 is controlled elsewhere in the user program.

Station 2 Speed Reference Write

MOV

MOV Move Source N19:15 8192< Dest N20:15 8192<

Station 2 Datalink A1 Write

MOV

MOV Move Source N19:16 50< Dest N20:16 50<

0008

Station 2 Datalink A2 Write

MOV

MOV Move Source N19:17 50< Dest N20:17 50<

Using I/O Messaging 5-19

Figure 5.7 Example SLC Ladder Logic - Station 2 Program (Continued)

Station 2 Datalink B1 Datalink B1 (Pr. 302) set to Jog Speed (Pr. 100). N19:18 is controlled elsewhere in the user program.

Station 2 Datalink B1 Write

MOV

0009

Station 2 Datalink B2 Datalink B2 (Pr. 303) set to Stop Mode A (Pr. 155). N19:19 is controlled elsewhere in the user program.

0010

Station 2 Datalink C1 Datalink C1 (Pr. 304) set to Preset Speed 1 (Pr. 101). N19:20 is controlled elsewhere in the user program.

Move Source N19:18 100< Dest N20:18 100<

Station 2 Datalink B2 Write

MOV

MOV Move Source N19:19 1< Dest N20:19 1<

0011

Station 2 Datalink C1 Write

MOV

MOV Move Source N19:20 100< Dest N20:20 100<

5-20 Using I/O Messaging

Figure 5.7 Example SLC Ladder Logic - Station 2 Program (Continued)

Station 2 Datalink C2 Datalink C2 (Pr. 305) set to Preset Speed 2 (Pr. 102). N19:21 is controlled elsewhere in the user program.

0012

Station 2 Datalink D1 Datalink D1 (Pr. 306) set to Preset Speed 3 (Pr. 103). N19:22 is controlled elsewhere in the user program.

0013

Station 2 Datalink D2 Datalink D2 (Pr. 307) set to Preset Speed 4 (Pr. 104). N19:23 is controlled elsewhere in the user program.

Station 2 Datalink C2 Write

MOV

MOV Move Source N19:21 200< Dest N20:21 200<

Station 2 Datalink D1 Write

MOV

MOV Move Source N19:22 300< Dest N20:22 300<

Station 2 Datalink D2 Write

MOV

0014

Move Source N19:23 400< Dest N20:23 400<

The Station 2 program can either end here or, if Explicit Messaging is needed, Parameter Protocol logic can be added (See Figure 6.6.)

Chapter

Using Explicit Messaging (Parameter Protocol)

Chapter 6 provides information and examples that explain how to use Explicit Messaging to monitor and configure the adapter and connected PowerFlex drive, as well as other peripherals.

Topic Page Topic Page

About Explicit Messaging

Running Explicit Messages 6-2 SLC Ladder Example - Station 2

Parameter Protocol 6-3

ATTENTION: Risk of injury or equipment damage exists. The examples in this publication are intended solely for purposes of

6-1 SLC Ladder Example - Station 1

Parameter Protocol

6-11

6-13

ATTENTION: Risk of equipment damage exists. If Explicit Messages are programmed to write parameter data to Non-Volatile Storage (NVS)

frequently, the NVS will quickly exceed its life cycle and cause the drive to malfunction. Do not create a program that frequently uses Explicit Messages to write parameter data to NVS. Datalinks do not write to NVS and should be used for frequently changed parameters.

About Explicit Messaging

Explicit Messaging is used to transfer data that does not require continuous updates. With Explicit Messaging, you can configure and monitor a slave device’s parameters on the PROFIBUS network.

6-2 Using Explicit Messaging (Parameter Protocol)

PWR

STS

PORT

MOD

NET A

NET B

To be able to use the parameter protocols in the 20-COMM-P, the Parameter Access module in the GSD file must be added to the master configuration when configuring the network. Refer to step #21,

Page 4-13

to view the procedure for adding the “Parameter Access” module to a configuration. This maps 4 words input and output to the end of the I/O configuration, which is used as the request/response in the parameter message format (Figure 6.2

Parameter 23 - [Parameter Mode] in the 20-COMM-P module is used to configure the parameter protocol that is active. The default protocol is the Parameter Protocol.

Running Explicit Messages

There are five basic events in the Explicit Messaging process defined below. The details of each step will vary depending on the controller. Refer to the documentation for your controller.

Important: There must be a request message and an response message

for all Explicit Messages, whether you are reading or writing a data.

Figure 6.1 Explicit Message Process

Set up and send Parameter Message

➎

Complete Parameter Message

➍

Retrieve Parameter Message Response

➊

➋

➌

Using Explicit Messaging (Parameter Protocol) 6-3

Event

1. You format the required data and set up the ladder logic program to

send an Explicit Message request to the scanner module (download).

2. The scanner module transmits the Explicit Message Request to the

slave device over the PROFIBUS network.

3. The slave device transmits the Explicit Message Response back to

the master.

4. The controller retrieves the Explicit Message Response.

5. The Explicit Message is complete.

Parameter Protocol

This protocol uses 4 words in the Profibus I/O area. Requests and responses are a handshake procedure and cannot be batched, meaning that if the master sends a request, it has to wait for the response before sending a new request.

With this protocol you can:

• Read 8-bit, 16-bit, or 32-bit parameters from any DPI port

• Write 8-bit, 16-bit, or 32-bit parameters to any DPI port

• Read the Host Fault object

To enable this protocol set Parameter 23 - [Parameter Mode] to “Par Prot” (default).

Figure 6.2 Parameter Message Format

Request

Bit 15-12 11 10-0 15-12 11 10-0

Parameter Access

Word 1 (PCA)

Parameter Access

Word 2 (IND)

Parameter Access

Word 3 (PVA)

Parameter Access

Word 4 (PVA)

RC SPM PNU RC SPM PNU

Subindex Subindex

Para met er value

(32 bit high word)

Para met er value

(32-bit low word/8-bit & 16-bit

value)

(32-bit low word/8-bit & 16-bit

Response

Parameter value

(32 bit high word)

Parameter value

value)

6-4 Using Explicit Messaging (Parameter Protocol)

Refer to Page 6-4 and Page 6-5 for a description of the data that is

required in each word.

Parameter Message Request

Word Description

1 PNU - Parameter Number (Bit 0-10)

The parameter number determines which parameter to access, in the selected peripheral. Parameters 1-1023 can be accessed. Parameter numbers 1024 - 2048 are used to access the fault object. Parameter 1024 is equal to the latest fault, 1025 to the prior fault, and so on.

SPM (Bit 11) Reserved - Should always bet set to 0.

RC - Request Code (Bit 12-15) One of the following codes have to be used:

0 = No request 1 = Request parameter value 2 = Change parameter value (8-bit & 16-bit word) 3 = Change parameter value (32-bit word) 4 -15 = Reserved

2 IND - Index

The index word contains the DPI Port number of the DPI Peripheral that the request is addressed to. The drive always has Port number 0, the Port number of the 20-COMM-P module can be determined from Parameter 01 - [DPI PORT]. This is Port 5 on PowerFlex 70 and PowerFlex 700.

3 PVA - Parameter value (32-bit high word)

The Parameter value, if the parameter is 32 bits, the most significant bytes are placed here.

4 PVA - Parameter value (32-bit low word or 8-bit & 16-bit word)

The Parameter value, if the parameter is 32 bits, the least significant bytes are placed here. If the parameter is 16-bit or lower, the entire result is placed in this word.

Using Explicit Messaging (Parameter Protocol) 6-5

Parameter Message Response

Word Description

1 PNU - Parameter Number (Bit 0-10)

Requested parameter number. SPM (Bit 11)

Reserved - is always set to 0. RC - Response Code (Bit 12-15)

One of the following codes will be sent: 0 = No request 1 = Transfer parameter value (8-bit & 16-bit word) 2 = Transfer parameter value (32-bit word) 3-6 = Reserved 7 = Request rejected. Error message is found in Word 3, see table below for

fault number description. 8 = No parameter change rights 9-15 = Reserved

2 IND - Index

Port ID of requested parameter

3 PVA - Parameter value (32-bit high word)

The Parameter value, if the parameter is 32 bits, the most significant bytes are placed here. If a fault was requested (Parameter 1024-2048), this word contains the fault code, that identifies the fault.

4 PVA - Parameter value (32-bit low word or 8-bit & 16-bit word)

The Parameter value, if the parameter is 32-bits, the least significant bytes are placed here. If the parameter is 16-bit or lower, the entire result is placed in this word. If a fault was requested (Parameter 1024-2048), the MSB contains the DPI Port number that caused the fault, and the LSB contains the DPI object instance that cause the fault.

Fault number Description

101 Service not supported (i.e., Set service to a read-only parameter) 102 Service not valid 104 Parameter does not exist (i.e., Parameter number>max number of

106 Data value out of range (i.e., Set value is out of range) 107 State conflict (i.e., Parameter is not changeable while the product is in

parameters)

an operating state)

6-6 Using Explicit Messaging (Parameter Protocol)

Parameter Protocol Examples

Read Examples

Figure 6.3 Overview Parameter Message Format (Read Request)

Request

Bit 15-12 11 10-0 15-12 11 10-0

Paramet er A cce ss

Word 1 (PCA)

Paramet er A cce ss

Word 2 (IND)

Paramet er A cce ss

Word 3 (PVA)

Paramet er A cce ss

Word 4 (PVA)

Request Response RC

Set to “1” (‘0001’) binary to read

SPM

Not used

PNU

Parameter number to read

Subindex

Selects which DPI port to talk to (“0” = DPI Host, “5” =20-COMM-P on PowerFlex 70

RC SPM PNU RC SPM PNU

Subindex Subindex

Not Used Parameter value high

Not Used Parameter value low

Not Used Parameter value high word

Not Used Parameter value low word

Response

(32 bit high word)

(32-bit low word/ or

8-bit/16-bit value)

“1” (‘0001’) Transferring 8-bit or 16-bit parameter value “2” (‘0010’) Transferring a 32-bit parameter value “7” (‘0111’) Request rejected (including fault code)

SPM

Not used

PNU

Confirms the Parameter number (if successful, equals the PNU from the request)

Subindex

Confirms the DPI port (if successful, equals the Subindex from the request)

Contains a “0” if returning a value from a 16-bit parameter and the high word from a 32-bit parameter

Contains the value from a 8-bit or 16-bit parameter, the low word if reading from a 32-bit parameter, or the fault code (if RC = “7”)

Using Explicit Messaging (Parameter Protocol) 6-7

Reading Parameter 140 [Accel Time 1] from the PowerFlex 70 (DPI Port 0)

Message

Command

N20:10

N20:11

N20:12

N20:13

N10:10

N10:11

N10:12

N10:13

Par. Access

SLC Address

Word

108C

Value (hex)

1000 hex = Read 8C hex = 140 dec (Pr. 140)

DPI Port 0 (DPI Host)

Not Used

Transferring 16-bit parameter value ("1")

Confirms Par. Number of the request ("8C")

Confirms Par. Access Word 2 of the request

(DPI Port #)

Not Used

32 hex = 50 dec = 5.0 seconds

Description

Reading Parameter 4 [P-DP Addr Actual] from the 20-COMM-P on a PowerFlex 70 (DPI Port 5)

Message

Command

N20:10

N20:11

N20:12

N20:13

N10:10

N10:11

N10:12

N10:13

Par. Access

SLC Address

Word

1004

Value (hex)

1000 hex = Read

4 hex = 4 dec (Pr. 4)

DPI Port 5 (20-COMM-P)

Not Used

Transferring 16-bit parameter value ("1")

Confirms Par. Number of the request ("4")

Confirms Par. Access Word 2 of the request

(DPI Port #)

Not Used

1 hex = 1 dec = Station 1

Description

6-8 Using Explicit Messaging (Parameter Protocol)

Reading Par. 244 [Fault 1 Time] from the PowerFlex 70 (DPI Port 0)

Message

Command

N20:10

N20:11

N20:12

N20:13

N10:10

N10:11

N10:12

N10:13

*Note 1: 1B518E hex = 1,790,350 decimal equates to 179.0350 hours (fixed decimal point)

Par. Access

SLC Address

Word

Value (hex)

1000 hex = Read

10F4

F4 hex = 244 dec (Pr. 244)

DPI Port 0 (DPI Host)

Not Used

Transferring 16-bit parameter value ("1")

10F4

Confirms Par. Number of the request ("F4")

Confirms Par. Access Word 2 of the request

(DPI Port #)

Parameter value high word

Parameter value low word

518E

Description

Note 1: 1B518E hex = 1790350 decimal which equates to 170.0350 hours (fixed decimal point.)

Write Examples

Figure 6.4 Overview Parameter Message Format (Write Request)

Request

Bit 15-12 11 10-0 15-12 11 10-0

Parameter Access Word 1 (PCA)

Parameter Access Word 2

RC SPM PNU RC SPM PNU

Subindex Subindex

(IND) Parameter

Access Word 3 (PVA)

Parameter Access Word 4

Parameter value high

(32 bit high word)

Parameter value low

(32-bit low word/

or 8-bit/16-bit value)

(PVA)

Response

Parameter value high

(32 bit high word)

Parameter value low

(32-bit low word/

or 8-bit/16-bit value)

Using Explicit Messaging (Parameter Protocol) 6-9

Request Response RC

“2” (‘0010’ binary) to write a 8-bit or 16-bit parameter

“3” (‘0011 binary) to write a 32-bit parameter

SPM

Not used

PNU

Parameter number being written

Subindex

Selects which DPI port to talk to (“0”= DPI Hosts “5”= 20-COMM-P on PowerFlex 70)

Parameter value high

Contains the high word if writing a 32-bit parameter

Parameter value low

Contains the write value for a 8-bit or 16-bit parameter, or the low word if writing a 32-bit parameter

“1” (0001’) Transferring a 8-bit or 16-bit parameter value

“2” (‘0010’) Transferring a 32-bit parameter value

“7” (‘0111’) Request rejected (including fault number)

SPM

Not Used

PNU

Confirms the Parameter number (equals the PNU from the request)

Subindex

Confirms the DPI Port (equals the Subindex from the request)

Parameter value high.

Confirms the high word if writing a 32-bit parameter.

Parameter value low.

Confirms the write value for a 8-bit or 16-bit parameter, the low word (if writing a 32-bit parameter, or the fault code (if RC=”7”)

Writing Parameter 101 [Preset Speed 1] to the PowerFlex 70 (DPI Port 0)

Command

Message

N20:10

N20:11

N20:12

N20:13

N10:10

N10:11

N10:12

N10:13

Par. Access

SLC Address

Word

2065

1065

Value (hex)

2000 hex = Change parameter value (word) 65 hex = 101 dec (Pr.101)

DPI Port 0 (DPI Host)

Not Used

64 hex = 100 dec = 10.0 Hz

Transferring 16-bit parameter value ("1")

Confirms Par. Number of the request ("65")

Confirms Par. Access Word 2 of the request

Not Used

Confirms Param. Access Word 4 of the request

Description

6-10 Using Explicit Messaging (Parameter Protocol)

Writing Parameter 9 [Comm Fault Action] to the 20-COMM-P on a PowerFlex 70 (DPI Port 5)

Message

Command

N20:10

N20:11

N20:12

N20:13

N10:10

N10:11

N10:12

N10:13

Par. Access

SLC Address

Value (hex)

Word

2000 hex = Change parameter value 8-bit/16-bit

2009

9 hex = 9 dec (Pr. 9)

DPI Port 5 (20-COMM-P)

Not Used

2 hex = 2 dec = Zero Data

1009

Transferring 8-bit/16-bit parameter value ("1")

Confirms Par. Number of the request ("9")

Confirms Par. Access Word 2 of the request

Not Used

Confirms Par. Access Word 4 of the request

Description

Writing Parameter 15 [Flt Cfg A1 In] to a 20-COMM-P on a PowerFlex (DPI Port 5)

Command

Message

N20:10

N20:11

N20:12

N20:13

N10:10

N10:11

N10:12

N10:13

Par. Access

SLC Address

Word

300F

200F

Value (hex)

3000 hex = Change parameter value (32-bit) F hex = 15 dec (Pr. 15)

DPI Port 5 (20-COMM-P)

Not Used

64 hex = 100 dec = 10.0 Hz

Transferring 32-bit parameter value ("2")

Confirms Par. Number of the request ("F")

Confirms Par. Access Word 2 of the request

Confirms Par. Access Word 3 of the request

Confirms Par. Access Word 4 of the request

Description

Using Explicit Messaging (Parameter Protocol) 6-11

SLC Ladder Example - Station 1 Parameter Protocol

Figure 6.5 Example SLC Ladder Logic - Station 1 Parameter Protocol

This section of the routine is only needed if the application needs to perform Parameter Protocol Reads or Writes to Station 1.

On power-up, initialize the Parameter Protocol routine.

First Pass

0015

S:1

This circuit utilizes the Parameter Protocol. A REQUEST to Station 1 is processed only one at a time, and after each RESPONSE from Station 1 a zero must be sent and received to 'handshake' before the next REQUEST/RESPONSE transaction can take place. For example: Send a parameter read request --> Receive a parameter read response --> Send a "0" --> Receive a "0" --> [Transaction complete]

If the RESPONSE PCA Word 1 (N10:10) is "0", then a REQUEST can be initiated.

Elsewhere in the user program these words must be loaded with message data prior to initiating the REQUEST: N7:10 = RC = the operation to be performed ("1"=Read, "2" = 16-bit Write, "3" = 32-bit Write) N7:11 = PNU = the parameter number to read or write N7:12 = Subindex = the DPI port # ("0"= Host or PowerFlex drive, "5" = 20-COMM-P, etc.) N7:13 = PVA #1 = the parameter value (high word) - only used when writing parameters N7:14 = PVA #2 = the parameter value (low word) - only used when writing parameters

The four Parameter Protocol Words set up in the scanner are used to perform the Parameter Protocol: N20:10 = contains RC (the operation to be performed) and PNU (the parameter number to read or write) combined N20:11 = Subindex (the DPI port #) N20:12 = PVA #1 (the parameter value (high word)) N10:13 = PVA #2 (the parameter value (low word))

B3:19/15 is turned ON elsewhere in the program after the REQUEST message (N7:10-14) is loaded. This causes one Parameter Protocol read or write to occur and B3:19/15 is turned OFF when the transaction is complete.

Station 1 Par Prot Messaging Request

B3:19

0016

Station 1 Par Prot Messaging Request

B3:19

Station 1 RESPONSE PCA Word

EQU

EQU Equal Source A N10:10 0< Source B 0 0<

Station 1 PCA Word

MOV

MOV Move Source N7:11 15< Dest N20:10 0<

RC bit 0

N7:10

RC bit 1

N7:10

IND Word (Subindex)

COP

COP Copy File Source #N7:12 Dest #N20:11 Length 3

PCA Word RC bit 0

N20:10

L 12

PCA Word RC bit 1

N20:10

L 13

6-12 Using Explicit Messaging (Parameter Protocol)

Figure 6.5 Example SLC Ladder Logic - Station 1 Parameter Protocol (Continued)

N10:10 is the Station 1 Response Parameter Access Word 1. It is < > 0 when a message has been received in response to a message request. If the response is >= 7000 hex (28672 decimal), then the adapter is responding that an error has occurred. In this case, the returned data in the response will contain a fault code and not parameter value data.

The response message can be found at: N7:20 = PCA word = contains the RC and PNU N7:21 = Subindex = the DPI port # ("0"= Host or PowerFlex drive, "5" = 20-COMM-P, etc.) N7:22 = PVA #1 = the parameter value (high word) N7:23 = PVA #2 = the parameter value (low word) The PVA's will either contain parameter read data, echo the parameter write data, or contain an error code if unsuccessful.

0017

0018

Station 1 Par Prot Messaging Request

B3:19

Station 1 RESPONSE PCA Word

NEQ Not Equal Source A N10:10 0< Source B 0 0<

RESPONSE Message PCA Word

COP

COP Copy File Source #N10:10 Dest #N7:20 Length 4

Station 1 PCA Word

MOV

MOV Move Source 0 0< Dest N20:10 0<

Station 1 Par Prot Messaging Request

B3:19

END

Using Explicit Messaging (Parameter Protocol) 6-13

SLC Ladder Example - Station 2 Parameter Protocol

Figure 6.6 Example SLC Ladder Logic - Station 2 Parameter Protocol

This section of the routine is only needed if the application needs to perform Parameter Protocol Reads or Writes to Station 2.

On power-up, initialize the Parameter Protocol routine.

First Pass

0015

0016

S:1

15 This circuit utilizes the Parameter Protocol. A REQUEST to Station 2 is processed only one at a time, and after each RESPONSE from Station 2 a zero must be sent and received to 'handshake' before the next REQUEST/RESPONSE transaction can take place. For example: Send a parameter read request --> Receive a parameter read response --> Send a "0" --> Receive a "0" --> [Transaction complete]

If the RESPONSE PCA Word 1 (N10:24) is "0", then a REQUEST can be initiated.

Elsewhere in the user program these words must be loaded with message data prior to initiating the REQUEST: N7:30 = RC = the operation to be performed ("1"=Read, "2" = 16-bit Write, "3" = 32-bit Write) N7:31 = PNU = the parameter number to read or write N7:32 = Subindex = the DPI port # ("0"= Host or PowerFlex drive, "5" = 20-COMM-P, etc.) N7:33 = PVA #1 = the parameter value (high word) - only used when writing parameters N7:34 = PVA #2 = the parameter value (low word) - only used when writing parameters

The four Parameter Protocol Words set up in the scanner are used to perform the Parameter Protocol: N20:24 = contains RC (the operation to be performed) and PNU (the parameter number to read or write) combined N20:25 = Subindex (the DPI port #) N20:26 = PVA #1 (the parameter value (high word)) N20:27 = PVA #2 (the parameter value (low word))

B3:19/0 is turned ON elsewhere in the program after the REQUEST message (N7:30-34) is loaded. This causes one Parameter Protocol read or write to occur and B3:19/0 is turned OFF when the transaction is complete.

Station 2 Par Prot Messaging Request

B3:19

Station 2 RESPONSE PCA Word

EQU

Equal Source A N10:24 0< Source B 0 0<

Station 2 PCA Word

MOV

MOV Move Source N7:31 9< Dest N20:24 0<

RC bit 0

N7:30

RC bit 1

N7:30

IND Word (Subindex)

COP

COP Copy File Source #N7:32 Dest #N20:25 Length 3

Station 2 Par Prot Messaging Request

PCA Word RC bit 0

N20:24

PCA Word RC bit 2

N20:24

B3:19

6-14 Using Explicit Messaging (Parameter Protocol)

Figure 6.6 Example SLC Ladder Logic - Station 2 Parameter Protocol (Continued)

N10:24 is the Station 2 Response Parameter Access Word 1. It is < > 0 when a message has been received in response to a message request. If the response is >= 7000 hex (28672 decimal), then the adapter is responding that an error has occurred. In this case, the returned data in the response will contain a fault code and not parameter value data.

The response message can be found at: N7:40 = PCA word = contains the RC and PNU N7:41 = Subindex = the DPI port # ("0"= Host or PowerFlex drive, "5" = 20-COMM-P, etc.) N7:42 = PVA #1 = the parameter value (high word) N7:43 = PVA #2 = the parameter value (low word) The PVA's will either contain parameter read data, echo the parameter write data, or contain an error code if unsuccessful.

0017

0018

Station 2 Par Prot Messaging Request

B3:19

Station 2 RESPONSE PCA Word

NEQ Not Equal Source A N10:24 0< Source B 0 0<

RESPONSE Message PCA Word

COP

COP Copy File Source #N10:24 Dest #N7:40 Length 4

Station 2 PCA Word

MOV

MOV Move Source 0 0< Dest N20:24 0<

Station 2 Par Prot Messaging Request

B3:19

END

Notes:

Using Explicit Messaging (Parameter Protocol) 6-15

6-16 Using Explicit Messaging (Parameter Protocol)

Chapter

PWR

STS

PORT

MOD

NET A

NET B

Troubleshooting

Chapter 7 contains troubleshooting information.

Topic Page Topic Page

Locating the Status Indicators PORT Status Indicator 7-2 Adapter Diagnostic Items 7-4 MOD Status Indicator 7-3 Viewing and Clearing Events 7-5

Locating the Status Indicators

The PROFIBUS adapter has three status indicators. They can be viewed on the adapter or through the drive cover. (See Figure 7.1.)

Figure 7.1 Status Indicators

➊ ➋ ➌

7-1 NET A Status Indicator 7-3

Number Status Indicator Description Page

➊ ➋ ➌ ➍

PORT DPI Connection Status 7-2 MOD Adapter Status 7-3 NET A PROFIBUS Status 7-3 NET B Not used

➊ ➋ ➌ ➍

7-2 Troubleshooting

PORT Status Indicator

Status Cause Corrective Action

Off The adapter is not powered

or is not connected properly to the drive.

Flashing Red The adapter is not

receiving a ping message from the drive.

Solid Red

The drive has refused an I/O connection from the adapter.

Another DPI peripheral is using the same DPI port as the adapter.

Orange The adapter is connected

to a product that does not support Allen-Bradley DPI communications.

Flashing Green The adapter is establishing

an I/O connection to the drive.

Solid Green The adapter is properly

connected and is communicating with the drive.

Securely connect the adapter to the drive

•

using the ribbon cable. Apply power to the drive.

•

Verify that cables are securely connected.

•

Cycle power to the drive.

•

Important: Cycle power to the product after making any of the following corrections.

Verify that all DPI cables on the PowerFlex

•

drive are securely connected and not damaged. Replace cables if necessary. Verify that the PowerFlex drive supports

•

Datalinks. Configure the adapter and PowerFlex drive

•

to use a Datalink that is not already being used by another peripheral.

Connect the adapter to a product that

•

supports Allen-Bradley DPI communications (for example, PowerFlex drives).

No Action. This status indicator will turn solid

•

green or red.

No Action.

•

MOD Status Indicator

Status Cause Corrective Action

Off The adapter is not

Flashing Red The adapter has failed the

Solid Red

Flashing Green The adapter is operational

Solid Green The adapter is operational

powered.

firmware test.

The adapter has failed the hardware test.

but is not transferring I/O data.

and transferring I/O data.

Securely connect the adapter to the

•

PowerFlex drive using the ribbon cable. Apply power to the drive and network.

•

Cycle power to the drive. Parameter settings

•

may have been changed. Clear faults in the adapter.

•

If cycling power does not correct the

•

problem, the parameter settings may have been corrupted. Reset defaults and reconfigure the module. If resetting defaults does not correct the

•

problem, flash the adapter with the latest firmware release.

Cycle power to the drive.

•

Replace the adapter.

•

Place the scanner in RUN mode.

•

Configure the adapter for the program in the

•

controller. Program the controller to recognize and

•

transmit I/O to the adapter. No Action.

•

Troubleshooting 7-3

NET A Status Indicator

Status Cause Corrective Actions

Off The adapter is not powered

Flashing Red Error in PROFIBUS

Solid Red Error in PROFIBUS

Solid Green The adapter is properly

or is not connected properly to the network.

configuration.

controller initialization.

connected and communicating on the network.

Securely connect the adapter to the drive

•

using the Internal Interface cable and to the network using a PROFIBUS cable. Correctly connect the PROFIBUS cable to

•

the PROFIBUS connector. Apply power to the drive.

•

Re-configure the PROFIBUS module.

•

Cycle power to the drive.

•

Re-configure the Profibus scanner.

•

No action required.

•

7-4 Troubleshooting

Adapter Diagnostic Items

Adapter Diagnostic Items are viewable with DriveExplorer (version 2.01 or higher), DriveExecutive (version 1.01 or higher) or HIM (2.001)

software.

No. Event Description

1 Common Logic

Cmd

2 Prod Logic Cmd The current value of the Product-specific Logic Command being

3 Reference The current value of the Product-specific Reference being

4 Common Logic

Sts

5 Prod Logic Sts The current value of the Product-Specific Status being received from

6 Feedback The current value of the Product-Specific Feedback being received

7 Datalink A1 In The current value of Datalink A1 being transmitted to the host.

8 Datalink A2 In The current value of Datalink A2 being transmitted to the host.

9 Datalink B1 In The current value of Datalink B1 being transmitted to the host.

10 Datalink B2 In The current value of Datalink B2 being transmitted to the host.

11 Datalink C1 In The current value of Datalink C1 being transmitted to the host.

12 Datalink C2 In The current value of Datalink C2 being transmitted to the host.

13 Datalink D1 In The current value of Datalink D1 being transmitted to the host.

14 Datalink D2 In The current value of Datalink D2 being transmitted to the host.

15 Datalink A1 Out The current value of Datalink A1 being received from the host. 16 Datalink A2 Out The current value of Datalink A2 being received from the host. 17 Datalink B1 Out The current value of Datalink B1 being received from the host. 18 Datalink B2 Out The current value of Datalink B2 being received from the host. 19 Datalink C1 Out The current value of Datalink C1 being received from the host. 20 Datalink C2 Out The current value of Datalink C2 being received from the host. 21 Datalink D1 Out The current value of Datalink D1 being received from the host. 22 Datalink D2 Out The current value of Datalink D2 being received from the host. 23 Field Flash Cnt The number of times this device has been flash updated. 24 DPI Rx Errors The current value of the DPI CAN Receive error counter. 25 DPI Tx Errors The current value of the DPI CAN Transmit error counter. 26 PbusImage Siz Buffer size of Active I/O image (Profibus size) in bytes. 27 Switch 0 The value of Switch 0. (Node Address 1’s digit) 28 Switch 1 The value of Switch 1. (Node Address 10’s digit)

The current value of the Common Logic Command being transmitted to the host.

transmitted to the host.

transmitted to the host. The current value of the Common Logic Status being received from

the host.

from the host.

(Value of 0 if datalink is not used).

(Value of 0 if Datalink is not used).

(Value of 0 if Datalink not used).

(Value of 0 if Datalink is not used).

Troubleshooting 7-5

Viewing and Clearing Events

The adapter maintains an event queue that reports the history of its actions. You can view the event queue using an LCD PowerFlex HIM, DriveExplorer (2.01 or higher) software, or DriveExecutive (1.01 or

higher).

Step Keys Example Screen Viewing Events

1. Access parameters in the adapter. Refer to Using the PowerFlex HIM

Chapter 3.

2. Press the Up Arrow or Down Arrow to scroll to Diagnostics.

3. Press Enter to display the Diagnostics menu in the adapter.

4. Repeat steps 2 and 3 to enter the

Events option and then View Event Queue option.

5. Press the Up Arrow or Down Arrow to scroll through the events. The most recent event is Event 1.

Clearing Events

1. Access parameters in the Adapter. Refer to Using the PowerFlex HIM

Chapter

2. Press the Up Arrow or Down Arrow to scroll to Diagnostics.

3. Press Enter to display the Diagnostics menu in the adapter.

4. Repeat steps 2 and 3 to enter the

Events option and then the Clr Event option or Clear Event Queue

option. A message will pop up to confirm that you want to clear the message or queue.

5. Press Enter to clear all events out of the event queue. All event queue entries will then display “No Event.”

Main Menu:

Diagnostics

Parameter Device Select

Event Q: 1 E3 Ping Time Flt

Dgn: Events View Event Queue Clear Event

Clear Event Queue

7-6 Troubleshooting

Events

Many events in the Event queue occur under normal operation. If you encounter unexpected communications problems, the events may help you or Allen-Bradley personnel troubleshoot the problem. The following events may appear in the event queue:

Code Event Description

1 No Event Empty event queue entry. 2 DPI Bus Off

Flt

3 Ping Time Flt A ping message was not received on DPI within the specified

4 Port ID Flt The adapter is not connected to a correct port on a DPI product. 5 Port Change

Flt

6 Host Sent

Reset

7 EEPROM

Sum Flt

8 Online @

125kbps

9 Online @

500kbps 10 Bad Host Flt The adapter was connected to an incompatible product. 11 Dup. Port Flt Another peripheral with the same port number is already in use. 12 Type 0 Login The adapter has logged in for type 0 control. 13 Type 0 Time

Flt 14 DL Login The adapter has logged into a datalink. 15 DL Reject Flt The host rejected an attempt to log in to a datalink because the

16 DL Time Flt The adapter has not received a datalink message within the

17 Control

Disabled 18 Control

Enabled 19 Message

Timeout 20 DPI Fault Msg The Host faulted. 21 DPI Fault

Clear 22 Normal

Startup 23 NET Comm

Flt 24 Fault Cfg

Error 25 P-DP Online The PROFIBUS adapter has gone on-line the PROFIBUS

A bus-off condition was detected on DPI. This event may be caused by loose or broken cables or by noise.

time.

The DPI port changed.

The DPI product issued this because it was reset.

The EEPROM in the adapter is corrupt.

The adapter and DPI product are communicating at 125kbps.

The adapter and DPI product are communicating at 500kbps.

The adapter has not received a type 0 status message within the specified time.

datalink is not supported or is used by another peripheral.

specified time. The adapter has sent a “Soft Control Disable” command to the

DPI product. The adapter has sent a “Soft Control Enable” command to the

DPI product. A Client-Server message sent by the peripheral was not

completed.

The user cleared a fault in the adapter.

Peripheral completes a normal startup.

The adapter detected a fault condition on the PROFIBUS network.

One of the Flt Cfg data Parameters is set to a value greater than 65535 and the host requires a 16-bit value.

network.

Troubleshooting 7-7

Code Event Description

26 P-DP Offline The PROFIBUS adapter has gone off-line the PROFIBUS

27 P-DP Idle The PROFIBUS adapter received a network clear from the

28 Language

CRC Bad

network.

PROFIBUS master. The language flash segment is corrupt - flash the adapter.

7-8 Troubleshooting

Appendix

Specifications

This chapter presents the specifications for the adapter.

Topic Page Topic Page

Communications Electrical A-1 Regulatory Compliance A-2 Mechanical A-1

Communications

Network

Protocol Data Rates

Drive

Protocol Data Rates

A-1 Environmental A-2

PROFIBUS

9.6K, 19.2K, 45.45K, 93.75K, 187.5K, 500K, 1.5M, 3M, 6M, 12M. The adapter has auto baud rate detection.

DPI 125K or 500K

Electrical

Consumption

Drive Network

370mA at 5 V supplied through the drive

Mechanical

Dimensions

Height Length Width

Weight 57g (2 oz.)

19 mm (0.75 inches) 86 mm (3.39 inches)

78.5 mm (3.09 inches)

A-2 Specifications

Environmental

Temperature

Operating Storage

Relative Humidity 5 to 95% non-condensing

-10 to 50

-40 to +85

C (14 to 149°F)

C (-40 to 185°F)

Regulatory Compliance

UL 508C and CUL CE EN50081-2 (1993) and EN61000-6-2 (1999)

Appendix

Adapter Parameters

Appendix B provides information about the PROFIBUS adapter parameters.

Topic Page

About Parameter Numbers Parameter List B-1

About Parameter Numbers

The parameters in the adapter are numbered consecutively. However, depending on which configuration tool you use, they may have different numbers.

Configuration Tool Numbering Scheme

DriveExplorer

•

DriveExecutive

•

HIM

•

Explicit Messaging

•

B-1

The adapter parameters begin with parameter 1. For example, Parameter 01 - [DPI Por t] is parameter 1 as indicated by this manual.

Parameter List

Parameter No. Name and Description Details

01 [DPI Port]

Port to which the adapter is connected. This will usually be port 5.

02 [DPI Data Rate]

Data rate used by the drive. This data rate is set in the drive, and the adapter detects it.

03 [P-DP Addr Cfg]

Node address to use if the Node address switches are set to “00”.

04 [P-DP Addr Actual]

PROFIBUS node address actually used by the adapter.

Default: 0 Minimum: 0 Maximum: 7 Type: Read Only

Default: 0 = 125 K Values: 0 = 125 K

Type: Read Only Default: 1

Minimum: 00 Maximum 126 Type: Read/Write Reset Required: Yes

Default: N/A Minimum: 00 Maximum: 126 Type: Read Only

1 = 500 K

B-2 Adapter Parameters

Parameter No. Name and Description Details

05 [P-DP Rate Actual]

PROFIBUS data rate.

06 [Ref/Fdbk Size]

Size of the Reference/Feedback. The drive determines the size of the Reference/Feedback.

07 [Datalink Size]

Size of each Datalink word. The drive determines the size of the Datalinks.

08 [Reset Module]

No action if set to “Ready.” Resets the adapter if set to “Reset Module.” Restores the adapter to its factory default settings if set to “Set Defaults.” This parameter is a command. It will be reset to “0 = Ready” after the command has been performed.

ATTENTION: Risk of injury or equipment damage exists. If the adapter is transmitting I/O that controls the drive, the drive may fault when you reset the adapter. Determine how your drive will respond before resetting a connected

adapter.

Default: N/A Values: 0 = 9.6 K

Type: Read Only Default: 0 = 16-bit

Values 0 = 16-bit

Type: Read Only Default: 0 = 16-bit

Values 0 = 16-bit

Type: Read Only Default: 0 = Ready

Values 0 = Ready

Type: Read/Write Reset Required: No

1 = 19.2 K 2 = 45.45 K 3 = 93.75 K 4 = 187.5 K 5 = 500 K 6 = 1.5 M 7 = 3 M 8 = 6 M 9 = 12 M 10 = Off-line

1 = 32-bit

1 = Reset Module 2 = Set Defaults

09 [Comm Flt Action]

Action that the adapter and drive take if the adapter detects that PROFIBUS communications have been disrupted. This setting is effective only if I/O that controls the drive is transmitted through the adapter.

ATTENTION: Risk of injury or equipment damage exists. Parameter 09- [Comm Flt Action] lets you determine the action of the adapter and connected drive if the

scanner is idle. By default, this parameter faults the drive. You can set this

parameter so that the drive continues to run. Precautions should be taken to ensure that the setting of this parameter does not create a hazard of injury or equipment damage.

10 [Idle Flt Action]

Sets the action that the adapter and drive take if the adapter detects that scanner is idle because the controller was switched to program mode. This setting is effective only if I/O that controls the drive is transmitted through the adapter.

Default: 0 = Fault Values: 0 = Fault

Type: Read/Write Reset Required: No

Default: 0 = Fault Values: 0 = Fault

Type: Read/Write Reset Required: No

1 = Stop 2 = Zero Data 3 = Hold Last 4 = Send Flt Cfg

Parameter No. Name and Description Details

11 [DPI I/O Config]

I/O that is transferred through the adapter.

Default: xxx0 0001 Bit Values: 0 = I/O disabled

Type: Read/Write Reset Required: Yes

Bit Definitions

Bit

Default

01234576

10000xxx

0 = Cmd/Ref 1 = Datalink A 2 = Datalink B 3 = Datalink C 4 = Datalink D 5 = Not Used 6 = Not Used 7 = Not Used

12 [DPI I/O Active]

I/O that the adapter is actively transmitting. The value of this parameter will usually be equal to the value of Parameter 11- DPI I/O Config.

Bit

Default

13 [Flt Cfg Logic]

Sets the Logic Command data that is sent to the drive if any of the following is true:

Parameter 09 - [Comm Flt Action] is set to

•

Send Flt Cfg and communications are disrupted. Parameter 10 - [Idle Fault Action] is set to

•

Send Flt Cfg and the scanner is put into

Program mode. The bit definitions will depend on the product to which the adapter is connected.

14 [Flt Cfg Ref]

Sets the Reference data that is sent to the drive if any of the following is true:

Parameter 09- [Comm Flt Action] is set to

•

Send Flt Cfg and communications are

disrupted.

Parameter 10 - [Idle Flt Action] is set to Send

•

Flt Cfg and the scanner is put into Program

mode.

Default: xxx0 0001 Bit Values: 0 = I/O disabled

Type: Read Only

Bit Definitions

01234576

0 = Cmd/Ref

10000xxx

1 = Datalink A 2 = Datalink B 3 = Datalink C 4 = Datalink D 5 = Not Used 6 = Not Used 7 = Not Used

Default: 0000 0000 0000 0000 Minimum: 0000 0000 0000 0000 Maximum: 1111 1111 1111 1111 Type: Read/Write Reset Required: No

Default: 0 Minimum: 0 Maximum: 4294967295 Type: Read/Write Reset Required: No

Important: If the drive uses a 16-bit Reference, the most significant word of this value must be set to zero (0) or a fault will occur.

Adapter Parameters B-3

1 = I/O enabled

B-4 Adapter Parameters

Parameter No. Name and Description Details

[Flt Cfg A1]

[Flt Cfg A2]

[Flt Cfg B1]

[Flt Cfg B2]

[Flt Cfg C1]

[Flt Cfg C2]

[Flt Cfg D1]

[Flt Cfg D2]

Sets the data that is sent to the Datalink in the drive if any of the following is true:

Parameter 09 - [Comm Flt Action] is set to

•

Send Flt Cfg and the scanner is put into Program mode. Parameter 10 - [Idle Flt Action] is set to Send

•

Flt Cfg and communications are disrupted.

23 [Parameter Mode]

Sets the format used when performing explicit messages:

Par Prot (Parameter Protocol) is used to read

•

or write single parameters. DPI Par Prot is reserved for future use.

•

Performing explicit messaging requires the “Parameter Access” module to be added when configuring the node with a network software tool.

24 [P-DP State]

Displays the state of the Profibus controller.

Default: 0 Default: 0 Default: 0 Default: 0 Default: 0 Default: 0 Default: 0 Default: 0 Minimum: 0 Maximum: 4294967295 Type: Read/Write Reset Required: No

Important: If the drive uses 16-bit Datalinks, the most significant word of this value must be set to zero (0) or a fault will occur.

Default: 0 = Par Prot Values: 0 = Par Prot

Type: Read/Write Reset Required: No

Default: N/A Values: 0 = WAIT_PRM

Type: Read Only

1 = DPI Par Prot

1 = WAIT_CFG 2 = DATA_EX 3 = ERROR

Rockwell Automation 20-COMM-P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Preface

Related Documentation

Conventions Used in this Manual

Rockwell Automation Support

Components

Features

Compatible Products

Required Equipment

Safety Precautions

Quick Start

Modes of Operation

Preparing for an Installation

Commissioning the Adapter

Connecting the Adapter to the Network

Termination

Connecting the Adapter to the Drive

Applying Power

Configuration Tools

Using the PowerFlex HIM

Setting the Node Address

Setting the I/O Configuration

Setting a Fault Action

Resetting the Adapter

Viewing the Adapter Configuration

Example Network

SST Profibus Configuration Software Tool

Installing the 20-COMM-P GSD file in the software tool library

Configuring the SST-PFB-SLC Profibus Scanner

GSD Diagnostic Messages

About I/O Messaging

Understanding the I/O Image

Using Logic Command/Status

Using Reference/Feedback

Using Datalinks

SLC Example Ladder Logic Program

SLC Ladder Logic Example - Main Program

SLC Ladder Logic Example - Station 1 Program

SLC Ladder Logic Example - Station 2 Program

About Explicit Messaging

Running Explicit Messages

Parameter Protocol

Parameter Protocol Examples

SLC Ladder Example - Station 1 Parameter Protocol

SLC Ladder Example - Station 2 Parameter Protocol

Locating the Status Indicators

PORT Status Indicator

MOD Status Indicator

NET A Status Indicator

Adapter Diagnostic Items

Viewing and Clearing Events

Communications

Electrical

Mechanical

Environmental

Regulatory Compliance

Adapter Parameters

About Parameter Numbers

Parameter List
