Pioneer PD-F1009 User Manual

FILE-TYPE COMPACT DISC PLAYER

PD-F1009

Operating Instructions

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO	IMPORTANT NOTICE
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.	The serial number for this equipment is located on the rear panel.
	Please write this serial number on your enclosed warranty card and
	keep it in a secure area. This is for your security.

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

READ INSTRUCTIONS — All the safety and operating instructions should be read before the product is operated.

RETAIN INSTRUCTIONS — The safety and operating instructions should be retained for future reference.

HEED WARNINGS — All warnings on the product and in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS — All operating and use instructions should be followed.

CLEANING — Unplug this product from the wall outlet before cleaning. The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet.

ATTACHMENTS — Do not use attachments not recommended by the product manufacturer as they may cause hazards.

WATER AND MOISTURE — Do not use this product near water — for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

ACCESSORIES — Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

CART — A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

VENTILATION — Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

POWER SOURCES — This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

LOCATION – The appliance should be installed in a stable location.

NONUSE PERIODS – The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

GROUNDING OR POLARIZATION

÷If this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other), it will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

÷If this product is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin, it will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the

safety purpose of the grounding type plug.

POWER-CORD PROTECTION — Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

OUTDOOR ANTENNA GROUNDING — If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirementsforthegroundingelectrode.SeeFigure A.

LIGHTNING — For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

POWER LINES — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

OVERLOADING — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

OBJECT AND LIQUID ENTRY — Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

SERVICING — Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

DAMAGE REQUIRING SERVICE — Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

÷When the power-supply cord or plug is damaged.

÷If liquid has been spilled, or objects have fallen into the product.

÷If the product has been exposed to rain or water.

÷If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

÷If the product has been dropped or damaged in any way.

÷When the product exhibits a distinct change in performance — this indicates a need for service.

REPLACEMENT PARTS — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

SAFETY CHECK — Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

WALL OR CEILING MOUNTING — The product should not be mounted to a wall or ceiling.

HEAT — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

ANTENNA

LEAD IN

WIRE

	GROUND
	CLAMP	ANTENNA
		DISCHARGE UNIT
		(NEC SECTION 810-20)
ELECTRIC		GROUNDING CONDUCTORS
SERVICE
EQUIPMENT		(NEC SECTION 810-21)
		GROUND CLAMPS
Fig. A		POWER SERVICE GROUNDING
		ELECTRODE SYSTEM
		(NEC ART 250, PART H)
		NEC — NATIONAL ELECTRICAL CODE

CAUTION

	•	Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation
2		exposure.
	•	The use of optical instruments with this product will increase eye hazard.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

–Reorient or relocate the receiving antenna.

–Increase the separation between the equipment and receiver.

–Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

–Consult the dealer or an experienced radio/TV technician for help.

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

[For Canadian model]

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

ATTENTION: POUR PREVENIR LES CHOCS ELECTRIQUES NE PAS UTILISER CETTE FICHE POLARISEE AVEC UN PROLONGATEUR, UNE PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT.

CAUTION

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

[For Canadian model]

This Class B digital apparatus complies with Canadian ICES003.

[Pour le modèle Canadien]

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

This player is for consumer use. If the player is used in a business (for example, used for a long period at a restaurant), the player will not be covered under warranty. CD video, VIDEO CD, CD graphics and CD-ROM discs can not be played with this player.

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

CONTENTS
BEFORE YOU USE THE PLAYER .......................................	4
CAUTIONS REGARDING HANDLING .................................	5
CONNECTIONS ..................................................................	6
NAMES OF PARTS .............................................................	7
HOW TO LOAD THE DISCS ...............................................	9

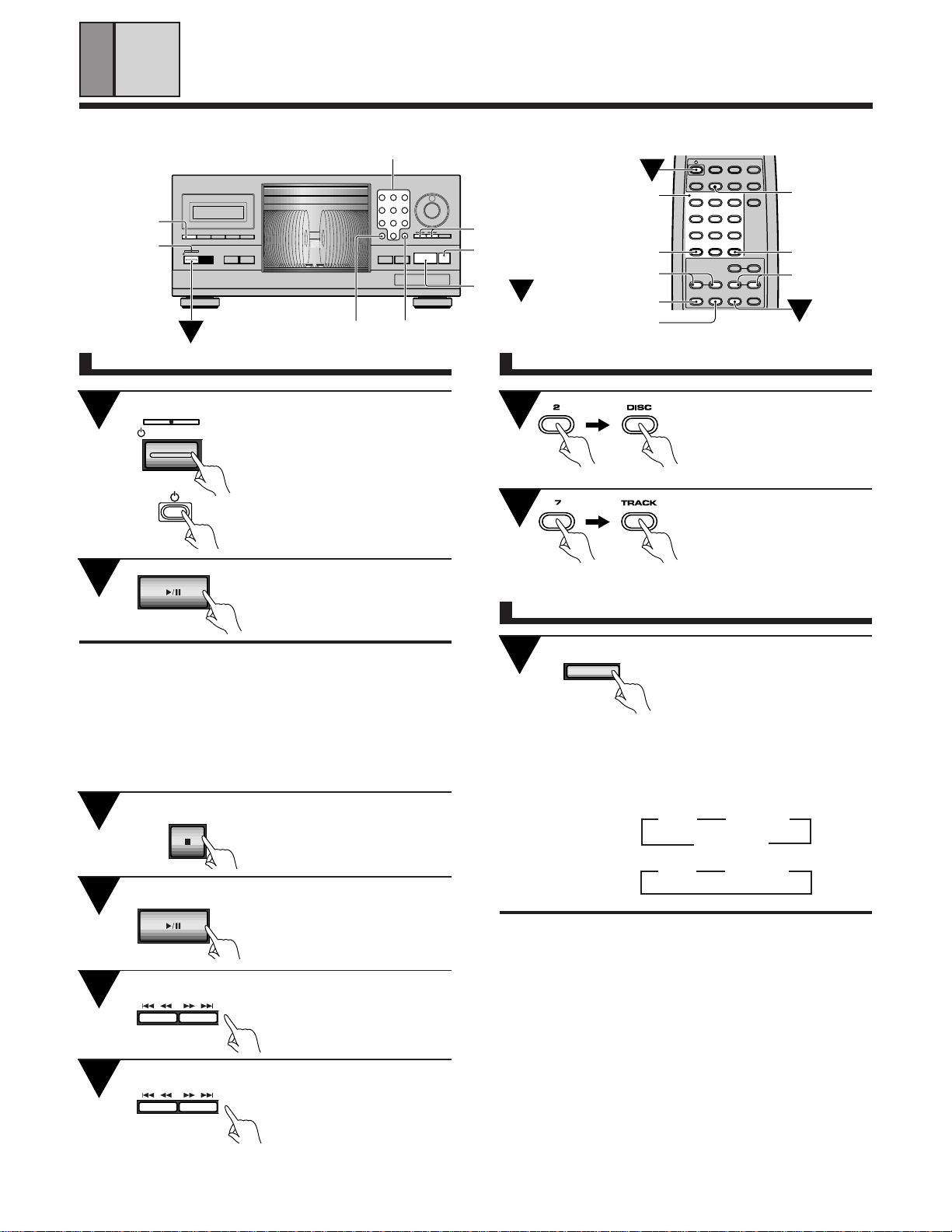

BASIC OPERATIONS
To listen in order from the first track .............................	10
To select the disc and track ..........................................	10
To select a play mode ...................................................	10
Playing a disc that is not loaded in the rack ..................	11
To play a track you want to hear ...................................	11
To start playback from a specific disc ...........................	11
Opening or closing the hood during playback ...............	11
VARIOUS OPERATIONS
To program and play only the discs you want to hear ...	12
To repeat playback ........................................................	13
To store your favorite tracks .........................................	13
To find out which discs you’ve listened to recently ......	14
To playback tracks/discs at random ..............................	14
To program tracks/discs in a desired order ...................	15
To scan quickly through tracks on a disc .......................	16
To use the DISPLAY button ..........................................	17
TROUBLESHOOTING .......................................................	18
SPECIFICATIONS ..............................................................	19

Location		Condensation

Install the player in a well-ventilated location where it will not be exposed to high temperatures or humidity.

Do not install the player in a location which is exposed to direct rays of the sun, or near stoves or radiators. Excessive heat can adversely affect the cabinet and internal components. Installation of the player in a damp or dusty environment may also result in a malfunction or an accident. (Avoid installation near cookers etc., where the player may be exposed to oily smoke, steam or heat.)

Do not install the player on a tottered stand nor in an unstable or inclined place.

When this unit is brought into a warm room from previously cold surroundings or when the room temperature rises sharply, condensation may form inside, and the unit may not be able to attain its full performance. If this occurs, allow the unit to stand for about an hour or raise the room temperature gradually.

OPERATING	BEFORE
OPERATIONS	BASIC

OPERATIONS	VARIOUS

3

BEFORE YOU USE THE PLAYER

HERE’S WHAT YOU CAN DO!

301 CD giga changer for the compact 16 inch width

The new roulette-type mechanism allows for a capacity of 301 CDs.

One-disc jump-in playback thanks to a single loader slot

The PD-F1009 is equipped with a single loader that lets you easily play a disc that is not loaded in the rack. What's more, a priority key makes for excellent operability of the jump-in play function.

Compatible with recordable CDs

As well as regular CDs, this unit can play CD-R and CD-RW discs.

CD TEXT compatible

The disc titles are displayed while playing CD TEXT disc.

Many handy functions for taking maximum advantage of the changer

The PD-F1009 is equipped with three listening modes (ALL, SINGLE and CUSTOM) with 5 custom files, as well as a direct button for even greater operability. What's more, a jog dial on the main unit makes it even easier to select discs and so on.

Disc detection function

When the hood is closed, the set automatically detects whether or not a disc is loaded.

Energy-saving design

This unit is designed to use 1W of energy when this player is in standby mode.

CONFIRM SUPPLIED ACCESSORIES

Remote control				Audio cable x 1
	unit x 1
	HI-LITE PREVIOUS BEST
REPEAT MODE PROGRAM CLEAR
1	2	3	DISPLAY
4	5	6
7	8	9
DISC	0	TRACK
		–	DISC +
1SEARCH¡		4ASMS ¢		Control cable x 1
7	8	3	RANDOM
FILE-TYPE CD PLAYER			Î
REMOTE CONTROL UNIT

Size AA/R6P dry cell batteries x 2

Other included items

• Warranty card

• Operating Instructions (this manual)

4

PUT BATTERIES INTO THE REMOTE CONTROL UNIT

Open the lid of the battery compartment on the rear of the remote control unit, and insert the batteries, taking care to align the ª and · polarities correctly.

Notes!!

•In order to prevent battery leakage, remove the batteries when not using the remote control unit for an extended period (one month or more). If leakage occurs, carefully wipe away any battery fluid inside the compartment, and replace the batteries with new ones.

•Do not allow books or other objects to rest on top of the remote control unit, since the buttons may be depressed, causing faster exhaustion of the batteries.

Incorrect use of batteries may cause leakage or rupture. Always be sure to follow these guidelines:

A.Always insert batteries into the battery compartment correctly matching the positive ª and negative · polarities, as shown by the display inside the compartment.

B.Never mix new and used batteries.

C.Batteries of the same size may have different voltages, depending on brand. Do not mix different brands of batteries.

CAUTIONS REGARDING HANDLING

Precautions regarding installation

•Placing and using the compact disc player for long periods on heat-generating sources such as amplifiers will affect performance. Avoid placing the player on heat-generating sources.

•Install this compact disc player as far as possible from tuners and TV sets. A compact disc player installed in close proximity to such equipment may cause noise or degrada-

tion of the picture.

•Such noise may be particularly noticeable when

an indoor antenna is used. In such cases, make use of an outdoor antenna, or turn off power to the compact disc player.

• Please place this unit on a level surface.

Cleaning the player

To clean the PLAYER, wipe with a soft, dry cloth. For stubborn dirt, wet a soft cloth with a mild detergent solution made by diluting one part detergent to 5 or 6 parts water, wring well, then wipe off the dirt. Also use a dry cloth to wipe the surface dry. Do not use volatile liquids such as benzene and thinner which are harmful to the unit.

Storing discs

•Discs are made of the same kinds of plastic used for conventional analog audio records. Be careful not to allow discs to warp; always store discs in their cases vertically, avoiding locations with high heat or humidity, or extremely low temperatures. Avoid leaving discs in cars, since the seat of a car in direct sunlight can become unbelievably hot.

•Always read and abide by the precautionary notes listed on disc labels.

CD lens cleaner

The player's pickup lens should not become dirty in normal use, but if for some reason it should malfunction due to soiling, consult your nearest PIONEER authorized service center. Lens cleaners for CD players are commercially available, but special care should be exercised in their use since some may cause damage to the lens.

Cleaning and handling compact discs

•The presence of fingerprints or smudges on the surface of the disc will not directly affect the recorded signals, but depending on the degree of contamination, the brightness of the light reflected from the signal surfaces may be reduced, causing degradation of sound quality. Always keep your discs clean by wiping them gently with a soft cloth from the inner edge toward the outer periphery.

•If a disc becomes very dirty, dip a soft cloth in water, and after wringing it out well, wipe the dirt away gently, and then remove any water drops with another soft, dry cloth.

•Do not use record cleaning sprays or anti-static agents on discs. Also, never clean discs with benzene, thinner, or other volatile solvents, since damage to the disc surface may result.

Record cleaning

sprays Thinner Benzene

With this player, use discs which display the mark shown below. (Optical audio digital discs.)

'

Playing CD-R and CD-RW discs in this CD changer

•This unit can play CD-R and CD-RW discs. However, it may not be possible to play unfinalized discs* which have very little recording time left on them.

* What is finalization?

Finalizing a CD-R or CD-RW disc means making a recorded disc playable on an ordinary CD player. In the case of CD-RWs, the player must be specifically compatible with CD-RW discs for it to play them.

•When holding discs, do not touch their signal surfaces. Hold by the edges, or by one edge and the center hole.

•Do not affix gummed labels or tape to the label surfaces. Also, do not scratch or damage the label.

•Discs rotate at high speed inside the player. Do not use damaged (cracked or warped) discs.

•Do not play a CD with a special shape (having other shape than a circular disc, such as a heart shaped disc). Otherwise malfunction may occur.

•The CD accessories (stabilizer protection sheet, protection ring, etc.) which are marketed for improving the sound quality or protecting discs as well as the disc cleaner should not be used with this system because they may cause malfunction.

Re-transporting

When transporting this unit in the future, remove all discs from the rack. Turn off the STANDBY/ON switch, wait for "OFF" to go out from the display. Then unplug the power cord.

Precautions concerning use of optical fiber cables

•Fully insert the optical fiber cable plugs all the way into the jacks.

•Be careful not to fold or crimp the cable. When coiling an optical fiber cable for storage, make sure the diameter of the coil is 15 cm (5-14/16 in.) or larger.

•Use an optical fiber cable with a length of 3 m (10 ft.) or less.

•Protect the optical fiber cable plugs from scratches and dust.

•When the unit is not connected using an optical fiber cable, be sure to keep the protective dust cap plugged into the optical digital output jack at all times.

More than

15 cm

(5-14/16 in)

OPERATING	BEFORE
OPERATIONS	BASIC

OPERATIONS	VARIOUS

5

CONNECTIONS

Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

Stereo amplifier

CONTROL	DIGITAL	C D
OUT	OPTICAL IN	R L

			Control cable
To the CONTROL IN jack of the					C
Pioneer component bearing			C
the Îmark.

R L

Red White

Audio cable

A-1

Optical fiber cable

B	Red R L	White

IN OUT	OPTICAL
CONTROL	DIGITAL OUT

R L

LINE OUT

IN OUT	OPTICAL	R	L
CONTROL	DIGITAL OUT	LINE OUT

PD-F1009

AMaking connections

1Connect the LINE OUT jacks of this unit to the input jacks (CD or AUX) of the amplifier. Make sure that the white plugs are connected to the left (L) jacks and the red plugs to the right (R)

jacks.

•Be sure not to connect this unit to the amplifier’s PHONO jacks, as sound will be distorted and normal playback will not

be possible.

2 Connect the power cord to a household AC wall outlet.

• Make sure plugs are inserted fully into the wall outlet.

Note!!

If you connect the power cord to a "SWITCHED" AC outlet on an amplifier, you will not be able to use this unit's memory function.

BConnecting the OPTICAL FIBER CABLE

CD can be played using the digital output.

This unit can be connected to an amplifier equipped with an optical digital jack.

1.Remove the protective dust cap from this unit’s OPTICAL DIGITAL OUT jack.

2.Use an optical fiber cable to connect the OPTICAL DIGITAL OUT jack of this unit to the optical input jack of the amplifier.

•Align the plug of the optical fiber cable with the optical digital jack and fully insert the plug to make a secure connection.

Use a separately sold optical fiber cable for the optical digital jack connections.

A-2

Power cord

CSystem remote control with a Pioneer stereo amplifier that has the Î mark

When a Pioneer stereo amplifier bearing the Î mark is used, connect the CONTROL IN jack on the rear panel of the CD player to the CONTROL OUT jack of the amplifier. This will enable the CD player to be controlled using the remote control unit supplied with the stereo amplifier. If you do not plan to use this feature, it is not necessary to connect the CONTROL IN/OUT jacks.

•The remote control unit supplied with the amplifier can be used to control Play, Stop, Pause, Track/Disc Search and Disc Change operations.

•For instructions regarding connections and operation, refer to the operating instructions provided with your stereo amplifier.

Notes!!

•When a control cable is connected to the player’s CONTROL IN jack, direct control of the player with the remote control unit is not possible. Operate the player with the remote control unit by aiming it at the amplifier.

•Be sure to connect both of the control cable's plugs securely to the CONTROL IN and CONTROL OUT jacks. Do not connect only one end of the cable.

•Be sure to turn off the power of the amplifier before connecting the power cord and output cable.

•When only the digital output is connected, the remote sensor of the amplifier does not function. To operate it, connect the output cable to the stereo amplifier as well as connecting the digital output.

6
