1 Introduction

1.1 Validity of documentation

11000IntroductionIntroduction1-1.1Validity of docume ntation1100Validity of documenta tion1-Einf Gltigkeit der Dokumentation

This documentation is valid for the product PNOZ mmc3p. It is valid un-

Einf Einleitung

1.1.1 Retaining the documentation

Retaining the documentation1-Einf Aufbewahren

til new documentation is published.

This operating manual explains the function and operation, describes
the installation and provides guidelines on how to connect the product .

This documentation is intended for instruction and should be retained
for future reference.

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

1-1

1 Introduction

1.2 Overview of documentation

1.2Overview of documentation1200Overview of documentation1-Einf_Uebersicht_über_die_Doku_6_Inbetriebnahme

1 Introduction

The introduction is designed to familiarise you with the contents, struc­ture and specific order of this manual.

2 Overview

This chapter provides information on the product's most important fea­tures.

3 Safety

This chapter must be read as it contains important information on in­tended use.

4 Function Description

This chapter describes the product's mode of operation.

5 Installation

This chapter explains how to install the product.

6 Commissioning

This chapter describes the product's commissioning and wiring.

7 Operation

This chapter describes how to operate the product and gives tips in the
case of a fault.

8 Technical Details

This chapter contains the product's technical details and order refer­ence.

1-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

1 Introduction

1.3 Definition of symbols

1.3Definition of symbols1300Definition of symbols1-Einfhrung Zeichen

Information that is particularly important is identified as follows:

DANGER!

This warning must be heeded! It warns of a hazardous situation
that poses an immediate threat of serious injury and death and
indicates preventive measures that can be taken.

WARNING!

This warning must be heeded! It warns of a hazardous situation
that could lead to serious injury and death and indicates preven­tive measures that can be taken.

CAUTION!

This refers to a hazard that can lead to a less serious or minor
injury plus material damage, and also provides information on
preventive measures that can be taken.

NOTICE

This describes a situation in which the unit(s) could be damaged
and also provides information on preventive measures that can
be taken. It also highlights areas within the text that are of partic­ular importance.

INFORMATION

This gives advice on applications and provides information on
special features.

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

1-3

1 Introduction

1-4

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

2 Overview

2.1 Unit structure

22000OverviewOverview2-2.1Unit structure2100Unit structure2-

2.1.1 Scope of delivery

Scope of delivery2-Lieferumfang_Brck_779260_modul_mini_BA

2.1.2 Unit features

Unit features2-Gerätemerkmale_Verwendung

 Expansion modulePNOZ mmc3p
 Jumper 779 260

Verwendung/Bildunterschrift_multi_mini_Modul

Geraetemerkmale_Zusatz BA Einleitung

Gertemerkmale_Feldbus_PROFIBUS-DP

Gertemerkmale_Feldbusmodule allg

Gertemerkmale_Anschlussklemmen_Zubehoer

Gerätemerkmal_multi_Mini_Modul_Anschluss_Basis

Using the product PNOZ mmc3p:

Expansion module for connection to a base unit from the configurable
control system PNOZmulti Mini

The product has the following features:

 Can be configured in the PNOZmulti Configurator
 Connection for PROFIBUS-DP
 Station addresses from 0 ... 99, selected via rotary switch
 Status indicators for communication with PROFIBUS-DP and for er-

rors

 24 virtual inputs and 24 virtual outputs on the PNOZmulti control sys-

tem can be defined in the PNOZmulti Configurator for communication
with the fieldbus PROFIBUS DP. The number of inputs and outputs
can be extended to 128. Please note that when the extended inputs
and outputs 24 - 127 are used they have different properties (see doc­ument entitled "Communication Interfaces").

 Max. 1 PNOZ mmc3p can be connected to the base unit
 Plug-in connection terminals:

either spring-loaded terminal or screw terminal available as an acces­sory (see order reference)

 Please refer to the document "PNOZmulti System Expansion" for de-

tails of the base units PNOZmulti Mini that can be connected

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

2-1

2 Overview

2.2 Front view

2.2Front view2200Front view2-Klemmenbelegung PNOZ mmc3p

2.2.1 Key

Key2-Legende

Key:

 0 V, 24 V:

Supply connections

 X1: PROFIBUS-DP interface (female 9-pin D-Sub connector)
 LED:

–Power
– Online
– Offline
–Fault

2-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

3 Safety

3.1 Intended use

33000SafetySafety3-3.1Intended use3100Intended use3-Bestimmung/Gertebeschreibung_multi_Feldbus_PROFIBUS

Bestimmung/Gertebeschreibung_multi_Zusatz_Modul_Mini

Bestimmung/Gertebeschreibung_multi_System

The expansion module PNOZ mmc3p is used for communication be­tween the configurable control system PNOZmulti and PROFIBUS-DP.
PROFIBUS-DP is designed for fast data exchange at field level. The ex­pansion module PNOZ mmc3p is a passive subscriber (Slave) of
PROFIBUS-DP (DPV0). The basic functions of communication with
PROFIBUS-DP conform to EN 50170. The central controller (Master)
reads input information from the slaves and writes output information to
the slaves as part of each cycle. As well as the cyclical transfer of usable
data, PROFIBUS-DP can also be used for diagnostics and commission­ing functions. Data traffic is monitored on the Master/Slave side.

The expansion module may only be connected to a base unit PNOZmulti
Mini from the configurable control system PNOZmulti (please refer to the
document "PNOZmulti System Expansion" for details of the base units
PNOZmulti Mini that can be connected).

Bestimmung/Gertebeschreibung_multi_ nicht sicherheitsgerichtete Funkt

Bestimmung/Gertebeschreibung_EMV+Ausschluss

The configurable control system PNOZmulti is used for the safety-relat­ed interruption of safety circuits and is designed for use in:

 E-STOP equipment
 Safety circuits in accordance with VDE 0113 Part 1 and EN 60204-1

The expansion module may not be used for safety-related functions.

Intended use includes making the electrical installation EMC-compliant.
The product is designed for use in an industrial environment. It is not
suitable for use in a domestic environment, as this can lead to interfer­ence.

The following is deemed improper use in particular:

 Any component, technical or electrical modification to the product
 Use of the product outside the areas described in this manual
 Use of the product outside the technical details (see chapter entitled

“Technical Details”)

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

3-1

3 Safety

3.1 Intended use

3.1.1 System requirements

System requirements3-Systemvoraussetzungen - Verweis auf Produktänderungen

Please refer to the "Product Modifications" document in the "Version
overview" section for details of which versions of the base unit and
PNOZmulti Configurator can be used for this product.

3-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

3 Safety

3.2 Safety regulations

3.2Safety regulations3200Safety regulat ions3-

3.2.1 Use of qualified personnel

Use of qualified personnel3-Sich Qualif. Personal

The products may only be assembled, installed, programmed, commis­sioned, operated, maintained and decommissioned by competent per­sons.

A competent person is someone who, because of their training, experi­ence and current professional activity, has the specialist knowledge re­quired to test, assess and operate the work equipment, devices,
systems, plant and machinery in accordance with the general standards
and guidelines for safety technology.

It is the company's responsibility only to employ personnel who:

 Are familiar with the basic regulations concerning health and safety /

accident prevention

 Have read and understood the safety guidelines given in this descrip-

tion

 Have a good knowledge of the generic and specialist standards ap-

plicable to the specific application.

3.2.2 Warranty and liability

Warranty and liability3-Sich Gewhrleistung

3.2.3 Disposal

Disposal3-Si ch Entsorgung

All claims to warranty and liability will be rendered invalid if:

 The product was used contrary to the purpose for which it is intended
 Damage can be attributed to not having followed the guidelines in the

manual

 Operating personnel are not suitably qualified
 Any type of modification has been made (e.g. exchanging compo-

nents on the PCB boards, soldering work etc.).

 In safety-related applications, please comply with the mission time t

M

in the safety-related characteristic data.

 When decommissioning, please comply with local regulations regard-

ing the disposal of electronic devices (e.g. Electrical and Electronic
Equipment Act).

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

3-3

3 Safety

3.2 Safety regulations

3.2.4 For your safety

For your safety3-Zu Ihrer Sicherheit_multi_Module

The unit meets all necessary conditions for safe operation. However,
you should always ensure that the following safety requirements are
met:

 This operating manual only describes the basic functions of the unit.

Information on the advanced functions can be found in the online help
for the PNOZmulti Configurator and in the PNOZmulti technical cata­logue. Only use these functions after you have read and understood
the documentation. All necessary documentation can be found on the
PNOZmulti Configurator CD.

 Do not open the housing or make any unauthorised modifications.
 Please make sure you shut down the supply voltage when performing

maintenance work (e.g. exchanging contactors).

3-4

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

4 Function description

4.1 Unit description

44000Function descriptionFunction description4-4.1Unit description4100Unit description4-

4.1.1 Operation

Operation4-Funktionen_multi_Feldbus-Profibus

The virtual inputs and outputs that are to be transferred via PROFIBUS
are selected and configured in the PNOZmulti Configurator. The base
unit and the expansion module PNOZ mmc3p are connected via a
jumper.

The station address is set via rotary switches. After the supply voltage is
switched on or the PNOZmulti control system is reset, the expansion
module PNOZ mmc3p is configured and started automatically.

LEDs indicate the status of the expansion module on PROFIBUS.

The configuration is described in detail in the PNOZmulti Configurator's
online help.

4.1.2 Input and output data

Input and output data4-Funktionen_multi_Feldbus-Ein_Ausgangsdaten

The data is structured as follows:

 Input range

The inputs are defined in the master and transferred to the PNOZmul­ti. Each input has a number, e.g. input bit 4 of byte 1 has the number
i12.

 Output range

The outputs are defined in the PNOZmulti Configurator. Each output
that is used is given a number there, e.g. o0, o5... The status of out­put o0 is stored in bit 0 of byte 0; the status of output o5 is stored in
bit 5 of byte 0 etc.

 Output range only: Byte 3

Bits 0 … 4: Status of LEDs on the PNOZmulti
– Bit 0: OFAULT
–Bit 1: IFAULT
– Bit 2: FAULT
–Bit 3: DIAG
–Bit 4: RUN

Bit 5: Data is being exchanged.

Detailed information on data exchange (tables, segments) is available in
the document "Communication Interfaces" in the section entitled "Field­bus modules".

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

4-1

4 Function description

Base unit

PROFIBUS DP

24 V 0 V

24 V 0 V

4.1 Unit description

4.1.3 Assigning the inputs/outputs in the PNOZmulti Configurator to the PROFI-

Assigning the inputs/out puts in the PNOZmu lti Configurator to the PROFIBUS-DP i nputs/outputs4-Funktionen_multi_Feldbus-Ein-und Ausgänge-zuordnen

Virtual inputs on PNOZmulti Configurator I0 ... I7 I8 ... I15 I16 ... I23
Input data PROFIBUS DP Byte 0: Bit 0 ... 7 Byte 1: Bit 0 ... 7 Byte 2: Bit 0 ... 7
Virtual outputs on PNOZmulti Configurator O0 ... O7 O8 ... O15 O16 ... O23
Output data PROFIBUS DP Byte 0: Bit 0 ... 7 Byte 1: Bit 0 ... 7 Byte 2: Bit 0 ... 7

4.1.4 Block diagram

Block diagram4-Blockschaltbild

BUS-DP inputs/outputs

The number of virtual inputs and outputs can be extended to 128 (see
document "Communication Interfaces" in the section entitled "Fieldbus
modules")

4-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

5 Installation

100 (3,94")

22,5

(0.88")

114,72 (4,52")

5.1 General installation guidelines

55000InstallationInstallation5-5.1General installation guidelines5100General installation guidelines5-Montage_multi_mini_allgemein

Montage_multi_mini_Temperatur

Montage_EMV ESD

 The unit should be installed in a control cabinet with a protection type

of at least IP54.

 Fit the safety system to a horizontal mounting rail. The venting slots

must face upwards and downwards. Other mounting positions could
destroy the safety system.

 Use the notch on the rear of the unit to attach it to a mounting rail.
 In environments exposed to heavy vibration, the unit should be se-

cured using a fixing element (e.g. retaining bracket or end angle).

 Push the unit upwards or downwards before lifting it from the mount-

ing rail.

 To comply with EMC requirements, the mounting rail must have a low

impedance connection to the control cabinet housing.

 The ambient temperature of the PNOZmulti units in the control cabi-

net must not exceed the figure stated in the technical details, other­wise air conditioning will be required.

CAUTION!

Damage due to electrostatic discharge!
Electrostatic discharge can damage components. Ensure
against discharge before touching the product, e.g. by touching
an earthed, conductive surface or by wearing an earthed arm­band.

5.1.1 Dimensions

Dimensions5-Abmessungen_multi_mini_Fel dbus

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

5-1

5 Installation

5.2 Connecting the base unit and expansion modules

5.2Connecting the base unit and expansion modules5200Connecting the base unit and expansion modules5-Montage_multi_Anzahl_Module_links_1

You can install a maximum of 1 PNOZ mmc3p to the left of the base

Montage_multi_Modul_verbind_links_mini_BA

unit.

Connect the base unit and the expansion module as described in the
operating instructions for the base units.

 Connect the black/yellow terminator to the expansion module
 Install the expansion module in the position in which it is configured

in the PNOZmulti Configurator.

5-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

6 Commissioning

1

5

9

6

1: n.c.
2: n.c.
3: B (RxD/TxD-P)
4: CNTR-P
5: DGND
6: VP
7: n.c.
8: A (RxD/TxD-N)
9: n.c.

6.1 Wiring

66000CommissioningCommissioning6-6.1Wiring6100Wiring6-

6.1.1 General wiring guidelines

General wiring guidelines6-Verdrahtung_multi_M odul

The wiring is defined in the circuit diagram of the PNOZmulti Configura­tor.

Note:

Verdrahtung_Montageschiene mit Schutzerde verbinden

Verdrahtung_Netzteil_sichere_Trennung

 Information given in the "Technical details" must be followed.
 Always connect the mounting rail to the protective earth via an earth-

ing terminal. This will be used to dissipate hazardous voltages in the
case of a fault.

 The power supply must meet the regulations for extra low voltages

with safe separation.

6.1.2 Connecting the supply voltage

Connecting the supply voltag e6-Verdrahtung_ multi_Feldbus_Versorgungsspannung_Mini

Connect the supply voltage to the fieldbus module:

 Terminal 24 V: + 24 V DC
 Terminal 0 V: 0 V

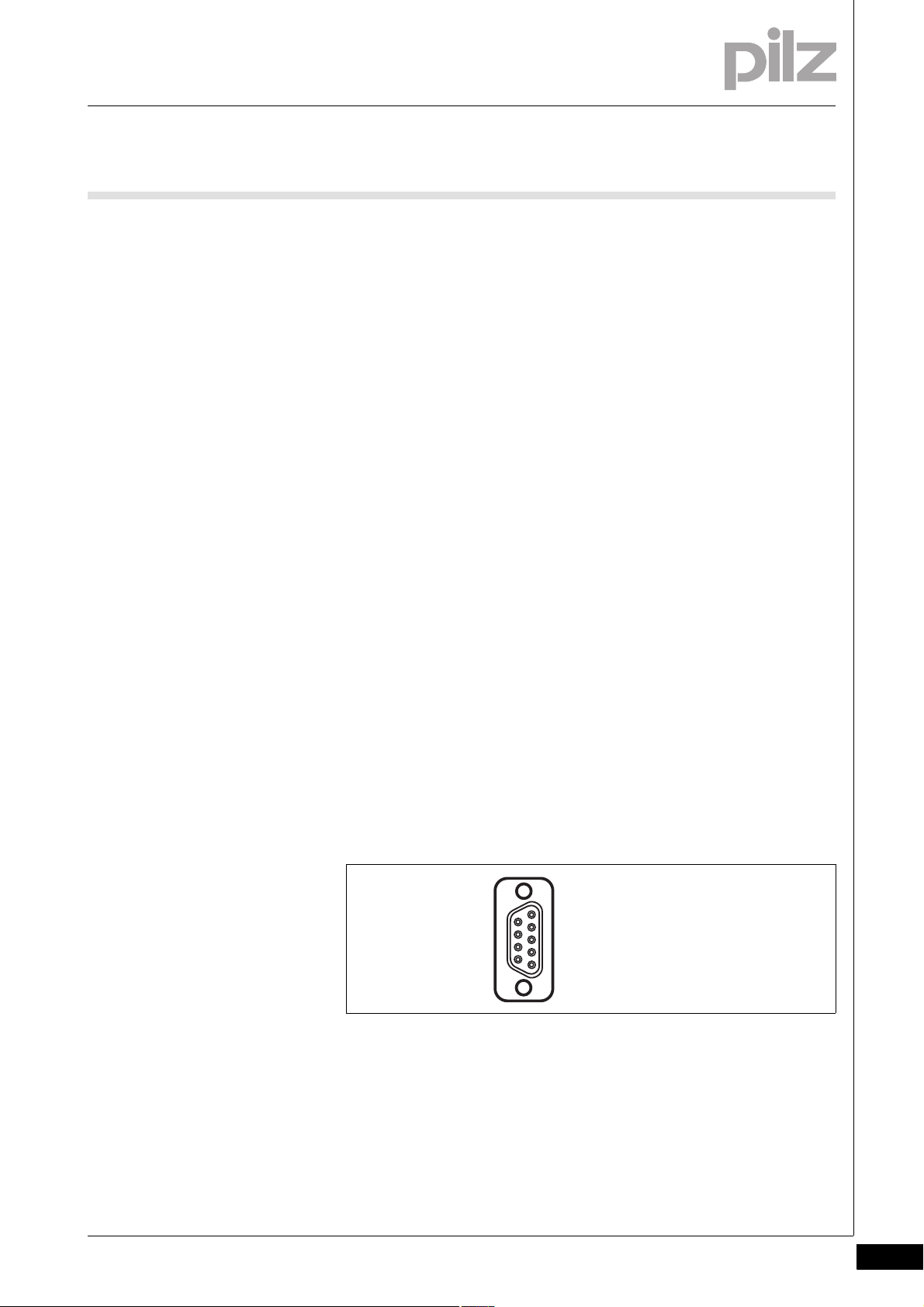

6.1.3 PROFIBUS-DP-interface

PROFIBUS DP interface6-Verdrahtung

It is possible to define which outputs on the control system will commu­nicate with PROFIBUS-DP. The connection to PROFIBUS-DP is made
via a female 9-pin D-Sub connector in accordance with the guidelines of
the PROFIBUS User Group (PNO).

n.c. = not connected

Please note the following when connecting to PROFIBUS-DP:

 Only use metal plugs or metallised plastic plugs
 Twisted pair, screened cable must be used to connect the interfaces

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

6-1

6 Commissioning

1

2

3

4

9

8

7

6

0

5

x10

1

2

3

4

9

8

7

6

0

5

x1

6.2 Preparing for operation

6.2Preparing for operation6200Preparing for operation6-

6.2.1 Setting the station address

Setting the station address6-Verdrahtung_multi_Feldbus_Stationsadresse einstellen_Profibus

The station address of the expansion module PNOZ mmc3p is set be­tween 0 ... 99 (decimal) via two rotary switches x1 and x10.

 On the upper rotary switch x10, use a small screwdriver to set the

tens digit for the address (“3” in the example).

 On the lower rotary switch x1, set the ones digit for the address (“6”

in the example).

Station address 36 is set in the diagrams as an example.

6.2.2 Download modified project to the control system PNOZmulti

Download modified project to the control system PNOZmulti6-Verdrahtung_multi_Modul_Betr_geaend_Projekt_BA

As soon as an additional expansion module has been connected to the
system, the project must be amended using the PNOZmulti Configura­tor. Proceed as described in the operating instructions for the base unit.

NOTICE

For the commissioning and after every program change, you
must check whether the safety devices are functioning correctly.

6-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

6 Commissioning

PROFIBUS-DP

Master

PROFIBUS-DP

Slave 1

PROFIBUS-DP

Slave 2

PROFIBUS-DP

Slave 3

PROFIBUS-DP

Slave n

PNOZ mmc3p PROFIBUS

6.2 Preparing for operation

6.2.3 Connection example

Connection example6-_Dummy-Vorlage

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

6-3

6 Commissioning

6-4

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

7 Operation

7.1 Messages

77000OperationOperation7-7.1Messages71 00Messages7-Betrieb_Meldungen_allgemein_BA

Betrieb_Meldungen_Feldbus_Profibus

When the supply voltage is switched on, the PNOZmulti safety system
copies the configuration from the chip card.

The LEDs "POWER","DIAG", "FAULT", "IFAULT" and "OFAULT" light up
on the base unit.

The expansion module PNOZ mmc3p is configured and started auto­matically. The "ONLINE" and "OFFLINE" LEDs indicate the status of the
PNOZ mmc3p on PROFIBUS-DP.

If the expansion module PNOZ mmc3p does not receive a configuration
from the base unit for a period of 30 s, the expansion module PNOZ
mmc3p connects to PROFIBUS-DP and "ONLINE" status is displayed
on PROFIBUS-DP. The error message "External Error" is sent to the
Master.

7.1.1 Display elements for device diagnostics

Display elements for device diagnostics 7-Anzeige Legende 3x

Legend:

Betrieb_Anzeige_Feldbus _PROFIBUS-DP_BA

LED Meaning

POWER Supply voltage is present

Supply voltage is not present

ONLINE PNOZ mmc3p online, data exchange is possible

Master has sent the telegram "Global Control Clear". Virtual input bits i0 ... i23 are set
to "0"; expanded input bits i24 ... i127 are frozen.

PNOZ mmc3p not online

OFFLINE PNOZ mmc3p offline, data exchange is not possible

PNOZ mmc3p not offline

LED on

LED flashes

LED off

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

7-1

7 Operation

7.1 Messages

LED Meaning

FAULT Application Watchdog Timeout

1 Hz Configuration error, length of input and/or output data during initialisation of the PNOZ

mmc3p does not match the configuration
Remedy:
Ensure that the right GSD-file has been used.

2 Hz Configuration error, length/contents of configuration data during initialisation of the

PNOZ mmc3p does not match the configuration
Remedy:
Ensure that the right GSD-file has been used.

4 Hz Error when initialising PROFIBUS-DP

No error

7-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

8 Technical details

8.1 Technical details

88000Technical detailsTechnical details8-8.1Technical details8100Technical details8-][Technische Daten_multi_Basis

Technical Details

Electrical data

Supply voltage UB DC 24 V
Voltage tolerance -15 %/+20 %
Power consumption at U
without load 1.5 W
Residual ripple DC 5 %
Status display LED

Times
Supply interruption before de-energisation 20 ms
Fieldbus interface

Fieldbus interface PROFIBUS DP
Device type Slave DPV0
Station address 0 - 99d
Transmission rate 9.6 kBit/s - 12 MBit/s
Connection Female 9-pin D-SUB connector
Galvanic isolation yes
Test voltage 500 V AC

Environmental data

Ambient temperature 0 - 60 °C
Storage temperature -25 - 70 °C
Climatic suitability in accordance with EN 60068-2-30,

EN 60068-2-78

Condensation not permitted
EMC EN 61131-2
Vibration to EN 60068-2-6
Frequency 10 - 150 Hz
Max. acceleration 1g
Airgap creepage in accordance with EN 61131-2
Overvoltage category II
Pollution degree 2
Rated insulation voltage 30 V
Shock stress

EN 60068-2-27 15g

Mechanical data

Protection type
Mounting (e.g. cabinet) IP54
Housing IP20
Terminals IP20
DIN rail
Top hat rail 35 x 7.5 EN 50022
Recess width 27 mm
Housing material
Housing PC
Front PC

DC

B

93 % r. h. at 40 °C

11 ms

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

8-1

8 Technical details

8.1 Technical details

Mechanical data

Cross section of external conductors with screw terminals
Power supply, inputs, auxiliary output, semiconductor out-

puts, test pulse outputs, cascading outputs:
1 core flexible 0.25 - 2.50 mm² , 24 - 12 AWG
2 core, same cross section, flexible:
without crimp connectors or with TWIN crimp connectors 0.20 - 1.50 mm² , 24 - 16 AWG
Torque setting with screw terminals 0.50 Nm
Cross section of external conductors with spring-loaded
terminals: Flexible with/without crimp connectors
Spring-loaded terminals: Terminal points per connection 2
Stripping length 9 mm
Dimensions
Height 100.0 mm
Width 22.5 mm
Depth 115.0 mm
Weight 95 g

0.20 - 2.50 mm² , 24 - 12 AWG

Technische Daten_Satz No rmen

The standards current on 2011-09 apply.

8-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

8 Technical details

8.2 Order reference

8.2Order reference8200Order reference8-Bestelldaten PNOZ mmc3p

Order reference

Product type Features Order no.

PNOZ mmc3p Fieldbus module, PROFIBUS-DP 772 032

Bestelldaten Zubehör Steckbrücke Mini links

Order reference: Terminator, jumper

Product type Features Order no.

PNOZ mm0.xp connector
left

Bestelldaten Zubehör Klemmen Feldbus Mini

Order reference: Accesso­ries

Black/yellow jumper to connect the modules on the left-hand
side, 1 piece

779 260

Product type Features Order no.

Spring terminals

Spring-loaded terminals, 1 piece 783 542

PNOZ mmcxp 1 pc.
Spring terminals

Spring-loaded terminals, 10 pieces 783 543

PNOZ mmcxp 10 pcs.
Screw terminals

Screw terminals, 1 piece 793 542
PNOZ mmcxp 1 pc.
Screw terminals

Screw terminals, 10 pieces 793 543
PNOZ mmcxp 10 pcs.

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

8-3

8 Technical details

8-4

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

...

1002423-EN-01, 2011-10 Printed in Germany

© Pilz GmbH & Co. KG, 2011

[phone]
[e-mail]

Pilz GmbH & Co. KG
Felix-Wankel-Straße 2
73760 Ostfildern, Germany
Telephone: [phone]
Telefax: [phone]
E-Mail: [e-mail]
Internet: www.pilz.com

Technical support

In many countries we are
represented by our subsidiaries
and sales partners.

Please refer to our homepage
for further details or contact our
headquarters.

InduraNET p

®

, Pilz

®

, PIT

®

, PMCprotego

®

, PMI

®

, PNOZ

®

, Primo

®

, PSEN

®

, PSS

®

, PVIS

®

, SafetyBUS p

®

, SafetyEYE

®

, SafetyNET p

®

, the spirit of safety

®

are registered and protected trademarks

of Pilz GmbH & Co. KG in some countries. We would point out that product features may vary from the details stated in this document, depending on the status at the time of publication and the scope

of the equipment. We accept no responsibility for the validity, accuracy and entirety of the text and graphics presented in this information. Please contact our Technical Support if you have any questions.

Contact address
