1 Introduction

1.1 Validity of documentation

11000IntroductionIntroduction1-1.1Validity of docume ntation1100Validi ty of document ation1-Einf Gltigkeit der Dokumentation

This documentation is valid for the product PNOZ ml2p. It is valid until

Einf Einleitung

1.1.1 Retaining the documentation

Retaining the documentation1-Einf Aufbewahren

new documentation is published.

This operating manual explains the function and operation, describes
the installation and provides guidelines on how to connect the product .

This documentation is intended for instruction and should be retained
for future reference.

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

1-1

1 Introduction

1.2 Overview of documentation

1.2Overview of documentation1200Overview of documentation1-Einf_Uebersicht_über_die_Doku_6_Inbetriebnahme

1 Introduction

The introduction is designed to familiarise you with the contents, struc­ture and specific order of this manual.

2 Overview

This chapter provides information on the product's most important fea­tures.

3 Safety

This chapter must be read as it contains important information on safety
and intended use.

4 Function Description

This chapter describes the product's mode of operation.

5 Installation

This chapter explains how to install the product.

6 Commissioning

This chapter describes the product's commissioning and wiring.

7 Operation

This chapter describes how to operate the product and gives tips in the
case of a fault.

8 Technical Details

This chapter contains the product's technical details and order refer­ence.

1-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

1 Introduction

1.3 Definition of symbols

1.3Definition of symbols1300Definition of symbols1-Einfhrung Zeichen

Information that is of particular importance can be identified as follows:

DANGER!

This warning must be heeded! It warns of a hazardous situation
that poses an immediate threat of serious injury and death and
indicates preventive measures that can be taken.

WARNING!

This warning must be heeded! It warns of a hazardous situation
that could lead to serious injury and death and indicates preven­tive measures that can be taken.

CAUTION!

This refers to a hazard that can lead to a less serious or minor
injury plus material damage, and also provides information on
preventive measures that can be taken.

NOTICE

This describes situations in which the unit(s) could be damaged
and also provides information on preventive measures that can
be taken.

INFORMATION

This gives advice on applications and provides information on
special features, as well as highlighting areas within the text that
are of special importance.

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

1-3

1 Introduction

1-4

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

2 Overview

2.1 Unit structure

22000OverviewOverview2-2.1Unit structure2100Unit structure2-

2.1.1 Scope of supply

Scope of supply2-Lieferumfang_Brck_774639_modul_BA

2.1.2 Unit features

Unit features2-Gerätemerkmale_Verwendung

` Expansion modulePNOZ ml2p
` Jumper 774 639

Verwendung/Bildunterschrift_multi_Verbindung_dezentral_IO

Geraetemerkmale_Zusatz BA Einleitung

Gertemerkmale_PNOZ ml2p

Using the product PNOZ ml2p:

Link module to safely connect decentralised input/output modules to a
safety system PNOZmulti

The product has the following features:

` Can be configured in the PNOZmulti Configurator
` Max. 4 PNOZ ml2p can be connected to the base unit
` Max. 4 decentralised modules PDP67 F 8DI ION can be connected to

the link module PNOZ ml2p

` Plug-in connection terminals (either cage clamp terminal or screw ter-

minal)

` LEDs for

– Operating status
–Fault
– Connection status

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

2-1

2 Overview

2.2 Front view

2.2Front view2200Front view2-Klemmenbelegung

Legende

Key:

` 0 V, 24 V:

Supply connections

` CAN+, CAN-, VCC, GND:

Connection for decentralised modules

` Shield:

Connection for the cable shield

2-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

3 Safety

3.1 Intended use

33000SafetySafety3-3.1Intended use3100Intended use3-Bestimmung/Gertebeschreibung_multi_Verbindunsmod_ml2p

Bestimmung/Gertebeschreibung_multi_Zusatz_Modul

Bestimmung/Gertebeschreibung_multi_System

Bestimmung/Gertebeschreibung_Ausschluss

The expansion module is used to connect decentralised input/output
modules to a safety system PNOZmulti.

The expansion module may only be connected to a base unit from the
PNOZmulti modular safety system.

The PNOZmulti modular safety system is used for the safety-related in­terruption of safety circuits and is designed for use on:

` E-STOP equipment
` Safety circuits in accordance with VDE 0113 Part 1 and EN 60204-1

Intended use includes making the electrical installation EMC-compliant.
The product is designed for use in an industrial environment. It is not
suitable for use in a domestic environment, as this can lead to interfer­ence.

The following is deemed improper use in particular:

` Any component, technical or electrical modification to the product
` Use of the product outside the areas described in this manual
` Use of the product outside the technical details (see chapter entitled

“Technical Details”)

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

3-1

3 Safety

3.2 System requirements

3.2System requirements3200System requirements3-Systemvoraussetzungen PNOZ ml2p

` PNOZmulti Configurator: from Version 7.0.0
` Base unit PNOZ m0p: from Version 3.0
` Base unit PNOZ m1p: from Version 6.0
` Base unit PNOZ m1p ETH: from Version 2.0
` Base unit PNOZ m2p: from Version 3.0
` Base unit PNOZ m3p: from Version 2.0

Please contact Pilz if you have an older version.

3-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

3 Safety

3.3 Safety regulations

3.3Safety regulations3300Safety regulations3-

3.3.1 Use of qualified personnel

Use of qualified personnel3-Sich Qualif. Personal

The products may only be assembled, installed, programmed, commis­sioned, operated, maintained and decomissioned by persons with prov­en skills. Persons with proven skills are people who, because they are:

` Qualified electrical engineers or
` Have received training from qualified electrical engineers

are suitably experienced to operate devices, systems, plant and ma­chinery in accordance with the general standards and guidelines for
safety technology.

It is the company's responsibility only to employ personnel who:

` Are familiar with the basic regulations concerning health and safety /

accident prevention

` Have read and understood the safety guidelines given in this descrip-

tion

` Have a good knowledge of the generic and specialist standards ap-

plicable to the specific application.

3.3.2 Warranty and liability

Warranty and liability3-Sich Gewhrleistung

3.3.3 Disposal

Disposal3-Si ch Entsorgung_alt

All claims to warranty and liability will be rendered invalid if:

` The product was used contrary to the purpose for which it is intended
` Damage can be attributed to not having followed the guidelines in the

manual

` Operating personnel are not suitably qualified
` Any type of modification has been made (e.g. exchanging compo-

nents on the PCB boards, soldering work etc.).

The product must be disposed of properly when it reaches the end of its
service life.

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

3-3

3 Safety

3.3 Safety regulations

3.3.4 For your safety

For your safety3-Zu Ihrer Sicherheit_multi_Module

The unit meets all necessary conditions for safe operation. However,
you should always ensure that the following safety requirements are
met:

` This operating manual only describes the basic functions of the unit.

Information on the advanced functions can be found in the online help
for the PNOZmulti Configurator and in the PNOZmulti technical cata­logue. Only use these functions after you have read and understood
the documentation. All necessary documentation can be found on the
PNOZmulti Configurator CD.

` Do not open the housing or make any unauthorised modifications.
` Please make sure you shut down the supply voltage when performing

maintenance work (e.g. exchanging contactors).

3-4

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

4 Function description

4.1 Device properties

44000Function descriptionFunction description4-4.1Device properties4100Device properties4-

4.1.1 Integrated protection mechanisms

Integrated protection mechanisms4-Sicherheitseigenschaften_multi_allgemein

The relay conforms to the following safety criteria:

` The circuit is redundant with built-in self-monitoring.
` The safety function remains effective in the case of a component fail-

ure.

4.1.2 Function description

Function description4-

4.1.2.1 Operation

Operation4-Funktionsbeschreibung PNOZ ml2p

The link module PNOZ ml2p is used to safely transfer the input informa-

Funktionen_multi_Basis

tion from decentralised modules to the safety system PNOZmulti.

Funktionsbeschreibung PNOZ ml2p_2

The function of the safety system's inputs and outputs depends on the
safety circuit created using the PNOZmulti Configurator. A chip card is
used to download the safety circuit to the base unit. The base unit has
2 microcontrollers that monitor each other. They evaluate the input cir­cuits on the base unit and expansion modules and switch the outputs on
the base unit and expansion modules accordingly.

The LEDs on the base unit and expansion modules indicate the status
of the PNOZmulti safety system.

The online help on the PNOZmulti Configurator contains descriptions of
the operating modes and all the functions of the PNOZmulti safety sys­tem, plus connection examples.

Data exchange:

` Communication with the decentralised modules is via a safe data link.
` The link module PNOZ ml2p reads the input information from the de-

centralised modules as part of each cycle and then forwards it to the
base unit.

` At the end of a PNOZmulti cycle, the base unit sends its output data

to its link module. This output data is immediately sent to the decen­tralised modules.

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

4-1

4 Function description

4.1 Device properties

Linking several decentralised modules:

` A maximum of 4 link modules can be connected to a PNOZmulti base

unit.

` A maximum of 4 decentralised modules can be connected to a link

module PNOZ ml2p.

` If a decentralised module receives data intended for a different de-

centralised module that is connected, the data is forwarded without
being processed.

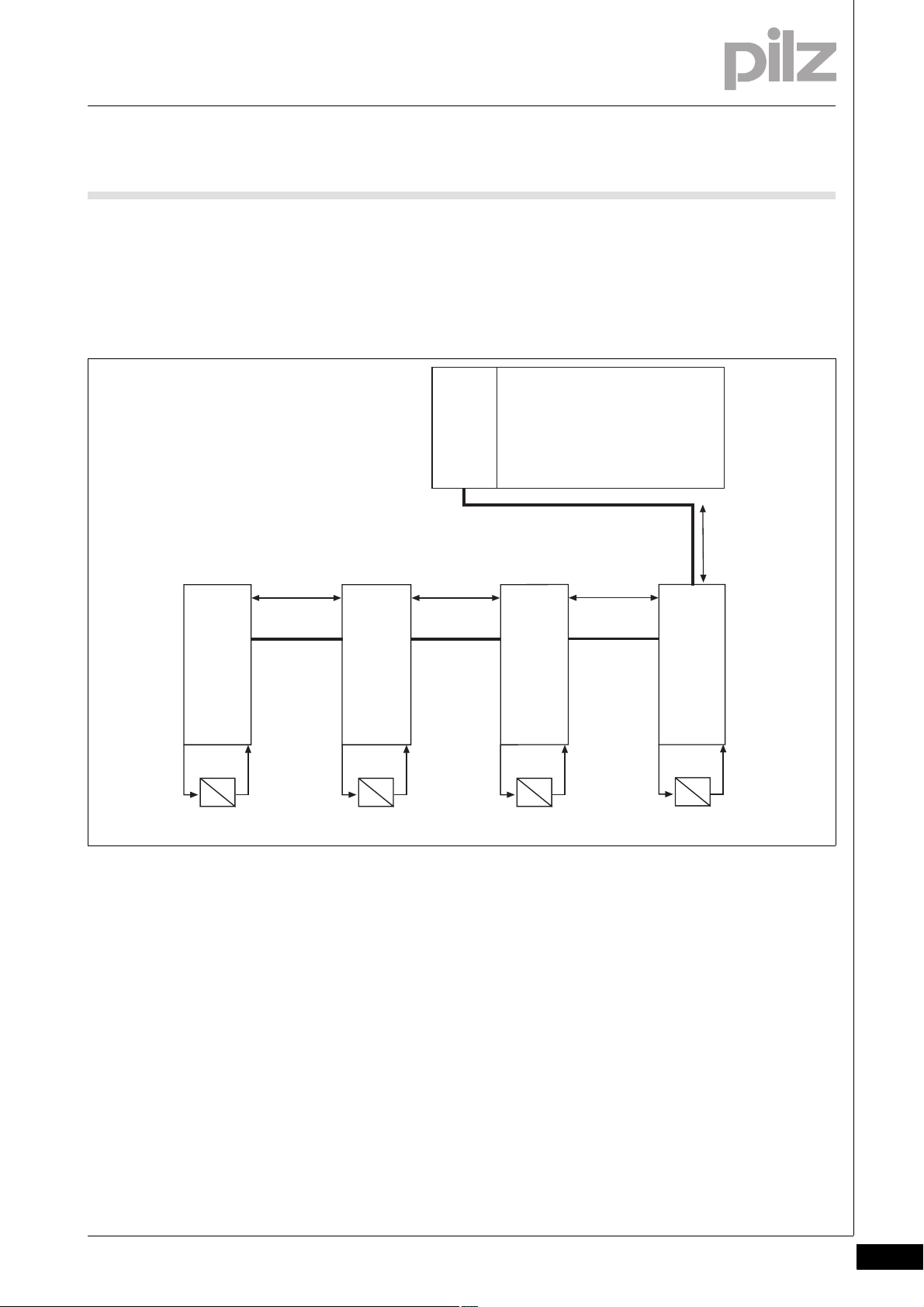

4.1.2.2 Block diagram

Block diagram4-Blockschaltbild PNOZ ml2p

24V 24V

0V 0V

=

=

to next

Power

module

Interface

Fig. 4-1: Block diagram

CAN+ CAN-

VCC GND

Shield

module

Interface

to previous

4-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

5 Installation

5.1 General installation guidelines

55000InstallationInstallation5-5.1General installation guidelines5100General installation guidelines5-Montage_multi_allgemein

Montage_EMV ESD

` The safety system should be installed in a control cabinet with a pro-

tection type of at least IP54. Fit the safety system to a horizontal DIN
rail. The venting slots must face upward and downward. Other mount­ing positions could destroy the safety system.

` Use the notches on the back of the unit to attach it to a DIN rail. Con-

nect the safety system to the DIN rail in an upright position so that the
earthing springs on the safety system are pressed on to the DIN rail.

` The ambient temperature of the PNOZmulti units in the control cabi-

net must not exceed the figure stated in the technical details, other­wise air conditioning will be required.

` To comply with EMC requirements, the DIN rail must have a low im-

pedance connection to the control cabinet housing.

CAUTION!

Damage due to electrostatic discharge!
Electrostatic discharge can damage components. Ensure
against discharge before touching the product, e.g. by touching
an earthed, conductive surface or by wearing an earthed arm­band.

5.1.1 Dimensions

Dimensions5-Abmessungen

94 (3.70")

121 (4.76")

22,5

(0.88")

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

5-1

5 Installation

5.2 Connecting the base unit and expansion modules

5.2Connecting the base unit and expansion modules5200Connecting the base unit and expansion modules5-Montage_multi_Modul_verbind_links_BA

Montage_multi_Anzahl_Module_links_4

Montage

Max. 4 expansion

Fieldbus module

modules

X1

PROFIBUS-DP

ADDRESS

x10

x1

PNOZ mc3p
FAULT

OFF-

ON-

LINE

LINE

` Do not connect terminators to the last expansion module.
` Install the expansion module in the position in which it is configured

in the PNOZmulti Configurator.

You can install a maximum of 4 PNOZ ml2p to the left of the base unit.

Power supply

CHIP-Card

2

Base unit

Max. 8 expansion

modules

O1-

O0-

O0+

O1+

PNOZ mo3p

773700

0-5 -1-2...

1

2

Position

Fig. 5-2: Connecting the base unit and expansion modules

...

8

5-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

6 Commissioning

6.1 General wiring guidelines

61000CommissioningComm issioning6-6.1General wiring guidelines1100General wiring guidelines6-Verdrahtung_multi_M odul

The wiring is defined in the circuit diagram of the PNOZmulti Configura­tor.

Note:

Verdrahtung PNOZ ml2p

Verdrahtung_multi_Modul_Achtung_Kabel_spannungsl_ziehen

` Information given in the "Technical details" must be followed.
` 2 connection terminals are available for each of the supply connec-

tions 24 V and 0 V. This means that the supply voltage can be looped
through several connections. The current at each terminal may not
exceed 3 A.

` Please refer to the technical details for information on the maximum

cable length. Please also read the section entitled "Voltage drop".

` Shielded cable must be used from a cable length of 30 m.
` Pilz pre-assembled cable can be used to connect the decentralised

modules (see order reference).

` The plug-in connection terminals are either designed as cage clamp

terminals or screw terminals (see order reference).

6.1.1 Insulation voltage test

Insulation voltage test6-Isolationsspannungsprüfung

The product PNOZ ml2p is connected to functional earth via protec­tion elements on the supply voltage. Insulation voltage tests are only
possible with voltages up to ca. 42 V.

CAUTION!

Only connect and disconnect the expansion module when the
supply voltage is switched off.

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

6-1

6 Commissioning

6.2 Preparing for operation

6.2Preparing for operation6200Preparing for operation6-

6.2.1 Download modified project to the PNOZmulti safety system

Download modified project to the PNOZmulti safety system6-Verdrahtung_multi_Modul_Betr_geaend_Projekt_BA

As soon as an additional expansion module has been connected to the
system, the project must be amended using the PNOZmulti Configura­tor. Proceed as described in the operating instructions for the base unit.

NOTICE

For the commissioning and after every program change, you
must check whether the safety devices are functioning correctly.

6.2.2 Connection

Connection6-Betriebsbereitschaft herstellen Anschluss_PNOZ ml2p

` Supply voltage

Supply voltage AC DC

24V
24V

0V
0V

+ 24 V DC

0 V

` Connection to a decentralised input module PDP67

1

2

3

4

5

VCC
CAN­GND
CAN+
Shield

PDP67 F 8DI ION

Betriebsbereitschaft he rstellen Anschlus s - LC-Kabel_PNOZ ml2p

PNOZ ml2p

CAN+
CAN-

VCC

GND

Shield

` Connection when using the PSS SB BUSCABLE LC in conjunction with a Pilz self-assembly "PSS67 M12

connector" (see order reference in the Technical Catalogue)

6-2

1

PNOZ ml2p

CAN+
CAN-

VCC

GND

Shield

red

brown

white

green

VCC

2

CAN-

3

GND

4

CAN+

5

Shield

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

PDP67 F 8DI ION

6 Commissioning

6.3 Series connection of 4 decentralised modules

6.3Series connection of 4 decentralised modules6300Series connection of 4 decentralised modules6-Anschluss_PDP_DI_4_Module

You can connect up to 4 decentralised modules in series to a PNOZmulti
link module.

PNOZ ml2p

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

6-3

6 Commissioning

6.4 Voltage drop

6.4Voltage drop6400Voltage drop6-Verdrahtung_PNOZ ml2p_Leitungslänge-Spannungsabfall

The max. cable length depends on the voltage drop in the supply voltage
cables. The level of voltage drop is determined by the:

` Cable resistance on the supply voltage cables
` Operating current of the modules
` Load on the modules

To increase the max. cable length, the input voltage can be permanently
increased by the voltage tolerance (see Technical Details).

6.4.1 Guidelines for various cable types

Guidelines for various cable types6-Verdrahtung_PNOZ ml2p_Leitungslänge-Spannungsabfall-Richtwerte

Guidelines for calculating the voltage drop on various cable types

Cable type Voltage drop per 10 m and per 100

mA

PSS SB BUSCABLE LC 0.1 V
Sensor cable 0.25 mm
Sensor cable 0.34 mm
Sensor cable 0.5 mm

2

2

2

0.15 V

0.11 V

0.07 V

6-4

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

6 Commissioning

6.4 Voltage drop

6.4.2 Calculation example

Calculation example6-Verdrahtung_PNOZ_ml2p_Leitungslänge-Spannungsabfall-Beispiel

` The PSS SB BUSCABLE LC is used in accordance with the pin as-

signment in section 6.2.2.
Voltage drop per 10 m and per 100 mA: 0.1 V

Link

Module

PNOZmulti Base Unit

PNOZ

ml2p

4*I0+I1+I2+I3+I4
650 mA
U = 1,3 V

20 m

PDP67 F 8DI ION

I0=50 mA

I4 = 50 mA

10 m

I0+I4

100 mA

U = 0,10 V

PDP67 F 8DI ION

I0=50 mA

I3 =100 mA

20 m

2*I0+I3+I4

250 mA

U = 0,5 V

PDP67 F 8DI ION

I0=50 mA

I2 = 250 mA I1 = 50 mA

15 m

3*I0+I2+I3+I4

550 mA

U = 0,55 V

PDP67 F 8DI ION

I0=50 mA

Key:

` I0: Module's consumption.
` I1 ... I5: Load current taken from the module
` U1 … U4: Voltage drop on the respective connection path

Total voltage drop from the link module PNOZ ml2p to the final PDP67
F 8DI ION:

= U1 + U2 + U3 + U

U

total

U

= 1.3 V + 0.825 V + 0.5 V + 0.10 V = 2.725 V

total

4

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

6-5

6 Commissioning

6-6

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

7 Operation

7.1 Messages

77000OperationOperation7-7.1Messages71 00Messages7-Betrieb_Meldungen_allgemein_BA

Betrieb_Meldungen_Modul _Ready_BA

When the supply voltage is switched on, the PNOZmulti safety system
copies the configuration from the chip card.

The LEDs "POWER","DIAG", "FAULT", "IFAULT" and "OFAULT" light up
on the base unit.

The PNOZmulti safety system is ready for operation when the "POWER"
and "RUN" LEDs on the base unit and the "READY" LED on the
PNOZ ml2p are lit continuously.

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

7-1

7 Operation

7.2 Display elements

7.2Display elements72 00Display elements7-Anzeige Legende 3x

Key:

LED on

LED flashes

LED off

7.2.1 Display elements for device diagnostics

Display elements for device diagnostics7-Betrieb_Anze ige_Verbindungsmodul ml2p_BA

LED LED status Meaning

READY Green The unit is ready for operation

The unit is not ready for operation

FAULT Red External error

Red Internal error

No error

TR Yel-

low
Yel-

low

Connection to a decentralised module available

Connection is not available to all decentralised modules.

No connection to a decentralised module

7-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

7 Operation

7.3 Fault detection

7.3Fault detection7300Fault detection7-Fehlererkenn ung PNOZ ml2p

The base unit contains information about the

` Link module (in order, defective, no supply voltage)
` Status of communication with the decentralised modules (data valid,

data invalid)

If the connection to a decentralised module is interrupted or there is a
major error on the decentralised module, the inputs on the devices con­nected to the link module are set to zero. The base unit remains in a RUN
condition.

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

7-3

7 Operation

7-4

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

8 Technical Details

8.1 Technical Details

88000Technical DetailsTechnical Details8-8. 1Technical Details8100Technical Details8-][Technische Daten_multi_PNOZ_ml2p

Technical details

Electrical data

Supply voltage UB DC 24 V
Voltage tolerance -15 %/+20 %
Power consumption at U
without load 5.0 W
Residual ripple DC 5 %
Status display LED

Times

Switch-on delay 5.00 s
Supply interruption before de-energisation 20 ms
Maximum input delay 15 ms
Switch-off delay 35 ms

Outputs

Maximum output current decentralised module supply 4 A
Short-circuit protection of the decentralised module sup-

ply

Environmental data

EMC EN 60947-5-1
Vibration to EN 60068-2-6
Frequency 10 - 55 Hz
Amplitude 0.35 mm
Climatic suitability EN 60068-2-78
Airgap creepage in accordance with EN 60664-1
Ambient temperature 0 - 60 °C
Storage temperature -25 - 70 °C

Mechanical data

Protection type
Mounting (e.g. cabinet) IP54
Housing IP20
Terminals IP20
DIN rail
Top hat rail 35 x 7.5 EN 50022
Recess width 27 mm
Maximum cable run unscreened 30 m
Maximum cable run screened 100 m
Housing material
Housing PPO UL 94 V0
Front ABS UL 94 V0
Cross section of external conductors with screw terminals
1 core flexible 0.50 - 1.50 mm² , 22 - 14 AWG
2 core, same cross section, flexible:
with crimp connectors, without insulating sleeve 0.50 - 0.75 mm² , 22 - 20 AWG
without crimp connectors or with TWIN crimp connectors 0.50 - 0.75 mm² , 22 - 20 AWG
2 core, same cross section, flexible:
Torque setting with screw terminals 0.25 Nm
Cross section of external conductors with spring-loaded
terminals: Flexible with/without crimp connectors
Spring-loaded terminals: Terminal points per connection 1
Stripping length 9 mm

DC

B

yes

0.50 - 1.50 mm² , 26 - 14 AWG

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

8-1

8 Technical Details

8.1 Technical Details

Mechanical data

Dimensions
Height 94.0 mm
Width 22.5 mm
Depth 121.0 mm
Weight 120 g

Si-Kennzahlen_alle

Safety characteristic data

Unit Operating mode

PL e (Cat. 4) Cat. 4 SIL CL 3 5.35E-09 20

Si_Kennzahlen_Erläuterung

Technische Daten_Satz No rmen

EN ISO 13849-1PLEN 954-1

Category

EN IEC 62061
SIL CL PFH [1/h] tM [year]

All the units used within a safety function must be considered when cal­culating the safety characteristic data.

The standards current on 2009-12 apply.

8-2

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

8 Technical Details

8.2 Order reference

8.2Order reference1200Order reference8-Bes telldaten P NOZ ml2p

Order reference

Type Features Order no.

PNOZ ml2p Link module 773 602
Set spring term 1 set of cage clamp terminals 783 400
Set spring term 1 set of screw terminals 793 400
PSS SB BUSCABLE LC Cable, shielded 1 - 100 m 311 074
PSS67 I/O Cable Cable 1 - 30 m 380 320
PSS67 Cable M8sf M12sm Cable, straight M12 connector, straight M8 socket, 5-pin 3 m 380 200
PSS67 Cable M8sf M12sm Cable, straight M12 connector, straight M8 socket, 5-pin 5 m 380 201
PSS67 Cable M8sf M12sm Cable, straight M12 connector, straight M8 socket, 5-pin 10 m 380 202
PSS67 Cable M8sf M12sm Cable, straight M12 connector, straight M8 socket, 5-pin 30 m 380 203
PSS67 Cable M8sf M12sm Cable, straight M12 connector, angled M8 socket, 5-pin 3 m 380 204
PSS67 Cable M8sf M12sm Cable, straight M12 connector, angled M8 socket, 5-pin 5 m 380 205
PSS67 Cable M8sf M12sm Cable, straight M12 connector, angled M8 socket, 5-pin 10 m 380 206
PSS67 Cable M8sf M12sm Cable, straight M12 connector, angled M8 socket, 5-pin 30 m 380 207
PSS67 Cable M12sf M12sm Cable, straight M12 connector, straight M12 socket, 5-pin 3 m 380 208
PSS67 Cable M12sf M12sm Cable, straight M12 connector, straight M12 socket, 5-pin 5 m 380 209
PSS67 Cable M12sf M12sm Cable, straight M12 connector, straight M12 socket, 5-pin 10 m 380 210
PSS67 Cable M12sf M12sm Cable, straight M12 connector, straight M12 socket, 5-pin 30 m 380 211
PSS67 Cable M12sf M12sm Cable, angled M12 connector, angled M12 socket, 5-pin 3 m 380 212
PSS67 Cable M12sf M12sm Cable, angled M12 connector, angled M12 socket, 5-pin 5 m 380 213
PSS67 Cable M12sf M12sm Cable, angled M12 connector, angled M12 socket, 5-pin 10 m 380 214
PSS67 Cable M12sf M12sm Cable, angled M12 connector, angled M12 socket, 5-pin 30 m 380 215
PSEN ma adapter Adapter for connection to safety switch PSENmag 380 300
PSEN cs adapter Adapter for connection to safety switch PSENcode 380 301
PSS67 M12 connector Connector, M12, straight, 5-pin, A-coded 380 308
PSS67 M12 connector Socket, M12, straight, 5-pin, A-coded 380 309
PSS67 M12 connector Connector, M12, angled, 5-pin, A-coded 380 310
PSS67 M12 connector Socket, M12, angled, 5-pin, A-coded 380 311
PSS67 M8 connector Connector, M8, straight, 4-pin 380 316
PSS67 M8 connector Socket, M8, straight, 4-pin 380 317
PSS67 M8 connector Connector, M8, angled, 4-pin 380 318
PSS67 M8 connector Socket, M8, angled, 4-pin 380 319

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

8-3

8 Technical Details

8-4

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [e-mail]

© Pilz GmbH & Co. KG, 2009

1001642-EN-03, 2010-09 Printed in Germany

... www

In many countries we are
represented by our subsidiaries
and sales partners.

Please refer to our homepage
for further details or contact our
headquarters.

Pilz GmbH & Co. KG
Felix-Wankel-Straße 2
73760 Ostfildern, Germany
Telephone: [phone]
Telefax: [phone]
E-Mail: [e-mail]

www.pilz.com

Technical support

[phone]
[e-mail]
