Important notes for users in the U.K.

Mains plug

Français

This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows: 1 Remove fuse cover and fuse.

Español

2 Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type. 3 Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an

Deutsch

appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater

Nederlands

than 5 Amp.

Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

Italiano

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral

Svenska

(N), brown = live (L). As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

Dansk

• Connect the blue wire to the terminal marked N or coloured black.

• Connect the brown wire to the terminal marked L or coloured red.

• Do not connect either wire to the earth terminal in the plug, marked E (or e) or

Suomi

Português

∂ППЛУИО¿

coloured green (or green and yellow). Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.

Italia

DICHIARAZIONE DI CONFORMITA’

Si dichiara che l’apparecchio FWC38 Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548.

Fatto a Eindhoven

Philips Consumer Electronics

5616 JB Eindhoven, The Netherlands

Philips, Glaslaan 2

Norge

Typeskilt finnes på apparatens underside.

Observer:

Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.

For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.

Nettbryteren er sekundert innkoplet.

Untitled-60 12/12/00, 6:32 PM2

3139 116 19381

English .....................................4

EnglishFrançais

CLASS 1

LASER PRODUCT

Français

.................................25

Español ..................................47

Deutsch ..................................69

Nederlands ............................ 91

Italiano .................................113

Svenska ...............................135

Dansk ...................................157

Suomi ...................................179

Português ............................199

∂ППЛУИО¿

............................ 221

Español

Deutsch

NederlandsItalianoSvenskaDanskSuomiPortuguês∂ППЛУИО¿

Untitled-60 12/12/00, 6:32 PM3

3139 116 19381

English

Untitled-60 12/12/00, 6:33 PM4

3139 116 19381

CONTENTS GENERAL INFORMATION SAFETY INFORMATION

General Information ................. 5

Safety Information .................... 5

Preparation .......................... 6 - 7

Controls ................................. 8 - 9

Operating The System .... 10 - 12

CD ....................................... 12 - 14

Tuner .................................. 15 - 16

Tape ................................... 17 - 18

Aux ............................................. 18

Recording ......................... 19 - 20

Clock ......................................... 20

Timer..........................................21

Sleep Timer ............................. 21

Specifications ......................... 22

Maintenance ............................ 23

Troubleshooting .............. 23 - 24

General Information

• The type plate (which contains the serial number) is located at the rear of the system.

• Recording is permissible if copyright or other rights of third parties are not infringed.

• This product complies with the radio interference requirements of the European Community.

Environmental Information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Accessories

– Remote control – Batteries (two AA size) for remote

control

– AM loop antenna – FM wire antenna – AC power cord

(Supplied)

Safety Information

• Before operating the system, check that the operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer. The typeplate is located at the rear of your system.

• When the system is switched on, do not move it around.

• Place the system on a solid base (e.g. a cabinet).

• Place the system in a location with adequate ventilation to prevent internal heat build-up in your system. Allow at least 10cm clearance from the rear and the top of the unit and 5cm from each side.

• Do not expose the system to excessive moisture, rain, sand or heat sources.

• Under no circumstances should you repair the system yourself, as this will invalidate the warranty!

• If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens of the CD unit inside the system. Should this occur, the CD player will not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.

• Electrostatic discharge may cause unexpected problems. See whether these problems disappear if you unplug the AC power cord and plug it in again after a few seconds.

• To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

English

Untitled-60 12/12/00, 6:33 PM5

3139 116 19381

PREPARATION

English

Rear Connections

Untitled-60 12/12/00, 6:33 PM6

3139 116 19381

PREPARATION

A AM Loop Antenna

Connection

Connect the supplied loop antenna to the AM ANTENNA terminal. Place the AM loop antenna far away from the system and adjust its position for the best reception.

B FM Wire Antenna

Connection

Connect the supplied FM wire antenna to the FM AERIAL (FM ANTENNA) 75 Ω terminal. Adjust the position of the FM antenna for the best reception.

Outdoor Antenna

For better FM stereo reception, connect an outdoor FM antenna to the FM AERIAL (FM ANTENNA) 75 Ω terminal using a 75 Ω coaxial wire.

FM AERIAL 75Ω

FM ANTENNA 75Ω

C Digital Out Connection

You can record the digital sound from the CD, through this output, on any audio equipment with digital input (e.g. CD Recorder, Digital Audio Tape (DAT) deck, Digital to Analog Converter and Digital Signal Processor).

Connect one end of the cinch cable (not supplied) to the DIGITAL OUT socket and the other end to the audio equipment with digital input.When connecting the cinch cable, make sure it is fully inserted.

D Speakers Connection

• Connect the right speaker to Front

terminal R, with the colored wire to + and the black wire to -.

• Connect the left speaker to Front

terminal L, with the colored wire to + and the black wire to -.

• Clip the stripped portion of the speaker wire as shown.

12 mm

unlock

lock

E Connecting other

equipment to your system

You can connect the audio left and right OUT terminals of a TV, VCR, Laser Disc player, DVD player or CD Recorder to the AUX IN terminals at the rear of the system.

F Subwoofer Out Connection

Connect the optional active subwoofer to the SUBWOOFER OUT terminal. The subwoofer reproduces just the low bass sound effect (e.g. explosions, the rumble of spaceships, etc.). Be sure to follow the instructions supplied with the subwoofer.

G AC Power Supply

After all other connections have been made, connect the AC power cord to the system and to the wall outlet.

Inserting batteries into the Remote Control

• Insert the batteries (Type R06 or AA) into the remote control as shown in the battery compartment.

• To avoid damage from possible battery leakage, remove dead batteries or batteries that will not be used for a long time. For replacement, use type R06 or AA batteries.

Notes for remote control: – First select the source you wish to

control by pressing one of the source select keys on the remote control (e.g. CD ,TUNER, etc.).

– Then select the desired function

(É, í, ë, etc.).

English

Untitled-60 12/12/00, 6:33 PM7

3139 116 19381

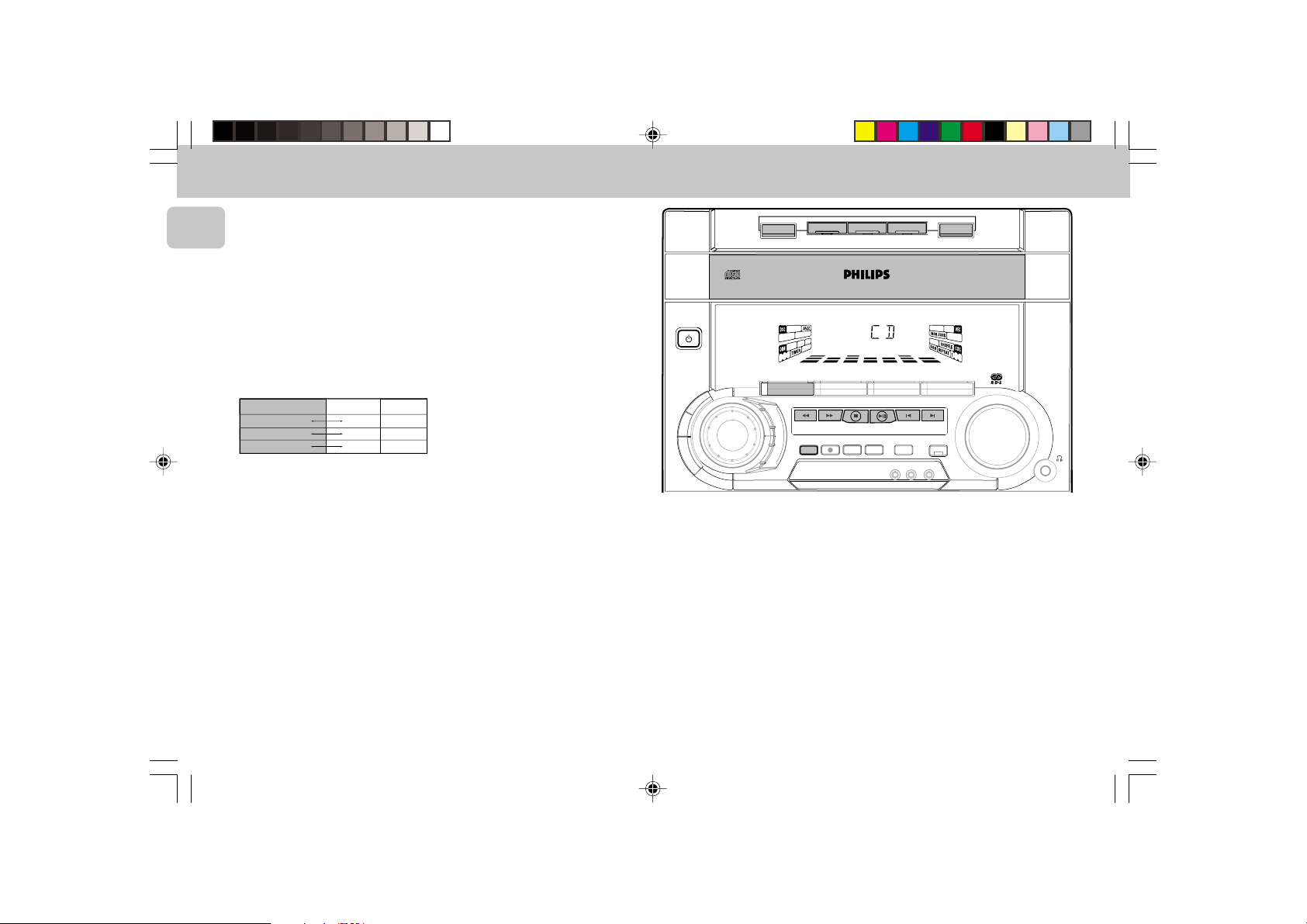

CONTROLS

3 CD ROTARY CHANGER SYSTEM

CD SYNCHRO RECORDING
