Panasonic TX-L32D25 Operating Instructions

Operating Instructions

LCD Television

Model No.

TX-L32D25BA TX-L37D25BA TX-L42D25BA

Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only. “B” or “B∗” model no. suffix denotes UK model.

English

U.K. Standard

TQB0E2024

Features

freesat HD tuner built-in ■

Receives freesat - free digital satellite broadcasts in the UK

This TV has a built-in freesat HD tuner. freesat is a free digital TV service which broadcasts via satellite so you can receive TV, radio, interactive TV, and HD TV with

crystal clear reception.

You can enjoy sharp pictures, vivid colours, multi-channel sound, and various services with the interactive content.

DVB-T / DVB-T2 tuner built-in ■

Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts

DVB-T2 is an advanced digital terrestrial system for more efficient transmission. Available DVB-T2 broadcasts will be tuned automatically when you perform DVB Auto Setup.

GUIDE Plus+ ■ (p. 21)

This TV supports Gemstar-TV Guide sent from the GUIDE Plus+ system.

Sharp pictures and clear sound with HDMI connection ■ (p. 96)

Enjoy high definition digital picture and high quality sound by using an HDMI cable.

This TV supports HDMI (Version 1.4 with Content Type, Audio Return Channel), Deep Colour, x.v.Colour™

●

Using USB devices ■

Enjoy recording and playback the digital TV programmes to the USB HDD. (p. 62 and p. 71) Enjoy the photo, video and music in the USB Flash Memory on Media Player. (p. 66) Wireless LAN Adaptor for the network connection. (p. 6 and p. 13) Entering characters with the USB Keyboard in VIERA CAST. (p. 83)

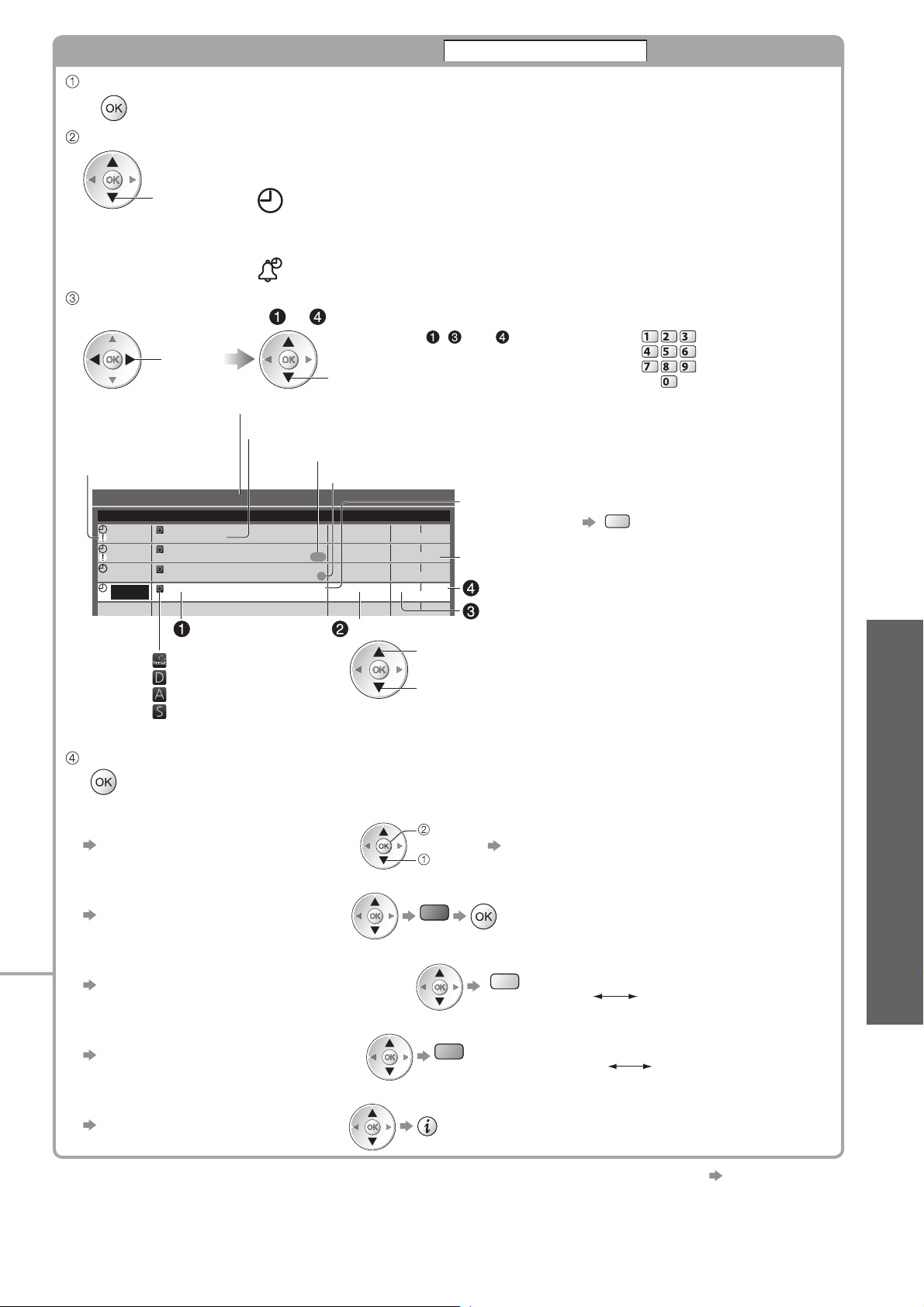

Timer Programming ■ (p. 22 and p. 52)

Timer Programming enables you to use functions such as programme reminder and programme recording to the external

recorder / registered USB HDD.

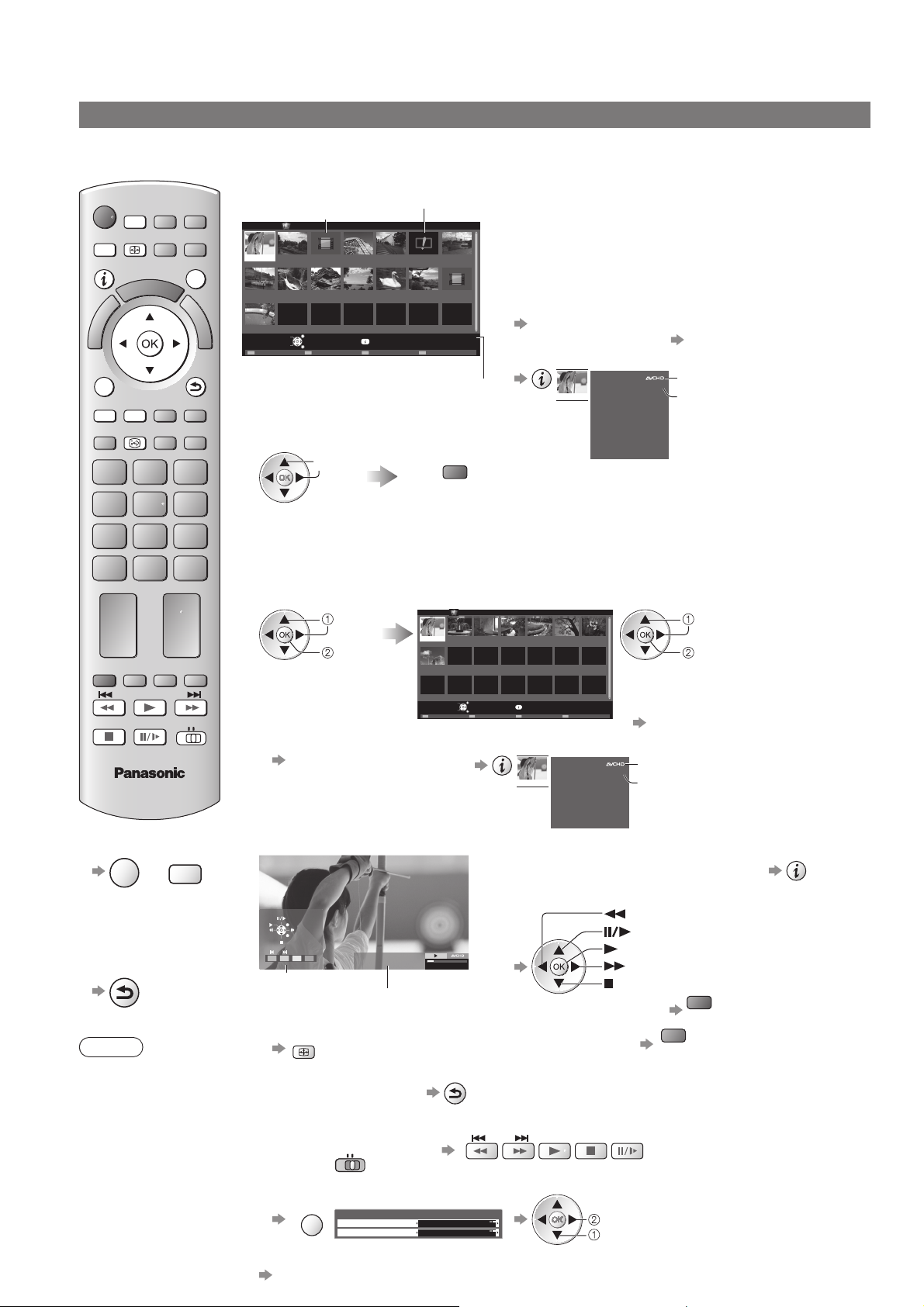

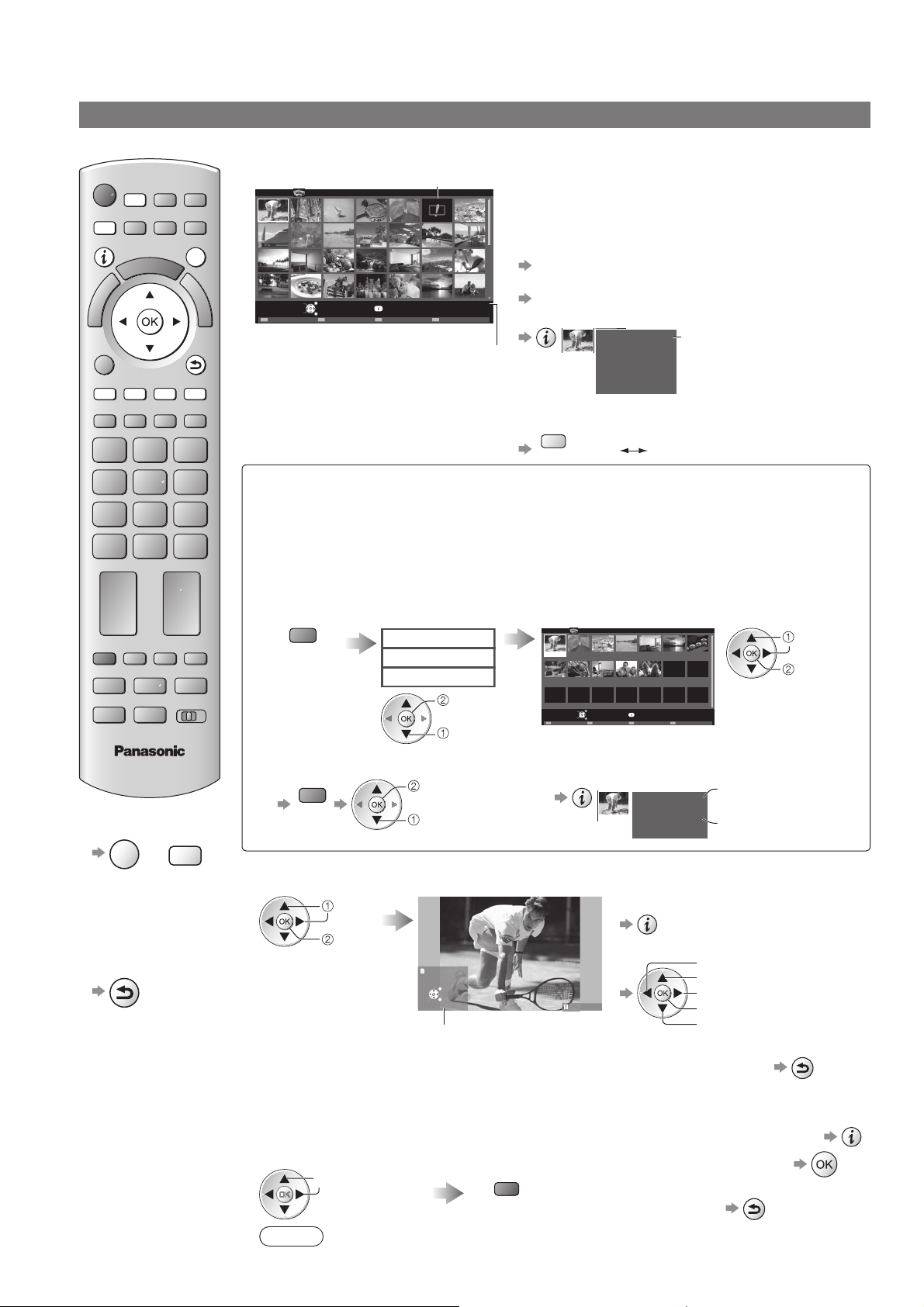

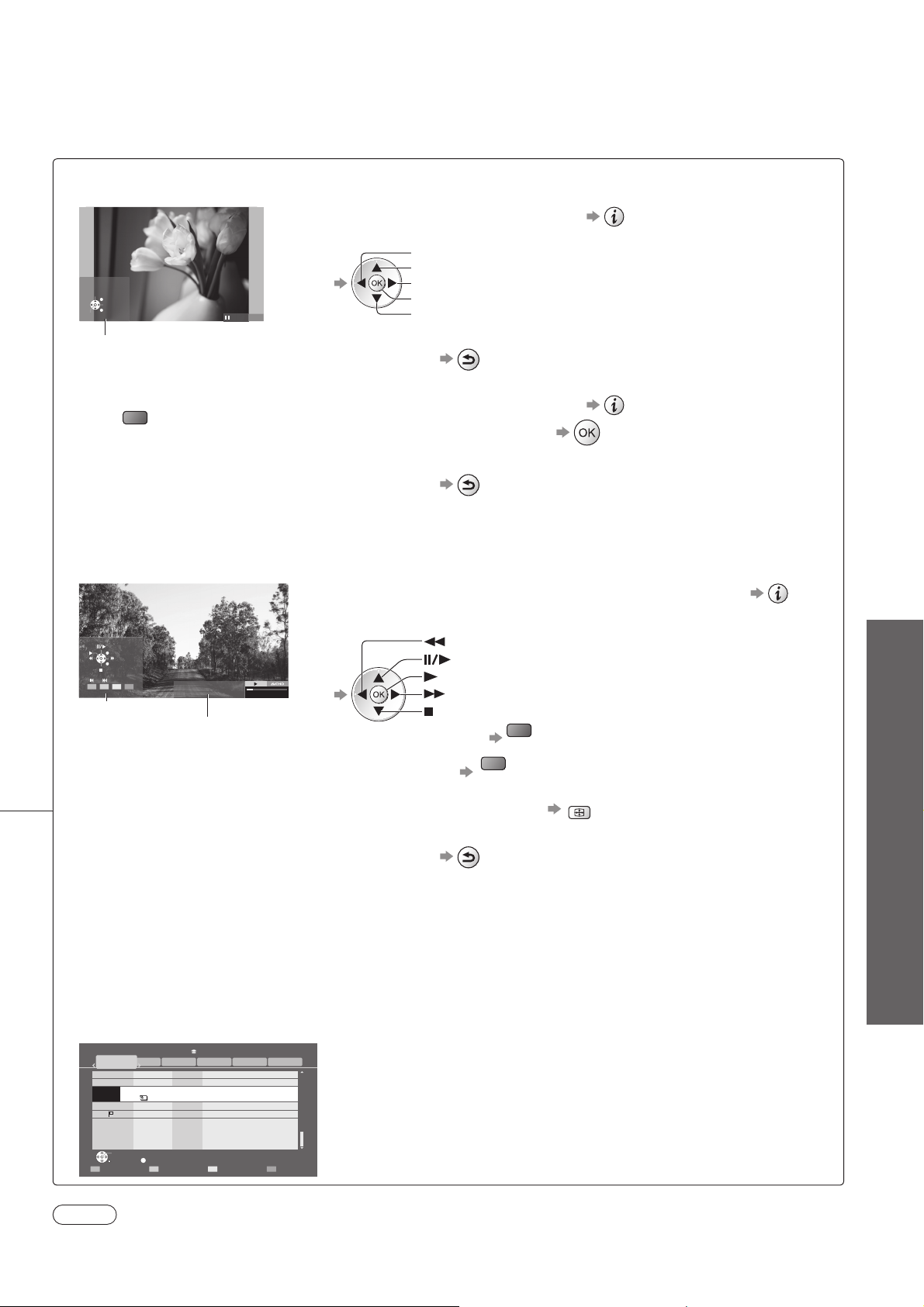

VIERA IMAGE VIEWER - SD Card viewer in Media Player ■ (p. 66 - 70)

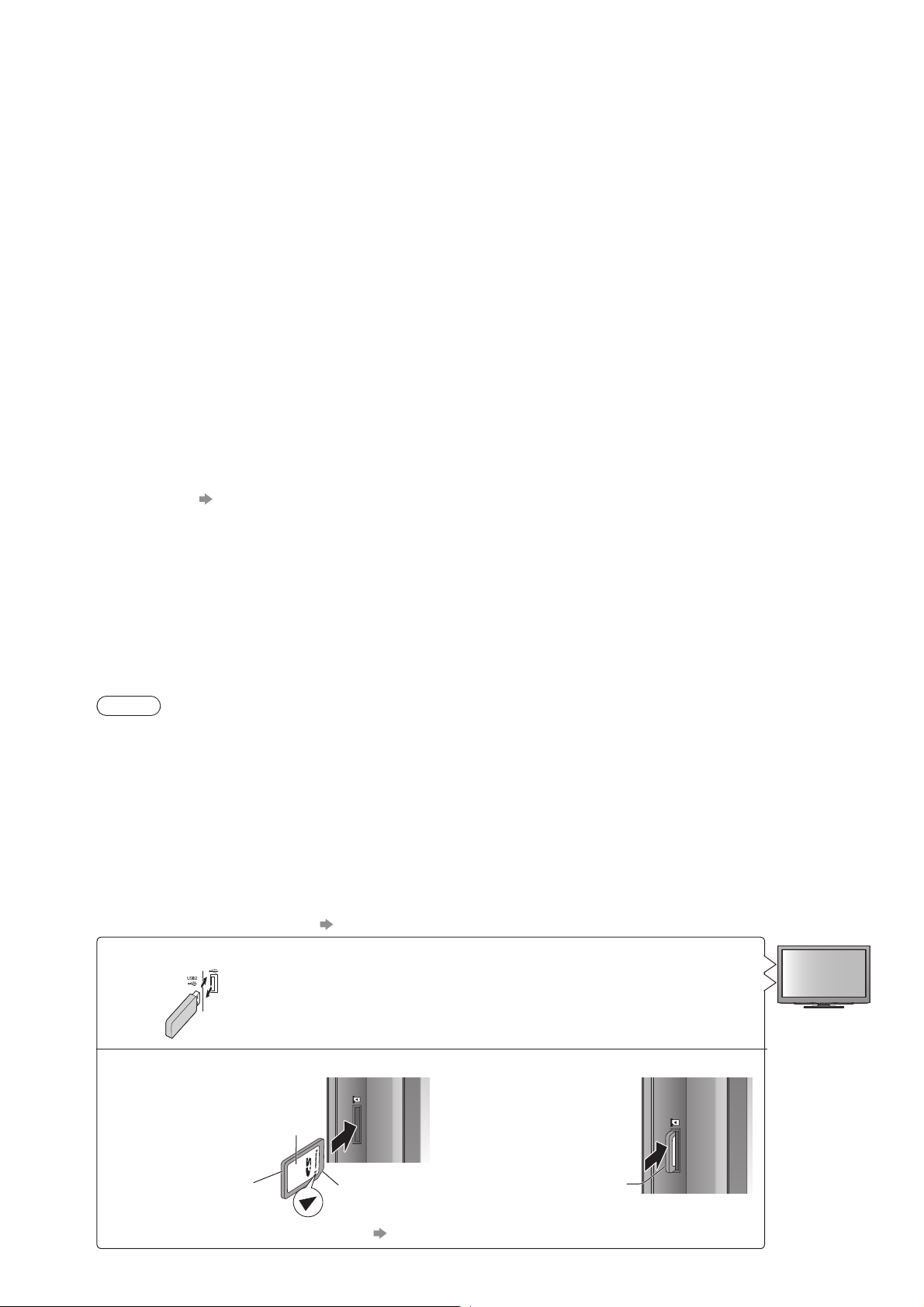

Enjoy your photos or videos recorded on an SD Card on the TV screen.

SDXC Card ■

This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.

AVCHD ■

It is possible to play moving pictures recorded on an SD Card or a USB Flash Memory in AVCHD format.

AVCHD is a high definition video recording format. (p. 66)

DivX ■

Offers good compatibility when going from PC to TV, etc. for easy enjoyment of moving pictures. DivX is a video codec that

was developed by DivX, Inc. (p. 95)

DLNA ■

DLNA is a standard that makes digital electronics easier and more convenient to use on a home network. For example, you

can enjoy watching photos and videos stored in the PC connected to your home network by accessing from the TV. (p. 80)

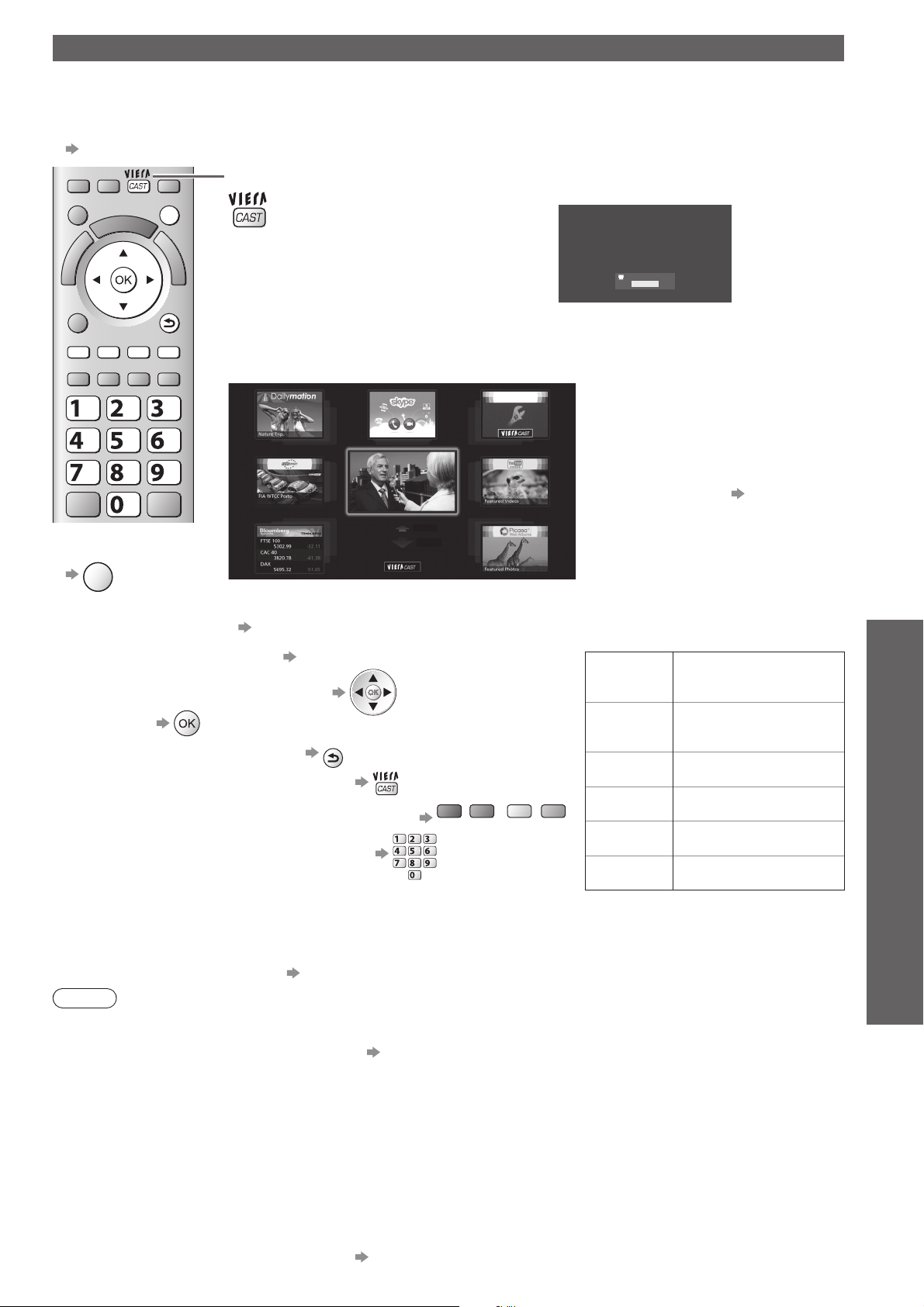

VIERA CAST - Enjoy great web entertainment ■ (p. 83)

Enjoy the internet contents on the TV such as photos, videos, weather, video communication (ex. Skype™), etc. through an

easy-to-use web interface that is built into the TV.

Link up and control the connected equipment with “Q-Link” and “VIERA Link” ■ (p. 84 - 91)

Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.

VIERA TOOLS - Display special feature icons for easy accessibility ■ (p. 30)

Special features (such as VIERA Link, Media Player and DLNA operations) can be accessed easily by using the VIERA

TOOLS button.

Owner ID ■ (p. 56)

Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to

determine the owner in the case of theft.

Supports Audio Description signal ■ (p. 17 and p. 33)

Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids

understanding and enjoyment, particularly for visually-impaired viewers. You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack independently of the main volume.

Digital Switchover for Terrestrial broadcasts

Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region. If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV channels will be missing. You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently turned off, it will not be possible to recover them.

To retune your TV ● “Auto Setup” in “DVB Tuning Menu”-DVB mode (p. 41)

Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)

Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some ● cases, despite good reception of analogue channels.

Contents

FULL HD ■

This TV uses a high definition panel to produce high definition

pictures close to their original resolution.

HD TV 1080p ■

This TV supports high definition TV signals.

Dolby Digital Plus decoder ■

It is possible to decode Dolby Digital Plus audio track (multi-

channel sound) and output as a Dolby Digital multi-channel sound signal from the DIGITAL AUDIO OUT terminal.

IPS LED LCD TV

This TV uses IPS (In Plane Switching) panel with LED backlight.

Intelligent Frame Creation

This increases the frame count and removes juddering movements, for smooth and flicker-less motion images with high resolution.

Wide Viewing Angle

This LCD panel offers 178-degree viewing angle. This delivers beautiful images regardless of the viewing angle.

digital tick

The digital tick logo indicates that a digital tuner is built-in.

Freeview HD

Freeview HD is the way to enjoy high definition digital TV for free.

Be Sure to Read

Safety Precautions (Warning / Caution) ● ················· 4

Quick Start Guide

Accessories / Options ● ·······························6

●

Identifying Controls

●

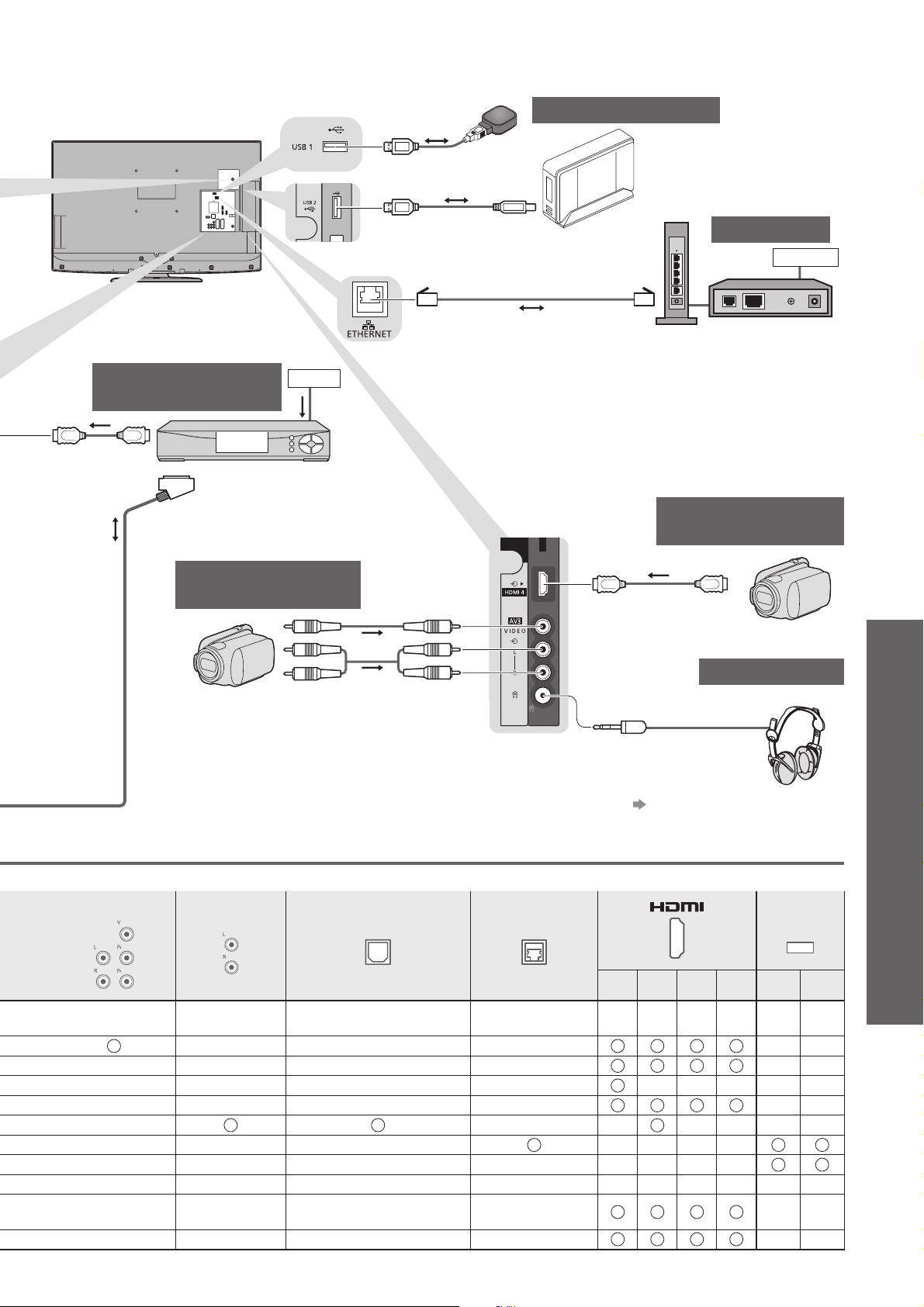

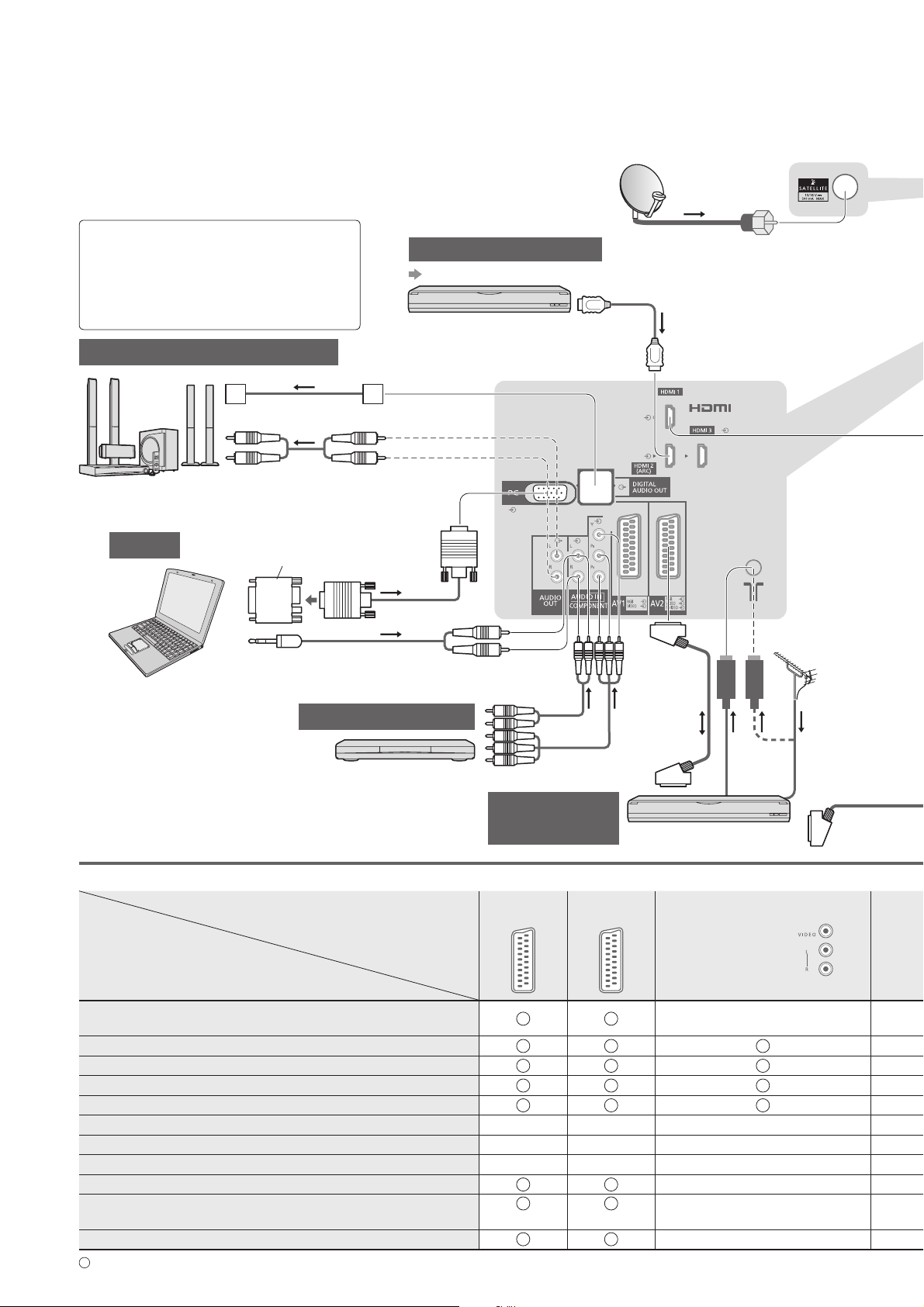

Basic Connection

●

Auto Setup

··············································12

···································8

···································· 10

Enjoy your TV!

Basic Features

Watching TV ● ························································· 16 Using TV Guide ● ···················································· 20 Viewing Teletext ● ···················································· 25 Watching External inputs ● ······································ 28 How to Use VIERA TOOLS ● ·································· 30 How to Use Menu Functions ● ································ 31

Advanced Features

Retuning from Setup Menu ● ·································· 40 Tuning and Editing Channels ● ······························· 42 Shipping Condition ● ··············································· 51 Timer Programming ● ·············································· 52 Child Lock ● ····························································· 54 Input Labels ● ·························································· 55 Owner ID ● ······························································ 56 Using Common Interface ● ······································ 57 Updating the TV Software ● ···································· 58 Displaying PC Screen on TV ● ································ 59

●

Advanced Picture Settings

●

USB HDD Recording Using Media Player ● ·············································· 66 Using Network Services ● ······································· 74

(DLNA / VIERA CAST / freesat) Link Functions ● ····················································· 84

(Q-Link / VIERA Link) External Equipment ● ·············································· 92

··································· 60

············································ 62

Quick Start

Guide

Basic

Advanced

Keep the TV away from these types of ■

equipment

Electronic equipment ● Do not place video equipment too close to the TV, electromagnetic interference may distort pictures / sound. Equipment with an infrared sensor ● This TV emits a low level of infrared rays which may interfere with the operation of other equipment.

FAQs, etc.

Technical Information ● ··········································· 94

●

FAQs

···································································· 99

●

On screen messages Maintenance ● ······················································· 104 Glossary ● ····························································· 104 Licence ● ······························································· 105 Index ● ··································································· 106

●

Specifications

····················································· 107

········································· 102

FAQs, etc.

Safety Precautions

Warning

Mains plug and lead■

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

This TV is designed to operate on AC 220-240 V, ● 50 / 60 Hz. Insert the mains plug fully into the socket outlet. ● Ensure that the mains plug is easily accessible. ● Remove the mains plug when cleaning the TV. ●

Do not touch the mains plug with a wet hand. ●

Do not damage the mains lead. ●

Do not place a heavy • object on the lead.

Do not place the lead • near a high temperature object.

Do not pull on the lead. • Hold onto the mains plug body when disconnecting the plug. Do not move the TV with the lead plugged into a • socket outlet. Do not twist the lead, bend it excessively or • stretch it. Do not use a damaged mains plug or socket outlet.• Ensure the TV does not crush the mains lead.•

AC 220-240 V 50 / 60 Hz

If you detect anything unusual, immediately switch off the mains supply switch and remove the mains plug.

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted

in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained. A replacement fuse cover may be purchased from your local dealer.

If the fitted moulded mains plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the mains plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off mains plug is inserted into any 13 amp socket.

If a new mains plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

IMPORTANT: – The wires in this mains lead are coloured in accordance with the following code: –

Blue: Neutral Brown: Live As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your mains plug, proceed as follows. The wire which is coloured BLUE must be connected to the terminal in the mains plug which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the mains plug which is marked with the letter L or coloured RED. Under no circumstances should either of these wires be connected to the Earth terminal of the three pin mains plug, marked with the letter E or the earth symbol . How to replace the fuse

For plug type shown in example 1:

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (see example 1).

For plug type shown in example 2:

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely (see example 2).

or the BSI mark on the body of the fuse.

ASA

Example 1

Example 2

Warning

Take care■

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

Do not remove covers and never modify the TV yourself as live parts are accessible when they are ● removed. There are no user serviceable parts inside.

Do not expose the TV to rain or excessive moisture. This TV must not be exposed ● to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

Do not expose the TV to direct sunlight and other sources of heat. To prevent fire ● never place any type of candle or naked flame on top or near the TV.

Do not place the TV on sloped or unstable surfaces.●

Do not insert foreign objects into the TV through the air vents.● Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to ● perform the setup or installation of approved wall-hanging brackets. Do not apply strong force or impact to the display panel.● This TV is designed for Table-top use.●

To prevent the spread of fire, keep candles or other open flames away from this product at all times

Small object■

This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.

Keep the dangerous parts out of reach of young children.● Do not allow children to handle SD Card. As with any small object, the SD Card could be ● swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.

Caution

Ventilation■

Allow sufficient space around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

Ventilation should not be impeded by covering the ● ventilation openings with items such as newspapers, tablecloths and curtains. Whether you are using the pedestal or not, always ensure the vents in the ● bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.

Moving the TV■

Before moving the TV, disconnect all cables.

The TV is heavy. Move the TV with at least two people. Support as shown to ● avoid injury by the TV tipping or falling. Transport only in upright position.●

Minimum distance

(cm)

When not in use for a long time■

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.

Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.●

Excessive volume■

Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

Accessories / Options

Standard accessories Check that you have the accessories and items shown

Remote Control □

N2QAYB000504●

Batteries for the □

Remote Control (2)

R6 ● p. 8

Pedestal □

TX-L32D25BA:

TBLX0169● TXFBL010QZA●

p. 7

TX-L37D25BA:

TBLX0168● TXFBL010QBB●

TX-L42D25BA:

TBLX0167● TXFBL010QDB●

Operating Instructions □ Product Registration Leaflet □

Optional accessories

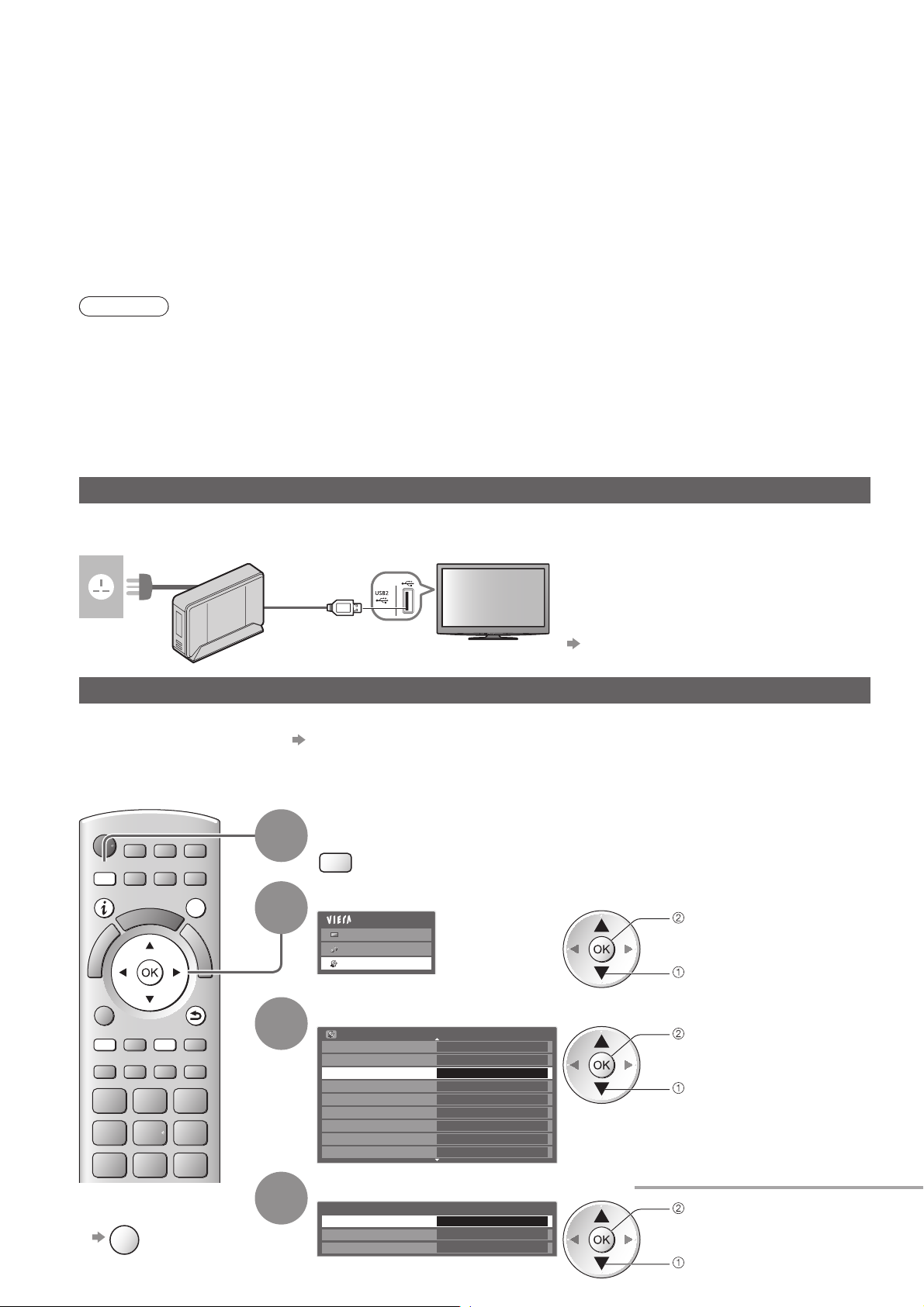

Wireless LAN Adaptor □

DY-WL10E-K●

Communication Camera □

TY-CC10W●

Wall-hanging bracket □

TY-WK3L2RW●

The angle of wall-hanging bracket can be adjusted in “zero tilting (vertical)” and “5-degree tilting” for this TV.

Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories.

Caution

To use the Wireless LAN Adaptor, an access point needs to be obtained.● It is recommended to use the Wireless LAN Adaptor with the extension cable.● To avoid malfunctions caused by radio wave interference, keep the TV away ● from the devices such as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor. Additional information for Wireless LAN Adaptor and access point may be on ● the following web site. (English only) http://panasonic.jp/support/global/cs/tv/

Caution

This camera can be used on VIERA CAST (p. 83).● Please also read the manual of the camera.● Depending on the area, this optional accessory may not be available. ● For details, consult your local Panasonic dealer.

Rear of the TV

200 mm

200 mm (TX-L32D25BA: 100 mm)

Holes for wall-hanging bracket installation

Screw for fixing the TV onto the wall-hanging bracket (not supplied with the TV)

Depth of screw: minimum : 8 mm

(TX-L32D25BA)

maximum : 12 mm Diameter : M4

(View from the side)

10 mm (TX-L37D25BA / TX-L42D25BA)

(TX-L32D25BA) M6 (TX-L37D25BA / TX-L42D25BA)

Warning

Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of ● personal injury and product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty. Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to ● prevent the TV from falling off. Handle the TV carefully during installation since subjecting it to impact or other forces may cause product ● damage which will void your warranty. Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give ● off high heat. Doing so may warp or damage plastic cabinet parts. Take care when fixing wall brackets to the wall. Wall mounted equipment shall not be grounded by metal

●

within the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket. To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an ● extended period of time.

Attaching the pedestal

To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:

Warning

Do not disassemble or modify the pedestal. ●

Caution

Do not use with any other TVs or displays. ● Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest ● Panasonic dealer immediately. During setup, make sure that all screws are securely tightened. ● Ensure that the TV does not suffer any impact during installation of the pedestal. ● Ensure that children do not climb onto the pedestal. ● Install or remove the TV from the pedestal with at least two people. ●

Quick Start

Guide

Assembly screw (4)

(silver)

XSS5+15FN●

M5 × 15

Assembly screw (4)

(silver)

XYN4+F12FJ●

M4 × 12

Assembling the pedestal■

Use the assembly screws to fasten the bracket to the base securely.

Make sure that the screws are securely tightened.● Forcing the assembly screws the wrong way will strip ● the threads.

Securing the TV■

Use the assembly screws to fasten the pedestal securely to the TV.

Make sure that the screws are securely tightened.● Carry out the work on a horizontal and level surface.●

Bracket

TKZX5254 ● (TX-L32D25BA) TKZX5253● (TX-L37D25BA) TKZX5255● (TX-L42D25BA)

Base

TBLX0169● (TX-L32D25BA) TBLX0168● (TX-L37D25BA) TBLX0167● (TX-L42D25BA)

Front

Accessories / Options ●

Adjusting the panel to your desired angle

Do not place any objects within the full rotation ● range.

15° 15°

(View from the top)

Foam mat or thick soft cloth

Identifying Controls

Remote Control

Installing / removing remote’s batteries■

Pull

Hook

open

Note the correct polarity (+ or -)

Caution

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.● Do not mix old and new batteries.● Replace only with same or equivalent type. Do not mix different battery types (such as alkaline and ● manganese batteries). Do not use rechargeable (Ni-Cd) batteries.● Do not burn or break up batteries.● Batteries must not be exposed to excessive heat such as sunshine, fire, etc. Make sure you dispose of batteries correctly.● Ensure batteries are replaced correctly, there is danger of explosion and fire if battery is reversed.● Do not disassemble or modify the remote control.●

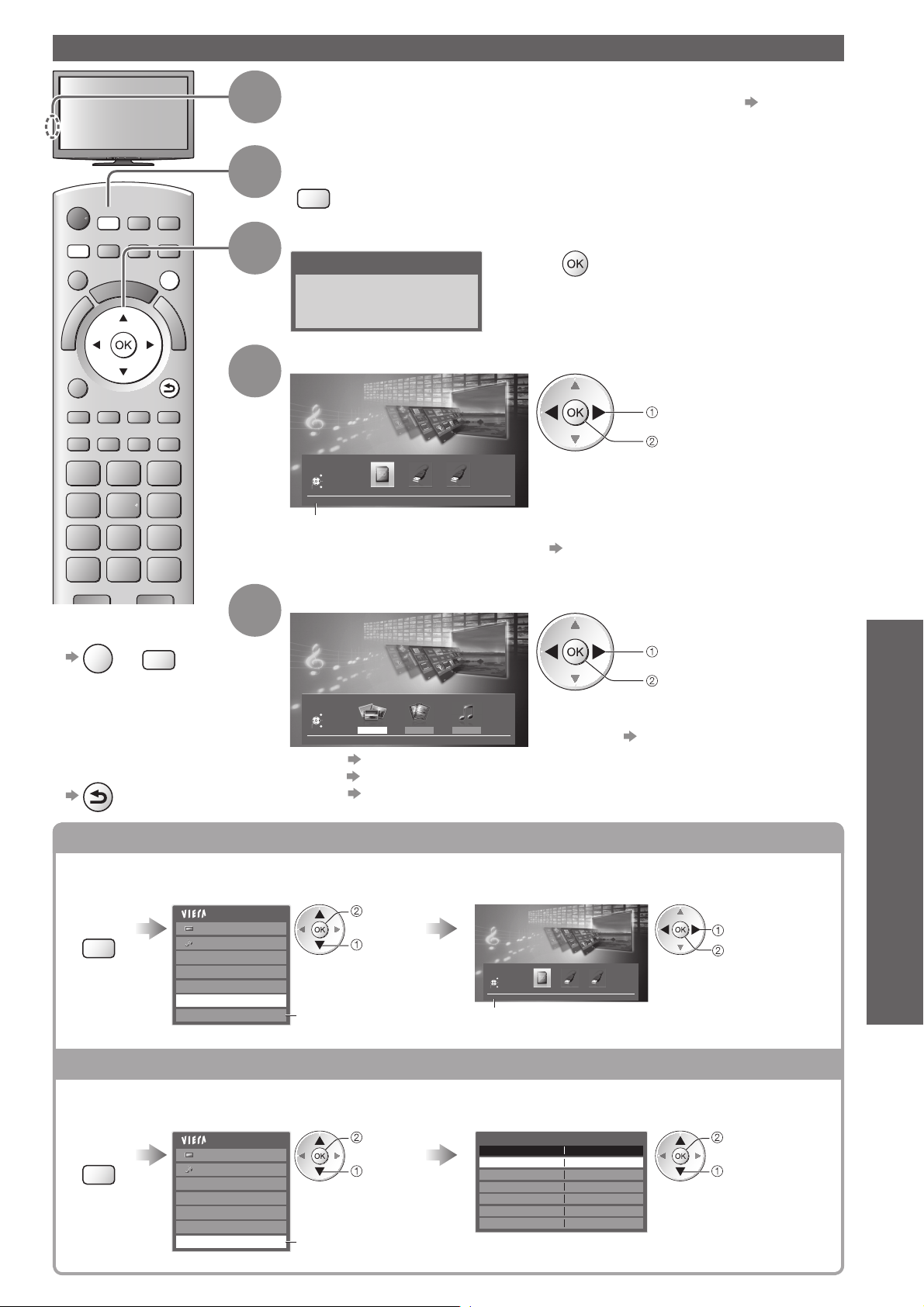

Media Player (p. 66)

Switches to SD Card and USB device

●

viewing / listening mode

Standby On / Off switch

Switches TV On or Off standby●

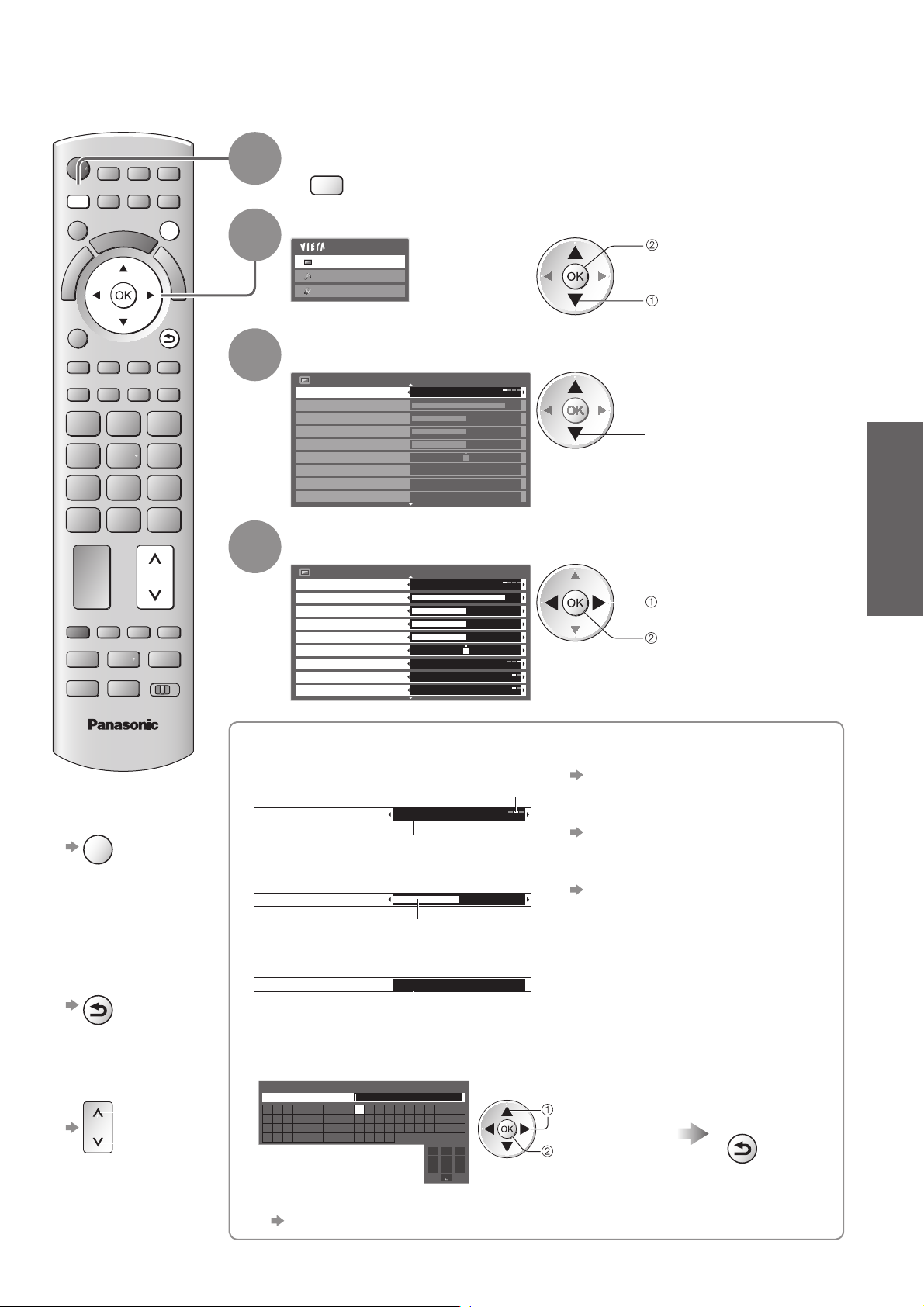

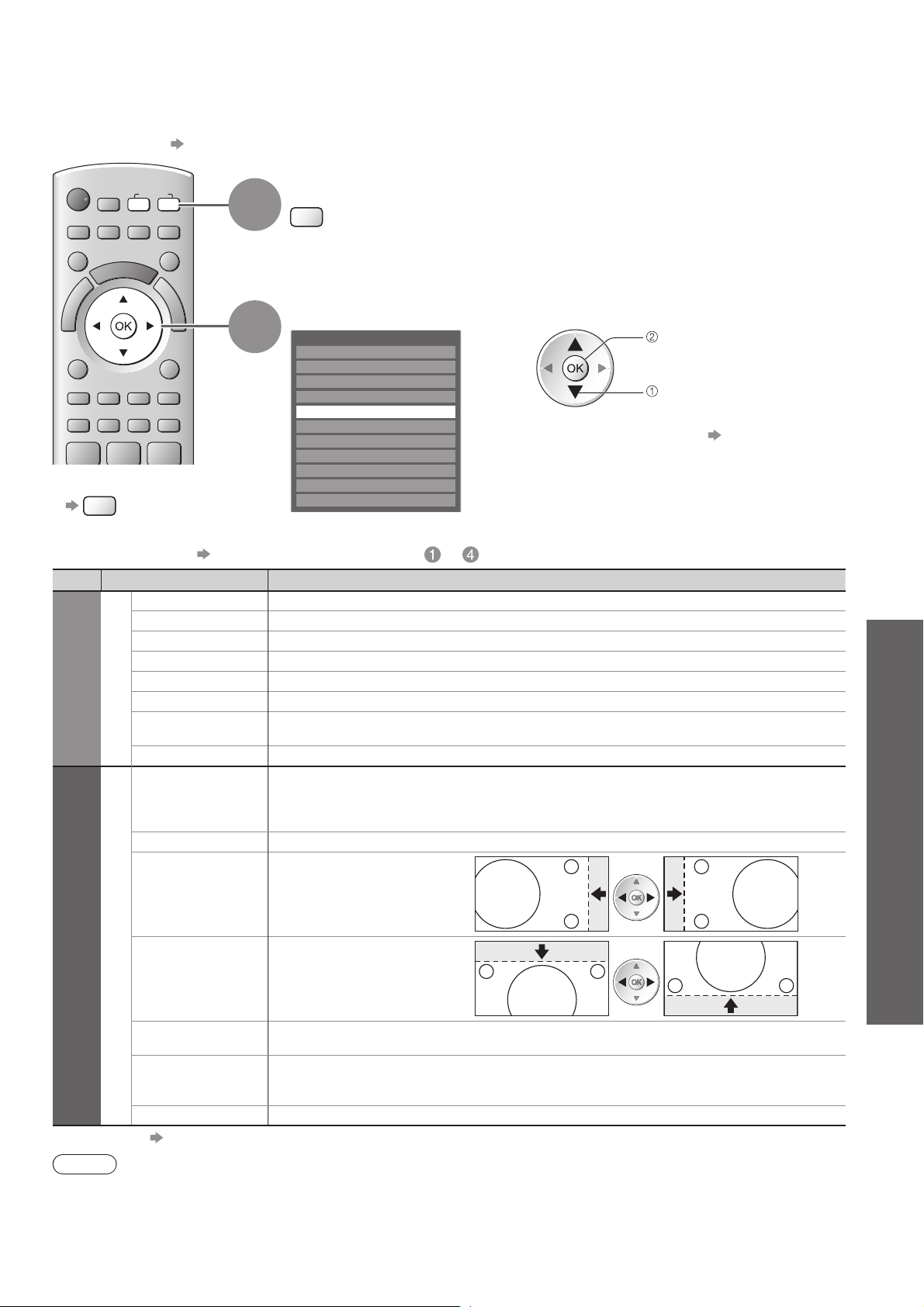

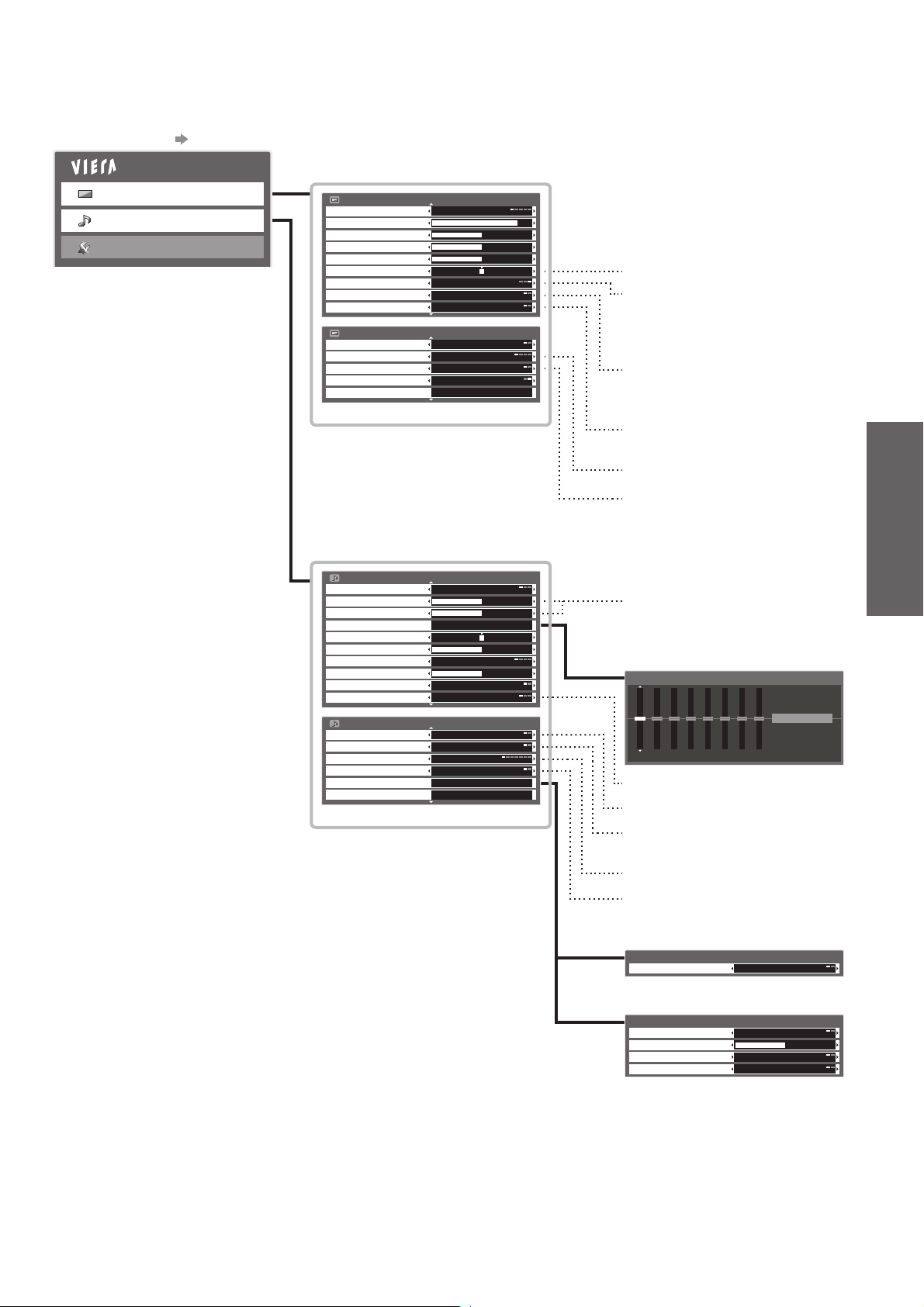

Main Menu (p. 31)

Press to access the Picture, Sound and

●

Setup Menus

Aspect (p. 18)

Channel / Programme Information (p. 17)

Displays channel and programme

●

information

VIERA Link Menu (p. 88)

Accesses VIERA Link Menu

●

Confirms selections and choices● Press after entering channel position by ● using numeric buttons to change a channel quickly

Option Menu (p. 19)

Easy optional setting for viewing, sound, etc.

●

Coloured buttons (red-green-yellow-blue)

Used for the selection, navigation and ● operation of various functions

Teletext (p. 25)

Switches to teletext mode / interactive

●

services

Subtitles (p. 18)

Displays subtitles

●

Numeric buttons

Changes channel and teletext pages● Sets characters● When in Standby mode, switches TV On ● (Press for about 1 second)

Sound Mute

Switches sound mute On or Off●

Volume Up / Down

OPTION

TEXT

SD CARD

ASPECT

ghi

STTL

REC

INPUT

AVTV

DIRECT TV REC

EXIT

RETURN

INDEX HOLD

abc def

jkl

mno

tuvpqrs

wxyz

LAST VIEW

PROGRAMME

DVD/VCR

BACK/

Input mode selection

TV - switches freesat / DVB / Analogue / ●

Other Sat. mode (p. 16)

AV - switches to AV input mode from Input

●

Selection list (p. 28)

Direct TV Recording (p. 86 and p. 88)

Records programme immediately in

●

DVD Recorder / VCR with Q-Link or VIERA Link connection

VIERA CAST (p. 83)

Displays VIERA CAST home screen

●

Exit

Returns to the normal viewing screen●

VIERA TOOLS (p. 30)

Easily accesses special features such

●

as VIERA Link, Media Player and DLNA operations

TV Guide (p. 20)

Displays TV Guide

●

Cursor buttons

Makes selections and adjustments●

Return

Returns to the previous menu / page●

Hold

Freeze / unfreeze picture (p. 17)● Holds the current teletext page (teletext ●

mode) (p. 26)

Index (p. 27)

Returns to the teletext index page

●

(teletext mode)

Last view (p. 19)

Switches to previously viewed channel or

●

input mode

Channel Up / Down

Selects channel in sequence●

Connected equipment operations

(p. 29, 64 and p. 90)

USB 2 port (p. 13, 62, 66 and p. 75)

CI slot (p.

57)

SD Card slot

66)

(p.

HDMI4 terminal (p. 93)

Function select

Volume / Contrast / Brightness / Colour / Sharpness / ● Tint (NTSC signal) / Bass (“Music” or “Speech” mode

in the Sound Menu) / Treble (“Music” or “Speech” mode in the Sound Menu) / Balance / Auto Setup (p. 40 and p. 41)

For changing TV channel up or down. When a function is selected by the ‘F’ button, press to

increase or decrease the setting of the selected function. When in Standby mode, press either button for about 1 second to switch the TV On.

Changes the input mode

Mains power On / Off switch

Use to switch mains power On/Off.● If TV was switched off whilst in Standby mode, using the Mains Power on/off switch, then it will be in Standby mode when switched back on using the same switch.

Power and Timer LED

Red● : Standby Green: On Orange: Timer Programming On Orange (flash)

Red with orange flash: Standby with Timer Programming On,

The LED blinks when the TV receives a command from the remote control.

●

: Recording of Timer Programming, Direct TV Recording

or One Touch Recording is in progress

Direct TV Recording or One Touch Recording

Quick Start

Guide

Identifying Controls ●

AV3 terminals (p. 93)

Headphones jack (p. 93)

C.A.T.S. (Contrast Automatic Tracking System) sensor

Senses brightness to adjust picture quality when “C.A.T.S.” in the ● Picture Menu is set to “On” (p. 32)

Remote control signal receiver

Do not place any objects between the TV remote control signal receiver ● and remote control.

Using the On Screen Displays

Many features available on this TV can be accessed via the On Screen Display menu.

■

How to use remote control

Open the main menu

Move the cursor / select the menu item

Access the menu / store settings after adjustments have been made or options have been set

ON SCREEN HELP Instructions box - Operation guide■

Example (Owner ID):

Owner ID

Please enter new PIN PIN

EXIT

RETURN

0 9

* * * *

PIN entry

Operation guide will help you.

EXIT

BACK/

RETURN

Exit the menu system and return to the normal viewing screen

Move the cursor / adjust levels / select from a range of options

Return to the previous menu

Auto power standby function ■

The TV will automatically go to Standby mode in the following conditions: ●

no signal is received and no operation is performed for 30 minutes in Analogue TV mode• “Off Timer” is active in the Setup Menu (p. 19)• no operation is performed for the period selected in “Auto Standby” (p. 36)•

This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch ● Recording.

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

Example 1 Connecting dish or aerial

TV only

AC 220-240 V 50 / 60 Hz

Mains lead

Clamper■

Bundle the cables

hooks

To loosen:●

Rear of the TV

Set the tip

in the hooks

The freesat channel uses Astra 2 at 28.2° East, and Eurobird 1 ● at 28.5° East satellites. To ensure your satellite dish is correctly installed please consult your freesat registered dealer.

Satellite

dish

For digital satellite ● broadcasts

Satellite cable

Terrestrial

aerial

For digital terrestrial and ● analogue broadcasts

Keep pushing

knob

To remove from the TV

Attach the clamper:●

Insert the clamper in a hole

Do not bundle the Satellite cable, RF cable and ● mains lead together (could cause distorted image). Fix cables with clampers as necessary.● When using the optional accessory, follow the ● option’s assembly manual to fix cables.

the knob

snaps

Keep pushing

both side snaps

hole

RF cable

Aerial input terminal

Example 2 Connecting DVD Recorder / VCR

Example 3 Connecting DVD Recorder / VCR and Cable TV box

TV, DVD Recorder or VCR

Rear of the TV

AC 220-240 V 50 / 60 Hz

Mains lead Mains lead

Aerial input

terminal

Terrestrial

aerial

TV, DVD Recorder / VCR and Cable

Rear of the TV

AC 220-240 V 50 / 60 Hz

Fully wired HDMI compliant cable

Aerial input

Terrestrial

aerial

Quick Start

Guide

Basic Connection ●

terminal

Fully wired HDMI compliant cable

Fully wired SCART cable

RF cable

HDMI AV

DVD Recorder or VCR

RF OUT

RF IN

RF cable

Cable TV box

Note

Connect to the TV’s AV2 for a DVD Recorder / VCR supporting Q-Link (p. 86).● Connect to the TV’s AV1 for a Cable TV box.● For HDMI-compatible equipment, it is possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) ● by using HDMI cable (p. 92).

● p. 13 and p. 75

Network connection Q-Link connection ● p. 84 VIERA Link connection

● p. 84 and p. 85

●

Please also read the manual of the equipment being connected.

HDMI

TV/AV

RF OUT

RF IN

Fully wired

SCART cable

Recorder/AV

DVD Recorder or VCR

Cable

RF cable

AV 2 AV 1

cable

HDMI

RF OUT

RF IN

Auto Setup

Search and store TV channels automatically.

These steps are not necessary if the setup has been completed by your local dealer.● Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before ● starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.

Plug the TV into mains socket and switch On

EXIT

(Takes a few seconds to be displayed)

If the red LED shows on the TV, press the ● Standby On / Off switch on the remote control for at least 1 second to turn the TV On.

Auto Setup will start to search for TV channels and store them in the numbered order as specified by the broadcasters.

freesat Auto Setup

Searching

Signal Quality 0 10 Signal Strength 0 10 TV Channels Found 8 Radio Channels Found 2 Data Channels Found 1

Channels found, creating channel list

If “freesat Auto Setup” cannot be done ● completely

“FAQs” (p. 99)

(freesat tuning)

ghi

abc def

jkl

tuvpqrs

BACK/

RETURN

mno

wxyz

Auto Setup - DVB and Analogue

DVB Scan CH 21 68 Analogue Scan

This will take about 6 minutes.

CH Channel Name Type Quality

CBBC Channel Free TV 10 62 BBC Radio Wales Free TV 10 62 E4 Free TV 10 62 Cartoon Nwk Free TV 10 29 Analogue

BBC1 Analogue

Free TV: 8 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

CH 21 68

Searching

Enter your postcode

Enter Postcode for local channels including space

Postcode

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6

How to enter the postcode■

Set characters one by one

select

set

O P Q R S T

7 8 9

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Actual number of channels may differ due ● to channel duplication.

(DVB and Analogue tuning)

If Q-Link, or similar technology (p. 86), compatible recorder with analogue tuner is connected, analogue channel setting is automatically downloaded to the recorder. (Digital channel setting is not downloaded.)

If downloading has failed, you can download

●

later through the Setup Menu.

“Q-Link Download” (p. 34)

Your postcode is required to receive local ● services and sort the channel order. Please ensure to include a space when entering your postcode. If you skip this step, the default postcode ● (central London) will be set.

You can set characters by using numeric ● buttons.

“Characters table for numeric buttons”

(p. 95)

Exit to go to next step

green

(continued to the next page)

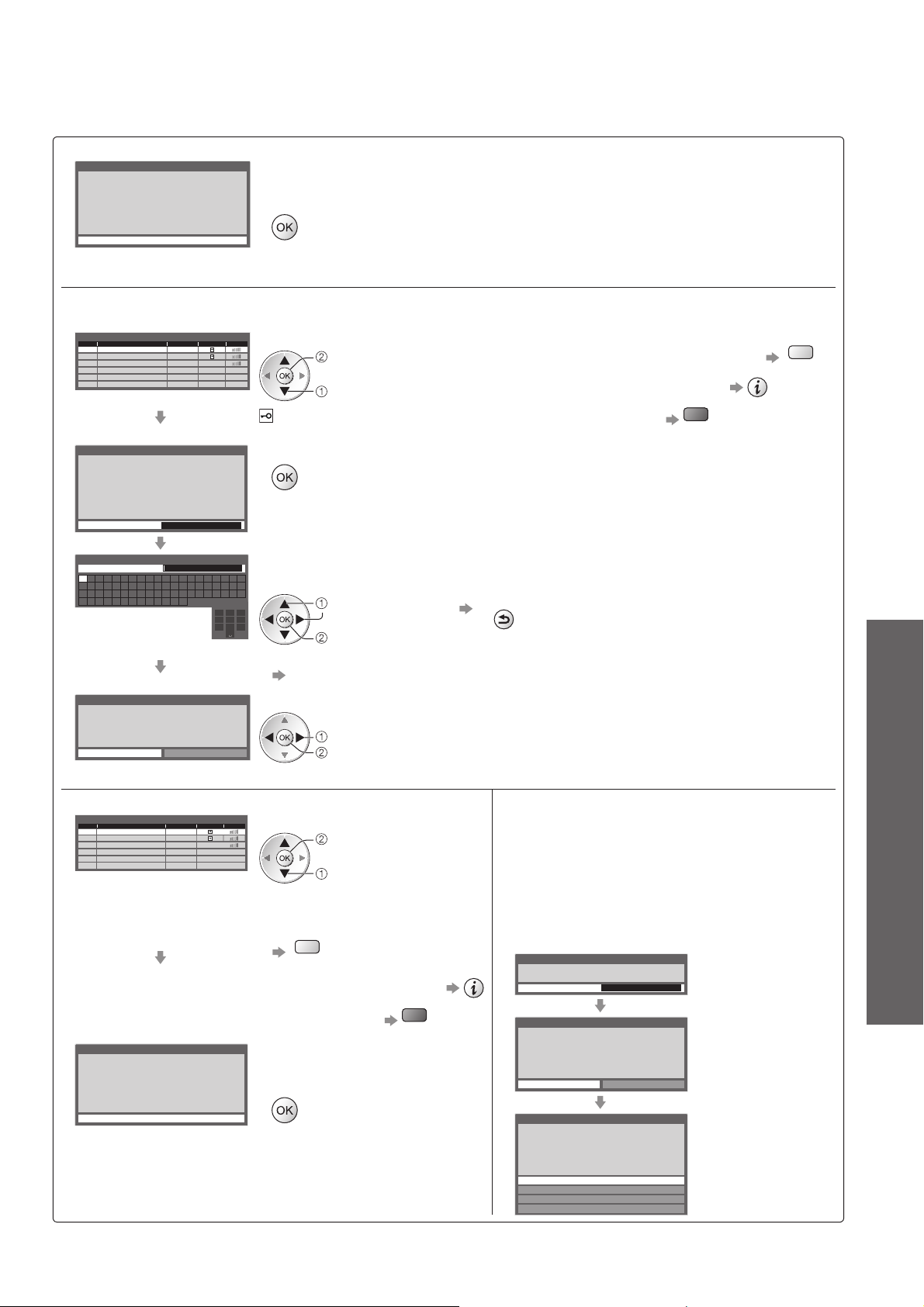

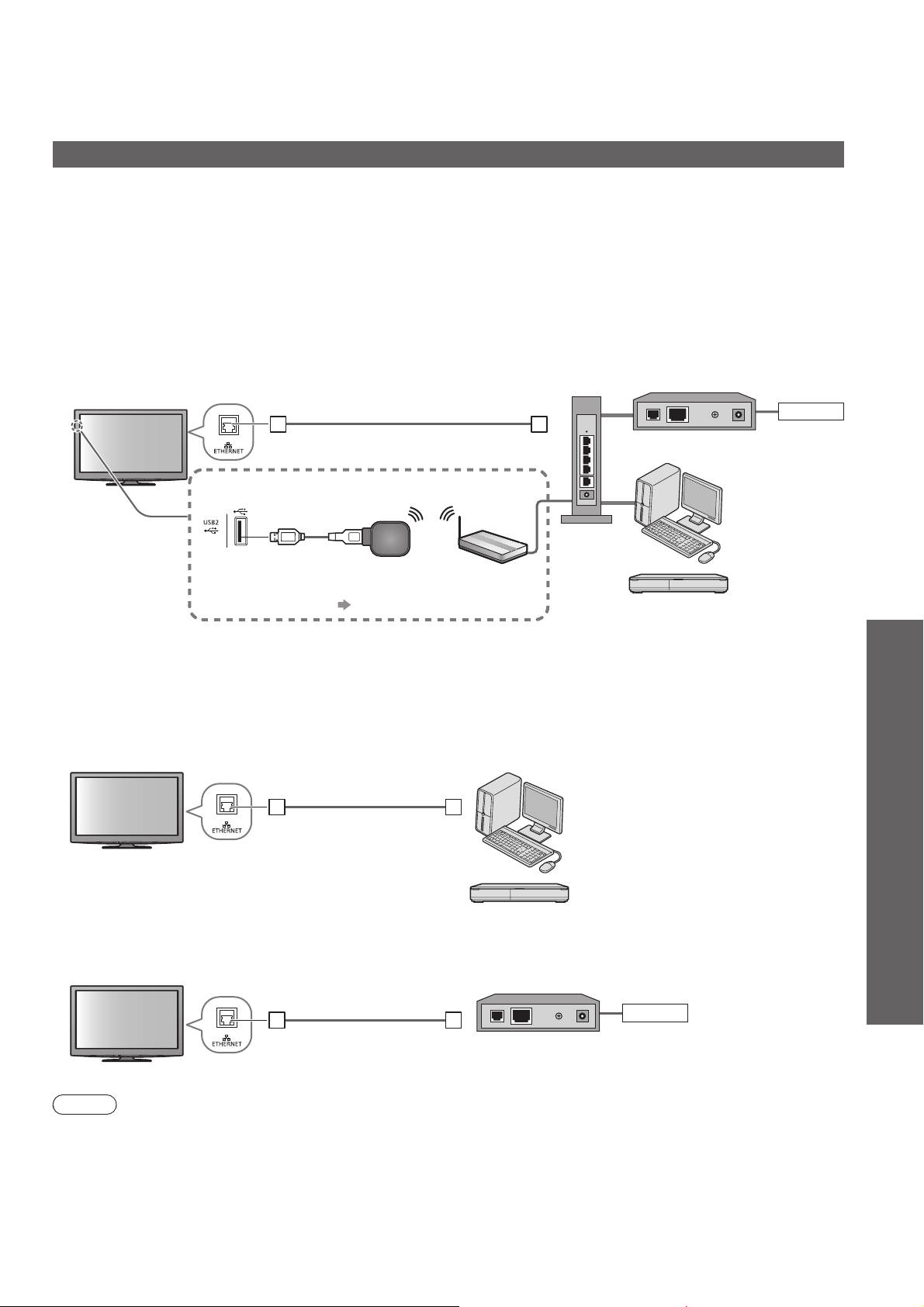

Setup the wireless LAN connection

Setup the wireless LAN connection to enable the network service functions (p. 74). (If you do not wish to use wireless LAN connection or the network service functions, skip this step.)

To setup the wireless LAN connection, the Wireless LAN Adaptor (optional accessory) is required. For ● the information about the Wireless LAN Adaptor “Optional accessories” (p. 6) Confirm the encryption key, settings and positions of your access point before starting setup. For details, ● read the manual of the access point. Please note that this TV does not support wireless public access points.● To use a LAN cable instead of the Wireless LAN Adaptor ● p. 77

Start wireless LAN connection setup?

Yes No

Please connect the wireless LAN adaptor (DY-WL10) to a USB terminal.

connect the Wireless LAN Adaptor to the USB 1 or 2 port

Internet

environment

Access point

select “Yes”

access

Wireless LAN connection setup starts

Connection Type

Please select network connection type.

WPS(Push button)

Search for access point

WPS(Push button)■

WPS(Push button)

1) Please press the ‘WPS’ button on the access point until its light flashes.

2) When the light is flashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the access point.

Connect

Search for access point■

Access points found automatically are listed.

Available Access Points

SSIDNo. Wireless type Encrypt Reception

Access Point A 11n(2.4GHz)

Access Point B

Access Point C 11n(5GHz)

Encryption Key Setting

Connection will be made with the following settings:SSID : Access Point A Authentication type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

11n(5GHz)

Select the connection type

access

select

Press the WPS button on the access point until the light flashes. And then, press the OK button to connect the Wireless LAN Adaptor and the access point.

Ensure that your access point supports WPS for this setup.● WPS: Wi-Fi Protected Setup™●

Select your desired access point

access

select

: Encrypted access point

Access the encryption key input mode

If the selected access point is not encrypted, the confirmation screen will ● be displayed. It is recommended to select the encrypted access point.

Wireless LAN Adaptor (optional accessory)

You can setup the wireless LAN connection later

“Network Setup” (p. 78)

To skip this step ●

EXIT

or select “No”

If your access point supports WPS ● (Push button), then select this option. If not, select “Search for access point”.

To search access points again ●

yellow

For the information of the ● highlighted access point

To set manually (p. 79) ●

red

Quick Start

Guide

Auto Setup ●

Access Point Settings

Encryption key

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

Enter the encryption key of the access point Set characters one by one Store

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

select

set

BACK/

RETURN

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 95)

Access Point Settings

Encryption key is set to:XXXXXXXX

Select ‘Yes’ to confirm. Select ‘No’ to change.

Yes No

Select “Yes”

select set

To re-enter the encryption key, select “No”.●

If the connection has failed, check the encryption key, settings and positions of your access point. And ● then, follow the on screen instructions. If connection to the access point is successful, we recommend you perform the “Connection Test” to

●

confirm connection to the internet has been made. The “Connection Test” can be found in the Network Setup menu (p. 78).

Exit to go to the next step

(continued to the next page)

Auto Setup

Input Owner ID

Owner ID

Please enter new PIN

PIN * * * *

How to input Owner ID■

Enter the PIN number (4 digits)

Owner ID

Please enter new PIN

PIN * * * *

Enter your name, house number, and postcode, in that order

Select the item (NAME / HOUSE NO / POSTCODE)

Owner ID-Data Entry

NAME

HOUSE NO POSTCODE



Please enter your own choice of PIN number, name, etc. to help the police to crack crime.

Make a note of the PIN number in case you forget it. The PIN number ● cannot be reset. You can input or change the Owner ID later. ● “Owner ID” (p. 56)

To skip this step ●

EXIT

This step will be skipped in the Auto Setup after “Shipping Condition” ● (p. 51) is performed.

abc def

jkl

ghi

mno

tuvpqrs

wxyz

access

select

Enter the PIN number twice at first ● setting.

Set characters one by one

User input

NAME

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Return to select other items

Exit to go to next step

EXIT

select

You can set characters by using numeric ● buttons.

set

“Characters table for numeric buttons”

(p. 95)

BACK/

RETURN

Select the next item and repeat the ● operations.

(continued to the next page)

Select “Home”

Select “Home” viewing environment (highlight “Home” in yellow) to use in your home environment.

Please select your viewing environment.

Home Shop

select

set

Auto Setup is now complete and your TV is ready for viewing.

To check channel list at-a-glance ●

“Using TV Guide” (p. 20)

To edit or hide (skip) channels ●

“Tuning and Editing Channels” (p. 42 - 47)

If tuning has failed, check the connection of the ● Satellite cable, RF cable, and then, follow the on screen instructions.

“Shop” viewing environment ■ (for shop display only)

“Shop” viewing environment is the demonstration mode to explain main features of this TV.

Select “Home” viewing environment to use in your home environment.

You can return to viewing environment selection

●

screen at the stage of Shop confirmation screen and Automatic Demo Off / On selection screen.

Return to viewing environment selection

screen

Shop

You have selected shop mode

Automatic Demo

Off On

BACK/

RETURN

Select “Home”

Please select your viewing environment.

Home Shop

Auto Setup is complete

To change viewing environment later on, you ● will need to initialise all settings by accessing Shipping Condition.

“Shipping Condition” (p. 51)

Quick Start

Guide

Auto Setup ●

select set

Note

If tuning has failed or to retune all channels ● “Auto Setup” (p. 40 and p. 41) If you wish to tune in other satellite channels ● “Auto Setup” in “Other Sat. Tuning Menu” (p. 49) To re-initialise all settings ● “Shipping Condition” (p. 51) If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On ● with Mains power On / Off switch.

If you connect the Wireless LAN Adaptor later on, the confirmation screen will be displayed for the setup.

To setup the Wireless LAN connection ● p. 78 and p. 79

Wireless LAN adaptor connection

Wireless LAN adaptor connected, do you want to set it up? No - Exit

Current network type : Wireless

Yes No

Watching TV

Turn power on

(Press for about 1 second)

Select the mode (freesat, DVB, Analogue or Other Sat.)

Also possible by pressing the TV button repeatedly on the remote control or ● side panel of the TV. (p. 9)

OPTION

ASPECT

STTL

INPUT

HOLD

EXIT

Mains power On / Off switch should be On. (p. 9)●

TV Selection

freesat

DVB

Analogue

Other Sat.

watch

select

Displayed if Other Satellite channels are tuned (p. 49)

abc def

jkl

ghi

tuvpqrs

mno

wxyz

LAST VIEW

Volume

Note

To watch pay-TV ●

“Using Common Interface”

(p. 57)

freesat Channel List

103 ITV Wales

Coronation Street 19:30 - 20:00

19:35

For info press

Now

Select a channel

ghi

down

Information banner appears whenever you select a channel

For details ● p. 17

abc def

jkl

tuvpqrs

mno

wxyz

freesat channel position numbers run in the ranges 100 - 999 and 0100 - 0999.

To select a three-digit channel position ● number, e.g. 133

def

To select a four-digit channel position ● number, e.g. 0246

mno

abc

ghi

DVB and Other Sat. channel position numbers run from 1 onwards. Analogue channel position numbers run in the ranges 0 - 99.

To select a two or three-digit channel

●

position number, e.g. 39

wxyz

def

Select a channel using Information banner ■ (p. 17)

It is possible to confirm the channel name and programme information by using the Information banner before changing channels.

Display Information banner if it is not displayed

While the banner is displayed, select the channel

select channel

watch

Possible to set display timeout in ● “Banner Display Timeout” (p. 35).

Select a channel using TV Guide ■ (p. 20)

It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.

Display TV Guide

Select a current programme or channel

select

access

Select “View” (DVB mode)

Eastender 19:30- 20:00

View

Timer Programming

To use Timer Programming ● p. 22

select

watch

Other useful functions

■

Hold

Freeze / unfreeze picture

HOLD

Display Information banner

Also appears when changing a channel●

Channel position

TV mode

Programme

Programme Start / Finish time

“All DVB Channels” or “Favourites1-4” (p. 45)

To switch ●

Example (DVB):

103 ITV Wales

Coronation Street 19:30 - 20:00

Mute Encrypted

Example (Analogue):

3 ITV

itv1 CH23

Mute

Encrypted

Channel number

“All Other Sat. Channels” or “Favourites1-4” (p. 50)

To switch ●

Example (Other Sat.):

103 ITV Wales

Coronation Street 19:30 - 20:00

Mute Encrypted

blue

To confirm another tuned ● channel name

and name

Example (freesat):

103 ITV Wales

Coronation Street Also in 19:30 - 20:00

Mute Encrypted

Progress time indicator of the selected programme

blue

Radio

Now

Radio

Now

19:35

Also in

STTLAD TEXT Multi Audio 45

19:35

SubtitlesAD

19:35

STTL TEXT Multi Audio 45

All DVB Channels

Select favourites

For info press

All Analogue Channels

For info press

NICAMTEXT 45

All Other Sat. Channels

Select favourites

For info press

Same programme available as HD broadcast

For details, display the extra information ●

Channel type

if it is HDTV, Radio

(

or Data channel

Radio

Now

)

Current time

19:35

freesat Channel List

For info press

STTLAD TEXT Multi Audio 45

Features available / Message meanings

Mute

Sound mute On

Bad signal

Poor TV signal quality

Encrypted

Scrambled programme

Audio Description service available

This function can aid visually-impaired viewers by ● adding an additional audio track to describe events on-screen. For settings ● p. 33

STTL

Subtitle service available

TEXT

Teletext service available

Multi Audio

Multiple audio available

Stereo, Mono, NICAM

Audio mode

1 - 90

Off Timer remaining time

For settings ● p. 19

To watch the channel listed in the banner ●

EXIT

To hide ●

Basic

Watching TV ●

Information on the next programme ●

(freesat, DVB, Other sat.)

To set display timeout ●

Extra information ● (press again to hide the banner) (freesat, DVB, Other sat.)

“AD”, “STTL”, “TEXT”, “Multi Audio” indications are displayed as

●

available on particular programmes, but may not be available for all individual programmes being broadcast. Display the extra information to confirm availability of these functions.

“Banner Display Timeout” (p. 35)

Example:

103 ITV Wales

Coronation Street 19:30 - 20:00

[AD]

19:35

Now

freesat Channel List

Exit info

Watching TV

Other useful functions

■

Display subtitles

freesat, DVB or Other Sat. mode■

Display / hide subtitles (if available)

To change the language for DVB (if available)●

“Preferred Subtitles” (p. 35)

Analogue mode■

Display subtitles

To hide subtitles ●

Note

This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 27)● You cannot change the channel when this function is active.●

Aspect

EXIT

STTL

Change the aspect ratio (image size)

ASPECT

Enjoy viewing the image at its optimum size and aspect. Programmes usually contain an Aspect Control Signal (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the Aspect Control Signal (p. 94).

If you would like to change the aspect ratio manually■

Display Aspect Selection list While the list is displayed, select the mode

ASPECT

Aspect Selection list

To change the mode using the ASPECT button only ●

ASPECT

(Press repeatedly until you reach the desired mode)

Auto

16:9 Zoom1

The best ratio is chosen and the image expanded to fill the screen. For details

Directly displays the image at 16:9 without distortion (anamorphic).

Aspect Selection

Auto

16:9 14:9 4:3 Zoom1 Zoom2 Zoom3

Select

Change

EXIT

RETURN

p. 94

store

select

Displays a 16:9 letterbox or 4:3 image without distortion.

14:9 Zoom2

Displays the image at the standard 14:9 without distortion.

4:3 Zoom3

Displays the image at the standard 4:3 without distortion.

Note

Aspect is fixed to “16:9” when “Viewing Mode” is set to “Game” in the Picture Menu.● Only “16:9” and “4:3” are available in PC input mode.● Not available when the subtitle function is active.● Not available in teletext service.● Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.●

Displays a 16:9 letterbox (anamorphic) image full-screen without distortion.

Displays a 2.35:1 letterbox (anamorphic) image full-screen without distortion. At 16:9, displays the image at its maximum (with slight enlargement).

Other useful functions

■

Display the selectable settings for the current status

Check or change the current

OPTION

status instantly

Multi Audio / AD (freesat mode)

Allows you to select between alternative language or Audio Description for sound tracks (if available)

Set Audio Description “Auto” in the Sound Menu ● (p. 33) to select the audio description sound track. In freesat mode, Audio Description cannot be controlled separately from the audio description sound track. This setting is not memorized and it will return to the ● default setting once you exit the current programme.

Multi Audio (DVB or Other Sat. mode) Allows you to select between alternative language for sound tracks (if available)

This setting is not memorized and it will return to the ● default setting once you exit the current programme.

Monaural Audio (DVB mode) Allows you to select stereo / monaural (if available)

This setting is not memorized and it will return to the ● default setting once you exit the current programme.

To change ●

change select

Subtitle Language (freesat, DVB or Other Sat. mode) Allows you to select the language in which subtitles should appear (if available)

This setting is not memorized and it will return ● to the default setting once you exit the current programme.

NICAM (Analogue mode) Switches NICAM sound (if available)

Sound Menu (p. 33)

Volume Correction

Adjusts volume of individual channel or input mode

Audio Description (DVB mode) Set to “Auto” if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen

To adjust the volume for Audio Description ●

“Audio Description Menu” (p. 33)

Basic

Watching TV ●

Safely remove USB

Takes this operation to remove the connected USB ● device safely from the TV.

Last view

Switch to previously viewed channel or input mode easily

Note

Switching channel is not available while the recording of Timer Programming, Direct TV Recording or ● One Touch Recording is in progress. Watching less than 10 sec. is not regarded as the previously viewed channel or input mode.●

LAST VIEW

Press again to return to the present view.●

Off Timer

Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)

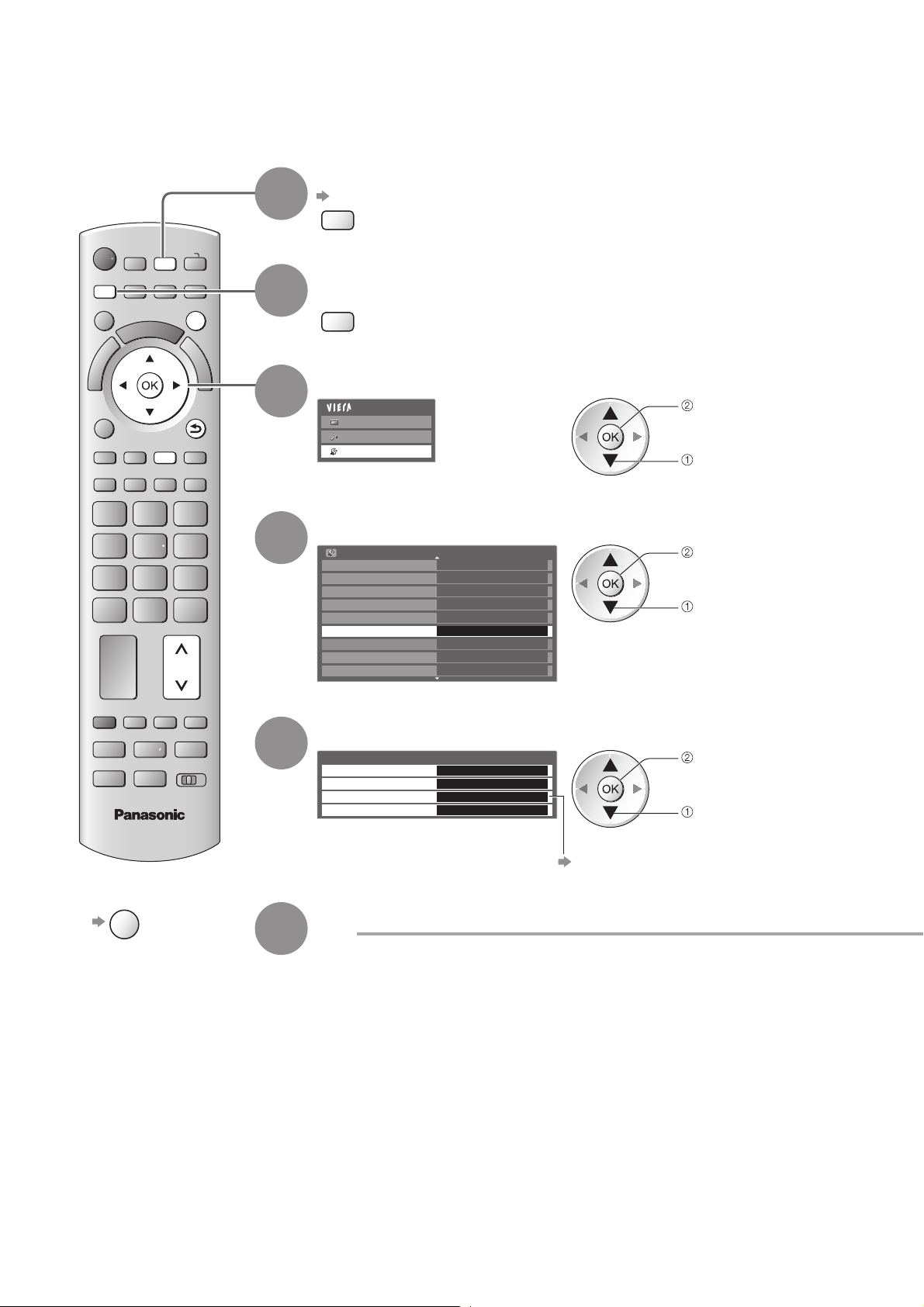

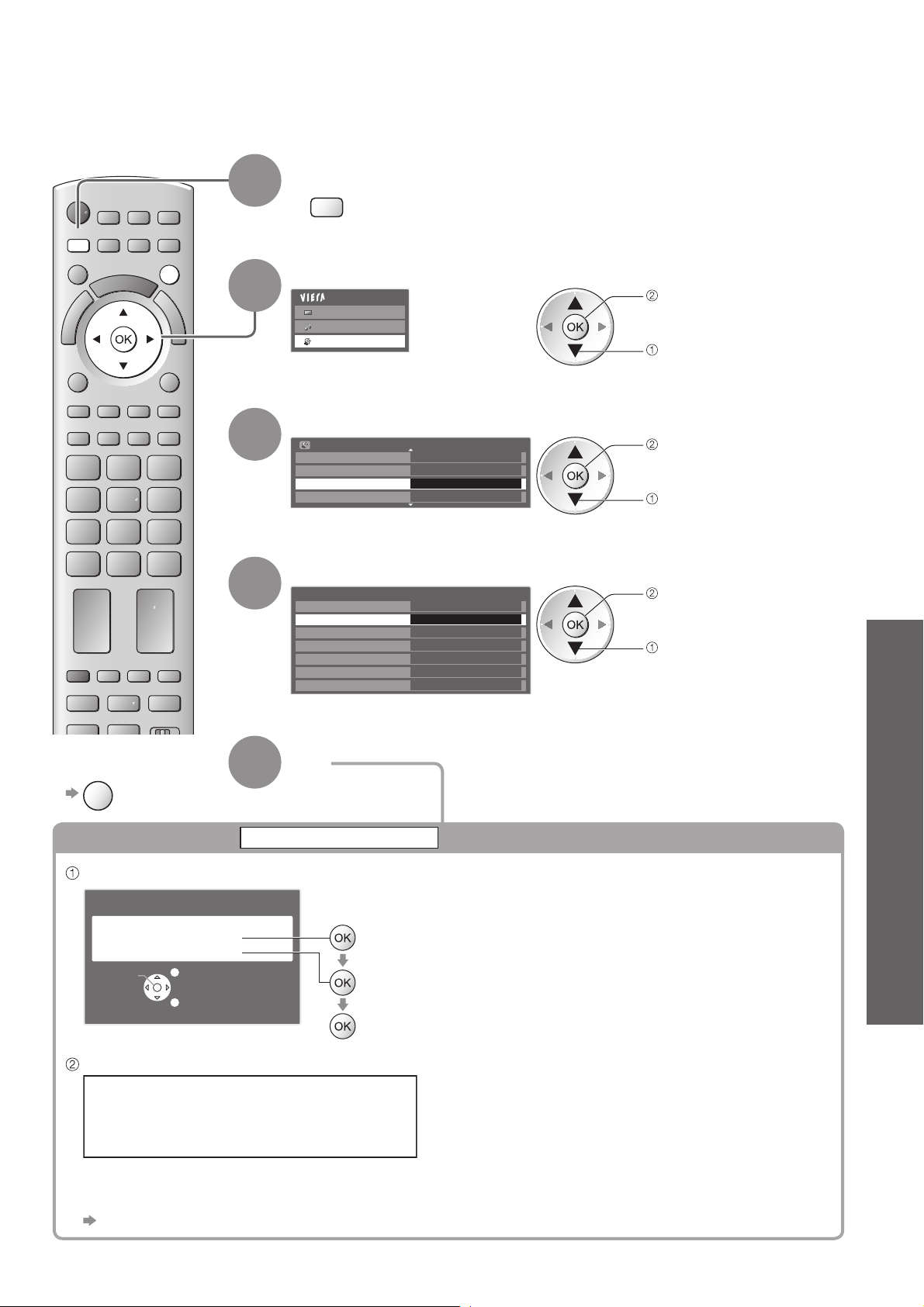

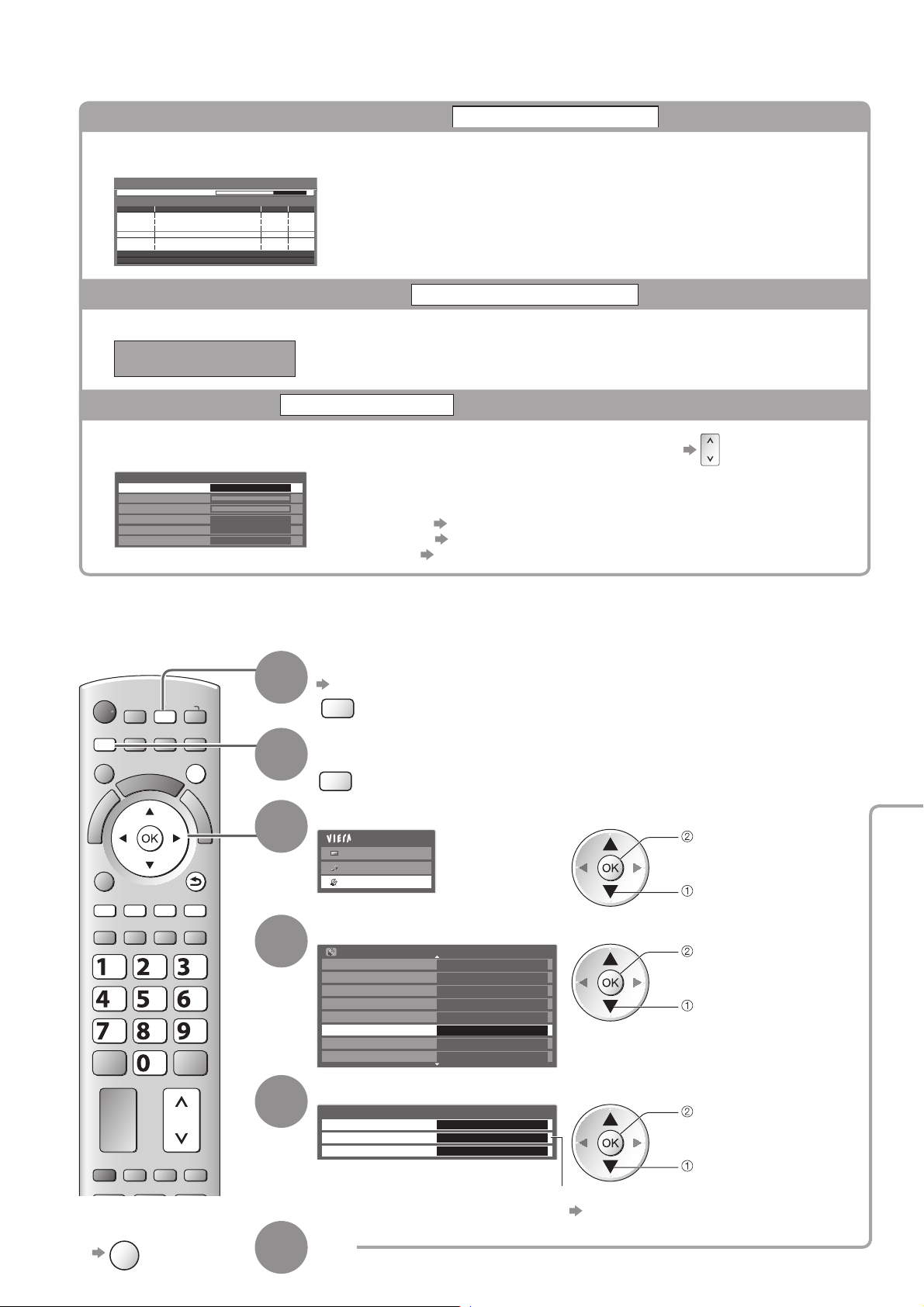

Display the menu Select “Setup” Select “Off Timer” and set the time

Main Menu


Sound

Setup

access

select

To cancel ● Set to “Off” or turn the TV off. To display the remaining time● Information banner (p. 17)

Setup Menu

Timer Programming

Off Timer Off

USB HDD Setup Link Settings Child Lock freesat Tuning Menu Other Sat. Tuning Menu Display Settings Network Setup

1/2

set select

Note

When the remaining time is within 3 minutes, the remaining time will flash on the screen.●

Using TV Guide

TV Guide―Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).

When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time ● before the TV Guide is completely shown.

freesat mode

INPUT

EXIT

OPTION

BACK/

RETURN

To return to TV ■

EXIT

To watch the programme■

Select a current programme or channel

select

access

To view a channel list ■ of the selected genre

blue

Select freesat

p. 16

Display the Channel

Genre selection list

Select the genre and view TV Guide

TV Guide date

TV Guide time

Channel position

Example:

Channel Genre Selection

and name

All Channels

Entertainment News & Sport

Movies

Lifestyle

Music

Children

Example:

Wed 28 Oct

1 BBC ONE Also in 20:00 - 20:30 DIY SOS : We open in the Battersbys

Time:

101

BBC ONE

BBC 2W Hot Wars Holiday Program

102

BBC NEWS Emmerdal. Coronation Street The Bill

103

BBCi 10 O’ clock News BBC Pepsi Char. Good bye

104

BBC THRE Panorama Spring watch Coast

105

BBC FOUR I’m A Celebrity Pop Idol News

106

BBC Radio

107

D Rugby 15 To 1 The Bill Sports

Select channel

View / Timer Prog.

-24 hours +24 hours Search Channel Genre

Special Interest

Radio

Shopping

Gaming & Dating

Interactive

Regional

Favourites

Programme

19:30 20:00 20:30 21:3021:00

Eastender DIY SOS The Bill Red Cap

EXIT Select programme RETURN

Some programmes may also be broadcast in HD

You can select HD or SD broadcast before viewing or setting Timer Programming.●

Select “View” If a programme exists in both HD and SD ●

Eastender 19:30- 20:00

View

Timer Programming

To use Timer Programming ● p. 22

Channel Genre

All Channels

Entertainment

News & Sport

Favourites

. . .

(Channel Genre list)

select

genre

view

To list favourite channels ● p. 43

Current date and time

TV Guide Wed 28 Oct 2009 10:46

Search All Channels

Drama

Cinema

Shop

GUIDE

Info

RETURN

Page up

Page down

broadcasts, the “View Options” screen will be displayed to select HD or SD broadcast.

select

watch

DIY SOS

101 BBC ONE 19:30-20:00 Wed 28 Oct 2009

119 BBC HD 19:30-20:00 Wed 28 Oct 2009

To the previous day ■

red

select

view

There might be some ● programmes displayed as greyed-out in TV Guide. These are the Off-Air programmes (non-running programmes).

View Options

watch

select

To search ■ programme types and view a channel list of the searched programmes

yellow

To search ■ programme titles and view a list of the searched programmes

yellow

All the programme titles including the word you set will be listed.● Searching without any characters will list all programmes including current programmes. ●

Search Titles...

Movie

News and Factual

Entertainment

Sport

Children’s

Search Titles...

Movie

News and Factual

Entertainment

Sport

Children’s

. . .

. . . .

(Search list)

select

type

view

select

“Search Titles...”

access

To the next day ■

green

Set characters one by one (maximum: 19 characters)

select

set

You can set characters by using numeric buttons.

“Characters table for numeric buttons” (p. 95)

green

DVB or Analogue mode

This TV supports the GUIDE Plus+ system.● The Gemstar branding partner will supply the rating informations in the programme information and the ● recommended group in the Search list. DVB and Analogue channels are displayed on the same TV Guide screen. “D” means DVB channel and “A” ● means Analogue channel. There will be no programme listings for Analogue channels.

INPUT

EXIT

OPTION

BACK/

RETURN

To return to TV ■

EXIT

To watch the programme■

Select a current programme or channel

select

access

To view a ■ channel list of the selected category

blue

Select DVB or Analogue

p. 16

View TV Guide

Select “View” (DVB mode)

All Channels

All DVB Channels

All Analogue Channels

Free DVB Channels

TV/Data DVB Channels

Favourites1

Favourites2

Favourites3

Favourites4

Example:

Wed 28 Oct 2009 10:46

TV Guide time

D: DVB A: Analogue

Timer Programming

-24 hours +24 hours Search Category

Channel position and name

Eastender 19:30- 20:00

View

Timer Programming

To use Timer Programming ● p. 22

category

view

red

Logo of the Gemstar branding partner

Also in

Some programmes may also be broadcast in HD

●

You can select HD or SD broadcast before

Page up

Page down

viewing or setting Timer Programming.

Basic

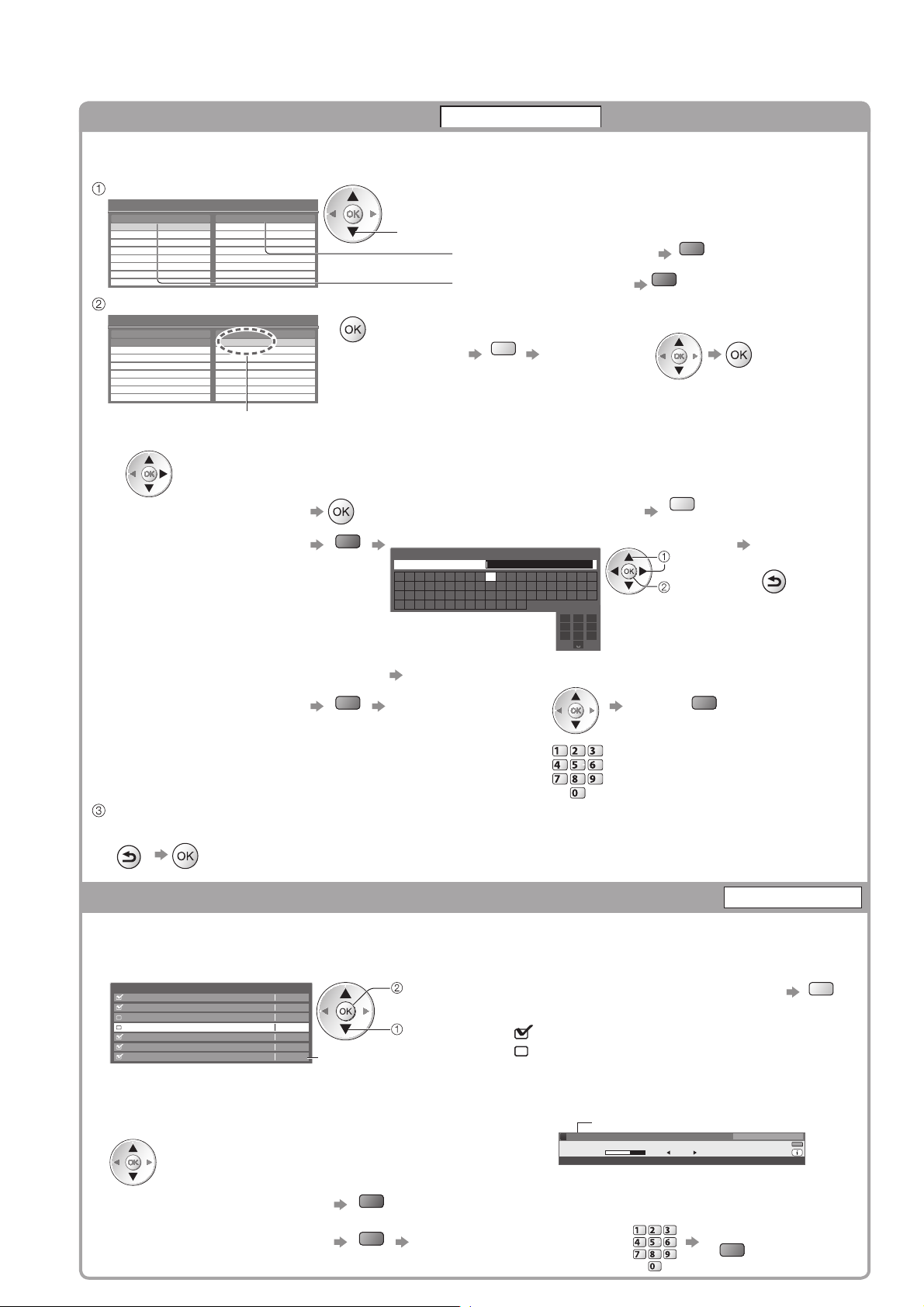

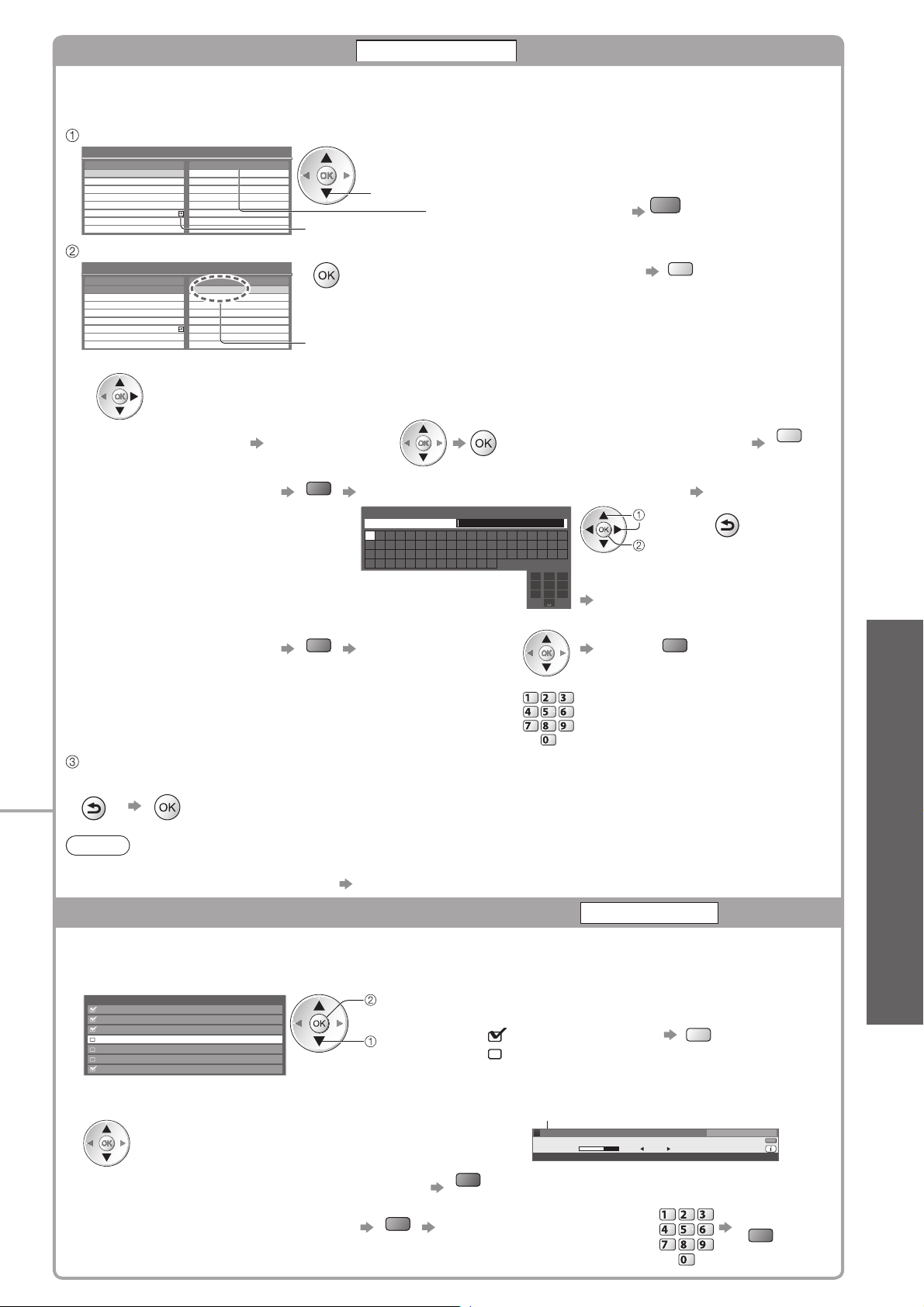

Using TV Guide ●

watch

select

To search programme

■

types and view a channel list of the searched programmes

(DVB mode)

yellow

To search ■ programme titles and view a list of the searched programmes

(DVB mode)

yellow

All the programme titles including the word you set will be listed.● Searching without any characters will list all programmes including current programmes. ●

Search Titles...

Movie

News and Factual

Entertainment

Sport

Children’s

Search Titles...

Movie

News and Factual

Entertainment

Sport

Children’s

. . .

. . . .

(Search list)

select type

view

select

“Search Titles...”

access

To the next day ■

(DVB mode)

green

Set characters one by one (maximum: 19 characters)

select

set

You can set characters by using numeric buttons.

“Characters table for numeric buttons” (p. 95)

green

DDD

Using TV Guide

Other useful functions

■

Timer Programming (freesat or DVB mode)

Timer Programming can remind you to watch a programme or record one on an external recorder or a USB HDD.

Select the forthcoming programme

select

set

Select the function (Ext Rec., USB HDD Rec. or Reminder)

Timer Programming Wed 28 Oct 2009 10:46

Ext Rec.

Channel NameFunction No.

1D BBC ONE

DIY SOS

--- --/-- --:-- --:--

---

--- --/-- --:-- --:--

---

--- --/-- --:-- --:--

Date Start End

Wed 28 Oct 20:0 0 20 :30

Guide

--/-- --:-- --:--

(30 min.)

(--- min.)

(Timer Programming screen)

Ext Rec. / USB HDD Rec.

: to record the programme to the external recorder (Ext Rec.) or the

USB HDD (USB HDD Rec.) When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 mins. before the starting time, a reminder message appears if you are watching TV.

Reminder : to remind you to watch the programme

When you are watching TV, a reminder message appears 2 mins. before the start time. Press the OK button to switch to the programmed channel.

store

select

LED will turn to orange if Timer Programming is set. (Orange LED will flash if the recording of Timer Programming is in progress.)

LED

To check / change / cancel a timer programming event■ “Timer Programming” (p. 53)

BACK/

To return to TV Guide ■

RETURN

If you select a current programme■

A confirmation screen asking whether you wish to watch or record the programme will appear. Select “Timer Programming” and set “Ext Rec.” or “USB HDD Rec.” to record from the time you finish programming the timer event setting.

Eastender 19:30- 20:00

View

Timer Programming

select access

If a programme exists in both HD and SD broadcasts■

The “Timer Options” screen will be displayed to select HD or SD broadcast.

DIY SOS

Timer Options

101 BBC ONE 19:30-20:00 Wed 28 Oct 2009

119 BBC HD 19:30-20:00 Wed 28 Oct 2009

set

select

Timer Programming Wed 28 Oct 2009 10:46

Ext Rec.

Channel NameFunction No.

1D BBC ONE

DIY SOS

--- --/-- --:-- --:--

---

--- --/-- --:-- --:--

---

--- --/-- --:-- --:--

Date Start End

Wed 28 Oct 20:00 20:30

Guide

--/-- --:-- --:--

(30 min.)

(--- min.)

(Timer Programming screen)

“ ” will be displayed if HD broadcast is set.

Note

This function is not available in Analogue mode.● Timer Programming can store up to 15 events.● Timer Programming reminder messages will remain displayed until one of the following occurs:●

You press the OK button to view the programme or the EXIT button to cancel the reminder.• The timer programming event that the reminder is set for ends.•

No other channel can be selected while the recording of Timer Programming is in progress.● When recording programmes, be sure to make the proper settings on the recorder connected to the TV.● If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 86) and the “Link Settings” (p. 34) are completed, no setting of the recorder is required. Also read the manual of the recorder. When recording programmes to the USB HDD, be sure to register the USB HDD and enable it for recording in ● the “USB HDD Setup” (p. 62).

Guide link programming (Timer Programming from the TV Guide signal)

Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer programming event will follow the change. A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes. Note that Guide link programming (including Split Programme programming) only works reliably if correct information is received from broadcasters.

Timer Programming

Function Channel Name

Ext Rec.

Reminder

Ext Rec.

---

No.

1D Wed 28 Oct 20:00 20:30

BBC ONE DIY SOS

14DE4

The Bill

72 BBC 2W

<TIMER>

D BBC ONE

Red Cap

---

Wed 28 Oct 2009 10:46

Date Start End

Guide

Wed 28 Oct 21:00 22:30

Guide

Wed 28 Oct 22:45 23:00

Thu 29 Oct 10:30 11:30

S/P

(30 min.)

(90 min.)

(15 min.)

(60 min.)

--/-- --:-- --:-(--- min.)

(Timer Programming screen)

“Guide” is displayed if the timer is set from the TV Guide (Guide link programming)

“S/P” is displayed if the timer is set from the TV Guide and the programme is a Split Programme

Note

If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no ● longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed. Whilst making the Split Programme programming event for Ext Rec. or USB HDD Rec., you cannot record ● any channels between the interrupted programmes. The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.

●

The Split Programme programming event for Reminder will switch to the programmed channel by pressing ● the OK button even if it is between the interrupted programmes. The Split Programme programming does not work if the separated parts are broadcast on different channels.●

“ ” or “ ” will be displayed in the TV Guide if Timer Programming is set as the Guide link programming.

Wed 28 Oct 2009 10:46

Wed 28 Oct

1 BBC ONE 20:00 - 20:30 DIY SOS : We open in the Battersbys

BBC ONE

BBC THREE

BBC FOUR

BBC 2W

105

BBCi

719

BBC Radi

D Rugby 15 To 1 Sports

TV Guide

Search All Channels

Time:

19:30 20:00 20:30 21:00

Eastender DIY SOS Holiday News

Hot Wars Holiday Program

Emmerdal. Coronation Street The Bill

10 O’ clock News BBC Pepsi Char. Good bye

Panorama Spring watch Coast

I’m A Celebrity Pop Idol News

Basic

View details of the programme (freesat or DVB mode)

Select the programme View details

select

Press again to return to TV Guide.●

Wed 28 Oct 2009 10:46

Timer Programming

Wed 28 Oct 2009 DIY SOS BBC ONE 20:00 - 20:30, 30 min.

EXIT

RETURN

TV Guide

Details

Return to list

View advertisement (DVB or Analogue mode)

Enter your postcode when using this function for the first time

“Postcode” in “GUIDE Plus+ Settings” (p. 36) If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12), you do not have to enter it again. If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.

Display advertisement information

OPTION

To display the latest advertisement, you will need to update the information.● To update the information continuously, the TV must be left in Standby mode at night.

To change advertisements■

Using TV Guide ●

BACK/

RETURN

To return to TV Guide■

OPTION

Note

Some advertisements are for future programmes. ●

In this case it is possible to use the Guide link programming function (above).

The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot ●

be deleted manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.

Using TV Guide

Other Sat. mode

In Other Sat. mode, TV Guide is not available. In stead, Channel List will appear.

To tune in Other Sat. Channels ● p. 49

Select Other Sat.

p. 16

Display the Channel List

All Other Sat. Channels

freesatHome

freesatSSU

Brit Shorts

HINRG LOWNRG

WELL Class

GROOVE

INPUT

EXIT

BACK/

RETURN

To return to TV ■

EXIT

Select the channel

watch

select

Viewing Teletext

You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)

The availability of teletext services for a programme is indicated by “TEXT” in the information banner.●

1 BBC ONE Wales

Coronation Street 19:30 - 20:00

All DVB Channels

20:35

Select favourites

TEXT

For info press

Now

Information banner (p. 17)

Displayed if programme has teletext service

Digital teletext (MHEG)

Digital teletext services

Digital teletext services differ greatly from analogue teletext. When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.

Select freesat or DVB

p. 16

freesat and DVB programmes have digital teletext services ● (MHEG).

Switch to Teletext

TEXT

17:51 28 Feb

How to use

In all cases, it is possible to navigate the pages using buttons on the remote control, but because the commands available must apply to all manufacturers of digital equipment, some on screen commands may not correspond exactly to the remote control buttons.

For example:

When “select” or “go” is displayed ●

TEXT

ghi

INPUT

RETURN

abc def

jkl

mno

tuvpqrs

wxyz

BACK/

Basic

Viewing Teletext ●

Using TV Guide ●

When “◄”, “►”, “▲”, “▼” symbol is displayed ●

BACK/

When “back key” is displayed ●

When the key words are displayed on colour bar ●

When options with numbers are displayed ●

TEXT

RETURN

red green yellow blue

abc def

jkl

ghi

mno

tuvpqrs

wxyz

To return to TV ■

Note

As soon as you switch to a digital channel with links to a teletext service, ● software is downloaded in the background to enable the teletext function. This means that when switching to a digital channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will allow the software to download. If you press the TEXT button before download is complete, it will be ignored and you will have to press the TEXT button again when the download is complete. While navigating digital teletext, you will find there is a short delay when ● moving between pages while the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”) to let you know that this is happening.

Viewing Teletext

Analogue teletext

Analogue teletext services

Analogue teletext services are the text information provided by the broadcasters.

The features may vary depending on the broadcasters.

What is FASTEXT mode?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more

information about one of these subjects, press the appropriately coloured button. This facility enables fast access to

information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these

numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 27)

To change mode ■ “Teletext” in the Setup Menu (p. 35)

Select Analogue or Other Sat.

INPUT

EXIT

p. 16

Other Sat. programmes are digital broadcasts. The operations ● of the teletext services, however, are equal to Analogue teletext service.

Switch to Teletext

TEXT

Displays the ● index page (content varies depending on the broadcasters)

Current page number

Sub page number

<< 01 02 03 04 05 06 07 >>

17:51 28 Feb

TELETEXT

INFORMATION

Time / date

TEXT STTL

INDEX HOLD

Select the page

abc def

jkl

ghi

tuvpqrs

To adjust contrast ■

To return to TV ■

ghi

abc def

jkl

mno

tuvpqrs

wxyz

Reveal hidden data

Reveal hidden words e.g. quiz page answers

red

To rehide ●

FULL / TOP / BOTTOM

green

Colour bar

mno

wxyz

down

green

red

(Corresponds to the colour bar)

As the blue bar is displayed

yellow blue

(press twice)

EXIT

red

(TOP) (BOTTOM) Normal (FULL)

(Expand the TOP half) (Expand the BOTTOM half)

HOLD

Stop automatic updating

(If you wish to hold the current page without updating)

HOLD

To resume ●

HOLD

INDEX

Return to the main index page

INDEX

Subtitles

View a favourite page stored

STTL

Factory setting is “P888” (subtitle service) on the blue button (List mode).●

View in multi window

Watch TV and Teletext in two windows at once

TEXT

Operations can be made only in Teletext screen.● Each time pressed: Teletext ● TV and Teletext

Store frequently viewed pages

Store frequently viewed pages in the colour bar

As page is displayed

To change stored pages■

Coloured button

you want to change

Corresponding coloured button

Enter new page number

press and hold

The number changes to white.

abc def

jkl

ghi

mno

tuvpqrs

wxyz

press and hold

View sub page

View sub page (Only when teletext is more than one page)

Appears at top of the screen

To view specific sub page■

Enter the

blue

Sub pages: ●

The number of sub pages varies depending on the broadcasters (up to 79 pages).

It may take some time for searching, during which time you can watch TV.

4-digit number

example: P6

mno

Basic

(List mode only)

If you wish to use Subtitles, ● do not change number on blue button.

Viewing Teletext ●

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

The news page provides a function that indicates arrival of latest news (“News Flash”).●

yellow

Changes to TV screen temporarily

P108

(You cannot change the channel.)

Appears when updating is completed

View the updated page

yellow

Watching External inputs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.

To connect the equipment ● p. 11 and p. 92

The Remote Control is capable of operating some functions of selected external equipment.

Turn the TV on

When connecting with SCART as example 2 or 3 ■ (p. 11)

Receives input signals automatically when playback starts

Input signals are automatically identified by the SCART (pin 8) terminal.● This function is also available for HDMI connections (p. 92).●

If input mode is not switched automatically■

Perform and

Check the setup of the equipment.●

Display the Input select menu

Select the input mode connected to the equipment

Input Selection

AV1

AV2/S

AV3 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4 TV Media Server

You can also select the input using the AV button on the remote ● control or the side panel of the TV. Press the button repeatedly until the desired input is selected. You cannot select “Media Server” using the AV button on the side panel of ● the TV. In order to switch between AV2 and AV2S, move the indicator by pressing ● left and right cursor button. You can label or skip each input mode ● “Input Labels” (p. 55) Skipped inputs will not be displayed when the AV button is pressed.

select

watch

ghi

abc def

jkl

tuvpqrs

REC

INPUT

AVTV

mno

wxyz

PROGRAMME

DVD/VCR

View

Displays the selected mode

Note

To return to TV ■

If the external equipment has an aspect adjustment function, set it to “16:9”.● For details, see the manual of the equipment or ask your local dealer.●

Screen display

Terminal

Manual input

default setting

(

in “Input Labels”

Auto input

EC mode or

(

VIERA Link

)

If the above information is permanently displayed on the top left of the screen, press the ● button to clear.

AV1 AV 2 AV3

AV1

AV1-RGB

)

EC/AV1

EC/AV1-RGB

AV2-S-Video

AV2-RGB

EC/AV2

EC/AV2-S-Video

EC/AV2-RGB

AV2

COMPONENT PC

AV3 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4

―――

HDMI1 HDMI2 HDMI3 HDMI4

EC/HDMI1

Applicable for

●

EC mode and VIERA Link

EC/HDMI2

Applicable ● for VIERA Link

EC/HDMI3

Applicable ● for VIERA Link

Operating the equipment with the TV remote control

The Panasonic equipment connected to the TV can be directly operated with the below buttons of this TV remote control.

Selection Switch for operating the connected equipment

Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc theatre or VCR

DVD/VCR

■

How to change the code for the type of the equipment

Each type of the Panasonic equipment has its own remote control code. Please change the code according to the equipment you want to operate.

Set the position to “DVD/VCR”

PROGRAMME

REC

“How to change the code for the type of the equipment” (see below)

Select “TV” to use USB HDD Recording, Media Player or VIERA Link

“USB HDD Recording” (p. 64) “Media Player” (p. 70) “VIERA Link Control” (p. 90)

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip / Search

VCR: Rewind, view the picture rapidly in reverse DVD / video content: Skip to the previous track or title

(not available for the operation of USB HDD Recording) Press and hold to search backward

Fast-forward / Skip / Search

VCR: Fast-forward, view the picture rapidly forward DVD / video content: Skip to the next track or title

(not available for the operation of USB HDD Recording) Press and hold to search forward

Pause

Pause / Resume DVD: Press and hold to play at slow speed

Channel Up / Down

Select channel

Record

Start recording

DVD/VCR

EC/HDMI4

Applicable ● for VIERA Link

Basic

Watching External inputs ●

Press and hold during the following operations

abc def

jkl

ghi

Enter the appropriate code, see table below

mno

tuvpqrs

wxyz

Press

Type of the equipment Code

DVD Recorder, DVD Player 70 (default)

Player theatre, Blu-ray Disc theatre 71

VCR 72

Note

Confirm if the remote control works correctly after changing the code.● The codes may be reset to default values if batteries are replaced.● Some operations may not be possible on some equipment models.●

How to Use VIERA TOOLS

You can access some special features easily by using the VIERA TOOLS function.

For “VIERA Link Control” and “Pause Live TV” functions to operate correctly, ensure the connections and settings ● are completed.

“Summary of Q-Link and VIERA Link features” (p. 84 and p. 85), “Preparations” (p. 87)

After connection, turn the equipment on and then switch the TV on.

For “Photo”, “Video” and “Music” functions to operate correctly, ensure the device has photo or video data on it ● and insert it into the SD Card slot or USB port properly.

”Using Media Player” (p. 66)

Display icons of the feature

EXIT

Select a feature

select

access

VIERA Link Control

Follow the operations of each feature

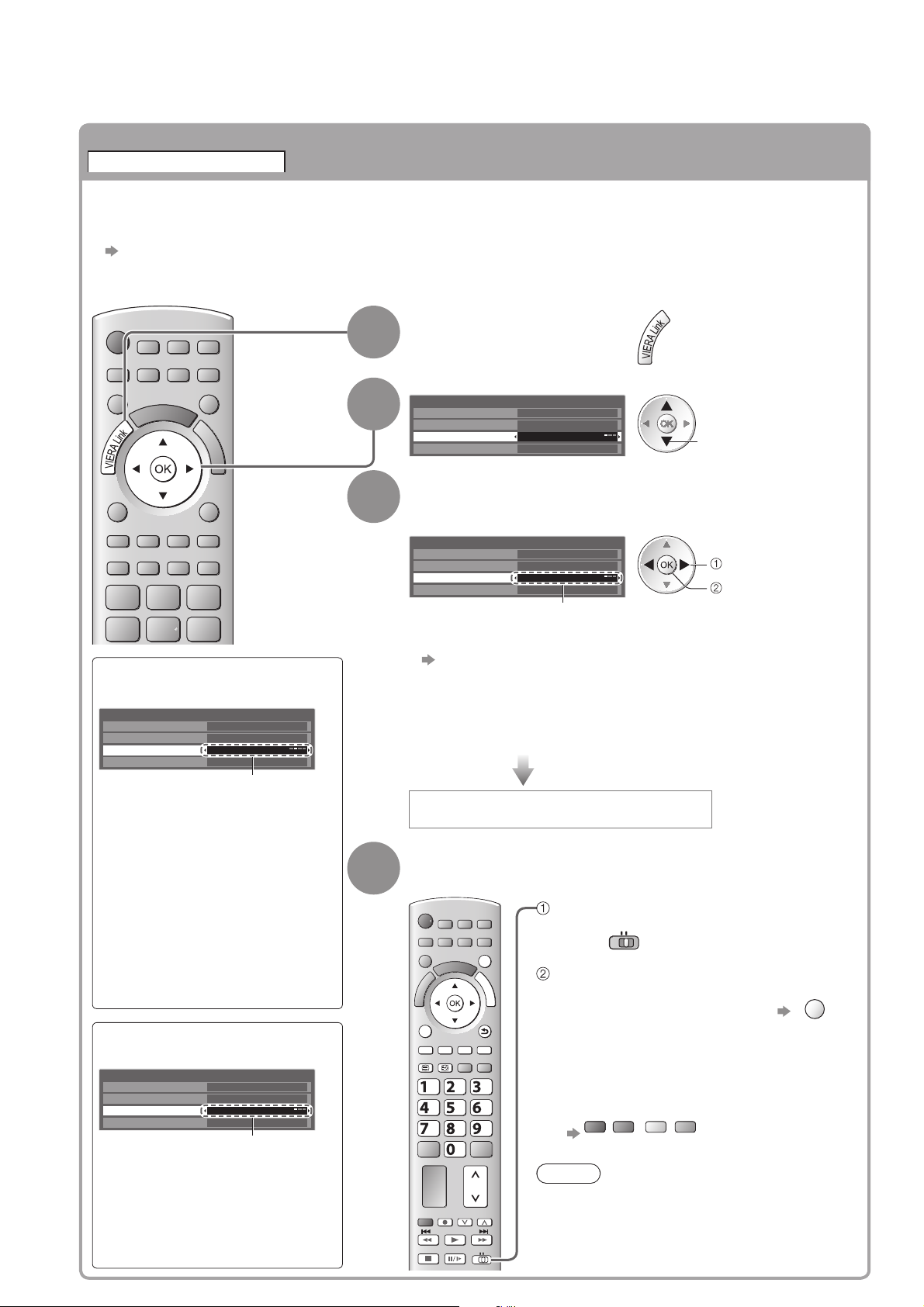

VIERA Link Control● “VIERA Link Control” (p. 90)

When two or more compatible equipment are connected, a selection screen will be displayed. Please select the correct description and access.

Pause Live TV● “Pause Live TV” (p. 89)

Photo● “Photo mode” (p. 68)

To return to TV■

EXIT

When two or more available devices are connected, a selection screen will be displayed. Please select the correct description and access.

Video● “Video mode” (p. 70)

When two or more available devices are connected, a selection screen will be displayed. Please select the correct description and access.

Music● “Music mode” (p. 73)

When two or more available devices are connected, a selection screen will be displayed. Please select the correct description and access.

Media Server● “Using DLNA® features” (p. 80)

Note

If the selected feature is not available, the demonstration to explain how to use it ● can be displayed. Press the OK button to view the demonstration after selecting the unavailable feature.

+ 78 hidden pages
