Panasonic DP-C406 Specification

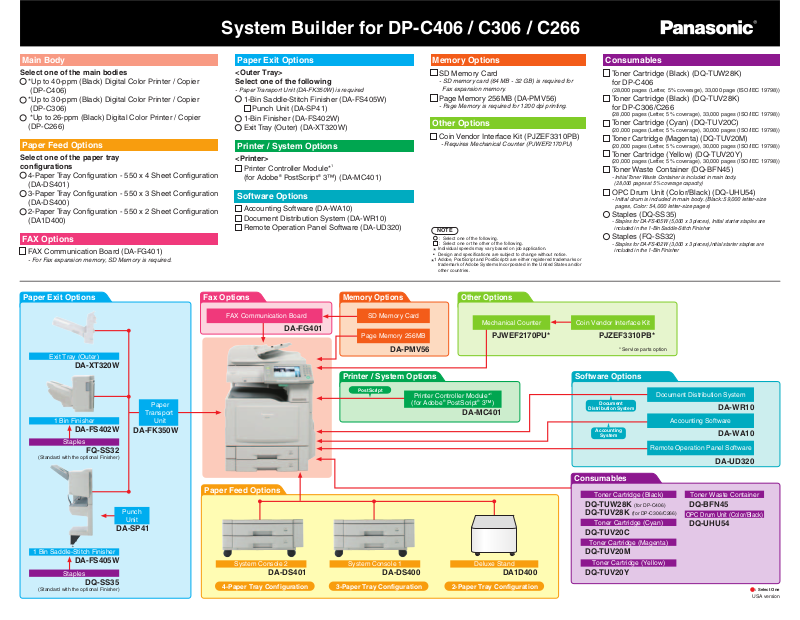

System Builder for DP-C406 / C306 / C266

Main Body

Select one of the main bodies

*Up to 40-ppm (Black) Digital Color Printer / Copier (DP-C406) *Up to 30-ppm (Black) Digital Color Printer / Copier (DP-C306)

*Up to 26-ppm (Black) Digital Color Printer / Copier

(DP-C266)

Paper Feed Options

Select one of the paper tray configurations

4-Paper Tray Configuration - 550 x 4 Sheet Configuration (DA-DS401) 3-Paper Tray Configuration - 550 x 3 Sheet Configuration (DA-DS400) 2-Paper Tray Configuration - 550 x 2 Sheet Configuration (DA1D400)

FAX Options

FAX Communication Board (DA-FG401)

- For Fax expansion memory, SD Memory is required.

Paper Exit Options

Exit Tray (Outer)

DA-XT320W

Paper

Transport

1 Bin Finisher

DA-FS402W

Staples

(Standard with the optional Finisher)

FQ-SS32

Unit

DA-FK350W

Paper Exit Options

<Outer Tray> Select one of the following

- Paper Transport Unit (DA-FK350W) is required

1-Bin Saddle-Stitch Finisher (DA-FS405W) Punch Unit (DA-SP41) 1-Bin Finisher (DA-FS402W) Exit Tray (Outer) (DA-XT320W)

Printer / System Options

Printer Controller Module* (for Adobe

Software Options

Accounting Software (DA-WA10) Document Distribution System (DA-WR10) Remote Operation Panel Software (DA-UD320)

Fax Options

FAX Communication Board

PostScript® 3™) (DA-MC401)

Memory Options

DA-FG401

Page Memory 256MB

Printer / System Options

PostScript

SD Memory Card

DA-PMV56

Memory Options

SD Memory Card

- SD memory card (64 MB - 32 GB) is required for Fax expansion memory.

Page Memory 256MB (DA-PMV56)

- Page Memory is required for 1200 dpi printing.

Other Options

Coin Vendor Interface Kit (PJZEF3310PB)

- Requires Mechanical Counter (PJWEF2170PU)

NOTE

Select one of the following.

Select one or the other of the following.

Individual speeds may vary based on job application.

Design and specifications are subject to change without notice.

• Adobe, PostScript and PostScript3 are either registered trademarks or

trademark of Adobe Systems Incorporated in the United States and/or other countries.

Other Options

Mechanical Counter

PJWEF2170PU*

Printer Controller Module*

(for Adobe® PostScript® 3™)

DA-MC401

Consumables

Toner Cartridge (Black) (DQ-TUW28K) for DP-C406

(28,000 pages (Letter, 5% coverage), 33,000 page (ISO/IEC 19798))

Toner Cartridge (Black) (DQ-TUV28K) for DP-C306/C266

(28,000 pages (Letter, 5% coverage), 33,000 pages (ISO/IEC 19798))

Toner Cartridge (Cyan) (DQ-TUV20C)

(20,000 pages (Letter, 5% coverage), 30,000 pages (ISO/IEC 19798))

Toner Cartridge (Magenta) (DQ-TUV20M)

(20,000 pages (Letter, 5% coverage), 30,000 pages (ISO/IEC 19798))

Toner Cartridge (Yellow) (DQ-TUV20Y)

(20,000 pages (Letter, 5% coverage), 30,000 pages (ISO/IEC 19798))

Toner Waste Container (DQ-BFN45)

- Initial Toner Waste Container is included in main body.

(28,000 pages at 5% coverage capacity)

OPC Drum Unit (Color/Black) (DQ-UHU54)

- Initial drum is included in main body. (Black: 59,000 letter-size pages, Color: 54,000 letter-size pages)

Staples (DQ-SS35)

- Staples for DA-FS405W (5,000 x 3 pieces), Initial starter staples are included in the 1-Bin Saddle-Stitch Finisher

Staples (FQ-SS32)

- Staples for DA-FS402W (3,000 x 3 pieces),Initial starter staples are included in the 1-Bin Finisher

Coin Vendor Interface Kit

PJZEF3310PB*

* Service parts option

Software Options

Document

Distribution System

Accounting

System

Document Distribution System

DA-WR10

Accounting Software

DA-WA10

Remote Operation Panel Software

DA-UD320

1 Bin Saddle-Stitch Finisher

DA-FS405W

Staples

(Standard with the optional Finisher)

DQ-SS35

Punch

Unit

DA-SP41

Paper Feed Options

System Console 2

DA-DS401

4-Paper Tray Configuration

System Console 1

DA-DS400

3-Paper Tray Configuration 2-Paper Tray Configuration

Deluxe Stand

DA1D400

Consumables

Toner Cartridge (Black)

DQ-TUW28K (for DP-C406) DQ-TUV28K (for DP-C306/C266)

Toner Cartridge (Cyan)

DQ-TUV20C

Toner Cartridge (Magenta)

DQ-TUV20M

Toner Cartridge (Yellow)

DQ-TUV20Y

Toner Waste Container

DQ-BFN45

OPC Drum Unit (Color/Black)

DQ-UHU54

Select One

USA version

System Builder for DP-C406 / C306 / C266

Color for Smarter Communications Specifications

Smarter Maintenance

Panasonic's Easy Maintenance Mode provides convenient access to machine usage information for improved servicing and support.

• Machine Usage List

• Machine Diagnostic List

• Counter Information List

• Service History List

Operate smarter

• Adjustable 8.5" TFT Color LCD Panel

• Intuitive and Easy to Use Interface

• Embedded Web Server

• High Security

Scan/Send smarter

• Color Scan to Email (LDAP compatible)

•

Scan to PC, SD/USB, Internal 160GB HDD

• Compressed PDF

• Standard Internet Fax

• Super G3 Fax and PC Fax (option)

Print smarter

• Quick Start

• Direct Printing System (Direct, Delivery and Parallel Printing)

•

Genuine Adobe PostScript 3 (option)

• SD/USB Direct Print

• Advanced Image Processing Features

Copy smarter

• Color Double Exposure/Digital Skyshot

• Variable Copy Modes

Easily copy Maps, Newspaper, etc.

• Versatile Finishing

Feature

Type: Acceptable Originals: Copying Method: Fusing Method: Processor: Image Memory

(STD/MAX) Original Capacity/Speed: Imaging Method: Resolution:

Operation Panel: Output Size:

Warm Up Time: (68 °F/20 °C)

First Copy Time: (Letter , from 1st Tray, platen)

Output Speed: (8.5" x 11" / A4 from Paper Tray 1)

Enlargement Ratios:

Reduction Ratios:

Paper Feed:

Paper Weight:

Quantity Selector: Inner Tray Output

Capacity: SD Card Slot: USB Slot: Electrical Requirement: Power Consumption: Dimensions (W x D x H): Weight: Compatible Operating

Systems: Communication Protocol:

DP-C406/C306/C266

Semi Console Type Sheets, Books (Max. 11"x17" / A3) Laser Indirect Electrostatic Induction Heating System 1GHz PowerPC460EX 512MB, 160GB HDD / 768MB, 160GB HDD

Up to 100 sheets/45 opm (LTR/A4) Dry-Type Dual Component Trickle Copy: Max. 600 dpi

Print: Max. 1200 x 1200 dpi

8.5" Full Color TFT Touch Panel Paper Tray : 11" x 17" - 5.5" x 8.5" / A3 - A5

Sheet Bypass : 12" x 18" - 5.5" x 8.5" /

Approx. 15 seconds (from Power Saver mode/Sleep mode) Approx. 18 seconds (Main Power Switch ON)

Color: Less than 10.3 seconds B &W: Less than 6.2 seconds (DP-C406)

Color: B &W: Up to 40 ppm (DP-C406)

Preset: 121%, 129%, 155%, 200% Var iable:From 101% to 400% in 1% increments

Preset: 79%, 77%, 65%, 61%, 50% Var iable:From 99% to 25% in 1% decrements

Standard Paper Tray (550 sheets x 2) + Sheet Bypass (100 Sheets) Optional Paper Tray (550 sheets x 2)

Paper Tray: 18-45 lb / 64-169 g/m Sheet Bypass: 15-40 lb / 55-150 g/m

Duplex: 18-45 lb / 64-169 g/m Max. 999 sheets Max. 250 sheets

(150 sheets: Optional Finisher or Exit Tray is installed.) Use only Genuine SD/SDHC Memory Card (up to 32 GB). FAT16/FAT32 Format USB Mass Storage Class only. AC 120 V, 60 Hz, 12 A Less than 1.44 kW

26.1" x 30.5" x 36.7" (664 x 774 x 933mm)

354.3 lb (160.7 kg) Windows Vista, Windows XP/2000/Server 2008/2003

Mac OS 8.6 - 10.5 (PS Only) Network Printer: TCP/IP (LPD, [Port9100/RAW], SNMP,

Network Scanner: TCP/IP (LPR, FTP) Internet Fax/Scan-to-Email: TCP/IP, SMTP, POP3, LDAP

A3 - A5, 12" x 36"* - Envelope#10

Less than 6.7 seconds (DP-C306) Less than 7.3 seconds (DP-C266)

Up to 30 ppm (DP-C406/C306), 26 ppm (DP-C266)

Up to 30 ppm (DP-C306) Up to 26 ppm (DP-C266)

(Bond Paper)

90-140 lb (Index, Coated Paper)

DHCP, SMB), AppleTalk (PS), IPP

(Bond Paper),

(Bond Paper)
