IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual before
using the elliptical exerciser.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
in-home use only. Do not use the elliptical
exerciser in a commercial, rental, or institutional setting.
4. Place the elliptical exerciser on a level surface, with a mat beneath it to protect the
floor or carpet. Keep the elliptical exerciser
indoors, away from moisture and dust.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 250 pounds.
8. Wear appropriate exercise clothing when
using the elliptical exerciser. Always wear
athletic shoes for foot protection.
9. Always hold the handlebars when mounting,
dismounting, or using the elliptical exerciser.
10. Keep your back straight when using the elliptical exerciser; do not arch your back.
11. If you feel pain or dizziness while exercising, stop immediately and cool down.
12. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
13. When you stop exercising, allow the pedals
to slowly come to a complete stop. The elliptical exerciser does not have a free wheel;
the pedals will continue to move until the
flywheel stops.
14.Always unplug the power cord immediately
after use and before cleaning the elliptical
exerciser.
15.The decal shown below has been placed on
the elliptical exerciser. If the decal is missing
or illegible, please call our Customer Service
Department toll-free at 1-888-825-2588 to
order a free replacement decal. Apply the
decal in the location shown.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
4
BEFORE YOU BEGIN
Congratulations for selecting the new NordicTrack
®
CX 990 elliptical exerciser. The CX 990 is an incredibly smooth exerciser that moves your feet in a natural
elliptical path, minimizing the impact on your knees
and ankles. And the unique CX 990 features
adjustable resistance and incline to help you get the
most from your exercise. Welcome to a whole new
world of natural, elliptical-motion exercise from
NordicTrack.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading the manual, please call our
Customer Service Department toll-free at 1-888-8252588, Monday through Friday, 6 a.m. until 6 p.m.
Mountain Time (excluding holidays). To help us assist
you, please note the product model number and serial
number before calling. The model number is
NEL09940. The serial number can be found on a
decal attached to the elliptical exerciser (see the front
cover of this manual for the location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Water Bottle Holder*
*No water bottle is included
Handlebar
Pulse Sensor
FRONT
BACK
RIGHT SIDE
Power Socket
Wheel
Pedal
Fan
Console
Ramp
Upright
Leveling Foot
Pedal Leg
5
ASSEMBLY
Assembly requires two people. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the four
included allen wrenches, assembly requires a phillips screwdriver , two adjustable
wrenches , a rubber mallet , and pliers .
As you assemble the elliptical exerciser, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
pages 24 and 25. The second number refers to the quantity used in assembly. Note: Some small parts may
have been pre-assembled. If a part is not in the parts bag, check to see if it is pre-assembled.
1. Identify the Front Stabilizer (8). While another person
lifts the front of the Frame (1) and holds the Pedal
Legs (4, 5) in the position shown, attach the Front
Stabilizer to the Frame with four M8 x 44mm Button
Screws (84) and a Support Plate (104).
While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (not shown) to the Frame
in the same way.
1
8
4, 5
1
104
84
84
M6 Washer
(64)–2
M6 x 16mm Patch
Screw (76)–4
M8 x 44mm Button Screw (84)–8
M8 x 38mm Button Bolt
(105)–2
M10 Split
Washer (73)–2
M8 x 54mm Button Screw (83)–4
7.6mm Spacer
(109)–2
M8 Jam Nut
(86)–6
M8 x 79mm Bolt Set (65)–2
M10 x 108mm Button Screw (70)–2
M4 x 12mm
Round Head
Screw (96)–1
M8 x 41mm Button
M4 x 16mm
Screw (98)–4
Bolt (85)–4
6
3
14
1
Grease
48
48
76
76
99
99
Tubes
2. Identify the Pivot Axle (14), which is the longer of the
two axles. Slide a Ramp Cover (48) onto an M6 x
16mm Patch Screw (76) as shown. Tighten the Patch
Screw into one end of the Pivot Axle. Apply a small
amount of the included grease to the Pivot Axle.
Have a second person hold the two Ramp Spacers
(99) against the sides of the Frame (1) so they cover
the indicated tubes on the Frame. Lift the Pedal Legs
(not shown) out of the way and align the round tubes
on the Ramp (3) with the Ramp Spacers. Make sure
that the Ramp is turned as shown in drawing 3
below. Insert the Pivot Axle (14) into the Ramp, the
Ramp Spacers, and the Frame. If necessary, tap the
Pivot Axle with a rubber mallet to insert it.
Slide the other Ramp Cover (48) onto an M6 x 16mm
Patch Screw (76) as shown. Tighten the Patch Screw
into the open end of the Pivot Axle (14).
Tubes
2
3
3. Slide an M6 Washer (64) onto an M6 x 16mm Patch
Screw (76). Tighten the Patch Screw into one end of
the Incline Axle (13). Apply a small amount of grease
to the Incline Axle.
Raise the Ramp (3). Insert the Incline Axle (13) into
the welded tube under one side of the Ramp, through
the motor screw, and then into the welded tube under
the other side of the Ramp. As you insert the Incline
Axle through the motor screw, make sure that the
motor screw does not turn.
Slide an M6 Washer (64) onto an M6 x 16mm Patch
Screw (76). Tighten the Patch Screw into the open
end of the Incline Axle (13).
13
Grease
Motor
Screw
64
76
3
64
76
4. Have another person hold the Upright (2) in the position shown. Make sure that the Upright is turned as
shown in drawing 5 on page 7.
Connect the Upper Wire Harness (115) to the Lower
Wire Harness (42). Carefully pull the upper end of
the Upper Wire Harness to remove the slack from
the Wire Harnesses. Insert the Upright (2) into the
Frame (1). Be careful to avoid disconnecting or
pinching the Wire Harnesses. Attach the Upright with
two M10 x 108mm Button Screws (70), two M10 Split
Washers (73), and two 7.6mm Spacers (109). Make
sure that the curved sides of the Spacers are facing the Upright. Be careful to avoid damaging the
Wire Harnesses with the Button Screws. Do not
tighten the Button Screws yet.
2
115
70
42
1
73
73
109
4
109
7
5
85
105
86
118
119
Grease
86
23
24
2
31
3
Lubricate
118
5. Slide a Weld Spacer (119) onto the axle on the left
side of the Upright (2), with the open side of the Weld
Spacer facing the Upright. Apply a small amount of
grease to the axle.
Apply a small amount of the included Teflon
®
lubricant
to a paper towel. Rub a thin film of the lubricant onto
one of the Upper Body Legs (31). Insert the Upper
Body Leg into one of the Upper Body Arms (118) as
shown. Hold the Upper Body Arm with one hand, hold
the Upper Body Leg with your other hand, and slide
the Upper Body Arm onto the axle on the left side of
the Upright (2). Then, slide the Upper Body Leg out of
the Upper Body Arm until it rests on the Ramp (3).
Have another person hold the Left Handlebar (24)
near the Upright (2) as shown. Connect the left Pulse
Sensor Wire (20) to the Pulse Extension Wire (114).
Slide the upper end of the Left Handlebar (24) into the
tube on the front of the Upright (2), while sliding the
lower end of the Left Handlebar onto the axle on the
left side of the Upright. Attach the upper end of the
Left Handlebar with two M8 x 41mm Button Bolts (85)
and two M8 Jam Nuts (86); be careful not to damage
the Wires (20, 114) as you insert the Button Bolts.
Make sure that the Jam Nuts are resting in the
hexagonal holes in the Left Handlebar. Attach the
lower end of the Left Handlebar with an M8 x 38mm
Button Bolt (105) and an M8 Jam Nut (86).
Attach the other Upper Body Arm (118) and the Right
Handlebar (23) to the Upright (2) in the same way.
114
20
26
96
25
25
2
26
26
6. Look inside one of the Handlebar Covers (26) and
locate the square tabs connecting the two halves.
Gently lift the tabs and disconnect the halves.
Hold the two halves of the Handlebar Cover (26)
around the tube on the left side of the Upright (2). Align
the halves and press them together until they lock.
Attach the other Handlebar Cover (26) to the right side
of the Upright (2) in the same way.
Hold the halves of the Upper Handlebar Cover (25)
around the tube on the front of the Upright (2); be
careful not to damage the Wires (not shown).
Attach the Upper Handlebar Cover with an M4 x 12mm
Round Head Screw (96).
6
8
10.Make sure that all parts of the elliptical exerciser are properly tightened. Cover the floor beneath the
elliptical exerciser to protect the floor from damage. Note: Some extra hardware may be left over.
The elliptical exerciser is now fully assembled. If you have purchased the optional chest pulse sensor
(see page 21), refer to page 9 of this manual.
7. Apply a liberal amount of grease to the long side of
each M8 x 79mm Bolt Set (65).
Identify the Left Pedal (10), which has a notch near
the right side. Place the Left Pedal on the Left Pedal
Leg (4). Have a second person hold the bracket on the
left Upper Body Leg (31) inside of the bracket on the
Left Pedal Leg, and hold a Wheel (28) inside of the
bracket on the left Upper Body Leg.
Align the indicated holes, and attach the Left Pedal
(10), the left Upper Body Leg (31), and the Wheel (28)
to the Left Pedal Leg (4) with an M8 x 79mm Bolt Set
(65). Attach the other end of the Left Pedal to the Left
Pedal Leg with two M8 x 54mm Button Screws (83).
Repeat this step on the right side of the elliptical
exerciser.
See step 4. Tighten the two M10 x 108mm Button
Screws (70).
4
10
5
83
65
28
Notch
9. Plug the Power Cord (116) into the Power Socket
(117) at the rear of the elliptical exerciser.
116
117
9
8. Have another person hold the Console (17) near the
Upright (2).
Connect the Upper Wire Harness (115) to the wire harness on the Console (17). Connect the Pulse
Extension Wire (114) to the pulse wire on the Console.
Next, locate the two ground wires that are attached
with a screw to the Upright (2). Connect the ground
wires to the two smallest wires on the Console.
Carefully insert all excess wiring up into the Console
(17) and down into the Upright (2). Attach the Console
to the Upright with four M4 x 16mm Screws (98).
(Note: The Screws may be shipped in the console
box.) Be careful to avoid pinching the wires.
17
Ground
Wires
2
98
98
115
114
Do not pinch
the wires
during this step.
8
7
65
31
Holes
Grease
9
INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you have purchased the optional chest pulse sensor (see page 21), follow the steps below to install the
receiver included with the optional chest pulse sensor.
1. Look under the Console (17) and locate the access
cover. Remove the access cover.
2. Hold the receiver in the position shown, with the small
cylinder at the top. Using the two screws included with
the chest pulse sensor, attach the receiver to the two
plastic posts (not shown) inside the access opening in
the back of the Console (17).
3. Connect the wire on the receiver to the indicated wire
on the Console (17). Make sure that the connectors on
the wires snap together. Discard the other wires included with the chest pulse sensor.
4. Reattach the access cover to the Console (17).
Screws
17
Cylinder
Receiver
Access Cover
10
HOW TO PLUG IN THE POWER CORD
This product
must be
grounded.
If it should
malfunction
or break
down,
grounding
provides a
path of least
resistance for
electric
current to reduce the risk of electric shock. This product is equipped with a cord having an equipmentgrounding conductor and a grounding plug. Plug the
power cord into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. This product is for
use on a nominal 120-volt circuit. Important: The
elliptical exerciser is not compatible with GFCIequipped outlets.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown at
the right if a
properly
grounded
outlet is not
available. The temporary adapter should be used only
until a properly grounded outlet can be installed by a
qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in
place by a metal screw. Some 2-pole receptacle out-
let box covers are not grounded. Contact a qualified electrician to determine if the outlet box cover
is grounded before using an adapter.
Note: When the power cord is plugged in, the elliptical exerciser’s incline system may automatically
calibrate itself. During the calibration process, two
dashes (– –) will appear in the left display of the
console and the ramp will move to the highest
position and then return to the lowest position.
The calibration process will last for one to two
minutes.
EXERCISING ON THE ELLIPTICAL EXERCISER
To mount the elliptical exerciser, hold the handlebars
and step onto the pedal that is in the lowest position.
Next, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion.
To dismount the elliptical exerciser, wait until the pedals come to a complete stop. The elliptical exerciser
does not have a free wheel; the pedals will continue to move until the flywheel stops. When the ped-
als are stationary, step off the highest pedal first.
Then, step off the lowest pedal.
DANGER:
Improper connection of
the equipment-grounding conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product is
properly grounded. Do not modify the plug
provided with the product—if it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
Grounded Outlet Box
Grounding Plug
Grounded Outlet
Grounding Pin
HOW TO USE THE ELLIPTICAL EXERCISER
Grounded Outlet Box
Adapter
Lug
Metal Screw
Pedals
Handlebar
11
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the elliptical exerciser and
the angle of the ramp can be changed with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. Y ou can even measure
your heart rate using the handgrip pulse sensor. Note:
For information about an optional chest pulse sensor, see page 21.
The console also offers six resistance and pace programs. Each program automatically changes the resistance of the elliptical exerciser and prompts you to
increase or decrease your pace as it guides you
through an effective workout.
In addition, the console features two heart rate programs that automatically change the resistance of the
elliptical exerciser and prompt you to vary your pace to
keep your heart rate near a target level as you exercise.
The console also features iFIT.com interactive technology. Having iFIT.com technology is like having a personal trainer in your home. Using the included audio
cable, you can connect the elliptical exerciser to your
home stereo, portable stereo, computer, or VCR and
play special iFIT.com CD and video programs (iFIT.com
CDs and videocassettes are available separately).
iFIT.com CD and video programs automatically control
the resistance of the elliptical exerciser and prompt
you to vary your pace as a personal trainer coaches
you through every step of your workout. High-energy
music provides added motivation. To purchase
iFIT.com CDs and videocassettes, call toll-free
1-800-735-0768.
With the elliptical exerciser connected to your computer, you can also go to our Web site at www.iFIT.com
and access programs directly from the internet.
Explore www.iFIT.com for more information.
CONSOLE DIAGRAM
Note: If there is a sheet of clear plastic on the face of the console, remove it before using the console.
Matrix
Training Zone Bar
Left Display
12
HOW TO USE THE MANUAL MODE
Press any button on the console or begin
pedaling to turn on the console.
Make sure that the power cord is properly
plugged in (see page 10). Next, press any button
on the console or begin pedaling to turn on the
console. After a few seconds, the console displays will light. A tone will then sound and the
console will be ready for use.
Select the manual mode.
When the power is
turned on, the
manual mode will
be selected. If you
have selected a
program or the
iFIT.com mode,
select the manual mode by pressing the Program
Select button repeatedly until a track appears in
the matrix.
Begin pedaling and change the resistance of
the elliptical exerciser as desired.
As you pedal,
change the resistance of the elliptical exerciser by
pressing the
Resistance buttons. There are
ten resistance levels. Note: After the Resistance
buttons are pressed, it will take a moment for the
elliptical exerciser to reach the selected resistance level.
Adjust the angle of the ramp as desired.
As you pedal,
change the angle
of the ramp by
pressing the
Ramp buttons.
There are five
ramp angles.
Note: After the Ramp buttons are pressed, it will
take a moment for the ramp to reach the selected angle.
Monitor your progress with the matrix, the
Training Zone bar, and the two displays.
The matrix—
When the manual
mode or the
iFIT.com mode is
selected, the matrix
will show a track
representing 1/4
mile. As you exercise, the indicators around the
track will light, one at a time, until the entire track
is lit. When you have completed a lap, a new lap
will begin.
The Training Zone
bar—The Training
Zone bar will show
your pace and the
approximate intensity level of your
exercise. For example, if three or four indicators in the bar are lit, the
bar shows that your pace is ideal for fat burning.
During programs, the Training Zone bar will also
prompt you to increase or decrease your pace.
The left display—
The left display will
show the elapsed
time, the resistance
level of the elliptical
exerciser, and the
total number of revolutions you have pedaled. The display will
change from one number to the next every few
seconds, as shown by the indicators around the
display. Note: When a program is selected, the
display will show the time remaining in the program instead of the elapsed time.
The right
display—The right
display will show
your heart rate,
your pedaling pace
(in revolutions per
minute), the angle
of the ramp, and the approximate number of calories you have burned. The display will change
from one number to the next every few seconds,
as shown by the indicators around the display.
The display will also show your heart rate when
you use the handgrip pulse sensor or the optional
chest pulse sensor.
5
4
3
2
1
13
Measure your heart rate if desired.
Note: If you hold the handgrip pulse sensor
and wear the optional chest pulse sensor at
the same time, the console may not display
your heart rate accurately.
If there are
thin sheets of
plastic on the
metal contacts
on the handgrip pulse
sensor, peel
off the plastic.
To measure
your heart rate,
hold the contacts; your
palms must be resting on the upper contacts, and
your fingers must be touching the lower contacts.
Avoid moving your hands.
When your pulse is
detected, the Heart
Rate indicator
above the right display will begin to
flash, one or two
dashes (– –) will
appear in the right display, and then your heart rate
will be shown. For the most accurate heart rate
reading, hold the contacts for at least 15 seconds.
Note: If you continue to hold the pulse sensor, the
right display will show your heart rate for up to 30
seconds. The display will then show your heart
rate along with the other modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be careful not to move your hands excessively or to
squeeze the metal contacts too tightly. For optimal performance, clean the metal contacts using
a soft cloth; never use alcohol, abrasives, or
chemicals.
Turn on the fan if desired.
To turn on the fan at low speed, press the Fan
button. Pivot the fan to the desired angle. To turn
on the fan at high speed, press the Fan button a
second time. To turn off the fan, press the Fan
button a third time.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for several seconds, a
tone will sound, the console will pause, and the
left display will begin to flash.
If the pedals are not moved for about five minutes, the console will turn off and the displays will
be reset.
8
7
6
Contacts
14
HOW TO USE RESISTANCE AND PACE
PROGRAMS
Press any button on the console or begin
pedaling to turn on the console.
See step 1 on page 12.
Select one of the six resistance and pace
programs.
When the power is
turned on, the
manual mode will
be selected. To
select a resistance
and pace program,
press the Program
Select button repeatedly until a “P 1,” “P 2,” “P 3,”
“P 4,” “P 5,” or “P 6” appears in the right display.
When a resistance and pace program is selected,
the matrix will show the first seven pace settings
for the program. The left display will show how
long the program will last.
Press the Program Start button or begin
pedaling to start the program.
Each program is divided into several time segments of different lengths. One pace setting and
one resistance setting are programmed for each
segment. (The same pace setting and/or resistance setting may be programmed for two or more
consecutive segments.)
The pace setting
for the first segment will be
shown in the flashing Current
Segment column
of the matrix. (The
resistance settings
are not shown in the matrix.) The pace settings
for the next several segments will be shown in the
columns to the right.
As you exercise, the Training Zone bar will help
you to keep your pedaling pace near the pace
setting for the current segment. The
lit indicators in the
bar will show your
actual pace. If an
indicator to the
right of the lit indicators is flashing
(see drawing a),
increase your pace.
If an indicator to
the left of any lit
indicator is flashing
(see drawing b), decrease your pace. When no
indicator is flashing, your pace matches the pace
setting for the current segment. Important: The
pace settings are intended only to provide
motivation. Your actual pace may be slower
than the current pace setting. Make sure to
exercise at a pace that is comfortable for you.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and all pace settings
will move one column to the left. The pace setting
for the second segment will then be shown in the
flashing Current Segment column and the resistance of the elliptical exerciser will automatically
change to the resistance setting for the second
segment.
Note: If all of the indicators in the Current Segment
column are lit after the pace settings have moved
to the left, the pace settings will move downward
so only the highest indicators appear in the matrix.
The program will continue until the pace setting
for the last segment is shown in the Current
Segment column of the matrix and no time
remains in the program.
Note: During the program, you can override the
resistance setting for the current segment, if
desired, by pressing the Resistance buttons.
However, when the next segment begins, the
resistance will automatically change if a different
resistance is programmed for the next segment. If
you stop pedaling for several seconds, a tone will
sound and the program will pause. To restart the
program, simply resume pedaling.
3
2
1
Current Segment
a
b
15
Adjust the angle of the ramp as desired.
See step 4 on page 12.
Monitor your progress with the two displays.
See step 5 on page 12.
Measure your heart rate if desired.
See step 6 on page 13.
Turn on the fan if desired.
See step 7 on page 13.
When the program is finished, the console
will automatically turn off.
See step 8 on page 13.
HOW TO USE HEART RATE PROGRAMS
Each heart rate program helps you to keep your heart
rate near a certain percentage of your maximum heart
rate during your workout. (Y our maximum heart rate is
estimated by subtracting your age from 220. For
example, if you are 30 years old, your maximum heart
rate is 190.) Heart rate program 1 is designed to keep
your heart rate between 50% and 80% of your maximum heart rate while you exercise; heart rate program 2 is designed to keep your heart rate between
50% and 85% of your maximum heart rate.
Follow the steps below to use a heart rate program.
Press any button on the console or begin
pedaling to turn on the console.
See step 1 on page 12.
Select one of the heart rate programs.
When the power is
turned on, the manual mode will be
selected. To select
a heart rate program, press the
Program Select

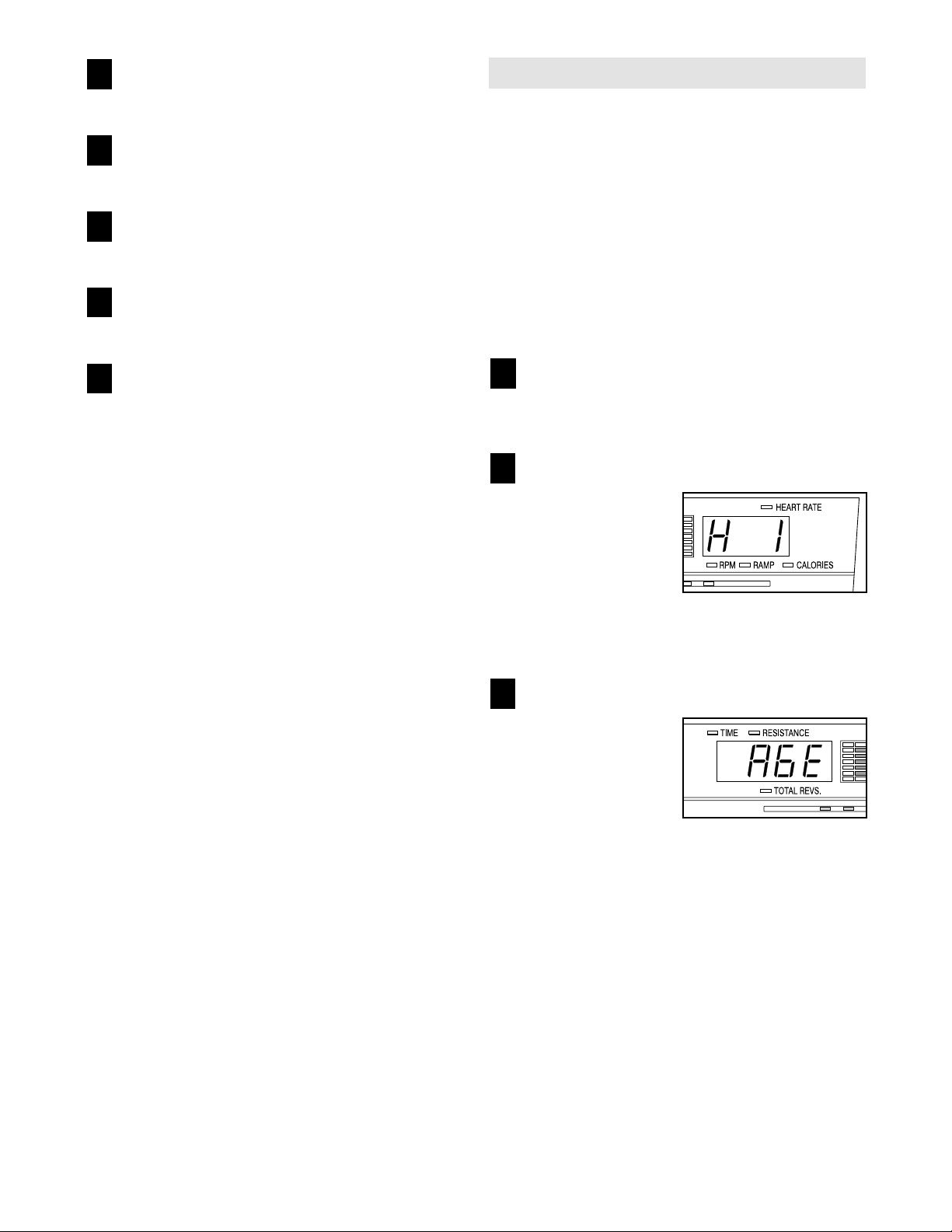

button repeatedly until an “H 1” or “H 2” appears
in the right display.
Enter your age.
When a heart rate
program is selected, the word “AGE”
and the current
age setting will
flash in the left display . You must
enter your age to use a heart rate program. If
you have already entered your age, press the
Enter button and go to step 4. If you have not
entered your age, press the + or – button repeatedly to enter your age, and then press the Enter
button.
Once you have entered your age, it will be saved
in memory.
3
2
1
8
7
6
5
4
16
Hold the handgrip pulse sensor.
To use a heart rate program, you must use the
handgrip pulse sensor (see step 6 on page 13)
or the optional chest pulse sensor. If you use the
handgrip pulse sensor, it is not necessary to hold
the handgrips continuously during the program.
However, you should hold the handgrips frequently for the program to operate properly. Each
time you hold the handgrips, keep your hands
on the metal contacts for at least 30 seconds.
Note: When you are not holding the handgrips,
the letters “PLS” will appear in the right display
instead of your heart rate.
Press the Program Start button or begin
pedaling to start the program.
Each heart rate program consists of 20 oneminute segments. One resistance setting and
one heart rate setting are programmed for each
segment. (The same resistance setting and/or
heart rate setting may be programmed for two or
more consecutive segments.)
The resistance
setting for the first
segment will be
shown in the flashing Current
Segment column
of the matrix. The
resistance settings
for the next several segments will be shown in the
columns to the right.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and all resistance set-
tings will move one column to the left. The resistance setting for the second segment will then be
shown in the flashing Current Segment column
and the resistance of the elliptical exerciser will
automatically adjust to the resistance setting for
the second segment.
As you exercise, the Training Zone bar will help
you to keep your heart rate near the heart rate
setting for the current segment. The lit indicators
in the bar will show your actual pace. When you
hold the handgrip pulse sensor or wear the
optional chest pulse sensor, the console will peri-
odically compare
your heart rate to
the heart rate setting for the current
segment; if necessary, an indicator
in the bar will then
flash to prompt you
to increase or
decrease your
pace to bring your
heart rate closer to
the current heart
rate setting. If an indicator to the right of the lit
indicators is flashing (see drawing a), increase
your pace. If an indicator to the left of any lit indicator is flashing (see drawing b), decrease your
pace. When no indicator is flashing, your heart
rate is near the current heart rate setting.
Important: The heart rate settings are intended only to provide motivation. Your actual
heart rate may be slower than the current
heart rate setting. Make sure to exercise at a
pace that is comfortable for you.
The program will continue until the resistance setting for the last segment is shown in the Current
Segment column of the matrix and no time
remains in the program.
Note: During the program, you can manually override the resistance setting for the current segment, if desired, with the Resistance buttons.
However, when the next segment begins, the
elliptical exerciser will automatically adjust to the
resistance setting for the next segment. If you
stop pedaling for several seconds, a tone will
sound and the program will pause. To restart the
program, simply resume pedaling.
Monitor your progress with the two displays.
See step 5 on page 12.
Turn on the fan if desired.
See step 7 on page 13.
When the program is finished, the console
will automatically turn off.
See step 8 on page 13.
8
7
6
5
4
Current Segment
a
b
17
HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
To use iFIT.com CDs, the elliptical exerciser must be
connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
17 and 18 for connecting instructions. To use iFIT.com
videocassettes, the elliptical exerciser must be connected to your VCR. See page 19 for connecting
instructions. To use iFIT.com programs directly from
our Web site, the elliptical exerciser must be connected to your home computer. See page 18 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your CD player.
Plug your headphones into the PHONES jack.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y -adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter .
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8” LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable
into the adapter. Plug the adapter into an AUDIO
OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo. Do
not use the adapter.
C. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y -adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter .
Audio
Cable
Head-
phones
A
Audio
Cable
1/8”
Y -adapter
Headphones
B
Audio
Cable
C
1/8”
Y -adapter
Headphones
Audio Cable
Adapter
A, B
LINE OUT
PHONES
AUDIO OUT
RIGHT
LEFT
LINE OUT
PHONES
PHONES
PHONES
PHONES
18
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into an
RCA Y -adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the
wire into the unused side of the Y-adapter . Plug the
Y -adapter into the LINE OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 1/8” LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your computer.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y -adapter into the PHONES jack
on your computer. Plug your headphones or speakers into the other side of the Y-adapter .
Audio
Cable
Adapter
A
Audio
Cable
RCA
Y -adapter
Wire removed from
LINE OUT jack
B
Adapter
Audio
Cable
A
Audio
Cable
B
1/8”
Y -adapter
Headphones/Speakers
CD
VCR
Amp
LINE OUT
LINE OUT
LINE OUT
PHONES
CD
VCR
Amp
LINE OUT
19
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 18.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into an
RCA Y -adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y-adapter . Plug the
Y -adapter into the AUDIO OUT jack on your VCR.
Audio Cable
Adapter
A
Audio Cable
Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y -adapter
VIDEO AUDIO
IN
CH
34
OUT
AUDIO OUT
RIGHT
LEFT
ANT. IN
RF OUT
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
34
OUT
20
To use iFIT.com CDs or videocassettes, the elliptical
exerciser must be connected to your portable CD player, portable stereo, home stereo, computer with CD
player, or VCR. See HOW TO CONNECT YOUR CD
PLAYER, VCR, OR COMPUTER on page 17. To pur-
chase iFIT.com CDs and videocassettes, call tollfree 1-800-735-0768.
Follow the steps below to use an iFIT.com CD or
video program.
Press any button on the console or begin
pedaling to turn on the console.
See step 1 on page 12.
Select the iFIT.com mode.
When the console
is turned on, the
manual mode will
be selected. To
select the iFIT.com
mode, press the
iFIT.com button.
The indicator above the button will light.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the play button on your CD player or
VCR.
A moment after the play button is pressed, your
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer’s
instructions.
The program will function in almost the same way
as a resistance and pace program (see step 3 on
page 14). However, an electronic “chirping” sound
will alert you when the resistance setting and/or
the pace setting is about to change.
Note: If the resistance of the elliptical exerciser
and/or the pace setting does not change when
a “chirp” is heard:
• Make sure that the indicator above the
iFIT.com button is lit.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the console may not detect the program signals.
• Make sure that the audio cable is properly
connected and that it is fully plugged in.
Monitor your progress with the two displays.
See step 5 on page 12.
Measure your heart rate if desired.
See step 6 on page 13.
Turn on the fan if desired.
See step 7 on page 13.
When the program is finished, the console will
automatically turn off.
See step 8 on page 13.
8
7
6
5
4
3
2
1
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
21
HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
Our Web site at www.iFIT.com allows you to play
iFIT.com audio and video programs directly from the
internet. To use programs from our Web site, the elliptical exerciser must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER
on page 18. In addition, you must have an internet
connection and an internet service provider. A list of
specific system requirements is found on our Web
site.
Follow the steps below to use a program from our
Web site.
Press any button on the console or begin
pedaling to turn on the console.
See step 1 on page 12.
Select the iFIT.com mode.
When the console
is turned on, the
manual mode will
be selected. To
select the iFIT.com
mode, press the
iFIT.com button.
The indicator above the button will light.
Go to your computer and start an internet
connection.
Start your Web browser, if necessary, and go
to our Web site at www.iFIT.com.
Follow the desired links on our Web site to
select a program.
Read and follow the on-line instructions for using
a program.
Follow the on-line instructions to start the
program.
When you start the program, an on-screen countdown will begin.
Return to the elliptical exerciser and begin
pedaling.
When the on-screen countdown ends, the program will begin. The program will function in
almost the same way as a resistance and pace
program (see step 3 on page 14). However, an
electronic “chirping” sound will alert you when the
resistance setting and/or the pace setting is about
to change.
Monitor your progress with the two displays.
See step 5 on page 12.
Measure your heart rate if desired.
See step 6 on page 13.
Turn on the fan if desired.
See step 7 on page 13.
When you are finished exercising, the console
will automatically turn off.
See step 8 on page 13.
THE OPTIONAL CHEST PULSE SENSOR
The optional chest pulse sensor provides hands-free
operation and continuously monitors your heart rate
during your workouts. To purchase the optional
chest pulse sensor, call toll-free 1-800-734-2377.
11
10
9
8
7
6
5
4
3
2
1
22
Inspect and properly tighten all parts of the elliptical
exerciser regularly. Replace any worn parts immediately.
For smooth
operation of the
elliptical exerciser, inspect
and clean the
incline ramp
regularly using
a soft cloth and
mild detergent.
Other parts of
the elliptical
exerciser can
also be cleaned in this way. Keep liquids off the
console. Never use abrasives or solvents.
PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function properly, see step 6 on page 13.
HOW TO CALIBRATE THE INCLINE SYSTEM
If the elliptical exerciser’s incline system is not working
properly, activate the calibration process by following
the steps below.
1. Hold down the + button and the Program Select
button at the same time for about five seconds.
Note: Numbers may appear in the left and right
displays. Disregard these numbers.
2. Press the Program Select button again. Note: A
combination of letters and numbers may appear in
the displays.
3. Press the 30° Ramp button. The ramp will move all
of the way up and then all of the way down.
4. Press the Program Select button three times. The
console will then be in the normal operating mode
and the elliptical exerciser will be ready for use.
HOW TO MOVE THE ELLIPTICAL EXERCISER
Stand in front of the elliptical exerciser, hold the handlebars firmly, and place one foot against the ramp in
the location shown below. Pull the handlebars until
the elliptical exerciser can be moved on the front
wheels, and carefully move the elliptical exerciser to
the desired location. Then, place one foot against the
ramp, and lower the elliptical exerciser. Due to the
size and weight of the elliptical exerciser, use
extreme caution while moving and lowering it.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical
exerciser rocks
during use, turn
one or both of
the leveling feet
under the rear
stabilizer until
the rocking
motion is eliminated.
MAINTENANCE AND TROUBLESHOOTING
Incline
Ramp
Leveling
Foot
Place your
foot here
Handlebars
Wheel
23
CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers are your “training
zone.” The lower two numbers are recommended
heart rates for fat burning; the highest number is the
recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest number in your training zone as you exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise
program, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week
if desired. The key to success is to make exercise a
regular and enjoyable part of your everyday life.
WARNING:
Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35
or persons with pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
24
1 1 Frame
2 1 Upright
3 1 Ramp
4 1 Left Pedal Leg
5 1 Right Pedal Leg
6 1 Rear Stabilizer
7 1 Rear Stabilizer Cover
8 1 Front Stabilizer
9 1 Front Stabilizer Cover
10 1 Left Pedal
11 1 Right Pedal
12 1 Incline Motor
13 1 Incline Axle
14 1 Pivot Axle
15 1 Left Side Shield
16 1 Right Side Shield
17 1 Console
18 1 Right Flywheel Cover
19 1 Left Flywheel Cover
20 2 Pulse Sensor w/Wire
21 1 Right Incline Cover
22 1 Left Incline Cover
23 1 Right Handlebar
24 1 Left Handlebar
25 1 Upper Handlebar Cover
26 2 Handlebar Cover
27 1 Frame Cover
28 2 Pedal Wheel
29 4 Wheel Bearing
30 2 Frame Bushing
31 2 Upper Body Leg
32 1 “C” Magnet
33 1 Magnet Bracket
34 1 Left Crank Arm
35 2 29.5mm Pulley Spacer
36 1 Flywheel
37 1 Magnet
38 1 Pulley
39 1 Control Box Cover
40 1 Control Board
41 1 Control Box
42 1 Lower Wire Harness
43 1 Crank
44 2 Crank Bearing
45 1 Idler
46 4 Foot
47 4 Ramp Bushing
48 2 Ramp Cover
49 1 Incline Sensor
50 1 Sensor Cover
51 4 Pedal Leg Bushing
52 1 Resistance Motor
53 1 Reed Switch Bracket
54 1 Clamp
55 1 Reed Switch/Wire
56 1 Return Spring
57 1 Guide Rod
58 1 Resistance Cable
59 1 Flywheel Axle
60 2 Flywheel Bearing
61 2 Eye Bolt
62 2 Adjustment Bracket
63 2 M8 x 47mm Button Screw
64 2 M6 Washer
65 2 M8 x 79mm Bolt Set
66 2 M8 Washer
67 2 M10 x 50mm Bolt Set
68 2 Handlebar Bushing
69 2 M4 x 16mm Round Head Screw
70 2 M10 x 108mm Button Screw
71 1 M8 Tek Washer
72 1 M11 x 40mm Bolt Set
73 2 M10 Split Washer
74 1 M8 x 25mm Button Bolt
75 1 M10 x 19mm Button Bolt
76 4 M6 x 16mm Patch Screw
77 4 M5 Nut
78 4 M5 x 16mm Bolt
79 4 M5 Washer
80 2 M6 x 18mm Bolt
81 1 M6 x 25mm Bolt
82 2 5/16” x 25mm Flange Screw
83 4 M8 x 54mm Button Screw
84 8 M8 x 44mm Button Screw
85 4 M8 x 41mm Button Bolt
86 6 M8 Jam Nut
87 8 M4 x 38mm Screw
88 3 M8 Nylon Locknut
89 1 M10 Nylon Locknut
90 3 M6 Nut
91 2 M6 Nylon Locknut
92 2 Snap Ring
93 2 M8 x 54mm Button Screw
94 4 #8 x 9.5mm Screw
95 4 M4 x 19mm Screw
96 1 M4 x 12mm Round Head Screw
97 2 M4 x 25mm Screw
98 24 M4 x 16mm Screw
99 2 Ramp Spacer
100 4 M5 Nylon Locknut
101 2 31.5mm Pulley Spacer
102 1 Right Crank Arm
103 1 Flywheel Spacer
104 2 Support Plate
105 2 M8 x 38mm Button Bolt
106 2 Upper Foam Grip
Key No. Qty. Description Key No. Qty. Description
PART LIST—Model No. NEL09940 R1003A
25
Note: # indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
107 2 Lower Foam Grip
108 3 M4 x 25mm Tek Screw
109 2 7.6mm Spacer
110 4 Wheel Bushing
111 2 M8 x 19mm Patch Screw
112 2 Wheel
113 1 Belt
114 1 Pulse Extension Wire
115 1 Upper Wire Harness
116 1 Power Cord
117 1 Power Socket
118 2 Upper Body Arm
119 2 Weld Spacer
120 2 Sleeve
121 2 Upper Body Foam Grip
122 2 Upper Body Endcap
123 4 Upper Body Bushing
124 2 M5 x 5mm Screw
125 2 M4 x 19mm Round Head Screw
126 1 Stop Bracket
# Allen Wrench
# User’s Manual
Key No. Qty. Description Key No. Qty. Description
26
20
EXPLODED DRAWING—Model No. NEL09940 R1003A
17
106
98
107
16
98
98
108
98
98
115
122
23
105
121
98
86
68
26
26
86
114
123
123
2
120
119
31
69
118
124
18
108
98
98
19
116
110
108
69
98
110
98
21
98
15
98
98
98
98
98
22
97
85
25
85
122
96
86
26
119
123
123
118
26
24
105
68
124
86
120
110
110
31
27
11
111
81
5
33
51
66
80
39
94
51
82
102
92
98
41
44
94
98
98
40
117
46
87
84
104
65
28
95
126
65
29
1249
95
29
73
70
109
76
125
27
73
13
72
109
3
83
64
72
77
90
78
79
76
48
58
47
32
57
78
88
56
74
91
100
53
52
79
77
1
54
98
30
47
30
99
55
99
98
47
47
36
65
62
88
61
89
45
103
59
75
60
37
10
63
93
62
90
92
61
43
44
38
63
60
71
88
93
101
35
42
35
34
82
83
67
4
29
51
46
6
7
113
51
66
111
104
87
84
87
46
9
84
50
64
76
14
48
76
65
28
29
84
67
112
67
87
8
46
Part No. 202641 R1003A Printed in China © 2003 ICON Health & Fitness, Inc.
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-888-825-2588, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be
prepared to give the following information when calling:
• The MODEL NUMBER of the product (NEL09940)
• The NAME of the product (NordicTrack
®
CX 990 elliptical exerciser)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see pages 24 to 27)
LIMITED WARRANTY
WHAT IS COVERED—The entire NordicTrack®elliptical exerciser (“Product”) is warranted to be free of all defects in material and
workmanship.
WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser.
HOW LONG IS IT COVERED—ICON Health & Fitness, Inc. (“ICON”), warrants the product for one year after the date of purchase.
Labor is covered for one year.
WHATWE DO TO CORRECTCOVERED DEFECTS—We will ship to you, without charge, any replacement part or component, pro-
viding the repairs are authorized by ICON first and are performed by an ICON trained and authorized service provider, or, at our
option, we will replace the Product.
WHATIS NOT COVERED—Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly or installation, alterations, modifications without our written authorization or by failure on your part to use, operate, and maintain
as set out in your User’s Manual (“Manual”).
WHATYOU MUST DO—Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discovery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER’S MANUAL—It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product. Remember to do the
periodic maintenance requirements specified in the Manual to assure proper operation and your continued satisfaction.
HOW TO GET PARTS AND SERVICE—Simply call our Customer Service Department at 1-888-825-2588 and tell them your name
and address and the serial number of your Product. They will tell you how to get a part replaced, or if necessary, arrange for service
where your Product is located or advise you how to ship the Product for service. Before shipping, always obtain a Return
Authorization Number (RA No.) from our Customer Service Department; securely pack your Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the service is covered by warranty.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness
for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how
long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
No one is authorized to change, modify or extend the terms of this limited warranty. This warranty gives you specific legal rights and
you may have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
