Operating and installation instructions
for Washer-extractor
WS 5427 MC 13
It is essential to read these
operating instructions before
installing or using the machine
to avoid the risk of accidents
or damage to the machine.
Gi
M.-Nr. 05 545 621
Contents
Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Caring for our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Disposal of your old appliance or machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Economy tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Guide to the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Multi function display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
How to wash correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Before washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To start the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Coin-box / time counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
After washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
To change a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
To cancel a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
To omit a programme stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
To repeat a programme stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Textile care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2
Contents
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Water softeners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Washing with several
components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Fabric conditioners, texturisers and liquid starch . . . . . . . . . . . . . . . . . . . . . . . . . 21
Automatic dispensing of fabric conditioner, texturiser or liquid starch . . . . . . 21
Manually adding liquid or powder starch during a programme. . . . . . . . . . . . 21
Programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Additional programmable
functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning the drainage system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning the detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cleaning the filters in the water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
To clean the filter in the inlet hose: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
To clean the filter in the water inlet valve: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Opening the drum door in the event of a power failure. . . . . . . . . . . . . . . . . . . . . 37
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3
Contents
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
View from rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Installation surface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Removing the transit fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Levelling the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Installation on a raised plinth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Washer and dryer stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Coin mechanism / time counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Connection of single and three phase machines: . . . . . . . . . . . . . . . . . . . . . . . . . 46
Electrical connection Ireland . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Connection to cold water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Connection to hot water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Connection to drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Machines with a drain pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Drain valve version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
4
Warning and safety instructions
Read the operating instructions
before using this machine for the
first time. They contain important
information about the safety, use and
maintenance of the machine. This
way you will avoid the risk of
accidents and damage to the
machine.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner of
the machine.
Correct usage
Only use the machine to wash
items which are specified by the
manufacturer to be machine-washable
on the wash-care label.
Any other applications may be
dangerous. The manufacturer is not
liable for damage resulting from
improper use or operation.
This machine should not be
operated by children. Supervise its
use by the elderly or infirm.
Technical safety
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the machine and an effective earthing
system which complies with local and
national regulations. It is most important
that this basic safety requirement is
regularly tested by a qualified
electrician.
The manufacturer cannot be held
responsible for the consequences of an
inadequate earthing system (e.g.
electric shock).
The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in
unforeseen dangers for the user, for
which the manufacturer cannot accept
responsibility. Repairs should only be
undertaken by a Miele approved
engineer.
Ensure current is not supplied to the
appliance while maintenance or repair
work is being carried out.
The machine is only completely
isolated from the electricity supply
when:
–
it is switched off at the wall socket
and the plug is withdrawn, or
Before setting up the machine,
check it for any externally visible
damage. Do not install and use a
damaged machine.
Before connecting the machine,
ensure that the connection data on
the data plate (fusing, voltage and
frequency) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.
–
it is switched off at the mains, or
–
the mains fuse is withdrawn.
5
Warning and safety instructions
The best materials are used in the
manufacture of this machine, and
every care is taken to check all parts.
However, with time, deterioration of
parts can occur, especially with such
components as hoses, giving rise to
leaks. This should be borne in mind if
operating the machine without
supervision. Check the hoses regularly
for signs of wear, and change in good
time, to avoid leaks and subsequent
damage.
Faulty components must only be
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Use
Do not install the machine in rooms
where temperatures below freezing
may occur. Frozen hoses may burst
under pressure.The reliability of the
electronic control unit may be impaired
at temperatures below freezing point.
Before using the machine for the
first time, check that the transit
fitting at the rear of the machine has
been removed (see section on
"Installation"). During spinning, a transit
fitting which is still in place may result in
damage to both the machine and
adjacent furniture or appliances.
Avoid contact of stainless steel
surfaces (front, lid, casing) with
liquid cleaning and disinfecting agents
which contain chlorine or sodium
hypochlorite. These agents can have a
corrosive effect on stainless steel.
Aggressive vapours containing chlorine
bleach can also be corrosive. Do not
store open containers of these agents
near the machine.
Turn off the stopcock if the
machine is to be left for any length
of time (e.g. holiday), especially if there
is no floor drain (gully) in the immediate
vicinity.
Flooding danger
If hooking the drain hose into a
wash basin, check that the water can
drain off quickly enough to prevent the
sink from overflowing.
Make sure the drain hose is secure, so
that the force of the water flowing out of
the hose does not dislodge it.
Otherwise this will result in flooding.
Take care to ensure that foreign
objects (e.g. nails, pins, coins,
paper clips) do not find their way into
the machine with the washing. These
may damage components of the
machine (e.g. suds container, drum),
which in turn can result in damage to
the washing.
6
Warning and safety instructions
If the correct amount of detergent
is dispensed, the machine should
not need to be descaled. If, however,
you do wish to descale the machine
only use proprietary non-corrosive
descaling agents and strictly observe
the instructions on the packaging. If in
doubt contact the Miele Customer Ser
vice Dept. or your Miele Dealer.
Textiles which have been
pre-treated in solvent based
cleaning agents must be thoroughly
rinsed in clean water before being
washed in the machine.
Never use solvent based cleaning
agents in this machine, as this may
result in damage to component parts
and create toxic fumes. Such
detergents also pose a fire and
explosion hazard.
Only use dyes specified by the
manufacturer as being suitable for
use in a washing machine. Always
observe the manufacturer’s instructions
carefully.
Accessories
Accessory parts may only be fitted
when expressly approved by Miele.
If other parts are used, guarantee,
performance and product liability
claims may be invalidated.
-
Disposal of your old machine
Before discarding an old machine
unplug it. Render the plug useless.
Cut off the cable directly behind the
appliance to prevent misuse. This
should be done by a competent
person.
Colour run and dye removers may
contain sulphur compounds which
cause damage such as corrosion. Do
not use these products in this machine.
If washing at very high
temperatures remember that the
porthole glass will be hot . Do not let
children touch it during a hot wash
programme.
Always make sure the drum is
stationary before reaching in to
remove washing. Reaching into a
moving drum is extremely dangerous.
7
Caring for our environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Please do
not therefore dispose of your old
machine or appliance with your
household waste.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person. The
plug must be rendered useless and the
cable cut off directly behind it to
prevent misuse. See the "Warning and
Safety" section of this booklet for further
details.
Economy tips
To help you wash most economically,
remember the following tips:
Always wash with the maximum
–
laundry load specified for each
programme. This uses the energy to
the best advantage.
– Only use the correct amount of
detergent required as recommended
by the manufacturer on the detergent
package.
– If laundry is not heavily soiled, select
a lower temperature setting than
indicated on the laundry care label.
Use the "Short" programme for
laundry that just needs freshening
up, or is only very lightly soiled.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
8
Guide to the machine
Front view
a Machine lid
Use
This washer-extractor is particularly
suitable for use in guest houses, hair
dressing salons, nursing and residential
homes etc., where considerable
amounts of soiled laundry are handled.
The drain valve version of the machine
(AV) has a sluice programme with
thermal disinfection for use in
healthcare establishments.
b Control panel
Detergent dispenser
c Drum door

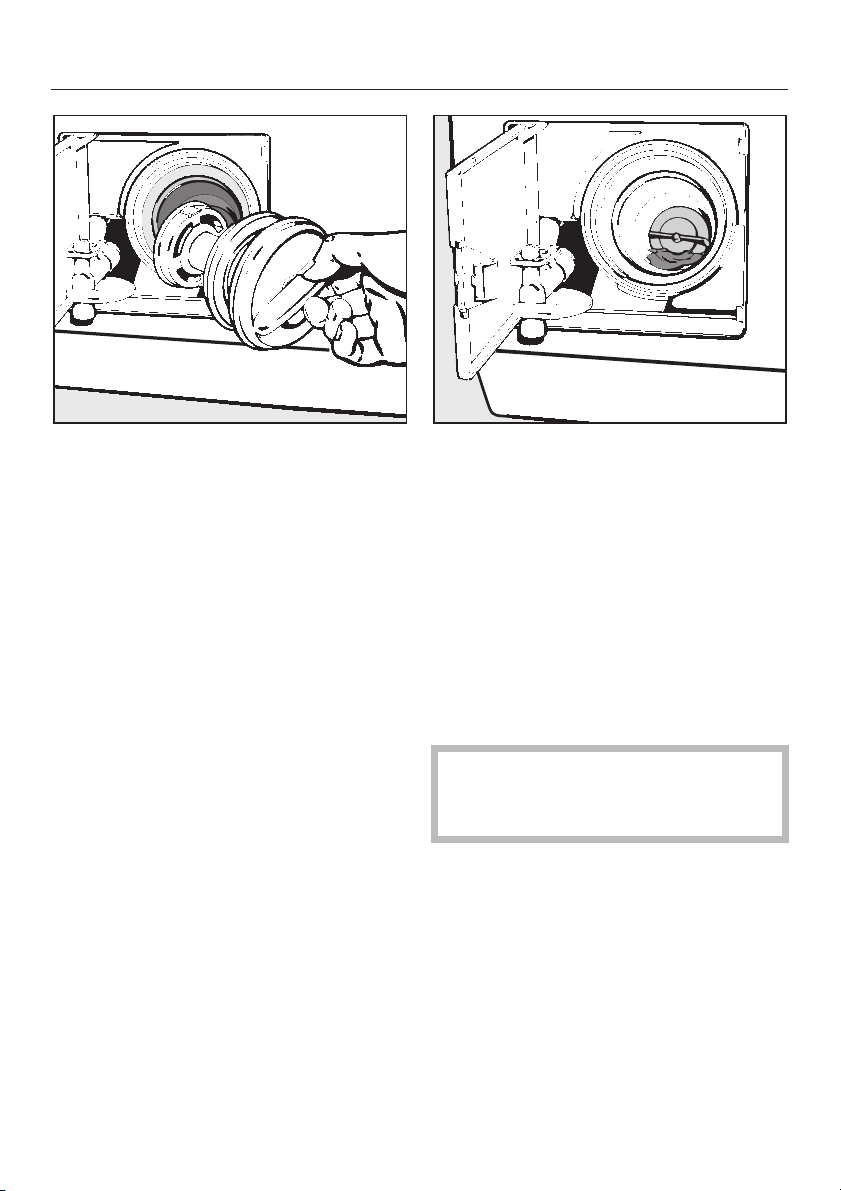

d Access panel for fluff filter, drain
pump and emergency door release
e Height adjustable feet
9
Guide to the machine
Control panel
a Door button a
Opens the drum door and releases
any additional option buttons which
have been pushed in.
b Additional option buttons
+i With Pre-wash
Can be selected with programmes
A, B, C, E
m Starch
Can be selected with programmes
A, B, E, F
w No final spin
Can be selected with programmes
A, B, C, D, E, F
c Start button h
Starts the programme
d Multi function display and
indicator lights
e Programme sequence indicator
lights
g/h On / Start
i Pre-wash
j Main wash
n Rinse
n Rinse
n/mRinse / Starch
q Drain
u Final spin
r End
pq Water inlet / Drain
f Programme selector
A Cottons
B Minimum iron
C Delicates / Synthetics
D Woollens
E Short
F Sluice or
Separate rinse
(depending on model)
G Separate spin
H Separate drain
10
Multi function display
a Display
b Indicator lights for
– Temperature %°C
After a programme has started the
actual suds temperature is displayed
in 5°C steps until the temperature set
for the main wash is reached.
The Temperature %°C indicator lights
up.
Guide to the machine
– Time left j min
Once the temperature set for the
main wash has been reached the
time left for the programme to run
shows in the display in hours and
minutes.
The Time left j min indicator lights
up.
The time left counts down in one
minute intervals.
11
Before using for the first time
Important: the machine must be
correctly installed and connected to
the electricity and water supplies in
accordance with national and local
safety regulations.
Check that the transit fitting at the
rear of the machine has been
removed.

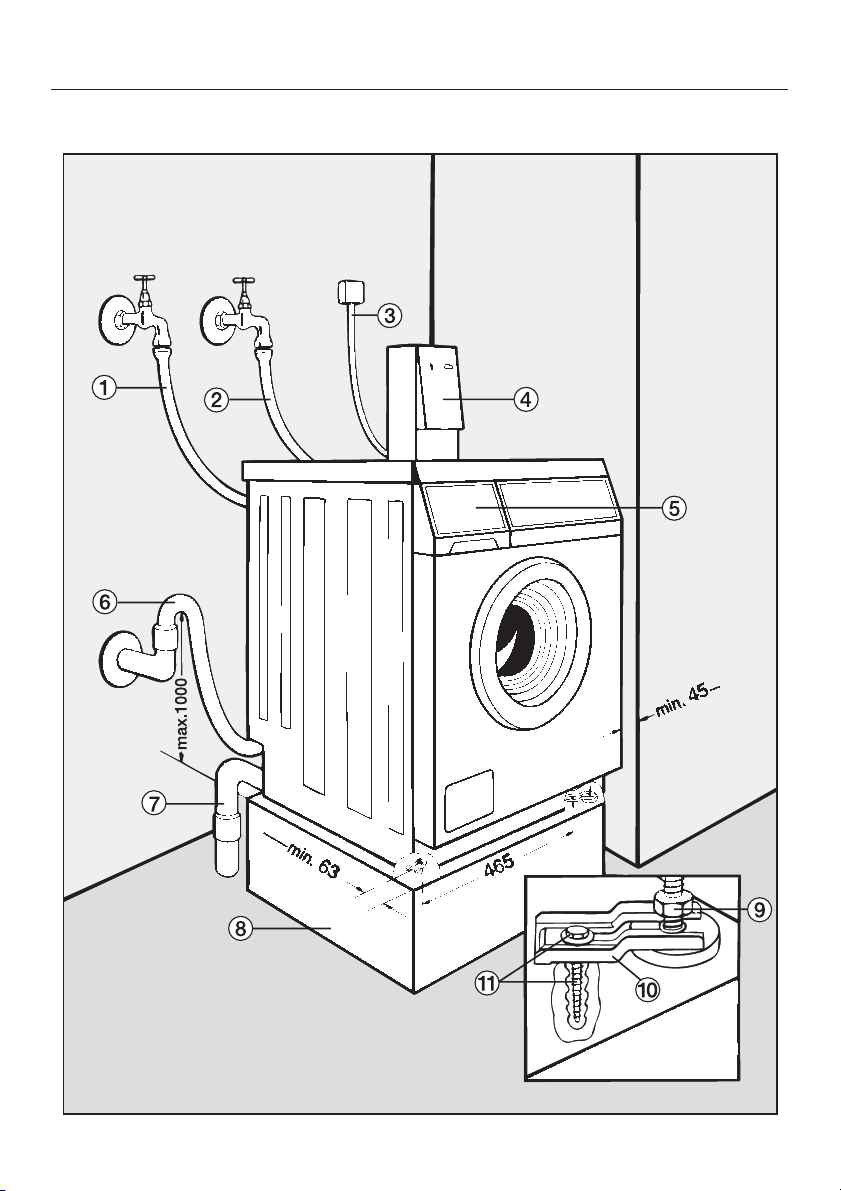

See "Installation", "Electrical
connection" and "Plumbing" at the
end of this booklet.
Flushing out the machine
Any residual lubricants and water from
testing still in the machine should be
flushed out as follows:
A Run the first wash programme
without laundry.
B Add a little detergent to
compartment j .
C Turn the programme selector
to the A Cottons 60°C programme.
D Press the h Start button.
On completion of the programme turn
the programme selector back to
the r End position.
12
How to wash correctly
Brief instructions
For brief instructions follows steps
(A,B,C ,...).
Before washing
A Sort the laundry.
^ Empty all pockets.
Foreign objects (e.g. nails, coins,
paper clips, etc.) can cause
damage to garments and
components in the machine.
Most garments have a textile care label
in the collar or side seam. Sort the
laundry by care label symbols. See
"Textile care symbols" for an
explanation of the symbols.
Only wash items stated by the
manufacturer to be machine washable
on the care label.
Dark textiles often contain excess dye
and should be washed separately
several times before being included in
a mixed load.
Delicate textiles should be washed
separately in a delicates programme
(use a washing bag where
appropriate).
Only wash textiles made from wool or
wool mixtures if they are declared as
being suitable for machine washing on
the textile care label.
Pre-treating the washing.
^
Badly soiled areas, e.g. collars and
cuffs, and water soluble stains can be
pre-treated with bar soap, liquid
detergent or detergent mixed into a
solution or paste.
With particularly stubborn stains ask
your dry cleaner for advice.
Do not use solvent-based cleaning
agents in this machine.
–
With curtains:
Remove lead weights and strips or
place in a laundry bag.
–
Bras:
Ensure any underwiring is securely
sewn in. If not remove it.
–
Knitted garments, trousers and
jeans, T-shirts and sweat shirts:
Turn inside out if recommended by
the manufacturer.
–
Close any zips, fasten hooks and
eyes etc. before washing.
–
Fasten duvet covers to prevent
smaller items rolling up inside them.
13
How to wash correctly
B Open the drum door.
C Load the drum.
Unfold the laundry and load loosely in
the drum. To achieve best results it is
advisable to make up mixed loads
consisting of both large and small
items. This improves the washing effect
and helps distribute the load evenly
during spinning.
Overloading causes creasing and
reduces cleaning efficiency.
Do not exceed the following
maximum loads:
Cottons . . . . . . . . . . . . . . . . . . . . 6.0 kg
Minimum iron . . . . . . . . . . . . . . . . 3.0 kg
Delicates / Synthetics . . . . . . . . . 1.5 kg
Woollens . . . . . . . . . . . . . . . . . . . 2.5 kg
Short . . . . . . . . . . . . . . . . . . . . . . 3.0 kg
D Close the drum door.
To start the programme
G Turn the programme selector to
the required programme
(See "Programme chart").
H Select additional option if required.
Press the additional option button
^
required (see "Programme chart").
The additional option can be
deselected by pressing the button
again.
Make sure that no garments are caught
between the drum door and the seal.
E Add detergent and fabric
conditioner or liquid starch if
required.
See "Detergent" for further information.
F Open the stopcock.
14
How to wash correctly
Coin-box / time counter
I If your machine is fitted with a
Coin-box / time counter:
Insert coins / tokens.
^
Press the h Start button.
^
Failing to follow these instructions
will result in coins or tokens being
"swallowed".
Coins will also be lost if after inserting
the coins / tokens and before pressing
the h Start button:
– the door is opened.
– the programme selector is turned
beyond the r End position to
another programme.
– a programme is interrupted for more
than 20 seconds in a machine
operating with a coin time counter.
Coins and tokens should be emptied
on a regular basis to ensure the coin
box does not get jammed full.
J Press the h Start button.
The programme starts.
15
How to wash correctly
After washing
K Turn the programme selector
to r End.
L Close the stopcocks.
M Press the a door button.
N Remove the laundry.
Only remove laundry from the
machine once the drum has
stopped turning. Reaching into a
moving drum is extremely
dangerous and could result in injury.
Make sure the drum is empty, otherwise
when the machine is next used, these
items may become damaged (e.g.
shrink) or cause other laundry to
discolour.
O Check the folds in the door seal for
any small articles such as buttons
or other foreign objects which
might be lodged there.
16
How to wash correctly
To change a programme
Programmes A, B, C, D, E can be
changed at any time as long as the
programme sequence allows for this.
Turn the programme selector to the
^
required programme. The new
programme will continue from the
same stage that the previously
selected programme was at.
Except:
If the programme selector was turned
past the r End position, in which case
the previous programme would be
cancelled and the new programme
would have to be started afresh.
The previous programme would also be
cancelled if the programme selector
was moved from or to the following:
– F Sluice or Separate rinse
(depending on model)
– G Separate spin
–
H Separate drain
When using a coin box / time
counter the programme is locked
after 3 minutes and no more
changes are possible.
To omit a programme stage
Turn the programme selector to
^
r End.
As soon as the programme sequence
light for the stage at which the
programme should continue starts
flashing:
Turn the programme selector back to
^
the appropriate programme within 3
seconds.
To repeat a programme stage
Pre-requisite:
A programme stage must have finished
before it can be repeated:
^ Turn the programme selector to
r End.
When r End lights up in the sequence
display:
^ Select the programme required.
^ Press the h Start button.
^
After approx. 5 seconds, turn the
programme selector to r End again.
Once the indicator light of the
programme stage to be repeated starts
flashing:
To cancel a programme
^
Turn the programme selector to the
r End position.
The programme sequence indicator
lights flash through the other
programme stages until the r End
position is reached.
^
Turn the programme selector to the
appropriate programme
within 3 seconds.
17
Textile care symbols
Washing
9 Cottons 95°C
8 Cottons 60°C
7 Cottons 40°C
5 Minimum iron 95°C
4 Minimum iron 60°C
2 Minimum iron 40°C
41 Delicates/Synthetics
c Machine washable
Woollens
The significance of the bar beneath the
wash tub:
e no bar,
normal (maximum) agitation, eg
Cottons or Minimum iron programme
f bar,
reduced overall action, eg Minimum
iron or Delicates programme
g broken bar,
much reduced (minimum) agitation,
Woollens programme
/ Handwash
h Do not wash
apf Dry clean
D Do not dry clean
y Suitable for chlorine bleaching
z Not suitable for chlorine
bleaching
Tumble dry
q At normal temperature
r At the lower temperature
s Do not tumble dry
Ironing
I Hot iron
H Medium hot iron
G Cool iron
J Do not iron
Machine washable woollens
Use the woollens programme only for
items bearing a "machine washable
woollens" care label.
18
Detergent
All modern detergents produced for
automatic washing machines are
suitable, including liquid, compact
(concentrated), and special application
detergents.
Use dispensing aids, e.g. balls, if these
are supplied with the detergent.
Woollens and knitwear containing wool
mixtures should be washed using a
detergent specifically designed for
washing woollens.
Instructions for use and recommended
amounts are given on the detergent
packaging.
The right amount to dispense will
depend on the following:
– The quantity of laundry
– The soiling level of the laundry
Lightly soiled
No visible dirt or stains. Possibly
slight body odour.
Normally soiled
Visibly dirty and/or just a few slight
stains.
Heavily soiled
Stains and soiling clearly visible.
See "Problem solving guide" for
advice on how to deal with textiles
heavily soiled with oil or grease.
Water hardness
Hardness
range
I soft 0 - 1.3 0 - 7
II medium 1.3 - 2.5 7 - 14
III hard 2.5 - 3.8 14 - 21
IV very hard over 3.8 over 21
Water mmol/l German
scale
°d
It is important to dispense the
correct amount, because...
...too little detergent results in:
– Laundry not getting properly clean
and with time it may become grey
and hard to the touch.
– Greasy particles clinging to the
laundry.
– Limescale building up on heater
elements.
...too much detergent results in:
–
Excessive foam.
–
Low level of agitation.
–
Poor wash, rinse and spin results.
–
A burden to the environment.
–
The water hardness level in the area
If you do not know the hardness level
contact your local water authority
who will be able to advise you.
19
Detergent
Adding detergent
^ Open the detergent dispenser
drawer and add detergent, fabric
conditioner and starch to the correct
compartment as follows:
i = Detergent for the pre-wash
(if this option has been
selected)
j = Detergent for the main wash
Water softeners
A water softener can be used to cut
down on the use of detergents in water
hardness ranges II - IV. Dispense
according to the amount specified on
the packaging. First add detergent and
then the water softener. Dispense the
detergent as required for soft water.
Washing with several
components
If you wash using several components
(e.g. special application detergents),
dispense the agents into compartment
j in the following order:
1. Detergent
2. Water softener
3. Stain removers
This way the agents are distributed
more evenly.
p = Fabric conditioner, texturisers
or liquid starch
20
Detergent
Fabric conditioners, texturisers
and liquid starch
Fabric conditioners make garments soft
and fluffy to handle and help prevent
static cling when tumble drying.
Texturisers are synthetic starch
formulations which stiffen items of
laundry, e.g. shirts, tablecloths and bed
linen.
Starch stiffens and gives body to items
of laundry, e.g. shirts, tablecloths and
bed linen.
^ Dispense according to the
manufacturer’s instructions.
Automatic dispensing of fabric
conditioner, texturiser or liquid
starch
The conditioner or liquid starch is
automatically dispensed in the last
rinse. At the end of the programme a
small amount of water remains in
compartment p.
If starching frequently, clean the
dispenser compartment and
especially the siphon tube and
conditioner channel on a regular
basis. See "Cleaning and care Cleaning the detergent dispenser
drawer".
Manually adding liquid or powder
starch during a programme
^ Prepare the starch solution as stated
on the packet.
^ Select the programme required and
also push in the "Starch m" button.
The programme and the "time left"
indicator will pause before the last
rinse.
^
Open the lid to compartment p.
^
Add the fabric conditioner, texturiser
or liquid starch. Do not exceed the
maximum level mark.
^
Close the compartment lid.
^
Push in the dispenser drawer.
The "Starch m" indicator light
comes on.
^
Add the starch formulation to
compartment i.
^
Press and release the "Starch m"
button to continue the programme.
"w No final spin
keep creasing to a minimum. The water
is drained away, and the load can be
taken dripping wet from the drum.
" can be selected to
21
Programmes
Programme chart
Programme Fabric type Temperaturemax.
A Cottons
B Minimum iron
C Delicates /
Synthetics
Cottons and linen fabrics, e.g. bed
linen, table linen, towelling, jeans,
T-shirts, underwear, nappies.
Textiles made with synthetic, mixed
fibres, or minimum iron cottons, e.g.
shirts, blouses, workwear, table linen
Textiles made with acrylics, acetate
and triacetate, as well as 100%
cotton shirts and blouses and other
delicate garments.
Machine washable curtains. 30°C 600
95°C - 40°C 1250
95°C - 40°C 900
60°C - 30°C 600
rpm
D Woollens
E Short
F Sluice or
separate rinse
(depending on
model)
G Separate spin
H Separate drain
Woollens or wool blend fabrics which
have a textile care label stating that
they are machine washable.
Very lightly soiled fabrics, which can
be washed in the Cottons
programme.
The separate rinse programme is suitable for
articles which have been washed by hand and only
need to be rinsed in the machine. The Sluice
programme is for heavily soiled cottons and linens.
For spinning garments which have been hand
washed. These must be suitable for spinning in a
machine.
For laundry which is to be taken out of the drum dripping
wet before the end of a programme.
Additional options
+i "With pre-wash"
For heavily soiled and stained textiles.
22
30°C 1250
40°C 1250
1250
1250
Programmes
max. load Additional
Notes
opitons
6 kg
3 kg
1.5 kg
Load loosely
in the drum
With pre-wash
–
Starch
–
No final spin
–
With pre-wash
–
Starch
–
No final spin
–
With pre-wash
–
No final spin
–
– With pre-wash
– No final spin
For heavily soiled laundry press the "With
pre-wash " button. For dark coloured fabrics
use a liquid detergent.
For heavily soiled laundry press the "With
pre-wash " button
Use the woollens programme for any textiles
which contain wool.
Dust in curtains usually makes using a
programme with pre-wash advisable.
filling no
more than
1
/
3
full
2.0 kg – No final spin Use liquid detergent for machine washable
woollens
3 kg – With pre-wash
Use less powder (as for a half load)
– Starch
–
No final spin
6 kg * See "Programme sequence" for details on the Sluice prog.
The separate rinse programme is suitable in certain
circumstances where an extra rinse might be required (turn the
programme selector to "Separate rinse" after the last rinse has
taken place).
6 kg
m "Starch"
For freshly washed textiles such as table cloths, napkins, uniforms etc.
w "No final spin"
For laundry which is not to be spun but taken from the drum dripping wet.
23
Programmes
Programme sequence
The programme sequences outlined
below are based on the basic
programme with a full load. Additional
options which can be selected have not
been taken into account.
The programme sequence indicator
lights show the stage the programme
has reached.
A Cottons
Main wash
Water level: low
Rinses
Water level: medium
No. of rinses
- 3 with a max. load
- 2 with a partial load
Final spin:
max. 1250 rpm
C Delicates / Synthetics
Main wash
Water level: high
Rinses
Water level: high
No. of rinses
Final spin:
D Woollens
Main wash
Water level: low
Rinses
Water level: low
No. of rinses:
Final spin:
Reduced drum agitation.
: 3
max. 600 rpm
2
max. 1250 rpm
B Minimum iron
Main wash
Water level: low
Rinses
Water level: medium
No. of rinses
Final spin:
24
: 3
max. 900 rpm
E Short 40°C
Main wash
Water level: low
Rinses
Water level: medium
No. of rinses:
Final spin:
During programme selection the
nominal temperature for that
programme shows in the display and
the temperature and start indicator
lights come on.
2
max. 1250 rpm
Programmes
F Sluice or separate rinse
(depending on model)
Separate rinse
This is suitable for rinsing textiles
which have been hand washed and
only require rinsing. It can also be
used when an additional rinse might
be needed after a programme has
run.
Sluice programme
The sluice programme is only
available on drain valve versions of
the machine.
It is suitable for heavily soiled cotton
and linen items.
For good results it is advisable to
wash smaller loads, e.g. 4 kg in this
programme.
Add detergent to the pre-wash and
main wash compartments and add
fabric conditioner to compartment
p.
Select F
The Sluice programme begins,
consisting of:
Cold water sluice cycles
^
(high water levels, then drained)
Pre-wash up to 65ºC
^
Main wash at above 71ºC, held for 10
^
minutes
Rinses
^
Drain
^
Spin
^
Once the programme commences the
door cannot be opened until
completion of the whole programme, in
full compliance with DHSS
requirements.
For the same reason options for change
available with other programmes during
a cycle are excluded.
Additional programmable
functions
It is possible to have additional
programmable functions and / or
programme sequence changes carried
out by a Miele Service Dealer or Ser
vice Engineer.
Any changes to the standard machine
version must be noted on a card left
with the machine as a record for any
subsequent servicing work.
-
25
Cleaning and care
Disconnect the machine from the
mains electricity supply and
withdraw the plug from the socket
prior to cleaning the machine.
Cleaning the machine
Clean the casing with a mild
^
non-abrasive detergent or soap and
water. Wipe dry with a soft cloth.
Clean the control panel with a damp
^
cloth and wipe dry with a soft cloth.
The drum and any other stainless
^
steel components can be cleaned
using a suitable proprietary
stainless-steel cleaning agent. Follow
the manufacturer’s instructions on the
packaging.
Do not use abrasive cleaning
agents, disinfecting agents or
solvents.
These can cause considerable
damage to the machine because of
the chemicals they contain.
Extra cleaning
If you wash mainly with low
temperatures it is a good idea to carry
out a hot wash approx. every six weeks.
This will help prevent deposits and
unpleasant smells building up in the
machine which can occur when
washing is mainly done at low
temperatures. If you have no reason to
wash occasionally at this high
temperature, then run a Cottons 95°C
programme with detergent but no
laundry at regular intervals.
Avoid contact of stainless steel
surfaces (front, lid, casing) with
liquid cleaning and disinfecting
agents which contain chlorine or
sodium hypochlorite. These agents
can have a corrosive effect on
stainless steel. Aggressive vapours
containing chlorine bleach can also
be corrosive. Do not store open
containers of these agents near the
machine.
26
Cleaning and care
Cleaning the drainage system
Check the fluff filter, initially after 3 - 4
washes to ascertain how often it is likely
to require cleaning.
Under normal conditions approx. 2
litres of water will drain out of the
machine when the fluff filter is removed.
However, if the drain outlet is blocked,
more water will be retained in the
machine (max. 30 litres).
Caution: if laundry has been washed
at a high temperature, water
draining out of the machine will still
be hot. Danger of scalding or
burning.
^ Switch the machine off (either open
the door or switch off at the mains
and withdraw the plug).
Place a suitable container (2 litres)
^
underneath the drain fixture.
^ Turn the fluff filter lid round 2-3 times.
Do not take it right out.
Approx. 2 litres of water will drain out.
If there is a blockage more water than
this will drain out and the container will
need to be emptied several times.
To stop the flow of water:
^
Open the drain access flap.
^
Secure the fluff filter back into
position.
^
Empty the container and repeat the
process until all the water has been
emptied
27
Cleaning and care
Once the flow of water ceases,
^
remove the fluff filter completely and
clean it.
^ Remove any foreign objects (buttons,
coins etc.) and fluff.
Turn the impeller by hand to check
^
that it is free to rotate.
Any foreign object causing an
obstruction must be removed.
^ Clean the inside of fluff filter housing.
Remove any deposits of limescale and
detergent or foreign objects from the
thread of the filter housing and filter
unit.
^ Put the fluff filter back in place and
secure.
Make sure the fluff filter is securely
tightened. Otherwise there is a
danger of water leakage during use.
Machines with a drain valve do not
require this cleaning process to be
carried out.
28
Cleaning the detergent
dispenser drawer
Remove detergent residues regularly.
^ Pull out the detergent dispenser
drawer until a resistance is felt. Press
down the red release catch and at
the same time pull the drawer right
out of the machine.
Cleaning and care
Clean the detergent dispenser
^
compartments and the fabric
conditioner compartment with warm
water.
^
Remove the siphon from
compartment p and rinse under
warm running water.
^
Then clean the tube that it sits over
using warm water.
^
Replace the siphon securely.
29
Cleaning and care
Cleaning the filters in the water
inlet
The machine has the following filters to
protect the inlet valves:
in the free end of any water inlet hose
–
in the water inlet valve(s) for
–
connecting the hose(s) to the
machine.
To clean the filter in the inlet hose:
Put the filter and seal back in the
^
reverse order and reconnect the hose
to the check valve. Turn on the
stopcock and check the connection
is watertight.
The filters in the inlet hose should be
checked and cleaned approx. every 6
months.
Inspect the inlet hose as it is subjected
to high pressure while the machine is in
operation. The hose should be
replaced if there is any sign of damage
such as stress cracks in the surface.
If replacing the inlet hose only use a
hose tested to withstand a pressure of
at least 70 bar. Miele original hoses are
tested to this standard.
^
Turn off the stopcock.
^
Carefuly unscrew the knurled
coupling connecting the inlet hose to
the check valve which is attached to
the stopcock (see "Plumbing").
^
Remove the rubber seal from the
recess.
^
Using pointed pliers, take hold of the
plastic filter bar, remove the filter and
clean.
30
To clean the filter in the water inlet
valve:
Using pliers, carefully loosen the
^
ribbed plastic nut on the inlet valve,
and unscrew.
^ Using pointed pliers withdraw the
plastic filter by the bar (see
illustration).
Cleaning and care
^ Clean the plastic filter.
^
Put back in the reverse order.
Both filters - one in the pressure
hose union and one in the water inlet
valve must always be replaced after
being cleaned.
31
Problem solving guide
With the help of the following notes minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be put right
without contacting the Service Department.
Repair work to electrical machines should only be carried out by a suitably
qualified engineer in accordance with local and national safety regulations.
Unauthorised repairs could be dangerous.
Fault Possible cause Remedy
The I/h On/Start
indicator light does
not light up. The
programme does not
start.
The p check light
flashes, although the
programme has
finished as usual.
There is no power
supply to the machine.
The water inlet is
restricted.
The filters in the inlet
hoses are blocked.
Check that
the door is properly closed.
–
the plug is correctly
–
inserted in the socket and
the mains electricity supply
is switched on.
– the fuse or circuit breaker
has not tripped.
– Open the stopcock fully.
– Check the inlet hoses for
kinks.
– The water pressure is too
low
–
Clean the filters (see
section "Cleaning the filters
in the water inlet").
The indicator light goes out
when the programme selector
is turned to the r End
position.
32
Problem solving guide
Fault Possible cause Remedy
The check light p
flashes, the r End
indicator light is on,
but the laundry in
the machine has not
been washed.
The q indicator
light is flashing.
The programme
sequence indicator
light i Pre-Wash
is flashing.
The programme
sequence indicator
light j Main wash
flashes during or at
the end of a
programme.
The water inlet is
blocked.
The drainage
system is blocked.
There is a fault. Start the programme again.
There is a fault. If the indicator light flashes again
Turn the programme selector to
–
r End.
Open the stopcock(s).
–
Select a programme.
–
Press the h Start button.
–
If little or no water is taken in during
the next programme, the water
pressure may be too low. If it is
adequate there may be a technical
fault. In this case, call the Miele Ser
vice Dept.
Check whether
– the drainage system is blocked,
See "Cleaning the drainage
system" in "Cleaning and Care".
If the indicator light flashes again,
call the Miele Service Dept.
when the next programme is run,
call the Miele Service Dept.
-
The programme
sequence indicator
light n Rinse 1 or
n Rinse 2 flashes.
There is a fault. Start the programme again.
If the indicator light flashes again,
call the Miele Service Dept.
33
Problem solving guide
Fault Possible cause Remedy
Despite adequate
water supply
pressure the
machine takes a
long time to fill.
Large amounts of
unused detergent
remain in the
dispenser.
Fabric conditioner
is not completely
dispensed or too
much water
remains in the p
compartment.
Laundry washed
with liquid
detergent is not
cleaned.
The filters in the water
inlet hoses may be
clogged.
The water supply
pressure is too low.
Washing powder
becomes viscous when
used together with a
water softener.
The dispenser drawer
was opened while
fabric conditioner was
being flushed in.
The siphon is either
incorrectly positioned or
clogged.
Liquid detergents do
not contain any
bleaching agents. They
do not remove fruit,
coffee and tea stains.
Clean the filters (see "Cleaning
and care" - "Cleaning the filters
in the water inlet").
Clean the filters (see
–
"Cleaning and care" "Cleaning the filters in the
water inlet").
Check if the water flow
–
through the stopcock is 5
litres in 15 seconds.
In future, pour washing powder
into the detergent dispenser
before adding water softener.
Clean the siphon, (see
"Cleaning and care" - "Cleaning
the detergent dispenser").
–
Use a general purpose
washing machine powder
containing a bleaching agent.
–
Pour stain removers into
compartment j of the
detergent dispenser and
liquid detergent into a
dispenser ball.
–
Never put stain removers and
liquid detergent together in
the dispenser drawer.
34
Problem solving guide
Fault Possible cause Remedy
There are white
residues which
look like powder
detergent on dark
coloured laundry.
Grey greasy
particles cling to
washed laundry.
Textiles have
particularly
greasy soiling.
The detergent
contained compounds
(zeolites) to aid water
softening which are not
soluble in water. These
have ended up on the
laundry.
Insufficient amounts of
detergent were used to
break down the
particles of grease in
heavily soiled laundry.
Try and brush off the residues
–
with a soft brush once the
laundry is dry.
Use a liquid detergent to wash
–
dark coloured textiles. Liquid
detergents usually contain no
zeolites.
Add more detergent.
–
Before washing the next load
–
run a COTTONS 95°C
programme with powder
detergent but without a load.
– Select a programme with
pre-wash.
Use liquid detergent for the
pre-wash.
– In the main wash use ordinary
powder detergent.
The use of heavy-duty detergent
is recommended in the main wash
for very heavily soiled work
clothing.
Consult detergent producers.
35
Problem solving guide
Fault Possible cause Remedy
The laundry is
either not spun at
all or not spun
satisfactorily.
The machine
shakes during the
spin cycle.
The "No final spin" w button was pushed in.
The machine was not able to
distribute the laundry load
evenly. To protect the
machine, laundry was either
only spun at a reduced
speed or not at all.
Large items which tangle or
roll up in the drum (e.g. bath
mats) can cause an
imbalance during the spin
cycle.
The most likely cause is that
the four machine feet are not
resting securely on the floor.
Always make up mixed loads
consisting of large and small
items.
For safety reasons, the
machine does not spin if this
is the case. Attempts to build
up spin speed are repeated,
however, until the time
allocated to spinning has
expired.
Check whether
– the drainage system is
clogged. Clean as
described in "Cleaning
and care" - "Cleaning the
drainage system".
Level the machine (see
"Installation" - "Levelling the
machine").
36
Weak floorboards not only
lead to excessive noise but
also to shaking during the
spin cycle .
See "Installation" "Installation surface.
Opening the drum door in the
event of a power failure
Drain pump version:
Turn the programme selector
^
to r End.
Always make sure that the drum is
stationary before reaching into the
machine to remove laundry.
Reaching into a moving drum is
extremely dangerous and could
cause injury.
^ Open the access panel to the
drainage system and drain off any
water (see "Cleaning and care" "Cleaning the drainage system").
Problem solving guide
^
Use a spoon handle to pull the
emergency release downwards (see
arrow). The door will then open.
37
Problem solving guide
Drain valve version:
Turn the programme selector
^
to r End.
Open the access panel to the
^
drainage system and drain off any
water (see "Cleaning and Care" "Cleaning the drainage system").
Always make sure that the drum is
stationary before reaching into the
machine to remove laundry.
Reaching into a moving drum is
extremely dangerous and could
cause injury.
^ Push the emergency drain lever
downwards (see illustration), and
hold until no more water runs out.
38
^ Use a spoon handle to pull the
emergency release downwards (see
arrow). The door will then open.
In the event of any faults which you
cannot remedy yourself please contact
Your Miele dealer or
–
Your nearest Miele Service
–
Department (see back cover for the
address).
When contacting the Service
Department, please quote the model
and serial number of your machine,
both of which are shown on the data
plate visible at the top inside of the
door above the porthole glass when the
door is open.
After Sales Service
Please note that telepone calls may
be monitored and recorded to
improve our service.
39
Installation
View from rear
a Cable entry for extra equipment
b Inlet hose (cold water)
c Inlet hose (hot water)
d Transit fitting (remove before
commissioning)
e Supply power cable
Drain pump or drain valve (as
ordered)
f Drain hose (for drain pump)
g Drain hose (for drain valve)
h Height adjustable feet
40
Installation
Installation surface
A concrete floor is the most suitable
surface for a washing machine, being
far less prone to vibration during the
spin cycle than wooden floorboards or
a carpeted surface.
Please note the following points:
The machine must be level and
^
securely positioned.
Do not install the machine near
,
or directly above an open gully or
floor drain. Moisture from these can
penetrate the machine and damage
the electric components.
^ To avoid vibrations during spinning
the machine should not be installed
on soft floor coverings.
If installing on a wooden floor joist:
^ We recommend a plywood base (at
least 70 x 60 x 3 cm).
The base should span several joists
and be bolted to the joists and not
only to the floorboards. Check for the
presence of pipes and cables first.
If possible, install the machine in a
corner, as this is usually the most stable
part of the floor.
If the machine is installed on a
,
raised plinth, it must be secured
using the butt straps supplied with
the machine.
Follow the installation instructions
supplied.
Installation
Lift the machine from its packaging
base and move it to its site.
Please note:
^ Do not lift the machine by the drum
door.
,
Ensure that the machine feet and
the floor area are dry to prevent the
machine from slipping during the
spin cycle.
41
Installation
Removing the transit fitting
A Turn the left-hand transit bar 90°.
C Withdraw the two bars together with
the support plate.
B Turn the right-hand transit bar 90°.
42
D Plug the holes with the plastic caps
supplied.
The machine must not be moved
without the transit fitting in place.
The transit fitting should be stored in
a safe place for future use. It must
be re-fitted if the machine is to be
moved again (e.g. when moving
house). Re-fitting is carried out by
reversing the procedure.
Installation
Levelling the machine
The machine must stand perfectly level
on all four feet to ensure safe and
proper operation.
The four adjustable feet are used to
level the machine. All four feet are
screwed in when the machine is
delivered.
Screwing out and adjusting the feet
^
Gently tip the machine and prop it up
using a solid wood wedge for
example, to ensure stability.
,
Make sure the machine does not
slip as this could cause injury.
Using a screwdriver loosen foot 1
^
together with counternut 2 by turning
it anti-clockwise, and unscrew to the
required height.
Put the machine back on all four feet.
^
Use a spirit level to check the
^
machine is standing level.
^ Holding foot 1 securely with a pipe
wrench use a screwdriver to turn
counternut 2 in a clockwise direction
until it is held firmly up against the
housing.
,
All four counternuts must be
tightened firmly up against the
housing. Please also check this for
the feet which did not need
adjustment. Otherwise there is the
danger of the machine moving
about.
43
Installation
Installation on a raised plinth
44
Installation
a Cold water inlet hose
- blue stripes - (see "Plumbing")
b Hot water inlet hose
- red stripes - (see "Plumbing")
c Electrical connection
(see "Electrical Connnection")
d Coin mechanism (optional)
e Small panel with text
f Drain hose for drain pump
(LP) version (see "Plumbing")
g Drain hose for drain valve
(AV) version (see "Plumbing")
h Concrete plinth (to be supplied on
site), if not available a steel plinth*
can be purchased from Miele,
(ensure there is secure connection to
the floor).
i Hexagonal M 10 nut
j Butt strap
k Screw, washer and plug 8 x 40
When installing on a suspended
floor, use the appropriate fixing kit
(plugs and screws).
Washer and dryer stack
A Miele tumble dryer can be stacked
with the washing machine. A stacking
kit* is necessary.
Coin mechanism / time counter
This machine can be equipped with a
coin / token box.*
Separate installation and wiring
instructions are supplied with the coin
box.
A wall bracket is required for a washer
dryer stack.
The machine can also be connected to
an already existing time counter. A
special connection cable * is required
for this.
The re-programming of the machine
then required must only be carried out
by an authorized Miele Service Dealer
or the Miele Service Dept.
The machine must not be used in
conjunction with equipment
designed to automatically switch the
machine off (e.g. Timer switches).
All items marked * are available to order
from your Miele Dealer or from the Miele
Professional Sales Dept.
45
Installation
Electrical connection U.K.
All electrical work must be carried out
by a suitably qualified and competent
person, in strict accordance with
national and local safety regulations.
Ensure power is not supplied to the
machine while installation work is being
carried out.
The voltage, rated load and fuse rating
are given on the data plate. Please
ensure these match the site mains
supply.
This washer-extractor is supplied as
standard for connection to either:
– 230 - 240 V / 1 N / 50 Hz,
30 A fuse rating
single phase supply for connection
to a suitable isolator.
or:
– 400 V / 3N / 50 Hz
3 x 15 A fuse rating
for connection to a suitable isolator.
Connection of single and three
phase machines:
230 - 240 V / 1 N / 50 Hz
–
(30 amp fuse rating U.K.)
400 V / 3 N / 50 Hz
–
(3 x 15 amp fuse rating U.K.)
Connection should be made via a
suitable isolator which complies with
national and local safety regulations,
and the on/off switch should be easily
accessible for servicing work.
For extra safety it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA (in accordance
with DIN VDE 0664, VDE 0100 Section
739).
When switched off there must be an
all-pole contact gap of 3 mm in the
isolator switch (including switch, fuses
and relays acc. to VDE 0660).
Important
For 400 V 3 phase connection, the
machine is supplied with a 5-core
cable in the following colours:
46
Black = live
Black = live
Brown = live
Blue = neutral
Green and yellow = earth.
WARNING
THIS APPLIANCE MUST
BE EARTHED
Installation
Electrical connection Ireland
All electrical work must be carried out
by a suitably qualified and competent
person, in strict accordance with
national and local safety regulations.
This washer-extractor is supplied as
standard for connection to 230 V 50 Hz
single phase supply, and is not
convertible. Fuse rating 25A.
Connection should be made via a
suitable isolator which complies with
national and local regulations and the
on/off switch should be easily
accessible for servicing work.
For extra safety it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA (in accordance
with DIN VDE 0664, VDE 0100 Section
739).
When switched off there must be an
all-pole contact gap of 3 mm in the
isolator switch (including switch, fuses
and relays acc. to VDE 0660).
The voltage, rated load and fuse rating
are given on the data plate. Please
ensure these match the site mains
supply.
WARNING
THIS APPLIANCE MUST
BE EARTHED
47
Installation
Plumbing
This machine is approved for all UK
applications as suitable for category 5.
Product is listed in the WRAS
regulations advisory scheme directory
and is suitable for direct connection to
mains drinking water. No special
plumbing arrangements e.g. break
tanks are required.
A Water Council approved check valve
is supplied in the accessories pack
provided with this machine. It should be
fitted in between the stopcock(s) and
the water inlet hose(s).
The machine should be connected to
the water supply in accordance with
local and national safety regulations.
Connection to the water supply should
be carried out by a qualified plumber
and should incorporate a stopcock with
3
a
/4" thread.
The machine is supplied as standard
with two hoses, for connection to a hot
and cold water supply.
If replacing the inlet hose only use a
hose tested to withstand pressure of
at least 70 bar. This also applies to all
fittings used. Miele original parts are
tested to this standard.
Longer hoses 2.5 or 4.0 m in length are
available as optional extras.
The pressure hose and solenoid inlet
valve are designed for a water flow
pressure of between 1 and 10 bar. At
higher water pressures it is essential to
fit a reducer valve.
There is a minimum flow pressure of 1
bar if 5 litres of water flow into a
suitable container in 15 seconds.
Connection to cold water supply
The approx. 1.5 m long
3
/8" pressure
hose (blue stripes) should be
connected to the check valve on the
stopcock via the
3
/4" threaded union.
This hose is not suitable for connection
to a hot water supply.
Make sure that the washer sits correctly
in the union.
The connection points are subject to
water pressure. Turn on the stopcock
slowly and check for leaks. Correct the
positioning of the washers and screw
unions if appropriate.
48
Connection to hot water supply
To keep electricity consumption costs
down this machine can be connected
to a (ring) piped hot water supply. The
maximum temperature must not exceed
70°C.
It is not economical to run it from an
individual hot water supply if it is not in
continuous use, as the water in the
supply pipes cools down and more
energy would be required to reheat the
water.
For operational reasons the machine
must not be connected to hot water
only.
For hot water connection the same
conditions apply as for cold water
connection.
If the machine is not installed for hot
water connection:
Installation
^ Both inlet hoses can be connected to
cold water using an adapter piece,
without the machine being
reprogrammed.
or
^
unscrew inlet hose (red stripes)
^
plug the inlet connection with the cap
supplied.
^
The machine will have to be
reprogrammed by an authorised ser
vice dealer.
-
49
Installation
Connection to drainage
Machines with a drain pump
The machine drains via a drain pump
with a max. delivery head of 1 metre.
The 1.5 metre long drain hose must not
be kinked as this would restrict
drainage.
The hook in the end of the drain hose
can be turned or taken off if required.
The drain hose may be connected as
follows:
Direct into a sink (drain pump version
–
LP).
Hook the hose over the edge of the
sink and secure . Make sure that the
water can flow away freely to avoid
flooding and to prevent water from
being sucked back into the machine.
– Connected securely to a plastic drain
pipe with a rubber seal. There is no
need to use a non-return valve.
Drain valve version
A motorised drain valve is used to drain
the machine. The DN 70 angle hose
provided enables the machine to be
drained via an on-site gully (with odour
trap).
– Directed securely into a standpipe,
(seal the hose into the pipe to avoid
flooding in case of the drainpipe
being blocked).
–
Directly into a floor drain (gully).
The drain hose can be extended to
5 metres.
The accessories required can be
purchased from the Miele Spare Parts
Dept.
For draining the water away with a
delivery head over 1 metre (and up to a
max. of 1.8 metres) a 2
pump" can be connected. Contact your
Miele Dealer or the Professional Sales
Dept.
50
nd
"Duo-drain
Technical data
Height 85 cm
Width 59.5 cm
Depth 71.5 cm
Depth with door open 107 cm
Weight 114 kg
max. floor load 2778 Newton (278 kg)
Capacity 6 kg dry laundry
Connected load see data plate
Rated load see data plate
Fuse rating see data plate
Water flow pressure min. 1 bar
Static water pressure max. 10 bar
Max. delivery head
(drain pump version LP) max. 1 m
Noise level during spin
(sound pressure according to German
3. GSGV)
< 70 dB(A)
Test certificates awarded Radio/tv suppression, VDE
51
Alteration rights reserved/4704
M.-Nr. 05 545 621 / 01
en-GB
Loading...
