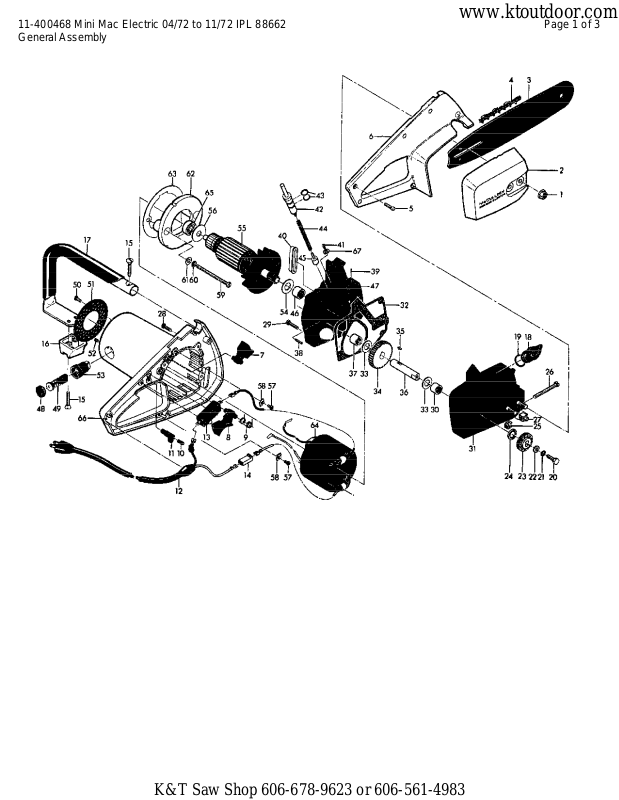

11-400468 Mini Mac Electric 04/72 to 11/72 IPL 88662 Page 1 of 3
www.ktoutdoor.com
General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
11-400468 Mini Mac Electric 04/72 to 11/72 IPL 88662 Page 2 of 3
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 110676 Nut - Flange 1/4-282
2 87220 Guard - Sprocket1
3 87591 Bar - Guide 10 in.1
4 87547N Chain - 10 in. bar1
5 101432 Screw - Fil hd 10-24 x 1/2"6
6 87604 Cover - Handle1
7 87624 Lever - Oil Pump1
8 87620 Trigger1
9 87621 Spring - Trigger1
10 87623 Spring - Trigger latch1
11 87622 Latch - Trigger1
12 88660 Cord Set1
13 87617 Switch1
14 87618 Housing - Terminal1
15 110876 Screw - Oval hd 10-24 x 1-1/23
16 87602 Base - Front handle1
17 87601 Handle1
18 87634 Cap - Oil tank1
19 103128 "O" Ring1
20 103469 Screw - Hex hd 10-24 x 3/8"1
21 100240 Lockwasher - #101
22 100003 Washer - #101
23 87637 Sprocket1
24 110859 Seal - Oil1
25 102067 Nut - Flexloc 10-241
26 104399 Screw - Pan hd 10-24 x 2"1
27 87636 Nut - Bar Adjust.1
28 101432 Screw - Fil hd 10-24 x 1/2"4
29 110777 Screw - Fil hd 8-32 x 7/8"6
30 110856 Bearing - Needle1
31 87633 Support - Gearcase bar1
32 87632 Gasket1
33 87631 Washer - Fibre2
34 87629 Gear - Spur1
35 103510 Key - Woodruff
36 87630 Shaft - Gear
37 110858 Bearing - Needle1
38 101556 Pin - Roll2
39 101901 Pin - Cotter1
40 87635 Gauge - Oil sight1
41 101987 Screw - Rd hd 6-32 x 1/4"1
42 87625 Pump Assy - Oil1
43 102936 "O" Ring2
44 87626 Hose - Oil pickup1
45 87627 Filter - Oil1
46 110857 Bearing - Needle1
47 87628 Gear case1
48 87608 Cap - Brush holder2
49 87607 Brush Assy2
50 101987 Screw - Rd hd 6-32 x 1/4"2
51 87605 Screen1
52 110854 Screw - Set 10-24 x 1/4"2
53 87606 Holder - Brush2
54 87615 Washer - Fibre1
55 87613 Rotor Assy1
K&T Saw Shop 606-678-9623 or 606-561-4983
