11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 1 of 16
www.ktoutdoor.com
Tools & Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 2 of 16
www.ktoutdoor.com
Tools & Accessories
Ref # Part Number DescriptionQty
95169 Kit - Spark Arrester
91485 Wrench - Socket
85687 Wrench - Screwdriver
88755 Scrench
93283 Case - Carrying, 12"
214201 Bar Guard, 12"
93090 Guide - Timing
85062 Kit - Piston Tool Used on MAC 110 and MAC 120
Models with serial number prefix 11-.
68915A Kit - Piston Tool Used on MAC 110 and MAC 120
Models with serial number prefix 12-, 13- and 14.
90256 Kit - Tune up
214215 Guide - File
214211 Kit - Tool Maintenance
93900 Kit - Pressure Test
215432 Tool - Pressure Test
501334 Tester - Ignition
214194 Lubri - Gun
85702 Lubricant - Custom, 6 oz. can
85703 Lubricant - Custom, 6 oz. cans, 1 - 6 pack
67537 Loctite
69794 Locquic
110083 R.T.V. Sealant
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 3 of 16
www.ktoutdoor.com
Bar & Chain Combinations
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 4 of 16
www.ktoutdoor.com
Bar & Chain Combinations
Ref # Part Number DescriptionQty
214233 Bar - 10" Mini Pro
215250 Bar - 10" Mini Mac
214918N Chain Asy - 10" MM 3706
214227N Chain Asy - 10" MP 370G
214234 Bar - 12" Mini Pro
214921N Chain Asy - 12" MP 370G
214916N Chain Asy - 12" MM 370G
214235 Bar - 14" Mini Pro
214913N Chain Asy - 14" MM 370G
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 5 of 16
www.ktoutdoor.com
Carburetor Assembly (Walbro MDC 17 & MDC 15)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 6 of 16
www.ktoutdoor.com

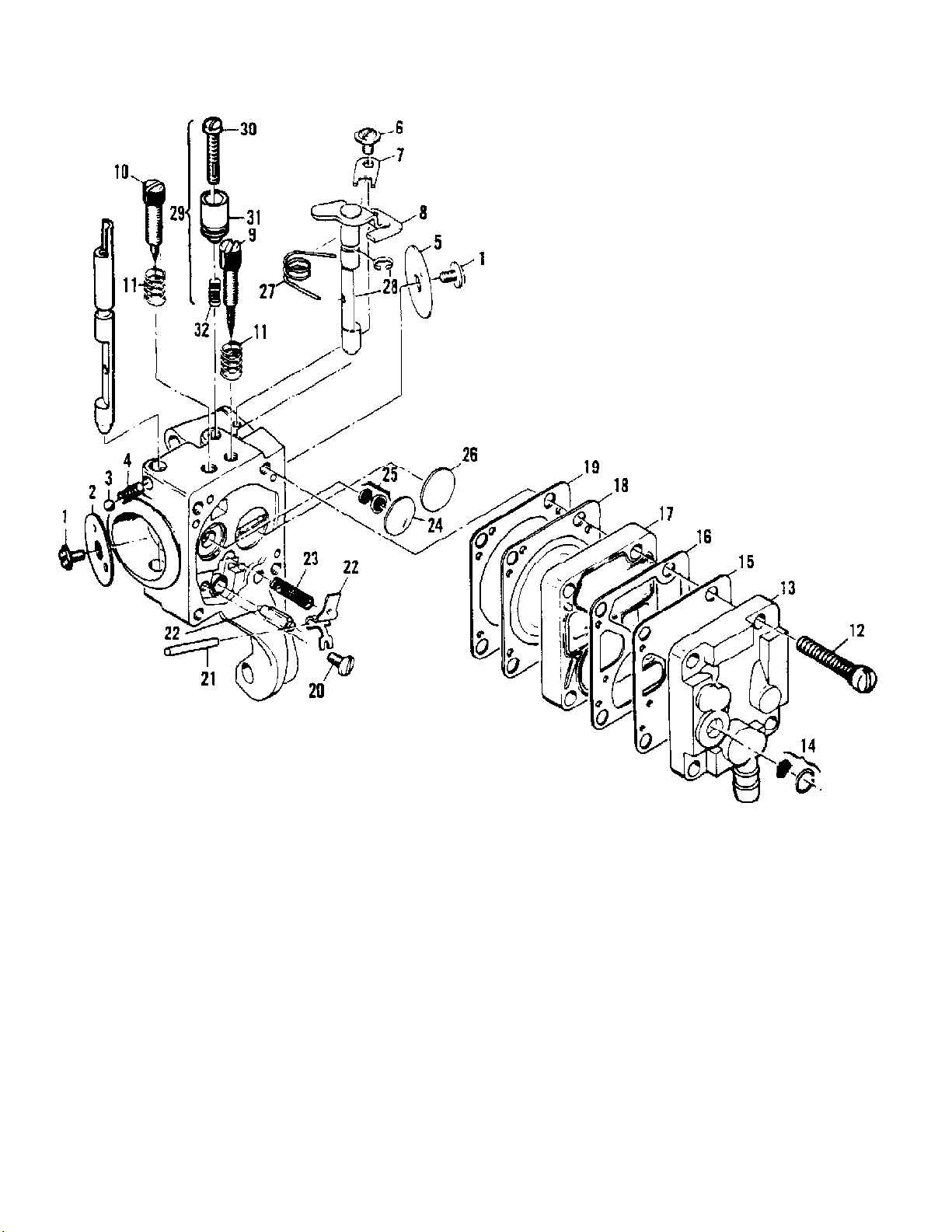

Carburetor Assembly (Walbro MDC 17 & MDC 15)
Ref # Part Number DescriptionQty
2140828 Carburetor Asy - Walbro MDC 161
214082 Carburetor Asy - Walbro MDC 151
1 Screw - Plate2
2 Plate - Choke1
3 Hall - Choke friction1
4 Spring - Choke friction1
5 Plate - Throttle1
6 Screw - Clip1
7 Clip - Throttle shaft1
8 Shaft Asy - Throttle1
9 86446 Needle - Idle1
10 86447 Needle - High speed1
11 67502 Spring - Needle2
12 Screw Asy - Body4
13 Cover Asy - Pump1
14 85629 Kit - Vent screen1
15 68563 Diaphragm - Fuel pump1
16 85035 Gasket - Pump diaphragm1
17 Body - Fuel pump1
18 85036 Diaphragm - Metering1
19 85034 Gasket - Diaphragm1
20 67500 Screw - Lever pin1
21 67508 Pin - Lever1
22 85059 Kit - Needle & Lever1
23 68567 Spring - Lever1
24 68559 Plug - Welsh 7/161
25 83758 Kit - Check valve1
26 68560 Plug - Welsh 1/21
27 Spring - Throttle return1
28 Ring - Retaining1
29 93437 Latch Asy - Throttle1
30 Screw - Long lock1
31 Latch - Throttle1
32 Spring - Compression1
216731 Repair Kit
216727 Gasket/Diaphragm
216725 Needle Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 7 of 16
www.ktoutdoor.com
Carburetor Assembly (Zama M1 - M7)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 8 of 16
www.ktoutdoor.com

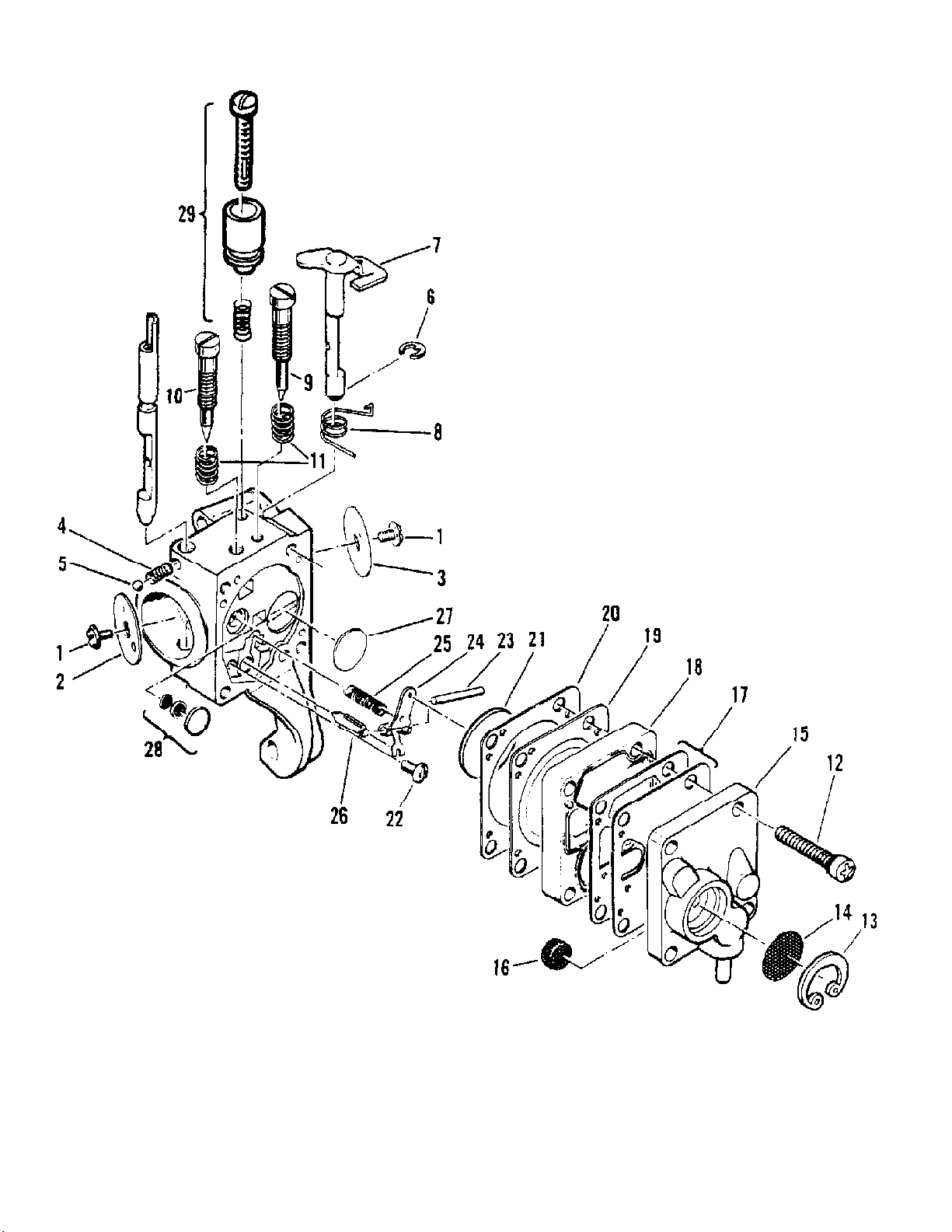

Carburetor Assembly (Zama M1 - M7)
Ref # Part Number DescriptionQty
214082A Carburetor Asy - Zama M1 - M71
1 Screw - Plate2
2 Valve - Choke1
3 Valve - Throttle
4 Spring - Choke1
5 Ball - Friction1
6 "E" Ring1
7 Shaft Assembly - Throttle1
8 Spring - Throttle return1
9 215275 Screw - Idle adjustment1
10 215276 Screw - Main adjustment1
11 91819 Spring - Screw2
12 Screw - Cover4
13 "C" Ring1
14 215284 Strainer1
15 Cover - Pump1
16 91820 Screen
17 Kit - Pump diaphragm1
18 215281 Body - Pump1
19 215282 Diaphragm - Main1
20 215280 Gasket - Main1
21 215277 Disk1
22 91814 Screw1
23 91813 Pin - Arm1
24 215278 Arm - Needle valve1
25 91811 Spring - Arm1
26 91810 Valve - Needle1
27 93951 Plug - Welsh1
28 215287 Valve Asy - Main nozzle1
29 93437 Latch Assembly - Throttle1
216721 Repair Kit
216722 Gasket/Diaphragm Kit
216734 Needle Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 9 of 16
www.ktoutdoor.com
Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 10 of 16
www.ktoutdoor.com

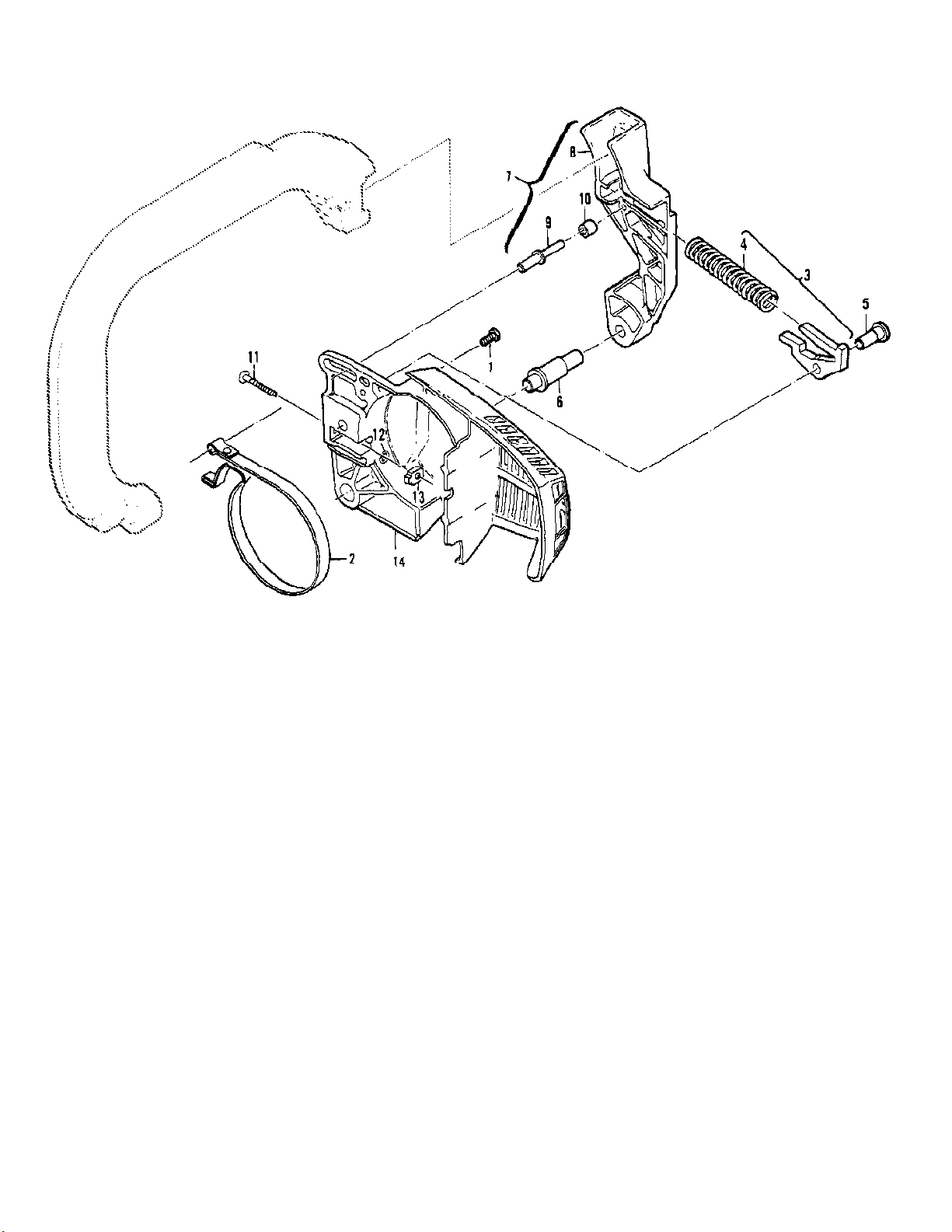

Chain Brake Assembly
Ref # Part Number DescriptionQty
216417 CHAIN BRAKE Assembly
1 111047 Screw Pan hd 8-32 x 5/81
2 94709 Band - Brake1
3 215758 Kit - Latch1
4 Spring - Compression1
5 93602 Pivot - Latch1
6 92482 Pivot - Lever1
7 214375 Lever Assembly - Actuating1
8 92867 Lever1
9 213907 Pin - Roller1
10 214368 Bearing - Roller1
11 90658 Screw - Adjusting1
12 110907 Ring - Retaining1
13 84929 Nut - Bar adjusting1
14 216437 Housing - Brake1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 11 of 16
www.ktoutdoor.com
General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 12 of 16
www.ktoutdoor.com

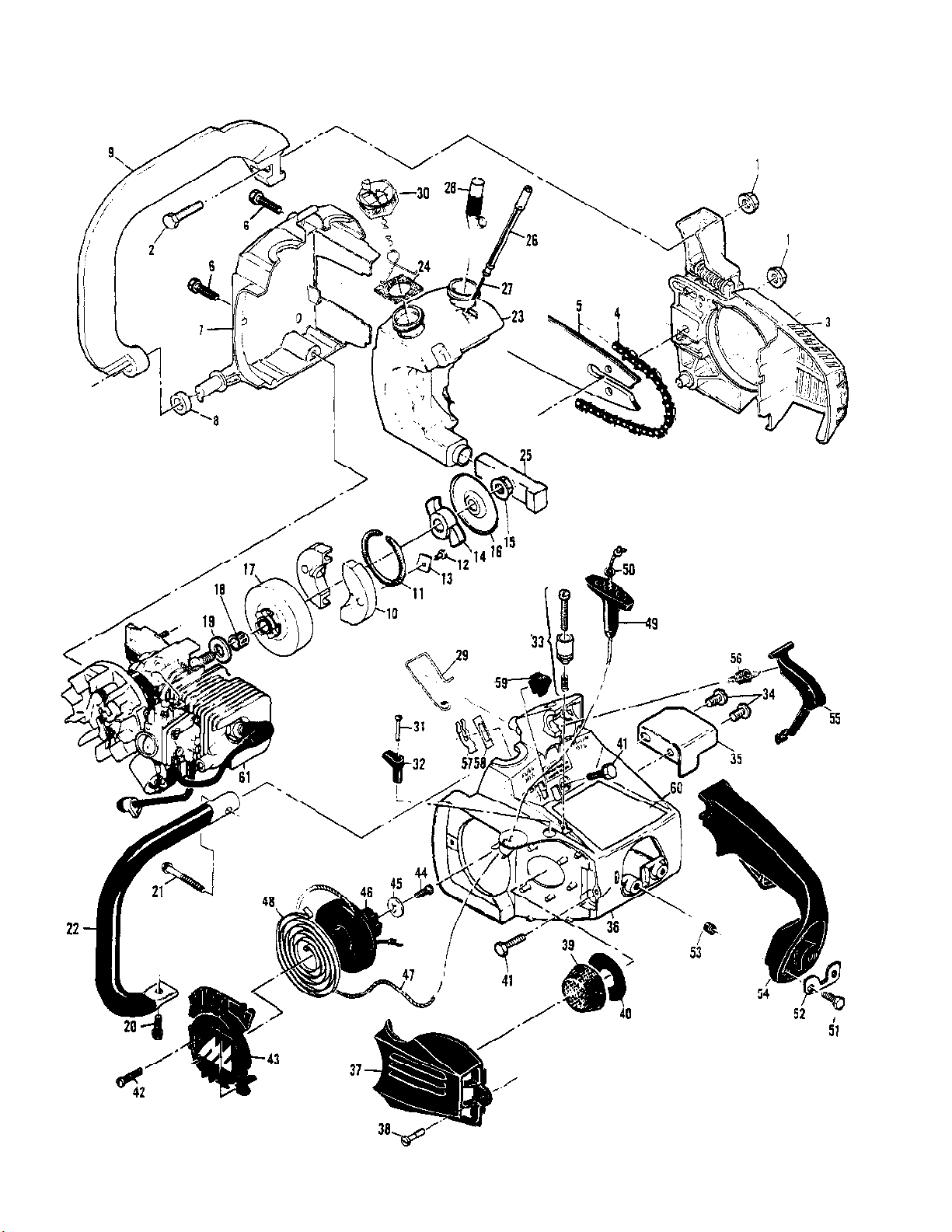

General
Ref # Part Number DescriptionQty
1 216256 Nut - Hx 1/4-282
2 216276 Screw - Hx 1/4-28 x 3/41
3 CHAIN BRAKE Asy See "Chain Break Assembly"
illustration and parts list.
4 Chain Asy See "Bar & Chain Combination" parts list.
5 Bar See "Bar & Chain Combination Assembly" parts
list.
6 110639 Screw - Hx hd 12-24 x 12
7 214718 Cover - Fuel & Oil tank1
8 93194A Washer - Rubber1
9 92479 Lever - Handguard1
10 213278 Kit - Clutch1
11 93608 Spring Assembly1
12 110957 Rivet2
13 85064 Plate2
14 94247 Kit - Rotor1
15 94244 Nut - Clutch1
16 94243 Plate - Dust1
17 214390 Drum/Spkt/Brng Assembly1
18 91222 Kit - Needle bearing1
19 215259 Washer - Sprocket1
20 110953 Screw - Hx hd 12-24 x 5/81
21 110686 Screw - Hx hd 13-16 x 21
22 214505 Frame & Grip Assembly1
23 216715 Fuel & Oil Tank Asy1
24 91148 Seal - Fuel Vent1
25 84956 Pickup - Fuel1
26 213906 Piston - Manual Oiler1
27 83946 Spring - Piston1
28 85557 Body - Oiler1
29 84611 Rod - Manual Oiler1
30 216668 Cap - Fuel & Oil (unvented)2
31 110672 Screw - Oval hd 4-40 x 11
32 83870 Knob - Choke1
33 Throttle Latch Asy See "Carburetor Assembly Walbro
MDC 16" and "Powerhead Assembly" illustration and
parts list.
34 110807 Screw - Pan hd 8-32 x 5/162
35 93290 Deflector - Sawdust1
36 214987 Shroud1
37 91853 Cover - Air cleaner
38 91796 Screw - Air cleaner1
39 91460 Filter - Air1
40 84918 Washer - Air seal1
41 110953 Screw - Hx hd 12-24 x 5/83
42 110959 Screw - Hx hd 8-32 x 1/21
43 90425 Cover - Starter1
44 110041 Screw - Pan hd 8-32 x 1/21
45 68497 Washer - Special1
46 213261 Drum/Rope Assembly1
47 83203 Rope - Starter1
48 83078 Spring - Rewind1
49 91255 Kit - Starter handle1
50 105490 Washer - Starter handle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 13 of 16
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
51 110953 Screw - Hx hd 12-24 x 5/82
52 84520A Plate - Washer1
53 84519 Sleeve - Handle2
54 94896 Kit - Handle1
55 93869 Trigger - Throttle1
56 83940 Spring - Trigger1
57 83935 Contact - Switch1
58 83936 Protector - Switch1
59 83934 Button - Switch1
60 95202 Plate - Name (MAC 120)1
60 95203 Plate - Name (MAC 110)1
61 Powerhead Assembly See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 14 of 16
www.ktoutdoor.com

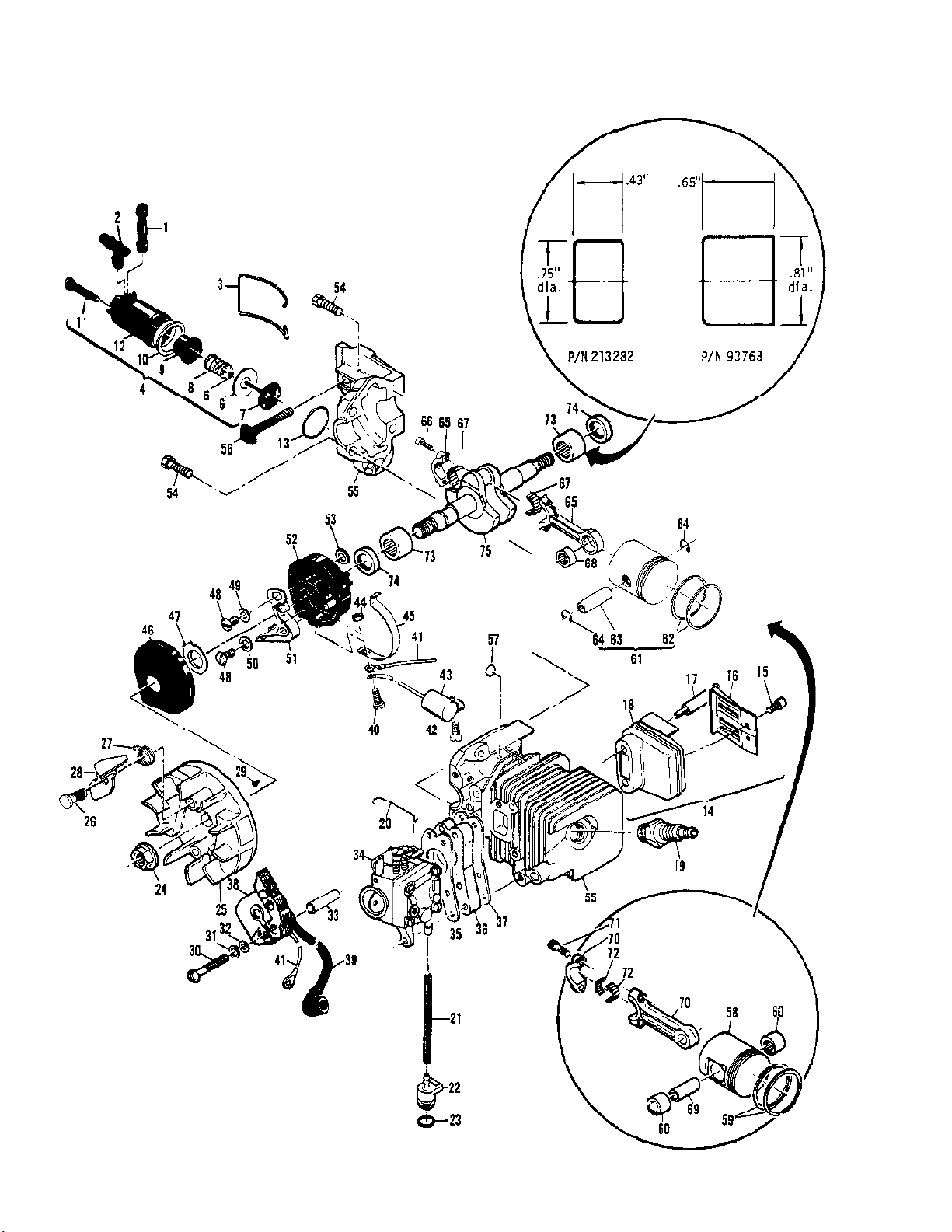

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 15 of 16
were not in the previous IPL covering these saws.
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 83898 Connector - Outlet1
2 84613 Connector - Pump1
3 83896 Bail - Mounting1
4 216563 Pump Assembly - Oiler1
5 "O" Ring1
6 Ring - Pump piston1
7 Piston Assembly - Pump1
8 83891 Spring - Pump1
9 Sleeve - Pump1
10 Eyelet1
11 110651 Screw - Adjustment1
12 216564 Body Assembly - Pump1
13 110653 "O" Ring1
14 215411 Kit - Muffler1
15 110681 Screw - Skt hd 10-24 x 1/42
16 92961 Deflector - Exhaust1
17 213327 Screw - Special2
18 Body - Cover1
14 215412 Kit - Muffler1
15 110681 Screw - Skt hd 10-24 x 1/42
16 92961 Deflector - Exhaust1
17 213025 Screw - Special2
18 93655 Body - Cover1
19 214223 Spark Plug Used on models 600016A, C, D, G, J, K,
1
N, P, R, S, T and U. Part numbers in this IPL which
19 93018 Spark Plug Used on models 600016B, E, F, H and M.1
20 216039 Rod - Throttle1
21 89059 Hose - Fuel1
22 90660 Adaptor - Fuel hose1
23 110908 "O" Ring1
24 110961 Nut - Hex 5/16-241
25 94737 Flywheel/Pawl Assembly1
26 68796 Pin - Pawl2
27 67814 Spring - Pawl2
28 94493 Pawl - Starter2
29 102164 Key - Woodruff1
30 110586 Screw - Pan hd 8-32 x 1-3/43
31 105976 Washer - #83
32 67177 Washer - Insulating3
33 68198 Tube - Insulating3
34 Carburetor Assembly See "Carburetor Assembly
(Walbro MDC 16 and 15)" illustration and parts list and
"Powerhead Assembly" illustration and parts list.
35 68197 Gasket - Carburetor1
36 214349 Insulator - Carburetor1
37 90714 Gasket - Insulator1
38 84957 Coil & Lamination Assembly1
39 215351 Wire Assembly - Spark Plug1
40 110364 Screw - Pan hd 6-32 x 5/81
41 69344 Wire Assembly - Coil1
42 110041 Screw - Pan hd 8-32 x 1/2 s/t1
43 85358 Condenser1
44 100035 Nut - Hx 6-321
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600016E MAC 110 01/77 to 02/83 IPL 95807-R2 Page 16 of 16
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
45 84502 Connector - Stop switch1
46 67841 Cover - Breaker box1
47 69323 Seal - Breaker box1
48 110969 Screw - Hex hd 8-32 x 1/22
49 69322 Washer - Special1
50 105976 Washer - #81
51 88811 Breaker Assembly1
52 84505A Kit - Breaker box1
53 92037 Washer1
54 216857 Screw - Hex hd 12-24 x 14
55 214257 Kit - Cylinder1
56 83856 Bolt - Bar mounting1
57 110914 Plug - Cup4
55 214162 Kit - Cylinder1
56 83856 Bolt-Bar mounting1
57 110914 Plug-Cup4
58 92274 Piston Assembly1
59 92752 Set - Piston rings1
60 110538 Bearing - Needle2
58 94476 Piston Assembly1
59 95143 Set - Piston rings1
60 110538 Bearing - Needle2
61 94662 Piston Assembly1
62 95143 Set - Piston rings1
63 92836 Pin - Piston1
64 111026 Ring - Snap2
65 94135 Connecting Rod Assembly1
66 94654 Screw - Connecting rodZ
67 68095 Roller - Needle (set of 20)1
68 110984 Bearing - Needle1
69 66867 Pin - Piston1
70 68097 Connecting Rod Assembly1
71 94654 Screw - Special2
72 68095 Roller - Needle (set of 20)1
73 213282 Bearing - Crankshaft2
74 83859 Seal - Crankshaft oil2
73 93763 Sleeve Assembly - Bearing1
74 83859 Seal - Crankshaft1
75 91932 Crankshaft1
216426 Oil Pump Repair Kit
