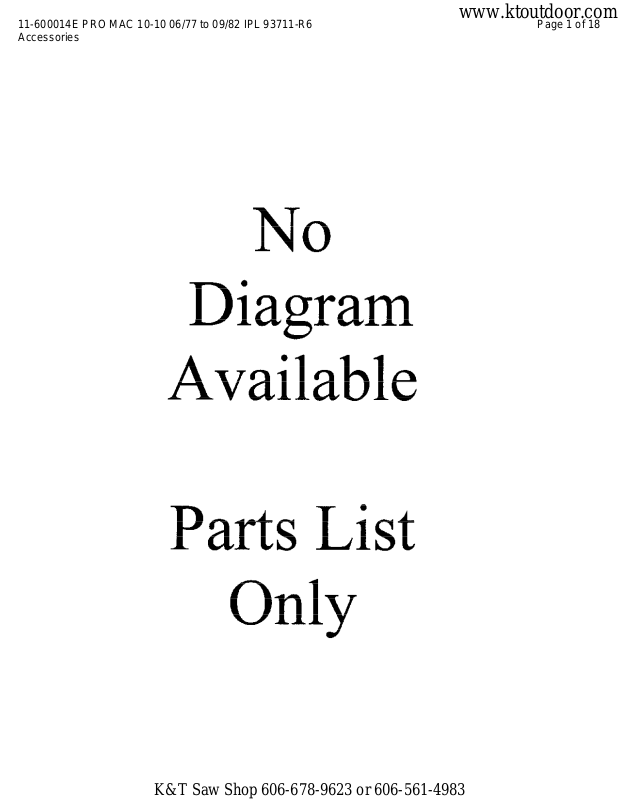

Page 1
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 1 of 18
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 2 of 18
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
214238 Bar - 2O" Sprocket Nose
89978N Chain Asy - 20" SPR 370G
93285 Case - Carrying (16" Bar Guard)
92896 Guard - Bar 16"
69210 Piston Asy - .020 in. oversize
Ring Set - Piston .020 in. oversize Not available
separately.
69211 Piston Asy - .030 in. oversize
62812 Ring Set - Piston .030 in. oversize
86419 Guide - Timing
69191 Kit - Pressure Test Adaptor
84453 Kit - Piston Tool
83235 Scrench
89431 Kit - Spark Arrester Screen
214223 Spark Plug (Standard)
63432 Spark Plug (Cooler)
91967 Kit - Spike
102388 Screw - Hx hd 10-24 x 5/8
24236 Washer Special
101191 Nut - Hx 10-24
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 3 of 18
www.ktoutdoor.com

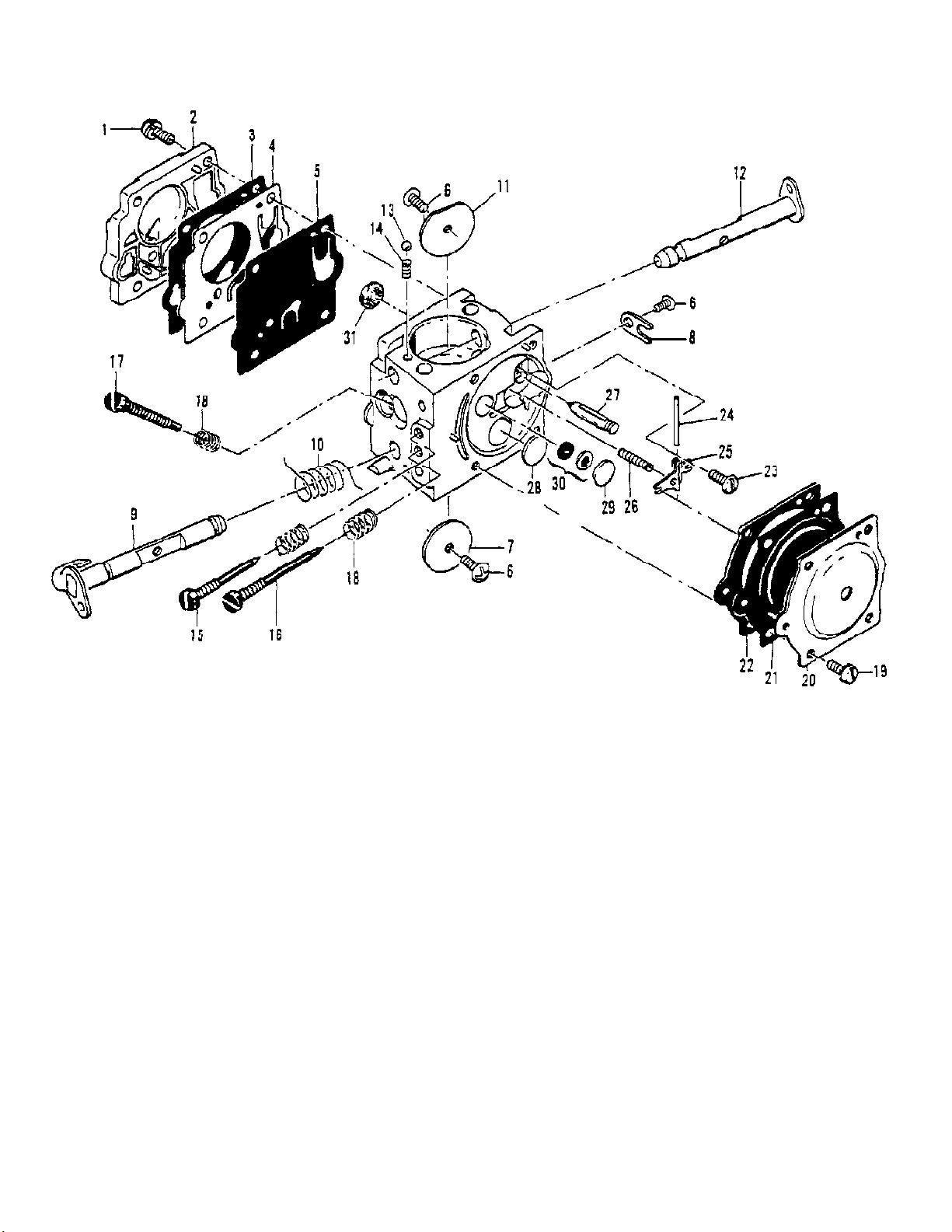

Carburetor (Walbra SDC 37A)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 4 of 18
www.ktoutdoor.com
Carburetor (Walbra SDC 37A)
Ref # Part Number DescriptionQty
85720 Carburetor - Walbro SDC 37A1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Asy - Throttle1
10 85981 Spring - Throttle shaft1
11 67490 Plate - Choke1
12 67488 Shaft Asy - Choke1
13 100302 Hall - Choke friction1
14 67504 Spring - Choke friction1
15 68104 Needle - High speed1
16 68105 Needle - Idle1
17 68106 Screw - Idle speed1
18 67502 Spring - Needle3
19 70798 Screw - Diaphragm cover4
20 83761 Cover - Diaphragm1
21 67499 Diaphragm - Metering1
22 67496 Gasket - Diaphragm1
23 67500 Screw - Lever pin1
24 67508 Pin - Lever1
25 67509 Lever - Metering1
26 67503 Spring - Lever1
27 67491 Valve - Needle1
28 71690 Plug - 3/81
29 69506 Plug - 5/161
30 83758 Kit - Valve & Seat Asy1
31 67507 Screen - Fuel1
67482 Gasket Set
83764 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 5 of 18
www.ktoutdoor.com

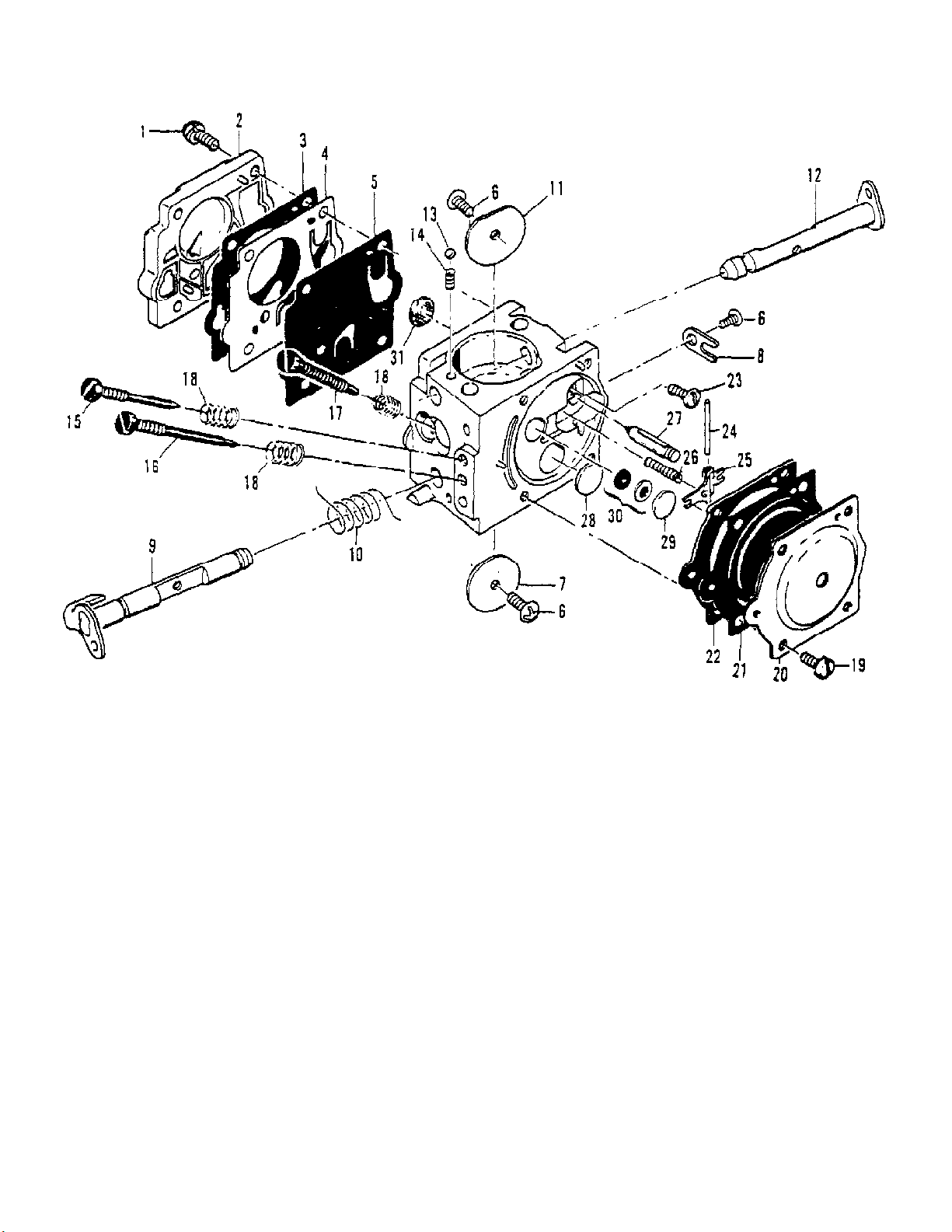

Carburetor (Walbro SDC 65)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 6 of 18
www.ktoutdoor.com
Carburetor (Walbro SDC 65)
Ref # Part Number DescriptionQty
92654 Carburetor - Walbro SDC 651
1 Screw - Pump cover Not available separately.4
2 Cover - Pump Not available separately.1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 Screw - Plate Not available separately.3
7 Plate - Throttle Not available separately.1
8 Clip - Shaft Not available separately.1
9 Shaft Asy - Throttle Not available separately.1
10 Spring - Throttle shaft Not available separately.1
11 Plate - Choke Not available separately.1
12 Shaft Asy - Choke Not available separately.1
13 Ball - Choke friction Not available separately.1
14 Spring - Choke friction Not available separately.1
15 92937 Needle - High speed1
16 92924 Needle - Idle1
17 68106 Screw - Idle speed1
18 67502 Spring - Needle3
19 Screw - Diaphragm cover Not available separately.4
20 Cover - Diaphragm Not available separately.1
21 67499 Diaphragm - Metering1
22 67496 Gasket - Diaphragm1
23 67500 Screw - Lever pin1
24 67508 Pin - Lever1
25 67509 Lever - Metering1
26 67503 Spring - Lever1
27 67491 Valve - Needle1
28 71690 Plug - 3/81
29 69506 Plug - 5/161
30 83758 Kit - Valve & Seat Asy1
31 67507 Screen - Fuel1
216735 Needle Kit
216718 Repair Kit
216729 Gasket/Diaphragm Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 7 of 18
www.ktoutdoor.com

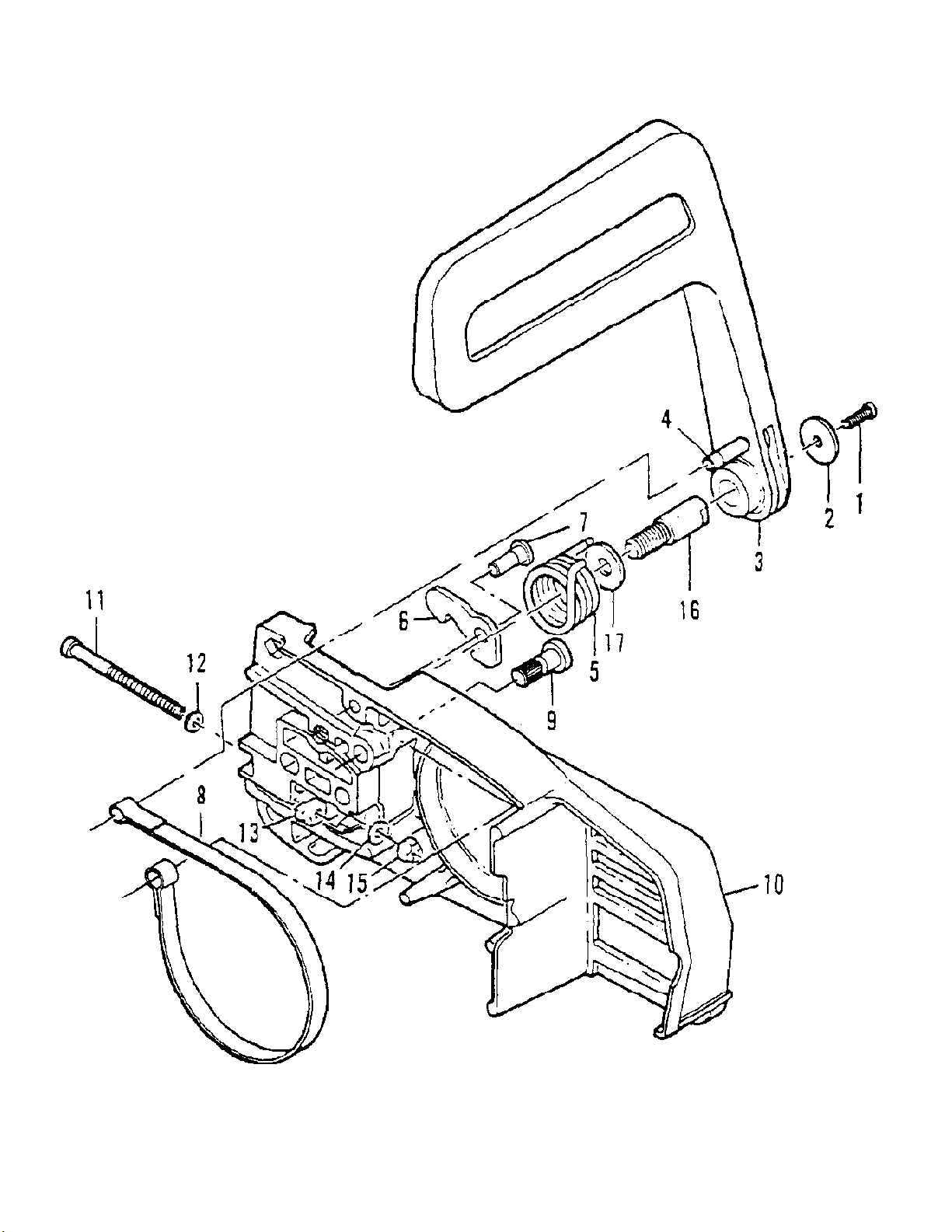

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 8 of 18
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
216003 Kit - CHAIN BRAKE1
1 102500 Screw - Pan hd 10-24 x 1/21
2 91273 Washer - Special1
3 215911 Lever Asy1
4 214366 Pin Asy - Roller1
5 93085 Spring - Brake1
6 93083 Latch1
7 93669 Pivot - Latch1
8 93081 Band - Brake1
9 93082 Pin - Band Anchor1
10 214668 Housing - Brake1
10 214669 Housing - Brake1
11 110527 Screw - Fil hd 10-24 x 2-3/41
12 110264 Washer - #101
13 61705 Nut - Bar adjusting1
14 100002 Washer - #101
15 102067 Nut - Hx 10-241
16 91246 Pin - Lever pivot1
17 91245 Washer - Thrust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 9 of 18
www.ktoutdoor.com

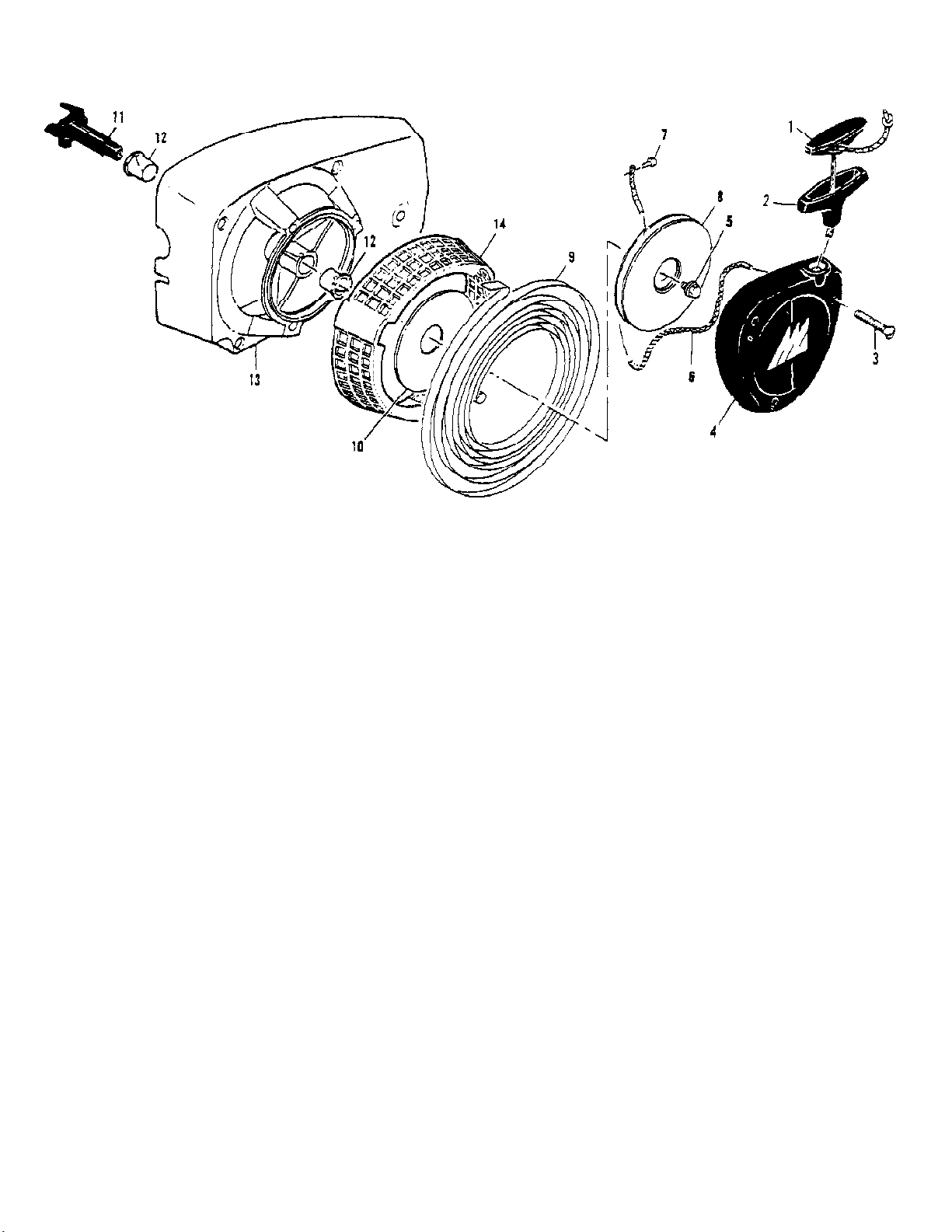

Fan Housing & Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 10 of 18
www.ktoutdoor.com
Fan Housing & Starter Assembly
Ref # Part Number DescriptionQty
87667 Fan Housing & Starter Asy1
1 214699 Insert - Starter1
2 93137 Handle - Starter1
3 110646 Screw - Oval hd 8-32 x 1-1/83
4 91084 Cover - Starter1
5 110928 Screw - Hx hd 10-24 x 1/21
6 68162 Rope - Starter1
7 110470 Rivet - Rope1
8 85122 Drum - Starter1
9 87680 Spring - Rewind1
10 86053 Shield - Spring1
11 83748 Shaft - Starter1
12 57535 Bushing - Starter2
13 87693 Kit - Fan Housing1
14 214192 Guard - Sawdust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 11 of 18
www.ktoutdoor.com

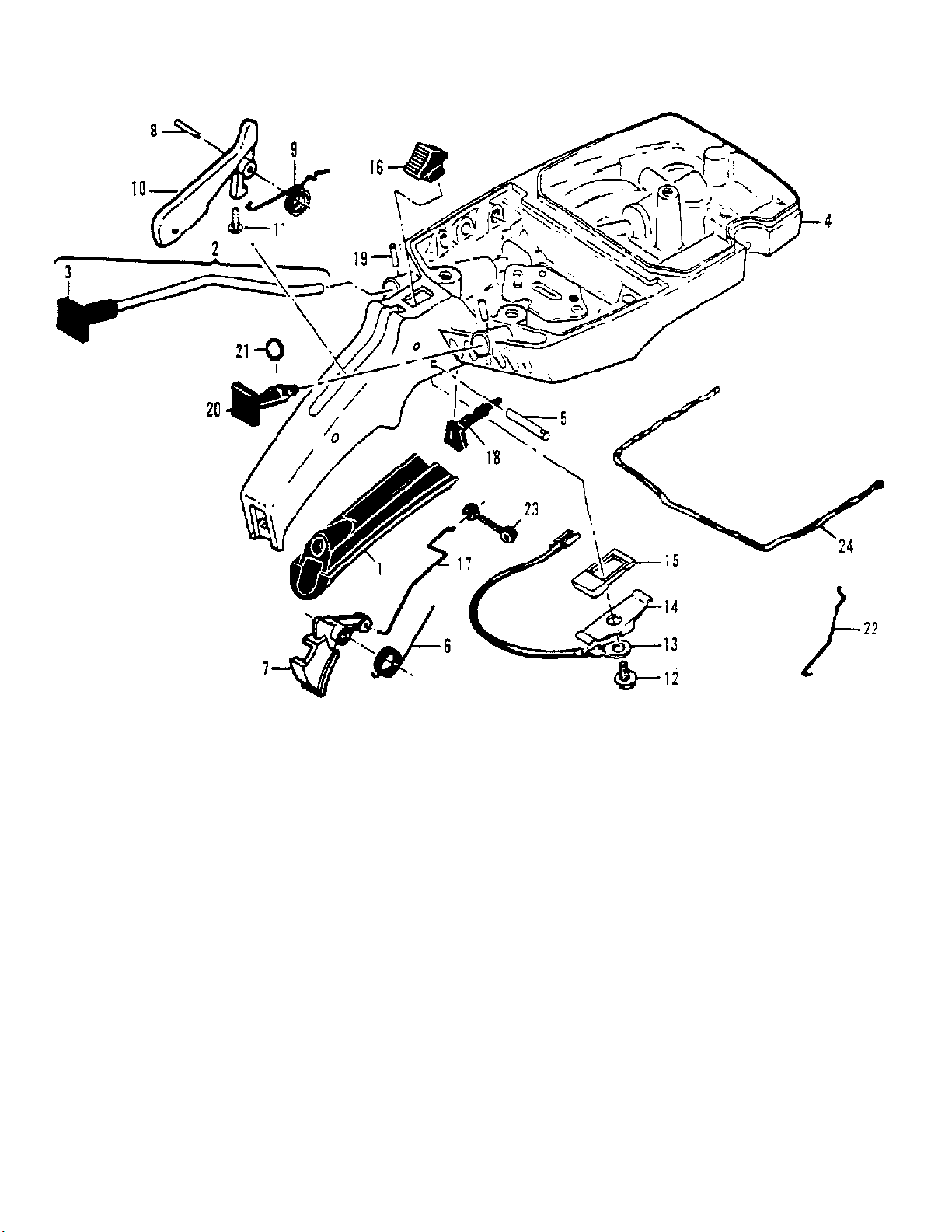

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 12 of 18
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 89320 Insert - Handle grip1
2 216126 Button & Rod Assembly1
3 95480 Button - Oiler1
4 214705 Kit - Fuel tank/control1
5 110378 Pin - Roll/3/16 x 15/161
6 92152 Spring - Trigger1
7 214679 Trigger - Throttle1
8 105654 Pin - Roll 1/8 x 7/81
9 92154 Spring - Trigger release1
10 94275 Release Asy - Trigger1
11 111012 Screw - Pan hd 4-40 x 5/161
12 110706 Screw - Fil hd 8-18 x 1/21
13 214692 Wire Asy - Stop switch1
14 62451 Contact - Switch1
15 214691 Hose - Switch1
16 68846 Button - Switch1
17 85107 Rod - Throttle1
18 214701 Seal - Throttle rod2
19 105673 Pin - Roll 3/32 x 9/161
20 69041 Button - Choke1
21 105614 "O" Ring1
22 69042 Rod - Choke1
23 69043 Snubber - Rod1
24 69564 Seal - Air box1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 13 of 18
www.ktoutdoor.com

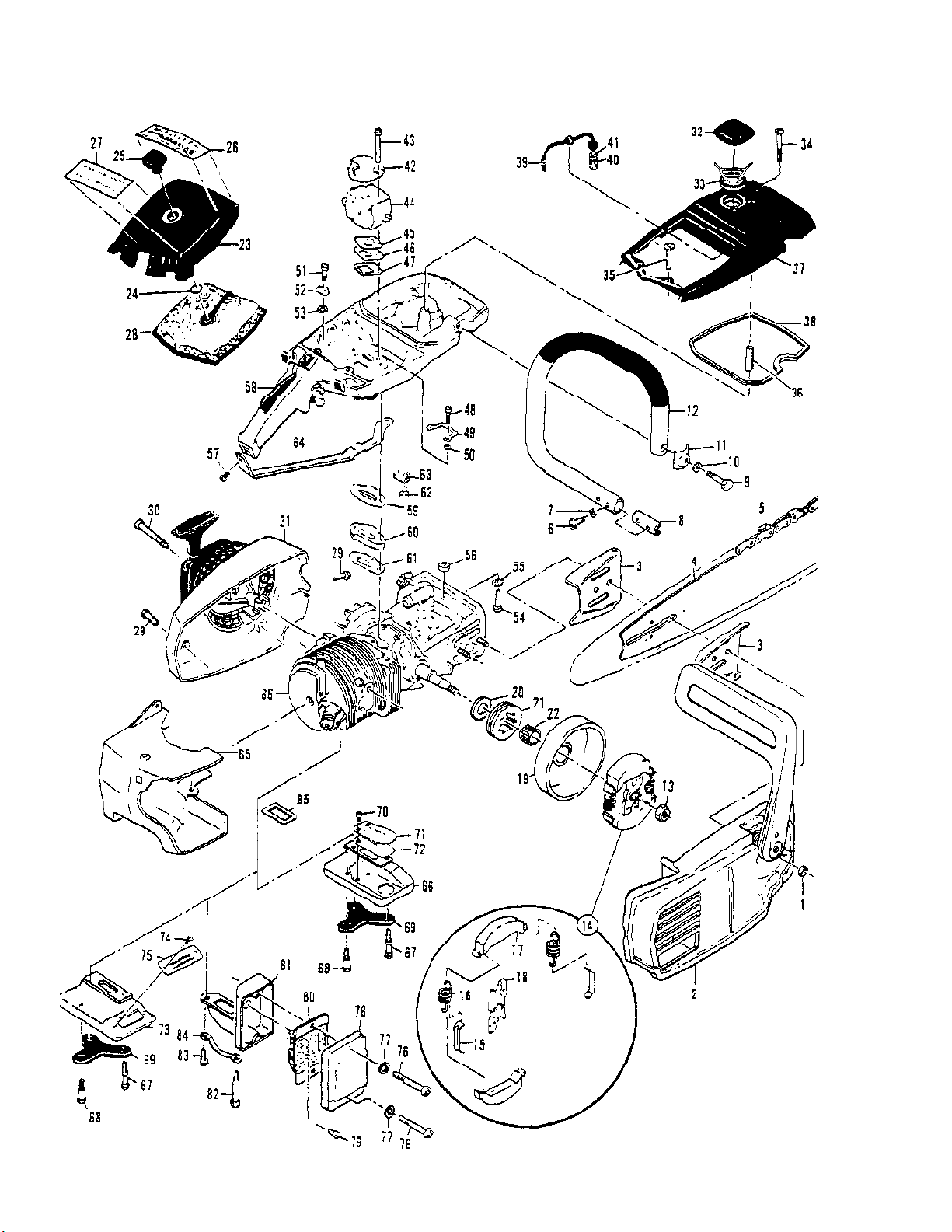

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 14 of 18
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 110961 Nut - Hx 5/16-242
2 CHAIN BRAKE Asy See "Chain Brake" illustration
and parts list.
3 64330 Set - Bar plates1
4 214237 Bar - 16" Sprocket Nose1
5 88167N Chain Assembly - 16" PM 370G1
6 110865 Screw - Hx hd 10-24 x 7/82
7 100352 Washer - #102
8 89727 Retainer - Frame1
9 102130 Screw - Hx hd 1/4-20 x 1-1/21
10 100153 Washer - Lock 1/41
11 63484 Clamp - Frame1
12 214549 Frame & Grip Assembly1
13 86113 Nut - Hx 3/8-24 (L.N.)1
14 214301 Clutch Assembly1
15 64583 Retainer - Spring2
16 83223 Spring - Clutch2
17 67233 Kit - Clutch shoe1
18 214300 Rotor Assembly1
19 95166 Drum/Sprocket Assembly1
20 86958 Washer - Shim1
21 86145 Kit - Sprocket1
19 214979 Drum/Sprocket Assembly - Spur1
20 86958 Washer - Shim1
19 95165 Drum/Sprocket Asy1
20 86958 Washer - Shim1
21 86951 Kit - Spkt1
22 215720 Kit - Bearing - Washer1
23 214674 Cover Assembly - Air cleaner1
24 110565 Ring - Retainer1
25 68529 Knob - Cover1
26 93266 Plate - Name1
27 91548 Plate - Instruction1
28 92420 Filter - Air1
29 110741 Screw - Pan hd 10-24 x 1/22
30 87871 Screw - Special3
31 Fan Housing & Starter Asys See "Fan Housing &
Starter Assembly" illustration and parts list.
32 216053 Cap Assembly - Fuel1
33 69767 Gasket1
34 110402 Screw - Oval hd 12-24 x 2-3/81
35 101986 Screw - Oval hd 10-24 x 12
36 87840 Spacer1
37 69679 Cover - Fuel tank1
38 69345 Gasket - Cover1
39 215708 Hose Assembly - Fuel1
40 63932 Filter - Fuel1
41 100440 Washer1
42 69952 Bracket - Air cleaner1
43 103357 Screw - Hx hd 10-24 x 2 1/81
44 Carburetor Asy See "Carburetor - Walbro (SDC 65)
& (SDC 37A)" illustrations and parts lists.
45 86189 Gasket - Carburetor1
46 84078 Spacer - Carburetor1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 15 of 18
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
47 84081 Gasket - Spacer1
48 110570 Screw - Hx hd 12-24 x 1-3/82
49 68582 Plate - Lock1
50 102115 Washer - #122
51 110568 Screw - Hx hd 12-24 x 1-1/81
52 69516 Plate - Lock1
53 64856 Washer - Special1
54 110713 Screw - Skt hd 10-24 x 7/81
55 100003 Washer - #101
56 69772 Spacer - Fuel tank1
57 110910 Screw - Hx hd 10-24 x 1-3/81
58 Fuel Tank Assembly See "Fuel Tank Assembly"
illustration and parts list.
59 84082 Gasket - Fuel tank1
60 84079 Insulator - Fuel tank1
61 84082 Gasket - Insulator1
62 110566 Screw - Hx hd 12-24 x 5/81
63 68508 Plate - Lock1
64 85007 Brace - Handle1
65 214702 Shroud1
66 68863 Kit - Muffler1
67 67838 Screw - Muffler, long2
68 67837 Screw - Short1
69 83993 Plate - Lock1
70 110563 Screw - Skt hd 8-32 x 1/42
71 84780 Stop - Reed1
72 84779 Reed1
73 95318 Kit - Muffler1
74 110662 Screw - Pan hd 6-32 x 3/82
75 95320 Kit - Muffler cover1
93992 Kit - Muffler1
76 101563 Screw - Skt hd 10-24 x 1-1/42
77 110264 Washer2
78 83966 Cover Asy - Muffler1
79 110928 Screw - Hx hd 10-24 x 1/21
80 85152 Baffle1
81 83105 Kit - Body & Duct1
82 68187 Screw - Special1
83 110529 Screw - Hx hd 10-24 x 1/21
84 67922 Lockplate1
85 84007 Gasket - Muffler1
86 Powerhead Assembly See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 16 of 18
www.ktoutdoor.com

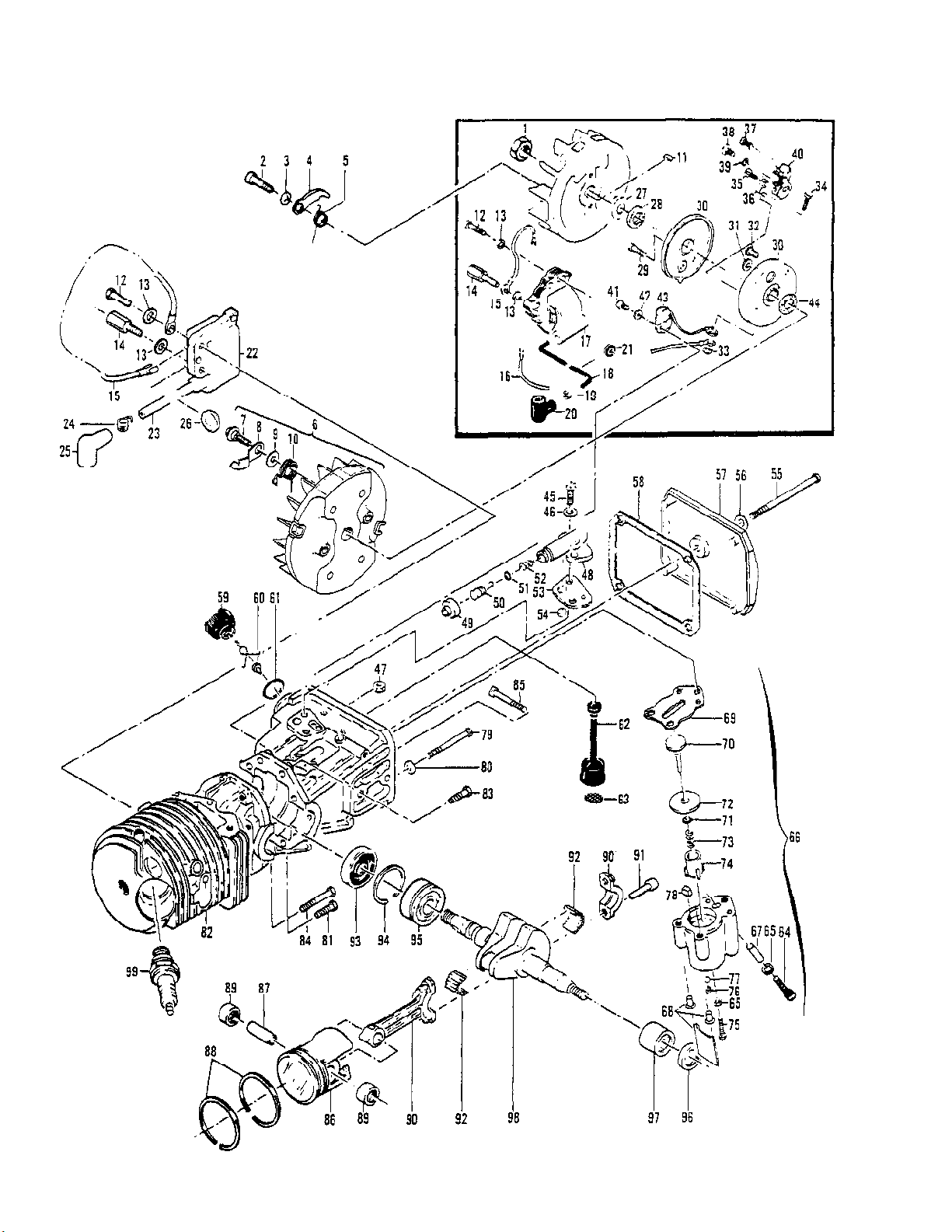

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 17 of 18
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110703 Nut - Hx 3/8-241
2 88804 Screw - Pawl Pivot1
3 83241 Washer - Special2
4 67546 Pawl - Starter2
5 67545 Spring - Pawl2
6 216739 Kit - Flywheel/Pawl1
7 93464 Screw - Pawl2
8 93198 Pawl - Starter2
9 93469 Washer - Pawl2
10 214102 Spring - Pawl2
11 100106 Key - Woodruff1
12 110127 Screw - Hx hd 10-24 x 7/8 (SEMS)1
13 100002 Washer - #102
14 83512 Stud - Special1
15 84686A Wire Assembly - Ground1
16 69344 Wire Assembly - Primary1
17 214535 Coil & Lamination Assembly1
18 215351 Wire Asy - Spark plug1
19 55061 Connector1
20 95266 Boot1
21 100268 Grommet1
22 95553 Electronic Ignition Asy1
23 95269 Wire Asy - Spark plug1
24 102556 Connector1
25 95266 Boot1
26 110995 Grommet1
27 67057 Washer - Thrust1
28 67056 Seal - Breaker box cover1
29 110584 Screw - Pan hd 8-32 x 3/41
30 91852A Kit - Breaker box & cover1
31 91838 Washer1
32 110489 Screw - Pan hd 6-32 x 7/161
33 100298 Nut - Hx 6-321
34 110346 Screw - Hx hd 6-32 x 3/41
35 110706 Screw - Pan hd 8-18 x 1/21
36 83126 Strap - Conduction1
37 110811 Screw - Pan hd 8-32 x 3/81
38 110969 Screw - Hx hd 8-32 x 1/21
39 105976 Washer - #81
40 88808 Breaker Assembly1
41 110338 Screw - Fil hd 8-32 x 1/21
42 100080 Washer - #81
43 85358 Condenser1
44 67051 Seal - Breaker box1
45 110338 Screw - Fil hd 8-32 x 1/22
46 110613 Washer - #82
47 100955 Nut - Hx 8-321
48 84156 Housing - Pump1
49 215151 Cap - Housing1
50 62266 Plunger - Pump1
51 105614 "O" Ring1
52 66687 Spring - Pump1
53 91669 Gasket - Pump1
54 91668 Valve - Pump1
55 110291 Screw - Pan hd 10-24 x 2-5/81
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600014E PRO MAC 10-10 06/77 to 09/82 IPL 93711-R6 Page 18 of 18
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
56 110921 Washer - Sealing1
57 86304 Cover - Oil tank1
58 86306 Gasket - Cover1
59 216052 Cap - Oil tank1
60 86402 Valve - Check1
61 101148 "O" Ring1
62 91672 Hose Assembly - Oil1
63 51506 Screen - Hose1
64 110865 Screw - Hx hd 10-24 x 7/81
65 100003 Washer - #101
66 215339 Pump Assembly - Pulse1
67 91774 Sleeve1
68 215246 Kit - Oil pump clip1
69 92818 Seal - Pulse pump1
70 214278 Piston Assembly - Pump1
71 105603 "O" Ring1
72 86182 Ring - Piston1
73 60259 Spring - Piston1
74 62227 Sleeve - Adjustment1
75 110386 Screw - Hx hd 8-32 x 11
76 92844 Spring - Outlet valve1
77 102809 Ball1
78 91259 Pad - Pump1
79 62106 Screw - Sealing4
80 111025 Washer - Sealing4
81 110288 Screw - Hx hd 8-32 x 3/41
82 214672 Cylinder/Crankcase Assembly1
83 110288 Screw - Hx hd 8-32 x 3/42
84 110618 Screw - Hx hd 8-32 x 1-3/81
85 62065 Bolt - Bar mounting2
86 89783A Piston Assembly1
87 87710 Pin - Piston1
88 92517 Ring Set - Piston1
89 110590 Bearing - Needle2
90 85352 Connecting Rod Assembly1
91 61627A Screw - Skt hd special2
92 63225 Roller - Needle (set of 2O)1
93 67906 Seal - Oil1
94 63464 Ring - Snap1
95 67905 Bearing - Ball1
96 110260 Seal Oil1
97 104357 Bearing - Needle1
98 87699 Crankshaft1
99 214223 Spark Plug1
99 93018 Spark Plug1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
