Page 1
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 1 of 14
www.ktoutdoor.com
Tools and Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 2 of 14
www.ktoutdoor.com
Tools and Accessories
Ref # Part Number DescriptionQty
95169 Kit - Spark Arrester
91485 Wrench - Socket
85687 Wrench - Screwdriver
88755 Scrench
93283 Case - Carrying, 12"
92976 Bar Guard, 12"
93090 Guide - Timing
68915A Kit - Piston Tool
90256 Kit - Tune up
90607A Guide - File
90958A Kit - Tool Maintenance
93900 Kit - Pressure Test
90533 Tool - Pressure Test
501334 Tester - Ignition
68090 Lubri-Gun
85702 Lubricant - Custom, 6 oz. can
85703 Lubricant - Custom, 6 oz. cans, 1-6 pack
67537 Loctite
69794 Locquic
110083 R.T.V. Sealant
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 3 of 14
www.ktoutdoor.com

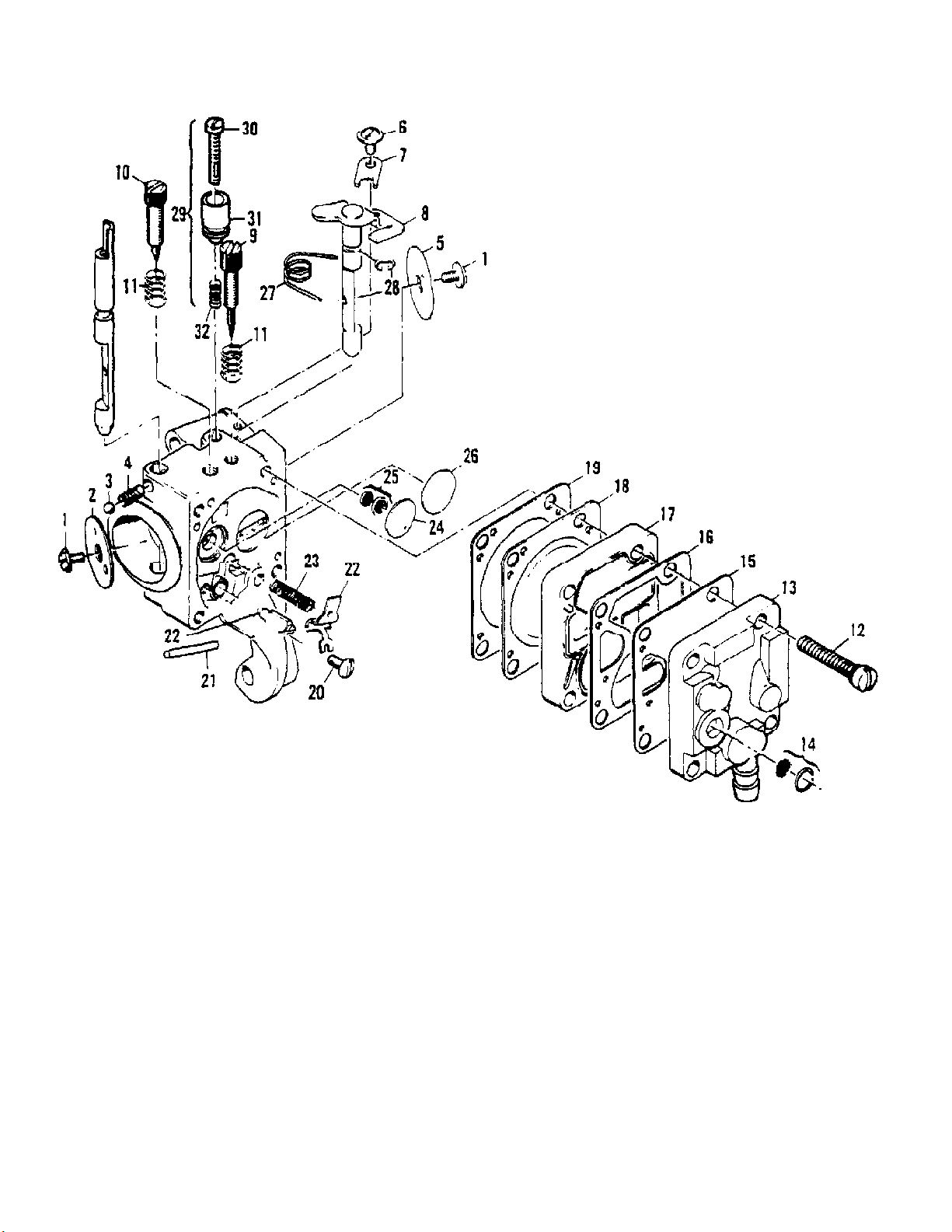

Carburetor Assembly (Walbro MDC 15)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 4 of 14
www.ktoutdoor.com
Carburetor Assembly (Walbro MDC 15)
Ref # Part Number DescriptionQty
214082 Carburetor Asy - Walbro MDC 151
1 83755 Screw - Plate2
2 68556 Plate - Choke1
3 100302 Ball - Choke friction1
4 67504 Spring - Choke friction1
5 68553 Plate - Throttle1
6 70798 Screw - Clip1
7 68554 Clip - Throttle shaft1
8 94138 Shaft Asy - Throttle1
9 86446 Needle - Idle1
10 86447 Needle - High speed1
11 67502 Spring - Needle2
12 68564 Screw Asy - Body4
13 91347 Cover Asy - Pump1
14 85629 Kit - Vent screen1
15 68563 Diaphragm - Fuel pump1
16 85035 Gasket - Pump diaphragm1
17 85030 Body - Fuel pump1
18 85036 Diaphragm - Metering1
19 85034 Gasket - Diaphragm1
20 67500 Screw - Lever pin1
21 67508 Pin - Lever1
22 85059 Kit - Needle & Lever1
23 68567 Spring - Lever1
24 68559 Plug - Welsh 7/161
25 83758 Kit - Check valve1
26 68560 Plug - Welsh 1/21
27 89785 Spring - Throttle return1
28 94139 Ring - Retaining1
29 93437 Latch Asy - Throttle1
30 Screw - Long lock Not available separately.1
31 Latch - Throttle Not available separately.1
32 Spring - Compression Not available separately.1
86463 Repair Kit1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 5 of 14
www.ktoutdoor.com

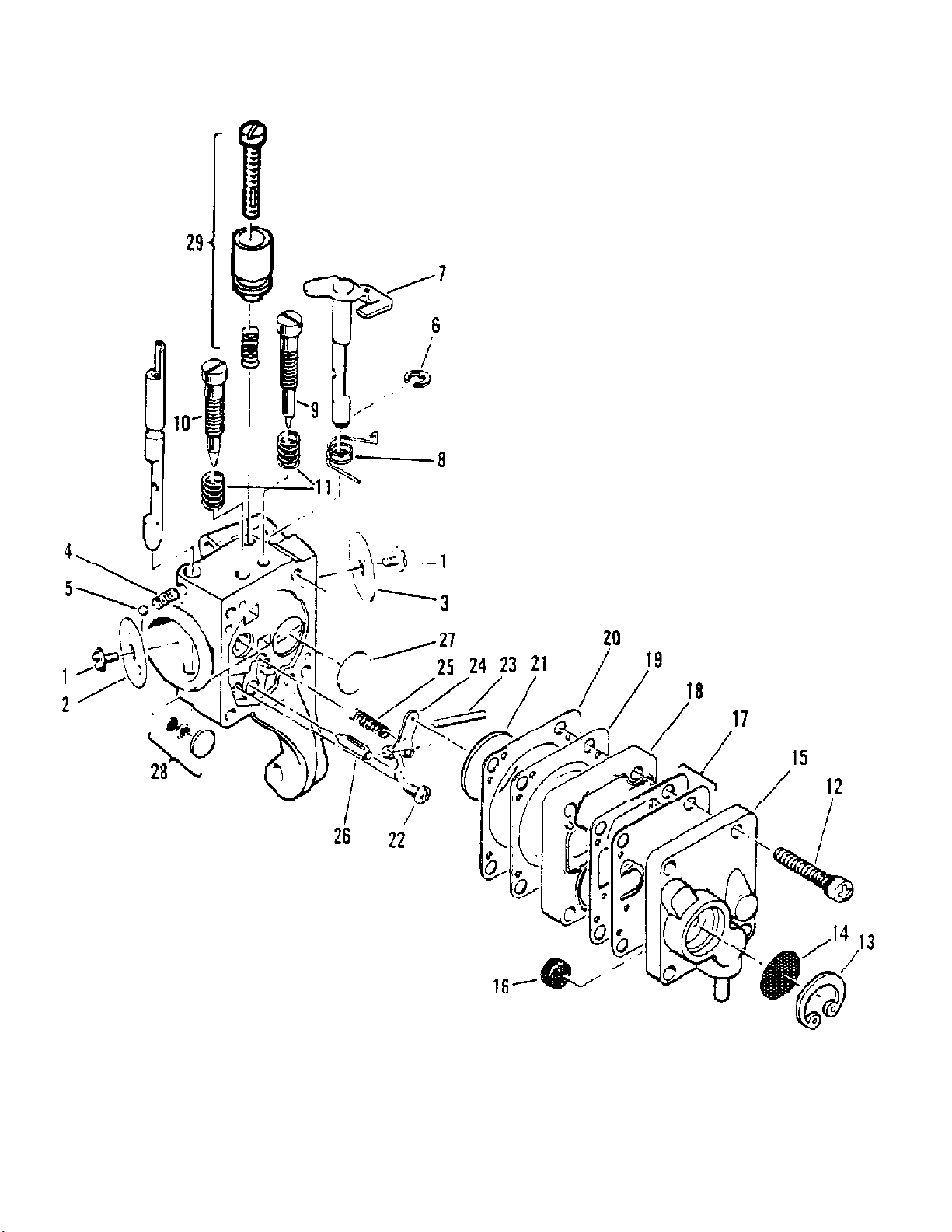

Carburetor Assembly (Zama M1-M7)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 6 of 14
www.ktoutdoor.com
Carburetor Assembly (Zama M1-M7)
Ref # Part Number DescriptionQty
214082A Carburetor Asy - Zama M1-M71
1 91804 Screw - Plate2
2 215274 Valve - Choke1
3 91803 Valve - Throttle1
4 93955 Spring - Choke1
5 93956 Ball - Friction1
6 91805 "E" Ring1
7 215291 Shaft Assembly - Throttle1
8 215286 Spring - Throttle return1
9 215275 Screw - Idle adjustment1
10 215276 Screw - Main adjustment1
11 91819 Spring - Screw2
12 215279 Screw - Cover4
13 215283 "C" Ring1
14 215284 Strainer1
15 215285 Cover - Pump1
16 91820 Screen1
17 Kit - Pump diaphragm Not available separately.1
18 215281 Body - Pump1
19 215282 Diaphragm - Main1
20 215280 Gasket - Main1
21 215277 Disk1
22 91814 Screw1
23 91813 Pin - Arm1
24 215278 Arm - Needle valve1
25 91811 Spring - Arm1
26 91810 Valve - Needle1
27 93951 Plug - Welsh1
28 215287 Valve Asy - Main nozzle1
29 93437 Latch Assembly - Throttle1
215292 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 7 of 14
www.ktoutdoor.com

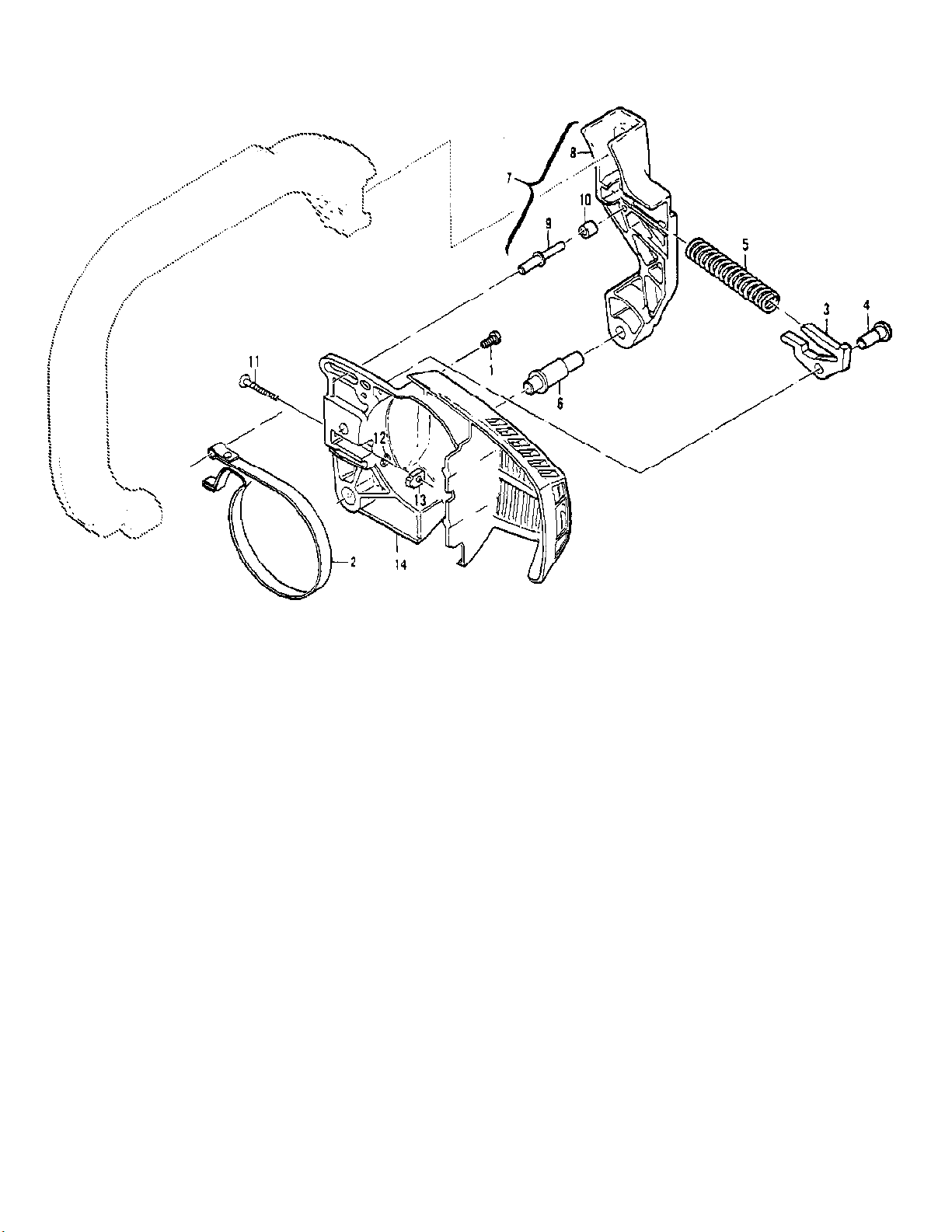

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 8 of 14
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
214376 CHAIN BRAKE Assembly
1 111047 Screw - Pan hd 8-32 x 5/81
2 94709 Band - Brake1
2 92487 Band - Brake1
3 94006 Latch1
3 93092 Latch1
4 93602 Pivot - Latch1
5 94007 Spring - Compression1
5 93140 Spring - Compression1
6 92482 Pivot - Lever1
7 214375 Lever Assembly - Actuating1
8 92867 Lever1
9 213907 Pin - Roller1
10 214368 Bearing - Roller1
11 90658 Screw - Adjusting1
12 110907 Ring - Retaining1
13 84929 Nut - Bar adjusting1
14 94175 Housing - Brake1
14 92866 Housing - Brake1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 9 of 14
www.ktoutdoor.com

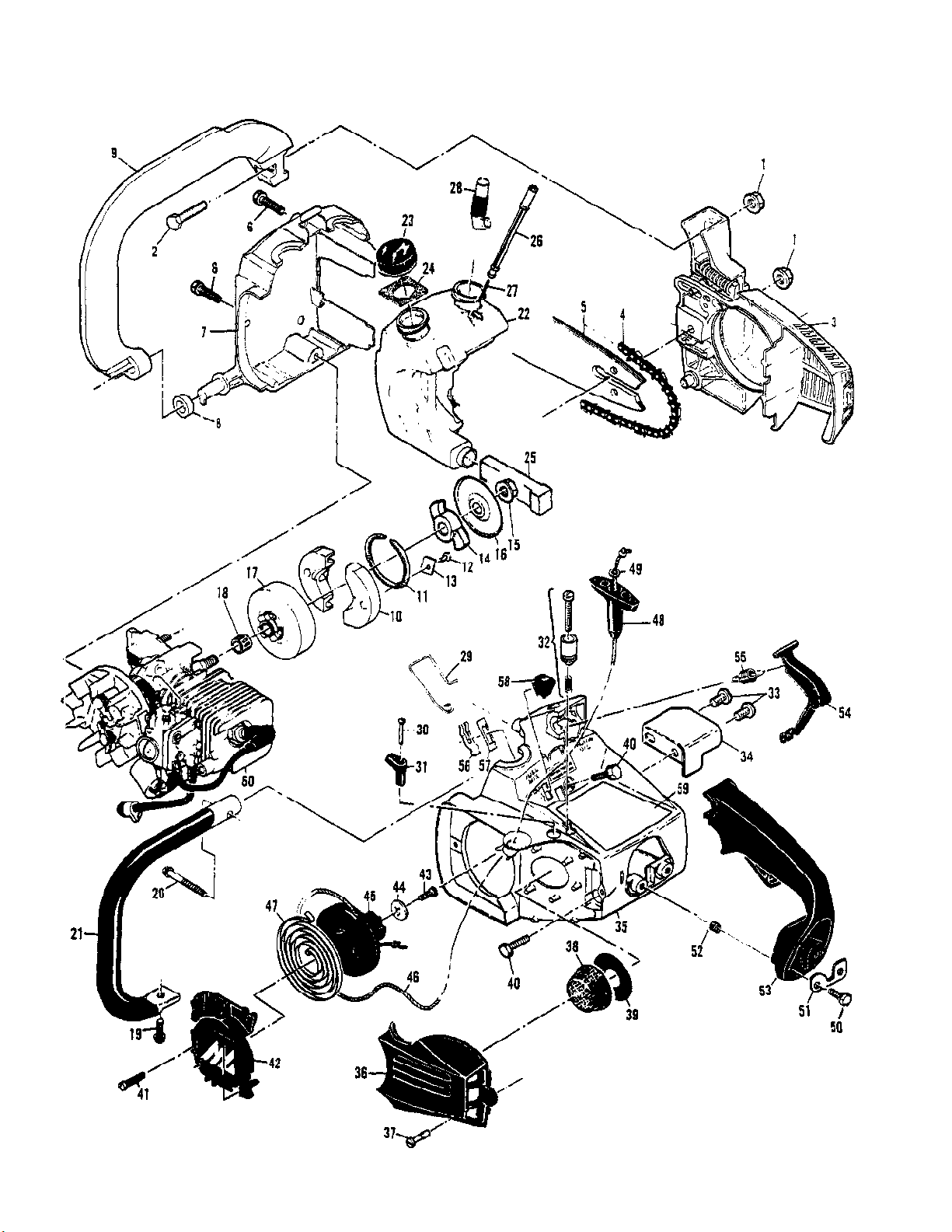

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 10 of 14
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 110676 Nut - Hx 1/4-282
2 110972 Screw - Hx 1/4-28 x 3/41
3 CHAIN BRAKE Asy See "Chain Brake Assembly"
illustration and parts list.
4 Chain Asy
5 Bar
6 110639 Screw - Hx hd 12-24 x 12
7 92868A Cover - Fuel & Oil tank1
8 93194A Washer - Rubber1
9 92479 Lever - Handguard1
10 213278 Kit - Clutch1
10 213277 Clutch Assembly1
11 93608 Spring Assembly1
12 110957 Rivet2
13 85064 Plate2
14 94242 Rotor1
14 94247 Kit - Rotor1
15 94244 Nut - Clutch1
16 94243 Plate - Dust1
17 95197 Drum/Spkt/Brng Assembly1
18 91222 Kit - Needle bearing1
19 110953 Screw - Hx hd 12-24 x 5/81
20 110686 Screw - Hx hd 13-16 x 21
21 214505 Frame & Grip Assembly1
22 91454A Kit - Fuel & oil tank1
23 91283 Cap -Fuel & oil (unvented)2
24 91148 Seal - Fuel vent1
25 84956 Pickup - Fuel1
26 83900A Piston - Manual oiler1
27 83946 Spring - Piston1
28 85557 Body - Oiler1
29 84611 Rod - Manual oiler1
30 110672 Screw - Oval hd 4-40 x 11
31 83870 Knob - Choke1
32 Throttle Latch Asy See "Carburetor Assembly (Zama
M1-M7)" & "Powerhead Assembly" illustrations and
parts lists.
33 110807 Screw Pan hd 8-32 x 5/162
34 93290 Deflector - Sawdust1
35 214270 Shroud1
36 91853 Cover - Air cleaner1
37 91796 Screw - Air cleaner1
38 91460 Filter - Air1
39 84918 Washer - Air seal1
40 110953 Screw - Hx hd 12-24 x 5/83
41 110959 Screw - Hx hd 8-32 x 1/23
42 90425 Cover - Starter1
43 110041 Screw - Pan hd 8-32 x 1/21
44 68497 Washer - Special1
45 213261 Drum/Rope Assembly1
46 83203 Rope - Starter1
47 83078 Spring - Rewind1
48 91255 Kit - Starter handle1
49 105490 Washer - Starter handle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 11 of 14
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
50 110953 Screw - Hx hd 12-24 x 5/82
51 84520A Plate - Washer1
52 84519 Sleeve - Handle2
53 93810 Kit - Handle1
54 93869 Trigger - Throttle1
55 83940 Spring - Trigger1
56 83935 Contact - Switch1
57 83936 Protector - Switch1
58 83934 Button - Switch1
59 93542 Plate - Name1
60 Powerhead Assembly See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 12 of 14
www.ktoutdoor.com

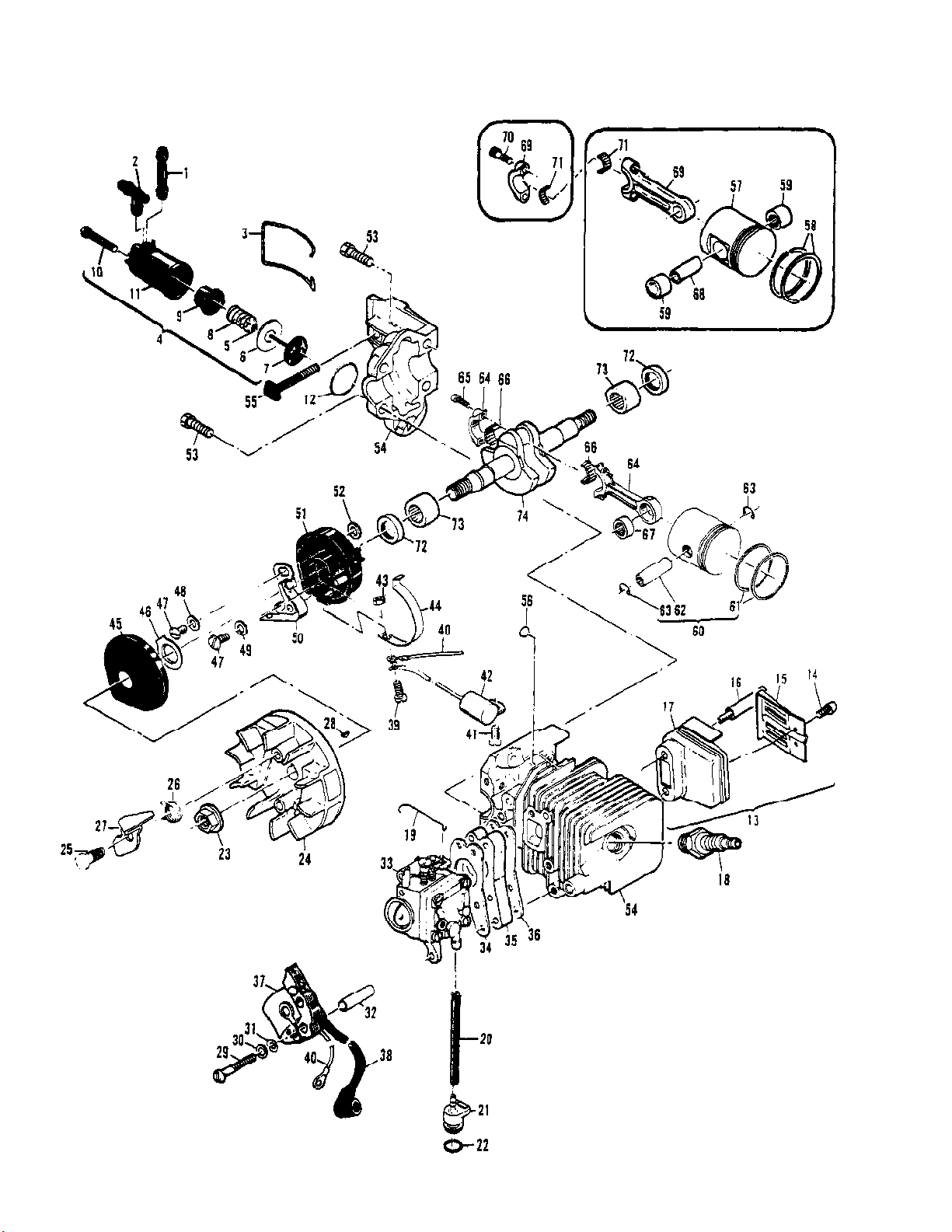

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 13 of 14
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 83898 Connector - Outlet1
2 84613 Connector - Pump1
3 83896 Bail - Mounting1
4 83886 Pump Assembly - Oiler1
5 105603 "O" Ring1
6 85769 Ring - Pump piston1
7 92204 Piston Assembly - Pump1
8 83891 Spring - Pump1
9 83890 Sleeve - Pump1
10 110651 Screw - Adjustment1
11 83887 Body Assembly - Pump1
12 110653 "O" Ring1
13 214746 Kit - Muffler1
14 110681 Screw - Skt hd 10-24 x 1/42
15 92961 Deflector - Exhaust1
16 213327 Screw - Special2
17 213346 Body - Cover1
13 92962 Kit - Muffler1
14 110681 Screw - Skt hd 10-24 x 1/42
15 92961 Deflector - Exhaust1
16 93036 Screw - Special2
17 93655 Body - Cover1
18 63097 Spark Plug (F,G,J,K,P,S,U)1
18 93018 Spark Plug (S,E,H)1
19 89274 Rod - Throttle1
20 89159 Hose - Fuel1
21 90660 Adaptor - Fuel hose1
22 110908 "O" Ring1
23 110970 Nut - Hx 5/16-241
24 94513 Flywheel/Pawl Assembly1
25 68796 Pin - Pawl2
26 67814 Spring - Pawl2
27 94493 Pawl - Starter2
24 91961 Flywheel/Pawl Assembly1
25 68796 Pin - Pawl2
26 67814 Spring - Pawl2
27 91872 Pawl - Starter2
28 102164 Key - Woodruff1
29 110586 Screw - Pan hd 8-32 x 1-3/43
30 105976 Washer - #83
31 67177 Washer - Insulating3
32 68198 Tube - Insulating3
33 Carburetor Assembly See "Carburetor Assembly
(Walbro MDC 15)" & "Carburetor Assembly (Zama
M1-M7)" illustrations and parts list.
34 68197 Gasket - Carburetor1
35 90713 Insulator - Carburetor1
36 90714 Gasket - Insulator1
37 84957 Coil & Lamination Assembly1
38 50120 Wire Assembly - Spark plug1
39 110617 Screw - Pan hd 6-32 x 5/81
40 69344 Wire Assembly - Coil1
41 110041 Screw - Pan hd 8-32 x 1/2 s/t1
42 85358 Condenser1
43 100035 Nut - Hx 6-321
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600017B MAC 130 01/77 to 01/82 IPL 215638 Page 14 of 14
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
44 84502 Connector - Stop switch1
45 67841 Cover - Breaker box1
46 69323 Seal - Breaker box1
47 110969 Screw - Hx hd 8-32 x 1/22
48 69322 Washer - Special1
49 105976 Washer - 481
50 88811 Breaker Assembly1
51 84505A Kit - Breaker box1
52 92037 Washer1
53 110639 Screw - Hx hd 12-24 x 14
54 214157 Kit - Cyl/C'case Assembly1
55 83856 Bolt - Bar mounting1
56 110914 Plug - Cup4
54 214164 Cyl/C'case Assembly1
55 83856 Bolt - Bar mounting1
56 110914 Plug - Cup4
57 68098 Piston Assembly1
58 87165 Set - Piston rings1
59 110538 Bearing - Needle2
60 94662 Piston Assembly1
61 95143 Set - Piston rings1
62 92836 Pin - Piston1
63 111026 Ring - Snap2
64 94135 Connecting Rod Assembly1
65 94654 Screw - Connecting rod2
66 68095 Roller - Needle (Set of 20)1
67 110984 Bearing - Needle1
68 66867 Pin - Piston1
69 68097 Connecting Rod Assembly1
70 66853 Screw - Special2
71 68095 Roller - Needle (Set of 20)1
72 83859 Seal - Oil2
73 213282 Bearing - Crankshaft2
74 91932 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
