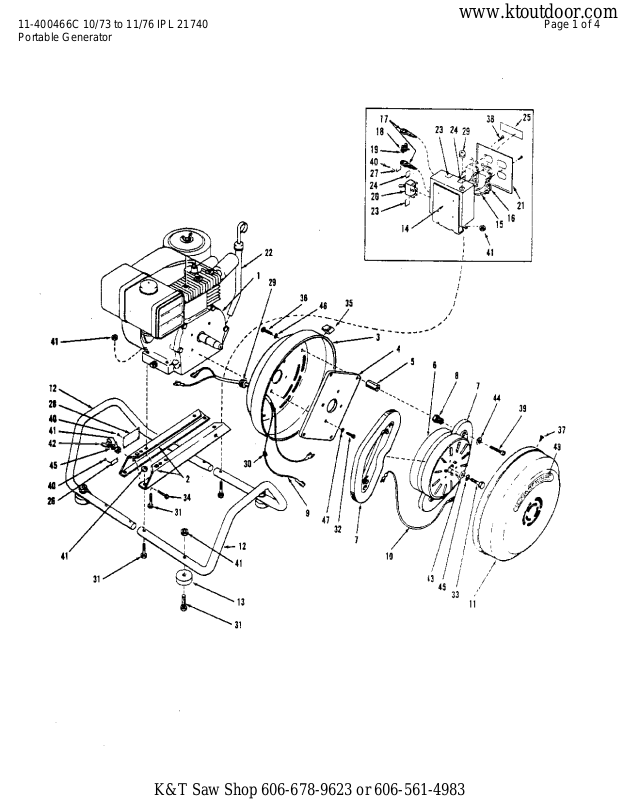

11-400466C 10/73 to 11/76 IPL 21740 Page 1 of 4
www.ktoutdoor.com

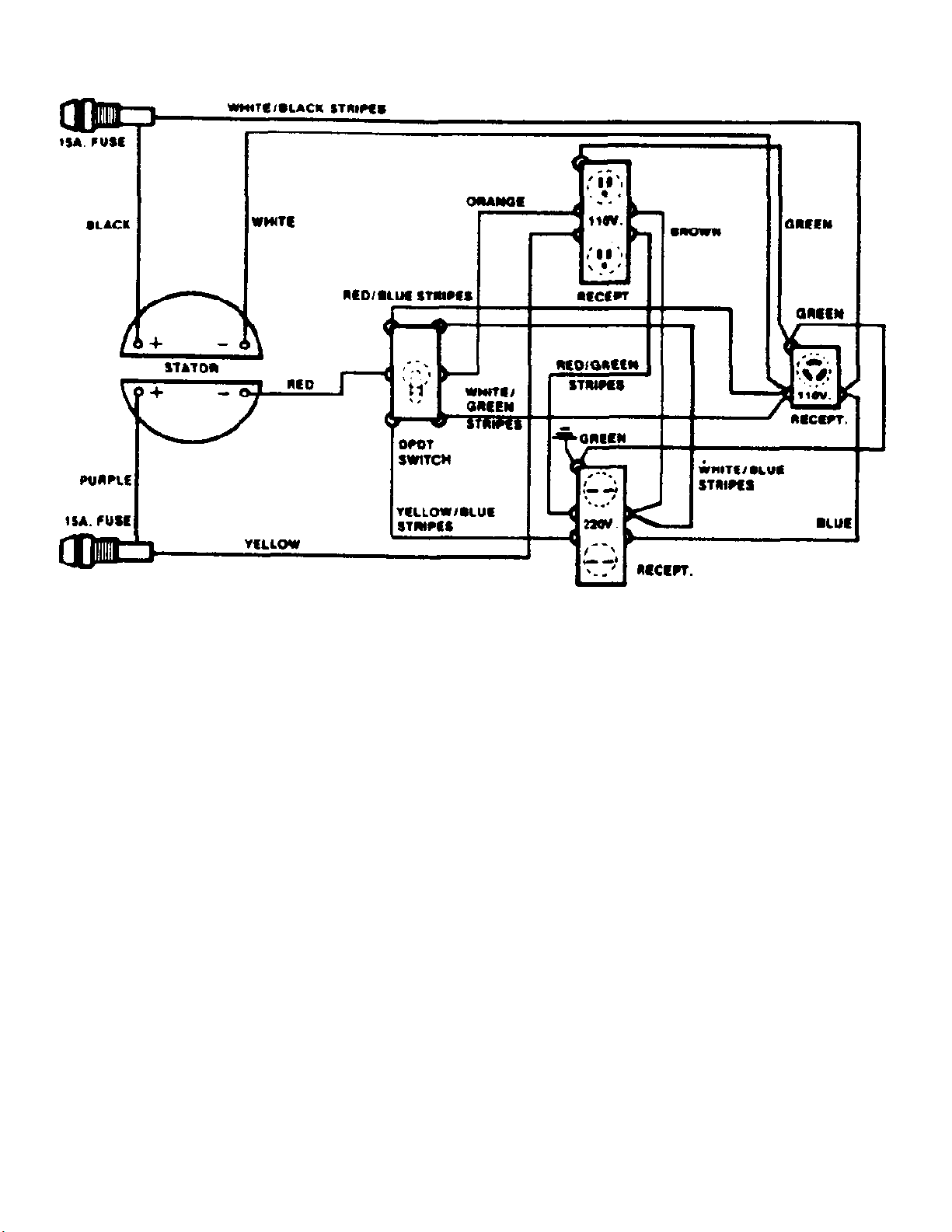

Portable Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
11-400466C 10/73 to 11/76 IPL 21740 Page 2 of 4
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
1 21043 Engine Assy.1
2 21601 Rail Assy.2
3 21681 Cover, Back1
4 21682 Plate, Stator Support1
5 21683 Post, Stator Support4
6 21103 Rotor Assy.1
7 21685 Stator Assy. Half2
8 21608 Screw, Adjusting4
9 21687 Wire Cable Assy.1
10 Wire, Jumper
11 21690 Cover, Front1
12 21613 Cradle Frame Assy.1
13 21190 Mount, Rubber4
14 21714 Rcpt. Box Brckt. Assy.1
15 21692 Wire Harness Set1
16 21150 Rcpt. 115V Dplx. Std.1
21392 Rcpt. 230V Dplx. Sld.1
21715 Rcpt. 125V 30A Twist1
17 21718 Holder, Fuse2
18 Holder, Spare Fuse Not used on this model
19 21724 Fuse, BAF 15A2
20 21402 Switch, DPDT1
21 21720 Cover, Rcpt.1
22 21695 Tube, Oil Fill & Dip Stick1
23 21721 Tag, Switch Positioning1
24 21696 Tag, "110 Volt"nr
25 21722 Tag, Voltage I.D.1
26 21638 Tag, Ground1
27 21698 Tag, "Fuse 15 Amp"2
28 21699 Tag, Serial Number1
29 21700 Grommet2
30 21643 Keeper, Wire5
31 21050 Capscrew, 5/16-18 x 1-1/212
32 21003 Capscrew, 3/8-16 x 14
32 Retaining Bolts Engine to Back Cover Torque Value
216-240 in/lbs
33 21143 Capscrew, 5/16-24 x 1-1/21
33 Rotor Retaining Bolt Torque Value 240-264 in/lbs
34 21647 Capscrew, 5/16-18 x 11
35 21726 Speed Nut4
36 21649 Capscrew, 1/4-20 x 14
36 Stator Post Retaining Bolt Torque Value 120-140
in/lbs
37 21650 Screw, Pan Head Phillips #84
38 21703 Screw, Truss Head Slotted #84
39 21651 Screw, Socket Head 1/4-20 x 1-1/44
39 Stator Retaining Screw Torque Value 55-60 in/lbs
40 21652 Screw, Drive #2 x 1/4 Type U6
41 21080 Nut, Keps 5/16-1813
42 21654 Nut, Wing 5/16-181
43 21704 Washer, Flat 5/16 x 1/4 thick1
44 21656 Washer, Flat 1/4 x 1/8 thick4
45 21725 Lock Washer, Star 5/162
46 21030 Washer, Lock 1/44
