ENGLISH
OWNER’S MANUAL
MONITOR TV
Please read this manual carefully before operating your set and retain it for future reference.
MONITOR TV MODELS
M197WDP
M227WDP
M237WDP
www.lge.com
PREPARATION
FRONT PANEL CONTROLS
■ This is a simplified representation of the front panel. The image shown may be somewhat different from your set.
VOL OK MENU INPUT
PR
INPUT
Button
MENU
Button
OK
Button
VOLUME
Buttons
PROGRAMME
Buttons
Power
Button
Headphone
Jack
1
PREPARATION |
<M197WDP/M227WDP> |
|
BACK PANEL INFORMATION
■ This is a simplified representation of the back panel. The image shown may be somewhat different from your set.
|
|
|
|
|
1 |
2 |
|
|
|
|
|
3 |
4 |
5 |
6 |
|
|
|
|
|
COMPONENT |
|
|
AUDIO IN |
|
|
IN |
|
|
(RGB/DVI) |
|
OPTICAL |
Y |
AV 1 |
AV 2 |
|
|
||||
|
|
DIGITAL |
|
|
|
|
|
AUDIO OUT |
|
|
|
|
|
|
PB |
|
|
HDMI IN |
RGB IN (PC) |
VIDEO |
|
|
|
|
|
|
|
||
|
|
|
PR |
|
|
|
DVI-D (PC) |
L |
|
ANTENNA/ |
|
|
|
|
|
||
|
|
|
|
|
CABLE IN |
USB IN |
RS-232C IN |
R |
AUDIO |
|
(CONTROL & SERVICE) |
|
7 |
8 |
9 |
1PCMCIA (Personal Computer Memory Card International Association) Card Slot
This feature is not available in all countries.
2Power Cord Socket
This set operates on AC power. The voltage is indicated on the Specifications page. Never attempt to operate the set on DC power.
3HDMI Input(Not Support PC) Connect a HDMI signal to HDMI IN.
Or DVI (VIDEO) signal to HDMI IN with DVI to HDMI cable.
4RGB/DVI Audio Input Connect the audio from a PC.
5Optical Digital Audio Out
Connect digital audio from various types of eguipment.
6RGB INPUT (PC)
Connect the output from a PC.
10 |
11 |
12 |
7 USB IN
8DVI-D Input
Connect the output from a PC.
9RS-232C IN (CONTROL & SERVICE) PORT Connect to the RS-232C port on a PC.
10 Component Input
Connect a component video/audio device to these jacks.
11Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an external device to these jacks.
12 Antenna Input
Connect over-the-air signals to this jack.
2
PREPARATION |
<M237WDP> |
|
BACK PANEL INFORMATION
■ This is a simplified representation of the back panel. The image shown may be somewhat different from your set.
|
|
|
1 |
2 |
|
|
|
3 |
4 |
5 |
6 |
AUDIO IN
(RGB/DVI)
OPTICAL
DIGITAL
AUDIO OUT
RGB IN (PC)
HDMI IN
DVI-D (PC) |
|
|
USB IN |
RS-232C IN |
(CONTROL & SERVICE)
COMPONENT |
|
|
|
IN |
|
|
|
Y |
|
AV 1 |
AV 2 |
PB |
VIDEO |
|
|
PR |
|
|
|
|
|
|
|
L |
|
|
ANTENNA/ |
|
|
CABLE IN |
|
|
|
|
|
R |
AUDIO |
|
|
|
|
|
7 |
8 |
9 |
1PCMCIA (Personal Computer Memory Card International Association) Card Slot
This feature is not available in all countries.
2Power Cord Socket
This set operates on AC power. The voltage is indicated on the Specifications page. Never attempt to operate the set on DC power.
3HDMI Input(Not Support PC) Connect a HDMI signal to HDMI IN.
Or DVI (VIDEO) signal to HDMI IN with DVI to HDMI cable.
4RGB/DVI Audio Input Connect the audio from a PC.
5Optical Digital Audio Out
Connect digital audio from various types of eguipment.
6RGB INPUT (PC)
Connect the output from a PC.
10 |
11 |
12 |
7 USB IN
8DVI-D Input
Connect the output from a PC.
9RS-232C IN (CONTROL & SERVICE) PORT Connect to the RS-232C port on a PC.
10 Component Input
Connect a component video/audio device to these jacks.
11Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an external device to these jacks.
12 Antenna Input
Connect over-the-air signals to this jack.
3
PREPARATION
STAND INSTALLATION
■ The image shown may be somewhat different from your set.
1 Carefully place the product screen side down on a cushioned surface that will protect product and screen from damage.
2 Insert the stand base into the product
3 Attach the monitor to the Stand Base by turning the screw to the right.
* Turn the screw by using the screw handle
<M197WDP/M227WDP>
Screw
4
PREPARATION
STAND INSTALLATION
■ The image shown may be somewhat different from your set.
1 Carefully place the product screen side down on a cushioned surface that will protect product and screen from damage.
2 Insert the stand base into the product
3 Attach the monitor to the Stand Base by turning the screw to the right.
* Turn the screw by using the screw handle
<M237WDP>
Screw
5
PREPARATION |
<M197WDP/M227WDP> |
|
DETACHING STAND
■ The image shown may be somewhat different from your set.
1Place the set screen side down on a cushion or soft cloth.
2Detach the monitor to the Stand Base by turning the screw to the left.
3 Turn the screw by using the screw handle |
4 Pull the stand base. |
5
6
PREPARATION |
<M237WDP> |
|
DETACHING STAND
■ The image shown may be somewhat different from your set.
1Place the set screen side down on a cushion or soft cloth.
2Detach the monitor to the Stand Base by turning the screw to the left.
3 Turn the screw by using the screw handle |
4 Pull the stand base. |
5
7
PREPARATION
WALL MOUNT: HORIZONTAL INSTALLATION
For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed installation instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.
10 cm |
10 cm |
|
10 cm |
10 cm |
10 cm |
DESKTOP PEDESTAL INSTALLATION
For proper ventilation, allow a clearance of 10 cm on each side and from the wall.
10 cm
10 cm |
10 cm |
10 cm |
8
PREPARATION
POSITIONING YOUR DISPLAY
■ The image shown may be somewhat different from your set.
Adjust the position of the panel in various ways for maximum comfort.
• Tilt range
-5° |
-15° |
LOCATION
Position your set so that no bright light or sunlight falls directly onto the screen. Care should be taken not to expose the set to any unnecessary vibration, moisture, dust or heat. Also, ensure that the set is placed in a position to allow a free flow of air. Do not cover the ventilation openings on the back cover.
If you intend to mount the set to a wall, attach Wall mounting interface (optional parts) to the back of the set. When you install the set using the wall mounting interface (optional parts), attach it carefully so it will not drop.
-Be sure to use screws and a wall mount that meet VESA standards.
-Using screws longer than those recommended might damage the product.
-Using screws that do not meet VESA standards might either damage the product or result in it coming away from the wall. We will not be held responsible for any damage resulting from failure to follow these instructions.
< Screw Mounting Interface Dimension > M197WDP/M227WDP : 100 mm x 100 mm hole spacing M237WDP : 75 mm x 75 mm hole spacing
Warning:
When adjusting the angle of the screen,do not put your
finger(s)in between the head of the monitor and the stand
body.You can hurt your finger(s).
9
PREPARATION
KENSINGTON SECURITY SYSTEM
-The product is equipped with a Kensington Security System connector on the back panel. Connect the Kensington Security System cable as shown below.
-For detailed installation and use of the Kensington Security System, refer to the user’s guide provided with the Kensington Security System.
For further information, contact http://www.kensington.com, the internet homepage of the Kensington company. Kensington sells security systems for expensive electronic equipment such as notebook PCs and LCD projectors.
NOTE
- The Kensington Security System is an optional accessory.
NOTES
a.If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.
b.Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance.
c.Avoid touching the LCD screen or holding your finger(s) against it for long periods of time.
Doing so may produce some temporary distortion effects on the screen.
<M197WDP/M227WDP> |
<M237WDP> |
10
EXTERNAL EQUIPMENT SETUP
■ To prevent equipment damage, never plug in any power cords until you have finished connecting all equipment.
ANTENNA CONNECTION
■For optimum picture quality, adjust antenna direction.
■An antenna cable and converter are not supplied.
Wall |
Multi-family Dwellings/Apartments |
|
(Connect to wall antenna socket) |
||
Antenna |
||
|
||
Socket |
|
RF Coaxial Wire (75 )
Outdoor
Antenna
(VHF, UHF) Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
UHF
Antenna |
Signal |
|
|
|
Amplifier |
|
VHF |
ANTENNA/
CABLE IN
ANTENNA/
CABLE IN
■In poor signal areas, to get better picture quality, install a signal amplifier to the antenna as shown above.
■If signal needs to be split for two TVs, use an antenna signal splitter for connection.
11
EXTERNAL EQUIPMENT SETUP
■To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
■The image shown may be somewhat different from your set.
HD RECEIVER SETUP
When connecting with a component cable
1Connect the SET-TOP outputs to the COMPONENT IN VIDEO sockets (Y PB PR) on the set.
2Connect the audio cable from the SET-TOP to COMPONENT IN AUDIO sockets of the set.
3Press the INPUT button to select Component.
Signal |
Component |
HDMI |
|
|
|
|
|
|
480i/576i |
Yes |
No |
480p/576p |
Yes |
Yes |
720p/1080i |
Yes |
Yes |
1080p |
Yes |
Yes |
|
|
|
|
|
|
COMPONENT
IN
Y
PB
PR |
VIDEO |
|
|
L |
|
R |
AUDIO |
|
1
2
12
EXTERNAL EQUIPMENT SETUP
When connecting with a HDMI
HDMI IN
1 |
Connect the HDMI output of the digital set-top box to the |
HDMI IN jack on the set. |
1
When connecting with a HDMI to DVI cable
1Connect the digital set-top box to HDMI IN jack on the set.
2Connect the audio output of the digital set-top box to the AUDIO IN (RGB/DVI) jack on the set.
3Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)
HDMI IN
AUDIO IN (RGB/DVI)
2
1
|
L |
AUDIO |
DVI OUTPUT |
R |
|
|
|
! NOTE
G HDMI Input does not support PC mode. If it is connected PC, the screen may not be displayed properly.
13
EXTERNAL EQUIPMENT SETUP
DVD SETUP
When connecting with a component cable
1 |
Connect the video output sockets (Y PB PR) of the DVD to |
the COMPONENT IN VIDEO sockets (Y PB PR) of the set. |
2Connect the audio cable from the DVD to COMPONENT IN AUDIO sockets of the set.
3 Press the INPUT button to select Component.
4Press the PLAY button on the DVD.
The DVD playback picture appears on the screen.
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the set |
Y |
PB |
PR |
|
|
|
|
|
|
|
|
|
Y |
PB |
PR |
Video output ports |
Y |
B-Y |
R-Y |
on DVD player |
Y |
Cb |
Cr |
|
Y |
Pb |
Pr |
|
|
|
|
COMPONENT
IN
Y
PB
PR |
VIDEO |
|
|
L |
|
R |
AUDIO |
|
1
2
14
EXTERNAL EQUIPMENT SETUP
When connecting with a Euro Scart[DVD] |
AV 1 AV 2 |
|
1 |
Connect the Euro scart socket of the DVD to the Euro scart |
|
socket of the set. |
|
|
2 |
Press the INPUT button to select AV1. |
|
|
If connected to AV2 Euro scart socket, select AV2 input |
1 |
|
source. |
|
3 |
Press the PLAY button on the DVD. |
|
|
The DVD playback picture appears on the screen. |
|
(R)
(L) AUDIO
AUDIO/
VIDEO
! NOTE
GSignal type RGB, i.e. the signals red, green and blue can only be selected for the Euro scart and the AV 1 can be received. These signals are transmitted, for example, by a paid TV decoder, game machine or photo CD unit, etc.
GPlease use shielded scart cable.
When connecting HDMI cable
1 |
Connect the HDMI output of the DVD to the |
|
HDMI IN jack on the set. |
||
|
HDMI IN
1
! NOTE
G Set can receive the video and audio signal simultaneously by using a HDMI cable.
G If the DVD player does not support Auto HDMI, you need to set the DVD output resolution appropriately.
15
EXTERNAL EQUIPMENT SETUP
VCR SETUP
■To avoid picture noise (interference), leave an adequate distance between the VCR and set.
■Typically a still picture is shown on the VCR. If a user uses 4:3 picture format for a long time, an afterimage may remain on the sides of the screen.
When connecting with an antenna
ANTENNA/ |
ANT OUT |
S-VIDEO VIDEO |
L |
R |
|
CABLE IN |
|||||
|
|
|
|
||
|
1 |
|
|
|
|
|
ANT IN |
OUTPUT |
|
|
|
|
SWITCH |
|
|
||
|
|
|
|
||
|
2 |
Wall Jack |
|
||
|
|
|
|
Antenna
1Connect the RF out socket of the VCR to the aerial socket of the set.
2Connect the aerial cable to the RF aerial in socket of the VCR.
3Store the VCR channel on a desired programme number using the ‘Manual programme tuning’ section.
4Select the programme number where the VCR channel is stored.
5 Press the PLAY button on the VCR.
16
EXTERNAL EQUIPMENT SETUP
USB SETUP |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
USB IN |
|
1 |
Connect the USB device to the USB IN jacks on the |
|
||||
|
|
|
||||
|
|
|
||||
|
|
|||||
|
|
side of set. |
|
|
||
2 |
After connecting the USB IN jacks, you use the USB |
|
|
|||
function. (G p.86) |
|
|||||
|
|
|
||||
|
|
|
|
|
|
|
When connecting with a Euro Scart[VCR]
|
|
|
|
|
|
|
|
1 |
Connect the Euro scart socket of the VCR to the Euro |
|
|
|
AV 1 AV 2 |
||
|
|
|
|
|
|||
|
|
|
|
|
|
||
|
scart socket of the set. |
|
|
|
|
|
|
|
Press the PLAY button on the VCR. |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
2 If your VCR outputs an AV switching signal via the Scart |
|
|
|
|
|
||
|
|
|
|
|
|||
|
lead, the set will auto switch to AV 1 mode on start of |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
playback, but if you want to keep on watching in TV mode, |
|
|
|
|
|
|
|
press the D / E or NUMBER buttons. |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
If connected to AV2 Euro scart socket, select AV2 input |
|
|
|
|
|
|
|
1 |
|
|
|
|
||
|
|
|
|
|
|
|
source.
Otherwise press the INPUT button on the remote control handset to select AV 1. The VCR playback picture appears on the screen.
You can also record programmes received by the set on video tape.
(R)
(L) AUDIO
AUDIO/
VIDEO
! NOTE
GSignal type RGB, i.e. the signals red, green and blue can only be selected for the Euro scart and the AV 1 can be received. These signals are transmitted, for example, by a paid TV decoder, game machine or photo CD unit, etc.
GPlease use shielded scart cable.
17
EXTERNAL EQUIPMENT SETUP
INSERTION OF CI MODULE
-To view the scrambled (paid) services in digital TV mode.
-This feature is not available in all countries.
Insert the CI Module to PCMCIA (Personal Computer
1Memory Card International Association) CARD SLOT of set as shown.
For further information, see p. 37.
PCMCIA CARD SLOT
1
TV
PC SETUP
This product provides Plug and Play capability, meaning that the PC adjusts automatically to the set's settings.
When connecting with a D-sub 15 pin cable
1Connect the signal cable from the monitor output socket of the PERSONAL COMPUTER to the PC input socket of the set.
2Connect the audio cable from the PC to the AUDIO IN (RGB/DVI) sockets of the set.
3Press the INPUT button to select RGB.
4Switch on the PC, and the PC screen appears on the set. The set can be operated as a PC monitor.
AUDIO IN
(RGB/DVI)
RGB IN (PC)
12
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RGB OUTPUT |
AUDIO |
|||||||
|
|
|
|
|
|
|
|
|
! NOTE
G You must use shielded signal interface cables (D sub 15 pin cable, DVI cable) with ferrite cores to maintain standard compliance for the product.
18
EXTERNAL EQUIPMENT SETUP
When connecting with a DVI cable
1Connect the DVI output of the PC to the DVI-D IN jack on the set.
2Connect the audio cable from the PC to the AUDIO IN (RGB/DVI) sockets of the set.
AUDIO IN (RGB/DVI)
DVI-D (PC)
2
1
AUDIO
DVI OUTPUT
! NOTE
G If the set is cold, there may be a small “flicker” when the set is switched on. This is normal, there is nothing wrong with the set.
G If possible, use the 1360 x 768 @ 60 Hz video mode to obtain the best image quality for your LCD monitor. If used with other resolutions, some scaled or processed pictures may appear on the screen. The set has been preadjusted to the mode 1360 x 768 @ 60 Hz. (M197WDP)
G If possible, use the 1920 x 1080 @ 60 Hz video mode to obtain the best image quality for your LCD monitor. If used with other resolutions, some scaled or processed pictures may appear on the screen. The set has been preadjusted to the mode 1920 x 1080 @ 60 Hz. (M227WDP/M237WDP)
G Some dot defects may appear on the screen, like Red, Green or Blue spots. However, this will have no impact or effect on the monitor performance.
G Do not press the LCD screen with your finger for a long time as this may produce some temporary distortion effects on the screen.
GAvoid keeping a fixed image on the set’s screen for prolonged periods of time. The fixed image may become permanently imprinted on the screen; use a screen saver when possible.
19
EXTERNAL EQUIPMENT SETUP
BACK COVER FOR WIRE ARRANGEMENT
<M197WDP/M227WDP>
Tie cables together with a cable management as shown in the illustration.
Cable management
<M237WDP>
Tie cables together with a cable tie as shown in the illustration.
Cable tie
20
EXTERNAL EQUIPMENT SETUP
RGB/DVI[PC] |
|
|
|
|
|
|
<M197WDP> |
|
|
|
<M227WDP/M237WDP> |
|
|
|
|
|
|
|
|
|
Resolution |
Horizontal |
Vertical |
|
Resolution |
Horizontal |
Vertical |
Frequency(kHz) |
Frequency(Hz) |
|
Frequency(kHz) |
Frequency(Hz) |
||
|
|
|
||||
|
|
|
|
|
|
|
640x480 |
31.469 |
60 |
|
720x400 |
31.468 |
70 |
37.500 |
75 |
|
|
31.469 |
60 |
|
|
|
640x480 |
||||
|
37.879 |
60 |
|
37.500 |
75 |
|
800x600 |
|
|
||||
46.875 |
75 |
|
|
37.879 |
60 |
|
|
|
800x600 |
||||
|
48.363 |
60 |
|
46.875 |
75 |
|
1024x768 |
|
|
||||
60.123 |
75 |
|
|
48.363 |
60 |
|
|
|
1024x768 |
||||
1280x768 |
47.776 |
60 |
|
60.123 |
75 |
|
|
|
|||||
1280x800 |
49.306 |
60 |
|
1152x864 |
67.500 |
75 |
1360x768 |
47.712 |
60 |
|
1280x1024 |
63.981 |
60 |
|
79.976 |
75 |
||||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
1680x1050 |
64.674 |
60 |
|
|
|
|
65.290 |
60 |
|
|
|
|
|
|
||
|
|
|
|
1600x1200 |
75.000 |
60 |
|
|
|
|
1920x1080 |
66.587 |
60 |
|
|
|
|
|
|
|
HDMI[DTV] (Not Support PC)
Resolution |
Horizontal |
Vertical |
|
Frequency(kHz) |
Frequency(Hz) |
||
|
|||
|
31.469 |
60 |
|
720x480/60p |
|||
31.5 |
60 |
||
|
|||
720x576/50p |
31.25 |
50 |
|
1280x720/50p |
37.5 |
50 |
|
1280x720/60p |
44.96 |
60 |
|
45 |
60 |
||
|
|||
1920x1080/60i |
33.72 |
60 |
|
33.75 |
60 |
||
|
|||
1920x1080/50i |
28.125 |
50 |
|
1920x1080/24p |
27 |
24 |
|
1920x1080/30p |
33.75 |
30 |
|
1920x1080/50p |
56.25 |
50 |
|
1920x1080/60p |
67.43 |
60 |
|
67.5 |
60 |
||
|
|||
|
|
|
21
WATCHING TV /PROGRAMME CONTROL
REMOTE CONTROL KEY FUNCTIONS
When using the remote control, aim it at the remote control sensor on the set.
TV/PC |
POWER |
INPUT |
1 |
POWER |
Switches the set on or off. |
|
|
|
|||||
|
|
1 |
||||
|
|
|
|
|
|
|
TV/RADIO |
TEXT |
I/II |
MUTE |
2 |
TV/PC |
Selects TV or PC mode. |
|
|
|
|
|
|
|
|
|
|
|
|
INPUT |
External input mode rotates in regular sequence. |
1 |
|
2 |
3 |
|
|
|
4 |
|
5 |
6 |
2 |
TV/RADIO |
Selects Radio or TV channel. |
|
|
|
|
3 |
|
|
7 |
|
8 |
9 |
|
I/II |
Selects the sound output.(Refer to the p.68,69) |
LIST |
|
0 |
Q.VIEW |
|
MUTE |
Switches the sound on or off. |
|
|
|
|
|
||
MENU |
|
|
EXIT |
|
|
|
|
|
|
|
3 |
0~9 number |
Selects a programme. |
|
OK |
|
4 |
button |
Selects numbered items in a menu. |
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
LIST |
Displays the programme table.(Refer to the p.38) |
INFO i |
|
|
GUIDE |
|
Q.VIEW |
Returns to the previously viewed programme. |
|
|
|
|
|
||
|
RETURN |
|
4 |
MENU |
Selects a menu. (Refer to the p.27) |
|
|
|
|
|
|||
VOL |
* |
PR |
5 |
EXIT |
Clears all on-screen displays. |
|
|
FAV |
|
|
|||
|
|
|
|
|
||
|
|
|
|
|
INFO i |
Shows the present screen information. |
Q.MENU |
T.OPT |
SUBTITLE |
MARK |
|
GUIDE |
Shows programme schedule.(Refer to the p.39~41) |
|
|
|
||||
|
|
|
|
|
THUMBSTICK |
Allows you to navigate the on-screen menus and adjust |
|
|
|
|
(Up/Down/Left/Right) |
the system settings to your preference. |
|
|
|
|
|
|
OK |
Accepts your selection or displays the current mode. |
5 VOLUME UP Adjusts the volume. /DOWN
RETURN Allows the user to move back one step in an interactive application, EPG or other user interaction function.
* No function
FAV Displays the selected favourite programme.(Refer to the p.38)
Programme Selects a programme.
UP/DOWN
22
WATCHING TV /PROGRAMME CONTROL
POWER |
|
1 |
TELETEXT |
|
INPUT |
|
BUTTONS |
||
TV/PC |
|
|
||
TV/RADIO TEXT |
I/II |
MUTE |
|
|
|
|
|
1 |
|
1 |
2 |
3 |
2 |
USB Menu |
4 |
5 |
6 |
control buttons |
|
|
|
|||
7 |
8 |
9 |
3 |
Q.MENU |
|
|
|
||
LIST |
0 |
Q.VIEW |
|
|
MENU |
|
EXIT |
|
MARK |
|
|
|
|
|
|
OK |
|
|
|
INFO i |
|
GUIDE |
|
|
These buttons are used for teletext.
For further details, see the ‘Teletext’ section. (Refer to the p.94~96)
Controls USB menu (Photo List and Music List) (Refer to the p.86)
Select the desired quick menu source. (Refer to the p.26)
Check and un-check programmes in the recorded set menu.
|
RETURN |
|
|
|
VOL |
|
* |
PR |
|
|
FAV |
|
|
|
|
|
|
|
2 |
Q.MENU |
T.OPT |
SUBTITLE |
MARK |
3 |
Installing Batteries
■Open the battery compartment cover on the back and install the batteries matching correct polarity (+ with +, - with -).
■ Install two 1.5 V AAA batteries. Don’t mix old or used batteries with new ones.
■Close cover.
■To remove the batteries, perform the installation actions in reverse.
23
WATCHING TV /PROGRAMME CONTROL
TURNING ON THE TV
-When your TV is turned on, you will be able to use its features.
1 Firstly,connect the power cord correctly and check the main power( r / I )on the TV.
2Set ID : Off
In standby mode to turn TV on, press the INPUT or PR D / E button on the TV or press the POWER button on the remote control and the TV will switch on.
Set ID : On
In standby mode to turn TV on,pr ss the INPUT or PR D / E button on the TV or press the POWER, INPUT, PR D / E or NUMBER button on the remote control and the TV will switch on.
Initializing setup
If the OSD (On Screen Display) is displayed on the screen after turning on the TV, you can adjust the Language, Mode Setting, Country, Auto tuning.
Note:
a.If you close without completing the initial setting, the Initial Setting menu can be displayed again.
b.Press the RETURN button to change the current OSD to the previous OSD.
c.For those countries without confirmed DTV broadcasting standards, some DTV featur s might not work, depending on the DTV broadcasting environment.
d."Home Use” mode is the optimal setting for home environments, and is the TV's default mode.
e."Store Demo"mode is the optimal setting for store environments. If a user modifies image quality data, “Store Demo” mode initializes the product to the image quality set by us after a certain period of time.
f.The mode (Home Use, Store Demo) can be changed by executing Mode Setting in the OPTION menu.
24
WATCHING TV /PROGRAMME CONTROL
PROGRAMME SELECTION
Press the PR + or - or NUMBER buttons to select a pro-
1gramme number.
VOLUME ADJUSTMENT
1Press the VOL + or - button to adjust the volume.
If you want to switch the sound off, press the MUTE button.
You can cancel this function by pressing the MUTE, VOL + or -, or I/II button.
POWER |
INPUT |
|
TV/PC |
|
|
TV/RADIO TEXT |
I/II |
MUTE |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
LIST |
0 |
Q.VIEW |
MENU |
|
EXIT |
|
OK |
|
INFO i |
|
GUIDE |
|
RETURN |
|
VOL |
* |
PR |
|
FAV |
|
Q.MENU T.OPT SUBTITLE MARK
25
WATCHING TV /PROGRAMME CONTROL
QUICK MENU
Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
Q.Menu (Quick Menu) is a menu of features which users might use frequently.
•Aspect Ratio: Selects your desired picture format. For Zoom Setting, select 14:9, Zoom and Cinema Zoom in Ratio Menu. After completing Zoom Setting, the display goes back to Q.Menu.
•Picture Mode : Selects your desired Picture Mode.
•Sound Mode : It is a feature to automatically set the sound combination which it deems the best for the images being watched. Selects your desired Sound Mode.
•Audio : Selects the sound output.
•Sleep Timer : Sets the sleep timer.
•USB Eject : Selects “USB Eject” in order to eject USB device.
Q.Menu
|
|
|
Aspect Ratio |
|
|
|
|
|
|
|
|
|
16:9 |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Zoom Setting |
||
|
|
|
Picture Mode |
|
Standard |
|||
|
|
|
Sound Mode |
|
Standard |
|||
|
|
|
Audio |
|
|
L+R |
||
|
|
|
Sleep Timer |
|
|
Off |
||
|
|
|
|
|
|
|
|
|
|
|
|
USB Eject |
|
Eject |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Close |
|
|
|
|
|
|
|
|
|
|
|
|
Q.MENU
OK
Display each menu.
or |
Select your desired Source. |
3
OK
• Press the RETURN button to move to the previous menu screen.
26
WATCHING TV /PROGRAMME CONTROL
ON SCREEN MENUS SELECTION AND ADJUSTMENT
Your set's OSD (On Screen Display) may differ slightly from what is shown in this manual.
SETUP |
Move |
OK |
PICTURE |
|
Move |
OK |
|
|
|
|
|
||
Auto tuning |
|
|
Aspect Ratio : 16:9 |
|
|
|
Manual tuning |
|
|
Picture Mode : Vivid |
|
|
|
Programme Edit |
|
|
• Backlight |
100 |
|
|
Software Update : On |
|
• Contrast |
100 |
|
|
|
Diagnostics |
|
|
• Brightness |
50 |
|
|
CI Information |
|
|
• Sharpness |
70 |
|
|
|
|
|
• Colour |
60 |
|
|
|
|
|
• Tint |
0 |
R |
G |
|
|
|
E |
|
|
|
|
|
AUDIO |
|
|
|
|
Move |
|
|
OK |
||||
|
|
|
|
|
|
|
|
|||||||
|
|
Auto Volume |
: Off |
|
|
|
|
|
|
|
|
|
||
|
|
Clear Voice II |
: Off |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
• Level |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
- |
|
|
|
|
|
|
+ |
||
|
|
Balance |
|
0 |
|
|
|
|
|
|
|
|
||
|
|
|
L |
|
|
|
|
|
|
R |
||||
|
|
Sound Mode |
: Standard |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
• SRS TruSurround XT : Off |
|||||||||
|
|
|
|
|
• Treble |
50 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
• Bass |
50 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
E |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OPTION |
|
|
|
|
|
|
TIME |
Move |
OK |
Move |
OK |
|
|
|
|
Clock |
|
|
|
|
|
|
|
|
|
|
|
|
|
Menu Language |
: English |
|
|
|
|
|
Off Time |
: Off |
|
Audio Language |
: English |
SETUP |
PICTURE |
AUDIO |
|
TIME |
On Time |
: Off |
|
Subtitle Language : English |
|
|
|
|
|
Sleep Timer : Off |
|
||
Hard of Hearing( |
) : Off |
|
|
|
|
|
Auto Off |
: On |
|
Data Service |
: MHEG |
|
|
|
|
|
|
|
|
Country |
: UK |
OPTION |
LOCK |
INPUT |
|
USB |
|
|
|
Input Label |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Key Lock |
: Off |
|
|
|
|
|
|
|
|
E |
|
|
|
|
|
|
|
|
|
LOCK |
Move |
OK |
INPUT |
|
Move |
OK |
USB |
Move |
OK |
Lock System |
: Off |
|
Antenna |
|
|
|
Photo List |
|
|
Set Password |
|
|
AV 1 |
|
|
|
Music List |
|
|
Block Programme |
|
|
AV 2 |
|
|
|
|
|
|
Parental Guidance : Off |
|
Component |
|
|
|
|
|
||
Input Block |
|
|
RGB |
|
|
|
|
|
|
|
|
|
HDMI |
|
|
|
|
|
|
|
|
|
DVI |
|
|
|
|
|
|
MENU
OK
OK
Display each menu.
Select a menu item.
Move to the pop up menu.
•Press the MENU or EXIT button to close the menu window.
•Press the RETURN button to move to the previous menu screen.
27
WATCHING TV /PROGRAMME CONTROL
AUTO PROGRAMME TUNING
Use this to automatically find and store all available programmes.
When you start auto programming in digital mode, all previously stored service information will be deleted.
SETUP
Move OK |
SETUP |
Move OK
AutoAutotunituningg |
AutoAutotunituningg |
All service-information will be updated. |
|
|
|
||
Manual tuning |
Manual tuning |
Continue? |
|
|
|
||
Programme Edit |
Programme Edit |
Yes |
No |
|
|
|
Software Update : On |
|
Software Update : On |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Diagnostics |
|
Diagnostics |
|
|
SECAM L Search |
|
||||
|
|
|
|
|
|
|
|
|
|
||
|
CI Information |
|
CI Information |
|
V |
Automatic Numbering |
|
||||
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MENU
OK

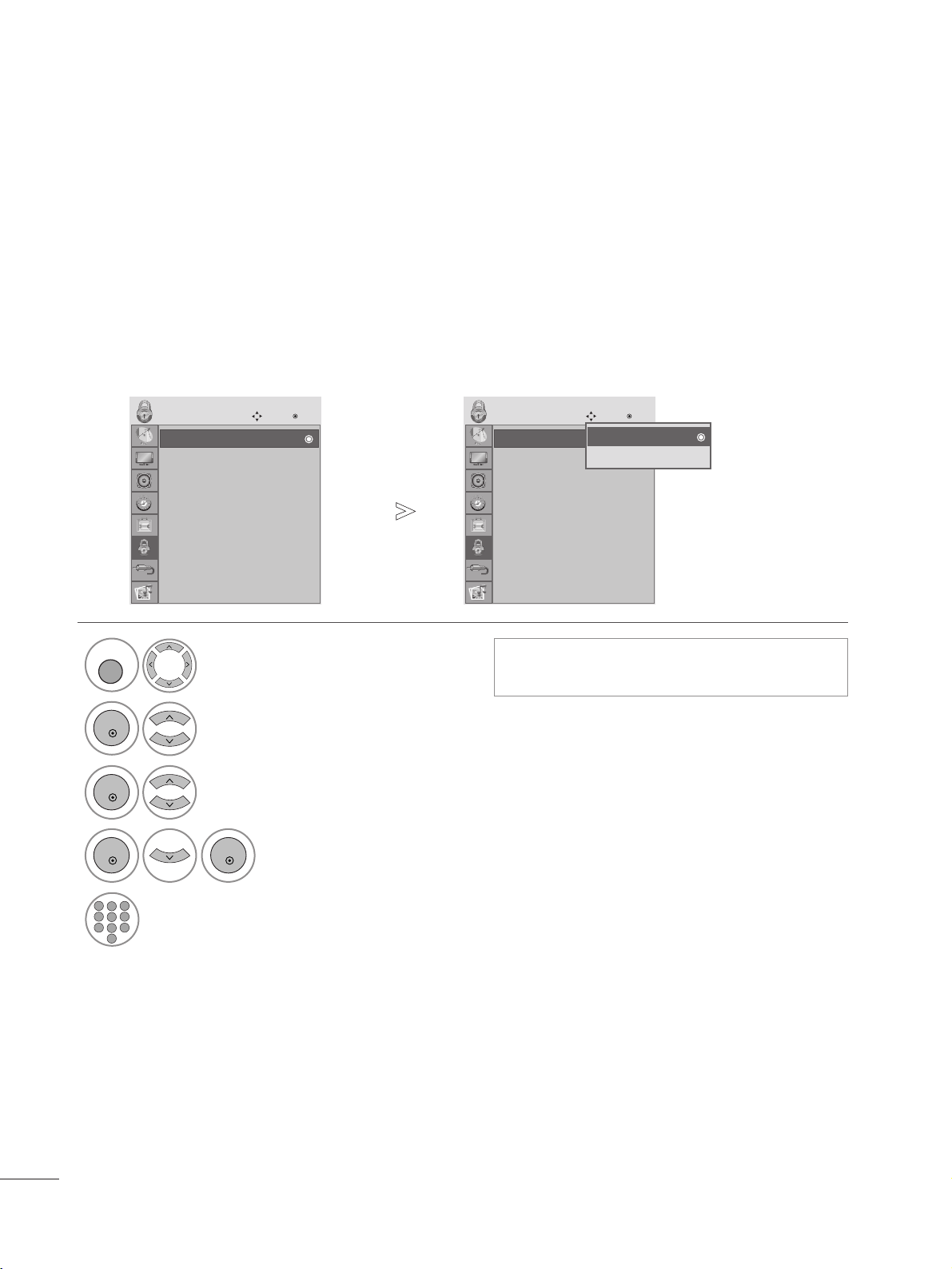

Select SETUP.
Select Auto Tuning.
•Use NUMBER buttons to input a 4-digit password in Lock System ‘On’.
•If you wish to keep on auto tuning, select YES using the F G button. Then, press the OK button. Otherwise, select NO.
OK |
Select Yes. |
|
|
OK |
Run Auto tuning. |
|
•Press the MENU or EXIT button to close the menu window.
•Press the RETURN button to move to the previous menu screen.
28
