Getinge Sterilizer Installation Manual

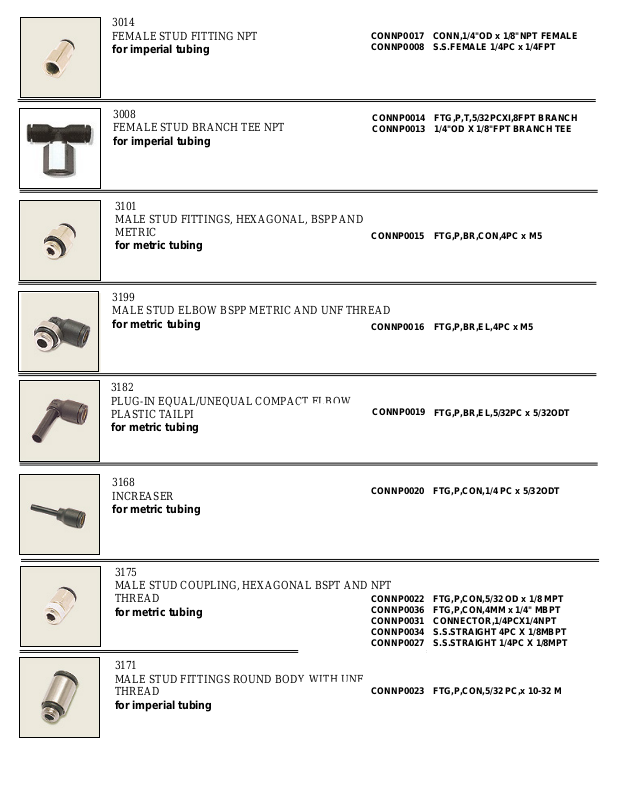

3014
FEMALE STUD FITTING NPT

for imperial tubing

3008
FEMALE STUD BRANCH TEE NPT

for imperial tubing

3101
MALE STUD FITTINGS, HEXAGONAL, BSPP AND
METRIC

for metric tubing

3199
MALE STUD ELBOW BSPP METRIC AND UNF THREAD

for metric tubing

3182
PLUG-IN EQUAL/UNEQUAL COMPACT ELBOW
PLASTIC TAILPI

for metric tubing

3168
INCREASER

for metric tubing

3175
MALE STUD COUPLING, HEXAGONAL BSPT AND NPT
THREAD

for metric tubing

3171
MALE STUD FITTINGS ROUND BODY WITH UNF
THREAD

for imperial tubing

CONNP0014
CONNP0013

FTG,P,T,5/32PCXI,8FPT BRANCH
1/4"OD X 1/8"FPT BRANCH TEE

CONNP0017
CONNP0008

CONN,1/4"OD x 1/8"NPT FEMALE
S.S.FEMALE 1/4PC x 1/4FPT

CONNP0015

FTG,P,BR,CON,4PC x M5

CONNP0016

FTG,P,BR,EL,4PC x M5

CONNP0019

FTG,P,BR,EL,5/32PC x 5/32ODT

CONNP0020

FTG,P,CON,1/4 PC x 5/32ODT

CONNP0022
CONNP0036
CONNP0031
CONNP0034
CONNP0027

FTG,P,CON,5/32 OD x 1/8 MPT
FTG,P,CON,4MM x 1/4" MBPT
CONNECTOR,1/4PCX1/4NPT
S.S.STRAIGHT 4PC X 1/8MBPT
S.S.STRAIGHT 1/4PC X 1/8MPT

CONNP0023

FTG,P,CON,5/32 PC,x 10-32 M

3109
MALE STUD ELBOW, BSPT AND NPT THREAD

for metric tubing

3104
EQUAL AND UNEQUAL TEE

for metric tubing

3304
MULTIPLE TEE WITH FIXING HOLES

for metric tubing

3166
REDUCER

for metric tubing

3116
BULKHEAD CONNECTOR

for metric tubing

CONNP0035
CONNP0024
CONNP0037
CONNP0026
CONNP0032
CONNP0039

FTG,P,EL,4MM x 1/8" MBPT
ELBOW 5/32PC X 1/8MPT
ELBOW 5/32 X 1/4BSP
S.S.ELBOW 1/4PC X 1/8MPT
ELBOW 1/4PC X 1/4MPT

CONNP0025
CONNP0033

PLASTIC TEE 5/32PC
PLASTIC TEE UNION 1/4PC

CONNP0028

PLSTC MULTI TEE 1/4PC X 5/32PC

CONNP0029

FTG,P,RE,5/32 PC x 1/4 OD

CONNP0041
CONNP0040

FTG,P,4MM PC BULKHD UNION
FTG,P,1/4 PC BULKHD UNION

CONNP0021
CONNP0030

UNION,BULKHEAD,SS,5/32 PC
S.S.BULKHEAD UNION 1/4PC

CONNP0038

FTG,P,1/4OD x (2) 5/32OD Y
