GE GDT655SFLDS, PDT845SSJSS, GDT695SGJBB User Manual

Dishwashers

Safety Instructions. . . . . . . . . . . . . 2-3

Operating Instructions

Appliance Communication. . . . . . . . . . . . . . 11

Care and Cleaning . . . . . . . . . . . . . . 18, 19

Getting Started. . . . . . . . . . . . . . . . . . . . . 4-7

Loading the Dishwasher . . . . . . . . . . 12-17

Using the Dishwasher . . . . . . . . . . . . . . .8-9

Troubleshooting Tips. . . . . . . . . 20-22

Consumer Support

Consumer Support. . . . . . . . . . . Back Cover

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

FRONT CONTROL MODELS

Write the model and serial numbers here:

Model # _________________

Serial # __________________

You can find them on the tub wall, just inside the door.

Owner’s Manual

Dishwashers

GDF 570-650 Series

GDT 655-695 Series DDT 595 Series PDF 820 Series PDT 825-855 Series CDT 835-865 Series

Includes GE®, GE Profile™ Series and GE Café™ Series products

Lave-vaisselle

Manuel d’utilisation

La section française commence à la page 33

Lavaplatos

Manual del propietario

La sección en español empieza en la página 65

TOP CONTROL MODELS

49-55102 03-16 GE

Printed in the United States

IMPORTANT SAFETY INFORMATION

5($' $// ,16758&7,216 %()25( 86,1* ³

SAVE THESE INSTRUCTIONS

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others. All safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words are defined as:

DANGER WARNING

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

	CAUTION			Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
	WARNING			For your safety, the information in this manual must be followed to minimize the risk of fire,
				explosion, electric shock, and to prevent property damage, personal injury, or death.

WARNING PROPER INSTALLATION AND MAINTENANCE

This dishwasher must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet with your dishwasher, you can receive one by visiting our Website at

GEAppliances.com. In Canada, visit www.GEAppliances.ca.

Connect the dishwasher/appliance to a grounded metal, permanent wiring system; or run an equipment-grounding conductor with the circuit conductors and connect to the equipment-grounding terminal or lead of the appliance.

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

Dispose of discarded appliances and shipping or packing material properly.

Do not attempt to repair or replace any part of your dishwasher unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

Use only cord kit WX09X70910 or hard-wire to building electrical. Failure to follow this instruction, could result in risk of fire and personal injury.

To minimize the possibility of electric shock, disconnect this appliance from the power supply before attempting any maintenance.

NOTE: Turning the dishwasher off does not disconnect the appliance from the power supply. We recommend having a qualified technician service your appliance.

WARNING When using your dishwasher, follow basic precautions, including the following:

Use this appliance only for its intended purpose as described in this Owner’s Manual.

Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of reach of children. Using a detergent that is not specifically designed for dishwashers will cause the

dishwasher to fill with suds.

Locate sharp items so that they are not likely to damage the door seal.

Load sharp knives with the handles up to reduce the risk of cut-type injuries.

Do not wash plastic items unless marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

Do not touch the heating element during or immediately after use.

Do not operate your dishwasher unless all enclosure panels are properly in place.

Do not tamper with controls.

Do not abuse, sit on or stand on the door or dish rack of the dishwasher.

To reduce the risk of injury, do not allow children to play with, on or inside this appliance at any time.

Do not store or use combustible materials including gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

Small parts, such as rack clips and filter retaining posts, can be a choke hazard to small children if removed from the dishwasher. Keep out of reach of small children.

2

IMPORTANT SAFETY INFORMATION
5($' $// ,16758&7,216 %()25( 86,1* ³
SAVE THESE INSTRUCTIONS	GEAppliances.com

WARNING WATER HEATER SAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two or more weeks.

HYDROGEN GAS IS EXPLOSIVE.

If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke, use an open flame, or use the appliance during this process.

WARNING RISK OF CHILD ENTRAPMENT
PROPER DISPOSAL OF THE DISHWASHER
Junked or abandoned dishwashers are dangerous…even if they will sit for “just a few days.” If you
are getting rid of your dishwasher, please follow the instructions below to help prevent accidents.
Do not allow children to play with, on, or inside this or any discarded appliance.
Take off the door of the washing compartment or remove the latch by removing the two screws
from the latch receiver inside the tub (as shown).	Two screws

CAUTION To prevent minor injury and property damage

During or after wash cycle, contents may be hot to the touch. Use care before handling.

Close supervision is necessary if this appliance is used by or near children. Do not allow children to play around the dishwasher when closing the door, closing the upper rack, or while vertically adjusting the upper rack due to the possibility of small fingers being pinched.

Non-Dishware Items: Do not wash items such as electronic air cleaner filters, furnace filters and paint brushes in your dishwasher. Damage to the dishwasher and discoloration or staining of the dishwasher may result.

Load light-weight, plastic items so they do not become

GLVORGJHG DQG GURS WR WKH ERWWRP RI WKH GLVKZDVKHU³ they might come into contact with the heating element and be damaged.

CAUTION ELECTRICAL REQUIREMENTS

This appliance must be supplied with 120V, 60 Hz, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 amp circuit breaker or time-delay fuse.

If the electric supply provided does not meet the above specifications, it is recommended that a licensed electrician install an approved outlet.

Your dishwasher circuit should not be used for any other appliance while the dishwasher is in operation as the dishwasher requires the full capacity of the circuit.

NOTICE

If your dishwasher is connected to a wall switch, ensure that the switch is on prior to use.

If you choose to turn the wall switch off between wash cycles, allow 5-10 seconds after turning the switch on before touching Start to allow the control to initialize.

Use only powder, Cascade® All-in-1 ActionPacs™, liquid detergents or rinse agents recommended for use in a dishwasher and keep them out of the reach of children.

Cascade® All-in-1 ActionPacs™ Automatic Dishwashing Detergent, and Cascade® Rinse Aid™ rinse agents have been approved for use in all GE dishwashers.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

3

Getting started!

Features and appearance will vary throughout this manual

GDF570

GDF650, PDF820

DDT595

GDT655, GDT695,

PDT825

PDT845, PDT855

CDT835

Steam

CDT865

1 Load Dishwasher

For best dishwashing results, follow the loading guidelines found in the Loading the dishwasher section. No pre-rinsing of normal food soil is required. Scrape off hard soils, including bones, toothpicks, skins, and seeds. Remove leafy vegetables, meat trimmings, and excessive amounts of grease or oil.

2

3

Add Detergent

Add needed amount of detergent to the detergent dispenser. Use a detergent such as Cascade® Platinum Pacs. See Detergent Dispenser in the Using the dishwasher section.

Add Rinse Agent

Add Rinse Agent to the rinse agent dispenser. See Use a Rinse Agent in the Using the dishwasher section.

4

GEAppliances.com

4 Select Cycle

Press the Select Cycle button for the desired wash cycle. On some models, the light next to the Select Cycle button will be lit to indicate which wash cycle has been selected. On other models, pressing the Select Cycle button will show various cycles in the display window. Press the button until the desired cycle is shown.

NOTE: Actual cycle times vary based on soil level, water temperature, and options selected.

The cycle may be selected with the door in the open position. The cycle will not start until the Start button is pushed and the door is closed within 4 seconds.

AutoSense This cycle automatically senses the soil level and adjusts the wash cycle accordingly. *Time range: 1 hour 50 minutes - 2 hours 10 minutes.

Heavy		This cycle is meant for heavily soiled dishes, cookware, pots, or pans with dried-on or baked-on soils.
		Everyday dishes are safe to be used in this cycle. *Time: 2 hours 31 minutes.
	Normal	This cycle is meant for daily, regular, or typical use to completely wash a full load of normally soiled dishes and is
		designed to conserve both water and energy. *Time range: 1 hour 15 minutes - 1 hour 50 minutes. NOTE: Normal
		was used to rate the energy efficiency of this dishwasher.
	Light	This cycle is for light to medium soiled dishes. It is safe for china and crystal. *Time: 55 minutes.
Rinse		For rinsing partial loads that will be washed later. Do not use detergent. Detergent is not dispensed during the
	(on some models)	rinse cycle. *Time: 16 minutes.
Express		This cycle will quickly wash lightly soiled dishes. *Time: 32 minutes. For faster drying, select Power Dry. The final rinse
	(on some models)	temperature will be increased. Power Dry will add 15 minutes to the cycle time. When the Clean light comes on,
		open the door, pull the racks out, and the dishes will “flash” dry in approximately five minutes.
	eWash	This cycle will efficiently wash dishes using about 2 gallons of water and .8 KWhr. Selecting Power Dry with this cycle
(on some models)		adds an energy efficient 1 1/2 hour dry period. Drying is accomplished with an efficient 2 watt fan. *Time: 1 hour 3 minutes.

*Washing time only. Does not include drying time, Auto Hot Start, or options. NOTE: If the incoming water temperature is too low, the Auto Hot Start feature may add up to 11 minutes of additional time.

5

Getting started!

5

6

Select Options

The light by the selected button will be lit to indicate which Option has been selected.

Normal Temp	This option is for normally soiled dishes, optimizes wash performance while conserving energy.
Wash Temp	This option increases the temperature to help clean heavily soiled dishes and will increase the cycle time by
Boost or	20 to 50 minutes. Option may be turned On or Off during the wash cycle. This option will also improve dry
Boost Temp	performance on the Normal cycle.
Wash Temp	This option raises the water temperature in the final rinse to sanitize your dishware but may increase cycle
Sani or	time by 60 minutes. The cycle length will vary depending on the temperature of your inlet water.
Sanitize	NOTE: This option is monitored for sanitization requirements. If the cycle is interrupted during or after the
Temp	main wash portion or if the incoming water temperature is so low that adequate water heating cannot be
	achieved, the sanitizing conditions may not be met. In these cases, the Sanitized or Cycle Sanitized light will
	not illuminate at the end of the cycle. Utilizing this option will modify the cycle to meet the requirements of
	Section 6, NSF 184 for soil removal and sanitization efficacy.
	NOTE: NSF certified residential dishwashers are not intended for licensed food establishments.
Heated or	Shuts off the drying option. Dishes air dry naturally and energy is saved. Open the dishwasher door to speed
Power Dry Off	drying.
Heated or	Turns on the option for faster drying. This option may add up to 65 minutes to the cycle time. On models
Power Dry On	with the hidden heater feature, this option boosts the temperature of the dishwasher during the final rinse
	portion of the cycle then utilizes a fan to circulate air to dry the dishes. This very efficient fan may run for an
	additional 90 minutes after the cycle is complete to maximize drying performance. Fan operation will end if
	the door is opened during this 90 minute period. This option is not available with the Rinse cycle.
Steam	For use with heavily soiled and/or dried-on, baked-on soils. This option MUST be selected PRIOR to starting
(Prewash)	the cycle. The Steam option adds up to 30 minutes to the cycle time. This option is available with Heavy,
(on some models)	AutoSense, and Normal cycles.
Pre Soak	Use this option to improve wash performance with heavy or dried-on soils. This option is available on Heavy,
(on some models)	AutoSense, and Normal cycles and may add up to 30 minutes to the cycle time.
Wash Zones	Selecting either the Upper or Lower Wash Zones will target dishwashing of just one rack. This will shorten the
(on some models)	cycle time and conserve energy. This option should be used when dishes are placed in only one rack.
Bottle Jets	This option increases the time that the bottle jets are on and may add up to 23 minutes to the cycle time.
(on some models)	Use this to wash difficult to clean, dishwasher safe baby bottles, sport bottles, tall coffee cups, etc. See use
	recommendations in the Loading the dishwasher section.
Delay Hours	Delays the start of a wash cycle up to 8 to 12 hours depending on model. Press Delay Hours, to select the
	number of hours, then press Start one time and close door to begin countdown. The cycle will start once
	allotted time has expired.
Control Lock	You can lock the controls to prevent selections from being made. You can also lock the controls after you
	have started a cycle to prevent cycle changes. For example, children cannot accidentally start the dishwasher
	by pressing buttons with this option selected.
	To LOCK the dishwasher control, depending on the model, press and hold the 1 or 2 buttons indicated on
	the controls for 3 seconds. On some models, it will be the Heated Dry, another the Steam and Wash Temp
	buttons, and another model is the Pre-Soak and Bottle Jets buttons. The Control Lock light will turn on to
	indicate the control is locked.
	To UNLOCK the dishwasher control, depending on the model, press and hold the 1 or 2 buttons indicated on
	the controls for 3 seconds. The Control Lock light will turn off to indicate the control is unlocked.

			GEAppliances.com
	Start Dishwasher
6
		Start	Press the Start button and close the door within 4 seconds to start the cycle or begin the Delay Hours
			countdown. The wash cycle will begin shortly after closing the door. The display will turn off if the door remains
			open for two minutes. To activate the display, close and open the door or press any button.
		Interrupt or	To interrupt or pause a dish cycle, slowly open the door. Opening the door will cause the wash cycle to pause.
		Pause	The dishwasher will beep every minute to remind you to close the door. To restart or resume the cycle, press
			Start, and close the door within 4 seconds.
		Cancel	To cancel a wash cycle, press and hold the Start button for 3 seconds and close door. The dishwasher will
			drain, emit a beep sound, and the wash cycle light will turn OFF.
	Cycle Indicator Lights and Sounds
7
		Sanitized or	Displayed at end of the cycle when Wash Temp Sani or Sanitize Temp has been selected and dishwasher has
		Cycle Sanitized	met requirements for sanitization. See Wash Temp Sani or Sanitize Temp, for complete description. Closing
			door or pressing any button will turn off light.
		Clean or Cycle	Displayed when a wash cycle is complete. The light stays ON as a reminder that the dishes are clean. The light
		Complete	will turn off when the door is opened.
		Low Rinse Aid	Displayed when rinse agent is low or empty. See page 8 for Use a Rinse Agent. To turn indicator off, press the
		(on some models)	Pre-Soak or Steam button 7 times within 5 seconds. Repeat this process to turn the Low Rinse Aid indicator
			back on.
		Cycle Status	The indicator light on the door front will change color to indicate the wash status. During the wash cycle, the
		(on some models)	indicator light will be amber. When the wash cycle is complete, the light will change to green.
		Sounds	The dishwasher will emit a sound to indicate cycle completion, button presses, and door ajar. To mute all
			sounds, press the Heated Dry or Power Dry button 7 times within 5 seconds. Repeat this process to turn
			sounds back on.
		Sabbath/	To turn this option ON/OFF, press and hold the START and WASH TEMP buttons for 5 seconds, close the door and
		Door Wake	wait 3 minutes for the dishwasher to go into sleep mode. In the OFF mode, the control display, control sounds,
		Up Mode	and interior lights (on some models) will not respond to the door opening/closing. This mode can be used when
		(on some models)	observing certain religious holidays such as the Sabbath. To activate the control and interior lights (on some
			models), press any button.

7

Using the dishwasher.

Check the Water Temperature

The entering water should be at least 120°F (49°C) and not	Turn on the hot water faucet nearest the dishwasher,
more than 150°F (66°C) for effective cleaning and to prevent	place the thermometer in a glass and let the water run
dish damage. Check the water temperature with a candy or	continuously into the glass until the temperature stops rising.
meat thermometer.

Use a Rinse Agent

Rinse agents, such as Cascade® Rinse Aid are designed for great drying action and to protect against spots and film build-up on your dishes, glasses, flatware, cookware, and plastic.

Filling the Dispenser

The rinse agent dispenser holds 3.5 oz. (104 ml) of rinse agent. Under normal conditions, this will last approximately one month - depending on setting.

1	Make sure the dishwasher door is fully open.
	Open the Rinse Agent dispenser door.
2
	Slowly add rinse agent until the cup is full. You may need to pause several times to
3
	allow rinse aid to settle.
	Clean up any spilled rinse agent with a damp cloth to prevent foam from forming
4
	inside the dishwasher.
	Close the Rinse Agent dispenser door.
5

Indicator window

Rinse Aid Setting

The amount of rinse agent released into the final wash can be adjusted. If water drops or hard water spots

remain on dishes after the dry cycle, increase the setting.

To adjust the setting

Open the Rinse Agent dispenser door; then turn the adjuster clockwise to increase the amount of rinse agent, counterclockwise to reduce the amount of rinse agent.

Clockwise to reduce	Counterclockwise
water drops and	to reduce foaming
hard water spots

Rinse agent adjuster

Leak Protection (on some models)

If a leak is detected, the dishwasher will drain and the cycle will stop. The display will show “LEAK DETECTED”. Call for service.

8

GEAppliances.com

Detergent Dispenser

The detergent dispenser is located in the center of the dishwasher door. It has two compartments. The main wash compartment is found inside the detergent dispenser. To open, press the button on the side of the dispenser. The pre-wash compartment is on the lid of the detergent dispenser. Use the pre-wash compartment only when your water is extremely hard or when you have a heavy soiled load. The pre-wash compartment is not used when tablet or packet detergents are used.

NOTE: Do not load large items in the lower rack where they may block the wash jets from rinsing out the detergent dispenser.

You may use tablet, packet, powder, liquid or gel

Detergent

Dispenser

	Number of	Detergent Cups to Fill
	Grains/Gal.
	Less than 4	Fill cup to 1/3 full
	4 to 8	Fill cup to 2/3 full
	8 to 12	Fill cup completely full
	Greater than 12	Fill both main wash cup and pre
		wash cup

Main

Wash

Pre-Wash

Rinse Agent

Push/Slide

to Close

automatic dishwasher detergent. Make sure you use only detergents specifically labeled for use in automatic dishwashers. Never use liquid hand dish detergent in an automatic dishwasher. Sudsing and poor wash performance will result with the use of improper detergents.

Detergents should be stored in a dry location and in their original container to prevent loss of effectiveness. Place detergent in the cup just prior to starting the dishwasher and then close the cover. The cover will open during the wash cycle.

Filling the Detergent Dispenser

GE Appliances recommends using detergent in tablet or packet form. Independent testing has shown this form of detergent is very effective in the dishwasher. Cascade® Platinum Pacs are an example of this type of detergent. Simply put a tablet or packet into the main wash compartment and slide to close the detergent cup cover. Please notice that the tablet or packet must be placed in the main wash compartment of the detergent cup. If the tablet or packet is placed in the prewash compartment or tossed in the bottom of the dishwasher, the detergent will be flushed down the drain in a very short period of time and will thus be wasted. Wash performance will be very poor as a result.

If you choose to use detergent in powder, liquid or gel form, the amount of detergent you use will be determined by the hardness of your water, the temperature of your water, and the food soil load inside the dishwasher. Contact your water company to get information about the hardness of the water in your area. Water hardness is measured in grains per gallon. Use this information and the table above to determine the amount of detergent to use. You may purchase a hard water test strip from GE. Call 1-877-959-8688 and ask for part number WD01X10295. In Canada, call 1-800-661-1616.

Using too much detergent with very soft and/or very hot water may cause a condition called etching on your glassware. Etching is a permanent cloudiness in your glassware. This condition is irreversible. However, using too little detergent will cause poor wash performance.

Use the table as a starting point and then adjust the amount of detergent you use. Use just enough to get good wash performance. Using just the right amount of detergent will provide great wash performance without wasting detergent or etching glassware.

DO NOT USE HAND DISH DETERGENT

NOTE: Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds. During operation, these suds will spill out of the dishwasher vents, covering the kitchen floor and making the floor wet.

Because so many detergent containers look alike, store the dishwasher detergent in a separate space from all other cleaners. Show anyone who may use the dishwasher the correct detergent and where it is stored.

While there will be no lasting damage to the dishwasher, your dishes will not get clean using a dishwashing detergent that is not formulated for automatic dishwashers.

9

About Appliance Communication.

WiFi Connect (on some models) (for customers in the United States)

Your dishwasher is GE WiFi Connect capable. A WiFi communciation card is built into the product allowing it to communicate with your smartphone for remote monitoring, control and notifications.

Please visit www.GEAppliances.com/connect to connect your appliance, learn more about connected appliance features and learn what connected appliance app’s will work with your smartphone.

WiFi Connectivity: For assistance with the appliance or the ConnectPlus network connectivity, please call

800-GE-CARES.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1.This device may not cause harmful interference, and

2.This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/television technician for help.

Labelling: Changes or modifications to this unit not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

10

Loading the dishwasher.	GEAppliances.com

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

Upper Rack

The upper rack is primarily for glasses, cups, and saucers. For best wash performance, tilt cup and glass openings toward the center of the rack. Other items such as pots, pans, and plates may be placed in the upper rack. This is also a secure place for dishwasher-safe plastic items. The upper rack can be used for odd sized utensils. Sauce pans, mixing bowls, and other similarly shaped items should

be placed face down for best wash performance. Ensure small plastic items are secure so that they cannot fall on the heater at the bottom of the dishwasher, potentially damaging the item. Some models are equipped with a hidden heater, so dishwasher safe plastic items can be placed in the lower rack.

IMPORTANT: Ensure items in the upper rack do not interfere with the 3rd Rack (on some models) when loading and unloading.

IMPORTANT: Ensure that items do not protrude through the bottom of the rack or silverware basket where they will block the rotation of the middle spray arm. This could result in noise during operation and/ or poor wash performance.

Clip

Nozzle

Bottle Jets

The Bottle Jets system (on some models) is the ideal location to position baby bottles, tall sports bottles, or other tall items with narrow openings. The Bottle Jets clips hold bottles with small openings in place so water jets are directed inside the bottles

to clean hard to reach areas. Clips can be installed or removed by simply slipping the clip opening over the top of the nozzle.

Sports bottle held in place over a Bottle Jets clip

Baby bottle held in place under a Bottle Jets clip

11

Loading the dishwasher (cont.).

Push

Upper Rack

The upper rack allows 2” of adjustment up or down to accommodate large items. The upper rack may be lowered by pushing the long flaps on each side of the rack. This will allow you to lower the rack (see fig. Upper Rack). To raise the rack, lift up on the rack until the rack locks in place.

CAUTION A loaded upper rack may be heavier than

anticipated. To prevent minor injury or damage to the contents, do not raise or lower the upper rack after the rack is loaded.

End

Cap

On some models, the upper rack may be adjusted to accommodate larger items. To adjust the upper rack, fully extend the upper rack and remove the two plastic end caps on the front of the rails. Remove the upper rack. Select the set of rollers on the side of the rack that provides the desired height, and reinstall the upper rack by guiding the rack rails between the appropriate set of rollers. With the rack reinstalled, replace the two plastic end caps, ensuring the snap is properly engaged. Failure to properly engage the end caps may result in the rack falling from the dishwasher.

Rail

Rollers

To add flexibility in loading, the stem safe shelf (on some models) may be placed in the up or down position or unfolded and placed in the lower unfolded position. The shelf may also be used to secure stemware such as wine glasses. Because

these stemware items come in various sizes, slowly push the rack in to ensure the items do not bump into the edges of the dishwasher, which may cause damage to the items.

Place the slots in the utility shelf clips over the vertical rack wires and push down to attach utility shelf onto second wire of rack

The fold down tines (on some models) provide flexibility for extra-large and hard-to-fit items. The tine rows can be adjusted to a vertical or lay-down position.

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

8 Place Settings - Upper Rack

Models - GDF570, GDF650, GDT655, PDF820, PDT825, PDT845	Models - DDT595, GDT695, PDT855 & CDT865
& CDT835

12

	GEAppliances.com
10 Place Settings - Upper Rack	12 Place Settings - Upper Rack
Models - GDF570, GDF650, GDT655, PDF820, PDT825, PDT845,	Models - GDF650, GDT655, PDF820, PDT825, PDT845 &
& CDT835	CDT835

Models - PDT855 & CDT865

Models - DDT595, GDT695, PDT855 & CDT865

Models - DDT595 & GDT695

Models - GDF570

13

Loading the dishwasher (cont.).

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

Lower Rack

The lower rack is best used for plates, saucers and cookware items. Large items, such as broiler pans and baking racks should be placed along the sides of the rack. If necessary, oversized glasses and mugs can be placed in the lower rack to maximize loading flexibility. Plates, saucers and similar items should be placed between the tines in the direction that allows the item to remain secure in the rack.

	NOTE: Do not load large items in the lower rack where they may
	block the wash jets from rinsing out the detergent dispenser.
	The lower
	rack fold
	down tines	3 Angled
	(on some
		Positions
	models) can	Available
	be adjusted	or Folded
	to different	Down
	upright angles
	or placed flat
	to provide
	flexibility for
	hard-to-fit or

extra-large items.

The reversible tine blocks (on some models) are designed to allow greater flexibility in loading dishes. The direction of the tine blocks can be changed to match your preferred loading direction as shown in Figure A or Figure B:

Figure A

Figure B

To adjust the tine block direction, remove the clips securing the tine blocks to the racks by pulling up on the tab, then gently flex the retaining wire from the center to unseat the tine block from the lower rack. The tine block may be turned in the opposite direction to reverse loading direction. Secure the tine block to the rack using the same process and be sure to snap the clips back in place.

Clip

WARNING The clips can be a choke hazard for small children if removed from

the dishwasher. Keep out of reach of children.

To change the direction of the fold down tines, lower the tines, then pull away from the bar clips that secure the tines to the rack and remove. Reverse the direction of the tines, orienting the handle on the opposite side of the rack. Reattach the tines to the bar clips by pushing the tines back until they click in place. The indexer will also need to be switched to the opposite side of the dishwasher. To remove the indexer, simply slide it the in the direction labeled “unlock.” Then, align the indexer with the rack on the other side and slide in the direction that says “lock” in order to reattach the indexer to the rack.

IMPORTANT: It is important to ensure that items do not protrude through the bottom of the rack or the silverware basket where they will block the rotation of the lower spray arm. Also, ensure that large plates, pots, or tall items don’t hit the mid spray arm. This could result in noise during operation and/or poor wash performance.

Bar Clip

Indexer

To lock, slide right.

To unlock, slide left.

14

	GEAppliances.com
8 Place Settings - Lower Rack
Models - GDF570, GDF650, GDT655, PDF820, PDT825, PDT845	Models - DDT595, GDT695, PDT855 & CDT865
& CDT835

10 Place Settings - Lower Rack

Models - GDF570, GDF650, GDT655,	Models - PDT855 & CDT865	Models - DDT595 & GDT695
PDF820, PDT825, PDT845 & CDT835

12 Place Settings - Lower Rack

Models - GDF570, GDF650, GDT655, PDF820, PDT825, PDT845	Models - DDT595, GDT695, PDT855 & CDT865
& CDT835

15

Loading the dishwasher (cont.).

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

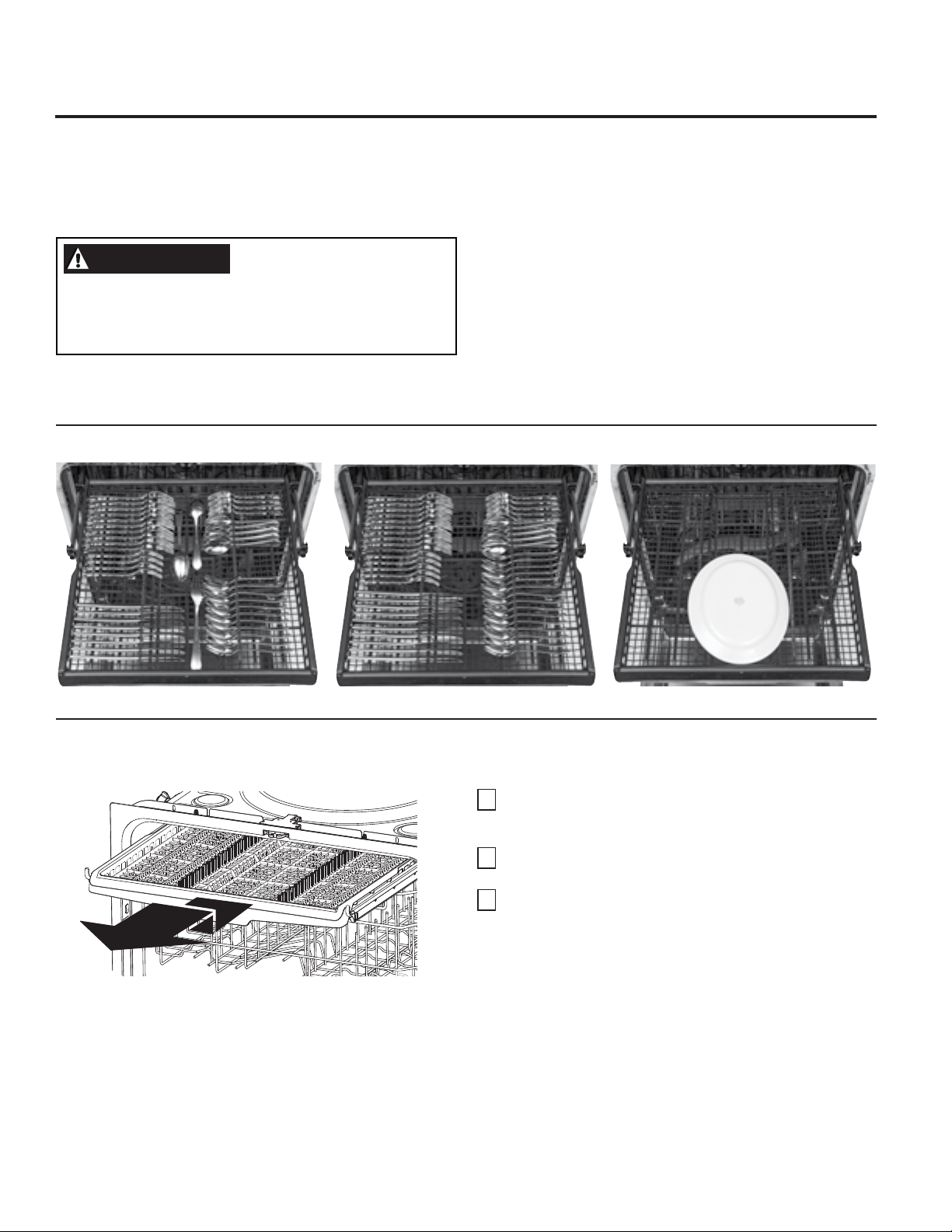

3rd Rack (on some models)

The 3rd rack is the recommended location for silverware and large utensils

CAUTION Take care when loading, unloading, or transporting the silverware or

utensil tray. The tray may contain sharp or heavy items. If items are dropped from the tray or the tray is dropped, injury could occur.

IMPORTANT NOTES:

Do not allow cutlery of different materials to touch each other in the 3rd rack. Doing so may cause discoloration of the cutlery.

The tray is only meant to be used with a GE 3rd rack dishwasher to hold silverware, cooking utensils, and other small items. Using the tray for any other purpose could result in damage to the tray or damage to anything interacting with the tray.

Ensure that the 3rd rack is fully closed before shutting the dishwasher door. Shutting the door with the rack partially extended could cause damage to the dishwasher.

8 Place Settings

10 Place Settings

12 Place Settings

The 3rd rack is also removable to allow extra large items to be placed in the upper rack:

To remove the 3rd rack:

1

2

3

With the rack fully extended, lift the front of the rack so that the rack roller wheels clear the retaining hook.

Continue to pull the rack until the remaining rack roller wheels clear the retaining hook.

Replace the rack by aligning the rack roller wheels on the retaining hook and rack rails – Ensure all roller wheels are located on top of the rack rails.

16

GEAppliances.com

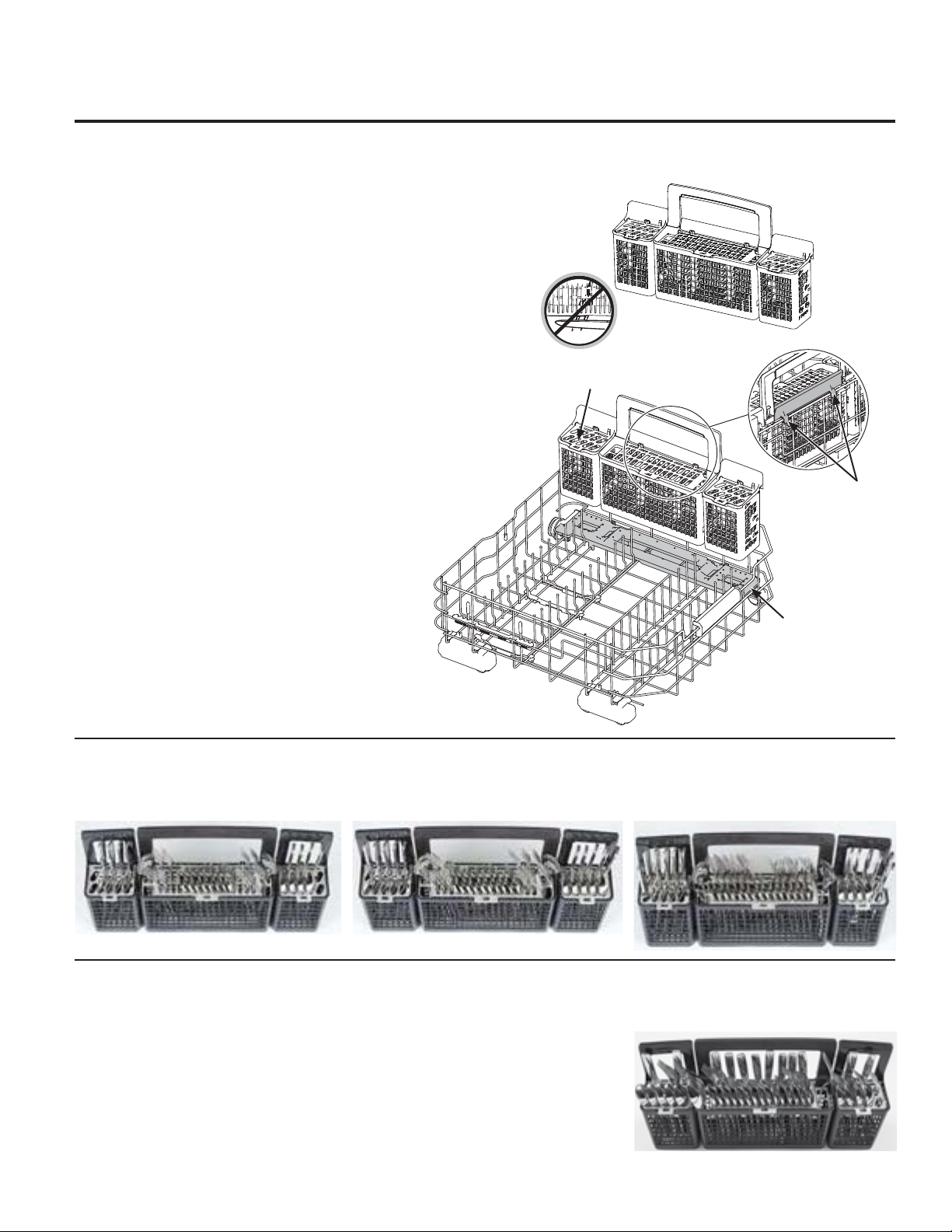

Silverware/flatware is loaded using the silverware basket lids. This ensures great wash performance of the silverware. Loading in this manner prevents nesting and makes sure all items are washed uniformly.

Silverware Basket

Place flatware in the removable silverware baskets. Sharp objects, such as forks and knives, may be placed with the handles facing up, in order to protect your hands. For the best wash performance, place other items such as spoons with the handles facing down. Avoid allowing items to nest together, which may keep them from being properly

washed. When loading, distribute items evenly in the basket.

The silverware baskets may also be used for small items, such as measuring spoons, baby bottle nipples, plastic lids, or corn cob holders. The silverware basket covers can be closed to contain small items.

Deep Clean Silverware Jets (on some models)

Deep Clean Silverware Jets target stubborn, stuck-on food and help separate nested spoons and forks to keep your silverware spotless no matter how you load the silverware. For optimal silverware cleaning, the use of silverware basket lids is always recommended. For models with the third rack, the Deep Clean Silverware Jets can also be used to clean mixing bowls and other cookware.

Do not remove Deep Clean Silverware Jet spray assembly from the dishwasher rack.

Silverware basket lids

Ensure tabs on back of silverware basket are hooked on top wire of lower rack

Deep Clean

Silverware Jets

Silverware Basket - 8 Place Settings

Models - GDF570, GDF650, GDT655,

GDT695, PDF820, PDT825, PDT845 &

CDT835

Silverware Basket - 10 Place Settings

Models - GDF570, GDF650, GDT655,

GDT695, PDF820, PDT825, PDT845 &

CDT835

Silverware Basket - 12 Place Settings

Models - GDF570, GDF650, GDT655,

GDT695, PDF820, PDT825, PDT845 &

CDT835

Silverware Basket - 8 Place Settings		Silverware Basket - 10 Place Settings	Silverware Basket - 12 Place Settings
Models - DDT595, PDT855 & CDT865		Models - DDT595, PDT855 & CDT865	Models - DDT595, PDT855 & CDT865
NOTE: Refer to the 3rd Rack in this		NOTE: Refer to the 3rd Rack in this
Loading The Dishwasher section.		Loading The Dishwasher section.

17

Care and cleaning.

Cleaning the Exterior Door Panel

Before cleaning the front panel, make sure you know what type of panel you have. Refer to the last two letters of your model number. You can locate your model number on the left-hand tub wall just inside the door. If your model number ends with BB, CC, WW, SA or ES then you have a painted door panel. If your model number ends with SS, then you have a Stainless Steel door panel. If your model number ends with II, then you have an Integrated door panel.

Follow the instructions below for cleaning the door panel for your specific model.

Painted Door Panel (model numbers ending in BB–black, CC– bisque, WW–white, SA-silver or ES-slate)

Use a clean, soft, lightly dampened cloth, then dry thoroughly.

Stainless Steel Door Panel (model numbers ending in SS)

For cleaning rust and tarnish, cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser™ will remove rust, tarnish and small blemishes. Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge. Do not use appliance wax or polish on the stainless steel.

For other blemishes and marks, use Stainless Steel Magic or a similar product using a clean soft cloth. Do not use appliance wax, polish, bleach or products containing chlorine on Stainless Steel. You can order Stainless Steel Magic # WX10X29 through GE Parts by calling 877.959.8688. In Canada,

call 1-800-661-1616.

Integrated Door Panel (model numbers ending in II)

This is a custom installed door panel, and you will need to refer to the cabinet manufacturers recommendations for proper cleaning.

Cleaning the Control Panel

To clean the control panel, use a lightly dampened cloth. Then dry thoroughly.

Cleaning the Dishwasher Interior

To clean and de-odorize your dishwasher, use citric acid or Lemi Shine®*, a detergent additive. Lemi Shine will break up mineral deposits, and remove hard water film and stains. You can order citric acid #WD35X151 through GE Parts by calling 877-959-8688 or visiting GEApplianceparts.com. In Canada, call 1-800-661-1616. You can purchase Lemi Shine at your local grocery store or by calling GE at the numbers above and ask for WX10X10019.

Stainless Steel Inner Door and Tub

The stainless steel used to make the dishwasher tub and inner door provides the highest reliability available in a GE dishwasher.

If the dishwasher tub or inner door should be scratched or dented during normal use, they will not rust or corrode. These surface blemishes will not affect their function or durability.

18

* Lemi Shine® is a registered trademark of Envirocon Technologies, Inc.

GEAppliances.com

Cleaning the Filters

Inspect and clean the filters periodically. This should be done every other month or more depending on usage. If there is a decrease in wash performance or dishes feel gritty, this is also an indication the filters need to be cleaned.

Retaining Spray

Posts Arm

Fine Ultra-Fine

Filter Filter

Ultra-Fine Filter

To clean the Ultra-Fine Filter, remove the bottom rack. Twist the Ultra-Fine Filter counterclockwise and lift to remove. Rinse filter with warm soapy water and use a sponge to carefully remove any stubborn particles. Scrubbing with scouring pads or brushes can damage the filter. Once cleaned, replace the Ultra-Fine Filter, and twist it clockwise to lock in place.

Fine Filter

To clean the Fine Filter (mesh plate), remove the bottom rack. Remove the Ultra-Fine Filter.

Twist each of the two retaining posts located toward the back bottom of the tub counterclockwise, and remove the Fine Filter. Rinse filter with warm soapy water. Scouring pads or brushes can scratch the filter surface but a soft brush or sponge may be needed to remove stubborn soils or calcium deposits caused by hard water. Once cleaned, replace the Fine Filter and the Ultra-Fine Filter. Twist the two retaining posts clockwise to lock in place.

WARNING The retaining posts can be a choke hazard

for small children if removed from the dishwasher. Keep out of reach of children.

Protect Against Freezing

If your dishwasher is left in an unheated place
			3
during the winter, ask a service technician to:
		Turn off electrical power to the dishwasher.
	1		4
		Remove fuses or trip circuit breaker.
		Turn off the water supply and disconnect the
	2
		water inlet line from the water valve.

Drain water from the water inlet line and water valve. (Use a pan to catch the water.)

Reconnect the water inlet line to the water valve.

Air gap

Check the air gap any time your dishwasher isn’t draining well.

Does Your Dishwasher Have an Air Gap?

An air gap protects your dishwasher against water backing up into it if a drain clogs. The air gap is not a part of the dishwasher. It is not covered by your warranty. Not all plumbing codes require air gaps, so you may not have one.

The air gap is easy to clean.

1 Turn off the dishwasher and lift off the air gap cover.

2	Remove the plastic cap under the cover and
	clean with a toothpick.
	Replace the cap and cover when the air gap is
3
	clean.

19

Before you call for service…

Troubleshooting Tips

Save time and money! Review the charts on the following pages, or visit GEAppliances.com. In Canada visit www.GEAppliances.ca. You may not need to call for service.

Problem

Possible Causes

What To Do

Start status	The door was opened or the
indicator light flashing	cycle was interrupted.

•Press the Start button once and close the door within 4 seconds to start the dishwasher. Press the Start button a second time when the dishwasher is running only if you wish to cancel the cycle.

Dishwasher BEEPS	This is a reminder that your	• Press Start and close the door.
once every minute	dishwasher door has been left
	open during operation. It will
	continue beeping until you press
	Start and close the door.
Display shows	Possible leak is detected	• Some models are equipped with leak detection and the cycle will be cancelled if
“LEAK DETECTED”		a leak is detected. The display will show “LEAK DETECTED”. Call for service.

Beeping at the end	This is normal. The dishwasher
of the cycle	will beep twice at the end of the
(on some models)	cycle.

•To turn off the double beep indicator (or re-activate it if it was previously turned off), press the Heated Dry button 5 times within 3 seconds. A triple beep will sound to indicate the end-of-cycle beep option has been turned on or off.

Dishes and flatware	Ultra Fine or Fine filter is clogged	•	See the Care and cleaning section.
not clean
	Low inlet water temperature	•	Make sure inlet water temperature is correct (see the Using the dishwasher
			section). Turn on the hot water faucet nearest the dishwasher, let run until
			the water temperature stops rising. Then start the dishwasher and turn
			off the faucet. This ensures the entering water is hot. Select Wash Temp Boost
			or Boost Temp if available.
	Water pressure is temporarily low •		Turn on a faucet. Is water coming out more slowly than usual? If so, wait until
			pressure is normal before using your dishwasher. Normal water pressure to
			the dishwasher should be 20-120 psi.
	Air gap or disposer is clogged	•	Clean the air gap or flush the disposer.
	Improper rack loading	•	Make sure large dishware does not block the detergent dispenser or the
			wash arms. See the Loading the dishwasher section.
	Poor performing detergent	•	Use a highly rated detergent such as Cascade® Platinum Pacs.
Spots and filming	Extremely hard water	•	Use rinse agents such as Cascade® Rinse Aid to prevent spots and prevent
on glasses and			new film buildup.
flatware		•	If water is extremely hard, a softener may be required.
	Low inlet water temperature	•	Make sure water temperature is at least 120°F (49°C).
	Overloading or improper	•	Load dishwasher as shown in the Loading Place Settings section.
	loading of the dishwasher
	Old or damp powder detergent	•	Make sure detergent is fresh. Use a highly rated detergent such as Cascade
			Platinum Pacs.
	Rinse agent dispenser empty	•	Refill with rinse agent such as Cascade® Rinse Aid.
	Too little or low performing	•	Make sure you use the proper amount of highly rated detergent.
	detergent

20

GEAppliances.com

Problem

Possible Causes

What To Do

Cloudiness on	Combination of soft water and
glassware	too much detergent

•This is called etching and is permanent. To prevent this from happening, use less detergent if you have soft water. Wash glassware in the shortest cycle that will get it clean.

	Low performing phosphate	•	See A white film on glassware, dishware and the interior in this
	free detergent		Troubleshooting section.
	Water temperature entering the	•	This could be etching. Lower the water heater temperature.
	dishwasher exceeds 150°F (66°C)
Suds in the tub	Wrong detergent	•	Use only automatic dishwasher detergents to avoid sudsing. Cascade®
			Automatic Dishwashing Detergents have been approved for use in all
			GE dishwashers.
		•	To remove suds from the tub, open the dishwasher and let suds dissipate.
			Open the door, press and hold Start for 3 seconds, and close the door.
	Rinse agent was spilled	•	Always wipe up rinse agent spills immediately.
Detergent left in	Dishes or utensils are blocking	•	Reposition the dishes, so the water from the lower spray arm can flush
dispenser cups	the detergent cup		the detergent cup. See the Loading the dishwasher section.
		•	Reposition the tall utensils or heavy silverware that may be keeping the
			dispenser cup door from opening. See the Loading the dishwasher
			section.
		•	Don’t place large bowls or pots directly under the detergent dispenser.
Black or gray	Aluminum utensils have	•	Remove marks with a mild, abrasive cleaner.
marks on dishes	rubbed against dishes
Dishes don’t dry	Low inlet water temperature	•	Make sure inlet water temperature is at least 120°F.
		•	Select Heated Dry.
		•	Use Wash Temp Boost or Boost Temp option.
		•	Select a higher cycle, such as Wash Temp Sani, Sanitize Temp or Heavy.
	Rinse agent dispenser is empty	•	Check the rinse agent dispenser and fill as required.
	Additional drying time is needed	•	Leave door closed after the Clean light appears to allow the fan to run an
			additional 90 minutes.
			Note: If you open the door, this fan extension will be cancelled.
Control panel responded	Door may not be completely	•	Make sure the door is firmly closed.
to inputs but dishwasher	closed
never filled with water	Water valve may be turned off	•	Make sure water valve (usually located under the sink) is turned on.
	Flood float may be stuck	•	Remove Ultra-Fine filter and lightly tap the piece under the ultra fine filter that
			looks like a salt shaker. Replace the filter.
Stained tub interior	:KLWHILOPRQLQVLGHVXUIDFH³	•	GE recommends Cascade® Rinse Aid to help prevent hard water mineral
	hard water minerals		deposits from forming.
		•	Run dishwasher with citric acid to remove mineral deposits. Citric acid
			(Part number: WD35X151) can be ordered through GE Parts. See back
			cover for ordering information. Alternatively, purchase Lemi Shine and
			follow the directions on the label.
Dishwasher won’t run	Fuse is blown or circuit breaker	•	Replace fuse or reset circuit breaker. Remove any other appliances from
	is tripped		the circuit.
	Power is turned off	•	In some installations, the power to the dishwasher is provided through a
			wall switch, often located next to the disposer switch. Make sure it is on.
	Control panel is locked	•	Unlock control panel. See the Getting started section.
	Possible leak is detected	•	Some models are equipped with leak detection and the cycle will be cancelled if
			a leak is detected. The display will show “LEAK DETECTED”. Call for service.
	Proper Start sequence was	•	See the Using the dishwasher section.
	not followed

21

Before you call for service…

Problem	Possible Causes	What To Do
Control panel lights	Time too long between	•	Each button must be touched within 30 seconds of the others.
go off when you’re	touching of selected buttons		To relight, touch any button again or open the door and
setting controls			unlock (top control).
Water standing in	Air gap is clogged	•	Clean the air gap. See the Care and cleaning section.
the bottom of the tub
	High drain loop or air	•	Refer to the Installation Instructions for proper drain line installation.
	gap not installed
Water won’t pump	Drain is clogged	• If you have an air gap, clean it. See the Care and cleaning section.
out of the tub		• If the dishwasher drains into a disposer, run disposer clear.
		• Check to see if your kitchen sink is draining well. If not, you
			may need a plumber.
Steam	This is normal	• Warm, moist air comes through the vent during drying and when
			water is being pumped out. This is necessary for drying.

Sanitized or Cycle Sanitized light does not illuminate at the end of the cycle

The door was opened and the	•	Do not interrupt the cycle by opening the door during the wash cycle.
cycle was interrupted during
final rinse
The incoming water	•	Raise the water heater temperature to between 120°F and 150°F.
temperature was too low

Noise	Normal operating sounds:	• These are all normal. No action is required.
	Detergent cup opening
	Water entering dishwasher
	The motor stops and starts at
	various times during the cycle
	Spray arms start and stop at
	various times
	Drain pump sounds during
	pump out
	Drain pump starts and stops
	several times during each drain
	Rattling dishes when the spray	•	Make sure dishes are properly loaded. See the Loading the
	arm rotates		dishwasher section.
	Rattling silverware against door	•	Tall utensils may be placed in the upper rack to avoid bumping against
	during wash		inner door during wash cycle.
A white film on	This problem is likely caused	• To remove the white film, run your dishes through a dishwasher cycle with
glassware, dishware	by a low quality phosphate-free		citric acid. Use a WD35X151 citric acid kit found online. Otherwise, use Lemi
and the interior	dishwasher detergent		Shine (WX10X10019) found at your local grocery store.

Pour the citric acid in the detergent cup and close the cover. Place the filmed but otherwise clean glassware and dishware in the dishwasher. Leave silverware and other metal items out of the dishwasher. Turn the dishwasher on and let it run through a complete cycle without detergent. The glassware, dishware, and dishwasher should come out film free. Alternatively,

a vinegar rinse may be used. Pour 1 cup of vinegar into dishwasher just after the detergent cup opens and let the dishwasher complete its cycle.

This may be repeated several times a year as needed

The use of a rinse agent such as Cascade® Rinse Aid may help minimize a repeat build up of film. Also, the use of a highly rated detergent

such as Cascade® Platinum Pacs will help prevent film build-up.

22

Notes.

23
