INTRODUCTION

8.1 INTRODUCTION

This Pilot’s Guide describes the capability and operation of the G1000 Multi Function Display (MFD) installed in the Mooney aircraft.

DESCRIPTION

The display portion of the G1000 Integrated Cockpit System installed in Mooney M20M & M20R aircraft consists of two, 10.4-inch liquid crystal displays (LCDs). During normal operation, the right display is conﬁgured as the Multi Function Display (MFD).

OPTIONAL EQUIPMENT

This MFD pilot’s guide only covers the baseline conﬁguration of the G1000. Descriptions and procedures relating to the following options are covered in the G1000 Optional Equipment Pilot’s Guide:

• L-3 STORMSCOPE® WX-500 Series II Weather Mapping Sensor

• L-3 SKYWATCH® Trafﬁc Advisory System (Model SKY497)

• L-3 SKYWATCH® HP Trafﬁc Advisory System (Model SKY899)

• Honeywell® KTA 870 TAS and KMH 880 MultiHazard Awareness System

• Ryan TCAD 9900B and 9900BX

• GDL 69/69A XM® Radio System

Consult an Garmin authorized service center for

optional equipment availability and conﬁguration.

Figure 8.1.1 MFD Splash Screen

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-1

Page 4

INTRODUCTION

MFD POWER-UP

MFD power up is part of the system power up procedure. See the G1000 System Overview Pilot’s Guide for details.

Splash Screen Information

The MFD splash screen displays general system information such as software version and database versions to the pilot upon power-up of the G1000 system. To acknowledge the Splash Screen information and proceed to the Navigation Map Page press the ENT key or the right most softkey twice.

NOTE: Screen images in this pilot’s guide are

subject to change and may not reflect current G1000 system software and/or optional equipment.

REVERSIONARY MODE

Should a failure occur in either display, the G1000 automatically enters reversionary mode. In reversion ary mode, critical ﬂight instrumentation is combined with engine instrumentation on the remaining display. Minimal navigation capability is also available on the reversionary mode display. See the G1000 System Overview Pilot’s Guide for a detailed explanation of the rever sionary mode.

MFD BACKLIGHTING

See the Primary Flight Display Pilot’s Guide for instructions on adjusting MFD backlighting.

MFD SOFTKEYS

The MFD softkeys are located below the display screen and provide control over ﬂight management functions including GPS Navigation and ﬂight planning. Figure

8.1.3 shows an MFD ﬂowchart identifying what functions are available via the softkey labels.

NOTE: Additional MFD softkeys may be present

depending on the type of optional equipment that is installed. See the Optional Equipment Pilot’s Guide for more information.

ENGINE – Pressing the ENGINE softkey makes

available the LEAN and SYSTEM softkeys which in turn access the Lean Page and the System Page, respectively.

MAP – pressing the MAP softkey enables the follow-

ing softkeys:

TRAFFIC – pressing the TRAFFIC softkey

displays/removes Mode S Trafﬁc on the Navigation Map.

TOPO – pressing the TOPO softkey displays

or removes topographic information on the Navigation Map.

TERRAIN – pressing the TERRAIN softkey

displays/removes terrain information on the Navigation Map.

BACK – pressing the BACK softkey displays

the ENGINE and MAP top level softkeys.

DCLTR (declutter) – pressing the DCLTR

removes map information in three levels.

CHKLIST (checklist) – pressing the CHKLIST

softkey displays the Checklist Page.

softkey

8-2

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 5

INTRODUCTION

ELECTRONIC CHECKLISTS (OPTIONAL)

The G1000 Multi Function Display installed in the Mooney aircraft provides optional checklists which allow a pilot to quickly ﬁnd the proper procedure on the ground and during each phase of ﬂight.

NOTE: The checklist information described in this section does not replace the checklist information described in the Mooney M20M & M20R Pilot’s Operating Handbook (POH).

NOTE: Garmin is not responsible for the content of the checklists. User-deﬁned checklists are created by the aircraft manufacturer. Additionally, modiﬁcations or updates to the checklists are coordinated through the aircraft manufacturer. In addition, the user cannot edit the checklists.

Displaying the Checklist Page

The Splash Screen displays the current checklist ﬁle that is installed for the Mooney aircraft. If no checklist is present, then the Spalsh Screen displays the text “CHECKLIST FILE NOT PRESENT” and the CHKLIST softkey is greyed out.

To select the Checklist Page:

1. From any page, press the

CHKLIST

softkey.

Selecting a Procedure Group

Depending on the speciﬁc airframe, there are a certain number of groups of procedures with their respective checklists available to the pilot.

To select a procedure group:

1. Press the

2. Turn the

CHKLIST

large FMS

softkey.

knob to select the ‘GROUP’

ﬁeld.

3. Turn the

small FMS

procedure and press the

knob to select the desired

ENT

key.

Selecting a Checklist within the Procedure Group

1. Turn the

2. Turn the

large FMS

ﬁeld.

FMS knob

and press the

knob to select the ‘Checklist’

to select the desired checklist

ENT

key.

Selecting a Checklist Item

Two methods are available to select a checklist item: (1) pressing the (1) Pressing the ENT key:

With the desired checklist displayed, turn the FMS knob to move up and down the checklist and highlight an item with a hollow white rectangle. The default color for non-selected checklist items is blue and once the item is highlighted, the color turns white. To select a checklist item that is highlighted, press the ENT key. The selected item turns green in color again for ease of identiﬁcation, and then a check mark is placed in the box next to the item. As an item is selected, the next item is automatically highlighted for selection.

ENT key; or (2) pressing the DONE softkey.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-3

Page 6

INTRODUCTION

(2) Pressing the DONE Softkey: Pressing the DONE

One-Button Access to Emergency Procedures

softkey produces the same results as pressing the ENT key.

NOTE: All warnings are displayed in yellow for ease of identiﬁcation.

the checklist page is displayed. Press the EMERGENCY softkey at any time to immediately access the emergency procedures.

Exiting the Checklist Page

Removing the check mark from a checklist item

Press the CLR key to remove a check mark from an

item.

Advancing to the Next Checklist

Once the last item in a checklist is selected, the ‘GO TO THE NEXT CHECKLIST?’ text is highlighted. Press the ENT key to advance to the next checklist displayed.

Checklist Group

Checklist Number

Page is displayed. Press the EXIT softkey or momentarily hold down the CLR key at anytime to exit the Checklist Page and return to the last page that was displayed before the Checklist Page was selected.

The EMERGENCY softkey is available at all times when

The EXIT softkey is available as long as the Checklist

8-4

Checklist Page

Softkeys

Checklist Page

Indicator

Figure 8.1.2 Checklist Page (optional)

Emergency

Softkey

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 7

MAP

DCLTR

TRAFFIC

TOPO

BACK

TERRAIN

DCLTR-2

DCLTR-3

DCLTR-1

CHKLIST

EXIT

EMERGCY

ENGINE

DCLTR

MAP

ENGINE

CHKLIST

CLR

DONE

The DONE softkey changes toUNDO when the checklist item is already checked

RST FUEL

INC FUEL

DEC FUEL

ENGINE

LEAN

SYSTEM

BACK

ENGINE

LEAN

SYSTEM

BACK

(OPTIONAL)

NOTE: Additional keys may be present depending �

on the options installed. See the Optional Equipment

Pilot's Guide for additional key information.

INTRODUCTION

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

Figure 8.1.3 Basic MFD Softkeys

8-5

Page 8

INTRODUCTION

MFD PAGE GROUPS

The MFD displays navigation ﬂight information

in four main page groups:

• Map (MAP): Navigation Map Page Trafﬁc Map Page Terrain Proximity Page

• Waypoint (WPT) : Airport Information Page Intersection Information Page NDB Information Page VOR Information Page User Waypoint Information Page

• Auxiliary (AUX): Trip Planning Page Utility Page GPS Status Page System Setup Page System Status Page

• Nearest (NRST): Nearest Airports Page Nearest Intersections Page Nearest NDB Page Nearest VOR Page Nearest User Waypoints Page Nearest Frequencies Page Neatest Airspaces Page

To select a speciﬁc page group:

1. Turn the

large FMS

knob until the desired page

group is selected.

Active Page group is

highlighted

Figure 8.1.4 Page Group Window

Currently

selected page is

highlighted

To select a different page within the group:

1. Turn the

small right FMS

knob. As the knob is turned, the bottom right corner of each page indicates the page group that is currently being displayed (e.g., MAP or NRST, etc.), the number of pages available within that group (indicated by rectangle icons) and the placement of the current page within that group (indicated by a solid cyan rectangle icon). The page group and active page title window are displayed below the status bar.

Page Group

Figure 8.1.5 Page Title Window

Active Page Title

8-6

NOTE: Other pages may be present in addition to the ones listed in this section depending on the optional equipment that is installed. See the Optional Equipment Addendum for detailed information.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 9

WORKING WITH MENUS

Much of the operation of the G1000 MFD is accomplished using a menu interface. The G1000 has a bezel-mounted dedicated menu key (MENU) when pressed, displays a context-sensitive list of options. This options list allows the pilot to access additional features or make settings changes which speciﬁcally relate to the currently displayed page. Some menus provide access to additional submenus that are used to view, edit, select, and review options. Some menus display ‘NO OPTIONS’ when there are no options for the page selected.

The main keys which are used in association with all page group operations are listed below:

• CLR – erases information or cancels an entry. Press and hold CLR to immediately display the Navigation Map Page, regardless of the page currently displayed.

• ENT – accepts a menu selection or data entry. Approves an operation or completes data entry. Also conﬁrms information.

• BACK – resets the MFD softkeys to their default settings (ENGINE, MAP, DCLTR, MODE, VIEW, etc).

• DCLTR – removes information from the moving map in a progressive manner with each key-press.

• MENU – displays a context-sensitive list of options that allows access to additional features or that allows the pilot to change the settings which relate to the currently displayed page.

INTRODUCTION

NOTE: Data is entered using the large and small FMS knob. Practice with them to become efﬁcient at entering data. This will greatly reduce the amount time spent operating the MFD in

ﬂight.

If there are more options than can be displayed turn

the FMS knob to scroll through the list to identify them. In all cases, once the menu is displayed the FMS knob is turned to highlight an item and the ENT key is pressed to select that item or the CLR key removes the menu and cancels the operation. Pressing the softkeys does not display a menu or submenu.

Figure 8.1.6 Menu with Options

Figure 8.1.7 Menu with No Options

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-7

Page 10

INTRODUCTION

This page intentionally left blank.

8-8

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 11

NAVIGATION MAP PAGE

8.2 NAVIGATION MAP PAGE

CAUTION: Do not use the Navigation Map for pilotage navigation. The Navigation Map is intended only to enhance situational awareness. Conduct navigation using only current charts, data, and authorized navigation facilities.

NOTE: Refer to the appendices for a complete description of the aviation map symbology used on the Navigation Map Page.

The Navigation Map Page is the ﬁrst page in the map page group and provides the pilot with the following navigation display capability:

• Map display showing airports, navaids, airspaces, land data (highways, cities, lakes, rivers, borders, etc.) with names (labels)

• Map pointer information (distance and bearing to pointer, location of pointer, name and other pertinent information)

• TIS Trafﬁc Display overlay

• Obstacle Display overlay

• Map Zoom Range Legend

• Wind Direction and Speed

• Heading Indication

• Aircraft icon representing present position

• Icons for enabled map features

• Track Vector

• Topography Scale

• Fuel Range Ring

• Topography Data

• Terrain Proximity Data

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-9

Page 12

NAVIGATION MAP PAGE

To select the Navigation Map Page:

1. Turn the

large FMS

knob to select the Map Page

group.

2. Turn the

small FMS

knob to select the Navigation Map Page. The page group name and page title is displayed below the navigation status bar; MAP – NAVIGATION MAP. In addition to turning the

large and small FMS

Navigation Map Page can be selected from any page by pressing and momentarily holding the

CLR

(DFLT MAP) key.

knobs, the

Navigation Map Page Procedures

The following GPS Navigation procedures can be per-

formed using the Navigation Map:

• Changing the Map Orientation

• Selecting a Map Range

• Using the Auto Zoom Feature

• Identifying Aviation Map Data

• Decluttering the Map

• Panning the Map

• Displaying Topographic Information on the Navi gation Map Page

• Displaying Terrain Information on the Navigation Map Page

• Displaying Trafﬁc on the Navigation Map Page

• MFD Navigation Status Window

• Navigation Map Page Options Menu

Map Orientation

8-10

Own Aircraft

Page Groups

Airspace Boundries

Course Line

Terrain Scale

Map Scale

Legend

Figure 8.2.1 Navigation Map Page

(not all features shown)

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 13

NAVIGATION MAP PAGE

Changing the Map Orientation

There are four map orientation selections: North up, Track up, DTK up, and HDG up. ‘North up’ is the default selection.

• North up ﬁxes the top of the map to a north head ing.

• Track up adjusts the top of the map display to the current ground track.

• Desired Track Up (DTK up) ﬁxes the top of the map display to the desired course.

• Heading Up (HDG up) ﬁxes the top of the map display to the current aircraft heading.

To change the map orientation:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

3. Turn the group and press the

4. Turn the

small FMS

large FMS

knob to select the ‘

ENT

key.

knob to highlight the

‘ORIENTATION’ ﬁeld.

5. Turn the

small FMS

orientation and press the

6. Press the

FMS

knob to select the desired

ENT

key.

knob to return to the Navigation

Map Page.

Map’

Selecting a Map Range

The Navigation Map Page can be set to 28 different range settings from 500 feet to 2000 nautical miles. The current range is indicated in the lower right corner of the Navigation Map Page and represents the

top-to-bottom

distance covered by the map. To change the map range

turn the joystick counter-clockwise to zoom in, turn it clockwise to zoom out.

Using the Auto Zoom Feature

The automatic zoom feature automatically adjusts the map range from 2000 nm through each lower range, stopping at 1.5 nm as the aircraft approaches the destination waypoint.

To enable/disable automatic zoom:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

3. Turn the group and press the

4. Turn the

small FMS

large FMS

knob to select the ‘

ENT

key.

Map’

knob to highlight the ‘AUTO

ZOOM’ ﬁeld.

5. Turn the and press the

6. Press the

small FMS

FMS

knob to select ‘On’ or ‘Off’

ENT

key.

knob to return to the Navigation

Map Page.

Map Range

Indicator

Figure 8.2.2 Map Range Indication

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-11

Page 14

NAVIGATION MAP PAGE

Map Panning

Map panning moves the map beyond its current limits without adjusting the map range. When the panning function is selected by pushing in the joystick, a panning arrow ﬂashes on the map display. A window also appears at the top of the map display showing the latitude/longitude position of the pointer, the bearing and distance to the pointer from the aircraft’s present position, and the elevation of the land at the position of the pointer. When the panning arrow crosses an airspace boundary, the boundary is highlighted and airspace information is displayed at the top of the display. The information includes the name and class of airspace, the ceiling in feet expressed in Mean Sea Level (MSL), and the ﬂoor in feet MSL.

NOTE: The airspace boundary stays highlighted

for approximately four seconds before returning to normal shading.

To pan the map:

1. Push in the

joystick

to display the panning

arrow.

2. Push in and move the

joystick

in the general direction of the desired destination to place the panning arrow at the destination location. When the panning arrow is placed on an object, the name of the object is highlighted (even if the name wasn’t originally displayed on the map). This feature applies to everything displayed on the map except route lines.

8-12

Distance,

bearing

and elevation

Panning

Arrow

Latitude and longitude

position of pointer

Figure 8.2.3 Map Panning

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 15

NAVIGATION MAP PAGE

When any map feature or object is selected on

the map display, features or objects are displayed in the Window located at the top of the display. From here, the pilot can designate the waypoint as the Direct-to destination. When the panning arrow crosses an airspace boundary, the boundary is highlighted and airspace information is displayed at the top of the display.

3. To remove the panning arrow and return to the present position, push in the

joystick

Displaying Topographic Data on the Navigation Map Page

The Navigation Map Page displays various shades of topography land colors representing the rise and fall of land elevation similar to sectional charts. The Navigation Map Page can display a topographic scale representing various key points of terrain elevation colors with their associated elevation value labeled.

To display topographic data on the Navigation Map Page:

MAP

1. Press the

2. Press the

softkey.

TOPO

softkey. Topo data can also be displayed on the Navigation Map Page by using the ‘On/Off’ topo data map setup feature. See the Navigation Map Page setup menu section for details.

Displaying Terrain Information

Terrain data can be displayed on the Navigation

Map Page by pressing the

TERRAIN softkey. Terrain

symbology (mountain icons) appear next to the map range in the bottom right corner of the page indicating the presence of terrain data on the map. See the Terrain Proximity Page section for a terrain color interpretation chart.

To display terrain data on the Navigation Map Page:

MAP

1. Press the

2. Press the played, pressing the

softkey.

TERRAIN

softkey. Once Terrain is dis-

TERRAIN

softkey removes

it.

On-screen map maximum elevation

On-screen map minimum elevation

Aircraft altitude

NOTE: Once TOPO data is displayed, pressing

the TOPO softkey removes it. When topo data is removed, the Jeppesen Nav data is presented on a black background.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

Maximum

Minimum

Ground elevation

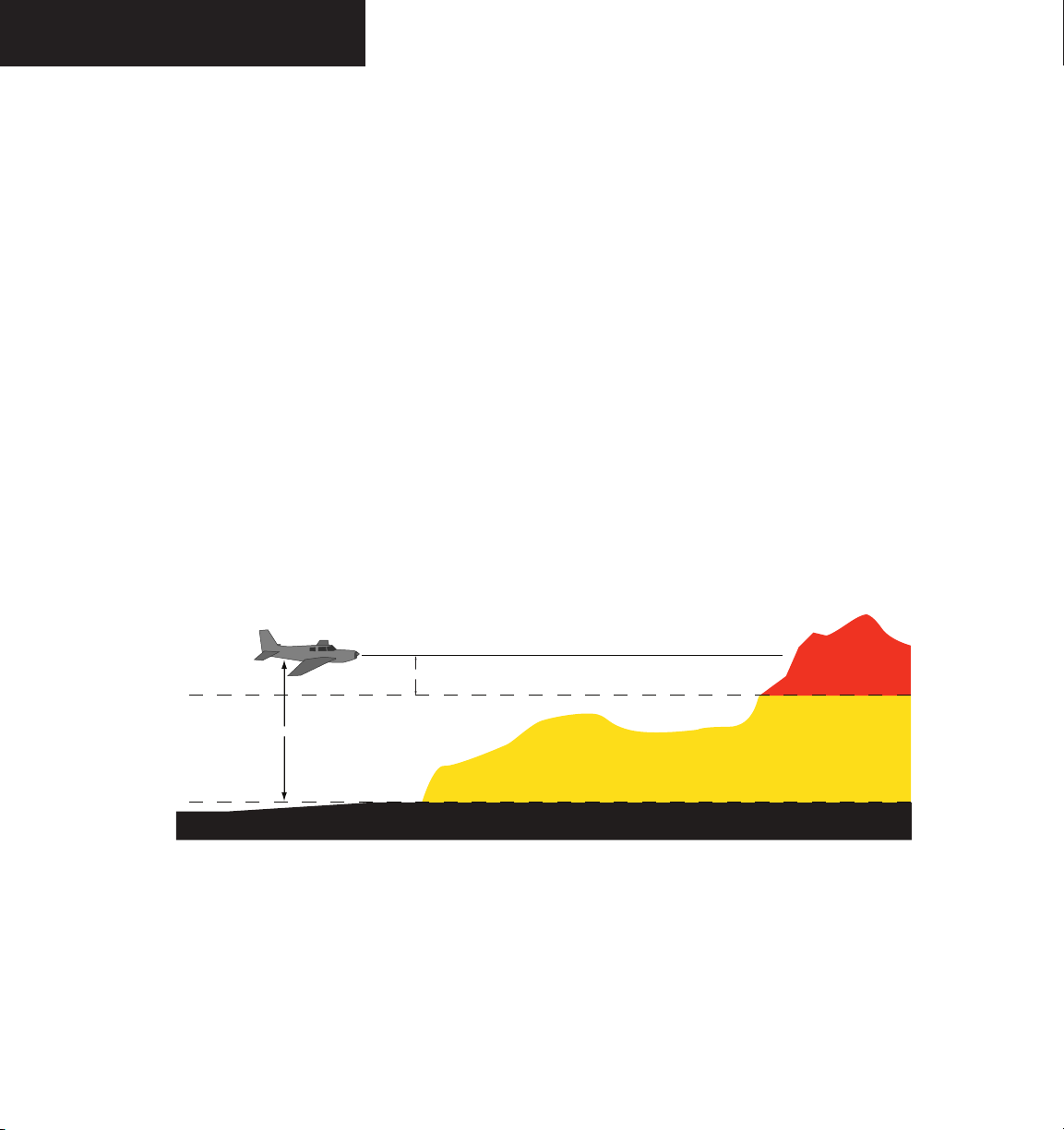

Figure 8.2.4 Topography Range

8-13

Page 16

NAVIGATION MAP PAGE

Displaying Trafﬁc

Pressing the

TRAFFIC softkey displays Trafﬁc

Information Service (TIS) trafﬁc on the Navigation Map Page. TIS is a ground-based service providing relative location of all ATCRBS Mode-A and Mode-C transponder equipped aircraft within a speciﬁed service volume.

The TIS ground sensor uses real time track reports to generate trafﬁc notiﬁcation. Surveillance data includes all transponder-equipped aircraft within the coverage volume. The G1000 displays up to eight trafﬁc targets within a 7.5 nautical mile radius, from 3,000 feet below to 3,500 feet above the requesting aircraft. See Section 11 for a full description of TIS. A trafﬁc symbol appears next to the map range in the bottom right corner of the display indicating the presence of trafﬁc data on the map.

To display trafﬁc on the Navigation Map Page:

MAP

1. Press the

2. Press the displayed, pressing the

softkey.

TRAFFIC

softkey. Once traffic is

TRAFFIC

softkey

removes it.

NOTE: Traffic and terrain data can also be

displayed by using the ‘On/Off’ Navigation Map Page option. See the Navigation Map Page setup section for details.

Figure 8.2.5 MFD Data Bar (default)

Decluttering the Map

The Navigation Map Page can be quickly decluttered

by repeatedly pressing the DCLTR softkey until the desired detail is displayed. The declutter level label is displayed above the DCLTR softkey. Note that during an instrument approach, automatic decluttering takes place.

NOTE: Some of the map features are automati-

cally removed at certain zoom ranges due to the map setup conﬁguration for each map item.

NOTE: “SUA” listed in the table below stands

for Special Use Airspace. These are controlled airspaces, military zones, etc.

MFD Data Bar

The MFD Data Bar displays four, user-conﬁgurable ﬁelds which can display the following data:

• Bearing to next waypoint (BRG)

• Distance to next waypoint (DIS)

• Desired track to next waypoint (DTK)

• En-route safe altitude (ESA)

• Estimated Time of Arrival (ETA)

• Estimated Time Enroute (ETE)

• Ground Speed (GS)

• Maximum Safe Altitude (MSA)

• Track angle error (TKE)

• Track angle (TRK)

• Vertical speed required (VSR)

• Cross track error (XTK)

8-14

NOTE: Instructions on changing a data ﬁeld in

the MFD Data Bar is given in the System Setup Section.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 17

NAVIGATION MAP PAGE

Map Features always

No Declutter Declutter ( –1) Declutter (-2) Declutter (-3)

displayed

Flight plan route lines All Map features

River/Lakes Names Only User waypoints Large Airports

are visible

Flight plan route waypoints Land/Country Text

Rivers/Lakes

Topography data

Terrain Proximity data

Large City VORs Small Airports

Medium City NDBs SUA Group 3

Small City Intersections SUA Group 4

Latitude/Longitude Grid Medium Airports

Map Borders ----------- SUA Group 0 Runway Labels Bearing Line Freeways SUA Group 1

Lightning Strike data (when

National Highways SUA Group 2

Stormscope installed)

Nexrad data Local Highways SUA Group 5

Trafﬁc Symbols

Trafﬁc Labels

Local Roads SUA Group 6

Local Road Labels SUA Group 7

Railroads

Obstacles

Major Political Boundaries

Table 8.2.1 Map Declutter Levels

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-15

Page 18

NAVIGATION MAP PAGE

NAVIGATION MAP SETUP

Navigation Map Page Options Menu

The Navigation Map Page can be customized using op

tions listed in the Navigation Map Page menu. To display the menu, press the MENU key (with the Navigation Map Page displayed). Two options are available: Map Setup and Measure Bearing/Distance.

Restoring Defaults

Default settings for the Map Options can be restored by using the Restoring Defaults Menu. To display the menu, press the

MENU key (with the Options Menu displayed).

Three options are available: Restore Selection Default, Restore Group Defaults, and Restore all Defaults

Option 1: Map Setup

‘Map Setup’ consists of the following options:

Map Group Options:

• Map

• Trafﬁc

• Aviation

• Land

To enable/disable land data:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

2. Press the

ENT

key. The Map Setup Menu is

displayed.

3. Turn the group and press the

4. Turn the

small FMS

large FMS

knob to select the ‘

ENT

key.

Map’

knob to highlight the ‘LAND

DATA’ ﬁeld.

5. Turn the and press the

6. Press the

small FMS

FMS

knob to select ‘On’ or ‘Off.’

ENT

key.

knob to return to the Navigation

Map Page.

8-16

Map Data

The ﬁrst two options, ‘Orientation’ and ‘Auto Zoom’

were covered earlier in this section.

Land Data

The Navigation Map Page can display background land data (roads, lakes, borders, etc). The background land data can also be removed from the display (turned off).

Figure 8.2.5 Map Group Setup Options

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 19

NAVIGATION MAP PAGE

Track Vector

The Navigation Map Page can display a track vector as a dashed cyan line segment with an arrowhead attached to the end, extended to a predicted location in 60 seconds along the current aircraft track. The track vector is useful in minimizing track angle error.

To enable/disable the track vector:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

3. Turn the group and press the

4. Turn the

small FMS

large FMS

knob to select the ‘

ENT

key.

Map’

knob to highlight the

‘TRACK VECTOR’ ﬁeld.

5. Turn the ‘Off’. Press the

small FMS

knob to select ‘On’ or

ENT

key to accept the selected

option.

FMS

6. Press the

knob to return to the Navigation

Map Page.

Wind Vector

2. Press the

ENT

key. The Map Setup Menu is

displayed.

3. Turn the group and press the

4. Turn the

small FMS

large FMS

knob to select the ‘

ENT

key.

Map’

knob to highlight the ‘WIND

VECTOR’ ﬁeld.

5. Turn the ‘Off’. Press the

small FMS

knob to select ‘On’ or

ENT

key to accept the selected

option.

FMS

6. Press the

knob to return to the Navigation

Map Page.

Nav Range Ring

The Nav range ring shows the direction of travel (ground track) on a rotating compass card. The range of the Nav compass is determined by the map range, 125 feet (500 feet map range) to 500 nm (2000 nm map range).

To enable/disable the Nav range ring:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

The wind vector Window is displayed in the upper right corner of the Navigation Map Page and displays wind direction and speed (in knots). Wind direction is indicated by a 360 degree pointing arrow.

To enable/disable the wind vector Window:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

3. Turn the group and press the

4. Turn the

small FMS

large FMS

knob to select the ‘

ENT

key.

Map’

knob to highlight the ‘NAV

RANGE RING’ ﬁeld.

5. Turn the ‘Off’. Press the

small FMS

knob to select ‘On’ or

ENT

key to accept the selected

option.

FMS

6. Press the

knob to return to the Navigation

Map Page.

8-17

Page 20

NAVIGATION MAP PAGE

Topo Data

Topographic data can be enabled or disabled on the Navigation Map Page using the ‘TOPO DATA’ setting. The topo data range is the maximum map range that topo data is displayed.

To enable/disable topo data and to select a topo data range:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

3. Turn the group and press the

4. Turn the

small FMS

large FMS

knob to select the ‘

ENT

key.

Map’

knob to highlight the ‘TOPO

DATA’ ﬁeld.

5. Turn the

small FMS

knob to select ‘On’ or

‘Off’.

ENT

6. Press the

key to accept the selected option. The ﬂashing cursor highlights the range ﬁeld. TOPO ranges are from Off to 2000 nm.

Topo Scale

The topo scale setting enables or disables the topography scale window located in the lower right corner of the Navigation Map Page.

To enable/disable the topo scale Window:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

3. Turn the

small FMS

group and press the

4. Turn the

large FMS

knob to select the ‘

ENT

key.

knob to highlight the ‘TOPO

Scale’ ﬁeld.

5. Turn the

small FMS

knob to select ‘On’ or

‘Off’.

ENT

6. Press the

key to accept the selected

option.

FMS

7. Press the

knob to return to the Navigation

Map Page.

Map’

8-18

7. To change the TOPO range setting, turn the

small FMS

8. Turn the range and press the

9. Press the

knob to display the range list.

small FMS

FMS

knob to select the desired

ENT

key.

knob to return to the Navigation

Map Page.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 21

NAVIGATION MAP PAGE

Terrain Data

Terrain data can be enabled or disabled on the Navigation Map Page using the ‘TERRAIN DATA’ setting. A data range can also be selected. The data range is the maximum map range that terrain data is displayed.

To enable/disable terrain data and to select a terrain data range:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

3. Turn the group and press the

4. Turn the

small FMS

large FMS

knob to select the ‘

ENT

key.

Map’

knob to highlight the ‘TER-

RAIN DATA’ ﬁeld.

5. Turn the

small FMS

knob to select ‘On’ or

‘Off’.

Obstacle Data

Obstacle data can be enabled or disabled on the Navigation Map Page using the ‘OBSTACLE DATA’ setting. A data range can also be selected. The data range is the maximum map range that terrain data is displayed.

To enable/disable obstacle data and to select a terrain data range:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

3. Turn the group and press the

4. Turn the

small FMS

large FMS

knob to select the ‘

ENT

key.

Map’

knob to highlight the

‘OBSTACLE DATA’ ﬁeld.

5. Turn the

small FMS

knob to select ‘On’ or

‘Off’.

ENT

6. Press the

key to accept the selected option. The ﬂashing cursor highlights the range ﬁeld. TERRAIN ranges are from Off to 2000 nm.

7. To change the TERRAIN range setting, turn the

small FMS

8. Turn the range and press the

9. Press the

knob to display the range list.

small FMS

FMS

knob to select the desired

ENT

key.

knob to return to the Navigation

Map Page.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

ENT

6. Press the

key to accept the selected option. The ﬂashing cursor highlights the range ﬁeld. OBSTACLE ranges are from Off to 50 nm.

7. To change the OBSTACLE range setting, turn the

small FMS

8. Turn the range and press the

9. Press the

knob to display the range list.

small FMS

FMS

knob to select the desired

ENT

key.

knob to return to the Navigation

Map Page

8-19

Page 22

NAVIGATION MAP PAGE

Fuel Range Ring (Fuel RNG) (RSV)

The Navigation Map Page can display a fuel range ring which shows the ﬂight distance that the aircraft has remaining. A dashed green circle indicates the transition range to reserve fuel. A solid green circle indicates the range of all fuel, including the reserve fuel. If only reserve fuel remains, the range is indicated by a solid yellow circle.

To enable/disable the fuel range ring and to select a fuel range time:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

3. Turn the group and press the

4. Turn the

small FMS

large FMS

knob to select the ‘

ENT

key.

Map’

knob to highlight the ‘FUEL

RNG (RSV)’ ﬁeld.

5. Turn the

small FMS

knob to select ‘On’ or

‘Off’.

ENT

6. Press the

key to accept the selected option. The ﬂashing cursor highlights the fuel reserve time ﬁeld. The time indicated is the time the aircraft can ﬂy with remaining fuel on board.

7. To change the reserve fuel time, turn either the large or

small FMS

knob to enter a time

(00:00 to 23:59; hours:minutes). The default

ENT

setting is 00:45 minutes. Press the

key.

Weather Group

The Weather Group option is only available when the G1000 system is conﬁgured for Stormscope operation. The Stormscope interface is described in the G1000 Optional Equipment Addendum.

Trafﬁc Group

Trafﬁc is only displayed on the Navigation Map Page if aircraft heading data is available. If heading is not available, trafﬁc advisories are displayed as non-bearing banners on the Navigation Map Page.

To enable/disable trafﬁc data on the Navigation Map Page:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the displayed

3. Turn the group. Press the on the ‘TRAFFIC’ ﬁeld.

4. Turn the ‘Off’.

5. Press the option.

6. Press the Map Page.

key. The Map Setup Menu is

small FMS

ENT

FMS

knob to select the ‘Trafﬁc’

ENT

key. The cursor ﬂashes

knob to select ‘On’ or

key to accept the selected

knob to return to the Navigation

8-20

8. Press the Map Page.

FMS

knob to return to the Navigation

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 23

NAVIGATION MAP PAGE

The ‘Trafﬁc’ mode selects which trafﬁc is displayed (all trafﬁc, trafﬁc and proximity advisories, or trafﬁc advisories only). The trafﬁc symbol is the symbol used to depict the type of trafﬁc:

• Trafﬁc Advisories (TA) – Yellow

• Proximity Advisories (PA) – White

• Other – White

Proximity Advisories (PAs) are displayed as solid white diamonds. PAs are deﬁned as trafﬁc within the 4.0 nm range, within ± 1200 ft. of altitude separation, and are not trafﬁc advisories (TAs).

To select a trafﬁc mode:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

3. Turn the group Press the

small FMS

knob to select the ‘Trafﬁc’

ENT

key. The cursor ﬂashes

on the ‘TRAFFIC’ ﬁeld.

4. Turn the

large FMS

knob to highlight the ‘TRAF-

FIC MODE’ ﬁeld.

5. Turn the

small FMS

knob to select the desired

option.

ENT

6. Press the

key to accept the selected

option.

FMS

7. Press the

knob to return to the Navigation

Map Page.

Figure 8.2.6 Trafﬁc Group Options

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-21

Page 24

NAVIGATION MAP PAGE

To select a trafﬁc symbol zoom range:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed

3. Turn the group. Press the

small FMS

knob to select the ‘Trafﬁc’

ENT

key. The cursor ﬂashes

on the ‘TRAFFIC’ ﬁeld.

4. Turn the

large FMS

knob to highlight the ‘TRAFFIC SMBL’ ﬁeld. Trafﬁc symbol zoom ranges are from Off to 300 nm.

5. Turn the

small FMS

knob to select the desired

option.

ENT

6. Press the

key to accept the selected

option.

7. Press the

FMS knob

to return to the Navigation

Map Page.

To select a trafﬁc label zoom range:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed

3. Turn the group. Press the

small FMS

knob to select the ‘Trafﬁc’

ENT

key. The cursor ﬂashes

on the ‘TRAFFIC’ ﬁeld.

4. Turn the

large FMS

knob to highlight the ‘TRAFFIC LBL’ ﬁeld. Trafﬁc label zoom ranges are from Off to 300 nm.

5. Turn the

small FMS

knob to select the desired

option.

ENT

6. Press the

key to accept the selected

option.

FMS

7. Press the

knob to return to the Navigation

Map Page.

8-22

The trafﬁc label displays the altitude separation above or below the symbol and the vertical speed sense arrow to the right of the symbol.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 25

NAVIGATION MAP PAGE

Aviation Group Options

The following aviation group setup options are avail

able:

• Active Flight Plan (ACTIVE FPL)- the active ﬂight plan zoom range sets the maximum range at which the active ﬂight plan magenta line is displayed on the display (off - 2000 nm).

• Active Flight Plan Waypoint (ACTIVE FPL WPT)the active ﬂight plan waypoint label size sets the size at which the active ﬂight plan names appear on the display (none, small, medium, and large). The zoom range sets the maximum range at which active ﬂight plan waypoints appear on the display (off - 2000 nm).

• Large, Medium, and Small Airports (LARGE APT, MEDIUM APT, SMALL APT) - The airport label size sets the size at which the large, medium, or small airport names size appear on the display. The zoom range sets the maximum range at which the airports appear on the display:

• Large: off –- 500 nm

• Medium: off – 300 nm

• Small: off – 100 nm

• Runway Extension (RWY Extension) - The zoom range sets the maximum range at which extension lines are drawn from the centerline of a runway (dashed white lines) to provide better situational awareness.

• RWY: off – 100 nm

• Intersection, Non-Directional Beacon, and VOR Waypoints (INT WAYPOINT, NDB WAYPOINT, VOR WAYPOINT) - The INT, NDB, and VOR label size sets the maximum range at which the navaids names appear on the display. The zoom range sets the maximum range at which the navaids appear on the display:

• INT: off – 30 nm

• NDB: off – 30 nm

• VOR: off – 300 nm

• Airspace Boundaries (CLASS B/TMA, CLASS C/TCA, and CLASS D) - The airspace zoom range sets the maximum range at which the three classes of airspace appear on the display. The zoom range sets the maximum range at which the airspace boundaries appear on the display:

• CLASS B: off – 500 nm

• CLASS C: off – 500 nm

• CLASS D: off – 300 nm

• “Other” Airspace Boundaries (RESTRICTED, MOA (Military), OTHER AIRSPACE, and TFR (temporary ﬂight restrictions)- the other airspace boundary zoom range sets the maximum range at which restricted, MOA, and other (training, caution, danger, warning and alert areas) air

space boundaries are displayed

• RESTRICTED: off – 500 nm

• MOA (MILITARY): off – 500 nm

• OTHER AIRSPACE: off – 500 nm

• TFR; (only present when GDL 69 is installed): off – 2000 nm

To select an aviation group item range:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

3. Turn the group. Press the

small FMS

knob to select the ‘Aviation’

ENT

key. The cursor ﬂashes

on the ‘ACTIVE FPL’ ﬁeld.

4. Turn the

large FMS

knob to select the desired

option.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-23

Page 26

NAVIGATION MAP PAGE

5. Turn the

small FMS

knob to select the desired

range.

ENT

6. Press the

key to accept the selected

option.

FMS

7. Press the

knob to return to the Navigation

Map Page.

To select an aviation group item text size:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

3. Turn the group. Press the

small FMS

knob to select the ‘Aviation’

ENT

key. The cursor ﬂashes

on the ‘ACTIVE FPL’ ﬁeld.

4. Turn the

large FMS

knob to select the desired

option.

5. Turn the

small FMS

knob to select the desired

text size.

Land Group Options

• Latitude/Longitude (LAT/LON) - the LAT/LON label size sets the size at which latitude/longitude labels appear on the display (none, small, medium, and large). The zoom range sets the maximum range at which LAT/LON waypoints appear on the display (off - 2000 nm).

• Highways, Roads, and Railroads (FREEWAY, LOCAL HWY, LOCAL ROAD, RAILROAD) - The highway and road zoom range sets the maximum range at which high ways, roads, and railroads appear on the display:

• FREEWAY: off - 800 nm

• NATIONAL HWY: off - 80 nm

• LOCAL HWY: off - 30 nm

• LOCAL ROAD: off - 15 nm

• RAILROAD: off - 30 nm

• Cities and Towns (LARGE CITY, MEDIUM CITY, SMALL CITY) - The cities and town label size sets the maximum range at which city and town names appear on the display. The zoom range sets the maximum range at which cities and towns appear on the display:

8-24

6. Press the size.

7. Press the Map Page.

ENT

key to accept the selected text

FMS

knob to return to the Navigation

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

• LARGE CITY (approximate populations greater than 200,000): off - 1500 nm

• MEDIUM CITY (approximate populations greater than 50,000): off - 200 nm

• SMALL CITY (approximate populations greater than 5,000): off - 50 nm

• States and Provinces, Rivers and Lakes, and User Waypoints (STATE/PROV, RIVER/LAKE, USER WAYPOINT) - the label range sets the maximum range at which the three categories appear on the display. The zoom range sets the maximum range at which the three categories appear on the display:

Page 27

NAVIGATION MAP PAGE

• STATE/PROV: off - 1500 nm

• RIVER/LAKE off - 500 nm

• USER WAYPOINT: off - 300 nm

To select a land group item range:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

3. Turn the group. Press the

small FMS

knob to select the ‘Land’

ENT

key. The cursor ﬂashes

on the ‘LAT/LON’ ﬁeld.

4. Turn the

large FMS

knob to select the desired

option.

5. Turn the range. Press the

small FMS

knob to select the desired

ENT

key to accept the selected

option.

FMS

6. Press the

knob to return to the Navigation

Map Page.

To select a land group item text size:

1. With the Navigation Map Page displayed, press the

key to display the Navigation Map Page Menu. The cursor ﬂashes on the ‘Map Setup’ option.

ENT

2. Press the

key. The Map Setup Menu is

displayed.

3. Turn the group. Press the

small FMS

knob to select the ‘Land’

ENT

key. The cursor ﬂashes

on the ‘LAT/LON’ ﬁeld.

4. Turn the

large FMS

knob to select the desired

option.

5. Turn the text size. Press the

small FMS

knob to select the desired

ENT

key to accept the

selected option

FMS

6. Press the

knob to return to the Navigation

Map Page.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-25

Page 28

NAVIGATION MAP PAGE

Option 2: Measure Bearing/Distance

The second map setup option is ‘Measure Bearing/Distance’ which provides a quick and easy method for determining the bearing and distance between any two points on the Navigation Map Page.

To measure bearing and distance between two

points:

1. Press the

key (with the Navigation Map

Page displayed).

2. Turn the

small FMS

knob to highlight the ‘Measure Bearing/Distance’ ﬁeld and press the

ENT

key. An on-screen reference pointer is displayed on the map display at the aircraft’s present position.

3. Move the joystick to place the reference pointer at the desired location. The bearing and distance is displayed at the top of the map display. Elevation at the current position is also displayed.

Option 3: Clear Stormscope Lightning

The ‘Clear Stormscope Lightning’ option is only avaiable when the G1000 Stormscope is conﬁgured for the Stromscope. The G1000 Optional Equipment Addedum descibes the Stormscope interface in detail.

8-26

4. To exit the Measure Bearing/Distance option, push in the joystick or select ‘Stop Measuring’ from the page menu options.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 29

NAVIGATION MAP PAGE

Distance,

bearing

and elevation

Panning

Arrow

Latitude and longitude

position of pointer

Figure 8.2.3 Map Panning

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-27

Page 30

NAVIGATION MAP PAGE

This page intentionally left blank.

8-28

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 31

TRAFFIC MAP PAGE

8.3 TRAFFIC MAP PAGE

The Trafﬁc Map Page is the second page in the Map

Group and displays the following information:

• Current aircraft location, surrounding Trafﬁc Information System (TIS) trafﬁc, and range mark ing rings.

• The current trafﬁc mode (OPERATE, STANDBY).

• A trafﬁc alert message (FAILED, DATA FAILED, NO DATA, UNAVAILABLE)

• Trafﬁc display banner (AGE 00:, TRFC COAST, TA OFF Range, TRFC RMVD, TRFC FAIL, NO TRFC DATA, TRFC UNAVAIL, TRAFFIC)

Trafﬁc Mode

CAUTION: Do not use the Traffic Map to maneuver the airplane to avoid trafﬁc. The Trafﬁc Information System (TIS) is intended for advisory use only.

To select the Trafﬁc Map Page:

1. Select the MAP group of pages. Turn the

FMS

knob to the right to select the Trafﬁc Map

small

Page.

Map Range

Trafﬁc, Out of

Range

Own Aircraft

Proximate,

Known Altitude

Figure 8.3.1 Trafﬁc Map Page

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-29

Page 32

TRAFFIC MAP PAGE

TIS SYMBOLOGY

TIS trafﬁc is displayed on the Trafﬁc Map Page according to TCAS symbology. A Trafﬁc Advisory (TA) symbol is displayed as a solid yellow circle (or half circle on the outer range ring if the trafﬁc is outside the range of the dedicated trafﬁc page). All other trafﬁc is displayed as a hollow white mooney. Altitude deviation from the user’s aircraft altitude is displayed above the target symbol if they are above own aircraft altitude, and below the symbol if they are below own aircraft altitude. Altitude trend is displayed as an up arrow (+500 ft/min), down arrow (-500 ft/min), or no symbol if less than 500 ft/min rate in either direction. Other symbols:

• Other Trafﬁc – this symbol represents trafﬁc detected within the selected display range that does not generate a TA.

• Trafﬁc Advisory (TA) – this symbol is generated when trafﬁc meets the advisory criteria described previously.

• Trafﬁc Ground Track is indicated on the Trafﬁc Map Page by a “target track vector”. The track vector line is projected from the trafﬁc advisory symbol and is drawn at any angle necessary to represent the current track of the trafﬁc advisory data.

NOTE: Trafﬁc Information Service (TIS) is not available in all areas.

NOTE: See Appendix F for trafﬁc symbol descriptions.

TRAFFIC MAP PAGE OPERATIONS

Power-Up Test

The TIS interface performs an automatic test during power-up. If the system passes the power-up test, the standby screen is displayed on the Trafﬁc Map Page. If the system passes the power-up test, and the aircraft is airborne, trafﬁc is displayed on the Trafﬁc Page in the operating mode.

If the system fails the power up test, the ‘NO DATA’, ‘DATA FAILED’, or ‘FAILED’ message is displayed. Contact your Mooney service center or Garmin dealer for corrective action if the ‘DATA FAILED’, or ‘FAILED’ message is displayed. The ‘FAILED’ message indicates the GTX 33 transponder has failed. The ‘DATA FAILED’ message indicates data is being received from the GTX 33 but a failure was detected in the data stream. The ‘NO DATA’ message indicates that data is not being received from the GTX 33.

Changing the Map Range

To change the map range:

1. Turn the turn the joystick counter-clockwise to zoom in. Map ranges are 2 nm, 6 nm, and 12 nm.

NOTE: Trafﬁc Advisory System (TAS) data and Trafﬁc Information System (TIS) data are mutually exclusive. If TAS is conﬁgured (optional) its trafﬁc data is used. If TIS is conﬁgured, its trafﬁc data is displayed.

joystick clockwise to zoom out, or

8-30

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 33

TRAFFIC MAP PAGE

Operating Mode

Once the aircraft is airborne (determined by system conﬁguration at the time of installation) the system switches from standby mode to operating mode. The G1000 displays ‘OPERATE’ in the upper left hand corner of the display and begins to display trafﬁc on the Trafﬁc or Map Page. The TIS Trafﬁc Advisory (TA) should

alert the crew to use additional vigilance to identify the intruding aircraft. Any time the trafﬁc symbol becomes a yellow circle or a voice warning is announced, conduct a visual search for the intruder. Maintain visual contact to ensure safe operation.

Once the aircraft is on the ground (determined by system conﬁguration at the time of installation) the system switches from operating mode to standby mode. The Trafﬁc Map Page displays ‘STANDBY’.

• STANDBY – when the Trafﬁc Map Page displays ‘STANDBY’ in the status box located in the upper left corner of the Trafﬁc Map Page, the TIS system is in standby mode and cannot display trafﬁc data.

• OPERATE – when the Trafﬁc Map Page displays ‘OPERATE’ in the status box located in the left corner of the Trafﬁc Map Page, the TIS system is in operational mode and available to display trafﬁc on the Trafﬁc or Map Page.

The pilot can switch between the standby (STBY) and operate (ON) modes of operation to manually override automatic operation using the page menu or softkeys.

To switch between operating modes:

MODE

1. Press the

2. Press the

softkey.

STBY

or ON softkey to switch between modes. ‘STANDBY’ or ‘OPERATE’ is displayed in the status box located in the upper left corner of the Trafﬁc Map Page OR:

3. Press the

key. The page menu is

displayed with ‘Standby Mode’ or ‘Operate

ENT

Mode’ highlighted. Press the

key on the

desired selection.

TIS Audio Alert

A TIS audio alert is generated whenever the number of TAs on the Trafﬁc Map Page display increases from one scan to the next. The limiting to TAs only reduces the amount of “nuisance” alerting due to proximate aircraft. For example, when the ﬁrst TA is displayed, the pilot is alerted audibly. So long as a single TA aircraft remains on the TIS display, no further audio alert is generated. If a second (or more) TA aircraft appear on the display, a new audio alert is sounded. If the number of TAs on the TIS display decreases and then increases, a new audio alert is sounded. The TIS audio alert is also generated whenever TIS service becomes unavailable. The volume of the audio alert (including the choice between a male or female voice) is conﬁgured during installation. The following TIS audio alerts are available:

• “Trafﬁc” - TIS trafﬁc alert is received.

• “Trafﬁc Not Available” - TIS service is not available or out of range.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-31

Page 34

TRAFFIC MAP PAGE

TIS Trafﬁc Status

The MFD indicates the following TIS trafﬁc status to

the pilot.

Trafﬁc Banner

• AGE - if trafﬁc data is not refreshed within 6 seconds, an age indicator (i.e., ‘AGE 00:06’) is displayed in the lower left corner of the display (when displaying trafﬁc). After another 6 seconds, if data is still not received, the trafﬁc is removed from the display. The pilot should be aware that the quality of displayed trafﬁc is reduced in this condition.

• TRFC COAST - the ‘TRFC COAST’ (trafﬁc coasting) banner located above the AGE timer indicates that displayed trafﬁc is held even though the data is stale. The pilot should be aware that the quality of displayed trafﬁc is reduced in this condition.

• TRFC RMVD - the ‘TRFC RMVD’ banner indicates that trafﬁc has been removed from the display due to the age of the data being too old to “coast” (for the time period of 12-60 seconds from the last receipt of a TIS message). The pilot should be aware that trafﬁc may be present but not shown.

• TA OFF - the ‘TA OFF’ scale banner displayed in the lower left corner of the display indicates that a trafﬁc advisory is outside the selected display range. The trafﬁc advisory off range banner is removed when the trafﬁc advisory is within the selected display range.

• TRAFFIC - on the PFD, when the system receives a trafﬁc advisory a ﬂashing ‘TRAFFIC’ alert is displayed in the upper left hand portion of the display. The PFD inset map also automatically displays trafﬁc data.

8-32

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 35

TERRAIN PROXIMITY PAGE

8.4 TERRAIN PROXIMITY PAGE

CAUTION: Do not use the Terrain Proximity information for primary terrain avoidance. The Terrain Proximity Map is intended only to enhance situ ational awareness.

The Terrain Proximity Page displays the following:

• Current aircraft location

• Range marking rings (25 nm, 25/50 nm, 50/100 nm, and 100/200 nm)

• Heading Box (North Up, Track Up, DTK Up, HDG Up). Heading on the Terrain Proximity Page displays ‘HDG Up’ map data unless there is no valid heading

• Terrain

• Terrain Range - Indicates the terrain elevation in colors relative to the aircraft altitude

• Obstacles

NOTE: Terrain data is not displayed when the

aircraft latitude is greater than 75 degrees north or 60 degrees south.

Page Orientation

Obstacles

View Selection

Range Marking Ring

Current Aircraft

Location

Terrain Range

Figure 8.4.1 Terrain Proximity Page

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-33

Page 36

TERRAIN PROXIMITY PAGE

1000' AGL

Aircraft Altitude

100' Threshold

TERRAIN PROXIMITY PAGE OPERATIONS

There are two terrain/obstacle viewing options available (relative to the position of the aircraft), a radar-like ARC (120°) display and a 360° default display.

To change the viewing mode between 360° and ARC:

1. Select the Terrain Proximity Page

VIEW

2. Press the

softkey. Press the

softkey.

3. To return to the 360 degree viewing display press the 360 softkey OR:

4. Press the MENU key. The page menu is displayed with ‘View Arc’ or ‘View 360º’ highlighted. Press the

ENT key on the desired

selection.

ARC

To change the map range on the Terrain Proximity Page:

1. Turn the the

joystick

clockwise zoom out or turn

counter-clockwise zoom in. Map ranges are 25 nm, 25/50 nm, 50/100 nm, and 100/200 nm.

8-34

Figure 8.4.2 Terrain Scale

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 37

TERRAIN PROXIMITY PAGE

DISPLAYING OBSTACLE DATA

The Terrain Proximity Page displays obstacle data with heights greater than 200 feet Above Ground Level (AGL) located at their geographical position location throughout the world. Obstacles are displayed in three levels. The G1000 will adjust colors on the Terrain Proximity Page automatically as the aircraft altitude changes. The display color patterns are as follows:

• SAFE

• CAUTION

• WARNING

GRAY-Safe

Obstacle data is displayed in gray when the obstacle height (MSL) is greater than 1000 feet below the current aircraft altitude.

YELLOW-Caution

Obstacle data is displayed in yellow when the obstacle height is 100 feet below MSL the current aircraft altitude to 1000 feet below the current aircraft altitude.

RED-Critical

Navigation Map Display Conditions

The Map Setup Page Menu has ‘OBSTACLE’ and ‘TERRAIN feature On/Off options. The Terrain Proximity Page displays or does not display obstacles on the Navigation Map Page based on the selection of each as summarized in the table below:

TERRAIN FEATURE

OFF OFF NO OBSTACLES

OFF ON SAFE, CAUTION, AND

ON OFF CAUTION AND

ON ON SAFE, CAUTION, AND

Note: Obstacles are only displayed at certain map zoom ranges, on certain map ﬁelds, and will only be displayed if an obstacle database is loaded on the SD card.

OBSTACLE FEATURE

TERRAIN PROXIMITY PAGE

DISPLAYED

WARNING OBSTACLES DISPLAYED

Obstacle data is displayed in red when the obstacle height is at or above 100 feet Mean Sea Level (MSL) below the current aircraft altitude.

Obstacle Shapes

Obstacle shapes and deﬁning criteria are found in

Appendix F.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

Note: The table above is only for the Navigation Map Page. The Terrain Proximity Page always shows ONLY caution and warning obstacles.

8-35

Page 38

TERRAIN PROXIMITY PAGE

This page intentionally left blank.

8-36

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 39

DIRECT-TO NAVIGATION

8.5 DIRECT-TO NAVIGATION

The “Direct-to” function provides a quick method of setting a course to a destination waypoint. Once a Direct-to is activated, the G1000 establishes a point-topoint course line from the present position to the selected Direct-to destination. If the course change is greater than 30 degrees, a course extension is offset from the present position to allow a standard rate turn to intercept the Direct-to course line. Note that the CDI (HSI) needle will not be immediately centered in this case. Direct-to course guidance is provided until the Direct-to is cancelled or replaced by a new destination, and the navigation data is displayed on the Navigation Map Page

Identiﬁer

Facility Name

City

Flight Plan Field

Map of the

Selected

Waypoint

Bearing

Distance

Direct-to

Course

Symbol

Nearest Airport

Map Orientation

Map Range

Region

Latitude/

Longitude

Activate Field

To select a Direct-to destination:

1. Press the

Direct-to

key. The Direct-to page is displayed with the destination ﬁeld highlighted.

2. Turn the

small FMS

knob to enter the ﬁrst letter of the destination waypoint identifier. The destination waypoint may be an airport, VOR, NDB, intersection or user waypoint, as long as it is in the database or stored in memory as a user waypoint. Turn the

large FMS

knob to the right to move the cursor to the next character position.

3. Repeat steps 2 and 3 to spell out the rest of the waypoint identiﬁer.

ENT

4. Press the

key to conﬁrm the identiﬁer. The

‘Activate?’ ﬁeld is highlighted.

ENT

5. Press the

key to activate a Direct-to course

to the selected destination.

If navigating to a waypoint and the aircraft moves off course, the Direct-to feature can be used to re-center the CDI (HSI) needle and proceed to the same waypoint.

To re-center the CDI (HSI) needle to the same destination waypoint:

1. Press the Direct-to key, followed by press ENT

ing the

key twice. NOTE: If navigating

an approach with the missed approach point (MAP) as the current destination, re-centering the CDI (HSI) needle with the Direct-to key cancels the approach.

Figure 8.5.1 Direct-to Page

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-37

Page 40

DIRECT-TO NAVIGATION

DIRECT-TO NAVIGATION OPERATIONS

Selecting a Direct-to Waypoint

In addition to selecting a Direct-to waypoint using an identiﬁer, a Direct-to waypoint can be selected in the following ways:

• by facility or city name

• from the active ﬂight plan

• from the nearest airports list

• from a waypoint ﬁeld, waypoint page, or map highlight shortcut

Selecting a Direct-to Destination by Facility or City Name

In addition to selecting a destination by identiﬁer, the Direct-to Page also allows the selection of airports, VORs and NDBs by facility or city name. If duplicate entries exist for the entered facility or city name, additional entries can be viewed by continuing to turn the small FMS knob during the selection process.

To select a Direct-to destination by facility name or city:

1. Press the

Direct-to

key. The Direct-to Page is displayed with the waypoint identiﬁer ﬁeld highlighted.

2. Turn the

large FMS

knob to highlight the facility

or city name ﬁeld.

3. Turn the

small and large FMS

knob to enter the facility or city location of the desired waypoint.

NOTE: the “Spell N Find” feature selects the ﬁrst

entry in the database based on the characters that have been entered to that point.

4. Continue turning the through any additional database listings for the selected facility name or city. The

FMS

knob can be used to scroll backwards if

small FMS

knob to scroll

small

the desired waypoint was passed up.

8-38

ENT

5. Press the waypoint, and

key to conﬁrm the selected

ENT

again to activate a Direct-

to.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 41

DIRECT-TO NAVIGATION

Selecting a Direct-to Destination from the Active Flight Plan

Any waypoint contained in the ﬂight plan may be selected as a Direct-to destination from the Direct-to Waypoint Page when navigating an active ﬂight plan.

To select a Direct-to destination from the active ﬂight plan:

1. Press the

Direct-to

key. The Direct-to Waypoint Page is displayed with the waypoint identiﬁer ﬁeld highlighted.

2. Turn the

large FMS

knob to highlight the ﬂight plan ‘FPL’ ﬁeld.

3. Turn the

small FMS

knob to display a window showing all waypoints in the active flight plan.

4. Continue turning the

small FMS

knob to scroll through the list and highlight the desired waypoint.

ENT

5. Press the waypoint, and

key to conﬁrm the selected

ENT

again to activate a Direct-

to.

Figure 8.5.2 Direct-to Waypoint Page

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-39

Page 42

DIRECT-TO NAVIGATION

Selecting the Nearest Airport as a Direct-to Destination

The Direct-to Page always displays the nearest airports

(from the present position) on the NRST ﬁeld.

To select a nearby airport as a Direct-to destination:

1. Press the

Direct-to

key. The Direct-to Page is dis-

played with the destination ﬁeld highlighted.

2. Turn the

large FMS

knob to highlight the near-

est airport ﬁeld.

3. Turn the

small FMS

knob to display a window

showing up to ten nearby airports.

4. Continue turning the

small FMS

knob to scroll through the list and highlight the desired airport.

ENT

5. Press the waypoint, and

key to conﬁrm the selected

ENT

again to activate a Direct-

to.

Shortcuts

• The waypoint displayed on the VOR waypoint page.

• The waypoint displayed on the NDB waypoint page.

• The waypoint displayed on the intersection waypoint page.

• The waypoint displayed on the user waypoint page.

8-40

Shortcuts are available when using the Direct-to key,

allowing the pilot to bypass the use of the FMS knobs. Any time a waypoint ﬁeld is highlighted and then the Di- rect-to key is pressed, the highlighted waypoint will be the direct-to waypoint.

The following are “candidates” for Direct-to

waypoints:

• The highlighted waypoint when map panning with the MFD map panning pointer.

• The highlighted waypoint identiﬁer ﬁeld on any page.

• The airport waypoint page airport when on the airport information, arrival, departure, or approach pages.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Figure 8.5.3 Nearest Airport Direct-to

Page 43

DIRECT-TO NAVIGATION

Canceling Direct-to Navigation

Once a Direct-to is activated, the G1000 provides navigation guidance to the selected destination until the Direct-to is either replaced with a new Direct-to or ﬂight plan, or cancelled, or if the unit is turned off.

To cancel a Direct-to:

1. Press the

Direct-to

Page.

2. Press the

options menu.

3. With ‘Cancel Direct-To NAV’ highlighted, press the

ENT

key. If a ﬂight plan is still active, the G1000 resumes navigating the ﬂight plan along the closest leg.

key to display the Direct-to

Specifying a Course to a Waypoint

During a Direct-to, the G1000 sets a direct great circle course to the selected destination. The course to the destination, using the course ﬁeld on the Direct-to Page can be manually deﬁned.

To manually deﬁne the Direct-to course:

1. Press the

2. Turn the

Direct-to

FMS

waypoint.

3. Press the

ENT

waypoint, then turn the highlight the course ﬁeld.

4. Turn the

FMS

and press the

5. Press the

ENT

using the selected destination and course.

key.

knobs to select the destination

key to conﬁrm the selected

large FMS

knob to

knobs to select the desired course

ENT

key.

key again to begin navigation

Figure 8.5.4 Canceling Direct-to Navigation

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

Figure 8.5.5 Manual Course Direct-to

8-41

Page 44

DIRECT-TO NAVIGATION

This page intentionally left blank.

8-42

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 45

FLIGHT PLANS

8.6 FLIGHT PLANS

The G1000 can create up to 99 different ﬂight plans with up to 31 waypoints in each ﬂight plan. The ﬂight plan (FPL) page group consists of three pages:

• Active Flight Plan

• Flight Plan Catalog

• Vertical Navigation

The Flight Plan Pages are used to create, edit and copy ﬂight plans. The Vertical Navigation Page is used to create a three-dimensional proﬁle which guides the aircraft to a ﬁnal (target) altitude at a speciﬁed location.

ACTIVE FLIGHT PLAN PAGE

The Active Flight Plan Page provides information and editing functions for the ﬂight plan currently in use for navigation. Once a Direct-to or ﬂight plan has been activated, the Active Flight Plan Page shows the following:

• Each waypoint for the ﬂight plan (or a single waypoint for a Direct-to), along with the desired track (DTK) and distance of each leg (DIS).

• Active leg information with enroute safe altitude (ESA) for the speciﬁed leg.

• Active FPL information with enroute safe altitude (ESA)

• Flight plan information showing remaining leg and remaining total distance, and enroute safe altitude for the entire route.

The data ﬁelds are user-selectable and can be changed

to display the following:

• Cumulative Distance (CUM)

• Distance (DIS)

• Desired Track (DTK)

• Enroute Safe Altitude (ESA)

• Estimated Time of Arrival (ETA)

• Estimated Time Enroute (ETE)

ACTIVE FLIGHT PLAN PAGE OPTIONS

The following options are available for the Flight Plan

Page:

• Activate Leg

• Store Flight Plan

• Invert Flight Plan

• Delete Flight Plan

• Load Departure

• Load Arrival

• Load Approach

• Remove Arrival

• Remove Departure

• Remove Approach

• Closest Point of FPL

• Change Fields

• Restore Defaults

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-43

Page 46

FLIGHT PLANS

Create a New Flight Plan

‘Create New Flight Plan’ creates a new ﬂight plan.

To create a new ﬂight plan:

FPL

1. Press the

key and turn the

to display the Flight Plan Catalog Page.

2. Press the

key to display the Flight Plan

Catalog Page options.

small FMS

knob

Departure Airport

Identiﬁer

Active Leg

Information

Flight Plan

Page Group

Figure 8.6.1 Active Flight Plan Page

Destination

Airport

Identiﬁer

Estimated Safe

Altitude

Flight Plan

Information

Active Flight

Plan Page

3. Turn the

large FMS

New Flight Plan’ and press the

knob to highlight ‘Create

ENT

key.

4. A blank ﬂight plan page appears for the ﬁrst

FMS

empty storage location. Turn the

knobs to enter the identiﬁer of the departure waypoint and press the

ENT

key.

5. Repeat step number 4 to enter the identiﬁer for each additional ﬂight plan waypoint.

6. Once all waypoints have been entered, press

FMS

the

knob to return to the Flight Plan

Catalog Page.

8-44

Figure 8.6.2 New Flight Plan

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 47

FLIGHT PLANS

To edit a ﬂight plan:

1. Press the

key and turn the

small FMS

knob

FPL

to display the Flight Plan Catalog Page.

2. Press the

3. Turn the

FMS knob

large FMS

desired ﬂight plan and press the

to activate the cursor.

knob to highlight the

ENT

key.

4. To add a waypoint to the ﬂight plan: Turn the

large FMS

knob to select the point where the new waypoint is to be added. (If an existing waypoint is highlighted, the new waypoint is placed directly in front of this waypoint.) Turn the FMS knobs to enter the identiﬁer of the new waypoint and press the

ENT

key.

5. To delete a waypoint from the ﬂight plan: Turn

large FMS

the to delete and press the

knob to select the waypoint

CLR

key to display a remove waypoint conﬁrmation window. With ‘OK’ highlighted, press the

ENT

key to remove the waypoint. To cancel, turn the large FMS knob to highlight ‘CANCEL’ and press the ENT key.

Activate Leg

Activate Leg selects the highlighted leg as the “active leg” (the ﬂight plan leg which is currently used for navigation guidance).

To activate a ﬂight plan along a speciﬁc leg:

1. From the Active Flight Plan Page, press the knob to activate the cursor and turn the

FMS

knob to highlight the desired destination

waypoint.

2. Press the

key, select the ‘Activate Leg’ option from the page menu and press the key.

3. A confirmation window is displayed. With ‘Activate’ highlighted, press the

NOTE: The leg can also be activated by pressing

the

ACT LEG

softkey.

ENT

FMS

large

ENT

key.

6. Once all changes have been made, press the FMS knob

to return to the Flight Plan Catalog

Page.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

Figure 8.6.3 Activate Flight Plan Leg Conﬁrmation

8-45

Page 48

FLIGHT PLANS

Store Flight Plan

Whenever an approach, departure or arrival is loaded into the active ﬂight plan, a set of approach, departure or arrival waypoints is inserted into the ﬂight plan along with a header line describing the instrument procedure the pilot selected. The original enroute portion of the ﬂight plan remains active (unless an instrument procedure is activated) which may be done when the procedure is loaded or at a later time. Flight plans can also be stored with an approach, departure or arrival. The active ﬂight plan is erased when the system is turned off and overwritten when another ﬂight plan is activated.

When storing ﬂight plans with an approach, departure or arrival, the G1000 uses the waypoint information from the current database to deﬁne the waypoints. If the da tabase is changed or updated, the G1000 automatically updates the information if the procedure has not been modiﬁed. If an approach, departure or arrival procedure is no longer available, the procedure is deleted from the ﬂight plan and an alert is displayed.

To store an existing ﬂight plan:

1. From the Flight Plan Page, press the to activate the cursor.

2. Turn the

large FMS

desired ﬂight plan and press the

knob to highlight the

display the Flight Plan Page options.

3. Turn the

large FMS

Flight Plan’ and press the

knob to highlight ‘Store

ENT

key. The ﬂight plan is stored in the next available position in the ﬂight plan list on the Flight Plan Catalog Page.

4. With ‘OK’ highlighted, press the store the ﬂight plan.

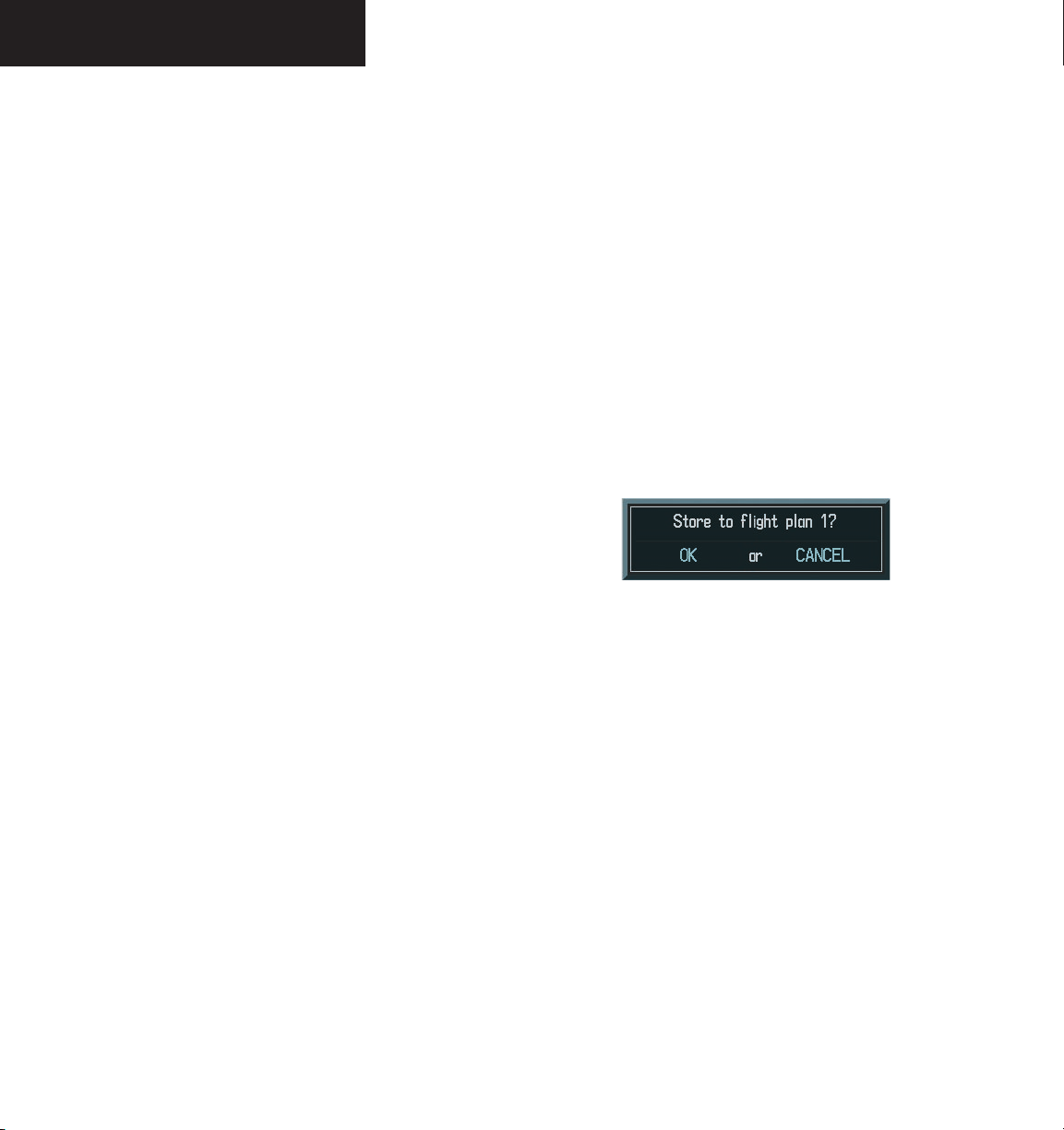

Figure 8.6.4 Store Flight Plan Conﬁrmation

FMS knob

key to

ENT

key to

8-46

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 49

FLIGHT PLANS

Invert Flight Plan

‘Invert Fight Plan’ reverses the active ﬂight plan. After traveling along a ﬂight plan, the route can be reversed for navigation guidance back to the original departure point.

To invert and (activate) an existing ﬂight plan:

FMS

ENT

knob

key to

1. From the Flight Plan Page, press the to activate the cursor.

2. Turn the

large FMS

desired ﬂight plan and press the

knob to highlight the

display the Flight Plan Page options.

3. Turn the

large FMS

Flight Plan’ and press the

knob to highlight ‘Invert

ENT

key. The original ﬂight plan remains intact in its ﬂight plan catalog storage location.

4. With ‘OK’ highlighted, press the invert the ﬂight plan.

Delete a Waypoint

To delete a waypoint from an existing ﬂight plan:

FPL

1. Press the

key and turn the

to display the Flight Plan Catalog Page.

FMS

2. Press the

3. Turn the

knob to activate the cursor.

large FMS

knob to highlight the

desired ﬂight plan and press the

4. Turn the

large FMS

knob to select the waypoint to delete and press the ‘REMOVE WAYPOINT’ conﬁrmation window.

5. With ‘OK’ highlighted, press the remove the waypoint. To cancel the delete request, turn the

large FMS

‘CANCEL’ and press the

6. Once all changes have been made, press the

FMS

knob to return to the Flight Plan Page.

small FMS

ENT

key.

CLR

key to display a

ENT

knob to highlight

ENT

key.

knob

key to

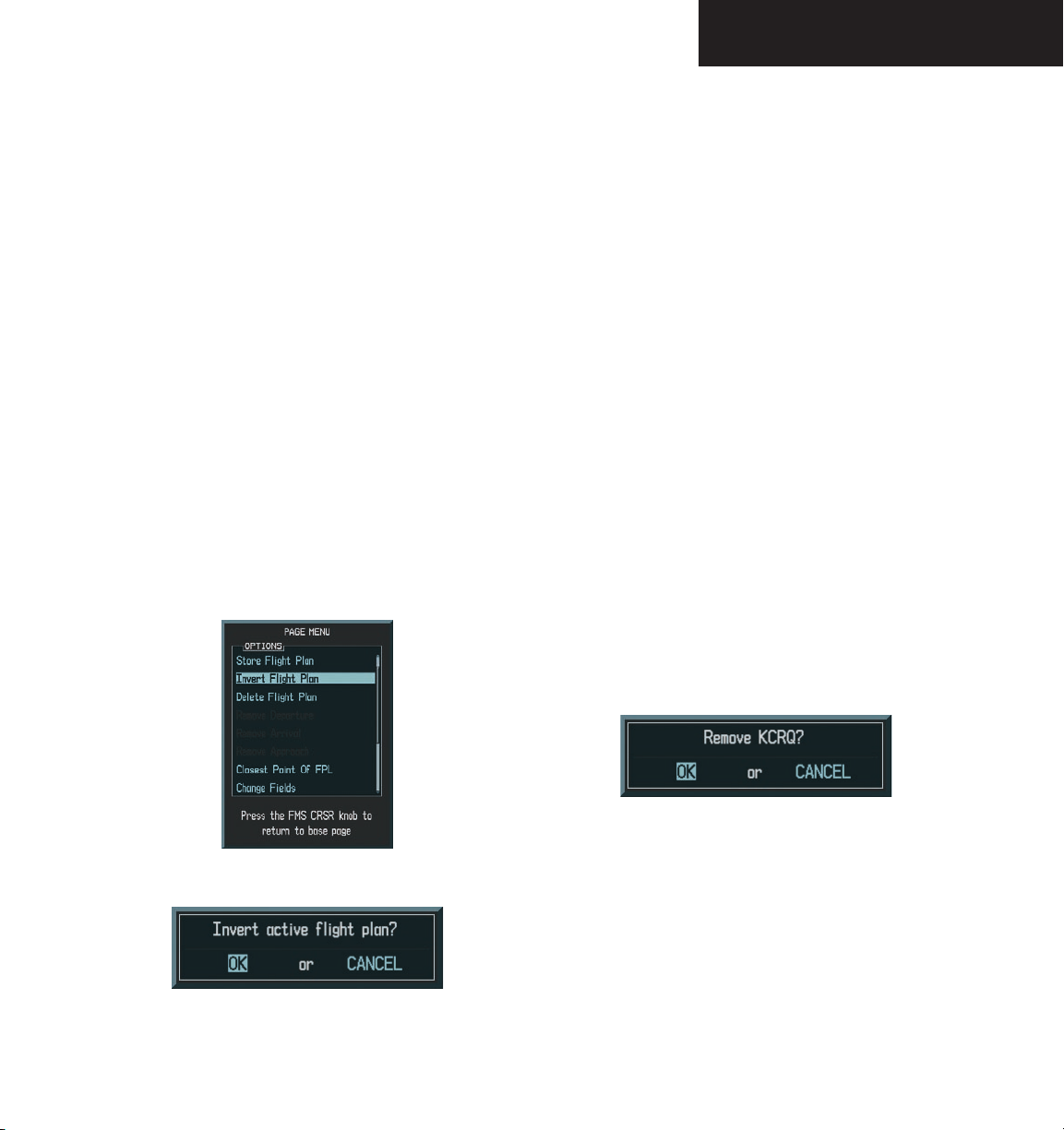

Figure 8.6.5 Invert Flight Plan

Figure 8.6.6 Invert Flight Plan Conﬁrmation

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

Figure 8.6.7 Remove Waypoint Conﬁrmation

8-47

Page 50

FLIGHT PLANS

Load a Departure

‘Load Departure’ allows a published departure procedure for the departure airport to be loaded into a ﬂight plan. It also replaces the current departure with a new selection. When using a Direct-to, the G1000 uses the nearest airport as a reference when displaying available departures. A departure can also loaded using the PROC key or by pressing the LD DP softkey.

Figure 8.6.8 Loading Departure Options

To select a departure procedure for the departure airport:

1. From the Active Flight Plan Page, press the

key to display the Active Flight Plan Page

options.

2. Highlight ‘Load Departure’ from the list and press the

ENT

key.

3. A window is displayed listing the available departures for the departure airport. Turn the FMS knob to select the desired departure and press the

ENT

key.

4. A window may appear listing runways for the

FMS

departure. Turn the desired runway and press the

knob to select the

ENT

key. This

window is not displayed for every departure.

5. A second window is displayed listing avail able transitions for the departure. Turn the

FMS knob to highlight the desired transition

ENT

waypoint and press the

6. With ‘LOAD’ highlighted, press the

key.

ENT

key. The departure ﬂight plan is displayed as part of the overall ﬂight plan and is placed in front of the enroute ﬂight plan.

8-48

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 51

Load an Arrival

‘Load Arrival’ allows a published standard terminal arrival route (STAR) for the destination airport to be loaded into a ﬂight plan. It also replaces the current arrival with a new selection. An arrival can also be loaded using the PROC key or by pressing the LD STAR softkey.

To select an arrival for a Direct-to or ﬂight plan destination airport:

1. From the Active Flight Plan Page, press the

key to display the Active Flight Plan Page

options.

2. Highlight the ‘Load Arrival’ option and press the

ENT

key.

3. A window is displayed listing the available arrivals for the destination airport. Turn the FMS knob to select the desired arrival and press the

ENT

key.

FLIGHT PLANS

4. A second window is displayed listing available transitions for the arrival. Turn the FMS knob to highlight the desired transition waypoint and press the

ENT

key.

5. A third window is displayed listing available arrival runways. Turn the FMS knob to highlight

ENT

the desired runway and press the

6. With ‘LOAD’ highlighted, press the

key.

ENT

key. The arrival ﬂight plan is displayed as part of the overall ﬂight plan and is placed after the enroute ﬂight plan.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

Figure 8.6.9 Selecting an Arrival

8-49

Page 52

FLIGHT PLANS

Load an Approach

‘Load Approach’ allows for the selection of a published instrument approach for the destination airport. It also replaces the current approach with a new selection. In many cases, it is more convenient to select approaches using the PROC key, or by pressing the LD APR softkey.

To select an approach for a Direct-to or ﬂight plan destination airport:

1. From the Active Flight Plan Page, press the

key to display the Active Flight Plan Page

options.

2. Highlight the ‘Load Approach’ option and press the

ENT

key.

3. A window is displayed listing the available approaches for the destination airport. Turn the FMS knob to highlight the desired approach and press the

4. A second window is displayed listing avail able transitions for the approach. Turn the FMS knob to highlight the desired transition waypoint and press the option assumes the pilot will receive vectors to the ﬁnal course segment of the approach and will provide navigation guidance to intercept this ﬁnal course.)

ENT

key.

ENT

key. (The vectors

This allows for the original ﬂight plan to continue navigating until cleared for the approach, but keeps the approach available for quick activation when needed. ‘Activate’ adds the approach to the ﬂight plan and begins navigating the approach course.

Figure 8.6.10 Flight Plan with Loaded Approach

8-50

5. Turn the

large FMS

or Activate?’ and press the

knob to highlight ‘Load?

ENT

key. ‘Load’ adds the approach to the ﬂight plan without immediately using the approach for navigation guidance.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 53

FLIGHT PLANS

Remove a Departure, Arrival, or Approach

• ‘Remove Departure’ deletes the current DP from the active ﬂight plan.

• ‘Remove Arrival’ deletes the current STAR from the active ﬂight plan.

• ‘Remove Approach’ deletes the currently selected approach from the active ﬂight plan.

To remove an approach, arrival or departure from the active ﬂight plan:

1. From the Active Flight Plan Page, press the

key to display the Active Flight Plan Page

options.

2. Select the ‘Remove Approach’, ‘Remove Arrival’ or ‘Remove Departure’ option and press the

ENT

key.

3. A conﬁrmation window is displayed listing the procedure the pilot is about to remove. With

ENT

‘OK’ highlighted, press the the remove request, turn the to highlight ‘CANCEL’ and press the

key. To cancel

large FMS

ENT

knob

key.

Closest Point of Flight Plan Feature

‘Closest Point of FPL’ calculates the bearing and closest distance at which a ﬂight plan passes from a reference waypoint. It can also be used to create a new user waypoint along the ﬂight plan at the location closest to a chosen reference waypoint.

To determine the closest point along the active ﬂight plan to a selected waypoint:

1. From the Active Flight Plan Page, press the

key to display the Active Flight Plan Page

options.

2. Select the ‘Closest Point of FPL’ option from the Active Flight Plan Page options and press the

ENT

key.

3. A window is displayed with the reference waypoint ﬁeld highlighted. Turn the FMS knobs to enter the identiﬁer of the reference waypoint and press the

4. The G1000 displays the location, lat/lon, bear ing (BRG), and distance (DIST) to the closest point along the ﬂight plan from the selected reference waypoint. To create a user waypoint at this location and add it to the ﬂight plan, highlight ‘LOAD’ and press the name for the new user waypoint is derived from the identiﬁer of the reference waypoint.

ENT

key.

ENT

key. The

Figure 8.6.11 Removing an Approach

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-51

Page 54

FLIGHT PLANS

Change Fields

‘Change Fields’ allows for the default ﬁelds of DTK (distance) and DIS (distance) to be changed to one of the following:

• CUM (cumulative distance)

• DIS (distance)

• DTK (desired track)

• ESA (estimated safe altitude)

• ETA (estimated time of arrival)

• ETE (estimated time enroute)

To change either the DTK or the DIS ﬁeld:

1. With the Active Flight Plan Page displayed,

press the Plan Page options window.

2. Turn the Fields’ and press the

3. Turn the or the ‘DTK’ ﬁeld.

4. Turn the FMS kno options.

5. Turn the and press the remove the cursor.

key to display the Active Flight

large FMS

FMS knob to select the desired item

knob to highlight ‘Change

ENT

key.

knob to highlight the ‘DIS’

to display a list of

ENT

key. Press the

FMS knob

Shortcuts

A number of shortcuts are available to save time when using the Active Flight Plan Page. These shortcuts speed the process of removing approaches, departures and arrivals, and aid in selecting a speciﬁc ﬂight plan leg for navigation guidance.

On the preceding page, options to remove approaches, departures and arrivals were introduced. This process may also be completed using the CLR key, as described below.

To remove an approach, departure or arrival using the CLR key:

1. With the Active Flight Plan Page displayed, press the small FMS knob to activate the cursor.

2. Turn the large FMS knob to highlight the title for the approach, departure or arrival you wish to delete. Titles appear in white directly above the procedure’s waypoints.

3. Press the window. With ‘OK’ highlighted, press the ENT key to remove the selected procedure.

This same process may also be used to remove

individual waypoints from the active ﬂight plan.

CLR key to display a conﬁrmation

8-52

Restore Defaults

Restore Defaults returns the ‘DTK’ and ‘DIS’ ﬁelds to

‘DTK’ and ‘DIS’.

To restore the DTK and DIS ﬁelds on the Active Flight Plan Page:

1. With the Active Flight Plan Page displayed,

press the Plan Page options window.

2. Turn the Defaults’ and press the

key to display the Active Flight

large FMS

knob to highlight ‘Restore

ENT

key.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

To remove a waypoint using the CLR key:

1. With the Active Flight Plan Page displayed, press the small FMS knob to activate the cursor.

2. Turn the large FMS knob to highlight the iden tiﬁer for the waypoint you wish to delete.

3. Press the window.

4. With “OK” highlighted, press ENT to remove the selected waypoint.

CLR key to display a conﬁrmation

Page 55

FLIGHT PLANS

FLIGHT PLAN CATALOG PAGE

The Flight Plan Catalog Page is the second ﬂight planning page and provides ﬂight planning information and editing capability. Once a Direct-to or ﬂight plan has been activated, the Active Flight Plan catalog Page displays the following:

• Number of ﬂight plans in memory.

• Flight Plan List.

• Flight Plan information box containing departure, destination, total distance, and estimated safe altitude information.

To display the Flight Plan Catalog Page:

FPL

1. Press the

key and turn the

to display the Flight Plan Catalog Page.

Flight Plans

in Memory

small FMS

knob

FLIGHT PLAN CATALOG PAGE OPERATIONS

The following operations can be performed from the

Flight Plan Catalog Page:

• Activate a Flight Plan

• Stop Navigating a Flight Plan

• Invert and Activate a FPL

• Create a New Flight Plan

• Copy a Flight Plan

• Delete a Flight Plan

• Delete All Flight Plans

• Sort Flight Plans by Comment

• Flight Plan Catalog Page Options

• Edit a Flight Plan

Flight Plan List

Flight Plan

Information

Figure 8.6.12 Flight Plan Catalog Page

Figure 8.6.13 Flight Plan Catalog Page Options

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-53

Page 56

FLIGHT PLANS

Activate a Flight Plan

Once a ﬂight plan is deﬁned using the Flight Plan Catalog Page it can be activated for navigation. Activating the ﬂight plan overwrites any previous information at that location.

To activate (begin to navigate) an existing ﬂight plan:

FPL

1. Press the

key and turn the

to display the Flight Plan Catalog Page.

2. Press the

3. Turn the

FMS knob

large FMS

to activate the cursor.

knob to highlight the desired ﬂight plan and press the display the Flight Plan Catalog Page options.

4. Turn the

large FMS

knob to highlight ‘Activate

Flight Plan’ and press the

5. An ‘Activate stored ﬂight plan?’ conﬁrmation window is displayed. With OK highlighted,

ENT

press the

key to activate the ﬂight plan. To

cancel the ﬂight plan activation, turn the

FMS

knob to highlight ‘CANCEL’ and press the

ENT

key.

small FMS

ENT

key.

knob

key to

large

Stop Navigating a Flight Plan

To stop navigating a ﬂight plan:

FPL

1. Press the to display the Flight Plan Catalog Page.

2. Press the

3. Turn the desired ﬂight plan and press the display the Flight Plan Catalog Page options.

4. Turn the Plan’ and press the Plan’ conﬁrmation window is displayed. With ‘OK’ highlighted, press the the ﬂight plan. To cancel the ﬂight plan deletion, turn the ‘CANCEL’ and press the

key and turn the

FMS

knob to activate the cursor.

large FMS

knob to highlight the

FMS knob to highlight ‘Delete Flight

ENT

key. A ‘Delete Flight

ENT

large FMS

knob to highlight

ENT

key.

small FMS

knob

key to

key to delete

8-54

Figure 8.6.14 Activate Stored Flight Plan Conﬁrmation

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Figure 8.6.15 Delete Flight Plan Conﬁrmation

Page 57

FLIGHT PLANS

Invert and Activate a Flight Plan

‘Invert & Activate FPL’ allows the active ﬂight plan to

be inverted and activated for navigation.

To invert and activate a ﬂight plan:

FPL

1. Press the

key and turn the

to display the Flight Plan Catalog Page.

FMS

2. Press the

3. Turn the

knob to activate the cursor.

large FMS

knob to highlight the desired ﬂight plan and press the display the Flight Plan Catalog Page options.

4. Turn the

FMS knob to highlight ‘Invert & Acti-

vate FPL’ and press the

5. An ‘Invert and activate stored ﬂight plan?’ con ﬁrmation window is displayed. With ‘OK’ highlighted, press the

ENT

key to invert and activate the ﬂight plan. To cancel the operation, turn the

large FMS

press the

knob to highlight ‘CANCEL’ and

ENT

key.

ENT

small FMS

key.

knob

key to

Create a New Flight Plan

‘Create New Flight Plan’ creates a new ﬂight plan.

To create a new ﬂight plan:

1. Press the to display the Flight Plan Catalog Page.

2. Press the Catalog Page options.

3. Turn the New Flight Plan’ and press the

4. A blank ﬂight plan page is displayed for the ﬁrst empty storage location. Turn the FMS knobs to enter the identiﬁer of the departure waypoint

and press the

5. Repeat step number 4 to enter the identiﬁer for each additional ﬂight plan waypoint.

6. Once all waypoints have been entered, press the Catalog Page.

FPL

large FMS

FMS

knob to return to the Flight Plan

key and turn the

small FMS

key to display the Flight Plan

knob to highlight ‘Create

ENT

key.

ENT

key.

knob

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-55

Page 58

FLIGHT PLANS

Copy a Flight Plan

‘Copy Flight Plan’ copies the active ﬂight plan to a Flight Plan Catalog location. The copy function is useful for duplicating the active ﬂight plan before making changes.

To copy a ﬂight plan to another ﬂight plan catalog location:

1. From the Flight Plan Catalog press the knob to activate the cursor, turn the

FMS

knob to highlight the ﬂight plan the pilot

wishes to copy, then press the

display the Flight Plan Catalog Options.

2. Turn the

large FMS

Flight Plan’ and press the

knob to highlight ‘Copy

ENT

key.

3. A ‘Copy to ﬂight plan?’ conﬁrmation window is displayed. With ‘OK’ highlighted, press the

ENT

key to copy the ﬂight plan. To cancel, turn

the

large FMS

press the

knob to highlight ‘CANCEL’ and

ENT

key

FMS

large

key to

Delete a Flight Plan

‘Delete Flight Plan’ removes all waypoints from the active ﬂight plan. (Deleting a ﬂight plan does not delete the waypoints contained in the ﬂight plan from the database or user waypoint memory.) Once the pilot is ﬁnished with a ﬂight plan, it can easily be deleted from the Flight Plan Catalog Page or the Active Flight Plan Page.

To delete a ﬂight plan from the Active Flight Plan Page:

1. From the Active Flight Plan Page, press the

key to display the Active Flight Plan

options window.

2. Turn the

large FMS

Flight Plan’ and press the

3. A ‘Delete all waypoints in ﬂight plan?’ conﬁr mation window is displayed. With ‘OK’ highlighted, press the ﬂight plan. To cancel, turn the to highlight ‘CANCEL’ and press the

To delete a ﬂight plan from the Flight Plan Catalog Page:

knob to highlight ‘Delete

ENT

key.

ENT

key to delete the active

large FMS

ENT

knob

key.

8-56

1. From the Flight Plan Catalog Page, press the

FMS

knob to activate the cursor, turn the

large FMS

knob to highlight the ﬂight plan to

delete.

2. Press the

key to display the Flight Plan

Catalog options.

3. Turn the

large FMS

Flight Plan’ and press the

knob to highlight ‘Delete

ENT

key.

4. A ‘Delete ﬂight plan?’ conﬁrmation window is displayed. With ‘OK’ highlighted, press the

ENT

key to delete the ﬂight plan. To cancel, turn the and press the

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

large FMS

ENT

knob to highlight ‘CANCEL’ key.

Page 59

FLIGHT PLANS

Delete All Flight Plans

‘Delete All’ removes all ﬂight plans from memory at

one time.

To delete all ﬂight plans:

1. From the Flight Plan Catalog Page, press the

key to display the Flight Plan Catalog

Page options.

2. Turn the All’ and press the

large FMS

knob to highlight ‘Delete

ENT

key. A ‘Delete all ﬂight plans?’ confirmation window is displayed. With ‘OK’ highlighted, press the delete all ﬂight plans. To cancel, turn the

FMS

knob to highlight ‘CANCEL’ and press the

ENT

key.

ENT

key to

large

Sort By Comment/Number

‘Sort List By Number/Sort List by Comment’ selects between a Flight Plan Catalog Page sorted numerically by the ﬂight plan number or sorted alphanumerically based upon the comment assigned to each ﬂight plan. When one option is selected, the other option is displayed on the Flight Plan Catalog options window.

To sort the catalog listing by number or comment:

1. From the Flight Plan Catalog Page, press the

key to display the Flight Plan Catalog

Page options.

2. Turn the

large FMS

By Number’ or ‘Sort List By Comment’ and press the

ENT

ordering.

knob to highlight ‘Sort List

key. This will change ﬂight plan

3. A ‘Proceed?’ conﬁrmation window is displayed. With OK highlighted, press the

ENT

key to change ﬂight plan ordering. To cancel, turn the

large FMS

press the

knob to highlight ‘CANCEL’ and

ENT

key.

To edit a ﬂight plan:

1. Press the

key and turn the

small FMS

knob

FPL

to display the Flight Plan Catalog Page.

2. Press the

3. Turn the

FMS knob

large FMS

desired ﬂight plan and press the

to activate the cursor.

knob to highlight the

ENT

key.

4. To add a waypoint to the ﬂight plan: Turn the

large FMS

ENT

new waypoint and press the

key.

5. To delete a waypoint from the ﬂight plan: Turn

large FMS

the to delete and press the

knob to select the waypoint

CLR

key to display a remove waypoint conﬁrmation window. With ‘OK’ highlighted, press the

ENT

key to remove the waypoint. To cancel, turn the large FMS knob to highlight ‘CANCEL’ and press the ENT key.

6. Once all changes have been made, press the FMS knob

to return to the Flight Plan Catalog

Page.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-57

Page 60

FLIGHT PLANS

Graphical Flight Planning Feature

4. If the selected waypoint is not a Jeppesen

The graphical ﬂight planning feature is activated using

the Navigation Map Page and the Active Flight Plan Page.

To create a Point-n-Shoot ﬂight plan:

1. Push the

Joystick

to turn the map cursor on.

5. The pilot can also create and insert a user

2. Select the Active Flight Plan Page and press

FMS

the

knob to highlight the list of waypoints. Waypoints are inserted ABOVE the highlighted row if the cursor is on. Waypoints are inserted at the END of the ﬂight plan if the cursor is off.

3. To insert waypoints, use the map cursor to point at the desired waypoint (it will become visually enhanced when it is properly pointed

LD WPT

to), and press the

softkey. Existing user

waypoints are inserted in the same manner.

waypoint (Airport or Navaid) or user waypoint, the G1000 creates a user waypoint (beginning with ‘USR000’) at the point and inserts it into the ﬂight plan.

waypoint by pointing at a blank spot on the nav map and pressing ‘LD WPT’. This creates a user waypoint at the map cursor and inserts it into the ﬂight plan.

8-58

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 61

VERTICAL NAVIGATION (VNAV) PAGE

The Vertical Navigation Page allows the creation of a three-dimensional proﬁle which guides the aircraft from it’s present position and altitude to a ﬁnal (target) altitude at a speciﬁed location. This is helpful when you would like to descend to a certain altitude near an airport or climb to an altitude before reaching a route or Direct-to waypoint. Once the proﬁle is deﬁned, message alerts and additional data on the Navigation Map Page keep the pilot informed of progress.

FLIGHT PLANS

NOTE: An active ﬂight plan or Direct-to must be

entered in order to utilize VNAV.

NOTE: To display terrain or topo data on the Verti-

MAP

cal Navigation Map Page, press the Press the the

from the Vertical Navigation Page.

TOPO, TERRAIN, or LTNG

same

softkey to remove the displayed data

softkey.

softkey. Press

To create a vertical navigation proﬁle:

NOTE: VNAV has no effect on Autopilot opera-

tion.

1. Select the Vertical Navigation Page.

FMS

2. Press the

knob to activate the cursor.

Figure 8.6.16 Vertical Navigation (VNAV) Page

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-59

Page 62

FLIGHT PLANS

3. With the ‘TARGET ALTITUDE’ ﬁeld highlighted,

turn the and press the

4. Turn the

Wpt’ (AGL) or ‘MSL’, and press the

FMS

knobs to select the target altitude

ENT

key.

small FMS

knob to select ‘Above

ENT

key. ‘Above Wpt’ uses the altitude of a destination airport. ‘MSL’ lets you set a speciﬁc target alti tude for any waypoint category: airport, VOR, NDB, intersection or user waypoint.

FMS

5. Turn the

knobs to select a distance from

the target reference waypoint and press the

ENT

key. If the target altitude should occur at the target reference waypoint, enter a distance of zero.

6. Turn the

small FMS

‘After’, and press the

knob to select ‘Before’ or

ENT

key. This setting designates whether the offset distance deﬁnes a point before you reach the target reference waypoint or after you reach the waypoint.

7. When using a ﬂight plan, the target refer ence waypoint itself can be speciﬁed from the waypoints contained in the ﬂight plan. By default, the last waypoint in the ﬂight plan is selected. To select a different waypoint, turn the waypoint and press the

small FMS

knob to select the desired

ENT

key.

With the proﬁle set, the vertical speed required (VSR) is displayed. Expect the following to occur when using the vertical navigation feature:

At one minute prior to reaching the initial descent point, the message ‘APPR VPROF - Approaching VNAV Proﬁle’ is displayed as a PFD alert. The descent (or climb)

angle also locks to prevent changes in speed from altering the proﬁle. If selected, the vertical speed required (VSR) readout on the default NAV and map pages shows the desired vertical speed to maintain the proper descent (or climb) angle. At 500 feet above (or below, for a climb) the target altitude, an ‘APPR TRG ALT’ - Approaching Target Altitude” message is provided. The VSR readout on the Navigation Map Page is blanked out at this point.

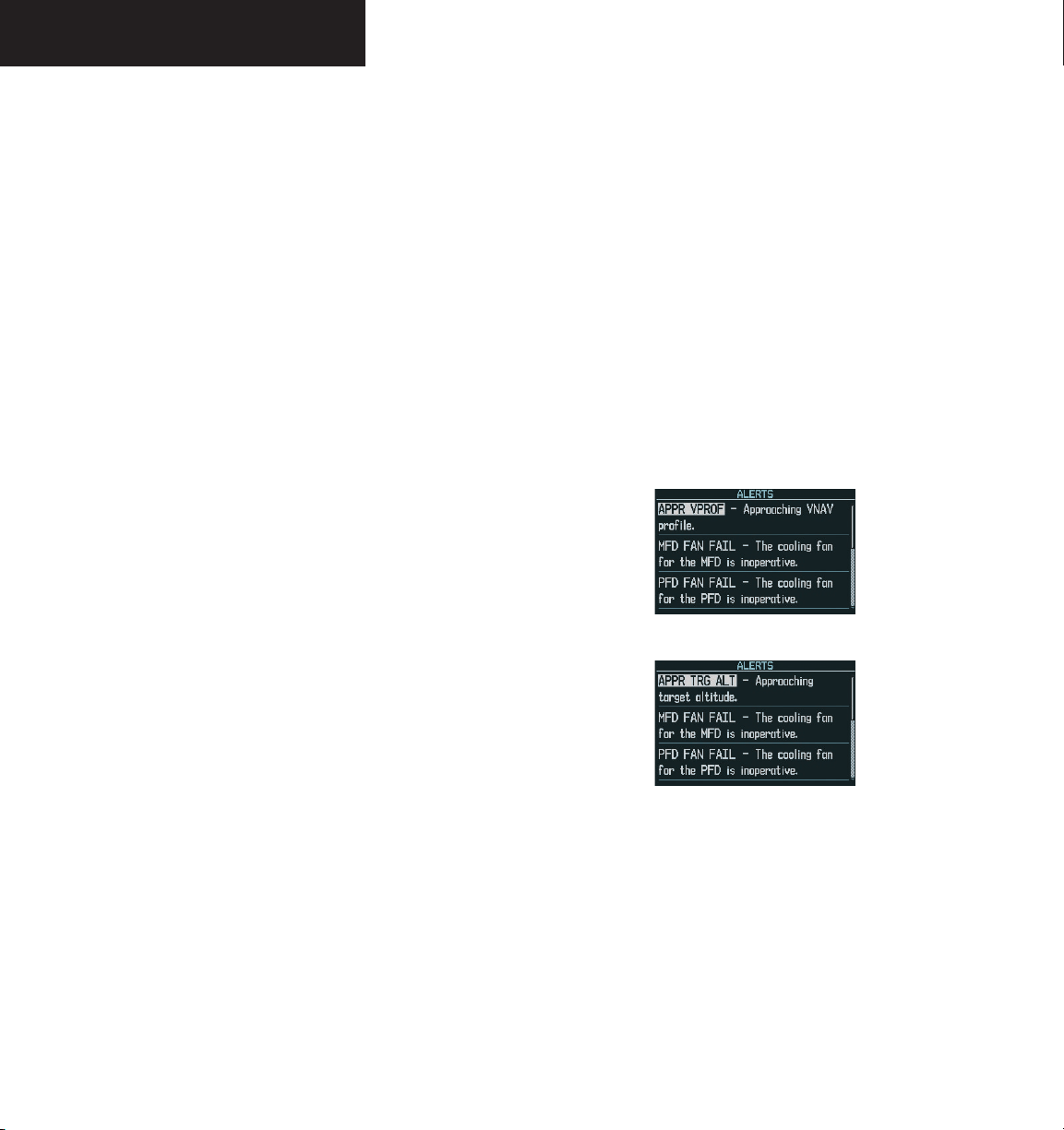

Figure 8.6.17 Approaching VNAV Proﬁle Message (PFD)

8-60

8. The default proﬁle utilizes a 400 foot-perminute descent rate. To change the rate, turn

large FMS

the Vertical Speed’ ﬁeld and use the to enter a new rate. Press the

knob to highlight the ‘Target

FMS

knobs

ENT

key when

ﬁnished.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Figure 8.6.18 Approaching Target Altitude Message (PFD)

VNAV Page Menu Options

The VNAV messages are not enabled until the ‘VNAV Messages On?’ option is enabled from the VNAV Page Menu Options. To display the page menu, press the MENU key (with the VNAV Page displayed). The VNAV Page Options Menu also allows the pilot to restore VNAV page defaults.

Page 63

PROCEDURES

8.7 PROCEDURES

ARRIVALS AND DEPARTURES

Based upon the active ﬂight plan or Direct-to destination, the Procedures Page provides direct access to approaches, departures and arrivals. In either case, the departure and destination airports must have associated published procedures. The Procedures Page is displayed by pressing the PROC key.

To select a departure:

PROC

1. Press the Page. Turn the ‘Select Departure’ and press the

key to display the Procedures

large FMS

knob to highlight

ENT

key.

2. The ‘Departure Loading’ page is displayed with the list of departure options for the departure airport. Turn the FMS knobs to enter the

ENT

desired departure. Press the

3. ‘Load?’ is highlighted. Press the

key.

ENT

key. The

departure becomes part of the ﬂight plan.

To select an arrival:

PROC

1. Press the

key to display the Procedures

Page. Turn the large FMS knob to highlight

ENT

‘Select Arrival’ and press the

2. The procedures page is displayed. Turn the

key.

FMS

knobs to enter the desired arrival.

3. The cursor moves to the ‘TRANSITION’ ﬁeld. Turn the

large FMS

desired transition waypoint and press the

knob to highlight the

ENT

key. The approach vectors option assumes you will receive vectors to the ﬁnal course segment of the approach and will provide navigation guidance relative to the ﬁnal approach course.

Figure 8.7.1 Procedures Page

NOTE: Pilots should be familiar with section

1-1-20 of the Aeronautical Information Manual (AIM) regarding the use of GPS procedures.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

NOTE: Vector departures are not part of the

aviation database.

NOTE: The approach vectors option assumes

the pilot will receive vectors to the ﬁnal course segment of the approach and will provide navi gation guidance on the ﬁnal approach segment and extension only.

8-61

Page 64

PROCEDURES

APPROACHES

The G1000 allows you to ﬂy non-precision and precision approaches to airports with published instrument approach procedures. All available approaches are part of the Jeppesen database stored internally in each PFD and MFD.

The G1000 provides both lateral and vertical guidance for ILS precision approaches on the PFD, and lateral guidance for non-precision Localizer, GPS, and VOR and ADF overlay approaches. GPS position information is also provided on the mapping portion of the MFD and the inset map window on the PFD for pilot reference only.

G1000 NAVIGATIONAL GUIDANCE FOR

APPROACHES

The G1000 supports all ARINC 424 leg types that have associated waypoint ﬁxes. The G1000 uses the following leg types as part of the Jeppesen database:

• AF - DME arc to a ﬁx

• CF – Course to a ﬁx

• DF – Direct to a ﬁx

• FA – Course from ﬁx to an altitude

• FC – Course from ﬁx to distance

• FD – Course from ﬁx to DME distance

• FM – Course from ﬁx to manual termination

• HA – Hold terminating at altitude

• HF – Hold terminating at a ﬁx

• HM – Hold with manual termination

• IF – Initial ﬁx

• PI – Procedure turn to course intercept

• RF – Constant radius turn to ﬁx

• TF – Track between two ﬁxes

Each of these legs is displayed on the active ﬂight plan.

The G1000 does not support the following legs:

• CA – Course to an altitude

• CD – Course to a DME distance

• CI – Course to an intercept

• CR – Course to a radial

• VA – Heading vector to an altitude

• VD – Heading vector to DME distance

• VI – Heading vector to an intercept

• VM – Heading vector to manual termination

• VR – Heading vector to a radial

NOTE: The G1000 does not provide steering guid-

ance for hold legs and procedure turns (HA, HF, HM and PI leg types). However, these legs are drawn on the map and are shown in the ﬂight plan.

NOTE: The pilot is responsible for determining

database currency for approaches.

8-62

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 65

SELECTING APPROACHES

In order to select an approach, there must be an active ﬂight plan or direct-to which terminates at an airport with a published approach.

To select an approach:

PROC

1. Press the Page. Turn the ‘Select Approach’ and press the approach procedure window appears.

2. Turn the approach and press the window appears.

NOTE: The approach vectors option assumes the pilot will receive vectors to the ﬁnal course segment of the approach and will provide navi gation guidance on the ﬁnal approach segment and extension only.

key to display the Procedures

large FMS

knob to highlight

ENT

FMS

knob to select the desired

ENT

key. The transition

key. The

PROCEDURES

NOTE: ‘LOAD?’ will add the procedure to the flight plan without immediately using it for navigation guidance. This allows you to continue navigating the original ﬂight plan, but keeps the procedure available on the Active Flight Plan Page for quick activation when needed. ‘Acti vate?’ overrides the enroute portion of the active ﬂight plan, proceeding directly to the approach portion.

NOTE: You can also load an approach by pressing

the

APR

softkey.

3. Turn the tion and press the highlighted. Press the

FMS

knob to select the desired transi-

ENT

key. ‘LOAD?’ is now

ENT

key. Activate the approach once the approach clearance is received.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-63

Page 66

PROCEDURES

Figure 8.7.2 Selecting an Approach Procedure

Not all approaches in the database are approved for GPS use. As you select an approach, a ‘GPS’ designation to the right of the procedure name indicates the procedure can be ﬂown using the GPS receiver. Some procedures will not have this designation, meaning the GPS receiver can be used for supplemental navigation guidance only. If the GPS receiver cannot be used for primary guidance, you must use the appropriate receiver for the selected approach (e.g., VOR or ILS). The ﬁnal course segment of ILS approaches, for example, must be ﬂown by tuning the Nav receiver to the proper frequency and selecting that Nav receiver on the CDI.

A selected approach can be activated or loaded. Activating the approach also initiates automatic

CDI scaling transition as the approach progresses. In many cases, it can be easiest to “Load” the full approach while still some distance away, enroute to the destination airport. Later, if vectored to ﬁnal, use the following steps to select ‘Activate Vector-To-Final’ – which makes the inbound course to the FAF waypoint active. Otherwise, activate the full approach using the ‘Activate Approach?’ option.

8-64

Figure 8.7.3 Selecting an Approach Transition

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 67

To activate an approach procedure:

1. With an approach loaded in the active ﬂight

PROC

plan, press the

key to display the Proce-

dures Page.

PROCEDURES

Figure 8.7.4 Activating an Approach Procedure

2. Turn the

large FMS

knob to highlight ‘Activate

Approach’.

ENT

3. Press the

CAUTION: The G1000 is designed to only

complement printed approach plates and vastly improve situational awareness throughout the approach. The approach must be ﬂown as it appears on the approach chart.

key.

NOTE: Speciﬁc GPS approach examples are given

in the G1000 Mooney Pilot’s Guide Training Material. They can be used in conjunction with the G1000 PC training simulator software for practice in learning what types of approaches

the G1000 supports.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-65

Page 68

PROCEDURES

This page intentionally left blank.

8-66

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 69

WAYPOINT PAGE GROUP

8.8 WAYPOINT PAGE GROUP

The Waypoint Page Group (WPT) provides information for thousands of airports, VORs, NDBs, intersections, runways, frequencies and procedures. In addition, a user waypoint information page displays information for up to 1,000 user-created waypoints. The Waypoint Group consists of the following pages:

• Airport Information Page (INFO)

• Departure Information Page (DP)

• Arrival Information Page (STAR)

• Approach Information Page (APR)

• Intersection Information Page

• NDB Information Page

• VOR Information Page

• User Waypoint Information Page

Page Selection

The Airport Information Page can be selected by pressing the INFO softkey or by the procedure given below. The Departure, Arrival, and Approach pages must be selected from the Airport Information Page using their corresponding softkeys (DP, STAR, APR). To select any remaining page:

1. From any page, press and hold the the Navigation Map Page.

2. Turn the group. ‘WPT’ appears in the page group icon located in the lower right corner of the display.

Turn the ‘WPT’ page.

large FMS

small FMS

knob to select the ‘WPT’ page

knob to select the desired

CLR

key to select

Waypoint Identiﬁer

Airport

Runway

Information

Field

Airport

Frequency

Information

Field

Figure 8.8.1 Airport Information Page

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-67

Page 70

WAYPOINT PAGE GROUP

AIRPORT INFORMATION PAGE (INFO)

The Airport Information page shows the following

detailed information for the selected airport:

• Airport Information

• Runways

• Frequencies

Airport Information Page Operations

To enter a waypoint identiﬁer:

1. Select the desired ‘WPT’ page and press the

FMS

knob to activate the cursor.

2. Turn the character of the waypoint’s identiﬁer.

3. Turn the character ﬁeld.

4. Turn the character.

5. Repeat steps 3 and 4 until the identiﬁer is selected, then press

6. To remove the ﬂashing cursor, press the knob.

small FMS

large FMS

small FMS

knob to select the ﬁrst

knob to select the next

knob to select the desired

the ENT key.

FMS

Airports may be selected by identiﬁer, facility name or

city location.

To enter a waypoint facility name or city location:

1. Select the Airport Information Page.

FMS

2. Press the

3. Turn the name or location (city) ﬁeld.

4. Turn the character.

5. Turn the character ﬁeld.

6. Repeat steps 4 and 5 until the facility name or location is selected, then press

7. To remove the ﬂashing cursor, press the knob.

Once the identiﬁer, facility name or location is entered, the airport information page displays information for the selected airport. As you enter an identiﬁer, facility name or location, the “SpellNFind”™ feature scrolls through the database, displaying those waypoints matching the characters you have entered to that point. If duplicate entries exist for the entered facility name or location, additional entries may be viewed by continuing to turn the small FMS knob during the selection process. If duplicate entries exist for an entered identiﬁer, a duplicate waypoint page is displayed once you select the identiﬁer (by pressing the ENT key).

knob to activate the cursor.

large FMS

small FMS

large FMS

knob to select the facility

knob to select the desired

knob to select the next

the ENT key.

FMS

8-68

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 71

WAYPOINT PAGE GROUP

To select a facility name or city location, where duplicate entries exist:

Facility Field

Location Field

Figure 8.8.2 Waypoint Facility or City Location

1. Select the desired facility name or location.

2. As you spell the facility name or location, using the FMS knobs, the SpellNFind feature selects the ﬁrst entry in the database based upon the characters you have entered up to that point.

3. Continue turning the

small FMS

knob to scroll through any additional database listings for the selected facility name or location. You can scroll backwards with the

small FMS

knob if you scroll

past the desired facility name or location.

ENT

4. Press the

key to select the desired facility

name or location.

5. To remove the ﬂashing cursor, press the

FMS

knob.

To select a waypoint identiﬁer from a list of duplicates:

1. Select the desired airport or navaid identiﬁer.

2. A duplicate waypoints window is displayed. Turn the

large FMS

waypoint and press

3. To remove the ﬂashing cursor, press the

knob to select the desired

the ENT key.

FMS

knob.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-69

Page 72

WAYPOINT PAGE GROUP

Airport Runway Information Field

The Airport Runway Information ﬁeld displays runway designations, length, surface type and lighting for the selected airport. A map image of the runway layout and surrounding area is also displayed on the Airport Runway Information Page. The map image range is displayed in the lower left corner and is adjustable using the joystick. For airports with multiple runways, information for each runway is available.

To display information for each additional runway:

FMS

1. Press the

2. Turn the the Runway designation ﬁeld.

3. Turn the runways for the selected airport.

4. Continue turning the the desired runway.

knob to activate the cursor.

large FMS

small FMS

knob to place the cursor on

knob to display the next

small FMS

knob to select

Rotate the joystick counterclockwise to select a lower

range and rotate it clockwise to select a higher range.

The following descriptions and abbreviations are used

on the Airport Runway Information ﬁeld:

• Type – Usage type: Public, Military or Private

• Surface – Runway surface types include: Hard, Turf, Sealed, Gravel, Dirt, Soft, Unknown or Water

• Lighting – Runway lighting types include: No Lights, Part Time, Full Time, Unknown or Fre

quency (for pilot-controlled lighting)

8-70

5. To remove the ﬂashing cursor, press the knob.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

FMS

Figure 8.8.3 Runway Information Field

Page 73

WAYPOINT PAGE GROUP

AIRPORT FREQUENCY INFORMATION FIELD

The Airport Frequency Information Field displays radio frequencies and frequency types for the selected airport, as well as sector and altitude restrictions (where applicable). If the selected airport has a localizer-based approach, the localizer frequency is also listed on the Airport Frequency Information Field. The Airport Frequency Information Field may be used to quickly select and tune a COM or NAV frequency.

To scroll through the frequency list and tune to a desired frequency on the list:

FMS

1. Press the

2. Turn the placing the cursor on the desired frequency. If there are more frequencies in the list than can be displayed on the screen, a scroll bar along the right-hand side of the screen indicates where you are within the list.

3. Press the quency in the standby ﬁeld of the ‘COM’ or ‘NAV’ window.

knob to activate the cursor.

FMS

knob to scroll through the list,

ENT

key to place the selected fre-

If a listed frequency has sector or altitude restrictions,

the frequency is preceded by an info designation.

To view usage restrictions for a frequency:

FMS

1. Turn the

knob to place the cursor on the

info designated frequency.

ENT

2. Press the

key to display the restriction

information.

3. To return to the Airport Frequency ﬁeld, press the

ENT

key.

Figure 8.8.4 Frequency Information Field

4. To remove the ﬂashing cursor, press the knob.

Some listed frequencies may include designations for

limited usage, as follows:

• ‘TX’ – transmit only RX - receive only

• ‘PT’ – part time frequency

• ‘i’ – additional information exists, press the key

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

FMS

ENT

8-71

Page 74

WAYPOINT PAGE GROUP

Airport Frequency Descriptions

The Airport Frequency Information ﬁeld uses the

following descriptions and abbreviations:

• Frequency — Communication frequencies which may include restrictions:

• Approach

• Arrival

• Class B

• Class C

• CAT

• Departure

• TMA

• Terminal

• TRSA

Communication frequencies without restrictions:

• ATIS

• ASOS

• AWOS

• Center

• Clearance

• Gate

• Control

• Ground

• Helicopter

• Multicom

• Pre-taxi

• Radar

• Ramp

• Other

• Tower

• Unicom

AIRPORT INFORMATION PAGE OPTIONS

The following Airport Information Page options are

available by pressing the MENU key (with the Airport Information Page displayed):

• Load Approach

• View Departure Airport

• View Destination Airport

• View Recent Airport List

• View Info

• View Departure

• View Arrival

• View Approach

To select an option:

1. Press the mation Page.

2. Turn the option.

3. Press

the ENT

operation.

key while on the Airport Infor-

FMS

knob to select the desired

key to perform the selected option

8-72

Navigation Frequencies:

• ILS

• LOC

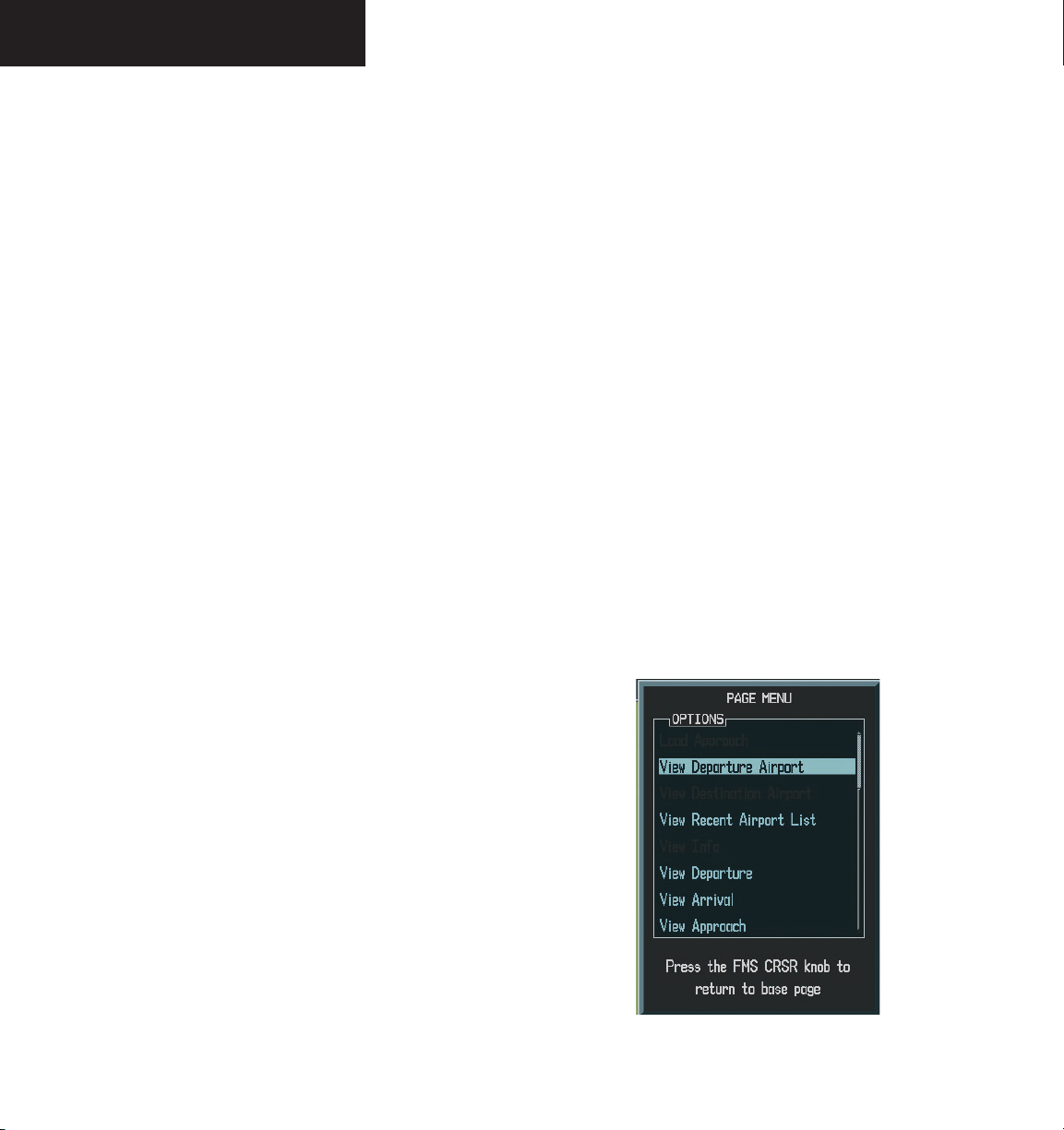

Figure 8.8.5 Airport Information Page Menu

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 75

DEPARTURE INFORMATION PAGE (DP)

The Departure Information Page shows the available Departure Procedures (DPs; also referred to as SIDs) for the selected airport. Where multiple runways or transitions are associated with the departure procedure, that information can also be displayed. A map image provides a layout diagram for each departure, runway and transition. To display the Departure Information Page press the DP softkey.

To scroll through the available departures:

FMS

1. Press the

2. Turn the the Departure procedure name ﬁeld.

3. Turn the available departures for the selected airport. Continue turning the the desired departure.

4. Press the runway ﬁeld.

5. Turn the available runways. Continue turning the

FMS

knob to select the desired runway.

knob to activate the cursor.

large FMS

FMS

ENT

small FMS

knob to place the cursor on

knob to display a window of

small FMS

knob to select

key. The cursor moves to the

knob to display a window of

small

WAYPOINT PAGE GROUP

NOTE: ‘ALL’ may appear in the runway ﬁeld,

indicating the departure procedure applies to all runways. For airports with parallel runways, ‘B’ may appear at the end of the runway designation to indicate the departure procedure applies to both runways.

A departure can be loaded from the Departure Infor-

mation Page.

To load a departure procedure from the Departure Information Page:

1. Select the desired departure, runway and transi tion using the steps described previously.

2. Press

to display the Airport Departure

Page Options.

FMS

3. Turn the TURE’ and press the

knob to highlight ‘LOAD DEPAR-

ENT

key.

4. The Active Flight Plan Page is displayed. Press the

FPL

key to return to the Airport Departure

Information Page.

ENT

6. Press the

key. The cursor moves to the

Transitions ﬁeld.

7. Turn the

small FMS

knob to display a window

of available transitions. Continue turning the

FMS

knob to select the desired transition.

ENT

8. Press the cursor, press the

key. To remove the ﬂashing

FMS

knob.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

Figure 8.8.6 Departure Page Menu

8-73

Page 76

WAYPOINT PAGE GROUP

ARRIVAL INFORMATION PAGE (STAR)

The Arrival Information Page shows the available Standard Terminal Arrival (STAR) procedures for the selected airport. Where multiple transitions or runways are associated with the arrival procedure, that information may also be displayed. A map image provides a layout diagram for each arrival, transition and runway. To display the Airport Arrival Information Page press the

STAR softkey.

To scroll through the available arrivals:

FMS

1. Press the

knob to activate the cursor.

NOTE: ‘ALL’ may appear in the runway ﬁeld,

indicating the arrival procedure applies to all runways. For airports with parallel runways, ‘B’ may appear at the end of the runway designation to indicate the arrival procedure applies to both runways.

2. Turn the

large FMS

knob to place the cursor on

the ‘ARRIVAL’ procedure name ﬁeld.

3. Turn the

small FMS

knob to display a window of available arrivals for the selected airport. Continue turning the

FMS

knob to select the

desired arrival.

ENT

4. Press the

key. The cursor moves to the

‘TRANSITION’ ﬁeld.

5. Turn the

small FMS

knob to display a window of available transitions. Continue turning the

FMS

knob to select the desired transition.

ENT

6. Press the

key. The cursor moves to the

runway ﬁeld.

7. Turn the

small FMS

knob to display a window of available runways. Continue turning the FMS knob to select the desired runway.

ENT

8. Press the cursor, press the

key. To remove the ﬂashing

FMS

knob.

Figure 8.8.7 Arrival Page Menu

8-74

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 77

WAYPOINT PAGE GROUP

An arrival can be loaded from the Arrival Information

Page.

To load an arrival procedure from the Arrival Information Page:

1. Select the desired arrival, transition and runway using the steps described previously.

2. Press

to display the Arrival Information

Page Options.

3. Turn the

large FMS

ARRIVAL’ and press the

knob to highlight ‘LOAD

ENT

key.

4. The Active Flight Plan Page is displayed. Press

FPL

to return to the Airport Arrival information

Page.

Loading an arrival procedure into the active ﬂight plan does NOT automatically alter the active ﬂight plan leg or Direct-to navigation. Once loaded, the arrival is simply placed at the end of the ﬂight plan. To manually transition to a loaded arrival, see the procedure below (an alternative method would be to remove the ﬁrst occurrence of the destination airport identiﬁer).

To manually transition to a loaded arrival procedure:

1. From the Active Flight Plan Page, press the

FMS

knob to activate the cursor and scroll down through the list of loaded arrival waypoints.

2. When the desired loaded arrival waypoint is highlighted, press the

ENT

press

to highlight the ‘Activate’ prompt

irect-to

key, then

(note that any loaded arrival waypoint may be selected).

ENT

3. Press

again to conﬁrm activate

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-75

Page 78

WAYPOINT PAGE GROUP

APPROACH INFORMATION PAGE

The Approach Information page shows the available approach procedures for a selected airport. Where multiple initial approach ﬁxes (IAFs) and feeder routes are available, that information may also be displayed. A map image provides a layout diagram for each approach and transition. To display the Airport Approach Information Page press the APR softkey.

To scroll through the available approaches and transitions:

FMS

1. Press the

2. Turn the the ‘APPROACH’ procedure name ﬁeld.

3. Turn the of available approaches for the selected airport. Continue turning the desired approach.

4. Press the transitions (TRANS) ﬁeld.

knob to activate the cursor.

large FMS

small FMS

ENT

knob to place the cursor on

knob to display a window

FMS

knob to select the

key. The cursor moves to the

5. Turn the

small FMS

knob to display a window

of available transitions. Continue turning the

FMS

knob to select the desired transition or select ‘VECTORS’ for guidance only along the ﬁnal course segment of the approach. Press the

ENT

key. NOTE: the cursor moves through the

remaining ﬁelds but they are not selectable.

6. To remove the ﬂashing cursor, press the knob.

NOTE: Not all approaches in the database are

approved for GPS use. As you select an approach, a GPS designation to the right of the procedure name indicates the procedure can be ﬂown using the GPS receiver. Some procedures do not have this designation, meaning the GPS receiver may be used for supplemental navigation guidance only. VOR approaches, for example, must be ﬂown by tuning the NAV receiver to the proper frequency and coupling the NAV receiver to the HSI located on the PFD.

FMS

8-76

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 79

An approach can be loaded from the Airport Informa-

tion Page.

To load an approach from the Airport Approach Information Page:

1. Select the desired approach and transition.

2. Press

to display the Approach Informa-

tion Page Options.

WAYPOINT PAGE GROUP

3. Turn the

large FMS

APPROACH’ and press the

knob to highlight ‘LOAD

ENT

key.

4. The Active Flight Plan Page is displayed. Press

FPL

the

key to return to the Airport Information

Approach Page.

5. ‘Load and Activate’ allows you to load the selected approach into the active ﬂight plan and activate navigation guidance to the approach transition.

NOTE: To load and activate an approach from

the Approach Information page, follow the steps above, but select ‘Load and Activate’ in step #3.

Figure 8.8.4 Approach Page Menu

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-77

Page 80

WAYPOINT PAGE GROUP

INTERSECTION INFORMATION PAGE

The Intersection Information Page displays the

following information for a selected intersection:

• Map of surrounding area

• Intersection Identiﬁer and Symbol

• Name

• General location

• Latitude/longitude (degrees/minutes or degrees/ minutes/seconds), MGRS or UTM/UPS

• Nearest VOR/VORTAC/VOR/DME (identiﬁer, symbol, bearing, distance)

NOTE: The VOR displayed on the Intersection

Information Page is the nearest VOR, not necessarily the VOR used to deﬁne the intersection.

Intersection Name and

Symbol

General Location

Intersection

Lat/Lon

8-78

Selected

Intersection

Nearest VOR;

identiﬁer, symbol,

bearing,distance

Figure 8.8.9 Intersection Information Page

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 81

WAYPOINT PAGE GROUP

Intersection Information Page Operations

To change the map range, turn the joystick to the left to select a lower range, turn it to the right to select a higher range. NOTE: Intersections can only be selected by identiﬁer.

To select the Intersection Information Page:

1. From any page, press and momentarily hold

CLR

to select the Navigation Map Page. You may skip this step if you are already viewing any of the Map Group pages.

2. Turn the

large FMS

page group. ‘WPT’ is displayed in the page group icon located in the lower right corner of the display.

3. Turn the

small FMS

tion Information Page.

knob to select the ‘WPT’

knob to select the Intersec-

To select an Intersection by using an Identiﬁer:

1. With the Intersection Information Page dis played, press the

FMS

knob to activate the

cursor.

FMS

2. Turn the identiﬁer and press the

3. Press the

knobs to enter a name for the

ENT

key.

FMS

knob to remove the ﬂashing

cursor.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-79

Page 82

WAYPOINT PAGE GROUP

NDB INFORMATION PAGE

The NDB Information Page displays the following

information for a selected Non-directional beacon:

• Map of surrounding area

• NDB Identiﬁer and Symbol

• Name

• Closest city

• General location

• Latitude/longitude (degrees/minutes or degrees/ minutes/seconds), MGRS or UTM/UPS

• Magnetic Variation in degrees

• Frequency in kilohertz (kHz)

• Nearest airport (identiﬁer, symbol, bearing, distance)

Name

NDB Identiﬁer

NDB Symbol

Closest City

8-80

General Location

Magnetic Variation

NDB Frequency

NDB Symbol

Nearest Airport;

identiﬁer, symbol,

bearing,distance

Map of

Surrounding Area

Figure 8.8.10 NDB Information Page

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 83

WAYPOINT PAGE GROUP

NDB Information Page Operations

The NDB Information Page allows the following

operations:

• NDB selection by identiﬁer

• NDB selection by name

• NDB selection by closest city

To change the map range, turn the joystick to the left to select a lower range, turn it to the right to select a higher range.

To select the NDB Information Page:

CLR

1. From any page, press and hold the select the Navigation Map Page. You may skip this step if you are already viewing any of the Map Group pages.

2. Turn the

large FMS

knob to select the ‘WPT’ page group. ‘WPT’ is displayed in the page group icon located in the lower right corner of the display.

3. Turn the

small FMS

knob to select the NDB

Information Page.

key to

To select a NDB by using a Name:

1. With the NDB Information Page displayed, press the

2. Turn the

FMS

knob to activate the cursor.

large FMS

knobs to highlight the name

ﬁeld

3. Turn the large and a name and press the

FMS

4. Press the

knob to remove the ﬂashing

small FMS

ENT

knobs to enter

key.

cursor.

To select a NDB by using the closest city:

1. With the NDB Information Page displayed, press the

2. Turn the

FMS

knob to activate the cursor.

large FMS

knobs to highlight the clos-

est city ﬁeld

3. Turn the large and a city and press the

FMS

4. Press the

knob to remove the ﬂashing

small FMS

ENT

knobs to enter

key.

cursor.

To select a NDB by using an Identiﬁer:

1. With the NDB Information Page displayed, press the

2. Turn the identiﬁer and press the

3. Press the

FMS

knob to activate the cursor.

FMS

knobs to enter a name for the

ENT

key.

FMS

knob to remove the ﬂashing

cursor.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-81

Page 84

WAYPOINT PAGE GROUP

NDB Information Page Options

The following NDB Information Page Options are

available by pressing the MENU key (with the NDB Information Page displayed):

• ‘View Recent NDB List’ which allows you to view the most recent NDB list.

To view the most recent NDB list:

1. Select the NDB Information Page and press

to display the NDB Information Page Options. ‘View Recent NDB List’ is highlighted.

ENT

2. Press the

key. Turn the to select an NDB from the list and press the ENTER key. The selected NDB is now the active user NDB.

small FMS

knob

Figure 8.8.11 NDB Page Menu

8-82

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 85

VOR INFORMATION PAGE

The VOR Information Page displays the following in-

formation for a selected VOR:

• Map of surrounding area

• Identiﬁer and Symbol

• Name

• Closest city

• General location

• Latitude/longitude (degrees/minutes or degrees/ minutes/seconds), MGRS or UTM/UPS

• Magnetic Variation in degrees

• Frequency in megahertz (MHz)

• Nearest airport (identiﬁer, symbol, bearing, distance)

WAYPOINT PAGE GROUP

VOR Identiﬁer

VOR Symbol

Name

VOR Type

Latitude/Longitude

VOR Symbol

Map of

Surrounding Area

Closest City

Magnetic

General Location

VOR Frequency

Nearest Airport;

identiﬁer, symbol,

bearing,distance

Figure 8.8.12 VOR Information Page

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

Variation

8-83

Page 86

WAYPOINT PAGE GROUP

VOR Information Page Operations

The VOR information page allows the following

operations:

• VOR selection by identiﬁer

• VOR selection by name

• VOR selection by closest city

The map range is adjustable by rotating the joystick. To change the map range, rotate the joystick counterclockwise to select a lower range and rotate it clockwise to select a higher range.

To select the VOR Information Page:

CLR

1. From any page, press and hold the select the Navigation Map Page. You may skip this step if you are already viewing any of the Map Group pages.

2. Turn the

large FMS

knob to select the ‘WPT’ page group. ‘WPT’ is displayed in the page group icon located in the lower right corner of the display.

key to

To select a VOR by using a Name:

1. With the VOR Information Page displayed, press the

FMS

knob to activate the cursor.

2. Turn the

large FMS

knobs to highlight the name

ﬁeld.

FMS

3. Turn the the

ENT

4. Press the

knobs to enter a name and press

key.

FMS

knob to remove the ﬂashing

cursor.

To select a VOR by using the closest city:

1. With the VOR Information Page displayed, press the

FMS

knob to activate the cursor.

2. Turn the

large FMS

knobs to highlight the clos-

est city ﬁeld

FMS

3. Turn the the

ENT

4. Press the

knobs to enter a city and press

key.

FMS

knob to remove the ﬂashing

cursor.

8-84

3. Turn the

small FMS

knob to select the VOR

Information Page.

To select a VOR by using an Identiﬁer:

1. With the VOR Information Page displayed, press the

FMS

knob to activate the cursor.

FMS

2. Turn the

knobs to enter a name for the

identiﬁer and press the ENT key.

FMS

3. Press the

knob to remove the ﬂashing

cursor.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 87

VOR Information Page Options

The following VOR Information Page Options are

available by pressing the MENU key (with the VOR Information Page displayed):

• ‘View Recent VOR List’ which allows you to view the most recent VOR list.

To view the most recent VOR list:

WAYPOINT PAGE GROUP

1. Select the VOR Information Page and press

to display the VOR Information Page Options. ‘View Recent VOR List is highlighted’.

ENT

2. Press the

key. Turn the

select a VOR from the list and press the

small FMS

knob to

ENT

key. The selected VOR is now the active user VOR.

Figure 8.8.13 VOR Page Menu

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-85

Page 88

WAYPOINT PAGE GROUP

USER WAYPOINT INFORMATION PAGE

The G1000 allows the storage of up to 1,000 userdeﬁned waypoints. The User Waypoint Information Page displays the waypoint name (up to six characters long), identiﬁer and radial from two reference waypoints, distance from one reference waypoint, along with the user waypoints latitude/longitude position.

General Location

User Waypoint Name

User Waypoint Symbol

User Comment

Latitude/Longitude

User Waypoint Name

and Symbol

8-86

Reference Waypoints

User Waypoint List

Waypoint Statistics

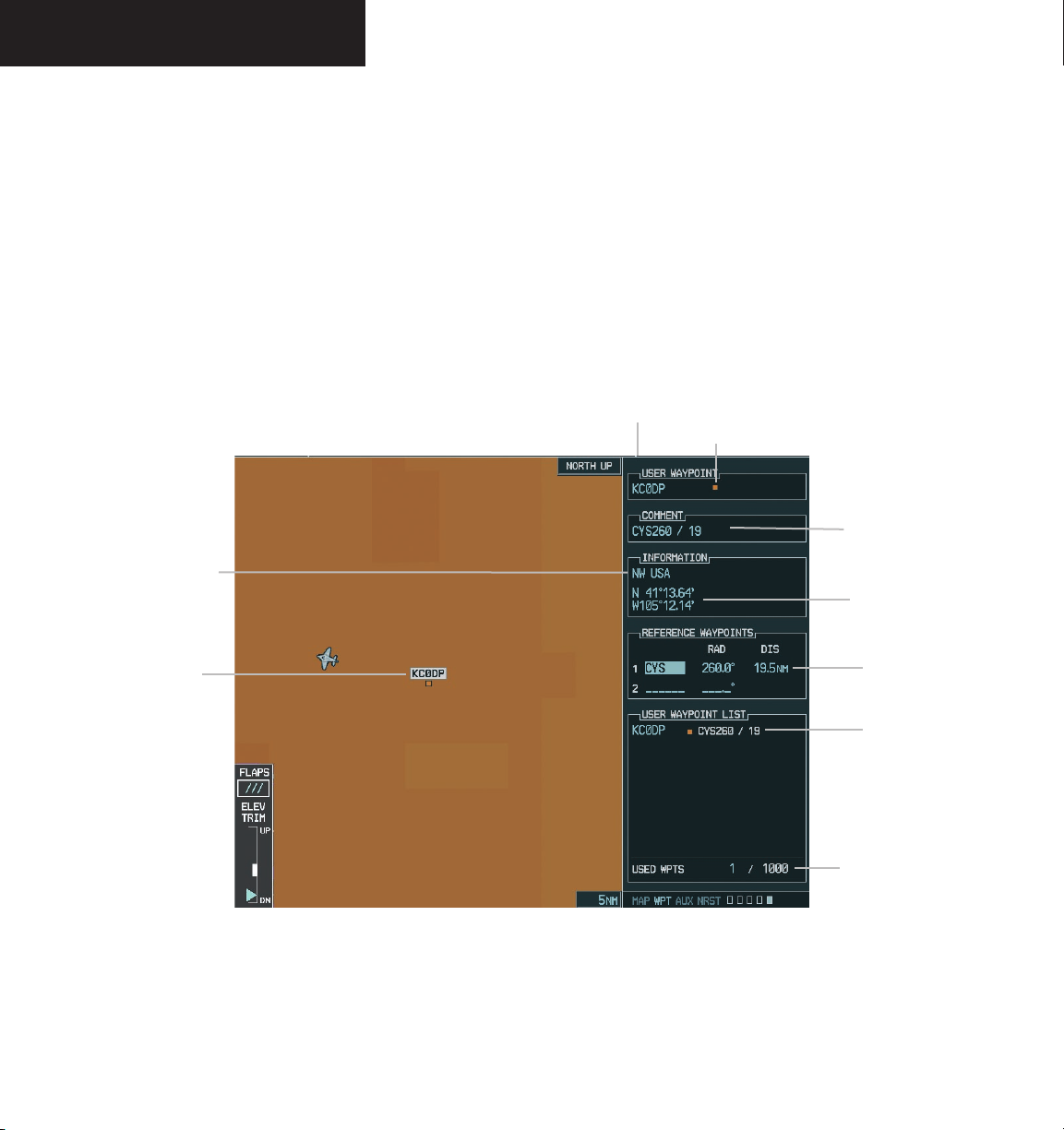

Figure 8.8.14 User Waypoint Information Page

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 89

WAYPOINT PAGE GROUP

The following data is displayed on the User Waypoint Information Page:

• Map of surrounding area

• Identiﬁer

• Comment

• General location

• Latitude/longitude

• A reference waypoint with identiﬁer, radial, and distance

• A second reference waypoint with identiﬁer and radial

• A list of all user waypoints

• Statistics of the number of user waypoint slots used and available

To select the User Waypoint Information Page:

CLR

1. From any page, press and hold the

key to

select the Navigation Map Page.

2. Turn the

large FMS

knob to select the ‘WPT’ page group. ‘WPT’ is displayed in the page group icon located in the lower right corner of the display.

User Waypoint Information Page Operations

The following operations can be performed from the

User Waypoint Information Page:

• Creating user waypoints (by current location, entered latitude/longitude position, reference waypoint speciﬁcations, or map pointer location).

• Modifying user waypoint information (by com ment, latitude/longitude position, or reference waypoint information)

• Renaming user waypoints

• Deleting user waypoints

3. Turn the

small FMS

Waypoint Information Page.

knob to select the User

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-87

Page 90

WAYPOINT PAGE GROUP

CREATING USER WAYPOINTS

User waypoints may be created from the User Waypoint Information Page or the Navigation Map Page. To create a new user waypoint from the User Waypoint Information Page, enter its name (identiﬁer) and position, or reference another waypoint by radial and distance.

To create a new user waypoint by entering its latitude/longitude position:

1. With the User Waypoint Information Page

FMS

displayed, press the cursor.

FMS

2. Turn the

knobs to enter a name for the new waypoint and press ‘Are you sure you want to create the new user waypoint’ is displayed. Press ‘YES’ to create the new waypoint. The present position is displayed in the information box. The comment in the comment box is auto-generated based on the reference waypoint usage. If the waypoint was deﬁned with two reference waypoints, then this comment would be generated based on the radials (i.e. OJC354 / ICT057).

3. Turn the

large FMS

tion ﬁeld in the information box.

FMS

4. Turn the

knobs to enter the position coor-

dinates for the new waypoint.

ENT

5. Press the

key to accept the selected posi-

tion.

FMS

6. Press the

knob to remove the ﬂashing

cursor.

knob to activate the

the

ENT

key. The message

knob to highlight the posi-

NOTE: The number of waypoints that are stored

in memory (USED WPTS) is shown at the bottom of the User Waypoint Information Page.

To create a new user waypoint by referencing an existing waypoint:

1. With the User Waypoint Information Page

FMS

displayed, press the

knob to activate the

cursor.

FMS

2. Turn the

knobs to enter a name for the new waypoint and press the ENT key. The message ‘Are you sure you want to create the new user waypoint’ is displayed. Press ‘YES’ to create the new waypoint. The ﬁrst reference waypoint (REFERENCE WAYPOINT) ﬁeld is highlighted.

FMS

3. Turn the

knobs to enter the identiﬁer of the reference waypoint. The reference waypoint can be an airport, VOR, NDB, intersection or another user waypoint. Press

ENT

to accept

the selected identiﬁer.

4. The cursor moves to the radial (RAD) ﬁeld. Turn

FMS

the

knobs to enter the radial from the reference waypoint to the new user waypoint. Press the

ENT

key to accept the selected

radial.

5. The cursor moves to the distance (DIS) ﬁeld.

FMS

Turn the

knobs to enter the distance

from the reference waypoint to the new user

ENT

waypoint. Press the

key to accept the

selected distance.

FMS

6. Press the

knob to remove the ﬂashing

cursor.

8-88

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 91

WAYPOINT PAGE GROUP

Creating User Waypoints from the Navigation Map Page

The Navigation Map Page and panning target pointer provide a quick means of saving your present position as a user-deﬁned waypoint.

To capture and save your present position as a user waypoint:

1. With the Navigation Map Page displayed, push the

joystick

The target pointer is displayed at your present position.

2. Press the tion and display the User Waypoint Information Page (only true when the pointer is not currently highlighting a waypoint).

3. Turn the name.

4. Press the name. The ﬁrst reference waypoint ﬁeld is highlighted.

to activate the panning function.

ENT

key to capture the pointers posi-

FMS

knobs to select a waypoint

ENT

key to accept the selected

7. The cursor moves to the distance (DIS) ﬁeld. Turn the

FMS

knobs to enter the distance

from the reference waypoint to the new user

ENT

waypoint. Press the

key to accept the

selected distance.

FMS

8. Press the

knob to remove the ﬂashing

cursor.

FMS

5. Turn the

knobs to enter the identiﬁer of the reference waypoint. The reference waypoint can be an airport, VOR, NDB, intersection or

ENT

another user waypoint. Press the

key to

accept the selected identiﬁer.

6. The cursor moves to the radial (RAD) ﬁeld. Turn

FMS

the

knobs to enter the radial from the reference waypoint to the new user waypoint. Press the

ENT

key to accept the selected

radial.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-89

Page 92

WAYPOINT PAGE GROUP

MODIFYING USER WAYPOINTS

To modify an existing waypoint, select that waypoint on the User Waypoint Information Page and enter the new position information directly over the old information.

To modify a user waypoint by changing its latitude/longitude position:

1. With the User Waypoint Information Page

FMS

displayed, press the cursor.

FMS

3. Turn the tion ﬁeld in the Information Box.

4. Turn the coordinates and press the the selected position.

5. Press the cursor.

knobs to enter a name for the new

large FMS

FMS

knobs to enter the new position

FMS

knob to remove the ﬂashing

knob to activate the

ENT

key. The message

knob to highlight the posi-

ENT

key to accept

To modify a user waypoint by changing reference waypoint information:

1. With the User Waypoint Information Page

FMS

displayed, press the cursor.

FMS

2. Turn the waypoint and press the ‘Are you sure you want to create the new user waypoint’ is displayed. Press ‘YES’ to create the new waypoint. The ﬁrst reference waypoint (REFERENCE WAYPOINT) ﬁeld is highlighted if you want to change the reference waypoint. Otherwise, continue turning the knob to highlight the radial (RAD) or distance (DIS) ﬁeld, as desired.

3. Turn the — if desired — of the reference waypoint. The reference waypoint can be an airport, VOR, NDB, intersection or another user waypoint. Press the ﬁer.

4. The cursor moves to the radial (RAD) ﬁeld. Use the FMS knobs to change the radial from the reference waypoint, if desired. Press accept the selected radial.

knobs to enter a name for the new

FMS

knobs to change the identiﬁer

ENT

key to accept the selected identi-

knob to activate the

ENT

key. The message

large FMS

ENT

8-90

5. The cursor moves to the distance (DIS) ﬁeld.

FMS

Turn the from the reference waypoint to the new user waypoint, if desired. Press the the selected distance.

6. Press the cursor.

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

knobs to change the distance

ENT

key to accept

FMS

knob to remove the ﬂashing

Page 93

WAYPOINT PAGE GROUP

USER WAYPOINT INFORMATION PAGE OPTIONS

The following User Waypoint Information Page

Options are available by pressing the MENU key (with the User Waypoint Information Page displayed):

• Delete All User Waypoints

• View Recent User WPT List

• Use Present Position

• Auto Comment

• Create New user Waypoint

• Delete User Waypoint

• Rename User Waypoint

‘Delete All User Waypoints’ allows you to delete all

user waypoints from memory.

To delete all user waypoints:

1. Select the User Waypoint Information Page

and press Information Page Options.

2. Turn the User Waypoints’ and press the ﬁrmation windows is displayed. Press the key to accept ‘YES’ or turn the to highlight ‘NO’ and press the

‘View Recent User WPT List’ allows you to view the

most recent user waypoint list.

To view the most recent user waypoint list:

1. Select the User Waypoint Information Page and press Information Page Options.

2. Turn the User WPT List’ and press the the the list and press the waypoint is now the active user waypoint.

large FMS

small FMS

to display the User Waypoint

large FMS

knob to select ‘Delete All

ENT

key. A con-

large FMS

ENT

to display the User Waypoint

knob to select ‘View Recent

ENT

knob to select a waypoint from

ENT

key. The selected

key.

key. Turn

ENT

knob

Figure 8.8.15 User Waypoint Page Menu

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-91

Page 94

WAYPOINT PAGE GROUP

Use ‘Present Position’ when selected will move the currently selected user waypoint to the present position of the aircraft.

NOTE: The user waypoint is set to the airplane’s

position at the time when this option was selected.

To move the currently selected user waypoint to the present position of the aircraft:

1. Select the User Waypoint Information Page

and press the

key to display the User

Waypoint Information Page options.

2. Turn the

large FMS

Position’ and press the

3. Highlight the position and press

knob to select ‘Use Present

ENT

key.

the

ENT

key.

‘Auto Comment’ when selected will overwrite the currently selected user waypoints comment with an automatically generated comment. The auto comment is in the same format as comments that are generated for user waypoints that have not speciﬁed a unique user waypoint comment. The auto comment can be one of three styles:

• REF1BRG1 / DIS1 - if the user waypoint position is deﬁned by a reference 1 waypoint radial and distance (this is generally the default case, but the default case could also be the BLANK (c) case if there are no reference waypoints near the user waypoints position)

• REF1BRG1 / REF2BRG2 - if the user waypoint position is deﬁned by a reference 1 waypoint radial and a reference 2 waypoint radial

• BLANK - if no reference waypoints are near the user waypoints position

To overwrite the currently selected user waypoints comment with an automatically generated comment:

1. Select the desired waypoint on the User

Waypoint Information Page and press to display the User Waypoint Information Page options.

2. Turn the ment’ and press the

large FMS

knob to select ‘Auto Com-

ENT

key.

8-92

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 95

WAYPOINT PAGE GROUP

Create New Waypoint allows the pilot to create a new

user waypoint.

To create a new waypoint:

1. From the User Waypoint Information Page,

press the

key to display the User Waypoint Information Page Options or press the

NEW

softkey.

2. Turn the

large FMS

New Waypoint and press the

3. Turn the

FMS

new waypoint and press the

knob to highlight Create

ENT

key.

knobs to enter a name for the

ENT

key. The message ‘Are you sure you want to create the new user waypoint’ is displayed. Press ‘YES’ to create the new waypoint. The present position is displayed in the information box. The ﬁrst reference waypoint ﬁeld is highlighted

FMS

4. Turn the

knobs to enter the identiﬁer of the reference waypoint. The reference waypoint can be an airport, VOR, NDB, intersection or another user waypoint. Press the

ENT

key to

accept the selected identiﬁer.

5. The cursor moves to the radial (RAD) ﬁeld. Turn

FMS

the

knobs to enter the radial from the reference waypoint to the new user waypoint. Press the

ENT

key to accept the selected

radial.

FMS

6. Press the

knob to remove the ﬂashing

cursor.

Delete User Waypoint allows the pilot to delete a user

waypoint.

To delete a user waypoint:

1. Select the User Waypoint Information Page

and press Information Page Options or press the

to display the User Waypoint

DELETE

softkey.

2. Turn the

large FMS

Waypoint’ and press the

knob to select ‘Delete User

ENT

key. The message ‘Would you like to delete the user waypoint’ is displayed. Press ‘YES’ to delete the waypoint.

Rename User Waypoint allows the pilot to rename a

user waypoint.

To rename a user waypoint:

1. Select the User Waypoint Information Page

and press Information Page Options or press the

to display the User Waypoint

RENAME

softkey.

2. Turn the

large FMS

User Waypoint’ and press the

knob to select ‘Rename

ENT

key. The user waypoint ﬁeld is highlighted. Turn the knobs to rename the user waypoint. Press the

ENT

key.

3. The message ‘Would you like to rename the user waypoint’ is displayed. Press ‘YES’ to rename the new user waypoint.

FMS

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-93

Page 96

WAYPOINT PAGE GROUP

This page intentionally left blank.

8-94

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 97

AUXILIARY PAGE GROUP

8.9 AUXILIARY PAGE GROUP

The Auxiliary Page Group (AUX) provides detailed trip planning information, satellite status, RAIM prediction, system settings, LRU status and database information.

The AUX Group page names are as follows:

• Trip Planning

• Utility

• GPS Status

• System Setup

• System Status

To quickly select an Aux page:

CLR

1. From any page, press and hold the select the Navigation Map Page.

2. Turn the page group.

3. Turn the AUX Page.

large FMS

small FMS

knob to select the ‘AUX’

knob to select the desired

key to

TRIP PLANNING PAGE

The Trip Planning Page calculates trip statistics, fuel statistics, and other statistics for a speciﬁed Direct-to, point-to-point, or ﬂight plan based on automatic or manual input of data.

Figure 8.9.1 Trip Planning Page

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-95

Page 98

AUXILIARY PAGE GROUP

4. For point-to-point planning, turn the to enter the identiﬁer of the from waypoint. Once the waypoints identifier is entered,

ENT

press the

key to accept the waypoint. The ﬂashing cursor moves to the ‘to’ waypoint. Again, turn the

FMS

knobs to enter the identiﬁer of the ‘to’ waypoint and press the to accept the waypoint. OR,

FMS

ENT

knobs

key

Figure 8.9.2 Trip Planning Page Menu

Trip Planning

Trip planning allows you to view desired track (DTK), distance (DIS), estimated time enroute (ETE), estimated time of arrival (ETA), and enroute safe altitude (ESA) for a Direct-to, point-to-point between two speciﬁed waypoints, or for any programmed ﬂight plan. This option also displays the sunrise/sunset times for your destination waypoint (for the selected departure date).

To perform trip planning operations:

1. Select the AUX-TRIP PLANNING page.

2. The current page mode is displayed at the top of the page: ‘AUTOMATIC’ or ‘MANUAL’.

AUTO

To change the page mode, press the

MANUAL

3. For Direct-to planning, press the

softkey.

WPTS

and verify that the from waypoint ﬁeld indicates P.POS (present position). If necessary, go to the Page Menu and select ‘Set WPT to Present Position’ to display P.POS. Press the

ENT

key and the ﬂashing cursor moves to the

‘to’ waypoint ﬁeld. Turn the

FMS

knobs to enter

the identiﬁer of the ‘to’ waypoint and press the

ENT

key to accept the waypoint. OR,

softkey

5. For ﬂight plan leg planning, press the softkey and turn the

small FMS

knob to select the desired flight plan (already stored in memory), by number. Turn the

large FMS

to highlight the ‘LEG’ ﬁeld and turn the

FMS

knob to select the desired leg of the ﬂight plan, or select ‘CUM’ to apply trip planning calculations to the entire ﬂight plan.

6. Turn the

large FMS

knob to highlight the depar-

ture time (DEP TIME) ﬁeld.

FMS

7. Turn the Press the

knobs to enter the departure time.

ENT

key when ﬁnished. (Departure time may be entered in local or UTC time, depending upon unit settings).

With all variables entered, the following information is

provided (not available at all times):

• DTK — Desired track, or desired course

• DIS — Distance

• ETE — Estimated time en route

• ESA — En-route safe altitude

• ETA — Estimated time of arrival

• Sunrise/Sunset times at the destination

FPL

knob

small

8-96

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Page 99

AUXILIARY PAGE GROUP

Fuel Planning

Using fuel ﬂow (FF) and/or fuel totalizer data, the AUX trip planning page displays current fuel conditions along the active Direct-to or ﬂight plan. You may also manually enter fuel ﬂow, ground speed (GS) and fuel on board ﬁgures for planning purposes. Fuel planning ﬁgures can be displayed for the currently active ﬂight plan and Directto, or point-to-point navigation between two speciﬁed waypoints and for any stored ﬂight plan.

To perform fuel planning operations:

1. Select the AUX-TRIP PLANNING page.

2. The current page mode is displayed at the top of the page: ‘AUTOMATIC’ or ‘MANUAL’.

AUTO

To change the page mode, press the

MANUAL

3. For Direct-to planning, press the

softkey.

WPTS

and verify that the from waypoint ﬁeld indicates P.POS (present position). Press the key and the ﬂashing cursor moves to the ‘to’ waypoint ﬁeld. Turn the

FMS

knobs to enter the identiﬁer of the ‘to’ waypoint and press the

ENT

key to accept the waypoint. OR,

4. For point-to-point fuel planning, turn the knobs to enter the identiﬁer of the ‘from’ waypoint. Once the waypoints identiﬁer is

ENT

entered, press the

key to accept the waypoint. The ﬂashing cursor moves to the to waypoint. Again, turn the

FMS

knobs to enter

the identiﬁer of the ‘to’ waypoint and press the

ENT

key to accept the waypoint. OR,

softkey

ENT

FMS

5. For ﬂight plan leg fuel planning, press the

FPL

softkey and turn the

small FMS

knob to select the desired ﬂight plan (already stored in memory), by number. Turn the

large FMS

to highlight the ‘LEG’ ﬁeld and turn the

FMS

knob to select the desired leg of the ﬂight

knob

small

plan, or select ‘CUM’ to apply fuel planning calculations to the entire ﬂight plan.

6. Turn the Press the

FMS knobs to enter the fuel ﬂow. ENT

key when ﬁnished. Note that in automatic page mode, fuel ﬂow is provided by the system.

7. The ﬂashing cursor moves to the fuel on board

FMS

ﬁeld. Turn the board. Press the

knobs to modify the fuel on

ENT

key when ﬁnished. Note that in automatic mode this is provided by the system.

8. The ﬂashing cursor moves to the calibrated

FMS

airspeed ﬁeld. Turn the calibrated airspeed. Press the

knobs to enter an

ENT

key when

ﬁnished.

With all variables entered, the following information is

provided (all of the items are not available at all times):

• Efﬁciency

• Total Endurance

• Remaining Fuel

• Remaining Endurance

• Fuel Required

• Total Range

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R190-00448-01 Rev. A

8-97

Page 100

AUXILIARY PAGE GROUP

Other Statistics

To calculate Density Altitude and True Airspeed

1. Select ‘MANUAL’ page mode by pressing the

Manual

softkey.

2. Turn the

large FMS

ALTITUDE’ ﬁeld. Turn the

knob to select the ‘IND

FMS

knobs to enter the altitude indicated on your altimeter. Press the

ENT

key when ﬁnished.

3. The ﬂashing cursor moves to the ‘PRESSURE’

FMS

ﬁeld. Turn the ric pressure (altimeter setting). Press the

knobs to enter the baromet-

ENT

key when ﬁnished.

4. The ﬂashing cursor moves to the total air tem perature (‘TAT’) ﬁeld. ‘TAT’ is the temperature, including the compressibility error heating of speed, read on the outside air temperature gauge located in the lower left corner of the PFD. Turn the ture. Press the

FMS

knobs to enter the tempera-

ENT

key when ﬁnished.

8-98

Garmin G1000 MFD Pilot’s Guide for the Mooney M20M & M20R 190-00448-01 Rev. A

Garmin G1000 MOONEY MULTIFUNCTIONDISPLAY PILOTS GUIDE M20M M20R

Specifications and Main Features

Frequently Asked Questions

User Manual

8.1 INTRODUCTION

DESCRIPTION

OPTIONAL EQUIPMENT

MFD POWER-UP

Splash Screen Information

REVERSIONARY MODE

MFD BACKLIGHTING

MFD SOFTKEYS

ELECTRONIC CHECKLISTS (OPTIONAL)

Displaying the Checklist Page

Selecting a Procedure Group

Selecting a Checklist within the Procedure Group

Selecting a Checklist Item

One-Button Access to Emergency Procedures

Exiting the Checklist Page

Removing the check mark from a checklist item

Advancing to the Next Checklist

MFD PAGE GROUPS

WORKING WITH MENUS

8.2 NAVIGATION MAP PAGE

Navigation Map Page Procedures

Changing the Map Orientation

Selecting a Map Range

Using the Auto Zoom Feature

Map Panning

Displaying Topographic Data on the Navigation Map Page

Displaying Terrain Information

Decluttering the Map

MFD Data Bar

NAVIGATION MAP SETUP

Navigation Map Page Options Menu

Restoring Defaults

Map Group Options:

Map Data

Land Data

Track Vector

Wind Vector

Nav Range Ring

Topo Data

Topo Scale

Terrain Data

Obstacle Data

Fuel Range Ring (Fuel RNG) (RSV)

Weather Group

Aviation Group Options

Land Group Options

Option 2: Measure Bearing/Distance

Option 3: Clear Stormscope Lightning

8.3 TRAFFIC MAP PAGE

TIS SYMBOLOGY

TRAFFIC MAP PAGE OPERATIONS

Power-Up Test

Changing the Map Range

Operating Mode

TIS Audio Alert

8.4 TERRAIN PROXIMITY PAGE

TERRAIN PROXIMITY PAGE OPERATIONS

DISPLAYING OBSTACLE DATA

Navigation Map Display Conditions

Obstacle Shapes

8.5 DIRECT-TO NAVIGATION

DIRECT-TO NAVIGATION OPERATIONS

Selecting a Direct-to Waypoint

Selecting a Direct-to Destination by Facility or City Name

Selecting a Direct-to Destination from the Active Flight Plan

Selecting the Nearest Airport as a Direct-to Destination

Shortcuts

Canceling Direct-to Navigation

Specifying a Course to a Waypoint

8.6 FLIGHT PLANS

ACTIVE FLIGHT PLAN PAGE

ACTIVE FLIGHT PLAN PAGE OPTIONS

Create a New Flight Plan

Activate Leg

Store Flight Plan

Invert Flight Plan
