Page 1
Draw
No.
Ed. Date Design Description
Date 16.12.09 Desig. Toufuku Check Apprv.
B-65462EN/01-01
Delete
Built-in spindle motor BiI-B series
1.Type of applied technical documents
Name
Spec.No./Ed.
FANUC BUILT-IN SPINDLE MOTOR BiI-B series DESCRIPTIONS
B-65462EN/01
2.Summary of Change
Group Name/Outline
Basic
Optional
Function
Unit
Maintenance
Parts
Built-in spindle motor BiI-B series
New, Add,
Correct,
Applicable
Add 2016.12
Date
Notice
Correction
Another
Title
Built-in spindle motor BiI-B series
FANUC CORPORATION
1/7
Page 2
Draw
No.
Ed. Date Design Description
Date 16.12.09 Desig. Toufuku Check Apprv.
B-65462EN/01-01
．
Note）
Built-in spindle motor BiI-B series
Contents
1. Summary・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・3
2. Characteristics ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・3
For contents not included in this document, please refer to the descriptions below.
BUILI-IN SPINDLE MOTOR：FANUC BUILT-IN SPINDLE MOTOR BiI-B series
DESCRIPTIONS (B-65462EN).
1
Summary
Title
Built-in spindle motor BiI-B series
FANUC CORPORATION
2/7
Page 3
Draw
No.
Ed. Date Design Description
Date 16.12.09 Desig. Toufuku Check Apprv.
B-65462EN/01-01
．

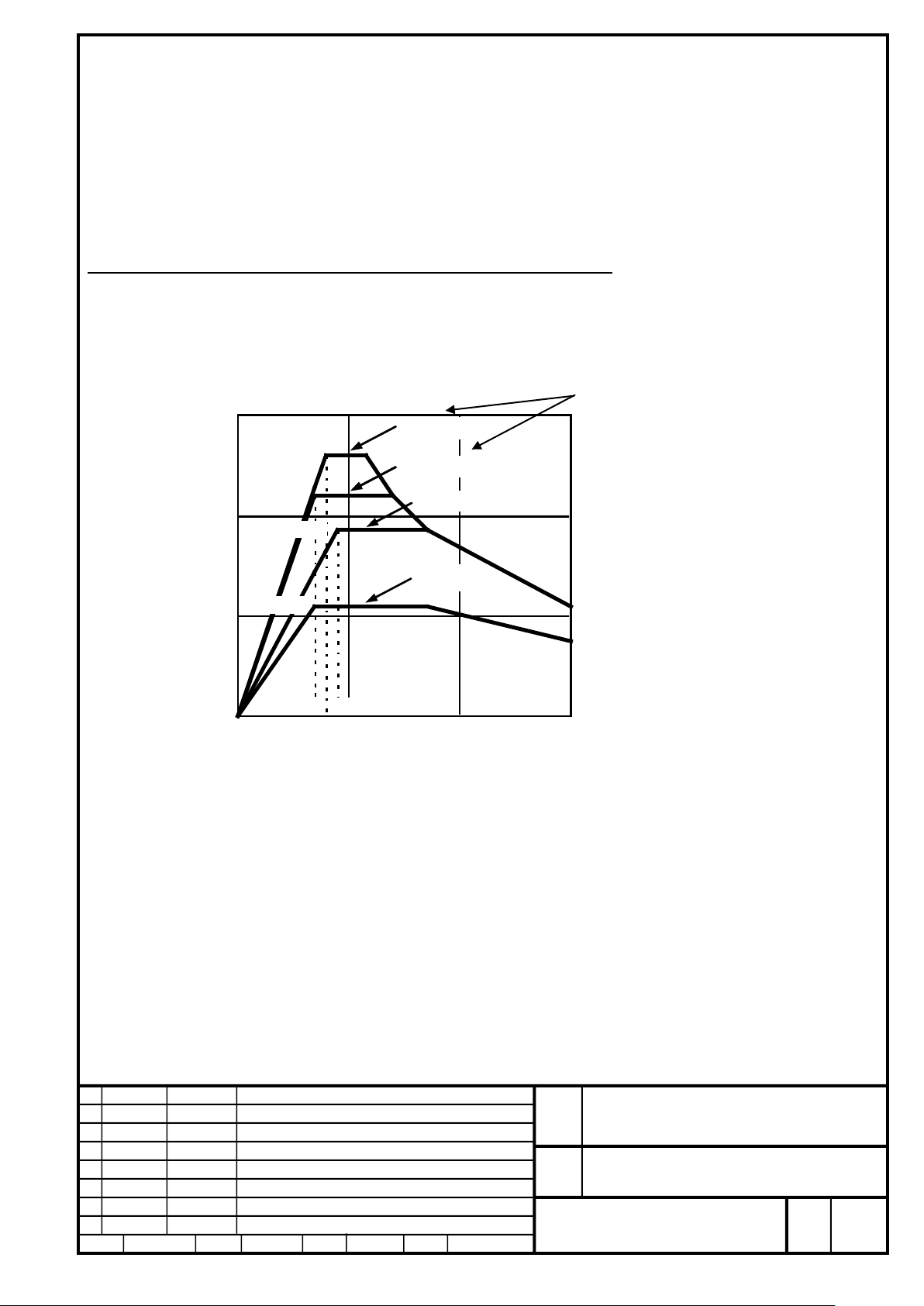

①
0
10
20
30
0 10000 20000
30000
Motor speed (min-1)
S1 Cont.
11kW
7.5kW
26kW
18.5kW
S2 10min.
9000
7000
22kW
8000
S3/S6 15%
S3/S6
25%
11kW
Rated output
(kW)
For power up models S3/S6 25%
S6 rating also defined
This document is described about the characteristics of BUILT-IN SPINDLE MOTOR BiI-B series and the
modified points from the former models.
2
Characteristics
BUILT-IN SPINDLE MOTOR BiI-B series has three new characteristics. Details are described below.
① Addition of S6 rating realized by FANUC spindle control software.
② Addition of water cooling models for enhancing continuous rated output.
③ Standardization of motor hardware specificati on (plural name plates)
Addition of S6 rating realized by FANUC spindle control software.
Formerly, FANUC only defined S3 rating, but from this model S6 rating is defined as same as the S3 rating.
European manufacturers usually define S6 rating, so it is easier to compare the specifications from FANUC.
For the differences between S6 and S3, please refer below.
Ex.) BiI 80M/30000-B (Power up model)
▪
and S3/S6 15% rating is added.
▪
Title
Built-in spindle motor BiI-B series
FANUC CORPORATION
3/7
Page 4
Draw
No.
Ed. Date Design Description
Date 16.12.09 Desig. Toufuku Check Apprv.
B-65462EN/01-01

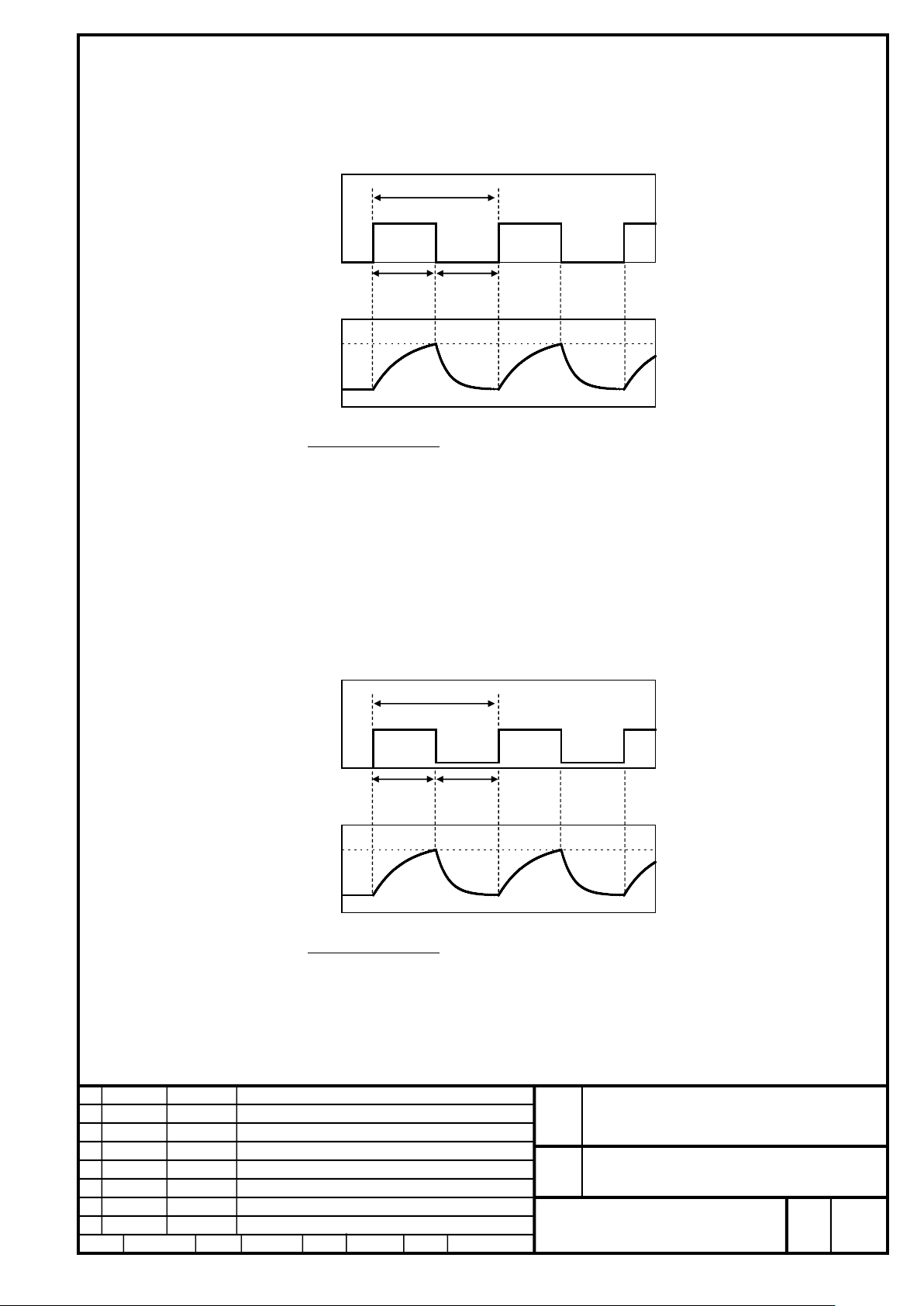

Time
Motor loss
Time
Motor temperature
Operation
time
Stopping
time
One cycle time
Achieving temperature
Operation time
One cycle time
Time
Motor loss
Time
Motor temperature
Operation
time
Idling time
One cycle time
Achieving temperature
Operation time
One cycle time
S3 % rated output: [kW]
Output that can be used for the indicated cycle ret ention percentage (%) in a single cycle.
Example) If the S3 25% rated output is 11 kW, the output of 11 kW can be used for 2 minutes and 30
seconds in a 10-minute cycle, and the output st ops for the remaining time of 7 minutes and 30
seconds.
Cycle retention percentage=
100[%]
The rated output is guaranteed at the rated power voltage (amplifier input: 200 or 400 VAC, 50/60Hz). If the
input power voltage fluctuates, the rated output may not be achieved even within the permissible range.
S6 % rated output: [kW]
Output that can be used for the indicated cycle ret ention percentage (%) in a single cycle with k eeping
rotation.
Example) If the S6 25% rated output is 11 kW, the output of 11 kW can be used for 2 minutes and 30
seconds in a 10-minute cycle, and the motor rotates with no load for the remaining time of 7 minutes and 30
seconds.
Cycle retention percentage=
The rated output is guaranteed at the rated power voltage (amplifier input: 200 or 400 VAC, 50/60Hz). If the
input power voltage fluctuates, the rated output may not be achieved even within the permissible range.
100[%]
Title
Built-in spindle motor BiI-B series
FANUC CORPORATION
4/7
Page 5
Draw
No.
Ed. Date Design Description
Date 16.12.09 Desig. Toufuku Check Apprv.
B-65462EN/01-01
②
Addition of water cooling models for enhancing continuous rated output.
With the FANUC built-in spindle motor BiI-B series, the output specification with water cooling is
corresponded. About the output specification with water cooling, please inquire FANUC sales department.
Title
Built-in spindle motor BiI-B series
FANUC CORPORATION
5/7
Page 6
Draw
No.
Ed. Date Design Description
Date 16.12.09 Desig. Toufuku Check Apprv.
B-65462EN/01-01
③
box.
Standardization of motor hardware specification (plural name plates)
For the FANUC built-in spindle mot or BiI-B series, the following two types of nameplates are provided:
Basic nameplate attached on the main motor unit and specification nameplate. The basic nameplate on the
main motor unit indicates basic information, stator number, and rotor number. The specification nameplate
indicates all short-time ratings incl uding continuous ratings that are available with the motor. When you
order the FANUC built-in spindle motor BiI-B series, you must order a specification nameplate according to
your desired output characteristics together. The machine tool builder is to attach the specification
nameplate on the power magnetics cabinet of the machi ne tool in which the relevant motor is installed.
Standardization of motor hardware reduces the specif i cations.
Introduction of specification name plat e will realize more flexible changes of the output speci fications.
Basic nameplate：Attached to motor (Same as former models)
Specification nameplate：Included i n CNC attachments(As seen on photo below).
Ordering specification number of the main motor unit
Spec. nameplate is included in a
Title
Built-in spindle motor BiI-B series
FANUC CORPORATION
6/7
Page 7
Draw
No.
Ed. Date Design Description
Date 16.12.09 Desig. Toufuku Check Apprv.
B-65462EN/01-01
The ordering specification number of the FANUC built-in s pindle motor BiI-B series adheres to the notation
below.
(About the replacement with former models, please inquire FANUC sales department)
A06B-2□□□-B□□□#□□□
Ordering specification number of a specification nameplate (When ordered with a motor)
The order specification number of a characteristic s nameplate of the FANUC built-in spindle motor BiI-B
series adheres to the notation below.
A06B-1231-K□□□#□□□
When only ordering the specification nameplate (for compensation), please use the ordering number below.
A370-1231-0□□□#□□□
*)When only ordering the specification number, the number is A370-1231-0□□□#□□□, but the number
A06B-1231-K□□□#□□□ will be printed on the specification nameplat e.
When only ordering the specification nameplate, please be sure the specification nameplate is correct
according to the motor hardware.
Title
Built-in spindle motor BiI-B series
FANUC CORPORATION
7/7
