Product OverviewProduct Overview
DCS-2210 or DCS-2230 Full HD PoE/Wireless N Cube Network Camera
Camera stand
CAT5 Ethernet cable
Power adapter
CD-ROM with User Manual and software
Package Contents
Quick Installation Guide
If any of the above items are missing, please contact your reseller.
System Requirements
• Existing 10/100 Ethernet-based network or 802.11n/g wireless network(Wireless for DCS-2230 )
• Computer with Windows 7/Vista/XP for Camera Setup Wizard
• Internet Explorer, Firefox, Opera, or other web browser for web interface (Internet Explorer
recommended for full functionality)
If any of the above items are missing, please contact your reseller.
4D-Link DCS-2210/2230 User Manual
Hardware Overview
Hardware Overview
Hardware Overview
Front
5
1
6
2
3
4
1 Status LED
2 ICR Sensor
3 Infrared LED
4 PIR
5 Camera Lens Records video of the surrounding area
6 Microphone Records audio from the surrounding area
7 WPS LED (DCS2230 only)
8
Speaker
Indicates the camera's current status
The IR-Cut Removable sensor monitors lighting conditions and switches between
color and infrared accordingly
Used to illuminate the camera's eld of view at night
Passive Infrared sensor for motion detect
WPS status indicator LED
Audio output
7
8
5D-Link DCS-2210/2230 User Manual
Hardware Overview
3
1
2
Rear
4
5
6
7
1 Ethernet
2 WPS Button (DCS-2230 only)
3 Reset
4 Power Connector
5 I/O Connector
6 Adjustment Ring Tighten or loosen the adjustment ring to adjust the camera's position
7 WPS LED (DCS2230 only)
RJ45 connector for Ethernet (DCS-2210 support PoE which can also be used to
power the camera)
Press this button, then press the WPS button on your router to set up a wireless
connection automatically
Press and hold this button for 10 seconds to reset the camera
Connects to the included DC 5 V power adapter
I/O connectors for external devices
Can be used with cable ties to attach camera to a surface
6D-Link DCS-2210/2230 User Manual
Hardware Overview
Side
1
1 Micro SD Card Slot
Local storage for storing recorded image and video
7D-Link DCS-2210/2230 User Manual
Conguration
Conguration
Conguration with Wizard
Insert the DCS-2210/DCS-2230 CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is
disabled, or if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive letter of your
CD-ROM drive.
Click Installation Wizard to begin the installation.
After clicking Setup Wizard, the window on the right will open.
Click Next to continue.
8D-Link DCS-2210/2230 User Manual
Conguration
Click Yes to accept the License Agreement.
To start the installation process, click Next.
Note: The installation may take several minutes to nish.
9D-Link DCS-2210/2230 User Manual
Conguration
Click Finish to complete the installation.
Click on the D-Link Setup Wizard SE icon that was created in your Windows Start
menu.
Start > D-Link > Setup Wizard SE
10D-Link DCS-2210/2230 User Manual
Conguration
The Setup Wizard will appear and display the MAC address and IP address of your
camera(s). If you have a DHCP server on your network, a valid IP Address will be displayed.
If your network does not use a DHCP server, the network camera's default static IP address
192.168.0.20 will be displayed.
Click the Wizard button to continue.
Enter the Admin ID and password. When logging in for the rst time, the default Admin
ID is admin with the password left blank.
Click Next, to proceed to the next page.
11D-Link DCS-2210/2230 User Manual
Conguration
Select DHCP if your camera obtains an IP address automatically when it boots up. Select
static IP if the camera will use the same IP address each time it is started.
Click Next, to proceed to the next page.
Take a moment to conrm your settings and click Restart.
12D-Link DCS-2210/2230 User Manual
Conguration
Web-based Conguration Utility
This section explains how to congure your new D-Link Network Camera using the Web-based Conguration Utility.
Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Select the camera and click the button labeled "Link" to access the web conguration.
The Setup Wizard will automatically open your web browser to the IP address of the
camera.
Alternatively, you may manually open a browser and enter the IP address of the
camera: 192.168.0.20
13D-Link DCS-2210/2230 User Manual
Conguration
Enter admin as the default username and leave the password blank.
Click OK to continue.
This section shows your camera’s live video. You can select your video prole and view or
operate the camera. For additional information about web conguration, please refer to
the user manual included on the CD-ROM or the D-Link website.
14D-Link DCS-2210/2230 User Manual
Conguration
D-ViewCam Setup Wizard
D-ViewCam software is included for the administrator to manage multiple D-Link IP
cameras remotely. You may use the software to congure all the advanced settings for
your cameras. D-ViewCam is a comprehensive management tool for IP surveillance.
Insert the CD-ROM into the CD-ROM drive. Click "Install D-ViewCam Software" from
the menu, and select "D-ViewCam" to install the VMS software.
Follow the Installation Wizard to install D-ViewCam.
Click Next to continue.
15D-Link DCS-2210/2230 User Manual
Conguration
Click Finish to complete the installation.
To start the D-ViewCam, select Start > All Programs > D-Link D-ViewCam >
Main Console.
For more detail operation of using D-ViewCam software, please refer to D-ViewCam
Manual.
16D-Link DCS-2210/2230 User Manual
Conguration
Live Video
This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your
language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Digital Input
Indicator
Motion Trigger
Indicator
Recording
Indicator
Video Prole 1
Video Prole 2
Video Prole 3
Full screen mode
Taking a Snapshot
Recording a Video Clip
This indicator will change color when a digital
input signal is detected.
This indicator will change color when a trigger
event occurs.
Note: The video motion feature for your camera
must be enabled.
When a recording is in progress, this indicator
will change color.
Set a Storage Folder
Listen/Stop Listening
Talk/Stop Talking
Start/Stop Digital Output
Control Pad
This control pad can be used to electronically pan, tilt,
and zoom within the camera's predened view area, if
one has been dened.
17D-Link DCS-2210/2230 User Manual
Conguration
Go To:
(Preset List)
SD Status:
IO Status:
PTZ Control:
ePTZ Speed:
Global View:
Language:
If any presets have been dened, selecting a preset from this list will
display it.
This option displays the status of the SD card. If no SD card has been
inserted, this screen will display the message "Card Invalid."
This option displays the status of your I/O device if a device has been
connected.
This camera uses electronic pan/tilt/zoom (ePTZ) to select and view
areas of interest in the eld of view. Please see page 30 for information
about setting the frame size and view window area.
You may select a value between 0 and 64. 0 is the slowest and 64 is
the fastest.
This window indicates the total eld of view (FOV) of the camera. The
red box indicates the visible region of interest (ROI).
You may select the interface language using this menu.
Auto Pan Starts the automatic
panning function. The
ROI will pan from back
and forth within the
FOV
Stop Stops the camera ePTZ
motion
Preset Path Starts the camera's
motion along the
predened path
18D-Link DCS-2210/2230 User Manual
Conguration
Setup
Wizard
To congure your Network Camera, click Internet Connection Setup
Wizard. Alternatively, you may click Manual Internet Connection Setup
to manually congure your Network Camera and skip to page 26.
To quickly congure your Network Camera’s motion detection settings,
click Motion Detection Setup Wizard. If you want to enter your settings
without running the wizard, click Manual Motion Detection Setup and
skip to page 34.
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure
your new D-Link Camera and connect the camera to the internet. Click
Next to continue.
Note: Select DHCP if you are unsure of which settings to choose.
Click Next to continue.
19D-Link DCS-2210/2230 User Manual
Conguration
Select Static IP if your Internet Service Provider has provided you with connection
settings, or if you wish to set a static address within your home network. Enter
the correct conguration information and click Next to continue.
If you are using PPPoE, select Enable PPPoE and enter your user name and
password, otherwise click Next to continue.
If you have a Dynamic DNS account and would like the camera to update your
IP address automatically, Select Enable DDNS and enter your host information.
Click Next to continue.
Enter a name for your camera and click Next to continue.
20D-Link DCS-2210/2230 User Manual
Conguration
Congure the correct time to ensure that all events will be triggered as
scheduled. Click Next to continue.
If you have selected DHCP, you will see a summary of your settings,
including the camera's IP address. Please write down all of this
information as you will need it in order to access your camera.
Click Apply to save your settings.
21D-Link DCS-2210/2230 User Manual
Conguration
Motion Detection Setup Wizard
This wizard will guide you through a step-by-step process to congure your camera's
motion detection functions.
Click Next to continue.
Step 1
This step will allow you to enable or disable motion detection, specify the detection
sensitivity, and adjust the camera’s ability to detect movement.
You may specify whether the camera should capture a snapshot or a video clip when
motion is detected.
Please see the Motion Detection section on page 34 for information about how to
congure motion detection.
Step 2
This step allows you to enable motion detection based on a customized schedule.
Specify the day and hours. You may also choose to always record motion.
22D-Link DCS-2210/2230 User Manual
Conguration
Step 3
This step allows you to specify how you will receive event notications from
your camera. You may choose not to receive notications, or to receive
notications via e-mail or FTP.
Please enter the relevant information for your e-mail or FTP account.
Click Next to continue.
Step 4
You have completed the Motion Detection Wizard.
Please verify your settings and click Apply to save them.
Please wait a few moments while the camera saves your settings and restarts.
23D-Link DCS-2210/2230 User Manual
Conguration
Network Setup
Use this section to congure the network connections for your camera. All relevant information must be entered accurately. After making any
changes, click the Save Settings button to save your changes.
LAN Settings:
DHCP:
Static IP Address:
IP Address:
Subnet Mask:
Default Gateway:
This section lets you congure settings for your local
area network.
Select this connection if you have a DHCP server
running on your network and would like your camera
to obtain an IP address automatically.
You may obtain a static or xed IP address and other
network information from your network administrator
for your camera. A static IP address may simplify access
to your camera in the future.
Enter the xed IP address in this eld.
This number is used to determine if the destination is in
the same subnet. The default value is 255.255.255.0.
The gateway used to forward frames to destinations in
a dierent subnet. Invalid gateway settings may cause
the failure of transmissions to a dierent subnet.
Primary DNS:
Secondary DNS:
Enable UPnP:
The primary domain name server translates names to IP
addresses.
The secondary DNS acts as a backup to the primary
DNS.
Enabling this setting allows your camera to be congured
as a UPnP device on your network.
24D-Link DCS-2210/2230 User Manual
Conguration
Enable UPnP Port Forwarding:
Enable PPPoE:
User Name / Password:
HTTP Port:
Access Name for Stream 1~3:
HTTPS Port:
RTSP Port:
Enabling this setting allows the camera to add port
forwarding entries into the router automatically on a
UPnP capable network.
Enable this setting if your network uses PPPoE.
Enter the username and password for your PPPoE
account. Re-enter your password in the Conrm
Password eld. You may obtain this information from
your ISP.
The default port number is 80.
The default name is video#.mjpg, where # is the number
of the stream.
You may use a PC with a secure browser to connect to
the HTTPS port of the camera. The default port number
is 443.
The port number that you use for RTSP streaming to
mobile devices, such as mobile phones or PDAs. The
default port number is 554. You may specify the address
of a particular stream. For instance, live1.sdp can be
accessed at rtsp://x.x.x.x/video1.sdp where the x.x.x.x
represents the ip address of your camera.
Maximum Upload/Download
Bandwidth:
Specifying the maximum download/upload bandwidth
for each socket can be useful when connecting your
device to a busy or heavily loaded network. Entering
a value of '0' indicates that the camera should not
monitor bandwidth. Specifying other values will limit
the camera's transfer speed to the specied number of
kilobytes per second.
25D-Link DCS-2210/2230 User Manual
Conguration
Wireless Setup(DCS-2230 only)
This section allows you to set up and congure the wireless settings on your camera. After making any changes, click the Save Settings button to
save your changes.
Site Survey:
SSID:
Wireless Mode:
Channel:
Authentication:
Click the Rescan button to scan for available wireless
networks. After scanning, you can use the drop-down
box to select an available wireless network. The
related information (SSID, Wireless Mode, Channel,
Authentication, Encryption) will be automatically lled
in for you.
Enter the SSID of the wireless access point you wish to
use.
Use the drop-down box to select the mode of the
wireless network you wish to connect to. Infrastructure
is normally used to connect to an access point or router.
Ad-Hoc is usually used to connect directly to another
computer.
If you are using Ad Hoc mode, select the channel of the
wireless network you wish to connect to, or select Auto.
Select the authentication you use on your wireless
network - Open, Shared, WPA-PSK, or WPA2-PSK.
Encryption:
Key:
If you use WPA-PSK or WPA2-PSK authentication, you
will need to specify whether your wireless network
uses TKIP or AES encryption. If you use Open or Shared
authentication, WEP encryption should be the setting.
If you use WEP, WPA-PSK, or WPA2-PSK authentication,
enter the Key (also known as password) used for your
wireless network.
26D-Link DCS-2210/2230 User Manual
Conguration
Dynamic DNS
DDNS (Dynamic Domain Name Server) will hold a DNS host name and synchronize the public IP address of the modem when it has been modied.
A user name and password are required when using the DDNS service. After making any changes, click the Save Settings button to save your
changes.
Enable DDNS:
Server Address:
Host Name:
User Name:
Password:
Timeout:
Status:
Select this checkbox to enable the DDNS function.
Select your Dynamic DNS provider from the pull down
menu or enter the server address manually.
Enter the host name of the DDNS server.
Enter the user name or e-mail used to connect to your
DDNS account.
Enter the password used to connect to your DDNS
server account.
Enter the DNS Timeout values you wish to use.
Indicates the connection status, which is automatically
determined by the system.
27D-Link DCS-2210/2230 User Manual
Conguration
Image Setup
In this section, you may congure the video image settings for your camera. A preview of the image will be shown in Live Video.
Enable Privacy
Mask:
Anti Flicker:
Mirror:
Flip:
Power Line:
The Privacy Mask setting allows you to specify up to 3 rectangular areas
on the camera's image to be blocked/excluded from recordings and
snapshots.
You may click and drag the mouse cursor over the camera image to draw
a mask area.Right clicking on the camera image brings up the following
menu options:
Disable All: Disables all mask areas
Enable All: Enables all mask areas
Reset All: Clears all mask areas.
If the video ickers, try enabling this setting.
This will mirror the image horizontally.
This will ip the image vertically. When turning Flip on, you may want to
consider turning Mirror on as well.
Select the frequency used by your power lines to avoid interference or
distortion.
White Balance:
Exposure Mode:
Denoise:
Brightness:
Use the drop-down box to change white balance settings to help balance colors for dierent environments. You can choose
from Auto, Outdoor, Indoor, Fluorescent, and Push Hold.
Changes the exposure mode. Use the drop-down box to set the camera for Indoor, Outdoor, or Night environments, or to
Moving to capture moving objects. The Low Noise option will focus on creating a high-quality picture without noise. You can
also create 3 dierent custom exposure modes. The Max Gain setting will allow you to control the maximum amount of gain to
apply to brighten the picture.
This setting controls the amount of noise reduction that will be applied to the picture.
Adjust this setting to compensate for backlit subjects.
28D-Link DCS-2210/2230 User Manual
Conguration
Contrast:
Saturation:
Sharpness:
Reset Default:
Adjust this setting to alter the color intensity/strength.
This setting controls the amount of coloration, from grayscale to fully saturated.
Specify a value from 0 to 8 to specify how much sharpening to apply to the image.
Click this button to reset the image to factory default settings.
29D-Link DCS-2210/2230 User Manual
Conguration
Audio and Video
You may congure up to 3 video proles with dierent settings for your camera. Hence, you may set up dierent proles for your computer
and mobile display. In addition, you may also congure the two-way audio settings for your camera. After making any changes, click the Save
Settings button to save your changes.
Number of active proles:
Aspect ratio:
Mode:
Frame size / View window area:
You can use the drop-down box to set up to 3 active
proles.
Set the aspect ratio of the video to 4:3 standard or
16:9 widescreen.
Set the video codec to be used to JPEG, MPEG-4, or
H.264.
Frame size determines the total capture resolution,
and View window area determines the Live Video
viewing window size. If the Frame size is larger than
the Live Video size, you can use the ePTZ controls to
look around.
16:9 1920x1080, 1280x720, 800x450,
640x360, 480x270, 320x176, 176x144
4:3 1024x768, 800x600, 640x480, 480x 360,
320x240, 176x144
Maximum frame rate:
Note: If your View window area is the same as your
Frame size, you will not be able to use the ePTZ
function.
A higher frame rate provides smoother motion for
videos, and requires more bandwidth. Lower frame
rates will result in stuttering motion, and requires
less bandwidth.
30D-Link DCS-2210/2230 User Manual
Conguration
Video Quality:
Constant bit rate:
Fixed quality:
Audio in o:
Audio in gain level:
Audio out o:
This limits the maximum frame rate, which can be
combined with the "Fixed quality" option to optimize
the bandwidth utilization and video quality. If xed
bandwidth utilization is desired regardless of the
video quality, choose "Constant bit rate" and select
the desired bandwidth.
The bps will aect the bit rate of the video recorded
by the camera. Higher bit rates result in higher video
quality.
Select the image quality level for the camera to try to
maintain. High quality levels will result in increased
bit rates.
Selecting this checkbox will mute incoming audio.
This setting controls the amount of gain applied to
incoming audio to increase its volume.
Selecting this checkbox will mute outgoing audio.
Audio out volume level:
This setting controls the amount of gain applied to
outgoing audio to increase its volume.
31D-Link DCS-2210/2230 User Manual
Conguration
Preset
This screen allows you to set preset points for the ePTZ function of the camera, which allows you to look around the camera's viewable area by
using a zoomed view. Presets allow you to quickly go to and view a specic part of the area your camera is covering, and you can create preset
sequences, which will automatically change the camera's view between the dierent presets according to a dened order and timing you can set.
Note: If your View window area is the same as your Frame size, you will not be able to use the ePTZ function. For more details, refer to "Audio and
Video" on page 30.
Video Prole:
ePTZ Speed:
Arrow Buttons and Home Button:
Input Preset Name:
Preset List:
This selects which video prole to use. For more
information, refer to "Audio and Video" on page 30.
You may select a value between 0 and 64. 0 is the
slowest and 64 is the fastest.
Use these buttons to move to a specic part of the
viewing area, which you can then set as a preset.
Click the Home button to return to the center of the
viewing area.
Enter the name of the preset you want to create,
then click the Add button to make a new preset. If an
existing preset has been selected from the Preset List,
you can change its name by typing in a new name,
then clicking the Rename button.
Click this drop-down box to see a list of all the presets
that have been created. You can select one, then click
the GoTo button to change the displayed camera view
to the preset. Clicking the Remove button will delete
the currently selected preset.
32D-Link DCS-2210/2230 User Manual
Conguration
Preset Sequence:
Preset List:
This section allows you to create a preset sequence,
which automatically moves the camera's view between
a set of preset views.
To add a preset to the sequence, select it from the dropdown box at the bottom of this window, set the Dwell
time to determine how long the camera view will stay at
that preset, then click the Add button. The preset name
will appear in the list, followed by the dwell time to view
that preset for.
You can rearrange your presets in the sequence by
selecting a preset in the sequence, then clicking the
arrow buttons to move it higher or lower in the current
sequence.
Clicking the trash can button will remove the currently
selected preset from the sequence.
If you want to change the dwell time for a preset, select
it from the list, enter a new dwell time, then click the
Update button.
33D-Link DCS-2210/2230 User Manual
Conguration
Motion Detection
Enabling Video Motion will allow your camera to use the motion detection feature. You may draw a nite motion area that will be used for
monitoring. After making any changes, click the Save Settings button to save your changes.
Enable Video Motion:
Sensitivity:
Percentage:
Draw Motion Area:
Erase Motion Area:
Select this box to enable the motion detection feature
of your camera.
Species the measurable dierence between two
sequential images that would indicate motion. Please
enter a value between 0 and 100.
Species the amount of motion in the window being
monitored that is required to initiate an alert. If this is set
to 100%, motion is detected within the whole window
will trigger a snapshot.
Draw the motion detection area by dragging your mouse
in the window (indicated by the red square).
To erase a motion detection area, simply click on the red
square that you wish to remove.
Right clicking on the camera image brings up the
following menu options:
Select All: Draws a motion detection area over the
entire screen.
Clear All: Clears any motion detection areas that have
been drawn.
Restore: Restores the previously specied motion
detection areas.
34D-Link DCS-2210/2230 User Manual
Conguration
Time and Date
This section allows you to automatically or manually congure, update, and maintain the internal system clock for your camera. After making any
changes, click the Save Settings button to save your changes.
Time Zone:
Enable Daylight Saving:
Auto Daylight Saving:
Set Date and Time Manually:
Oset:
Synchronize with NTP Server:
NTP Server:
Set the Date and Time Manually:
Select your time zone from the drop-down menu.
Select this to enable Daylight Saving Time.
Select this option to allow your camera to congure
the Daylight Saving settings automatically.
Selecting this option allows you to congure the
Daylight Saving date and time manually.
Sets the amount of time to be added or removed
when Daylight Saving is enabled.
Enable this feature to obtain time automatically
from an NTP server.
Network Time Protocol (NTP) synchronizes the
DCS-2230 with an Internet time server. Choose the
one that is closest to your location.
This option allows you to set the time and date
manually.
Copy Your Computer's Time
Settings:
This will synchronize the time information from
your PC.
35D-Link DCS-2210/2230 User Manual
Conguration
Event Setup
The Event Setup page includes 4 dierent sections.
• Event
• Server
• Media
• Recording
1. To add a new item - "event, server or media," click Add. A screen will appear and allow you
to update the elds accordingly.
2. To delete the selected item from the pull-down menu of event, server or media, click Delete.
3. Click on the item name to pop up a window for modifying.
Note: You can add up to four events, ve servers, and ve media elds.
36D-Link DCS-2210/2230 User Manual
Conguration
ex.
Motion detection,
Periodically, Digital input,
System reboot
Event Condition
ex.
Snapshot, Video Clips
ex.
Email, FTP
Media
(what to send)
Server
(where to send)
Action
Application
In a typical application, when motion is detected, the DCS-2230 Network Camera sends images to a FTP server or via e-mail as notications. As
shown in the illustration below, an event can be triggered by many sources, such as motion detection or external digital input devices. When an
event is triggered, a specied action will be performed. You can congure the Network Camera to send snapshots or videos to your e-mail address
or FTP site.
To start plotting an event, it is suggested to congure server and media columns rst so that the Network Camera will know what action shall be
performed when a trigger is activated.
37D-Link DCS-2210/2230 User Manual
Conguration
Add Server
You can congure up to 5 servers to save snapshots and/or video to. After making any changes, click the Save Settings button to save your changes.
Server Name:
E-mail:
FTP:
Network Storage:
SD Card:
Enter the unique name of your server.
Enter the conguration for the target e-mail server
account.
Enter the conguration for the target FTP server account.
Specify a network storage device. Only one network
storage device is supported.
Use the camera's onboard SD card storage.
38D-Link DCS-2210/2230 User Manual
Conguration

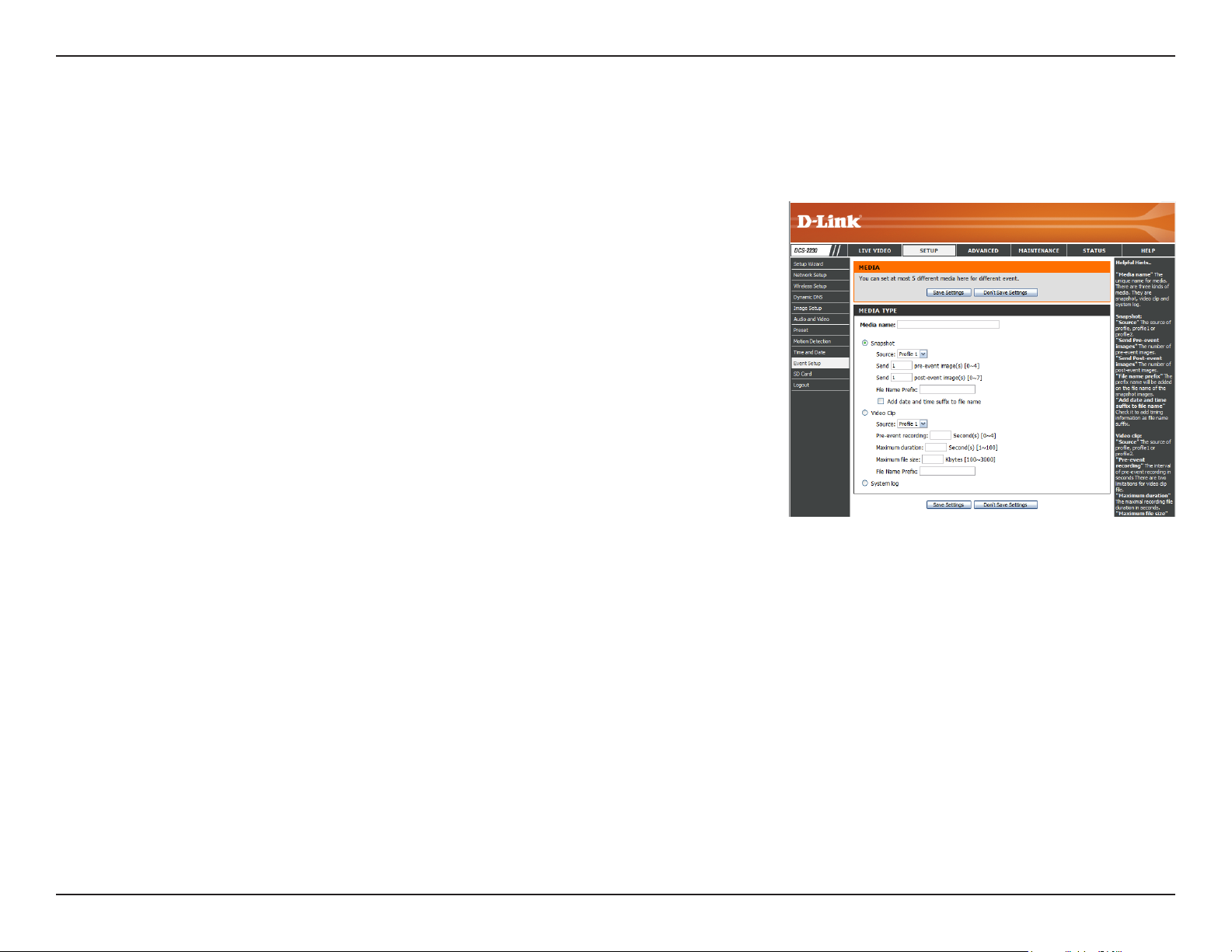

Add Media
There are three types of media, Snapshot, Video Clip, and System Log. After making any changes, click the Save Settings button to save your
changes.
Media Name:
Snapshot:
Source:
Send pre-event image(s) [0~4]:
Send post-event image(s) [0~7]:
File name prex:
Add date and time sux to le
name:
Enter a unique name for media type you want to create.
Select this option to set the media type to snapshots.
Set the video prole to use as the media source. Refer to
Audio and Video on page 30 for more information on
video proles.
Set the number of pre-event images to take. Pre-event
images are images taken before the main event snapshot
is taken.
Set the number of post-event images to take. Post-event
images are images taken after the main event snapshot
is taken. You can set up to 7 post-event images to be
taken.
The prex name will be added on the le name.
Check it to add timing information as le name sux.
39D-Link DCS-2210/2230 User Manual
Conguration
Video clip:
Source:
Pre-event recording:
Maximum duration:
Maximum le size:
File name prex:
System log:
Select this option to set the media type to video clips.
Set the video prole to use as the media source. Refer to
"Audio and Video" on page 30 for more information on
video proles.
This sets how many seconds to record before the main
event video clip starts. You can record up to 4 seconds of
pre-event video.
Set the maximum length of video to record for your
video clips.
Set the maximum le size to record for your video clips.
This is the prex that will be added to the lename of
saved video clips.
Select this option to set the media type to system logs.
This will save the event to the camera system log, but
will not record any snapshots or video.
40D-Link DCS-2210/2230 User Manual
Conguration

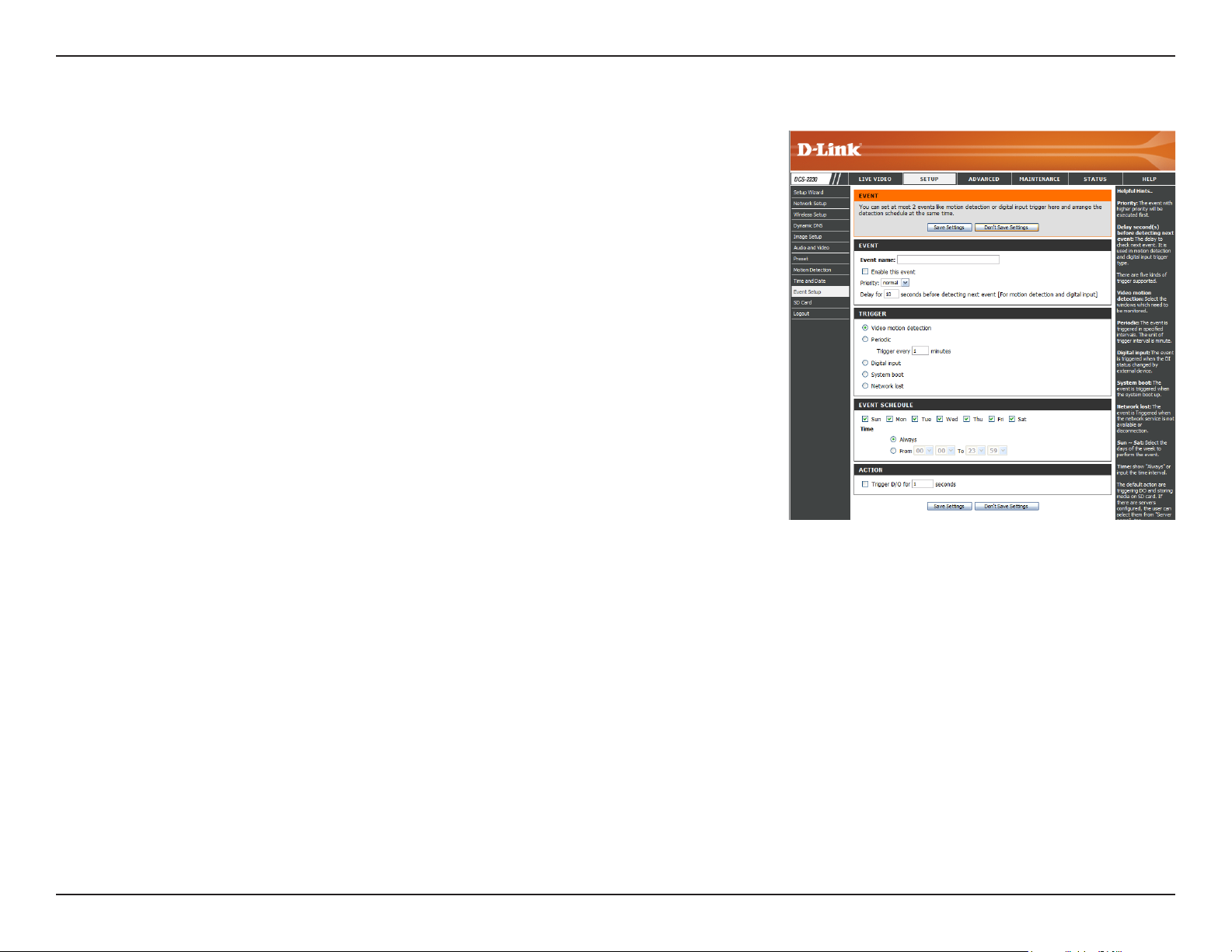

Add Event
Create and schedule up to 3 events with their own settings here. After making any changes, click the Save Settings button to save your changes.
Event name:
Enable this event:
Priority:
Delay:
Trigger:
Video Motion Detection:
Periodic:
Digital input:
Enter a name for the event.
Select this box to activate this event.
Set the priority for this event. The event with higher
priority will be executed rst.
Select the delay time before checking the next event. It
is being used for both events of motion detection and
digital input trigger.
Specify the input type that triggers the event.
Motion is detected during live video monitoring. Select
the windows that need to be monitored.
The event is triggered in specied intervals. The trigger
interval unit is in minutes.
The external trigger input to the camera.
System Boot:
Network Lost:
Passive Infrared:
Triggers an event when the system boots up.
Triggers an event when the network connection is lost.
Triggers an event when the PIR sensor is activated by
moving infrared objects even in dark environment.
41D-Link DCS-2210/2230 User Manual
Conguration
Time:
Trigger D/O:
Server:
Select Always or enter the time interval.
Select to trigger the digital output for a specic number
of seconds when an event occurs.
Specify the location where the event information should
be saved to.
42D-Link DCS-2210/2230 User Manual
Conguration
Add Recording
Here you can congure and schedule the recording settings. After making any changes, click the Save Settings button to save your changes.
Recording entry name:
Enable this recording:
Priority:
Source:
Recording schedule:
Recording settings:
Destination:
Total cycling recording size:
The unique name of the entry.
Select this to enable the recording function.
Set the priority for this entry. The entry with a higher
priority value will be executed rst.
The source of the stream.
Scheduling the recording entry.
Conguring the setting for the recording.
Select the folder where the recording le will be stored.
Please input a HDD volume between 1MB and 200GB for
recording space. The recording data will replace the oldest
record when the total recording size exceeds this value. For
example, if each recording le is 6MB, and the total cyclic
recording size is 600MB, then the camera will record 100
les in the specied location (folder) and then will delete
the oldest le and create new le for cyclic recording.
Please note that if the free HDD space is not enough,
the recording will stop. Before you set up this option
please make sure your HDD has enough space, and
it is better to not save other les in the same folder as
recording les.
43D-Link DCS-2210/2230 User Manual
Conguration
Size of each le for recording:
File Name Prex:
File size for each recording le. You may input the value
in the range of 200-5000.
The prex name will be added on the le name of the
recording le(s).
44D-Link DCS-2210/2230 User Manual
Conguration
SD Card
Here you may browse and manage the recorded les which are stored on the SD card.
Format SD Card:
View Recorded Picture:
Playback Recorded Video:
Refresh:
Click this icon to automatically format the SD card and
create "picture" & "video" folders.
If the picture les are stored on the SD card, click on the
picture folder and choose the picture le you would like
to view.
If video les are stored on the SD card, click on the video
folder and choose the video le you would like to view.
Reloads the le and folder information from the SD card.
45D-Link DCS-2210/2230 User Manual
Conguration
Advanced
Digital Input/Output
This screen allows you to control the behavior of digital input and digital output devices. The I/O connector provides the physical interface for
digital output (DO) and digital input (DI) that is used for connecting a variety of external alarm devices such as IR-Sensors and alarm relays. The
digital input is used for connecting external alarm devices and once triggered images will be taken and e-mailed. After making any changes, click
the Save Settings button to save your changes.
Select D/I or D/O Mode:
LED:
The camera will send a signal when an event is
triggered, depending upon the type of device connected
to the DI circuit.
N.C. stands for Normally Closed. This means that the
normal state of the circuit is closed. Therefore events are
triggered when the device status changes to "Open."
N.O. stands for Normally Open. This means that the
normal state of the circuit is open. Therefore events are
triggered when the device status changes to "Closed."
You may specify whether or not to illuminate the LED on
the side of the camera.
46D-Link DCS-2210/2230 User Manual
Conguration
ICR and IR
Here you can congure the ICR and IR settings. An IR(Infrared) Cut-Removable(ICR) lter can be disengaged for increased sensitivity in low light
environments.
Automatic:
Day Mode:
Night Mode:
Schedule Mode:
IR Light Control:
O:
On:
The Day/Night mode is set automatically. Generally, the
camera uses Day mode and switches to Night mode
when needed.
Day mode enables the IR Cut Filter.
Night mode disables the IR Cut Filter.
Set up the Day/Night mode using a schedule. The
camera will enter Day mode at the starting time and
return to Night mode at the ending time.
The camera can enable or disable the IR (infrared) light
according to your preferences. This setting provides
additional controls depending on your specic
application.
The IR light will always be o.
The IR light will always be on.
Sync:
Schedule:
The IR light will turn on when the ICR sensor is on.
The IR light will turn on or o according to the schedule that you specify below.
47D-Link DCS-2210/2230 User Manual
Conguration
HTTPS
This page allows you to install and activate an HTTPS certicate for secure access to your camera. After making any changes, click the Save Settings
button to save your changes.
Enable HTTPS Secure Connection:
Create Certicate Method:
Status:
Note:
Enable the HTTPS service.
Choose the way the certicate should be created. Three
options are available:
Create a self-signed certicate automatically
Create a self-signed certicate manually
Create a certicate request and install
Displays the status of the certicate.
The certicate cannot be removed while the HTTPS is
still enabled. To remove the certicate, you must rst
uncheck Enable HTTPS secure connection.
48D-Link DCS-2210/2230 User Manual
Conguration
Access List
Here you can set access permissions for users to view your DCS-2210/2230.
Allow list:
Start IP address:
End IP address:
Delete allow list:
Deny list:
Delete deny list:
The list of IP addresses that have the access right to the
camera.
The starting IP Address of the devices (such as a
computer) that have permission to access the video of
the camera. Click Add to save the changes made.
Note: A total of seven lists can be congured for both
columns.
The ending IP Address of the devices (such as a computer)
that have permission to access the video of the camera.
Remove the customized setting from the Allow List.
The list of IP addresses that have no access rights to the
camera.
Remove the customized setting from the Delete List.
For example:
When the range of the Allowed List is set from 1.1.1.0
to 192.255.255.255 and the range of the Denied List is
set from 1.1.1.0 to 170.255.255.255. Only users with IPs
located between 171.0.0.0 and 192.255.255.255 can
access the Network Camera.
Alowed
List
Denied
List
49D-Link DCS-2210/2230 User Manual
Conguration
Maintenance
Device Management
You may modify the name and administrator’s password of your camera, as well as add and manage the user accounts for accessing the camera.
You may also use this section to create a unique name and congure the OSD settings for your camera.
Admin Password Setting:
Add User Account:
User Name:
Password:
User List:
Camera Name:
Enable OSD:
Label:
Set a new password for the administrator’s account.
Add new user account.
The user name for the new account.
The password for the new account.
All the existing user accounts will be displayed here.
You may delete accounts included in the list, but please
reserve at least one as guest.
Create a unique name for your camera that will be added
to the le name prex when creating a snapshot or a
video clip.
Select this option to enable the On-Screen Display
feature for your camera.
Enter a label for the camera.
Show Time:
Select this option to enable the time-stamp display on
the video screen.
50D-Link DCS-2210/2230 User Manual
Conguration

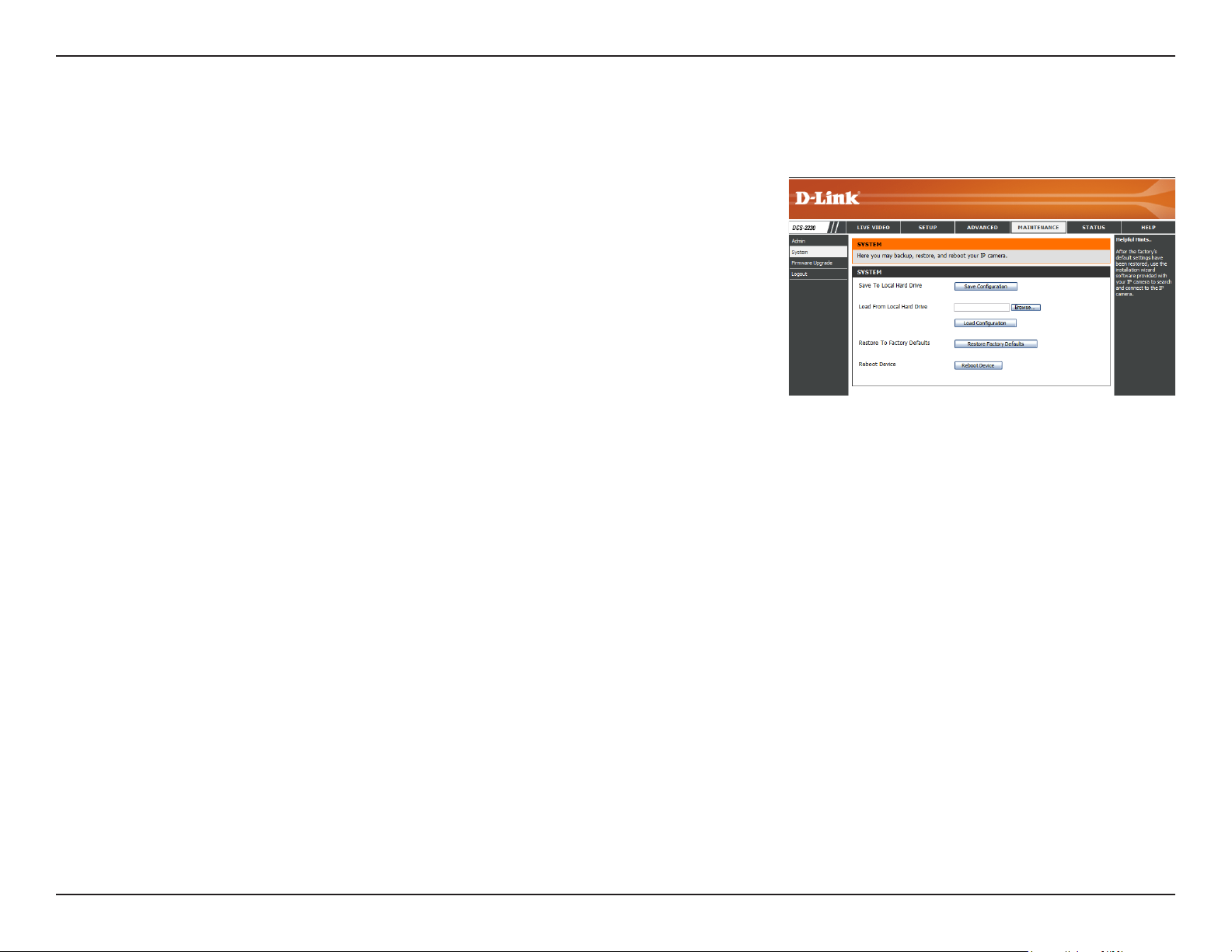

Backup and Restore
In this section, you may backup, restore and reset the camera conguration, or reboot the camera.
Save To Local Hard Drive:
Local From Local Hard Drive:
Restore to Factory Default:
Reboot Device:
You may save and document your current settings into
your computer.
Locate a pre-saved conguration by clicking Browse and
then restore the pre-dened settings to your camera by
clicking Load Conguration.
You may reset your camera and restore the factory
settings by clicking Restore Factory Defaults.
This will restart your camera.
51D-Link DCS-2210/2230 User Manual
Conguration
Firmware Upgrade
The camera's current rmware version will be displayed on this screen. You may visit the D-Link Support Website to check for the latest available
rmware version.
To upgrade the rmware on your DCS-2210/2230, please download and save the latest rmware version from the D-Link Support Page to your
local hard drive. Locate the le on your local hard drive by clicking the Browse button. Select the le and click the Upload button to start upgrading
the rmware.
Current Firmware Version:
Current Product Name:
File Path:
Upload:
Displays the detected rmware version.
Displays the camera model name.
Locate the le (upgraded rmware) on your hard drive
by clicking Browse.
Uploads the new rmware to your camera.
52D-Link DCS-2210/2230 User Manual
Conguration
Status
Device Info
This page displays detailed information about your device and network connection.
53D-Link DCS-2210/2230 User Manual
Conguration
Logs
This page displays the log information of your camera. You may download the information by clicking Download. You may also click Clear to delete
the saved log information.
54D-Link DCS-2210/2230 User Manual
Conguration
This page provides helpful information regarding camera operation.
Help
55D-Link DCS-2210/2230 User Manual
Appendix
Appendix
DI/DO Input Specications
Pin 1 Pin 4
Pin 3Pin 2
DC Power 5V
N.C / N.O
PIN FUNCTION
NOTE
1 Digital Out (DO) Uses an open-drain NFET transistor with the source connected to GND in camera. If used
with an external relay, a diode must be connected in parallel with the load for protection
against voltage transients. Max loading is 100 mA.
2 Digital In (DI) A switch from DI to DC 5 V, activated by setting NO. or NC.
3 DC5V OUTPUT DC 5 V Output / Max. 100 mA
4 GND GND
Internal 5V Power External 3~12V Power
100 mA
DND
5V
DI
DO
Reed switch
Diode
DC Power 5V
N.C / N.O
R
100 mA
DND
5V
DI
DO
DC Power 3V~12V
Reed switch
R
Diode
ALARM
ALARM
56D-Link DCS-2210/2230 User Manual
Appendix
Technical Specications
Camera Camera Hardware
Prole
Image Features ¨ Congurable image size, quality, frame rate, and bit rate
Video Compression ¨ Simultaneous H.264/MPEG-4/MJPEG format compression
Video Resolution 16:9 - 1920 x 1080 (up to 15 fps), 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps
Audio Support G.726
External Device
Interface
Network Network Protocols
Security
¨ 1/2.7” 2 Megapixel progressive CMOS sensor
¨ IR illumination distance: 5 m
¨ Minimum illumination 0 lux with IR illumination
¨ Built-in Infrared-Cut Removable (ICR)
¨ lter module
¨ Built-in PIR sensor
¨ Built-in microphone and speaker
¨ 10x digital zoom
¨ Fixed length 4.37 mm
¨ Time stamp and text overlays
¨ Congurable motion detection windows
¨ JPEG for still image
¨ H.264/MPEG-4 multicast streaming
4:3 - 1440 x 1080 (up to 15 fps), 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 up to 30 fps
¨ 1 DI / 1 DO
¨ Micro SD card slot
IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS,
Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP ltering, 3GPP, IGMP, ONVIF Compliant
¨ Administrator and user group protection
¨ Password authentication
¨ Aperture F2.0
¨ Angle of view:
(H) 67.4°
(V) 40.8°
(D) 75°
¨ 3 congurable privacy mask zones
¨ Congurable shutter speed, brightness, saturation, contrast,
and sharpness
¨ HTTP and RTSP digest encryption
57D-Link DCS-2210/2230 User Manual
Appendix
Technical Specications
System
Management
General Power Input 5 V DC 1.2 A, 50/60 Hz, PoE ( DCS-2210 only )
System
Requirements for
Web Interface
Event Management ¨ Motion detection
Remote
Management
Mobile Support Windows 7/Vista/XP system, Pocket PC, or mobile phone with 3GPP playback support
D-ViewCam™ System
Requirements
D-ViewCam™
Software Functions
Max. Power
Consumption
Operating
Temperature
Storage
Temperature
¨ Operating System: Microsoft Windows 7/Vista/XP/2000
¨ Browser: Internet Explorer, Firefox, Netscape, Opera
¨ Event notication and upload snapshots/video clips via HTTP,
SMTP, or FTP
¨ Conguration accessible via web browser
¨ Take snapshots/video clips and save to local hard drive or NAS via web browser
¨ Operating System: Microsoft Windows 7/Vista/XP
¨ Web Browser: Internet Explorer 6 or higher
¨ Remote management/control of up to 32 cameras
¨ Viewing of up to 32 cameras on one screen
DCS-2210: 3.5 watts
DCS-2230: 4 watts
0 to 40 ˚C (32 to 104 ˚F)
-20 to 70 °C (-4 to 158 °F)
¨ Supports multiple HTTP, SMTP, and FTP servers
¨ Multiple event notications
¨ Multiple recording methods for easy backup
¨ Protocol: Standard TCP/IP
¨ Supports all management functions provided in web interface
¨ Scheduled motion triggered, or manual recording options
Humidity 20% to 80% non-condensing
Weight
Certications CE, CE LVD, FCC(Class B), C-Tick
* This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
DCS-2210: 80 g
DCS-2230: 75 g
58D-Link DCS-2210/2230 User Manual
Appendix
DCS-2210/2230
Dimensions
82.3
97
38.7
95
128.6
58
82
59D-Link DCS-2210/2230 User Manual
Contacting Technical Support
Contacting Technical Support
Contacting Technical Support
U.S. and Canadian customers can contact D-Link technical support through our web site or by phone.
Before you contact technical support, please have the following ready:
• Model number of the product (e.g. DCS-2210/2230)
• Hardware Revision (located on the label on the bottom of the Network Camera (e.g. rev A1))
• Serial Number (s/n number located on the label on the bottom of the Network Camera).
You can nd software updates and user documentation on the D-Link website as well as frequently asked questions and
answers to technical issues.
For customers within the United States:
Phone Support:
(877) 354-6555
Internet Support:
http://support.dlink.com
For customers within Canada:
Phone Support:
(800) 354-6560
Internet Support:
http://support.dlink.ca
60D-Link DCS-2210/2230 User Manual
Warranty
Warranty
Warranty
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited Warranty:
• Only to the person or entity that originally purchased the product from D-Link or its authorized reseller or distributor, and
• Only for products purchased and delivered within the fty states of the United States, the District of Columbia, U.S. Possessions
or Protectorates, U.S. Military Installations, or addresses with an APO or FPO.
Limited Warranty:
D-Link warrants that the hardware portion of the D-Link product described below (“Hardware”) will be free from material defects in workmanship
and materials under normal use from the date of original retail purchase of the product, for the period set forth below (“Warranty Period”), except
as otherwise stated herein.
• Hardware (excluding power supplies and fans): One (1) year
• Power supplies and fans: One (1) year
• Spare parts and spare kits: Ninety (90) days
The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at
D-Link’s option, to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund the actual
purchase price paid. Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Oce. The replacement hardware
need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any
reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.
Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety (90) days, whichever is longer,
and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if D-Link determines that it is not practical
to repair or replace the defective Hardware, the actual price paid by the original purchaser for the defective Hardware will be refunded by D-Link
upon return to D-Link of the defective Hardware. All Hardware or part thereof that is replaced by D-Link, or for which the purchase price is refunded,
shall become the property of D-Link upon replacement or refund.
61D-Link DCS-2210/2230 User Manual
Warranty
Limited Software Warranty:
D-Link warrants that the software portion of the product (“Software”) will substantially conform to D-Link’s then current functional specications
for the Software, as set forth in the applicable documentation, from the date of original retail purchase of the Software for a period of ninety (90)
days (“Software Warranty Period”), provided that the Software is properly installed on approved hardware and operated as contemplated in its
documentation. D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will
be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty
will be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s
functional specications for the Software or to refund the portion of the actual purchase price paid that is attributable to the Software. Except as
otherwise agreed by DLink in writing, the replacement Software is provided only to the original licensee, and is subject to the terms and conditions
of the license granted by D-Link for the Software. Replacement Software will be warranted for the remainder of the original Warranty Period and is
subject to the same limitations and exclusions. If a material non-conformance is incapable of correction, or if D-Link determines in its sole discretion
that it is not practical to replace the non-conforming Software, the price paid by the original licensee for the non-conforming Software will be
refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is rst returned to D-Link. The license granted respecting
any Software for which a refund is given automatically terminates.
Non-Applicability of Warranty:
The Limited Warranty provided hereunder for Hardware and Software portions of D-Link’s products will not be applied to and does not cover any
refurbished product and any product purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers, or
the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case, the product is being sold “As-Is” without any
warranty whatsoever including, without limitation, the Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.
Submitting A Claim:
The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired and the
product is within warranty, the customer shall submit a claim to D-Link as outlined below:
• The customer must submit with the product as part of the claim a written description of the Hardware defect or Software
nonconformance in sucient detail to allow D-Link to conrm the same, along with proof of purchase of the product (such as a
copy of the dated purchase invoice for the product) if the product is not registered.
• The customer must obtain a Case ID Number from D-Link Technical Support (USA 1-877-453-5465 or Canada 1-800-361-5265), who
will attempt to assist the customer in resolving any suspected defects with the product. If the product is considered defective, the
customer must obtain a Return Material Authorization (“RMA”) number by completing the RMA form. Enter the assigned Case ID
Number at https://rma.dlink.com/ (USA only) or https://rma.dlink.ca (Canada only).
62D-Link DCS-2210/2230 User Manual
Warranty
• After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping package
o ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside of the package.
Do not include any manuals or accessories in the shipping package. D-Link will only replace the defective portion of the product
and will not ship back any accessories.
• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD
will either be rejected by D-Link or become the property of D-Link. Products shall be fully insured by the customer and shipped
to D-Link Systems, Inc.
• USA residents send to 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible for any packages that
are lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via UPS Ground or any common
carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link if you use an address in the United States, otherwise
we will ship the product to you freight collect. Expedited shipping is available upon request and provided shipping charges are
prepaid by the customer. D-Link may reject or return any product that is not packaged and shipped in strict compliance with the
foregoing requirements, or for which an RMA number is not visible from the outside of the package. The product owner agrees to
pay D-Link’s reasonable handling and return shipping charges for any product that is not packaged and shipped in accordance
with the foregoing requirements, or that is determined by D-Link not to be defective or non-conforming.
• Canadian residents send to D-Link Networks, Inc., 2525 Meadowvale Boulevard Mississauga, Ontario, L5N 5S2 Canada. D-Link will
not be held responsible for any packages that are lost in transit to D-Link. The repaired or replaced packages will be shipped to
the customer via Purolator Canada or any common carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link
if you use an address in Canada, otherwise we will ship the product to you freight collect. Expedited shipping is available upon
request and provided shipping charges are prepaid by the customer. D-Link may reject or return any product that is not packaged
and shipped in strict compliance with the foregoing requirements, or for which an RMA number is not visible from the outside of
the package. The product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product that is
not packaged and shipped in accordance with the foregoing requirements, or that is determined by D-Link not to be defective or
non-conforming. RMA phone number: 1-800-361-5265 Hours of Operation: Monday-Friday, 9:00AM – 9:00PM EST.
What Is Not Covered:
The Limited Warranty provided herein by D-Link does not cover:
Products that, in D-Link’s judgment, have been subjected to abuse, accident, alteration, modication, tampering, negligence, misuse, faulty installation,
lack of reasonable care, repair or service in any way that is not contemplated in the documentation for the product, or if the model or serial number
has been altered, tampered with, defaced or removed; Initial installation, installation and removal of the product for repair, and shipping costs;
Operational adjustments covered in the operating manual for the product, and normal maintenance; Damage that occurs in shipment, due to act
of God, failures due to power surge, and cosmetic damage; Any hardware, software, rmware or other products or services provided by anyone
other than D-Link; and Products that have been purchased from inventory clearance or liquidation sales or other sales in which D-Link, the sellers,
63D-Link DCS-2210/2230 User Manual
Warranty
or the liquidators expressly disclaim their warranty obligation pertaining to the product.
While necessary maintenance or repairs on your Product can be performed by any company, we recommend that you use only an Authorized D-Link
Service Oce. Improper or incorrectly performed maintenance or repair voids this Limited Warranty.
Disclaimer of Other Warranties:
EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER
INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY
SHALL BE LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. EXCEPT AS EXPRESSLY COVERED UNDER THE
LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE
PURCHASER OF THE PRODUCT.
Limitation of Liability:
TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL
OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER DIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK
STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT
IS CONNECTED WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK
FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF
THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF
THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT. THE MAXIMUM
LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT COVERED BY THE WARRANTY. THE FOREGOING
EXPRESS WRITTEN WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED
OR STATUTORY.
Governing Law:
This Limited Warranty shall be governed by the laws of the State of California. Some states do not allow exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This
Limited Warranty provides specic legal rights and you may also have other rights which vary from state to state.
Trademarks:
D-Link is a registered trademark of D-Link Corporation/D-Link Systems, Inc. Other trademarks or registered trademarks are the property of their
respective owners.
64D-Link DCS-2210/2230 User Manual
Warranty
Copyright Statement:
No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the
United States Copyright Act of 1976 and any amendments thereto. Contents are subject to change without prior notice.
Copyright ©2011 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference
by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
65D-Link DCS-2210/2230 User Manual
Warranty
If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted in indoor environment only.
IMPORTANT NOTICE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
The availability of some specic channels and/or operational frequency bands are country dependent and are rmware programmed at the factory
to match the intended destination. The rmware setting is not accessible by the end user.
For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link
oce.
Industry Canada Notice:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This device has been designed to operate with an antenna having a maximum gain of 2 dB. Antenna having a higher gain is strictly prohibited per
regulations of Industry Canada. The required antenna impedance is 50 ohms.
66D-Link DCS-2210/2230 User Manual
Registration
Registration
Registration
Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights.
Version 1.0
October 13, 2011
67D-Link DCS-2210/2230 User Manual
Loading...
