Page 1

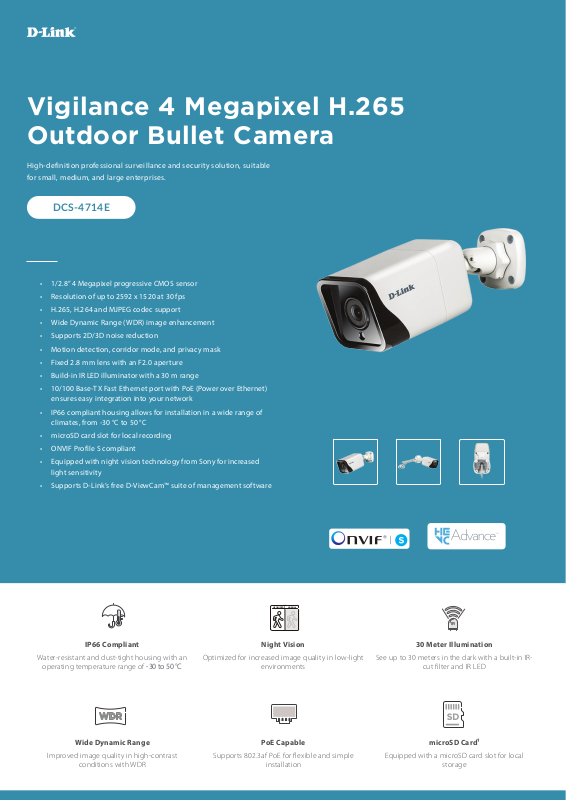

Vigilance 4 Megapixel H.265
Outdoor Bullet Camera
High-definition professional surveillance and security solution, suitable
for small, medium, and large enterprises.
DCS-4714E
• 1/2.8” 4 Megapixel progressive CMOS sensor
• Resolution of up to 2592 x 1520 at 30 fps
• H.265, H.264 and MJPEG codec support
• Wide Dynamic Range (WDR) image enhancement
• Supports 2D/3D noise reduction
• Motion detection, corridor mode, and privacy mask
• Fixed 2.8 mm lens with an F2.0 aperture
• Build-in IR LED illuminator with a 30 m range
• 10/100 Base-TX Fast Ethernet port with PoE (Power over Ethernet)
ensures easy integration into your network
• IP66 compliant housing allows for installation in a wide range of
climates, from -30 °C to 50 °C
• microSD card slot for local recording
• ONVIF Profile S compliant
• Equipped with night vision technology from Sony for increased
light sensitivity
• Supports D-Link’s free D-ViewCam™ suite of management software
IP66 Compliant Night Vision 30 Meter Illumination
Water-resistant and dust-tight housing with an
operating temperature range of
Wide Dynamic Range PoE Capable microSD Card1
Improved image quality in high-contrast
conditions with WDR
-30 to 50 °C
OPTIMIZED NORMAL
Optimized for increased image quality in low-light
environments
Supports 802.3af PoE for flexible and simple
installation
IR
See up to 30 meters in the dark with a built-in IR-
cut filter and IR LED
Equipped with a microSD card slot for local
storage
Page 2
Technical Specications
Camera
Camera Hardware Profile 1/2.8” 4-megapixel progressive CMOS sensor
Camera Housing IP66 certified weatherproof housing
Image Features Configurable image size/quality/frame rate/bit rate
Video Compression Simultaneous H.265/H.264/MJPEG format
Max. Video Resolution and
Frame Rate
External Device Interfaces microSD card slot
30 meter IR illumination distance
Minimum illumination:
Color: 0.05 lux @(F2.0, AGC ON)
B/W: 0 lux @(IR LED ON)
Built-in Infrared-Cut Removable (ICR) Filter module
18x digital zoom
Minimum object distance 0.5 m
Focal length: 2.8 mm
Aperture: F2.0
Angle of view:
(H) 100°
(V) 58°
(D) 126°
Wire-in bracket
Time stamp and text overlays
Configurable shutter speed/brightness/saturation/
contrast/sharpness/3D filter
Configurable motion detection area
Configurable privacy mask zones
Auto White Balance (AWB)
Auto Gain Control (AGC)
Wide Dynamic Range (WDR)
Corridor mode
compression
JPEG for still images
2592 x 1520 at up to 30 fps
Reset button
10/100 Base-TX Fast Ethernet port (supports 802.3af
PoE Class 3)
Ethernet
Jack
Power
Connector
/ DCS-4714E
Lens
Reset
Button
Adjustable
Mount
Network
Network Protocols IPv4
HTTP/HTTPS
RTSP/RTP/RTCP
TCP
UDP
DHCP
DNS
DDNS
NTP
FTP
SMTP Client
ONVIF Profile S compliant
ARP
ICMP
PPPoE
SNMP v1/v2c/v3
microSD Slot
Page 3
Technical Specications
System Management
Event Management Motion detection
Remote Management Remote management via D-ViewCam software
System Requirements for
Web Interface
D-ViewCam System
Requirements
D-ViewCam Software
Functions
Multiple event notifications
Event notification and uploading of snapshots via
e-mail or FTP
Video recording via microSD card, D-ViewCam, D-Link
NVR or ONVIF-compliant NAS
Remotely take snapshots/video clips
and save to a local hard drive
Configuration interface accessible
via a web browser
Operating System: Microsoft Windows
Browser: Internet Explorer 11 for full
function; Chrome and Firefox (MJPEG only)
Operating System: Windows 10
Protocol: Standard TCP/IP
Supports all management functions
provided in the web interface
Scheduled motion trigger or
manual recording options
Remote management of up to 64 cameras
Viewing of up to 64 cameras on one screen
/ DCS-4714E
187.6 mm
64 mm
General
Weight 560 g ± 5%
External Power Adapter 100 to 240 V AC, 50/60 Hz (Input),
12 V DC 1.5 A (Output)
Power Consumption 8 W ± 5% (PoE)
Operating Temperature -30 to 50 °C (-22 to 122 °F)
Storage Temperature -20 to 70˚ C (-4 to 158 °F)
Operating/Storage Humidity Max. 90% non-condensing
Dimension 187.6 x 64 x 64 mm (7.4 x 2.5 x 2.5 in)
Certifications CE, FCC, RCM
Order Information
DCS-4714E Vigilance 4 Megapixel H.265 Outdoor Bullet Camera
Hardware Version A
1
microSD card not included. Supports capacity up to 256 GB.
Page 4
Optional Accessories
Mounts
Model Name Pole-Mount Bracket Junction Box
Model Number DCS-37-4 DCS-37-6
Product Image
Dimensions (L x W x H) L121 × W52 × H120 mm ø121 × H46 mm
Weight 470 g 420 g
Maximum Load 3 kg 3 kg
Material Metal Metal
/ DCS-4714E
HQ | No. 289, Xinhu 3rd Road, Neihu District, Taipei 11494
Specifications are subject to change without notice. © 2020 D-Link. All Rights Reserved. D-Link and the D-Link logo are trademarks
or registered trademarks of D-Link. All other third-party marks mentioned herein may be trademarks of their respective owners.
