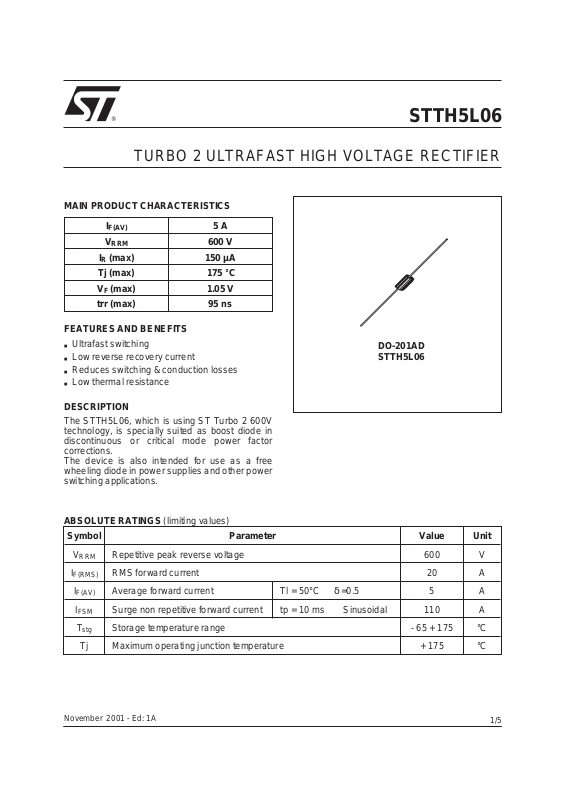

TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER
MAIN PRODUCT CHARACTERISTICS
STTH5L06
I
F(AV)
V
RRM
(max) 150 µA
I
R
5A
600 V
Tj (max) 175 °C
(max) 1.05 V
V
F
trr (max) 95 ns
FEATURES AND BENEFITS
Ultrafast switching
■
■ Low reverse recovery current
■ Reduces switching & conduction losses
Low thermal resistance
■
DESCRIPTION
The STTH5L06, which is using ST Turbo 2 600V
technology, is specially suited as boost diode in
discontinuous or critical mode power factor
corrections.
The device is also intended for use as a free
wheeling diode in powersupplies and other power
switching applications.
DO-201AD
STTH5L06
ABSOLUTE RATINGS (limiting values)
Symbol Parameter Value Unit
V
RRM
I
F(RMS)
I
F(AV)
I
FSM
T
stg
Repetitive peak reverse voltage 600 V
RMS forward current 20 A
Average forward current Tl = 50°C δ =0.5 5 A
Surge non repetitive forward current tp = 10 ms Sinusoidal 110 A
Storage temperature range - 65 + 175 °C
Tj Maximum operating junction temperature + 175 °C
November 2001 - Ed: 1A
1/5
Page 2
STTH5L06
THERMAL PARAMETERS
Symbol Parameter Maximum Unit
R
th (j-l)
R
th (j-a)
Note 1: withrecommended pad layout (see Fig. 12)
Junction to lead L = 10mm 20 °C/W
Junction to ambient (note 1) L = 10mm 75
STATIC ELECTRICAL CHARACTERISTICS
Symbol Parameter Tests conditions Min. Typ. Max. Unit
I
R
V
Reverse leakage
current
Forward voltage drop IF= 5 A Tj = 25°C 1.3 V
F
VR= 600V Tj = 25°C 5 µA
Tj = 150°C 25 150
Tj = 150°C 0.85 1.05
To evaluate the maximum conduction losses use the following equation :
P=0.89xI
F(AV)
+ 0.033 I
F2(RMS)
DYNAMIC ELECTRICAL CHARACTERISTICS
Symbol Parameter Tests conditions Min. Typ. Max. Unit
trr Reverse recovery
time
tfr Forward recovery
time
V
FP
Forward recovery
time
=1A dIF/dt=-50A/µs
I
F
Tj = 25°C 65 95 ns
VR= 30V
I
=5A dIF/dt = 100 A/µs
F
Tj = 25°C 150 ns
VFR=1.1xVFmax
IF=5A dIF/dt = 100 A/µs Tj = 25°C 7 V
2/5
Page 3
STTH5L06

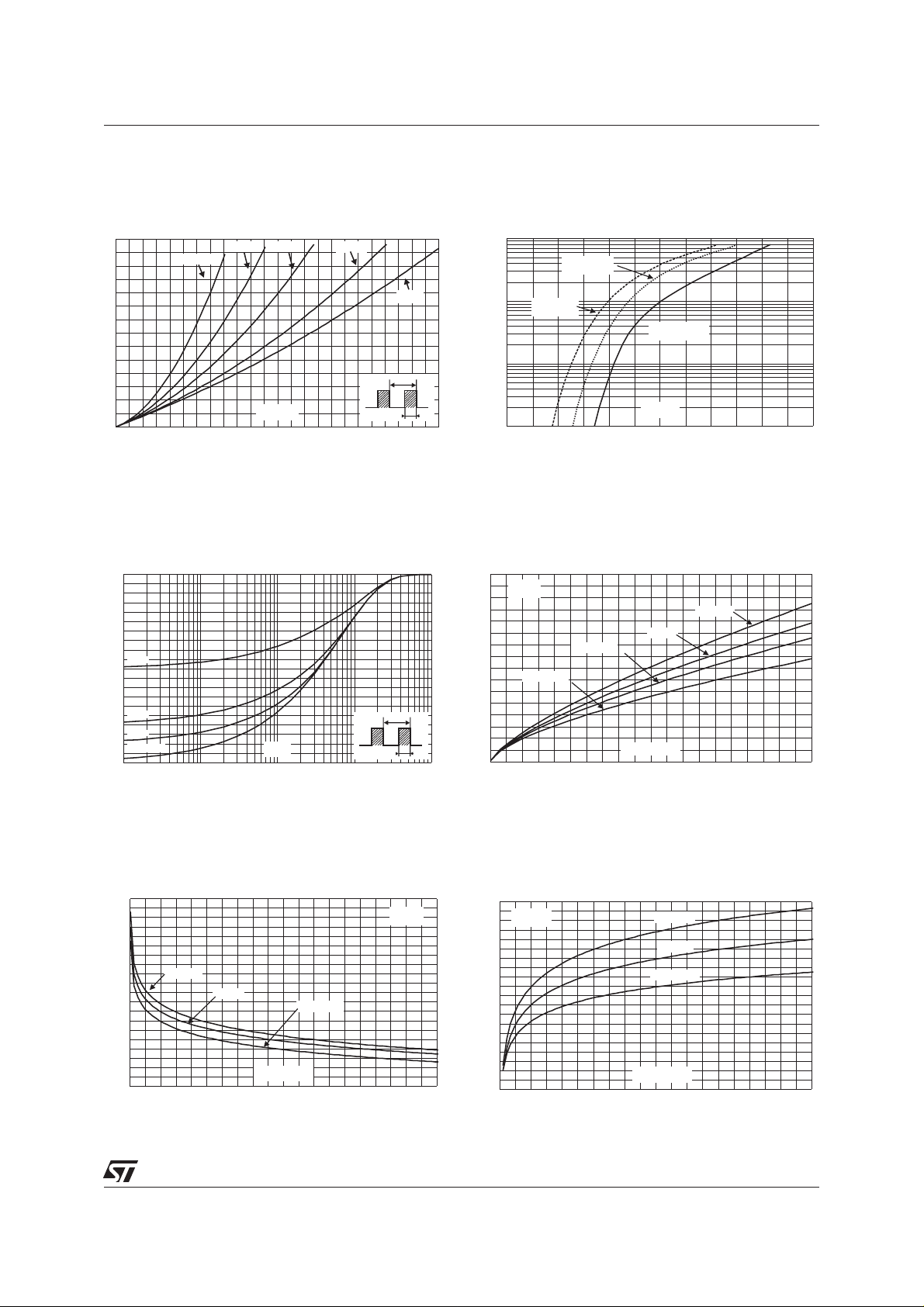

Fig.1: Conduction lossesversusaverage current.
P(W)
7
6
5
4
3
2
1
0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
δ = 0.05
δ = 0.1
δ = 0.2
IF(av)(A)
δ = 0.5
δ
=tp/T
δ = 1
T
tp
Fig. 3: Relative variation of thermal impedance
junction ambient versus pulse duration
(DO-201AD, epoxy FR4, Lleads = 10mm).)
Zth(j-a)/Rth(j-a)
1.0
0.9
0.8
0.7
0.6
δ = 0.5
0.5
0.4
0.3
δ = 0.2
0.2
δ = 0.1
0.1
Single pulse
0.0
1.E-01 1.E+00 1.E+01 1.E+02 1.E+03
tp(s)
δ
=tp/T
T
tp
Fig. 2: Forward voltage drop versus forward
current.
IFM(A)
100.0
Tj=150°C
Tj=150°C
(Maximum values)
(Maximum values)
10.0
1.0
Tj=150°C
Tj=150°C
(Typical values)
(Typical values)
Tj=25°C
(Maximum values)
VFM(V)
0.1
0.0 0.5 1.0 1.5 2.0 2.5 3.0
Fig.4:Peak reverse recoverycurrentversus dIF/dt
(90% confidence).
IRM(A)
8
VR=400V
Tj=125°C
7
6
5
4
IF=0.25 x IF(av)IF=0.25 x IF(av)
3
2
1
0
0 102030405060708090100
IF=0.5 x IF(av)IF=0.5 x IF(av)
IF=IF(av)IF=IF(av)
dIF/dt(A/µs)
IF=2 x IF(av)IF=2 x IF(av)
Fig. 5: Reverse recovery time versus dIF/dt
(90% confidence).
trr(ns)
1000
900
800
700
600
500
400
300
200
100
0
IF=2 x IF(av)IF=2 x IF(av)
IF=IF(av)IF=IF(av)
IF=0.5 x IF(av)IF=0.5 x IF(av)
dIF/dt(A/µs)
0 102030405060708090100
VR=400V
Tj=125°C
Fig. 6: Reverse recovery charges versus dIF/dt
(90% confidence).
Qrr(nC)
500
VR=400V
450
Tj=125°C
400
350
300
250
200
150
100
50
0
0 102030405060708090100
IF=2 x IF(av)
IF=IF(av)
IF=0.5 x IF(av)
dIF/dt(A/µs)
3/5
Page 4
STTH5L06

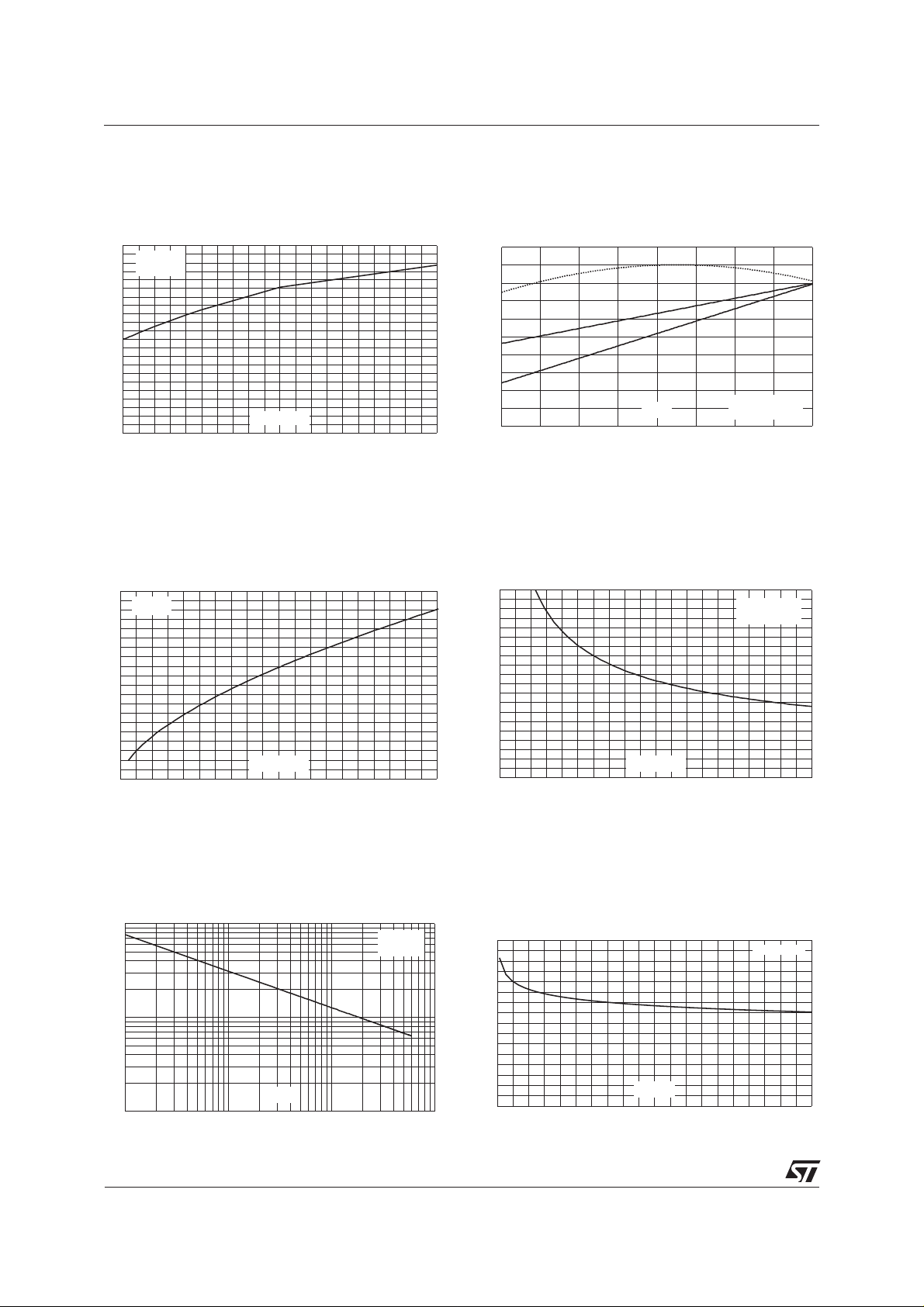

Fig. 7: Softness factor versus dIF/dt (typical
values).
S factor
2.4
IF=IF(av)
VR=400V
2.2
Tj=125°C
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0 102030405060708090100
dIF/dt(A/µs)
Fig. 9: Transient peak forward voltage versus
/dt (90% confidence).
dI
F
VFP(V)
10
IF=IF(av)
Tj=125°C
9
8
7
6
5
4
3
2
1
0
0 20 40 60 80 100 120 140 160 180 200
dIF/dt(A/µs)
Fig. 8: Relative variations of dynamic
parameters versus junction temperature.
1.25
1.00
0.75
0.50
0.25
0.00
25 50 75 100 125
S factor
IRM
QRR
Tj(°C)
IF=IF(av)
VR=400V
Reference: Tj=125°C
Fig. 10: Forward recovery time versus dIF/dt
(90% confidence).
tfr(ns)
200
180
160
140
120
100
80
60
40
20
0
0 20 40 60 80 100 120 140 160 180 200
dIF/dt(A/µs)
IF=IF(av)
VFR=1.1 x VF max.
Tj=125°C
Fig. 11: Junction capacitance versus reverse
voltage applied (typical values).
C(pF)
100
10
VR(V)
1
1 10 100 1000
4/5
F=1MHz
Vosc=30mV
Tj=25°C
Fig. 12: Thermal resistance junction to ambient
versus copper surface under each lead (Epoxy
printedcircuitboard FR4, copperthickness: 35µm)
Rth(j-a) (°C/W)
80
70
60
50
40
30
20
10
0
012345678910
S(cm²)
L lead=10mm
Page 5

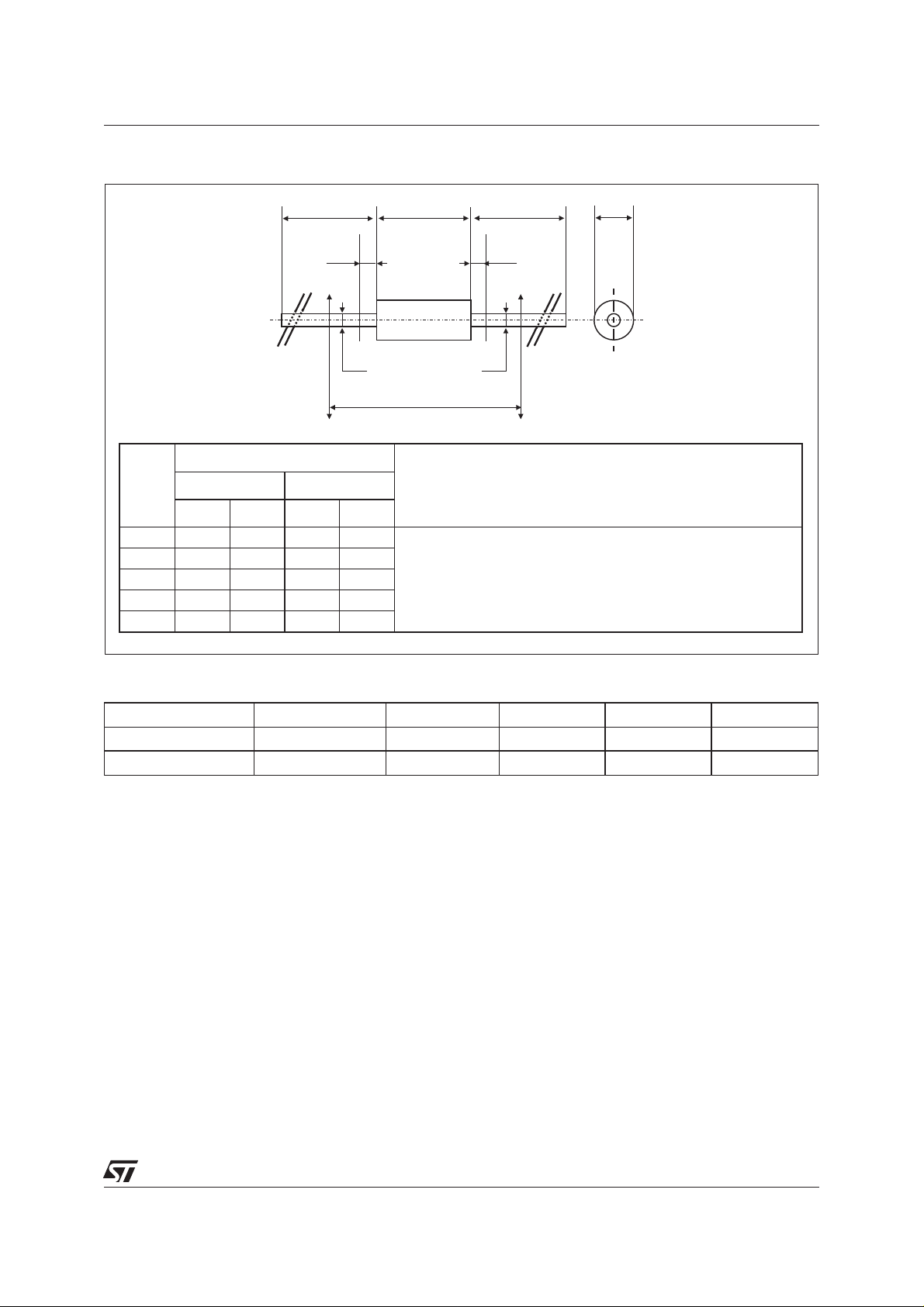

PACKAGE MECHANICAL DATA
DO-201AD
STTH5L06
BA
note 1
DIMENSIONS
REF.
Min. Max. Min. Max.
A 9.50 0.374
B 25.40 1.000
C 5.30 0.209
D 1.30 0.051
E 1.25 0.049
E
ØD ØD
note 2
E
1 - The lead diameter ∅ D is not controlled over zone E
2 - The minimum length which must stay straight be-
tween the right angles after bending is 0.59"(15 mm)
note 1
B
ØC
NOTESMillimeters Inches
Ordering code Marking Package Weight Base qty Delivery mode
STTH5L06 STTH5L06 DO-201AD 600 Ammopack
STTH5L06RL STTH5L06 DO-201AD 1900 Tape & reel
■
Epoxy meets UL 94,V0
■
Lead bending and cutting: refer to ST application note AN1471
