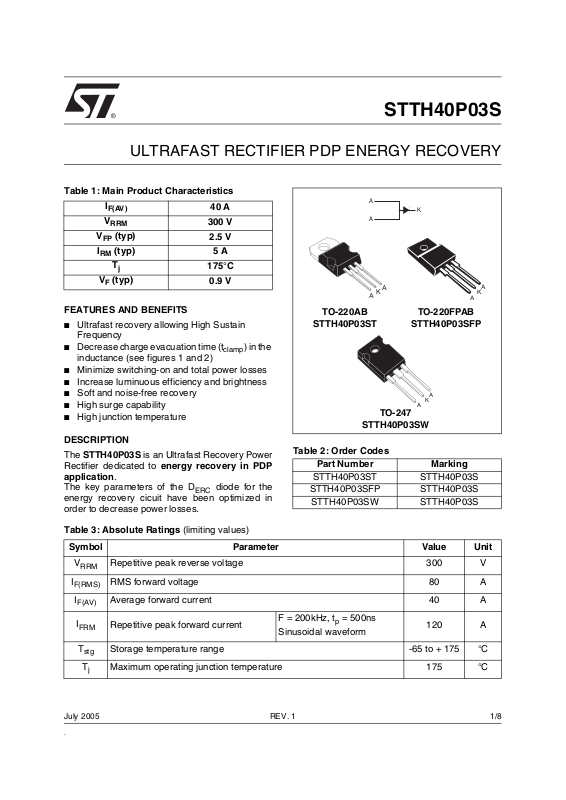

Datasheet STTH40P03S Datasheet (ST)

®

STTH40P03S

ULTRAFAST RECTIFIER PDP ENERGY RECOVERY

Table 1: Main Product Characteristics

V

I

FP

RM

V

I

F(AV)

V

RRM

(typ)

T

(typ)

F

j

40 A

300 V

2.5 V

5 A

175°C

0.9 V

FEATURES AND BENEFITS

■ Ultrafast recovery allowing High Sustain

Frequency

■ Decrease charge evacuation time (t

clamp

) in the

inductance (see figures 1 and 2)

■ Minimize switching-on and total power losses

■ Increase luminuous efficiency and brightness

■ Soft and noise-free recovery

■ High surge capability

■ High junction temperature

DESCRIPTION

The STTH40P03S is an Ultrafast Recovery Power Rectifier dedicated to energy recovery in PDP application. The key parameters of the D

diode for the

ERC

energy recovery cicuit have been optimized in order to decrease power losses.

A

TO-220AB

STTH40P03ST

A

K

TO-220FPAB

STTH40P03SFP

A

K

A

TO-247

STTH40P03SW

Table 2: Order Codes

Part Number Marking

STTH40P03ST STTH40P03S

STTH40P03SFP STTH40P03S

STTH40P03SW STTH40P03S

A

K

A

Table 3: Absolute Ratings (limiting values)

Symbol Parameter Value Unit

V

RRM

I

F(RMS)

I

F(AV)

I

FRM

T

July 2005 REV. 1

.

Repetitive peak reverse voltage 300 V

RMS forward voltage 80 A

Average forward current 40 A

Repetitive peak forward current

Storage temperature range -65 to + 175 °C

stg

Maximum operating junction temperature 175 °C

j

F = 200kHz, t Sinusoidal waveform

= 500ns

p

120 A

1/8

STTH40P03S

Table 4: Thermal Parameters

Symbol Parameter Value Unit

R

Z

th(j-c)

Junction to case

Transient thermal resistance at 1µs 0.002 °C/W

Table 5: Static Electrical Characteristics

Symbol Parameter Test conditions Min. Typ Max. Unit

*

I

R

V

F

Pulse test: * tp = 5 ms, δ < 2%

To evaluate the conduction losses use the following equation: P = 0.88 x I

Reverse leakage current

**

Forward voltage drop

** tp = 380 µs,

δ < 2%

TO-220AB / TO-247 1.15

TO-220FPAB 4.5

= 25°C VR = V

T

j

T

= 125°C 0.05 0.5 mA

j

= 25°C

T

j

T

= 125°C

j

= 25°C

T

j

T

= 125°C

j

I

= 20A

F

= 40A

F

F(AV)

RRM

+ 0.0135 I

0.9 1.15

1.1 1.8

F2(RMS)

50

1.5

1.42

°C/W

µA

V

Table 6: Switching Characteristics

Symbol Parameter Test conditions Min. Typ Max. Unit

S

I

RM

factor

Reverse recovery current

Softness factor 0.5 -

Tj = 100°C IF = 40A VR = 100V

dI

/dt = 200 A/µs

F

56.5 A

2/8

Figure 1: Application Characteristics

STTH40P03S

V/2

C

S

Figure 2: Application Waveforms

I

RM

V

DERC

V

S

D

CL

2

T

2

T

1

D

ERC

2

D

ERC

1

V

DERC

1

D

CL

1

V

S

T

3

L

i

L

C

T

panel

4

V

Cpanel

GND

i

L

P

t

clamp

I

DERC

1

t

1

p

V

FP

V

F

V/2

S

Figure 3: Forward voltage drop versus forward current

I (A)

FM

200

180

160

140

120

100

80

60

40

20

0

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0

T =125°C

j

(typical values)

T =125°C

j

(maximum values)

V (V)

FM

T =25°C

j

(maximum values)

t

Figure 4: Relative variation of thermal impedance junction to case versus pulse duration (TO-220AB / TO-247)

Z/R

th(j-c) th(j-c)

1.0

TO-220AB TO-247

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

Single pulse

0.1

0.0

1.E-04 1.E-03 1.E-02 1.E-01 1.E+00

t (s)

p

3/8

STTH40P03S

Figure 5: Relative variation of thermal impedance junction to case versus pulse duration (TO-220FPAB)

Z/R

th(j-c) th(j-c)

1.0

TO-220FPAB

0.9

0.8

0.7

0.6

0.5

0.4

0.3

Single pulse

0.2

0.1

0.0

1.E-03 1.E-02 1.E-01 1.E+00 1.E+01

Figure 7: Reverse recovery time versus dI

t (s)

p

/dt

F

(typical values)

t (ns)

rr

60

55

50

45

40

35

30

25

20

15

10

5

0

0 100 200 300 400 500 600 700 800 900 1000

dI /dt(A/µs)

F

II

≤

F F(AV)

V =100V

R

T =100°C

j

Figure 6: Peak reverse recovery current versus dI

/dt (typical values)

F

I (A)

RM

20

II

≤

F F(AV)

18

V =100V

R

T =100°C

j

16

14

12

10

8

6

4

2

0

0 100 200 300 400 500 600 700 800 900 1000

dI /dt(A/µs)

F

Figure 8: Reverse recovery softness factor versus dI

S factor

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0 100 200 300 400 500 600 700 800 900 1000

/dt (typical values)

F

II

≤

F F(AV)

V =100V

R

T =100°C

j

dI /dt(A/µs)

F

Figure 9: Relative variations of dynamic parameters versus junction temperature

2.8

2.6

2.4

2.2

2.0

1.8

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2

0.0

20 30 40 50 60 70 80 90 100

I

RM

S factor

T (°C)

j

4/8

I=I

FF(AV)

V =100V

R

Reference:T =100°C

j

Figure 10: Transient peak forward voltage versus dI

V (V)

7.0

6.5

6.0

5.5

5.0

4.5

4.0

3.5

3.0

2.5

2.0

1.5

1.0

0.5

0.0

0 100 200 300 400 500 600 700 800 900 1000

/dt (typical values)

F

FP

I=I

F F(AV)

T =100°C

j

dI /dt(A/µs)

F

STTH40P03S

Figure 11: Forward recovery time versus dI

/dt

F

(typical values)

t (ns)

fr

300

250

200

150

100

50

dI /dt(A/µs)

0

0 100 200 300 400 500 600 700 800 900 1000

F

I=I

F F(AV)

V =1.1 x V max.

FR F

T =100°C

j

Figure 12: TO-220FPAB Package Mechanical Data

A

H

L6

L2

L3

L5

L4

G1

G

F1

F2

F

B

Dia

L7

D

E

DIMENSIONS

REF.

Millimeters Inches

Min. Max. Min. Max.

A 4.4 4.6 0.173 0.181

B 2.5 2.7 0.098 0.106

D 2.5 2.75 0.098 0.108

E 0.45 0.70 0.018 0.027

F 0.75 1 0.030 0.039

F1 1.15 1.70 0.045 0.067

F2 1.15 1.70 0.045 0.067

G 4.95 5.20 0.195 0.205

G1 2.4 2.7 0.094 0.106

H 10 10.4 0.393 0.409

L2 16 Typ. 0.63 Typ.

L3 28.6 30.6 1.126 1.205

L4 9.8 10.6 0.386 0.417

L5 2.9 3.6 0.114 0.142

L6 15.9 16.4 0.626 0.646

L7 9.00 9.30 0.354 0.366

Dia. 3.00 3.20 0.118 0.126

5/8

STTH40P03S

Figure 13: TO-247 Package Mechanical Data

V

F3

Dia.

A

L4L2

F2

L1

L3

D

ME

V

H

L5

L

F1

V2

F(x3)

= =

F4

G

DIMENSIONS

REF.

Millimeters Inches

Min. Typ. Max. Min. Typ. Max.

A 4.85 5.15 0.191 0.203

D 2.20 2.60 0.086 0.102

E 0.40 0.80 0.015 0.031

F 1.00 1.40 0.039 0.055

F1 3.00 0.118

F2 2.00 0.078

F3 2.00 2.40 0.078 0.094

F4 3.00 3.40 0.118 0.133

G 10.90 0.429

H 15.45 15.75 0.608 0.620

L 19.85 20.15 0.781 0.793

L1 3.70 4.30 0.145 0.169

L2 18.50 0.728

L3 14.20 14.80 0.559 0.582

L4 34.60 1.362

L5 5.50 0.216

M 2.00 3.00 0.078 0.118

V5° 5°

V2 60° 60°

Dia. 3.55 3.65 0.139 0.143

6/8

Figure 14: TO-220AB Package Mechanical Data

H2

Dia

L5

L6

L2

F2

F1

F

G1

G

L9

L4

A

C

L7

D

M

E

STTH40P03S

DIMENSIONS

REF.

A 4.40 4.60 0.173 0.181

C 1.23 1.32 0.048 0.051

D 2.40 2.72 0.094 0.107

E 0.49 0.70 0.019 0.027

F 0.61 0.88 0.024 0.034

F1 1.14 1.70 0.044 0.066

F2 1.14 1.70 0.044 0.066

G 4.95 5.15 0.194 0.202

G1 2.40 2.70 0.094 0.106

H2 10 10.40 0.393 0.409

L2 16.4 typ. 0.645 typ.

L4 13 14 0.511 0.551

L5 2.65 2.95 0.104 0.116

L6 15.25 15.75 0.600 0.620

L7 6.20 6.60 0.244 0.259

L9 3.50 3.93 0.137 0.154

M 2.6 typ. 0.102 typ.

Diam. 3.75 3.85 0.147 0.151

Millimeters Inches

Min. Max. Min. Max.

Table 7: Ordering Information

Ordering type Marking Package Weight Base qty Delivery mode

STTH40P03ST STTH40P03S TO-220AB 2.23 g 50 Tube

STTH40P03SFP STTH40P03S TO-220FPAB 2.0 g 50 Tube

STTH40P03SW STTH40P03S TO-247 4.36 g 30 Tube

■ Epoxy meets UL94, V0

■ Cooling method: by conduction (C)

■ Recommended torque value: 0.55 m.N.

■ Maximum torque value: 0.70 m.N.

Table 8: Revision History

Date Revision Description of Changes

06-Jul-2005 1 First issue.

7/8

STTH40P03S
